HISTORY OF THE MERUEM

Meruem is a humanoid Ant-Chimera. Since his birth, he is extremely aggressive and shows mainly the cruel nature of ants. He tore his cocoon ahead of time and killed his mother, the Queen of ants. He did it with cool-headedness and absolute indifference. He kills with one blow those who are not pleasant to him. He is also very curious and learning new skills really fast. All the work for him is carried out by the Royal Guardsmen because he is a future King. To the delight of the fans of this anime, he finally appears in our marketplace as a model for 3D printing.

ABOUT THIS 3D MINIATURE

The model is saved in STL files, a format supported by most 3D printers.

Features:
- Contains 10 parts.

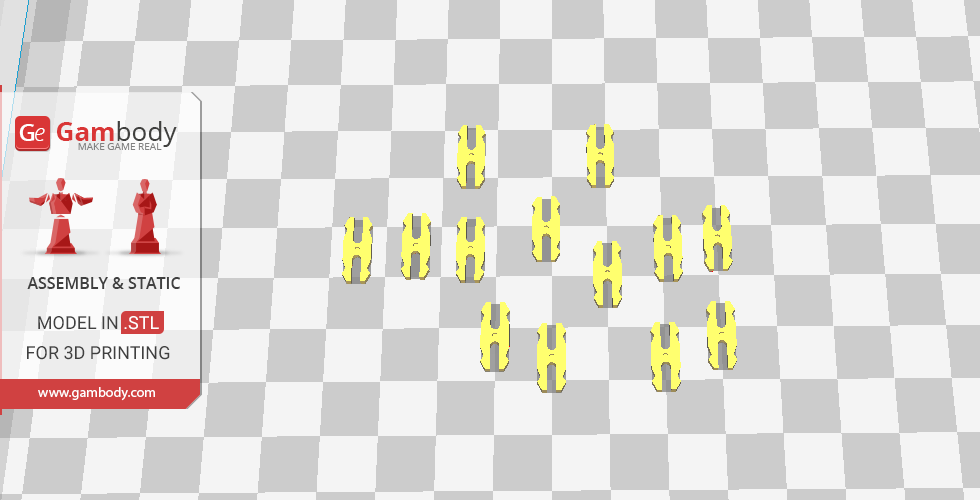

- Made with locks. One part of Lock you need to print 12 times;
- Removable part of platfrom;
- Contains one-piece model;
- All parts are divided in such way that you will print them with the smallest amount of supports.

STL files for 3D printing has been checked in Netfabb and no errors were shown.

Note: Before starting 3D printing the model, read the Printing Details for CURA 3.1.0. Software.

Dimensions: After being printed will stand: 193 mm tall, 90 mm wide, 140 mm deep;

WHAT WILL YOU GET AFTER PURCHASE?

- .STL file of Meruem for 3D printing.

- High-poly detailed miniature of Meruem.

- Detailed settings that we provide for Cura 3.1.0. for the best print.

- Full technical support from the Gambody Support Team.

Watch the tutorial video about Meruem 3D Printing Miniature at Gambody YouTube channel.

You can get Model of Meruem for 3D Printing right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Also, you may like other 3D Miniatures of anime heroes.

_______
FAQ:
Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

This model was tested in Cura 3.1.0. and printed on an Ultimaker 2 in PLA material.

Recommendations: For all parts of Locks you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

To avoid printing problems, we recommend the following settings:

Quality

Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Slicing Tolerance: Middle
Line Width: 0.4 mm
Wall Line Width: 0.4 mm
   Outer Wall Line Width: 0.4 mm
   Inner Wall(s) Line Width: 0.4 mm
   Top/Bottom Line Width: 0.4 mm
   Infill Line Width: 0.4 mm
   Skirt/Brim Line Width: 0.4 mm
   Support Line Width: 0.4 mm
 Initial Layer Line Width: 100%

Shell

Wall Thickness: 0.8 mm
Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Sharpest Corner
Seam Corner Preference: Hide Seam
Ignore Small Z Gaps: Check
Extra Skin Wall Count: 1

Infill

Infill Density: 20%
Infill Line Distance: 4.0 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Overlap Percentage: 10%
    Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Removal Width: 0.8 mm
    Top Skin Removal Width: 0.8 mm
    Bottom Skin Removal Width: 0.8 mm
Skin Expand Distance: 0.8
    Top Skin Expand Distance: 0.8
    Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90˚
    Minimum Skin Width for Expansion: 0.0

Material

Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed

Print Speed: 45 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 22.5 mm/s
      Outer Wall Speed: 22.5 mm/s
      Inner Wall Speed: 45 mm/s
    Top/Bottom Speed: 15 mm/s
    Support Speed: 45 mm/s
      Support Infill Speed: 45 mm/s
Travel Speed: 80 mm/s
Initial Layer Speed: 15 mm/s

    Initial Layer Print Speed: 15 mm/s
    Initial Layer Travel Speed: 26.6667 mm/s
Skirt/Brim Speed: 15 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel

Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.625 mm
Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.3 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support

Generate Support: Check
Support Placement: Everywhere
Support Overhang Angle: 60°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 1.3333 mm
Support Z Distance: 0.3 mm
    Support Top Distance: 0.3 mm
    Support Bottom Distance: 0.3 mm
Support X/Y Distance: 0.7 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.2 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion

Build Plate Adhesion Type: Brim (for all parts of locks use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 18
Brim Only on Outside: Check

Mesh Fixes

Union Overlapping Volumes: Check
Maximum Resolution: 0.01 mm
Merged Meshes Overlap: 0.15 mm

Special Modes

Print Sequence: All at Once
Surface Mode: Normal

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
