Anycubic Mono 4K 3D Printer + Gizmo + Evil Gremlins + Grinch

ABOUT THIS BUNDLE

Provided by the terms of Gambody & Anycubic Collaboration, this bundle offer allows you to purchase a high-resolution Mono 4K Resin 3D Printer by Anycubic together with several high-quality, highly detailed 3D printing models by Gambody contributing 3D artists.

IMPORTANT: After the purchase, your shipping information will be delivered to Anycubic 3D printer manufacturer, who will take care of the Mono 4K printer’s shipping and provide the tracking number. All updates will be provided by Gambody Team from support@gambody.com. The delivery of the Mono 4K 3D printer is expected approximately within 3 weeks after placing the order.

ABOUT THE 3D PRINTER

Anycubic Photon Mono 4K 3D printer is a high-resolution resin 3D printer by Anycubic that will bring your 3D printing projects to a new level. The 3D printer is equipped with an industry-leading 4K screen that will provide exceptional printing quality for your highly-detailed Gambody 3D prints! Convenient light power regulation, increased printing speed, world-renowned quality by Anycubic and friendly price will add to your creative freedom and enjoyable hobby pastime.

A detailed description of the 3D printer and main specs are provided on Anycubic's Official Website.

ABOUT 3D PRINTING MODELS

Grinch, Gizmo and Evil Gremlins models for 3D Printing were carefully designed by our talented contributing 3D artists and thoroughly moderated and adapted for 3D printing by Gambody team. This bundle comprises the DLP/SLA version that are specifically adapted to be printed on resin 3D printers such as the Anycubic Photon Mono 4K. The process of adaptation presupposes that practical aspects of printing the model using the DLP/SLA/LCD technology are taken into account, and the model's scale and cutting are chosen to ensure an optimum result of printing.

3D PRINTING MODELS' SPECIFICATIONS

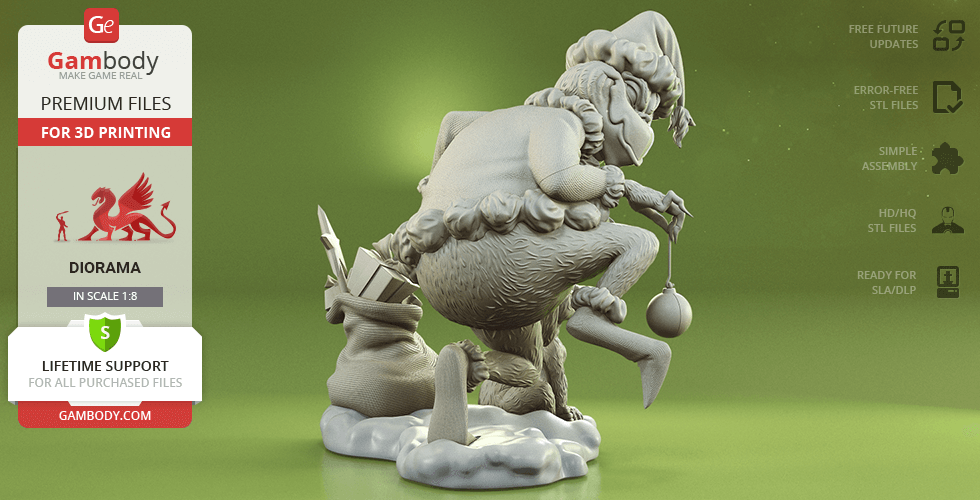

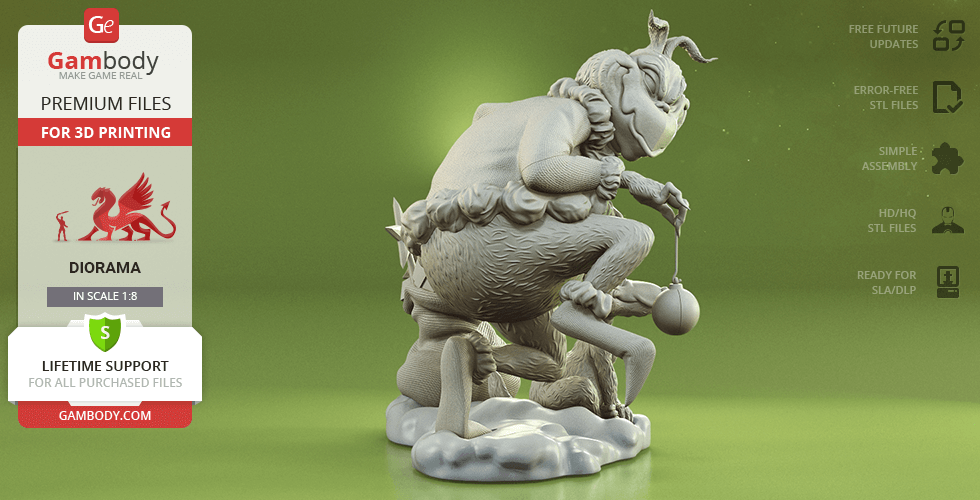

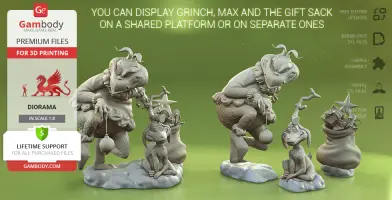

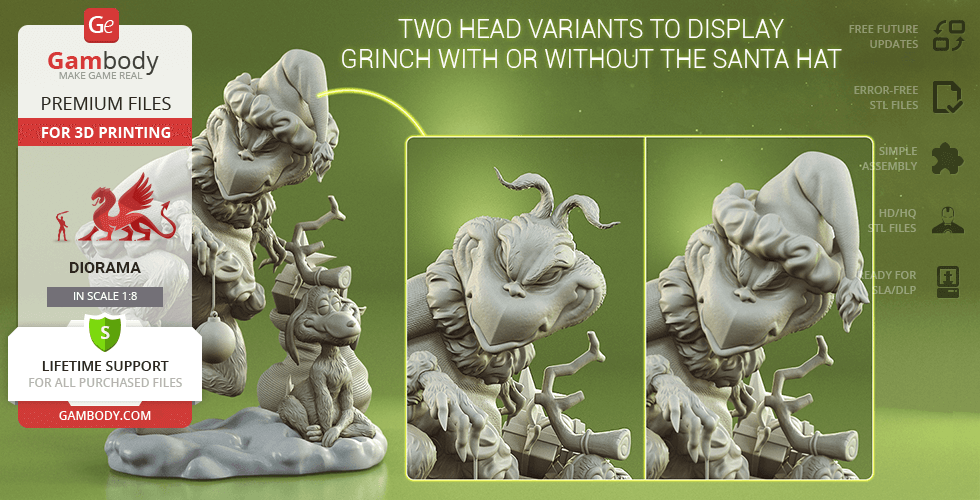

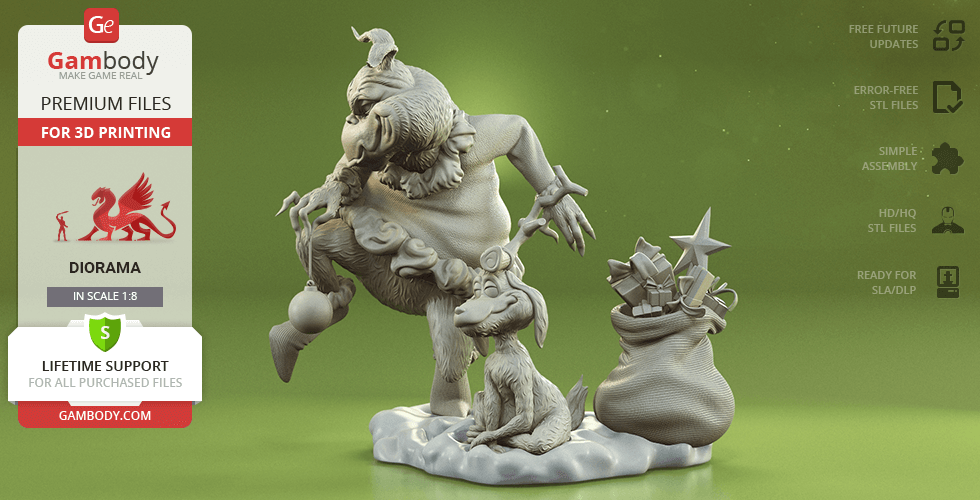

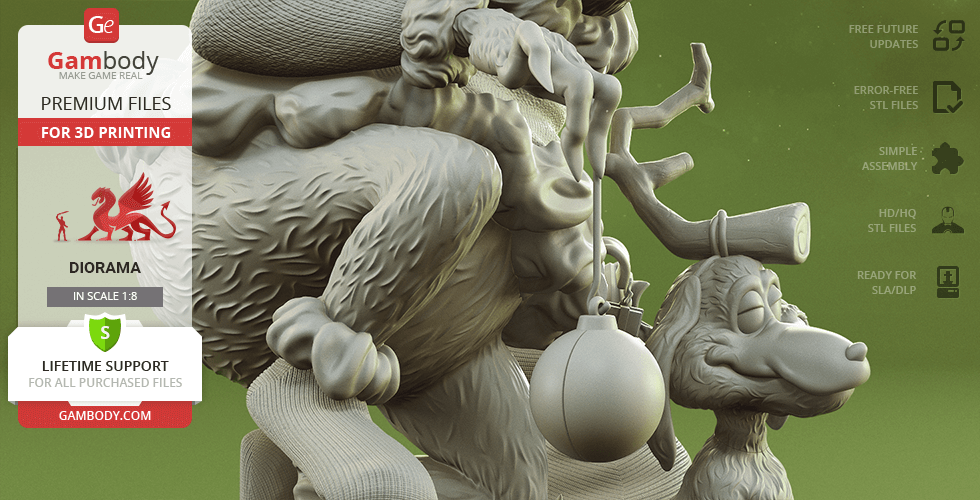

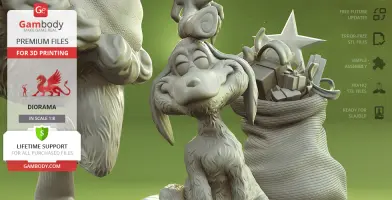

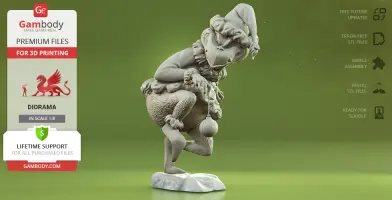

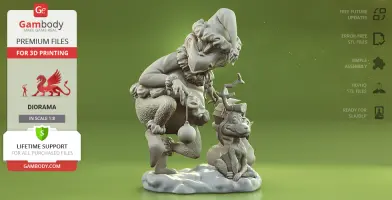

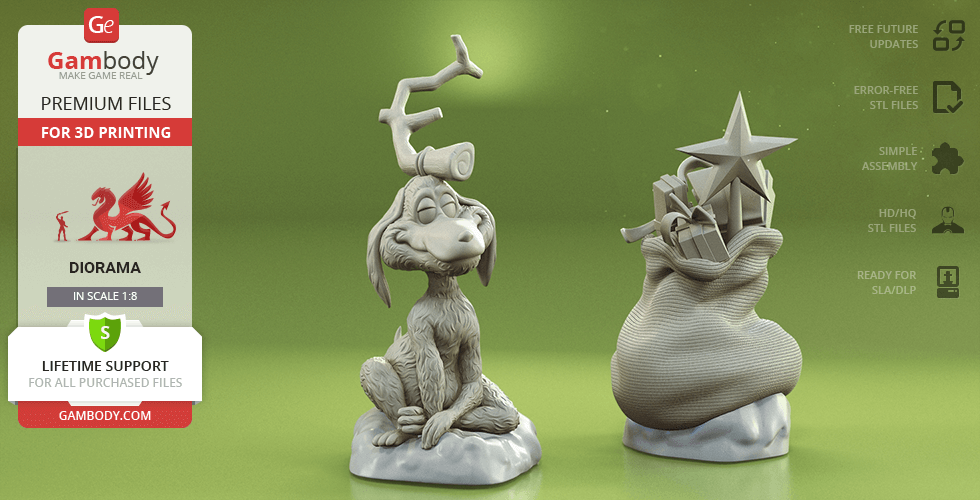

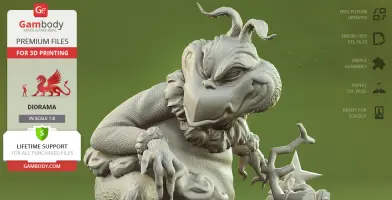

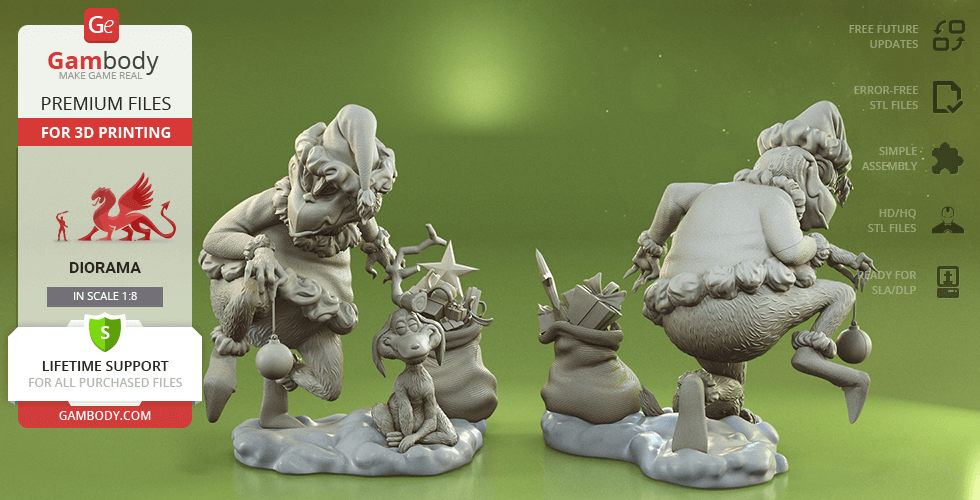

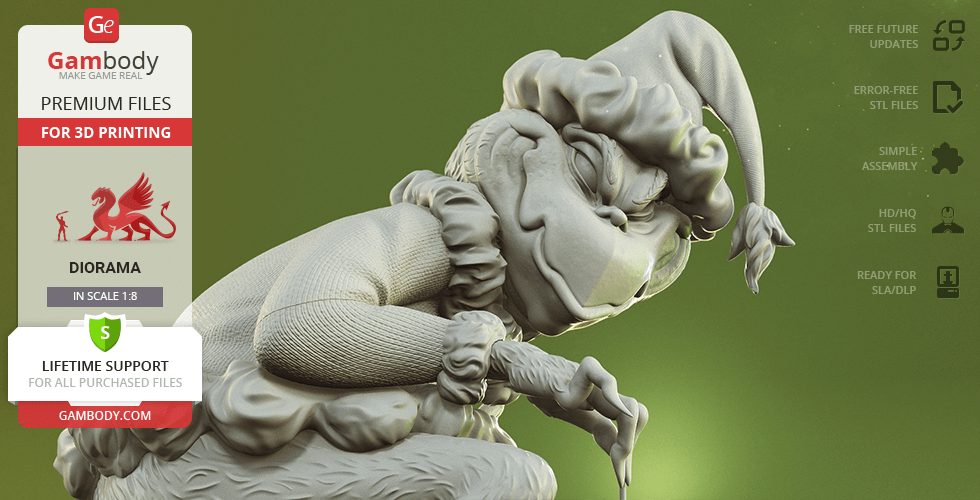

Grinch 3D Printing Figurine:
DLP/SLA version features:

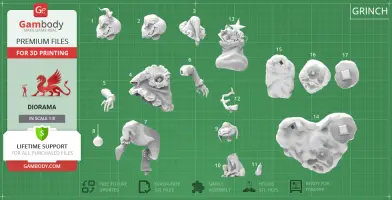

- Contains 9 parts;

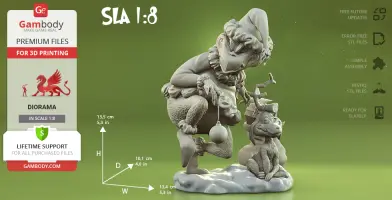

- A printed model is 130 mm tall, 114 mm wide, 76 mm deep;
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

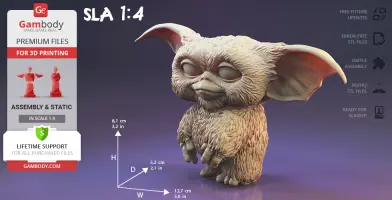

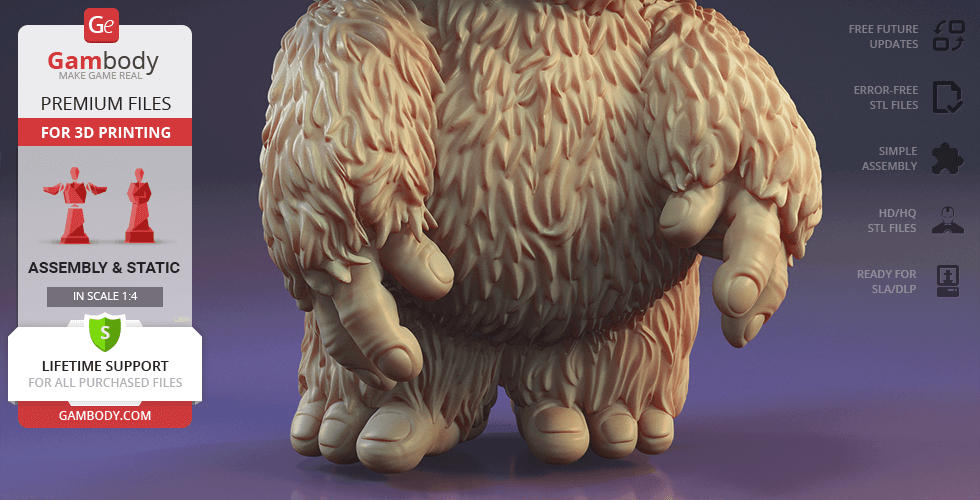

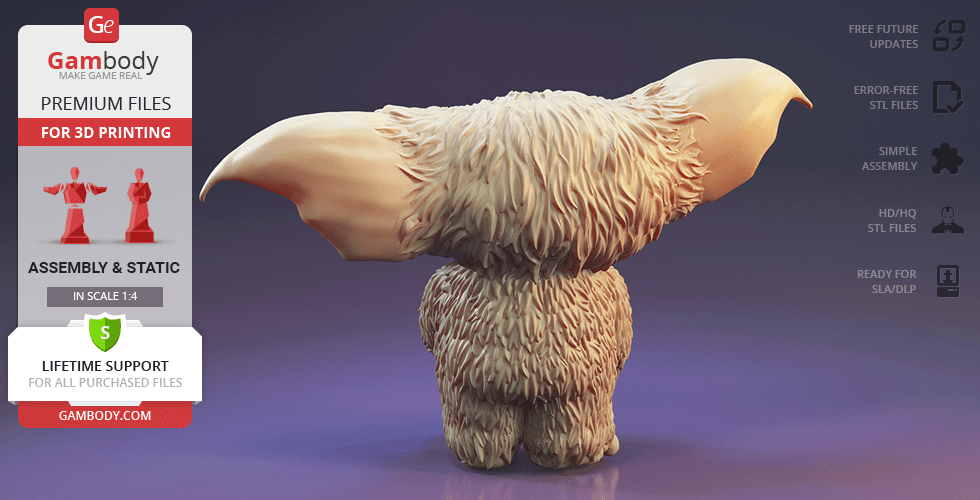

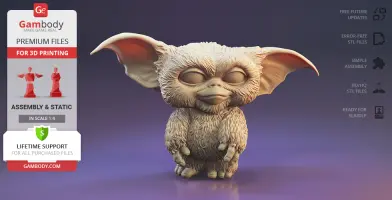

Gizmo 3D Printing Figurine:

DLP/SLA version features:

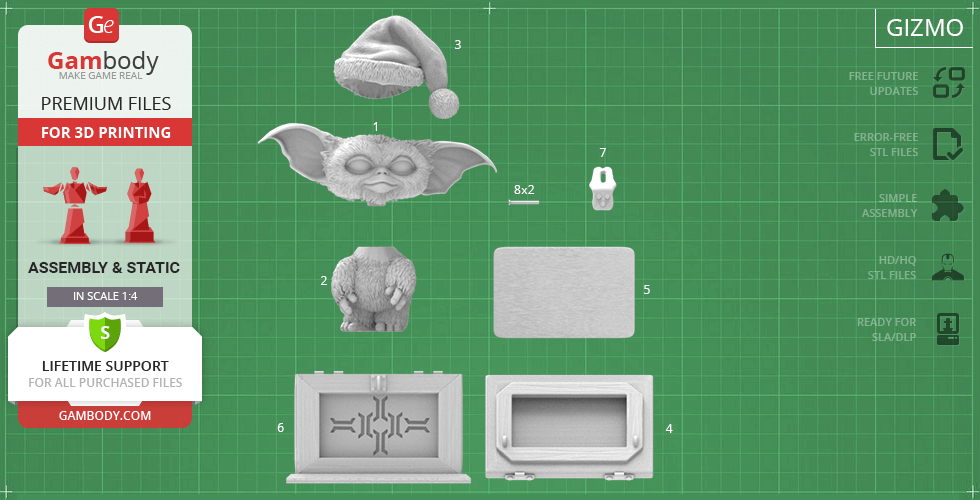

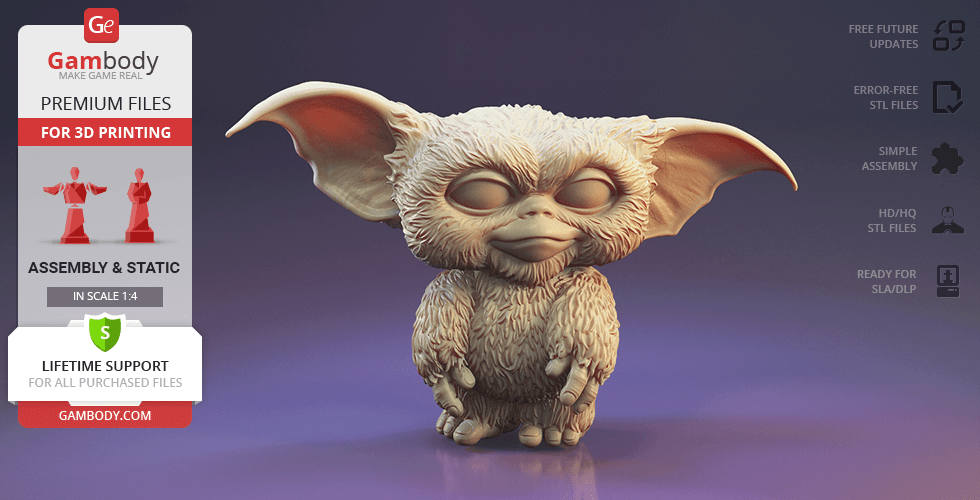

Gizmo:
- Each version contains 8 parts;

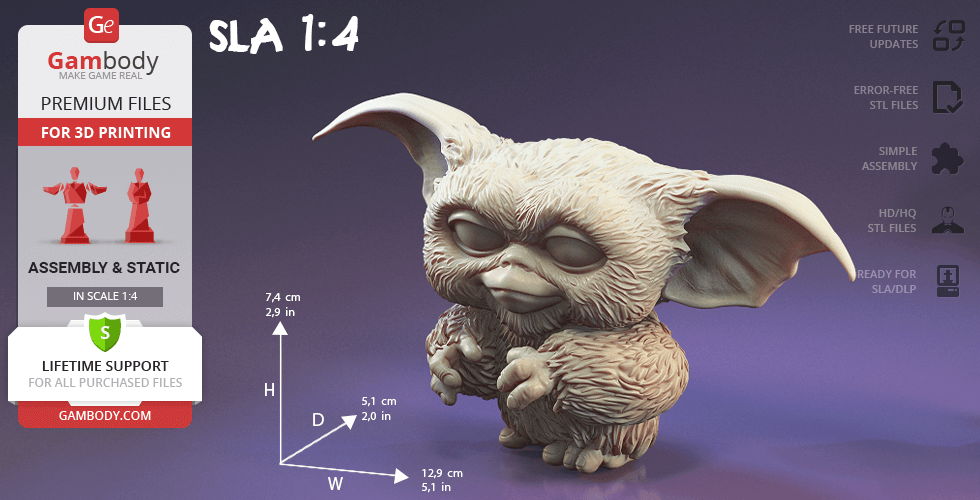

- A printed Gizmo stands 81 mm tall, 127 mm wide, 52 mm deep;

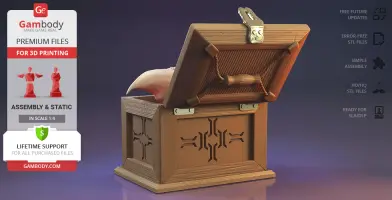

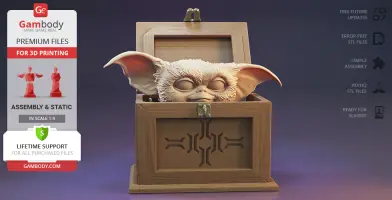

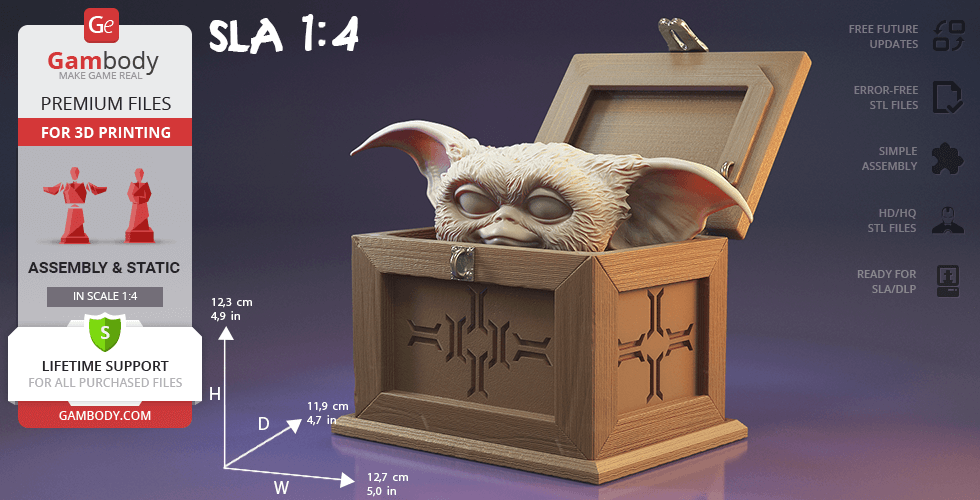

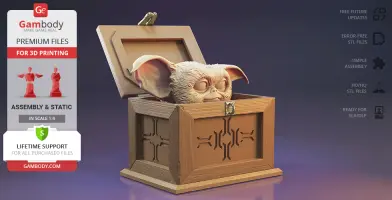

- Gizmo in Oriental Box stands: 118 mm tall, 87 mm wide, 72 mm deep;

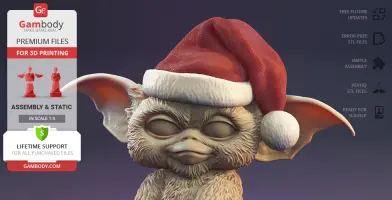

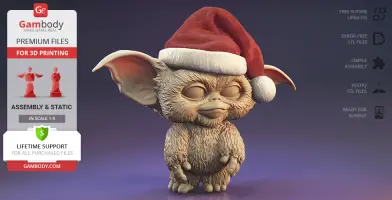

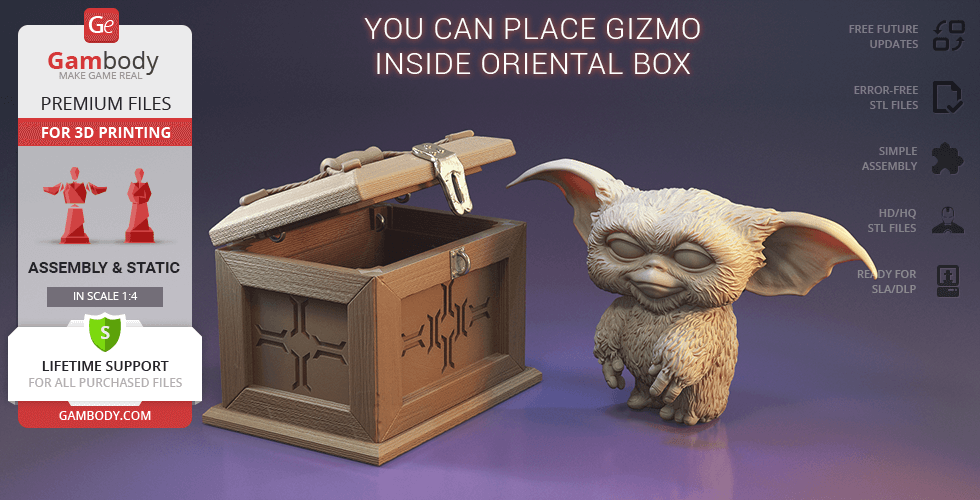

- Gizmo figurine can wear a Christmas hat + you can place Gizmo inside Oriental Box that has an articulated lid;

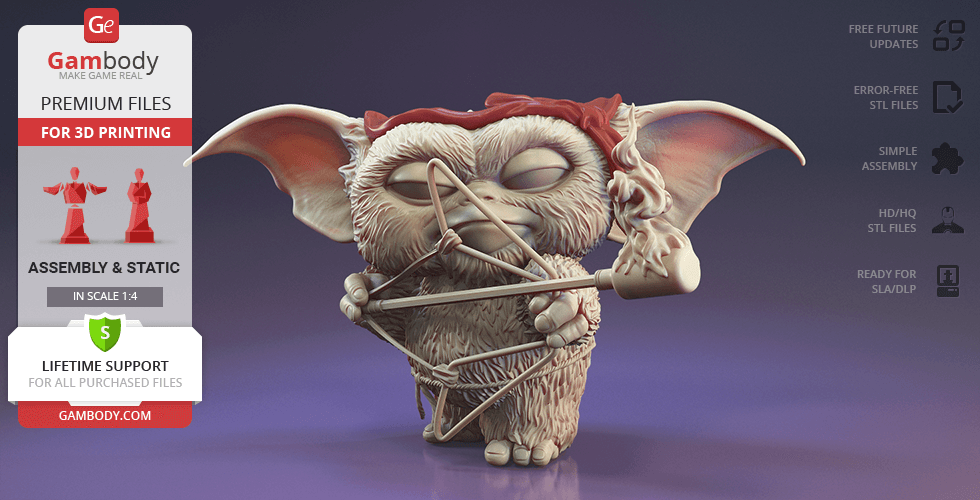

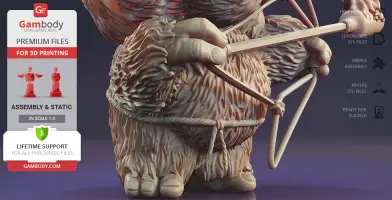

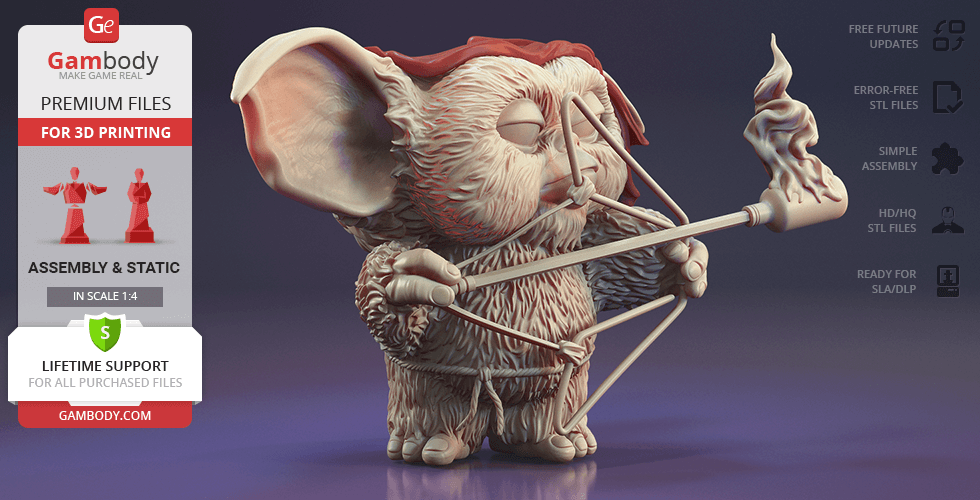

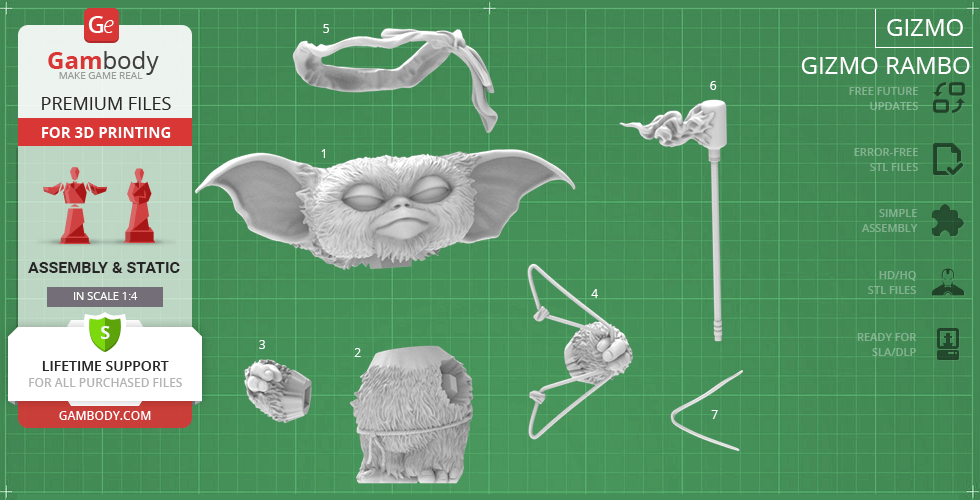

Gizmo Rambo:
- Each version contains 7 parts;

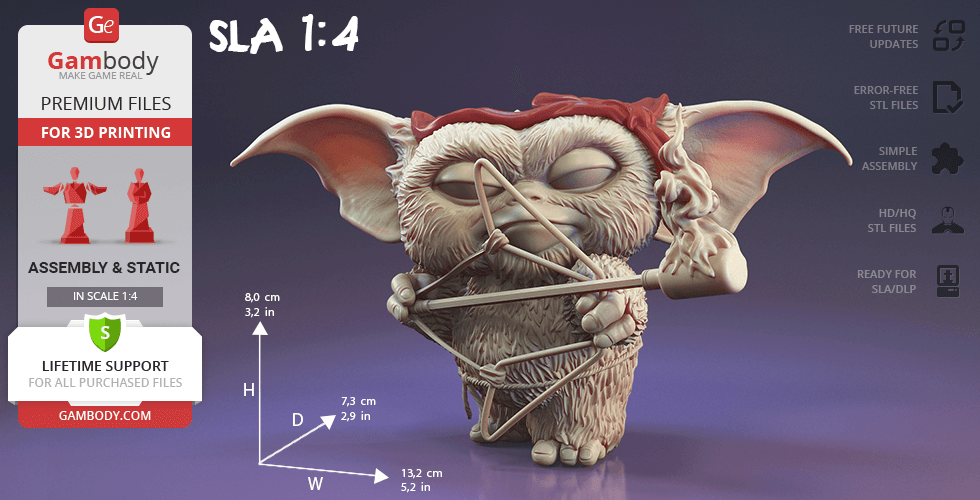

- A printed Rambo stands 80 mm tall, 132 mm wide, 73 mm deep;

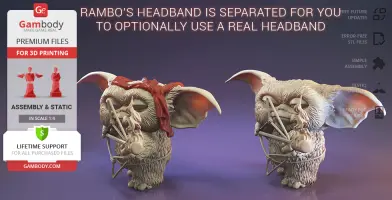

- Rambo’s headband is separated for you to optionally use a real headband;

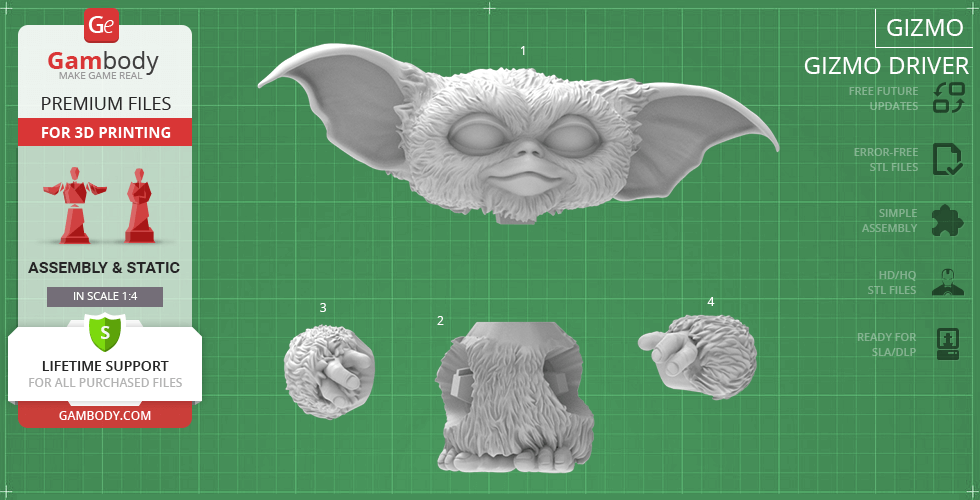

Gizmo Driver:
- Each version contains 4 parts;
- A printed Driver stands 74 mm tall, 129 mm wide, 51 mm deep;
- Gizmo Driver can be displayed riding its Barbie Car that is sold separately​​​​​​.

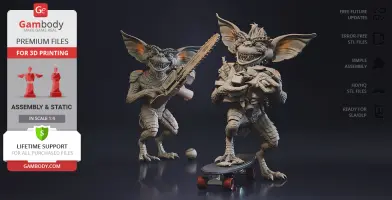

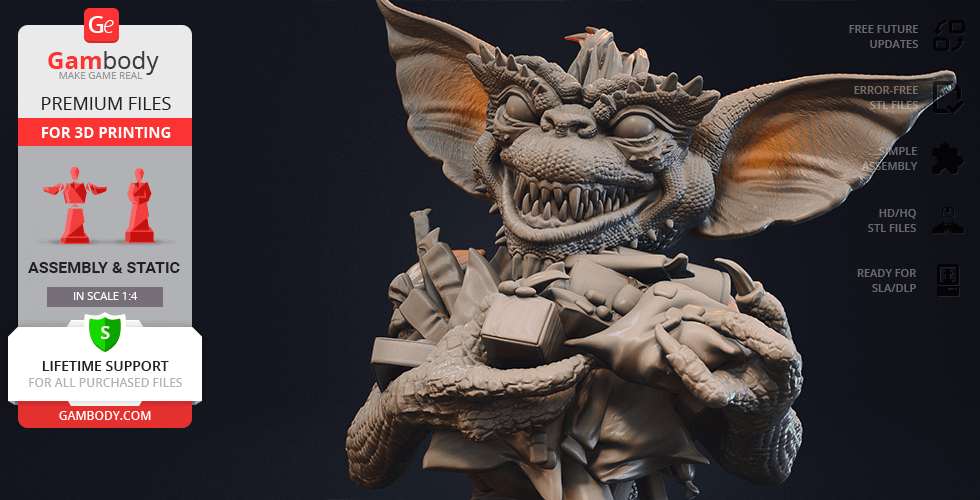

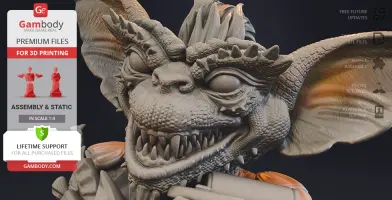

Evil Gremlins 3D Printing Figurine:

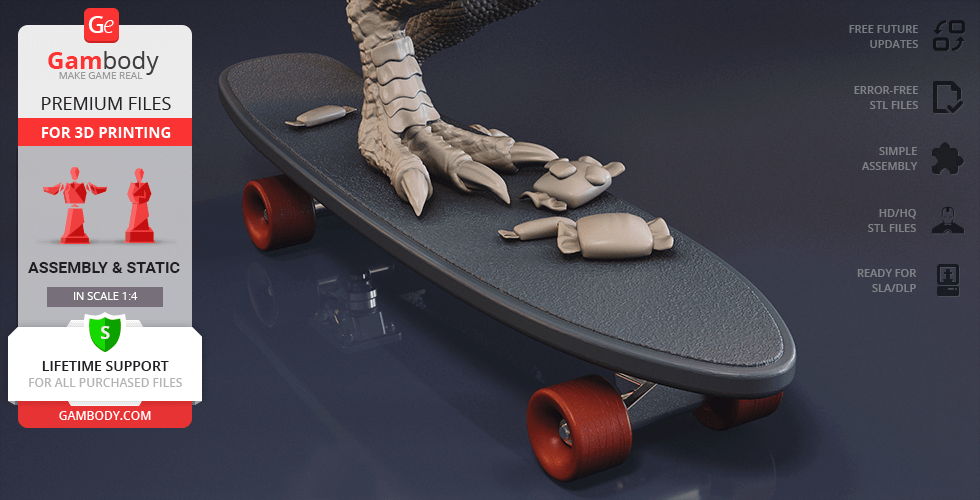

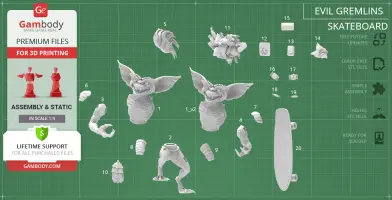

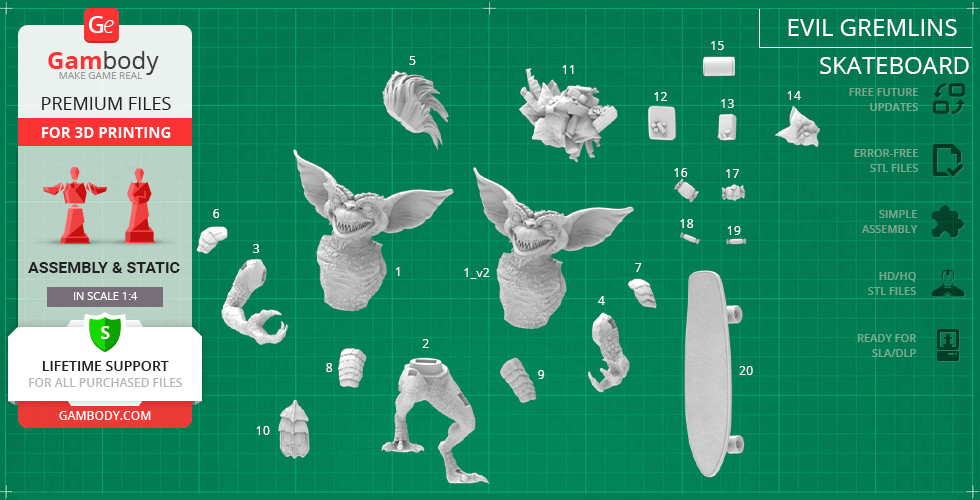

DLP/SLA Skateboard versions features:
- Each contains 20 parts;

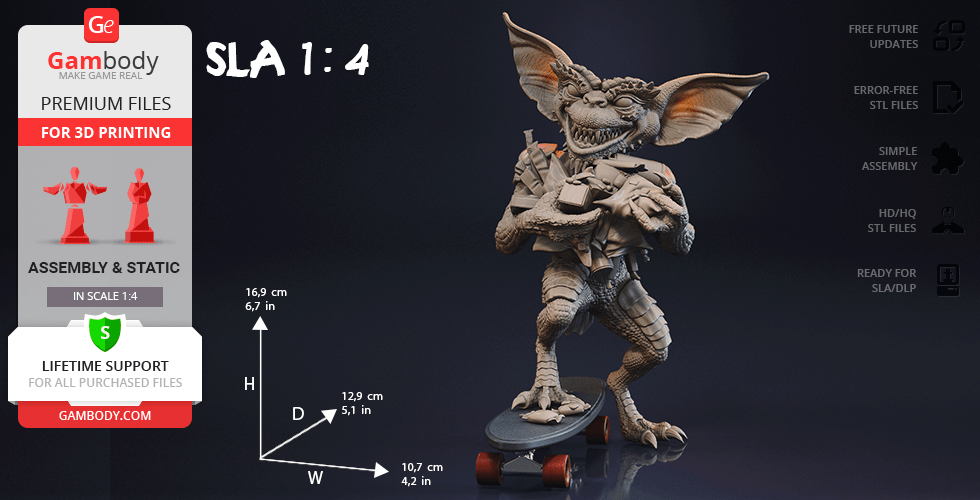

- A printed model is 169 mm tall, 107 mm wide, 129 mm deep;
- There are two versions of Gremlin's head - with and without mohawk;
- The pre-supported STL files are hollowed out, and have drain holes where needed.

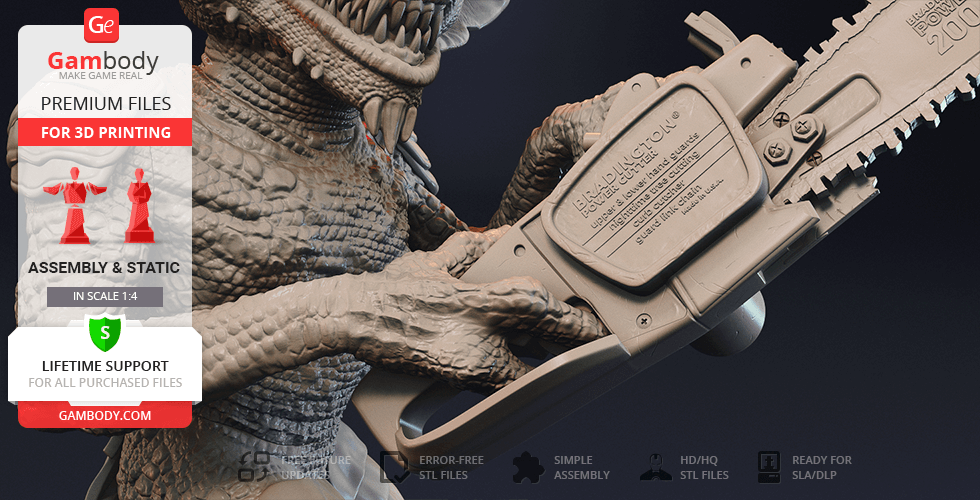

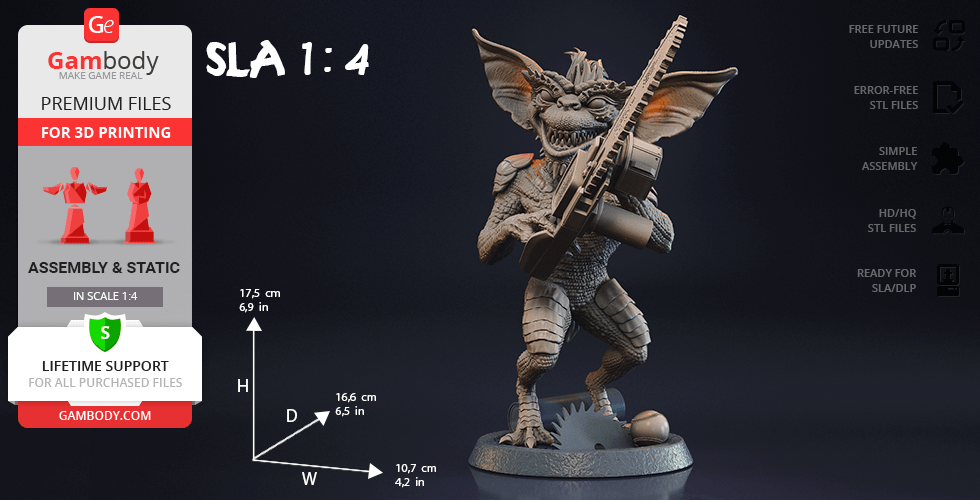

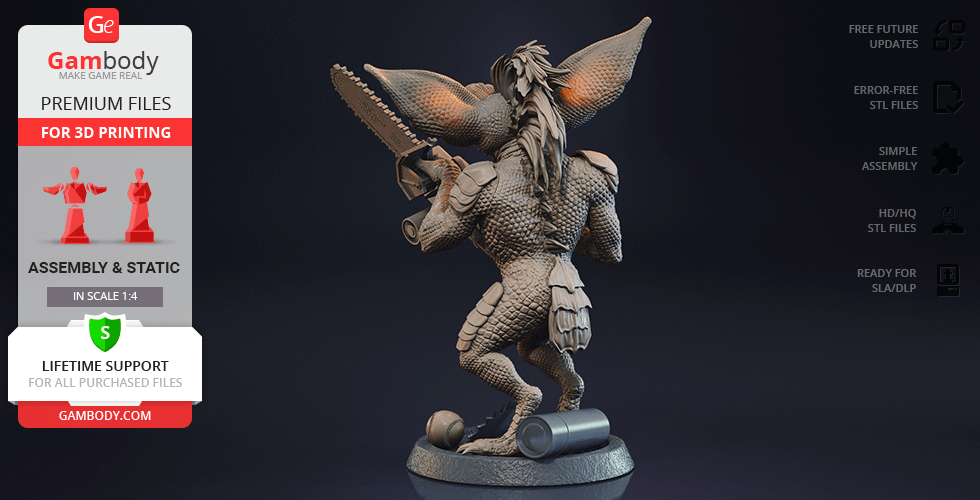

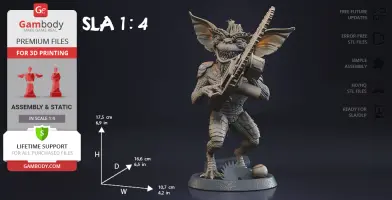

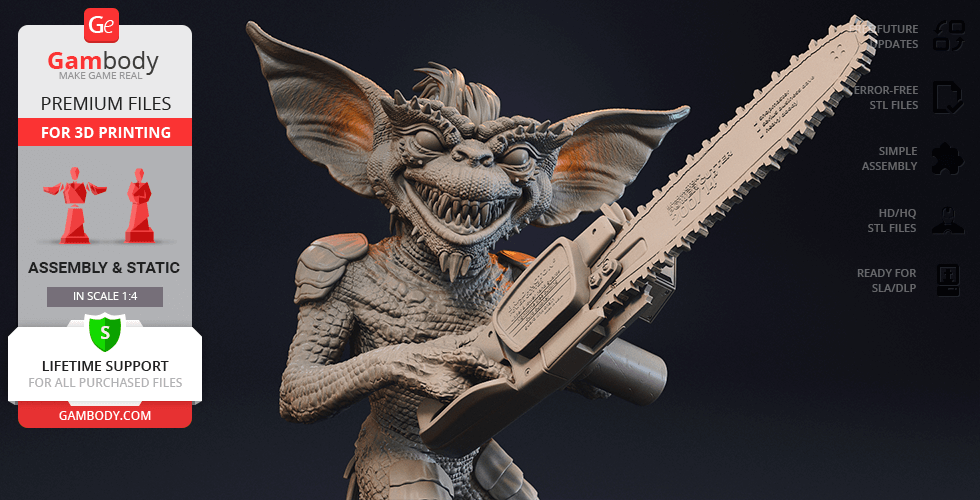

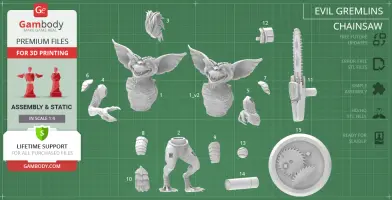

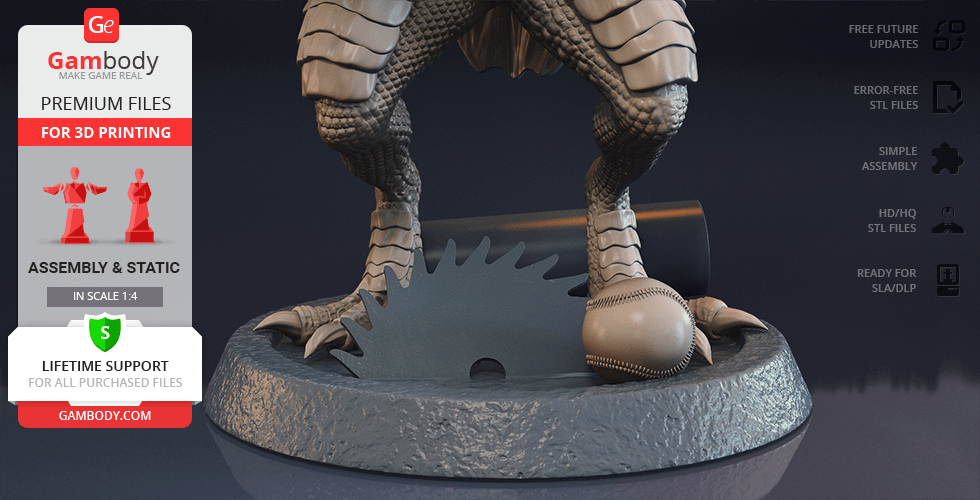

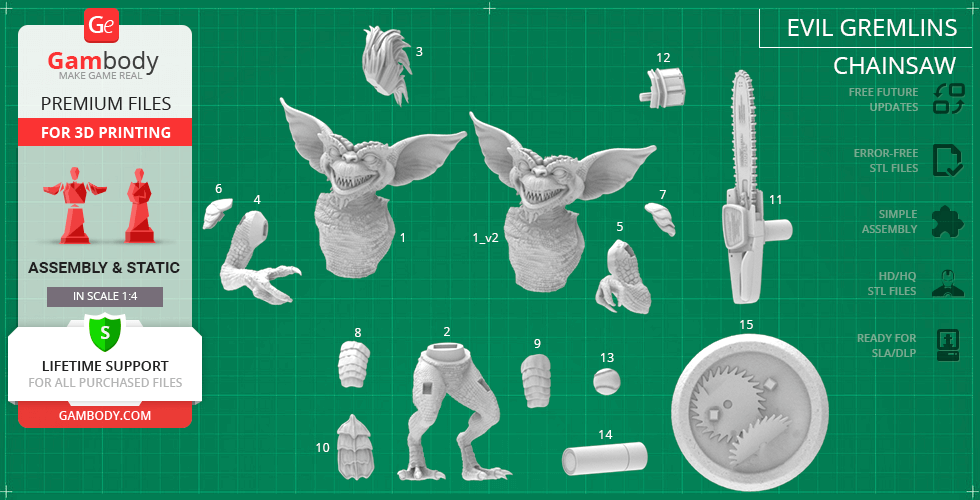

DLP/SLA Chainsaw versions features:
- Each contains 15 parts;
- A printed model is 175 mm tall, 107 mm wide, 166 mm deep;
- There are two versions of Gremlin's head - with and without mohawk;
- The pre-supported STL files are hollowed out, and have drain holes where needed.

To purchase the bundle comprising Anycubic Mono 4K Resin 3D Printer, Grinch 3D Printing Figurine, Gizmo 3D Printing Figurine, and Evil Gremlins 3D Printing Figurine, click the green Buy button in the top-right corner of the model’s page.

Go to the pages of Grinch 3D Printing Figurine, Gizmo 3D Printing Figurine and Evil Gremlins 3D Printing Model to find more details and additional illustrative material!

Generic

Disclaimer: Printing settings for the Anycubic Mono 4K 3D printer should be compiled individually depending on the colour, type and brand of resin you are using.

Before getting down to the 3D printing of the intended project, make sure that your machine is set up in accordance with the manufacturer's instructions and properly levelled. Use test models to configure the perfect parameters for your 3D printer and resin.

When adjusting the printing settings for particular resin, pay close attention to the UV wavelength required for its curing. The higher the required wavelength is - the higher your printing parameters should be.

If you are using the official Photon Workshop slicer, we recommend starting off with the default recommended settings for the Anycubic Mono 4K 3D printer. For that, open the Photon Workshop application > click on the "Settings" button > choose Photon Mono 4K in the list of 3D printers. Try tweaking the printing parameters to improve your 3D printing results - lower and increase the settings by 20% and compare the test prints. Choose the best configuration and proceed to the 3D printing of your chosen model!

If you are using a different slicer, you may use the following list of custom parameters from the Photon Workshop slicer prepared by Gambody engineers as a guide for your printing settings:

Layer Thickness: 0.030 mm
Normal Exposure Time: 1.600 s
Off Time: 1.000 s
Bottom Exposure Time: 20.000 s
Bottom Layers: 3
Anti-alias: 2
Gray Level: 0
Image Blur: 2

Advanced settings
Bottom Layers Control Steps:
Z Lift Height [0]: 0.50 mm
Z Lift Step [0] Speed: 0.50 mm/s
Z Retract Step [0] Speed: 0.50 mm/s

Z Lift Height [1]: 4.50 mm
Z Lift Step [1] Speed: 0.50 mm/s
Z Retract Step [1] Speed: 0.50 mm/s

Transition Layer Count: 0

Normal Layer Control Steps:
Z Lift Height [0]: 0.50 mm
Z Lift Step [0] Speed: 0.50 mm/s
Z Retract Step [0] Speed: 0.50 mm/s

Z Lift Height [1]: 4.50 mm
Z Lift Step [1] Speed: 0.50 mm/s
Z Retract Step [1] Speed: 0.50 mm/s

Note: If you would like to speed up the 3D printing process without losing the printing quality, you can increase the Layer Thickness to 0.05 mm. In that event, the Exposure Time for all layers should be increased accordingly.
