Anycubic Mono 4K 3D Printer + Master Chief + D77 Pelican

ABOUT THIS BUNDLE

Provided by the terms of Gambody & Anycubic Collaboration, this bundle offer allows you to purchase a high-resolution Mono 4K Resin 3D Printer by Anycubic together with several high-quality, highly detailed 3D printing models by Gambody contributing 3D artists.

IMPORTANT: After the purchase, your shipping information will be delivered to Anycubic 3D printer manufacturer, who will take care of the Mono 4K printer’s shipping and provide the tracking number. All updates will be provided by Gambody Team from support@gambody.com. The delivery of the Mono 4K 3D printer is expected approximately within 3 weeks after placing the order.

ABOUT THE 3D PRINTER

Anycubic Photon Mono 4K 3D printer is a high-resolution resin 3D printer by Anycubic that will bring your 3D printing projects to a new level. The 3D printer is equipped with an industry-leading 4K screen that will provide exceptional printing quality for your highly-detailed Gambody 3D prints! Convenient light power regulation, increased printing speed, world-renowned quality by Anycubic and friendly price will add to your creative freedom and enjoyable hobby pastime.

A detailed description of the 3D printer and main specs are provided on Anycubic's Official Website.

ABOUT 3D PRINTING MODELS

Both Master Chief and D77 Pelican models for 3D Printing were carefully designed by our talented contributing 3D artists and thoroughly moderated and adapted for 3D printing by Gambody team. This bundle comprises the DLP/SLA and DLP/SLA Pre-supported versions that are specifically adapted to be printed on resin 3D printers such as the Anycubic Photon Mono 4K. The process of adaptation presupposes that practical aspects of printing the model using the DLP/SLA/LCD technology are taken into account, and the model's scale and cutting are chosen to ensure an optimum result of printing.

3D PRINTING MODELS' SPECIFICATIONS

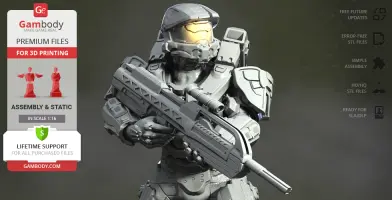

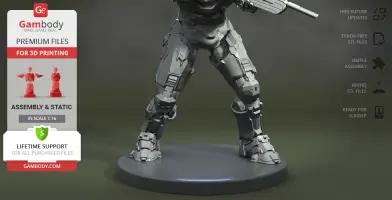

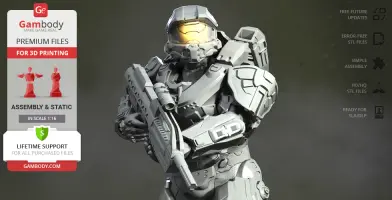

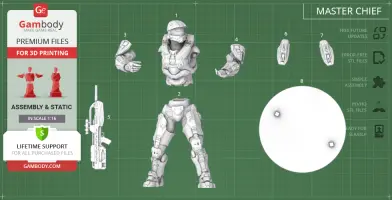

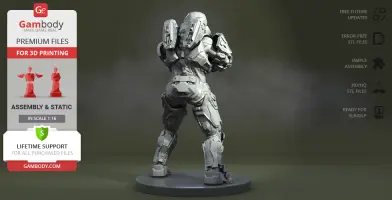

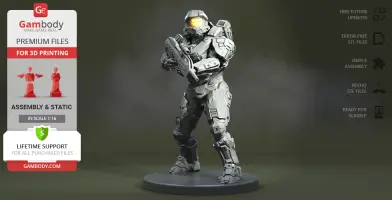

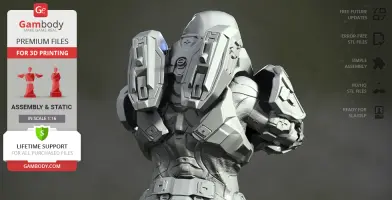

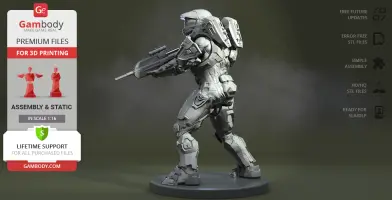

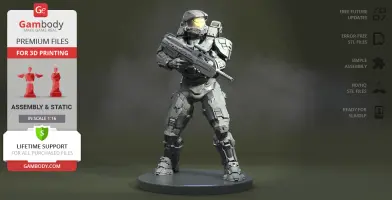

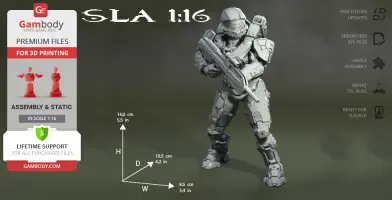

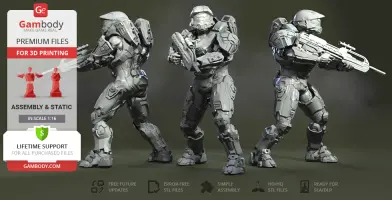

Master Chief 3D Printing Figurine:DLP/SLA 1.0 version features:- Contains 9 parts;- A printed model is 140 mm tall, 85 mm wide, 105 mm deep;- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

DLP/SLA Pre-supported 1.0 version features:- Contains 9 parts;- A printed model is 140 mm tall, 85 mm wide, 105 mm deep;- The STL files that this version comprises are pre-supported, hollowed out, and have drain holes where needed;- You may choose to print the STL files one by one or several at once, depending on the dimensions of your resin 3D printer's build plate;- When slicing several STL files at once, the attachment layers (Platform Touch Shape) may overlap, but the supports must not come into contact.

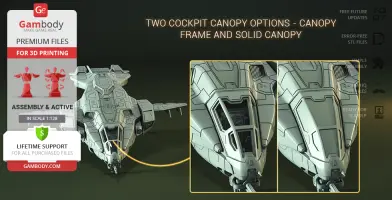

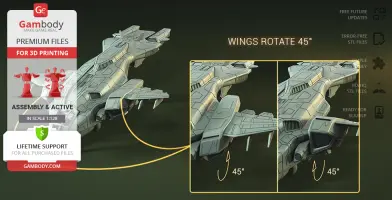

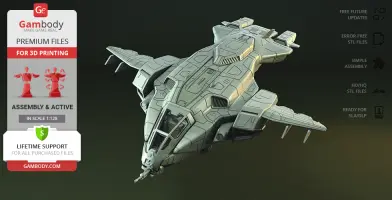

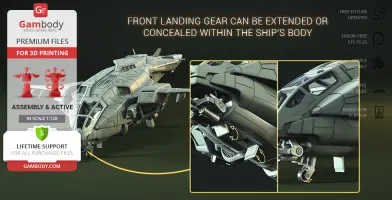

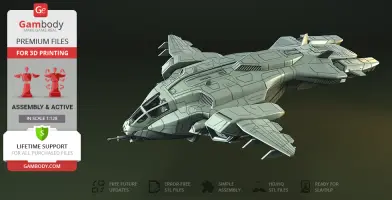

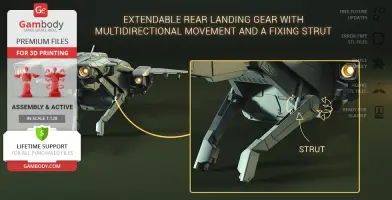

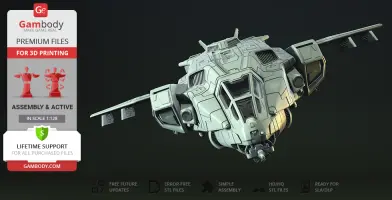

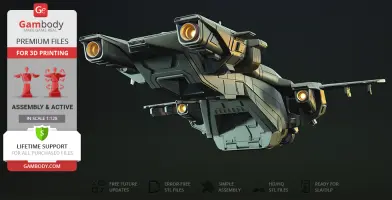

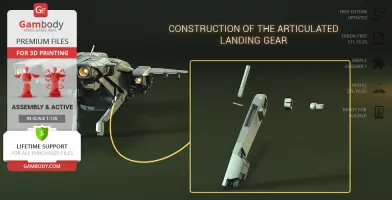

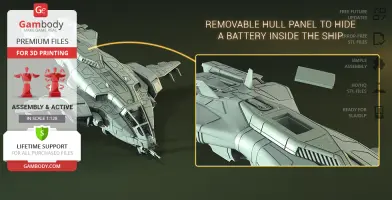

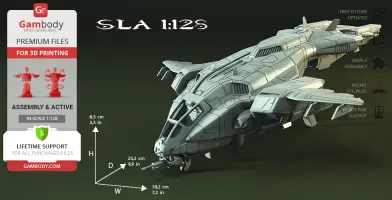

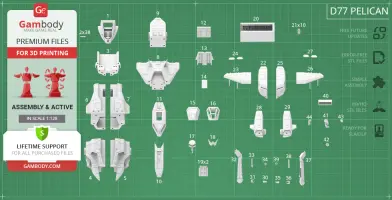

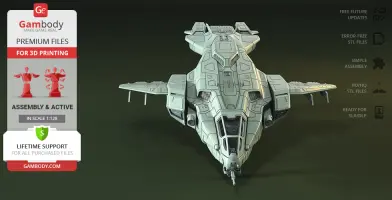

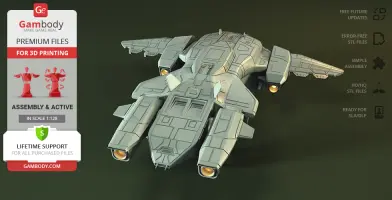

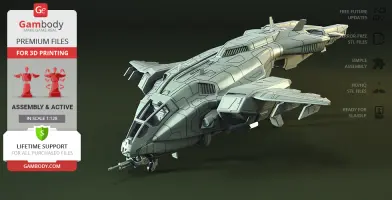

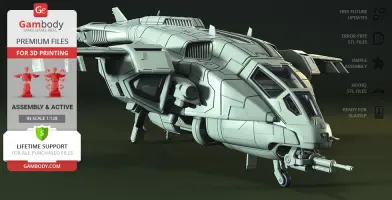

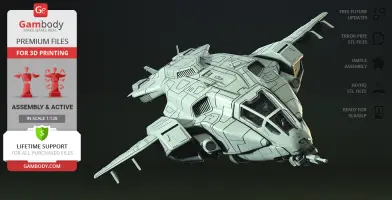

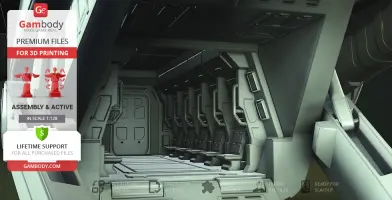

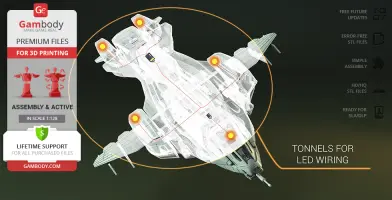

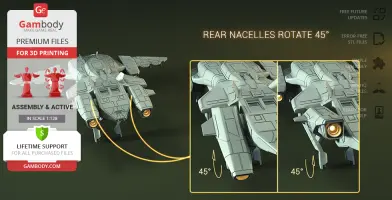

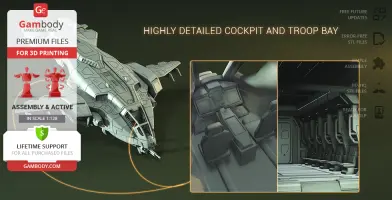

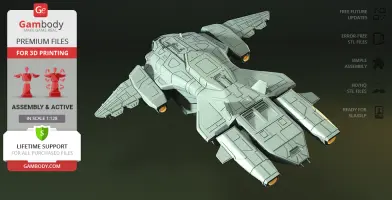

D77 Pelican 3D Printing Model:DLP/SLA 1.0 version features:- Contains 44 parts;- A printed model stands 83 mm tall, 182 mm wide, 252 mm deep;- Two cockpit canopy options - canopy frame and solid canopy;- Opening rear hatch;- Front landing gear can be extended or concealed within the ship’s body;- Extendable rear landing gear with multidirectional movement at the joint;- Extended rear landing gear can be fixed in place with the struts; retracted landing gear can be attached to the ship's body;- Wings and rear nacelles rotate 45°;- Highly detailed cockpit and troop bay;- The assembly of the model requires "pins" that can be made out of short pieces of regular paper clips;- Tunnels throughout the ship's body are provided for you to introduce LED wiring and light up the four thrusters and the cockpit; a spot to hide the battery is provided inside;- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

DLP/SLA Pre-supported version:- Files are coming soon as Gambody team tests them on the Anycubic Mono 4K printer;- The STL files that this version will comprise are pre-supported, hollowed out, and have drain holes where needed.

To purchase the bundle comprising Anycubic Mono 4K Resin 3D Printer, Master Chief 3D Printing Figurine, and D77 Pelican 3D Printing Model, click the green Buy button in the top-right corner of the model’s page.

Go to the pages of Master Chief 3D Printing Figurine and D77 Pelican 3D Printing Model to find more details and additional illustrative material!

Generic

Disclaimer: Printing settings for the Anycubic Mono 4K 3D printer should be compiled individually depending on the colour, type and brand of resin you are using.

Before getting down to the 3D printing of the intended project, make sure that your machine is set up in accordance with the manufacturer's instructions and properly levelled. Use test models to configure the perfect parameters for your 3D printer and resin.

When adjusting the printing settings for particular resin, pay close attention to the UV wavelength required for its curing. The higher the required wavelength is - the higher your printing parameters should be.

If you are using the official Photon Workshop slicer, we recommend starting off with the default recommended settings for the Anycubic Mono 4K 3D printer. For that, open the Photon Workshop application > click on the "Settings" button > choose Photon Mono 4K in the list of 3D printers. Try tweaking the printing parameters to improve your 3D printing results - lower and increase the settings by 20% and compare the test prints. Choose the best configuration and proceed to the 3D printing of your chosen model!

If you are using a different slicer, you may use the following list of custom parameters from the Photon Workshop slicer prepared by Gambody engineers as a guide for your printing settings:

Layer Thickness: 0.030 mm
Normal Exposure Time: 1.600 s
Off Time: 1.000 s
Bottom Exposure Time: 20.000 s
Bottom Layers: 3
Anti-alias: 2
Gray Level: 0
Image Blur: 2

Advanced settings
Bottom Layers Control Steps:
Z Lift Height [0]: 0.50 mm
Z Lift Step [0] Speed: 0.50 mm/s
Z Retract Step [0] Speed: 0.50 mm/s

Z Lift Height [1]: 4.50 mm
Z Lift Step [1] Speed: 0.50 mm/s
Z Retract Step [1] Speed: 0.50 mm/s

Transition Layer Count: 0

Normal Layer Control Steps:
Z Lift Height [0]: 0.50 mm
Z Lift Step [0] Speed: 0.50 mm/s
Z Retract Step [0] Speed: 0.50 mm/s

Z Lift Height [1]: 4.50 mm
Z Lift Step [1] Speed: 0.50 mm/s
Z Retract Step [1] Speed: 0.50 mm/s

Note: If you would like to speed up the 3D printing process without losing the printing quality, you can increase the Layer Thickness to 0.05 mm. In that event, the Exposure Time for all layers should be increased accordingly.
