Anycubic Photon Mono 2 3D printer + Batman + Batwing

ABOUT THIS BUNDLE

Provided by the terms of Gambody & Anycubic Collaboration, this bundle offer allows you to purchase a high-resolution Photon Mono 2 Resin 3D Printer by Anycubic together with several high-quality, highly detailed 3D printing models by Gambody contributing 3D artists.

IMPORTANT: After the purchase, your shipping information will be delivered to Anycubic 3D printer manufacturer, who will take care of the Photon Mono 2 printer’s shipping and provide the tracking number. All updates will be provided by Gambody Team from support@gambody.com. The delivery of the Photon Mono 2 3D printer is expected approximately within 3 weeks after placing the order.

ABOUT THE 3D PRINTER

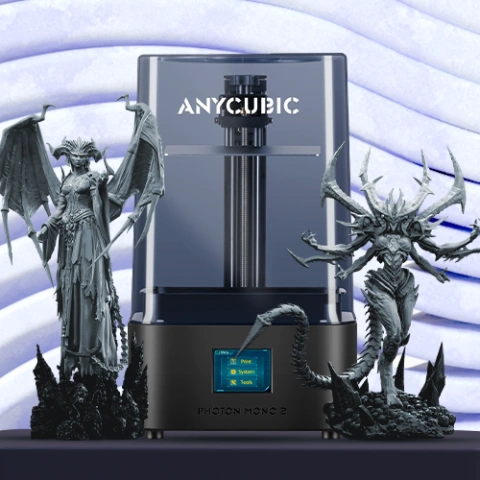

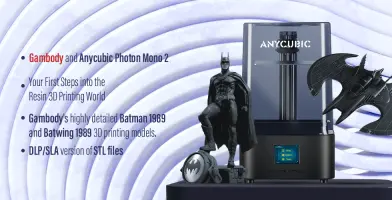

The Anycubic Photon Mono 2 is the ideal option for beginners venturing into resin 3D printing. Geared towards enhancing the user experience and increasing printing success rates, this printer features a 6.6-inch monochrome LCD screen boasting a resolution of 4096x2560. This high resolution facilitates the display of intricate details in 3D models.

To ensure the durability of the device, the Photon Mono 2 incorporates an ultra-large scratch-resistant screen protector. This protector not only prevents screen scratches but also acts as a barrier against resin penetration, contributing to the long-term reliability of the printer.

A detailed description of the 3D printer and main specs are provided on Anycubic's Official Website.

ABOUT 3D PRINTING MODELS

Batman and Batwing models for 3D Printing were carefully designed by our talented contributing 3D artists and thoroughly moderated and adapted for 3D printing by Gambody team. This bundle comprises the DLP/SLA version that are specifically adapted to be printed on resin 3D printers such as the Anycubic Photon Mono 2. The process of adaptation presupposes that practical aspects of printing the model using the DLP/SLA/LCD technology are taken into account, and the model's scale and cutting are chosen to ensure an optimum result of printing.

3D PRINTING MODELS' SPECIFICATIONS

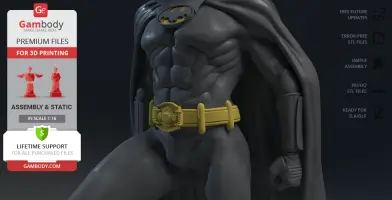

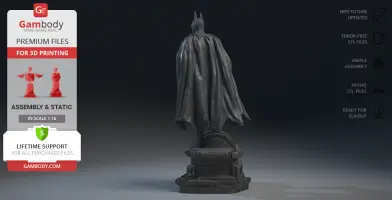

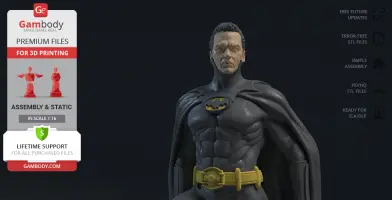

Batman 3D Printing Figurine:DLP/SLA version features:

• Contains 16 parts;

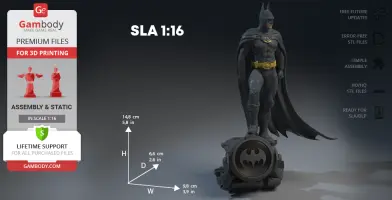

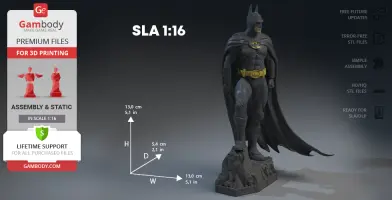

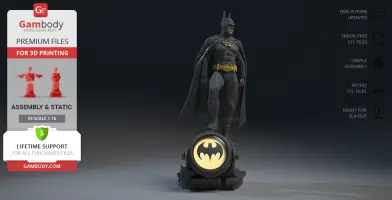

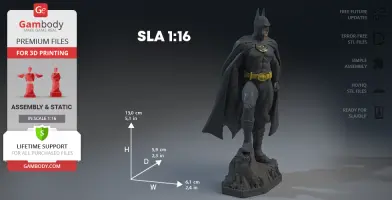

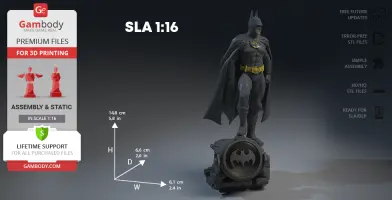

• A printed model on the Bat-Signal platform in a short cape is 148 mm tall, 61 mm wide, 66 mm deep;
• A printed model on the Bat-Signal platform in a long cape is 148 mm tall, 98 mm wide, 66 mm deep;
• A printed model on the Batcave platform in a short cape is 130 mm tall, 61 mm wide, 59 mm deep;
• A printed model on the Batcave platform in a long cape is 130 mm tall, 130 mm wide, 54 mm deep;

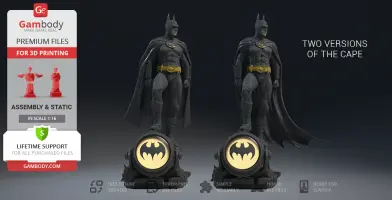

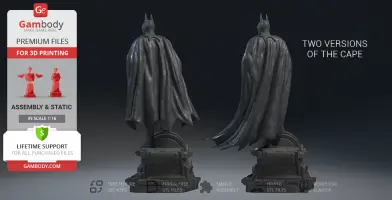

• Two versions of the cape;

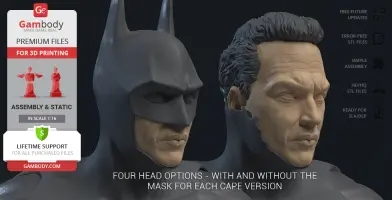

• Four head options - with and without the mask for each cape version;

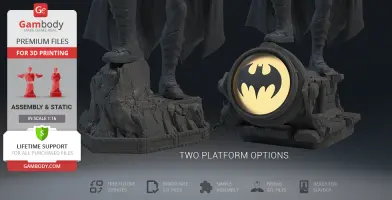

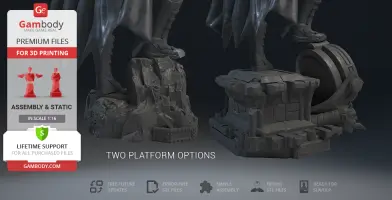

• Two platform options;
• All parts are divided in such a way that you will print them with the smallest number of support structures.

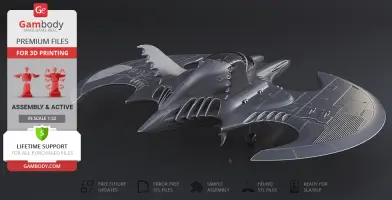

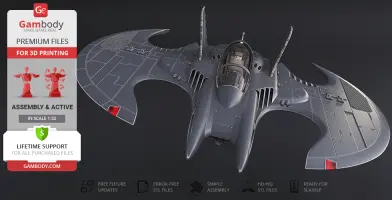

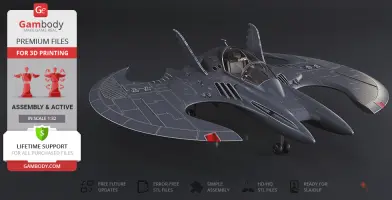

Batwing 3D Printing Model:

DLP/SLA version features:

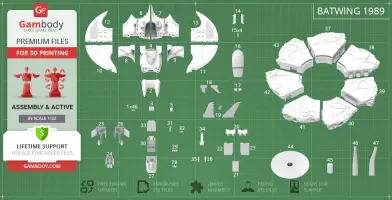

• Contains 47 parts;

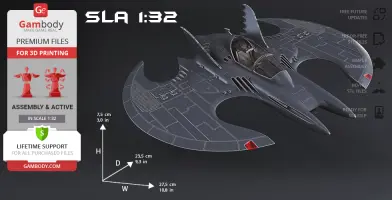

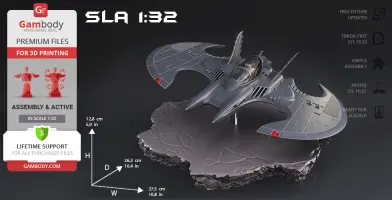

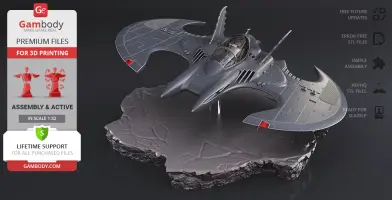

• A printed model is 75 mm tall, 275 mm wide, 235 mm deep;
• A printed model on the stand is 128 mm tall, 275 mm wide, 263 mm deep;
• Movable wing flaps;- Opening side-mounted gatling guns;

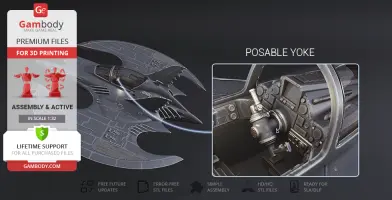

• Opening cockpit canopy;- Posable yoke;

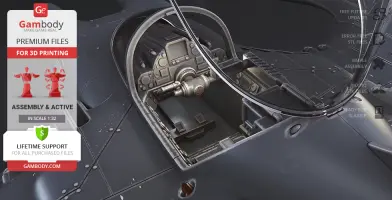

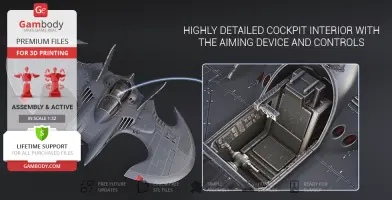

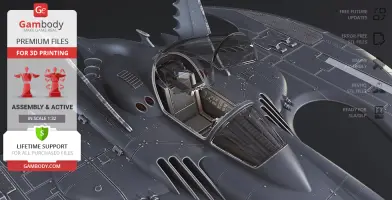

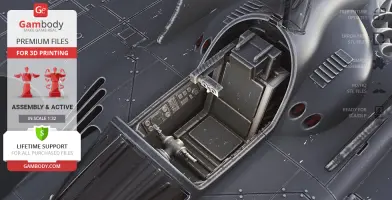

• Highly detailed cockpit interior with the aiming device and controls;

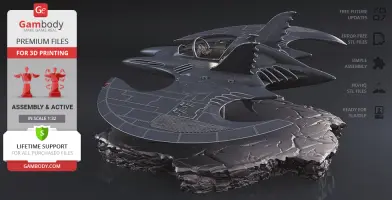

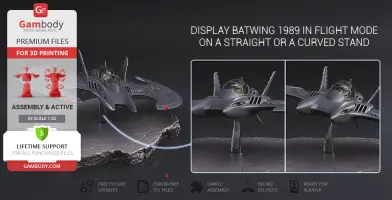

• Display Batwing 1989 in flight mode on a straight or a curved stand;

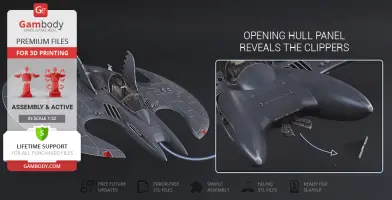

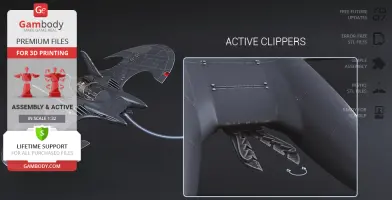

• Opening hull panel reveals the clippers;- Active clippers;
• Press the pedal inside the cockpit to retract the clippers;

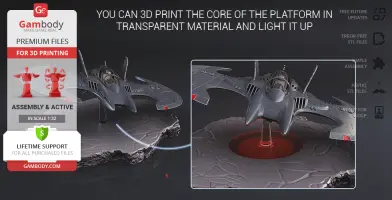

• You can 3D print the core of the platform in transparent material and light it up;
• The cockpit canopy glass is provided as separate assembly parts to be printed using transparent material;

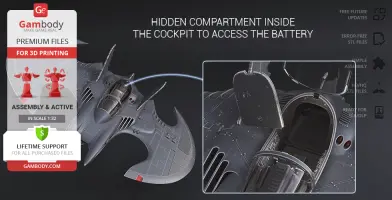

• Tunnels for LED wiring are provided to light up the cockpit, wing lights, and bottom searchlights; the battery can be stored in the hidden compartment inside the cockpit;
• All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

To purchase the bundle comprising Anycubic Photon Mono 2 Resin 3D Printer, Batwing 3D Printing Model, Batman 3D Printing Figurine, click the green Buy button in the top-right corner of the model’s page.

Go to the pages of Batman 3D Printing Figurine, and Batwing 3D Printing Model to find more details and additional illustrative material!

Generic

Disclaimer: Printing settings for the Anycubic Photon Mono 2 3D printer should be compiled individually depending on the colour, type and brand of resin you are using.

Before getting down to the 3D printing of the intended project, make sure that your machine is set up in accordance with the manufacturer's instructions and properly levelled. Use test models to configure the perfect parameters for your 3D printer and resin.

When adjusting the printing settings for particular resin, pay close attention to the UV wavelength required for its curing. The higher the required wavelength is - the higher your printing parameters should be.

If you are using the official Photon Workshop slicer, we recommend starting off with the default recommended settings for the Anycubic Photon Mono 2 3D printer. For that, open the Photon Workshop application > click on the "Settings" button > choose Photon Mono 2 in the list of 3D printers. Try tweaking the printing parameters to improve your 3D printing results - lower and increase the settings by 20% and compare the test prints. Choose the best configuration and proceed to the 3D printing of your chosen model!

If you are using a different slicer, you may use the following list of custom parameters from the Photon Workshop slicer prepared by Gambody engineers as a guide for your printing settings:

Layer Thickness: 0.030 mmNormal Exposure Time: 1.600 sOff Time: 1.000 sBottom Exposure Time: 20.000 sBottom Layers: 3Anti-alias: 2Gray Level: 0Image Blur: 2

Advanced settingsBottom Layers Control Steps:Z Lift Height [0]: 0.50 mmZ Lift Step [0] Speed: 0.50 mm/sZ Retract Step [0] Speed: 0.50 mm/s

Z Lift Height [1]: 4.50 mmZ Lift Step [1] Speed: 0.50 mm/sZ Retract Step [1] Speed: 0.50 mm/s

Transition Layer Count: 0

Normal Layer Control Steps:Z Lift Height [0]: 0.50 mmZ Lift Step [0] Speed: 0.50 mm/sZ Retract Step [0] Speed: 0.50 mm/s

Z Lift Height [1]: 4.50 mmZ Lift Step [1] Speed: 0.50 mm/sZ Retract Step [1] Speed: 0.50 mm/s

Note: If you would like to speed up the 3D printing process without losing the printing quality, you can increase the Layer Thickness to 0.05 mm. In that event, the Exposure Time for all layers should be increased accordingly.
