This bundle consists of Anycubic Photon Mono 2 Resin 3D Printer, Chucky 3D Printing Figurine, Frankenstein's Monster 3D Printing Figurine. The 3D printing models come in the form of digital files in StereoLithography (.STL) format that is optimized for DLP/SLA 3D printing.

WHAT WILL YOU GET AFTER PURCHASE?

- Bigger and Higher Resolution Photon Mono 4K Resin 3D Printer by Anycubic

- 1 versions of Chucky STL files - DLP/SLA DLP/SLA version - files are available for download immediately after purchase

- 1 versions of Frankenstein's Monster STL files - DLP/SLA DLP/SLA version - files are available for download immediately after purchase

- Printing settings that we provide as a recommendation for Anycubic Photo Mono 2 Resin 3D Printer

- Full technical support from the Gambody Support Team

Detailed information about this bundle is available in the DESCRIPTION section.


	File Name	File Size	Time / Filament	Object Size (x/y/z mm)
	1_head_SLA(repaired).stl	46.17 MiB	21 h 44 min 9 m	61 x 67 x 77	Download
	2_body_SLA(repaired).stl	70.76 MiB	16 h 9 min 10 m	64 x 47 x 118	Download
	3_arm_R_SLA(repaired).stl	44.18 MiB	3 h 32 min 2 m	50 x 74 x 51	Download
	4_arm_L_SLA(repaired).stl	43.53 MiB	2 h 6 min 1 m	41 x 27 x 66	Download
	5_foot_R_SLA(repaired).st l	21.15 MiB	58 min <1 m	26 x 34 x 17	Download
	6_foot_L_SLA(repaired).st l	20.69 MiB	58 min <1 m	26 x 34 x 17	Download
	7_candle_1_SLA(repaired). stl	15.29 MiB	20 min <1 m	17 x 17 x 26	Download
	8_candle_2_SLA(repaired). stl	10.54 MiB	45 min <1 m	17 x 17 x 47	Download
	9_candle_3_SLA(repaired). stl	9.32 MiB	40 min <1 m	21 x 21 x 38	Download
	10_candle_4_SLA(repaired) .stl	10.66 MiB	37 min <1 m	19 x 19 x 39	Download
	11_candle_5_SLA(repaired) .stl	10.47 MiB	47 min <1 m	18 x 18 x 51	Download
	12_candle_6_SLA(repaired) .stl	12.68 MiB	34 min <1 m	16 x 16 x 40	Download
	13_candle_7_SLA(repaired) .stl	11.99 MiB	33 min <1 m	16 x 16 x 40	Download
	14_candle_8_SLA(repaired) .stl	13.22 MiB	40 min <1 m	17 x 17 x 55	Download
	15_platform_1_SLA(repaire d).stl	33.80 MiB	14 h 10 min 9 m	58 x 116 x 51	Download
	16_platform_2_SLA(repaire d).stl	32.15 MiB	9 h 47 min 5 m	57 x 116 x 55	Download
	Keychain (repaired).stl	0.35 MiB	23 min <1 m	30 x 30 x 2	Download
	Tag (repaired).stl	1.70 MiB	1 h 18 min 1 m	150 x 18 x 5	Download
...

ABOUT THIS BUNDLE

Provided by the terms of Gambody & Anycubic Collaboration, this bundle offer allows you to purchase a high-resolution Photon Mono 2 Resin 3D Printer by Anycubic together with several high-quality, highly detailed 3D printing models by Gambody contributing 3D artists.

IMPORTANT: After the purchase, your shipping information will be delivered to Anycubic 3D printer manufacturer, who will take care of the Photon Mono 2 printer’s shipping and provide the tracking number. All updates will be provided by Gambody Team from support@gambody.com. The delivery of the Photon Mono 2 3D printer is expected approximately within 3 weeks after placing the order.

ABOUT THE 3D PRINTER

The Anycubic Photon Mono 2 is the ideal option for beginners venturing into resin 3D printing. Geared towards enhancing the user experience and increasing printing success rates, this printer features a 6.6-inch monochrome LCD screen boasting a resolution of 4096x2560. This high resolution facilitates the display of intricate details in 3D models.

To ensure the durability of the device, the Photon Mono 2 incorporates an ultra-large scratch-resistant screen protector. This protector not only prevents screen scratches but also acts as a barrier against resin penetration, contributing to the long-term reliability of the printer.

A detailed description of the 3D printer and main specs are provided on Anycubic's Official Website.

ABOUT 3D PRINTING MODELS

Chucky and Frankenstein's Monster models for 3D Printing were carefully designed by our talented contributing 3D artists and thoroughly moderated and adapted for 3D printing by Gambody team. This bundle comprises the DLP/SLA version that are specifically adapted to be printed on resin 3D printers such as the Anycubic Photon Mono 2. The process of adaptation presupposes that practical aspects of printing the model using the DLP/SLA/LCD technology are taken into account, and the model's scale and cutting are chosen to ensure an optimum result of printing.

3D PRINTING MODELS' SPECIFICATIONS

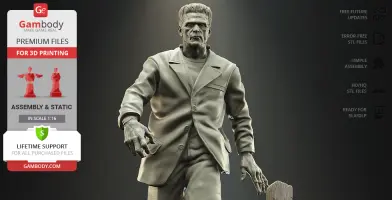

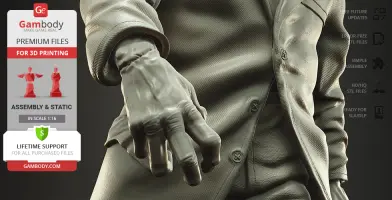

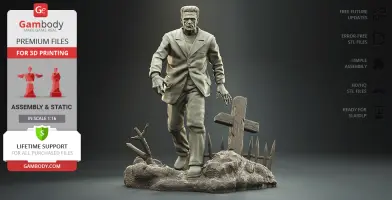

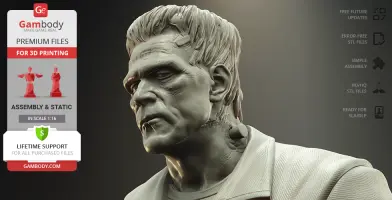

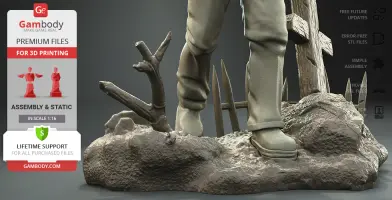

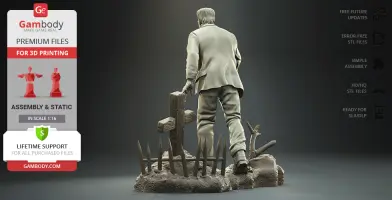

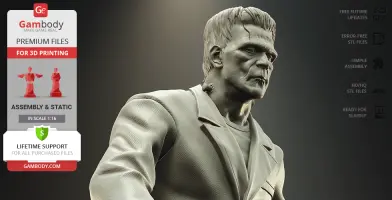

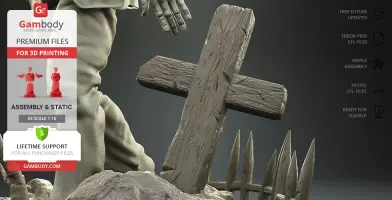

Frankenstein's Monster 3D Printing Figurine:DLP/SLA version features:

DLP/SLA 1.0 version features:
Contains 9 parts;
A printed model is 130 mm tall, 114 mm wide, 76 mm deep;
All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

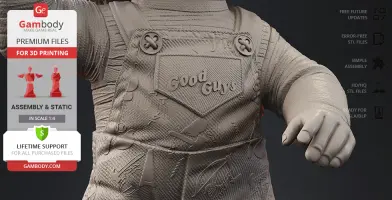

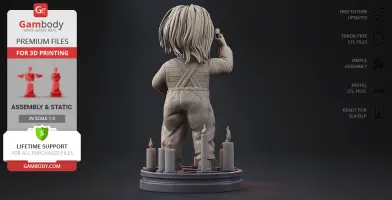

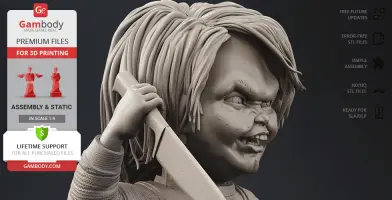

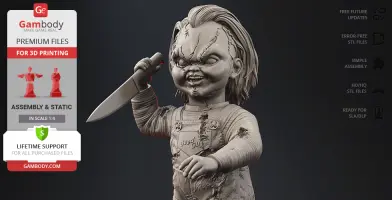

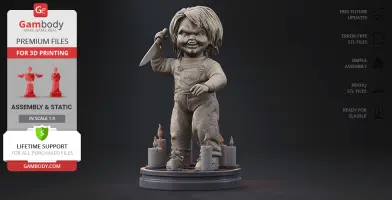

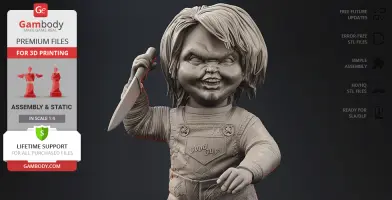

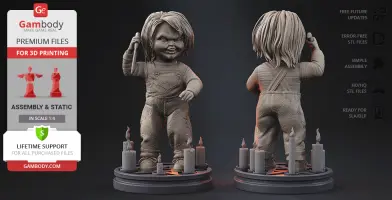

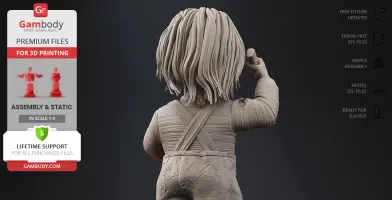

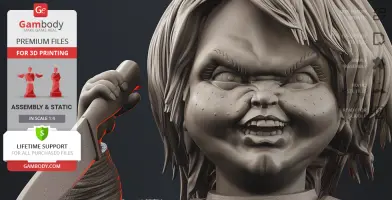

Chucky 3D Printing Model:

DLP/SLA version features:

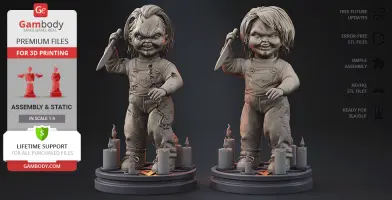

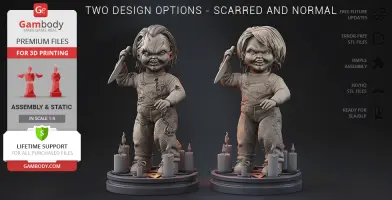

You can choose between the two designs

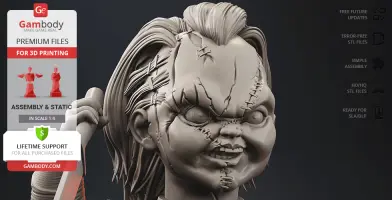

Normal Chucky and Scarred Chucky;

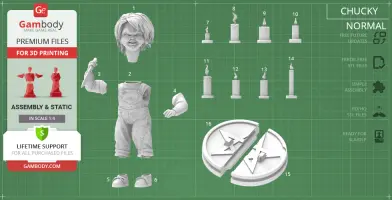

Both versions contain 16 parts each;

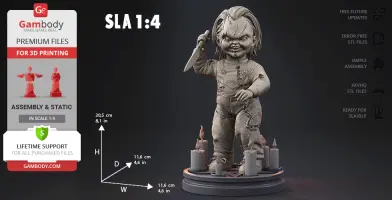

A printed model is 205 mm tall, 116 mm wide, 116 mm deep;
All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

To purchase the bundle comprising Anycubic Photon Mono 2 Resin 3D Printer, Frankenstein's Monster 3D Printing Model, Chucky 3D Printing Figurine, click the green Buy button in the top-right corner of the model’s page.

Go to the pages of Chucky 3D Printing Figurine, and Frankenstein's Monster 3D Printing Model to find more details and additional illustrative material!

Generic

Disclaimer: Printing settings for the Anycubic Photon Mono 2 3D printer should be compiled individually depending on the colour, type and brand of resin you are using.

Before getting down to the 3D printing of the intended project, make sure that your machine is set up in accordance with the manufacturer's instructions and properly levelled. Use test models to configure the perfect parameters for your 3D printer and resin.

When adjusting the printing settings for particular resin, pay close attention to the UV wavelength required for its curing. The higher the required wavelength is - the higher your printing parameters should be.

If you are using the official Photon Workshop slicer, we recommend starting off with the default recommended settings for the Anycubic Photon Mono 2 3D printer. For that, open the Photon Workshop application > click on the "Settings" button > choose Photon Mono 2 in the list of 3D printers. Try tweaking the printing parameters to improve your 3D printing results - lower and increase the settings by 20% and compare the test prints. Choose the best configuration and proceed to the 3D printing of your chosen model!

If you are using a different slicer, you may use the following list of custom parameters from the Photon Workshop slicer prepared by Gambody engineers as a guide for your printing settings:

Layer Thickness: 0.030 mmNormal Exposure Time: 1.600 sOff Time: 1.000 sBottom Exposure Time: 20.000 sBottom Layers: 3Anti-alias: 2Gray Level: 0Image Blur: 2

Advanced settingsBottom Layers Control Steps:Z Lift Height [0]: 0.50 mmZ Lift Step [0] Speed: 0.50 mm/sZ Retract Step [0] Speed: 0.50 mm/s

Z Lift Height [1]: 4.50 mmZ Lift Step [1] Speed: 0.50 mm/sZ Retract Step [1] Speed: 0.50 mm/s

Transition Layer Count: 0

Normal Layer Control Steps:Z Lift Height [0]: 0.50 mmZ Lift Step [0] Speed: 0.50 mm/sZ Retract Step [0] Speed: 0.50 mm/s

Z Lift Height [1]: 4.50 mmZ Lift Step [1] Speed: 0.50 mm/sZ Retract Step [1] Speed: 0.50 mm/s

Note: If you would like to speed up the 3D printing process without losing the printing quality, you can increase the Layer Thickness to 0.05 mm. In that event, the Exposure Time for all layers should be increased accordingly.
