Creality Resin 3D Printer + T-800 Endoskeleton + Black Widow

ABOUT THIS BUNDLE

Provided by the terms of Gambody & Creality3D Collaboration, this bundle offer allows you to purchase a new generation HALOT-ONE Resin 3D printer by Creality together with a pair of high-quality, highly detailed 3D printing models by Gambody contributing 3D artists. Please, find the details of the collaboration in our official Press Release.

IMPORTANT: After the purchase, please contact support@gambody.com and specify your shipping details. This information will be delivered to Creality 3D printer manufacturer, who will take care of the HALOT-ONE 3D printer’s shipping and provide the tracking number. The delivery of the HALOT-ONE 3D printer is expected approximately within 3 weeks after placing the order.

ABOUT THE 3D PRINTER

HALOT-ONE is the new flagship Resin 3D Printer by Creality3D that is meant to level up your 3D printing hobby! The newly introduced integral light source combined with a 6-inch Monochrome LCD screen provides for high precision, while Wi-Fi Connectivity and respectable build volume guarantee a convenient hobbyist experience!

Creality3D® Official Website features detailed overviews of the printer's most prominent technical specifications that you can get acquainted with.

ABOUT 3D PRINTING MODELS

Both T-800 Endoskeleton and Black Widow figurines for 3D Printing were carefully modelled by our talented contributing 3D artists and thoroughly moderated and adapted for 3D printing by Gambody team. This bundle comprises the DLP/SLA and DLP/SLA Pre-supported versions that are specifically adapted to be printed on resin 3D printers such as HALOT-ONE. The process of adaptation presupposes that practical aspects of printing the model using the DLP/SLA/LCD technology are taken into account, and the model's scale and cutting are chosen to ensure an optimum result of printing.

3D PRINTING MODELS' SPECIFICATIONS

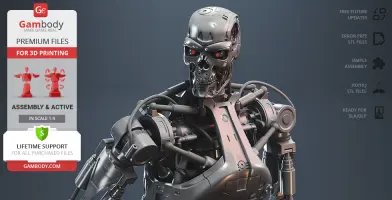

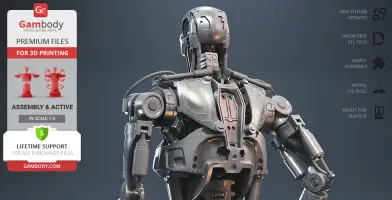

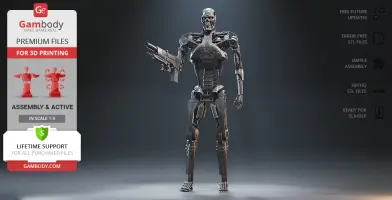

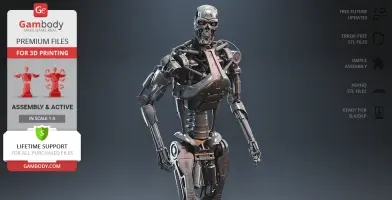

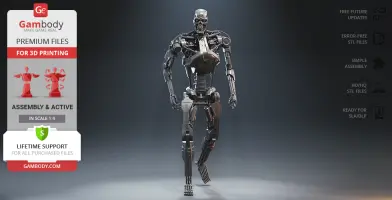

T-800 Endoskeleton 3D Printing Figurine:
DLP/SLA version:

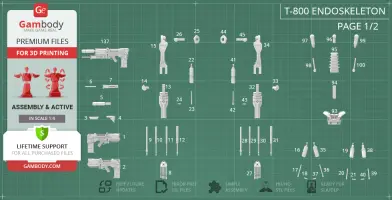

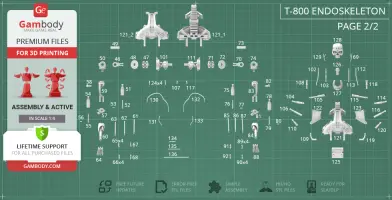

- Contains 136 parts;
- The model's scale is 1:4;

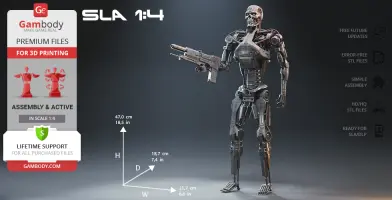

- A printed model is 470 mm tall, 217 mm wide, 187 mm deep;

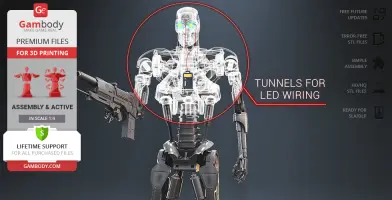

- You can light up the model's eyes. LED wiring can be easily installed throughout the neck and the head of the robot, while the battery can be hidden inside the chest;

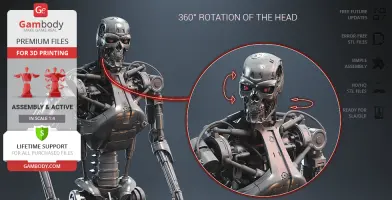

- Thanks to the ball-and-claw joint, the head of the Endoskeleton rotates in all directions;
- Shoulder can be articulated via three joints with the help of a ratchet and connectors;

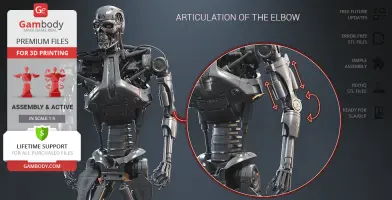

- Elbow bends via a ratchet and sets in motion two functioning shoulder pistons;
- Wrist rotates in all directions via a ball-and-claw joint and sets in motion three functioning forearm pistons;

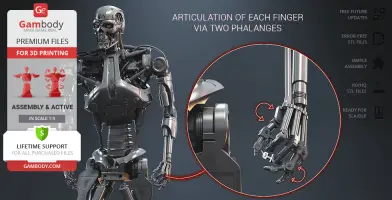

- Each Endoskeleton's finger bends via two phalanges;

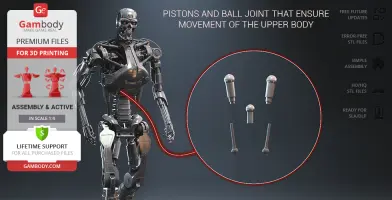

- Upper body rotates in all directions via a large ball-and-claw joint located in the machine's waist;
- Rotation of the upper body sets in motion two functioning side pistons;

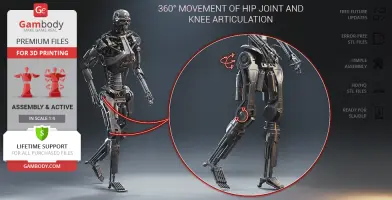

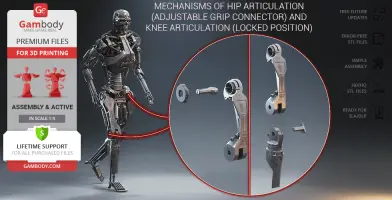

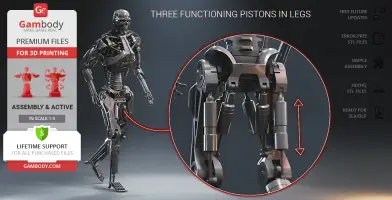

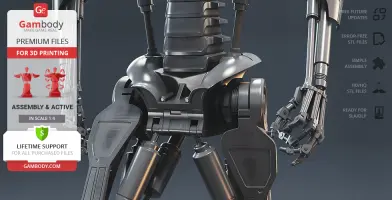

- Hip rotates in all directions via an adjustable grip connector and sets in motion three functioning thigh pistons;
- Knee bends via a ratchet and can be locked in a preferred position;
- The assembly of some of Endeskeleton's parts requires additional “pins”. These pins can be made out of short pieces of regular 1.75mm filament, regular paper clips, or you can print the 1.75mm cylinders that come with STL files;
- Hydraulic cables that connect the model's parts can be printed (they come already twisted in STL files), or made out of 1.75mm filament of your choice;
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

DLP/SLA Pre-supported version:
- Contains 13 parts;
- The model's scale is 1:4;
- A printed model stands 470 mm tall, 217 mm wide, 187 mm deep;
- The STL files that this version comprises are pre-supported for HALOT-ONE, hollowed out, and have drain holes where needed;
- This version features the same technical characteristics as the DLP/SLA version.

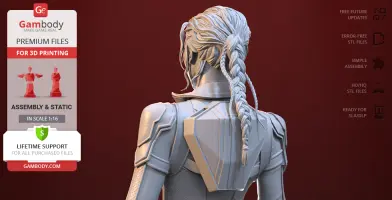

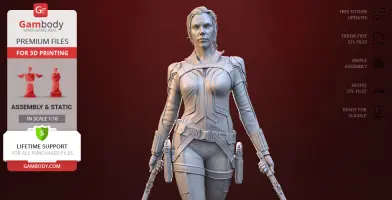

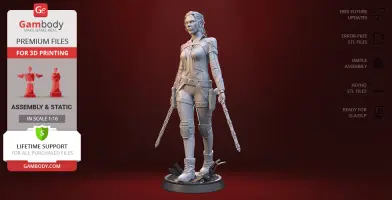

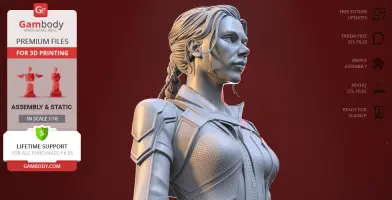

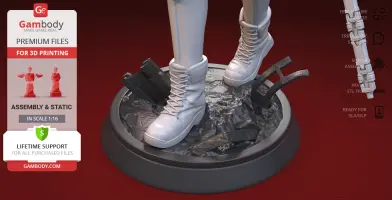

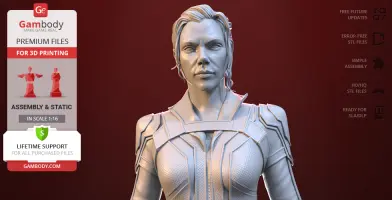

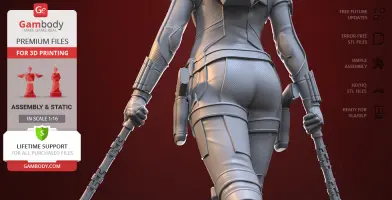

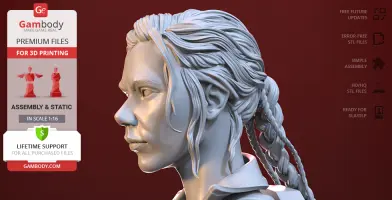

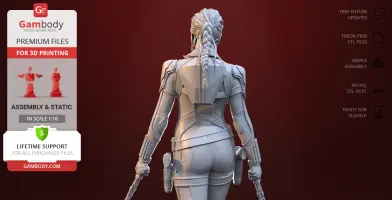

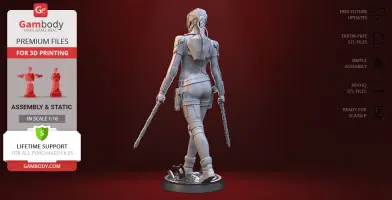

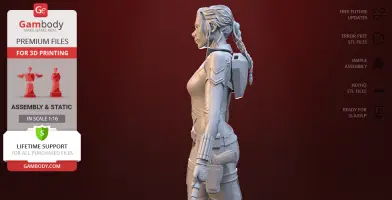

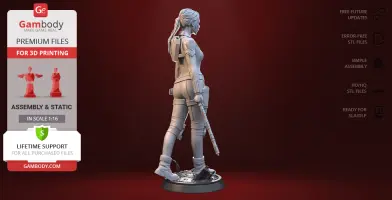

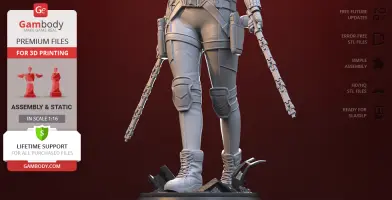

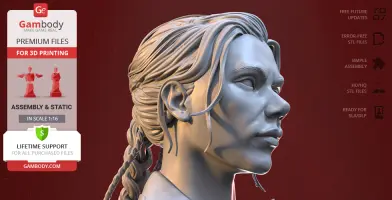

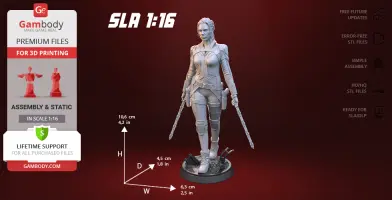

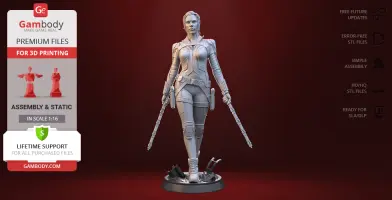

Black Widow 3D Printing Figurine:
DLP/SLA version:

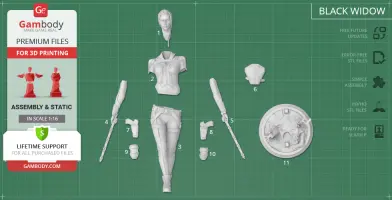

- Contains 11 parts;
- The model's scale is 1:16;
- A printed model is 106 mm tall, 63 mm wide, 45 mm deep;
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

DLP/SLA Pre-supported version:
- Contains 11 parts;
- The model's scale is 1:16;
- A printed model is 106 mm tall, 63 mm wide, 45 mm deep;
- The STL files that this version comprises are pre-supported for HALOT-ONE, hollowed out, and have drain holes where needed;
- This version features the same technical characteristics as the DLP/SLA version.

To purchase the bundle comprising Creality HALOT-ONE Resin 3D Printer, T-800 Endoskeleton 3D Printing Figurine and Black Widow 3D Printing Figurine click the green Buy button in the top-right corner of the model’s page.

Go to the page of T-800 Endoskeleton 3D Printing Figurine and Black Widow 3D Printing Figurine to find more details and additional illustrative material!

Generic

Below you will find optimum printing recommendations for the HALOT-ONE Resin 3D Printer.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the manufacturer of the particular 3D printing resin and its peculiarities. The following settings have been tested using different brands and types of 3D printing resin.

Regular (non-clear) 3D printing resin
Bottom Exposure time: 30 - 40 sec.
Light off delay: 1 sec.
Exposure time: 3 sec.

Semi-transparent 3D printing resin
Bottom Exposure time: 30 sec.
Light off delay: 1 sec.
Exposure time: 2.5 sec.

Clear 3D printing resin
Bottom Exposure time: 25 sec.
Light off delay: 1 sec.
Exposure time: 2.5 sec.
