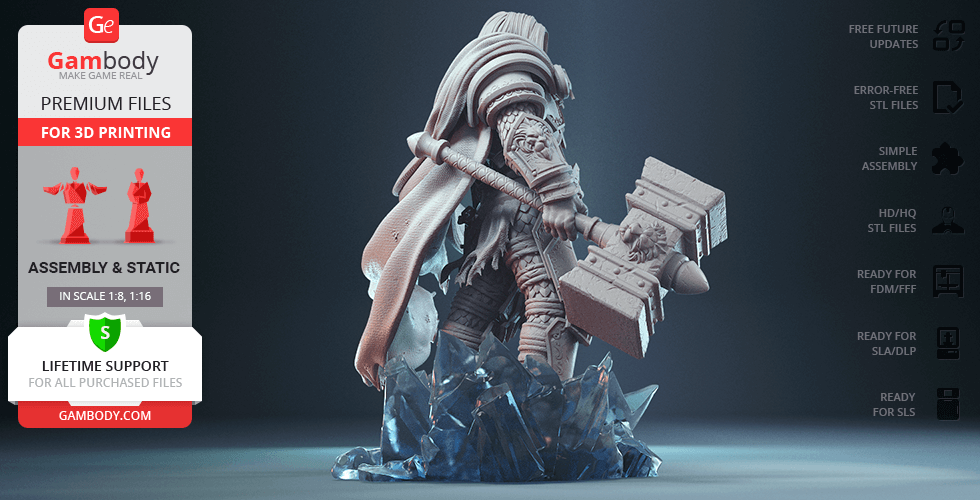

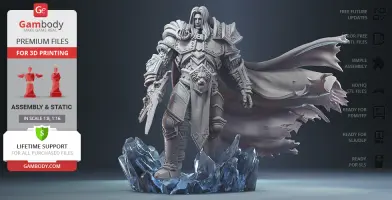

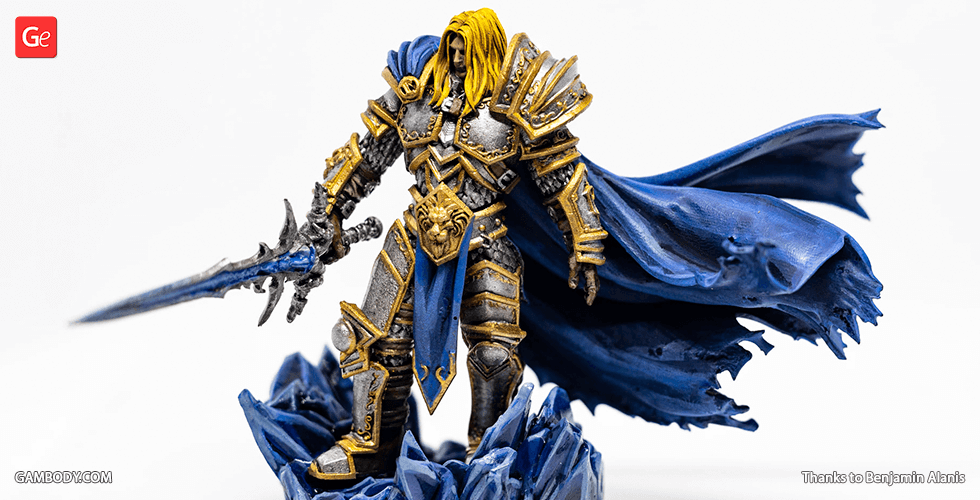

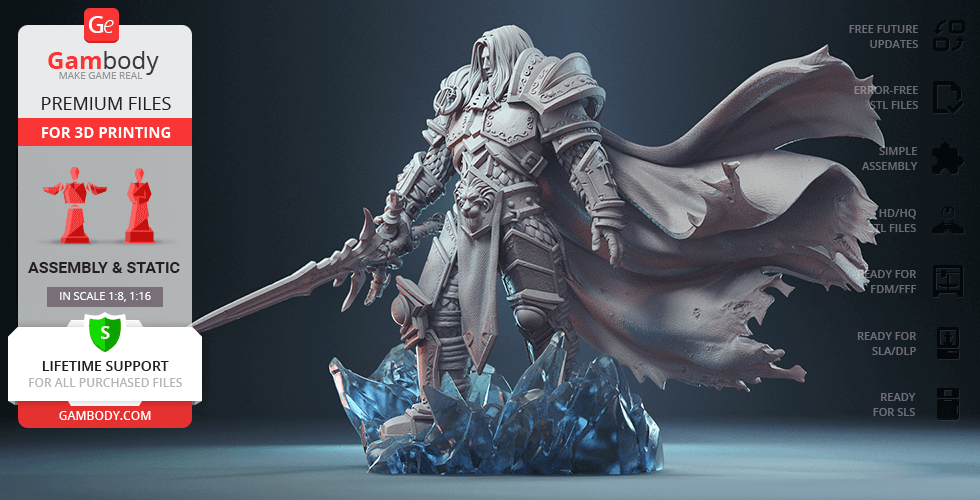

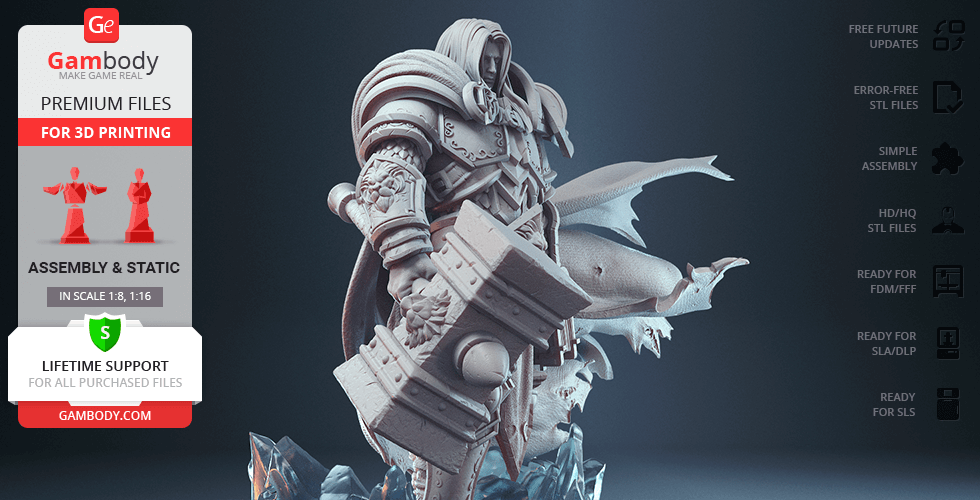

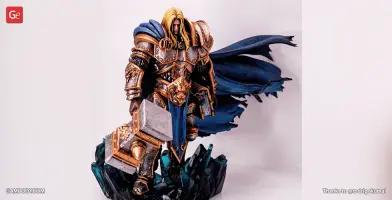

Arthas 3D Printing Figurine | Assembly

(3)
cm: 35.5 w x 35.4 d x 28.5 h
in: 13.976 w x 13.937 d x 11.22 h

Source Files

|

Description

|

Printing Details

This 3D Figurine consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

- 5 versions of Arthas STL files for FFF/FDMDLP/SLA, and SLS - files for each version are available for download after the purchase

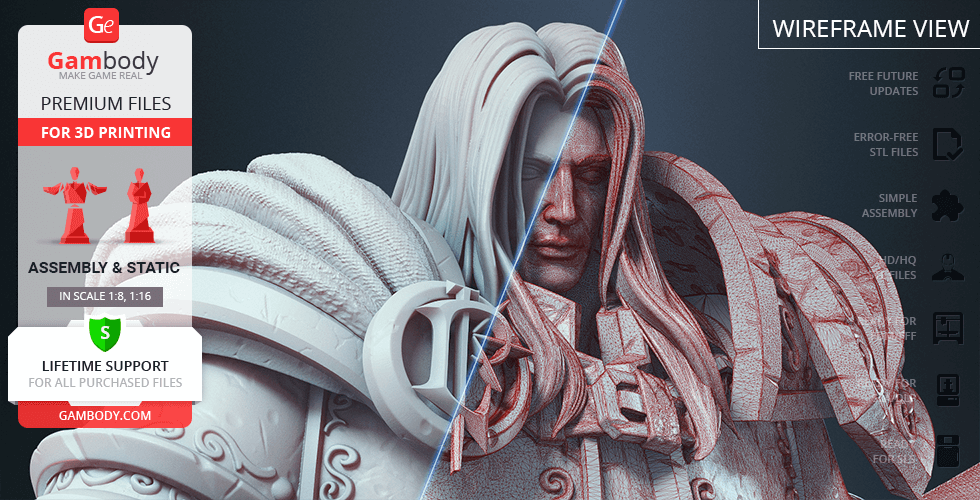

- STL files of high-poly Arthas 3D Figurine for 3D printing consist of 99 parts

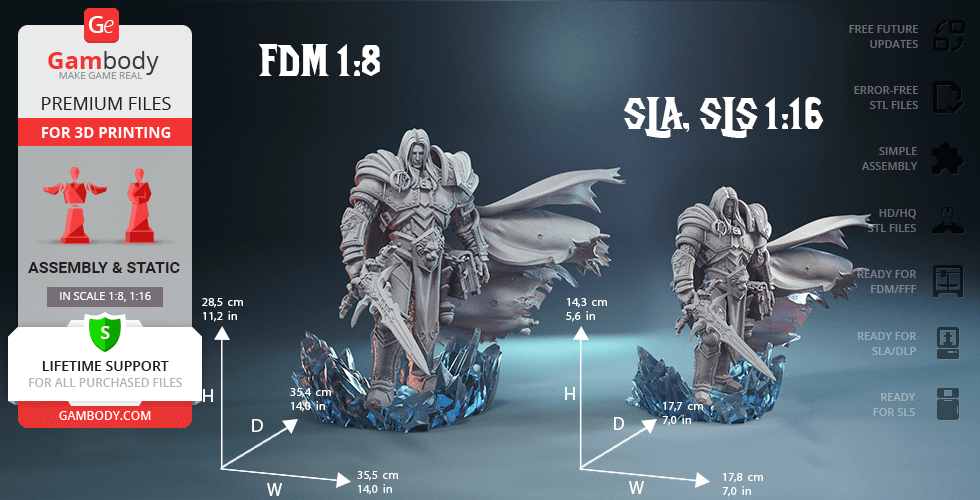

- Sizes:
FFF/FDM: 285 mm tall, 355 mm wide, 354 mm deep​
​DLP/SLA/SLS: 143 mm tall, 178 mm wide, 177 mm deep

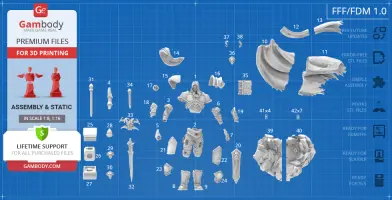

Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format
- Detailed settings that we provide as a recommendation for Cura, Simplify3D and Slic3r for the best print
- Full technical support from the Gambody Support Team

Detailed information about this 3D printing figurine is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size

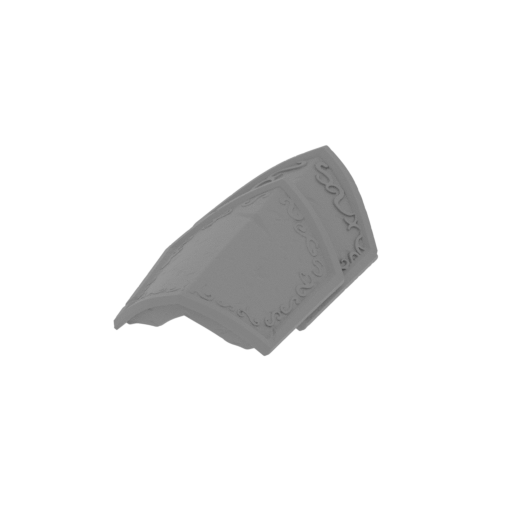

(x/y/z mm)

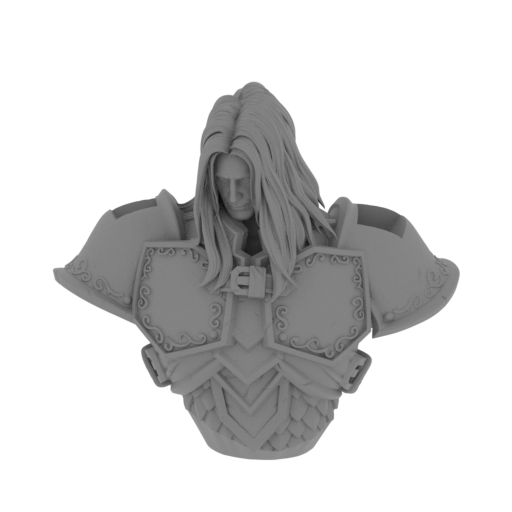

1_body_FDM(repaired).stl
63.16 MiB 35 h 13 min 20 m 124 x 76 x 114 Download

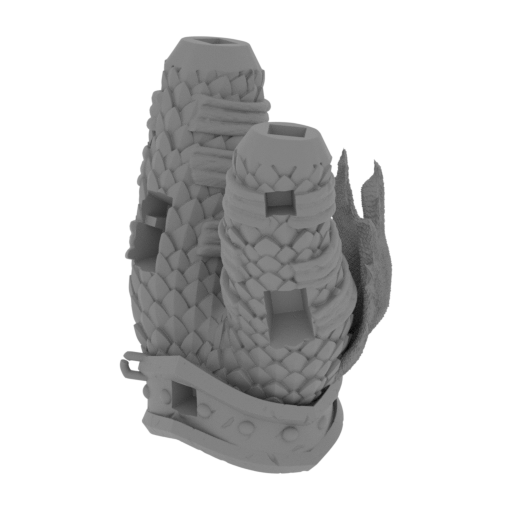

2_legs_FDM(repaired).stl
57.55 MiB 25 h 43 min 15 m 77 x 92 x 107 Download

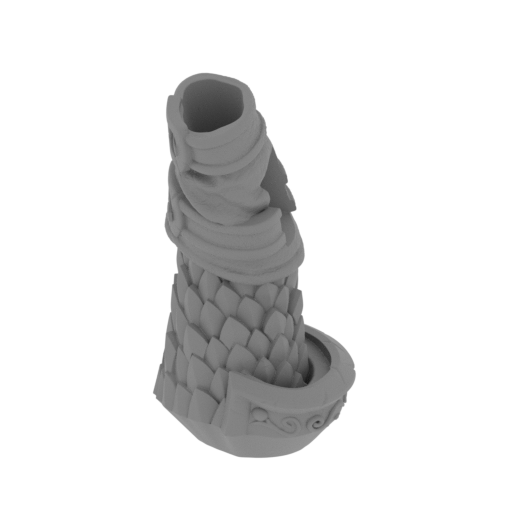

3_arm_R_FDM(repaired).stl
21.58 MiB 4 h 32 min 2 m 35 x 37 x 66 Download

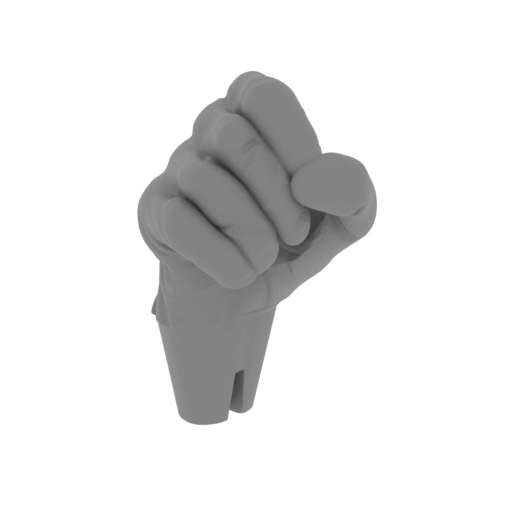

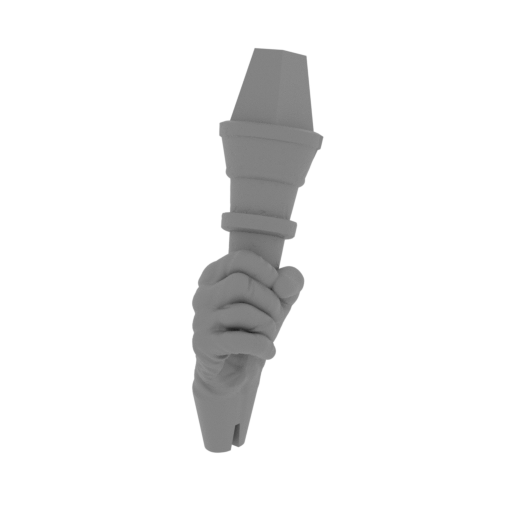

4_hand_R_with_hammer_FDM( repaired).stl
15.97 MiB 3 h 11 min 2 m 22 x 45 x 77 Download
5_hand_R_with_sword_FDM(r epaired).stl
12.72 MiB 1 h 30 min 1 m 26 x 26 x 42 Download

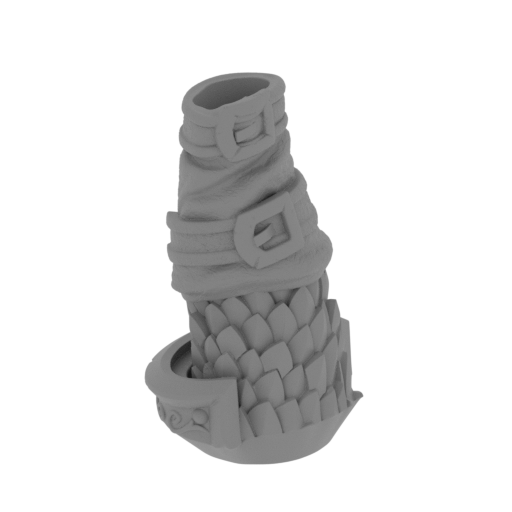

6_arm_L_FDM(repaired).stl
19.56 MiB 3 h 54 min 2 m 33 x 39 x 62 Download

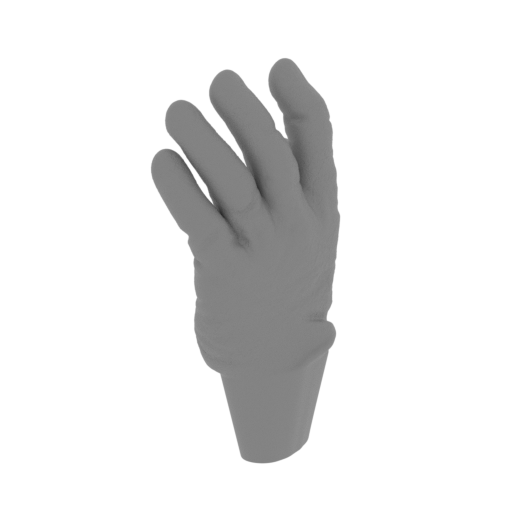

7_hand_L_FDM(repaired).st l
11.28 MiB 1 h 10 min 1 m 18 x 28 x 45 Download

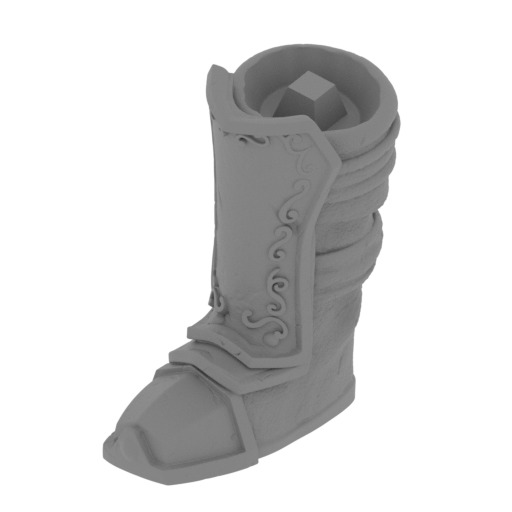

8_foot_R_FDM(repaired).st l
27.45 MiB 7 h 30 min 4 m 47 x 55 x 74 Download

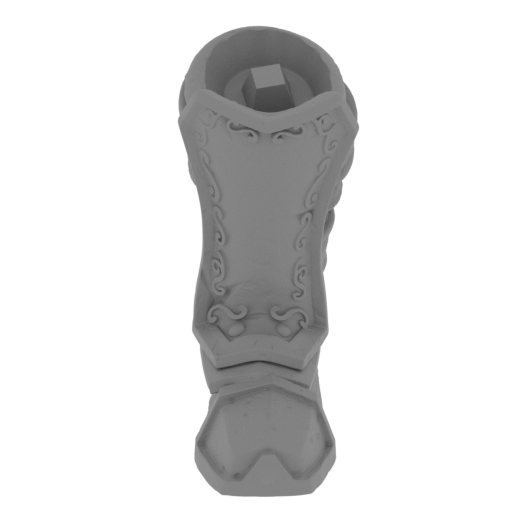

9_foot_L_FDM(repaired).st l
24.88 MiB 7 h 38 min 4 m 39 x 57 x 75 Download

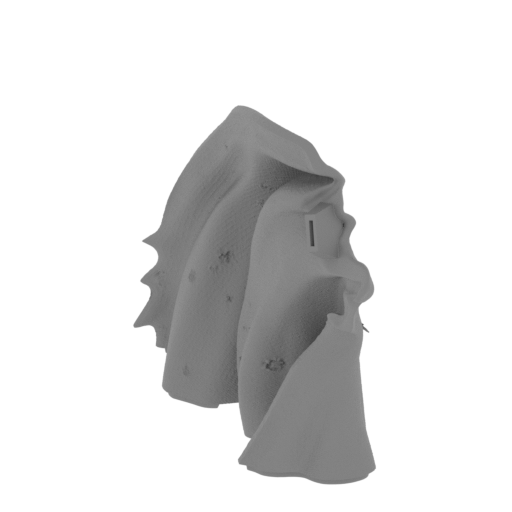

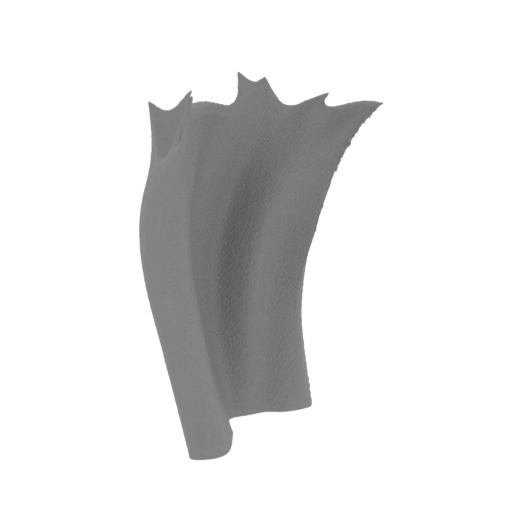

10_cloak_1_FDM (repaired) .stl
44.07 MiB 31 h 45 min 17 m 142 x 138 x 149 Download

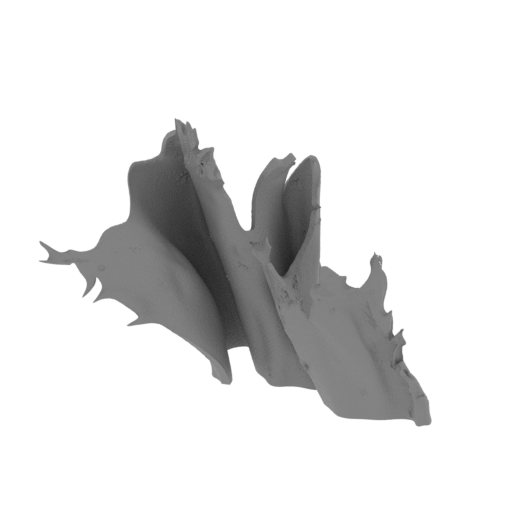

11_cloak_2_FDM (repaired) .stl

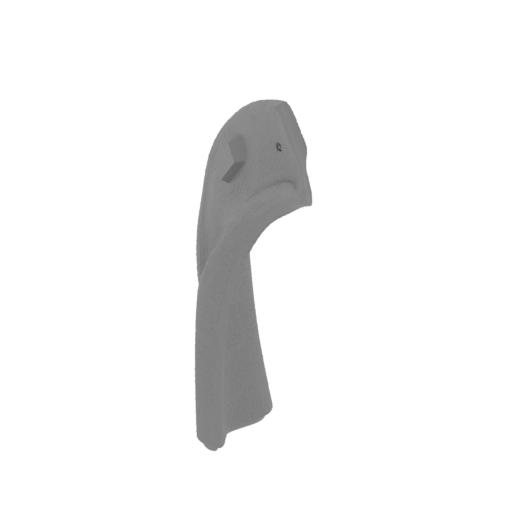

48.27 MiB 37 h 12 min 18 m 200 x 96 x 143 Download
12_cloak_3_FDM (repaired) .stl
16.53 MiB 5 h 6 min 3 m 54 x 66 x 102 Download
13_cloak_4_FDM (repaired) .stl
17.46 MiB 5 h 39 min 3 m 55 x 76 x 112 Download

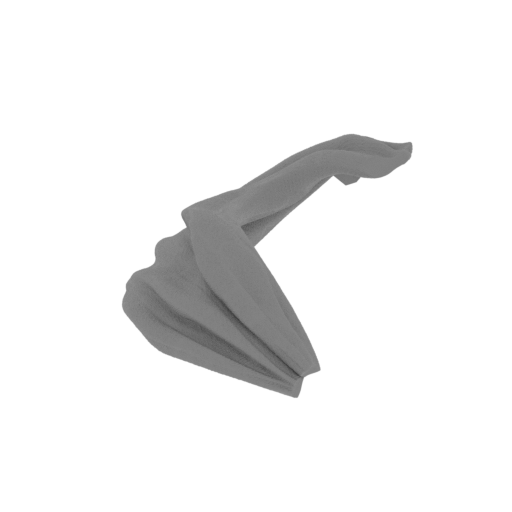

14_cloak_5_FDM (repaired) .stl
28.26 MiB 9 h 15 min 6 m 61 x 105 x 42 Download

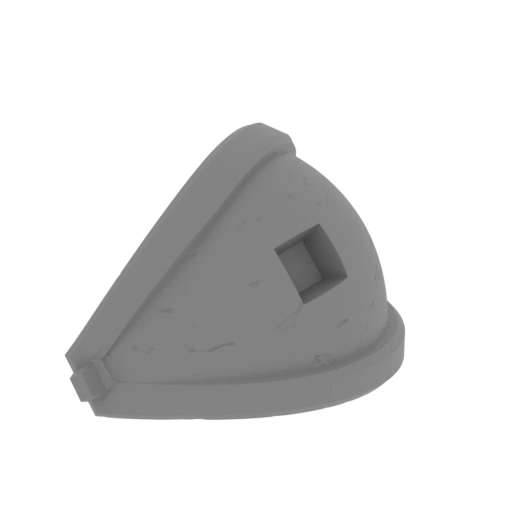

15_shoulder_pad_R_FDM(rep aired).stl
15.47 MiB 3 h 29 min 2 m 46 x 62 x 38 Download
16_shoulder_pad_L_FDM(rep aired).stl
21.61 MiB 8 h 19 min 5 m 56 x 71 x 43 Download

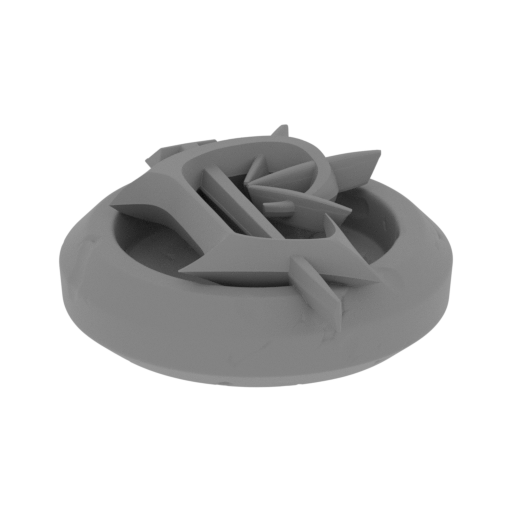

17_clasp_FDM(repaired).st l
5.46 MiB 27 min <1 m 22 x 22 x 8 Download

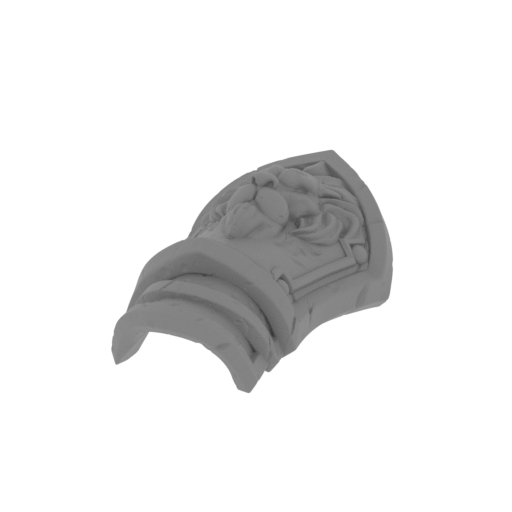

18_hand_armor_R_FDM(repai red).stl
12.15 MiB 2 h 22 min 1 m 34 x 59 x 22 Download

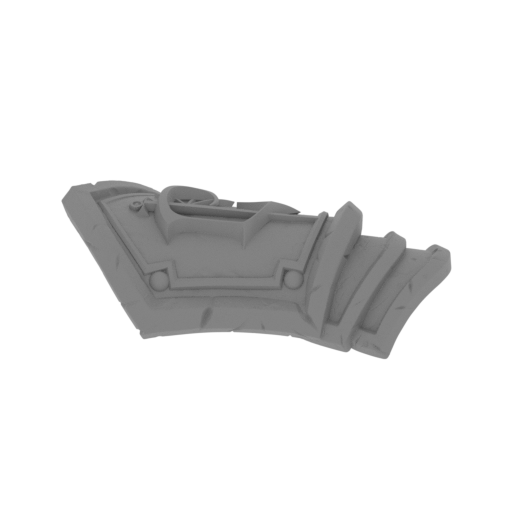

19_hand_armor_L_FDM(repai red).stl
19.07 MiB 2 h 11 min 1 m 58 x 32 x 18 Download

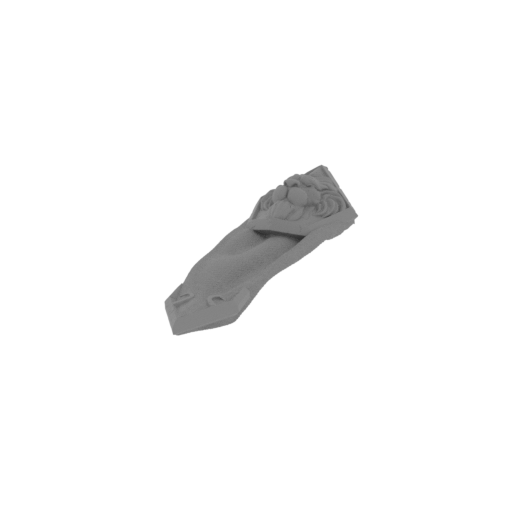

20_belt_buckle_FDM(repair ed).stl
20.56 MiB 5 h 16 min 3 m 37 x 132 x 24 Download
21_leg_armor_R_FDM(repair ed).stl
16.59 MiB 3 h 8 min 2 m 36 x 71 x 19 Download

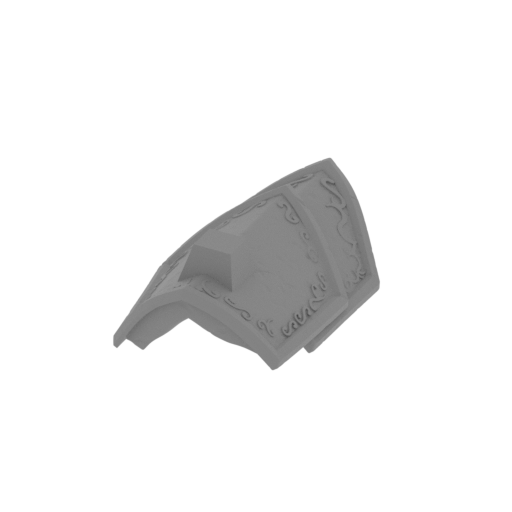

22_leg_armor_L_FDM(repair ed).stl
15.71 MiB 3 h 27 min 2 m 37 x 70 x 24 Download

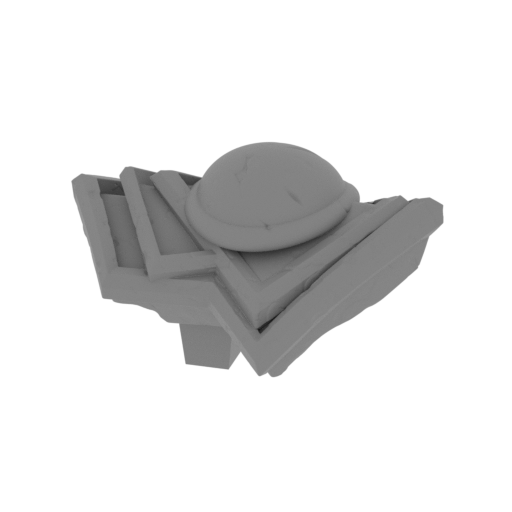

23_knee_pad_R_FDM(repaire d).stl
14.43 MiB 2 h 36 min 1 m 48 x 38 x 29 Download

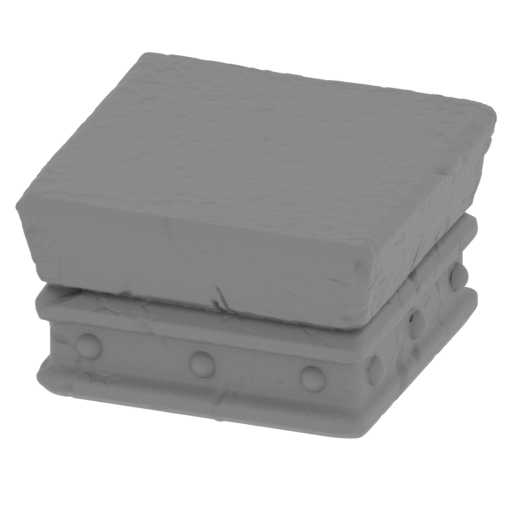

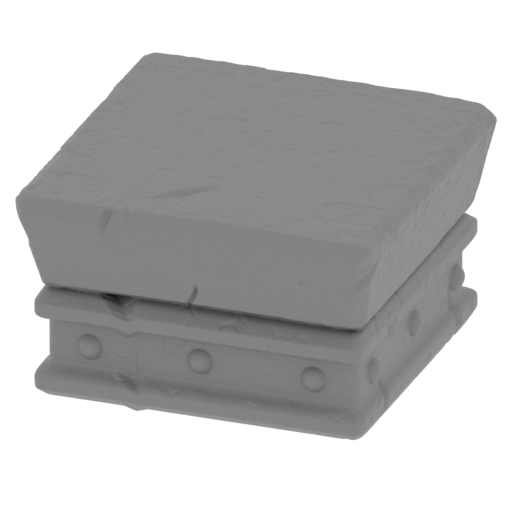

25_hammer_1_FDM(repaired) .stl
11.72 MiB 5 h 52 min 3 m 50 x 51 x 31 Download

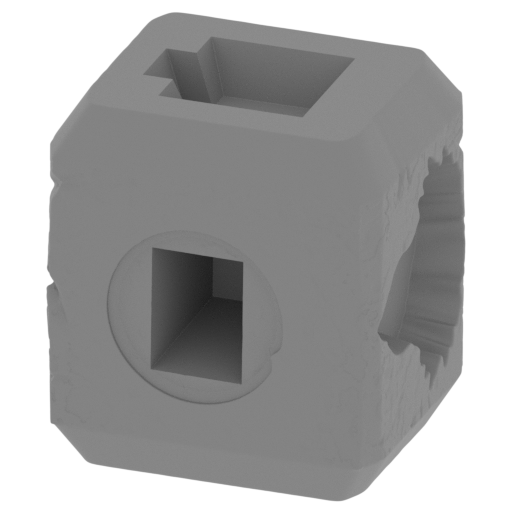

26_hammer_2_FDM(repaired) .stl
14.40 MiB 5 h 4 min 3 m 40 x 33 x 43 Download
27_hammer_3_FDM(repaired) .stl
12.28 MiB 5 h 51 min 3 m 50 x 51 x 31 Download

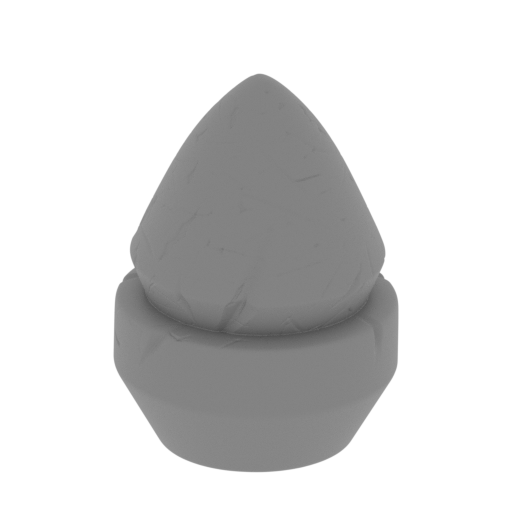

28_hammer_4_FDM(repaired) .stl
7.72 MiB 42 min <1 m 22 x 22 x 31 Download

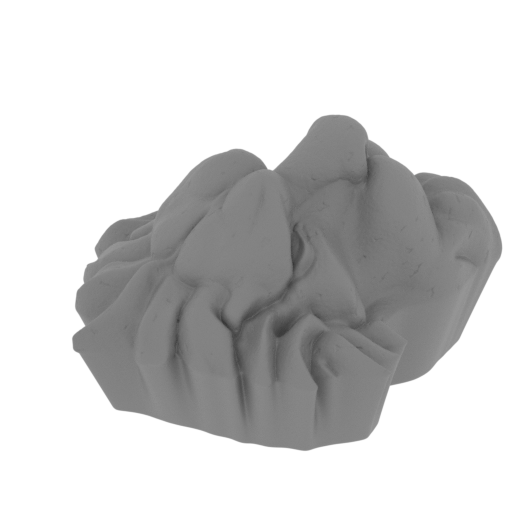

29_hammer_5_FDM(repaired) .stl
13.42 MiB 33 min <1 m 25 x 25 x 17 Download

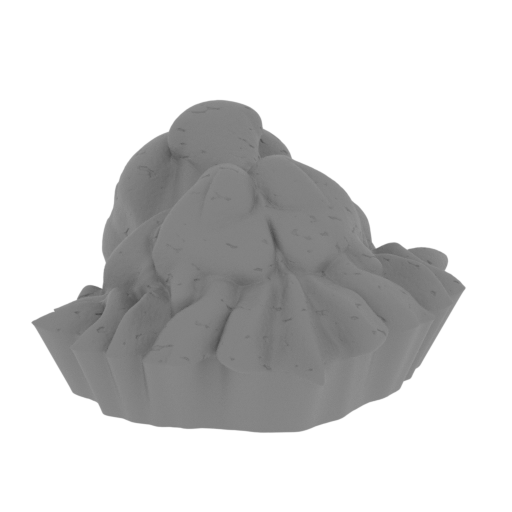

30_hammer_6_FDM(repaired) .stl
12.26 MiB 34 min <1 m 25 x 25 x 16 Download

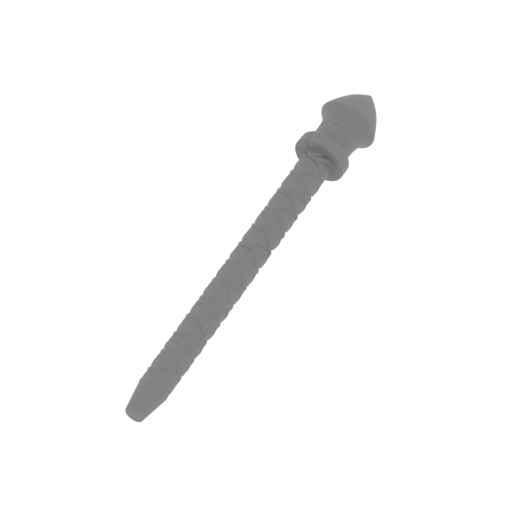

31_hammer_handle_FDM(repa ired).stl
12.18 MiB 2 h 57 min 2 m 37 x 107 x 61 Download

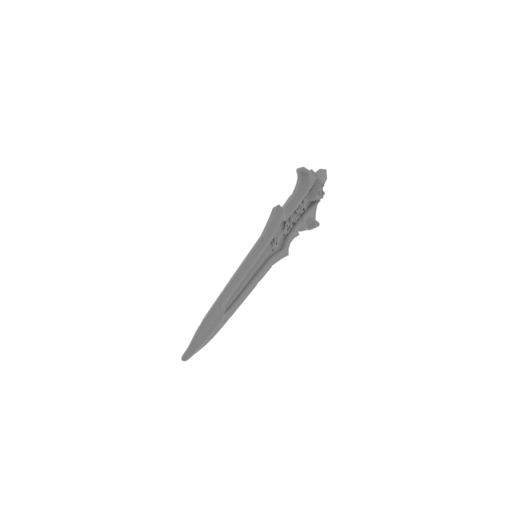

32_sword_1_FDM(repaired). stl
16.25 MiB 2 h 42 min 1 m 10 x 163 x 31 Download

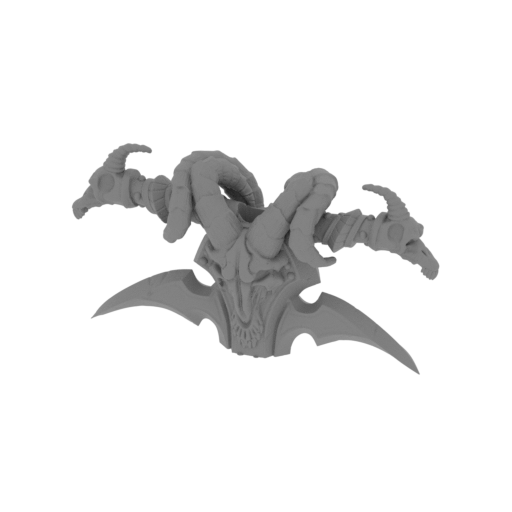

33_sword_2_FDM(repaired). stl
29.18 MiB 5 h 28 min 3 m 88 x 25 x 45 Download

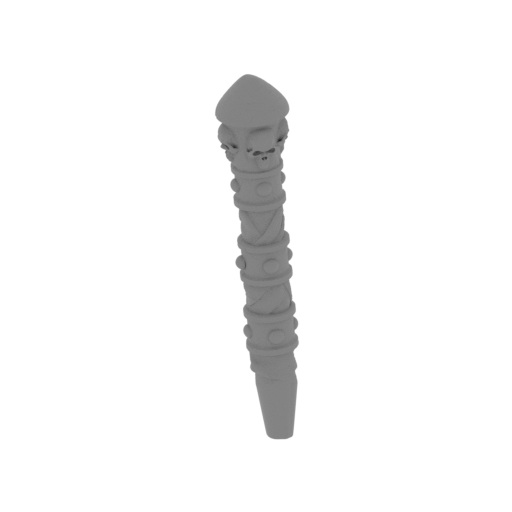

34_sword_handle_FDM(repai red).stl
11.05 MiB 1 h 40 min 1 m 15 x 14 x 73 Download
35_book_1_FDM(repaired).s tl
19.10 MiB 6 h 22 min 3 m 22 x 58 x 51 Download

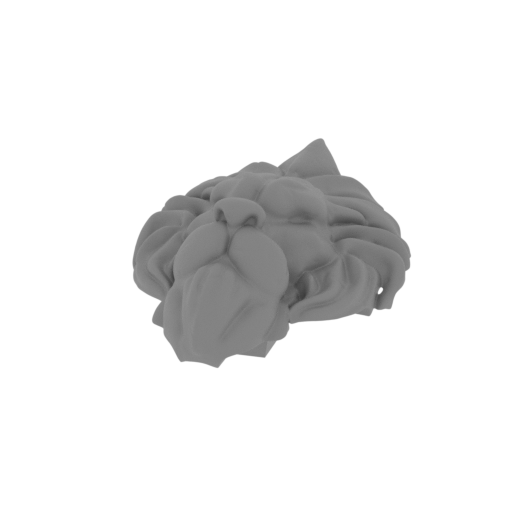

36_book_2_FDM(repaired).s tl
11.11 MiB 38 min <1 m 23 x 32 x 15 Download

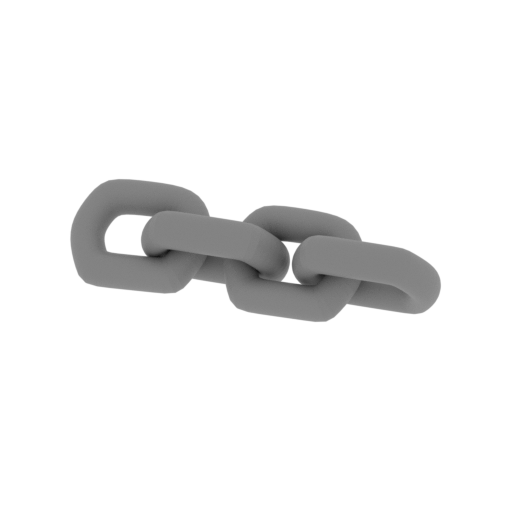

37_chaine_1_FDM(repaired) .stl
1.17 MiB 15 min <1 m 27 x 7 x 6 Download
38_chaine_2_FDM(repaired) .stl
1.17 MiB 15 min <1 m 27 x 7 x 6 Download

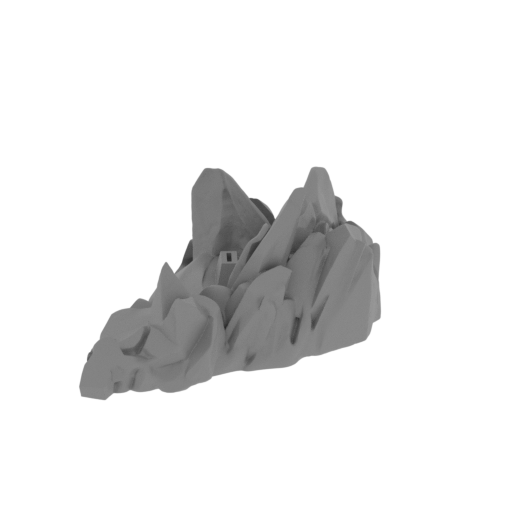

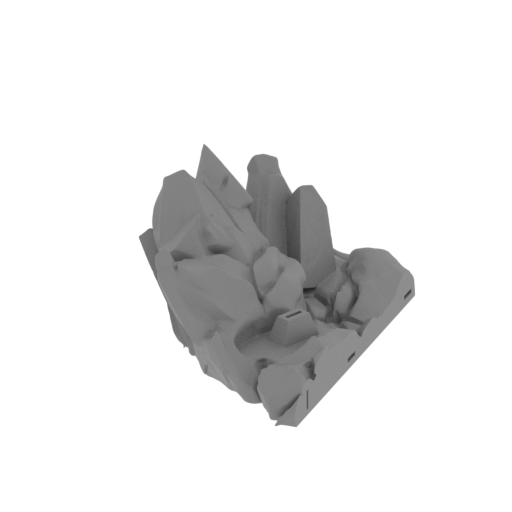

39_platform_1_FDM(repaire d).stl
26.69 MiB 31 h 36 min 17 m 106 x 184 x 83 Download
40_platform_2_FDM(repaire d).stl
23.74 MiB 33 h 19 min 18 m 108 x 182 x 86 Download

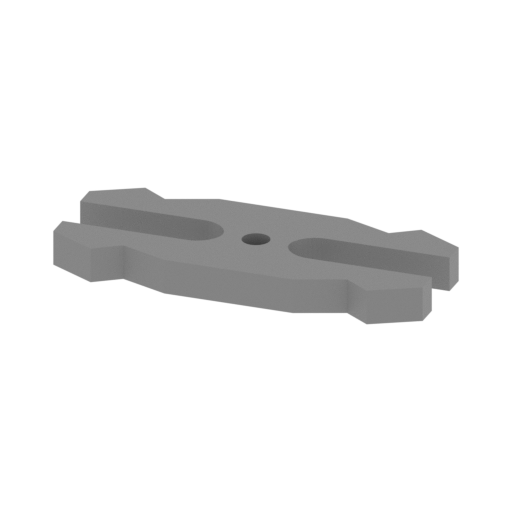

41_ge_lock_7S(x4)_FDM(rep aired).stl
0.02 MiB 3 min <1 m 18 x 7 x 2 Download
42_ge_lock_10H(x7)_FDM(re paired).stl
0.03 MiB 4 min <1 m 10 x 18 x 2 Download

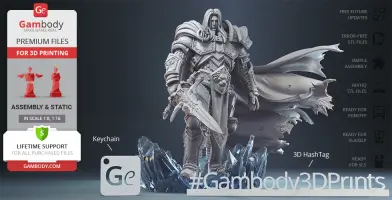

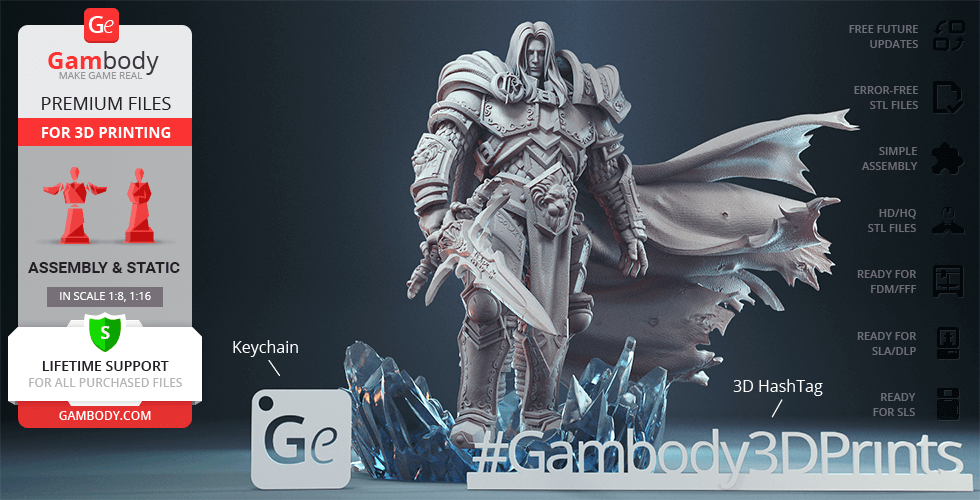

Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download

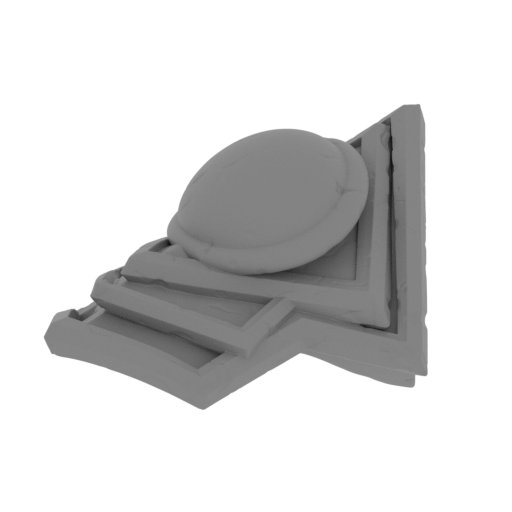

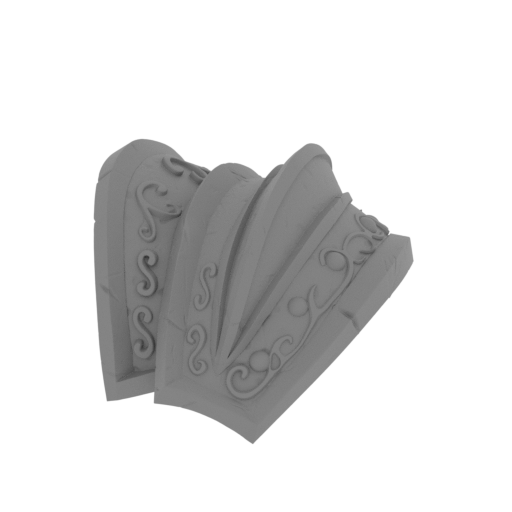

24_knee_pad_L_FDM(repaire d).stl
15.73 MiB 2 h 3 min 1 m 40 x 38 x 24 Download
...

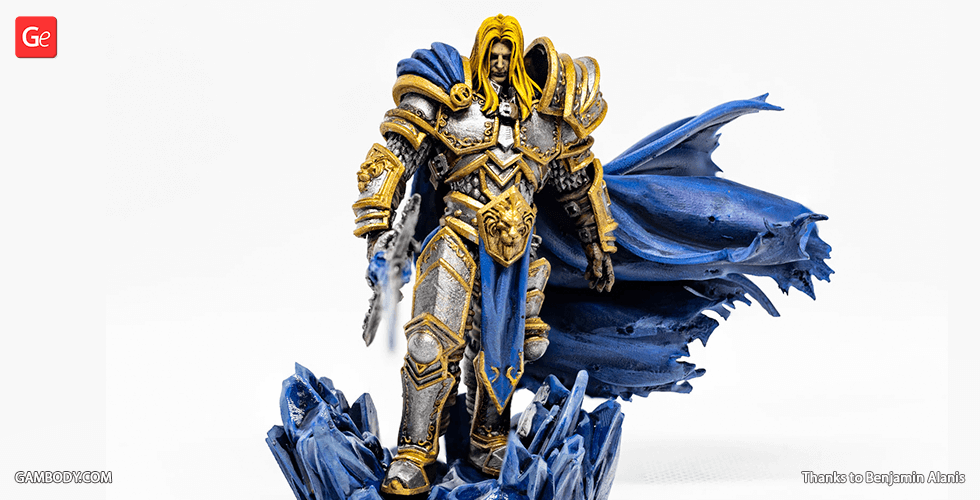

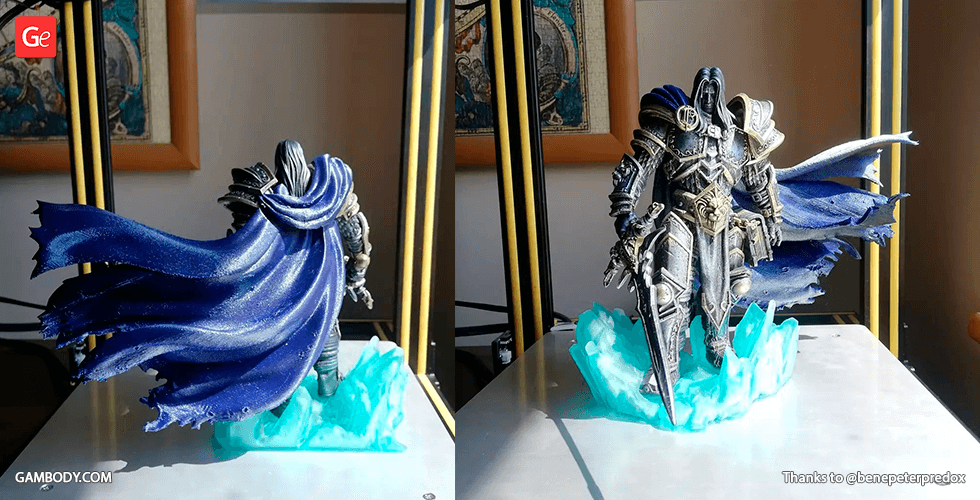

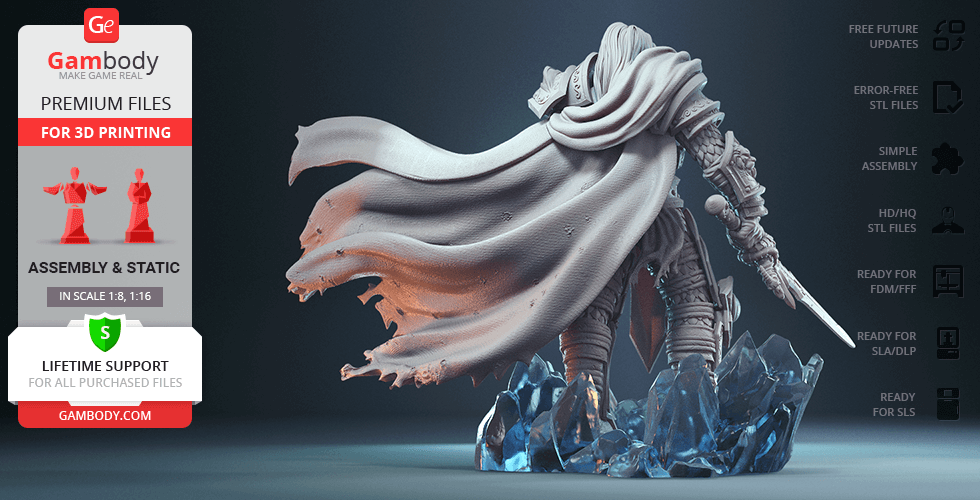

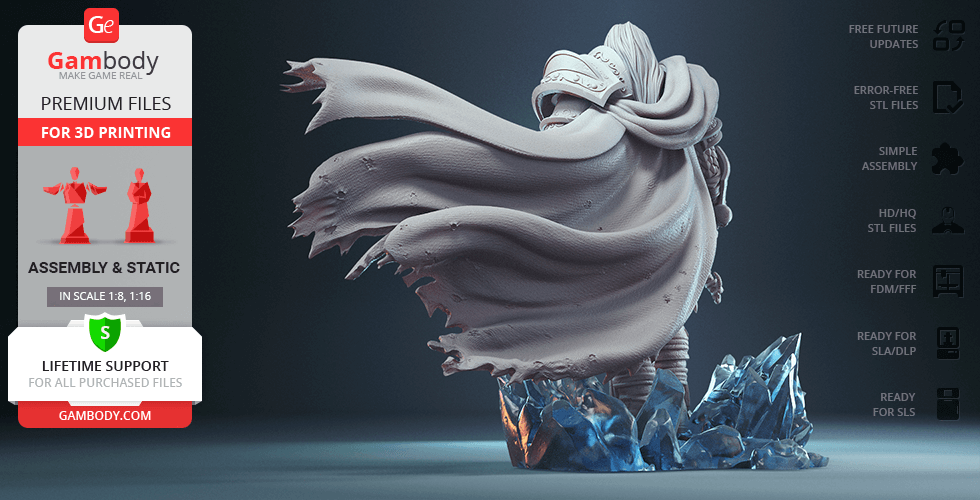

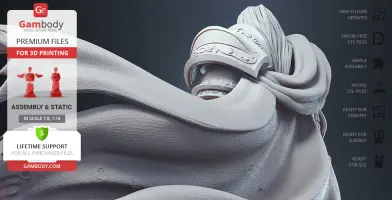

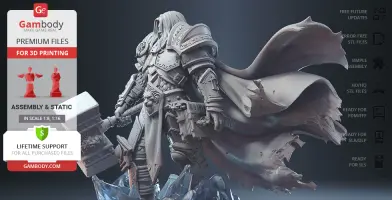

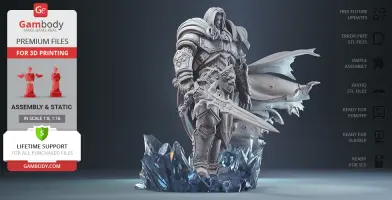

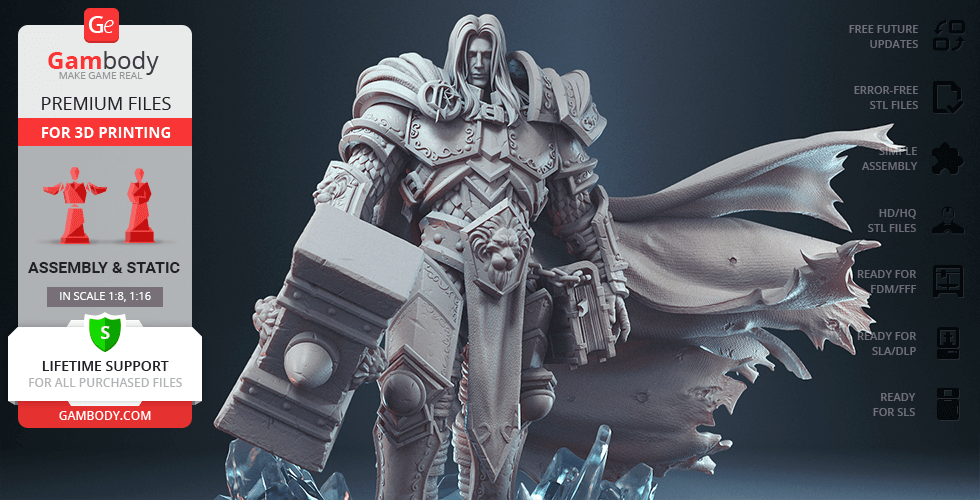

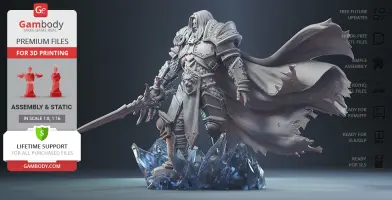

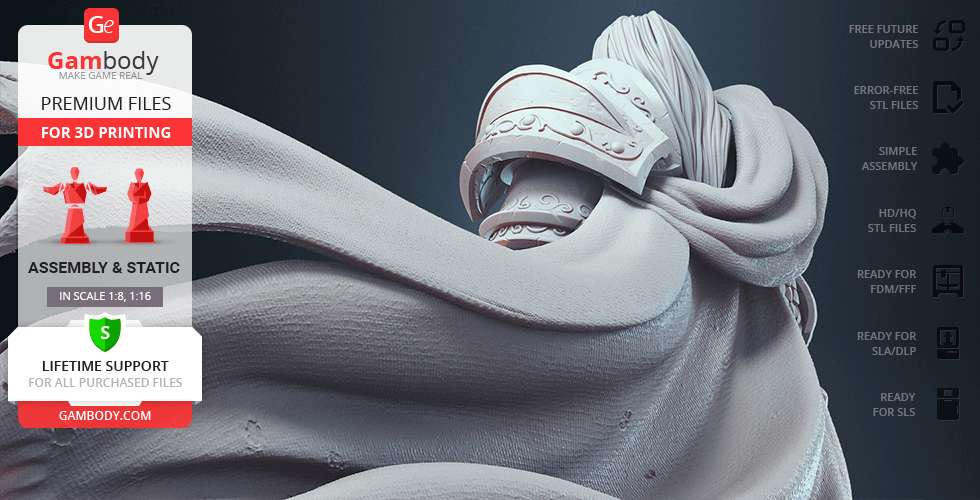

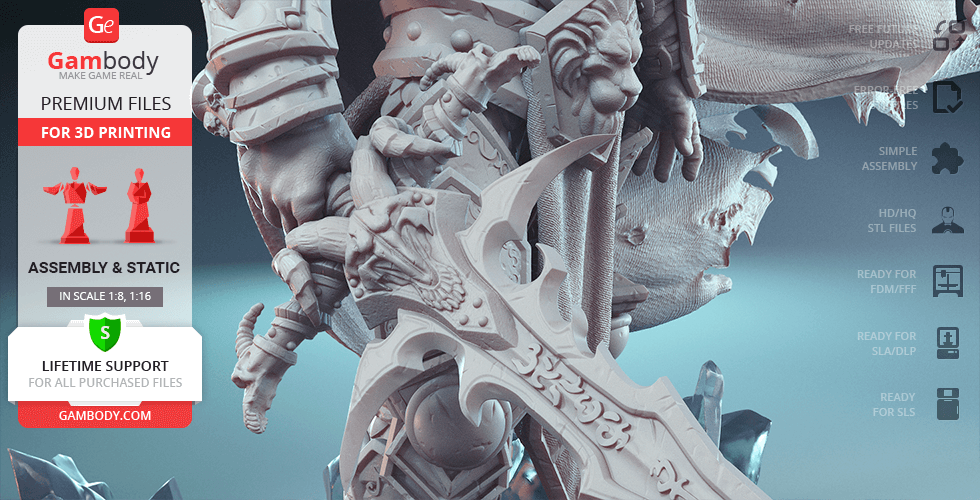

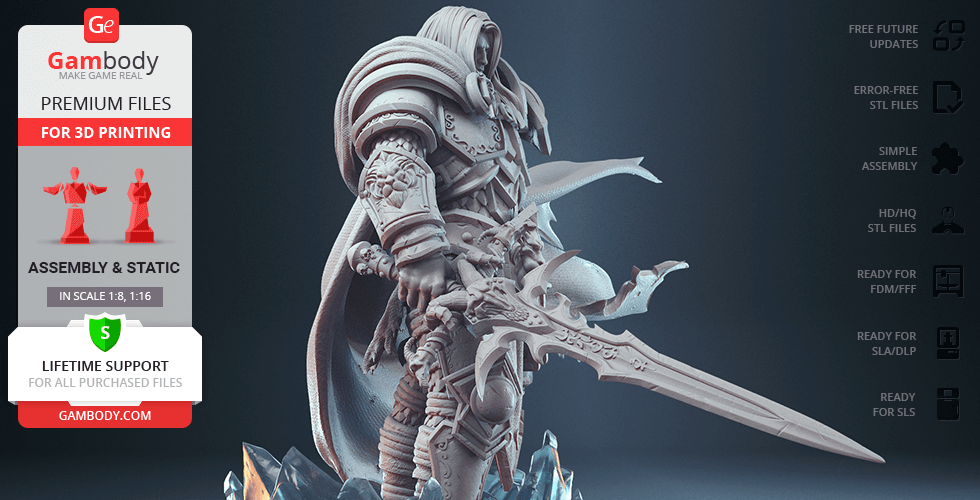

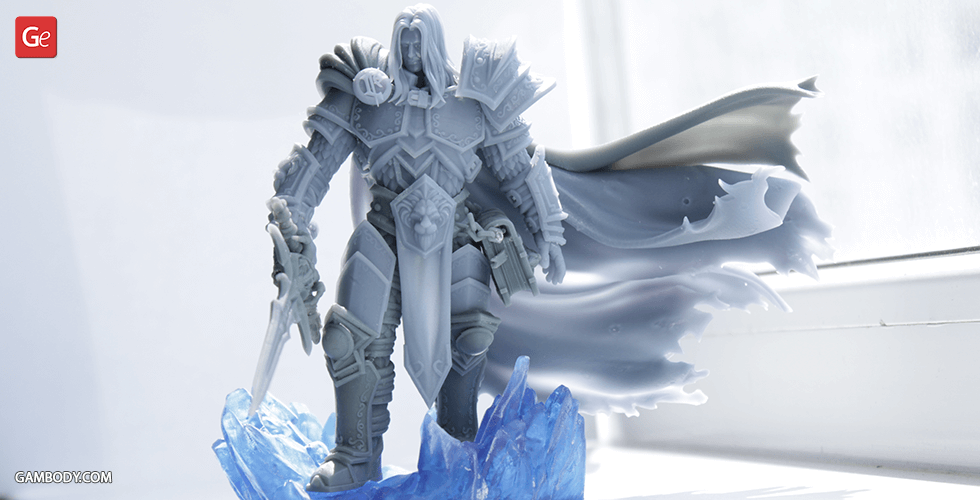

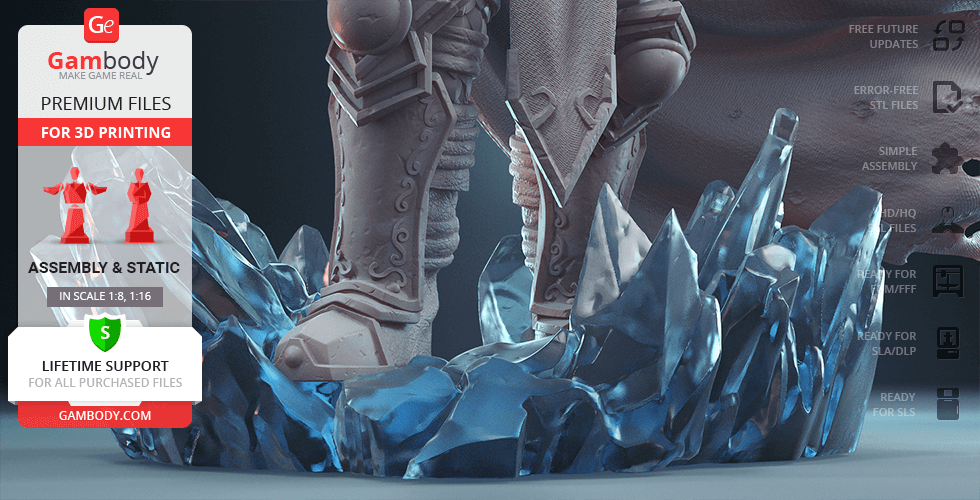

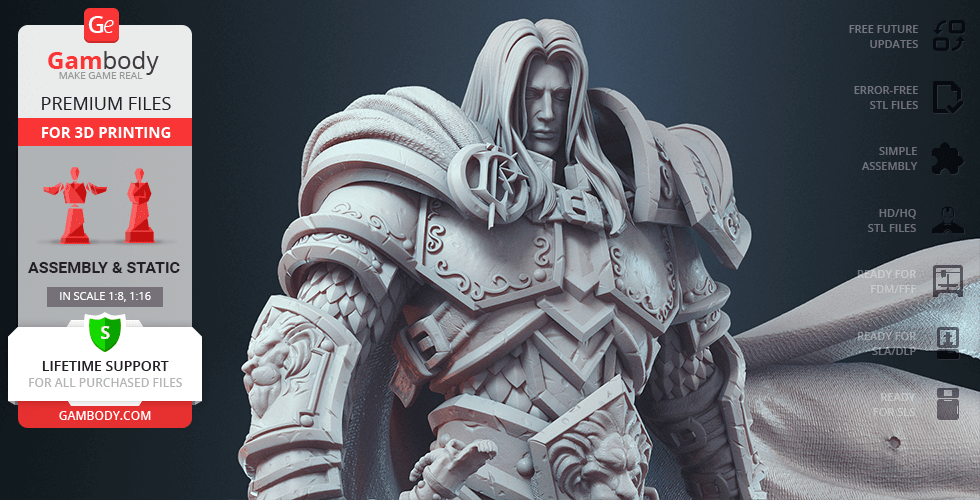

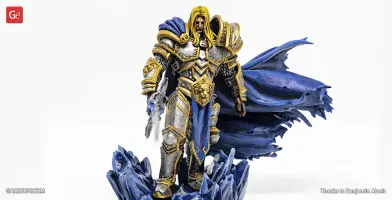

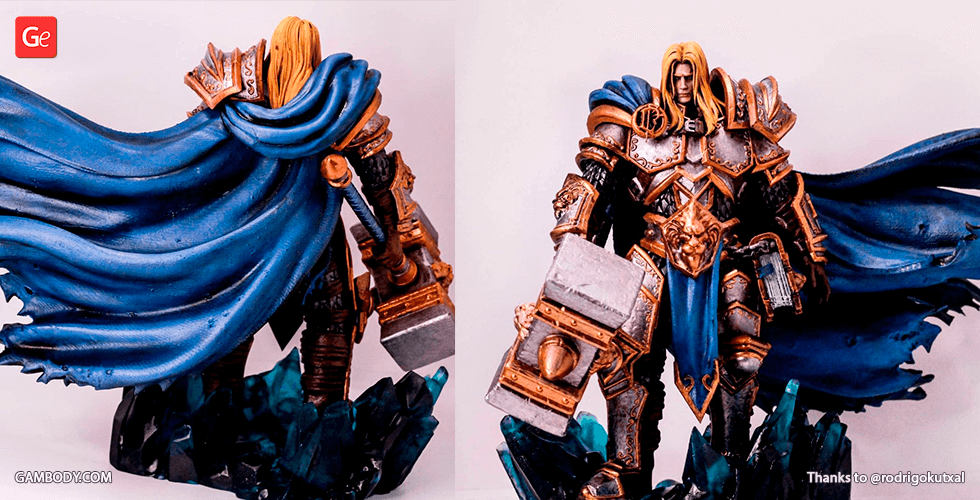

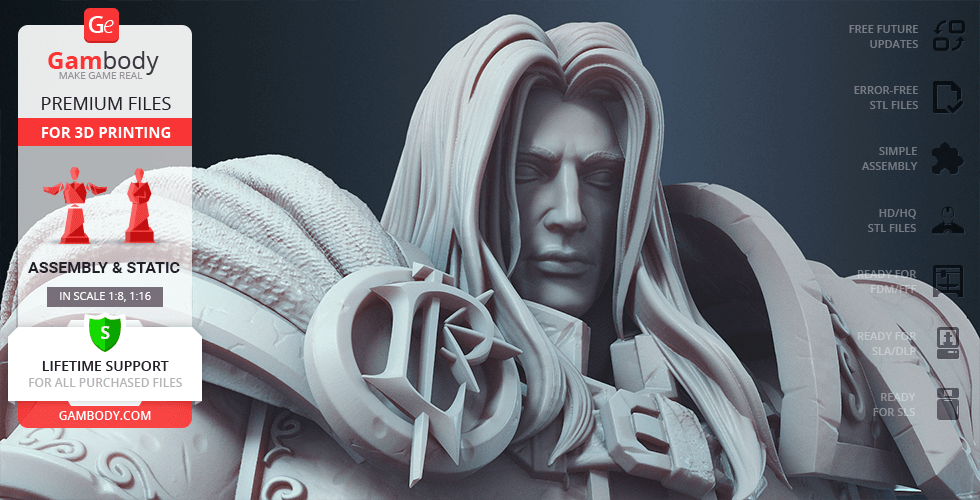

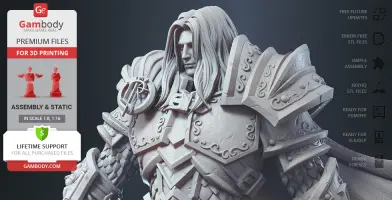

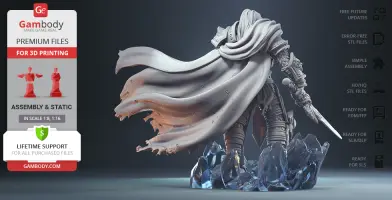

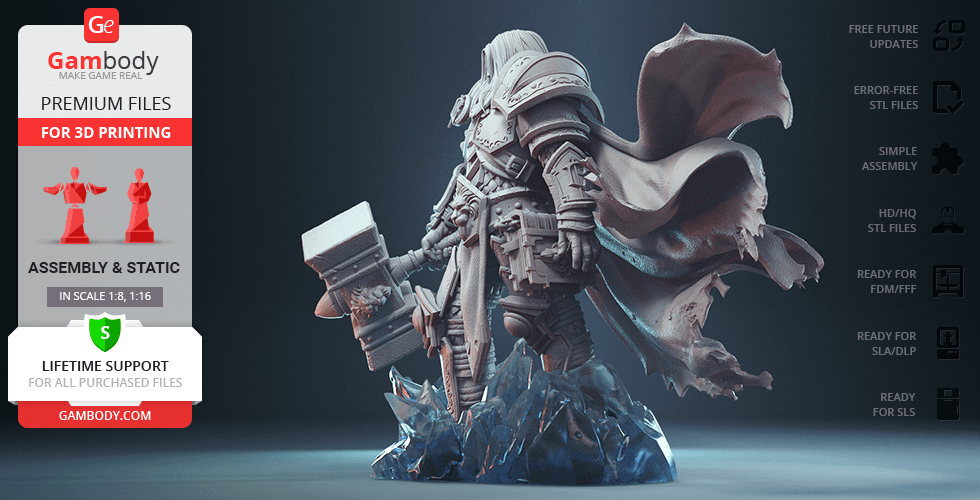

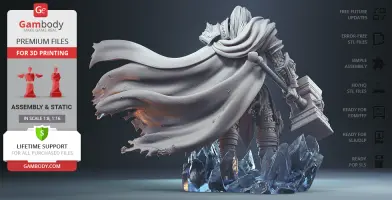

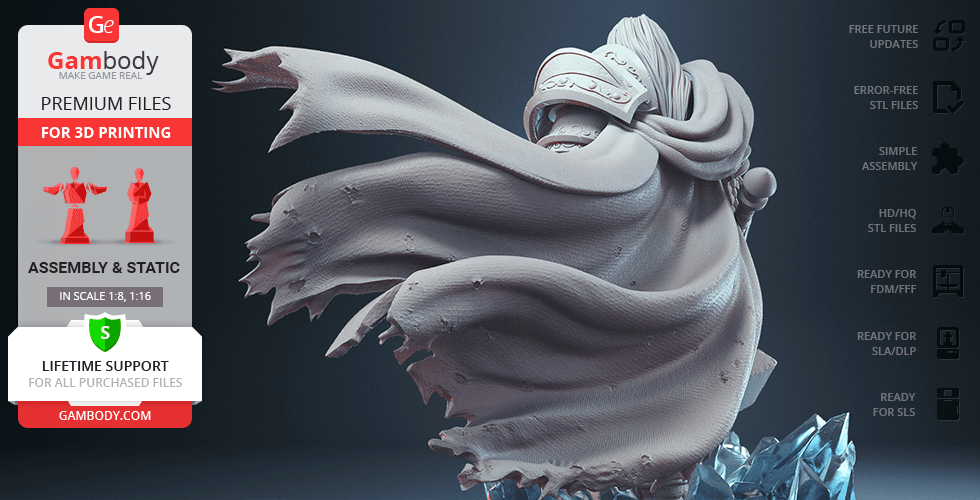

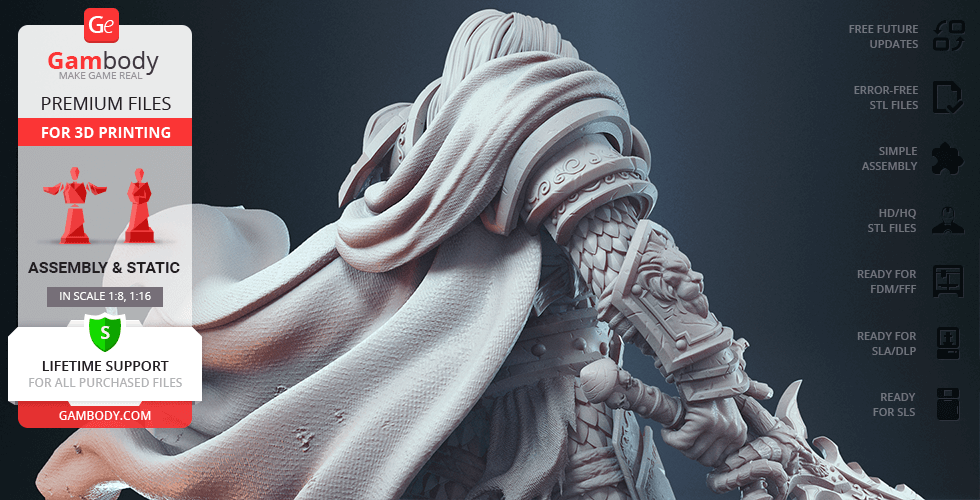

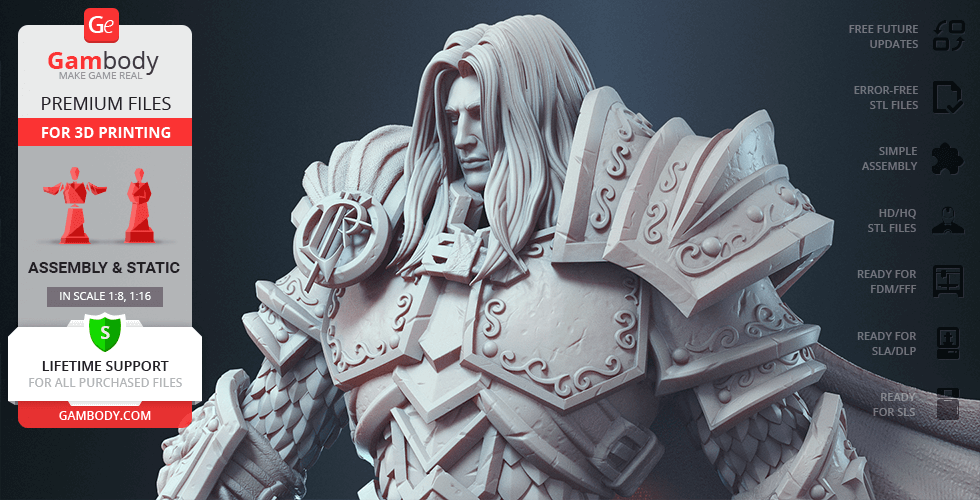

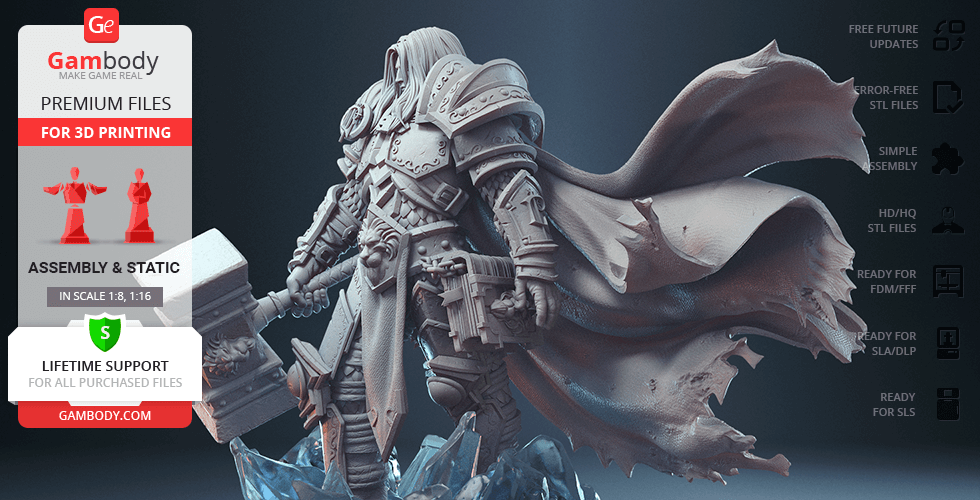

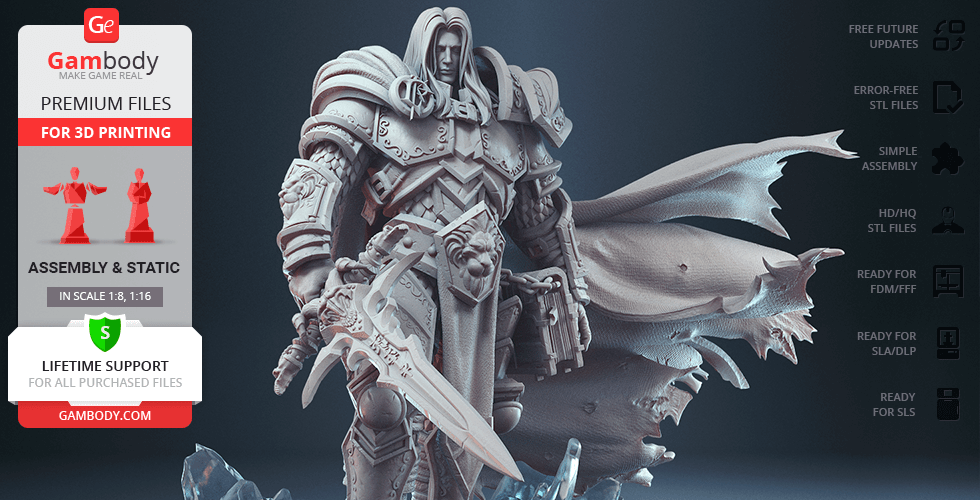

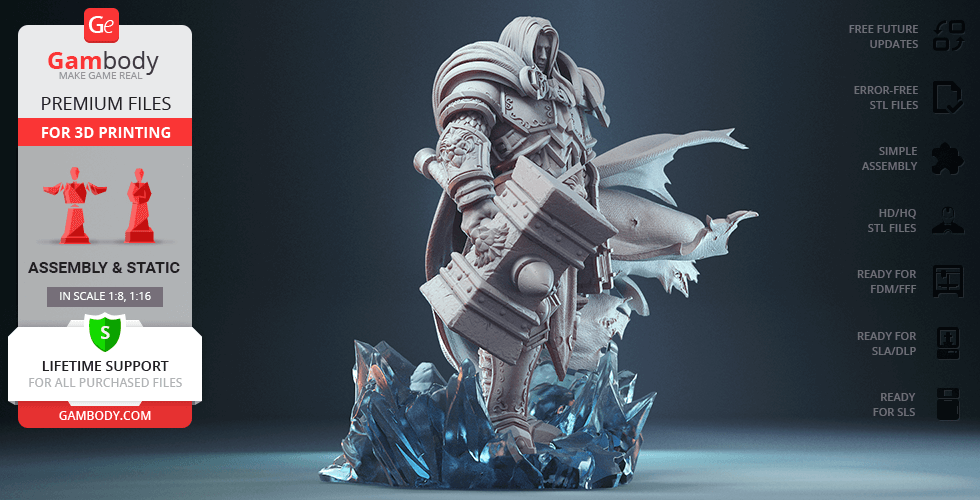

ABOUT THIS 3D FIGURINE

I would gladly bear any curse to save my homeland.


Arthas Menethil, Crown Prince of Lordaeron and Knight of the Silver Hand, was a young man with a promising future surrounded by nothing but Light and great victories. Little did his people know that the righteous prince was about to follow the path of darkness and lose his soul to the curse in pursuit of power. And still, the image of youthful prince Arthas and his tragic fate will forever reside in the hearts of the fans!


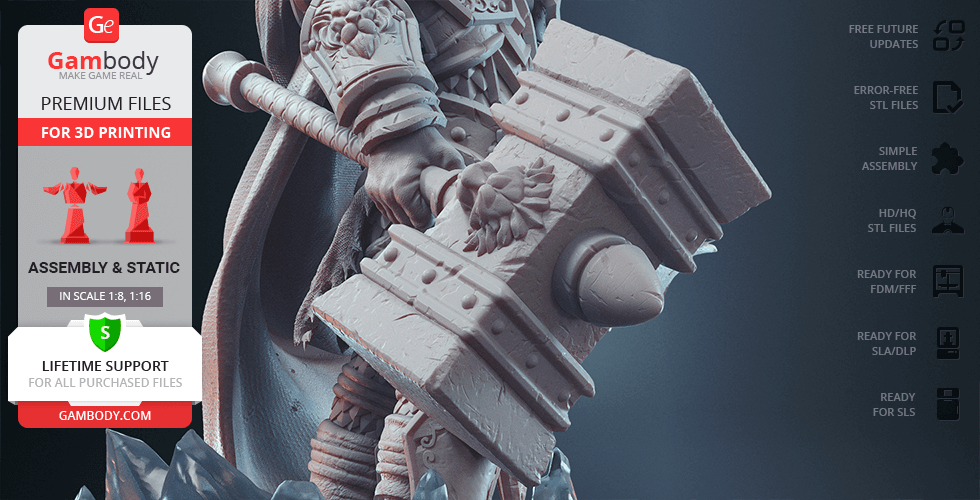

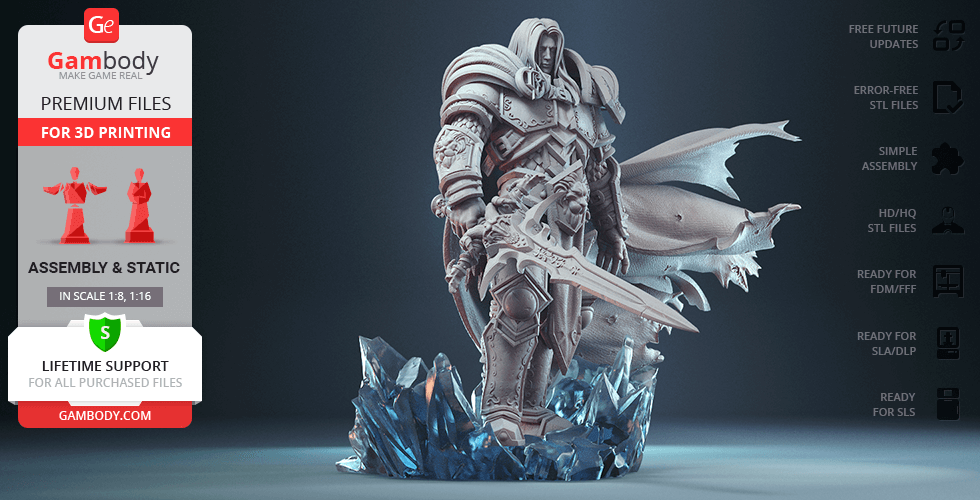

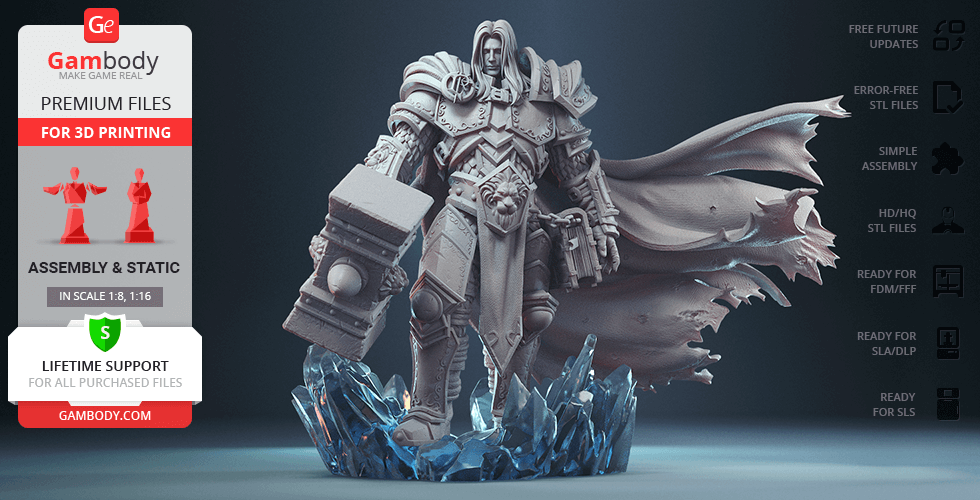

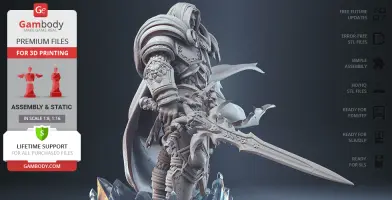

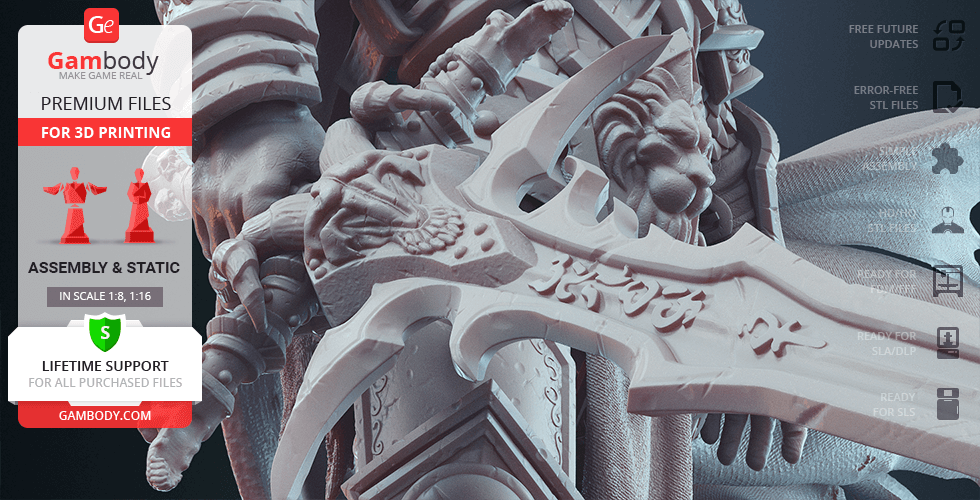

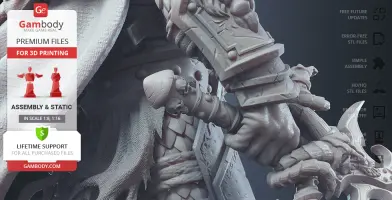

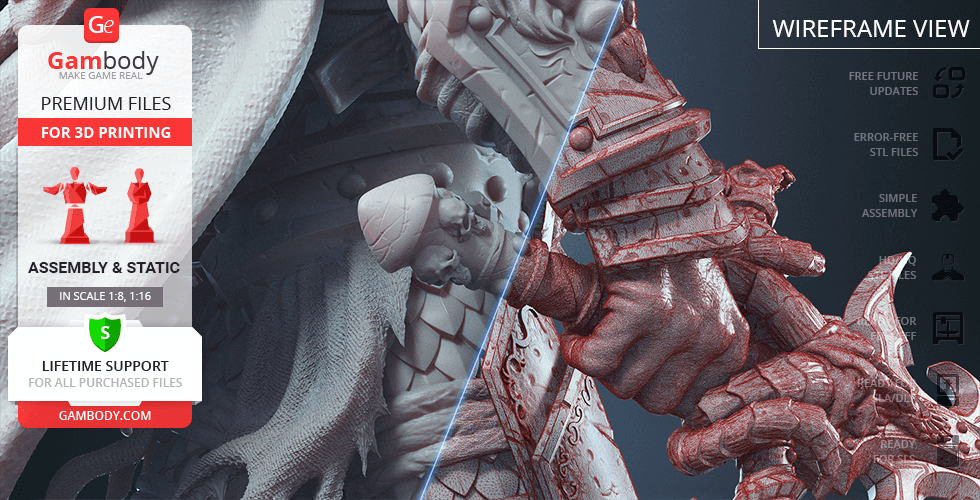

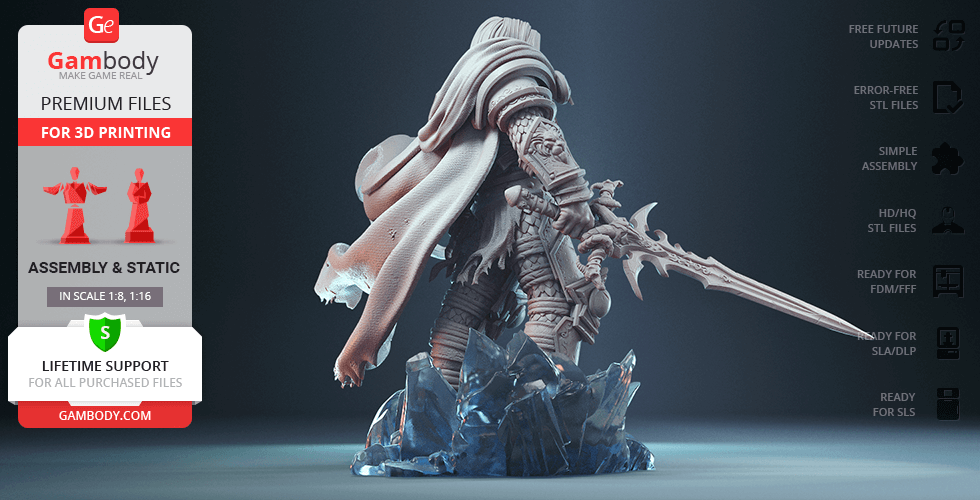

With an utter fascination with the conflicting WoW character, our contributing 3D artist dedicated 180 hours to sculpting the Paladin of the Silver Hand. In his highly detailed Arthas 3D Printing Figurine, the author fully conveyed the strength of the prince, the brutal might of his elaborate armour, and the determined spirit of the man. And to depict different stages of the hero's journey, the artist equipped him with the Light’s Vengeance hammer and Frostmourne sword that you can choose from!


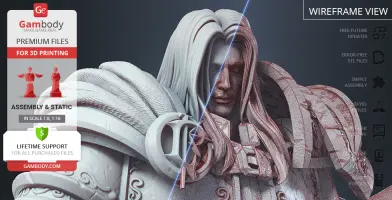

ADAPTATION FOR 3D PRINTING

Arthas figurine for 3D printing is a static assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 55 hours. The figurine’s anatomy and proportions were thoroughly reviewed during the moderation process for the armoured paladin to be depicted harmoniously in the intended pose.

The model’s cutting was chosen by our team to minimise the amount of generated support and some of the parts were hollowed out for you to save resin in the Eco version. In order to conceal the places where the assembly parts of the model must be connected, the figurine was cut along the contour of the Arthas’ armour seams.

For you to achieve the cleanest 3D printed result, the figurine’s cloth fragments, cloak, spellbook, bracers, shoulder plates, knee braces, etc. are provided as separate assembly parts. Moreover, to ensure the convenient assembly of the figurine, Light’s Vengeance hammer and Frostmourne sword were split as well.

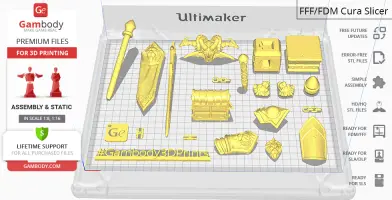

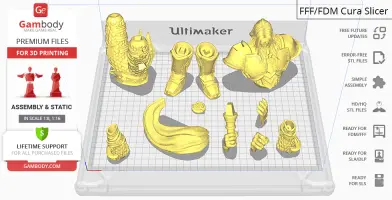

All assembly parts come in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and so that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any figurine's file you will also receive "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format.

The figurine is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model's scale was calculated from Arthas' actual height which is 2120 mm. The 3D printing figurine's chosen scale is 1:8 for the FFF/FDM version and 1:16 for the DLP/SLA/SLS versions.

VERSIONS' SPECIFICATIONS

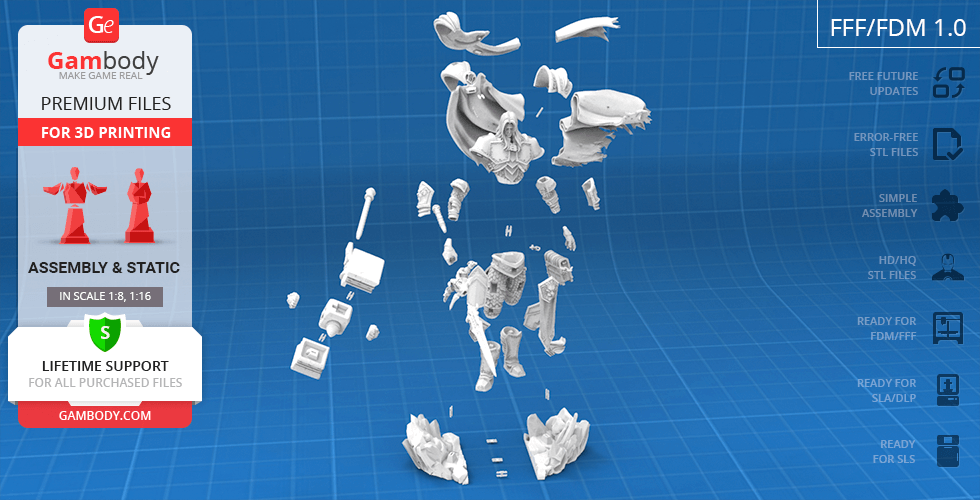

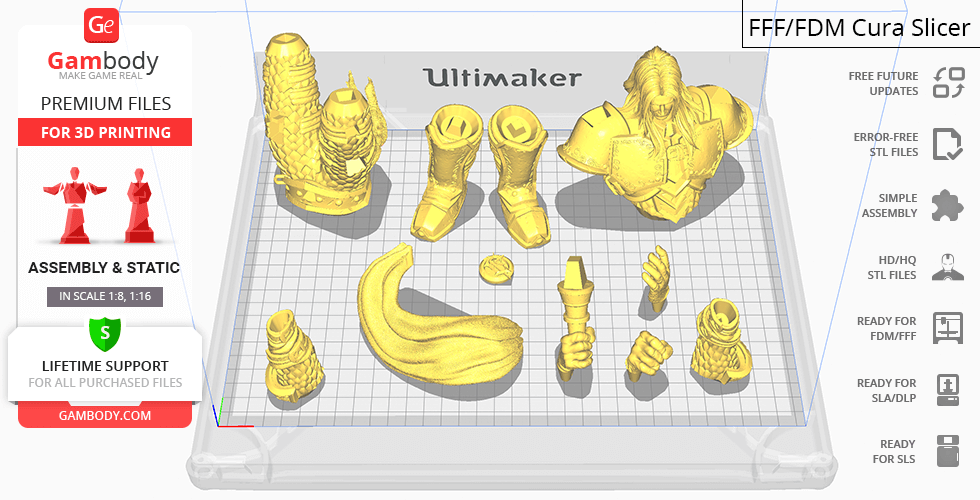

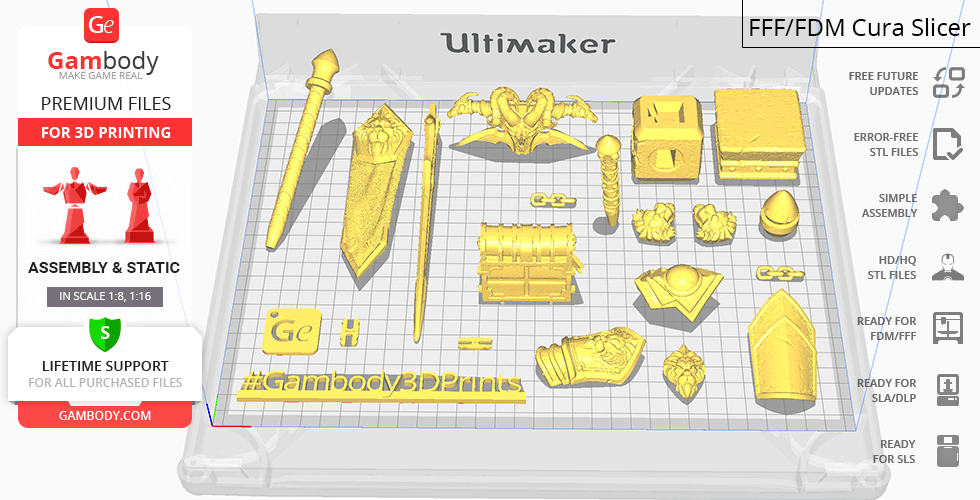

FFF/FDM 1.0 version features:

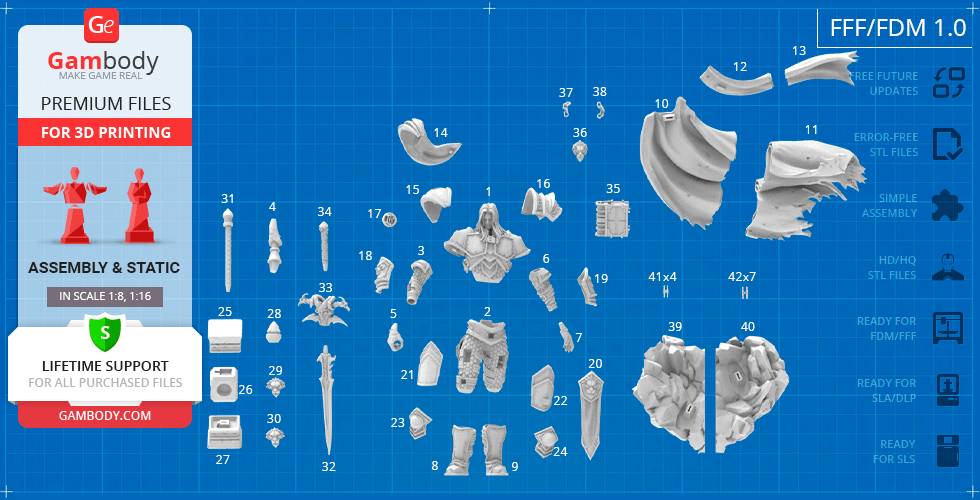

- Contains 42 parts;
- A printed model is 285 mm tall, 355 mm wide, 354 mm deep;
- The assembly kit includes locks 41_ge_lock_7S(x4) and 42_ge_lock_10H(x7) to attach the model's parts securely without glue that need to be printed 4 and 7 times respectively;
- In his left hand, Arthas can hold either Light’s Vengeance hammer or Frostmourne sword;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

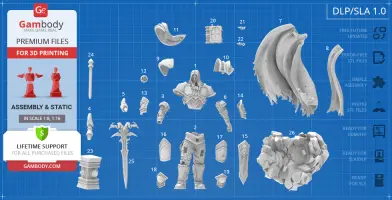

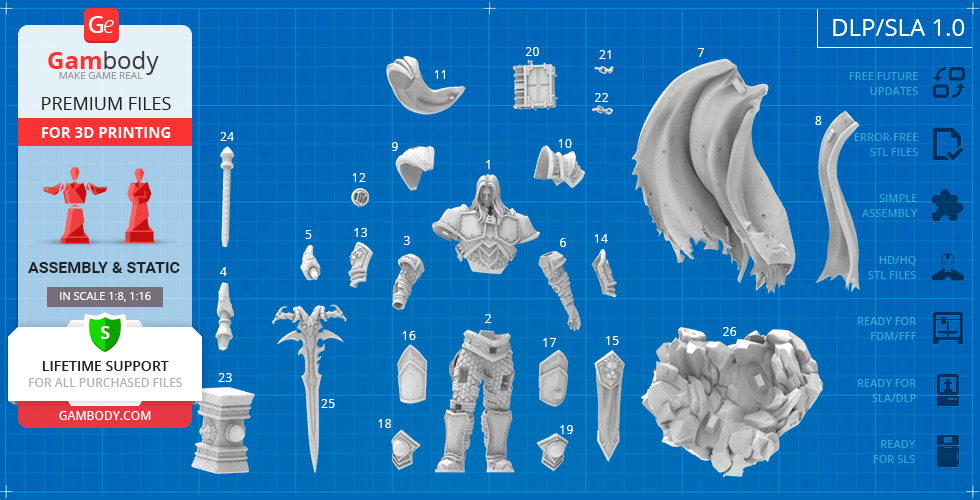

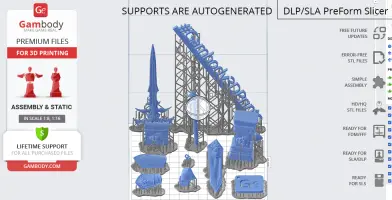

DLP/SLA 1.0 version features:
- Contains 26 parts;
- A printed model is 143 mm tall, 178 mm wide, 177 mm deep;
- In his left hand, Arthas can hold either Light’s Vengeance hammer or Frostmourne sword;
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

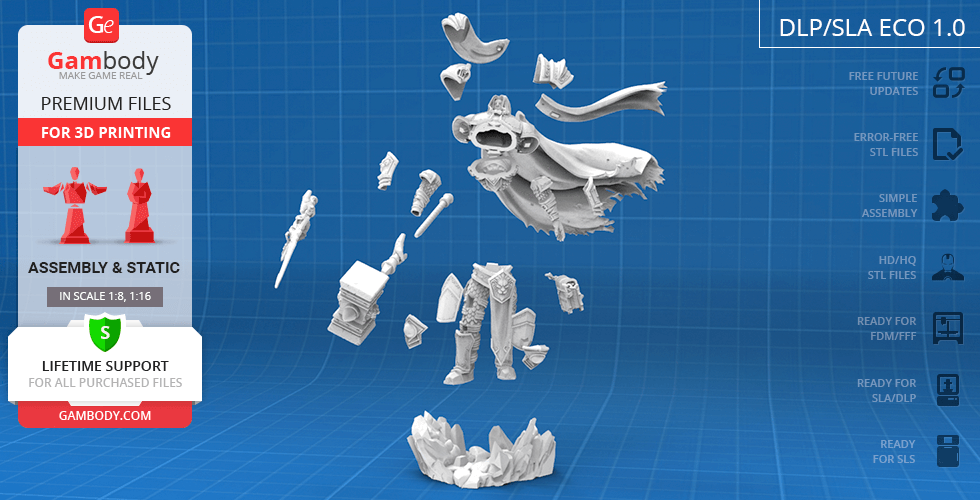

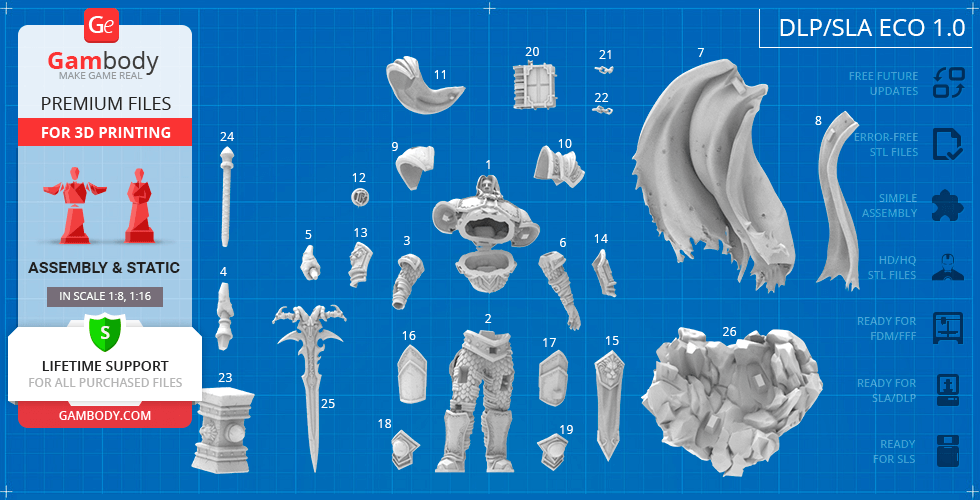

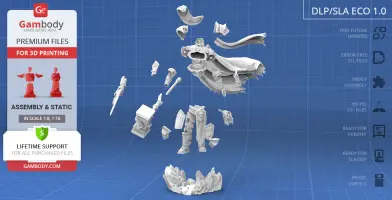

DLP/SLA Eco 1.0 version features:
- Contains 26 parts;
- A printed model is 143 mm tall, 178 mm wide, 177 mm deep;
- In his left hand, Arthas can hold either Light’s Vengeance hammer or Frostmourne sword;
- Contains some hollowed out parts to save resin.

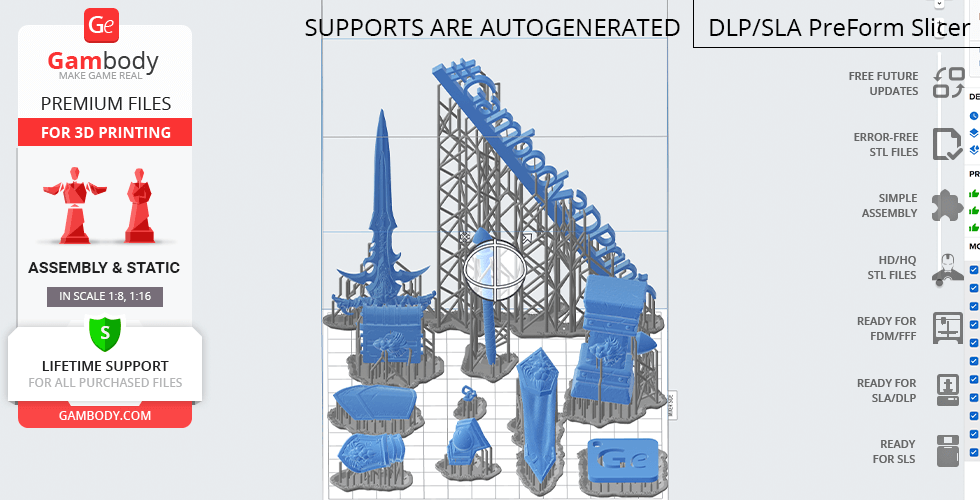

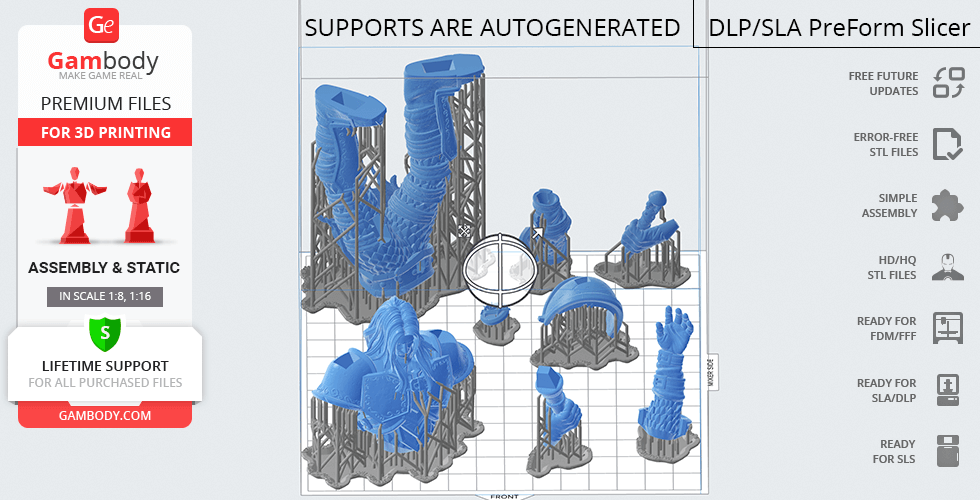

DLP/SLA Pre-supported 1.0 version features:
- Contains 26 parts;
- A printed model is 143 mm tall, 178 mm wide, 177 mm deep;
- The STL files that this version comprises are pre-supportedhollowed out, and have drain holes where needed;
- You may choose to print the STL files one by one or several at once, depending on the dimensions of your resin 3D printer's build plate;
- When slicing several STL files at once, the attachment layers (Platform Touch Shape) may overlap, but the supports must not come into contact.

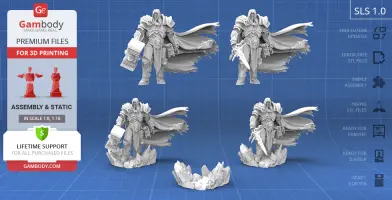

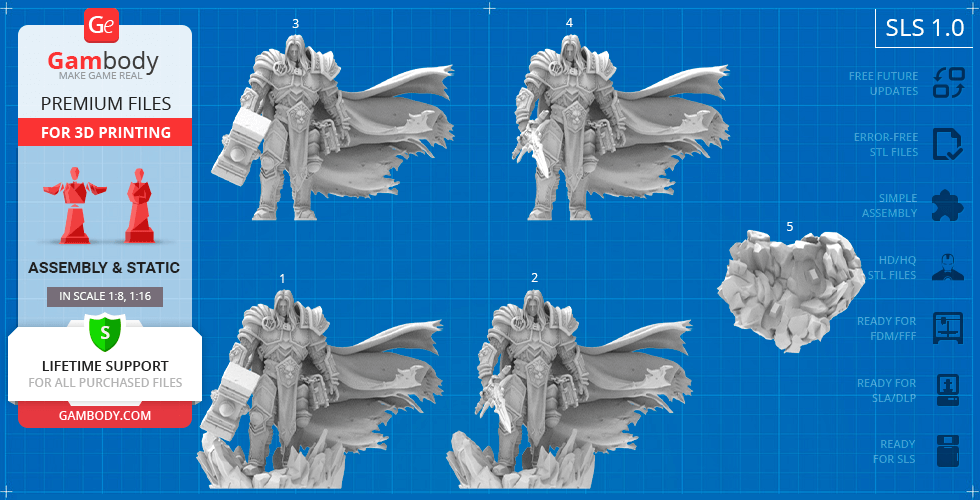

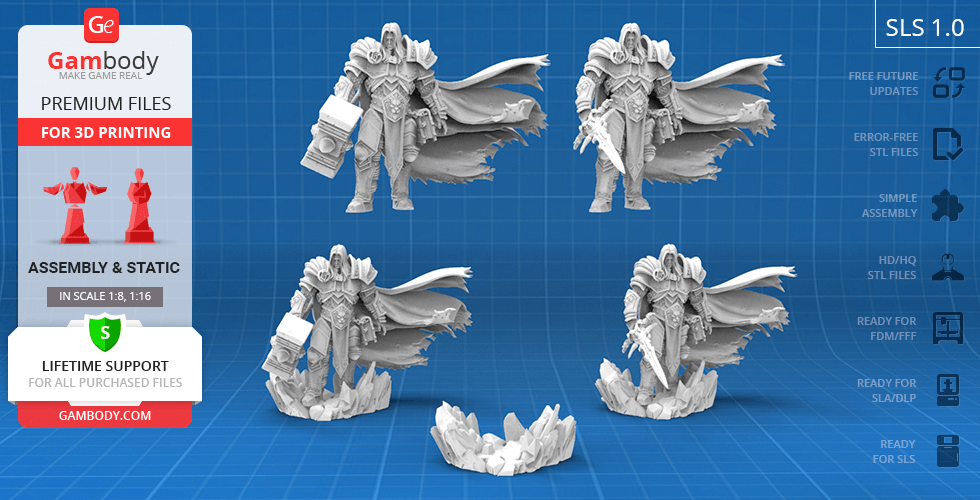

SLS 1.0 version features:
- Made as a solid one-piece Arthas figurine;
- A printed model is 143 mm tall, 178 mm wide, 177 mm deep;
- Contains 5 parts - a solid Arthas figurine and the model with the platform separated.

You can get the figurine of Arthas for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Arthas 3D Printing Figurine at Gambody YouTube channel.

Also, you may like Lich King 3D Printing Figurines, as well as other WoW 3D Printing Models.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

Below you can find printing recommendations for CuraSimplify3D and Slic3r software.

Cura printing recommendations:

These are basic settings that were tested in Cura 4.8.0 slicer.

The test models were printed on Ultimaker 2, Creality Ender 3, Creality CR-10S Pro V2, Anycubic I3 Mega, Anycubic I3 MegaS 3D printers with PLA and PETG filaments.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use and especially the particular assembly part at hand. Each part that any model comprises often needs preliminary review and you are free to tweak the settings the way you find suitable.

Note:
- You can scale up the model (downscaling is not recommended!);
- All connectors should be printed at 100% Infill;
- For all parts of locks (“ge_lock” in “Source files”) you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

Quality
Layer Height: 0.12 mm (you can also set Layer Height at 0.16 or 0.2mm for 0.4mm nozzles)
Initial Layer Height: 0.2 mm (carefully level the print bed and keep your Initial Layer Height the same as the main Layer Height)

Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm

Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
Wall Line Count: 2

Outer Wall Wipe Distance: 0.3 mm
Top Surface Skin Layers: 0

Top/Bottom Thickness: 0.6 mm
Top Thickness: 0.6 mm
Top Layers: 5
Bottom Thickness: 0.6 mm
Bottom Layers: 5
Initial Bottom Layers: 5

Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Optimize Wall Printing Order: Check

Compensate Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check

Minimum Wall Flow: 0%
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Hole horizontal expansion: 0

Z Seam Alignment: User Specified
Z Seam Position: Back
Z Seam X: Average length of your printer’s plate (e.g.”150” if your plate is 300mm on the X-axis)
Z Seam Y: A value higher than the length of your plate on the Y-axis (e.g. 700)

Seam Corner Preference: Hide Seam
Extra Skin Wall Count: 1
Skin Overlap Percentage: 10%
Skin Overlap 0.04 mm

Infill
Infill Density: 20% (for all smaller parts and for all parts of connectors use 100% Infill)
Infill Pattern: Triangles
Connect Infill Lines: Check
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Line Multiplier: 1
Extra Infill Wall Count: 0

Infill Overlap Percentage: 10-20%
Infill Overlap: 0.04 mm

Skin Overlap Percentage: 5%
Skin Overlap: 0.02 mm

Infill Wipe Distance: 0 mm
Infill Layer Thickness: 0.24 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2

Skin Removal Width: 0.8 mm
Top Skin Removal Width: 0.8 mm
Bottom Skin Removal Width: 0.8 mm

Skin Expand Distance: 0.8
Top Skin Expand Distance: 0.8
Bottom Skin Expand Distance: 0.8

Maximum Skin Angle for Expansion: 90Ëš
Minimum Skin Width for Expansion: 0.0
Skin Edge Support Thickness: 0
Skin Edge Support Layers: 0

Material
Initial Layer Flow: 100%
Printing Temperature: See your filament settings
Initial Printing Temperature: Your filament settings
Final Printing Temperature: Your filament settings
Build Plate Temperature: Your filament settings
Build Plate Temperature Initial Layer: Your filament settings + 5°
Flow: 100% (Important! If you face difficulty printing the model, you may need to adjust the Flow parameter. You may research the topic using the Internet or seek assistance at our Customer Support Team at support@gambody.com)

Speed

You can increase the printing Speed by 20% when you print simple objects. For small/thin parts you need to decrease the Speed by 25% - 50%.

Print Speed: 50 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 25 mm/s
          Outer Wall Speed:25 mm/s
          Inner Wall Speed: 50 mm/s

Top/Bottom Speed: 25mm/s
Support Speed: 25 mm/s
          Support Infill Speed: 45 mm/s
          Support Interface Speed: 25 mm/s
                Support Roof Speed: 25 mm/s
                Support Floor Speed: 25 mm/s

Travel Speed: 80 mm/s
Initial Layer Speed: 80 mm/s
Initial Layer Print Speed: 20 mm/s
Initial Layer Travel Speed: 80 mm/s

Skirt/Brim Speed: 20 mm/s
Z  Hop Speed: 5 mm/s
Number of Slower Layers: 2
Enable Acceleration Control: Check

When printing simple objects, you need to set all Acceleration parameters at 500 mm/s. For small/thin parts you need to decrease the Acceleration by 50% - 70%.

Travel
Enable Retraction: Check
Retraction Distance: 4-8 mm, 1-3 mm for Direct Extruder (This is the most important retraction parameter. You can find your optimal value of Retraction Distance by printing any test object, e.g. bridges, towers etc.)

Retraction Speed: 25mm/s
Retraction Retract Speed: 25 mm/s
Retraction Prime Speed: 25 mm/s

Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 1.5 mm
Maximum Retraction Count: 100
Minimum Extrusion Distance Window: 6,5 - 10 mm
Limit Support Retractions: Check
Combing Mode: All
Max Comb Distance With No Retract: 30 mm
Retract Before Outer Wall: Check
Avoid Printed Parts When Travelling: Check
Avoid Supports When Travelling: Check
Travel Avoid Distance: 1 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm
Z Hop When Retracted: Check
Z Hop Height: 0,3 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%

Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.36 mm
Regular Fan Speed at Layer: 3

Minimum Layer Time: 10 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Structure: Normal (you can try using Tree Support Structure if you have difficulty printing any particular assembly part)
Support Placement: Everywhere
Support Overhang Angle: 60° (this parameter can range from 30° to 70° depending on the part at hand)
Support Pattern: Zig Zag
Support Wall Line Count: 1 (stronger support that might be more difficult to remove) 0 (less strong support but is easier to remove)

Support Density: 15%
Support Line Distance: 2.6667 mm
Initial layer support line distance: 2.667 mm

Support Z Distance: 0.12 mm
Support Top Distance: 0.12 mm
Support Bottom Distance: 0.12 mm

Support X/Y Distance: 0.8-1 mm
Support Distance Priority: Z overrides X/Y
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Stair Step Minimum Slope Angle: 10°
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.2 mm
Gradual Support Infill Steps: 0
Minimum Support Area: 2 mm

Enable Support Interface: Check (generates additional “pillow” on the support structure that leads to a more even surface, but can be difficult to remove in hard-to-reach areas)
Enable Support Roof: Check
Enable Support Floor: Check

Support Interface Thickness: 0.8 mm
Support Roof Thickness: 0.8 mm
Support Floor Thickness: 0.8 mm

Support Interface Resolution 0.2 mm
Support Interface Density: 50-100%
        Support Roof Density: 50-100%
Support Roof Line Distance: 0.8 mm
        Support Floor Density: 50-100%
Support Floor line Distance:  0.4mm

Support Interface Pattern: Grid
Support Roof Pattern: Grid (this parameter should differ from Bottom Pattern Initial Layer in “Shell” section)
Support Floor Pattern: Grid

Minimum Support Interface Area: 10mm
Minimum Support Roof Area: 10 mm
Minimum Support Floor Area: 10 mm

Support Interface Horizontal Expansion: 0.0 mm
Support Roof Horizontal Expansion: 0.0 mm
Support Floor Horizontal Expansion: 0.0 mm

Fan Speed Override: Check
Supported Skin Fan Speed: 100%
Use Towers: Check
Tower Diameter: 4 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Skirt/Brim (For unsteady parts, and those parts that may come unstuck use “Brim”. For bigger assembly parts that have large adhesion area and for all parts of locks and claws that you want to come out clean use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
       Brim Line Count: 10
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations:

Layer height
  Layer height: 0.1 mm
  First layer height: 90%
Vertical shells
  Perimeters: 2
Horizontal shells
  Soid layers:
              Top: 8
              Bottom: 5
Quality
  Detect thin walls: Check
  Detect bridging perimeters: Check
Advanced
  Seam position: Random
Infill
  Fill desity: 20%
  Fill pattern: Honeycomb
  Top/bottom fill pattern: Rectilinear
Reducing printing time
  Combine infill every: 1 layers
Advanced
  Solid infill every: 0 layers
  Fill angle: 25 deg
  Solid infill threshold area: 0mm
Skirt
  Loops: 2
  Distance from object: 6 mm
  Skirt height: 1 layers
  Minimum extrusion length: 4 mm
Brim
  Brim width: 10 mm
Support material
  Generate support material: Check
  Overhang threshold: 45 deg
  Enforce support for the first: 3 layers
Raft
  Raft layers: 0 layers
Options for support material and raft
  Contact Z distance: 0.1 mm
  Pattern: Rectilinear
  Patter spacing: 2 mm
  Pattern angle: 0 deg
  Interface layers: 2 layers
  Interface pattern spacing: 0.2 mm
Speed for print moves
  Perimeters: 60 mm/s
  Small perimeters: 20 mm/s
  External perimeters: 20 mm/s
  Infill: 60 mm/s
  Solid infill: 60 mm/s
  Top solid infill: 30 mm/s
  Support material: 50 mm/s
  Support material interface: 100%
  Bridges: 30 mm/s
  Gap fill: 50 mm/s
Speed for non-print moves
  Travel: 60 mm/s
Modifiers
  First layer speed: 30 mm/s
Acceleration control
  Perimeters: 800 mm/s
  Infill: 1500 mm/s
  Bridge: 1000 mm/s
  First layer: 1000 mm/s
  Default: 1000 mm/s
Autospeed
  Max print speed: 100 mm/s
  Max volumetrix speed: 0 mm/s
Extrusion width
  Default extrusion width: 0.42 mm
  First layer: 0.42 mm
  Perimeters: 0.42 mm
  External perimeters: 0.42 mm
  Infill: 0.42 mm
  Solid infill: 0.42 mm
  Top solid infill: 0.42 mm
  Support material: 0.42 mm
Overlap
  Infill/Perimeters overlap: 20%
Flow
  Bridge flow ratio: 0.95
Other
  XY Size Compensation: 0 mm
  Threds: 8
  Resolution: 0 mm

Comments
