Baby Yoda 3D Printing Figurine | Assembly

ABOUT THIS 3D FIGURINE

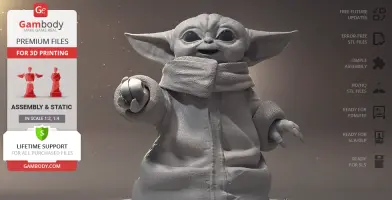

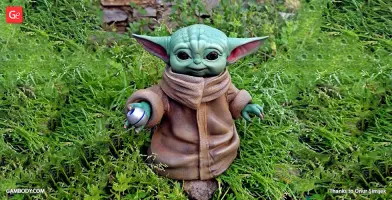

Baby Yoda, who’s officially referred to as "The Child”, is a breakout star of The Mandalorian television series. The precious little 50-year-old creature is on "the most wanted" list and he travels across the New Republic alongside the bounty hunter called Mando who keeps the baby safe. It doesn’t matter whether The Child is eating a frog with delight or is slurping bone broth - every single scene featuring the cute baby seems to be able to shatter even the coldest hearts. The author of this Baby Yoda figurine was also enchanted by the mischievous creature and spent 122 hours working on the project for any enthusiast to obtain a high-quality model to join the collection. No matter if you are a Star Wars fan or not, you must have definitely seen the iconic scene of The Child messing with the Mandalorian ship, pushing every little button and playing with any switch he could reach. In his design, the 3D artist decided to go for a particular scene of Baby Yoda accidentally breaking off the joystick knob, hence further annoying Mando (who obviously has a soft spot for the playful child). What is more, the author of the figurine for 3D printing made sure to provide an alternative variant of hand without said knob for you to display your Baby Yoda as if he's trying to use the Force. And we did witness that The Child is far more capable than he lets on. We are pretty sure you are already eager to start the project - the STL files of Baby Yoda for  3D printing are ready for you to download!

ADAPTATION FOR 3D PRINTING

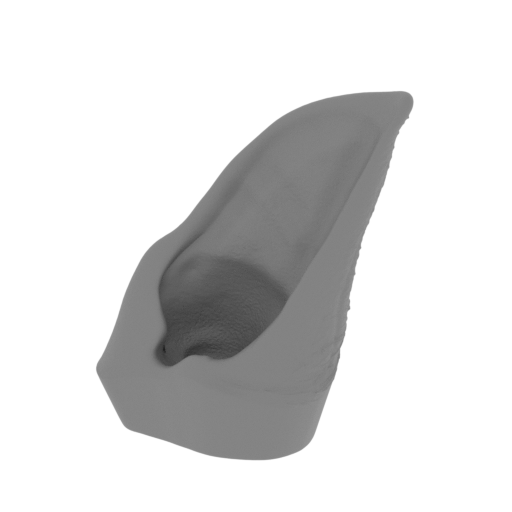

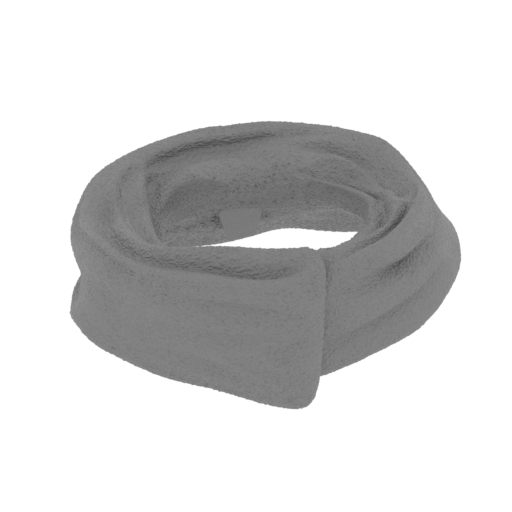

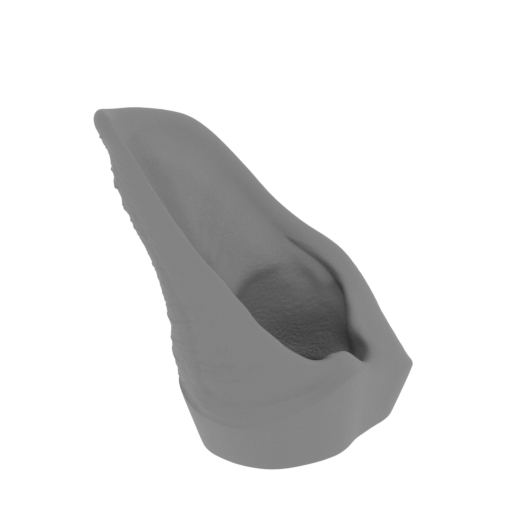

Baby Yoda for 3D printing is a static assembly figurine and its moderation and adaptation for different types of 3D printers took Gambody team 33 hours in total. Baby’s child-like anatomy and proportions were thoroughly reviewed during the moderation process for the figurine to be depicted harmoniously in the intended pose. The model’s cutting in its assembly version was chosen by our team to minimise the amount of filament needed for generated support and some of the parts were hollowed out for you to save resin in Baby Yoda’s Eco version. In order to conceal the places where assembly parts of the model must be connected, the tiny hero was cut along the contour of his little robe seams. For you to achieve the cleanest result possible such parts as figurine’s feet, hands, scarf, ears and joystick knob are provided as separate files. All assembly parts are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate.

The figurine is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

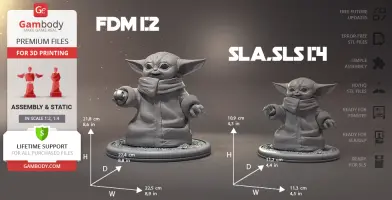

The model's scale was calculated from Baby Yoda's actual height that is 405 mm. The 3D printing figurine's chosen scale is 1/2 for the FFF/FDM version and 1/4 for the DLP/SLA/SLS versions.

VERSIONS' SPECIFICATIONS

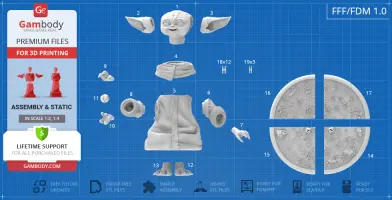

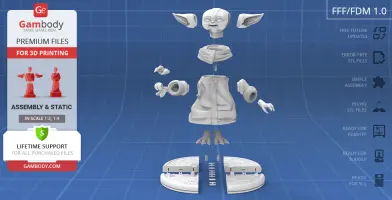

FFF/FDM 1.0 version features:

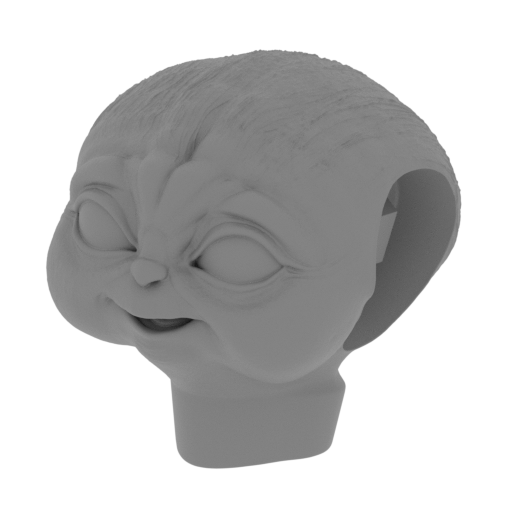

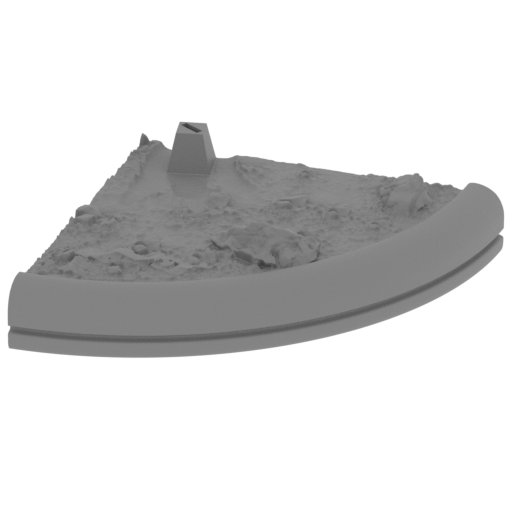

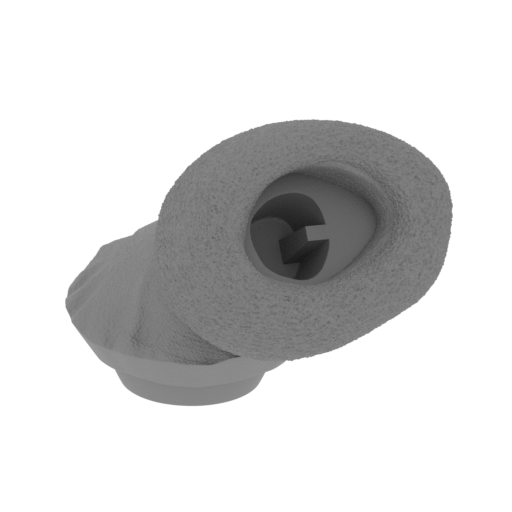

- Contains 19 parts;
- A printed model is 218 mm tall, 225 mm wide, 224 mm deep;

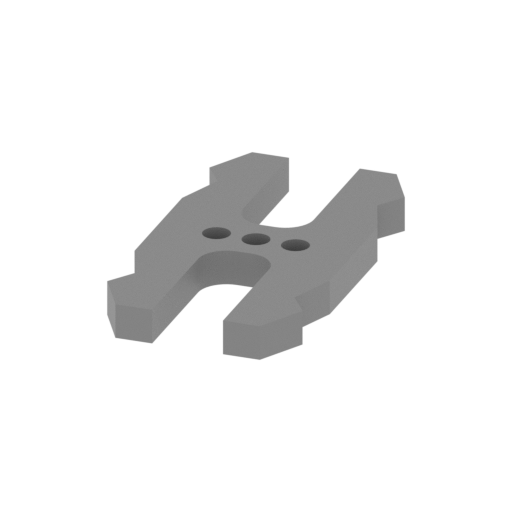

- Assembly kit includes locks to attach the model's parts securely without glue. Lock 18_ge_lock_10H(x12) needs to be printed 12 times; lock 19_ge_lock_7S(x3) needs to be printed 3 times;

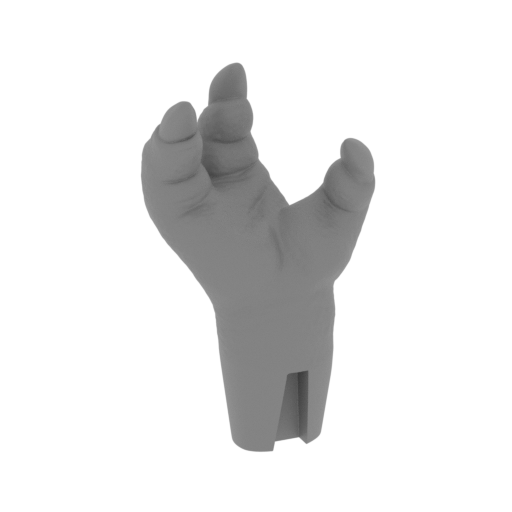

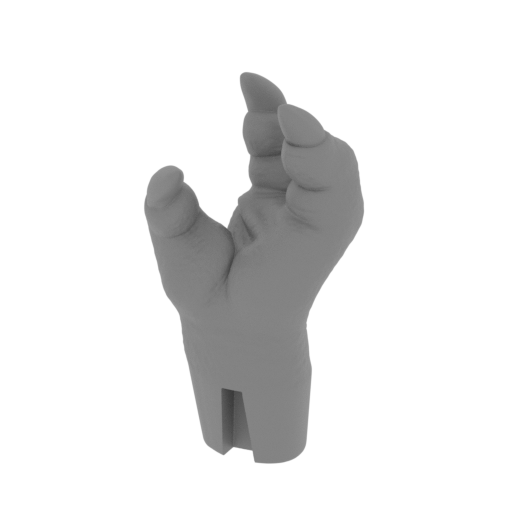

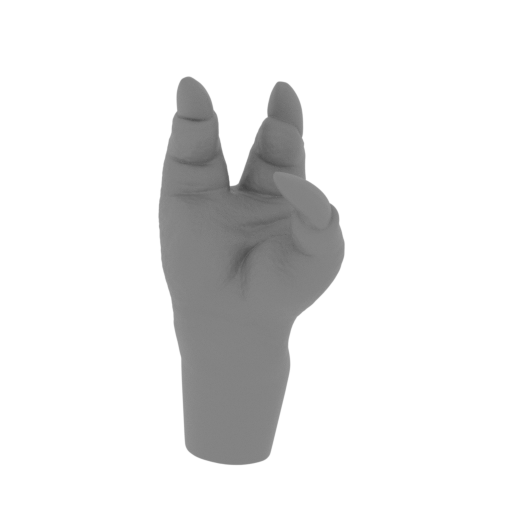

- Made with two versions of the right hand (one variant is holding a joystick knob);

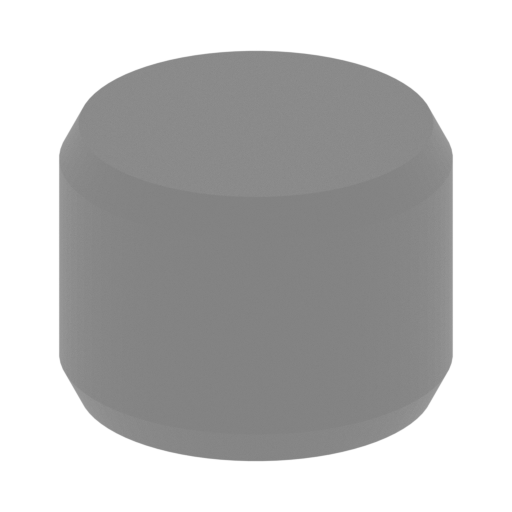

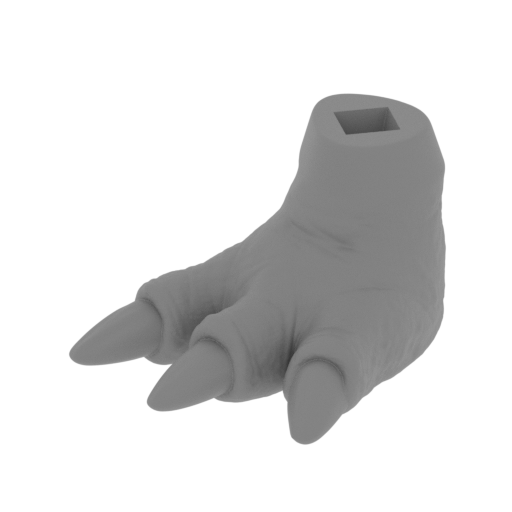

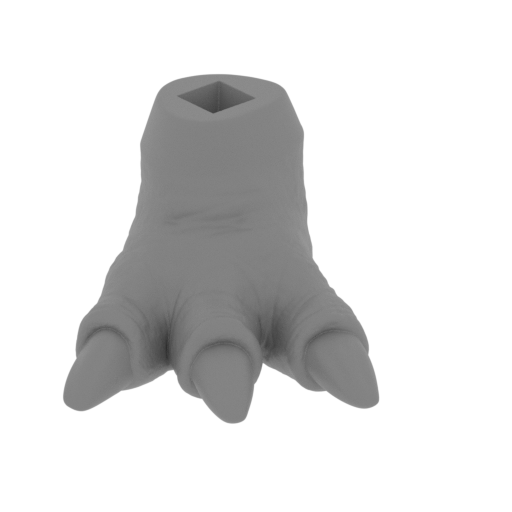

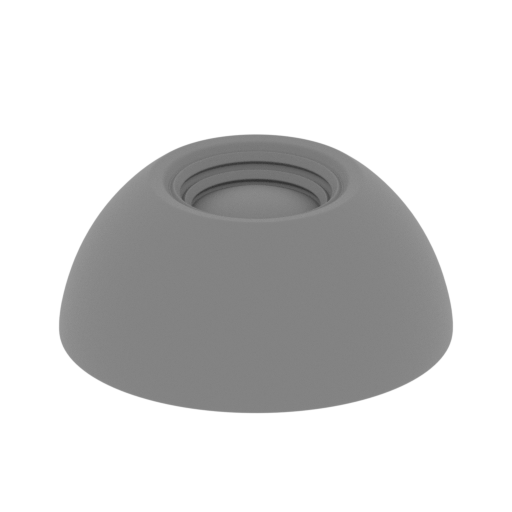

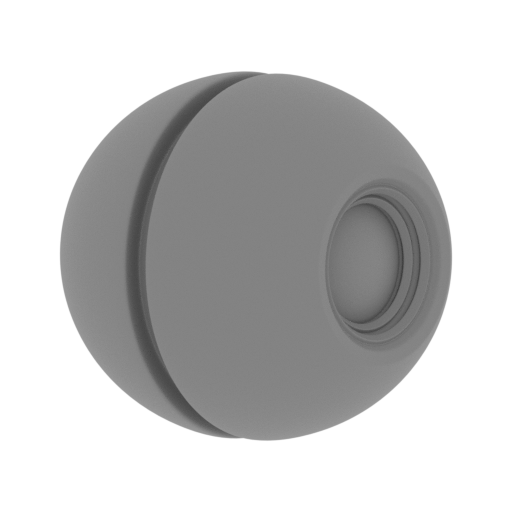

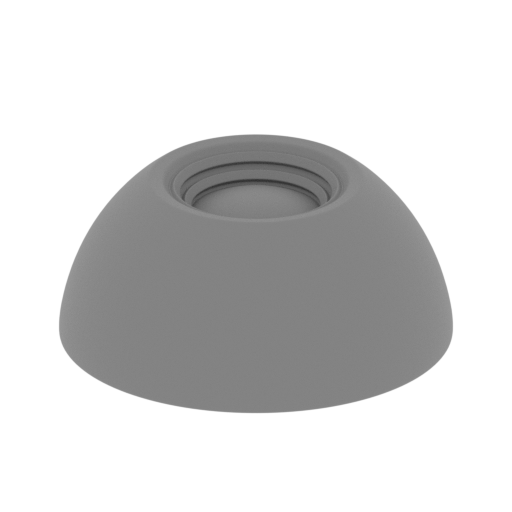

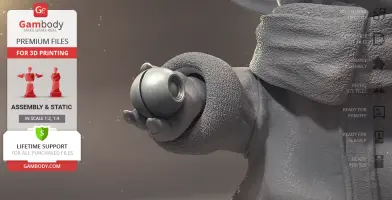

- The joystick knob (11_ball_FDM) also comes in an alternative three-piece version (11_v2_ball_1_FDM, 11_v2_ball_2_FDM, 11_v2_ball_3_FDM) for the smooth 3D printed surface after the assembly;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

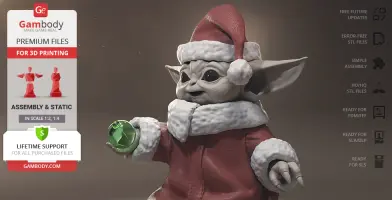

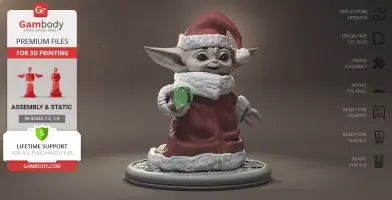

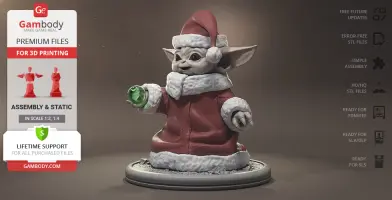

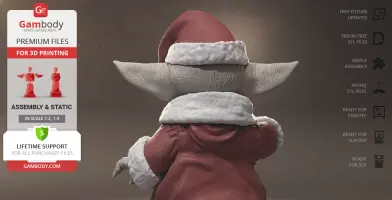

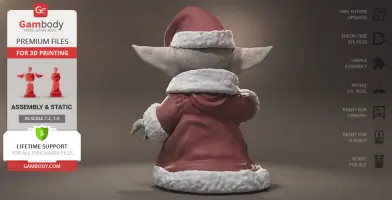

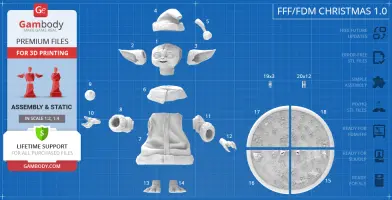

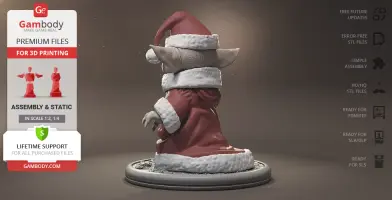

FFF/FDM Christmas 1.0 version features:
- Alternative festive version of the figurine!
- Contains 20 parts;

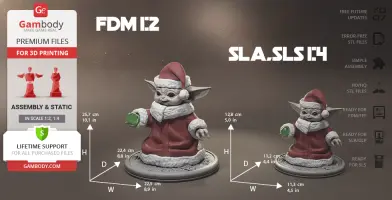

- A printed model is 257 mm tall, 225 mm wide, 224 mm deep;
- Assembly kit includes locks to attach the model's parts securely without glue. Lock 19_ge_lock_7S(x3) needs to be printed 3 times; lock 20_ge_lock_10H(x12) needs to be printed 12 times.

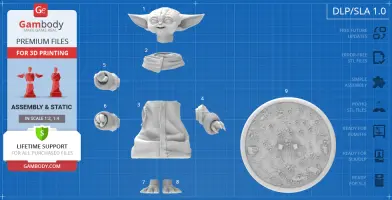

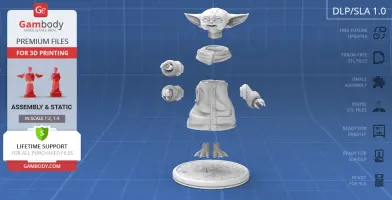

DLP/SLA 1.0 version features:
- Contains 9 parts;
- A printed model is 109 mm tall, 113 mm wide, 112 mm deep;
- Made with two versions of the right hand (one variant is holding a joystick knob);
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

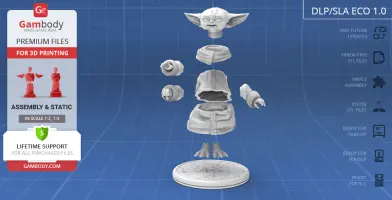

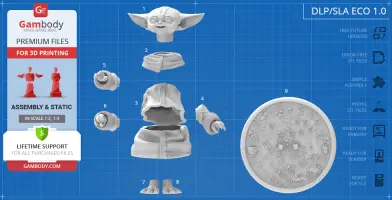

DLP/SLA Eco 1.0 version features:
- Contains 9 parts;
- A printed model is 109 mm tall, 113 mm wide, 112 mm deep;
- Made with two versions of the right hand (one variant is holding a joystick knob);
- Contains some hollowed out parts to save resin.

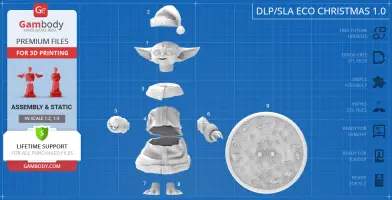

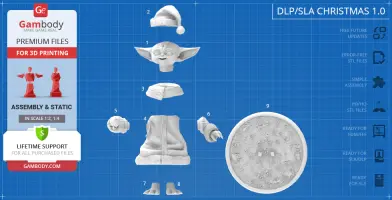

Christmas: DLP/SLA + DLP/SLA Eco + Pre-supported 1.0 versions feature:
- Alternative festive versions of the figurine!
- Each contains 9 parts;
- A printed model is 128 mm tall, 113 mm wide, 112 mm deep.

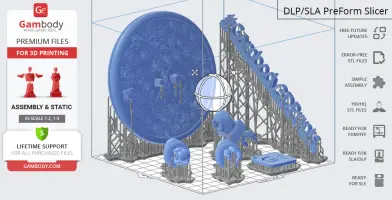

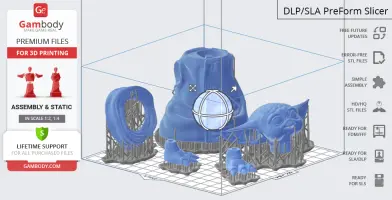

DLP/SLA Pre-supported 1.0 version features:
- Contains 7 parts;
- A printed model is 109 mm tall, 113 mm wide, 112 mm deep;
- The STL files that this version comprises are pre-supported, hollowed out, and have drain holes where needed;
- You may choose to print the STL files one by one or several at once, depending on the dimensions of your resin 3D printer's build plate;
- When slicing several STL files at once, the attachment layers (Platform Touch Shape) may overlap, but the supports must not come into contact.

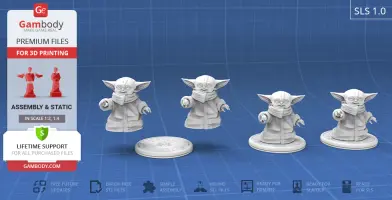

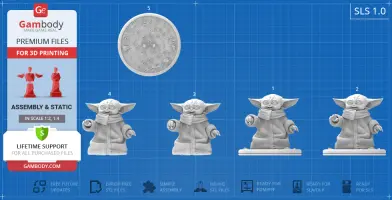

SLS 1.0 version features:
- Made as a solid one-piece figurine;
- A printed model is 109 mm tall, 113 mm wide, 112 mm deep;
- Contains 5 parts - solid Baby Yoda figurines with different variants of the right hand + with the platform or separated.

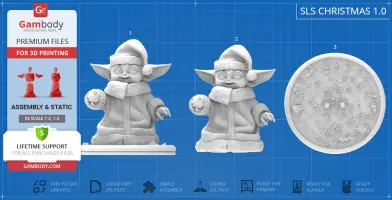

SLS Christmas 1.0 version features:
- Alternative festive version of the figurine!
- A printed model is 128 mm tall, 113 mm wide, 112 mm deep;
- Contains 3 parts - a solid Christmas Baby Yoda model + the figurine with the platform or separated.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of Baby Yoda​ 3D Figurine for 3D printing which consist of 90 parts;
- 10 versions of files for this model for FFF/FDM, DLP/SLA, DLP/SLA Eco and SLS;
- High-poly detailed figurine of Baby Yoda​;
- Detailed settings that we provide as a recommendation for Cura , Simplify3D and Slic3r for the best print;
- Full technical support from the Gambody Support Team.

You can get the figurine of Baby Yoda​ for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Baby Yoda​ 3D Printing Figurine at Gambody YouTube channel.

Also, you may like The Mandalorian 3D Printing Figurine, Master Yoda 3D Printing Figurine, as well as other Star Wars 3D Printing Models.

_______
FAQ:
Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

Below you can find printing recommendations for Cura, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

All connectors should be printed at 100% Infill.

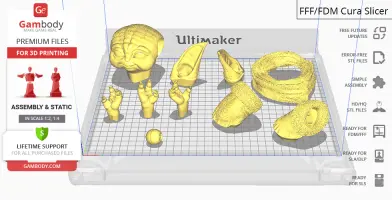

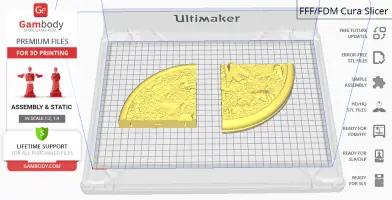

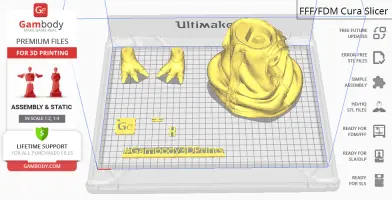

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
