BD-1 Droid 3D Printing Model | Assembly + Active

(8)
cm: 24.7 w x 31.6 d x 60.2 h
in: 9.724 w x 12.441 d x 23.701 h

Source Files

|

Description

|

Printing Details

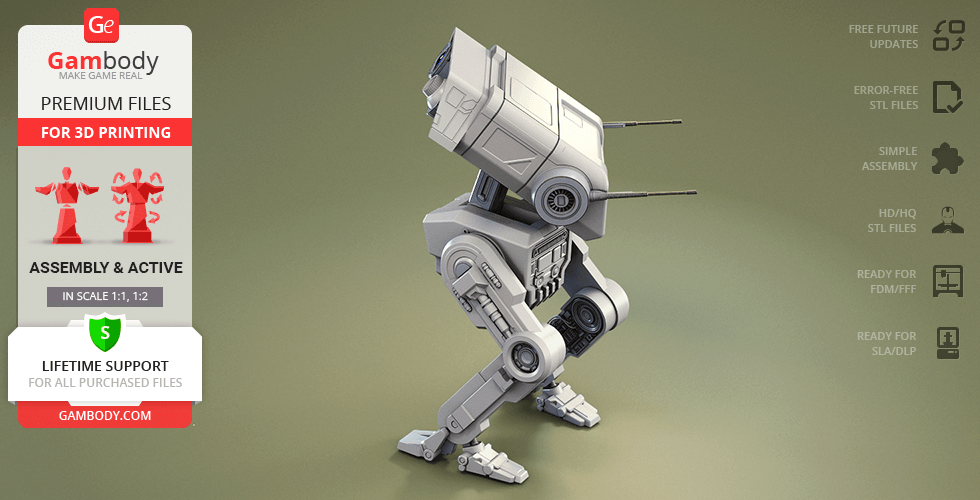

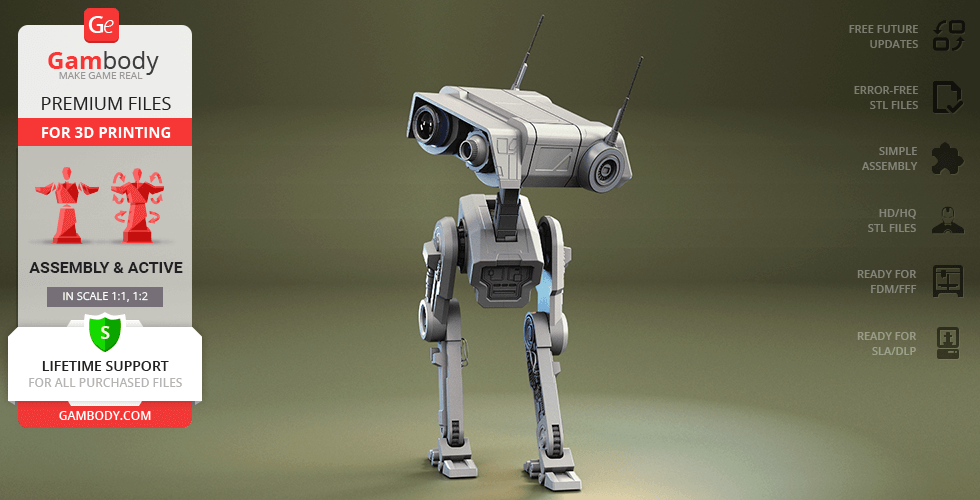

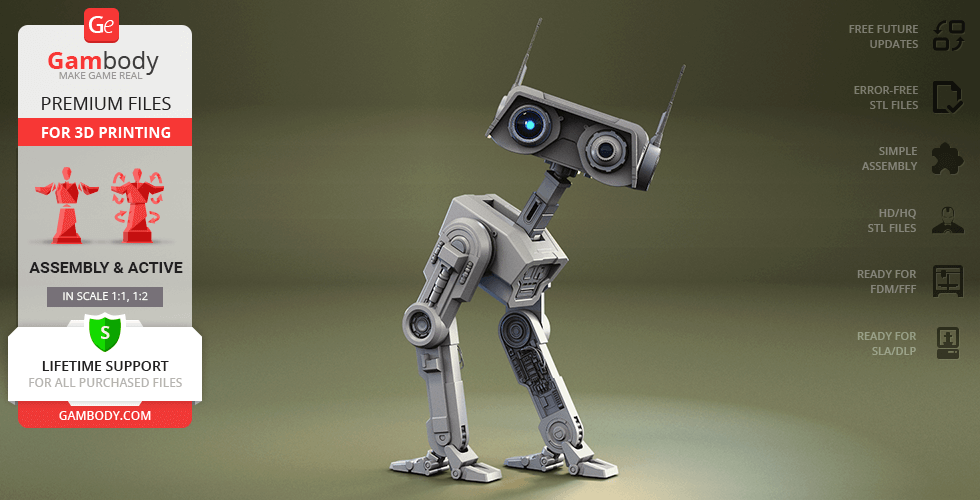

This 3D model of BD-1 Droid from the Star Wars universe consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

2 versions of BD-1 Droid STL files for FFF/FDMDLP/SLA and SLS - files for each version are available for download after the purchase

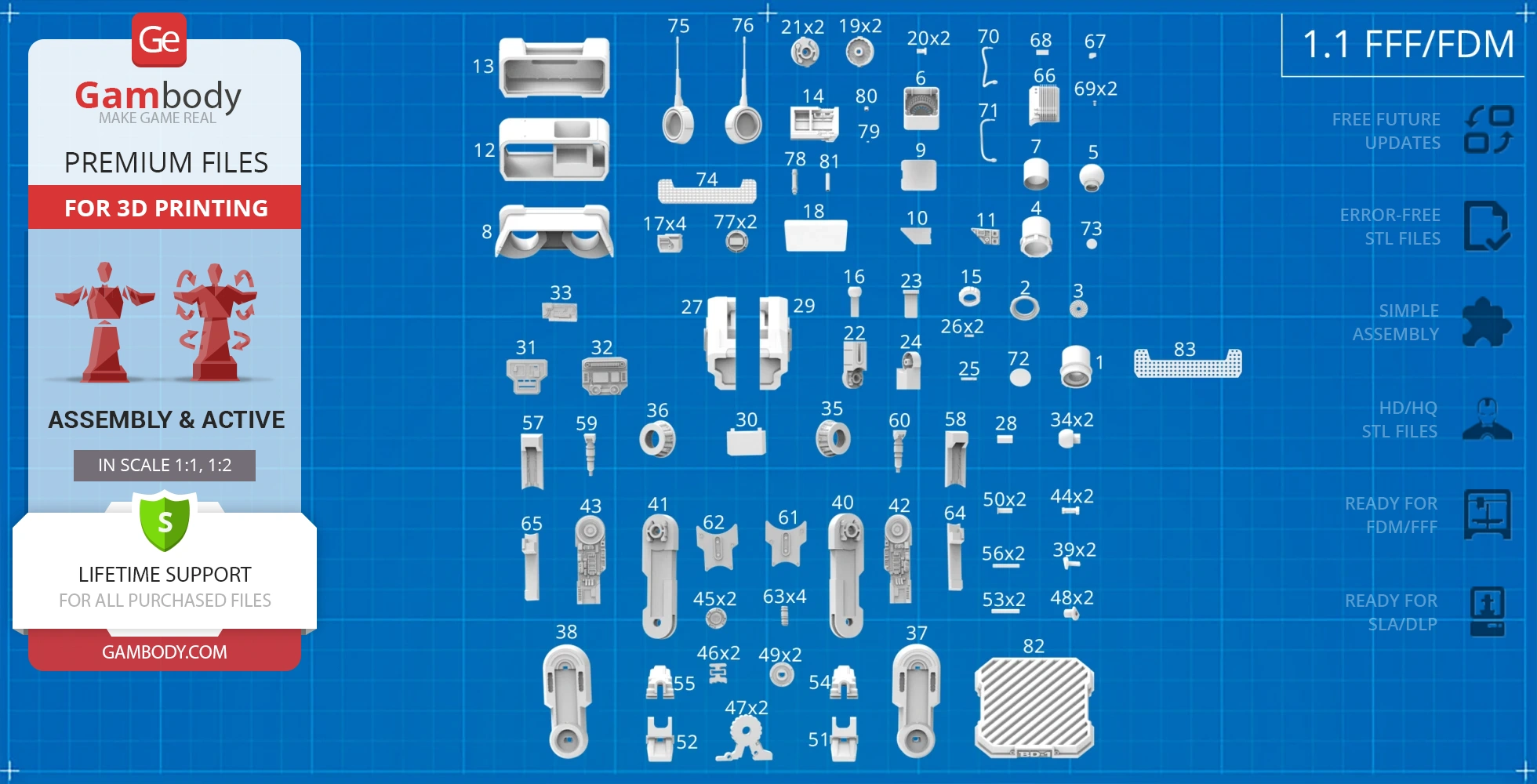

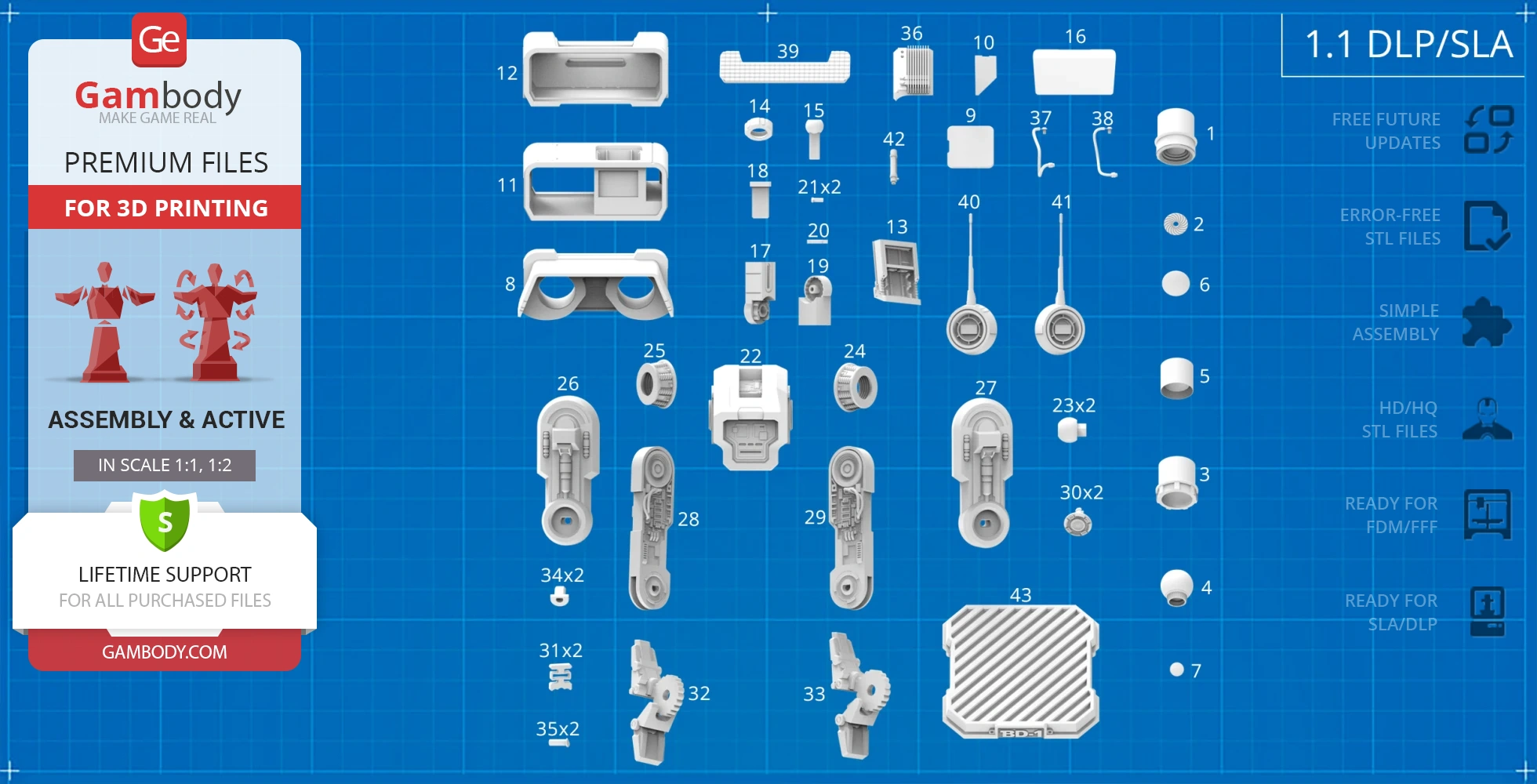

- STL files of high-poly BD-1 Droid 3D Model for 3D printing consist of 86 parts
Sizes:
FFF/FDM: 602 mm tall, 247 mm wide, 316 mm deep
DLP/SLA: 301 mm tall, 124 mm wide, 158 mm deep

Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format
- Detailed settings that we provide as a recommendation for Cura, Simplify3D, Slic3r and PrusaSlicer for the best print
- Full technical support from the Gambody Support Team

Detailed information about this 3D printing figurine is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

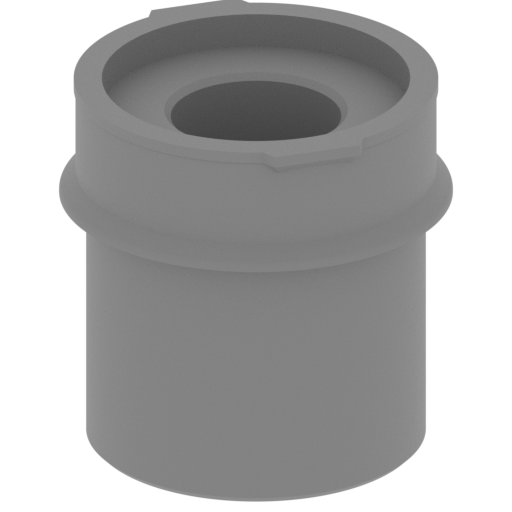

_1_Head_right_eye_body_FD M.stl
7.39 MiB 11 h 6 min 7 m 60 x 60 x 74 Download

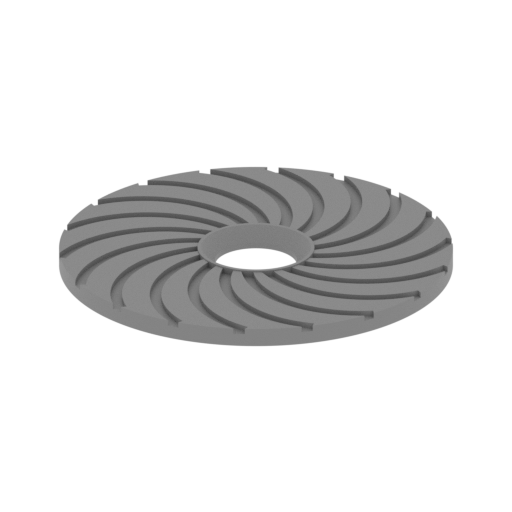

_2_Head_right_eye_retina_ FDM.stl
0.53 MiB 23 min <1 m 34 x 34 x 2 Download

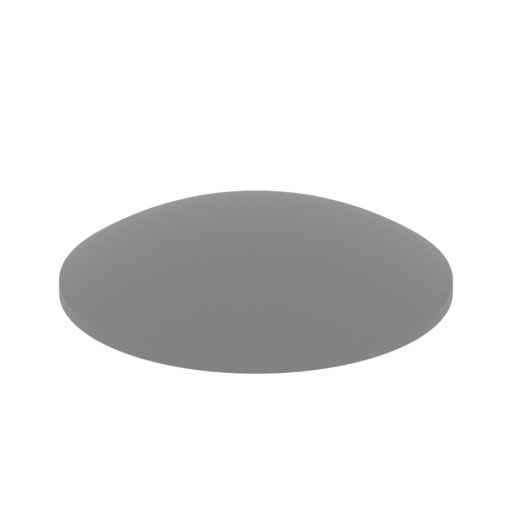

_3_Head_right_eye_cover_g lass_FDM.stl
0.18 MiB 47 min <1 m 39 x 39 x 8 Download

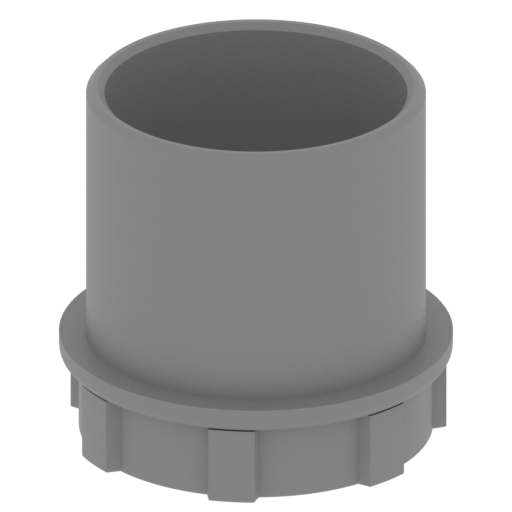

_4_Head_left_eye_body_FDM .stl
5.16 MiB 6 h 16 min 4 m 60 x 60 x 66 Download

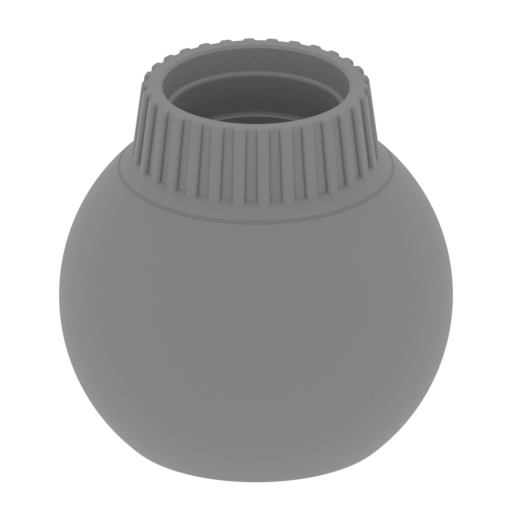

_5_Head_left_eye_body2_FD M.stl
14.94 MiB 3 h 15 min 2 m 46 x 46 x 44 Download

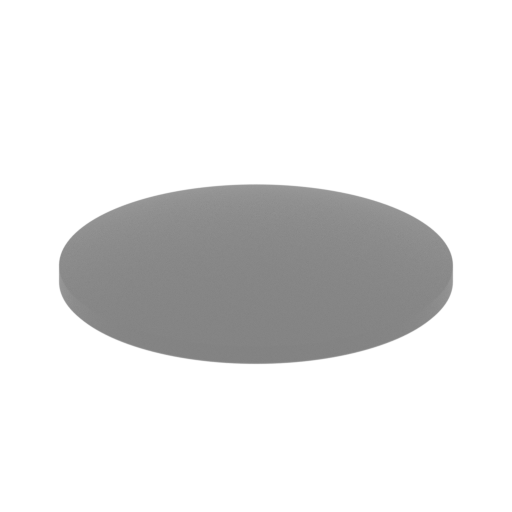

_6_Head_left_eye_cover_gl ass_FDM.stl
0.24 MiB 10 min <1 m 20 x 20 x 3 Download

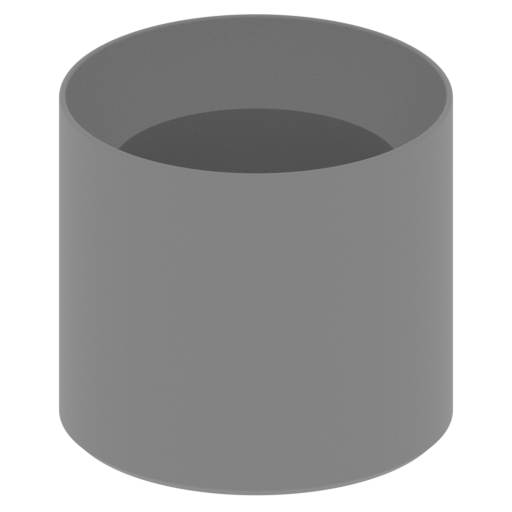

_7_Head_left_eye_shim_FDM .stl
2.65 MiB 3 h 43 min 2 m 46 x 46 x 51 Download
_8_Head_front_cover_FDM.s tl
4.61 MiB 42 h 44 min 26 m 200 x 200 x 80 Download
_9_Head_battery_cover_FDM .stl
0.25 MiB 2 h 50 min 2 m 62 x 75 x 6 Download

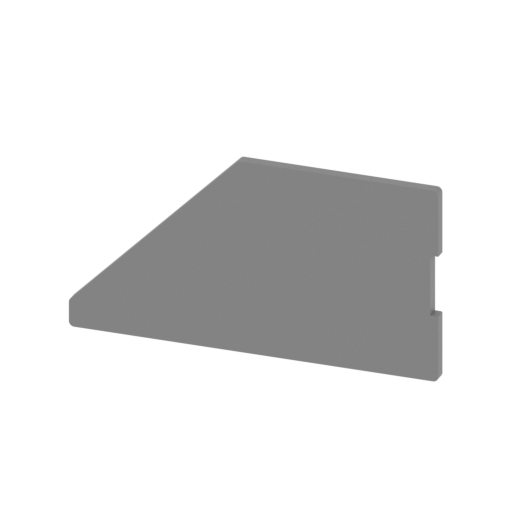

_10_Head_bard_cover_FDM.s tl
0.03 MiB 36 min <1 m 57 x 30 x 2 Download

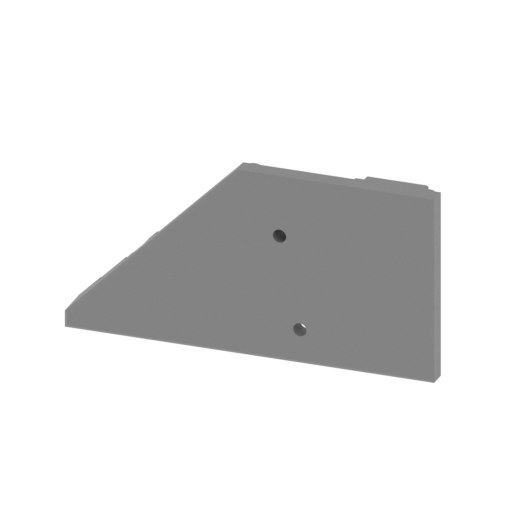

_11_Head_board_FDM.stl
7.69 MiB 49 min <1 m 55 x 28 x 4 Download

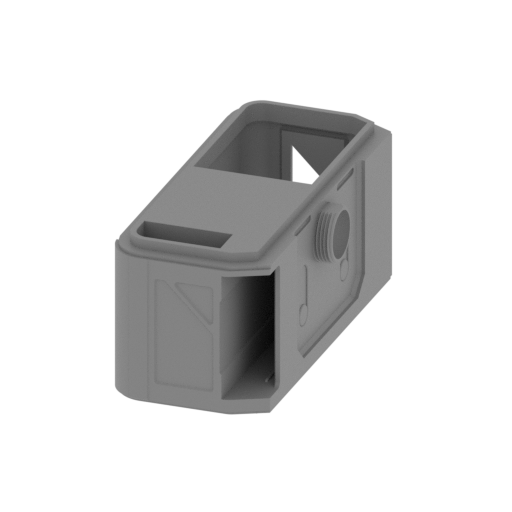

_12_Head_mid_body_FDM.stl
16.35 MiB 35 h 29 min 21 m 189 x 189 x 84 Download

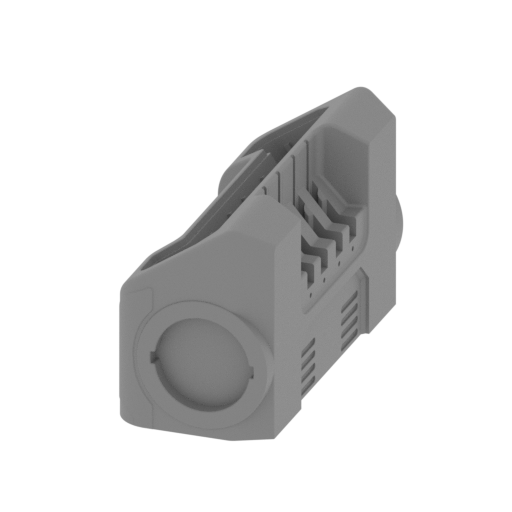

_13_Head_back_body_FDM.st l
19.36 MiB 107 h 20 min 77 m 198 x 198 x 127 Download

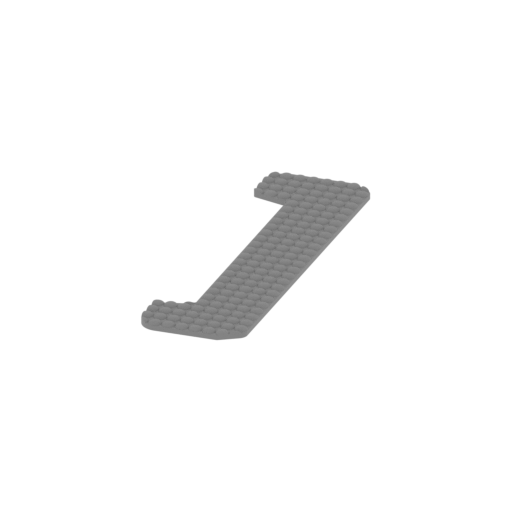

_14_Head_back_glass_FDM.s tl
74.12 MiB 5 h 15 min 3 m 51 x 181 x 5 Download

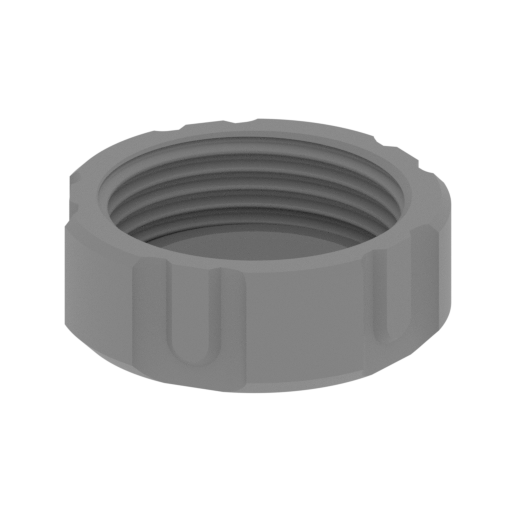

_15_Head_screw_FDM.stl
19.03 MiB 1 h 22 min 1 m 40 x 39 x 14 Download

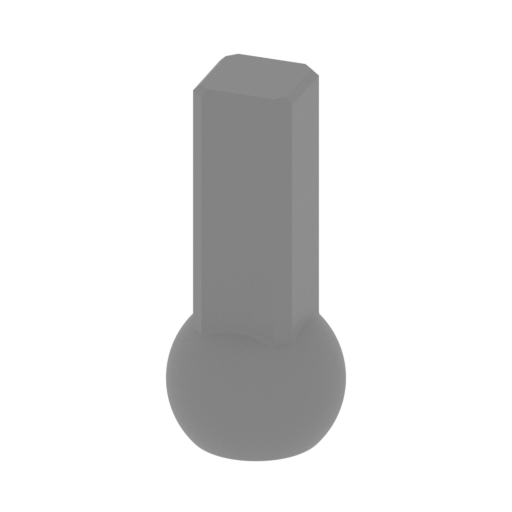

_16_Head_ball_pin_FDM.stl
2.14 MiB 1 h 23 min 1 m 26 x 26 x 56 Download

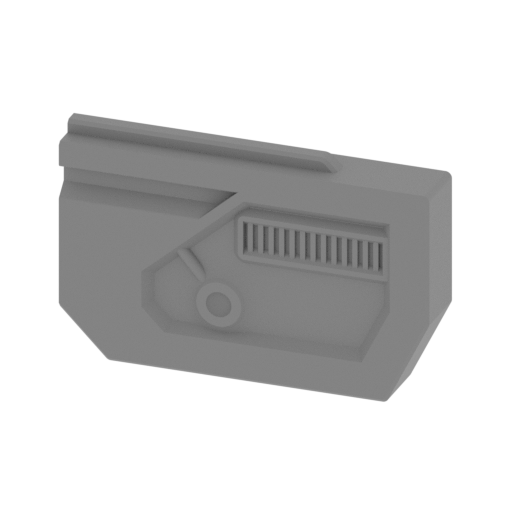

_17_Head_battery_block_x4 _FDM.stl
2.87 MiB 1 h 55 min 1 m 55 x 10 x 35 Download

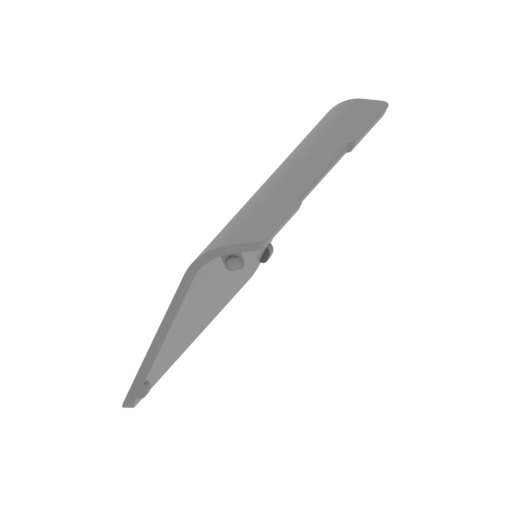

_18_Head_antenna_x2_FDM.s tl
5.82 MiB 7 h 26 min 5 m 152 x 152 x 21 Download

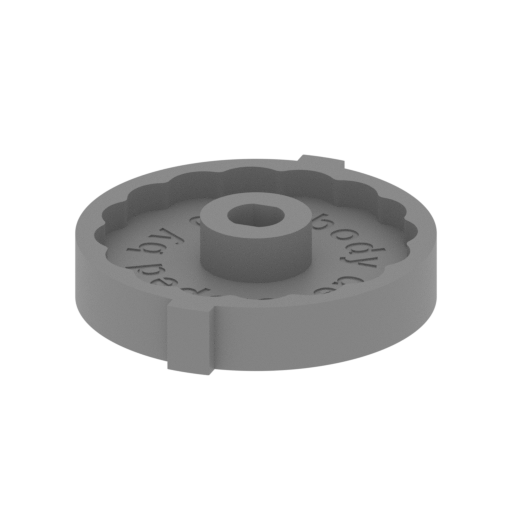

_19_Head_mechPart1_x2_FDM .stl
1.74 MiB 2 h 5 min 1 m 52 x 57 x 13 Download

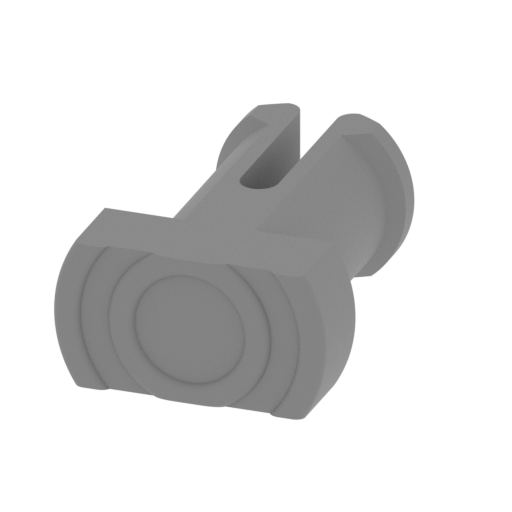

_20_Head_mechPart2_x2_FDM .stl
1.17 MiB 11 min <1 m 13 x 18 x 7 Download

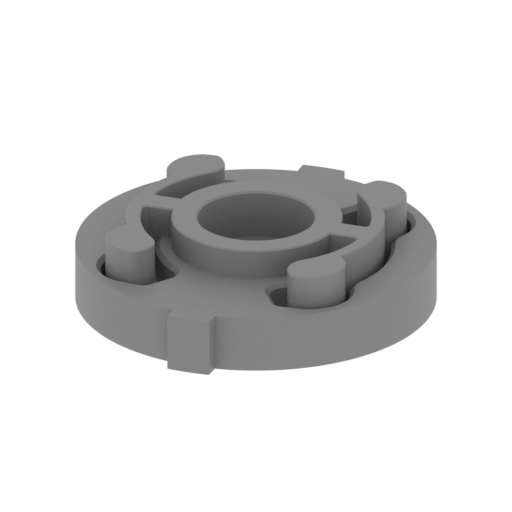

_21_Head_mechPart3_x2_FDM .stl
1.28 MiB 2 h 35 min 1 m 52 x 57 x 13 Download

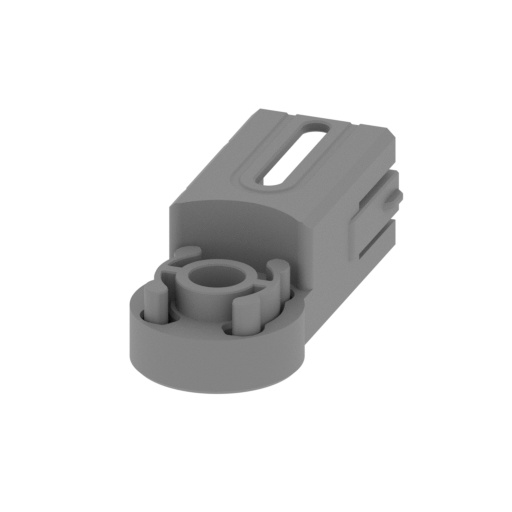

_22_Neck_outer_body_FDM.s tl
1.69 MiB 7 h 4 min 4 m 39 x 87 x 30 Download

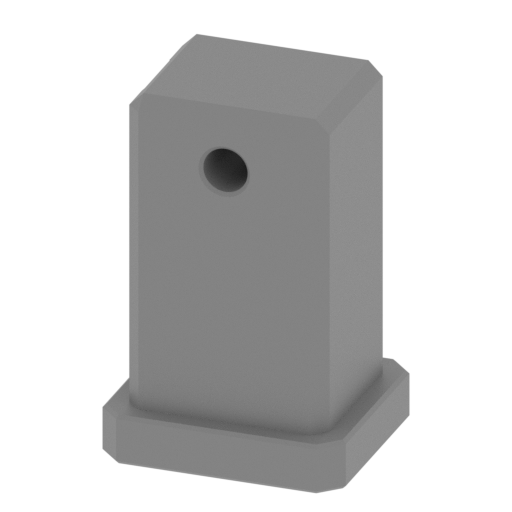

_23_Neck_inner_body_FDM.s tl
0.31 MiB 3 h 28 min 2 m 34 x 30 x 52 Download

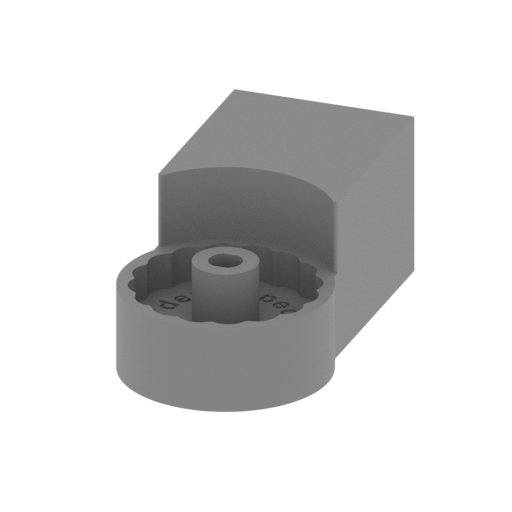

_24_Neck_bottom_body_FDM. stl
1.69 MiB 4 h 11 min 2 m 39 x 70 x 30 Download

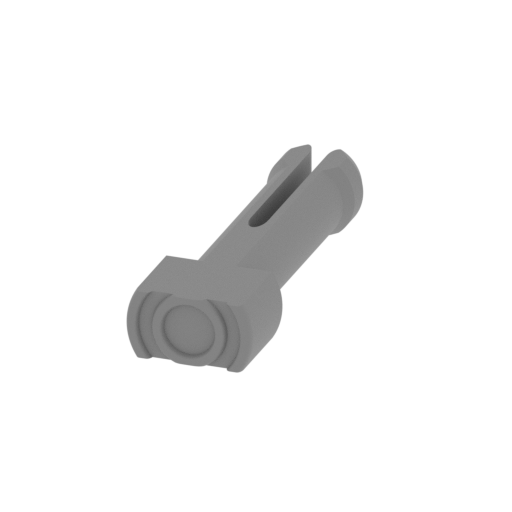

_25_Neck_body_pin1_FDM.st l
1.46 MiB 12 min <1 m 10 x 29 x 5 Download

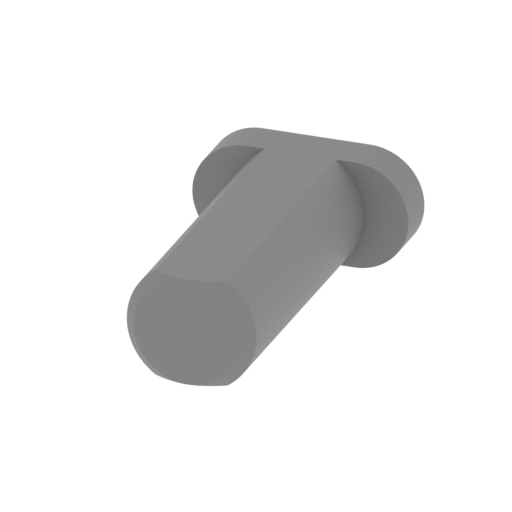

_26_Neck_body_pin2_x2_FDM .stl
0.10 MiB 6 min <1 m 10 x 17 x 5 Download

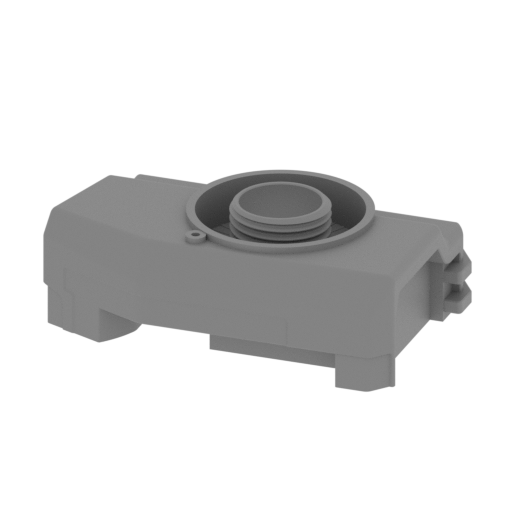

_27_Body_right_FDM.stl
24.49 MiB 51 h 24 min 32 m 171 x 115 x 59 Download

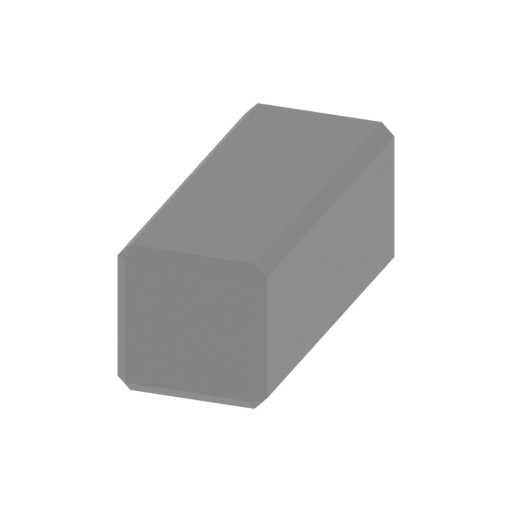

_28_Body_pin_x2_FDM.stl
0.00 MiB 25 min <1 m 12 x 29 x 12 Download

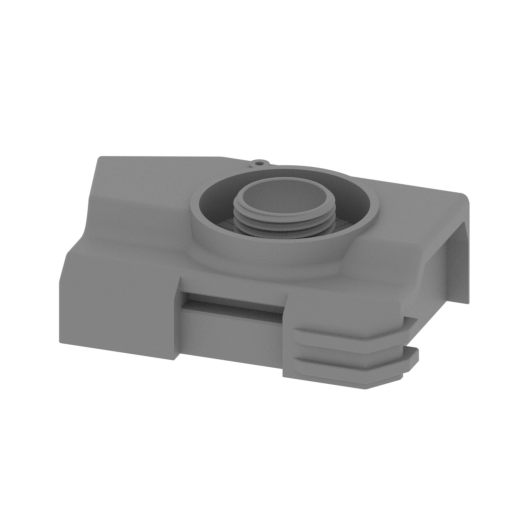

_29_Body_left_FDM.stl
24.48 MiB 51 h 19 min 32 m 171 x 115 x 59 Download

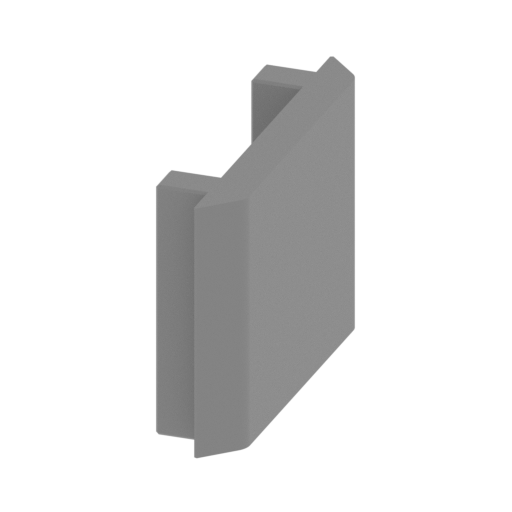

_30_Body_bottom_FDM.stl
0.06 MiB 3 h 7 min 2 m 18 x 72 x 50 Download

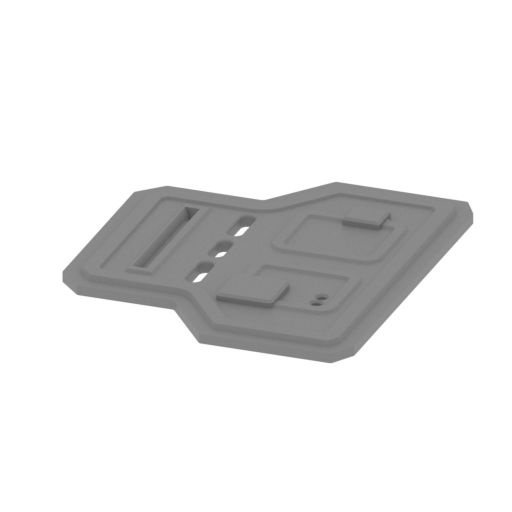

_31_Body_front_FDM.stl
0.99 MiB 2 h 6 min 1 m 65 x 76 x 4 Download

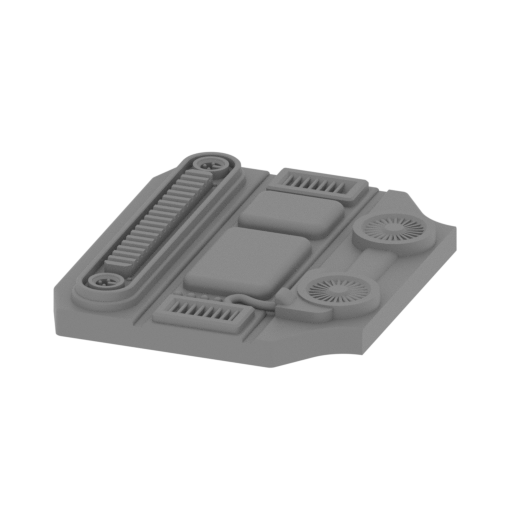

_32_Body_back_FDM.stl
7.21 MiB 5 h 6 min 3 m 69 x 84 x 11 Download

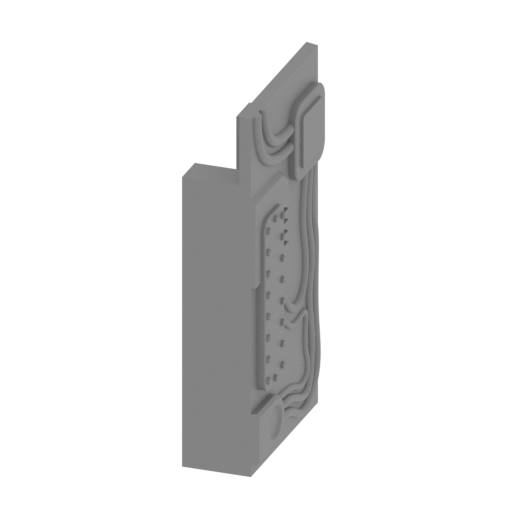

_33_Body_top_FDM.stl
8.61 MiB 2 h 25 min 1 m 14 x 32 x 64 Download

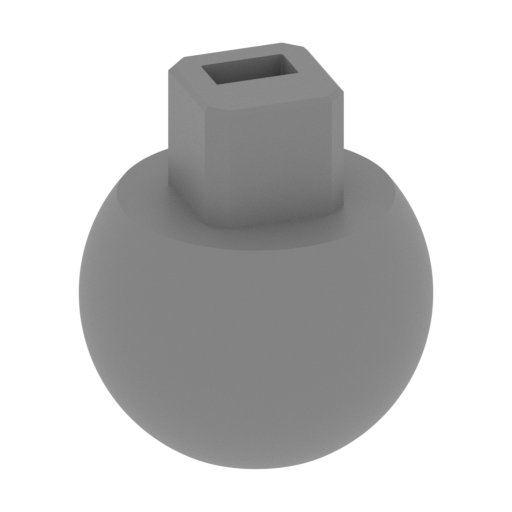

_34_Body_ball_pin_x2_FDM. stl
4.14 MiB 2 h 7 min 1 m 36 x 36 x 40 Download

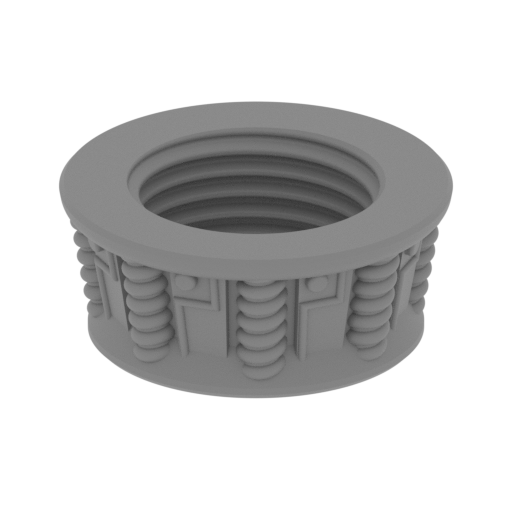

_35_Body_screw_left.stl
11.87 MiB 8 h 22 min 4 m 69 x 69 x 29 Download

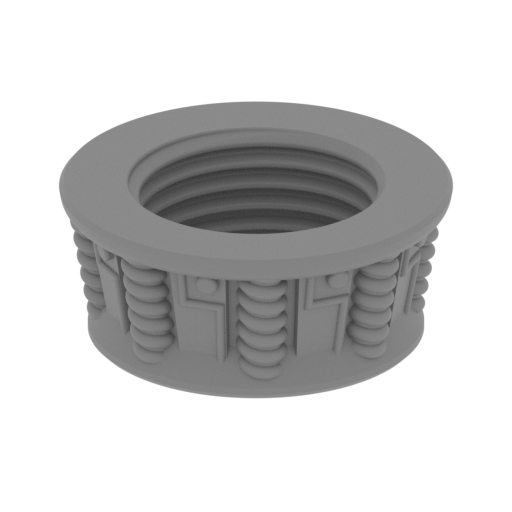

_36_Body_screw_right.stl
11.87 MiB 8 h 25 min 4 m 69 x 69 x 29 Download

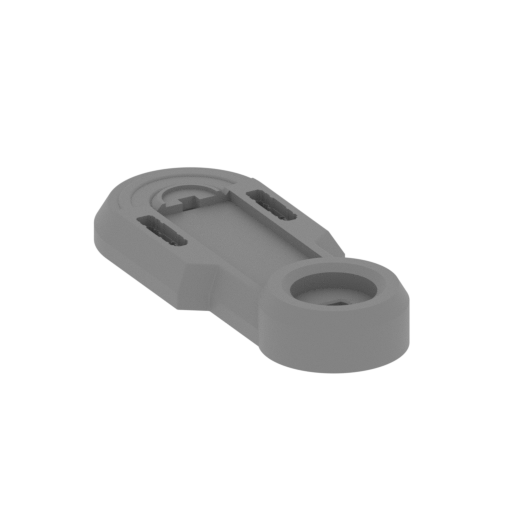

_37_Leg_upper_left_FDM.st l
7.50 MiB 25 h 41 min 15 m 179 x 163 x 38 Download

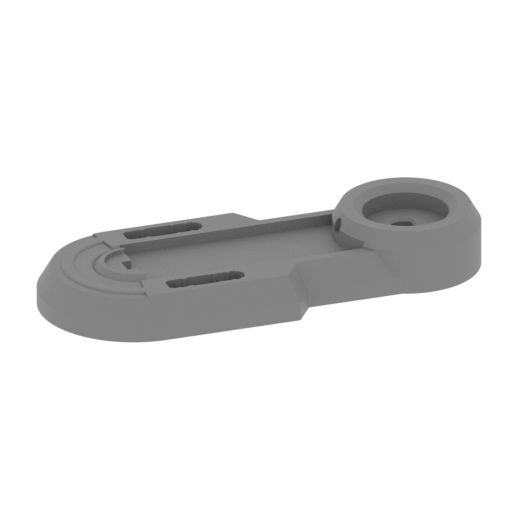

_38_Leg_upper_right_FDM.s tl
7.50 MiB 25 h 44 min 15 m 179 x 163 x 38 Download

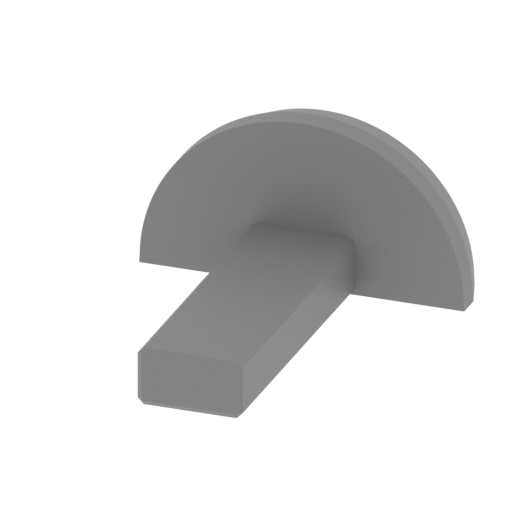

_39_Pin_upper_leg_x2_FDM. stl
0.04 MiB 23 min <1 m 27 x 30 x 14 Download

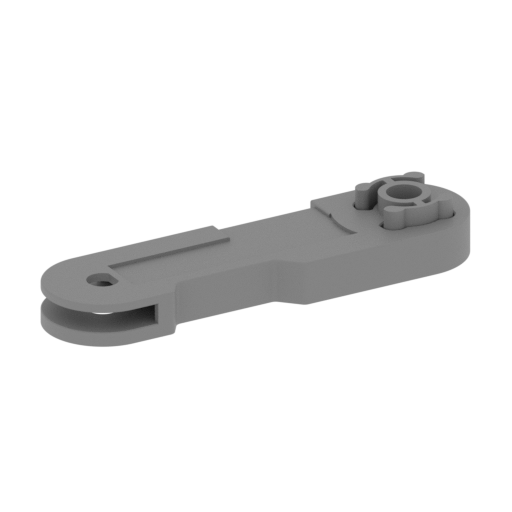

_40_leg_lower_left_FDM.st l
3.44 MiB 24 h 59 min 16 m 180 x 181 x 39 Download

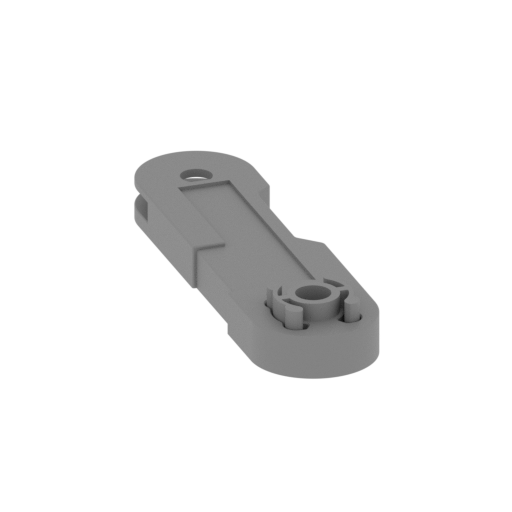

_41_leg_lower_right_FDM.s tl
3.44 MiB 24 h 39 min 16 m 180 x 181 x 39 Download

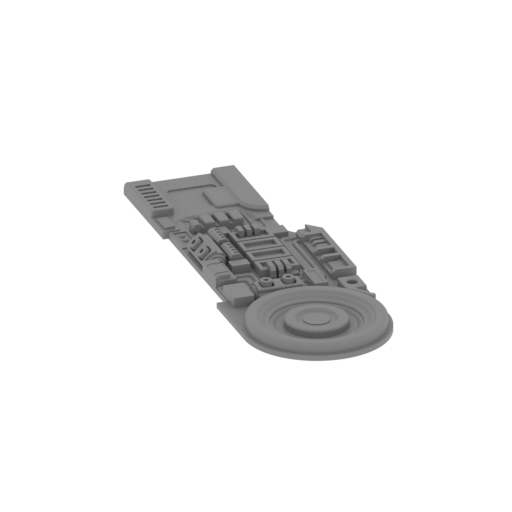

_42_leg_lower_board_left_ FDM.stl
6.24 MiB 6 h 2 min 3 m 135 x 143 x 9 Download

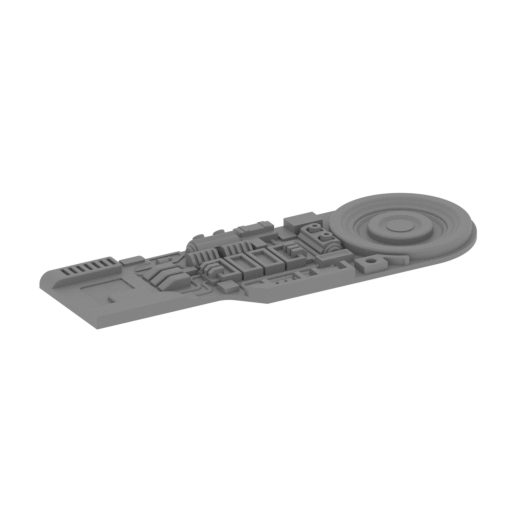

_43_leg_lower_board_right _FDM.stl
6.24 MiB 6 h 2 min 3 m 135 x 143 x 9 Download

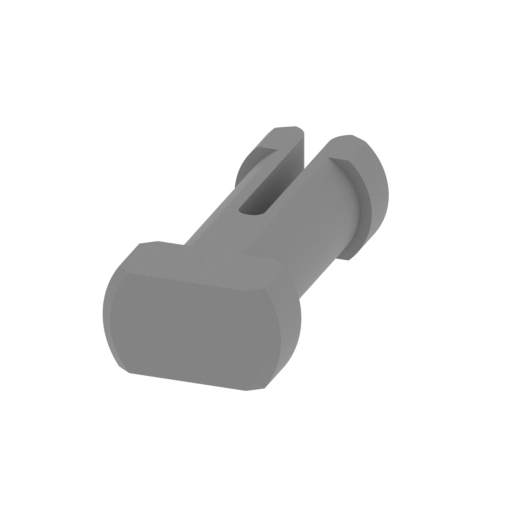

_44_Pin_knee_x2_FDM.stl
0.19 MiB 24 min <1 m 16 x 32 x 9 Download

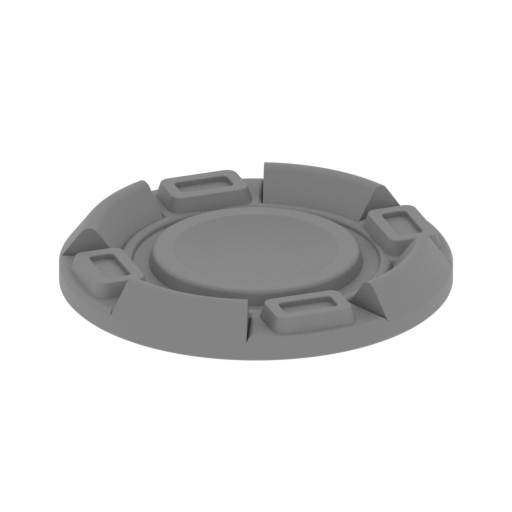

_45_Leg_knee_cover_x2_FDM .stl
4.44 MiB 54 min <1 m 39 x 39 x 5 Download
_46_Leg_knee_Mechpart_x2_ FDM.stl
0.32 MiB 59 min 1 m 45 x 46 x 10 Download

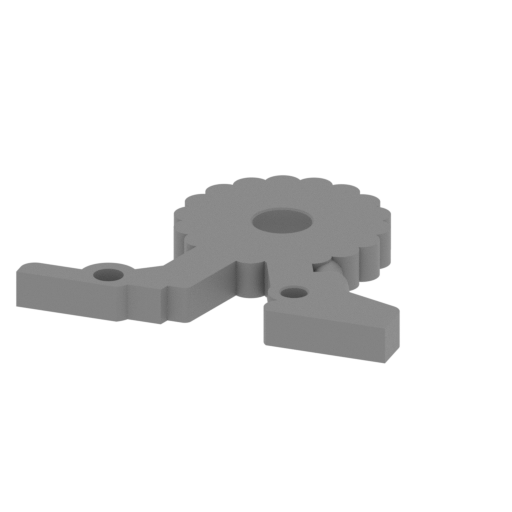

_47_Leg_foot_part_x2_FDM. stl
0.80 MiB 4 h 4 min 2 m 105 x 86 x 10 Download

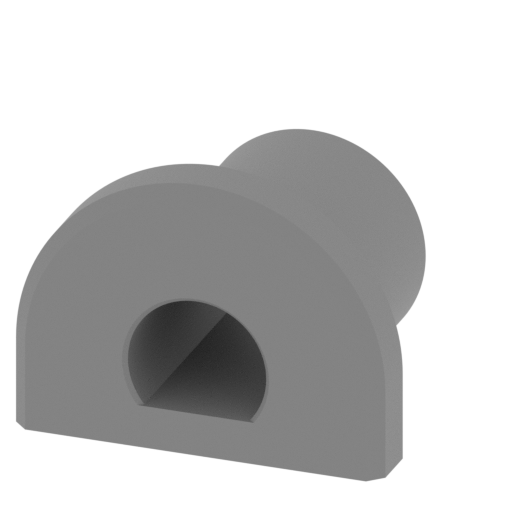

_48_Leg_foot_pin_x2_FDM.s tl
0.25 MiB 48 min <1 m 26 x 23 x 19 Download

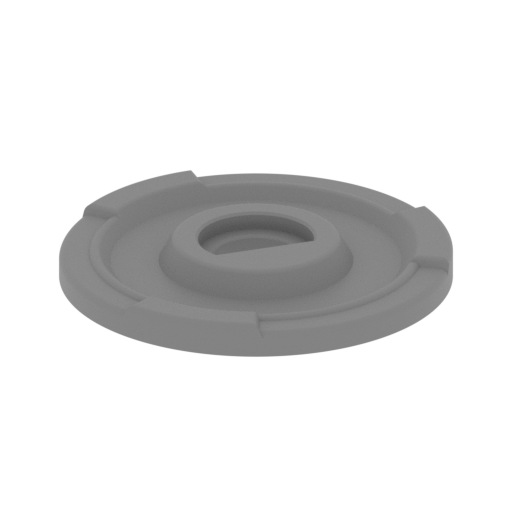

_49_Leg_foot_cover_x2_FDM .stl
1.71 MiB 1 h 1 min 1 m 46 x 46 x 5 Download

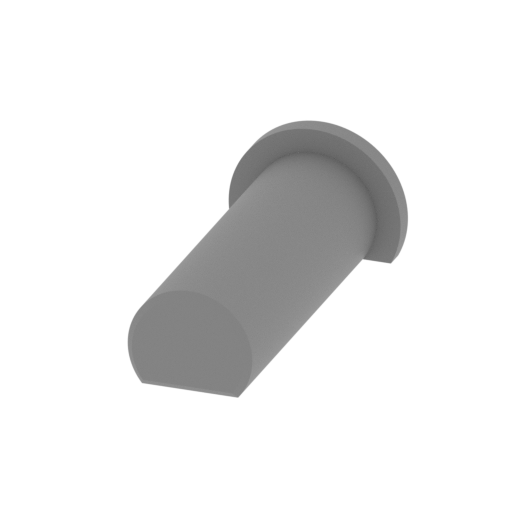

_50_Leg_foot_pin2_x2_FDM. stl
0.13 MiB 16 min <1 m 13 x 28 x 10 Download

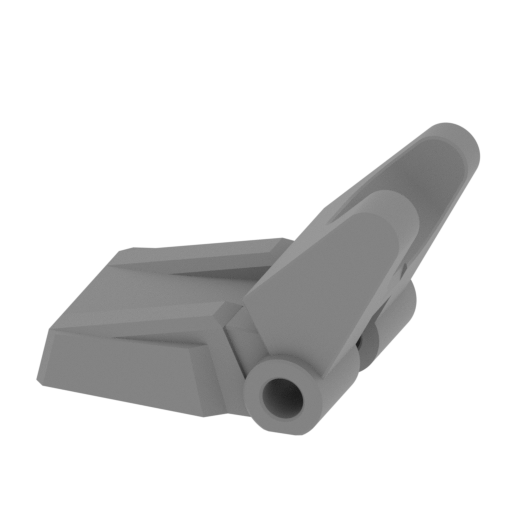

_51_Leg_front_finger_left _FDM.stl
0.72 MiB 5 h 41 min 3 m 74 x 52 x 47 Download

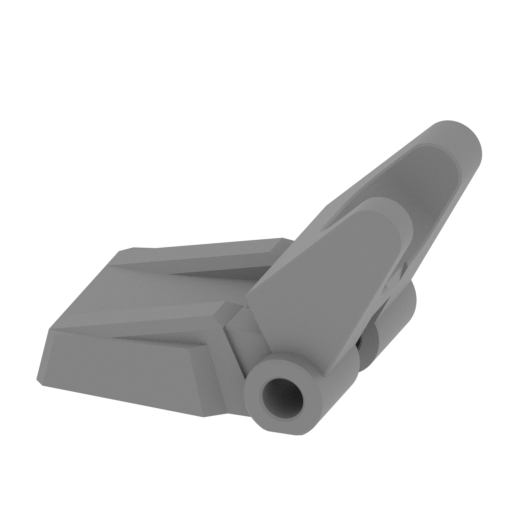

_52_Leg_front_finger_righ t_FDM.stl
0.72 MiB 5 h 41 min 3 m 74 x 52 x 47 Download

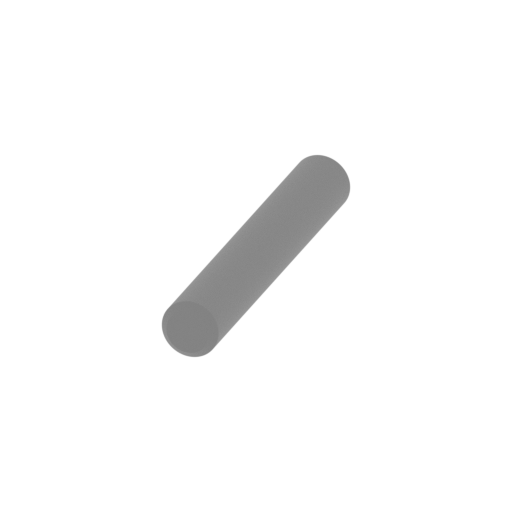

_53_Leg_front_finger_pin_ x2_FDM.stl
0.24 MiB 23 min <1 m 8 x 52 x 8 Download

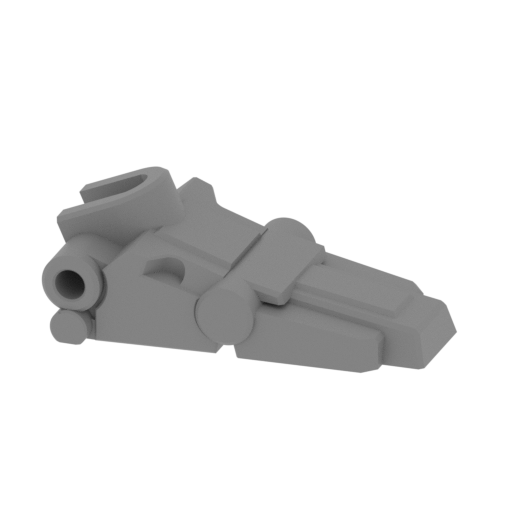

_54_Leg_back_finger_left_ FDM.stl
0.98 MiB 6 h 3 min 3 m 90 x 52 x 33 Download

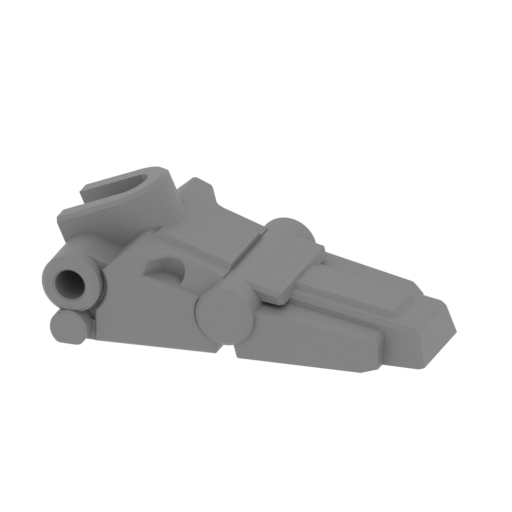

_55_Leg_back_finger_right _FDM.stl
0.98 MiB 6 h 6 min 3 m 90 x 52 x 33 Download

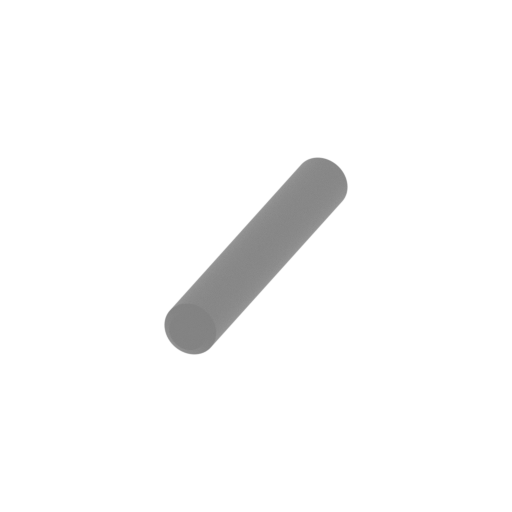

_56_Leg_back_finger_pin_x 2_FDM.stl
0.23 MiB 18 min <1 m 7 x 50 x 7 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
...

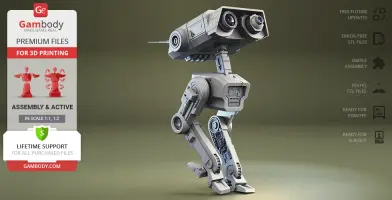

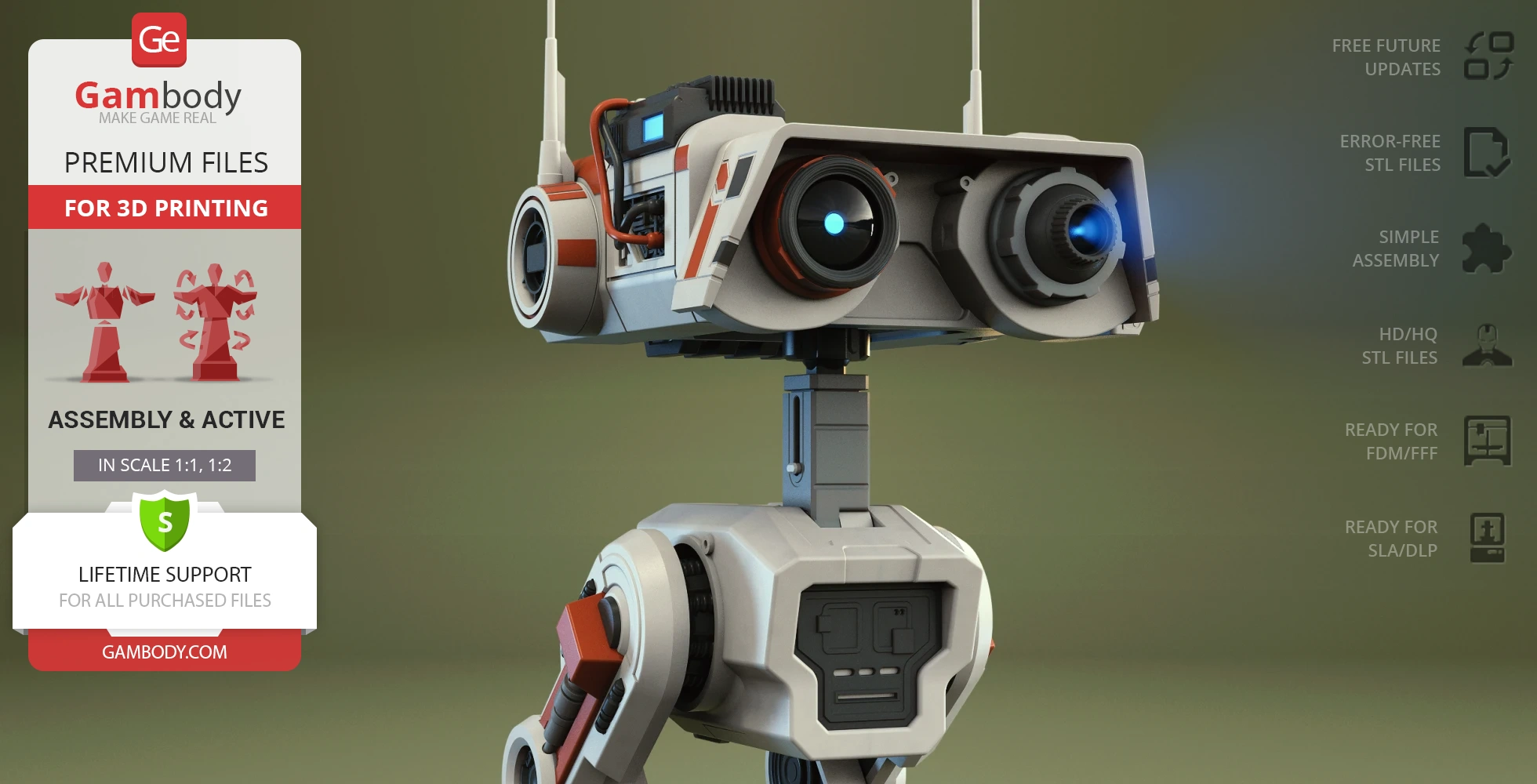

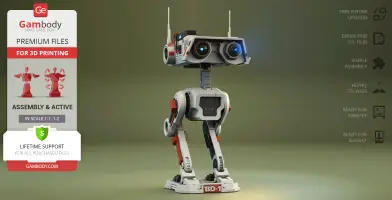

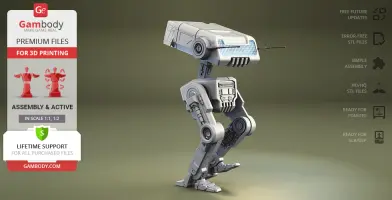

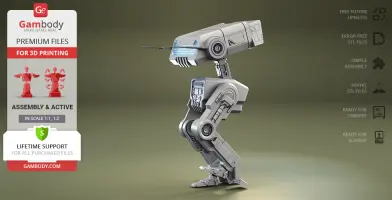

ABOUT THIS 3D MODEL

The best droid helper is up for adoption!

A curious and lively BD-1 Droid is not just a sidekick for your quest. He is a full-fledged companion with bird-like features and puppy-like loyalty to his friends! Buddy Droid accompanied Cal Kestis throughout Star Wars Jedi: Fallen Order and even made an appearance in The Book of Boba Fett series, charming everyone in a flash!

Our contributing 3D artist was sure that you would love to 3D print such a fellow to help you out in the workshop! Thus, he created the highly detailed BD-1 Droid 3D Printing Model just for your needs. The model was also equipped with all kinds of articulated joints to ensure that Buddy Droid could follow you everywhere and provide the needed assistance.

ADAPTATION FOR 3D PRINTING

BD-1 Droid for 3D printing is an active assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 35 hours in total. For you to receive the cleanest 3D printing result possible and to minimize the amount of filament needed for generated support, the BD-1 Droid model was divided into many assembly parts. The model was made fully articulated and equipped with unique active joints that will make your droid companion come alive.

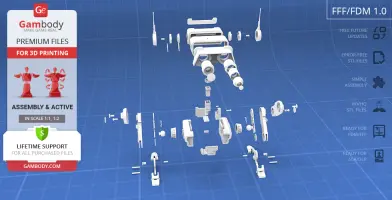

All assembly parts in the FFF/FDM 1.0 version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any model's file you will also receive "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format. We highly recommend that you get acquainted with the “Assembly video” and "Assembly Manual" before getting down to the Pit Droid model.

The figurine is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model's scale was calculated from the approximate height of the droid which is 450 mm. The 3D printing figurine's chosen scales are 1:1 for the FFF/FDM version and 1:2 for the DLP/SLA version.

VERSIONS' SPECIFICATIONS

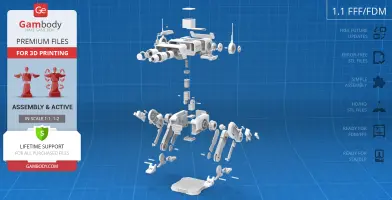

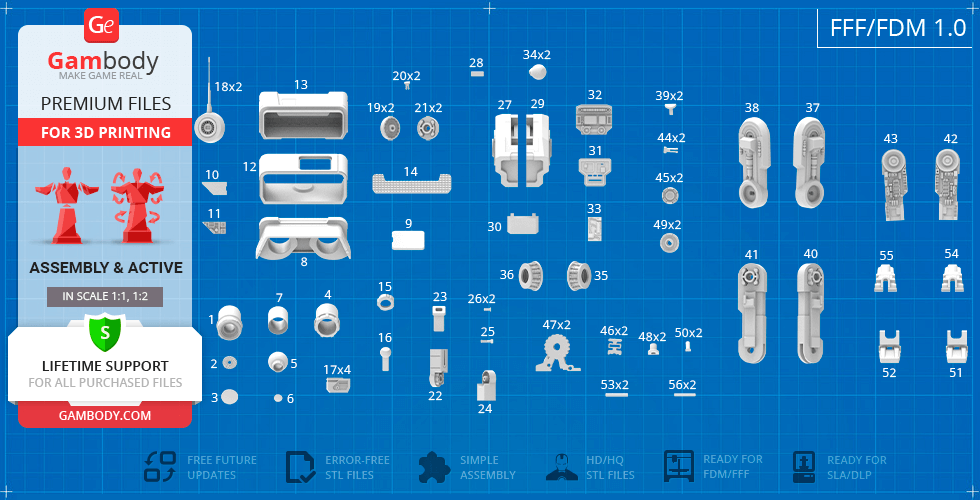

FFF/FDM 1.0 version features:
- Contains 56 parts;
- A printed model is 602 mm tall, 247 mm wide, 316 mm deep;
- Right sensor can be assembled with and without the lens;

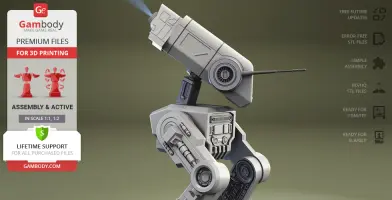

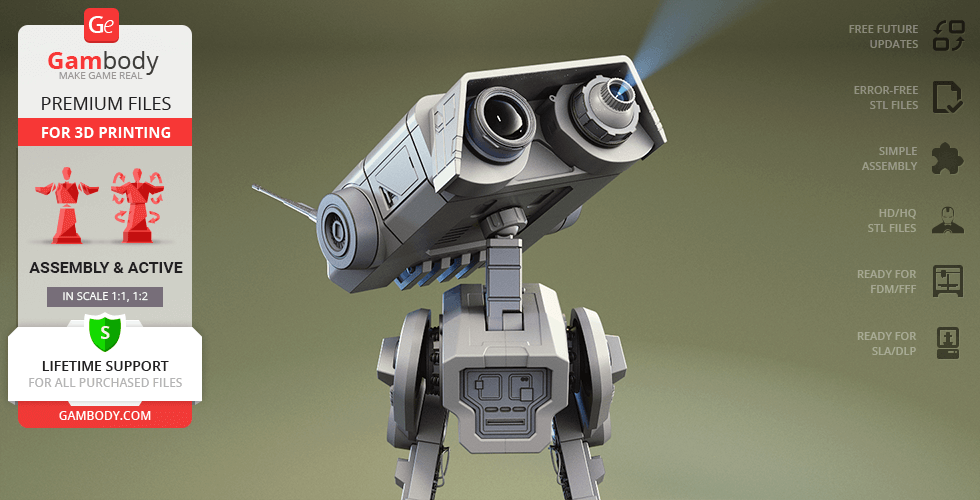

- Rotating holoprojector;

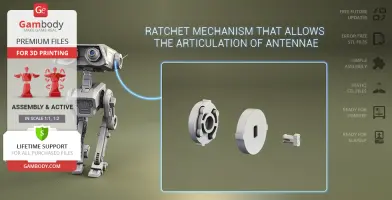

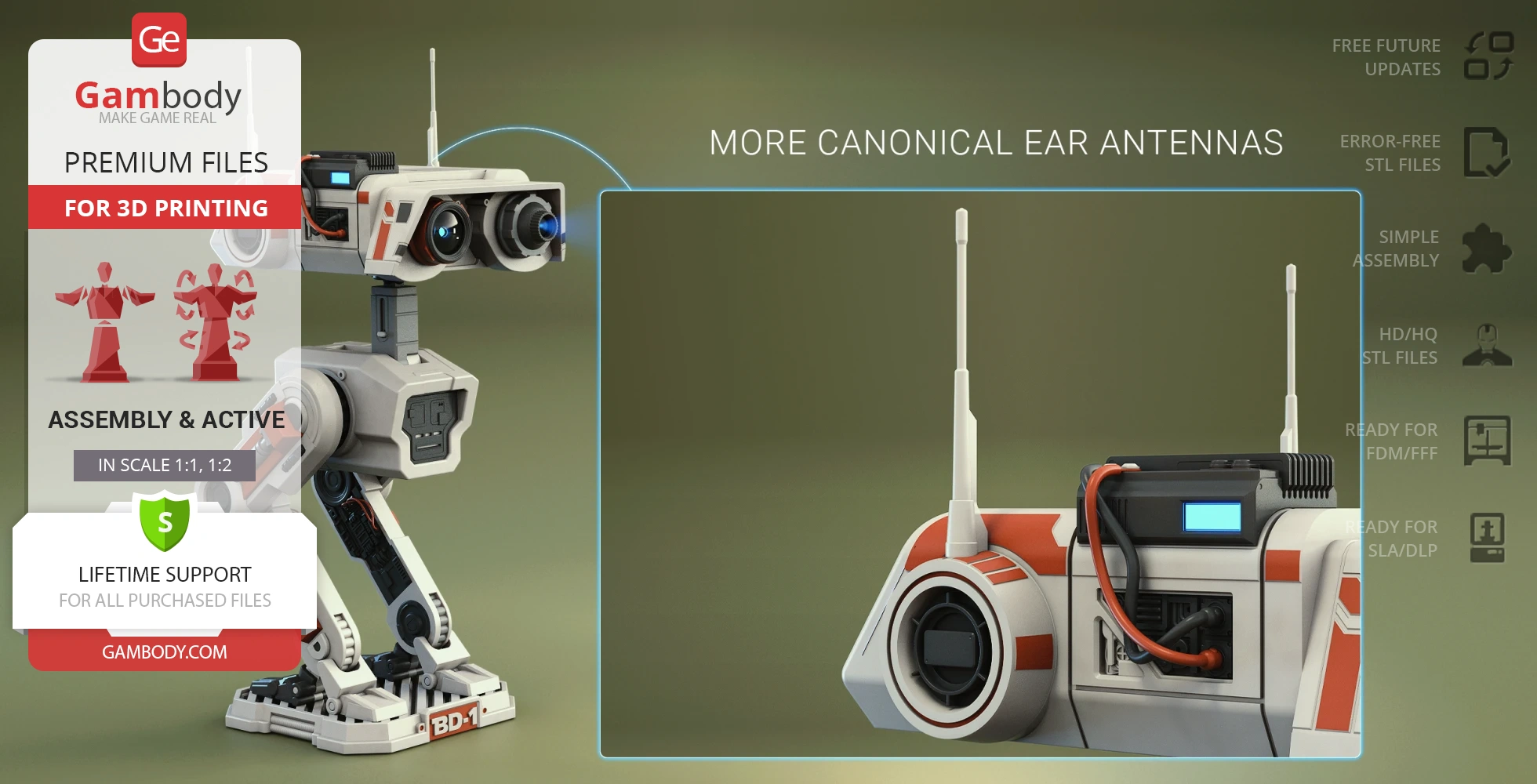

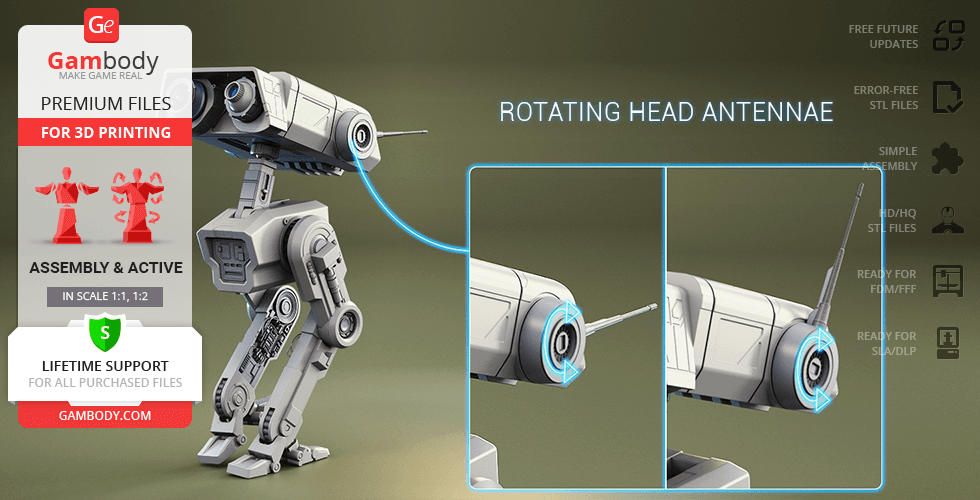

- Ratchet mechanism allows the articulation of antennae;

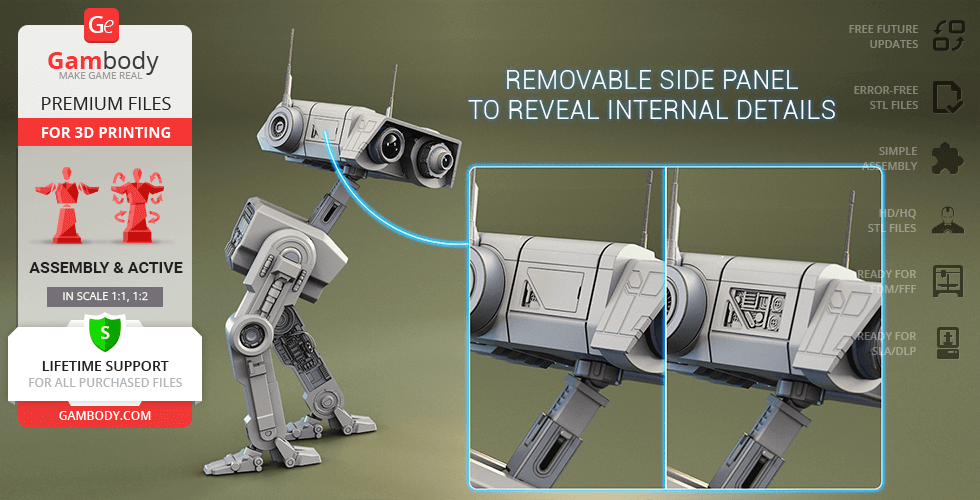

- Removable side panel to reveal internal details;
- The head rotates on a ball joint, the neck can be bent and extended;

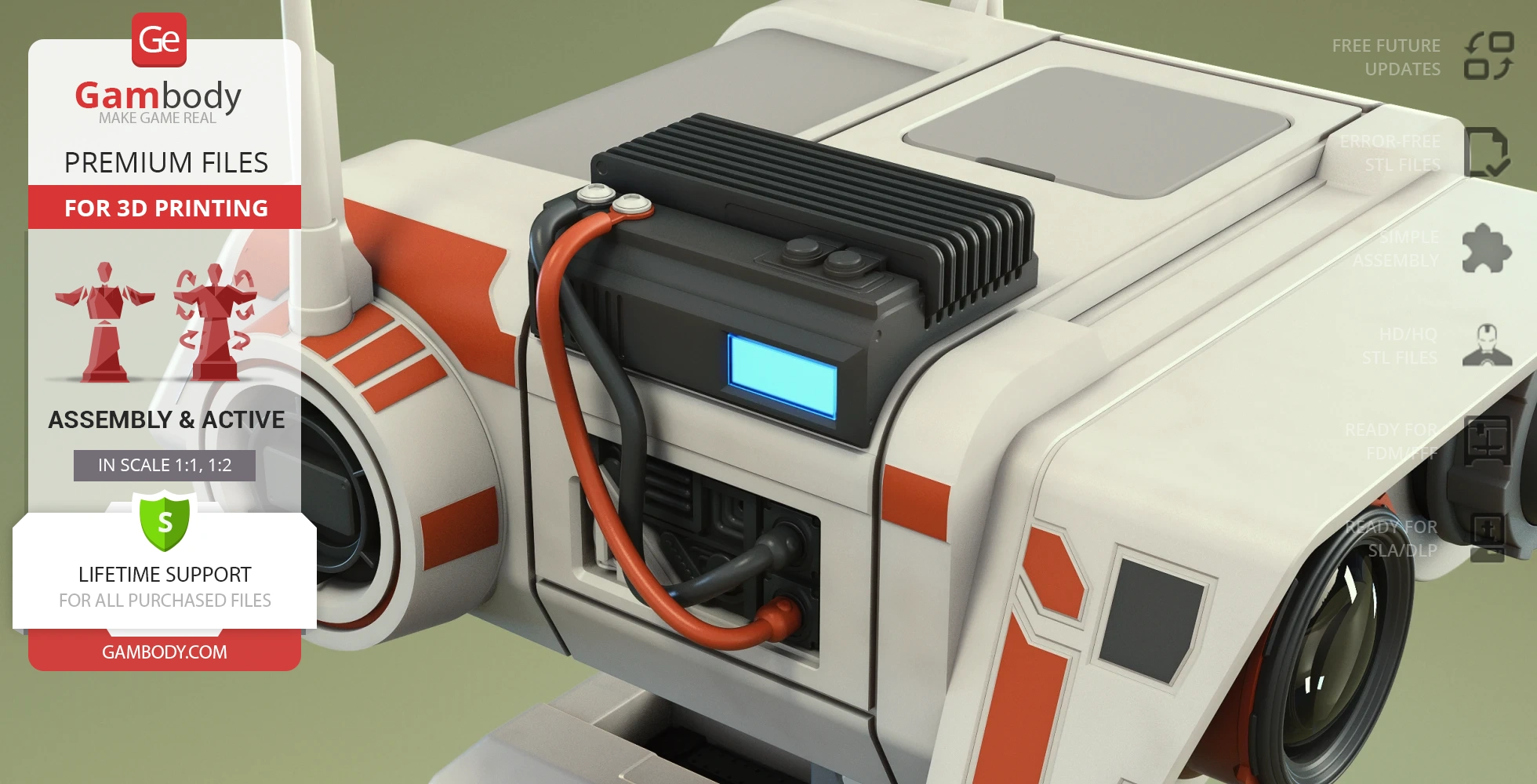

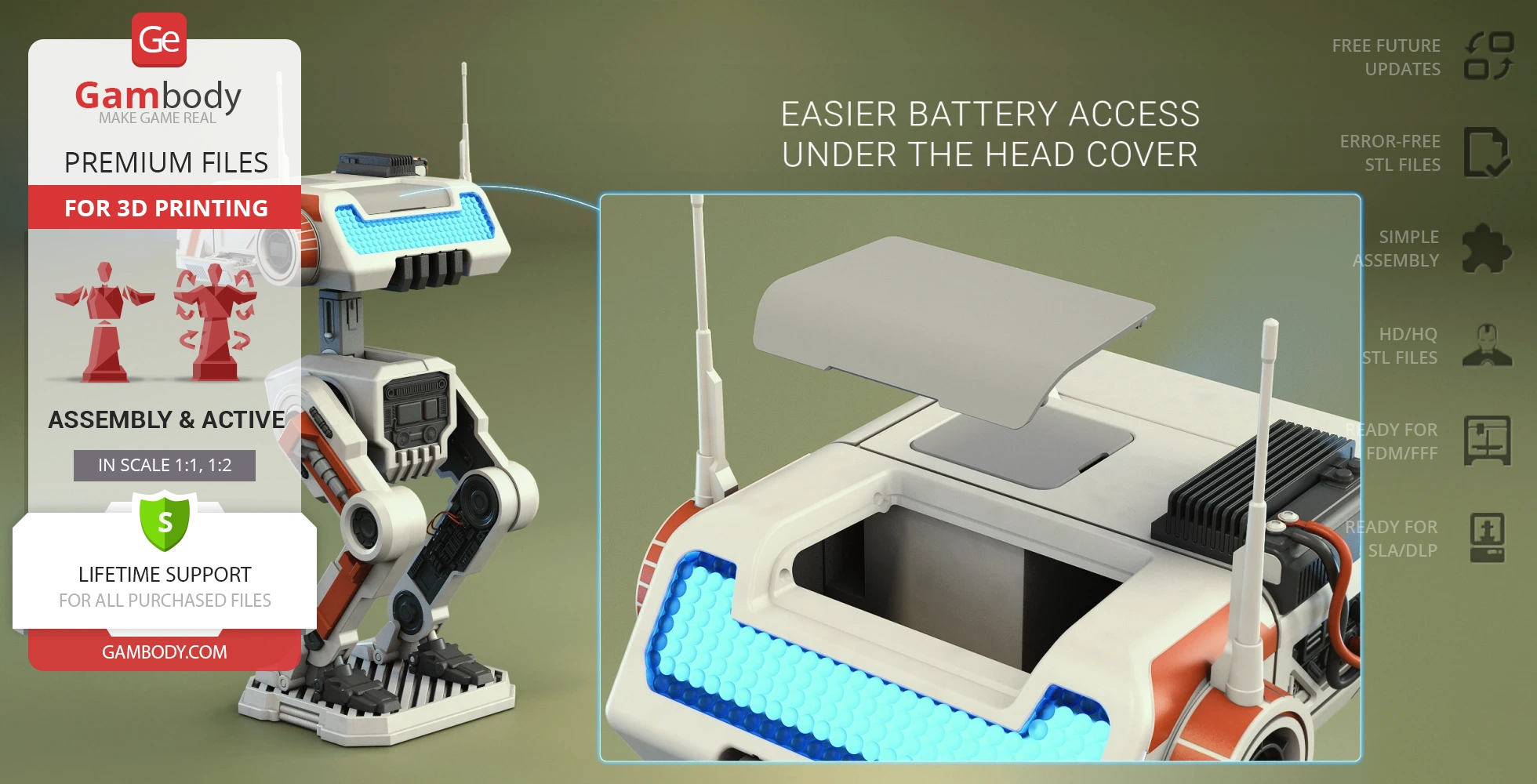

- Removable batteries at the back of the head;
- Highly articulated hip and knee joints;
- Springing joint for the articulation of feet;
- The cables for the BD-1 Droid's legs are not provided in the STL files. You may use simple 1.75 mm filament to create the cables;

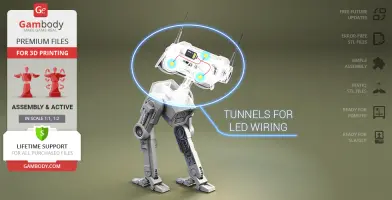

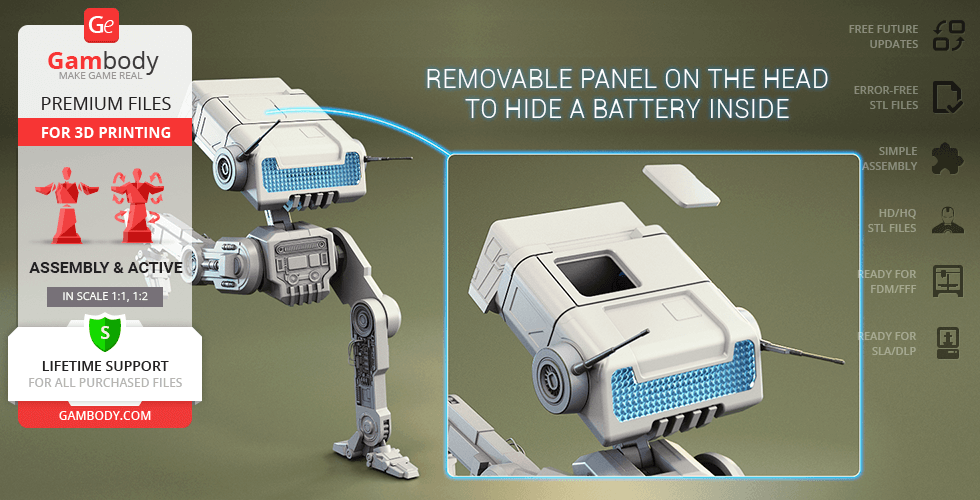

- Tunnels for LED wiring for the sensor, holoprojector, and head lights; removable panel on the head to hide a battery inside;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

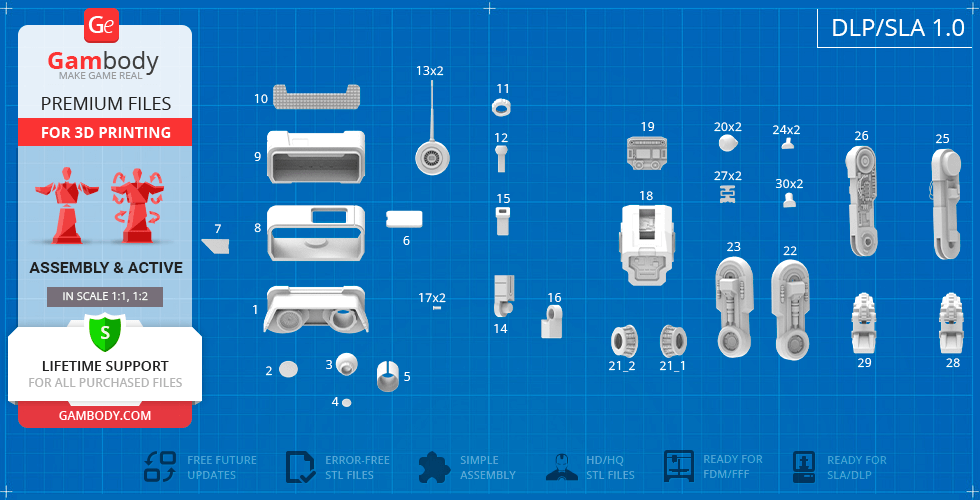

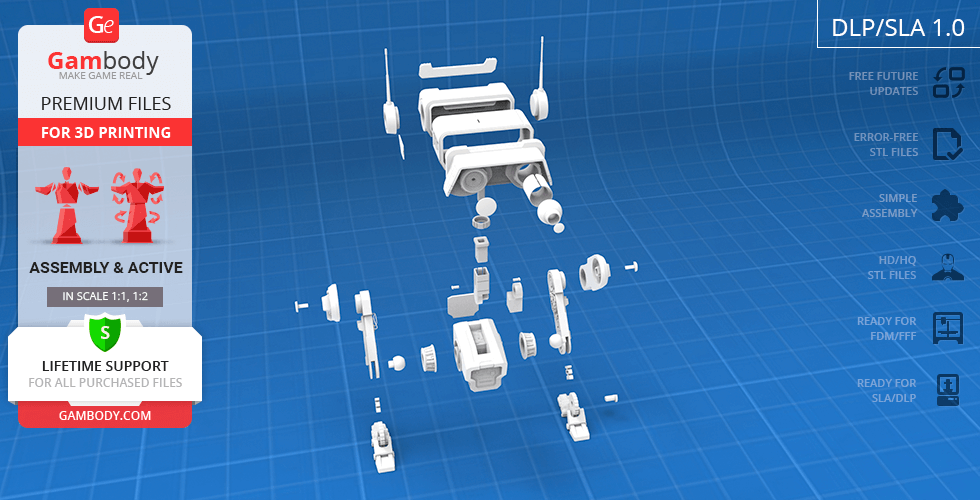

DLP/SLA 1.0 version features:
- Contains 30 parts;
- A printed model is 301 mm tall, 124 mm wide, 158 mm deep;
- Right sensor can be assembled with and without the lens;
- Rotating holoprojector;
- Ratchet mechanism allows the articulation of antennae;
- Removable side panel to reveal internal details;
- The head rotates on a ball joint, the neck can be bent and extended;
- Removable batteries at the back of the head;

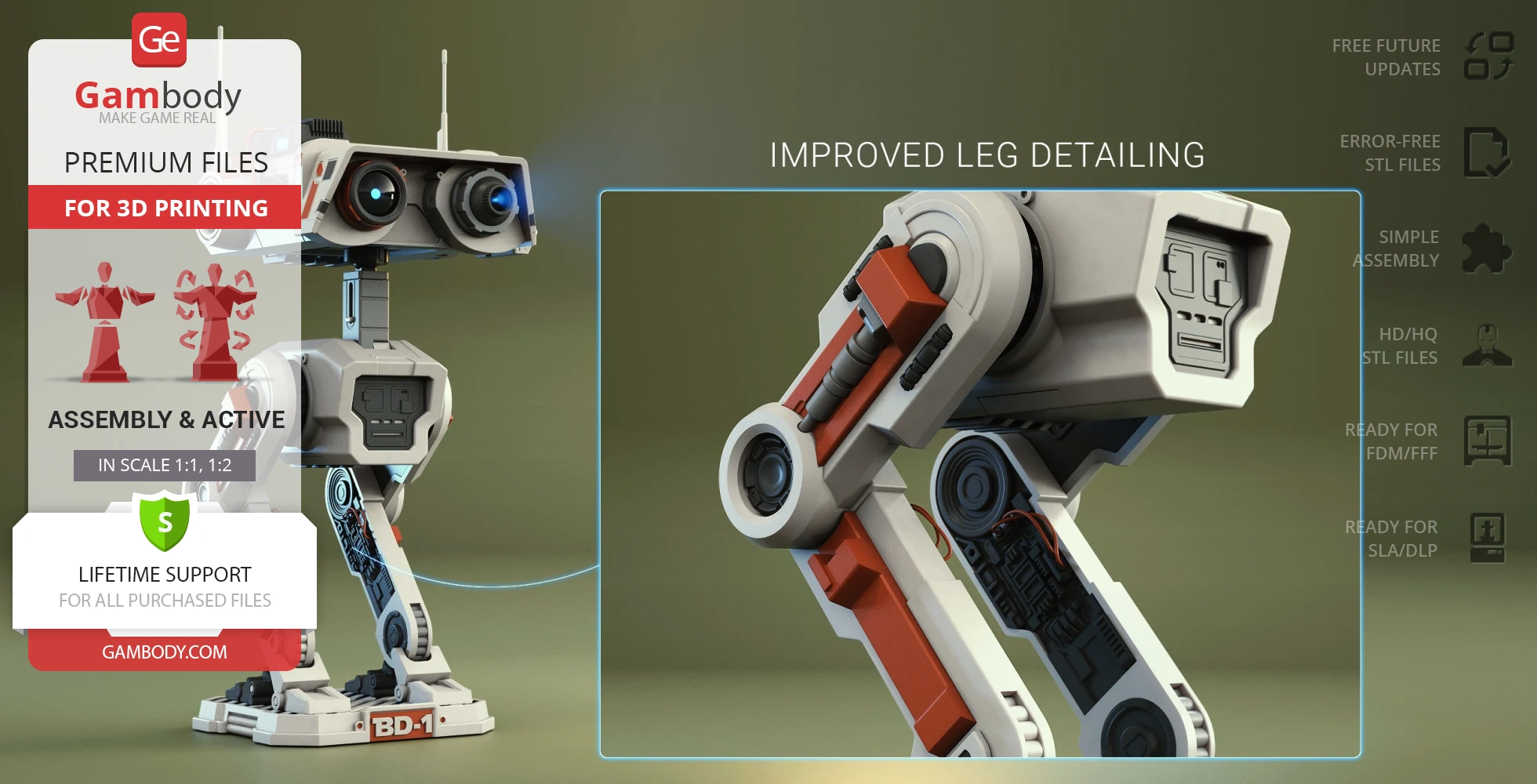

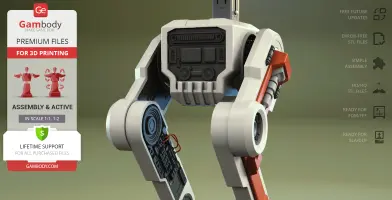

- Highly articulated hip and knee joints;
- Springing joint for the articulation of feet;
- The cables for the BD-1 Droid's legs are not provided in the STL files. You may use simple 1.75 mm filament to create the cables;
- Tunnels for LED wiring for the sensor, holoprojector, and head lights; removable panel on the head to hide a battery inside;
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

You can get the model of BD-1 Droid for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble BD-1 Droid 3D Printing Model at Gambody YouTube channel.

Also, you may like Pit Droid 3D Printing Model, BB-8 3D Printing Model, R2-D2 3D Printing Model, as well as other Star Wars models.



_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

Below you can find printing recommendations for Cura, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

  • You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);
  • All connectors should be printed at 100% Infill.

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
