Bloodseeker Strygwyr 3D Printable Model | Static Figure

(2)
cm: 11.623 w x 14.141 d x 14.22 h
in: 4.576 w x 5.567 d x 5.598 h

Source Files

|

Description

|

Printing Details

This 3d model consists of files in StereoLithography (.Stl) format that have been optimized for 3d printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

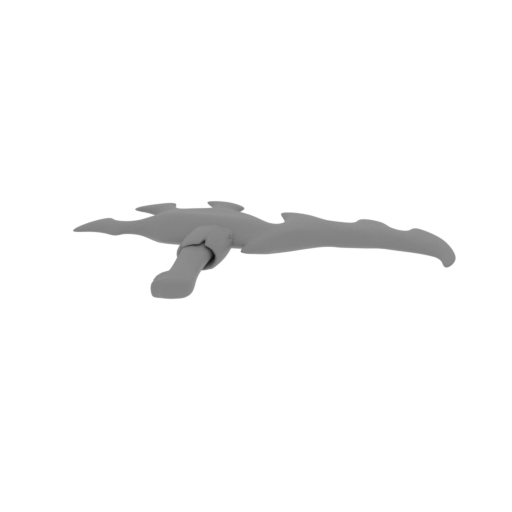

Blade_Left (repaired).stl
0.62 MiB 58 min 1 m 79 x 49 x 7 Download

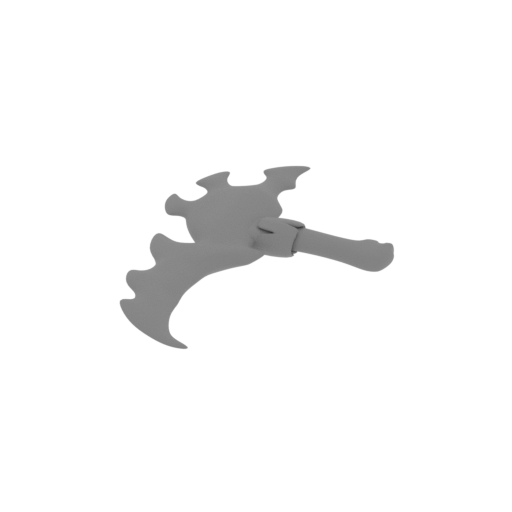

Blade_Right (repaired).st l
0.62 MiB 1 h 4 min 1 m 49 x 79 x 8 Download

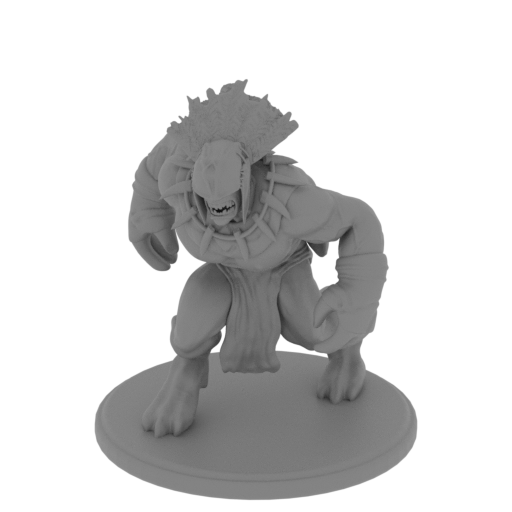

Body (repaired).stl
56.17 MiB 38 h 28 min 25 m 116 x 116 x 142 Download

Strygwyr the Bloodseeker is a melee agility hero imbued with dreadful powers to fuel violence and rip enemies apart in the heat of close combat.

He can drive targets into a maddened Bloodrage, increasing the damage of their attacks, and allowing them to heal their wounds by killing their enemies. He can also cast Bloodrage on himself turning him into a nuker. His speed is unmatched when he senses the blood of the dying, and from this perception, none can escape. By using Blood Rite, he can create a ritual field where his foes will be silenced and damaged in the process. His ultimate, Rupture, sunders the skin of his victims, causing them to trail their life force behind if they dare to flee.

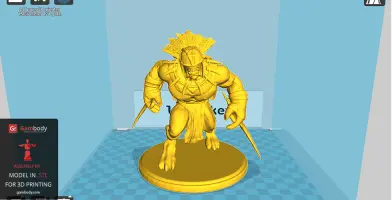

This 3D model has been modeled in ZBrush 4R7 and Maya 2015. The .STL file has been repaired in Netfabb and tested in Cura 15.04.4 (Ultimaker's printing soft). You can adjust the size of the model individually.

Generic

For best result and high quality of the model, apply these printing settings for Cura 15.04.4:

Quality
Layer height (mm): 0.1
Shell thickness (mm): 0.4
Enable retraction: check
Minimum travel (mm): 1.5
Enable combing: All
Minimal extrusion before retracting (mm): 0.02
Z hop: 0

Check this Simplify3D User Guidelines to avoid any 3D printing problems with this software.

Fill
Bottom/Top thickness (mm): 0.4
Fill Density (%): 20
Solid infill top: check
Solid infill bottom: check
Infill overlap (%): 15
Infill prints after perimeters: uncheck

Support
Support type: Everywhere
Structure type: Grid
Overhang angle for support (deg): 20
Fill amount (%): 15
Distance X/Y (mm): 0.7
Distance Z (mm): 0.2
Platform adhesion type: Brim
Brim line amount: 12

Skirt
Line count: 1
Start Distance (mm): 3.0
Minimal length (mm): 150

Cool
Fan full on at height (mm): 5
Fan speed min (%): 100
Fan speed max (%): 100
Minimum speed (mm/s): 10
Cool Head lift: uncheck


Other settings by default.
This model will have a great look if printed on SLA/SLS 3D printer.
