BT-7274 Titanfall STL Files for 3D Printing | Assembly Model

ABOUT THIS 3D MODEL

From the action-packed video games of Titanfall emerges BT-7274, the iconic Vanguard-class Titan and central character of Titanfall 2. More than just a machine, BT-7274, often referred to simply as BT, captivated players with its distinct personality, AI-driven dialogue, and unwavering loyalty to its pilot, Jack Cooper. Bound by the three protocols—Link to Pilot, Uphold the Mission, and Protect the Pilot—BT transcends the role of a mere combat vehicle, demonstrating independent thought and a deep connection to its human counterpart in the war-torn future of the Frontier. This extraordinary bond between Titan and the pilot has made Titanfall BT-7274 a fan-favorite figure within the gaming community.

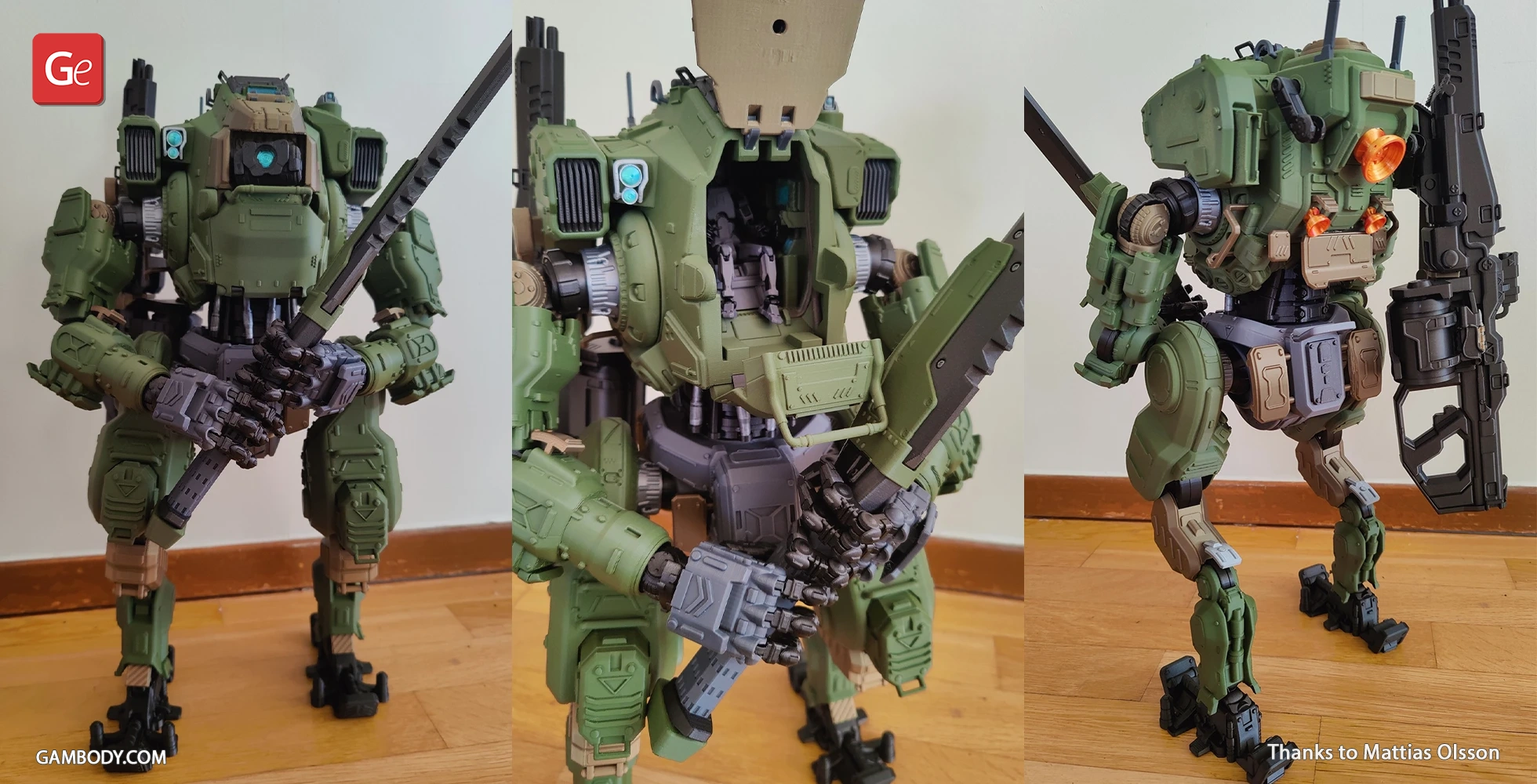

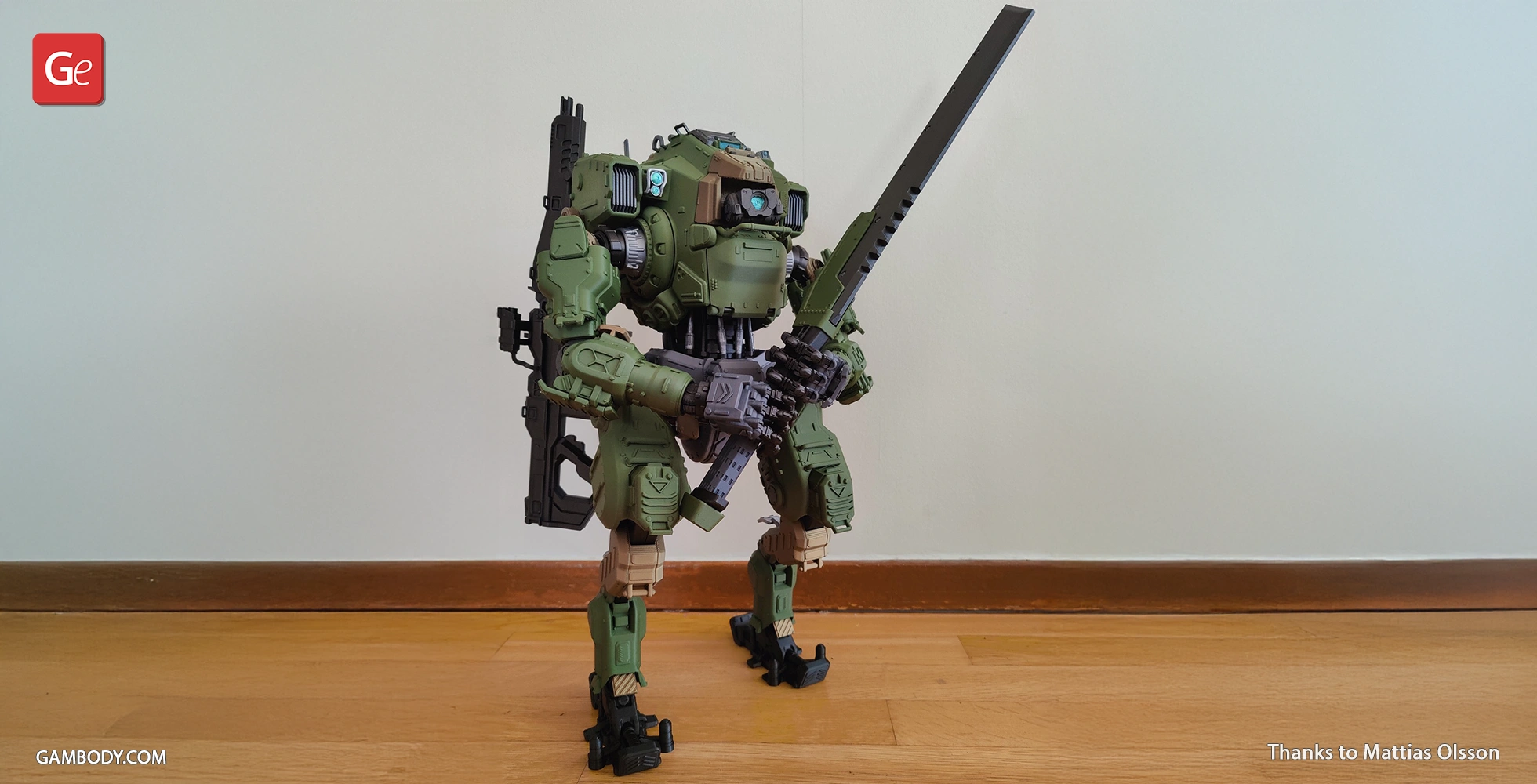

Showcase the legendary BT-7274 Titanfall in all its glory with this meticulously designed Titanfall 3D model. Featuring highly articulated joints, this model offers versatile posing options, letting you recreate BT's combat stances with precision. The articulated missile pods on its back add to its formidable appearance, while the opening cockpit provides a space for the pilot figure (available separately in the Titanfall Militia Pilot and Weapons Pack) Whether displayed on its themed platform or posed for battle, this 3D printing design is a prime addition to any collection celebrating the Titanfall universe.

ADAPTATION FOR 3D PRINTING

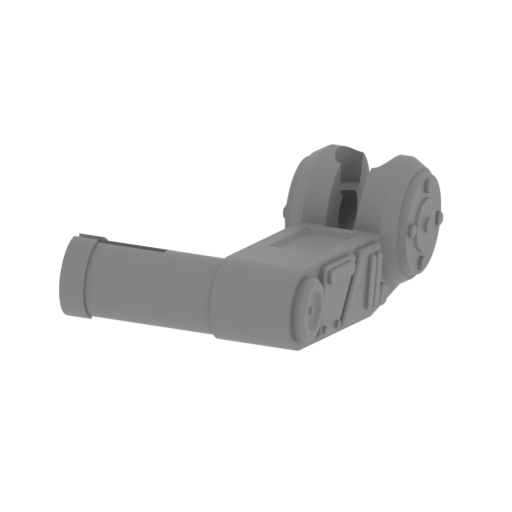

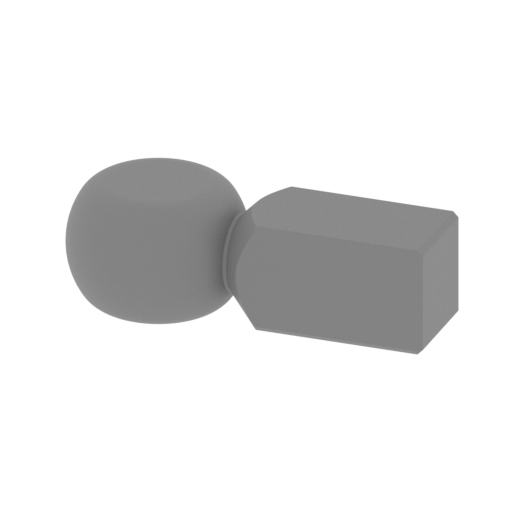

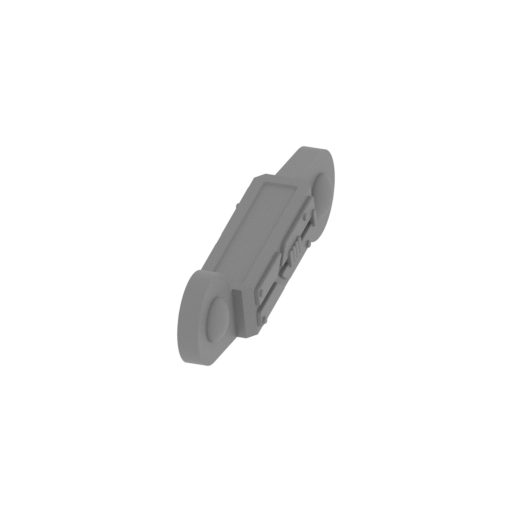

BT-7274 3D printing design is a highly articulated action assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 62 hours in total. In order to ensure the Titan's multidirectional movement, it was divided into many assembly parts and special mechanisms were introduced into all model's joints to give you an opportunity to display BT in a variety of positions, i.e. robot's shoulders, elbows, wrists, knees, feet, every single finger's phalange, BT's eye etc. are movable and the missile pods on the mode's shoulders are fully extendable.

All assembly parts in the FFF/FDM versions are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won’t face difficulties when placing the parts on a build plate. When downloading any model’s file you will also receive "Assembly Manual" for 2.0 FFF/FDM and 2.0 DLP/SLA versions in PDF and video formats. We highly recommend that you get acquainted with the "Assembly Video" and "Assembly Manual" before getting down to the BT-7274.

The design is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The 3D model's scale was calculated from the BT-7274's height, which is 6200 mm. The 3D printer design's chosen scales are 1:16 for the FFF/FDM version and 1:32 for the DLP/SLA version.

VERSIONS' SPECIFICATIONS

2.0 FFF/FDM version's features:

• Contains 108 parts;
• A printed model is 415 mm tall, 329 mm wide, 329 mm deep;
• Fully updated version with reworked joints and enhanced level of detail;

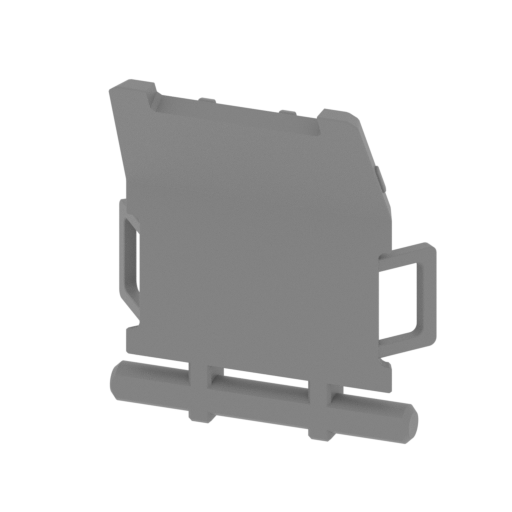

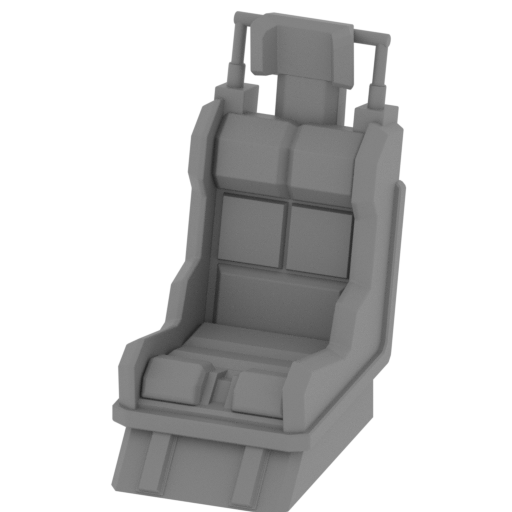

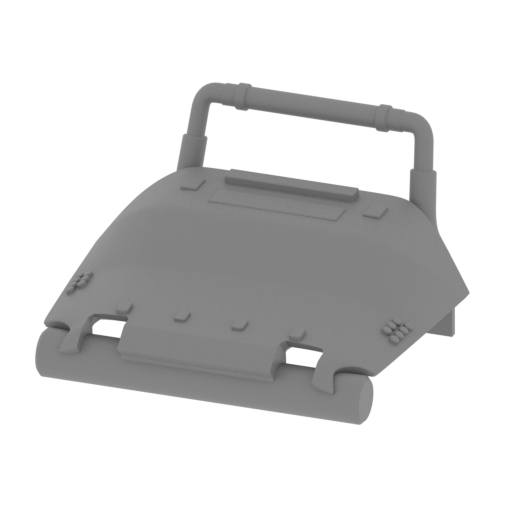

• The pilot's cockpit is accessible from the front and top;

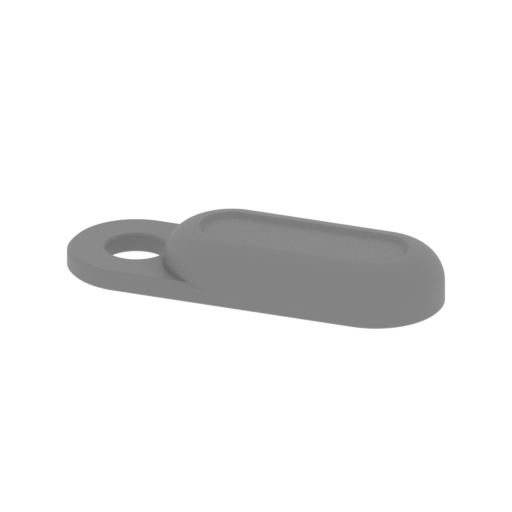

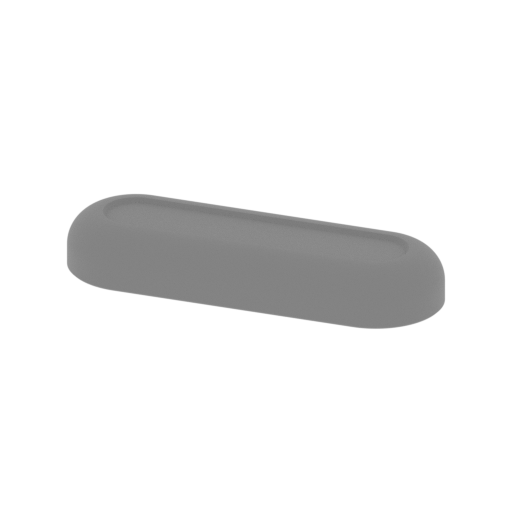

• Two cockpit lamp options;

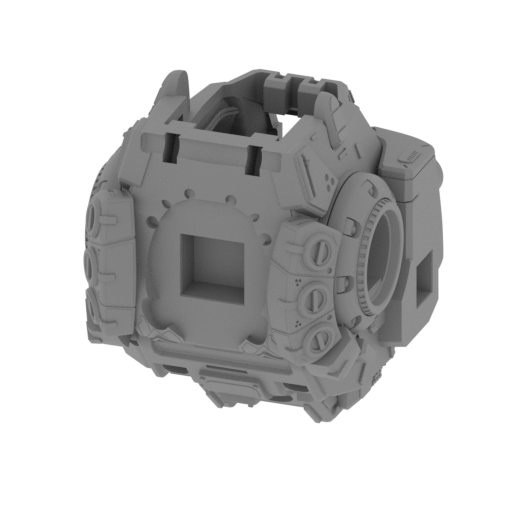

• Rotating torso;
• Articulated Titan's "eye";

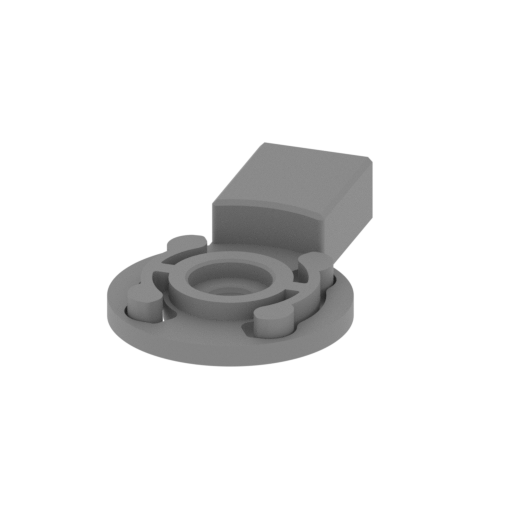

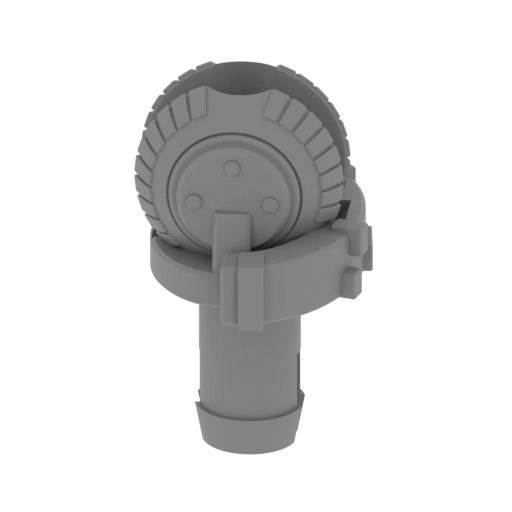

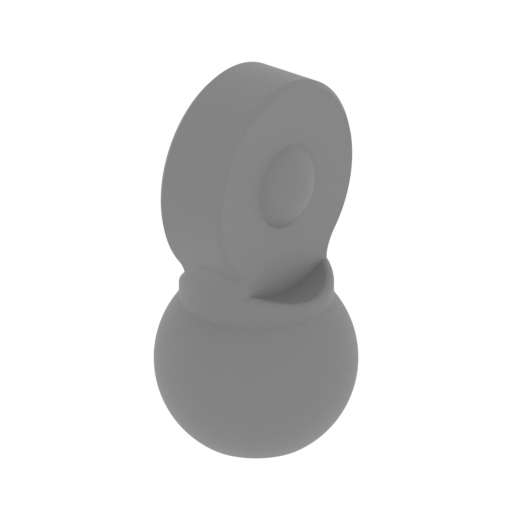

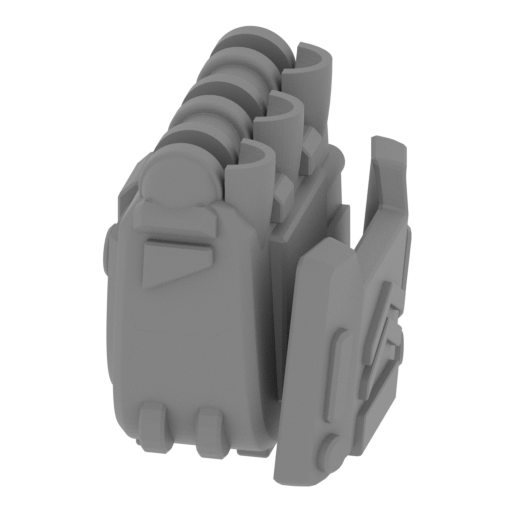

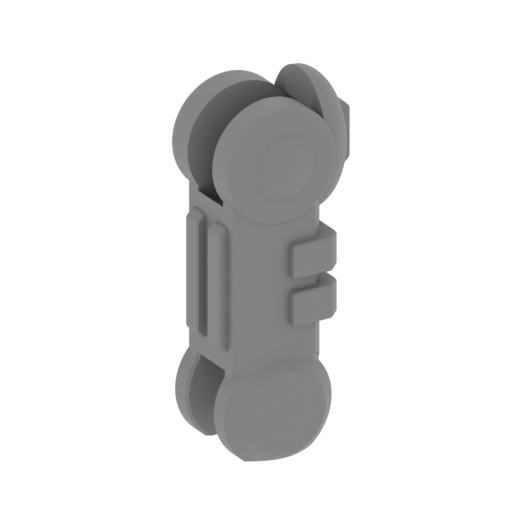

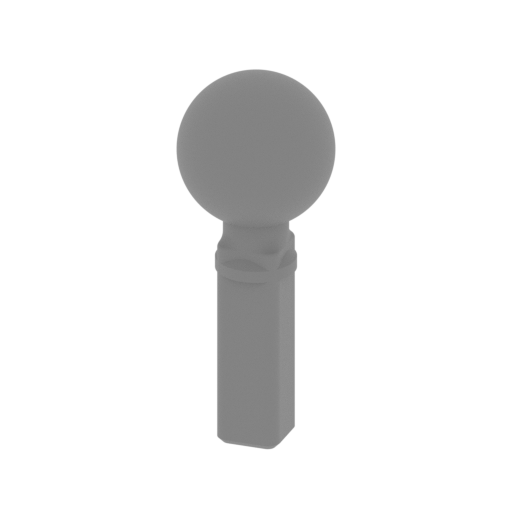

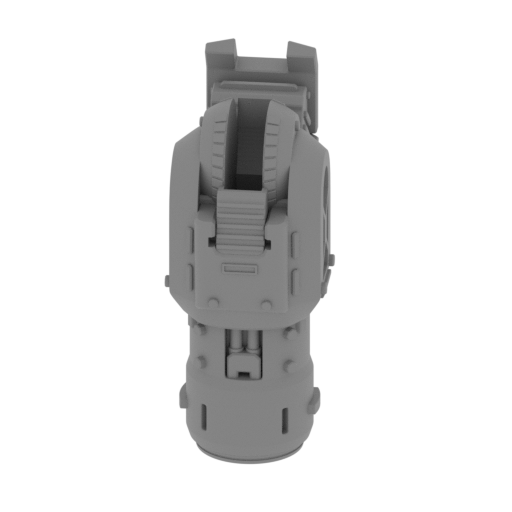

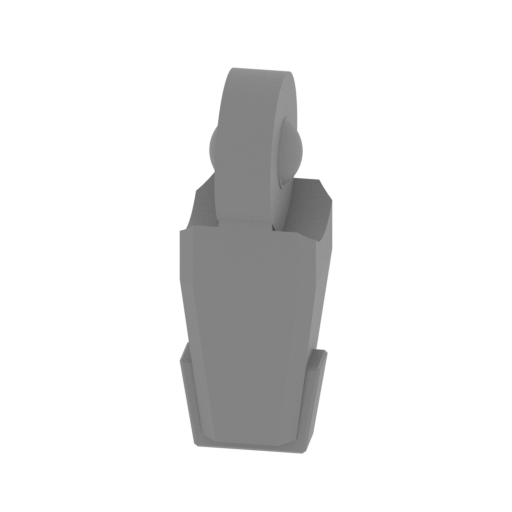

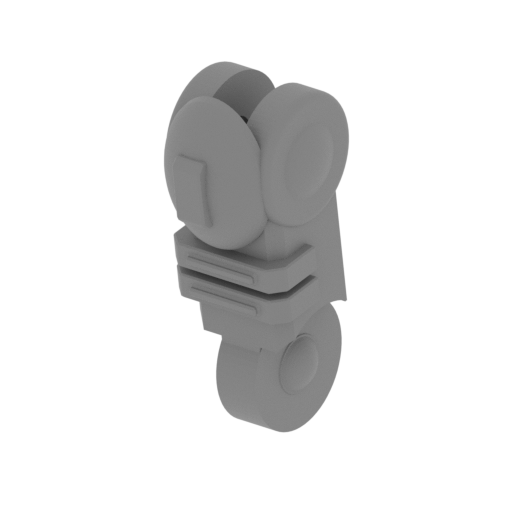

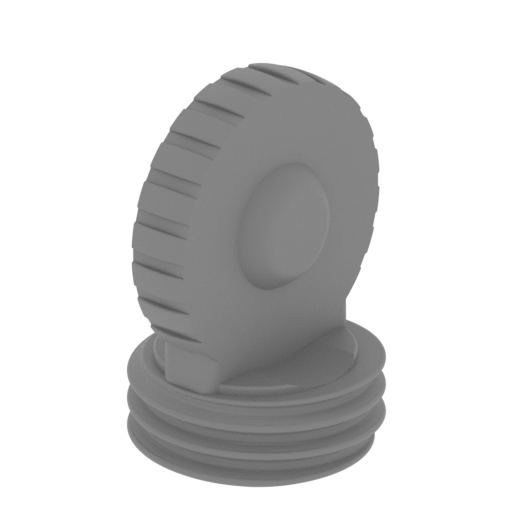

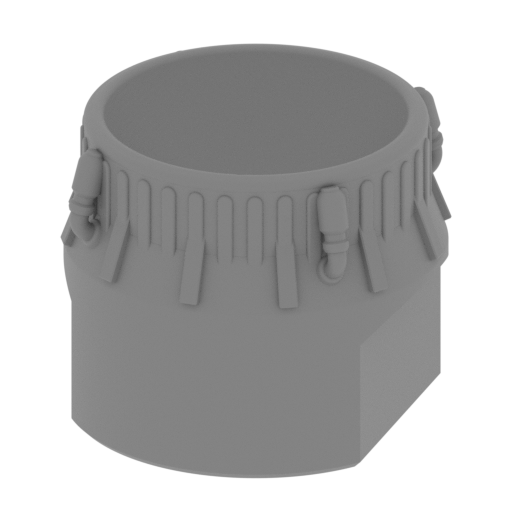

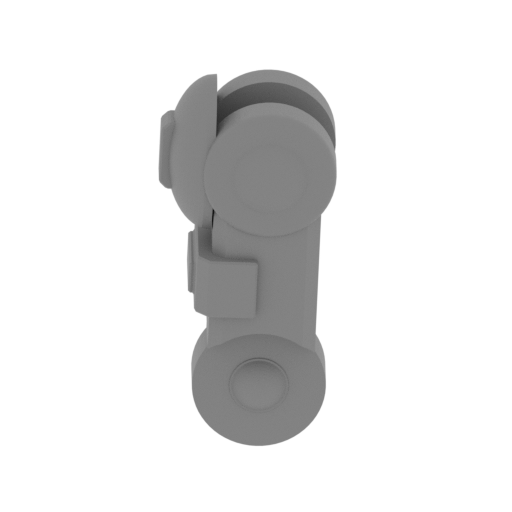

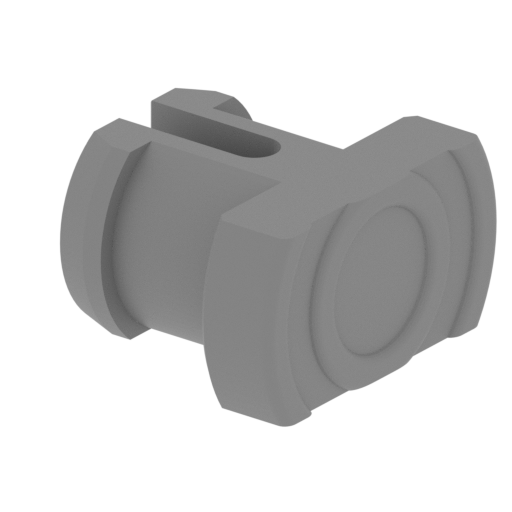

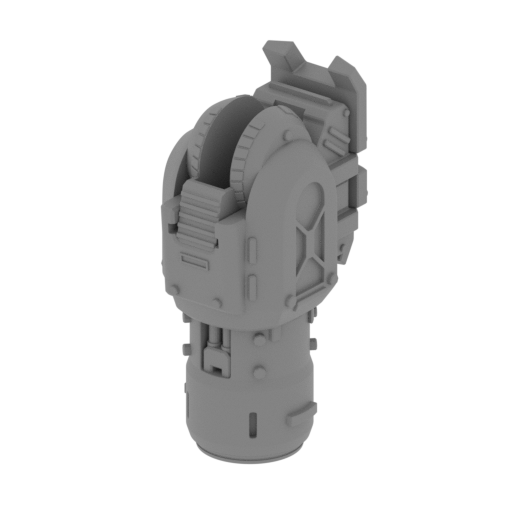

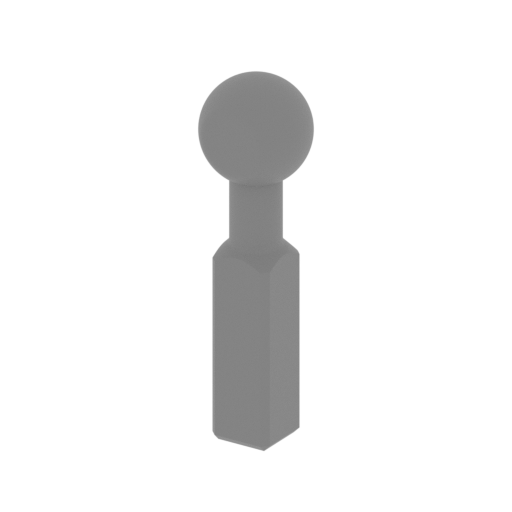

• Articulated arm joints, including shoulders, elbows, wrists, and fingers;

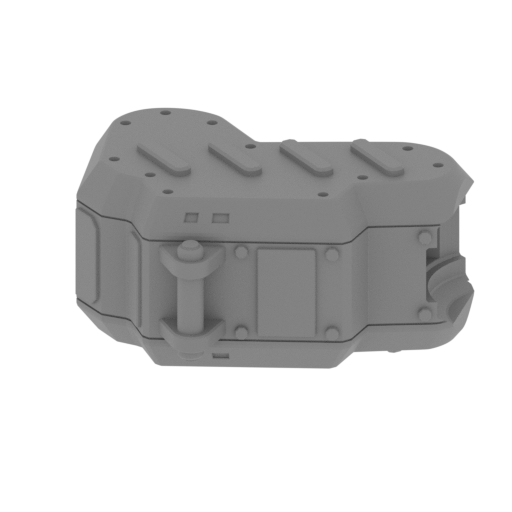

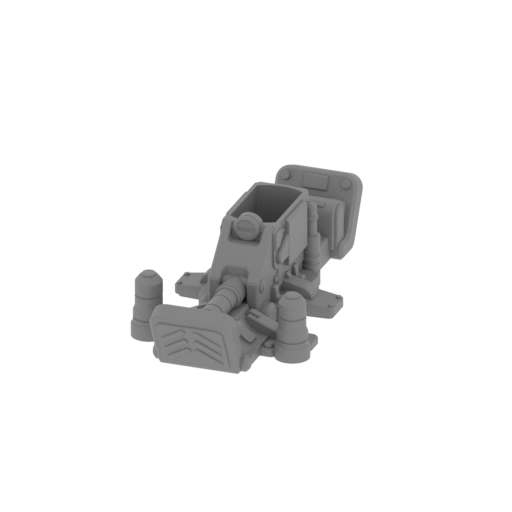

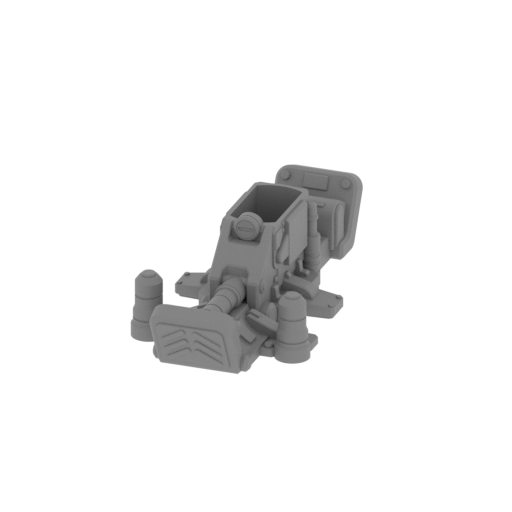

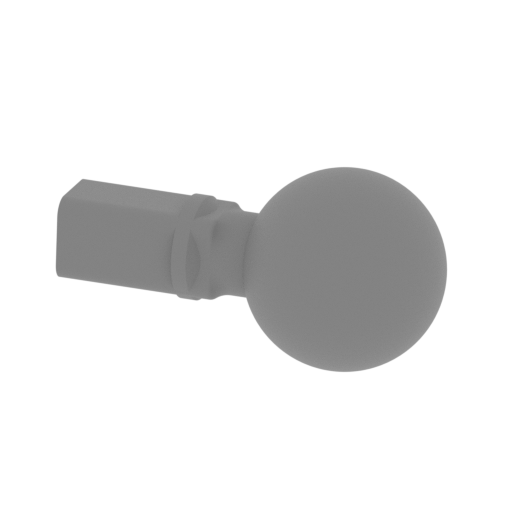

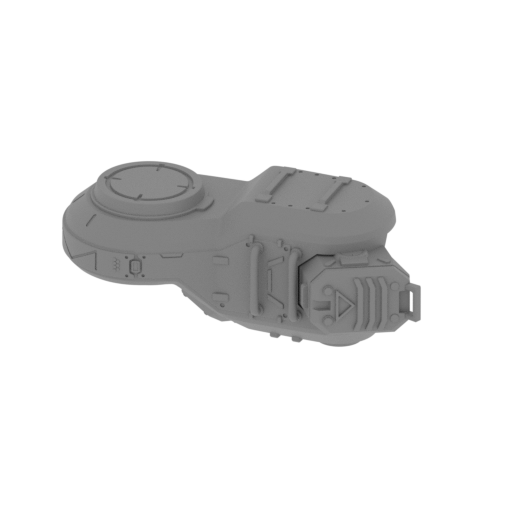

• Movable hips and knees, as well as articulated lower legs and feet;

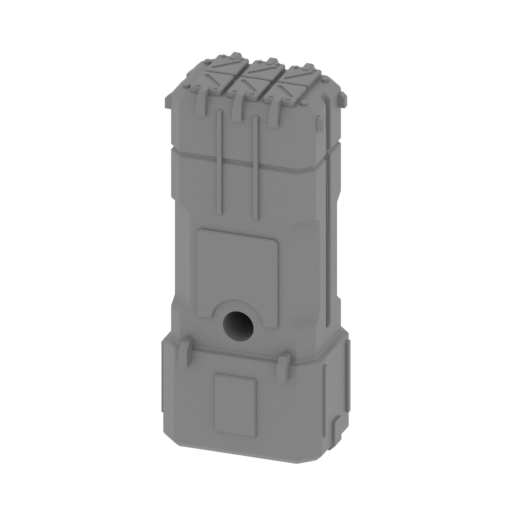

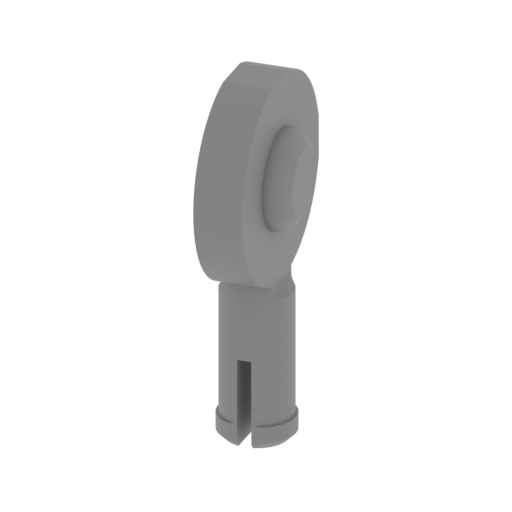

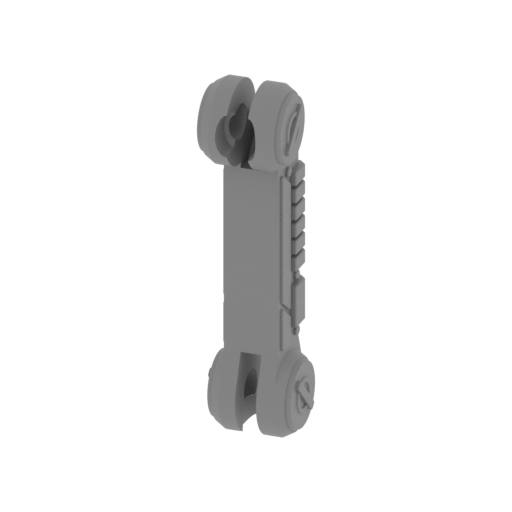

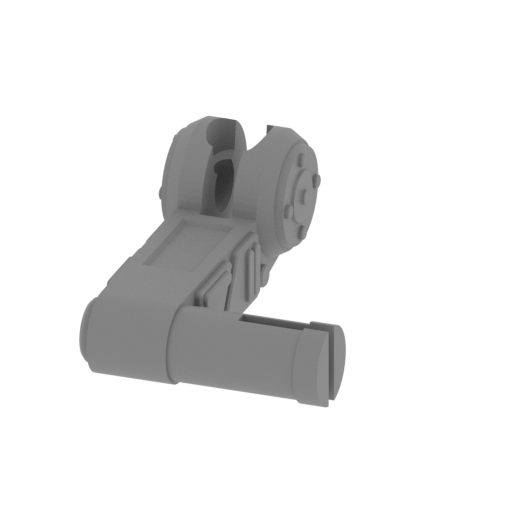

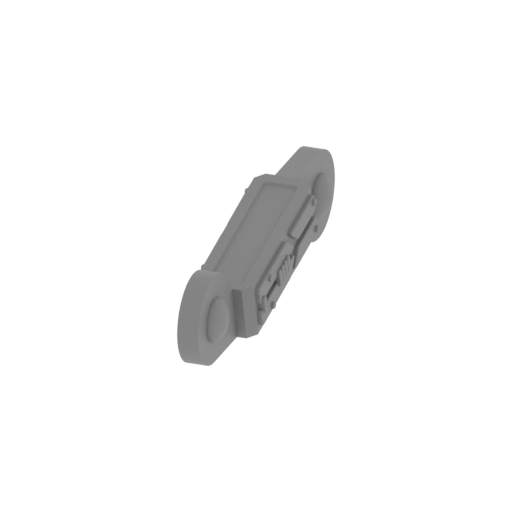

• Equipped with articulated read missile pods and optional weapon mount or placeholder cover;

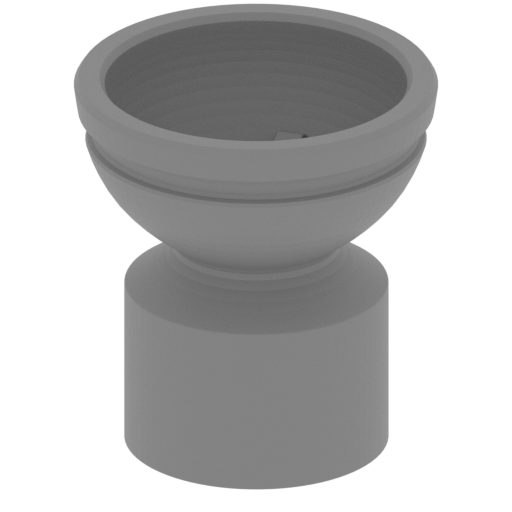

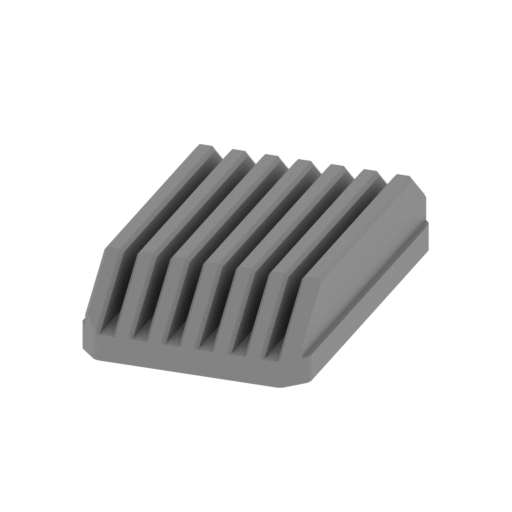

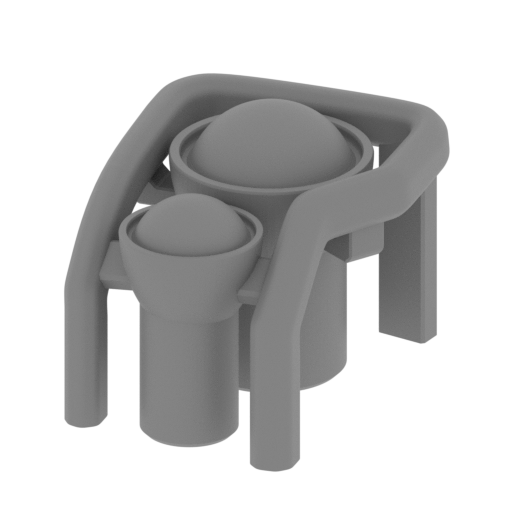

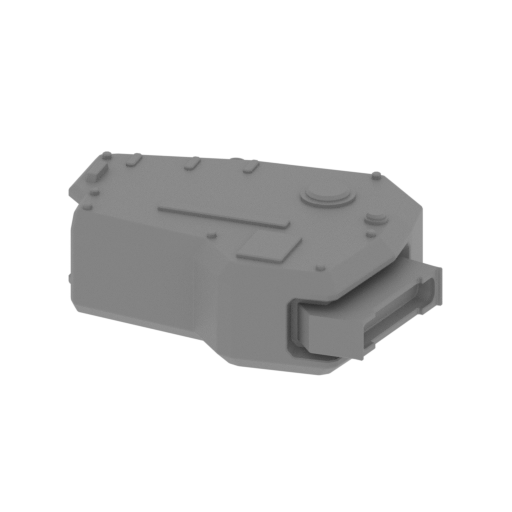

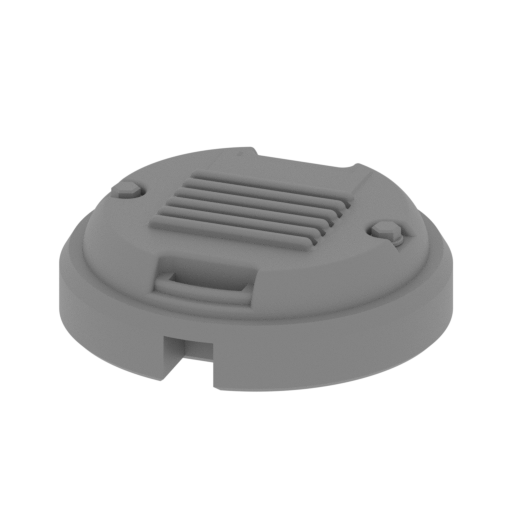

• LED lighting tunnels for engines, cockpit, and headlights, plus a removable battery access cover;

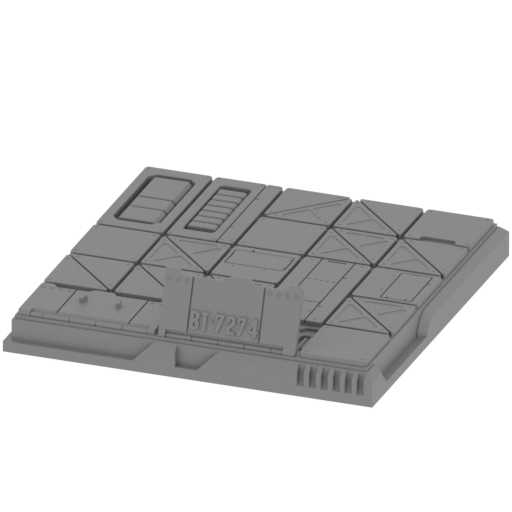

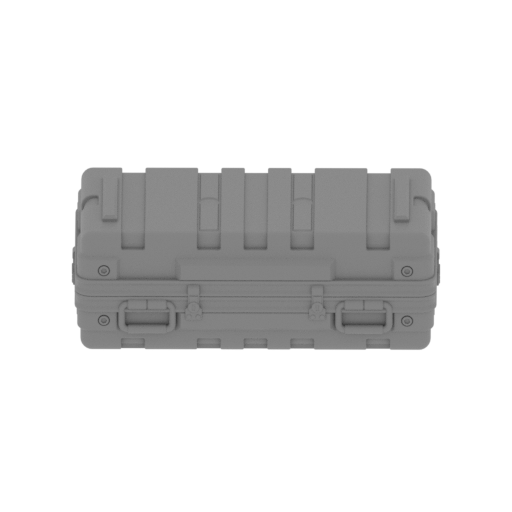

• Comes with the platform that can accommodate a weapon case or a Pilot figure (sold separately);
• All parts are divided in such a way that you will print them with the smallest number of support structures.

2.0 DLP/SLA version's features:

• Contains 60 parts;
• A printed model is 208 mm tall, 164 mm wide, 180 mm deep;
• Fully updated version with reworked joints and enhanced level of detail;
• The pilot's cockpit is accessible from the from and top;
• Rotating torso;
• Articulated Titan's "eye";
• Articulated arm joints, including shoulders, elbows, wrists, and fingers;
• Movable hips and knees, as well as articulated lower legs and feet;
• Equipped with articulated read missile pods and optional weapon mount or placeholder cover;
• LED lighting tunnels for engines, cockpit, and headlights, plus a removable battery access cover;
• Comes with the platform that can accommodate a weapon case or a Pilot figure (sold separately);
• All parts are divided in such a way that you will print them with the smallest number of support structures.

1.1 FFF/FDM version's features:

• Contains 150 parts;
• A printed model is 378 mm tall, 204 mm wide, 164 mm deep;
• An updated version with improved connectors and joints that ensure articulation;

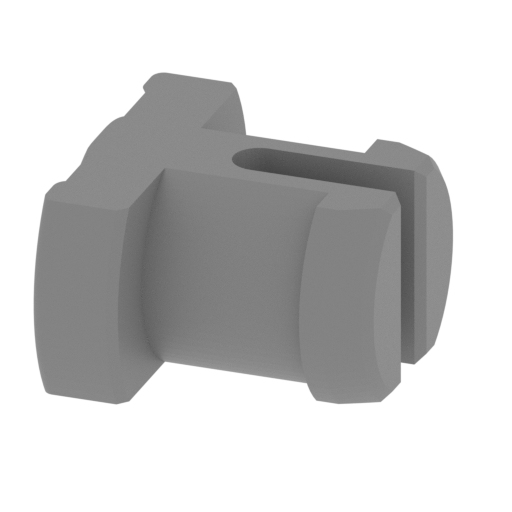

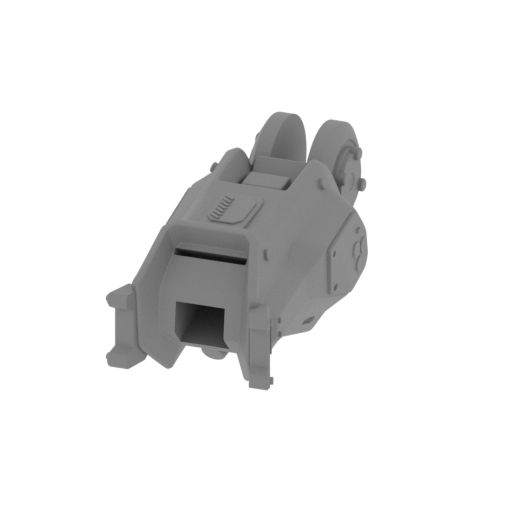

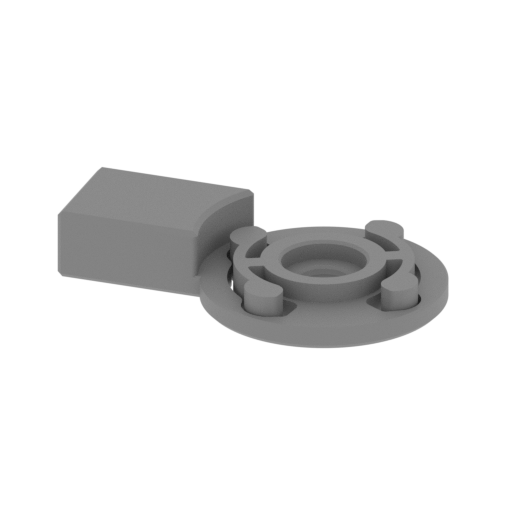

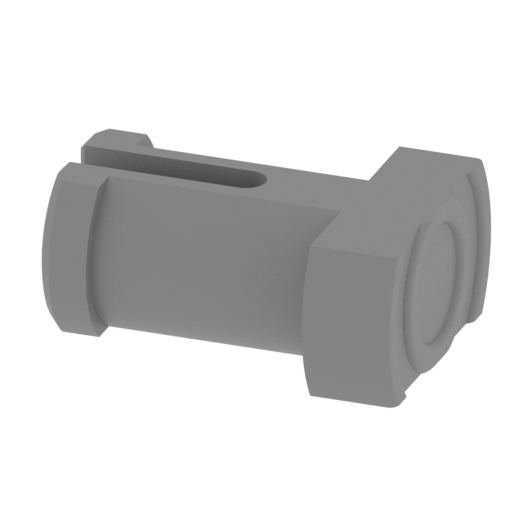

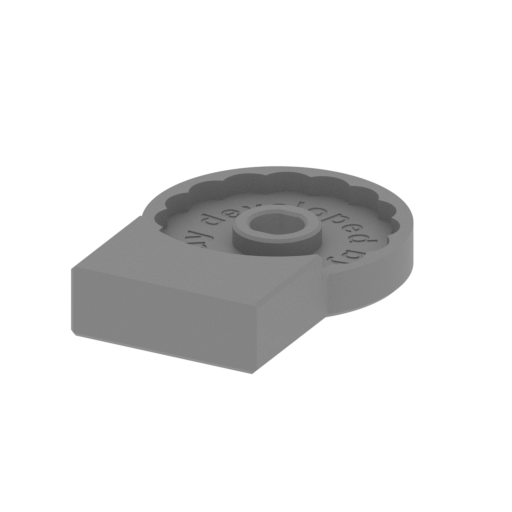

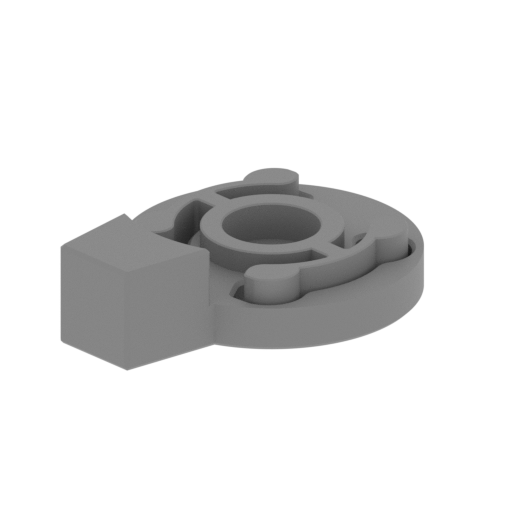

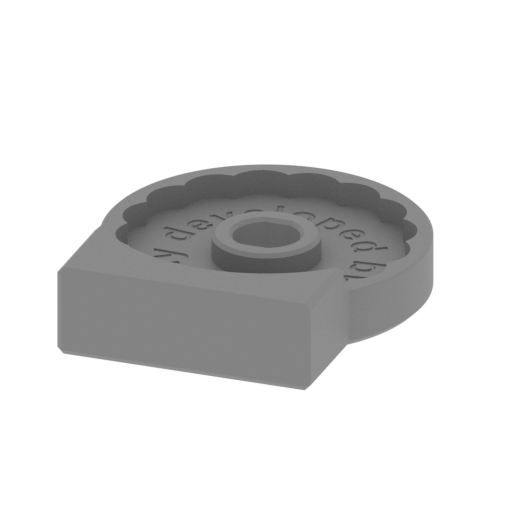

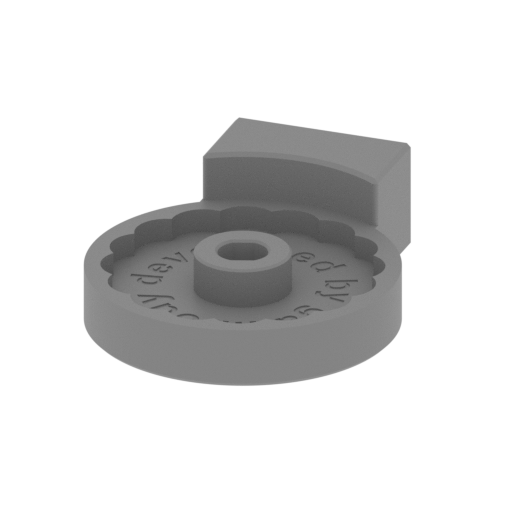

• Has new ratchet mechanism joints in shins, hips, waist (on each side), and elbows;
• Comes with an updated secure wrist fixation;
• Further specifications from the model's 1.0 FFF/FDM version are preserved in this version;
• All parts are divided in such a way that you will print them with the smallest number of support structures and to ensure the smoothness of the details' surfaces;

1.0 FFF/FDM version's features:

• Contains 128 parts;
• A printed model is 378 mm tall, 204 mm wide, 164 mm deep;
• Assembly kit includes locks to connect the parts without glue. One lock 124_Ge_lock_10H_x37 needs to be printed 37 times;

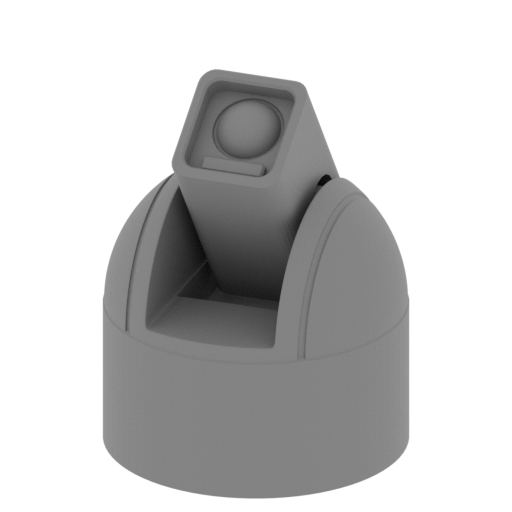

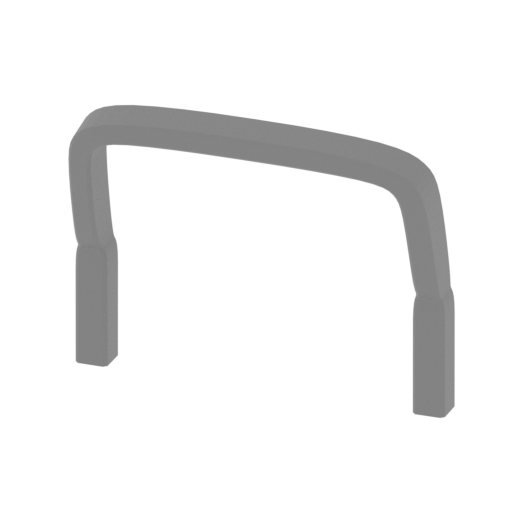

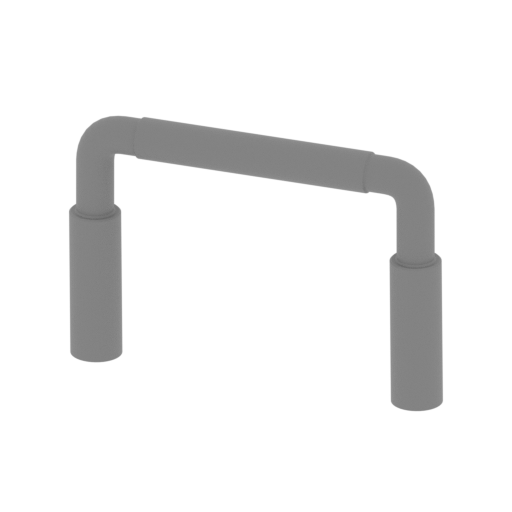

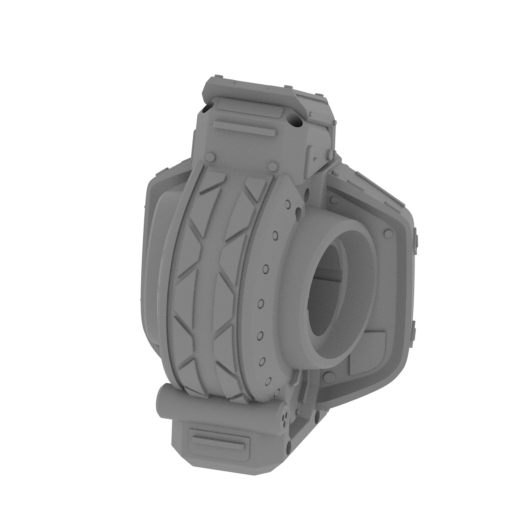

• Wires 28_pelvis_pipe_flexible_R_FDM and 31_pelvis_pipe_flexible_L_FDM that are to be inserted into the robot's pelvis are recommended to be printed with flexible filament to preserve leg's articulation; camera part 36_cam_for_stl_no_support_FDM is to be printed without supports (support parameter should be disable in your slicer);

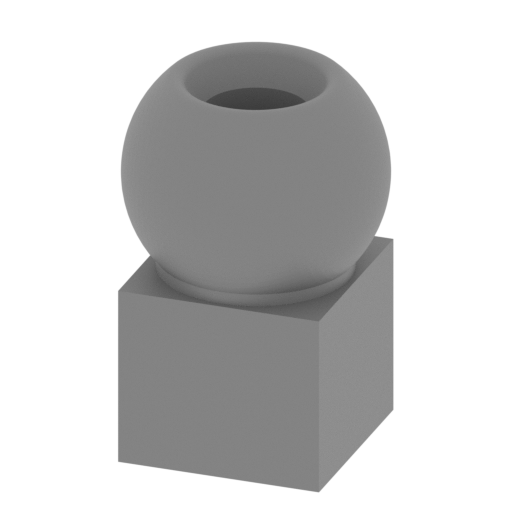

• Made with several sets of special joints to ensure full articulation of the model's limbs and body;
• The front part of Titan can be fully opened for you to access highly-detailed cockpit;
• Made with opening hatches, fully extendable and spinning missile pods and movable eye socket;

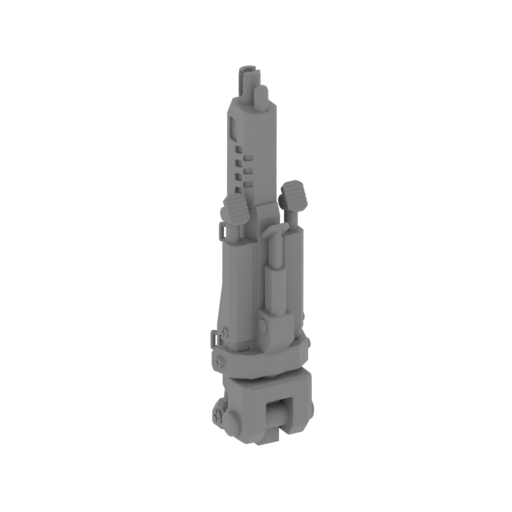

• Titan is equipped with its primary XO16A2 Chaingun weapon;
• All parts are divided in such a way that you will print them with the smallest number of support structures and to ensure the smoothness of the details' surfaces;

1.0 DLP/SLA version's features:

• Contains 77 parts;
• A printed model is 189 mm tall, 102 mm wide, 82 mm deep;
• Made with several sets of special joints to ensure full articulation of the model's limbs and body;
• The front part of Titan can be fully opened for you to access highly-detailed cockpit;
• Made with opening hatches, fully extendable and spinning missile pods and movable eye socket;
• Titan is equipped with its primary XO16A2 Chaingun weapon;
• All parts are divided in such a way that you will print them with the smallest number of support structures and to ensure the smoothness of the details' surfaces;

You can get the STL files of BT-7274 3D print model immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble the 3D printed BT-7274 model from the provided 3D print files on Gambody YouTube channel.

Also, you may like the Atlas Titan 3D Print Model as well as other Robot 3D printing designs.

________

FAQ:

• Where can I print a model if I have no printer?
• How to get started with 3D printing?
• How to set up my 3D printer?
• How to choose right 3D model print bed positioning?
• How to paint 3D printed objects?

Generic

Below you can find printing recommendations for Cura, Bambu Studio, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

All connectors should be printed at 100% Infill.

Bambu Lab printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Bambu Studio 1.9.1. Test models were printed on the Bambu Lab A1, Bambu Lab A1 Mini, Creality Ender 3 S1, Anycubic Kobra 2, and Anycubic Vyper using PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
