Clone Trooper 3D Printing Figurine | Assembly
Source Files
|
Description
|
Printing Details
This 3D model of Clone Trooper consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

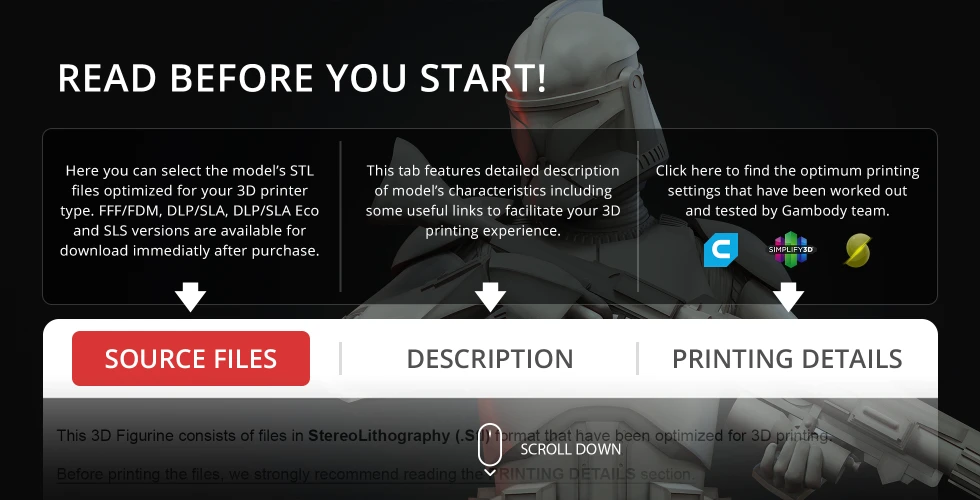

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.
WHAT WILL YOU GET AFTER PURCHASE?
- 4 versions of Clone Trooper STL files for FFF/FDM, DLP/SLA, DLP/SLA Eco, SLS - files for all versions are available for download after the purchase;
- STL files of high-poly Clone Trooper Figurine for 3D printing consist of 71 files;

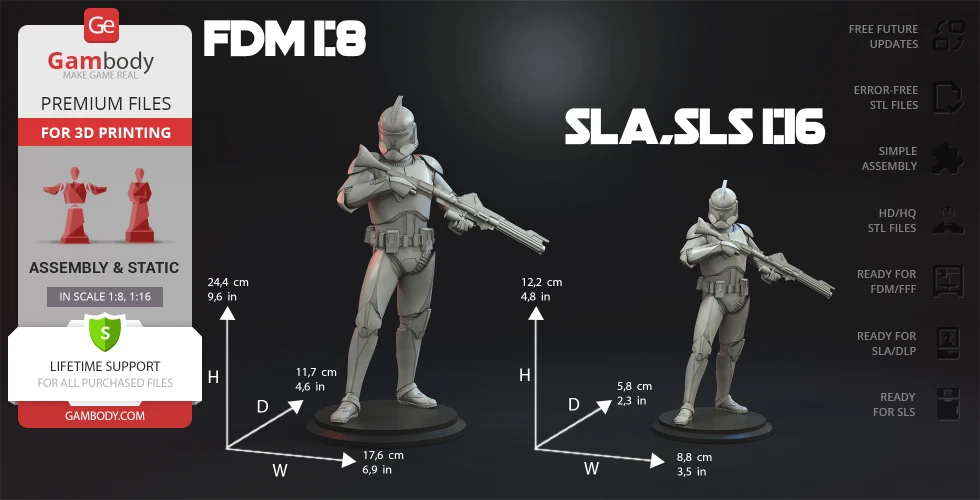

- Sizes for:
- FFF/FDM: 244 mm tall, 176 mm wide, 117 mm deep;
- DLP/SLA/SLS: 122 mm tall, 88 mm wide, 58 mm deep;
- Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats;
- Detailed settings that we provide as a recommendation for Cura, Simplify3D, Slic3r and PrusaSlicer for the best print;
- Full technical support from the Gambody Support Team.
Detailed information about this 3D printing model is available in the DESCRIPTION section.
|
|||||
|---|---|---|---|---|---|
| File Name | File Size | Time / Filament | Object Size (x/y/z mm) |
||
|

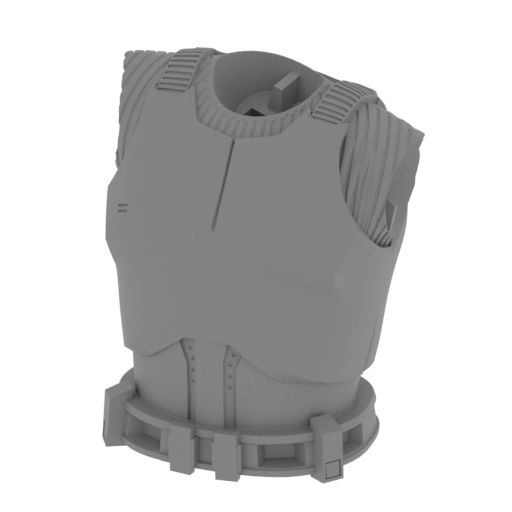

2_body_FDM(repaired).stl |
44.51 MiB | 8 h 16 min 4 m | 53 x 48 x 66 | Download | |
|

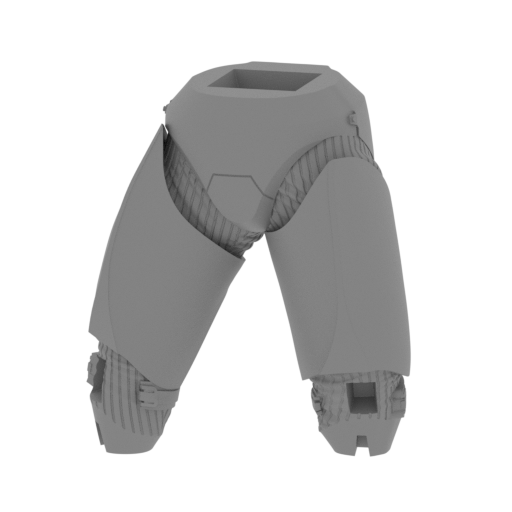

3_legs_FDM(repaired).stl |
49.94 MiB | 8 h 40 min 5 m | 64 x 42 x 78 | Download | |
|

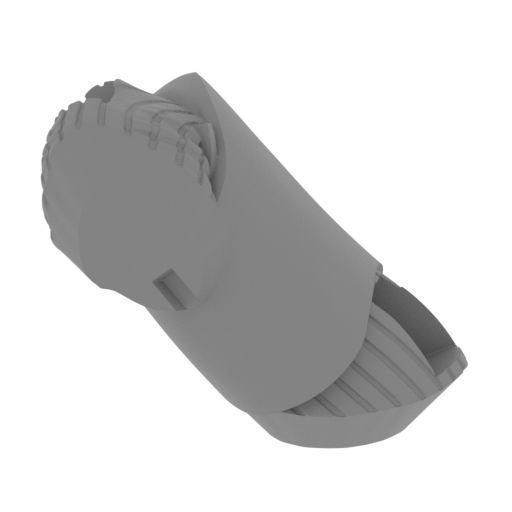

4_arm_R_1_FDM(repaired).s tl |
17.76 MiB | 1 h 12 min 1 m | 32 x 27 x 30 | Download | |
|

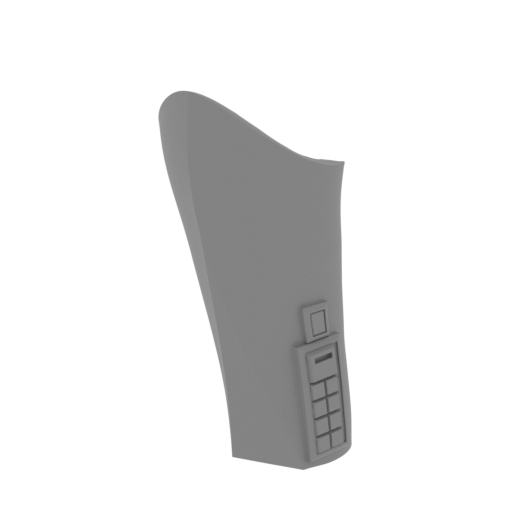

5_arm_R_2_FDM(repaired).s tl |
12.79 MiB | 31 min <1 m | 18 x 14 x 34 | Download | |
|

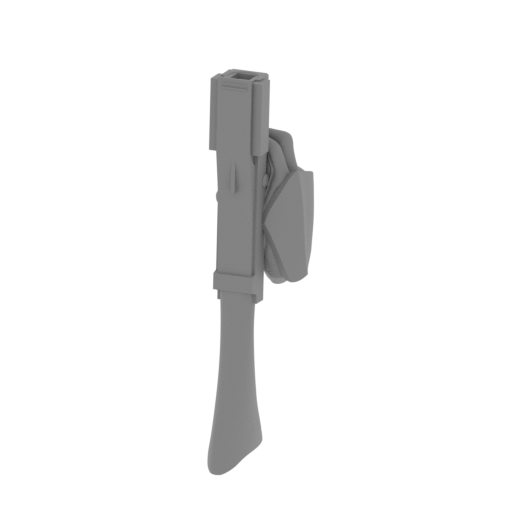

6_hand_R_with_rifle_FDM(r epaired).stl |
30.09 MiB | 1 h 42 min 1 m | 15 x 32 x 61 | Download | |
|

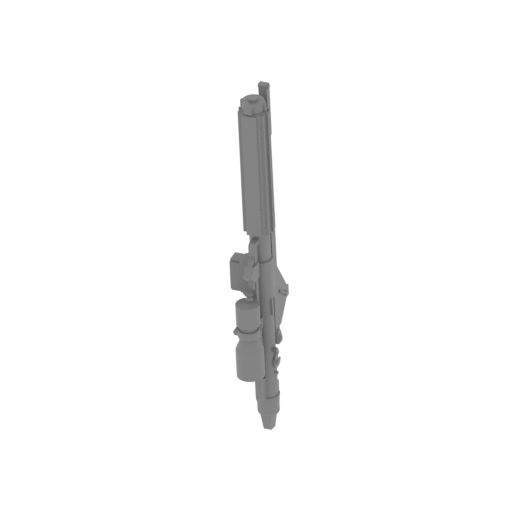

7_rifle_FDM(repaired).stl |
27.18 MiB | 2 h 34 min 1 m | 14 x 27 x 100 | Download | |
|

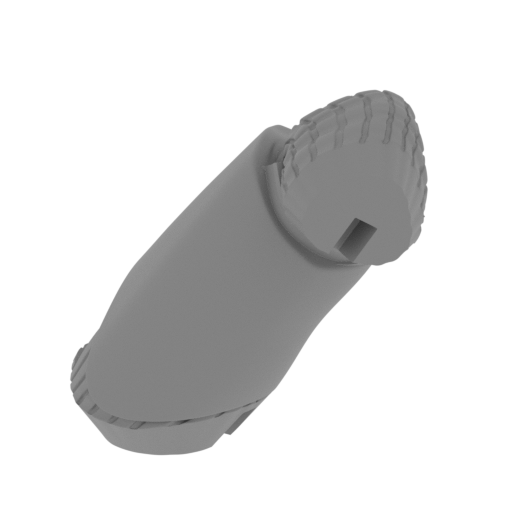

8_arm_L_1_FDM(repaired).s tl |
14.59 MiB | 1 h 12 min 1 m | 33 x 22 x 34 | Download | |
|

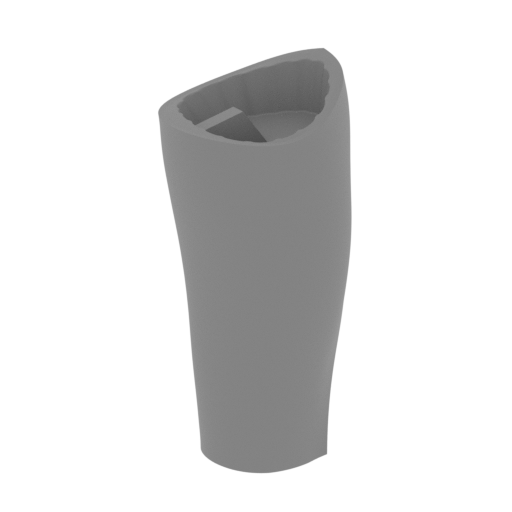

9_arm_L_2_FDM(repaired).s tl |
13.16 MiB | 30 min <1 m | 15 x 14 x 29 | Download | |
|

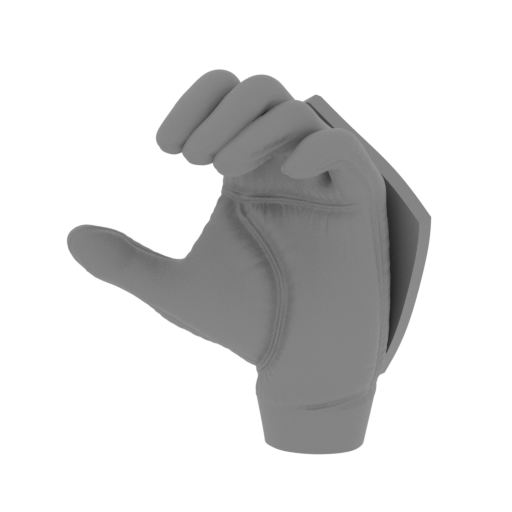

10_hand_L_FDM(repaired).s tl |
11.18 MiB | 28 min <1 m | 20 x 13 x 22 | Download | |
|

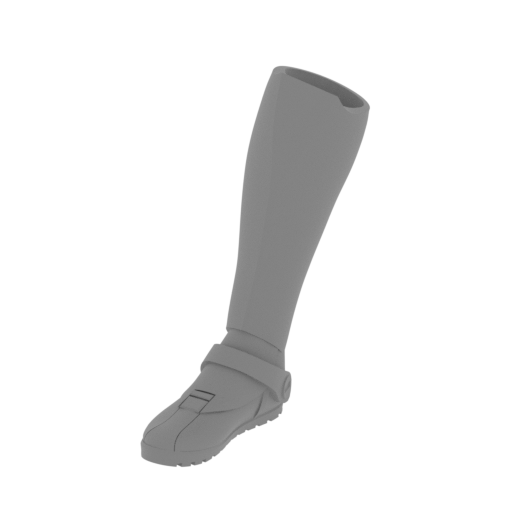

11_foot_R_FDM(repaired).s tl |
15.50 MiB | 1 h 38 min 1 m | 33 x 42 x 68 | Download | |
|

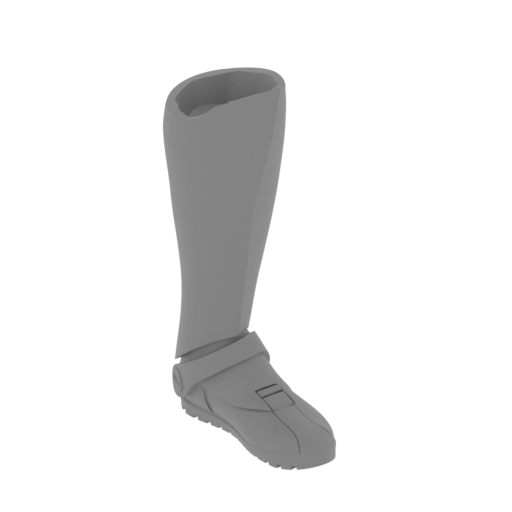

12_foot_L_FDM(repaired).s tl |
16.68 MiB | 1 h 35 min 1 m | 32 x 24 x 62 | Download | |
|

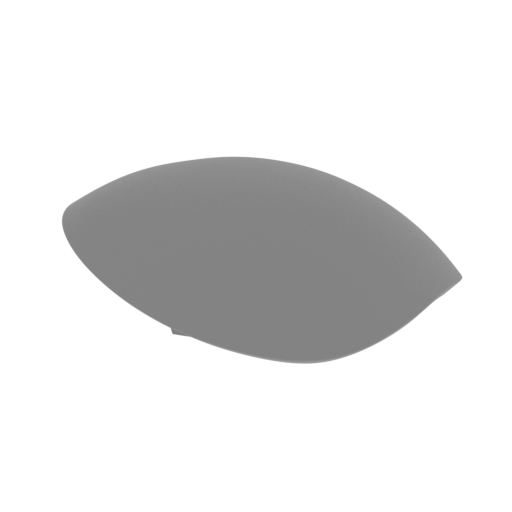

13_scapular_R_FDM(repaire d).stl |
5.53 MiB | 39 min <1 m | 27 x 22 x 12 | Download | |
|

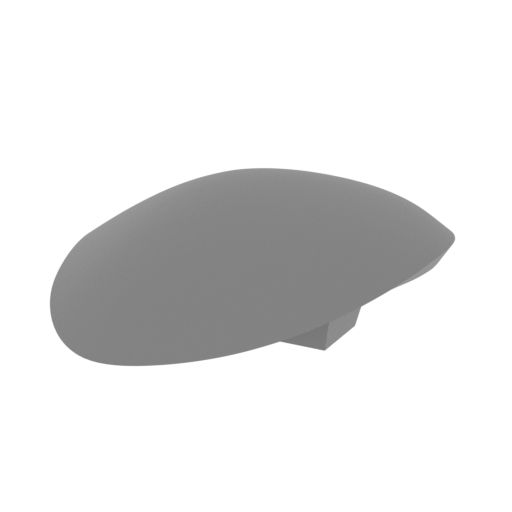

14_scapular_L_FDM(repaire d).stl |
4.77 MiB | 32 min <1 m | 26 x 21 x 10 | Download | |
|

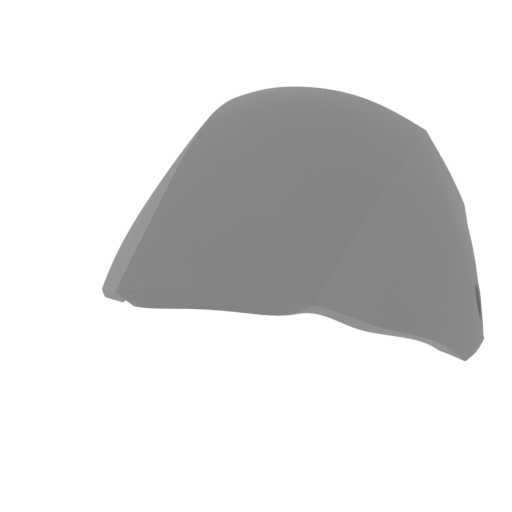

15_elbow_pad_R_FDM(repair ed).stl |
5.62 MiB | 20 min <1 m | 18 x 17 x 11 | Download | |
|

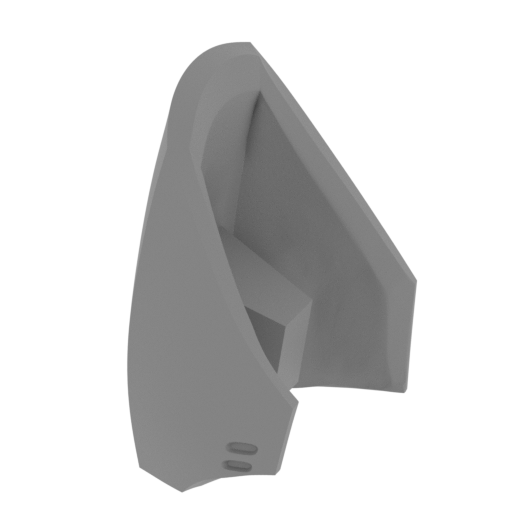

16_elbow_pad_L_FDM(repair ed).stl |
6.27 MiB | 15 min <1 m | 9 x 16 x 17 | Download | |
|

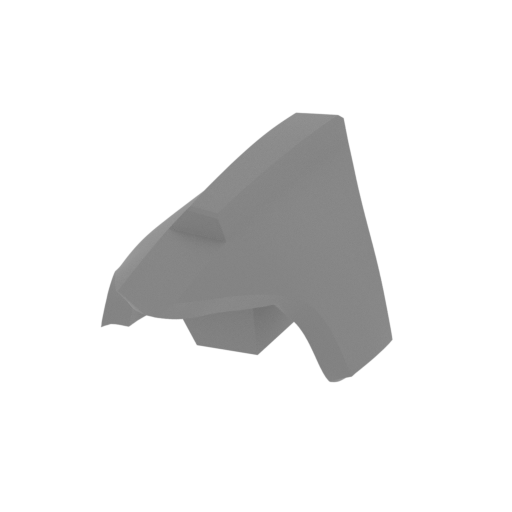

17_knee_pad_R_FDM(repaire d).stl |
8.93 MiB | 24 min <1 m | 19 x 26 x 11 | Download | |
|

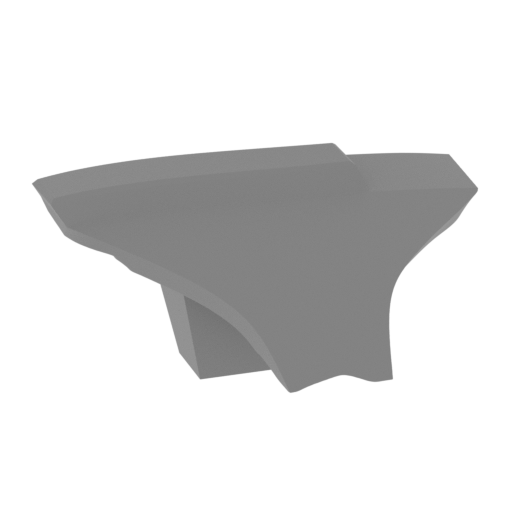

18_knee_pad_L_FDM(repaire d).stl |
8.78 MiB | 26 min <1 m | 22 x 19 x 13 | Download | |
|

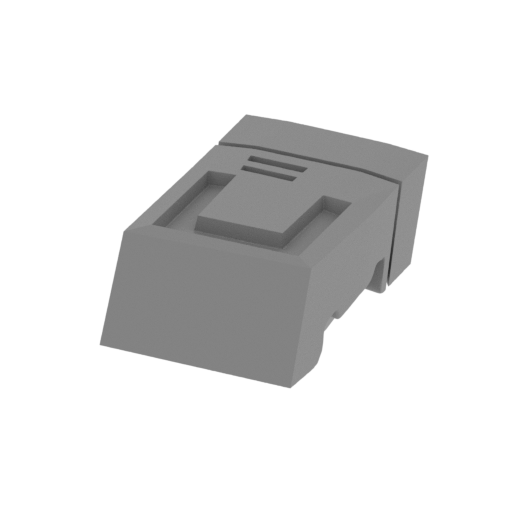

19_pouch_1_FDM(repaired). stl |
10.99 MiB | 11 min <1 m | 10 x 17 x 7 | Download | |
|

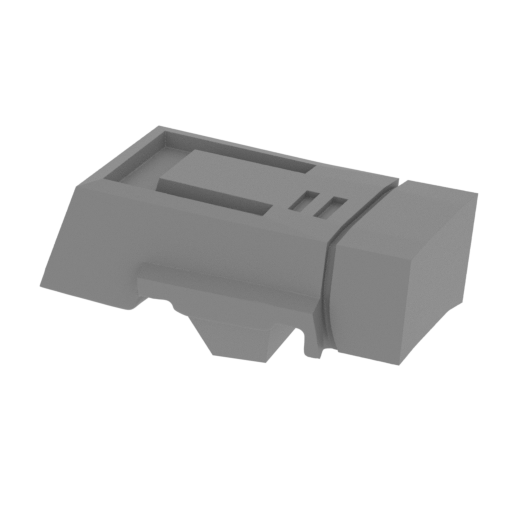

20_pouch_2_FDM(repaired). stl |
13.51 MiB | 11 min <1 m | 17 x 10 x 8 | Download | |
|

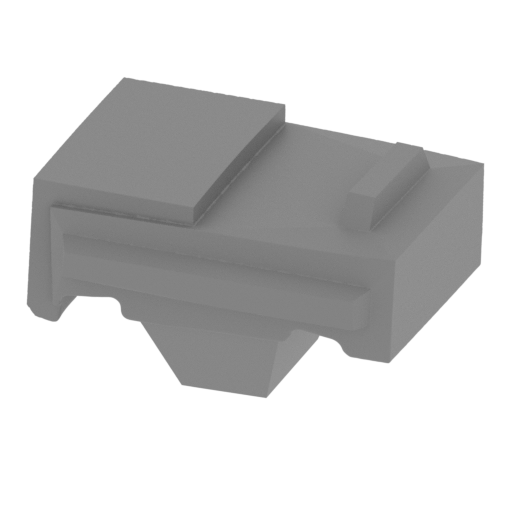

21_pouch_3_FDM(repaired). stl |
10.59 MiB | 7 min <1 m | 10 x 9 x 6 | Download | |
|

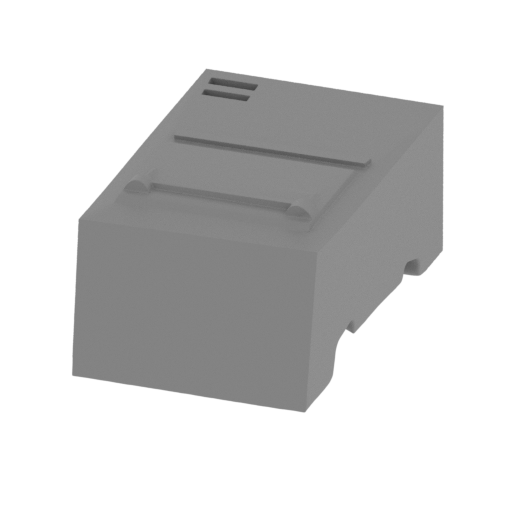

22_pouch_4_FDM(repaired). stl |
11.60 MiB | 8 min <1 m | 8 x 12 x 7 | Download | |
|

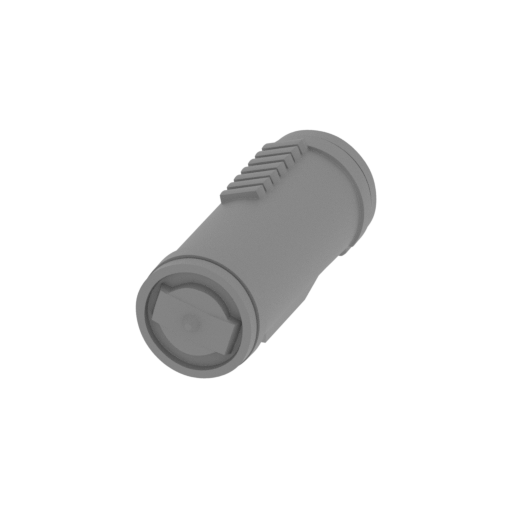

23_pouch_5_FDM(repaired). stl |
24.52 MiB | 11 min <1 m | 7 x 22 x 8 | Download | |
|

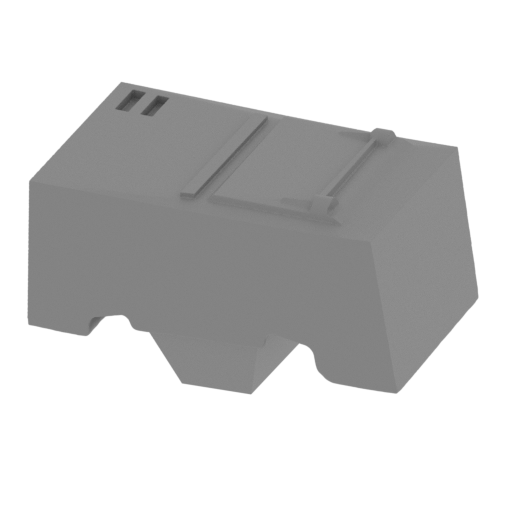

24_pouch_6_FDM(repaired). stl |
10.89 MiB | 9 min <1 m | 12 x 8 x 7 | Download | |
|

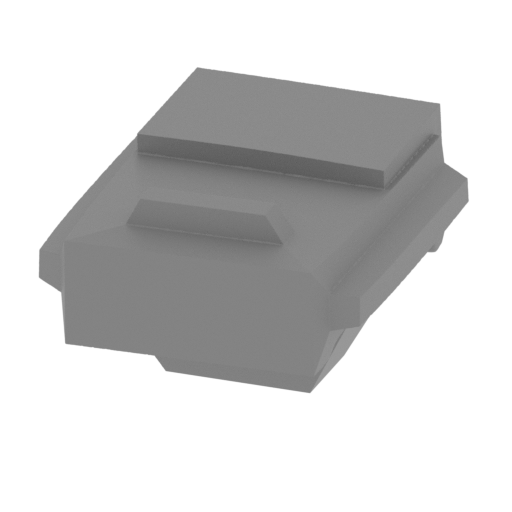

25_pouch_7_FDM(repaired). stl |
9.89 MiB | 7 min <1 m | 9 x 10 x 6 | Download | |
|

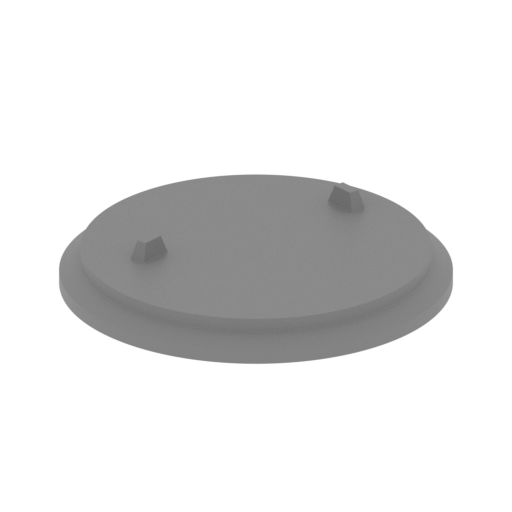

26_platform_FDM (repaired ).stl |
11.50 MiB | 9 h 22 min 5 m | 117 x 117 x 17 | Download | |
|

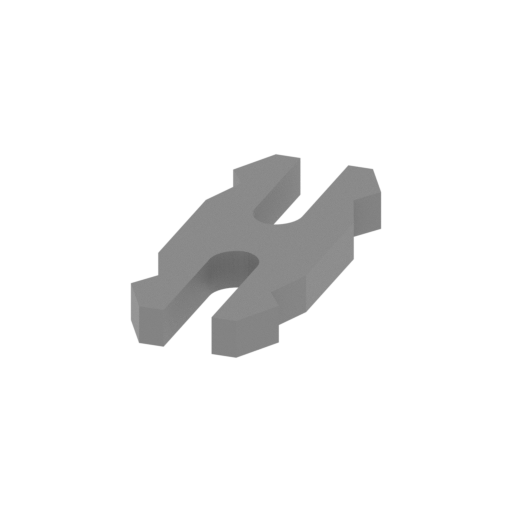

27_ge_lock_7S(x1)_FDM(rep aired).stl |
0.02 MiB | 4 min <1 m | 7 x 18 x 2 | Download | |
|

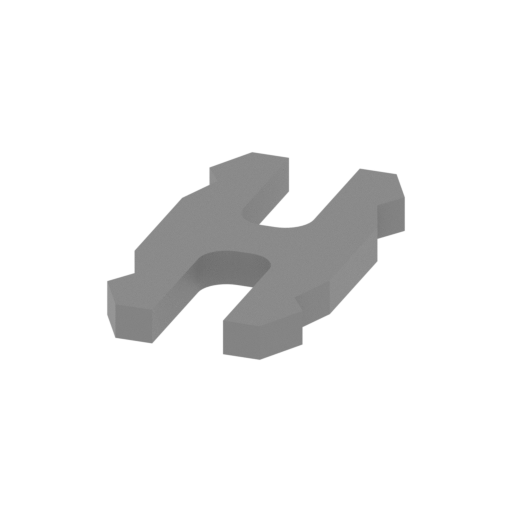

28_ge_lock_10H(x1)_FDM(re paired).stl |
0.03 MiB | 4 min <1 m | 10 x 18 x 2 | Download | |
|
Keychain (repaired).stl |
0.35 MiB | 23 min <1 m | 30 x 30 x 2 | Download | |
|
Tag (repaired).stl |
1.70 MiB | 1 h 18 min 1 m | 150 x 18 x 5 | Download | |
|

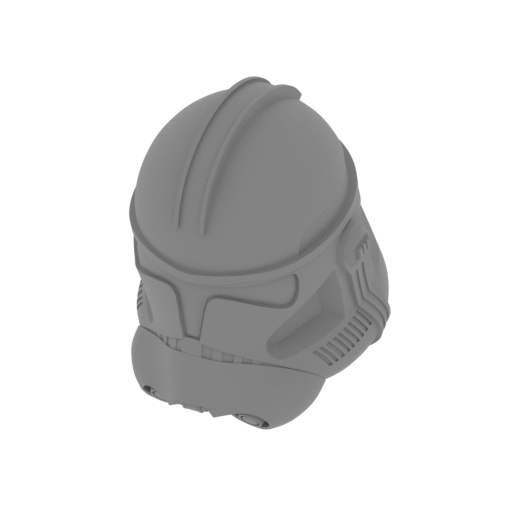

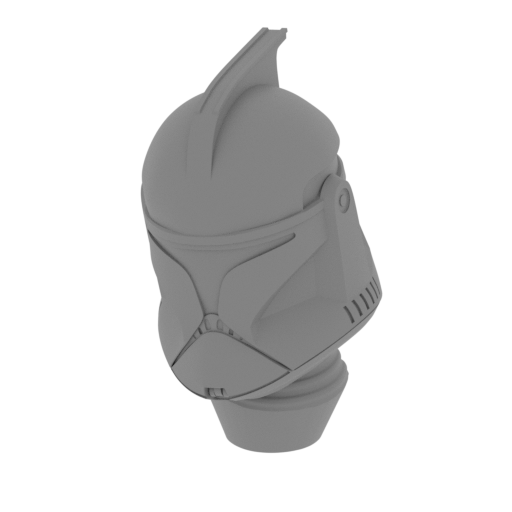

1_head_FDM(repaired).stl |
30.57 MiB | 3 h 1 min 2 m | 31 x 33 x 50 | Download | |
| ... | |||||
Sending to ...
ABOUT THIS 3D MODEL
Galactic Republic soldiers created at special facilities from the DNA of the best mercenary of the galaxy, Jango Fett, Clone Troopers are famous for their endless devotion to the Galactic Republic and high level of training as they far exceed the battle droids. The battle armor of the Clone Troopers was designed to guarantee adequate protection and make them feel secure and comfortable. Those Clones that passed specified training could serve as medical and naval officers, become pilots able to operate all kinds of machines starting from regular speeders to ship-to-ship combat such as Venator-Class Star Destroyer or fight as paratroopers.

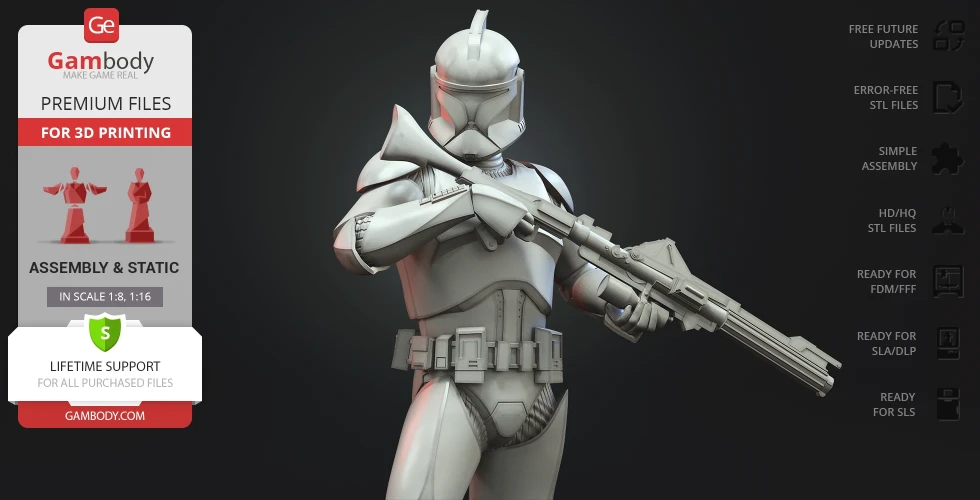

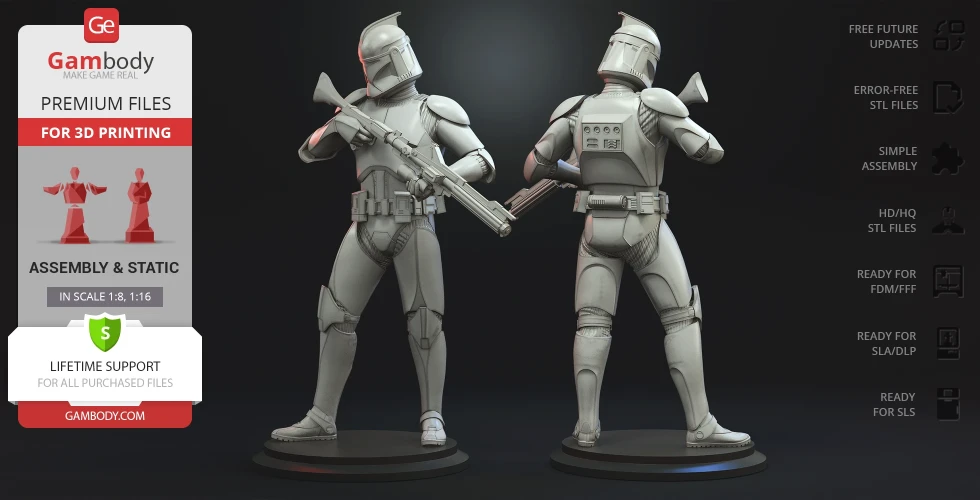

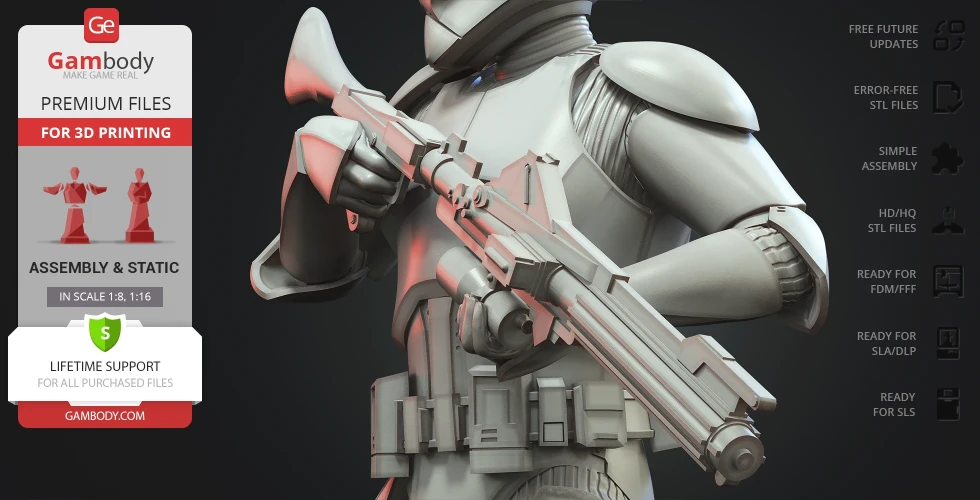

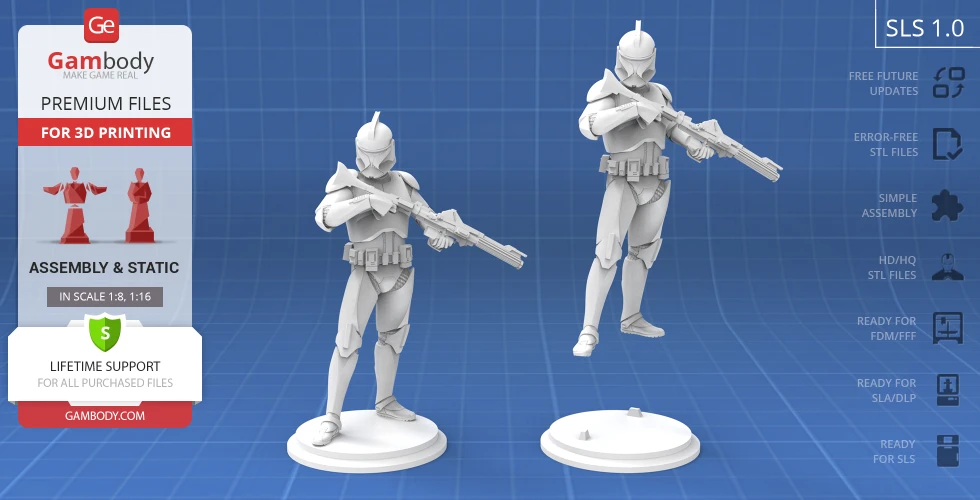

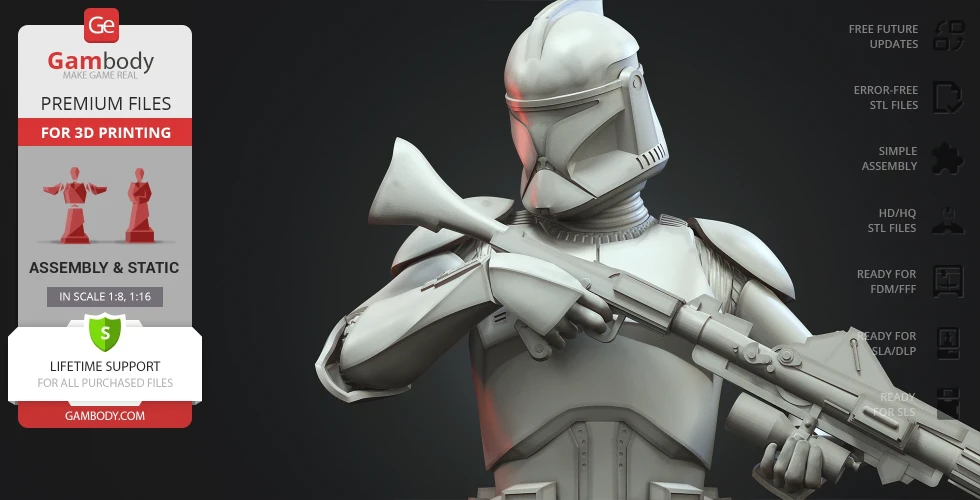

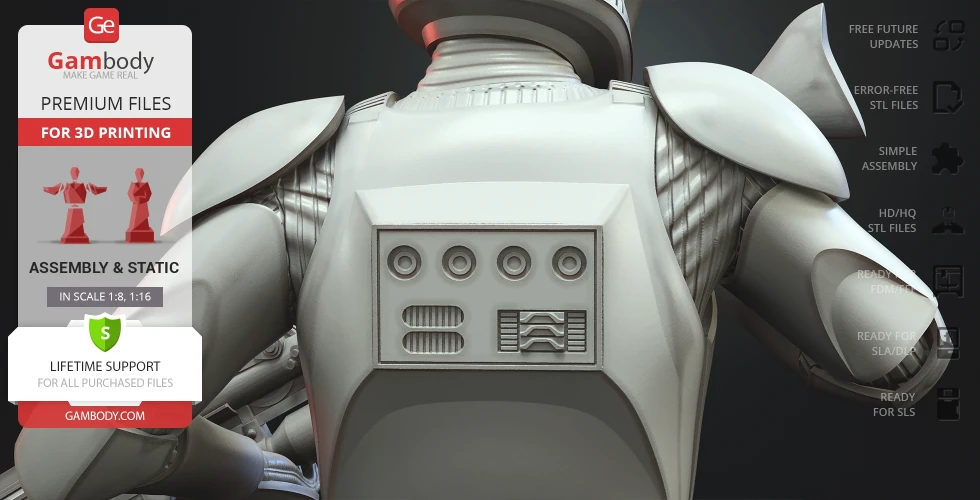

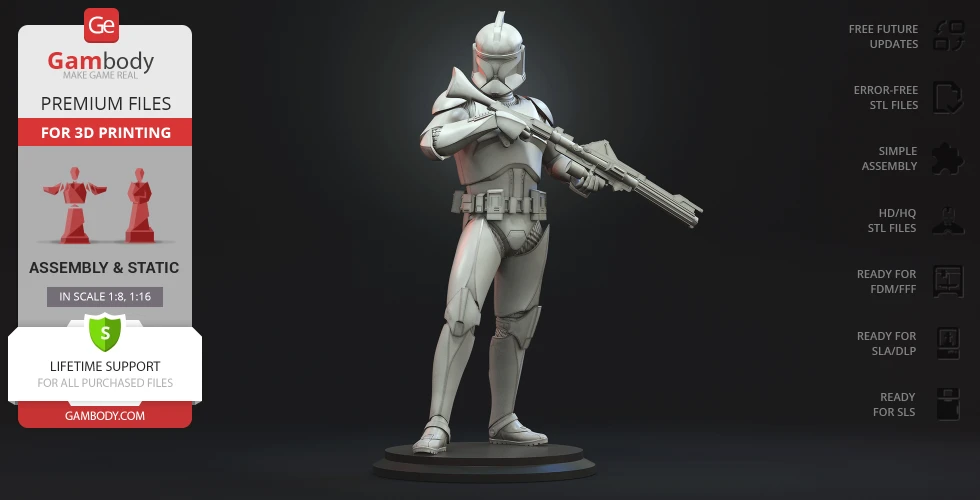

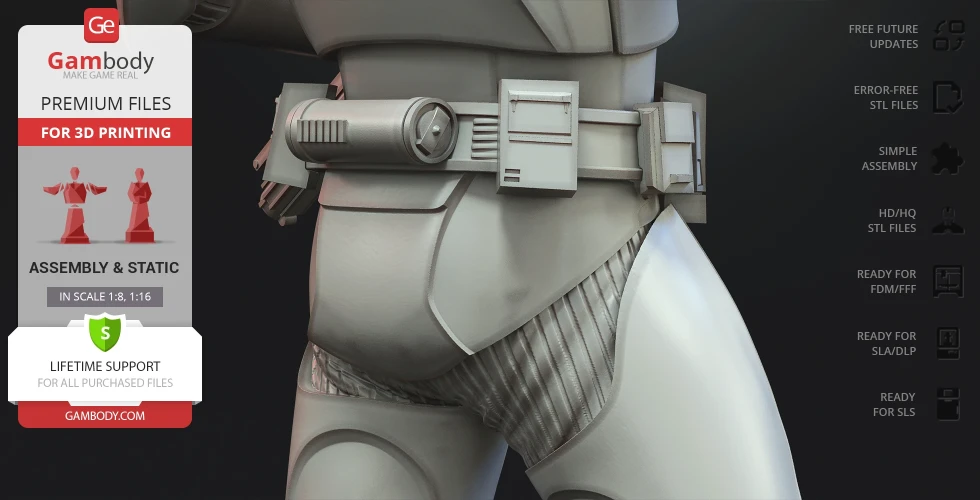

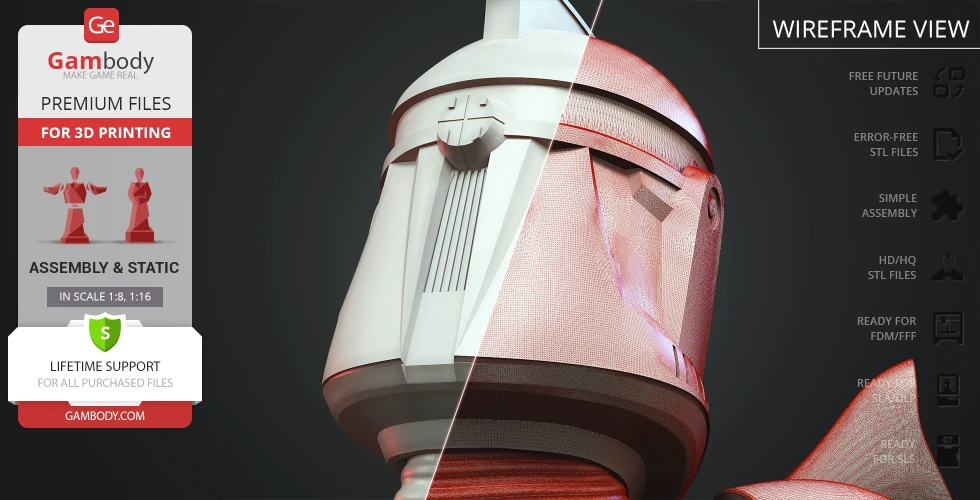

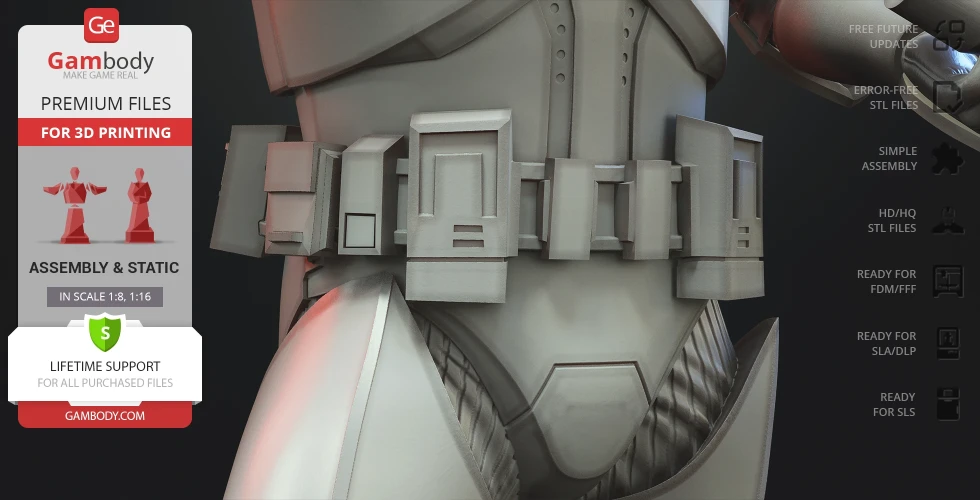

Our skilled artist devoted considerable time to creating the figurine of Clone Trooper that will be as precise and detailed as possible. The soldier is depicted wearing Phase I clone trooper armor consisting of form-fitting plates, gloves, and a helmet. The trooper is holding a DC-15A blaster rifle, one of the two most frequent weapons used by clone troopers during the Clone Wars. The helmet features a fin and has a typical T-shaped visor, the utility belt can be used for the storage of various equipment. Authentic design and a striking similarity with the original characters allow you to 3D print your own collection of identical Clone Troopers or train your painting skills by adding colorized markings. Start your new impressive project today!
ADAPTATION FOR 3D PRINTING
Clone Trooper for 3D printing is a static assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 65 hours in total. The figurines' anatomy and proportions were thoroughly reviewed during the moderation process for the soldier to be depicted harmoniously in the intended pose.

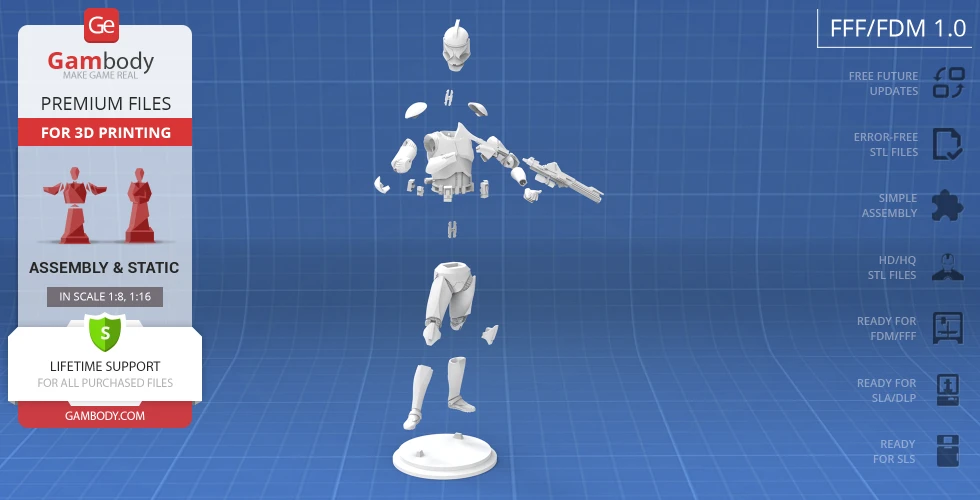

The figurine’s cutting was chosen by our team to minimise the amount of generated support and some of the parts were hollowed out for you to save resin in the Eco version. In order to conceal the places where the assembly parts of the figurine are connected, Clone Trooper was divided into convenient assembly parts.

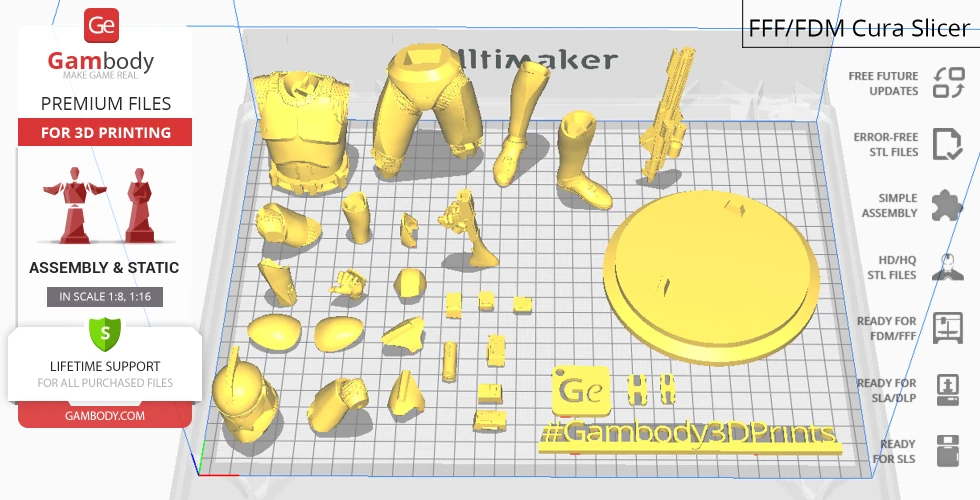

All assembly parts in the FFF/FDM 1.0 version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any model's file you will also receive "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format. We highly recommend that you get acquainted with the “Assembly Video” and "Assembly Manual" before getting down to Clone Trooper.
The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.
The figurine’s scale was calculated from the height of Clone Trooper which is 1830 mm. The 3D printing figurine’s chosen scales are 1:8 for the FFF/FDM version and 1:16 for the DLP/SLA/SLS versions.
VERSIONS’ SPECIFICATIONS

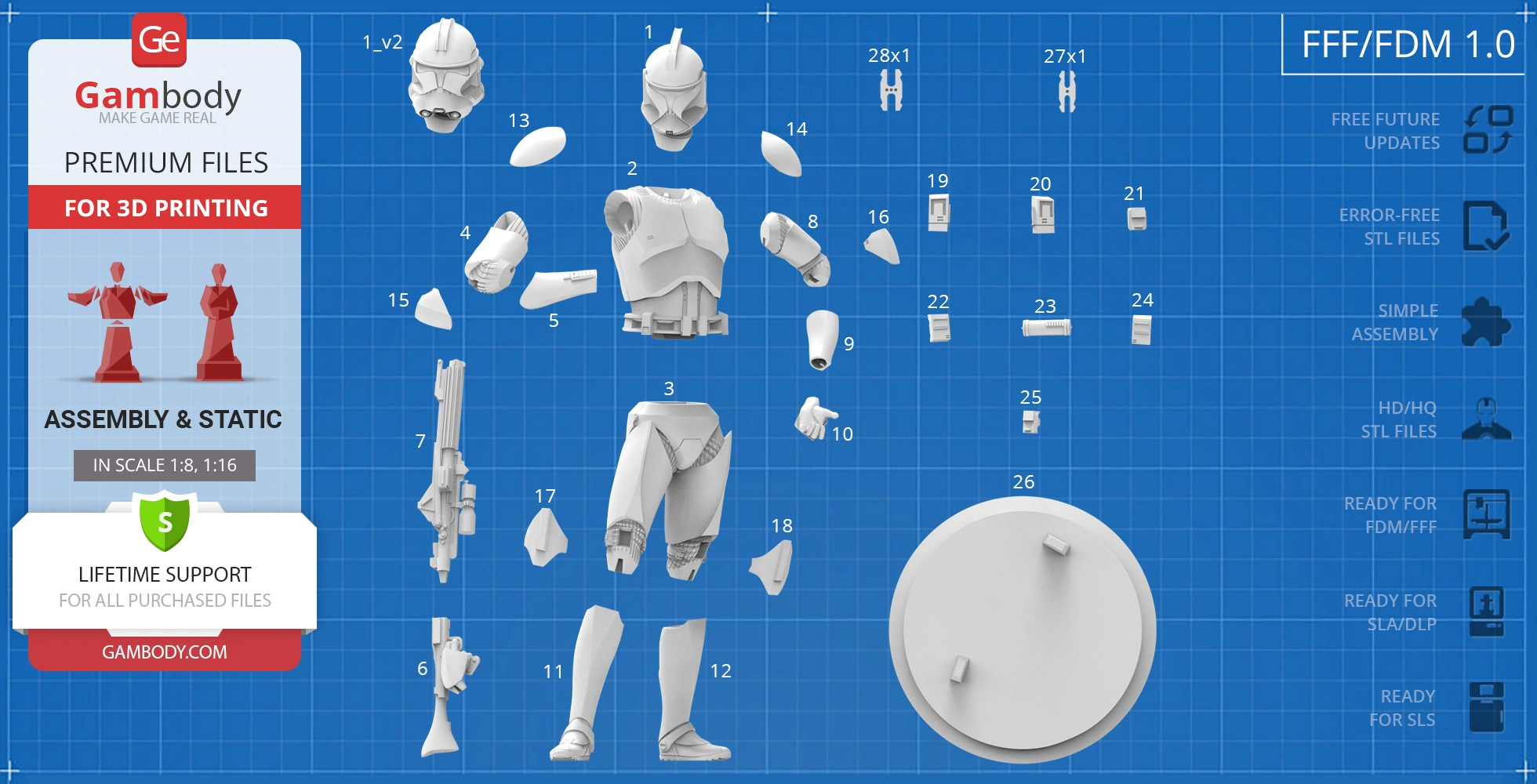

FFF/FDM 1.0 versions features:
- Contains 28 parts;
- A printed figurine is 244 mm tall, 176 mm wide, 117 mm deep;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

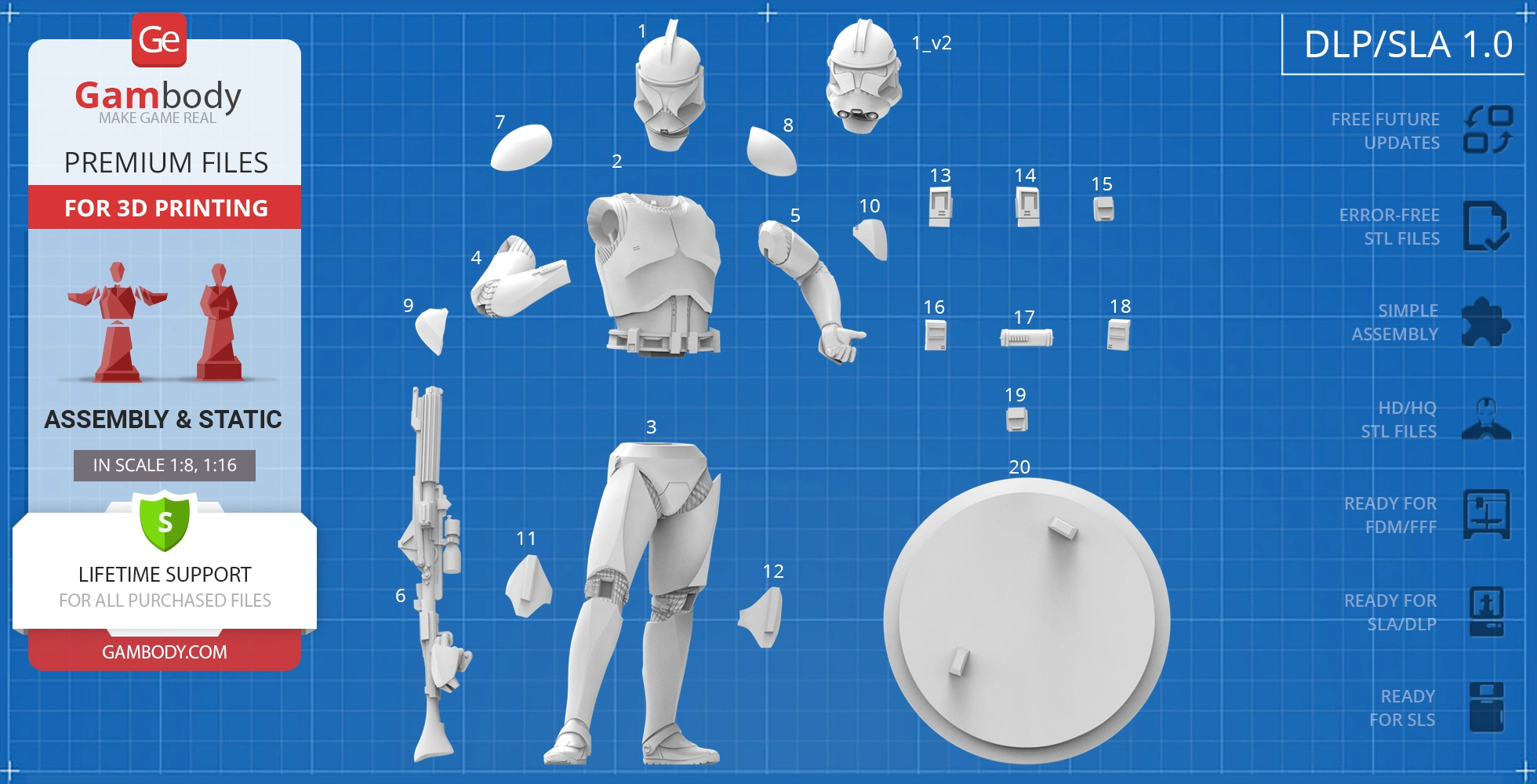

DLP/SLA 1.0 versions features:
- Contains 20 parts;
- A printed figurine is 122 mm tall, 88 mm wide, 58 mm deep;
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

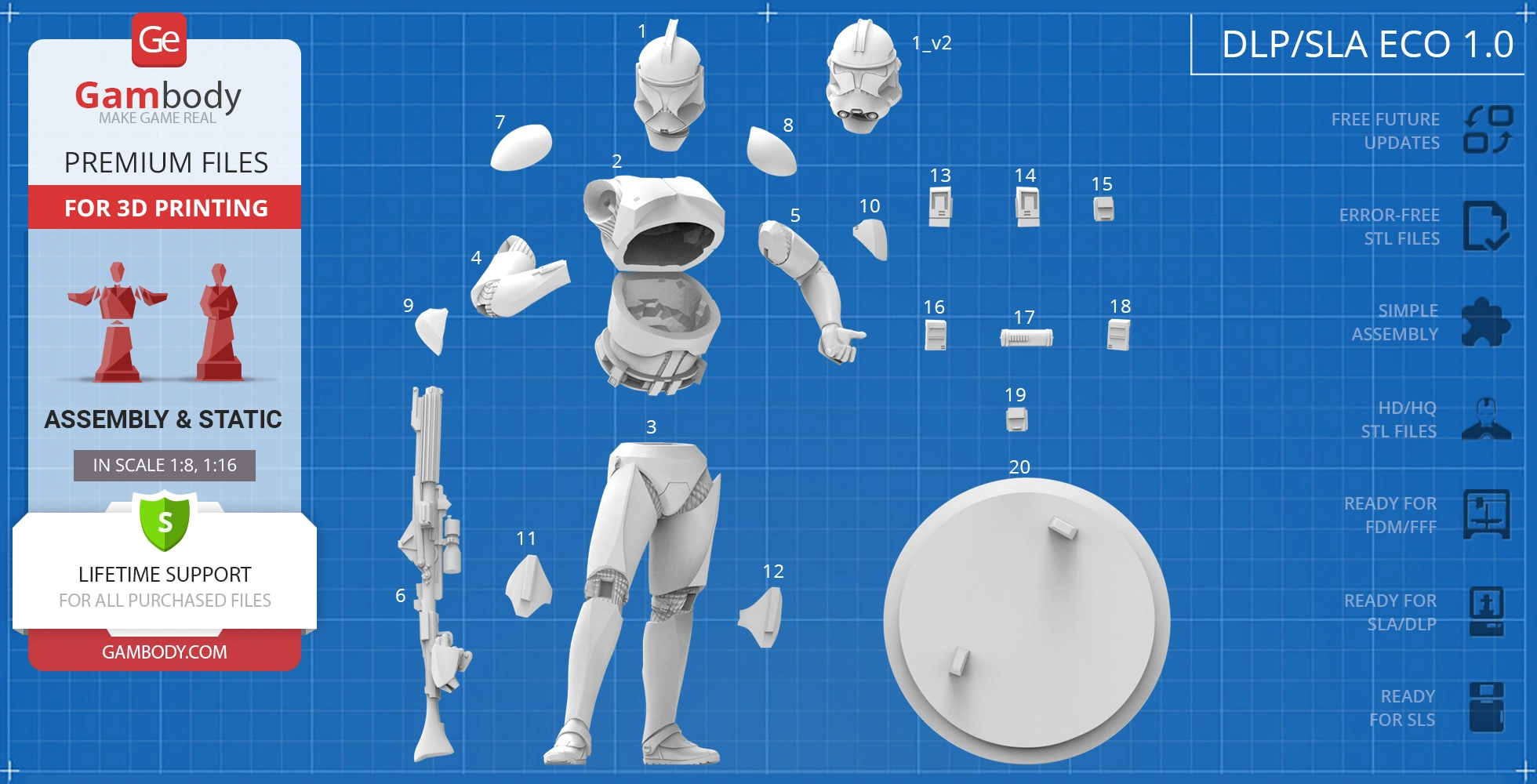

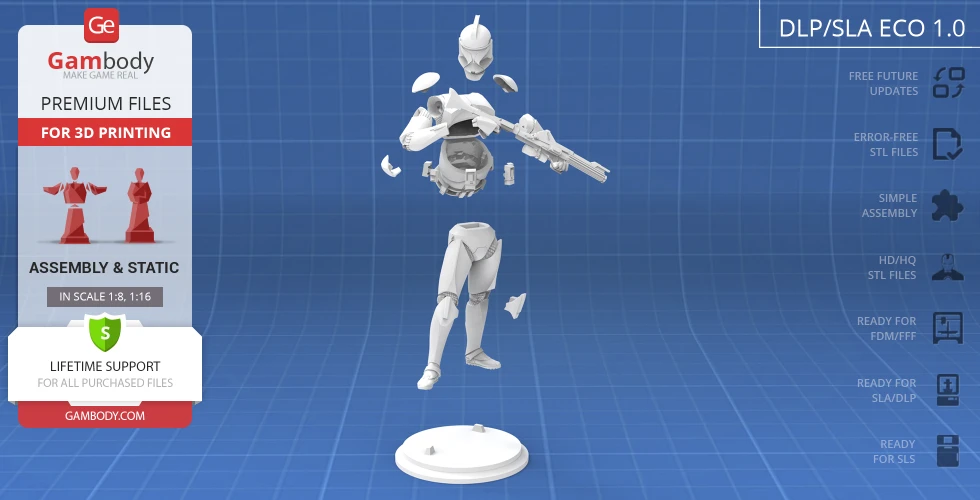

DLP/SLA Eco 1.0 versions features:
- Contains 20 parts;
- A printed figurine is 122 mm tall, 88 mm wide, 58 mm deep;
- Some parts are manually hollowed out to save resin.

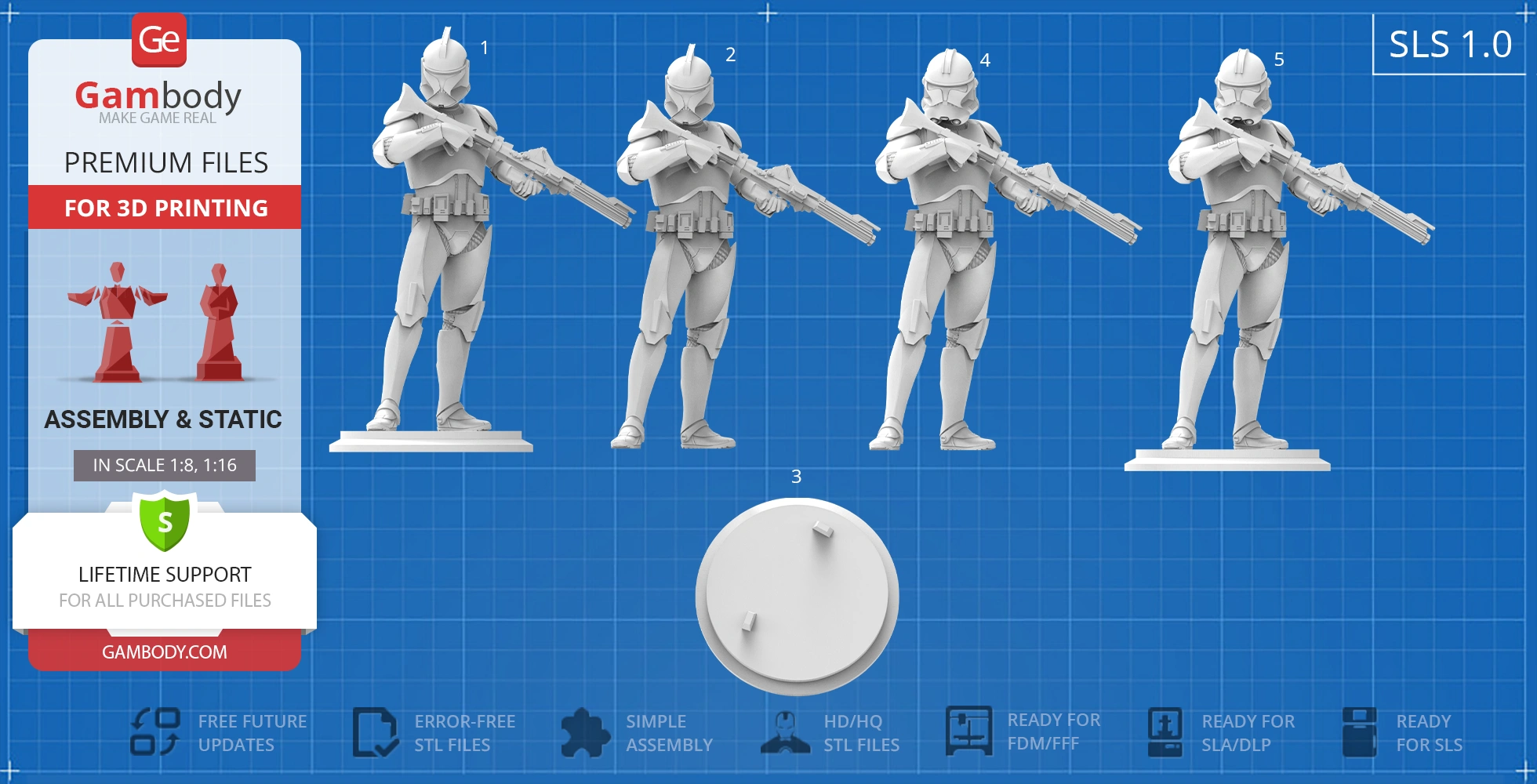

SLS 1.0 versions features:
- Contains 3 parts - a solid Clone Trooper figurine on and separately from the platform.
You can get the figurine of Clone Trooper for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.
Watch the tutorial on how to assemble Clone Trooper 3D Printing Figurine on Gambody YouTube channel.
Also, you may like Captain Rex 3D Printing Figurine and other Star Wars 3D Printing Figurines.
_______
FAQ:
Generic
Below you can find printing recommendations for Cura, Simplify3D, Slic3r and PrusaSlicer software.
Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.
Note:
You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);
All connectors should be printed at 100% Infill.
Cura printing recommendations:
These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.
To avoid printing problems, we recommend the following settings: download
Simplify3D printing recommendations:
These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.
To avoid printing problems, we recommend the following settings: download
Slic3r printing recommendations:
These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.
To avoid printing problems, we recommend the following settings: download
PrusaSlicer printing recommendations:
These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.
To avoid printing problems, we recommend the following settings: download
