The King is here!
The King of the Barbarians is the most ferocious and ruthless barbarian in the whole kingdom, who, because of his love for the black elixir, has grown to an incredible size. It is rumored that the King of Barbarians was an ordinary barbarian until he accidentally fell into a barrel with a dark elixir and drunk it, when he was a child. After that, his old life came to an end - he became strong, powerful and courageous.He can attack enemy settlements or defend your village. The king is immortal, therefore he is called only once. If the hero is defeated, he simply stops and heals.

Specifications:

• Attack Type: Melee (Ground Only)
• Movement Speed: 16
• Attack Speed: 1.2s
• Range    Search: 1 tile
• Radius: 9 tiles

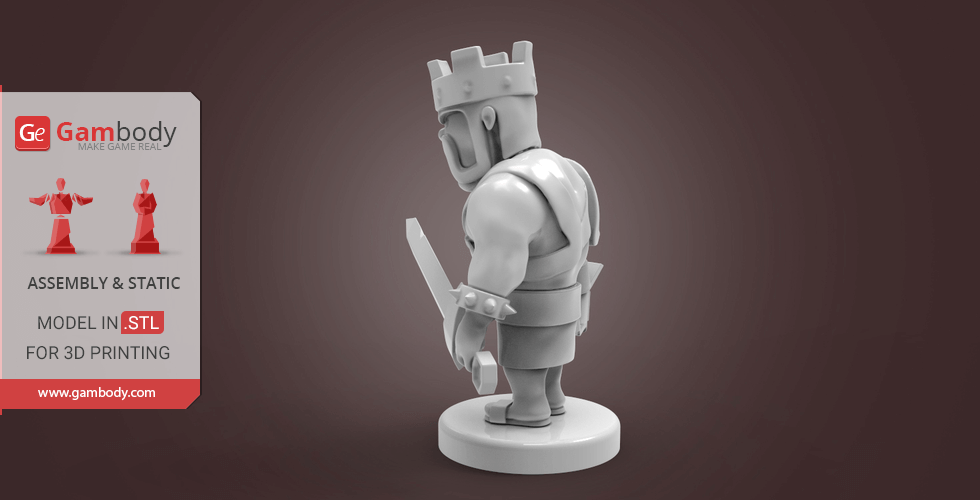

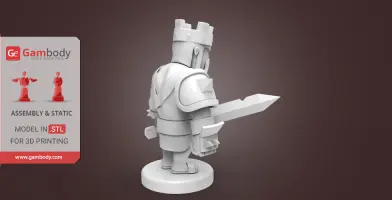

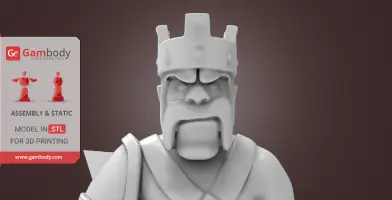

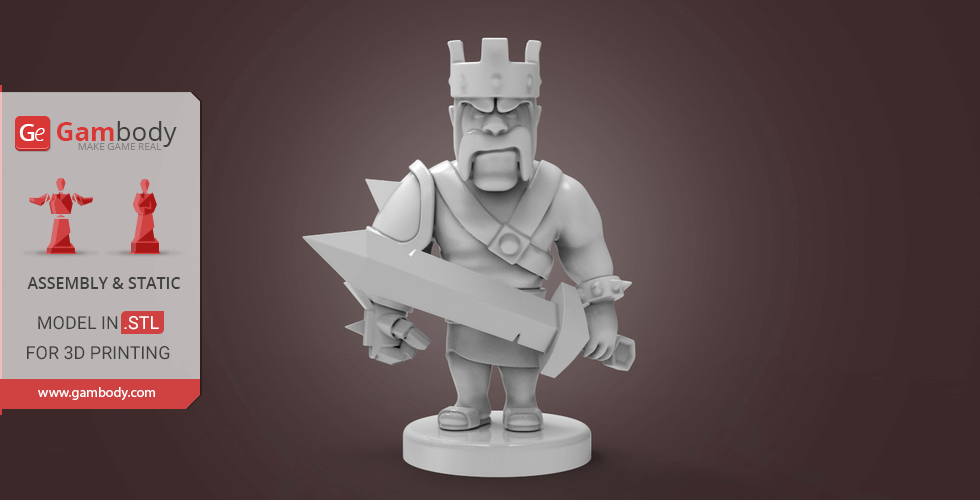

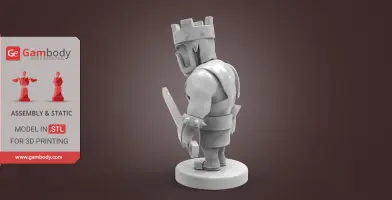

The Barbarian King is a powerful and formidable character. Calling him to your side gives a huge advantage. And now, Gambody called him and you can buy your king and print it on your 3D printer. A large model with a height of almost 15 cm. A unique opportunity to have a king of level 45 who will take a defensive position in the form of a static model. Decorate your home with this wonderful figure which available for purchase on Gambody Marketplace!

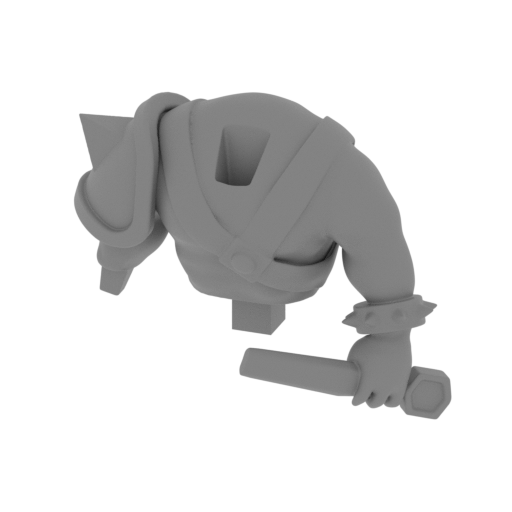

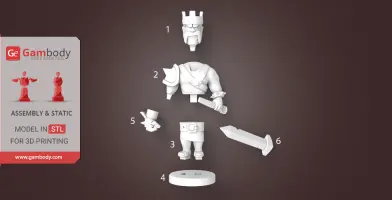

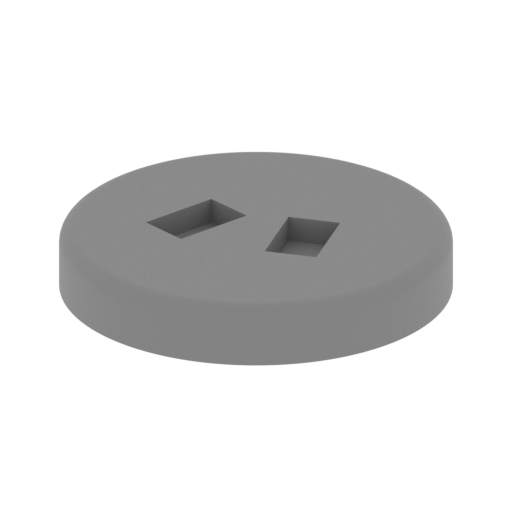

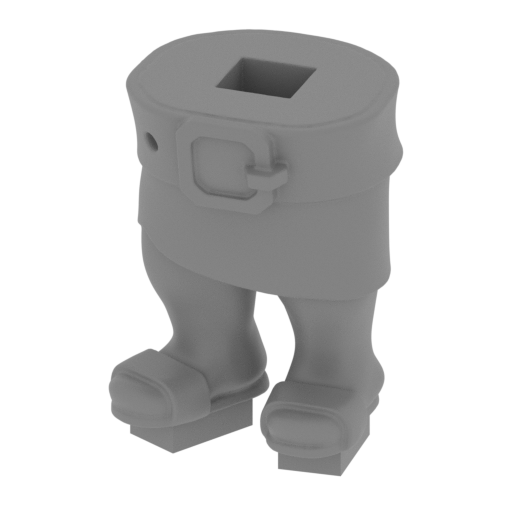

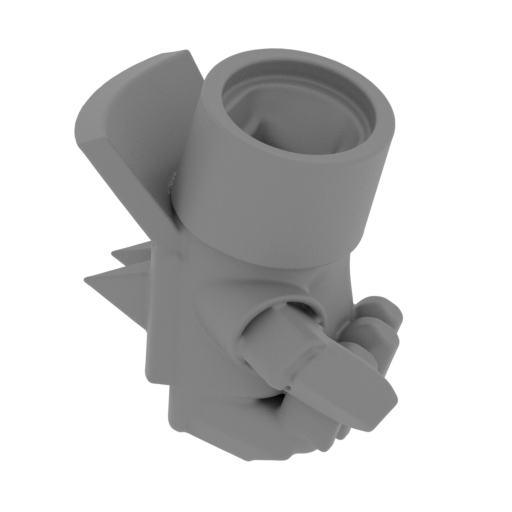

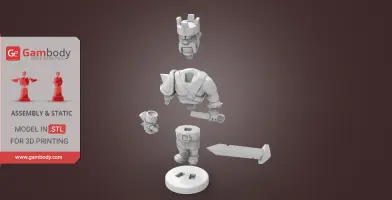

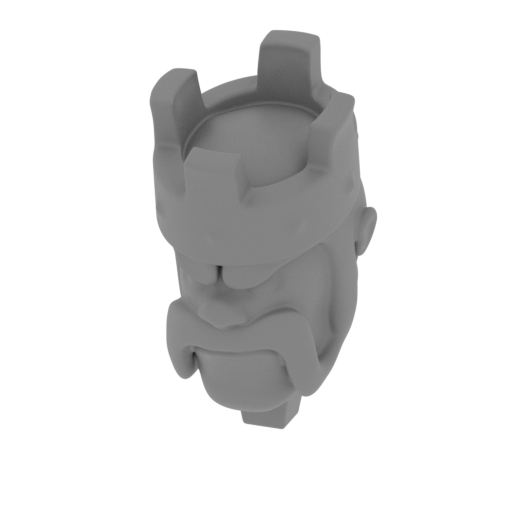

There are 6 parts for FDM/FFF/SLS/SLA 3D printers. If you print on SLS/SLA 3D printer you can scale down this model for economy your material.

All .STL files for 3D printing have been checked for errors and corrected in Netfabb.

Note: Before printing 3D model, read the Printing Details for CURA 2.7.0. software.

Scale:

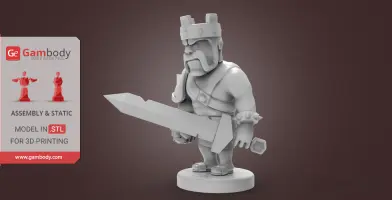

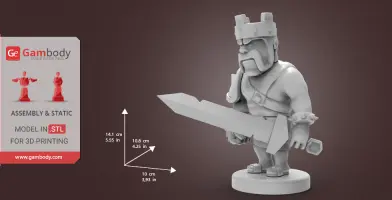

- After being printed will stand 141 mm(5.55 in.) tall, 100 mm(3.93 in.) wide, 108 mm(4.25 in.) deep.

Here the tutorial video on how to assemble The King of the Barbarians 3D Printing Model at Gambody YouTube channel.

Get The King of the Barbarians 3D Printing Miniature right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

_______
FAQ:
Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

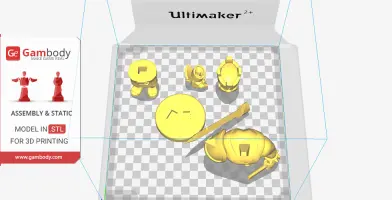

This model was tested in Cura 2.7.0. and print on an Ultimaker 2 in PLA material.

Note: If you to print The King of the Barbarians on SLS/SLA 3D printer you can scale down this model for economy your material.
To avoid printing problems, we recommend the following settings:

Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.27 mm
Line Width: 0.35 mm
Wall Line Width: 0.35 mm
   Outer Wall Line Width: 0.35 mm
   Inner Wall(s) Line Width: 0.35 mm
   Top/Bottom Line Width: 0.35 mm
   Infill Line Width: 0.35 mm
   Skirt/Brim Line Width: 0.35 mm
   Support Line Width: 0.35 mm
 Initial Layer Line Width: 100%

Shell
Wall Thickness: 1.05 mm
Wall Line Count: 3
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0.025 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Shortest
Ignore Small Z Gaps: Check

Infill
Infill Density: 20
Infill Line Distance: 3.5 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill Overlap Percentage: 10%
    Infill Overlap: 0.035 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.0175 mm
Infill Wipe Distance: 0.0875 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2

Material
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.7 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 20 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed
Print Speed: 45 mm/s
    Infill Speed: 45 mm/s
    Wall Speed: 36 mm/s
      Outer Wall Speed: 26 mm/s
      Inner Wall Speed: 36 mm/s
    Top/Bottom Speed 20 mm/s
    Support Speed: 26 mm/s
      Support Infill Speed: 26 mm/s
Travel Speed: 90 mm/s
Initial Layer Speed: 27 mm/s

    Initial Layer Print Speed: 27 mm/s
    Initial Layer Travel Speed: 54 mm/s
Skirt/Brim Speed: 27 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.6562 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.27 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support
Enable Support: Check
Support Placement: Everywhere
Support Overhang Angle: 50°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 2.3333 mm
Support Z Distance: 0.1 mm
    Support Top Distance: 0.1 mm
    Support Bottom Distance: 0.1 mm
Support X/Y Distance: 0.7 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.2 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Brim
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 23
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Extra Skin Wall Count: 0

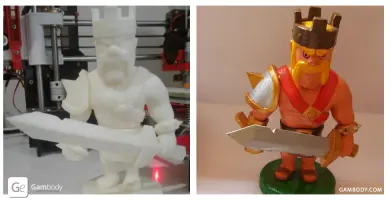

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
