HISTORY OF THE AQUAMAN

Aquaman is the son of a woman named Atlana and the ruler of everything that connected with water. Before his mother died, Atlana told her son that she was the Queen of Atlantis in exile, and promised that our hero would reign the seven seas. His mother also endowed him with superhuman powers. He can breathe under water, swim at great speed, telepathically communicate with marine inhabitants. Curry’s body can withstand ocean pressure, it gives him superhuman strength, impenetrable skin and heightened feelings on the surface. Although our hero has repeatedly proved courage and determination as King of Atlantis. Constant conflicts between the inhabitants of the surface and the depths make Aquaman a desirable member of both societies. But he does not belong to any of them to the end.

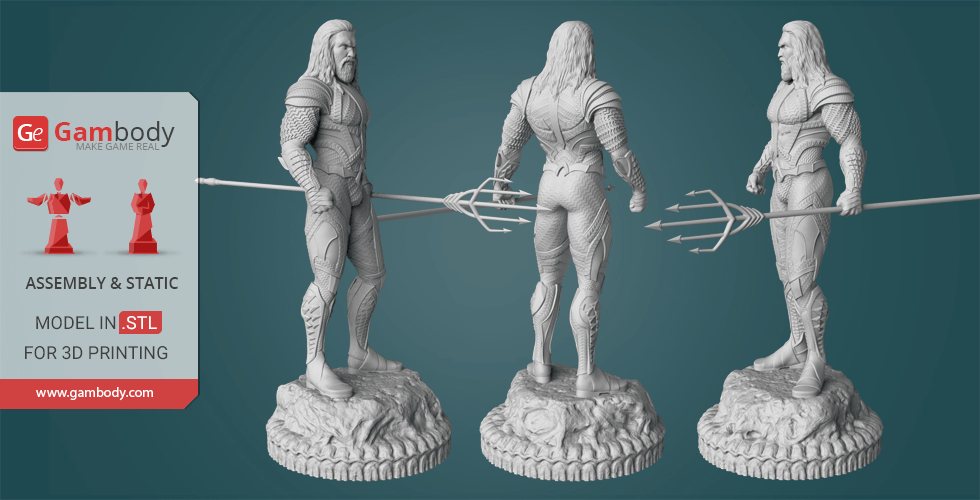

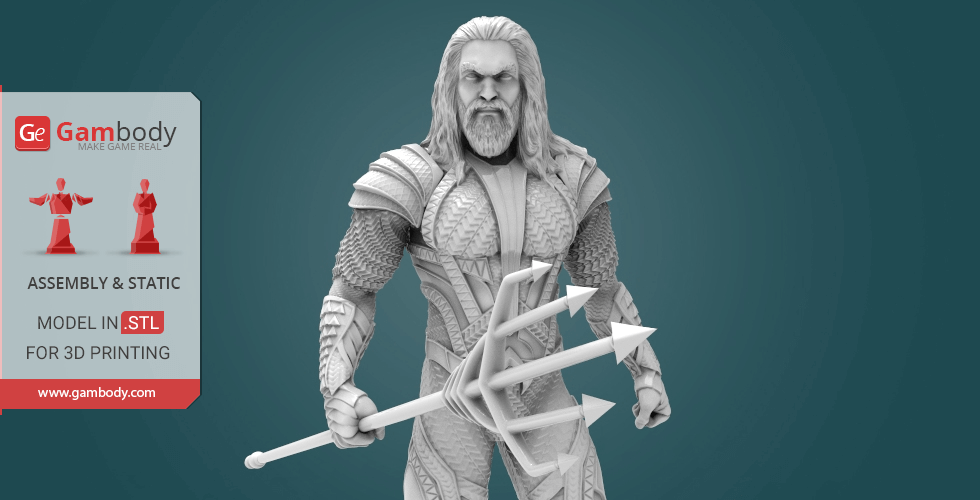

ABOUT THIS 3D MODEL

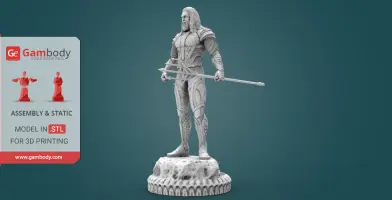

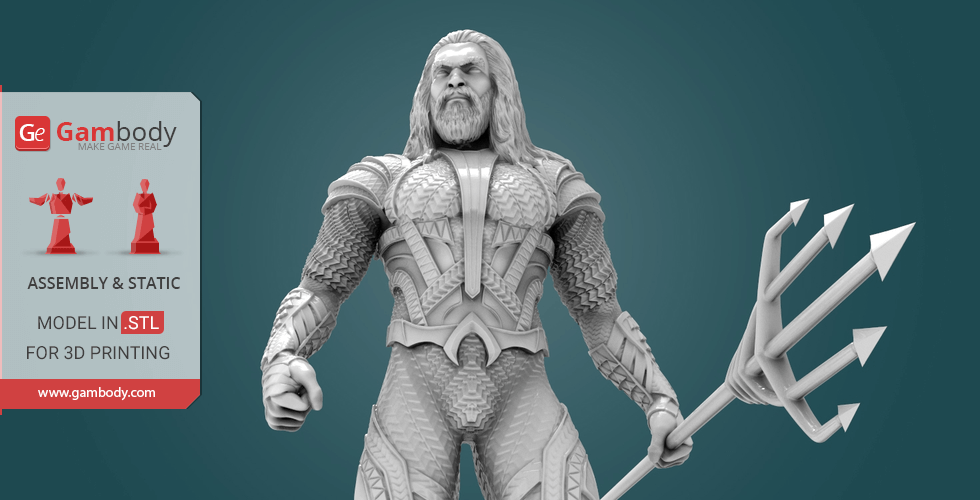

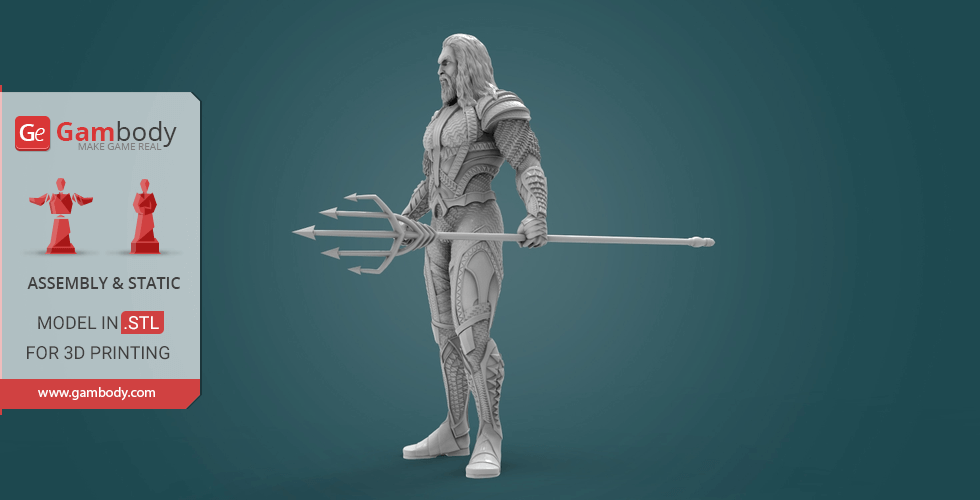

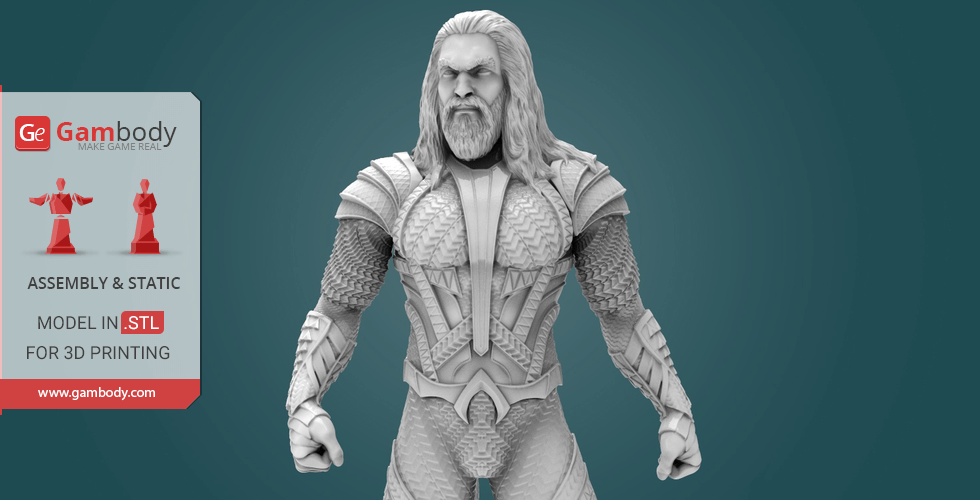

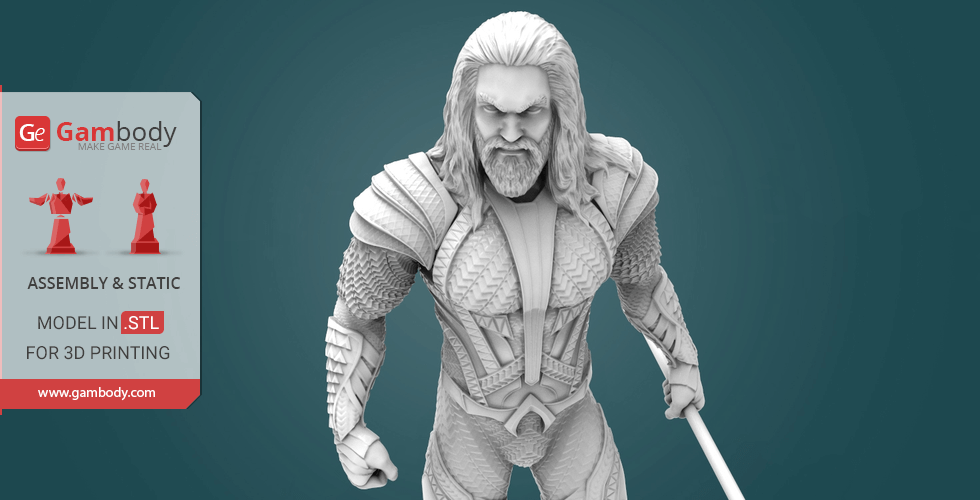

Aquaman 3D model for printing was created in ZBrush. The model is saved in STL files, a format supported by most 3D printers.

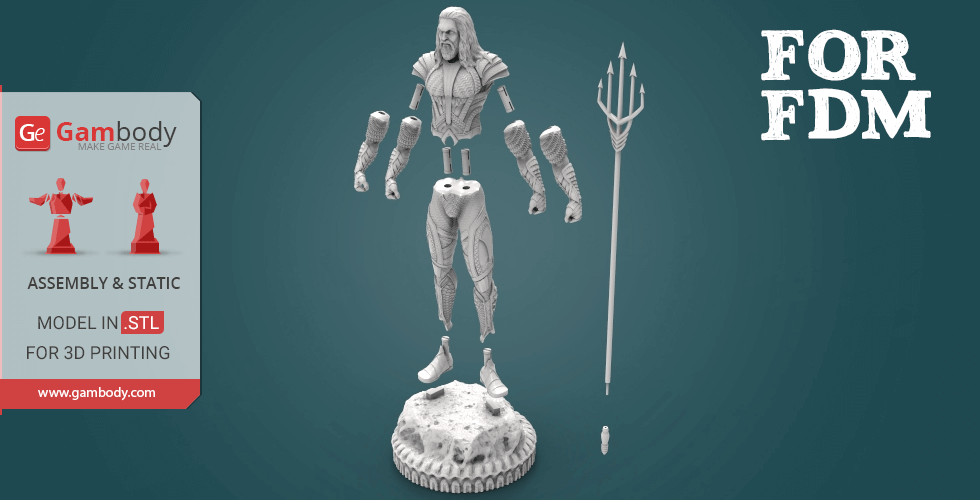

FDM version features:

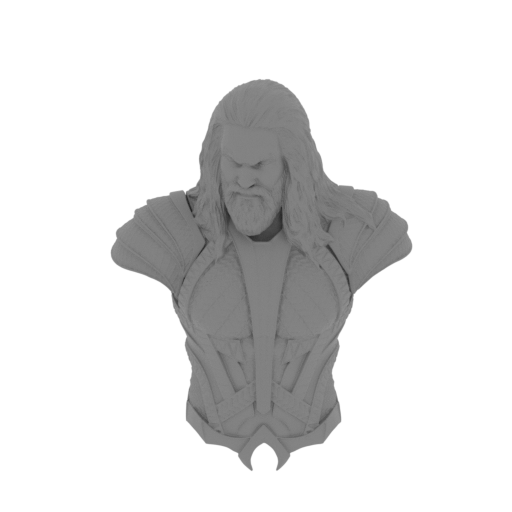

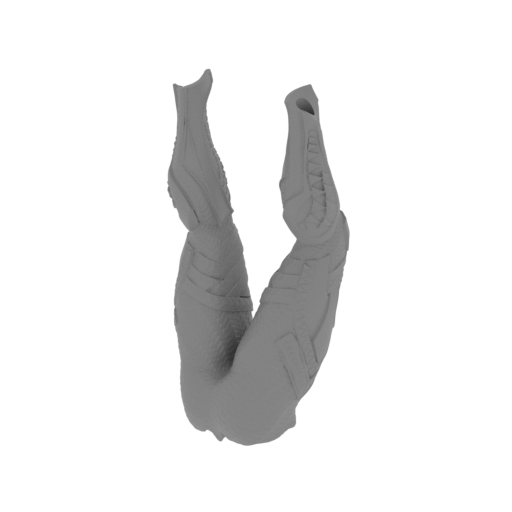

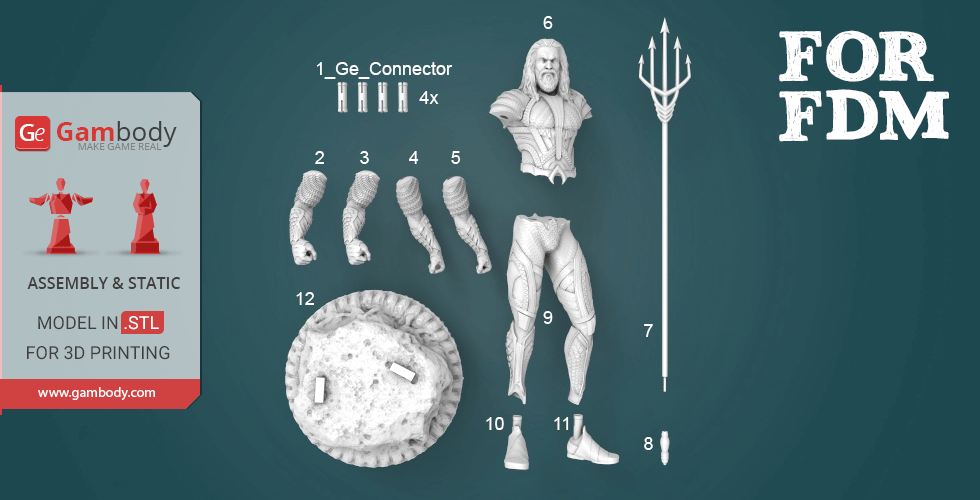

- Contain 12 parts;

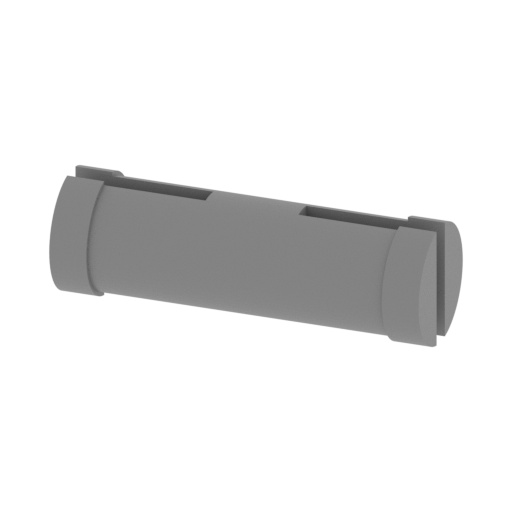

- Made with connectors. One part of connector (1_GE_Connector_B_B x4) you need to print 4 times;

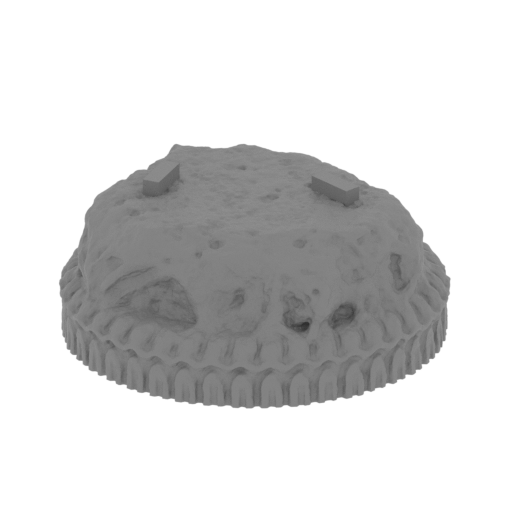

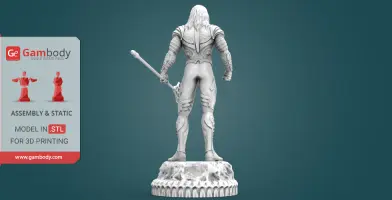

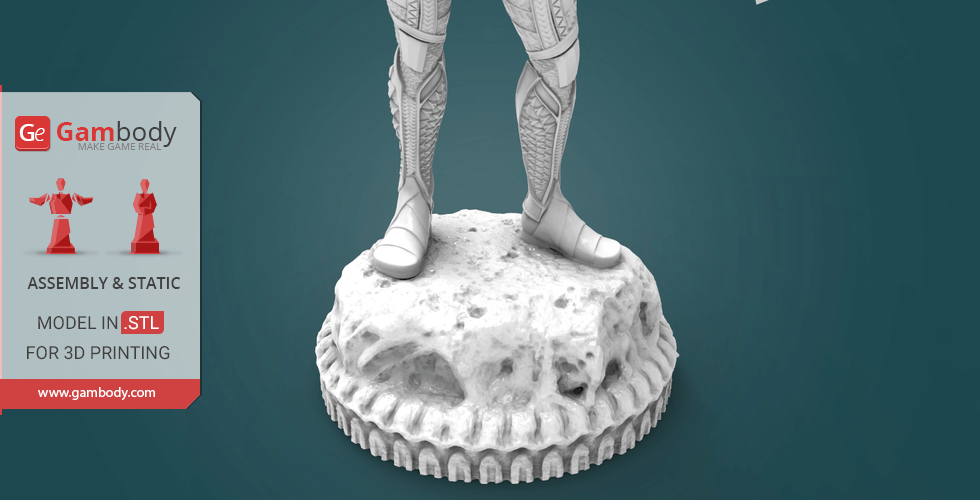

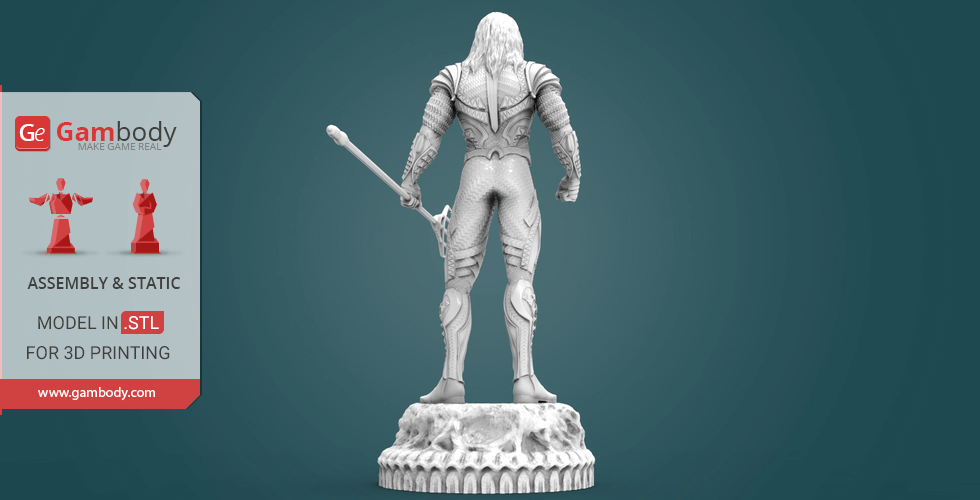

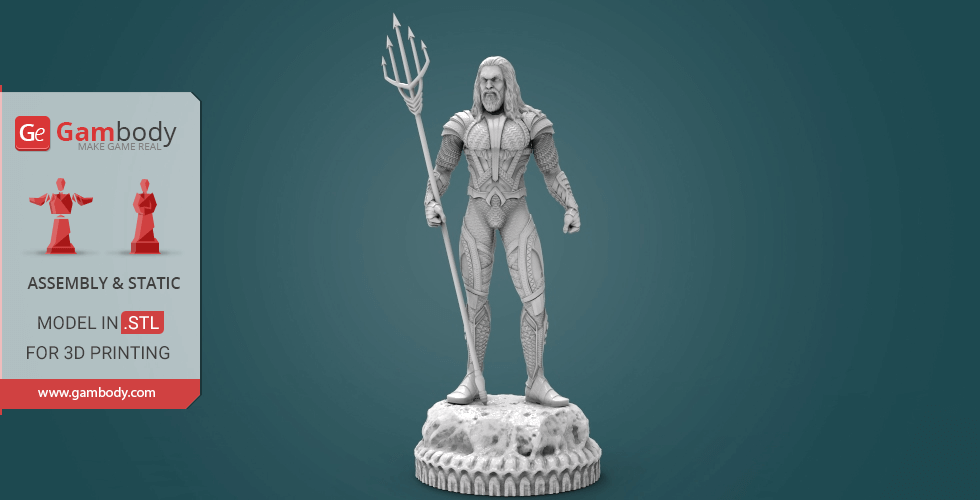

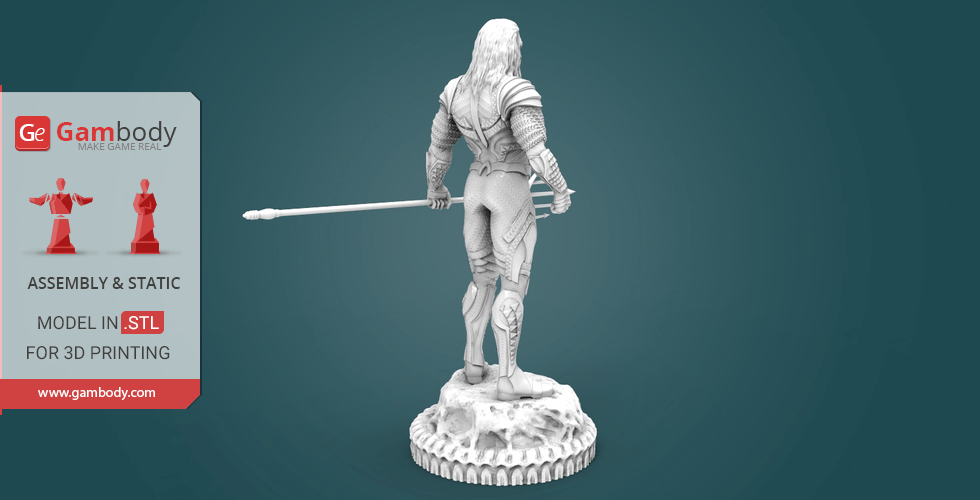

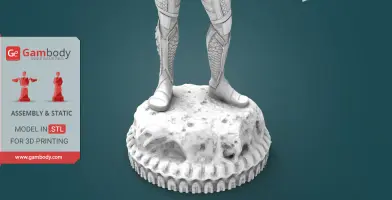

- Made with a platform that is stylized as underwater world;

- Can stand on the surface without a platform;

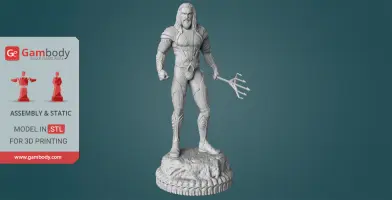

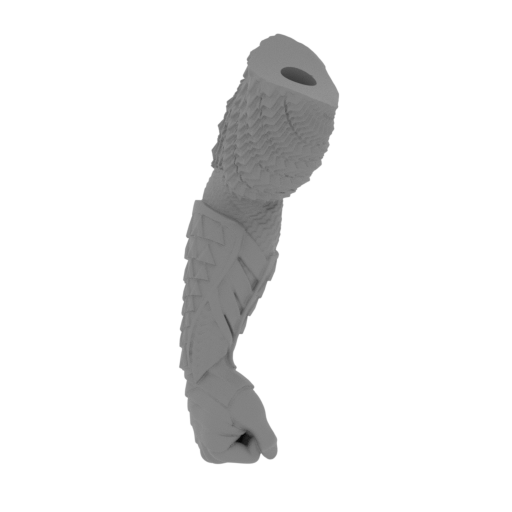

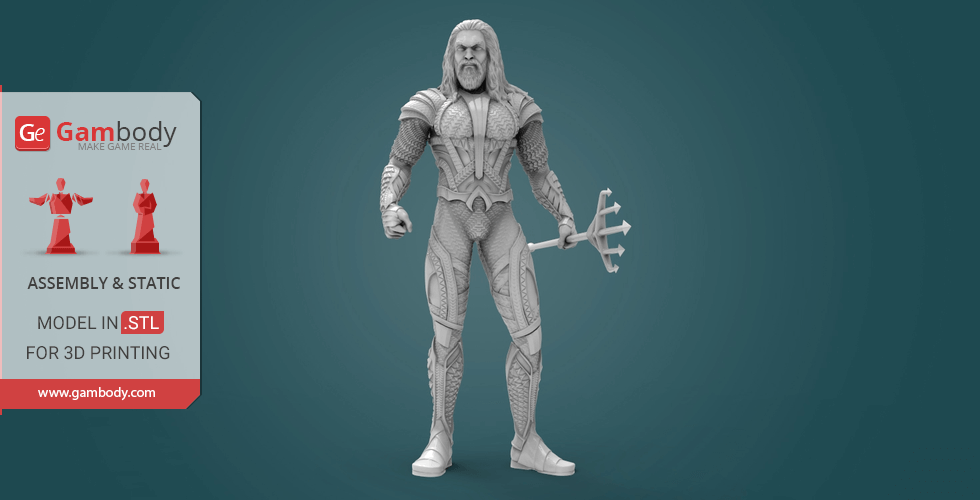

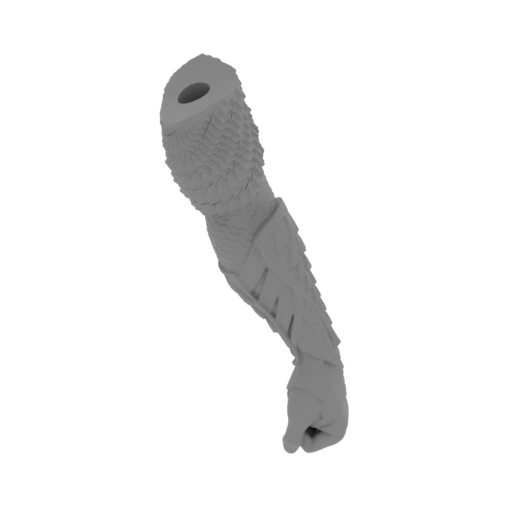

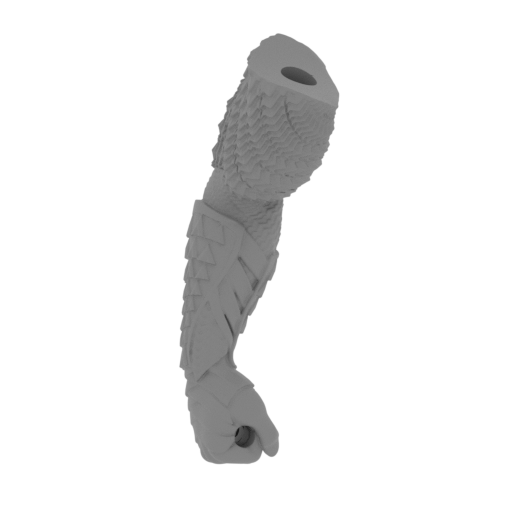

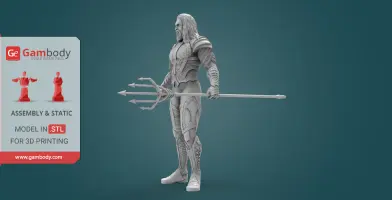

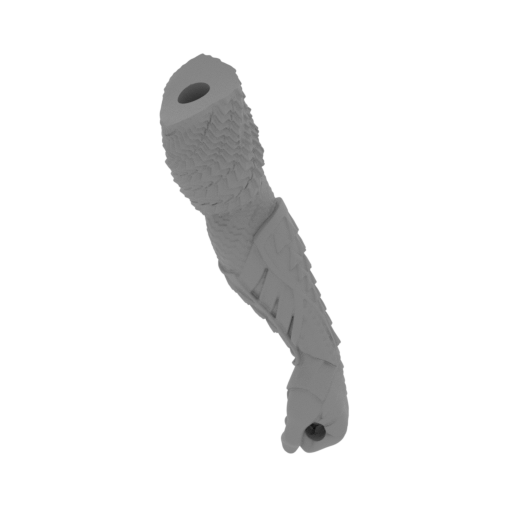

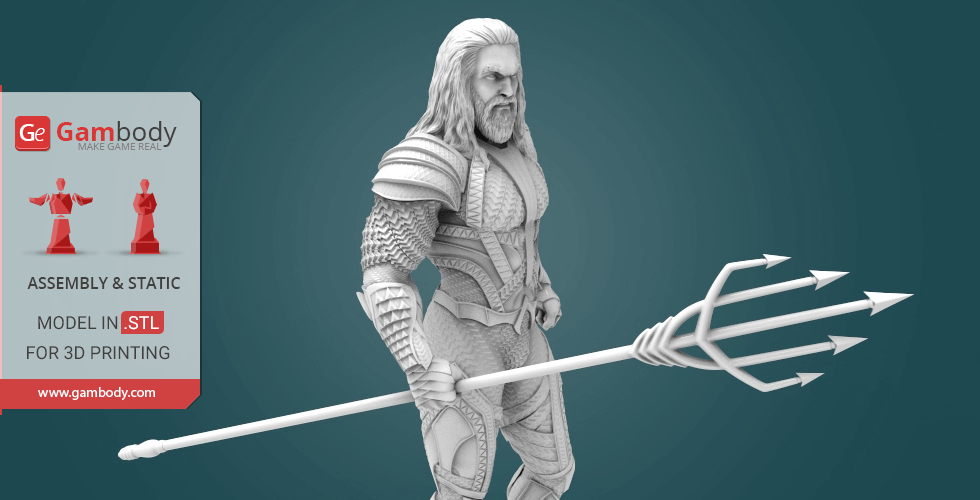

- Made with two variants of hands for Trident and without it;

- All parts are divided in such way that you will print them with the smallest amount of supports.

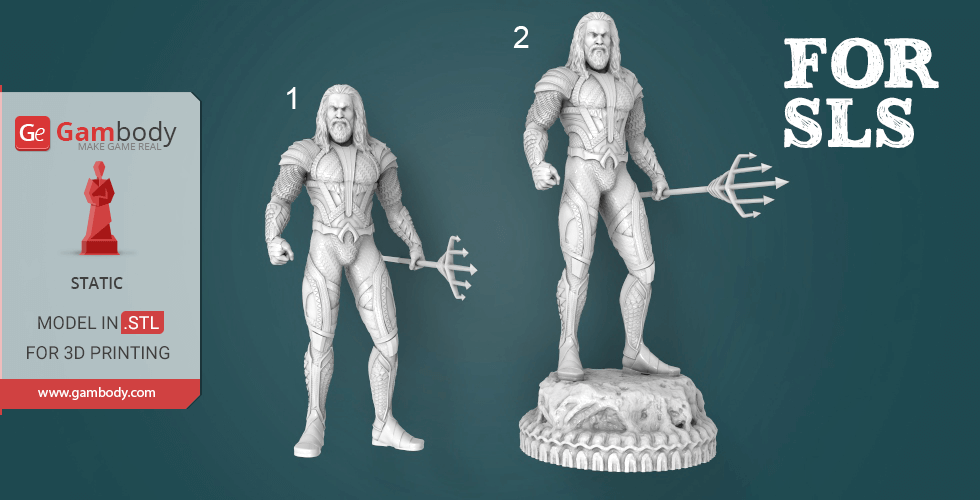

SLS/SLA version features:

- Same as FDM but smaller and made as 2 variants. With platform and without it.

All .STL files for 3D printing have been checked in Netfabb and no errors were shown.

Note: Before starting 3D printing the model, read the Printing Details for CURA 3.0.4. Software.

There are 12 parts for FFF/FDM version and 2 parts for SLS/SLA version.

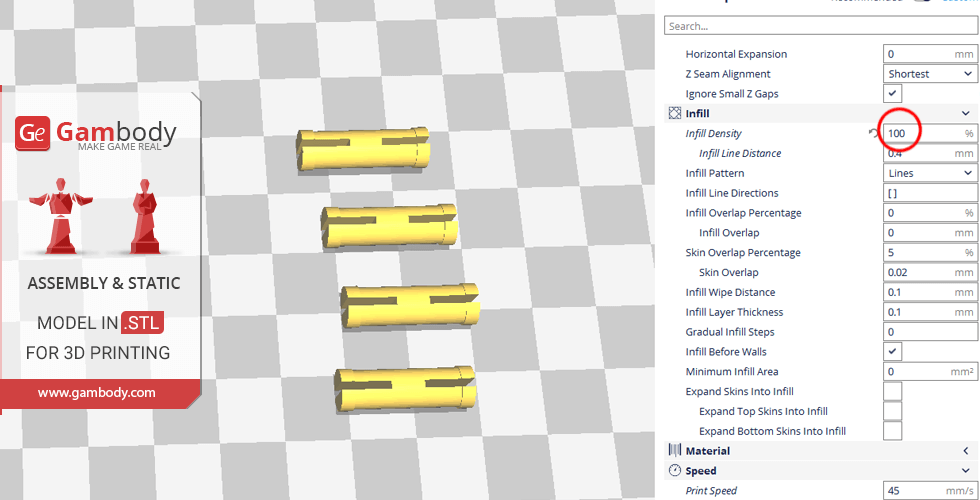

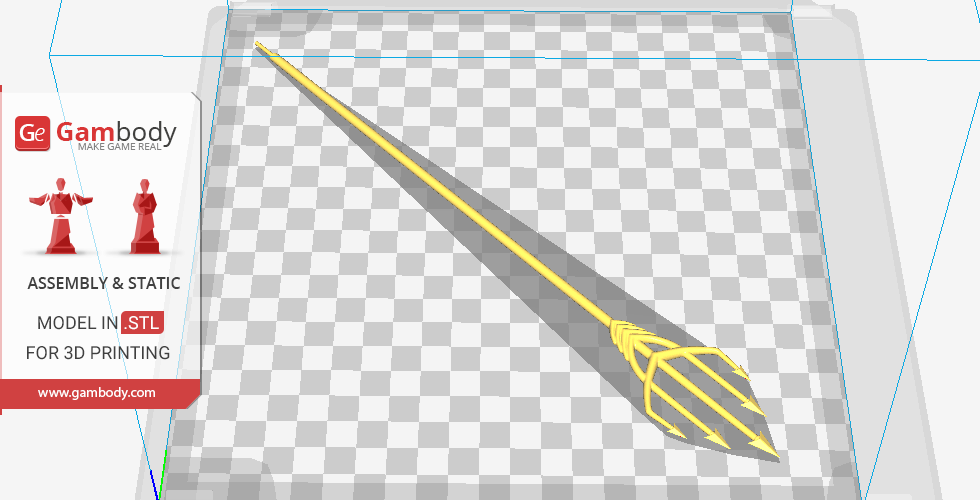

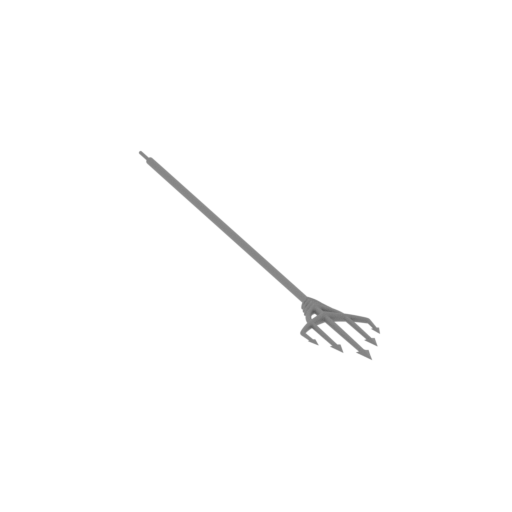

All parts of connectors should be printed at 100% infill. Trident should also be printed with 100% infill to make it solid.

Scale: His tall in life is 1860, without platform. Model made as 1/8 scale in FDM version and 1/16 in SLS/SLA version.

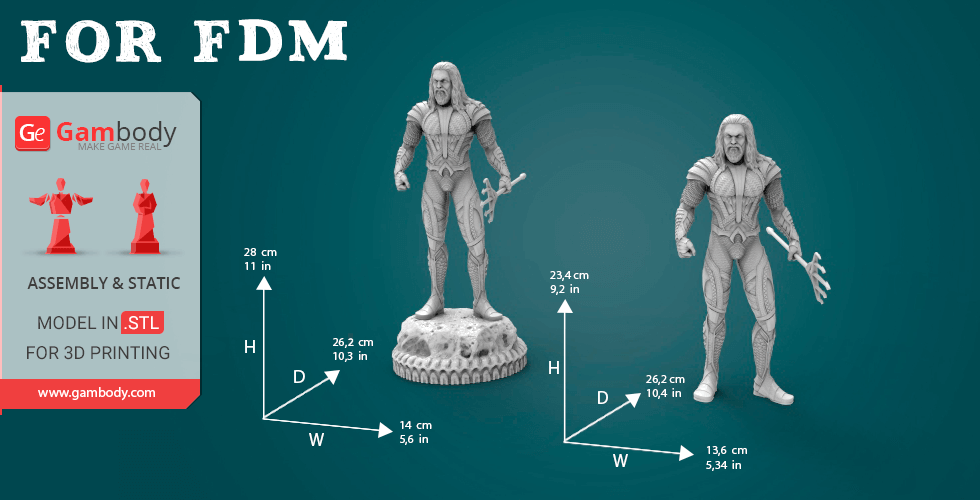

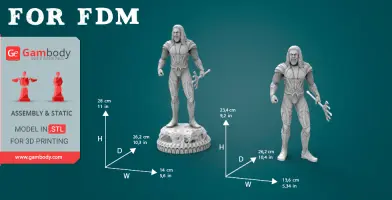

FDM version dimensions:

After being printed will stand:

280 mm tall, 140 mm wide, 262 mm deep - with platform;
234 mm tall, 136 mm wide, 262 mm deep - without platform;

- Connectors should be printed at 100% infill to make them solid;

- Trident should also be printed with 100% infill to make it solid.

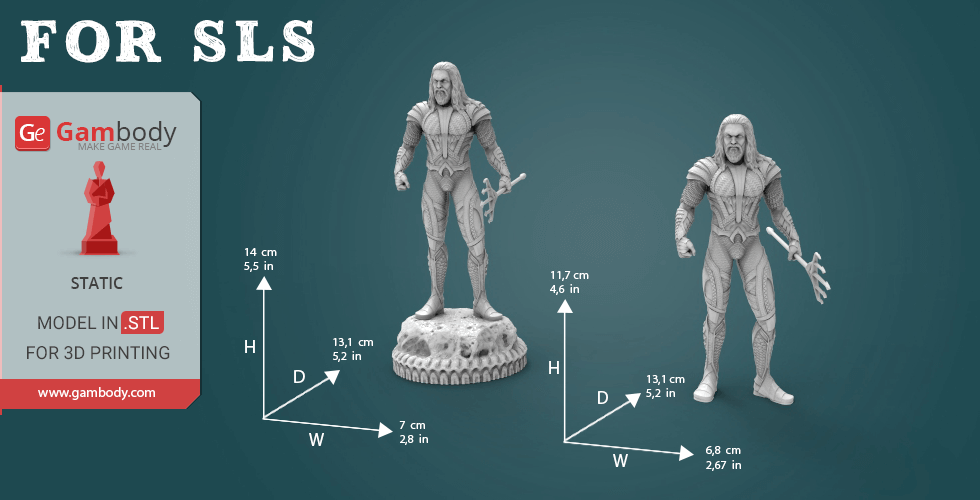

SLS/SLA version dimensions:

After being printed will stand:

140 mm tall, 70 mm wide, 131 mm deep - with platform;
117 mm tall, 68 mm wide, 131 mm deep - without platform;

- Has only 1 detail in each varint, to keep printing costs down.

WHAT WILL YOU GET AFTER PURCHASE?

- .STL files of Aqaman for 3D printing which consist of 14 parts;

- 2 versions of files for this model for FFF/FDM and SLS/SLA;

- Removable platform;
- Two variant of hands with Trident and without it;

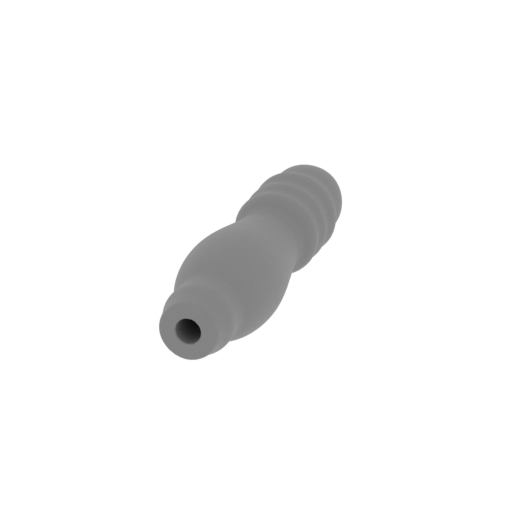

- Removable part of Trident in FDM version;

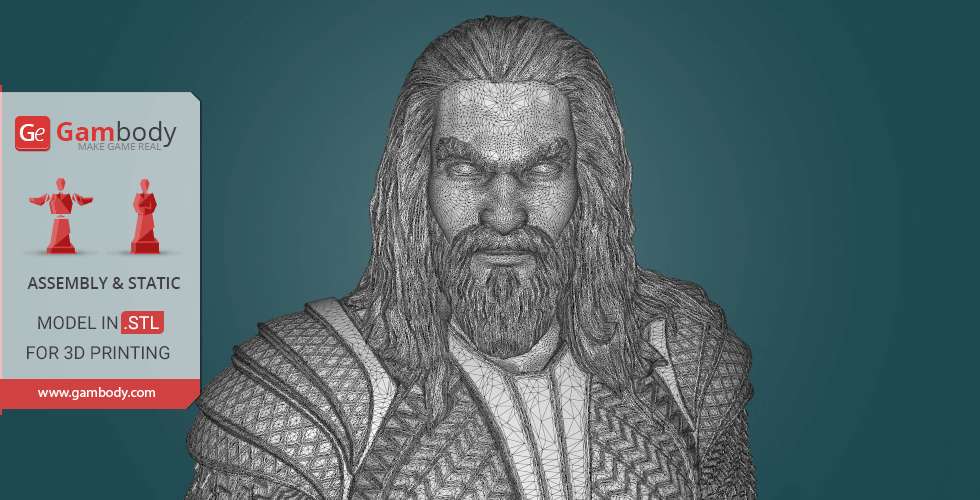

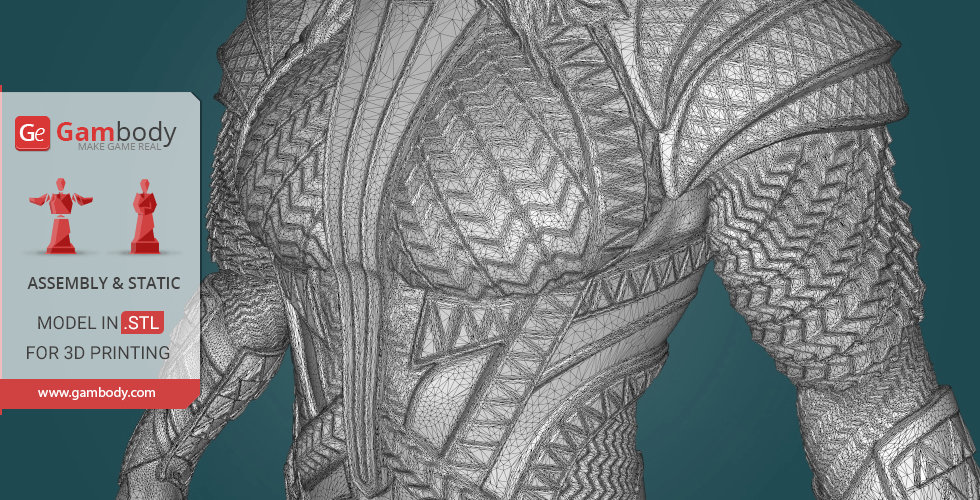

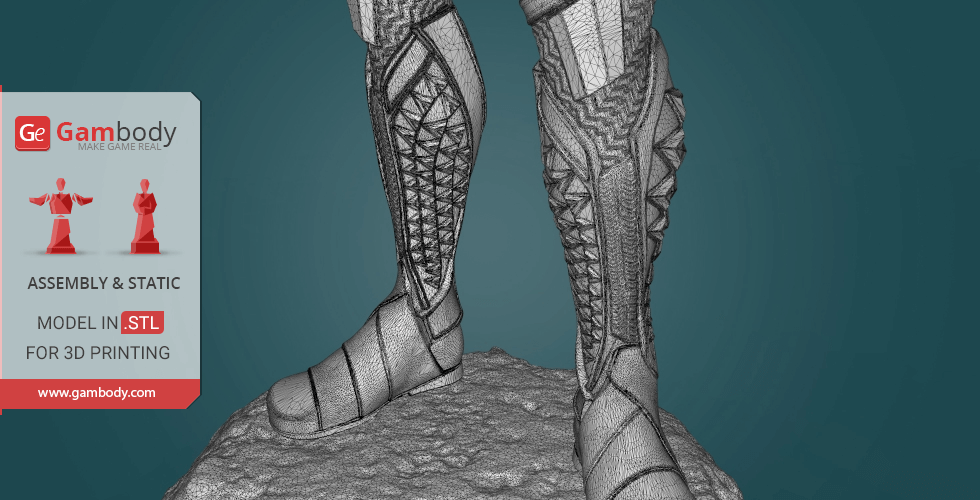

- High-poly detailed model of Aquaman;

- Detailed settings that we provide for Cura 3.0.4. for the best print;

- Full technical support from the Gambody Support Team.

Watch the tutorial video on how to assemble Aquaman 3D Printing Miniature at Gambody YouTube channel.

You can get Model of Aquaman for 3D Printing right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Also, you may like other DC Comics or Heroes 3D Miniatures.

_______
FAQ:
Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

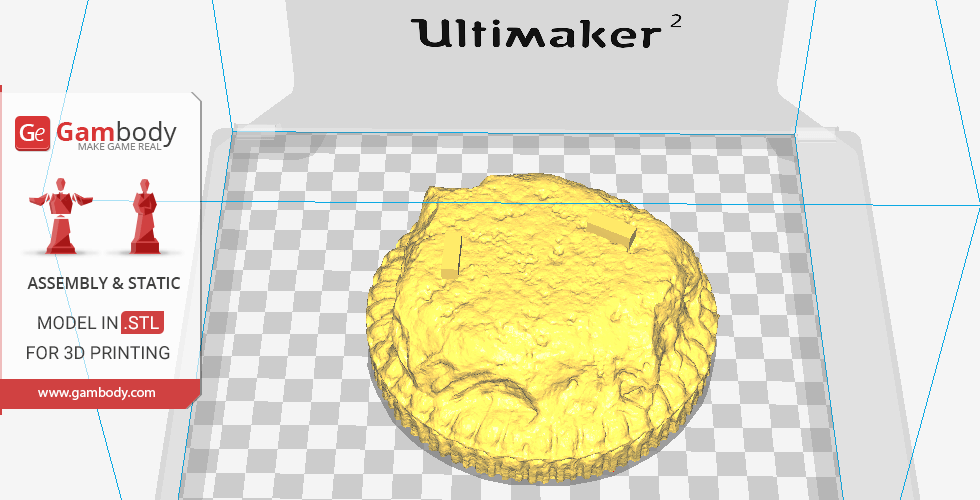

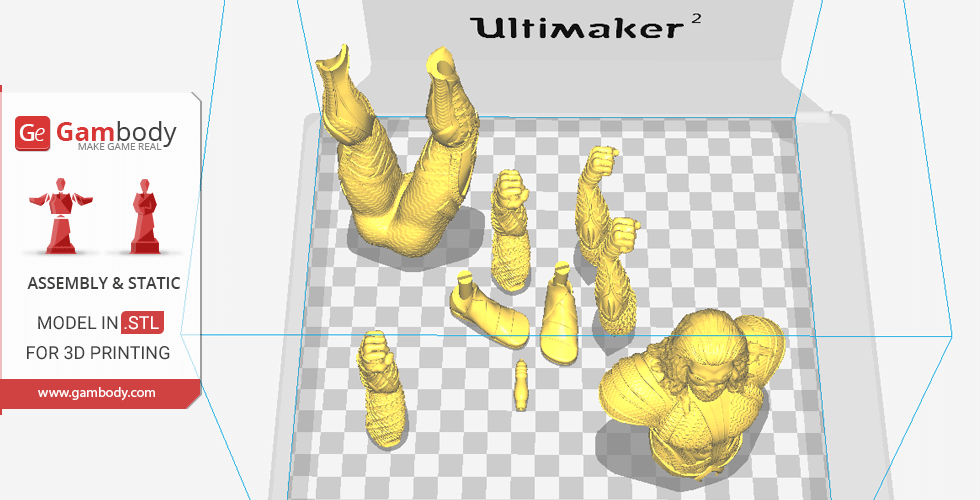

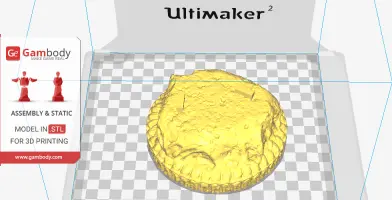

This model was tested in Cura 3.0.4. and printed on an Ultimaker 2 in PLA material.

Note: All parts of connectors should be printed at 100% infill. Trident should also be printed with 100% infill to make it solid.

To avoid printing problems, we recommend the following settings:

Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
Wall Line Width: 0.4 mm
   Outer Wall Line Width: 0.4 mm
   Inner Wall(s) Line Width: 0.4 mm
   Top/Bottom Line Width: 0.4 mm
   Infill Line Width: 0.4 mm
   Skirt/Brim Line Width: 0.4 mm
   Support Line Width: 0.4 mm
   Support Interface Line Width: 0.4 mm
   Support Roof Line Width: 0.4 mm
   Support Floor Line Width: 0.4
 Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Sharpest Corner
Ignore Small Z Gaps: Check
Extra Skin Wall Count: 1

Infill
Infill Density: 20% (all parts of the connectors should be printed at 100% infill)
Infill Line Distance: 4.0 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill Overlap Percentage: 10%
    Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Expand Distance: 0.8
    Top Skin Expand Distance: 0.8
    Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90˚
    Minimum Skin Width for Expansion: 0.0

Material
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed
Print Speed: 45 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 22.5 mm/s
      Outer Wall Speed: 22.5 mm/s
      Inner Wall Speed: 45 mm/s
    Top/Bottom Speed: 15 mm/s
    Support Speed: 45 mm/s
      Support Infill Speed: 45 mm/s
      Support Interface Speed: 30 mm/s
        Support Roof Speed: 30mm/s
        Support Floor Speed: 30 mm/s
Travel Speed: 80 mm/s
Initial Layer Speed: 15 mm/s

    Initial Layer Print Speed: 15 mm/s
    Initial Layer Travel Speed: 26.6667 mm/s
Skirt/Brim Speed: 15 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.625 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.3 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support
Enable Support: Check
Support Placement: Everywhere
Support Overhang Angle: 60°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 30 %
    Support Line Distance: 1.3333 mm
Support Z Distance: 0.3 mm
    Support Top Distance: 0.3 mm
    Support Bottom Distance: 0.3 mm
Support X/Y Distance: 0.7 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.2 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm

Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Brim
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 18
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

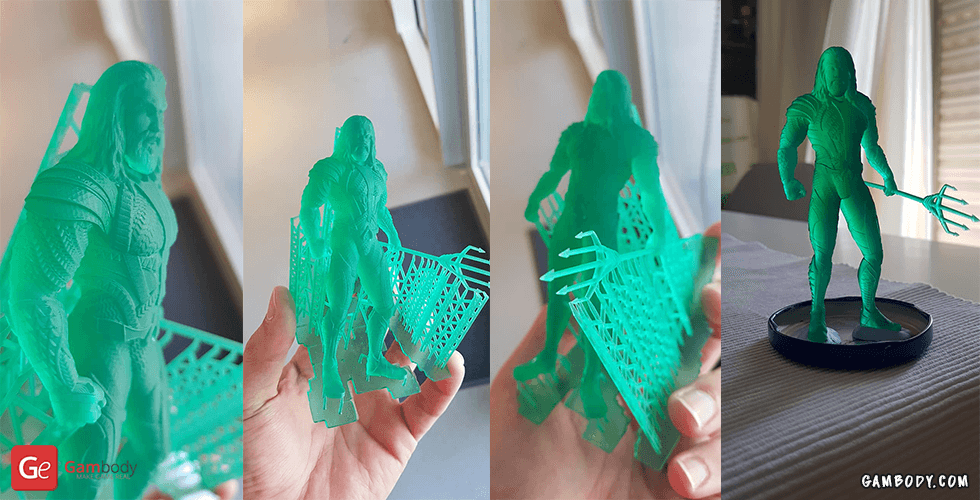

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
