Batman 3D Printing Miniature | Assembly

HISTORY OF THE BATMAN

Legendary hero and defender of Gotham City. Under the mask of the dark knight, the multi-billionaire Bruce Wayne is being the owner of the Wayne Enterprises company. His parents Thomas and Marta were killed right before his eyes. Bruce decided to fight crime and put on the mask of a Batman. Bruce Wayne is vowed to free the city from the evil that took the lives of his family. He spent his youth by traveling the world and improving himself intellectually and physically. He is studied various methods of combating crime: chemistry, criminology, martial arts, gymnastics, and secrecy. After the self-sacrifice of Superman, he regains faith in humanity. With the support of Wonder Woman to fight with a powerful opponent. They quickly recruit a team of superheroes to fight the awakened threat. Unique composition of the superheroes - Batman, Wonder Woman, Aquaman, Cyborg and Flash, they are going to save the planet from invasion. We present to you the unofficial leader of this powerful team of superheroes and defender of Gotham. Now you can purchase it and print it on your 3D printer.

ABOUT THIS 3D MODEL

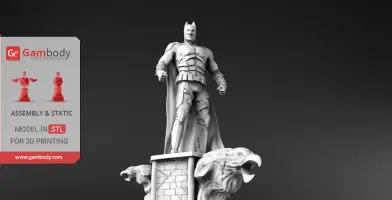

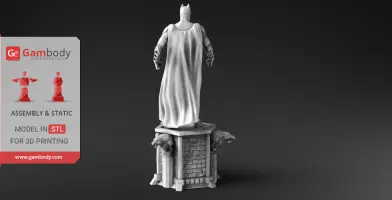

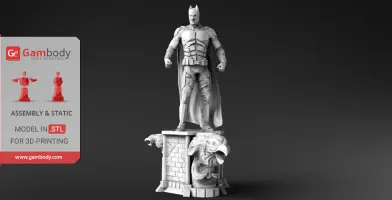

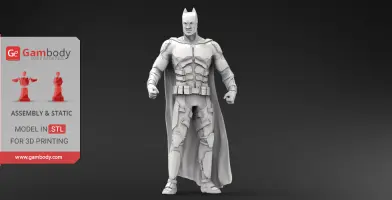

Batman 3D model for printing was created in ZBrush. The model is saved in STL files, a format supported by most 3D printers.

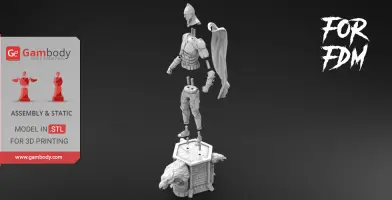

FDM version features:

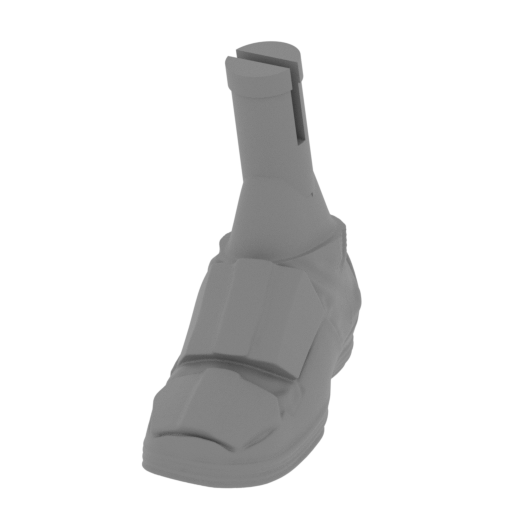

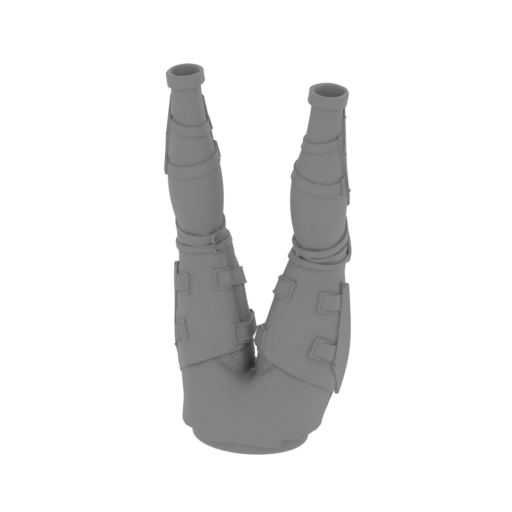

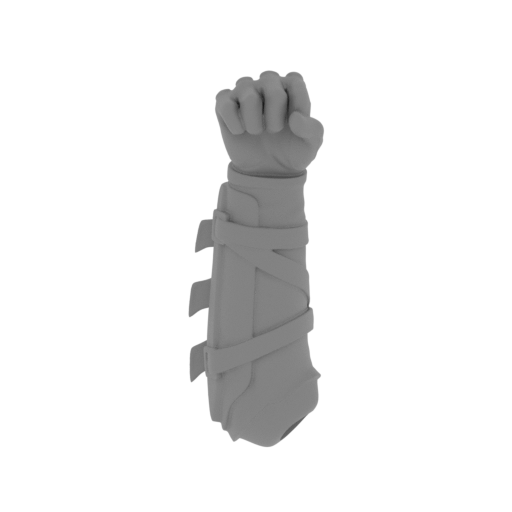

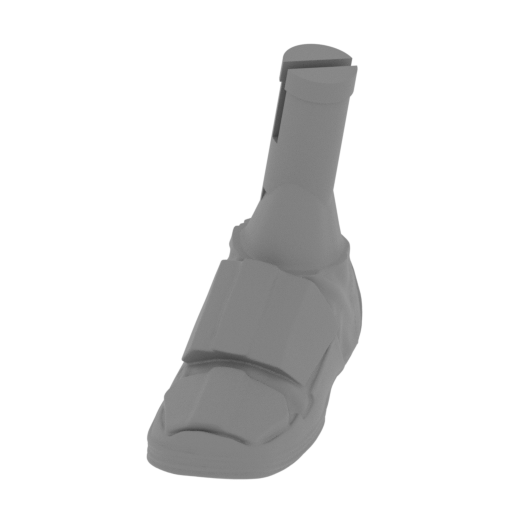

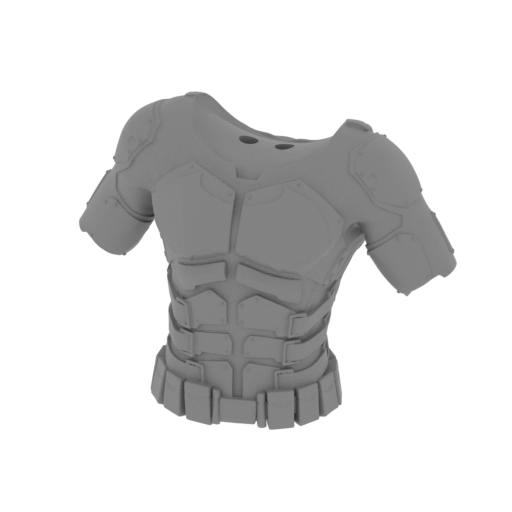

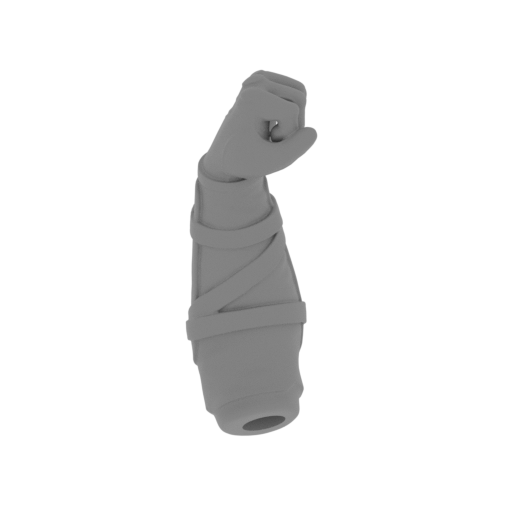

- Contain 17 parts;

- Made with connectors;

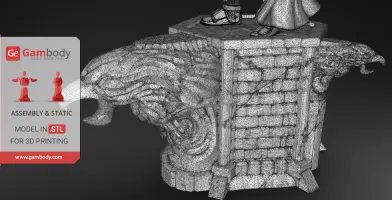

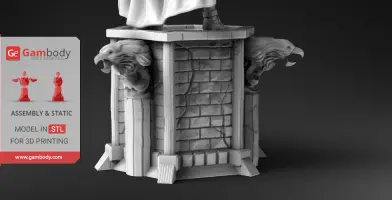

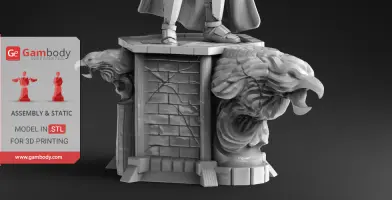

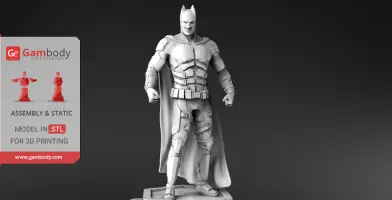

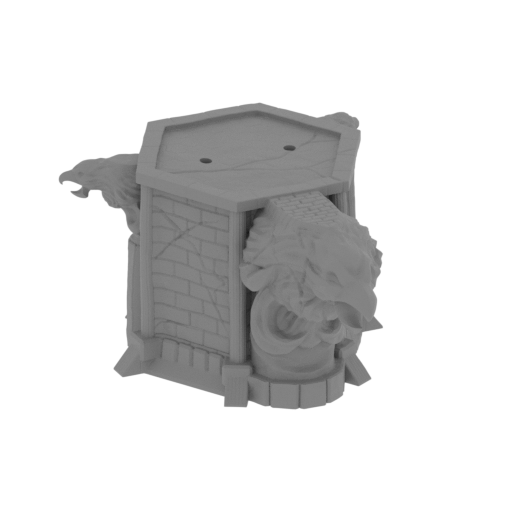

- Made with a platform in the form of a part of Chrysler Building;
- Can stand on the surface without a platform;

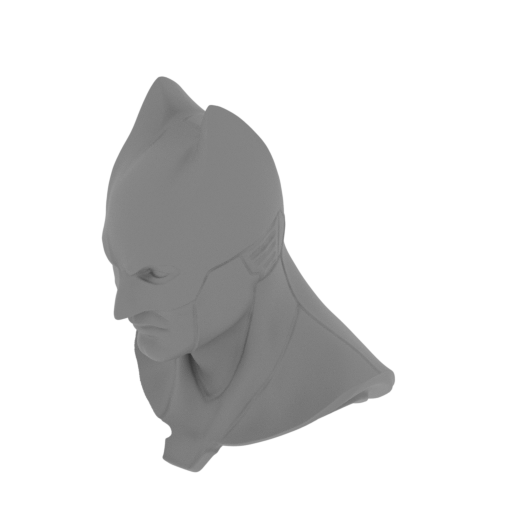

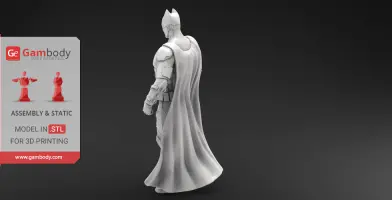

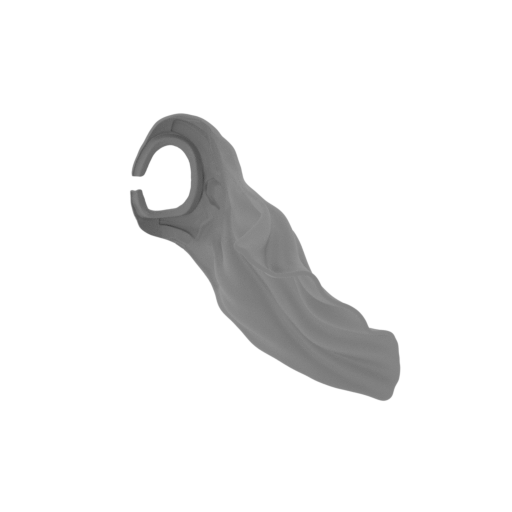

- Cloak is fixed by the head;
- You can print cloak with flexible materials;
- All parts are divided in such way that you will print them with the smallest amount of supports.

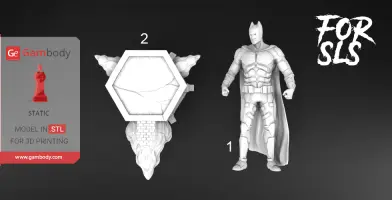

SLS/SLA version features:

- Same as FDM but smaller and made as 2 parts.

All .STL files for 3D printing have been checked in Netfabb and no errors were shown.

Note: Before starting 3D printing the model, read the Printing Details for CURA 3.0.4. Software.

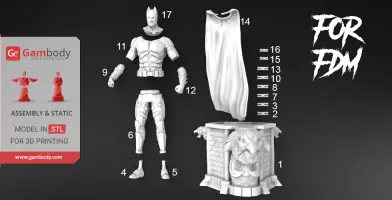

There are 17 parts for FFF/FDM version and 2 parts for SLS/SLA version.

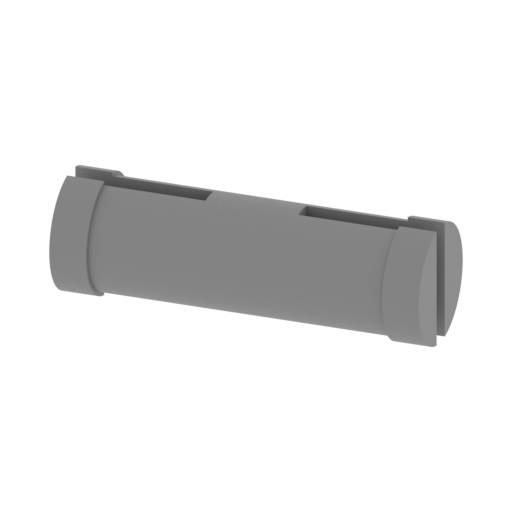

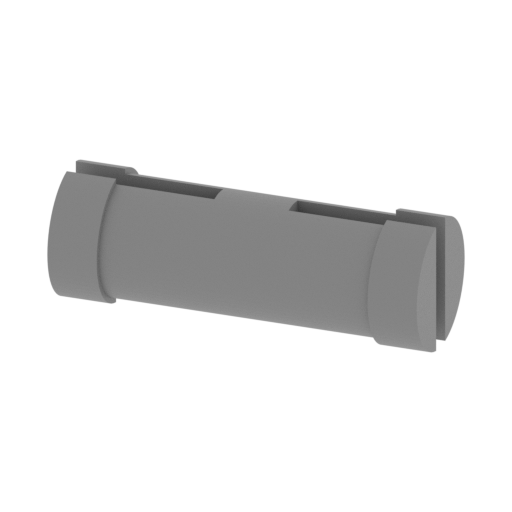

All parts of connectors should be printed at 100% infill.

Scale:
His tall in life is 1880. Model made as 1/8 scale in FDM version and 1/16 in SLS/SLA version.

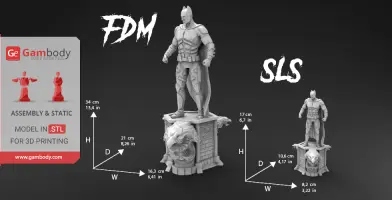

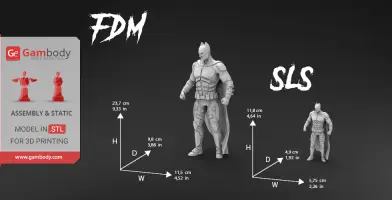

FDM version dimensions:

After being printed will stand:
340 mm tall, 163 mm wide, 210 mm deep - with platform;
237 mm tall, 115 mm wide, 98 mm deep - without platform;

- Connectors should be printed at 100% infill to make them solid.

SLS/SLA version dimensions:

After being printed will stand:
170 mm tall, 82 mm wide, 106 mm deep - with platform;
118 mm tall, 57.5 mm wide, 49 mm deep - without platform:

- Has only 2 details to keep printing costs down.

WHAT WILL YOU GET AFTER PURCHASE?

- .STL files of Batman for 3D printing which consist of 19 parts;
- 2 versions of files for this model for FFF/FDM and SLS/SLA;
- Removable platform;
- Removable model of cloak in FDM version, which you can print with flexible materials;

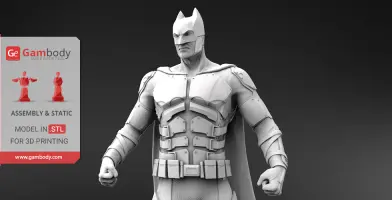

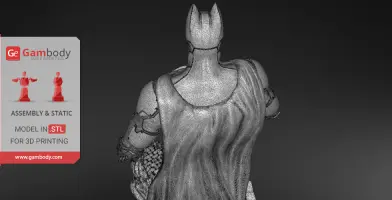

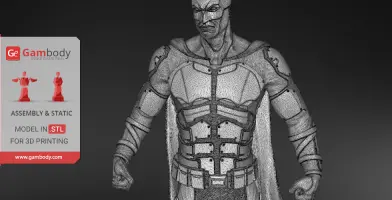

- High-poly detailed model of Batman;
- Made in scale 1/8 for FFF/FDM and 1/16 for SLS/SLA;
- Detailed settings that we provide for Cura 3.0.4. for the best print;
- Full technical support from the Gambody Support Team.

Watch the tutorial video on how to assemble Batman 3D Printing Miniature at Gambody YouTube channel.

You can get Model of Batman for 3D Printing right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Also, you may like other DC Comics or Heroes 3D Miniatures.

_______
FAQ:
Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

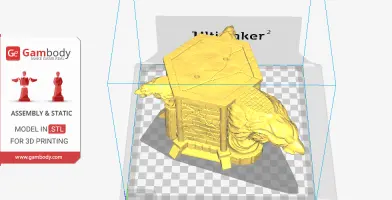

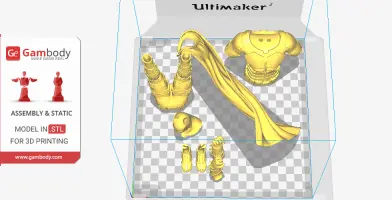

This model was tested in Cura 3.0.4. and printed on an Ultimaker 2 in PLA material.

Note: All parts of connectors should be printed at 100% infill.

Recommendations: For economy your material you can print platform with 8 mm “Support Line Distance” that you can find in "Support" category. After that, you should set check mark at "Enable Support Interface” in same category. You will see pop-up rows and set there value 3 mm at “Support Interface Thickness” and in "Support Interface Density" set value 33%. All other settings of "Support Interface" will set automatically, leave them by default.

To avoid printing problems, we recommend the following settings:

Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
Wall Line Width: 0.4 mm
   Outer Wall Line Width: 0.4 mm
   Inner Wall(s) Line Width: 0.4 mm
   Top/Bottom Line Width: 0.4 mm
   Infill Line Width: 0.4 mm
   Skirt/Brim Line Width: 0.4 mm
   Support Line Width: 0.4 mm
   Support Interface Line Width: 0.4 mm
   Support Roof Line Width: 0.4 mm
   Support Floor Line Width: 0.4
 Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Sharpest Corner
Ignore Small Z Gaps: Check
Extra Skin Wall Count: 1

Infill

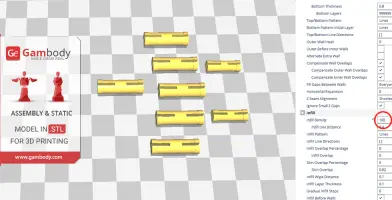

Infill Density: 20% (all parts of the connectors should be printed at 100% infill)
Infill Line Distance: 4.0 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill Overlap Percentage: 10%
    Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Expand Distance: 0.8
    Top Skin Expand Distance: 0.8
    Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90˚
    Minimum Skin Width for Expansion: 0.0

Material
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed
Print Speed: 45 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 22.5 mm/s
      Outer Wall Speed: 22.5 mm/s
      Inner Wall Speed: 45 mm/s
    Top/Bottom Speed: 15 mm/s
    Support Speed: 45 mm/s
      Support Infill Speed: 45 mm/s
      Support Interface Speed: 30 mm/s
        Support Roof Speed: 30mm/s
        Support Floor Speed: 30 mm/s
Travel Speed: 80 mm/s
Initial Layer Speed: 15 mm/s

    Initial Layer Print Speed: 15 mm/s
    Initial Layer Travel Speed: 26.6667 mm/s
Skirt/Brim Speed: 15 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.625 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.3 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support
Enable Support: Check
Support Placement: Everywhere
Support Overhang Angle: 60°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 30 %
    Support Line Distance: 1.3333 mm (8 mm for platform)
Support Z Distance: 0.3 mm
    Support Top Distance: 0.3 mm
    Support Bottom Distance: 0.3 mm
Support X/Y Distance: 0.7 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.2 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm

Enable Support interface: Check (only for platform)

Support Interface Thickness: 3mm (only for platform)

Support Interface Density: 33% (only for platform)

Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Brim
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 18
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

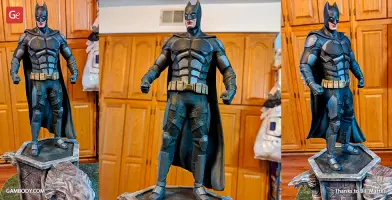

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
