Isaac Clarke 3D Printing Figurine | Assembly

Isaac Clarke 3D model, the main protagonist of the video game franchise, can now be replicated with the help of 3D printing.

The shooter video game shows the main character, a ship systems engineer, show his struggling overcoming dementia and taunting hallucination he inherited while being stranded on a space ship for a long period of time.

He follows in his father’s steps and obtains his education in electrical and mechanical engineering. He later is offered to attend a renowned engineering academy, which due to some family issues and shortage of money he cannot afford.

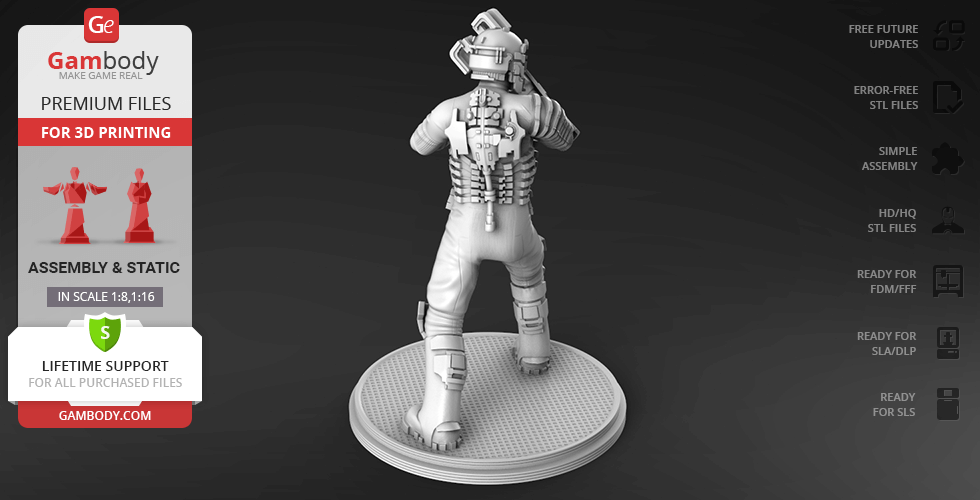

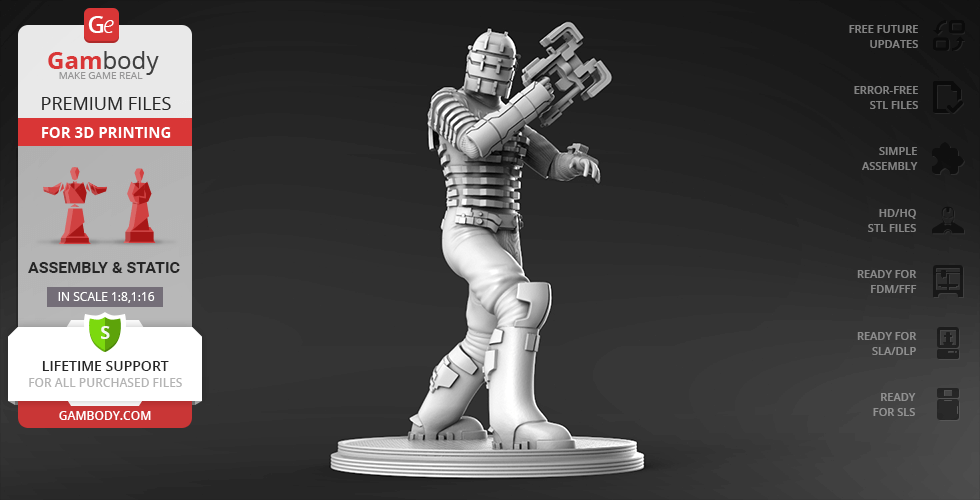

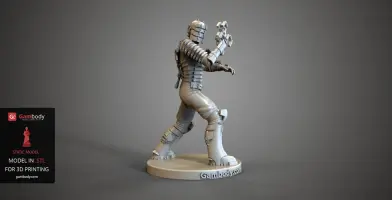

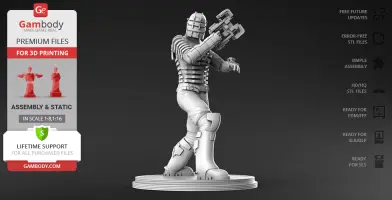

Isaac Clarke 3D model truly replicates the in-game character. The figurine is modeled in Autodesk Maya and converted into STL file format. The files are checked and corrected in Netfabb to ensure a seamless 3D printing experience.

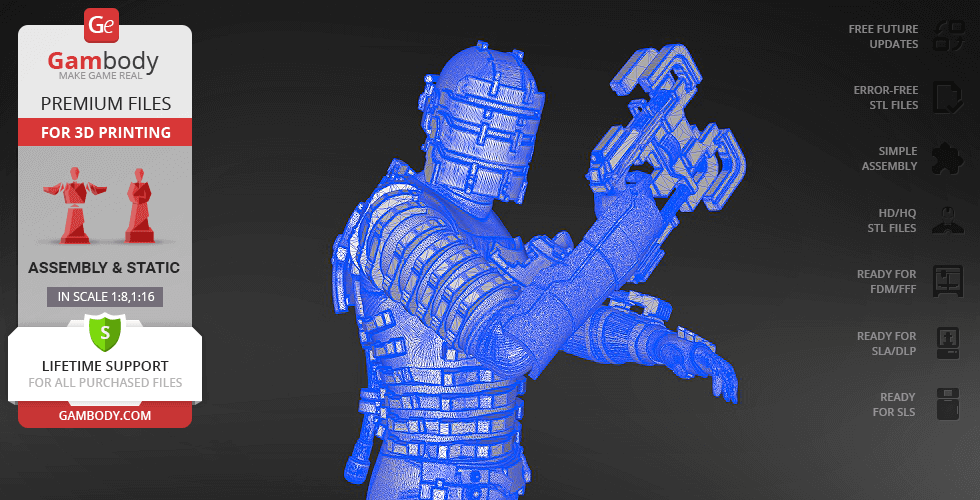

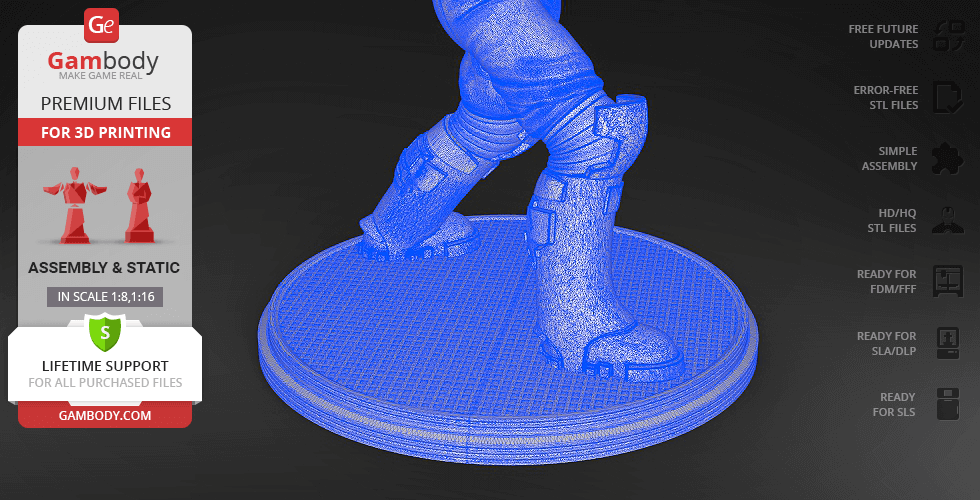

The video game 3D model print parts are made solid, to facilitate their handling in the 3D printing software and slicing program.

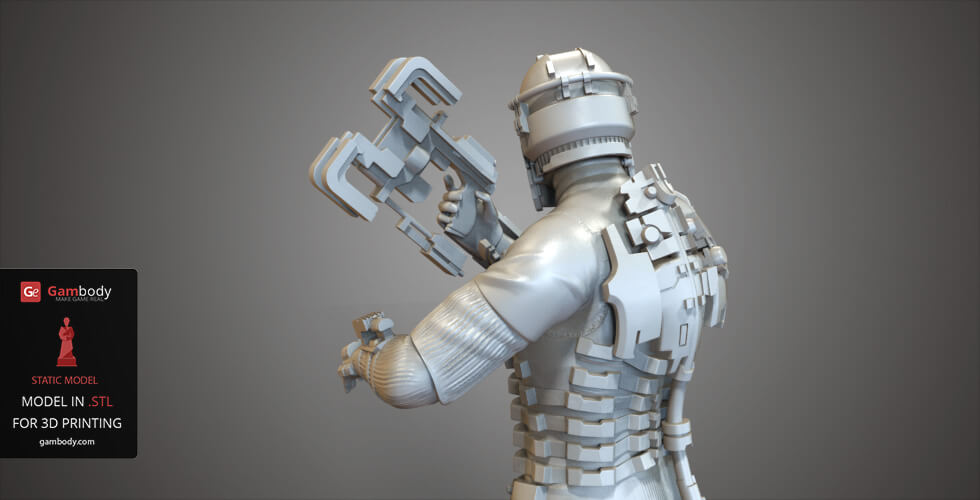

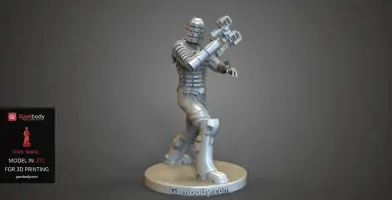

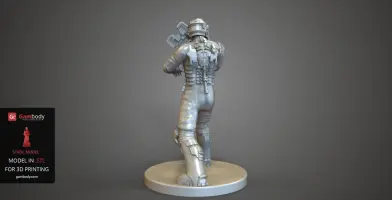

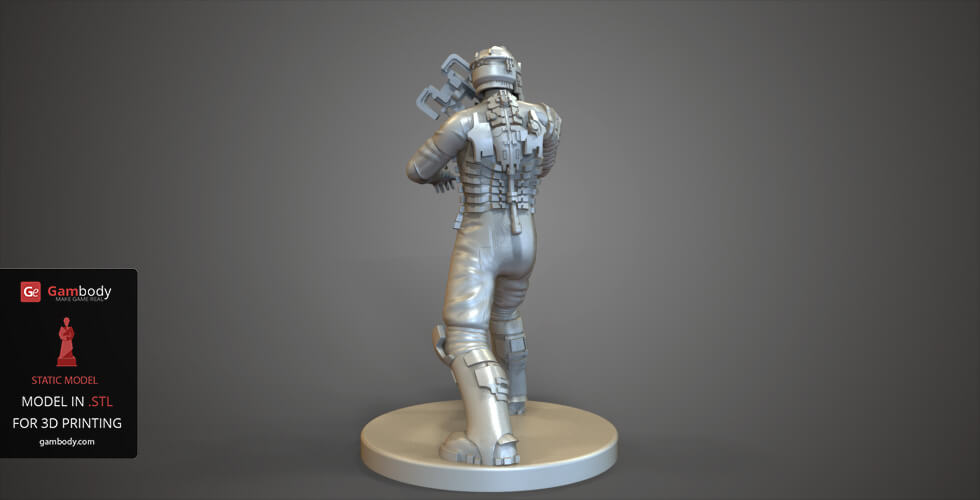

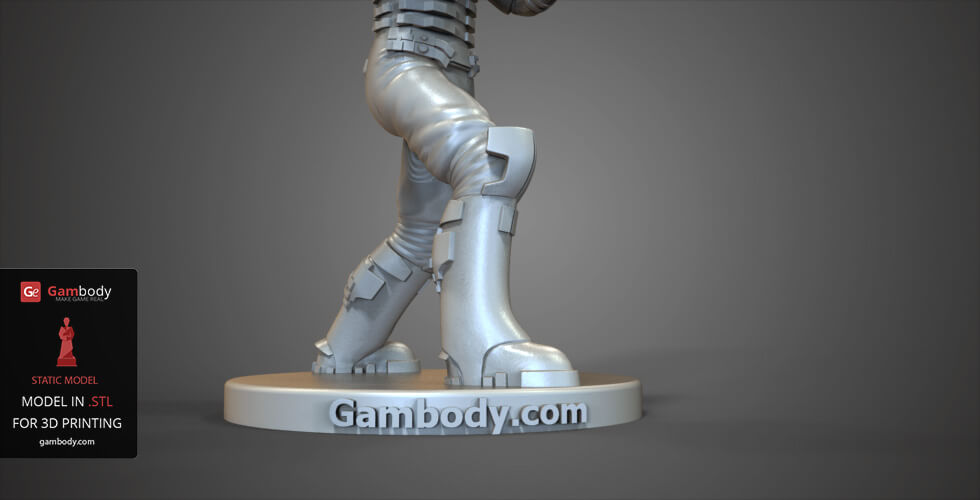

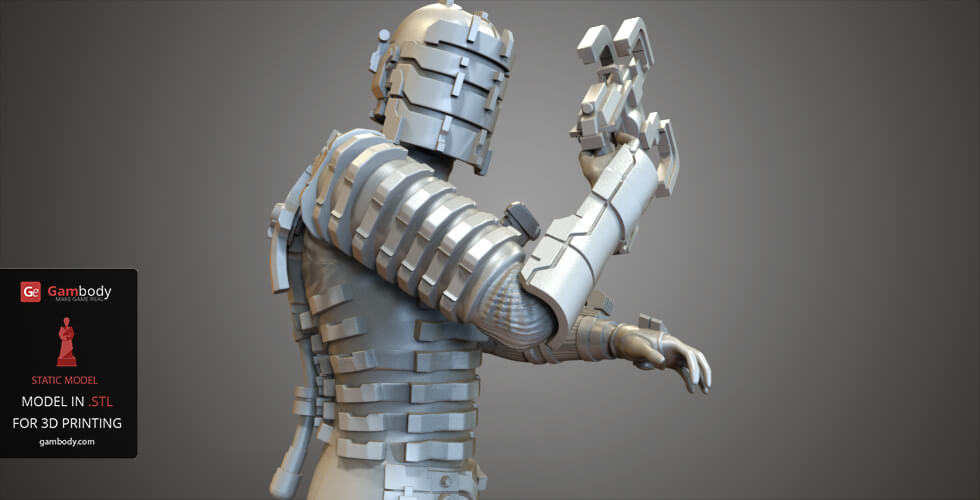

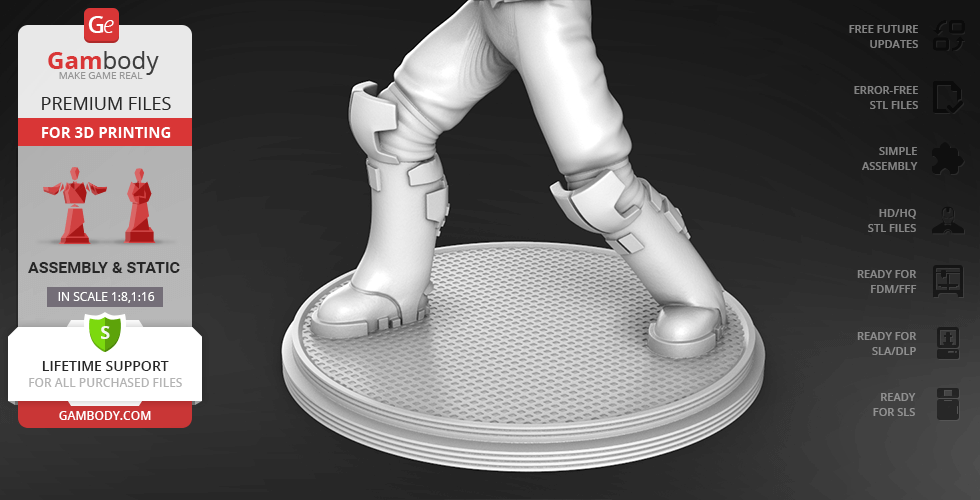

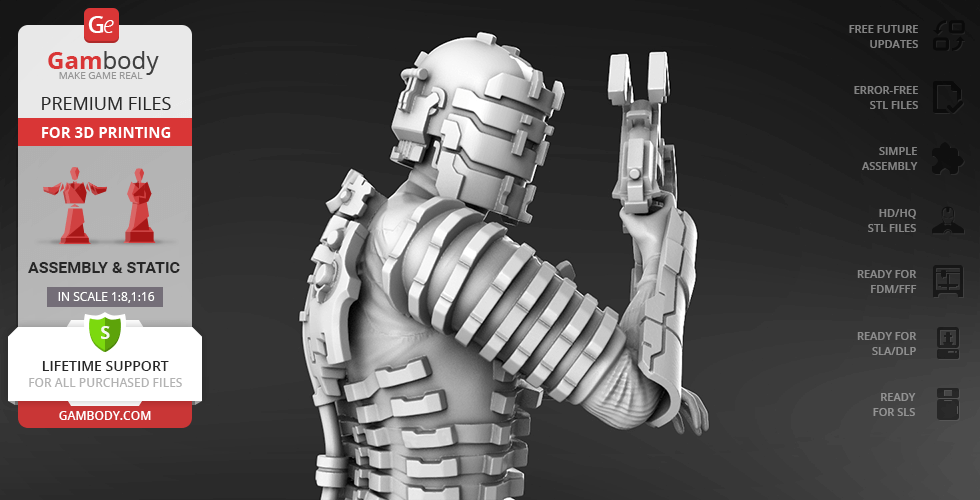

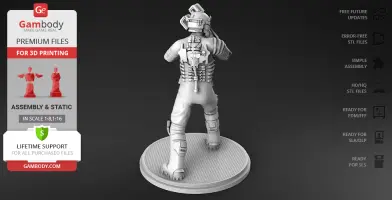

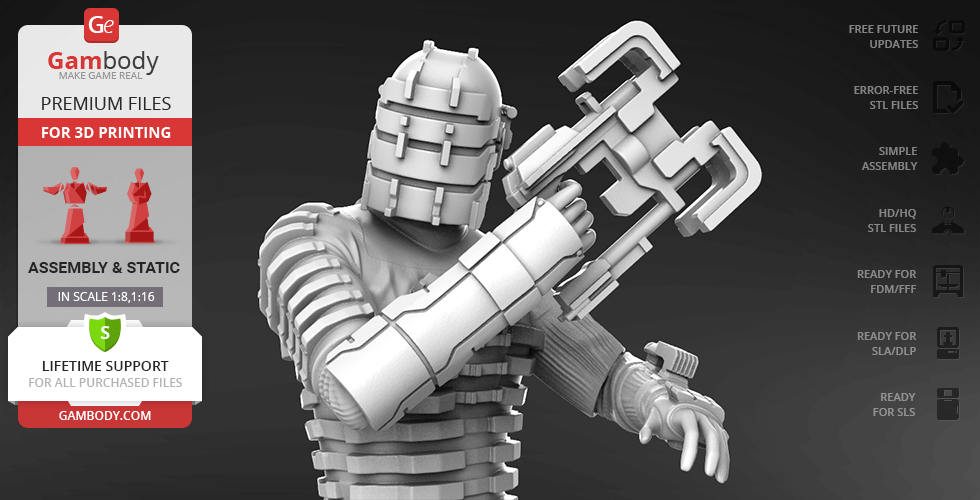

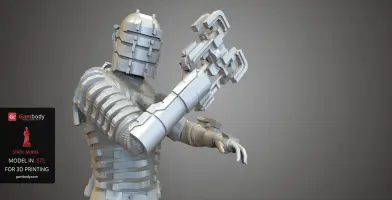

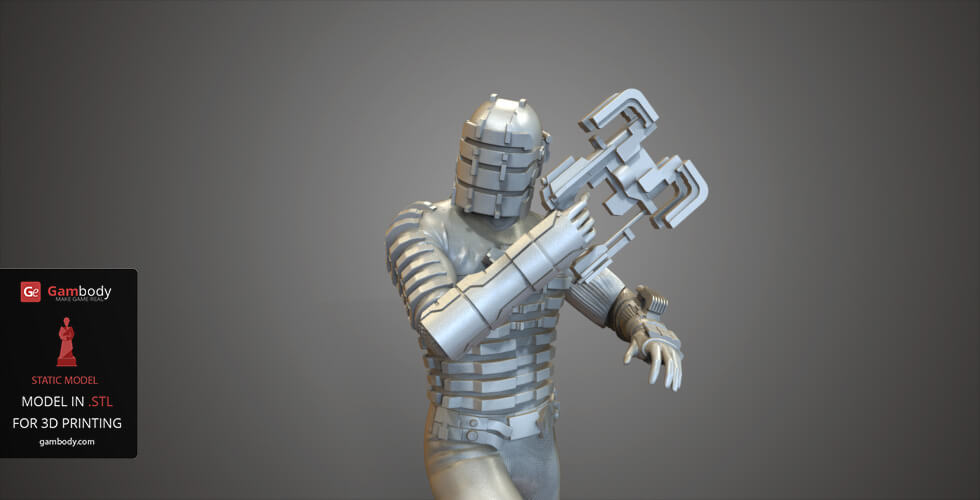

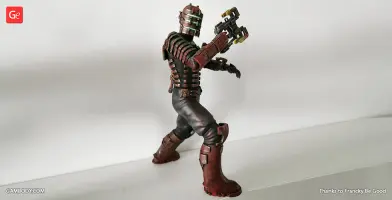

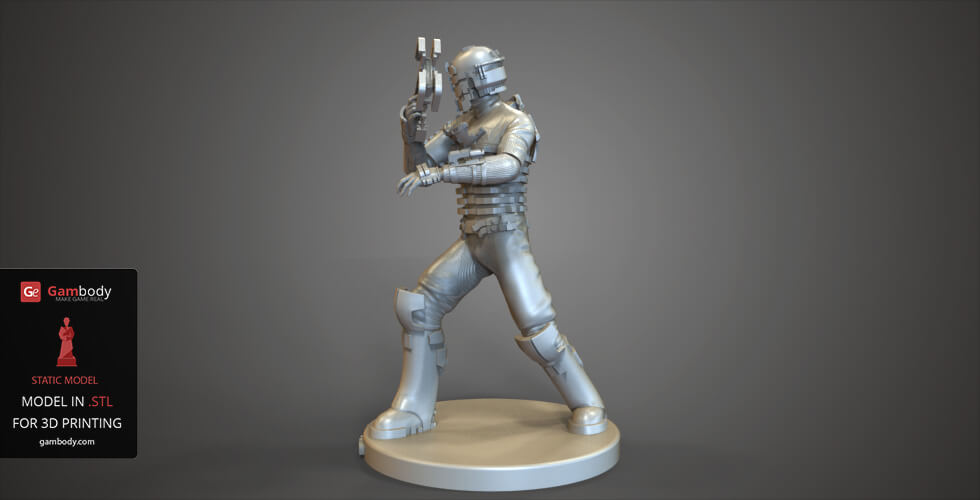

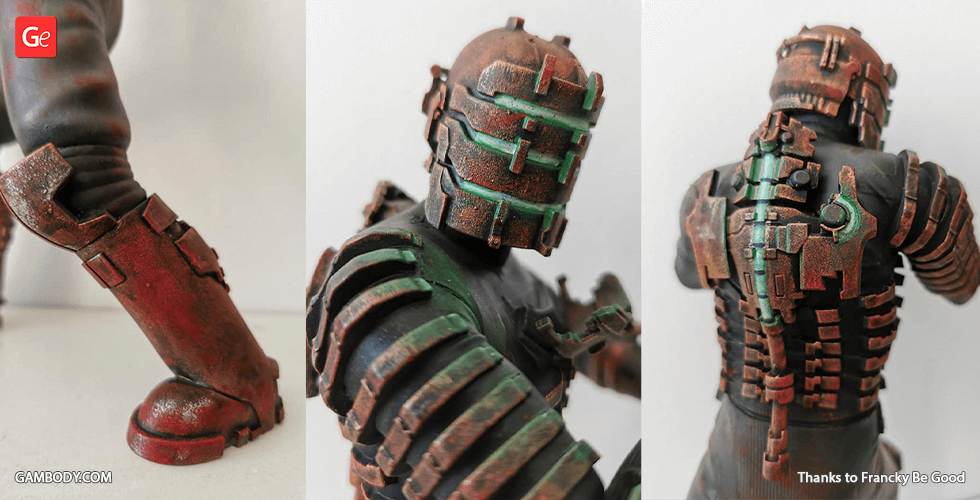

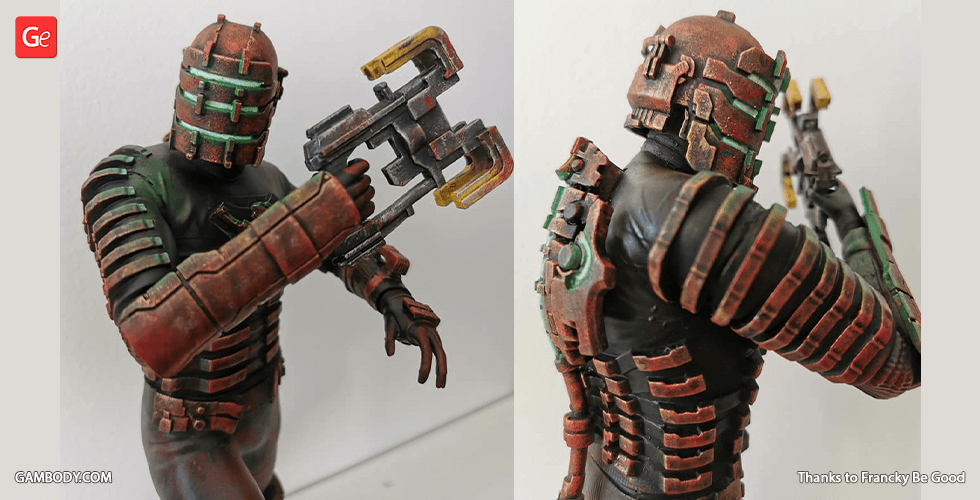

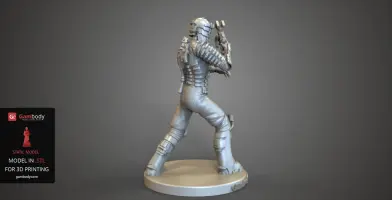

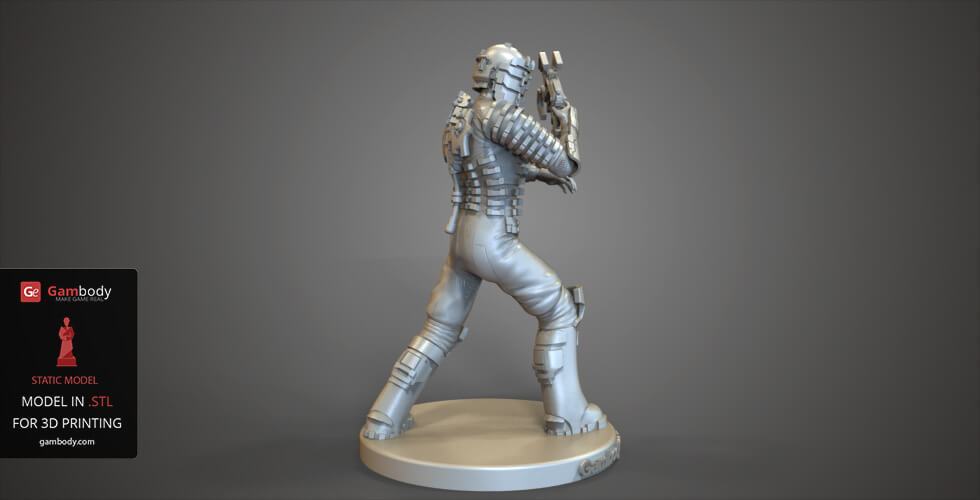

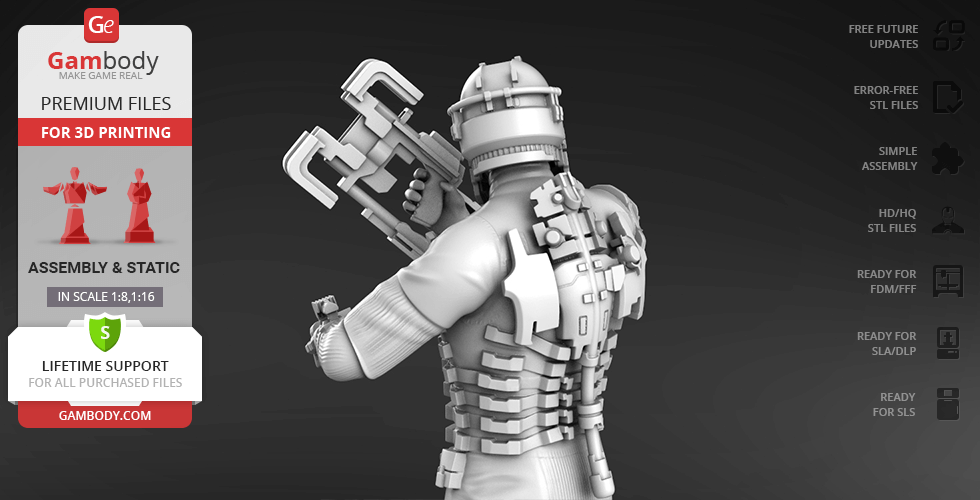

Fine and intricate details adorn the 3D model’s outer shell. The replica is shown in an attacking position, holding the plasma cutter.

There are 2 separate STL files to 3D print: one for the figurine and the other for the plasma cutter. The files are adapted to be printed on any type of 3D printer.

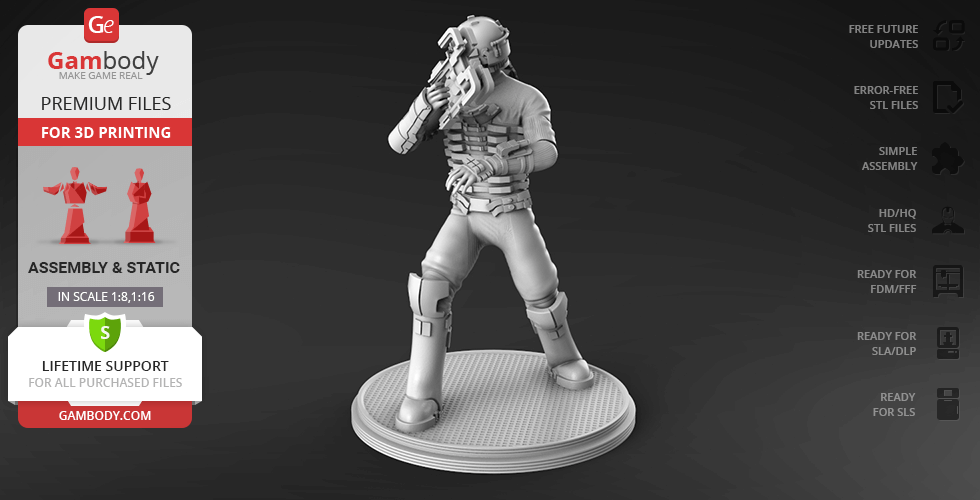

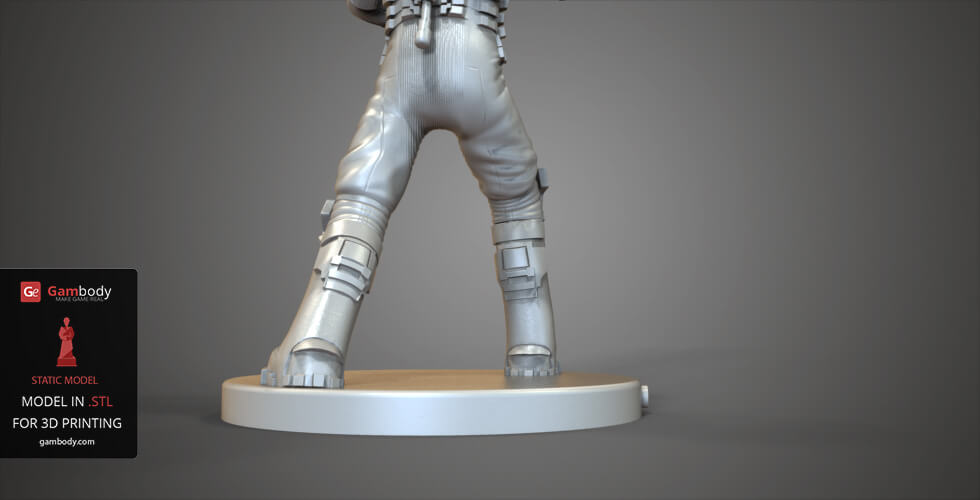

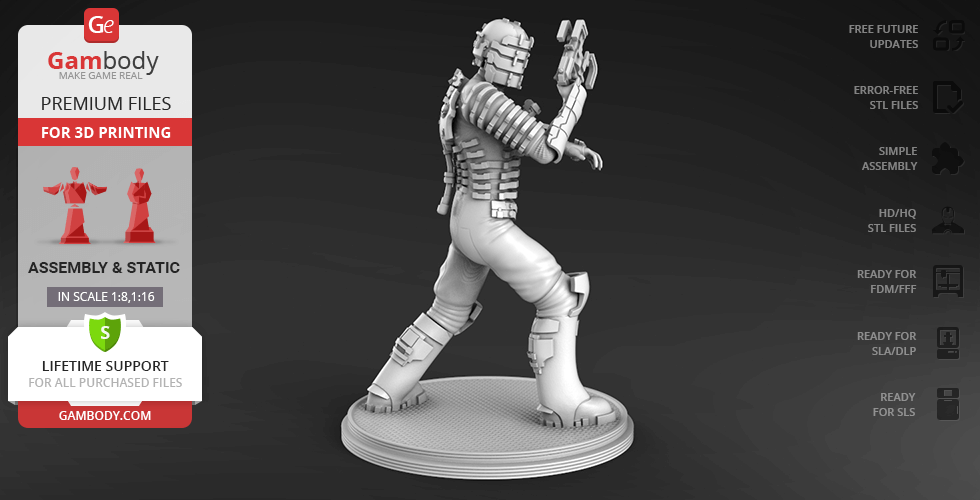

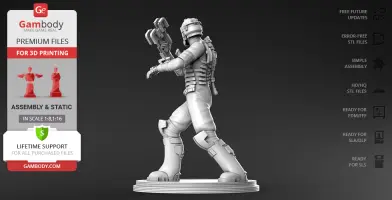

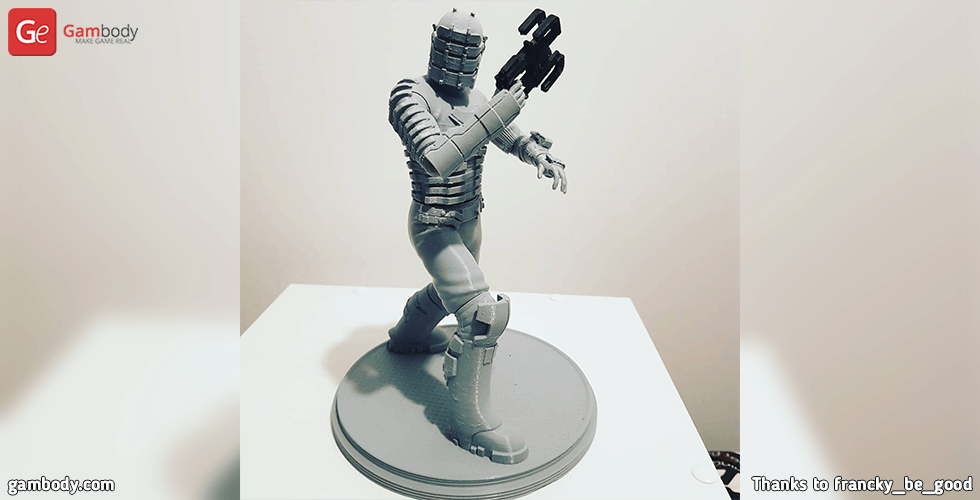

After being 3D printed, Isaac Clarke 3D model will stand 102 mm wide, 160 mm tall, and 103 mm deep. The figurine comes on a support base, to facilitate its display on the shelf or desk.

Add Isaac Clarke 3D model STL files in the shopping cart by clicking on the green Buy button in the top-right corner of the model’s page. Continue to checkout. Provide your PayPal or credit card details and download the files in a .zip folder. 3D print them on your home 3D printer.

__________________________________

02.08.2018 the model of Isaac Clarke was updated. Was added 3 new versions: FFF/FDM 2.0, DLP/SLA 1.0, and SLS 1.0. Now, this model is divided into several parts for optimum printing, new 1/8 scale for FFF/FDM 2.0 and 1/16 scale for DLP/SLA 1.0 and SLS 1.0 versions. Also, a new platform was added. You can find new versions in "Source files" tab.

ABOUT THIS 3D FIGURINE

New FFF/FDM 2.0 version features:

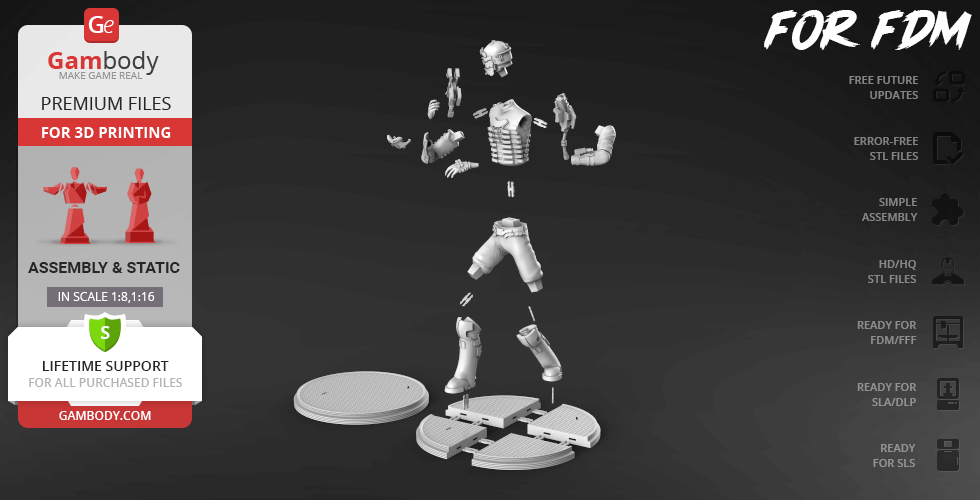

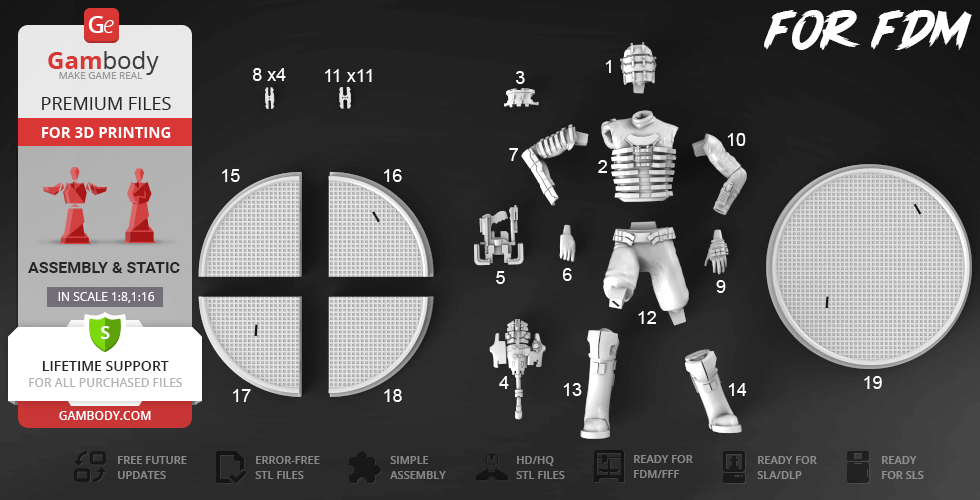

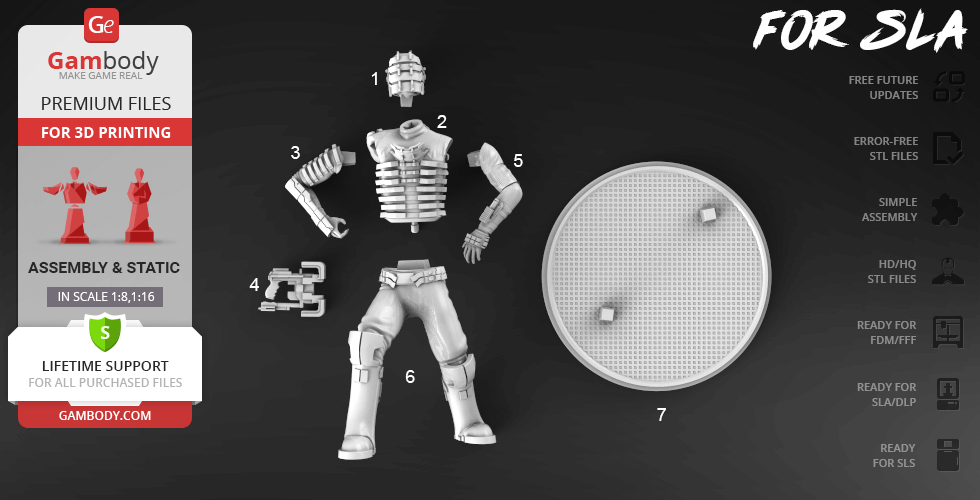

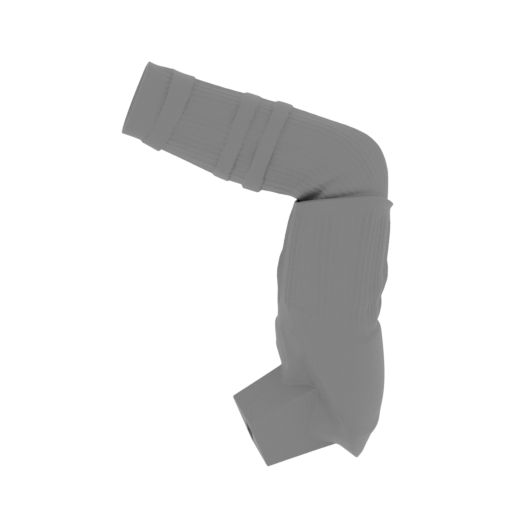

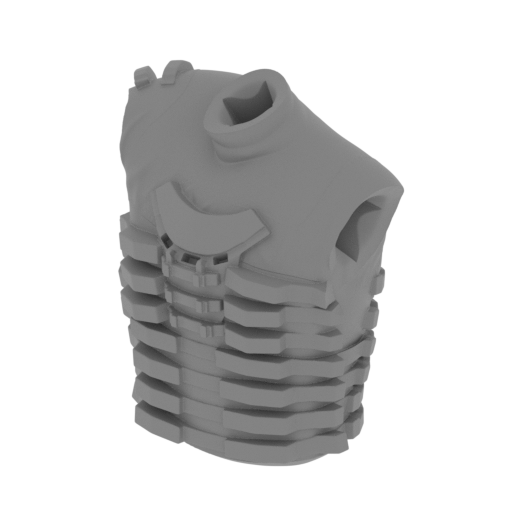

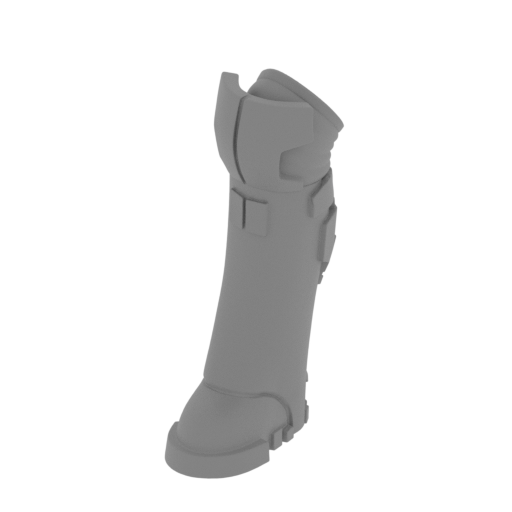

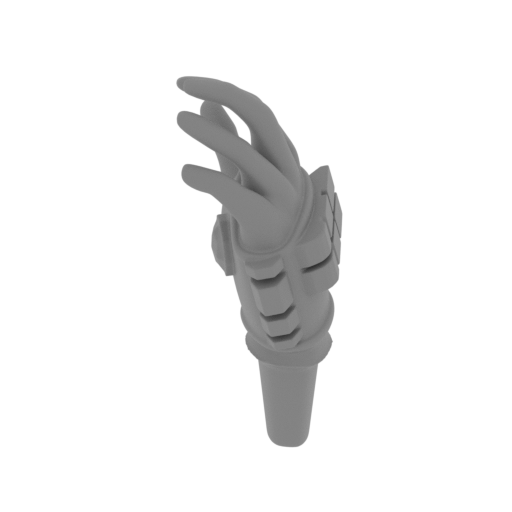

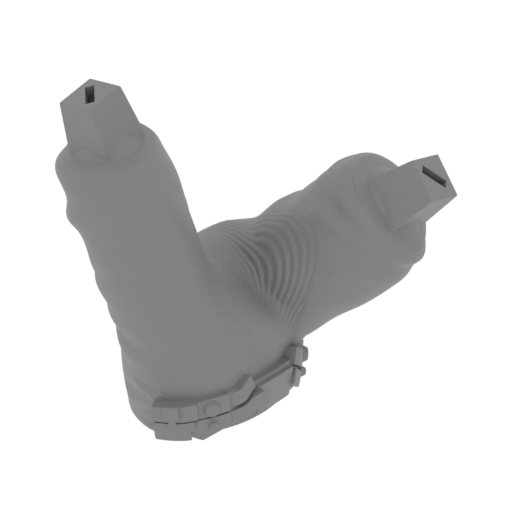

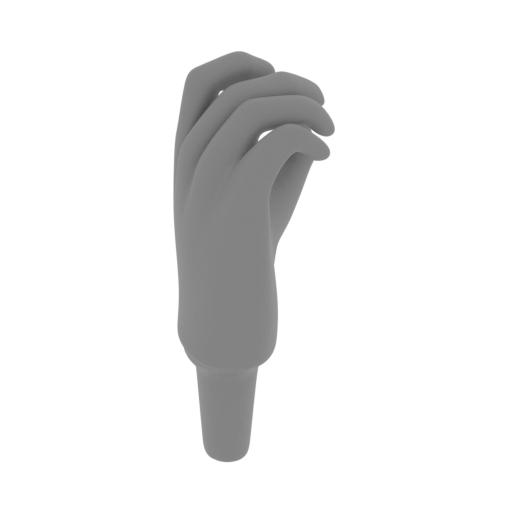

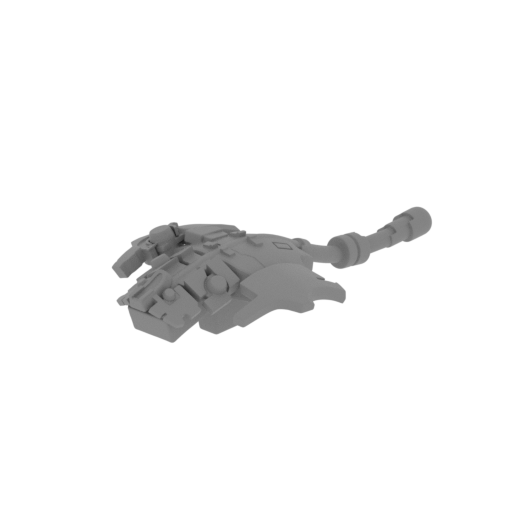

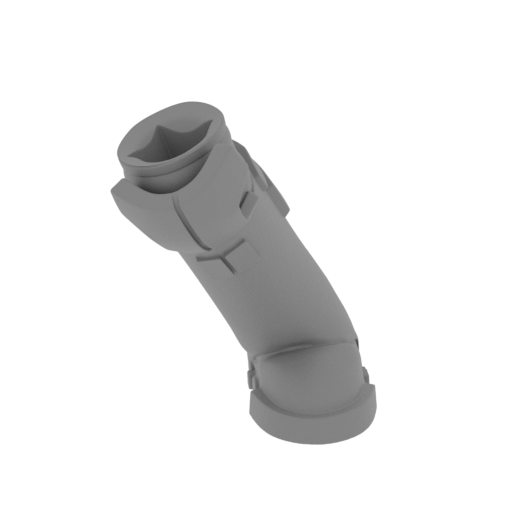

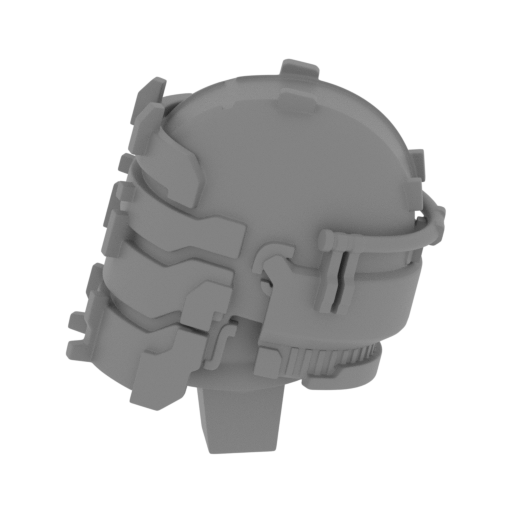

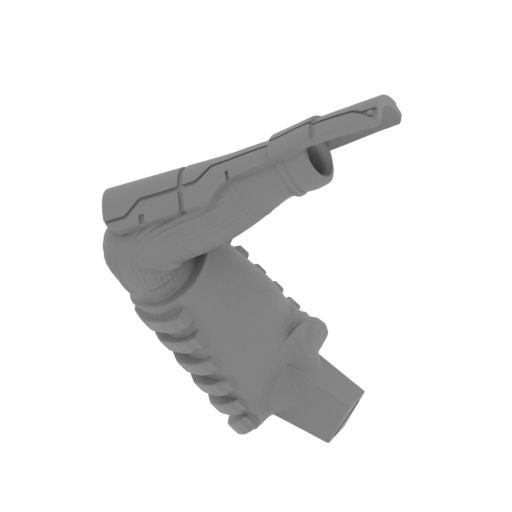

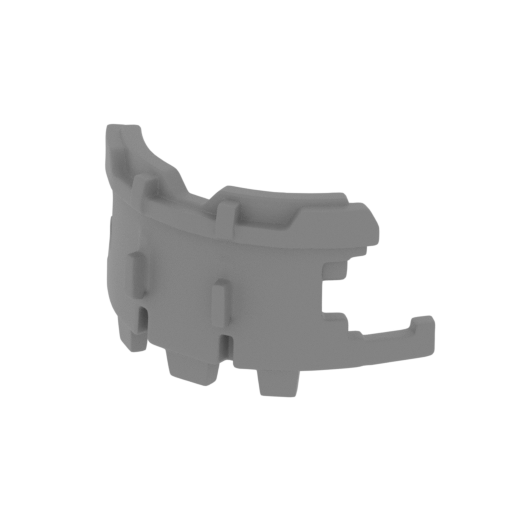

- Contain 19 parts;

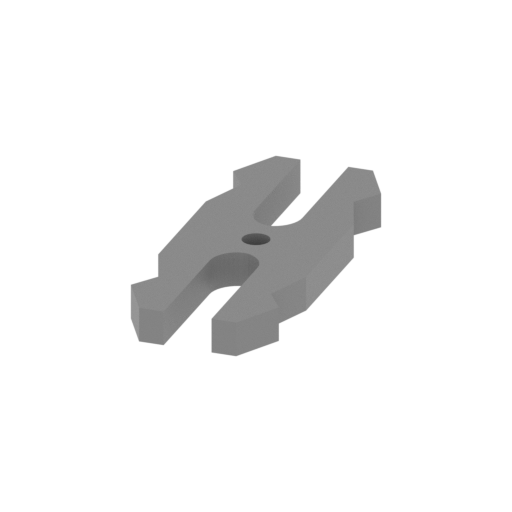

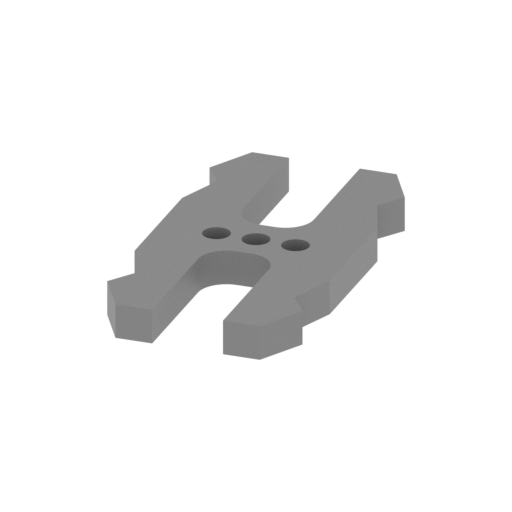

- Made with Locks. One part of Lock (8_Ge_lock_7S_(X4)) you need to print 4 times. One part of Lock (11_Ge_lock_10H_(X11)) you need to print 11 times;

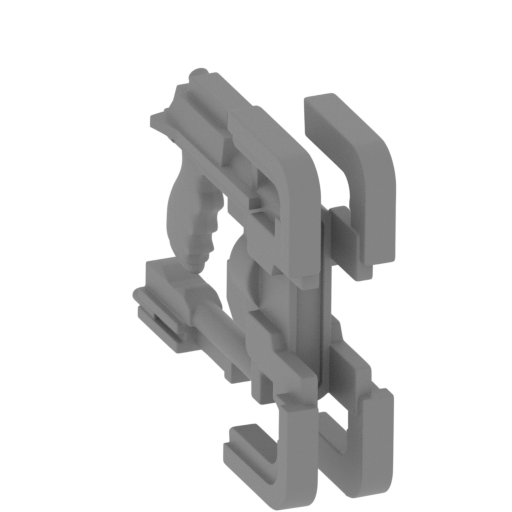

- Made with cgangable weapons;

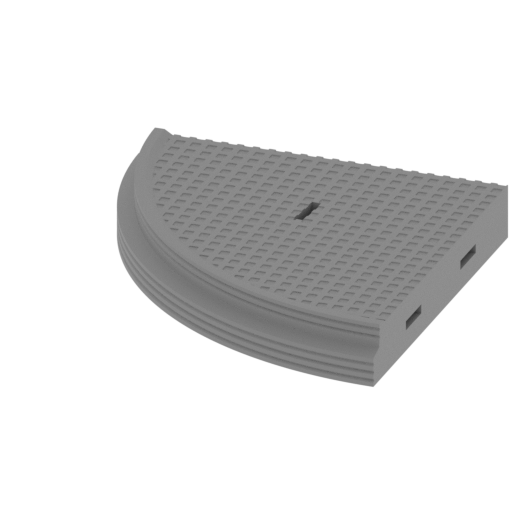

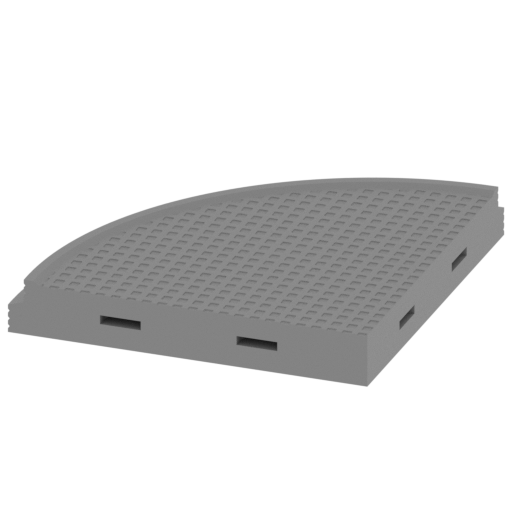

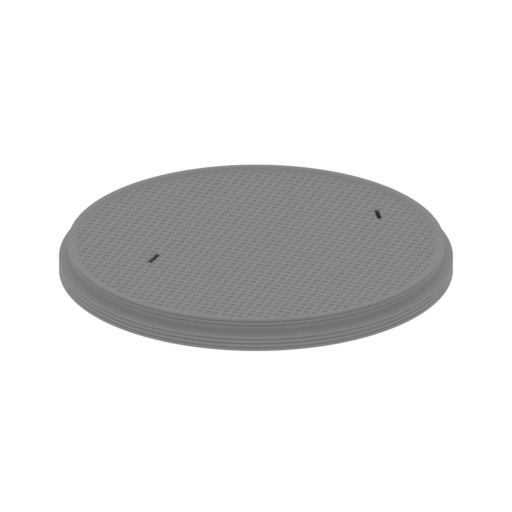

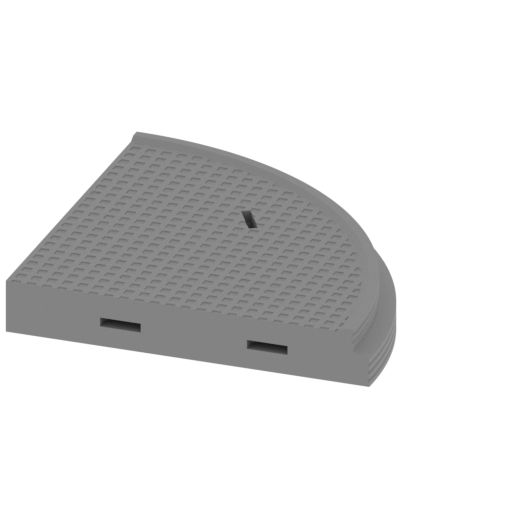

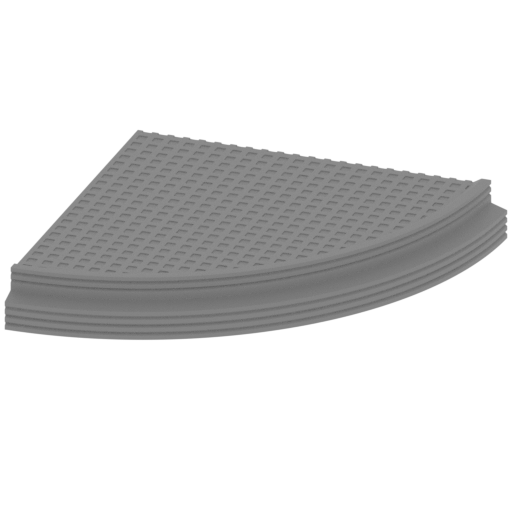

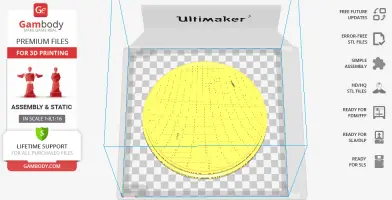

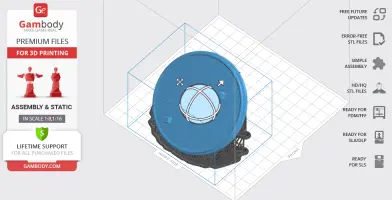

- Made with 2 variants of platform;

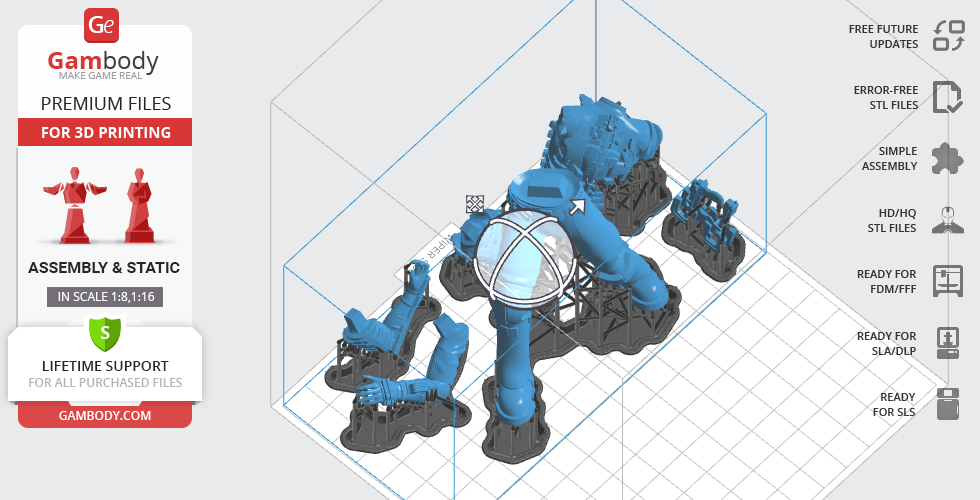

- All parts are divided in such way that you will print them with the smallest amount of supports.

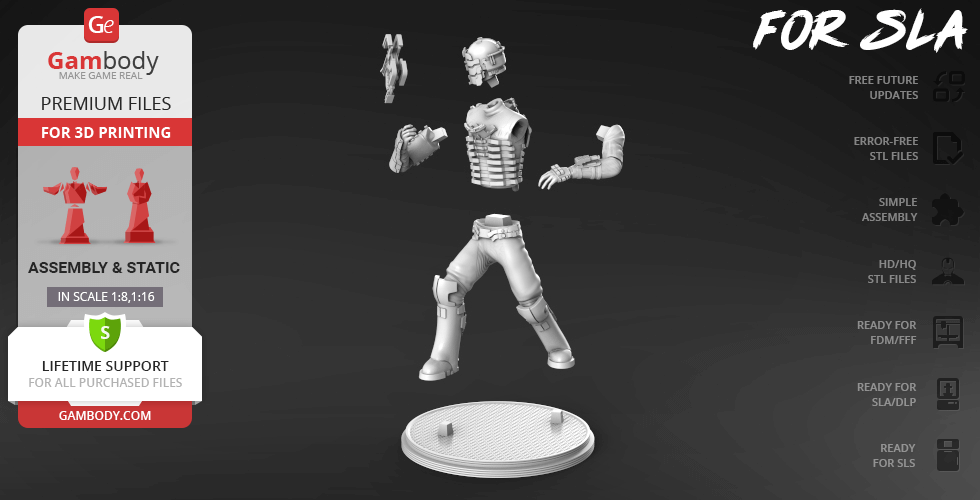

DLP/SLA 1.0 version features:
- Same as FDM but smaller, also made as 7 parts;

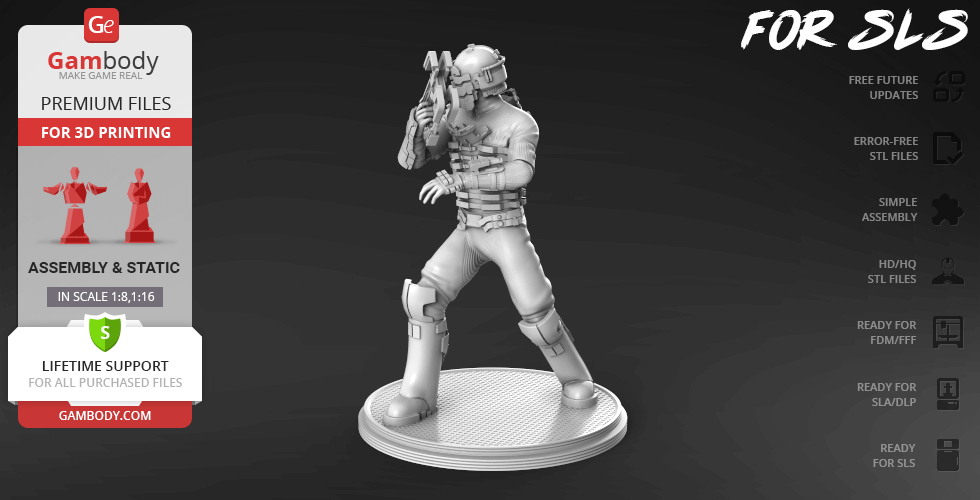

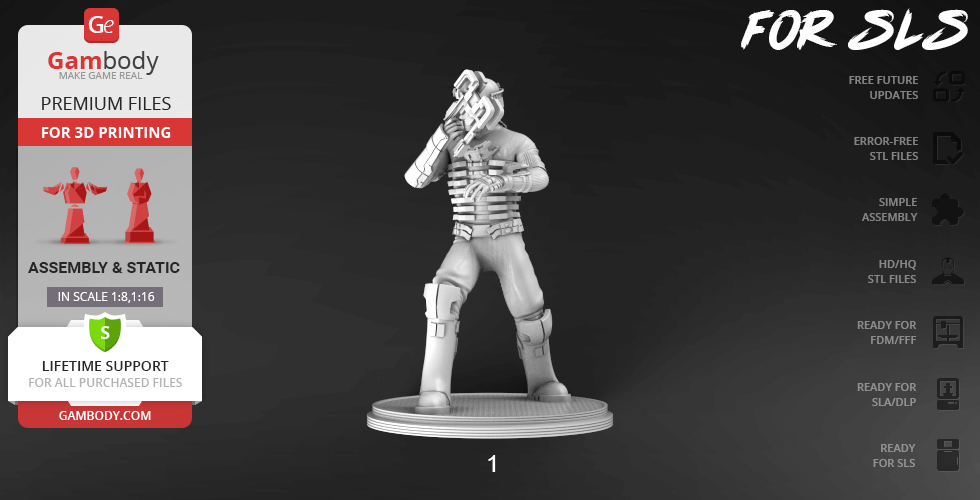

SLS version 1.0 features:
- Same as SLA but made as 1 part for economy your material;

Note: Before starting 3D printing the model, read the Printing Details for CURA 3.4.1. or Simplify3D Software.

Scale: Isaac Clarke height is 1859 mm. The scale of this model made in proportion to it. 1/8 for FFF/FDM 2.0 version and 1/16 for DLP/SLA 1.0 and SLS 1.0 versions.

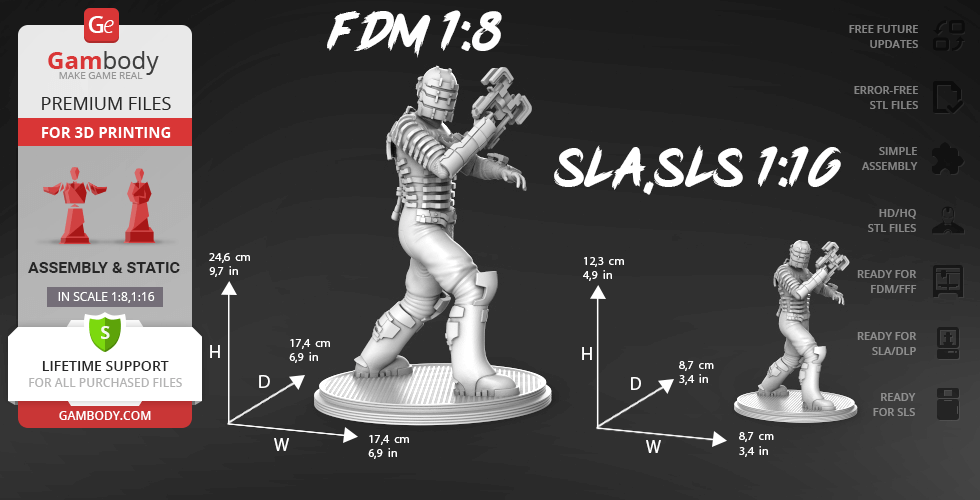

FFF/FDM 2.0 version dimensions:
After being printed will stand - 246 mm tall, 174 mm wide, 174 mm deep;

DLP/SLA 1.0 and SLS 1.0 version dimensions:
After being printed will stand - 123 mm tall, 87 mm wide, 87 mm deep;
- Has a few details, to keep printing costs down.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of Isaac Clarke​ 3D Figurine for 3D printing which consist of 27 parts;
- 4 versions of files for this model for FFF/FDM, DLP/SLA, and SLS;
- High-poly detailed figurine of Isaac Clarke​;
- Detailed settings that we provide for Cura 3.4.1. and Simplify3D for the best print;
- Full technical support from the Gambody Support Team.

You can get Model of Isaac Clarke​ for 3D Printing right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial video on how to assemble Isaac Clarke​ 3D Printing Figurine at Gambody YouTube channel.

Also, you may like other Heroes 3D Printing Figurines.

_______
FAQ:
Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?

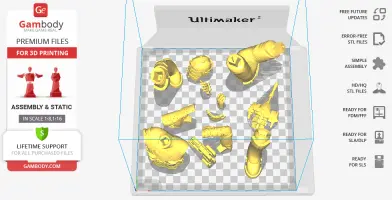

How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

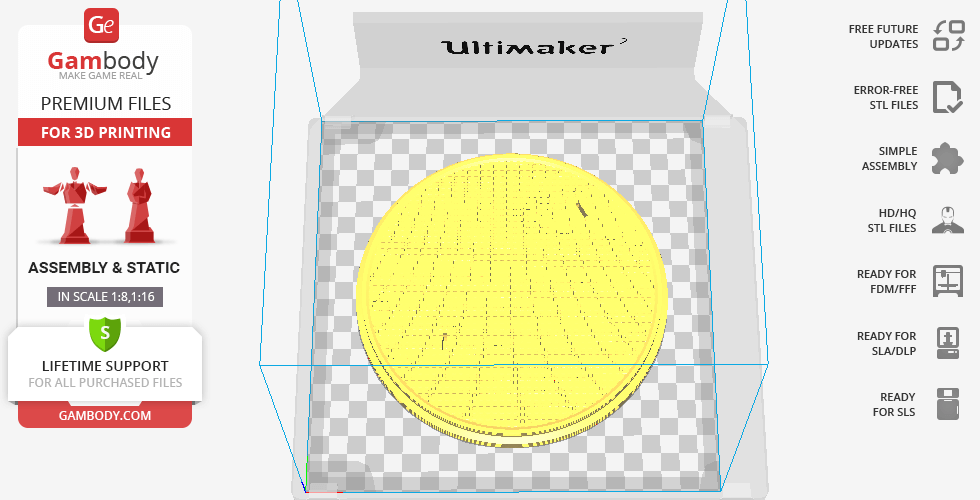

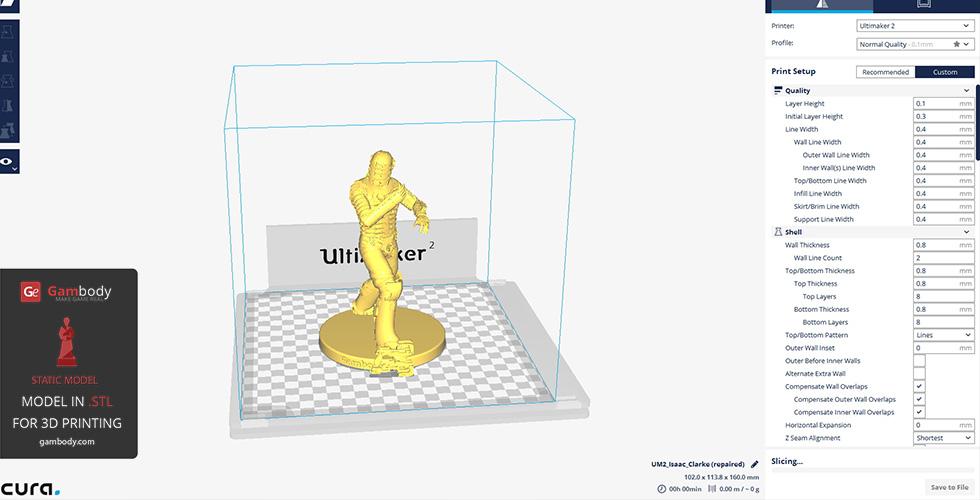

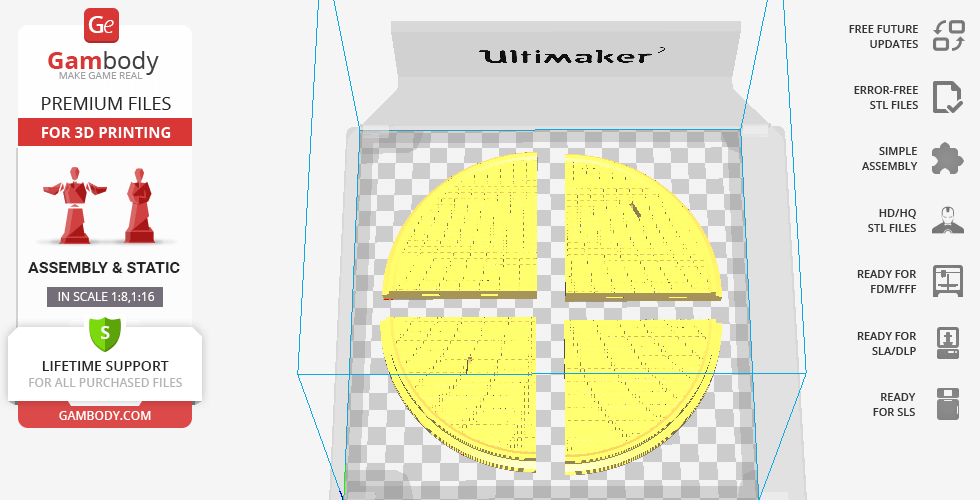

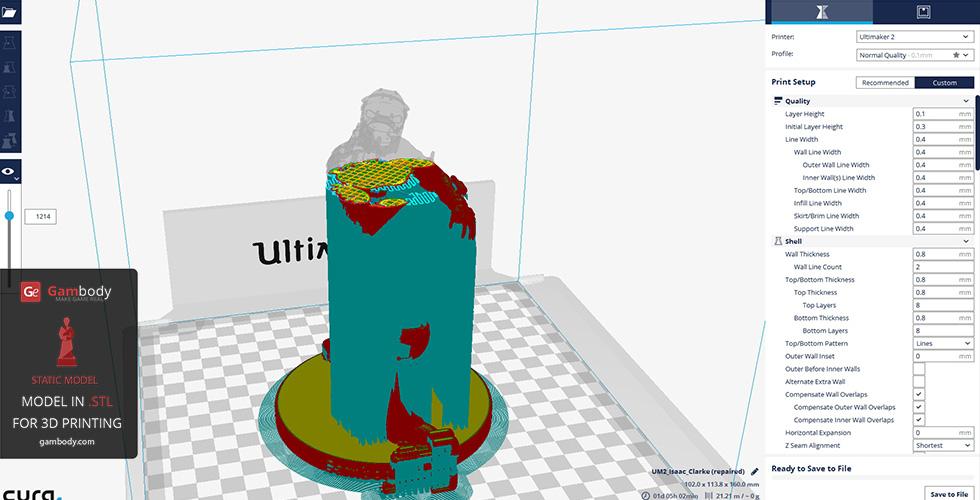

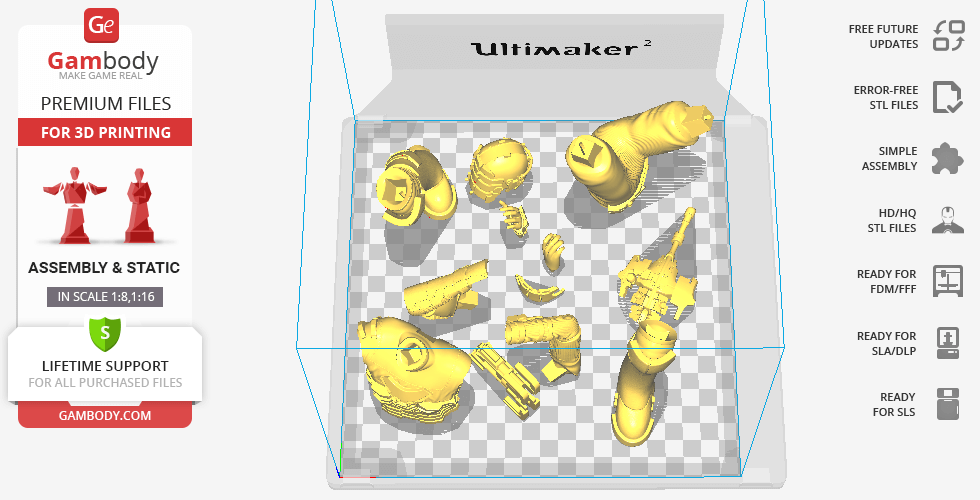

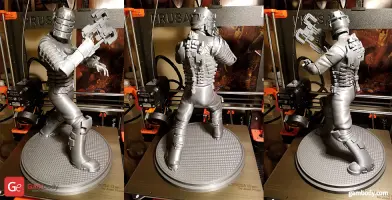

This model was tested in Cura 3.4.1 and printed on an Ultimaker 2 in PLA material. Below you can find printing recommendations for Cura and Simplify3D softwares.

Cura printing recommendations:

Recommendations: For all parts of Locks you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

To avoid printing problems, we recommend the following settings:

Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
 Wall Line Width: 0.4 mm
   Outer Wall Line Width: 0.4 mm
   Inner Wall(s) Line Width: 0.4 mm
 Top/Bottom Line Width: 0.4 mm
 Infill Line Width: 0.4 mm
 Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm
 Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
    Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Sharpest Corner
Seam Corner Preference: Hide Seam
Ignore Small Z Gaps: Check
Extra Skin Wall Count: 1

Infill
Infill Density: 20%
Infill Line Distance: 4.0 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Overlap Percentage: 10%
    Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 1
Gradual Infill Steps Height: 1.5 mm
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Removal Width: 0.8 mm
    Top Skin Removal Width: 0.8 mm
    Bottom Skin Removal Width: 0.8 mm
Skin Expand Distance: 0.8
    Top Skin Expand Distance: 0.8
    Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90˚
    Minimum Skin Width for Expansion: 0.0

Material
Initial Layer Flow: 100%
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed
Print Speed: 45 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 22.5 mm/s
      Outer Wall Speed: 22.5 mm/s
      Inner Wall Speed: 45 mm/s
    Top/Bottom Speed: 15 mm/s
    Support Speed: 45 mm/s
     Support Infill Speed: 45 mm/s
Travel Speed: 60 mm/s
Initial Layer Speed: 22.5 mm/s
  Initial Layer Print Speed: 22.5 mm/s
  Initial Layer Travel Speed: 30 mm/s
Skirt/Brim Speed: 30 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.6562 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.3 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Placement: Everywhere
Support Overhang Angle: 50°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 1.3333 mm
Support Z Distance: 0.3 mm
    Support Top Distance: 0.3 mm
    Support Bottom Distance: 0.3 mm
Support X/Y Distance: 1 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.25 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Gradual Support Infill Steps: 0
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Brim (for all parts of locks use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 18
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m
