This 3D printing design of Dean Winchester from Supernatural TV series consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

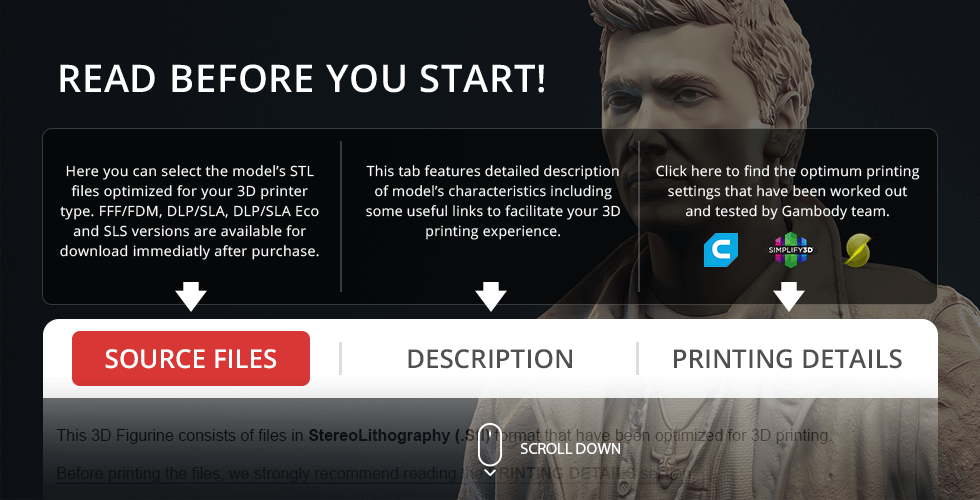

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

4 versions of Dean Winchester STL files for FFF/FDM, DLP/SLA, DLP/SLA Eco, and SLS — files for all versions are available for download after the purchase;
STL files of high-poly Dean Winchester model for 3D printing consist of 24 files;
Sizes for:
FFF/FDM: 250 mm tall, 119 mm wide, 118 mm deep;
DLP/SLA/SLS: 125 mm tall, 59 mm wide, 59 mm deep;
Assembly Manual for 1.0 FFF/FDM and 1.0 DLP/SLA versions in PDF and video formats;
Detailed settings that we provide as a recommendation for Cura, Bambu Studio, Simplify3D, Slic3r and PrusaSlicer for the best print;
Full technical support from the Gambody Support Team.

Detailed information about these 3D printer STL files is available in the DESCRIPTION section.


	File Name	File Size	Time / Filament	Object Size (x/y/z mm)

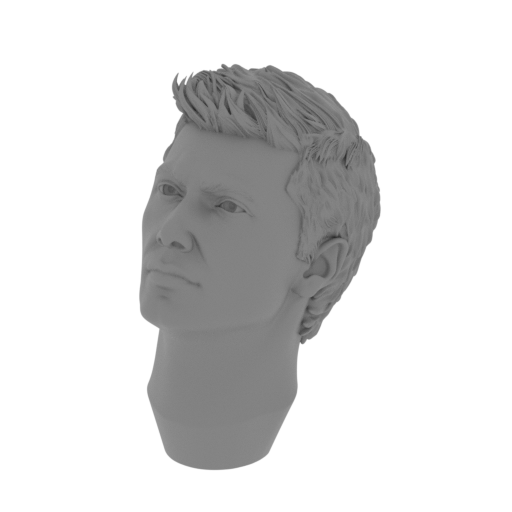

	1_head_FDM(repaired).stl	30.64 MiB	2 h 29 min 1 m	25 x 36 x 46	Download

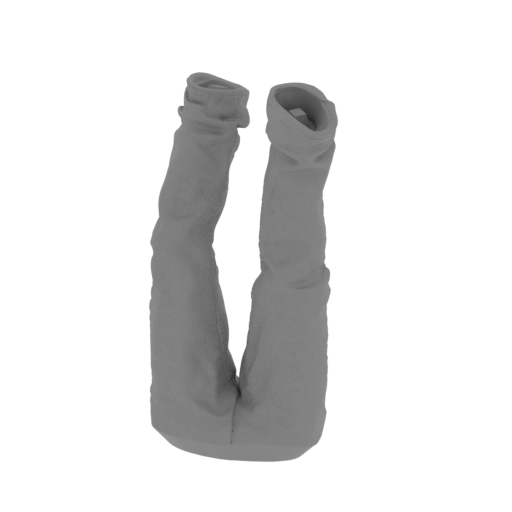

	3_legs_FDM(repaired).stl	44.49 MiB	11 h 46 min 7 m	60 x 45 x 114	Download

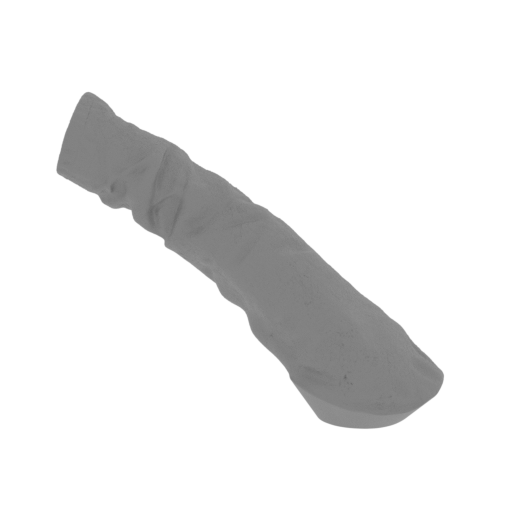

	4_arm_R_FDM(repaired).stl	23.86 MiB	2 h 59 min 2 m	66 x 27 x 50	Download

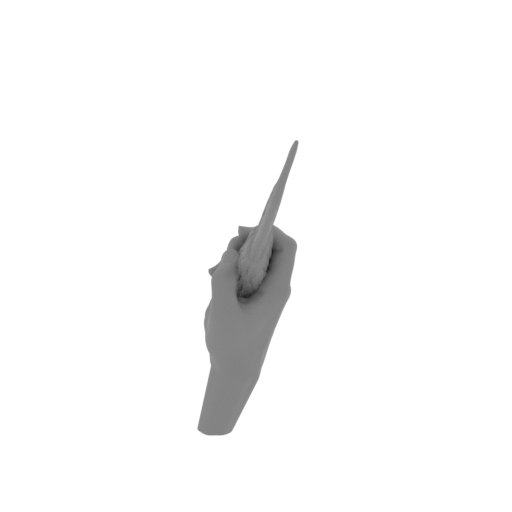

	5_hand_R_FDM(repaired).st l	14.21 MiB	31 min <1 m	21 x 30 x 44	Download

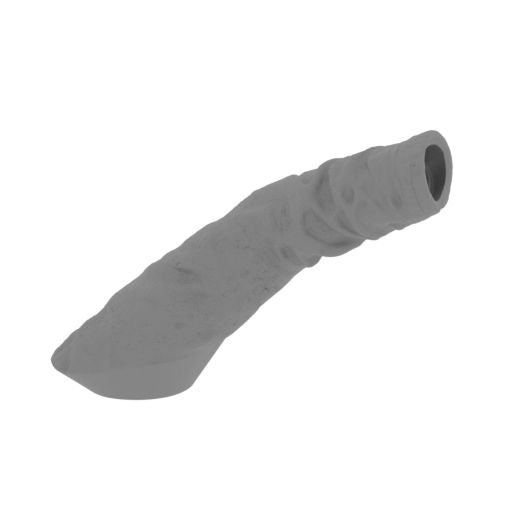

	6_arm_L_FDM(repaired).stl	23.85 MiB	3 h 5 min 2 m	66 x 31 x 49	Download

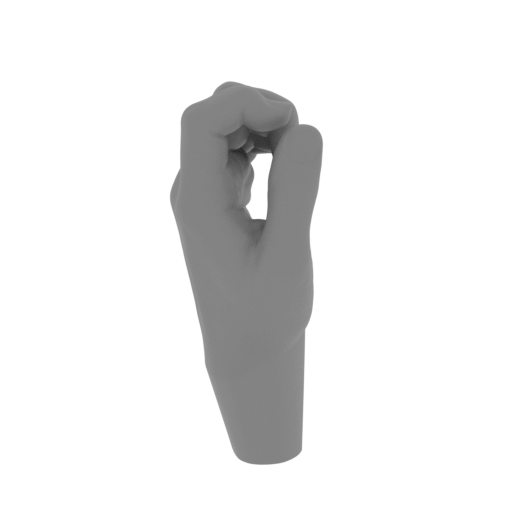

	7_hand_L_FDM(repaired).st l	22.20 MiB	26 min <1 m	11 x 12 x 25	Download

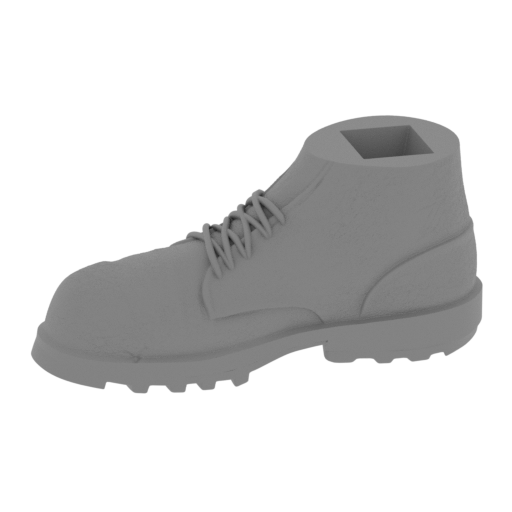

	8_foot_R_FDM(repaired).st l	23.18 MiB	43 min <1 m	32 x 27 x 18	Download

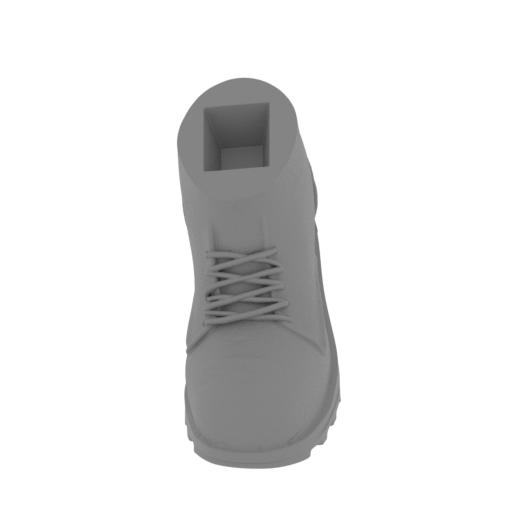

	9_foot_L_FDM(repaired).st l	21.34 MiB	51 min <1 m	20 x 35 x 26	Download

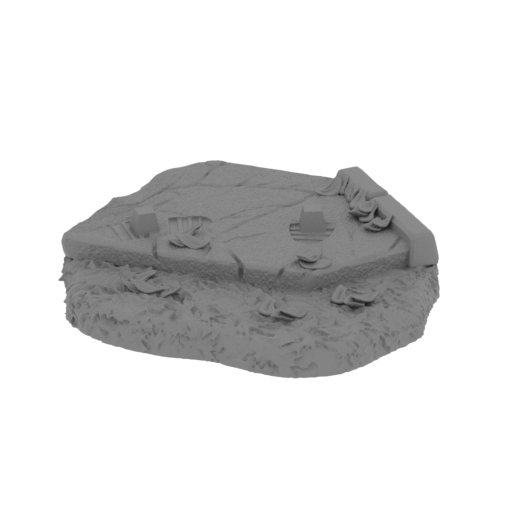

	10_platform_FDM(repaired) .stl	39.44 MiB	14 h 32 min 7 m	119 x 118 x 22	Download
	11_ge_lock_10H(x1)_FDM(re paired).stl	0.03 MiB	4 min <1 m	10 x 18 x 2	Download
	Keychain (repaired).stl	0.35 MiB	23 min <1 m	30 x 30 x 2	Download
	Tag (repaired).stl	1.70 MiB	1 h 18 min 1 m	150 x 18 x 5	Download

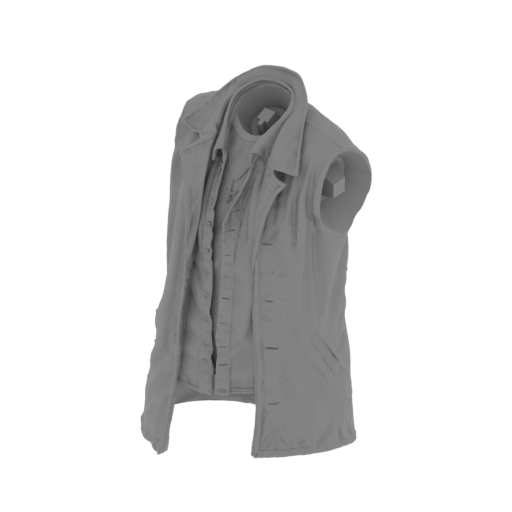

	2_body_FDM(repaired).stl	50.52 MiB	20 h 1 min 10 m	69 x 48 x 118	Download
...

ABOUT THIS 3D MODEL

Dean Winchester loves classic rock music, westerns, tasty food and his “Baby” 1967 Chevrolet Impala SS. Mischievous, skilled, and loyal, Dean travels the country together with his brother Sam, saving people, hunting things, the family business.

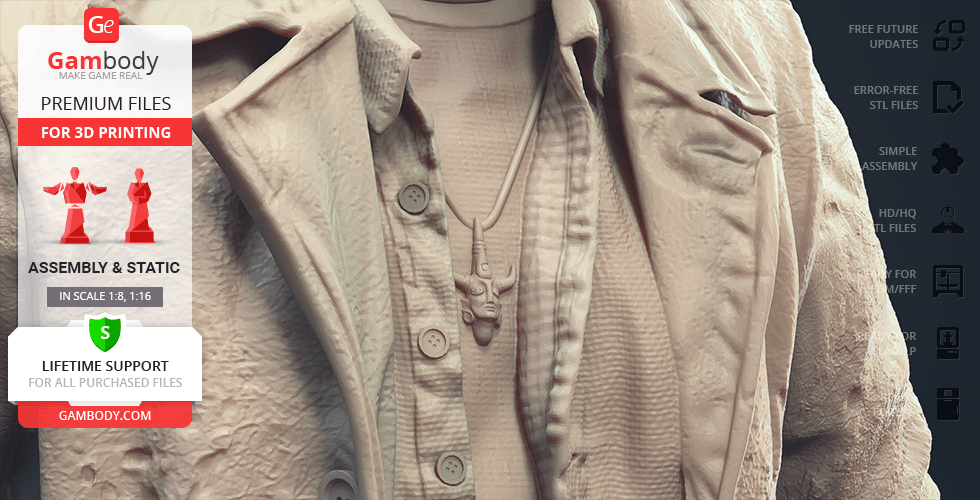

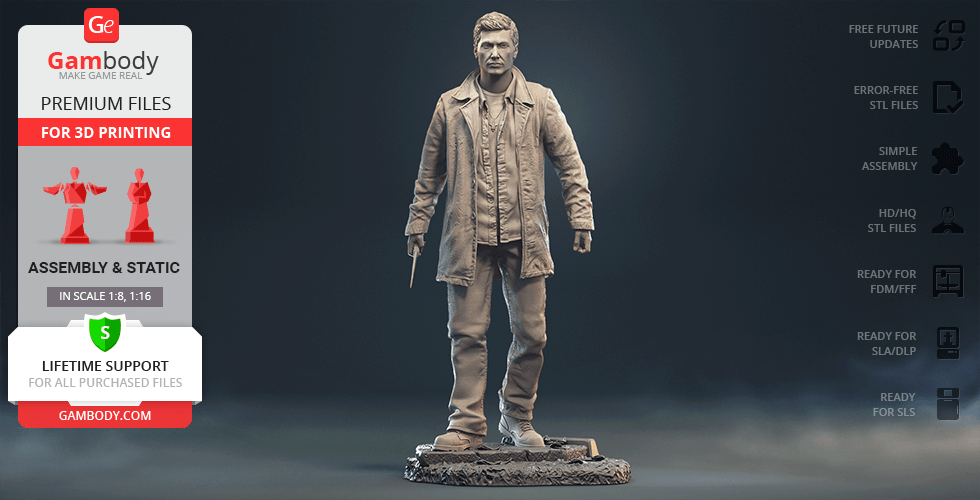

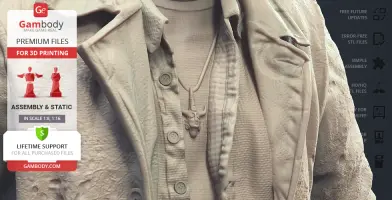

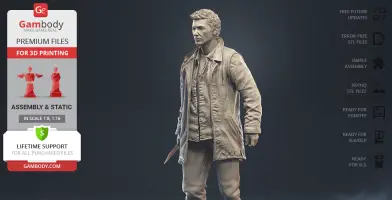

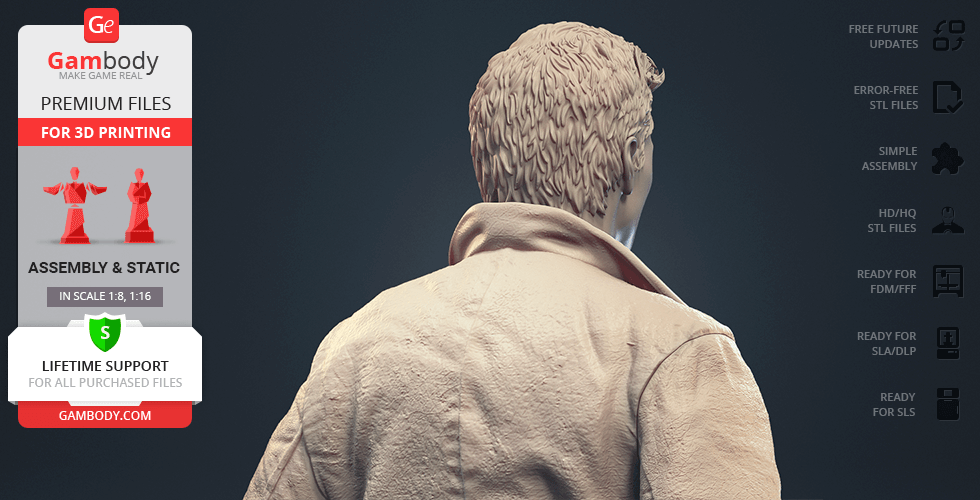

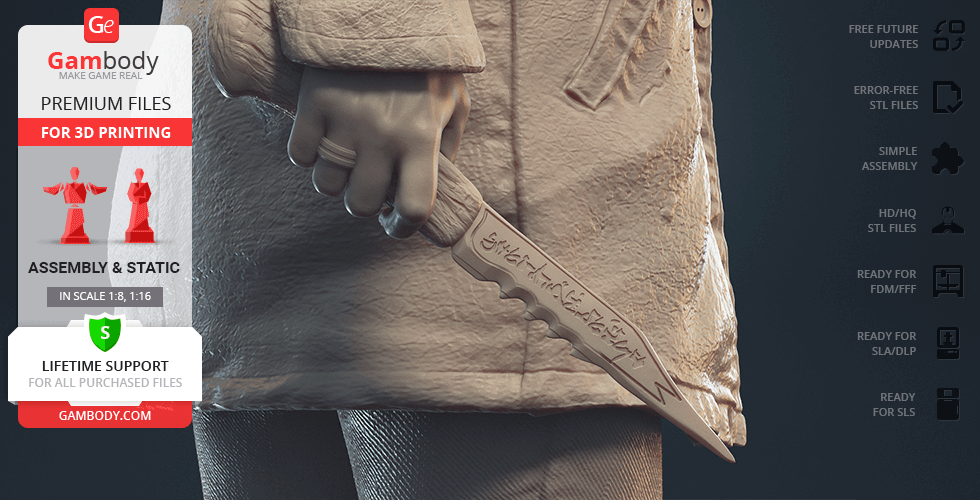

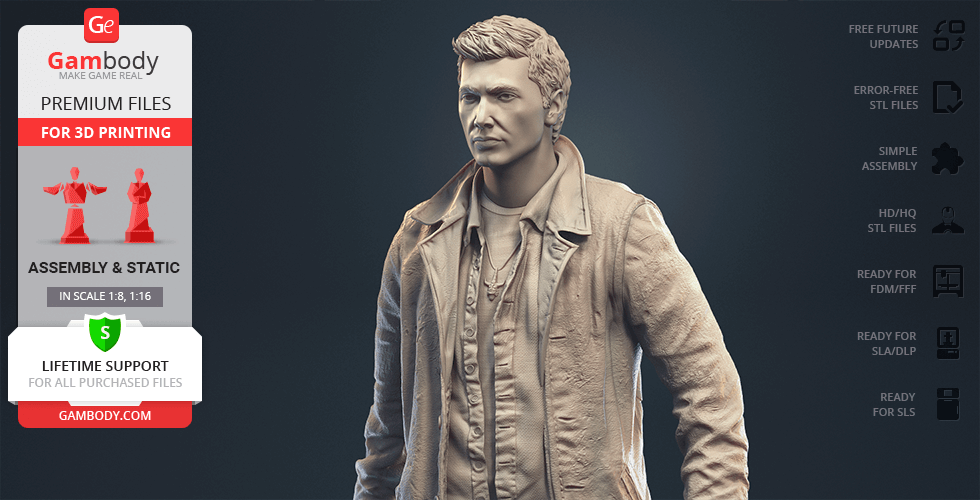

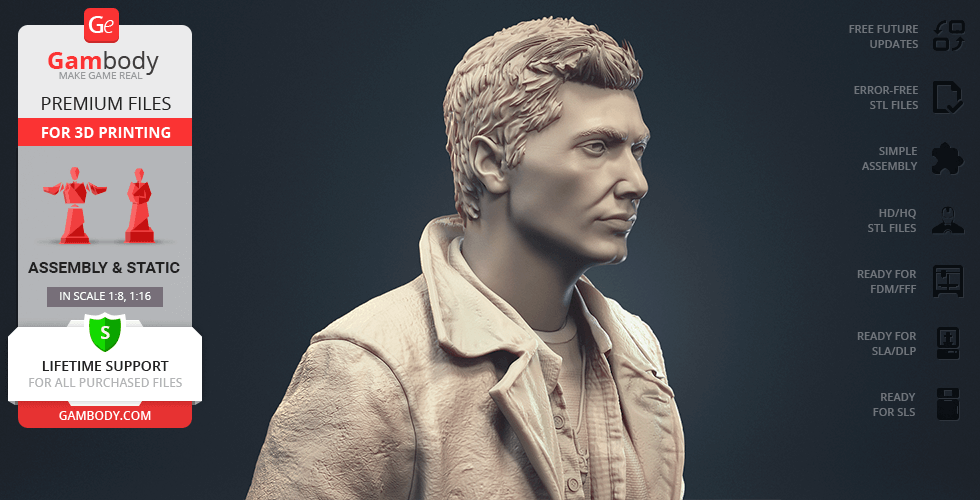

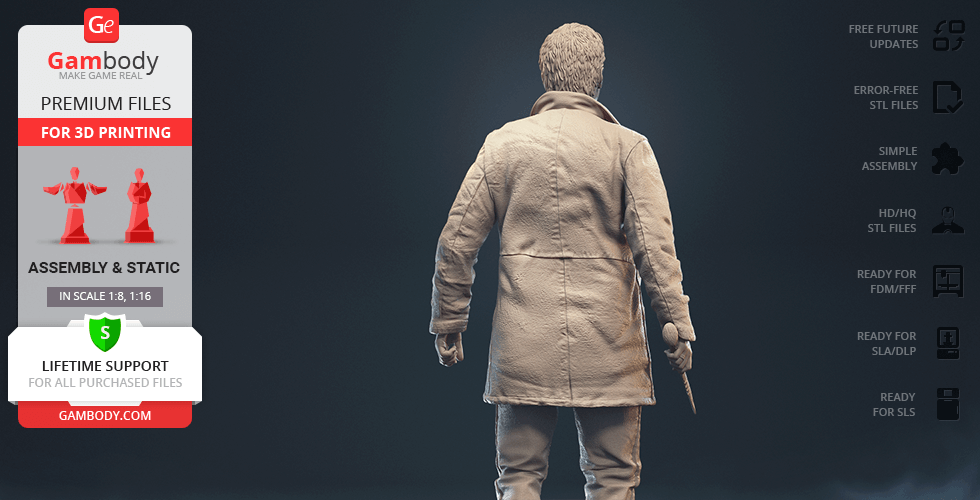

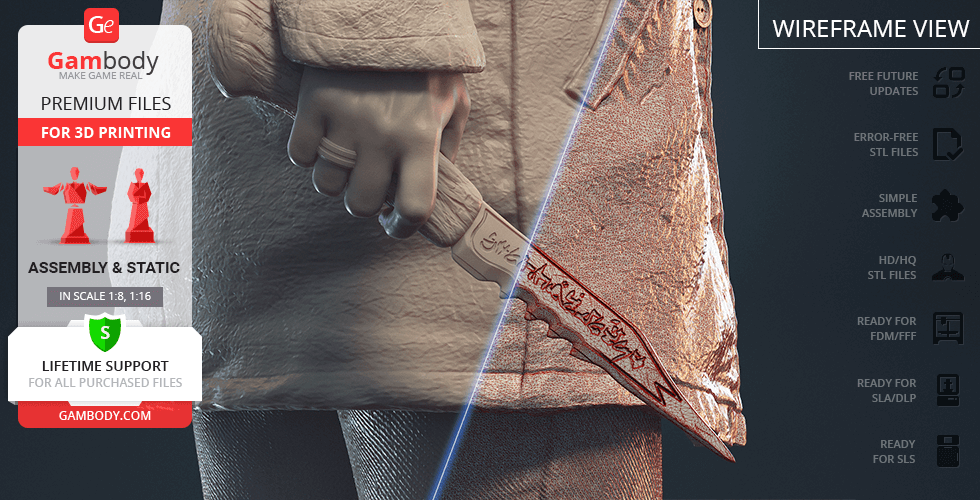

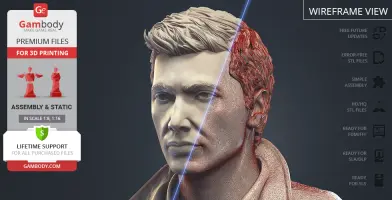

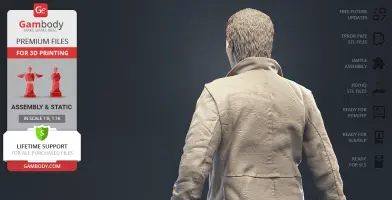

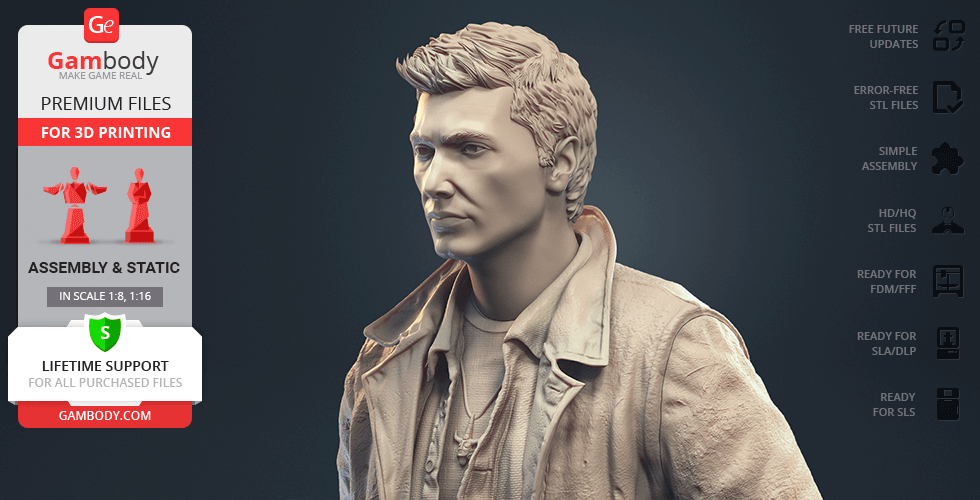

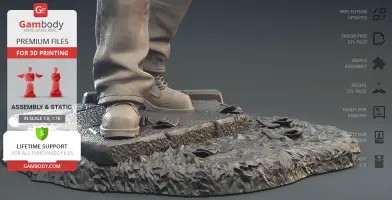

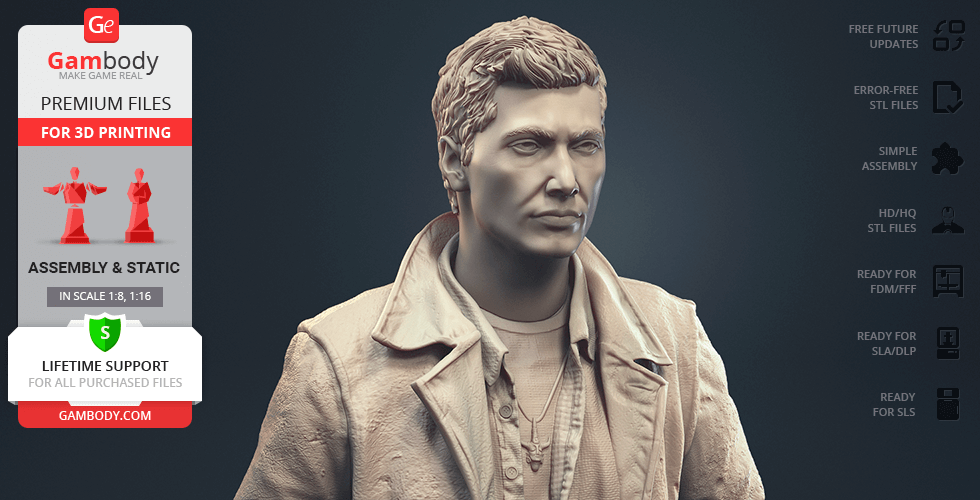

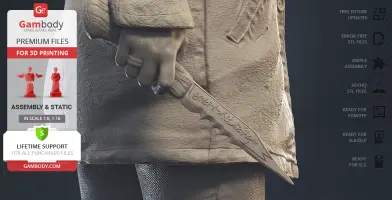

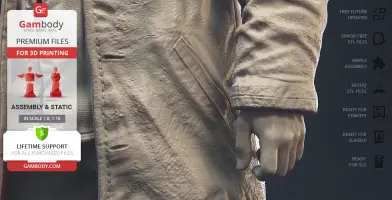

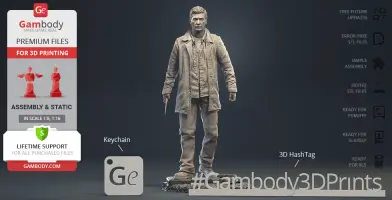

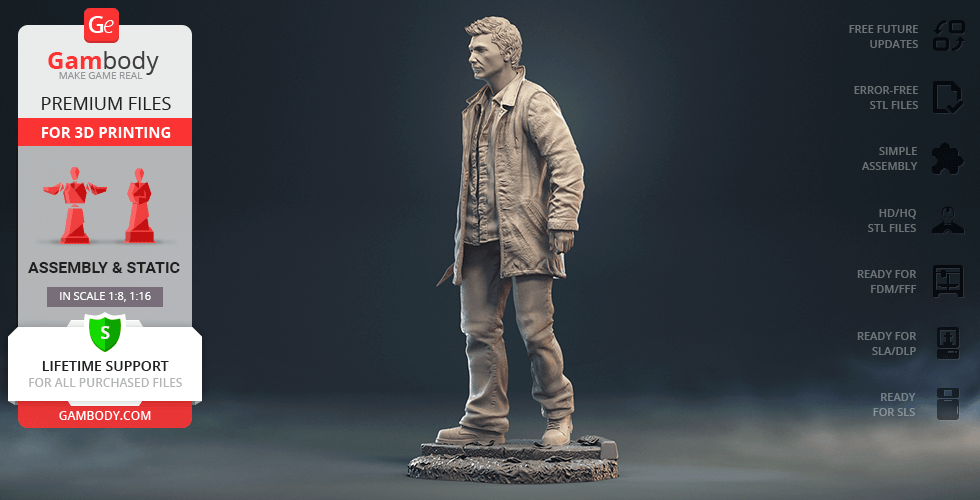

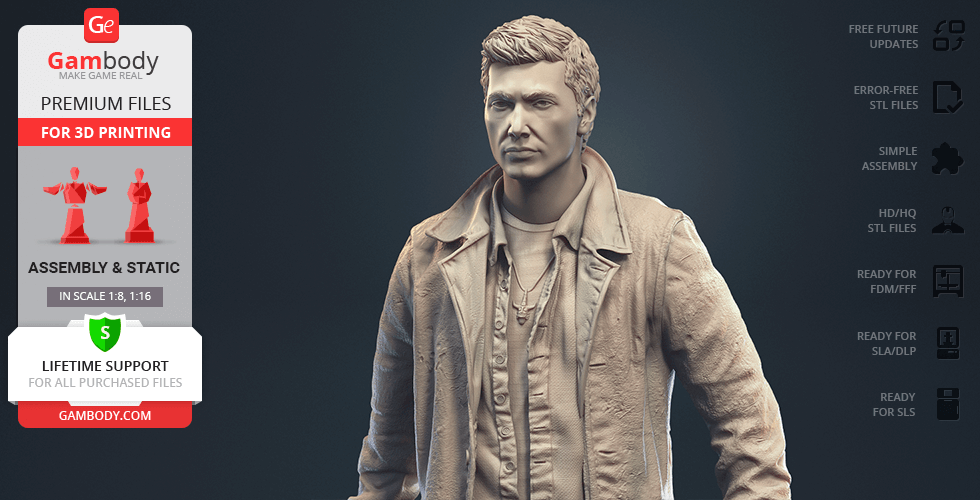

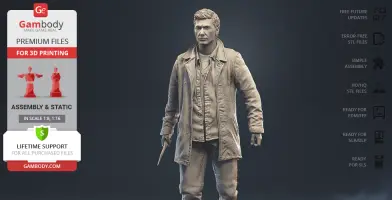

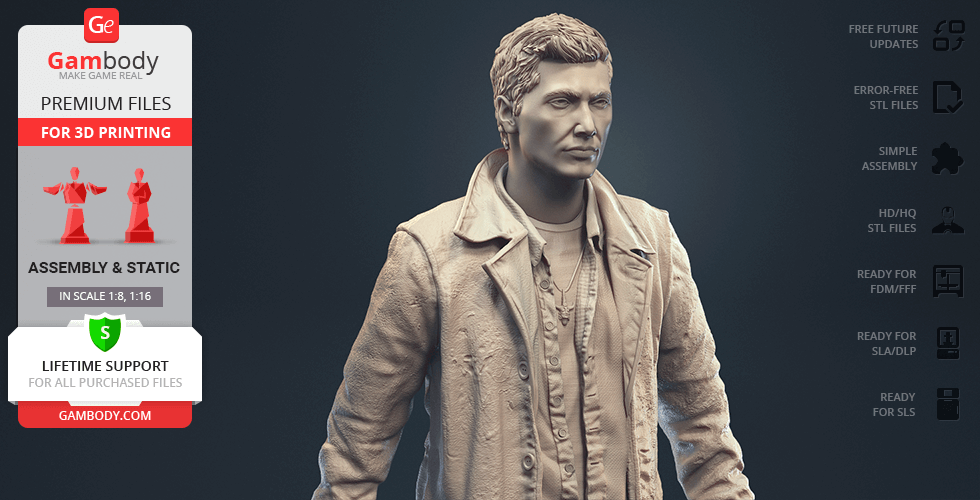

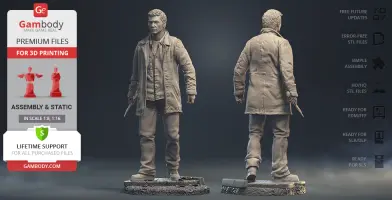

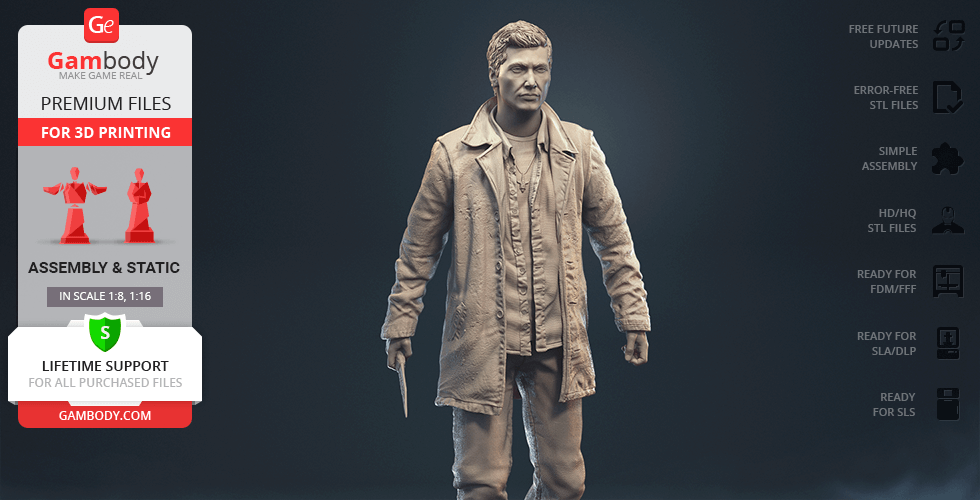

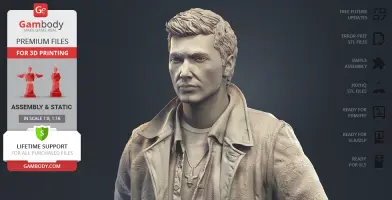

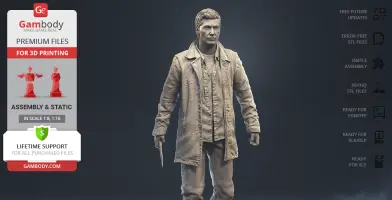

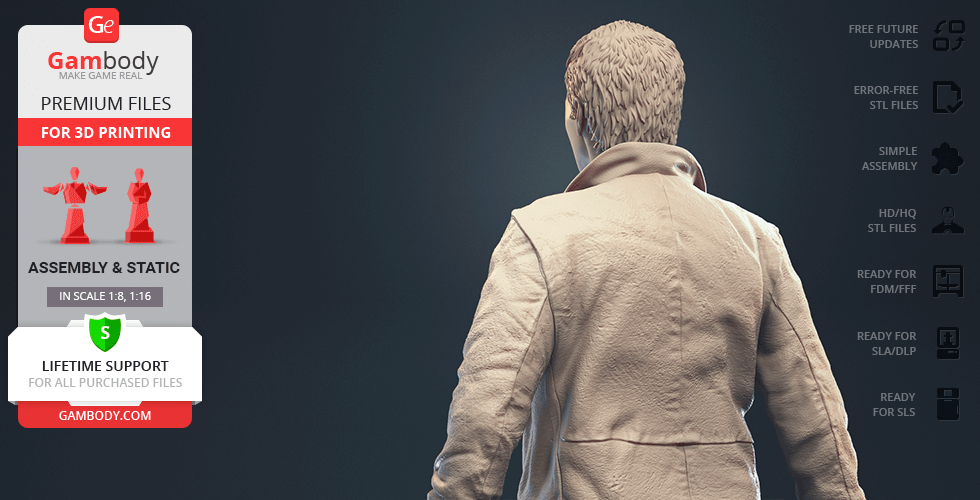

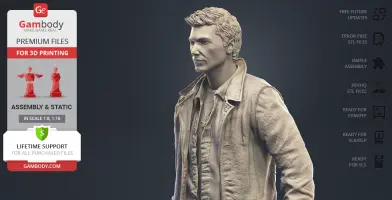

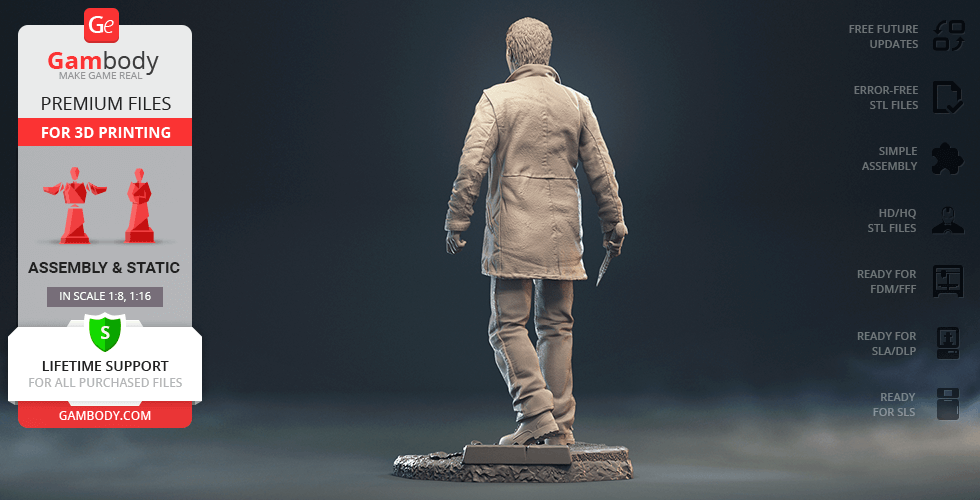

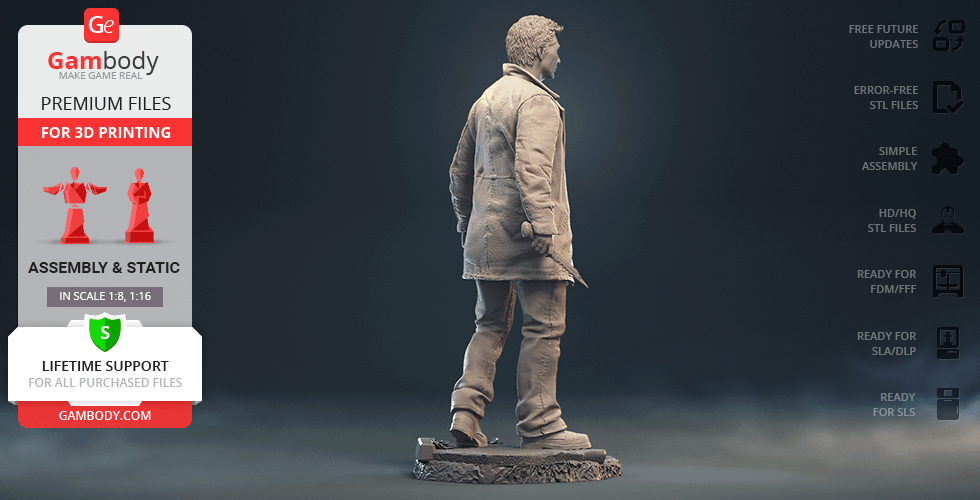

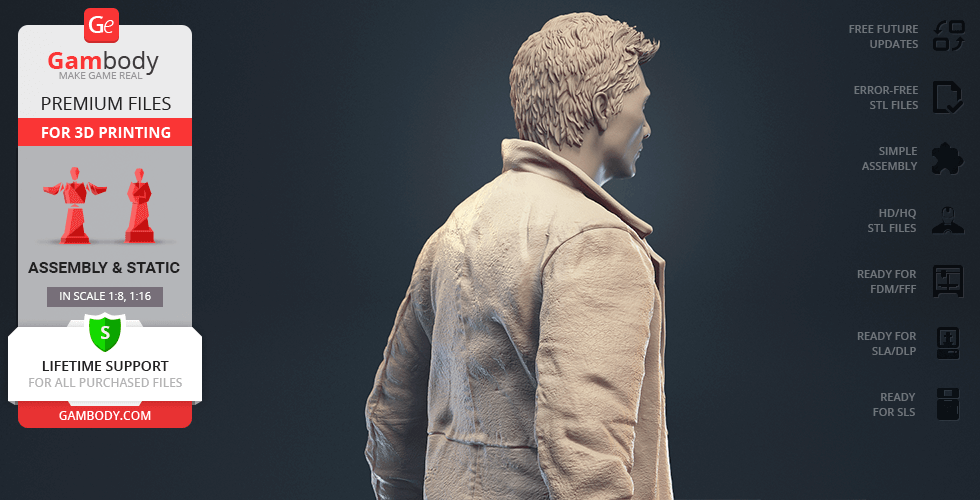

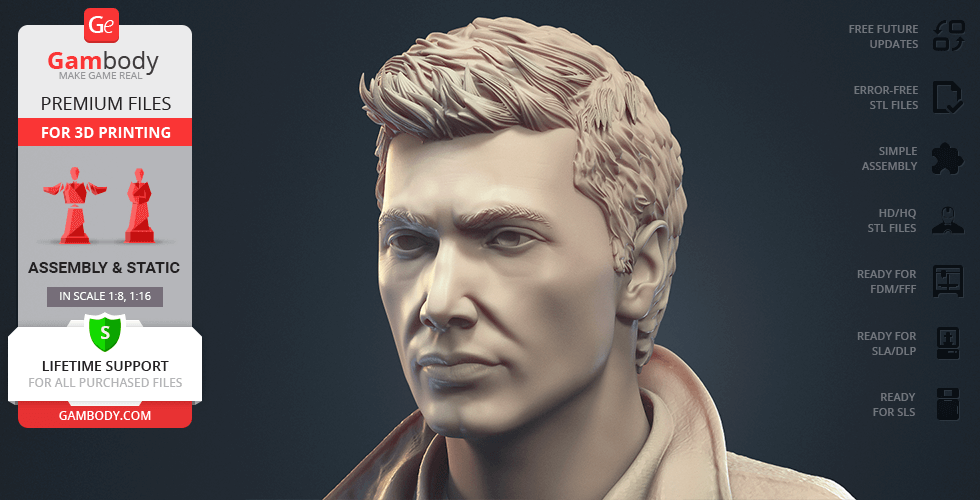

The Dean Winchester 3D print model by our contributing 3D artist will definitely rejoice all fans of the Supernatural TV series. The author of the model depicted the charismatic demon hunter in his casual attire. The 3D printing Dean wears his leather jacket (the one he inherited from his father), plaid shirt over a T-shirt, jeans and a pair of logger boots. The author of the model made sure to depict the bullhead amulet around Dean’s neck and armed the favourite character with a highly-detailed Demon-Killing Knife that has intricate symbols engraved along the blade.

ADAPTATION FOR 3D PRINTING

Dean Winchester 3D printing design is a static assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 32 hours. The model's anatomy and proportions were thoroughly reviewed during the moderation process for the monster hunter to be depicted harmoniously in the intended pose.

The model’s cutting was chosen by our team to minimise the amount of generated support and some of the parts were hollowed out for you to save resin in the Eco version. In order to conceal the places where the assembly parts of the model must be connected, the model was cut along the contour of Dean’s clothes seams.

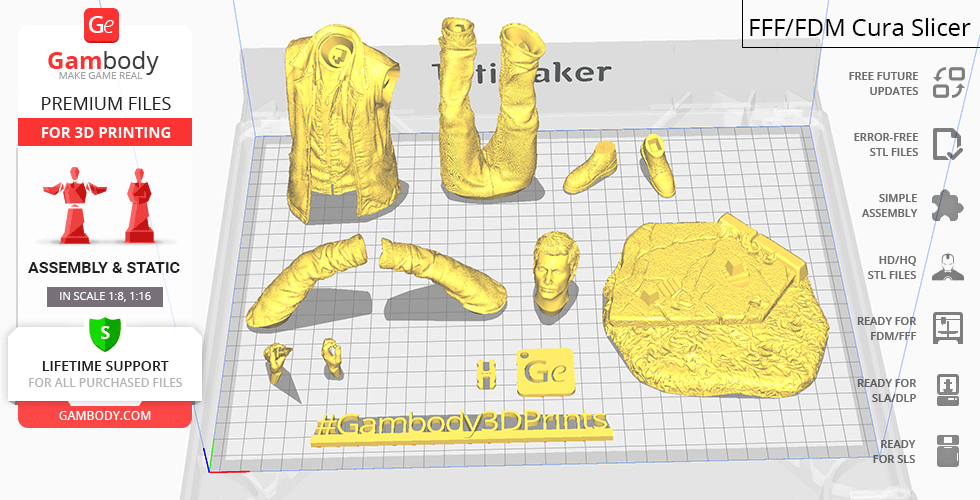

All assembly parts come in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and so that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any model's file you will also receive "Assembly Manual" for 1.0 FFF/FDM and 1.0 DLP/SLA versions in PDF format.

The 3D print model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

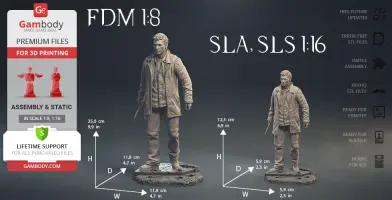

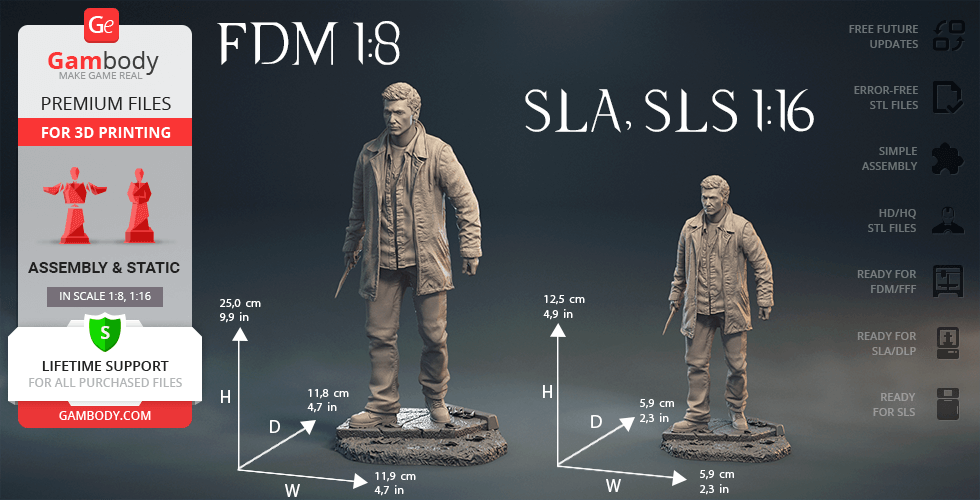

The model's scale was calculated from Dean Winchester's actual height which is 1830 mm. The 3D printing design's chosen scale is 1:8 for the FFF/FDM version and 1:16 for the DLP/SLA/SLS versions.

VERSIONS' SPECIFICATIONS

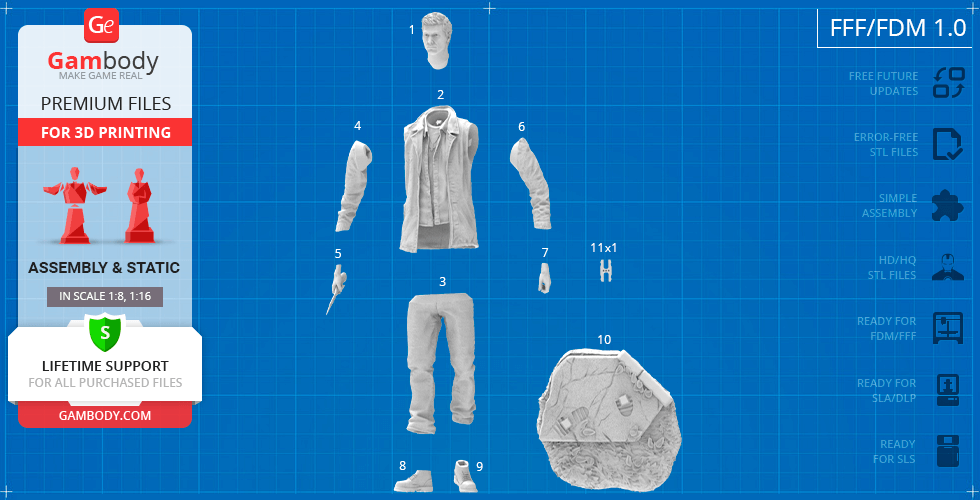

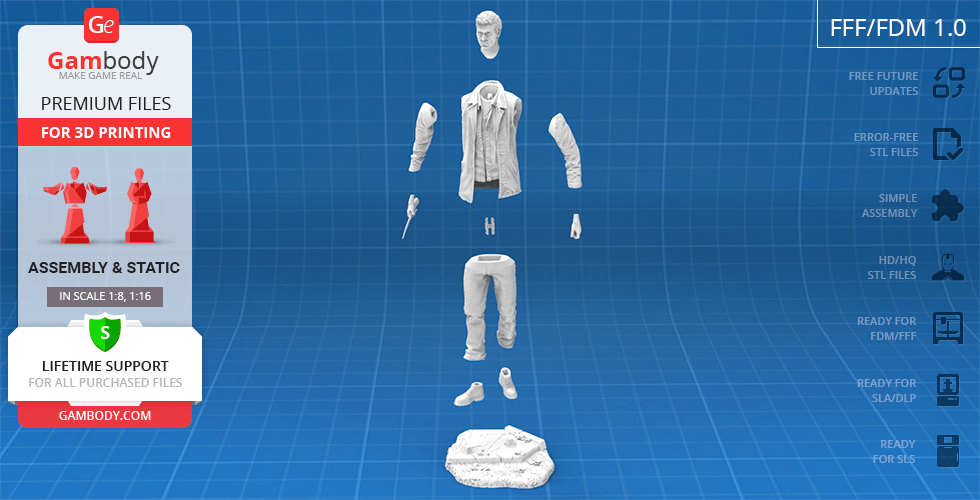

1.0 FFF/FDM version features:

Contains 11 parts;
A printed model is 250 mm tall, 119 mm wide, 118 mm deep;
The assembly kit includes lock 11_ge_lock_10H(x1) to attach the model's legs to the body securely without glue;
All parts are divided in such a way that you will print them with the smallest number of support structures.

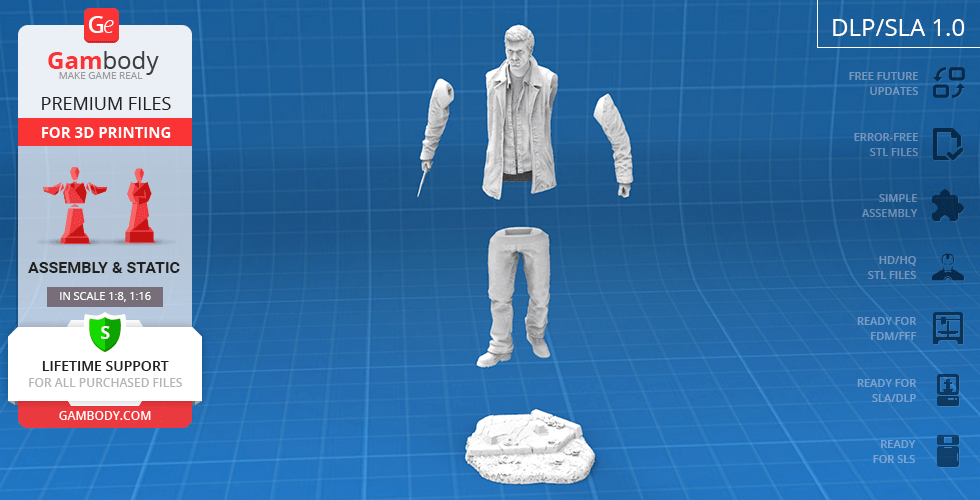

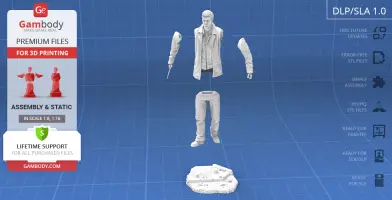

1.0 DLP/SLA version features:

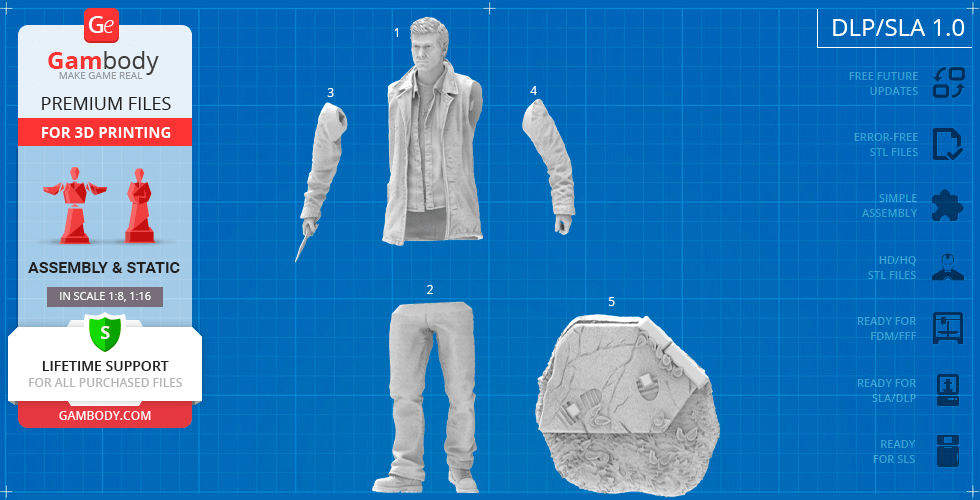

Contains 5 parts;
A printed model is 125 mm tall, 59 mm wide, 59 mm deep;

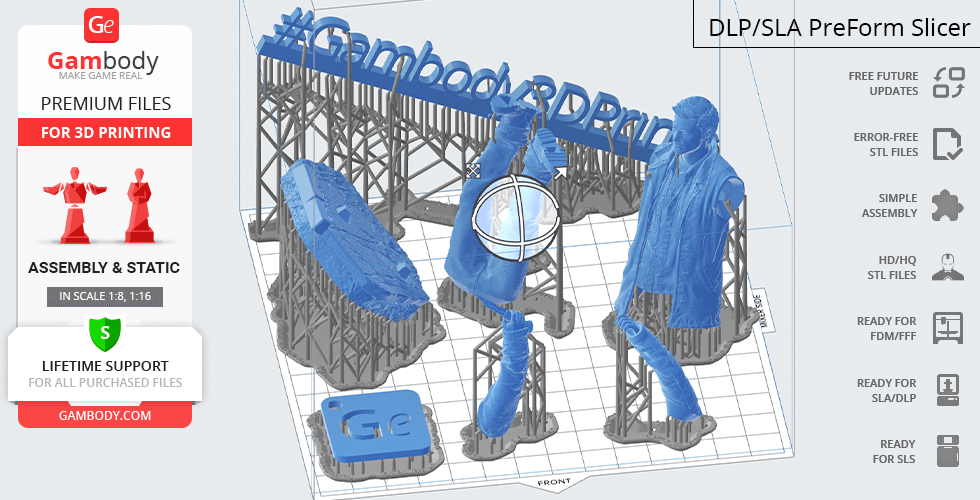

All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

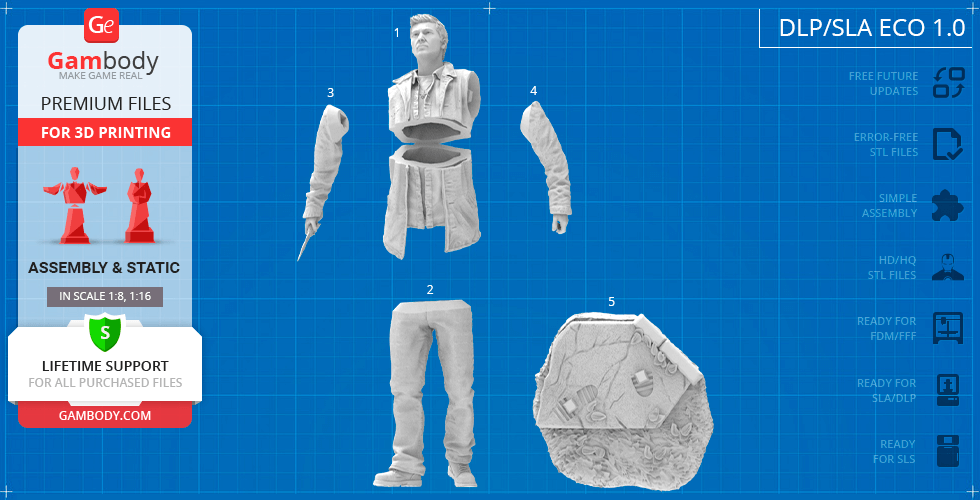

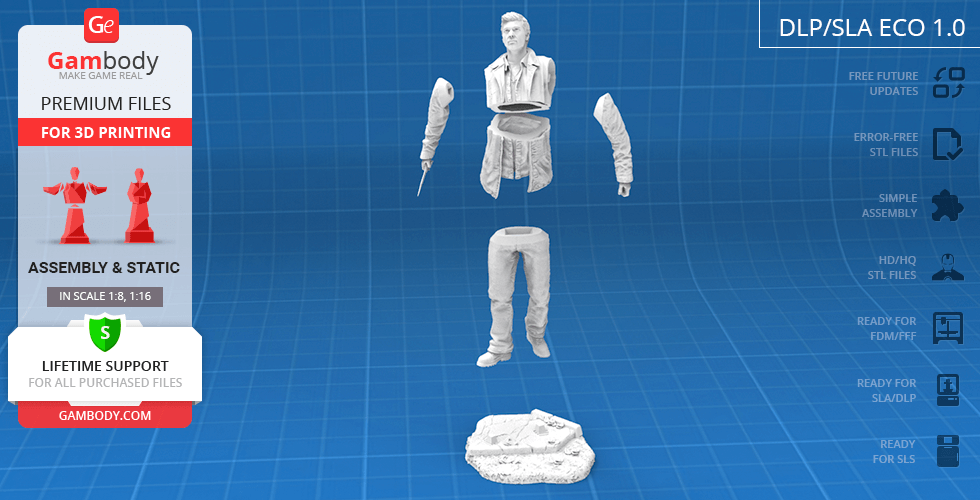

1.0 DLP/SLA Eco version features:

Contains 5 parts;
A printed model is 125 mm tall, 59 mm wide, 59 mm deep;
Contains some hollowed out parts to save resin.

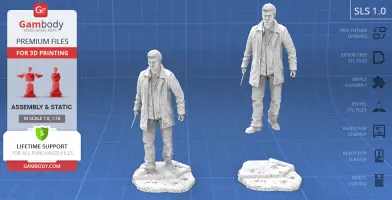

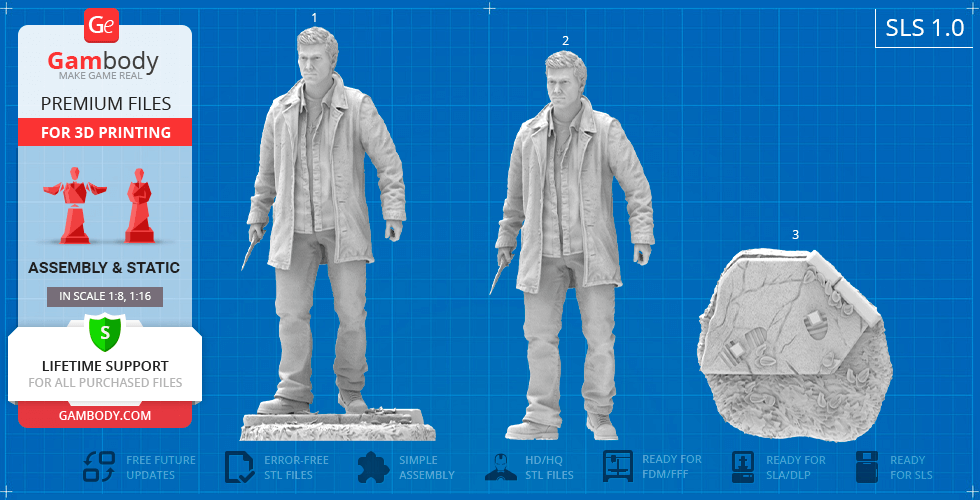

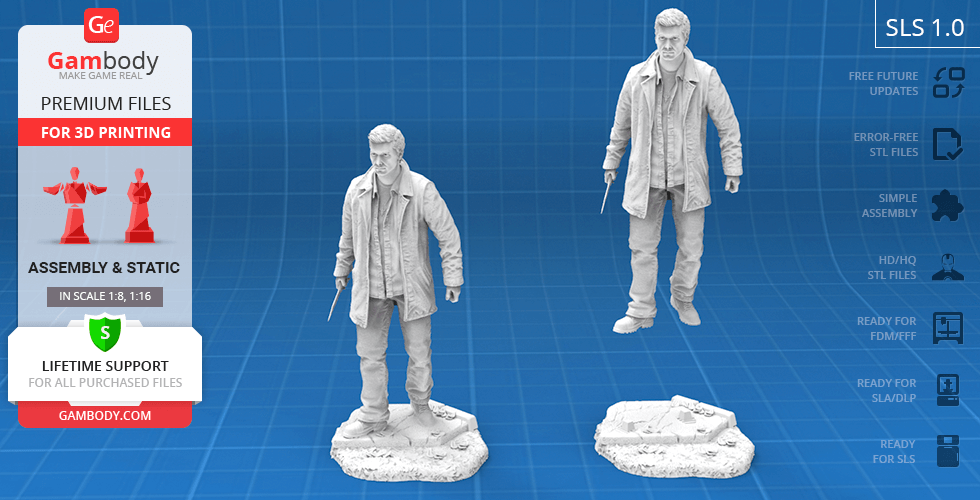

1.0 SLS version features:

Made as a solid one-piece Dean Winchester model;
A printed model is 125 mm tall, 59 mm wide, 59 mm deep;
Contains 3 parts - a solid Dean Winchester model and the model with the platform separated.

You can get the STL Files of Dean Winchester 3D Print Model immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble the 3D Printed Dean Winchester Model from the provided 3D Print Files at Gambody YouTube channel.

Also, you may like the Supernatural Sam & Dean in Diorama 3D Print Model, as well as other TV Series 3D Printing Designs.

_______

FAQ:

Generic

Below you can find printing recommendations for Cura, Bambu Studio, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

All connectors should be printed at 100% Infill.

Bambu Lab printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Bambu Studio 1.9.1. Test models were printed on the Bambu Lab A1, Bambu Lab A1 Mini, Creality Ender 3 S1, Anycubic Kobra 2, and Anycubic Vyper using PLA and PETG filaments.
