Pudge Mask for 3D Printing

Hallowing is heading your way and you’re still unprepared? We got you covered.

With the Pudge mask for 3D printing let Halloween come tomorrow.

The mask represents the already known video game character, whose 3D model’s file for printing are featured on our marketplace.

Pudge, also known as the Butcher, will guarantee you a scary appearance at any party you’re invited to for the holiday.

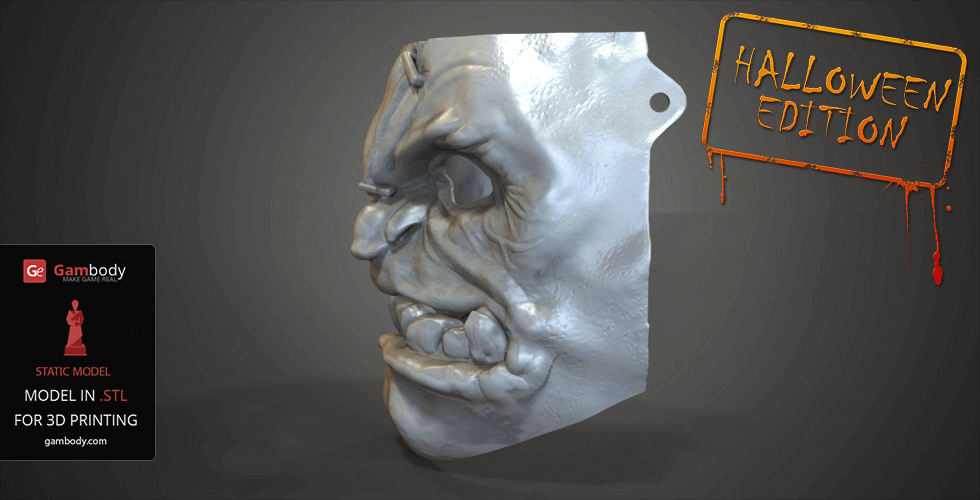

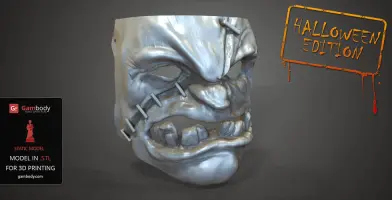

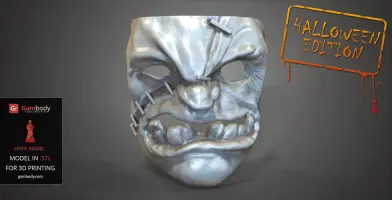

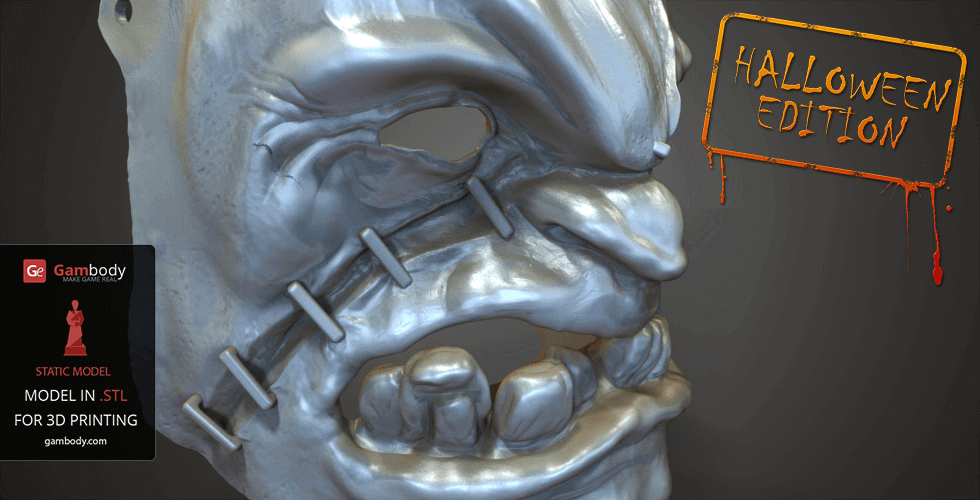

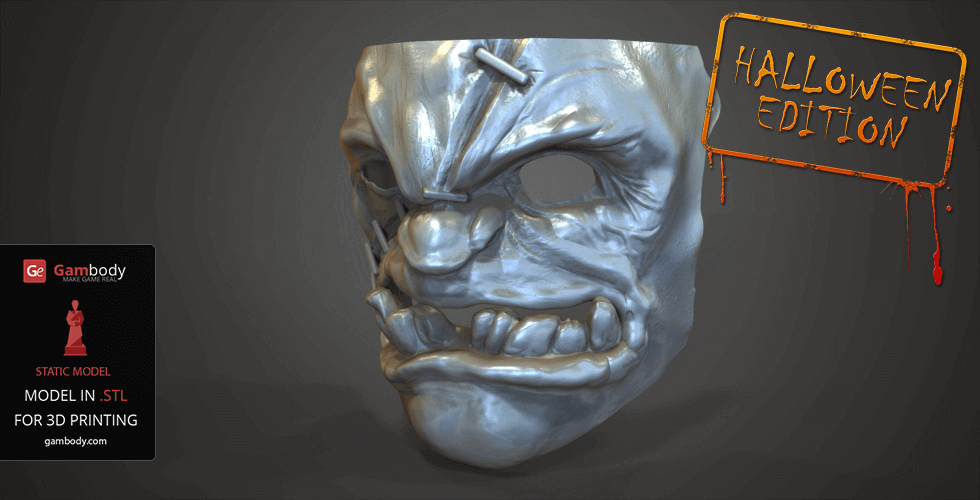

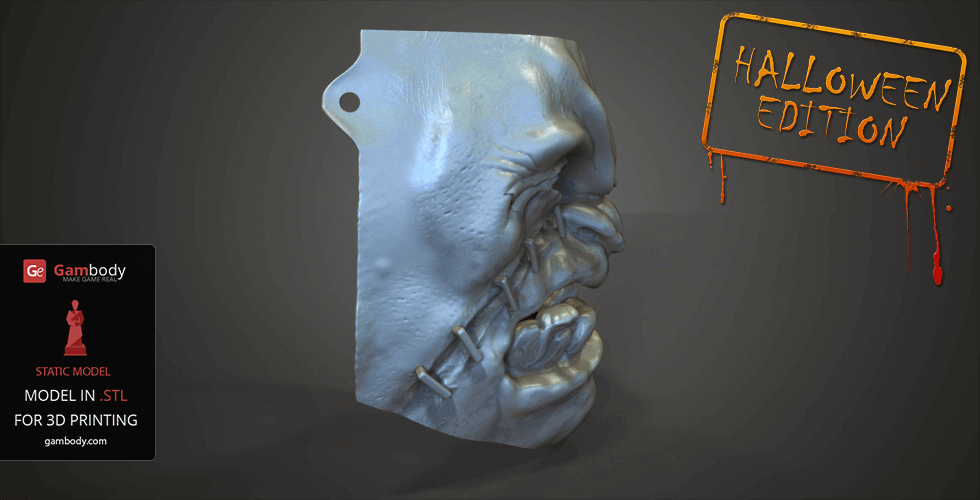

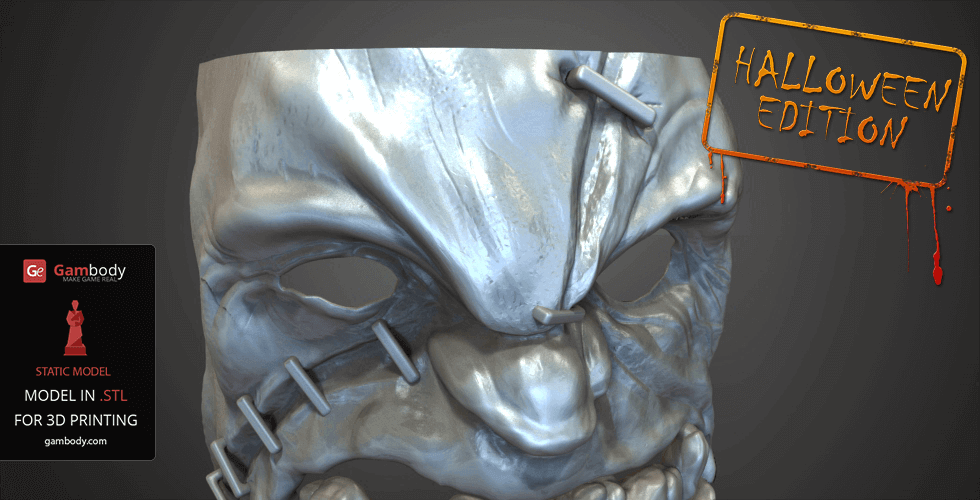

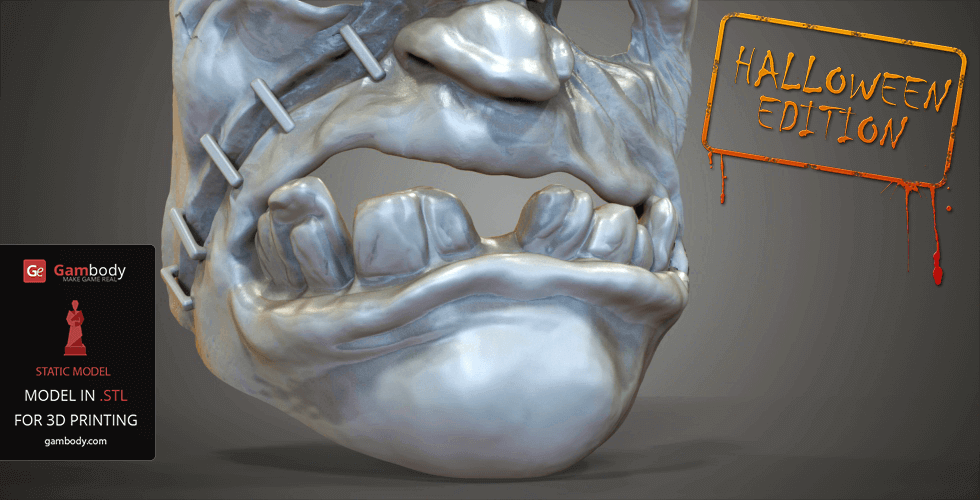

The 3D printable Pudge mask file is created in Autodesk Maya. It features great facial detailing. It is perfectly wearable, thanks to its side holes where you can pass the elastic bands and secure the mask on your head.

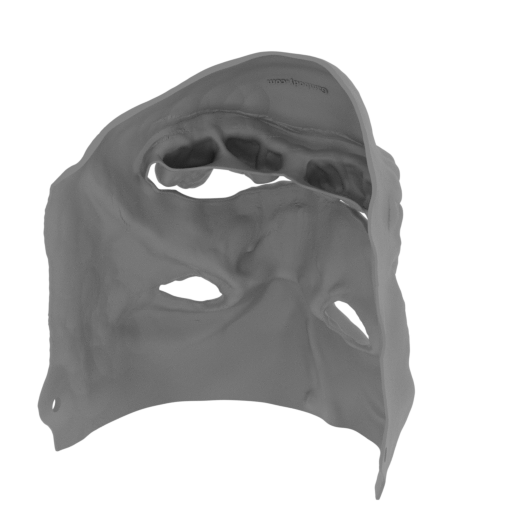

Nothing difficult with its 3D printing as well. The file is adapted to be handled easily in any 3D slicing program, such as CURA 15.06 or Simplify3D. It has also passed thorough checking in Netfabb and it is error-free.

Print the mask in any 3D printing material of your choice and paint it using any painting technique you master. Give the mask the required degree of reality and make this year’s Halloween memorable.

To have it in printing form, your 3D printer will have to run for approximately 3 days and use 36.5m of printing material.

After having it 3D printed the mask will be 134mm deep, 183mm wide, and 195mm tall.

Buy Pudge mask STL file for 3D printing by clicking on the green Buy button in the top-right corner of the model’s photo slider. Proceed to checkout. Provide your PayPal and credit card details and download the STL file of this year Halloween Pudge mask you’ll be wearing.

Note: You can print the file with 3DHubs directly from our website. Put the checkmark in the box next to the files you want to send to print and click Print with 3DHubs button.


Generic

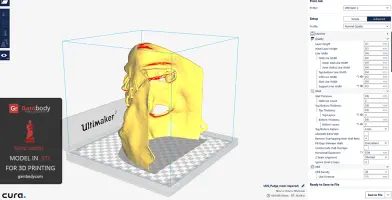

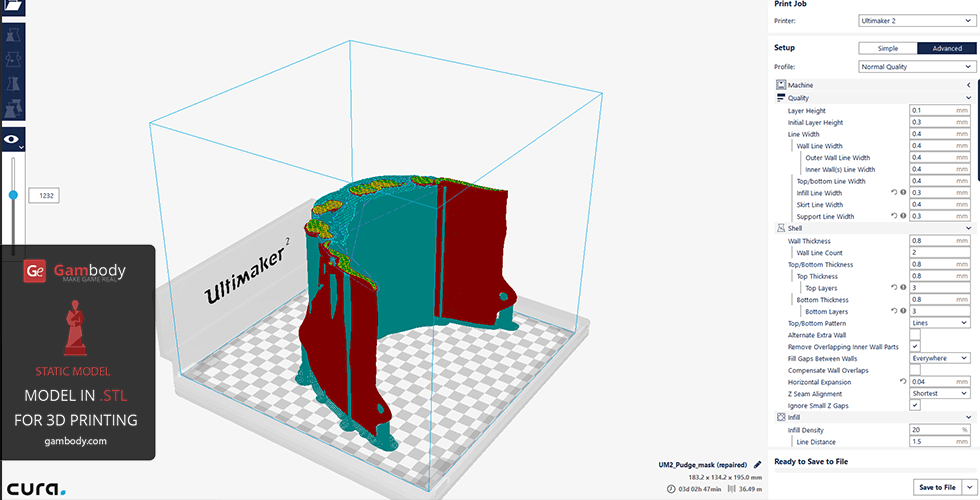

This model was tested in Cura 15.06. To avoid printing problems, we recommend the following settings:

Quality

• Layer height: 0.1mm*
• Initial layer thickness: 0.3mm
• Bottom/top pattern: lines
• Skin perimeter line count: 0
• Horizontal expansion: 0.04mm (when entering 0.04mm index, the 3D printer perceives the model as monolith, i.e. as having no hidden layers).

*Layer Height 0.1mm is recommended for a better quality for the printed model. However, the printing time will double.

Check this Simplify3D User Guidelines to avoid any 3D printing problems with this software.

The model has been tested and printed in PLA. In case you need advice where to get your filaments from, check our partner's website.

Speed setup:

• Infill speed: 50mm/s
• Outer shell speed : 30mm/s
• Inner shell speed: 20mm/s
• Top/bottom speed: 20mm/s
• Support speed: 50mm/s
• Travel speed: 150mm/s
• Skirt speed: 30mm/s
• Amount of slower layers: 4

Infill:

• Infill pattern: Grid
• Line distance: 3mm
• Infill overlap: 20%
• Infill layers: 0

Support:

• Enable support: Check
• Placement: Everywhere
• Overhang angle: 30°
• X/Y distance: 0.7mm
• Top distance: 0.2mm
• Bottom distance: 0.2mm
• Stair step height: 0.5mm
• Join distance: 0.7mm
• Area smoothing: 0.6mm
• Use towers: check
• Pattern: Lines
• Line distance: 1.5mm

Platform adhesion:

• Type: Brim
• Brim line count: 10 (up to 20, depending on the model’s height)

Other 3D printing recommendations:

Outer Shell Speed - 20mm/s and Support Speed - 40mm/s settings apply to avoid model deformation.  Apply other settings by default.

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
