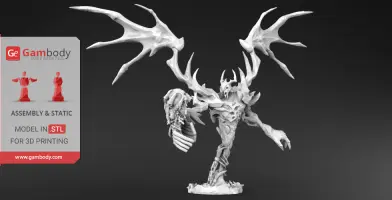

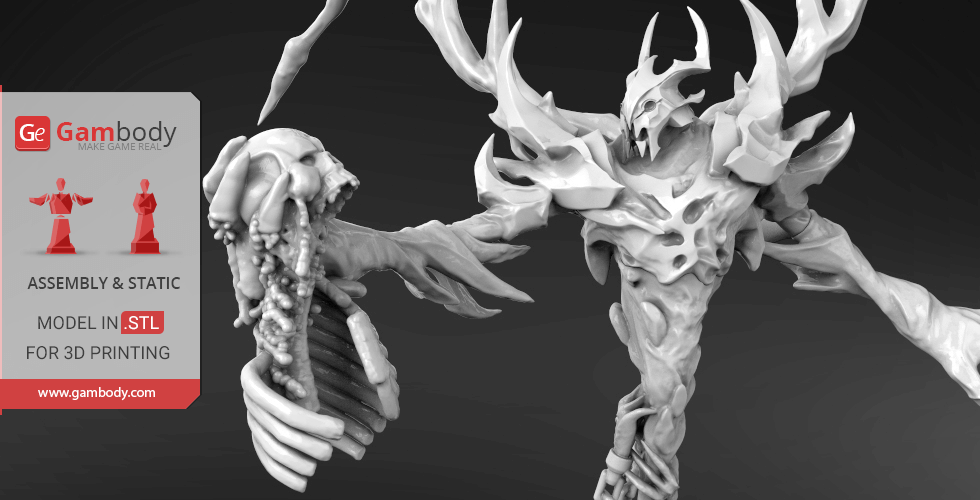

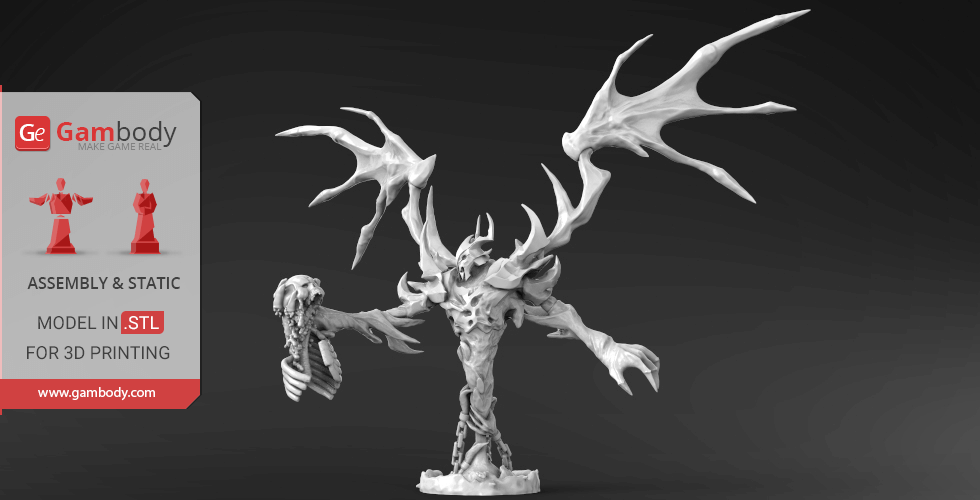

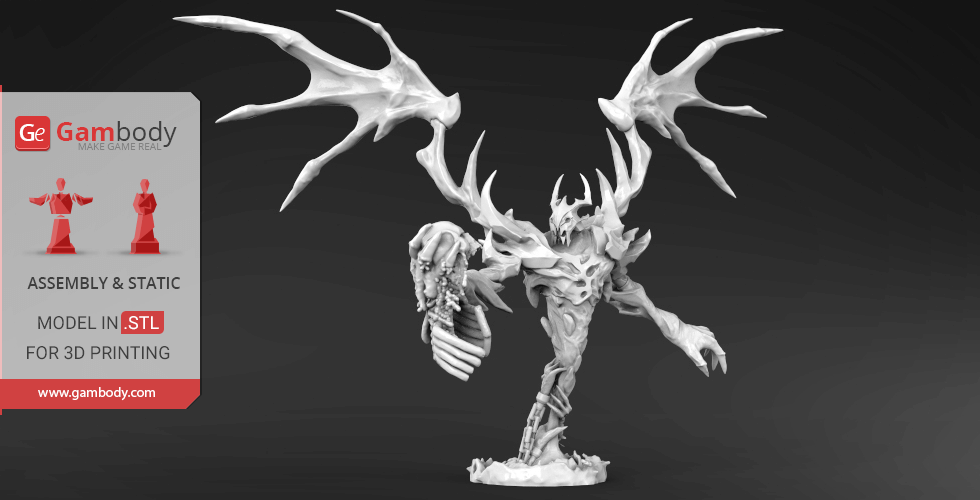

Shadow Fiend 3D Model | Static Figurine

Shadow Fiend 3D model is inspired by the creepy and dark hero from a legendary MMOG. The video game character definitely crawls under your skin with his ability to scare and silence all other players’ talents. His vision is low during the day as well as his agility and movements; however, at night he emerges with his talents and abilities, strengthened tenfold.

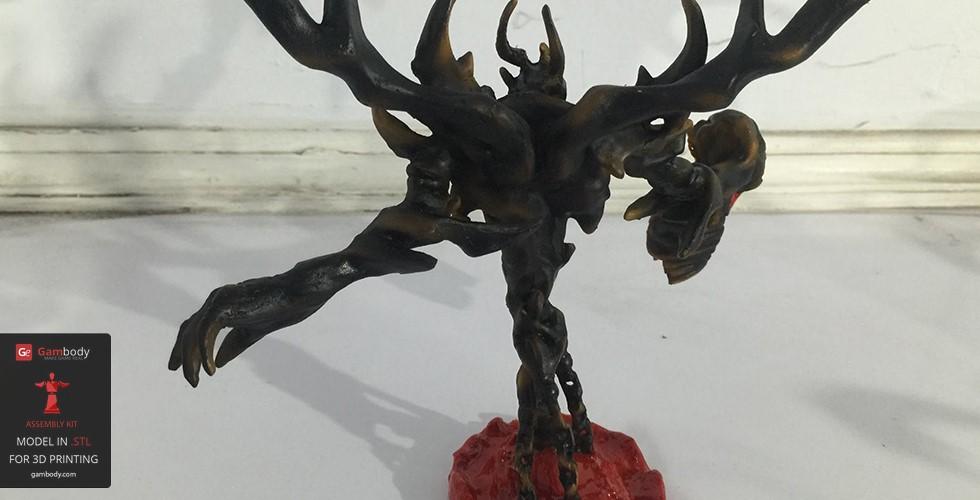

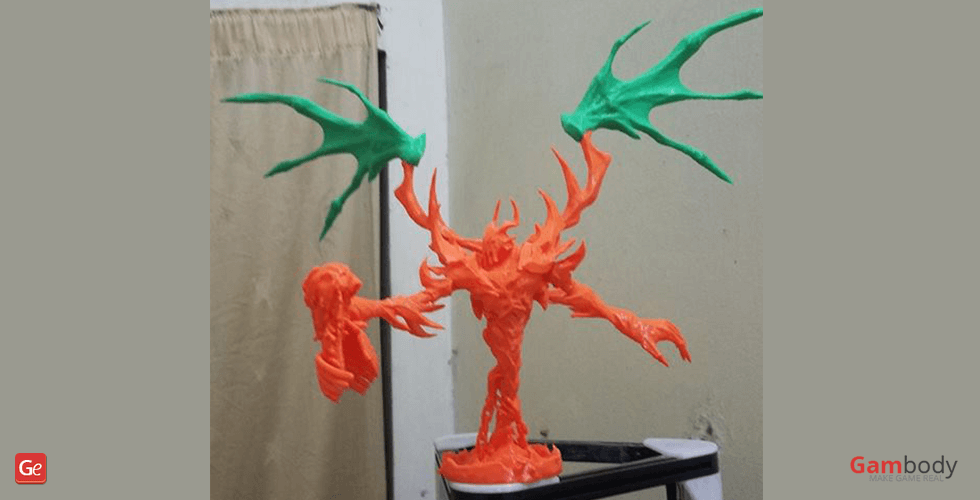

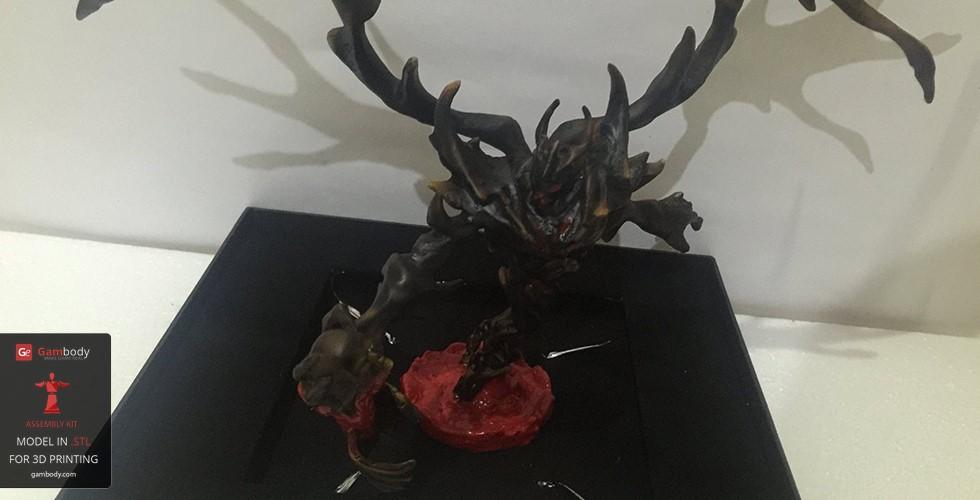

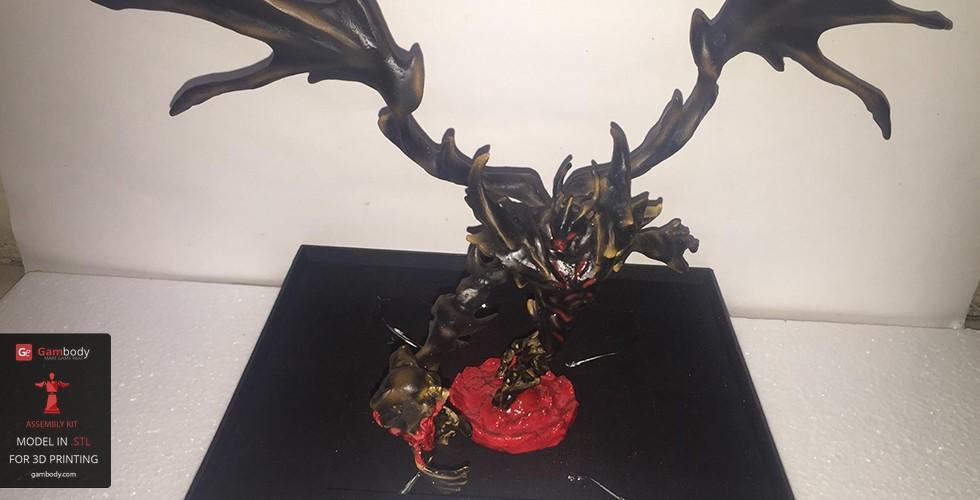

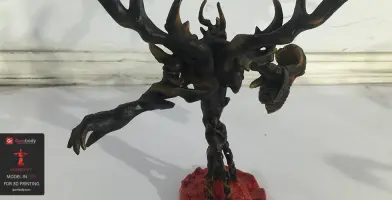

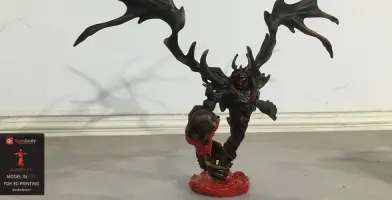

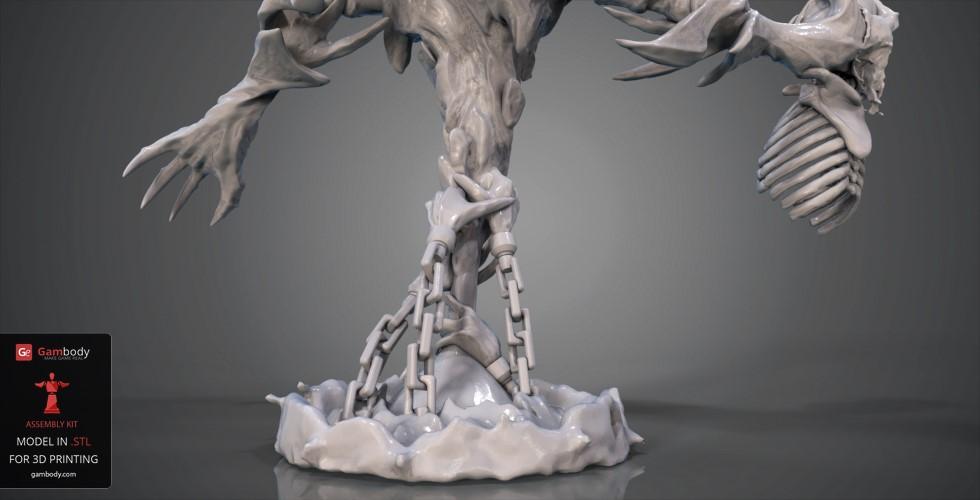

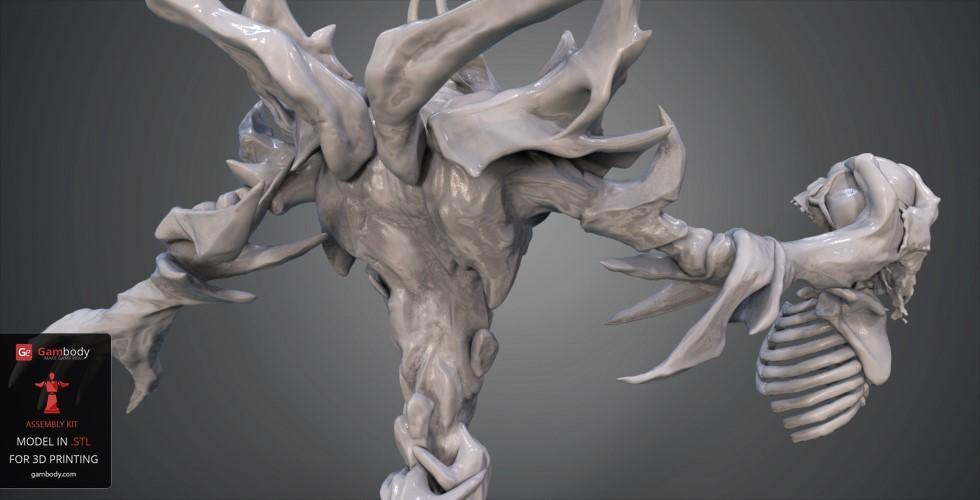

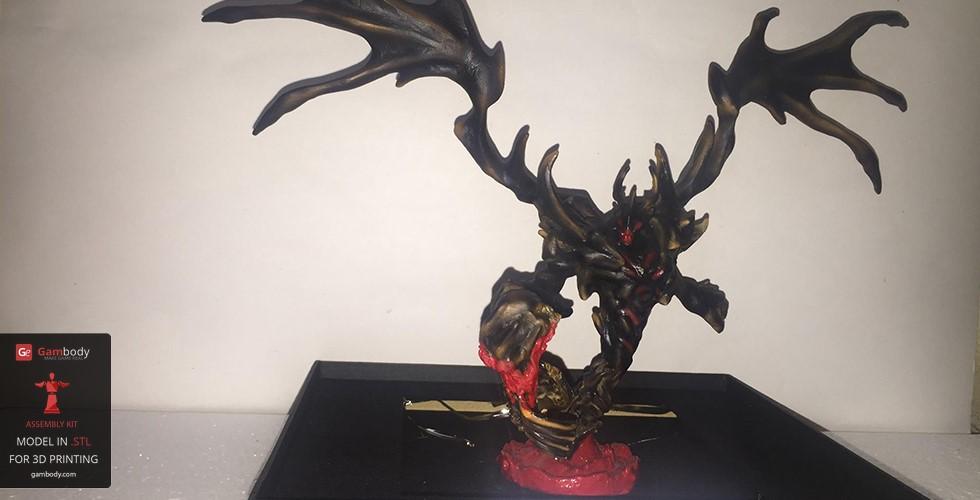

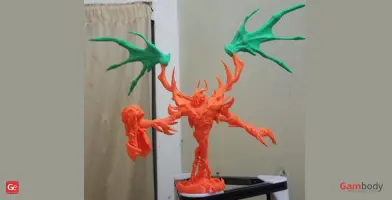

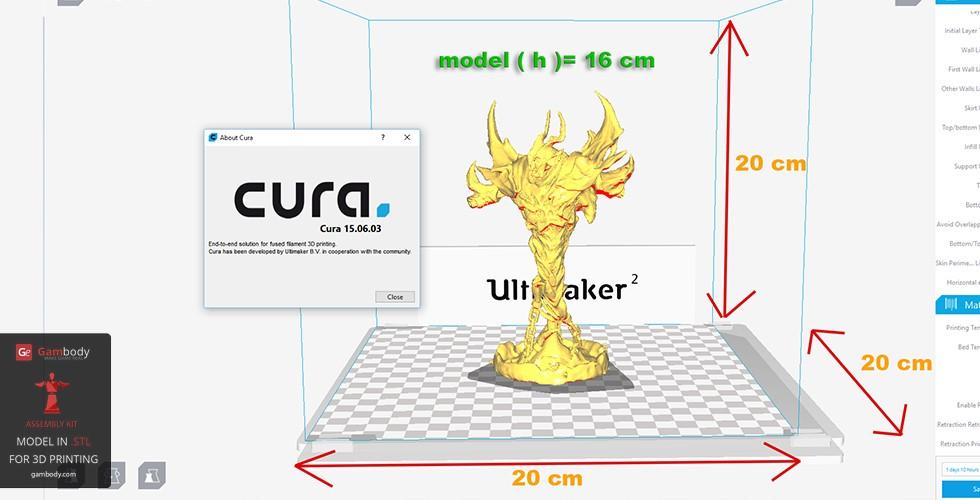

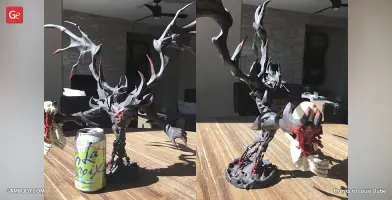

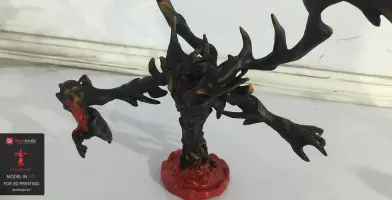

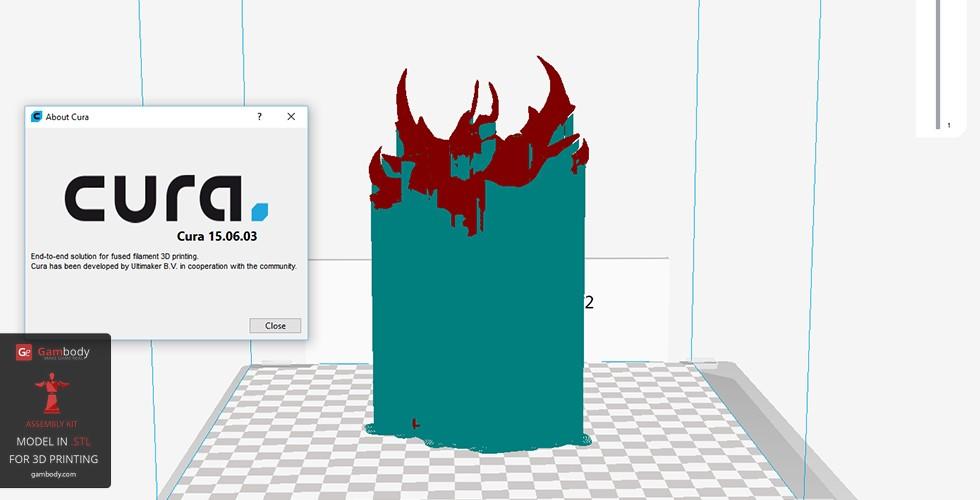

This model is adapted for 3D printing and tested to make sure that you won’t have any problems printing it on your devices. The STL files are checked and corrected in Netfabb and tested in CURA 2.3.1 slicing program. You can see pictures of the actual 3D printed and painted video game model in the photo slider.

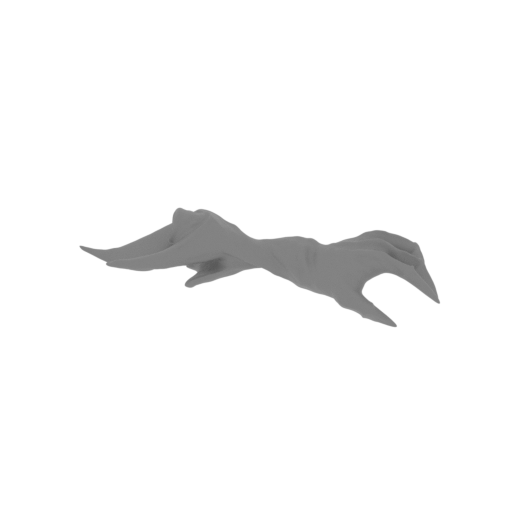

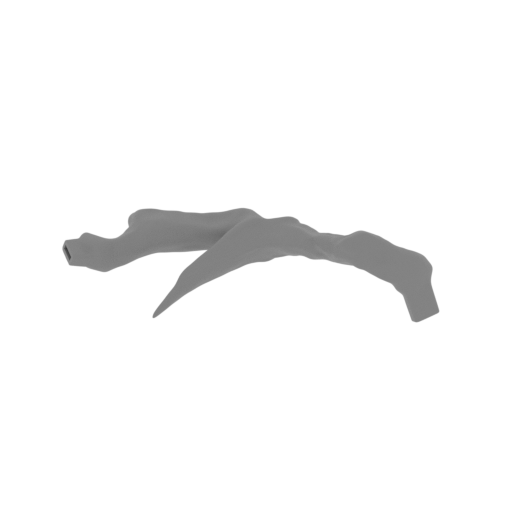

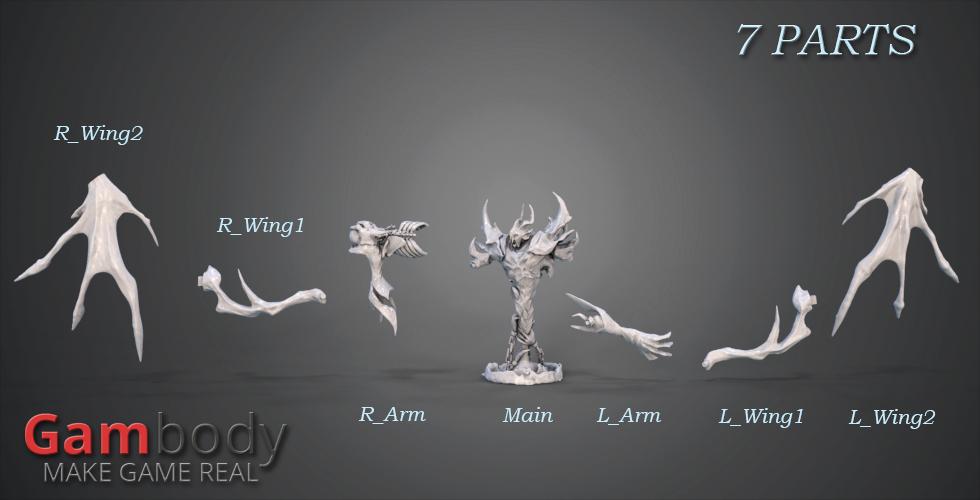

The 3D model is split into 7 parts. This was done for less support use during 3D printing. It is recommended to print Shadow Fiend 3D model at 0.1 mm layer height for an accurate result.

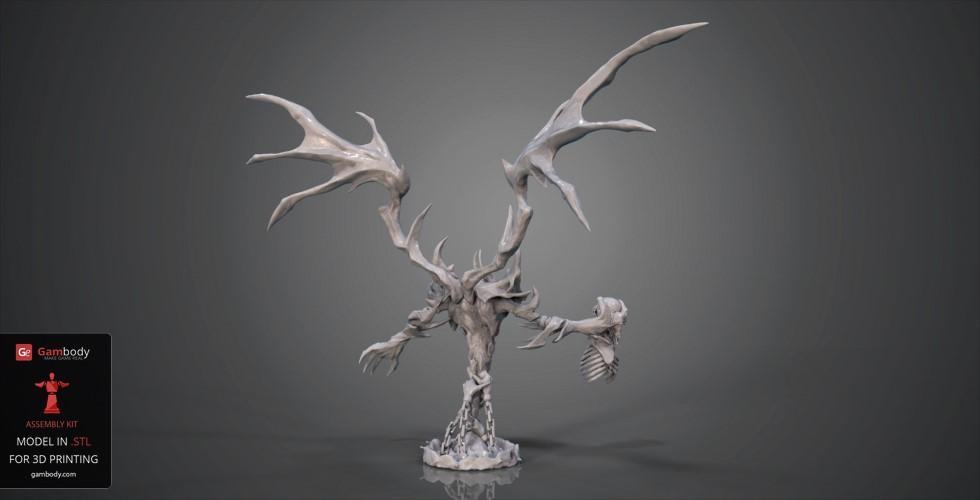

Shadow Fiend 3D model stands 346 mm wide, 278 mm tall and 198 mm deep. It is provided with a support base. It is a perfect gift for your video game fan friend or as a piece in your 3D printing collection.

Buy Shadow Fiend 3D model STL files by hitting the green Buy button. Enter your PayPal or credit card details. After successful processing of the payment, you will be able to download the files in a .zip folder, together with the PDF for the printing recommendations.

3D print the files with 3DHubs or Treatstock directly from Gambody website. Click Print with 3DHubs or Print with Treatstock button from the model’s page and choose the 3D printing provider that is located closer to your place of residence.

________________________

On 24.01.2018 the model files have been optimized. We have added high resolution STL files for Shadow Fiend 3D printing model. They now are already available for purchase and download in Version 2.

Description of the Shadow Fiend model from Version 2:

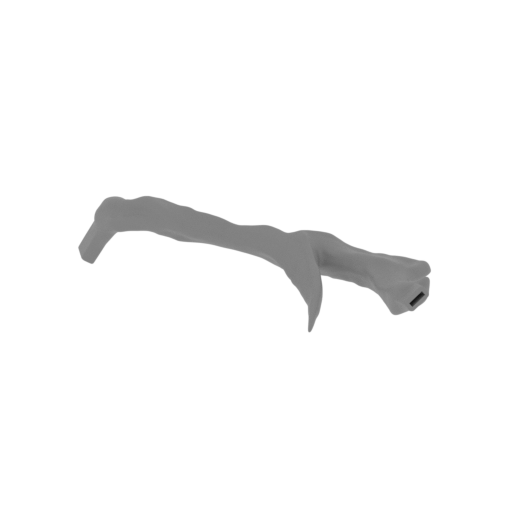

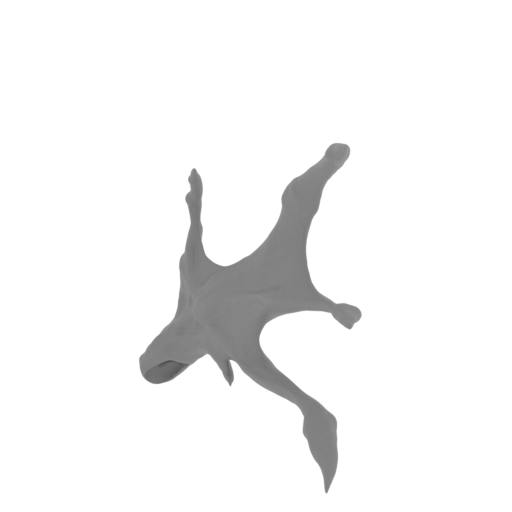

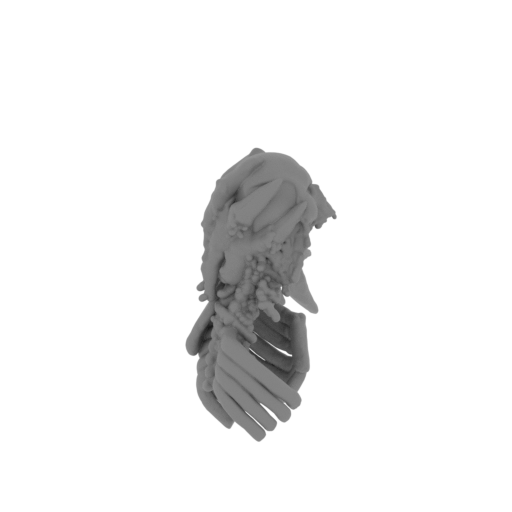

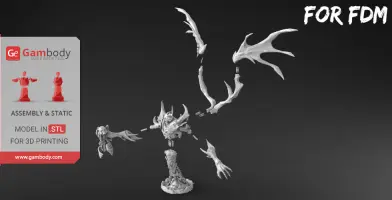

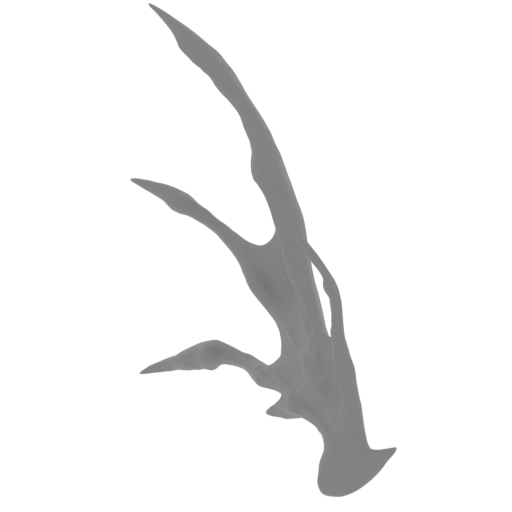

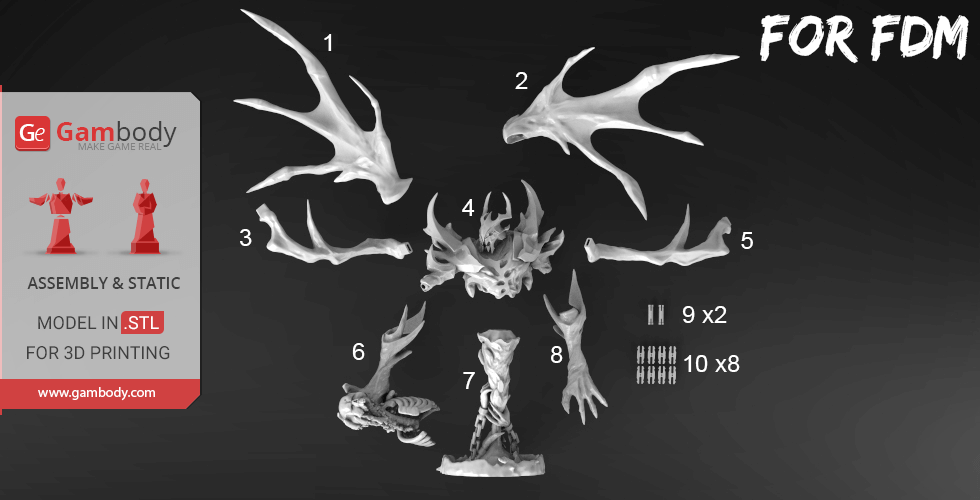

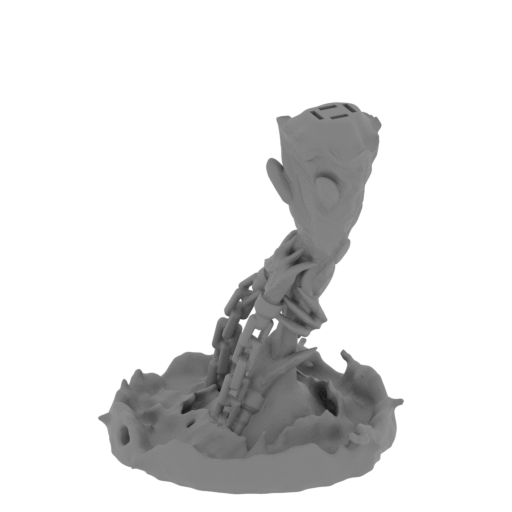

- Contains 10 parts for FDM printing;

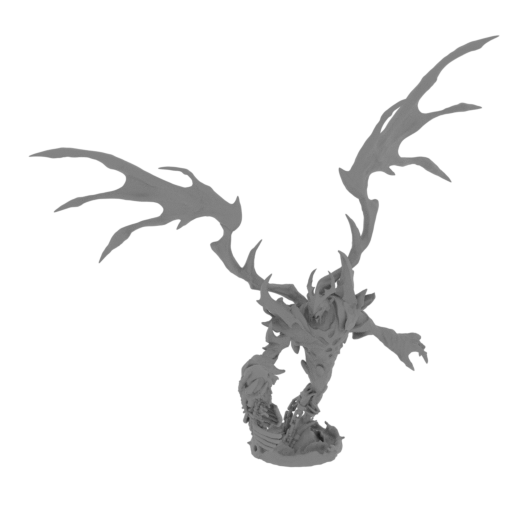

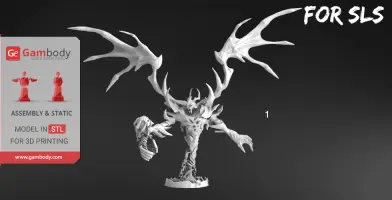

- Contains +1 separate part of the solid model as one piece for SLS/SLA printing;

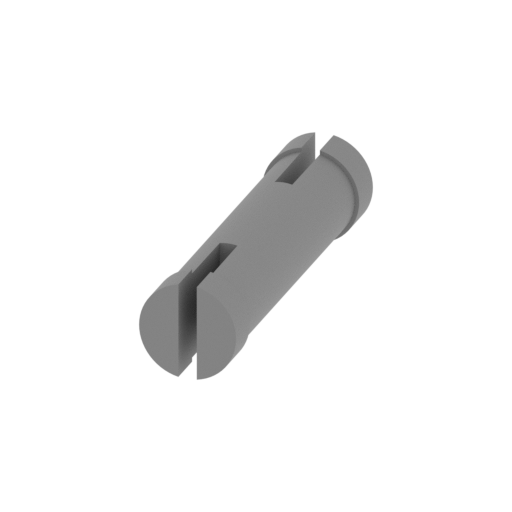

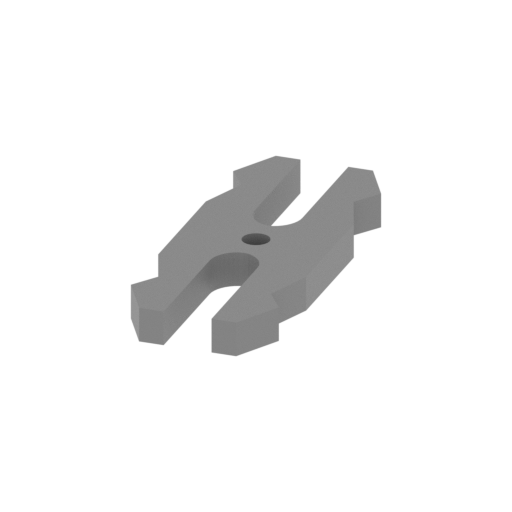

- Made with locks and connectors. One part of Lock (10_Ge_lock_7S (x8)) you need to print 8 times. One part of Connector (9_GE_Connector_A_B (x2)) you need to print twice;

- All parts are divided in such way that you will print them with the smallest amount of supports. A separate part of the one-piece model was created to keep SLS/SLA printing costs down.

All STL files for 3D printing have been checked in Netfabb and no errors were shown.

Note: Before starting 3D printing the model, read the Printing Details for CURA 3.1.0. Software.

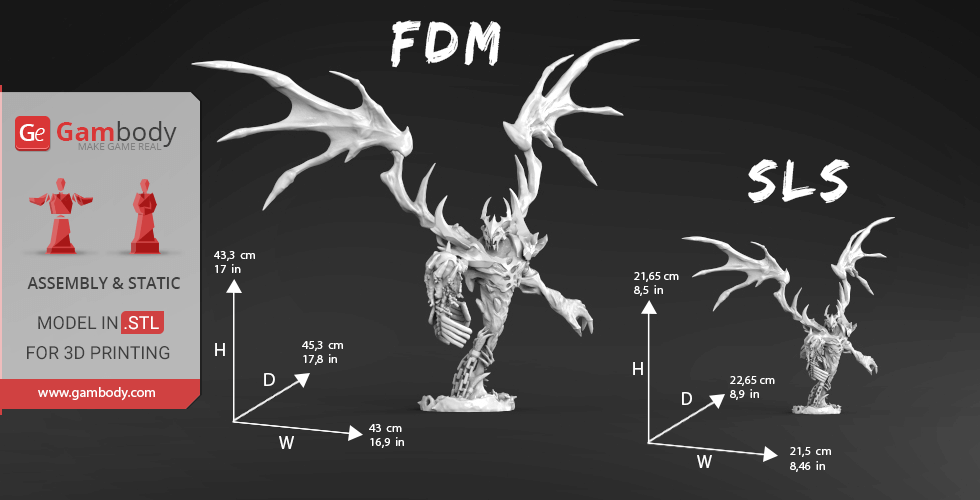

Dimensions after printing STL files on FDM 3D printers:

After being printed will stand - 433 mm tall, 430 mm wide, 453 mm deep.

Dimensions after printing STL files on SLS/SLA 3D printers:

After being printed will stand - 216.5 mm tall, 215 mm wide, 226.5 mm deep.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of Shadow Fiend for FFF/FDM/SLS/SLA 3D printing which consist of 18 parts;

- Platform that stylized under the netherworld;

- Made with locks and connectors for good fixing;

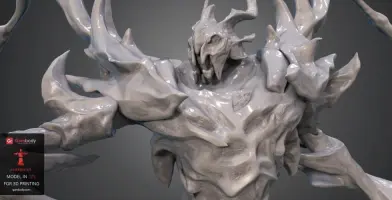

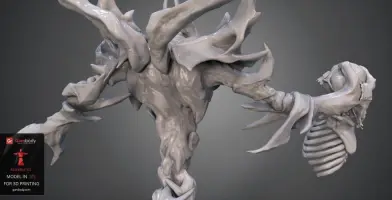

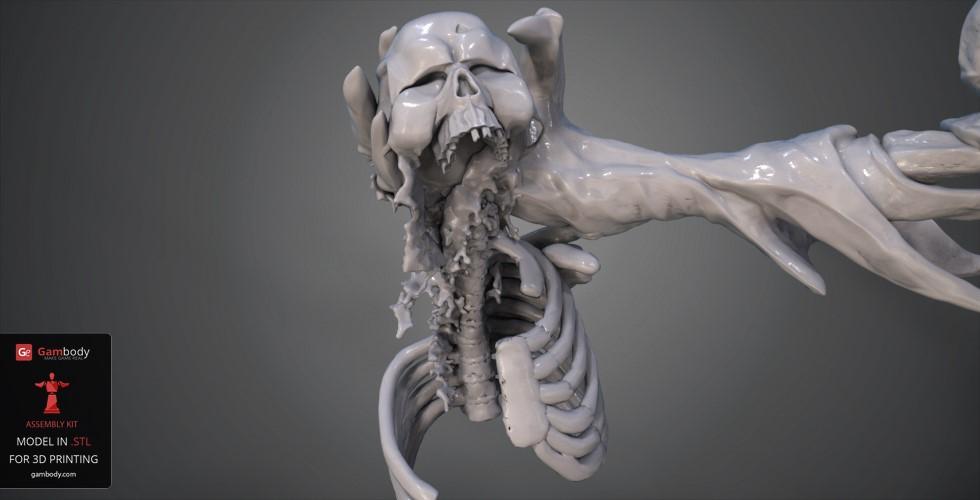

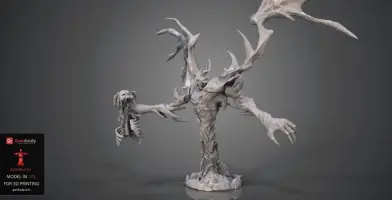

- High-poly detailed model of Shadow Fiend;

- Detailed settings that we provide for Cura 3.1.0. for the best print;

- Full technical support from the Gambody Support Team.

You can get Model of Shadow Fiend for 3D Printing right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Also, you may like another Dota2 3D printing miniatures.

_______
FAQ:
Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

This model was tested in Cura 3.1.0. and printed on an Ultimaker 2 in PLA material.

Recommendations:
1. For all parts of Locks you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

2. All parts of connectors should be printed at 100% infill.

To avoid printing problems, we recommend the following settings:

Quality

Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Slicing Tolerance: Middle
Line Width: 0.4 mm
Wall Line Width: 0.4 mm
   Outer Wall Line Width: 0.4 mm
   Inner Wall(s) Line Width: 0.4 mm
   Top/Bottom Line Width: 0.4 mm
   Infill Line Width: 0.4 mm
   Skirt/Brim Line Width: 0.4 mm
   Support Line Width: 0.4 mm
 Initial Layer Line Width: 100%

Shell

Wall Thickness: 0.8 mm
Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Sharpest Corner
Seam Corner Preference: Hide Seam
Ignore Small Z Gaps: Check
Extra Skin Wall Count: 1

Infill

Infill Density: 20% (all parts of the connectors should be printed at 100% infill)
Infill Line Distance: 4.0 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Overlap Percentage: 10%
    Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Removal Width: 0.8 mm
    Top Skin Removal Width: 0.8 mm
    Bottom Skin Removal Width: 0.8 mm
Skin Expand Distance: 0.8
    Top Skin Expand Distance: 0.8
    Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90˚
    Minimum Skin Width for Expansion: 0.0

Material

Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed

Print Speed: 45 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 22.5 mm/s
      Outer Wall Speed: 22.5 mm/s
      Inner Wall Speed: 45 mm/s
    Top/Bottom Speed: 15 mm/s
    Support Speed: 45 mm/s
      Support Infill Speed: 45 mm/s
Travel Speed: 80 mm/s
Initial Layer Speed: 15 mm/s

    Initial Layer Print Speed: 15 mm/s
    Initial Layer Travel Speed: 26.6667 mm/s
Skirt/Brim Speed: 15 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel

Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.625 mm
Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.3 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support

Generate Support: Check
Support Placement: Everywhere
Support Overhang Angle: 60°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 1.3333 mm
Support Z Distance: 0.3 mm
    Support Top Distance: 0.3 mm
    Support Bottom Distance: 0.3 mm
Support X/Y Distance: 0.7 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.2 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion

Build Plate Adhesion Type: Brim (for all parts of locks use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 18
Brim Only on Outside: Check

Mesh Fixes

Union Overlapping Volumes: Check
Maximum Resolution: 0.01 mm
Merged Meshes Overlap: 0.15 mm

Special Modes

Print Sequence: All at Once
Surface Mode: Normal

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
