ABOUT THIS 3D MODEL

Enterprise NX-01 is the first warp 5 starship of Starfleet, launched in 2151 under the command of Captain Jonathan Archer. As Earth's pioneer deep-space explorer, it played a crucial role in early Federation history, encountering new alien species, engaging in first contact missions, and facing threats like the Xindi. Its sleek NX-class design, experimental technology, and plasma cannons made it a formidable vessel in the pre-Federation era.

The long-awaited Enterprise NX-01 model for 3D printing is now available on Gambody, thanks to the great effort of our contributing 3D artist, who created the starship inspired by its canonical design. The tunnels for LED lighting allow you to illuminate the ship. Additionally, there are two variants of the hull—one with and one without lettering. The Enterprise NX-01 for 3D printing is sure to brighten your Star Trek 3D-printed collection.

ADAPTATION FOR 3D PRINTING

Enterprise NX-01 model for 3D printing is a static assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 113 hours in total.

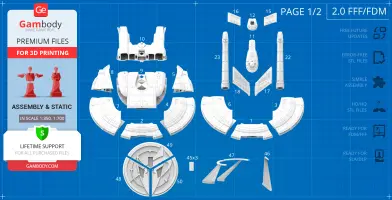

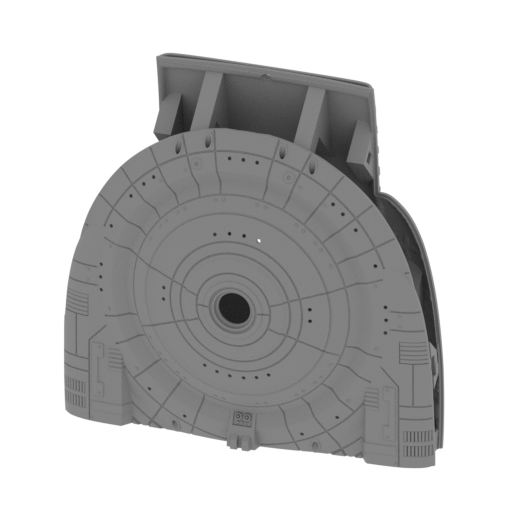

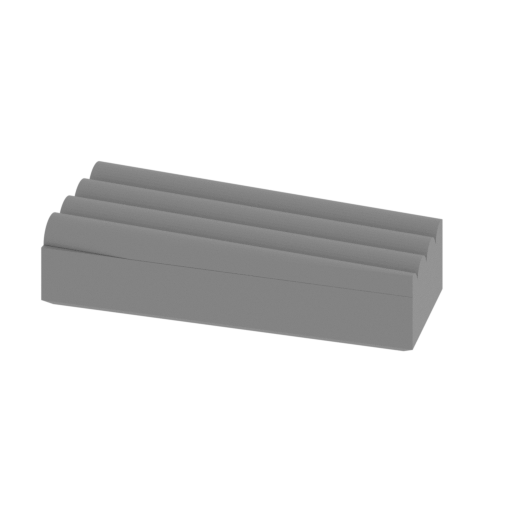

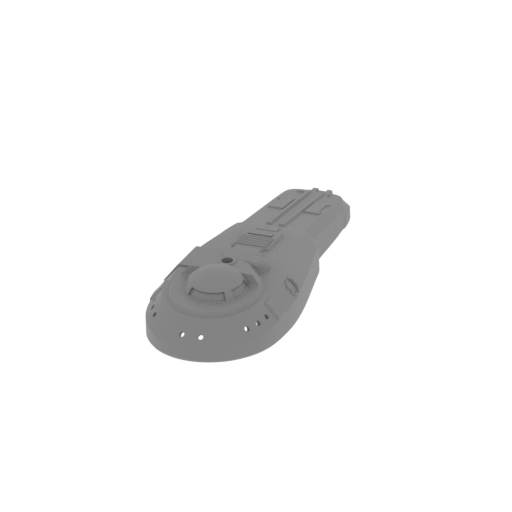

For you to receive the cleanest 3D printing result possible, minimize the amount of filament needed for generated support, and make use of the active elements designed by Gambody Engineers, the starship was divided into convenient assembly parts.

All assembly parts in the FFF/FDM 1.0 version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won’t face difficulties when placing the parts on a build plate. When downloading any model’s file you will also receive “Assembly Manual” for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats. We highly recommend that you get acquainted with the “Assembly Video” and “Assembly Manual” before getting down to the Enterprise NX-01 printing model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

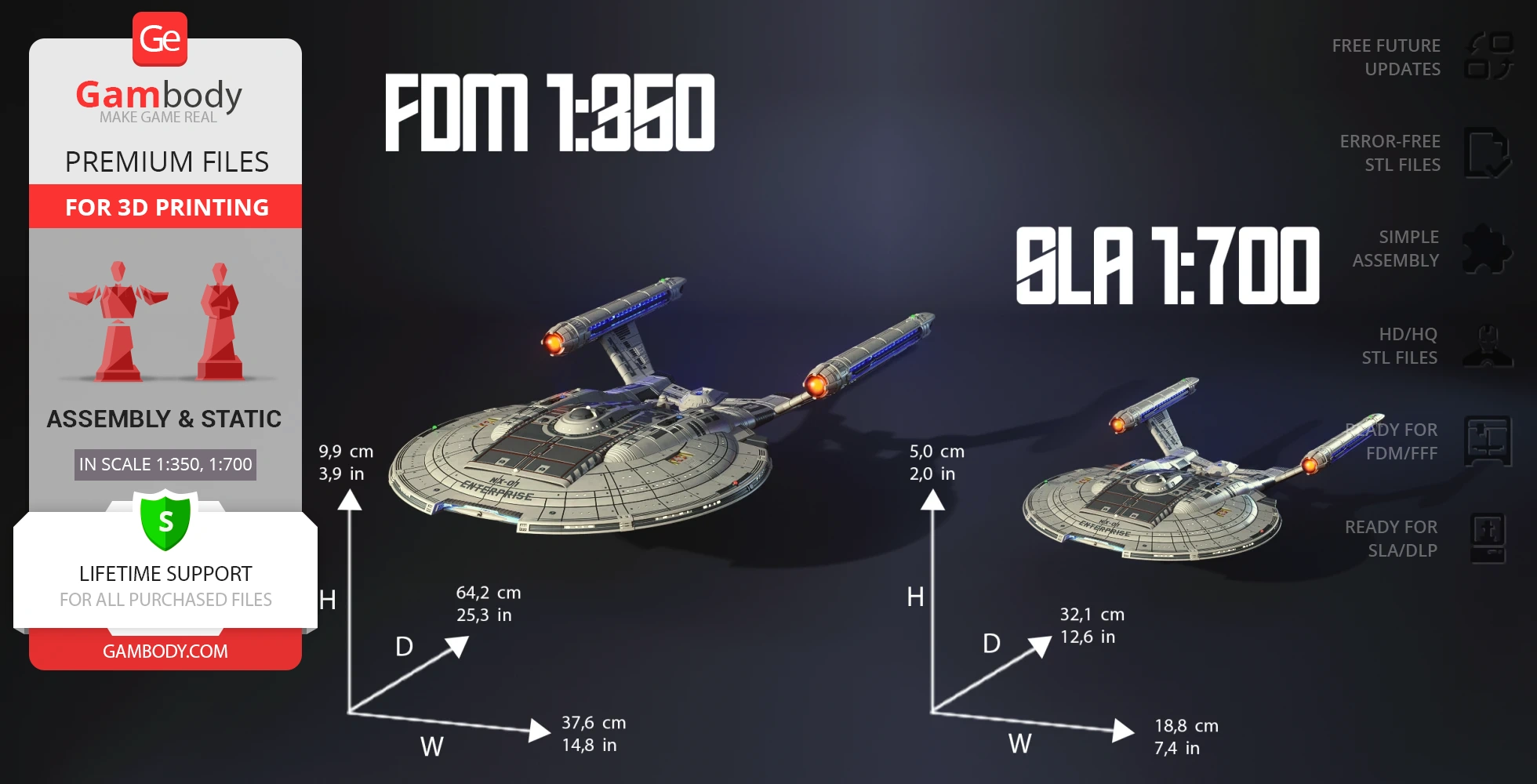

The model’s scale was calculated from the length of the starship. The 3D printing model’s chosen scales are 1:350 for the FFF/FDM version and 1:700 for the DLP/SLA version.

VERSIONS’ SPECIFICATIONS

FFF/FDM 1.0 version features:

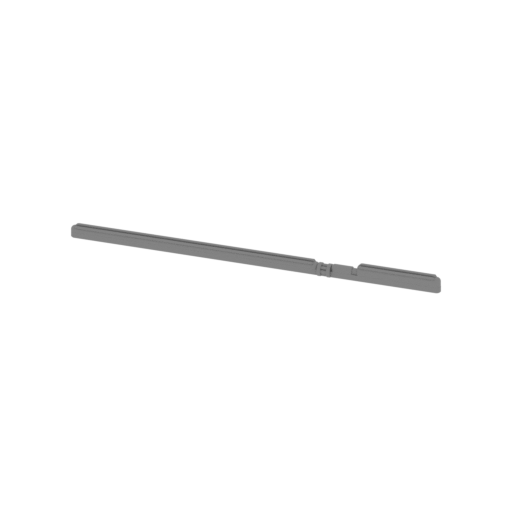

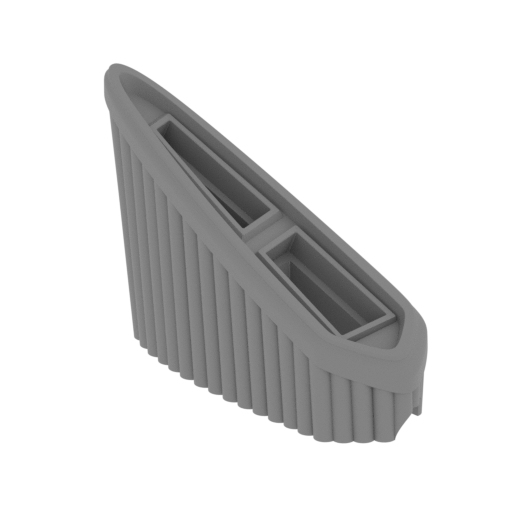

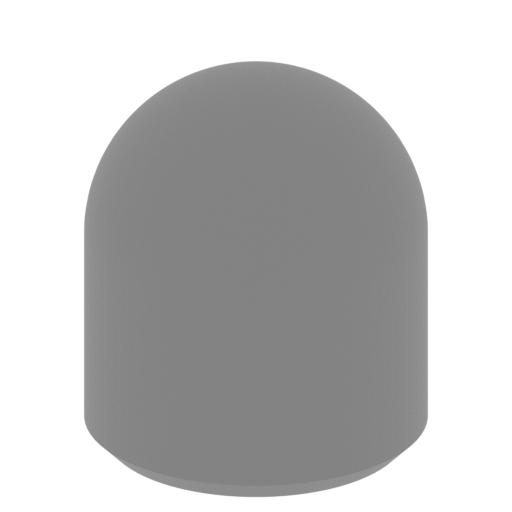

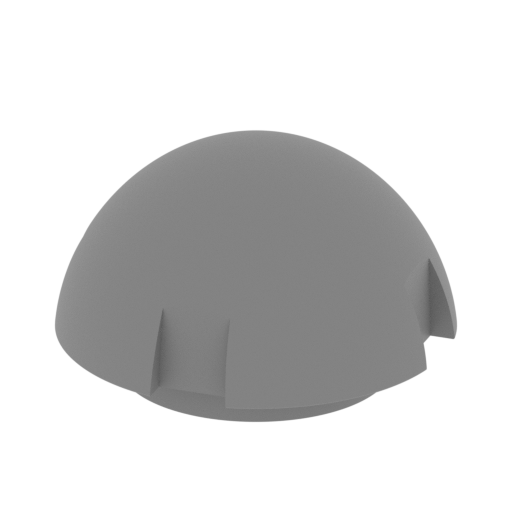

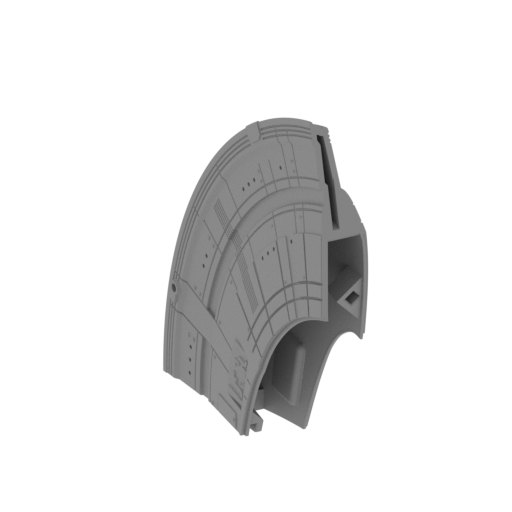

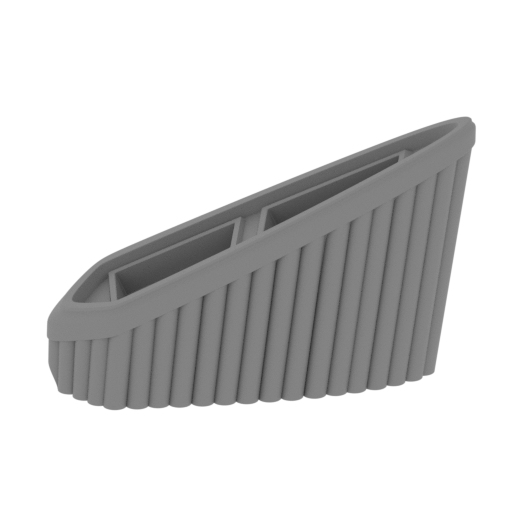

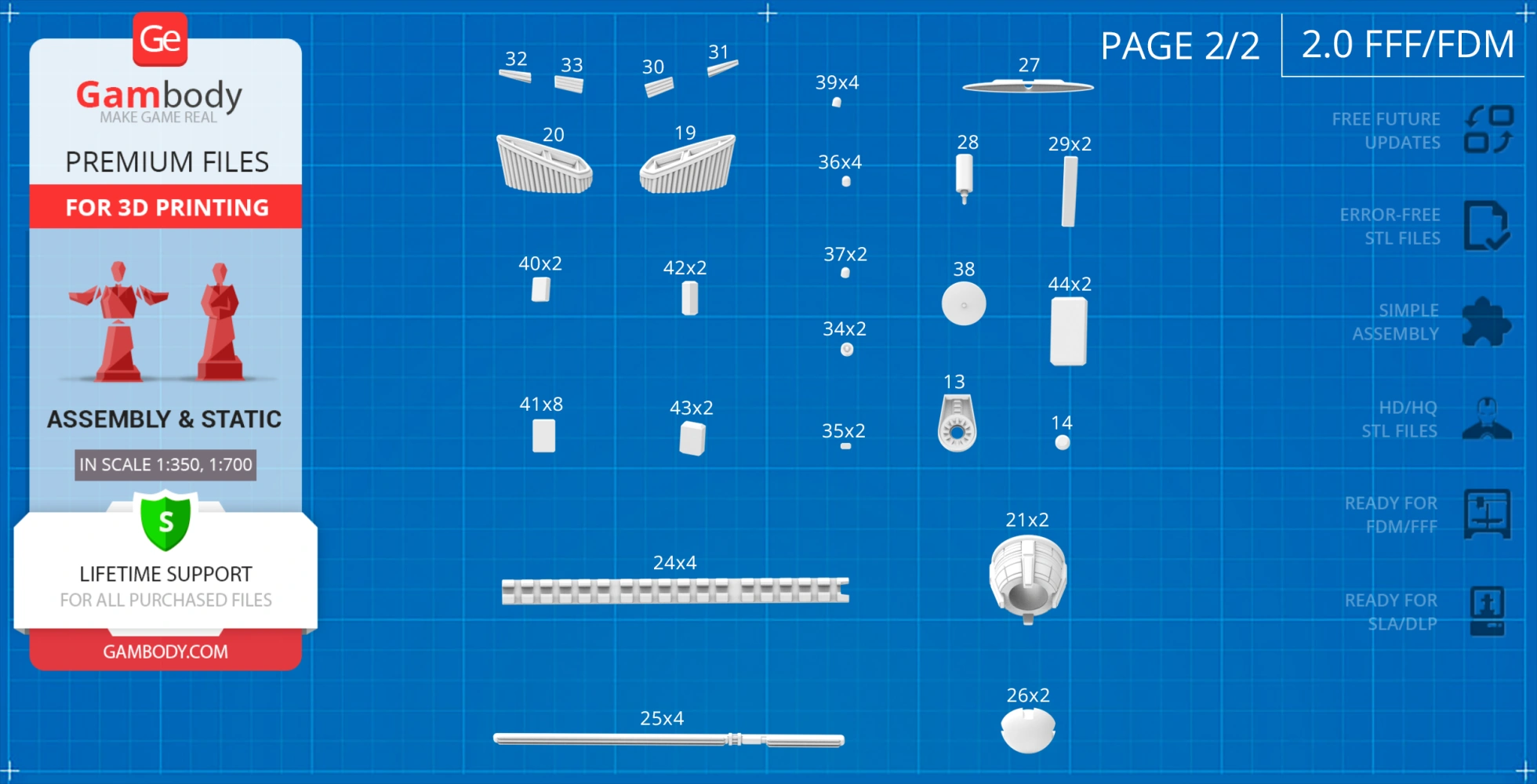

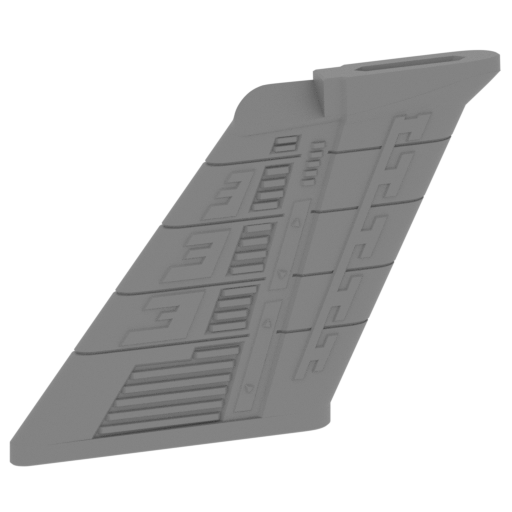

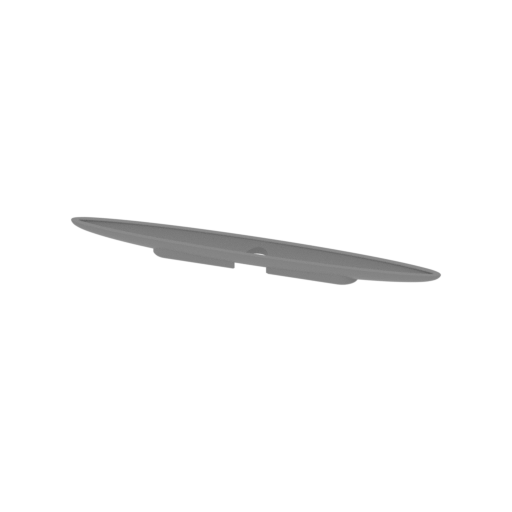

• Contains 47 parts;
• A printed model is 73 mm tall, 280 mm wide, 477 mm deep;

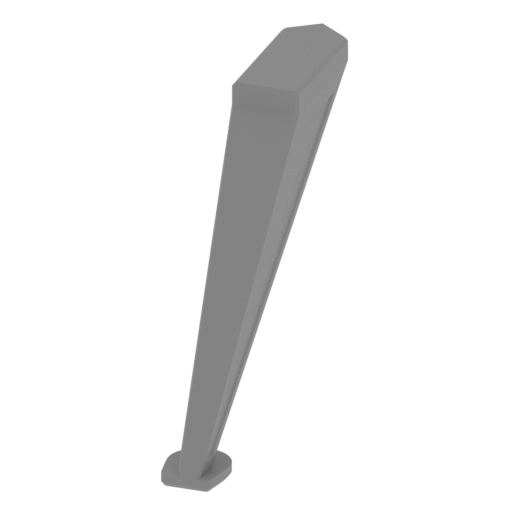

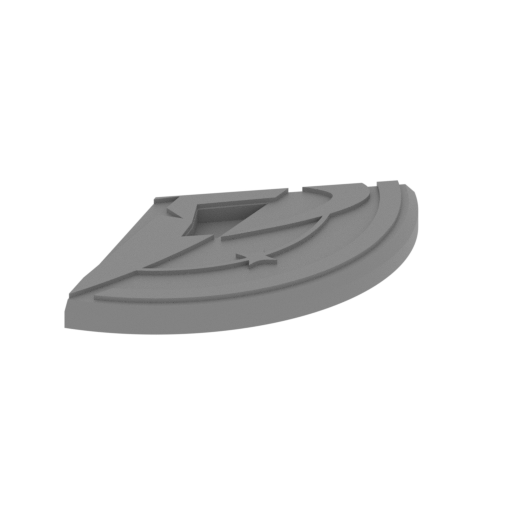

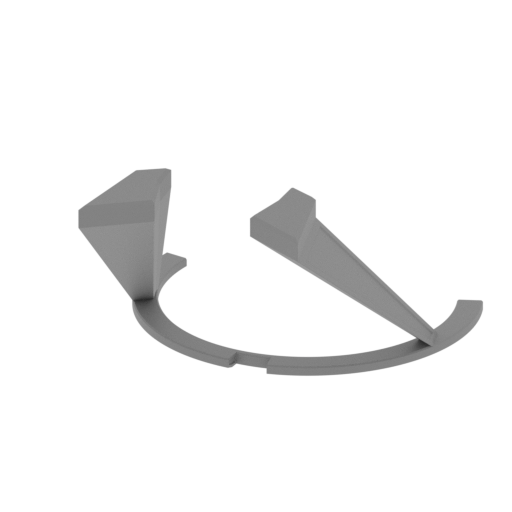

• A printed model with a stand is 136 mm tall, 280 mm wide, 477 mm deep;

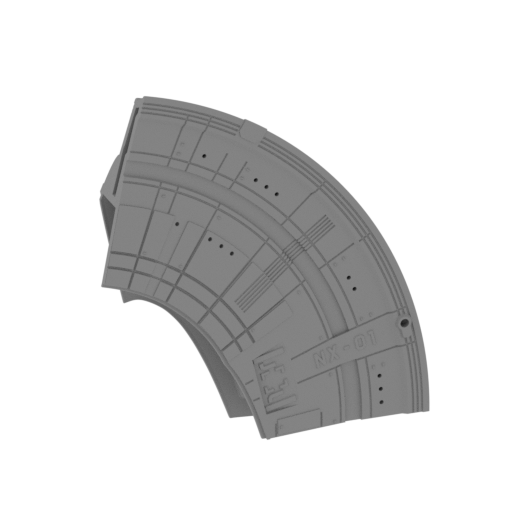

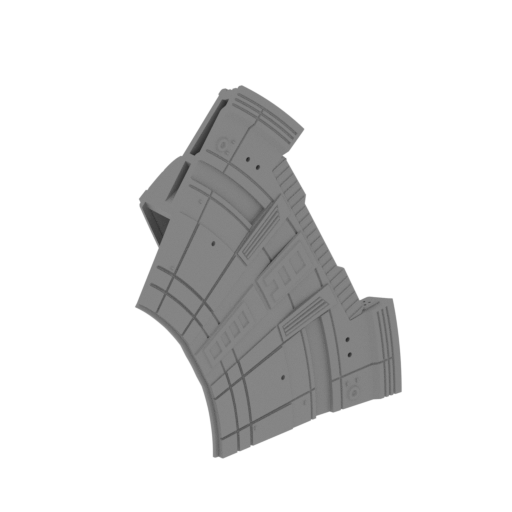

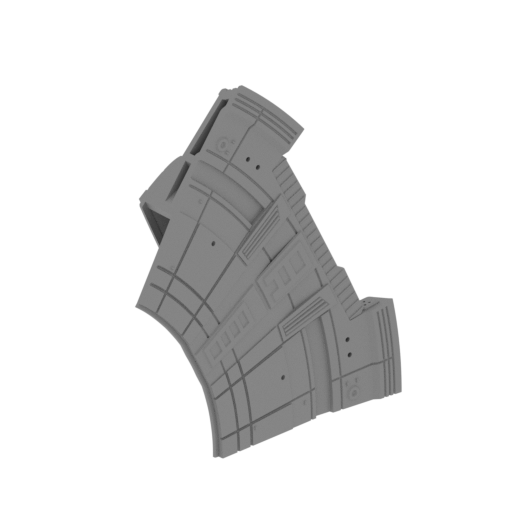

• 2 variants of the hull - with and without the lettering;
• There are tunnels for LED wiring;
• All parts are divided in such a way that you will print them with the smallest number of support structures.

DLP/SLA 1.0 version features:

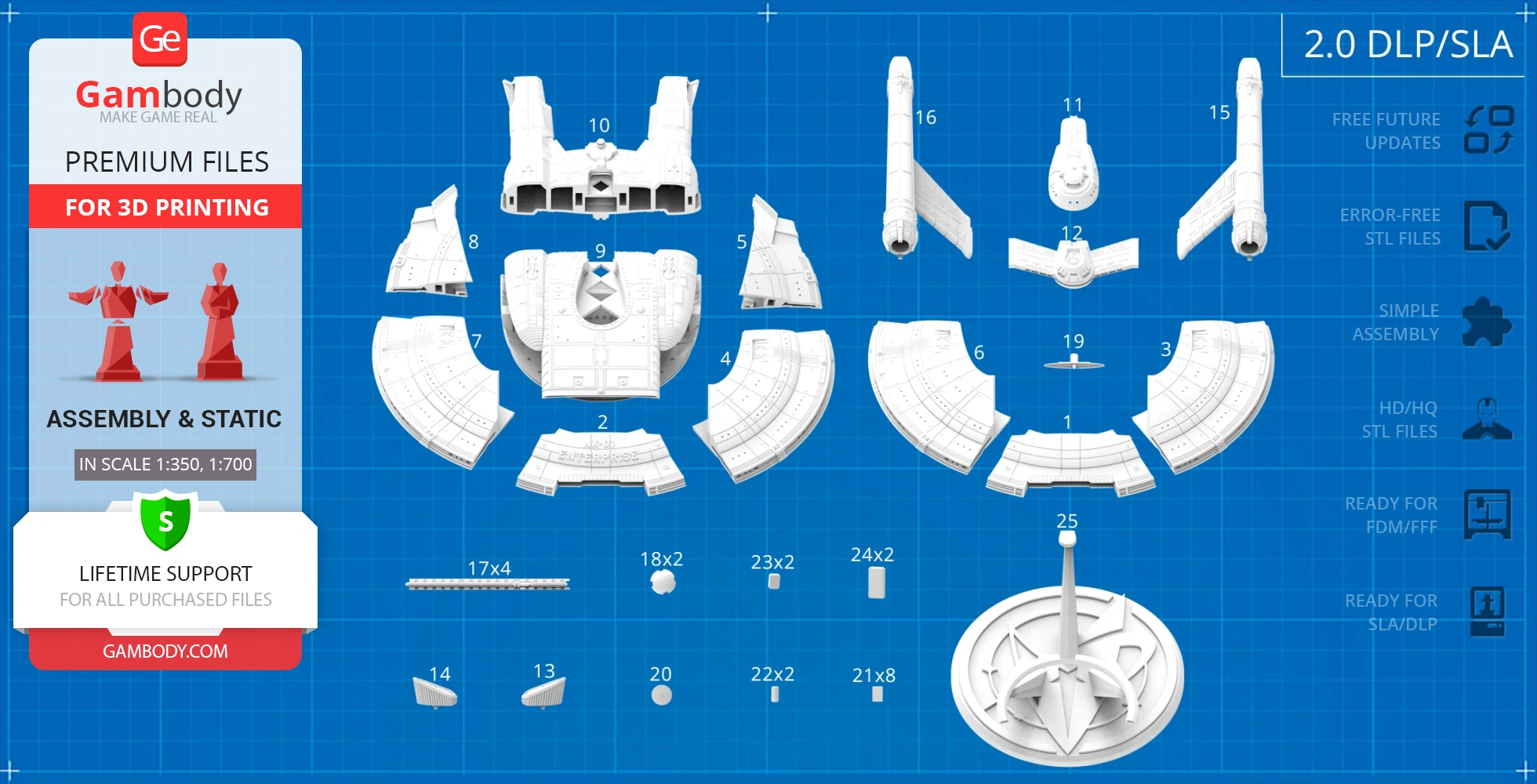

• Contains 25 parts;
• A printed model is 37 mm tall, 140 mm wide, 238 mm deep;
• A printed model with a stand is 68 mm tall, 140 mm wide, 238 mm deep;
• 2 variants of the hull - with and without the lettering;
• There are tunnels for LED wiring;
• All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

You can get the Enterprise NX-01 model for 3D printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Enterprise NX-01 3D Printer Files on Gambody YouTube channel.

Also, you may like Star Trek 3D Printing Models.

________

FAQ:

• Where can I print a model if I have no printer?
• How to get started with 3D printing?
• How to set up my 3D printer?
• How to choose right 3D model print bed positioning?
• How to paint printed figurine?

Generic

Below you can find printing recommendations for Cura, Bambu Studio, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

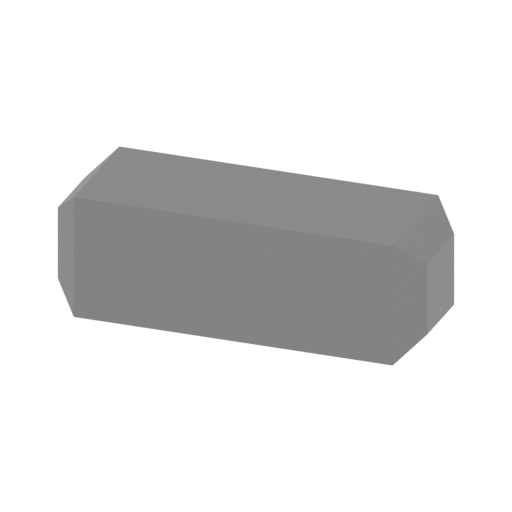

All connectors should be printed at 100% Infill.

Bambu Lab printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Bambu Studio 1.9.1. Test models were printed on the Bambu Lab A1, Bambu Lab A1 Mini, Creality Ender 3 S1, Anycubic Kobra 2, and Anycubic Vyper using PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
