HISTORY OF E.T. THE EXTRA-TERRESTRIAL

A group of aliens that had come to Earth with a research mission quite accidentally left behind one of their crew members, named E.T. During his stay on Earth, he was found by children he became friends with, and lived with a boy named Eliot. All this time he tried to repair his transmitter to contact his family and fly away to his planet. He was very intelligent and quickly adapted to the human lifestyle. But in the end, he managed to get in touch with his own race, and a spaceship flew in to take him back home.

ABOUT THIS 3D Model

The model is saved in STL files, a format supported by most 3D printers.

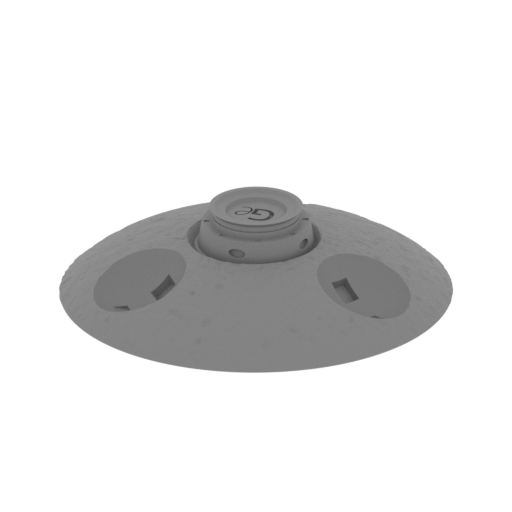

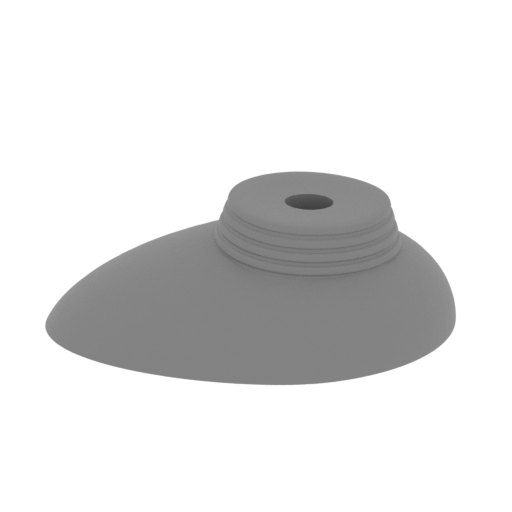

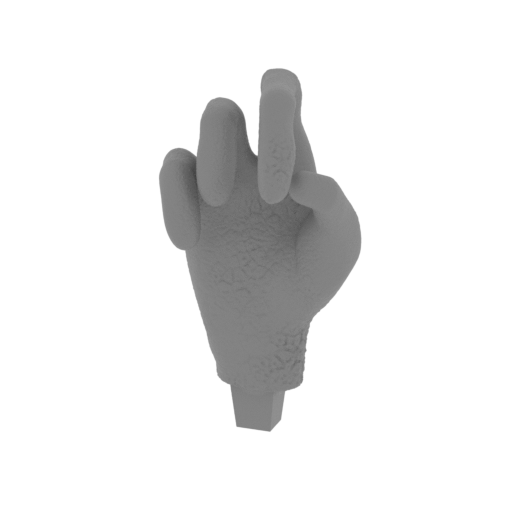

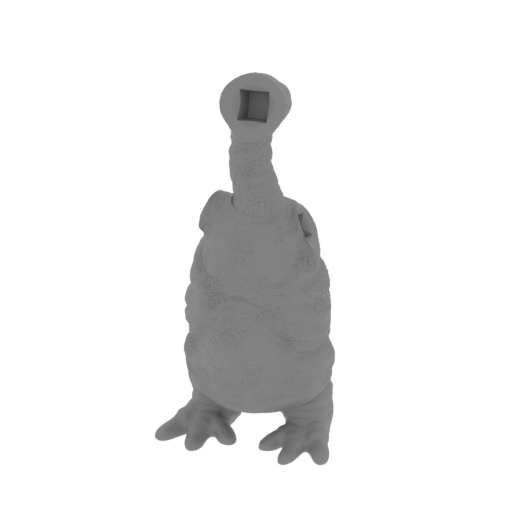

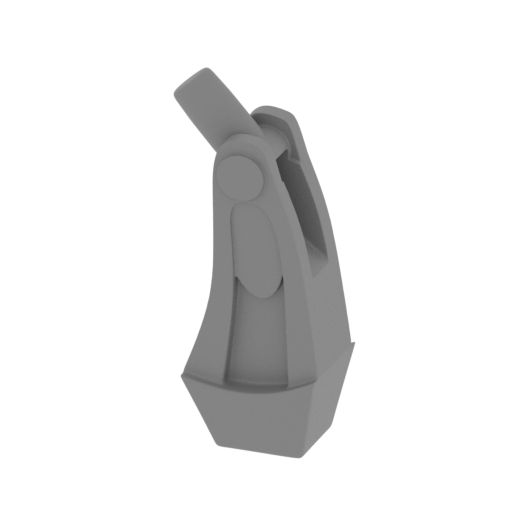

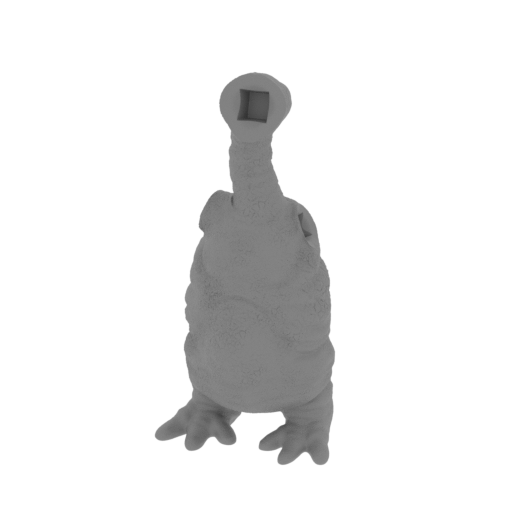

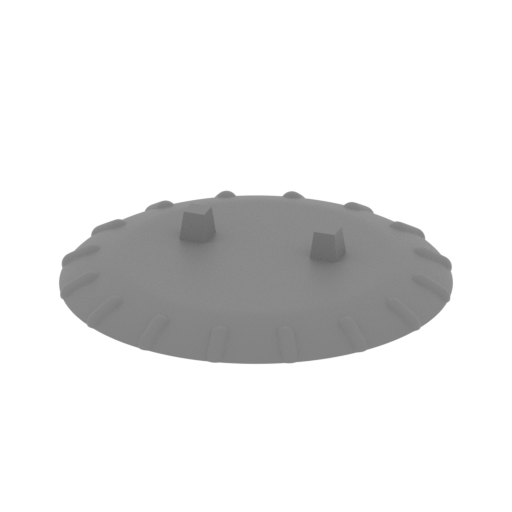

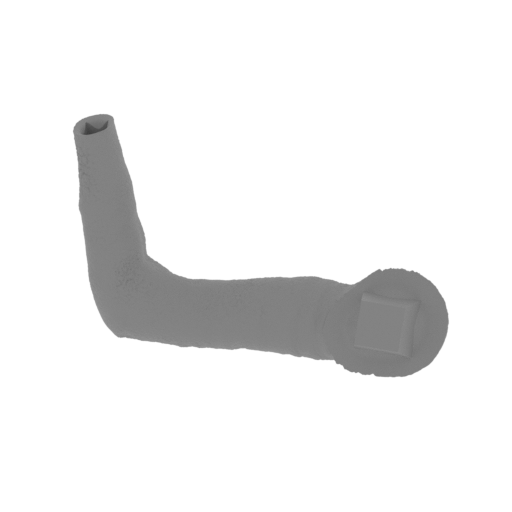

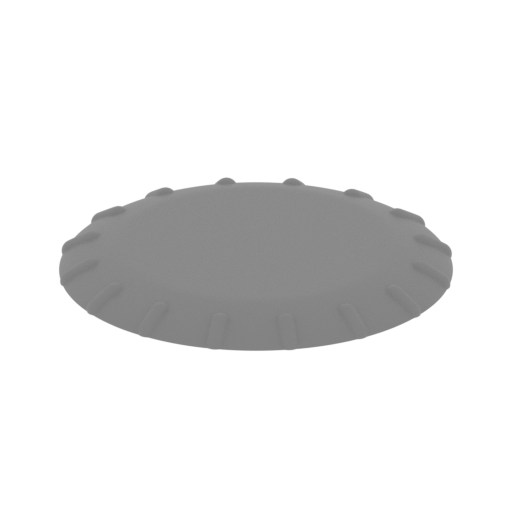

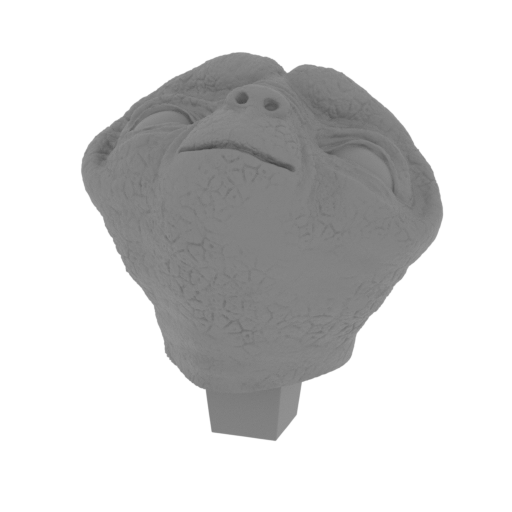

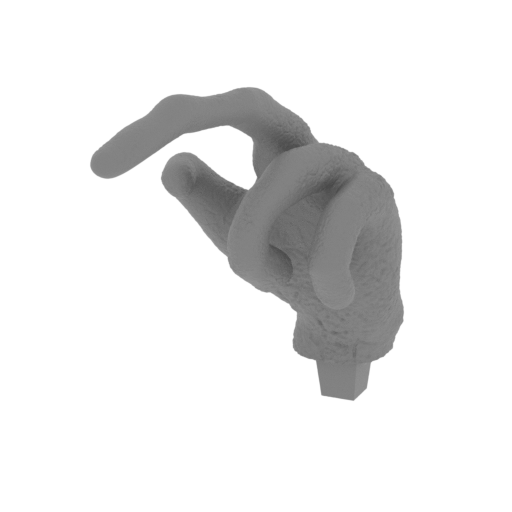

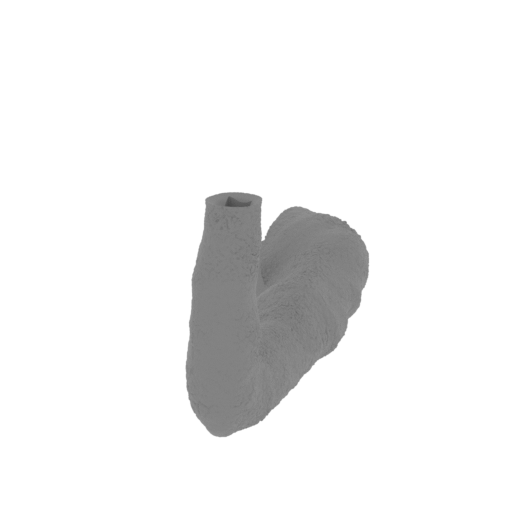

FFF/FDM 1.0 version features:- Contain 13 parts;- Made with 2 variants of platform and body with locks and without it;- All parts are divided in such way that you will print them with the smallest amount of supports.

DLP/SLA 1.0 version features:- Same as FFF/FDM but smaller, also made as 7 parts;

SLS 1.0 version features:- Same as DLP/SLA but made as 4 parts for economy your material;

All STL files for 3D printing have been checked in Netfabb and no errors were shown.

Note: Before starting 3D printing the model, read the Printing Details for CURA 3.4.1. or Simplify3D Software.

There are 13 parts for FFF/FDM 1.0 version, 7 parts for DLP/SLA 1.0 version and 4 parts for SLS 1.0.

Scale: E.T. the Extra-Terrestrial height is 1200 mm. The scale of this model made in proportion to it. 1/8 for FFF/FDM 1.0 version and 1/16 for DLP/SLA 1.0 and SLS 1.0 versions.

FFF/FDM 1.0 version dimensions:After being printed will stand - 185 mm tall, 100 mm wide, 100 mm deep;

SLA/DLP 1.0 and ​SLS 1.0 version dimensions:After being printed will stand - 93 mm tall, 50 mm wide, 50 mm deep;- Has a few details, to keep printing costs down.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of E.T. the Extra-Terrestrial​​ 3D Printing Model which consist of 24 parts;- 3 versions of files for this model for FFF/FDM, DLP/SLA, and SLS;- High-poly detailed model of E.T. the Extra-Terrestrial​​;- Detailed settings that we provide for Cura 3.4.1. and Simplify3D for the best print;- Full technical support from the Gambody Support Team.

You can get E.T. the Extra-Terrestrial​​​ for 3D Printing right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble E.T. the Extra-Terrestrial​​​​ 3D Printing Model at Gambody YouTube channel.

Also, you may like other Aliens 3D Printing Models.

_______FAQ: Where can I print a model if I have no printer?How to get started with 3D printing?How to set up my 3D printer?How to choose right 3D model print bed positioning? How to paint printed model?

Generic

This model was tested in Cura 3.4.1 and printed on an Ultimaker 2 in PLA material. Below you can find printing recommendations for Cura and Simplify3D softwares.

Cura printing recommendations:

To avoid printing problems, we recommend the following settings:

QualityLayer Height: 0.1 mmInitial Layer Height: 0.3 mmLine Width: 0.4 mm Wall Line Width: 0.4 mm   Outer Wall Line Width: 0.4 mm   Inner Wall(s) Line Width: 0.4 mm Top/Bottom Line Width: 0.4 mm Infill Line Width: 0.4 mm Skirt/Brim Line Width: 0.4 mmSupport Line Width: 0.4 mm Initial Layer Line Width: 100%

Shell Wall Thickness: 0.8 mm    Wall Line Count: 2Outer Wall Wipe Distance: 0.2 mmTop Surface Skin Layers: 0Top/Bottom Thickness: 0.8 mm   Top Thickness: 0.8 mm       Top Layers: 8    Bottom Thickness: 0.8 mm      Bottom Layers: 8Top/Bottom Pattern: LinesBottom Pattern Initial Layer: LinesTop/Bottom Line Directions: [ ]Outer Wall Inset: 0 mmCompensate Wall Overlaps: Check    Compensate Outer Wall Overlaps: Check    Compensate Inner Wall Overlaps: CheckFill Gaps Between Walls: EverywhereFilter Out Tiny Gaps: CheckHorizontal Expansion: 0 mmInitial Layer Horizontal Expansion: 0 mmZ Seam Alignment: Sharpest CornerSeam Corner Preference: Hide SeamIgnore Small Z Gaps: CheckExtra Skin Wall Count: 1

Infill Infill Density: 20%Infill Line Distance: 4.0 mmInfill Pattern: GridInfill Line Directions: [ ]Infill X Offset: 0 mmInfill Y Offset: 0 mmInfill Overlap Percentage: 10%    Infill Overlap: 0.04 mmSkin Overlap Percentage: 5%    Skin Overlap: 0.02 mmInfill Wipe Distance: 0.1 mmInfill Layer Thickness: 0.1 mmGradual Infill Steps: 1Gradual Infill Steps Height: 1.5 mmInfill Before Walls: CheckMinimum Infill Area: 0 mm2Skin Removal Width: 0.8 mm    Top Skin Removal Width: 0.8 mm    Bottom Skin Removal Width: 0.8 mmSkin Expand Distance: 0.8    Top Skin Expand Distance: 0.8    Bottom Skin Expand Distance: 0.8Maximum Skin Angle for Expansion: 90˚    Minimum Skin Width for Expansion: 0.0

Material Initial Layer Flow: 100%Enable Retraction: CheckRetraction Extra Prime Amount: 0 mm3 Retraction Minimum Travel: 0.8 mmMaximum Retraction Count: 90Minimum Extrusion Distance Window: 6.5 mmNozzle Switch Retraction Distance: 16 mmNozzle Switch Retraction Speed: 20 mm/s    Nozzle Switch Retract Speed: 20 mm/s    Nozzle Switch Prime Speed: 20 mm/s

Speed Print Speed: 45 mm/s    Infill Speed: 50 mm/s    Wall Speed: 22.5 mm/s      Outer Wall Speed: 22.5 mm/s      Inner Wall Speed: 45 mm/s    Top/Bottom Speed: 15 mm/s    Support Speed: 45 mm/s      Support Infill Speed: 45 mm/sTravel Speed: 60 mm/sInitial Layer Speed: 22.5 mm/s  Initial Layer Print Speed: 22.5 mm/s  Initial Layer Travel Speed: 30 mm/sSkirt/Brim Speed: 30 mm/sMaximum Z Speed: 0 mm/sNumber of Slower Layers: 2

Travel Combing Mode: AllAvoid Printed Parts when Traveling: CheckTravel Avoid Distance: 0.6562 mmLayer Start X: 0.0 mmLayer Start Y: 0.0 mm

Cooling Enable Print Cooling: CheckFan Speed: 100%    Regular Fan Speed: 100%    Maximum Fan Speed: 100% Regular/Maximum Fan Speed Threshold: 10 sInitial Fan Speed: 0%Regular Fan Speed at Height: 0.3 mm    Regular Fan Speed at Layer: 2 Minimum Layer Time: 5 sMinimum Speed: 10 mm/s

Support Generate Support: CheckSupport Placement: EverywhereSupport Overhang Angle: 50°Support Pattern: Zig ZagConnect Support ZigZags: CheckSupport Density: 15 %    Support Line Distance: 1.3333 mmSupport Z Distance: 0.3 mm    Support Top Distance: 0.3 mm    Support Bottom Distance: 0.3 mmSupport X/Y Distance: 1 mmSupport Distance Priority: Z overrides X/YMinimum Support X/Y Distance: 0.25 mmSupport Stair Step Height: 0.3 mmSupport Stair Step Maximum Width: 5.0 mmSupport Join Distance: 2.0 mmSupport Horizontal Expansion: 0.2 mmSupport Infill Layer Thickness: 0.1 mmGradual Support Infill Steps: 0Use Towers: CheckTower Diameter: 3.0 mmMinimum Diameter: 3.0 mmTower Roof Angle: 65°

Build Plate Adhesion Build Plate Adhesion Type: BrimSkirt/Brim Minimum Length: 250 mmBrim Width: 8.0 mm    Brim Line Count: 18 Brim Only on Outside: Check

Mesh Fixes Union Overlapping Volumes: CheckMerged Meshes Overlap: 0.15 mm

Special ModesPrint Sequence: All at OnceSurface Mode: Normal

ExperimentalSlicing Tolerance: MiddleMaximum Resolution: 0.01 mmFlow rate compensation max extrusion offset: 0 mmFlow rate compensation factor: 100%

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

ExtruderNozzle Diameter: 0.4 mmExtrusion Multiplier: 0.97Extrusion Width: Auto

Retraction Distance: 5.00 mmExtra Restart Distance: 0.00 mmRetraction Vertical Lift: 0.08 mmRetraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

LayerPrimary Layer Height: 0.2 mmTop Solid Layers: 8Bottom Solid Layers: 5Outline/Perimeter Shells: 2Outline Direction: Inside-Out

First Layer Height: 90%First Layer Width: 100%First Layer Speed: 20%

AdditionsUse Skirt/Brim: CheckSkirt Layers: 1Skirt Offset from Part: 6.00 mmSkirt Outlines: 5

InfillInternal Fill Pattern: Fast HoneycombExternal Fill Patern: RectilinearInterior Fill Percentage: 10%Outline Overlap: 22%Infill Extrusion Width: 100%Minimum Infill Length: 5.00 mmCombine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

SupportGenerate Support Material: CheckSupport Infill Percentage: 15%Extra Inflation Distance: 1.00 mmSupport Base Layers: 0Combine Support Every: 1 layers

Dense Support Layers: 0Dense Infill Percentage: 70%

Support Type: NormalSupport Pillar Resolution: 5.00 mmMax Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mmUpper Vertical Separation Layers: 1Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

TemperatureExtruder 1 Temperature: 210Heated Bed: 60

CoolingIncrease fan speed for layers below: 45.0 sec  Maximum Cooling fan speed: 50%Bridging fan speed override: 100%

SpeedsDefault Printing Speed: 4800.0 mm/minOutline Underspeed: 50%Solid Infill Underspeed: 80%Support Structure Underspeed: 80%X/Y Axis Movement Speed: 10800.0 mm/minZ Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec   Allow speed reduction down to: 20%

OtherUnsupported area threshold: 20.0 sq m
