This 3D Figurine of Frankenstein's Monster inspired by Frankenstein (1931) film consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

5 versions of Boris Karloff's Frankenstein STL files for FFF/FDM, DLP/SLA, DLP/SLA Eco, DLP/SLA Pre-Supported and SLS - files for each version are available for download after the purchase;
STL files of high-poly Frankenstein's Monster 3D Figurine for 3D printing consist of 44 files;
Sizes:
FFF/FDM: 260 mm tall, 228 mm wide, 152 mm deep;
DLP/SLA/SLS: 130 mm tall, 114 mm wide, 76 mm deep;
Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format;
Detailed settings that we provide as a recommendation for Cura, Simplify3D and Slic3r for the best print- Full technical support from the Gambody Support Team.

Detailed information about this 3D printing figurine is available in the DESCRIPTION section.


	File Name	File Size	Time / Filament	Object Size (x/y/z mm)

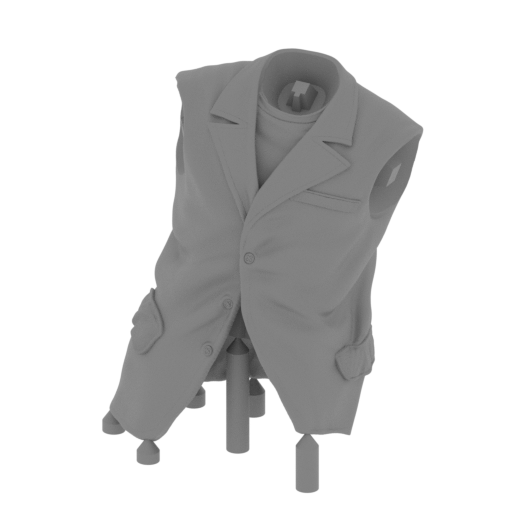

	2_body_FDM(repaired).stl	51.85 MiB	18 h 7 min 11 m	83 x 63 x 109	Download

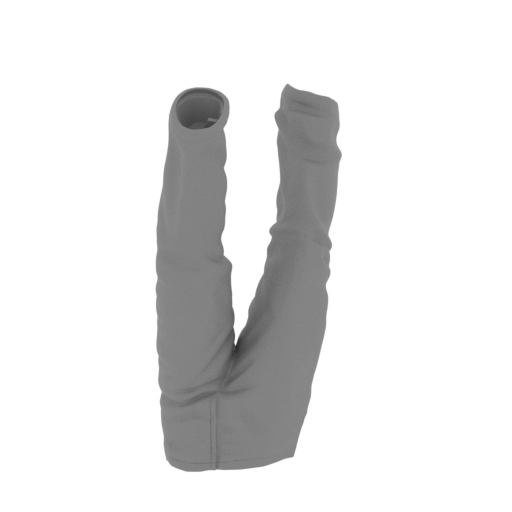

	3_legs_FDM(repaired).stl	35.52 MiB	14 h 43 min 9 m	57 x 86 x 139	Download

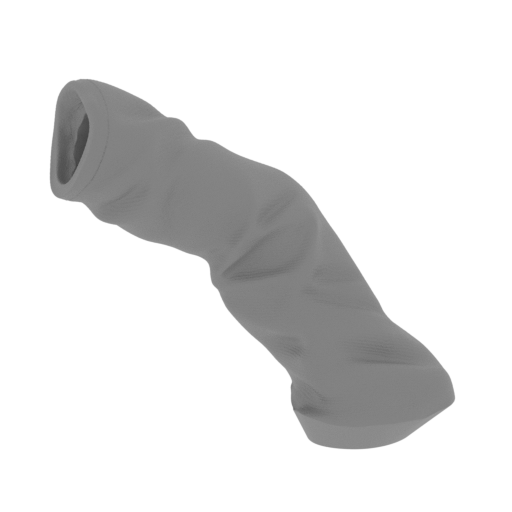

	4_arm_R_FDM(repaired).stl	28.26 MiB	2 h 39 min 2 m	56 x 36 x 52	Download

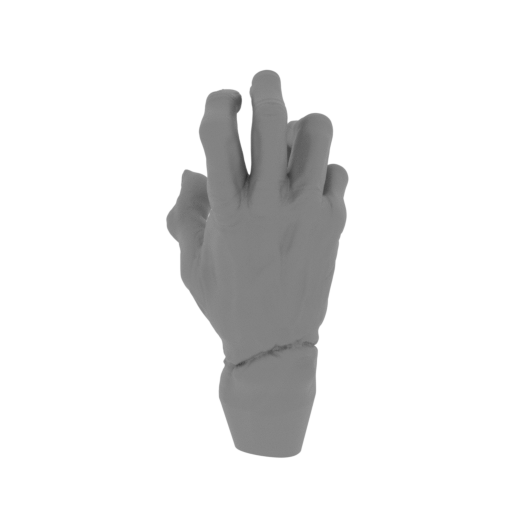

	5_hand_R_FDM(repaired).st l	25.41 MiB	58 min 1 m	22 x 19 x 41	Download

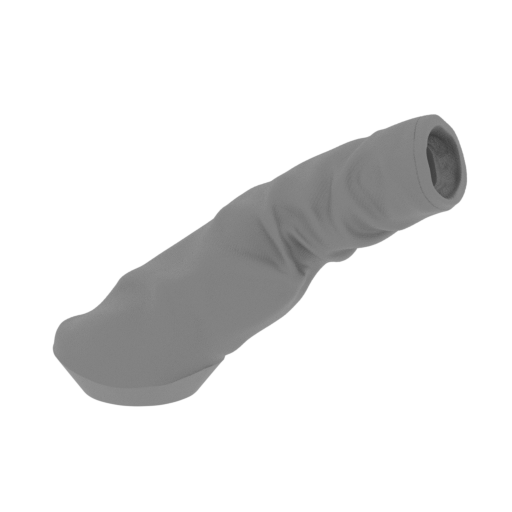

	6_arm_L_FDM(repaired).stl	28.26 MiB	2 h 45 min 2 m	62 x 37 x 45	Download

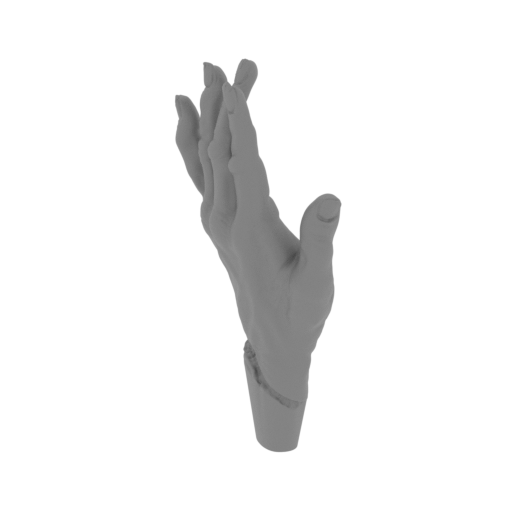

	7_hand_L_FDM(repaired).st l	22.41 MiB	41 min <1 m	23 x 14 x 44	Download

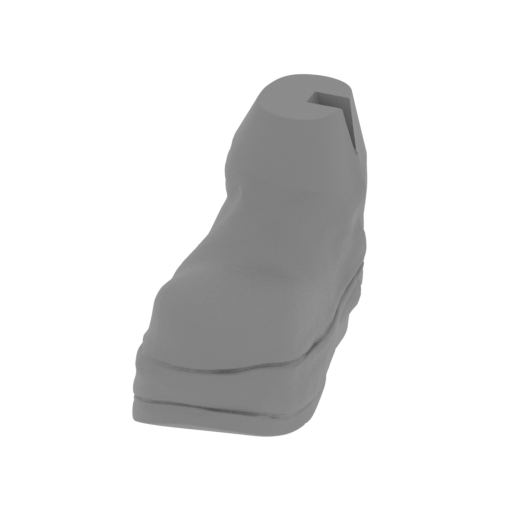

	8_boot_R_FDM(repaired).st l	20.19 MiB	1 h 19 min 1 m	19 x 43 x 30	Download

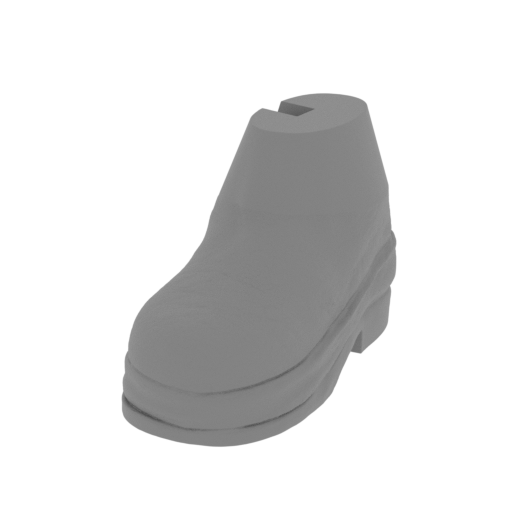

	9_boot_L_FDM(repaired).st l	21.49 MiB	1 h 19 min 1 m	22 x 44 x 28	Download

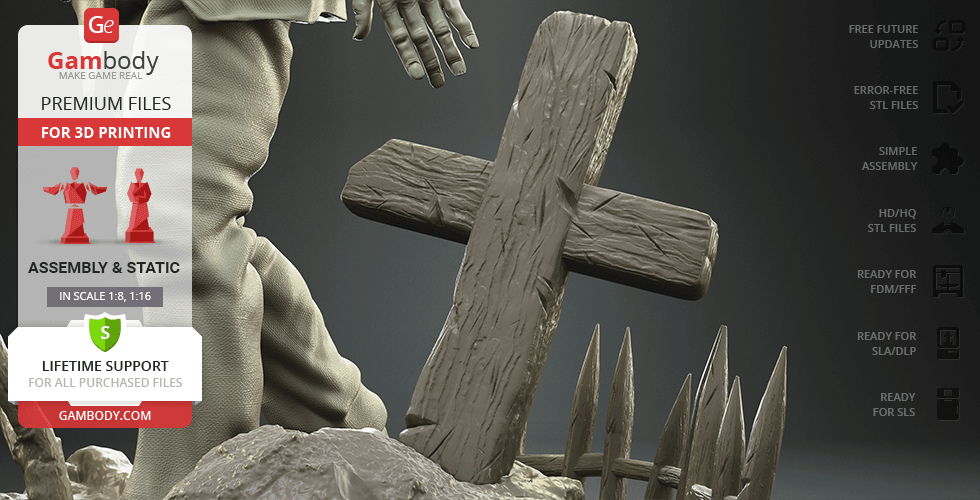

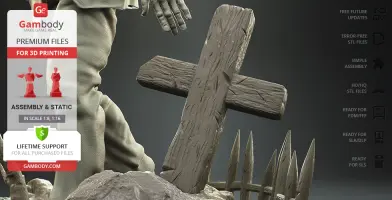

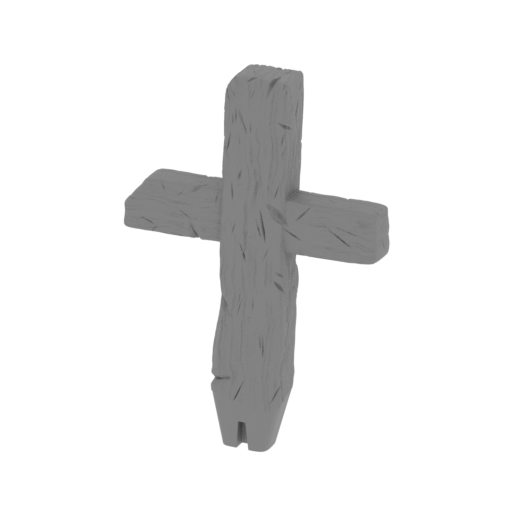

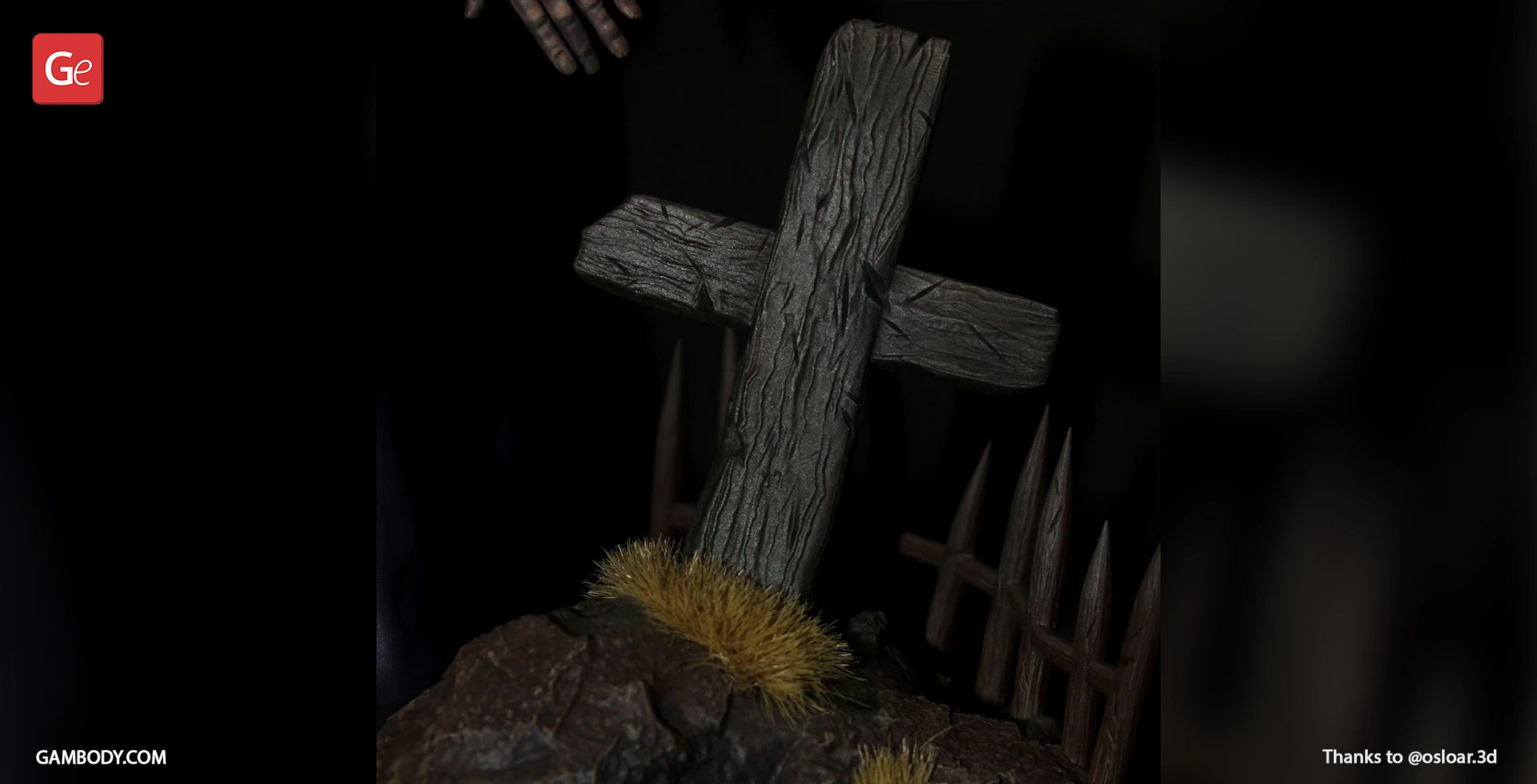

	10_cross_FDM(repaired).st l	16.33 MiB	5 h 43 min 4 m	73 x 22 x 104	Download

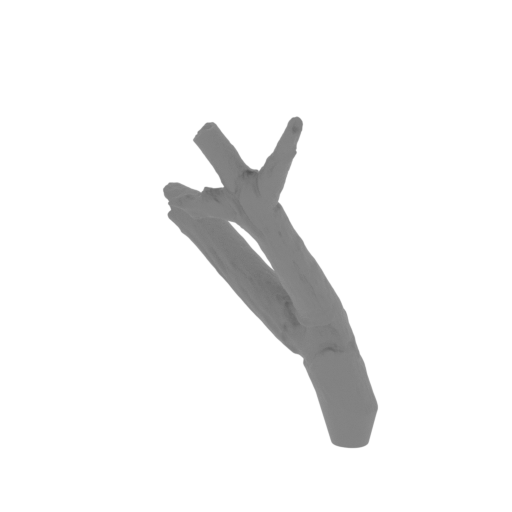

	11_tree_branch_FDM(repair ed).stl	13.72 MiB	1 h 46 min 1 m	43 x 30 x 70	Download

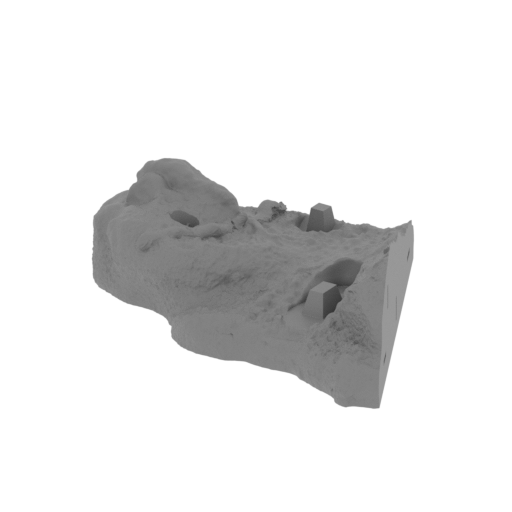

	12_platform_1_FDM(repaire d).stl	32.24 MiB	22 h 54 min 12 m	148 x 141 x 48	Download

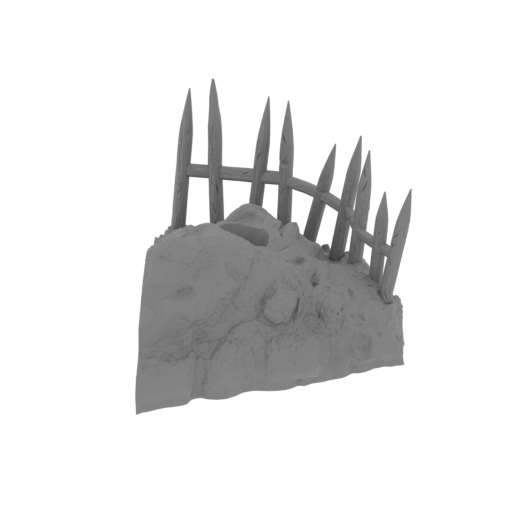

	13_platform_2_FDM(repaire d).stl	36.26 MiB	25 h 49 min 14 m	116 x 149 x 78	Download

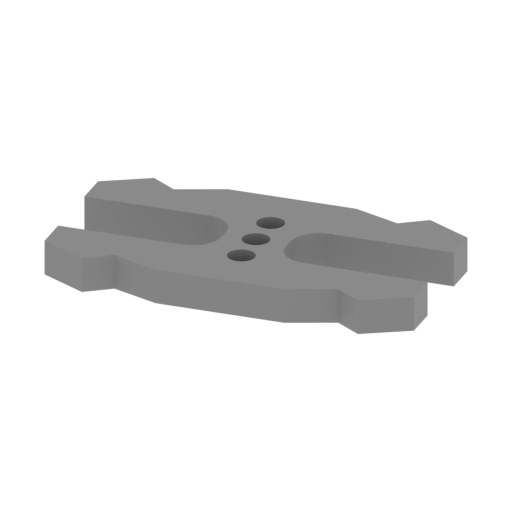

	14_ge_lock_10H(x5)_FDM(re paired).stl	0.03 MiB	4 min <1 m	18 x 10 x 2	Download
	Keychain (repaired).stl	0.35 MiB	23 min <1 m	30 x 30 x 2	Download
	Tag (repaired).stl	1.70 MiB	1 h 18 min 1 m	150 x 18 x 5	Download

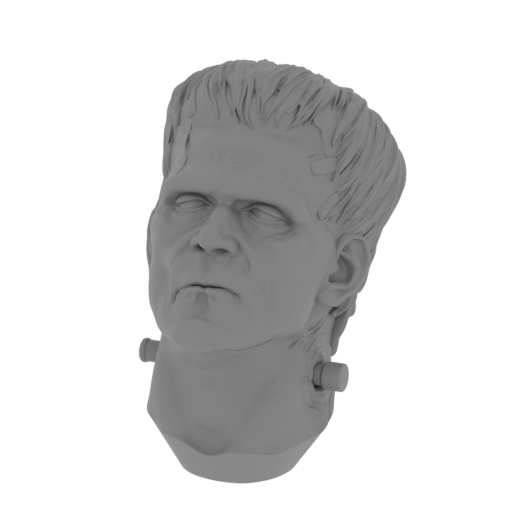

	1_head_FDM(repaired).stl	48.93 MiB	2 h 34 min 1 m	27 x 39 x 44	Download
...

ABOUT THIS 3D FIGURINE

"It's alive! It's alive!"

Despite the initial controversy, Mary Shelley's 1818 novel Frankenstein; or, The Modern Prometheus spawned a cultural phenomenon that voices the fears as relevant today as they were over 200 years ago. The character of Frankenstein's Monster, through the prominent portrayal of Boris Karloff in the 1931 horror film Frankenstein, tells a blood-curdling story of a sapient creature manufactured in an unorthodox scientific experiment. Does this mystery thrill you?

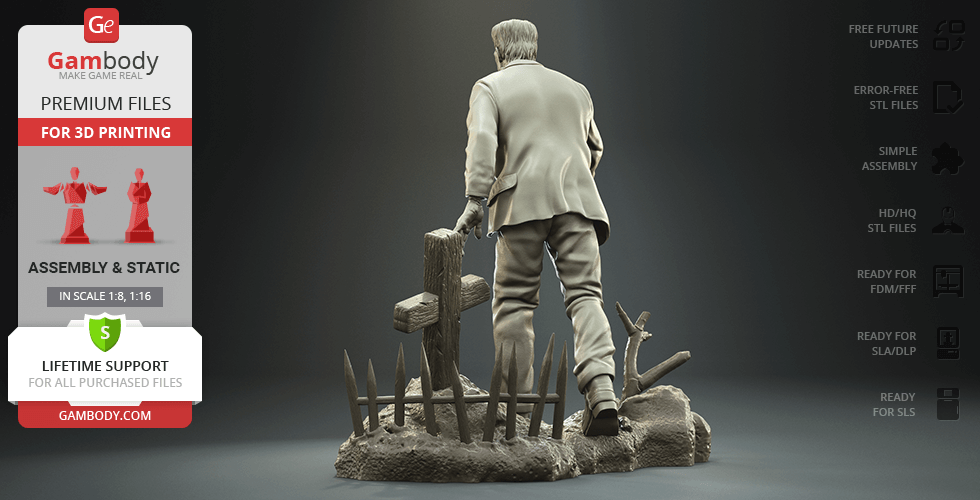

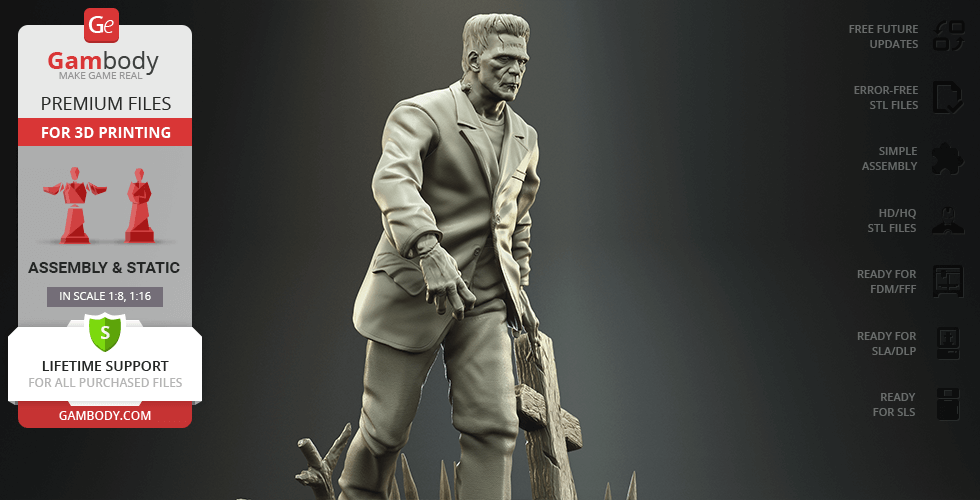

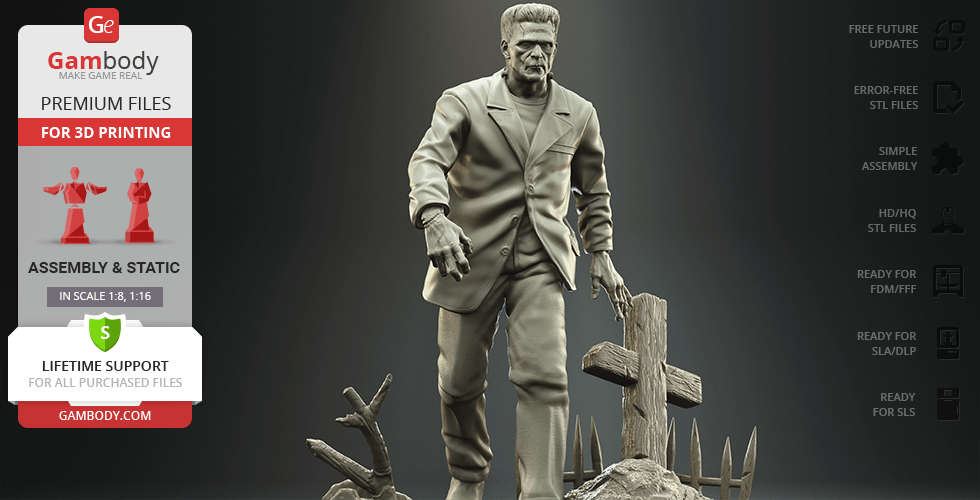

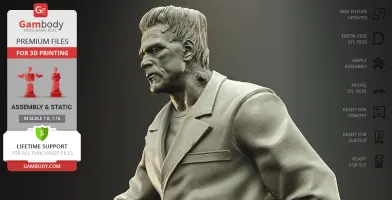

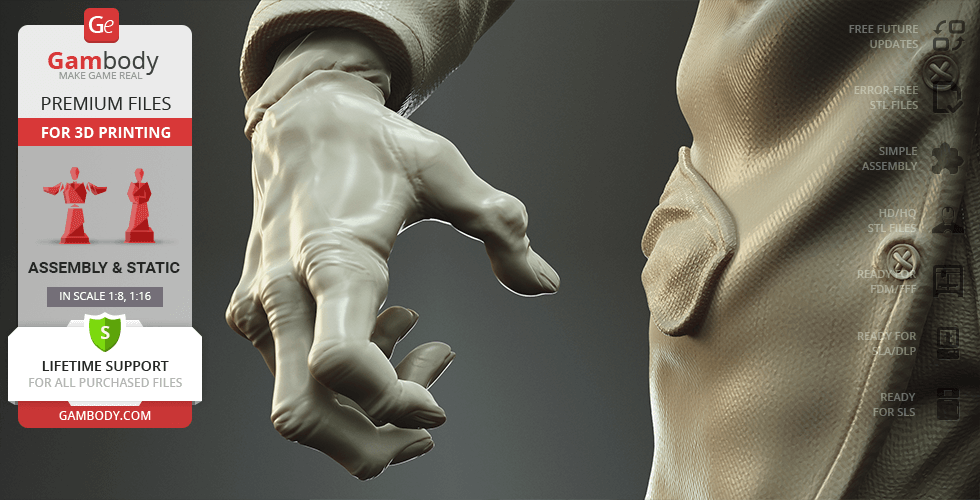

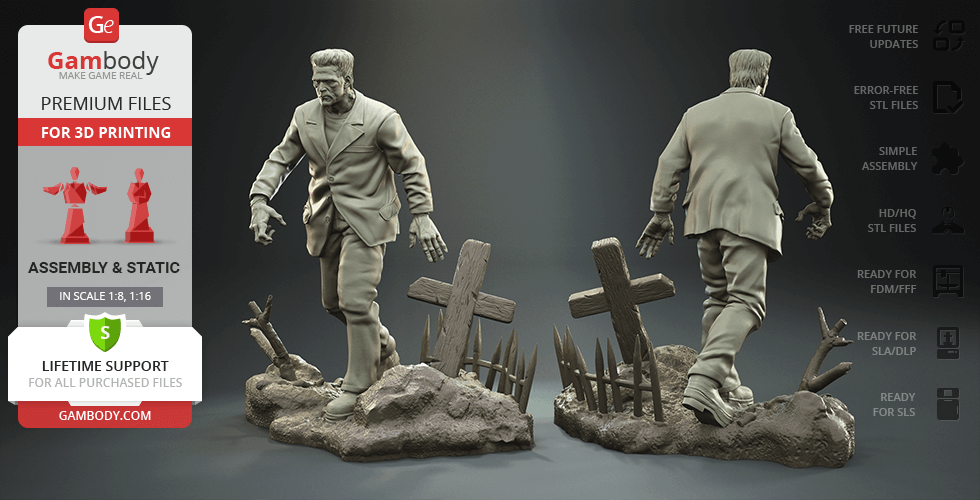

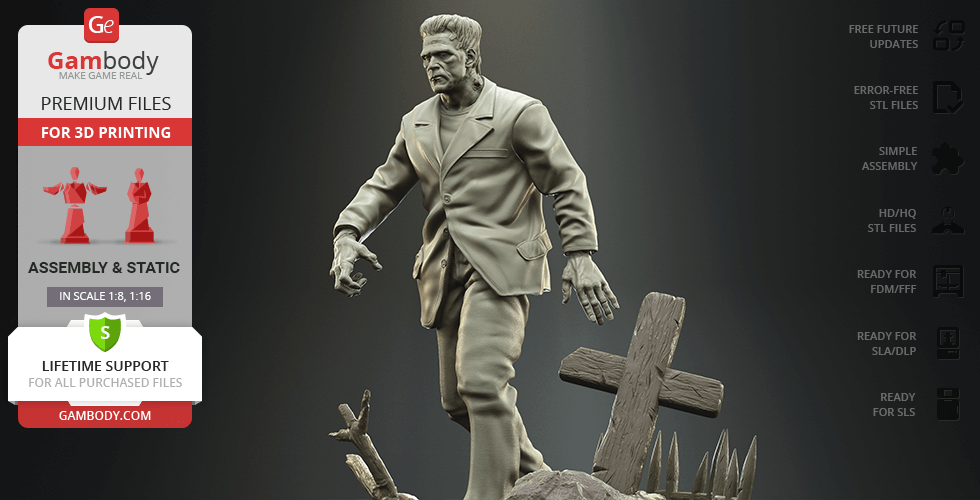

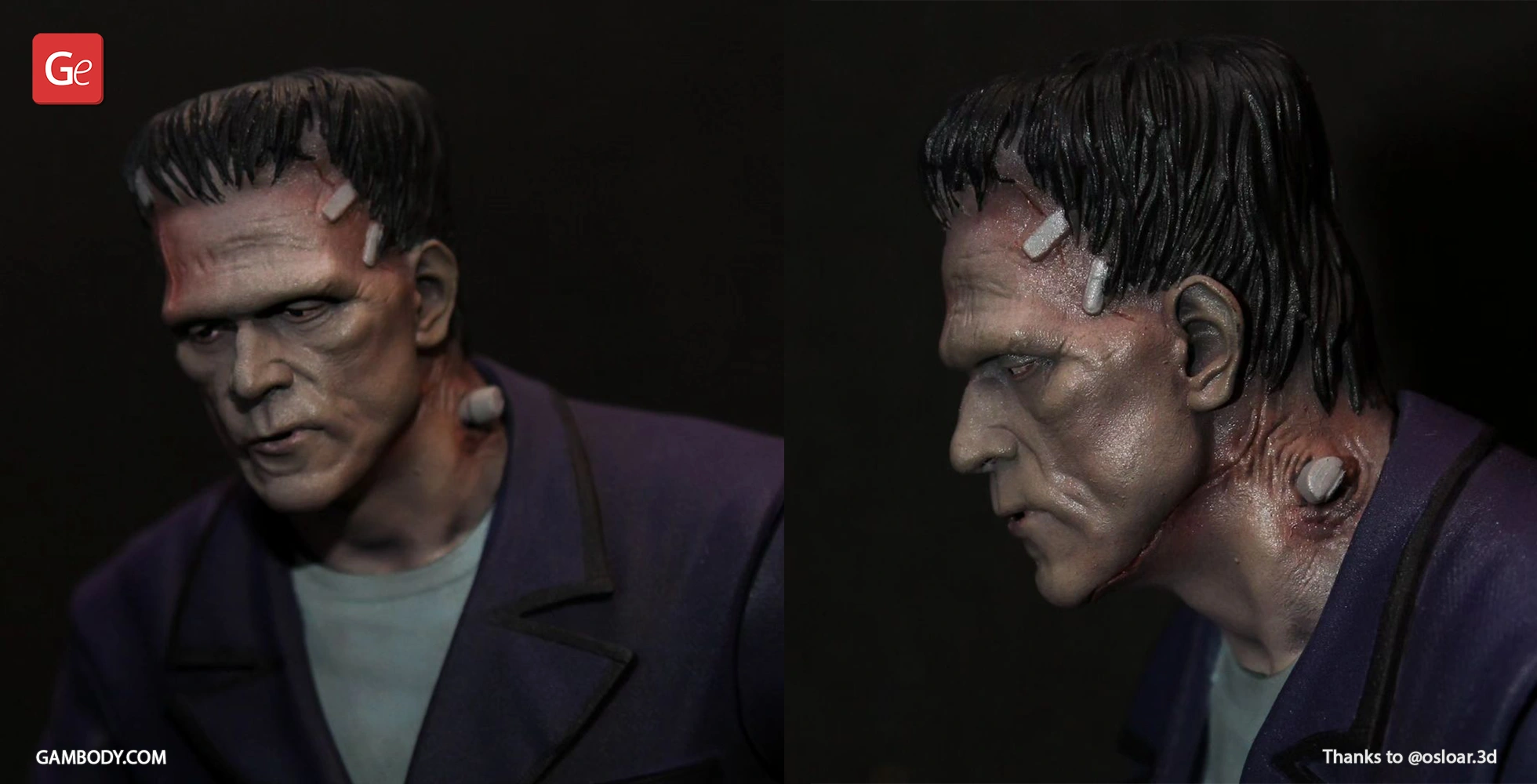

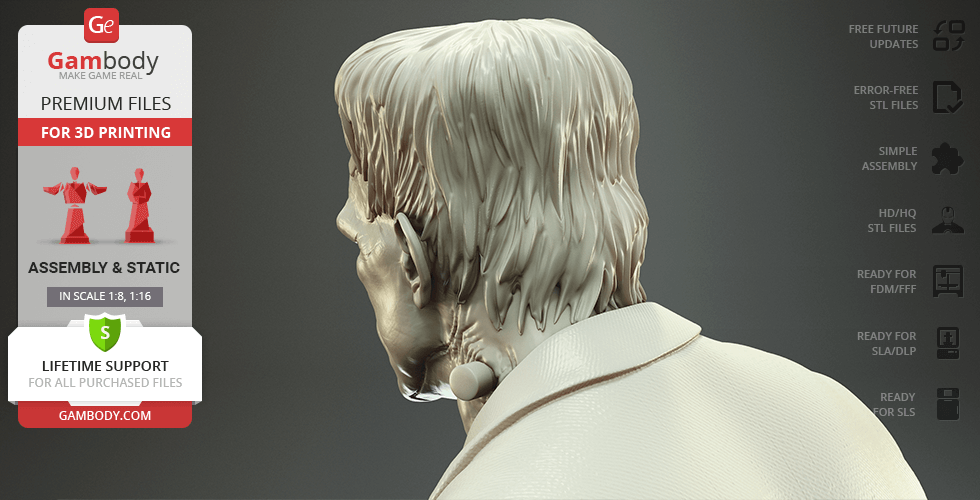

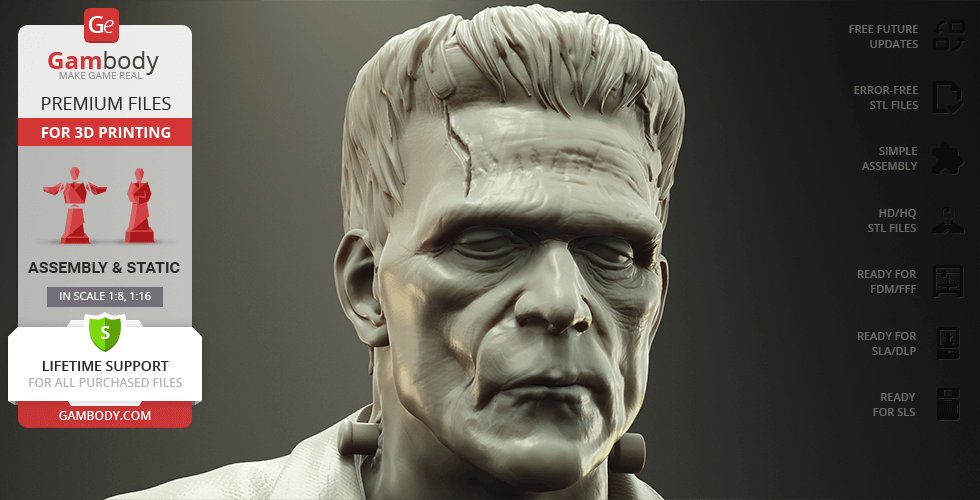

In the Frankenstein's Monster 3D Printing Figurine, the author stays true to the gothic atmosphere of the story. Having escaped the windmill laboratory, the Creature with a hunched, heavy frame is threading through a chilling landscape. The details in the sculpt are remarkable - the Monster's wrinkled face with scars and stitches, crooked knobby fingers, and the parts of flesh sewn together convey the tragedy of his existence. A must-have 3D print it is!

ADAPTATION FOR 3D PRINTING

Frankenstein's Monster for 3D printing is a static assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 25 hours. The figurine’s anatomy and proportions were thoroughly reviewed during the moderation process for the Creature to be depicted with utmost realism.

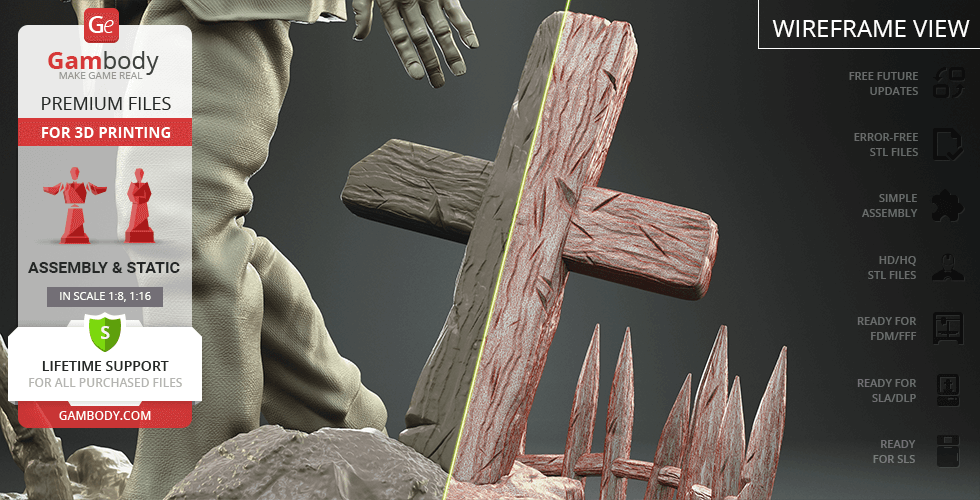

The model’s cutting was chosen by our team to ensure the cleanest 3D printed result possible and some of the parts were hollowed out for you to save resin in the Eco version. In order to conceal the places where the assembly parts of the model are connected, the figurine was cut along the contour of the Monster's body. The character’s head, hands, torso, legs, feet, platform decorations etc. are provided as separate assembly parts.

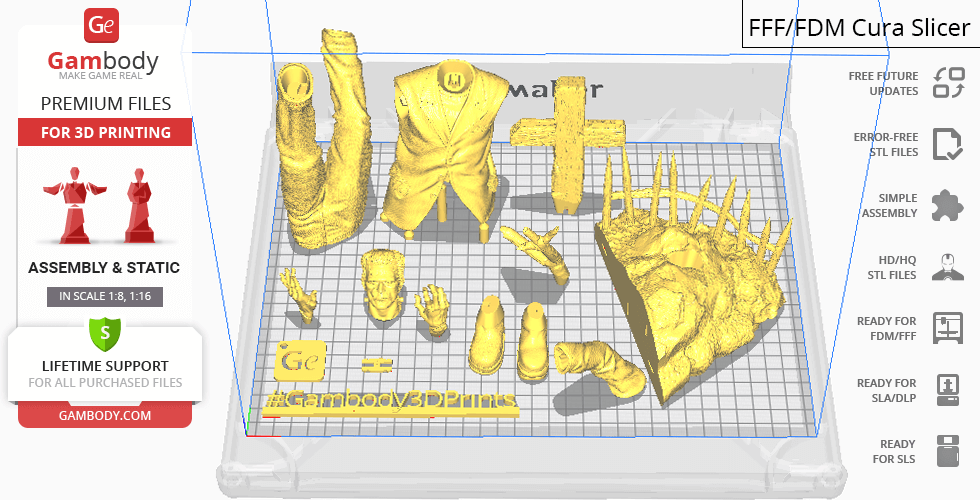

All assembly parts of the FFF/FDM versions come in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and so that the 3D printing beginners won't face difficulties when placing the parts on a build plate.

The figurine is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model's scale was calculated from the approximate height of Boris Karloff's Frankenstein Monster which is 1980 mm. The 3D printing figurine's chosen scale are 1:8 for the FFF/FDM version and 1:16 for the DLP/SLA/SLS versions.

VERSIONS' SPECIFICATIONS

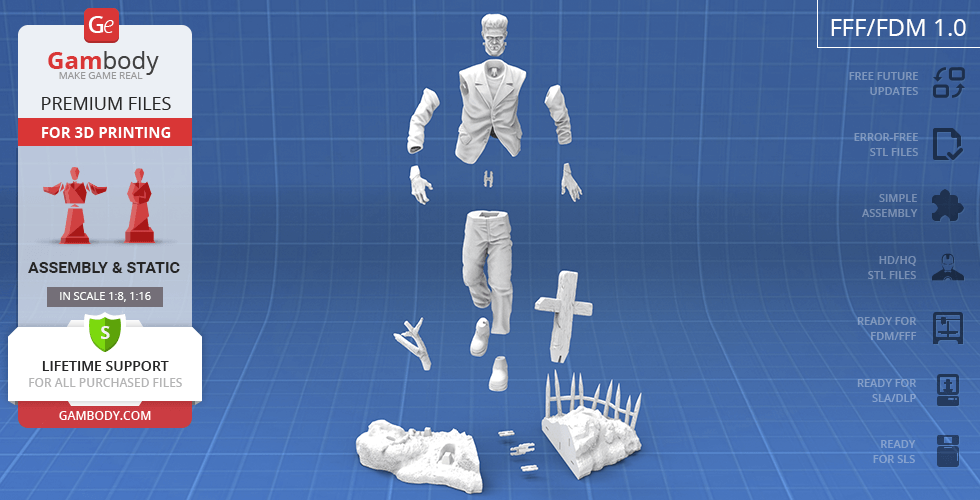

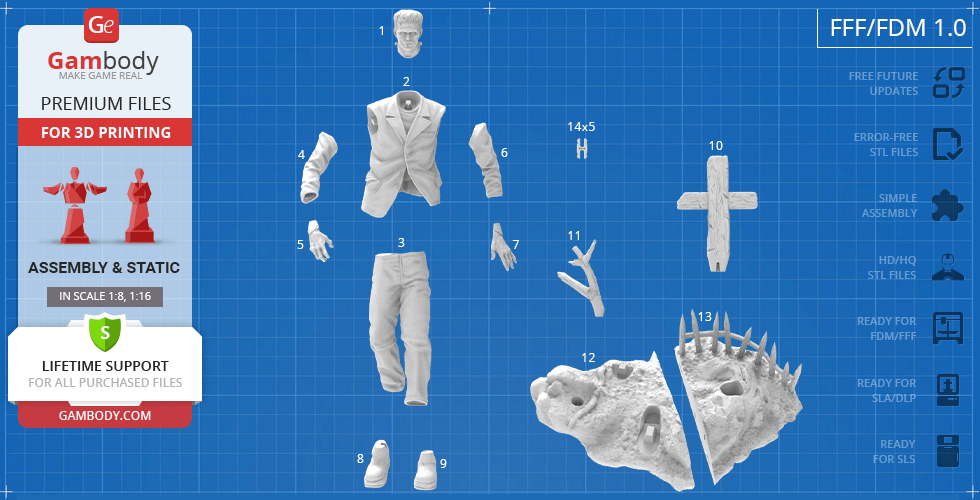

FFF/FDM 1.0 version features:

Contains 14 parts;
A printed model is 260 mm tall, 228 mm wide, 152 mm deep;
The assembly kit includes lock 14_ge_lock_10H(x5) to attach the figurine's body to legs and assemble the platform without glue;
STL file "2_body_FDM" is provided with additional support structures for you to 3D print the part in the recommended position, the supports need to be removed post-printing;
All parts are divided in such a way that you will print them with the smallest number of support structures.

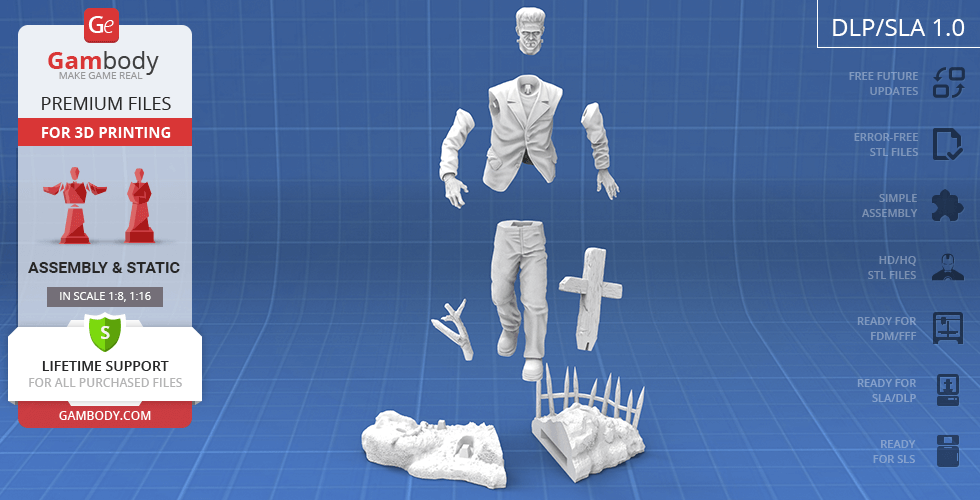

DLP/SLA 1.0 version features:

Contains 9 parts;
A printed model is 130 mm tall, 114 mm wide, 76 mm deep;
All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

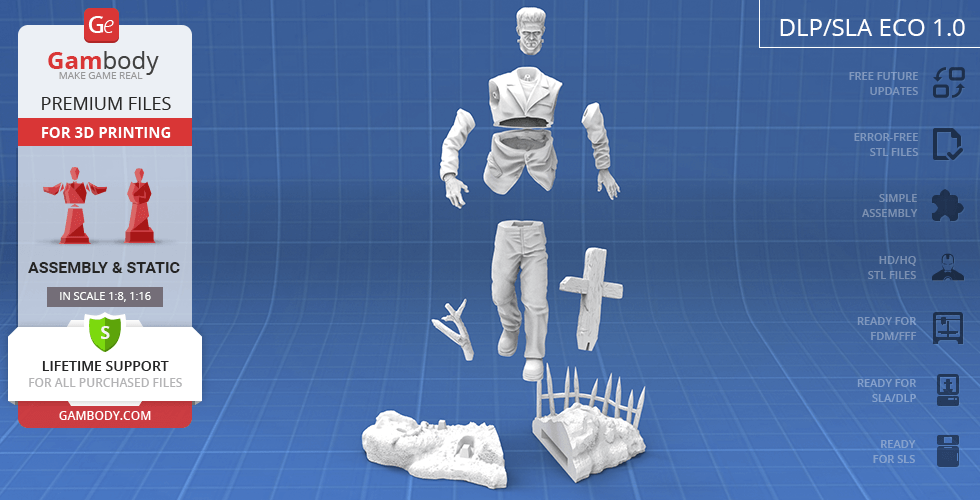

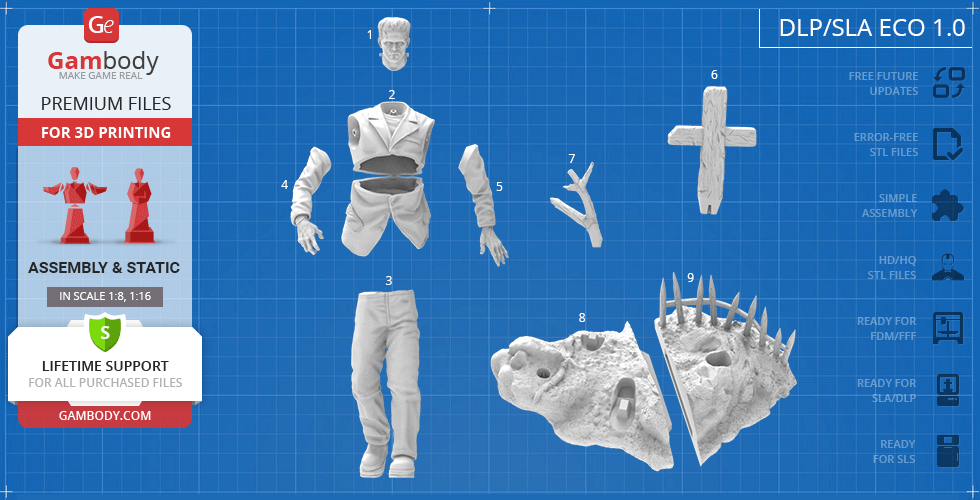

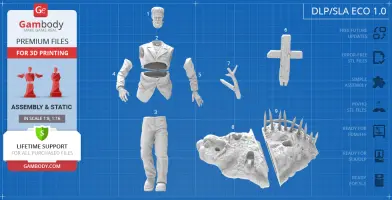

DLP/SLA Eco 1.0 version features:

Contains 9 parts;
A printed model is 130 mm tall, 114 mm wide, 76 mm deep;
Some parts are manually hollowed out to save resin.

DLP/SLA Pre-Supported 1.0 version features:

Contains 9 parts;
A printed model is 130 mm tall, 114 mm wide, 76 mm deep;
The STL files that this version comprises are pre-supported, hollowed out, and have drain holes where needed;
You may choose to print the STL files one by one or several at once, depending on the dimensions of your resin 3D printer's build plate;
When slicing several STL files at once, the attachment layers (Platform Touch Shape) may overlap, but the supports must not come into contact.

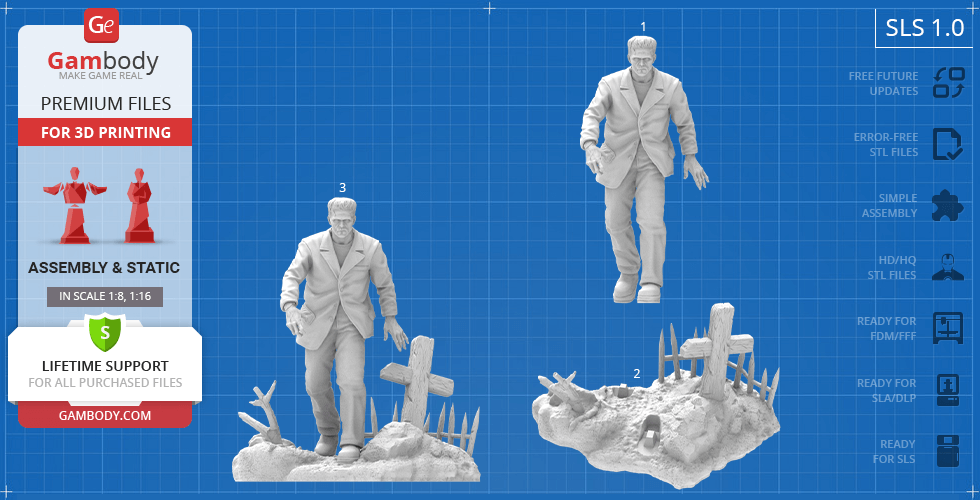

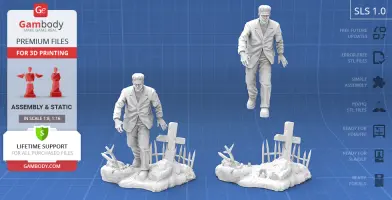

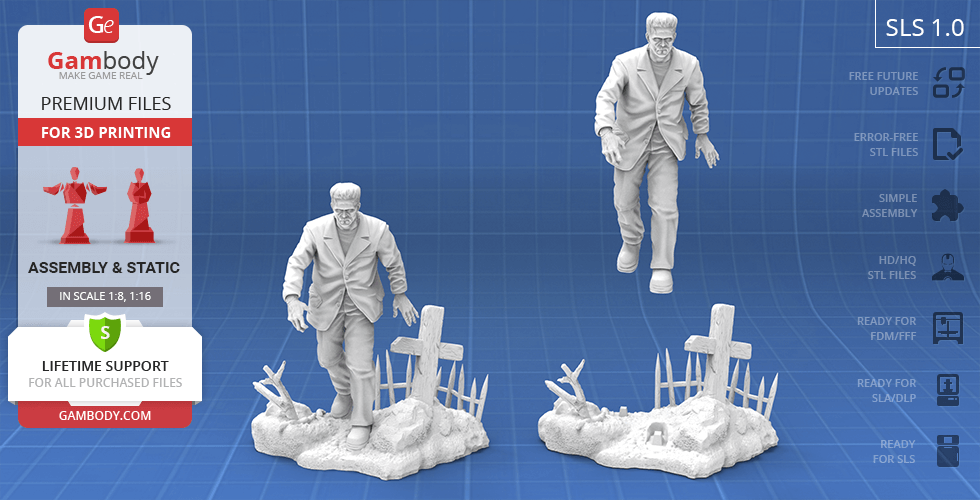

SLS 1.0 version features:

Made as a solid one-piece Frankenstein's Monster figurine;
A printed model is 130 mm tall, 114 mm wide, 76 mm deep;
Contains 3 parts - a solid Frankenstein's Monster figurine with and without the platform.

You can get the figurine of Frankenstein's Monster for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Frankenstein's Monster 3D Printing Figurine on Gambody YouTube channel.

Also, you may like other Villains and Horror models for 3D printing.

_______

FAQ:

Generic

Below you can find printing recommendations for Cura, Bambu Lab, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

All connectors should be printed at 100% Infill.

Bambu Lab printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Bambu Studio 1.9.1. Test models were printed on the Bambu Lab A1, Bambu Lab A1 Mini, Creality Ender 3 S1, Anycubic Kobra 2, and Anycubic Vyper using PLA and PETG filaments.
