This 3D printing design of Gizmo consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

15 versions of Gizmo STL files for FFF/FDM, DLP/SLA, and SLS — files for all versions are available for download after the purchase;
STL files of high-poly Gizmo model for 3D printing consist of 116 files;
Sizes for:
FFF/FDM (Gizmo): 162 mm tall, 255 mm wide, 103 mm deep;
FFF/FDM (Gizmo in Oriental Box): 235 mm tall, 175 mm wide, 144 mm deep;
FFF/FDM (Gizmo Rambo): 160 mm tall, 263 mm wide, 145 mm deep;
FFF/FDM (Gizmo Driver): 147 mm tall, 257 mm wide, 102 mm deep;
DLP/SLA/SLS (Gizmo): 81 mm tall, 127 mm wide, 52 mm deep;
DLP/SLA/SLS (Gizmo in Oriental Box): 118 mm tall, 87 mm wide, 72 mm deep;
DLP/SLA/SLS (Gizmo Rambo): 80 mm tall, 132 mm wide, 73 mm deep;
DLP/SLA/SLS (Gizmo Driver): 74 mm tall, 129 mm wide, 51 mm deep;
Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats;
Detailed settings that we provide as a recommendation for Cura, Bambu Studio, Simplify3D, Slic3r and PrusaSlicer for the best print;
Full technical support from the Gambody Support Team.

Detailed information about these 3D printer STL files is available in the DESCRIPTION section.


	File Name	File Size	Time / Filament	Object Size (x/y/z mm)

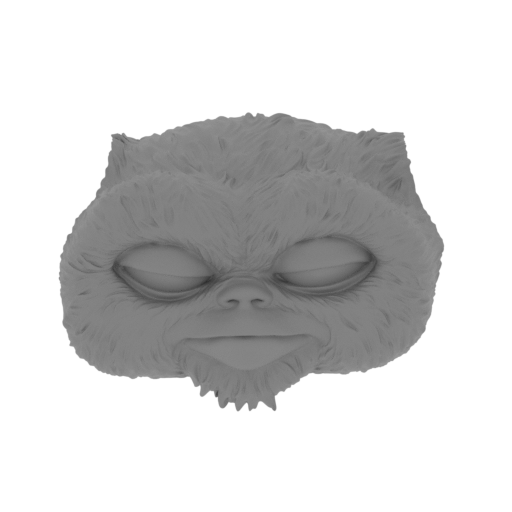

	1_head_FDM(repaired).stl	56.85 MiB	35 h 42 min 21 m	115 x 95 x 76	Download

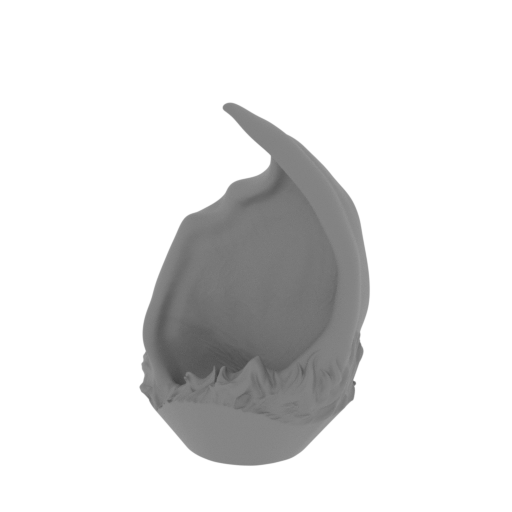

	2_ear_R_FDM(repaired).stl	23.65 MiB	7 h 7 min 4 m	56 x 49 x 92	Download

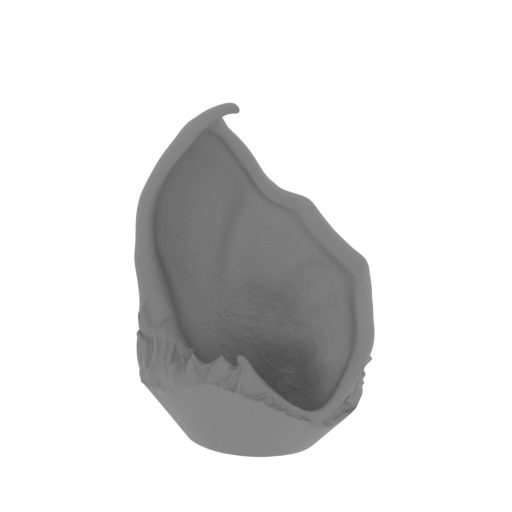

	3_ear_L_FDM(repaired).stl	26.65 MiB	7 h 47 min 4 m	62 x 49 x 98	Download

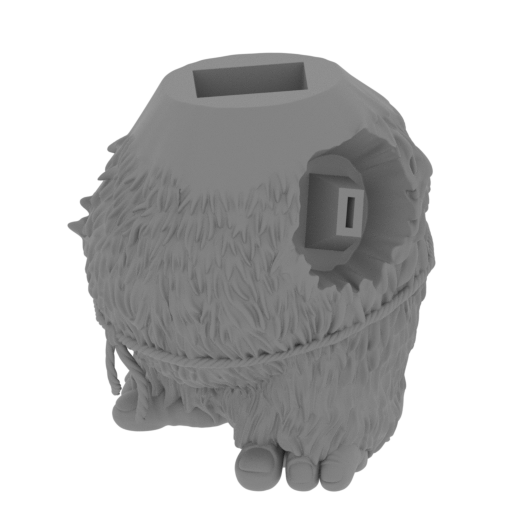

	4_body_FDM(repaired).stl	63.10 MiB	24 h 56 min 14 m	77 x 79 x 91	Download

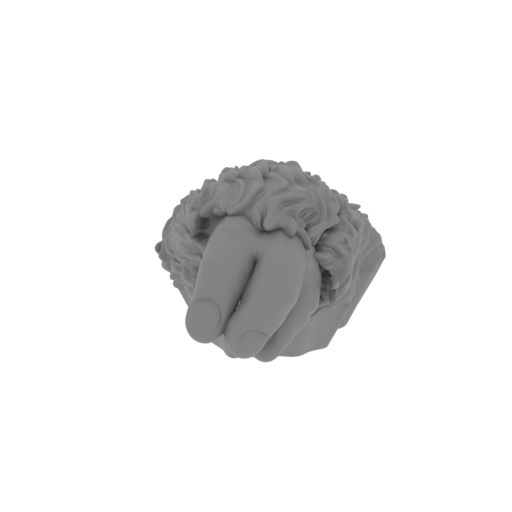

	5_arm_R_FDM(repaired).stl	22.73 MiB	4 h 23 min 2 m	68 x 48 x 33	Download

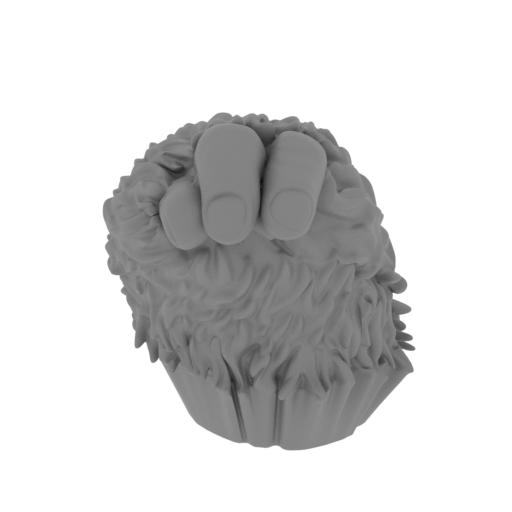

	6_arm_L_FDM(repaired).stl	22.46 MiB	4 h 47 min 3 m	42 x 75 x 34	Download
	7_cap_1_FDM(repaired).stl	35.44 MiB	30 h 22 min 19 m	107 x 106 x 88	Download
	8_cap_2_FDM(repaired).stl	10.46 MiB	4 h 33 min 3 m	64 x 42 x 62	Download
	9_box_top_FDM(repaired).s tl	41.29 MiB	93 h 21 min 78 m	147 x 130 x 117	Download
	10_bottom_box_1_FDM(repai red).stl	34.59 MiB	12 h 2 min 7 m	98 x 144 x 17	Download
	11_bottom_box_2_FDM(repai red).stl	36.51 MiB	12 h 27 min 7 m	99 x 144 x 17	Download
	12_box_part_1_FDM(repaire d).stl	22.50 MiB	13 h 24 min 8 m	150 x 97 x 11	Download
	13_box_part_2_FDM(repaire d).stl	35.63 MiB	28 h 2 min 15 m	122 x 107 x 130	Download
	14_box_part_3_FDM(repaire d).stl	32.66 MiB	28 h 14 min 22 m	108 x 89 x 90	Download
	15_box_part_4_FDM(repaire d).stl	55.52 MiB	53 h 11 min 46 m	128 x 107 x 124	Download
	16_box_part_5_FDM(repaire d).stl	37.96 MiB	28 h 37 min 21 m	107 x 94 x 86	Download
	17_connector_box_(x4)_FDM (repaired).stl	1.40 MiB	4 min <1 m	13 x 10 x 2	Download
	18_latch_top_FDM(repaired ).stl	15.14 MiB	1 h 39 min 1 m	29 x 55 x 17	Download
	19_latch_low_FDM(repaired ).stl	11.51 MiB	22 min <1 m	17 x 19 x 13	Download
	20_stopper_bracket_(x4)_F DM(repaired).stl	1.09 MiB	9 min <1 m	4 x 14 x 9	Download
	21_hinge_low_(x2)_FDM(rep aired).stl	8.46 MiB	21 min <1 m	31 x 18 x 7	Download
	22_hinge_top_(x2)_FDM(rep aired).stl	9.51 MiB	14 min <1 m	31 x 15 x 7	Download
	23_shaft_(x2)_FDM(repaire d).stl	1.46 MiB	12 min <1 m	6 x 6 x 32	Download
	24_rivet_(x8)_FDM(repaire d).stl	0.15 MiB	5 min <1 m	6 x 6 x 10	Download
	25_handle_FDM(repaired).s tl	28.05 MiB	59 min 1 m	17 x 17 x 55	Download
	26_connector_handle_1_FDM (repaired).stl	1.98 MiB	19 min <1 m	17 x 12 x 11	Download
	27_connector_handle_2_FDM (repaired).stl	2.00 MiB	21 min <1 m	18 x 14 x 11	Download
	28_connector_handle_3_FDM (repaired).stl	2.03 MiB	20 min <1 m	19 x 13 x 11	Download
	29_connector_handle_4_FDM (repaired).stl	1.97 MiB	19 min <1 m	17 x 12 x 11	Download
	30_solid_handle_FDM(repai red).stl	37.81 MiB	3 h 27 min 2 m	143 x 104 x 18	Download
	31_ge_lock_10H(x18)_FDM(r epaired).stl	0.03 MiB	4 min <1 m	18 x 10 x 2	Download
	Keychain (repaired).stl	0.35 MiB	23 min <1 m	30 x 30 x 2	Download
	Tag (repaired).stl	1.70 MiB	1 h 18 min 1 m	150 x 18 x 5	Download
...

ABOUT THIS 3D MODEL

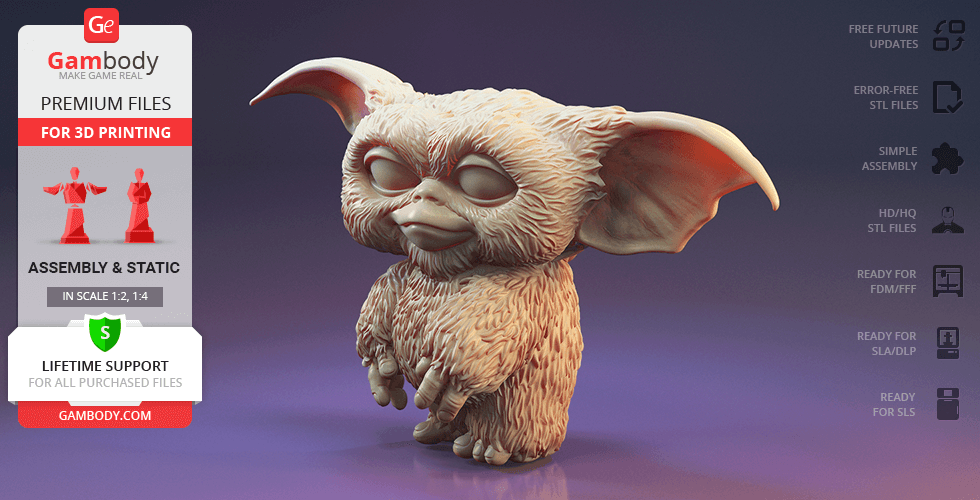

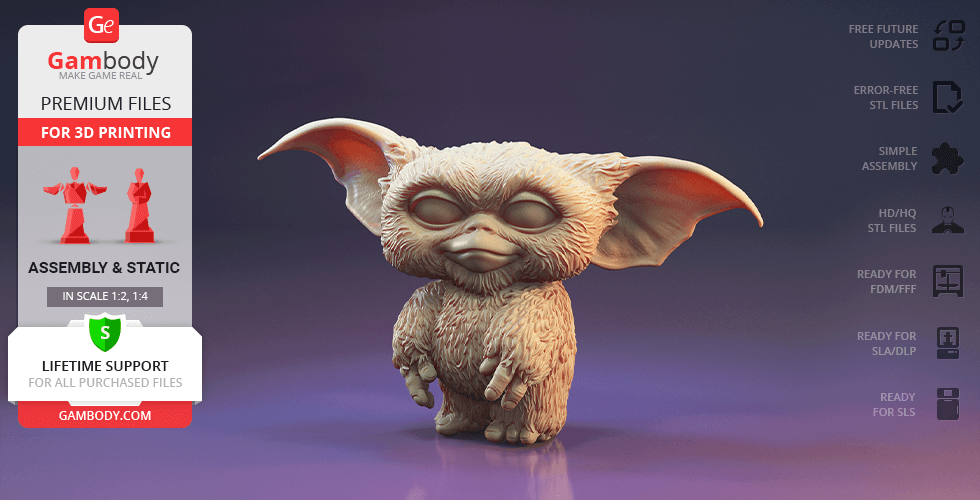

Purchased as a Christmas present at Mr Wing's Shop, a kind and loveable Mogwai called Gizmo served on the front line of the struggle with the evil Gremlins. Back in the 80s, every kid’s dream was owning a cute little Gizmo and we totally understand why - kindhearted, resourceful and nimble, the adorable Mogwai would totally make a perfect partner in crime!

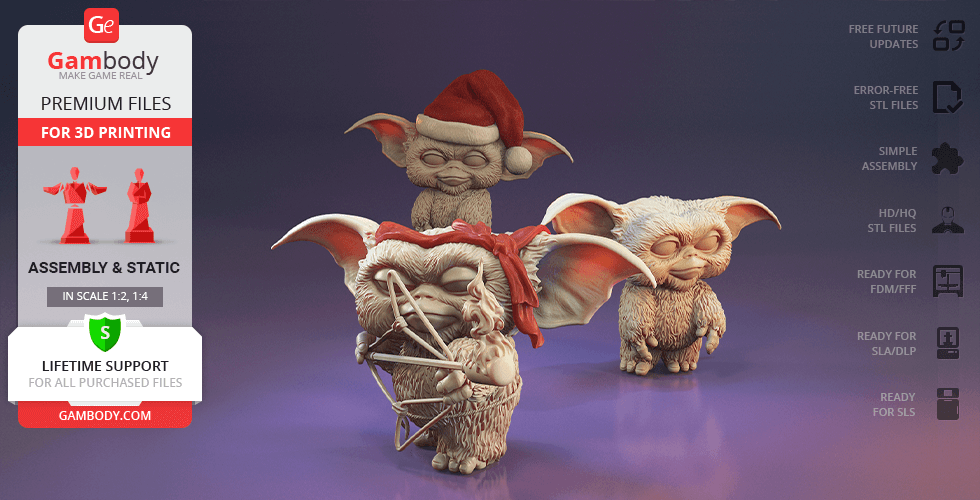

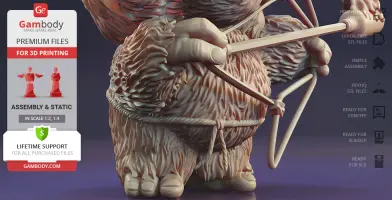

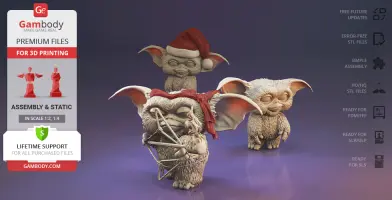

Gambody team is delighted to welcome Gizmo in our collection, as it arrives not alone but in several fantastic variants! Our contributing 3D artist went all out to depict the well-liked Mogwai 3D print model in as many scenarios as possible. Thus, Gizmo can be displayed on its own, it can be placed inside a nicely detailed Oriental Box from Mr Wing's Shop, or the cute little creature can sport a Christmas hat. In addition to that, there is a Rambo variant of Gizmo who is wearing a headband, wielding a bow out of a large paper clip and rubber band! Finally, there is a special variation of the Mogwai model designed to fit Gizmo’s Barbie Car. This item is a real treasure!

ADAPTATION FOR 3D PRINTING

Gizmo 3D printing designs are static assembly models and the moderation and adaptation of the models for different types of 3D printers took Gambody team 62 hours in total. The anatomy and body proportions of the creature were reviewed during the moderation for the adorable Mogwai to be depicted harmoniously in the intended poses.

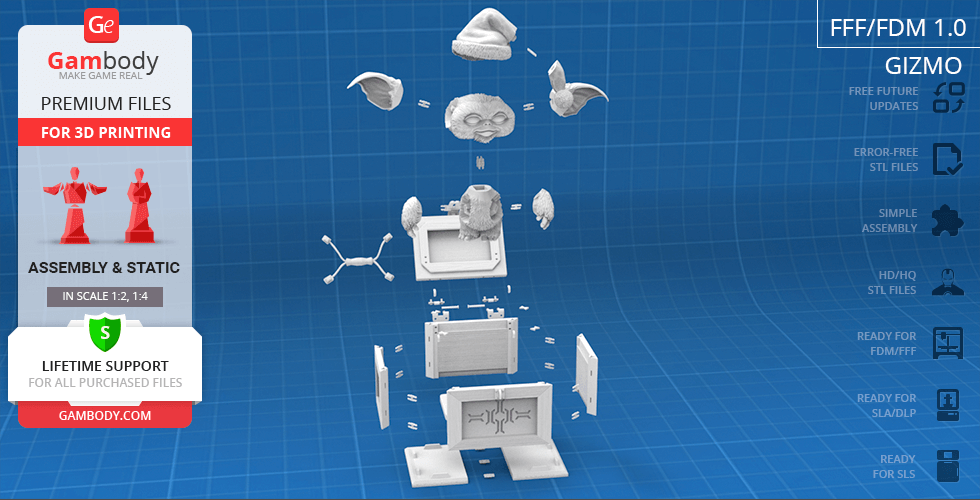

The models' cutting was chosen by our team to minimise the amount of generated support and some of the parts were hollowed out for you to save resin in the Eco version. In order to ensure an excellent quality of the 3D printed result, the Gizmo models were divided into many parts, i.e. models' heads, ears, Christmas hat, headband, bow and arrow, oriental box, etc. are provided as separate parts.

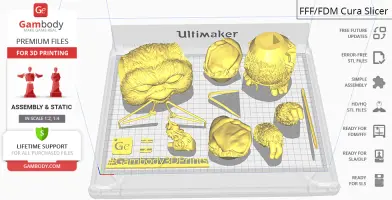

All the assembly parts of the 1.0 FFF/FDM versions of the models come in STL files in recommended positions that were worked out in order to ensure the smoothness of the details' surfaces after printing and so that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any models' file you will also receive "Assembly Manual" for 1.0 FFF/FDM and 1.0 DLP/SLA versions in PDF format.

The 3D printing design is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

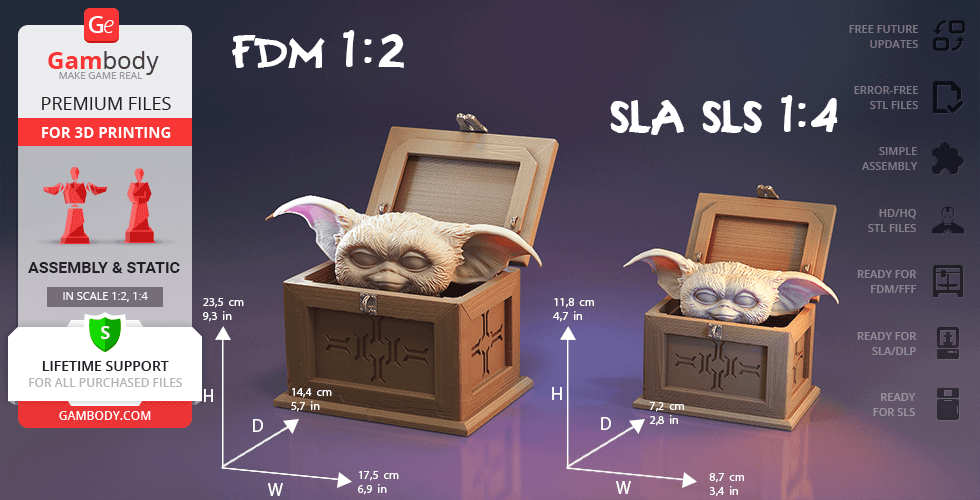

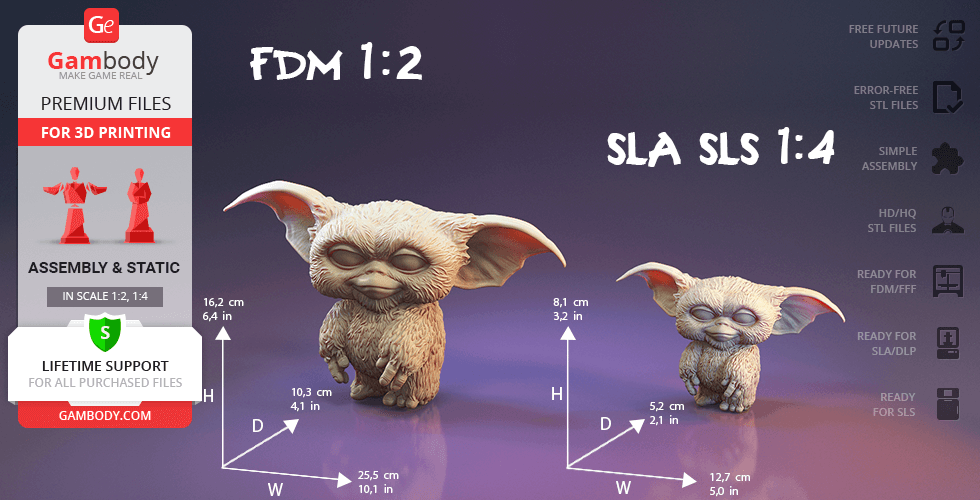

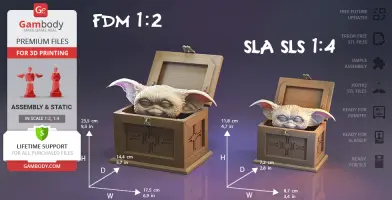

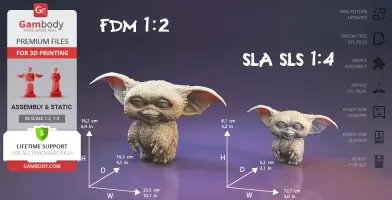

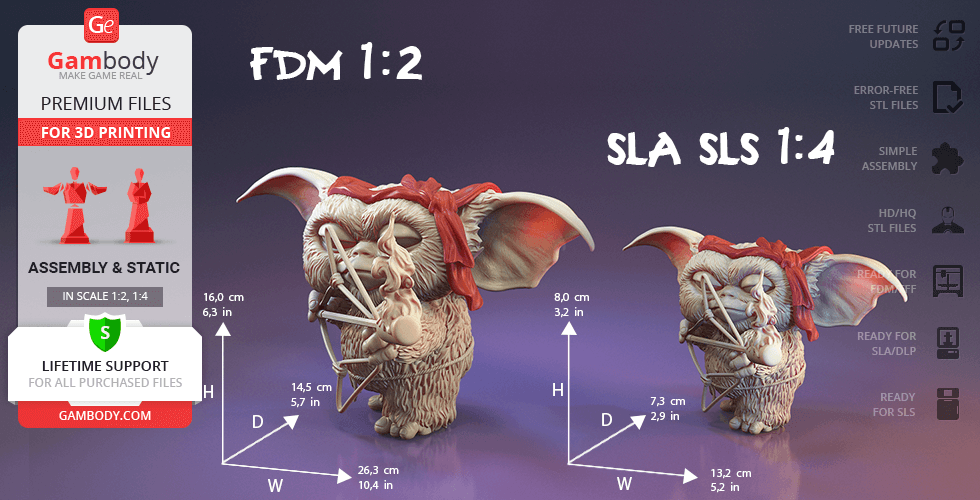

The model's scale was calculated from Gizmo's approximate height which is 300 mm. The 3D printing design's chosen scale is 1:2 for the FFF/FDM version and 1:4 for the DLP/SLA/SLS versions.

VERSIONS' SPECIFICATIONS

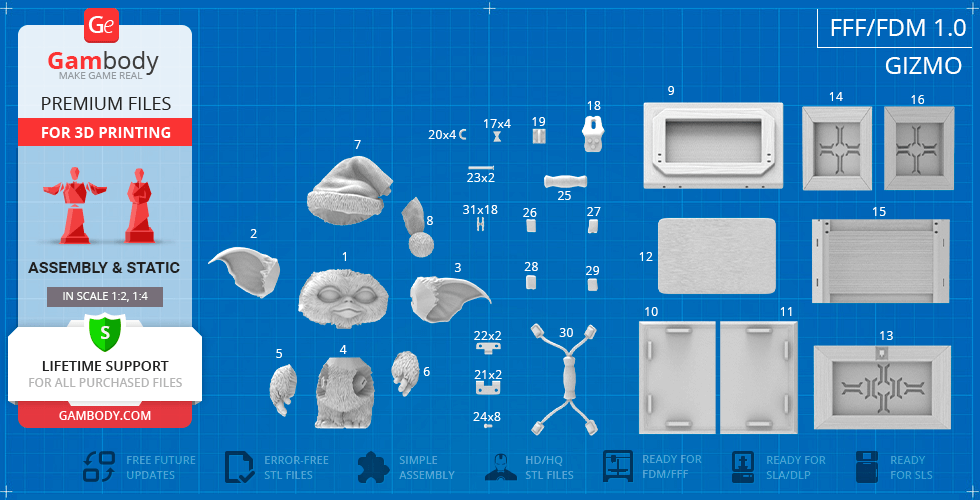

1.0 FFF/FDM VERSIONS (Gizmo + Rambo + Driver):

All parts are divided in such a way that you will print them with the smallest number of support structures;

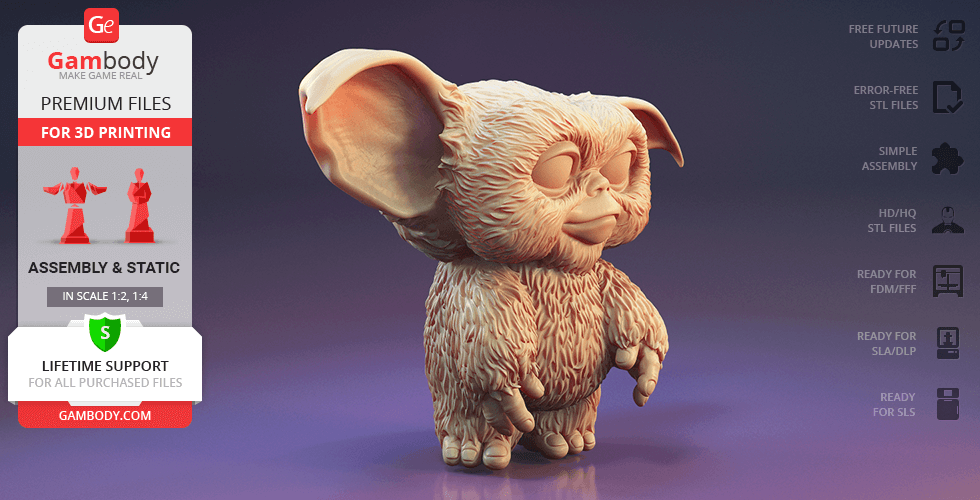

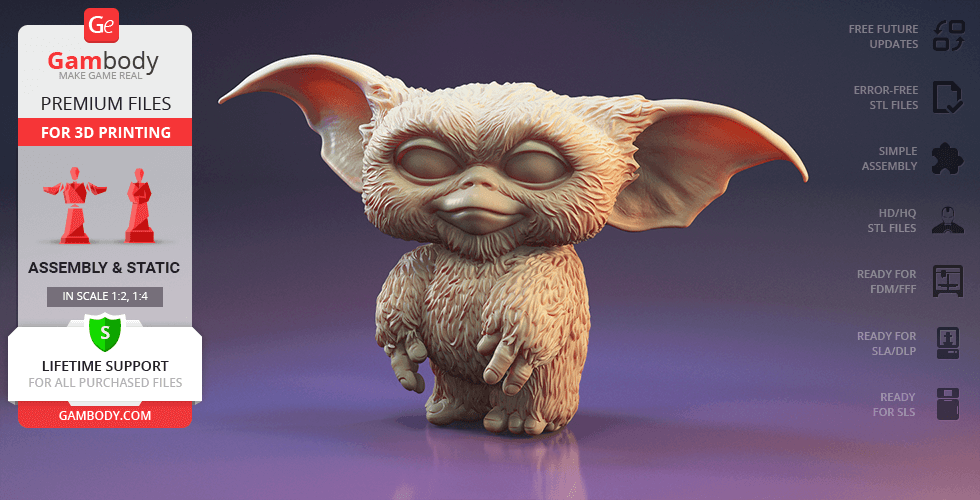

Gizmo:

Contains 31 parts;
A printed Gizmo stands 162 mm tall, 255 mm wide, 103 mm deep;

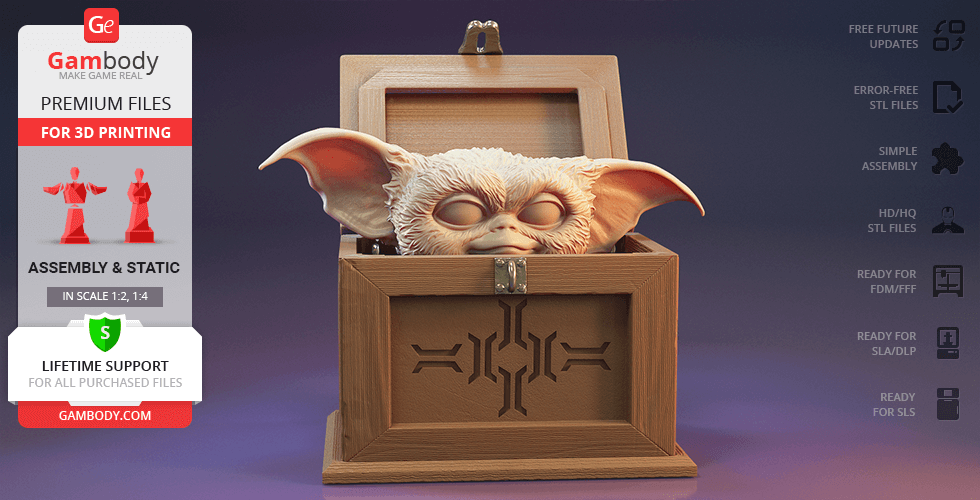

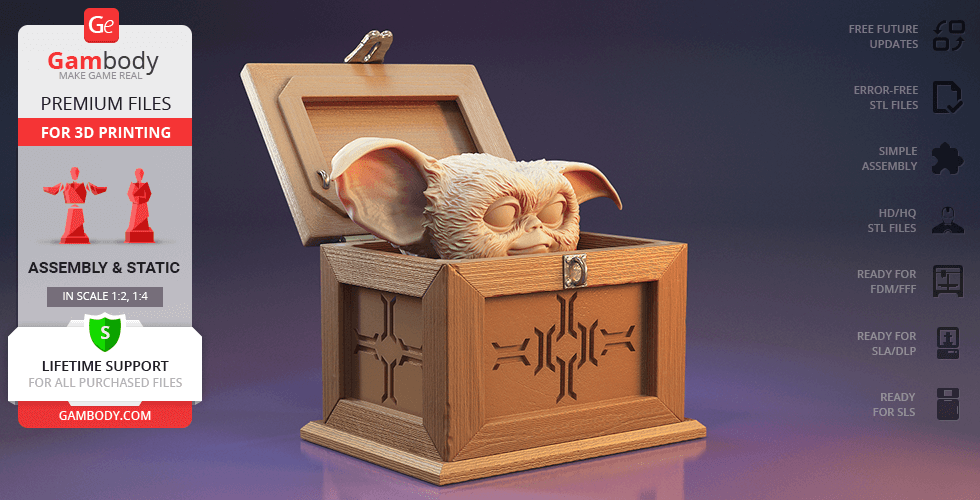

Gizmo in Oriental Box stands: 235 mm tall, 175 mm wide, 144 mm deep;
The assembly kit includes a lock 31_ge_lock_10H(x18) to attach the model's parts securely without glue that needs to be printed 18 times;

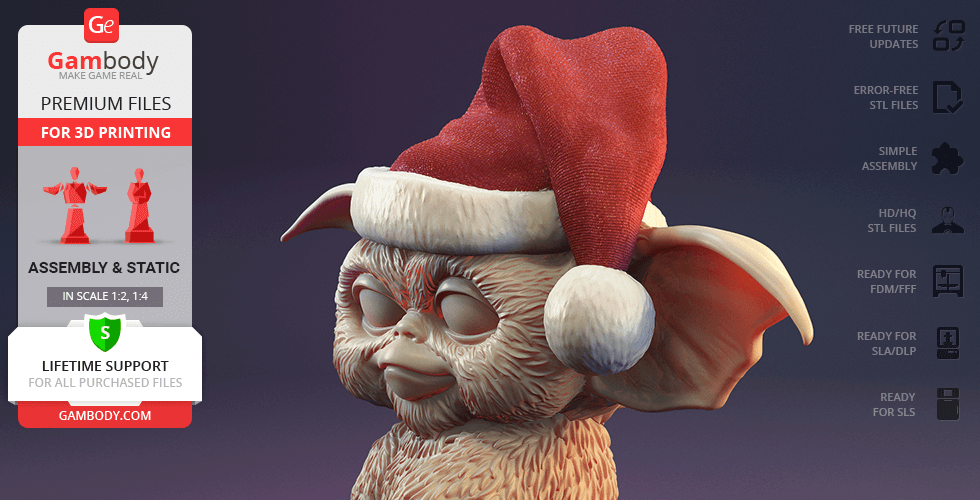

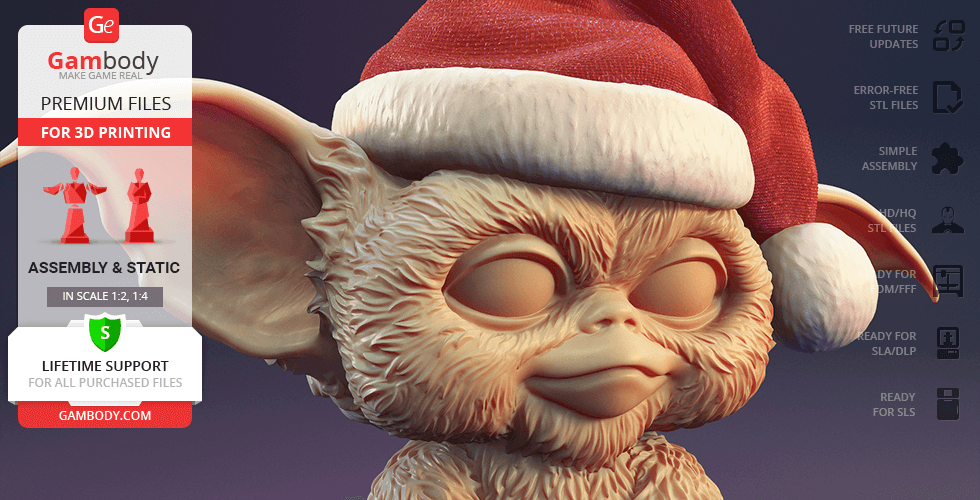

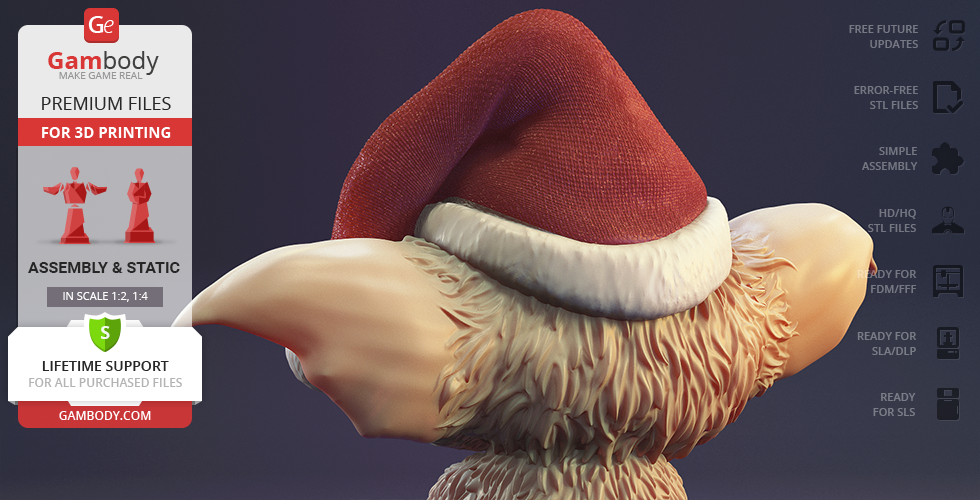

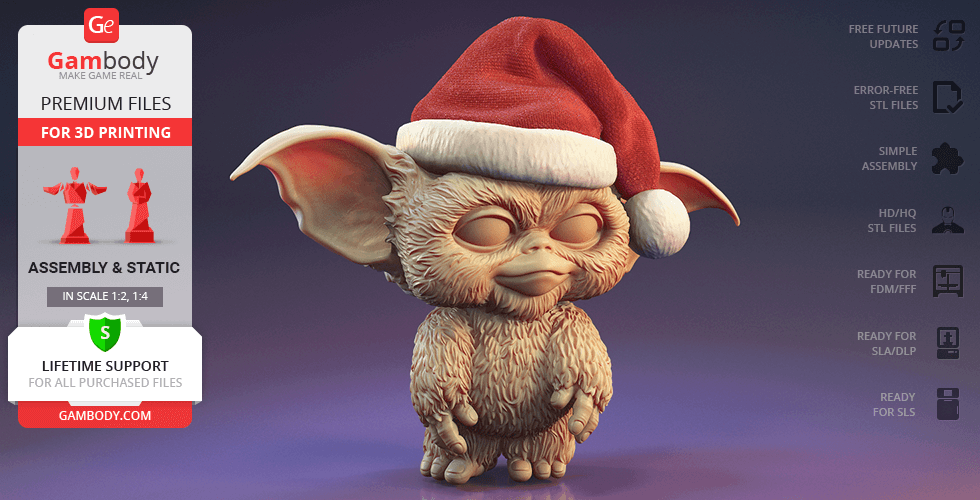

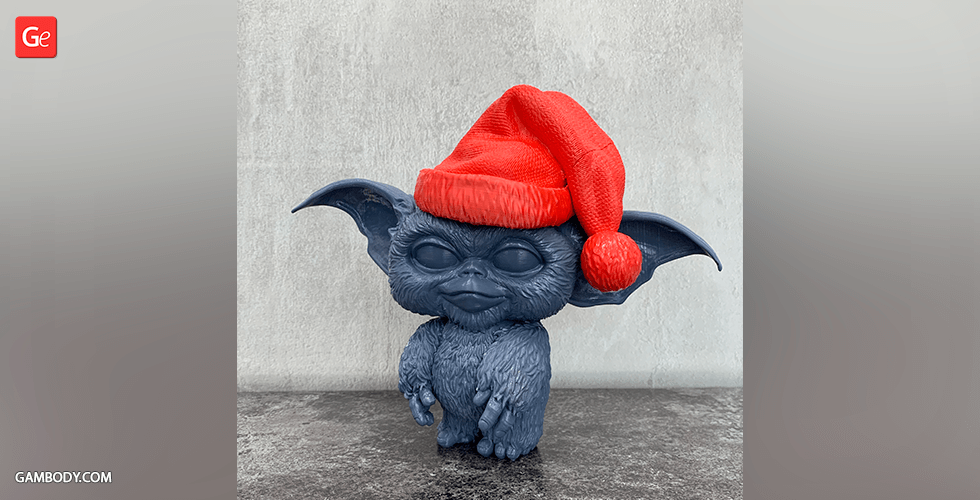

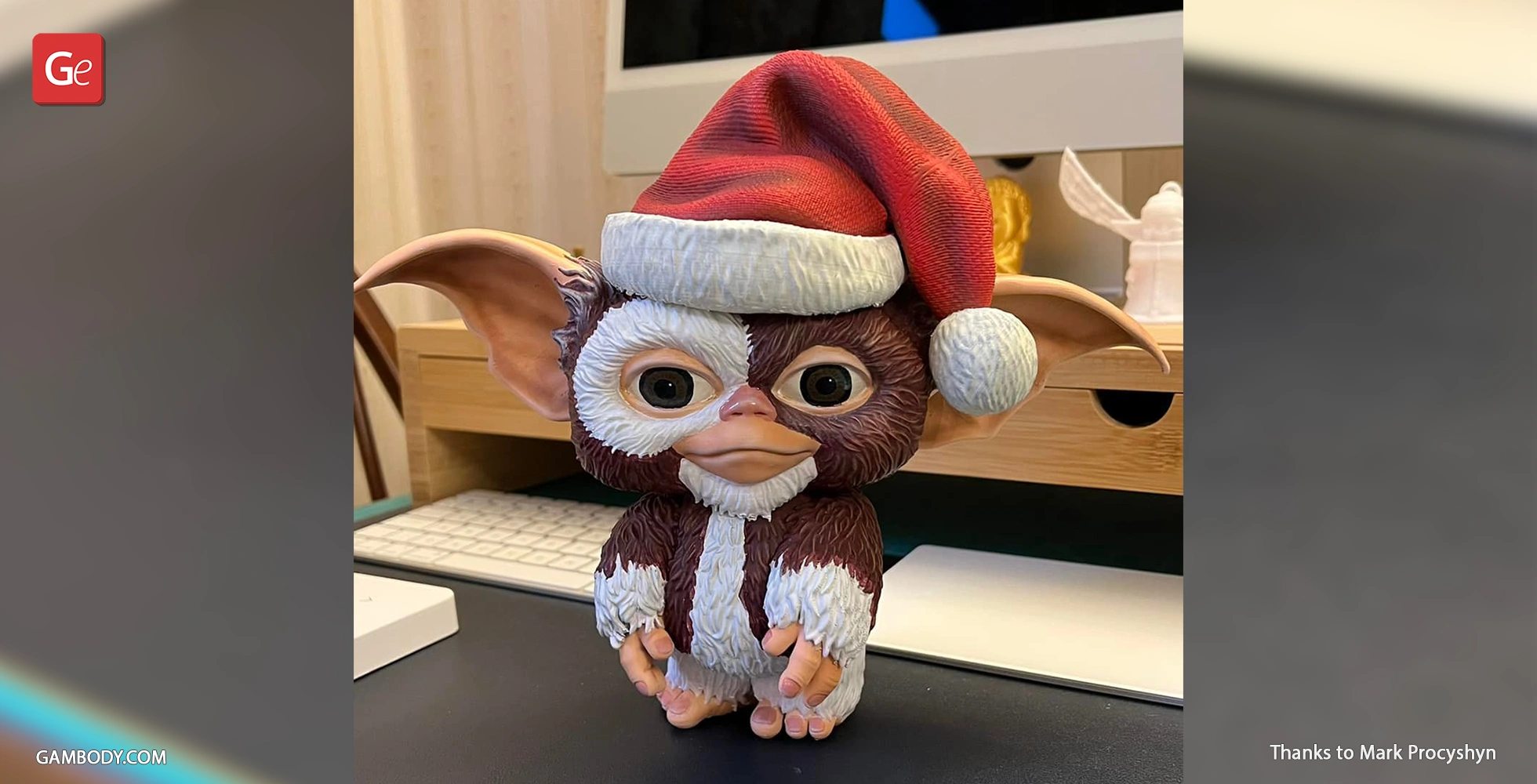

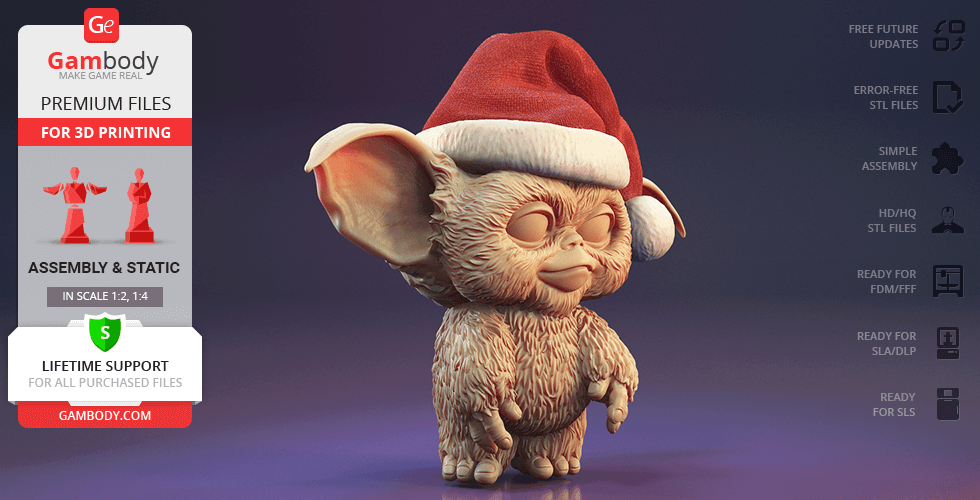

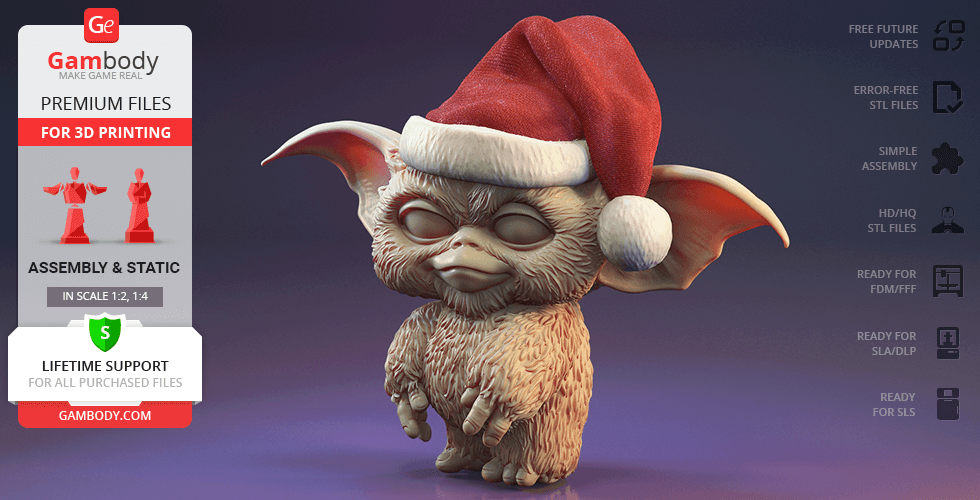

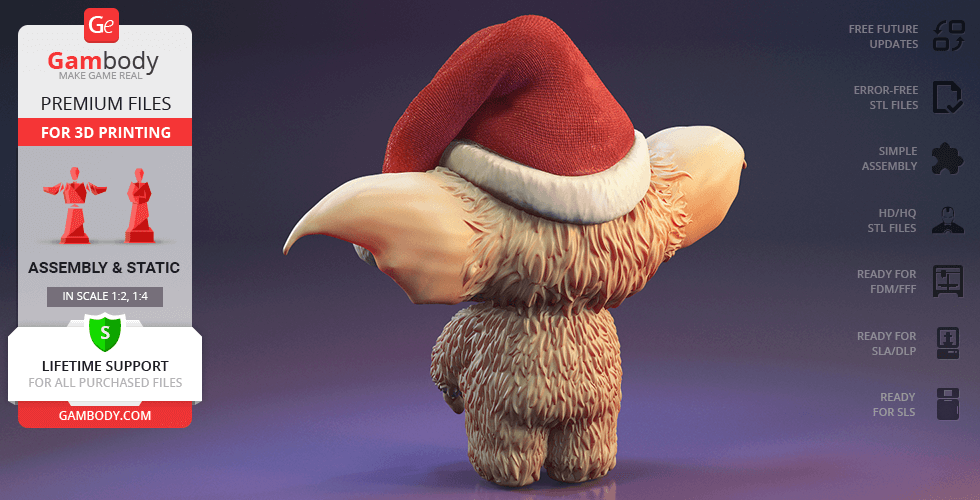

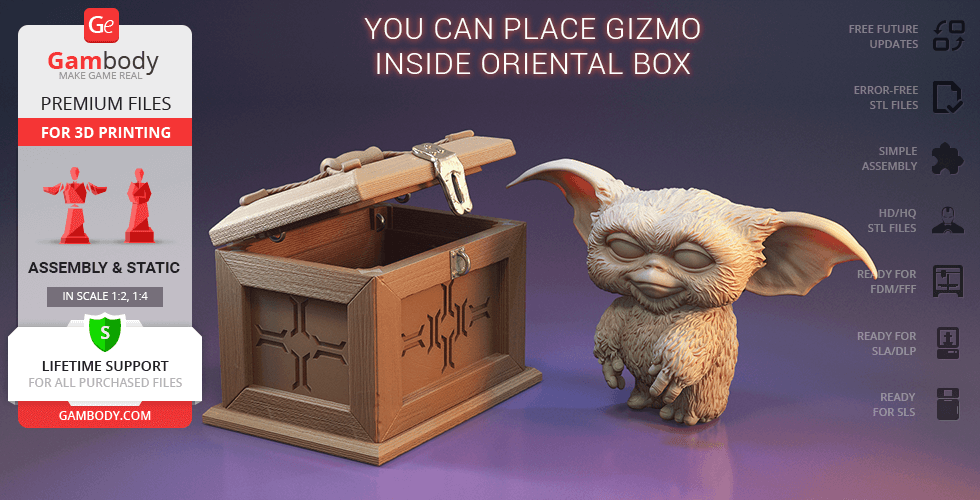

Gizmo model can wear a Christmas hat + you can place Gizmo inside Oriental Box;

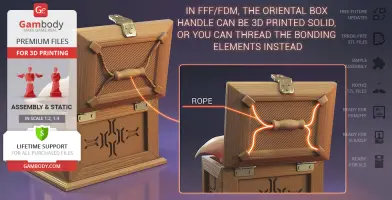

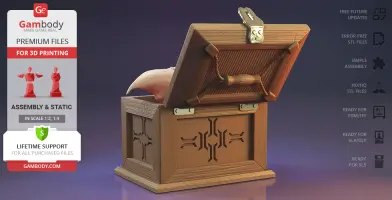

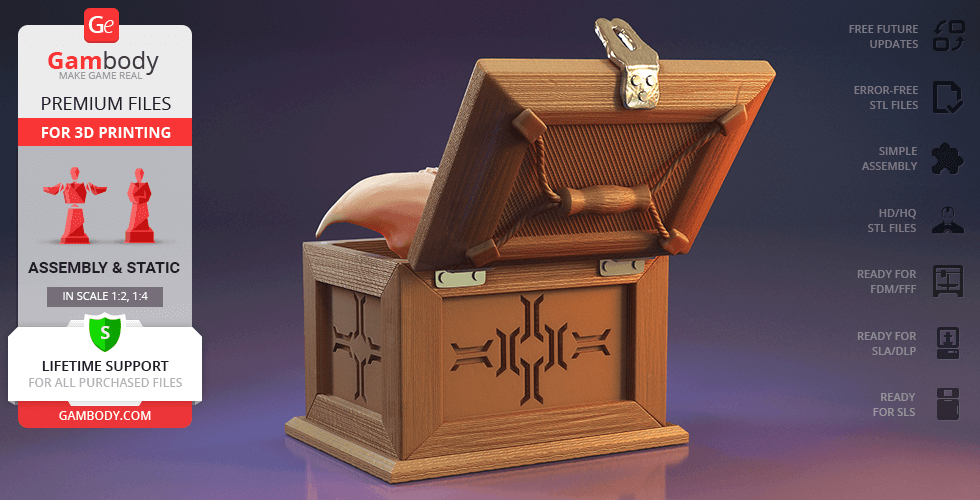

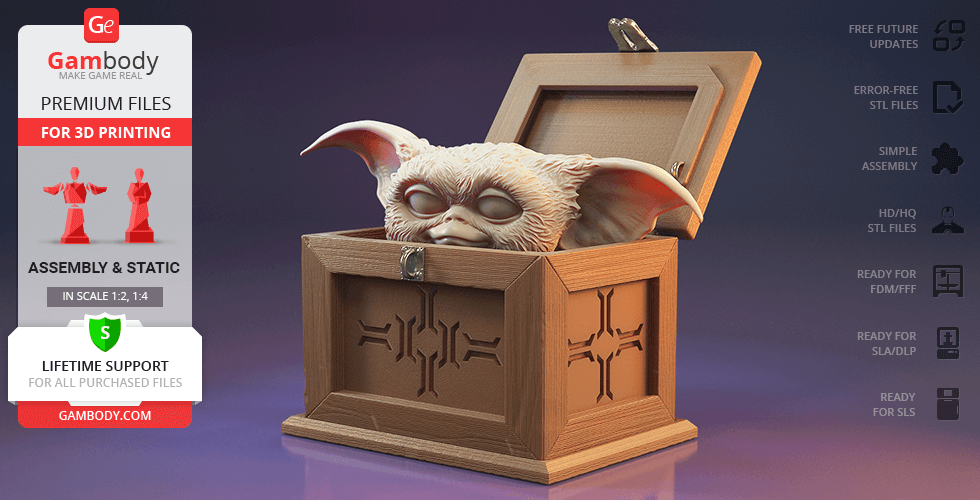

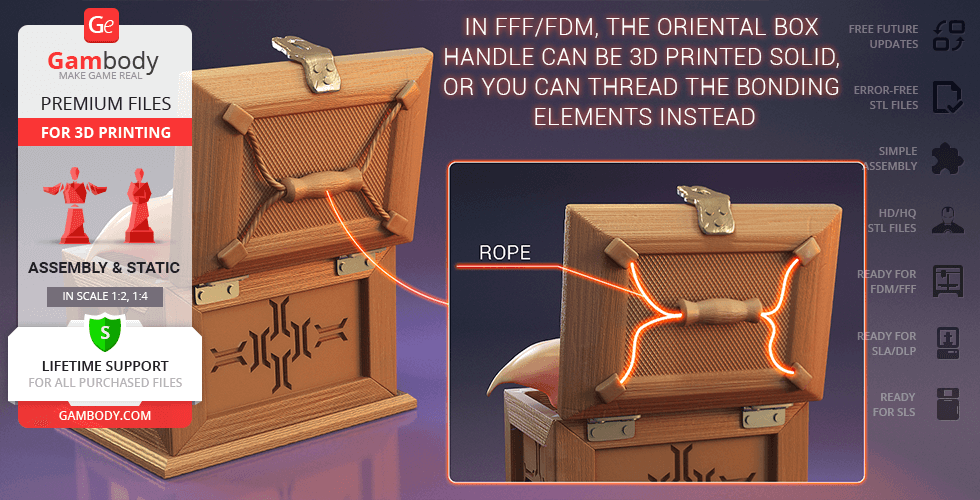

The lid of the Oriental Box is articulated + the handle can be 3D printed solid, or you can thread the bonding elements instead;

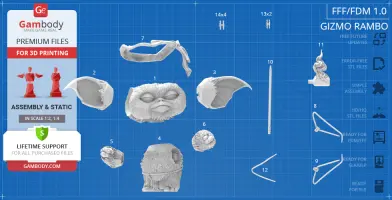

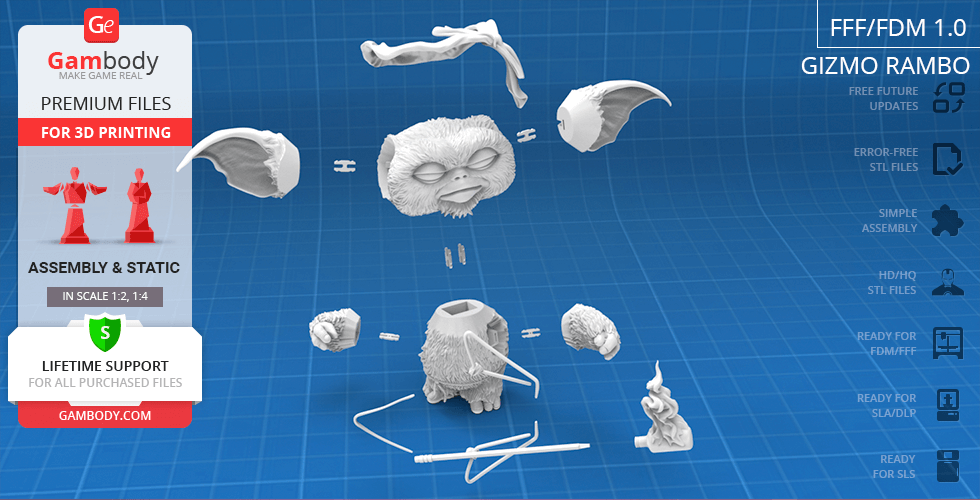

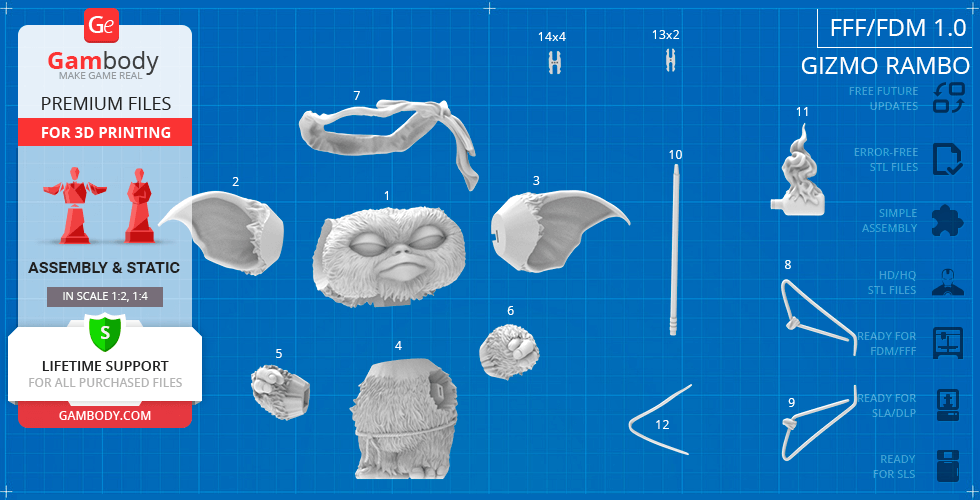

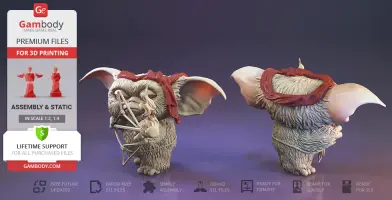

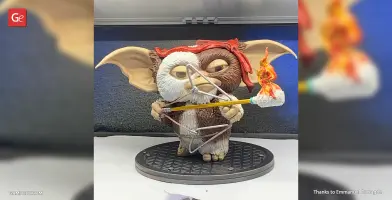

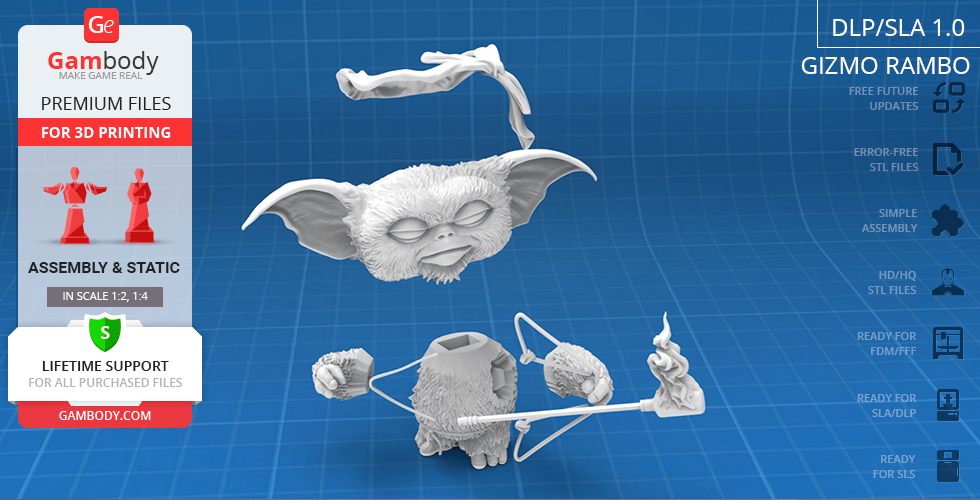

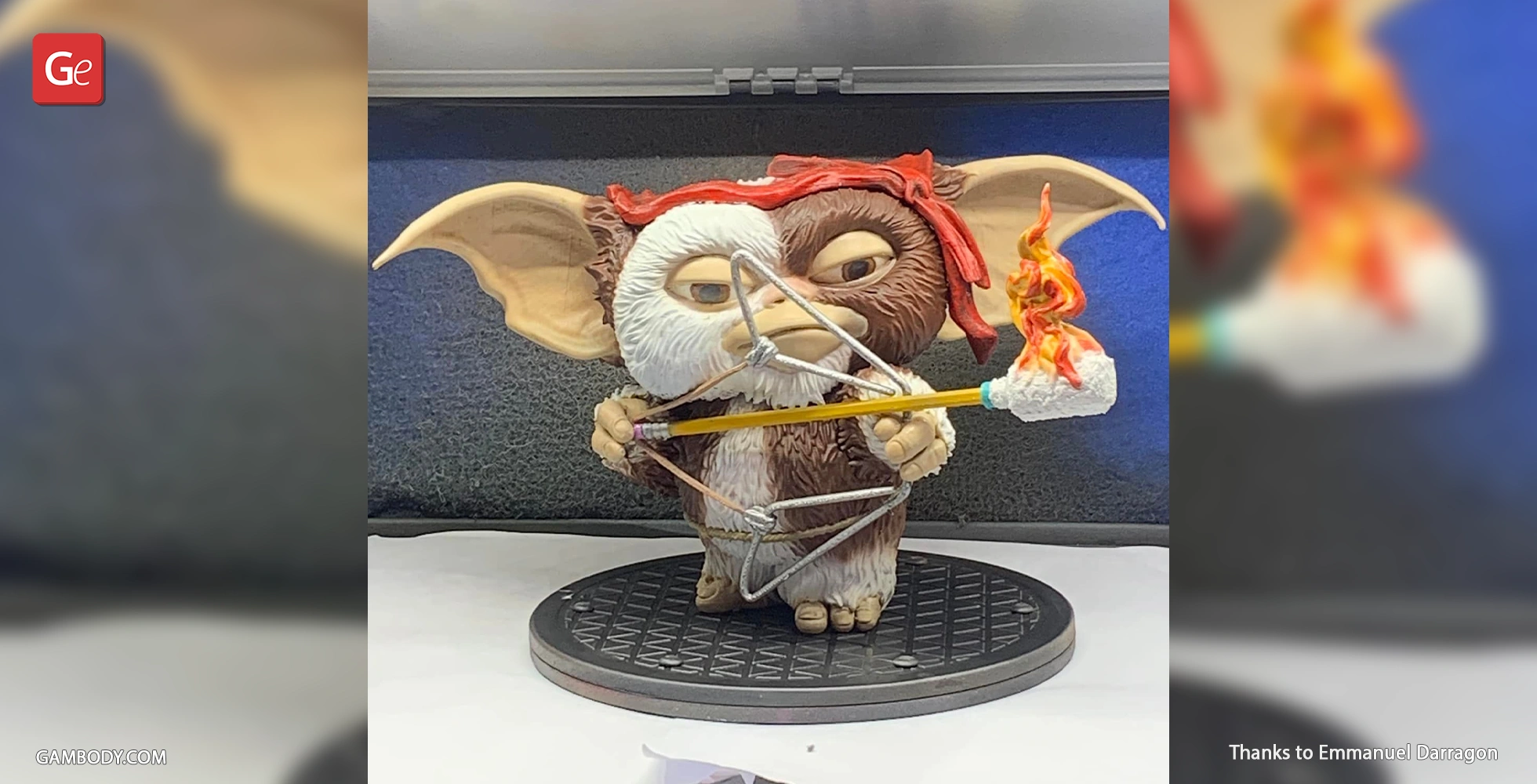

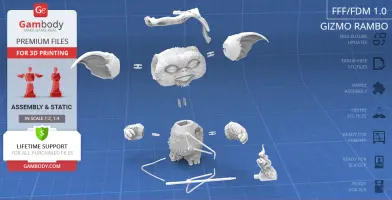

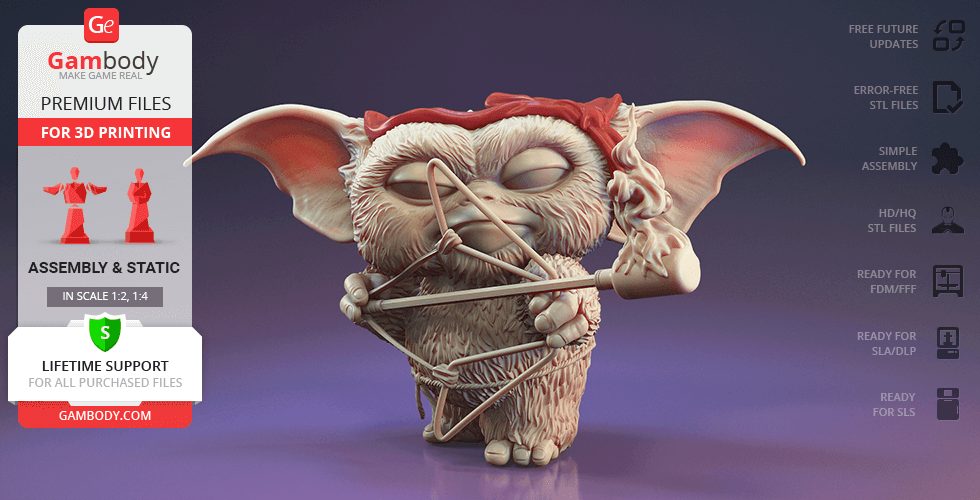

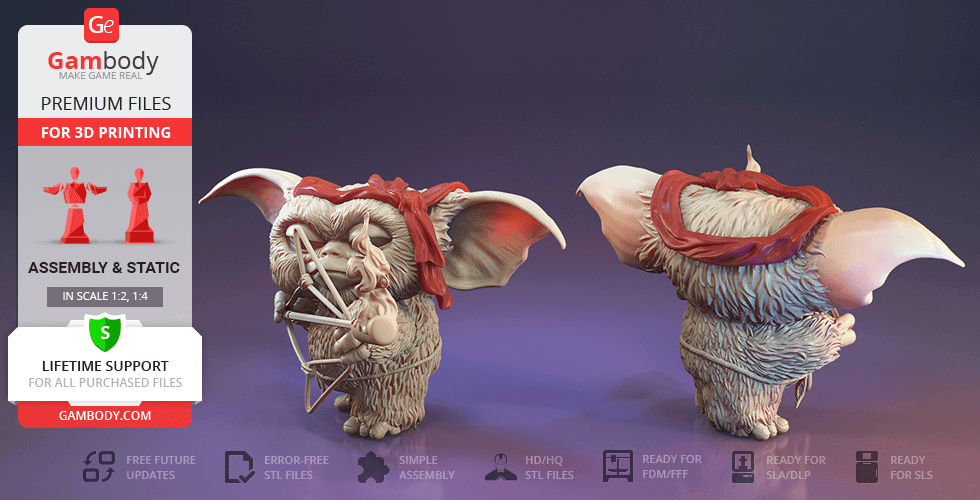

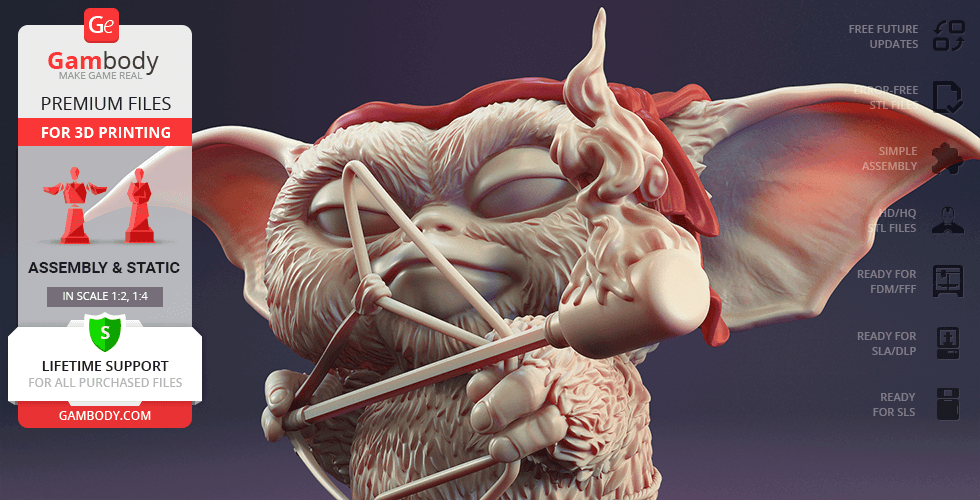

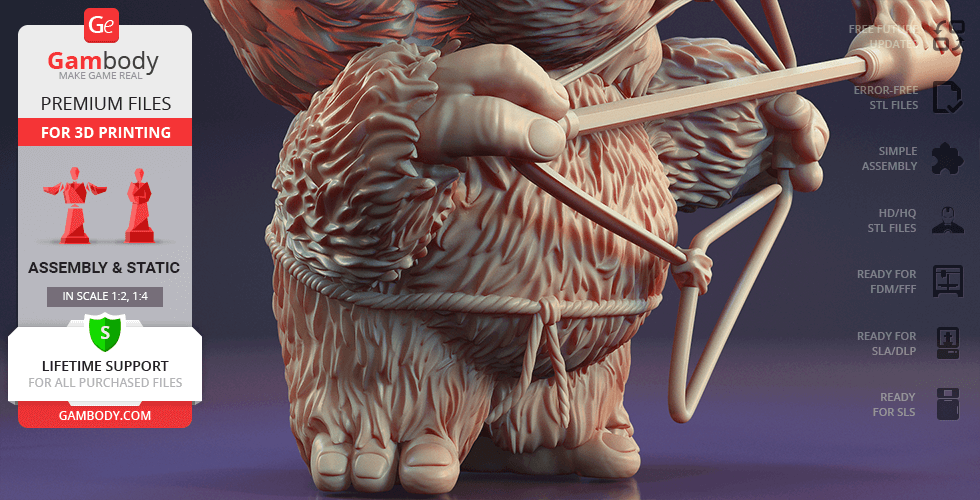

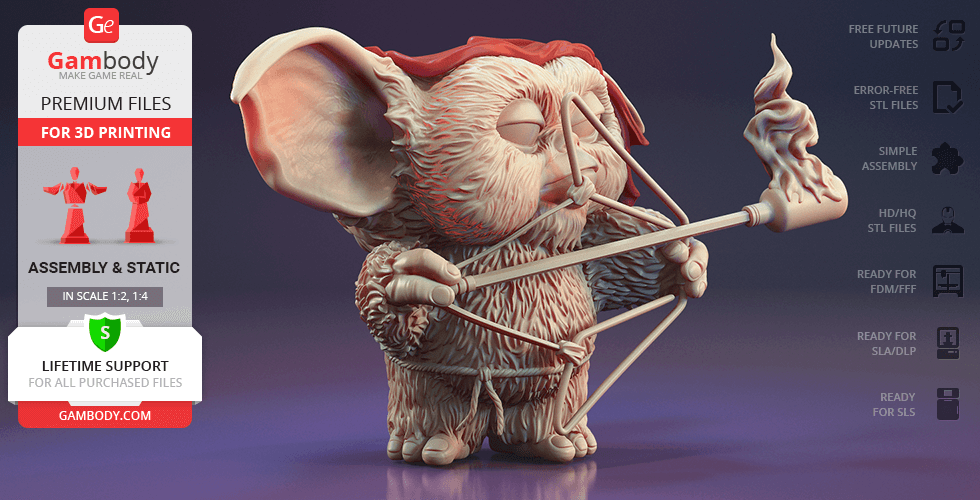

Gizmo Rambo:

Contains 14 parts;
A printed Rambo stands 160 mm tall, 263 mm wide, 145 mm deep;
The assembly kit includes locks to attach the model's parts securely without glue. Lock 13_ge_lock_7S(x2) needs to be printed twice, lock 14_ge_lock_10H(x4) needs to be printed 4 times;

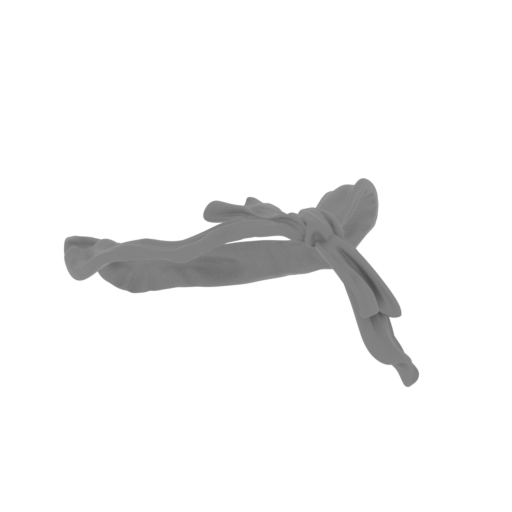

Rambo’s headband is separated for you to optionally use a real headband;

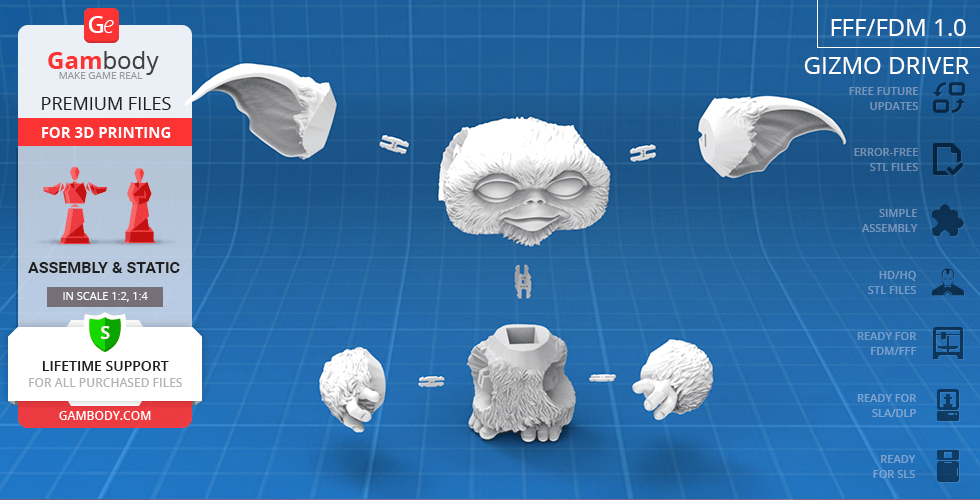

Gizmo Driver:

Contains 8 parts;

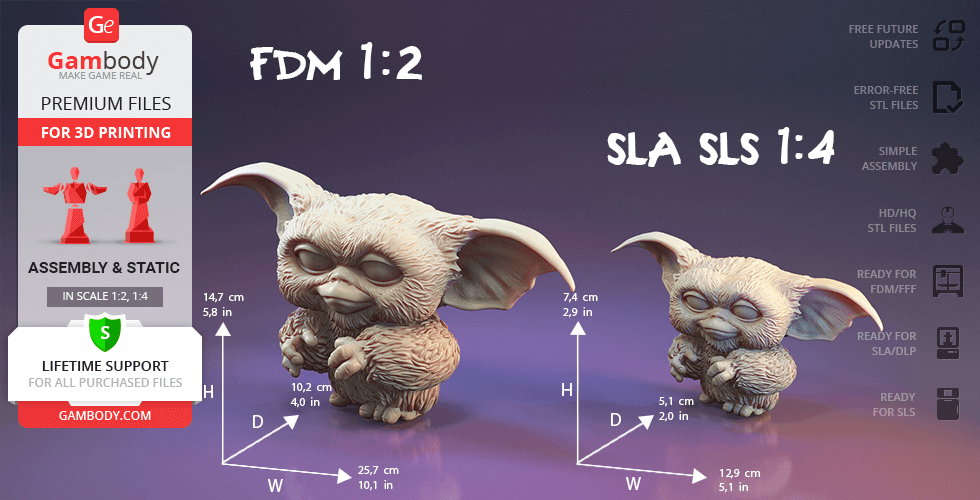

A printed Driver stands 147 mm tall, 257 mm wide, 102 mm deep;
The assembly kit includes locks to attach the model's parts securely without glue. Lock 7_ge_lock_7S(x2) needs to be printed twice, lock 8_ge_lock_10H(x4) needs to be printed 4 times;

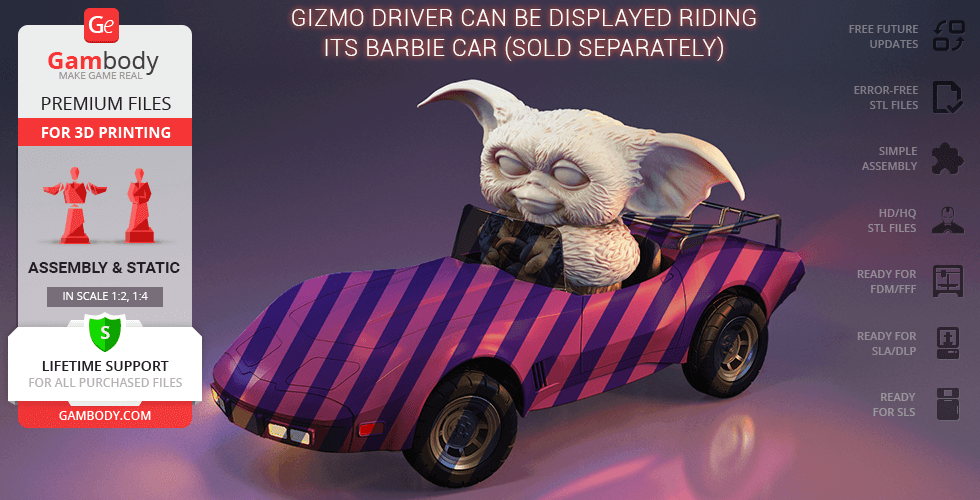

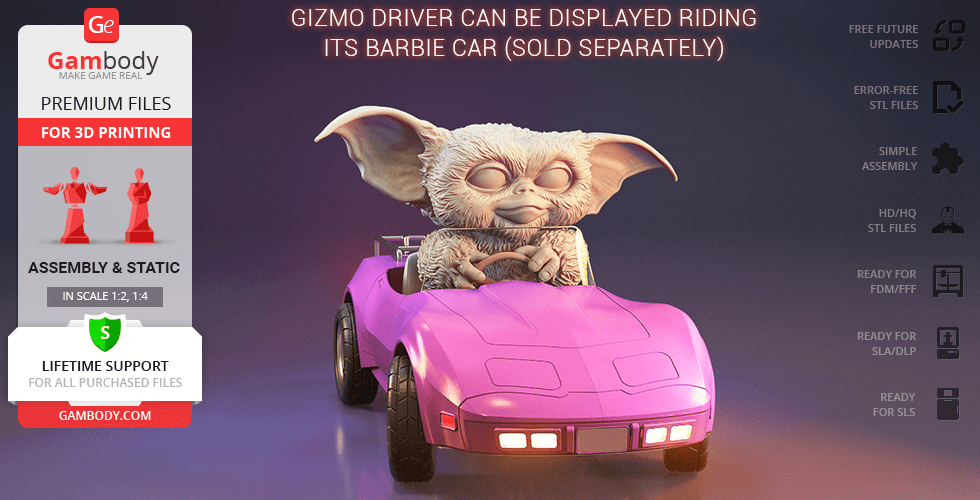

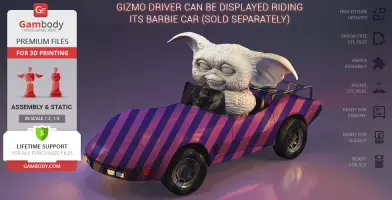

Gizmo Driver can be displayed riding its Barbie Car that is sold separately.

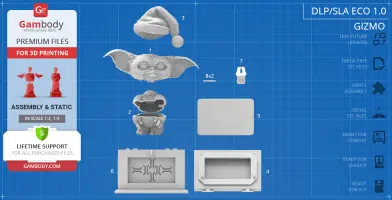

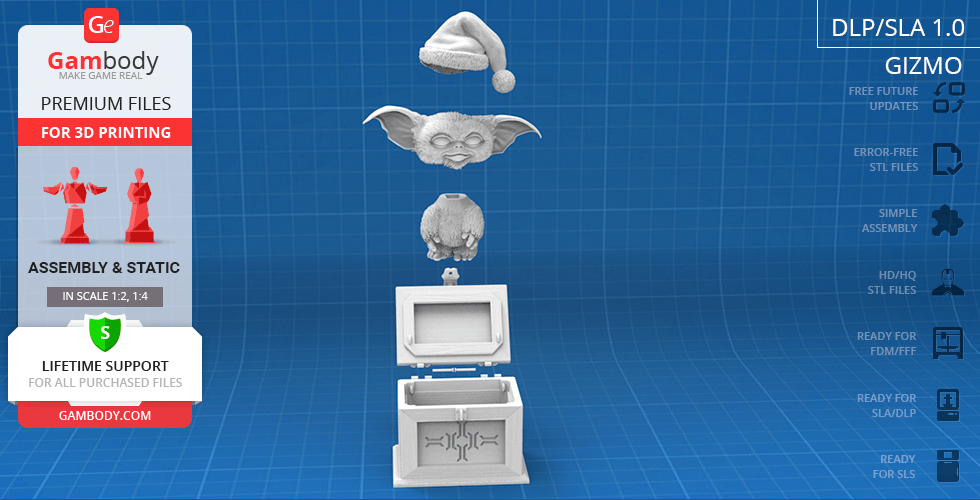

1.0 DLP/SLA + 1.0 ECO + 1.0 PRE-SUPPORTED VERSIONS (Gizmo + Rambo + Driver):

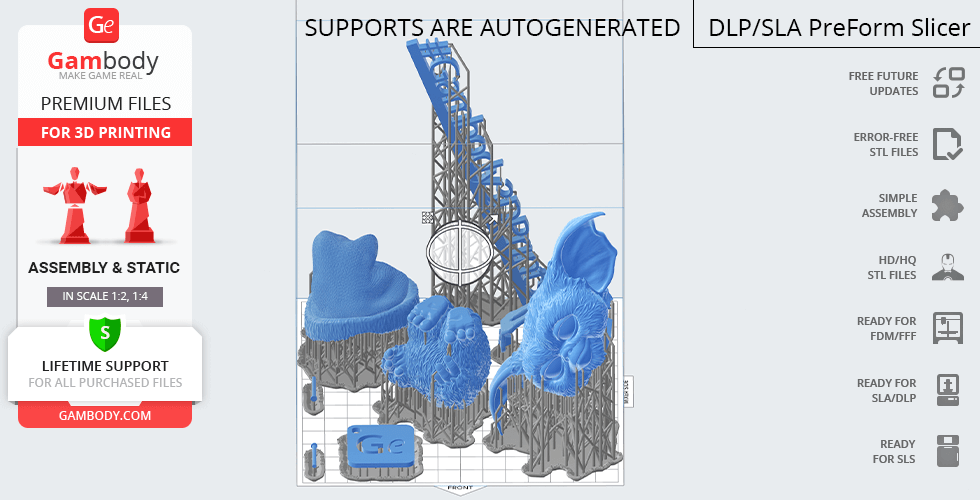

All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed (DLP/SLA + Eco 1.0);
Contain some hollowed-out parts to save resin (Eco 1.0);
STL files are pre-supported, hollowed out, and have drain holes where needed (Pre-supported 1.0);

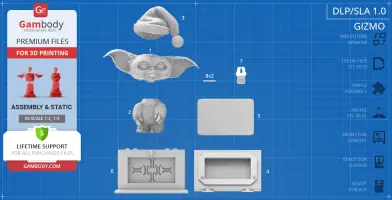

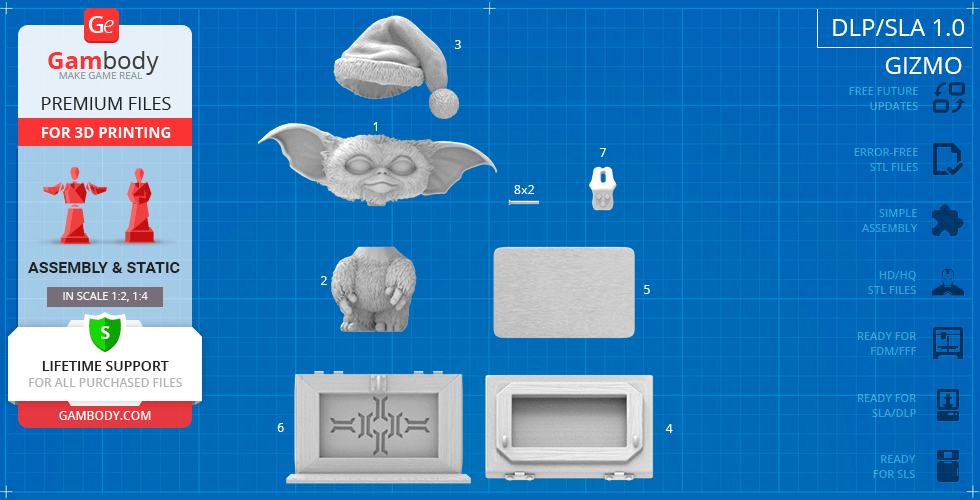

Gizmo:

Each version contains 8 parts;
A printed Gizmo stands 81 mm tall, 127 mm wide, 52 mm deep;
Gizmo in Oriental Box stands: 118 mm tall, 87 mm wide, 72 mm deep;
Gizmo model can wear a Christmas hat + you can place Gizmo inside Oriental Box that has an articulated lid;

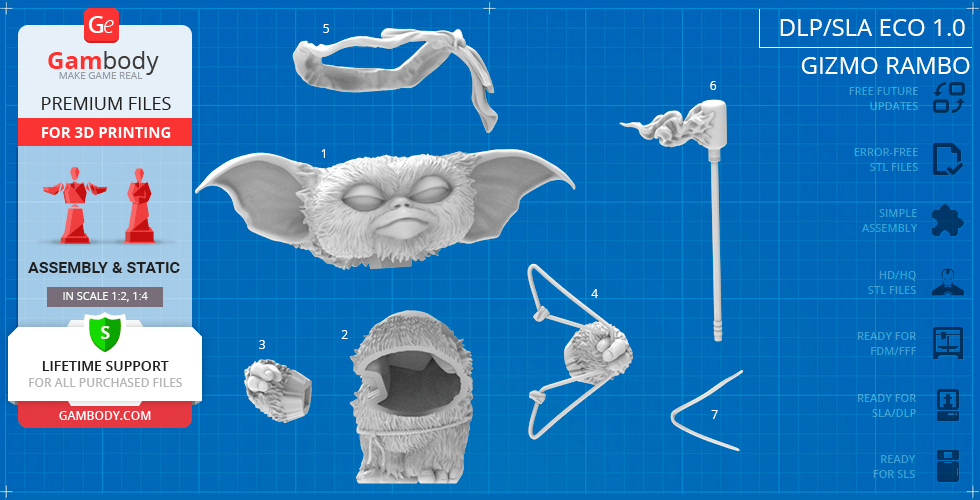

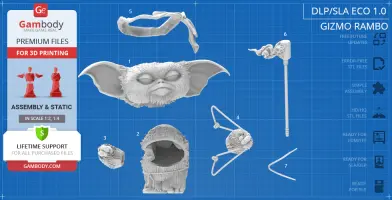

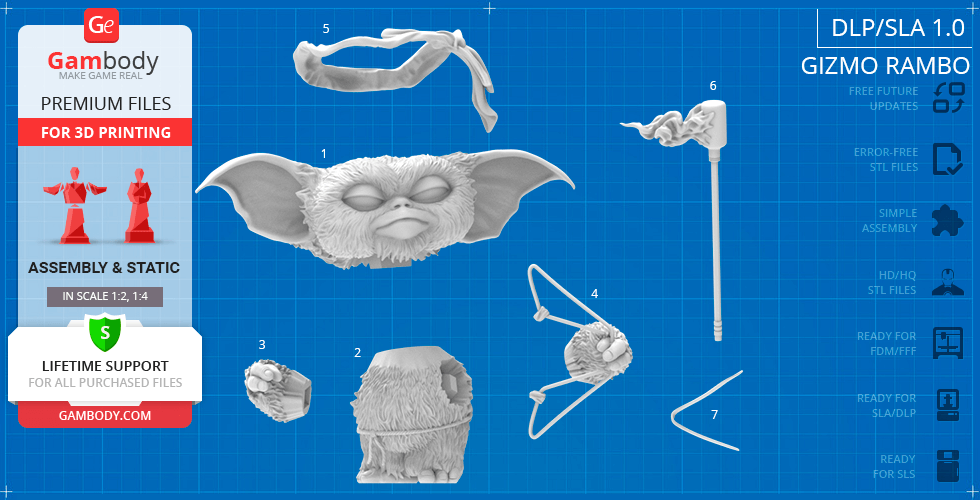

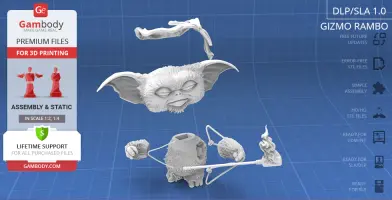

Gizmo Rambo:

Each version contains 7 parts;
A printed Rambo stands 80 mm tall, 132 mm wide, 73 mm deep;
Rambo’s headband is separated for you to optionally use a real headband;

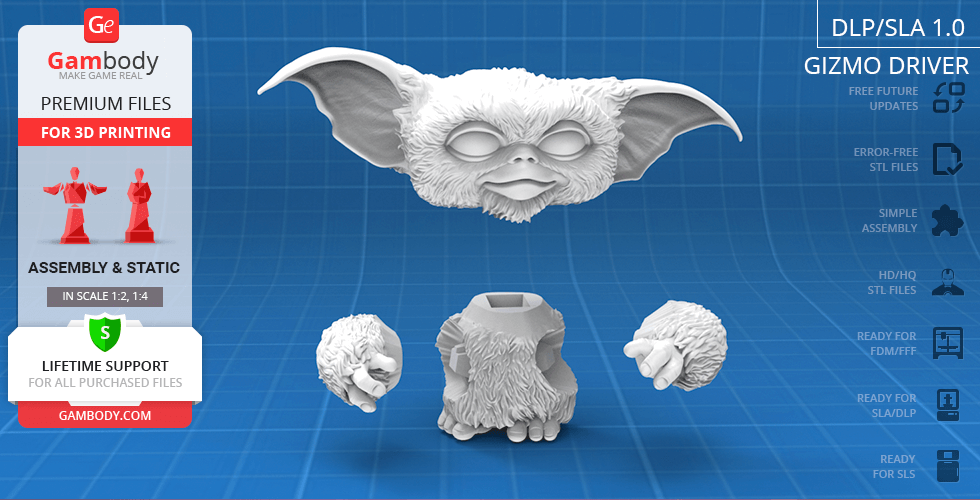

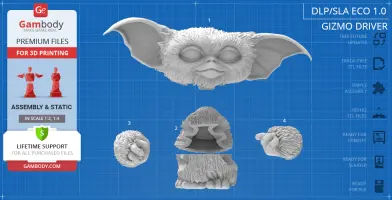

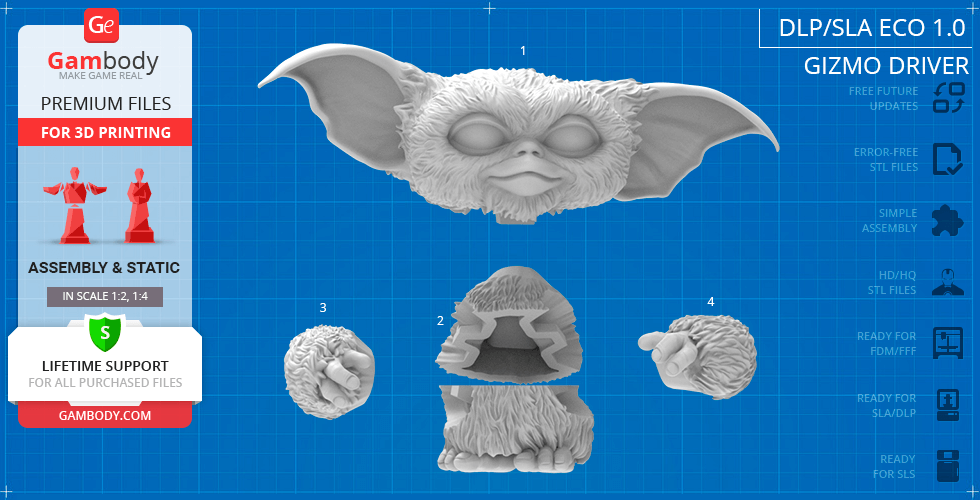

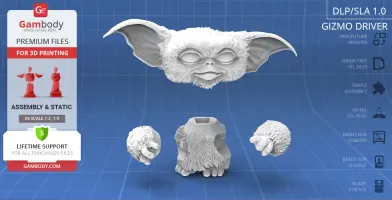

Gizmo Driver:

Each version contains 4 parts;
A printed Driver stands 74 mm tall, 129 mm wide, 51 mm deep;
Gizmo Driver can be displayed riding its Barbie Car that is sold separately.

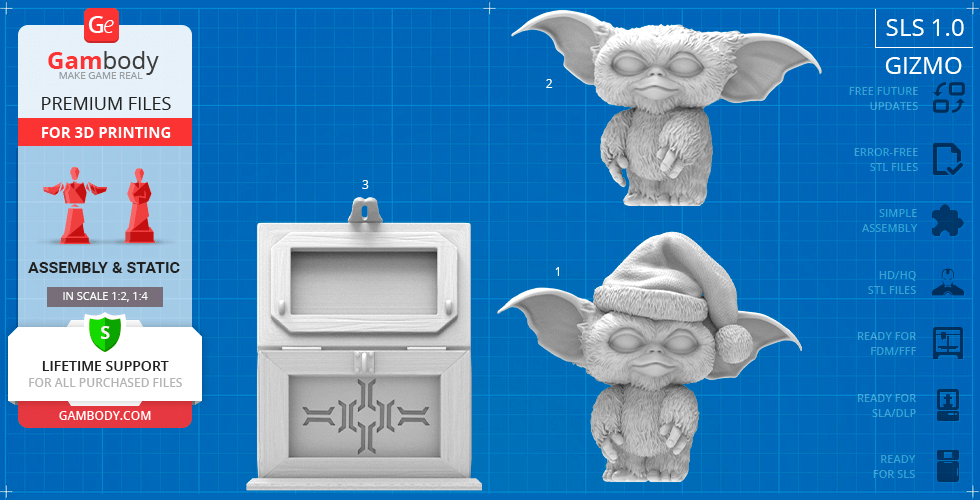

1.0 SLS VERSIONS (Gizmo + Rambo + Driver):

Gizmo:

Contains 3 parts - Gizmo model, Gizmo wearing a Christmas Hat, the Oriental Box;
A printed Gizmo stands 81 mm tall, 127 mm wide, 52 mm deep;
Gizmo in Oriental Box stands: 118 mm tall, 87 mm wide, 72 mm deep;

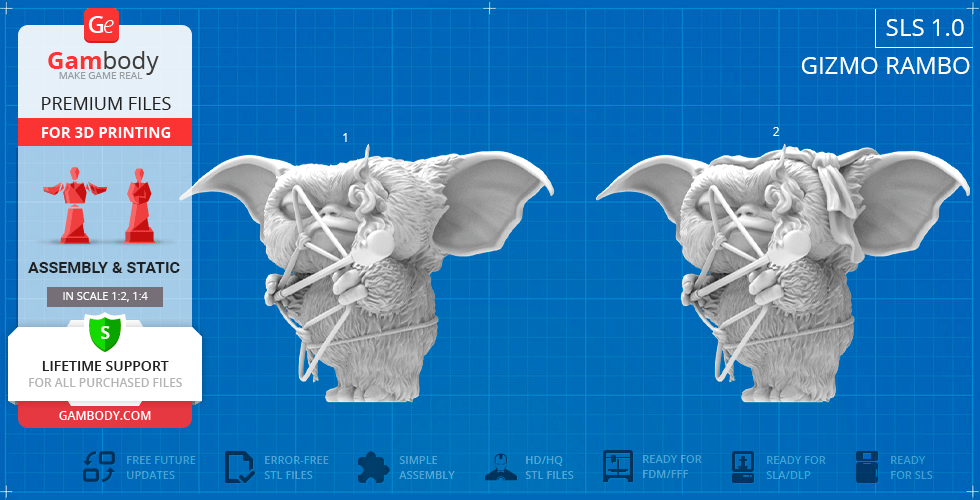

Gizmo Rambo:

Contains 2 parts - solid Gizmo model with and without the headband;
A printed Rambo stands 80 mm tall, 132 mm wide, 73 mm deep;

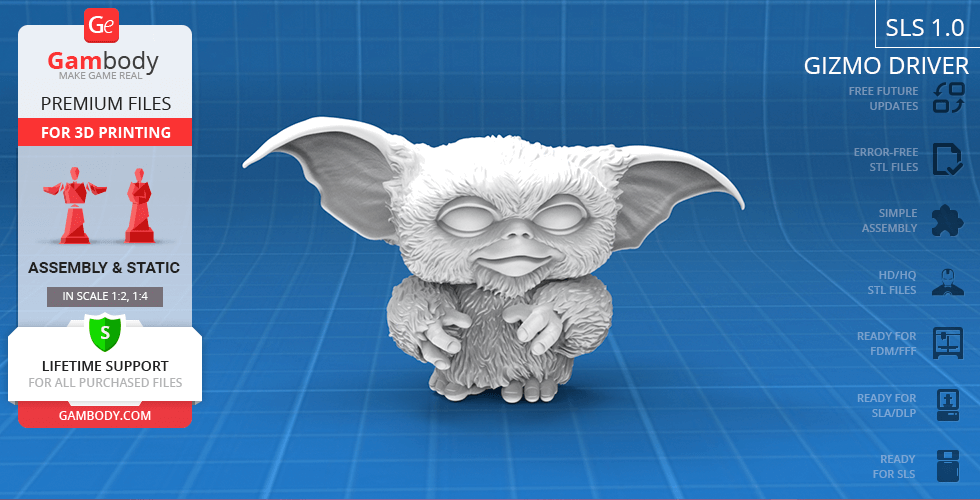

Gizmo Driver:

Contains 1 part - a solid Gizmo model designed to fit the Barbie Car that is sold separately;
A printed Driver stands 74 mm tall, 129 mm wide, 51 mm deep.

You can get the STL files of Gizmo 3D print model immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble the 3D Printed Gizmo models from the provided 3D Print Files at Gambody YouTube channel.

Also, you may like other Movie 3D Printing Designs.

_______

FAQ:

Generic

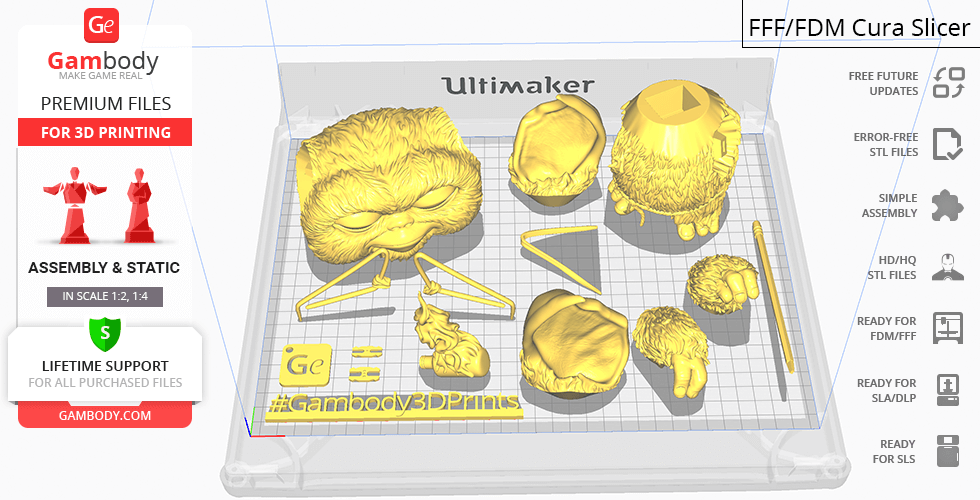

Below you can find printing recommendations for Cura, Bambu Studio, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

All connectors should be printed at 100% Infill.

Bambu Lab printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Bambu Studio 1.9.1. Test models were printed on the Bambu Lab A1, Bambu Lab A1 Mini, Creality Ender 3 S1, Anycubic Kobra 2, and Anycubic Vyper using PLA and PETG filaments.
