ABOUT THIS 3D MODEL

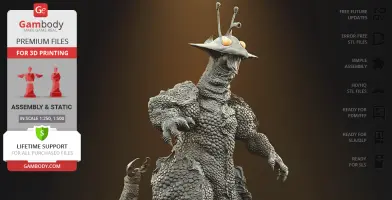

Guilala is a kaiju (giant monster) from the 1967 Japanese science fiction film "The X from Outer Space." The creature is an alien from the planet Guilalas that crashes on Earth and begins to wreak havoc.

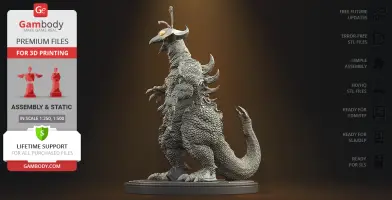

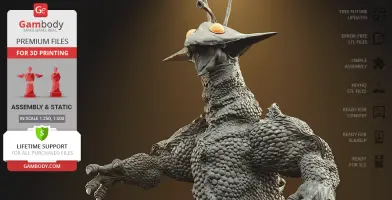

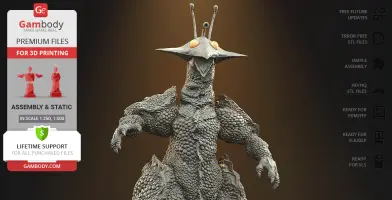

Guilala is a giant, birdlike creature with a spiky, armored body and a long tail. It also has antennae on top of its head. The creature's main weapon is a powerful beam it can shoot from its mouth, which it uses to destroy buildings and vehicles. The creature can also regenerate itself, making it difficult to defeat. Despite its fearsome appearance and abilities, Guilala is portrayed as a destructive and mindless force, rather than a sentient being.

ADAPTATION FOR 3D PRINTING

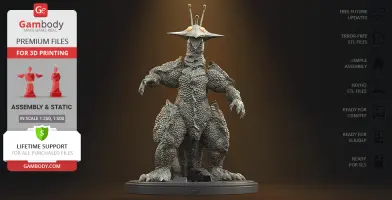

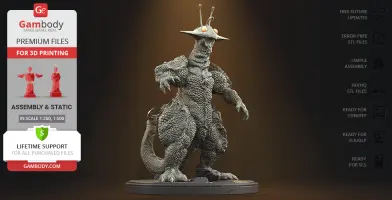

Guilala for 3D printing is a static assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 48 hours in total.

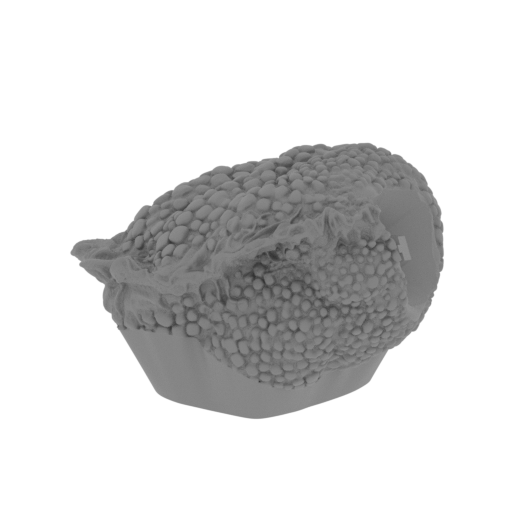

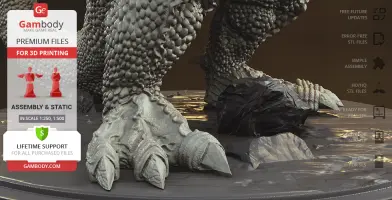

For you to receive the cleanest 3D printing result possible, and minimize the amount of filament needed for generated support, the kaiju was divided into convenient assembly parts.

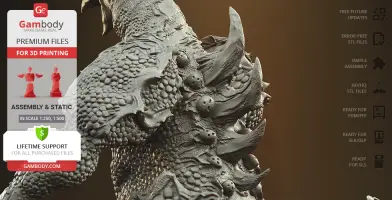

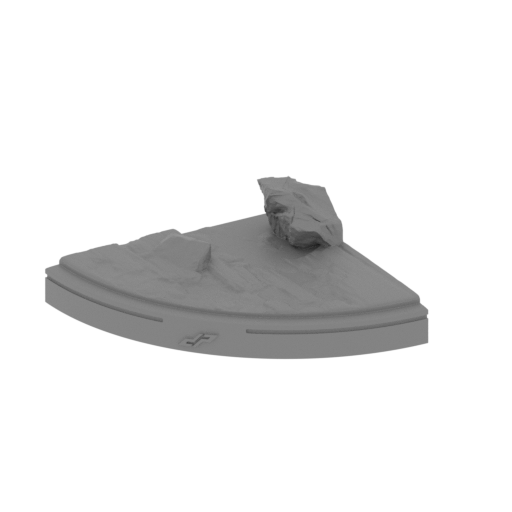

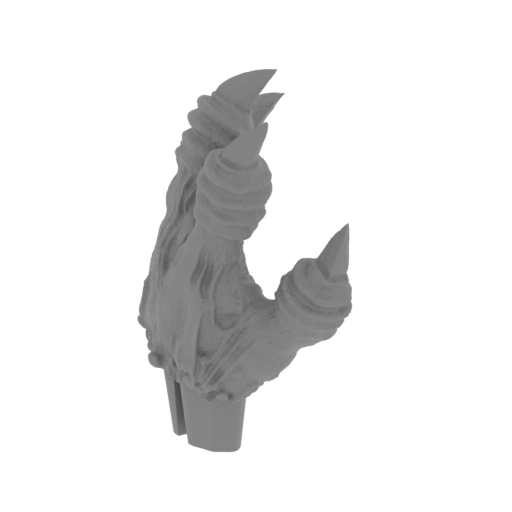

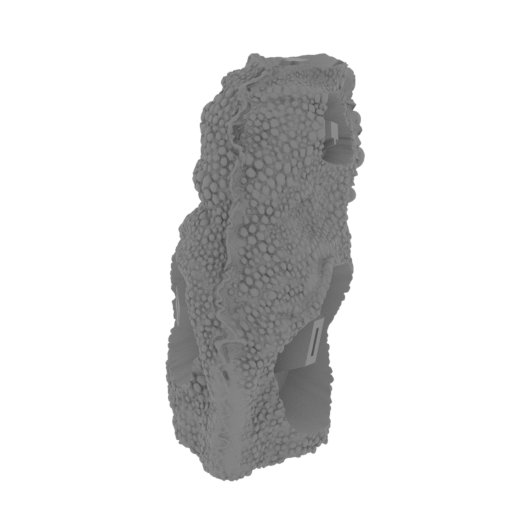

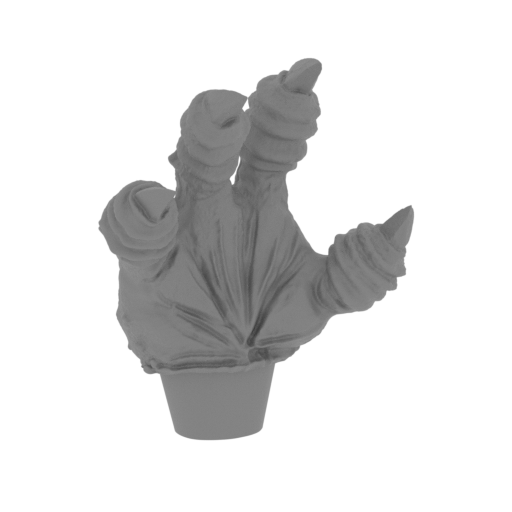

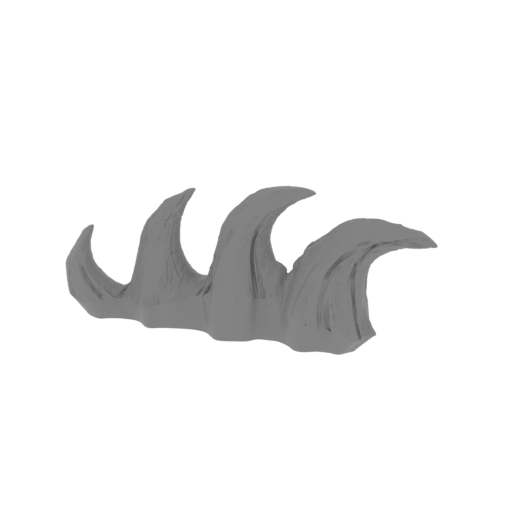

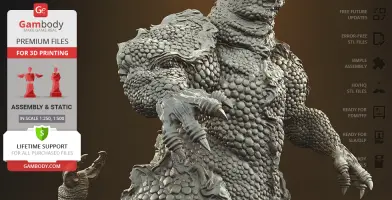

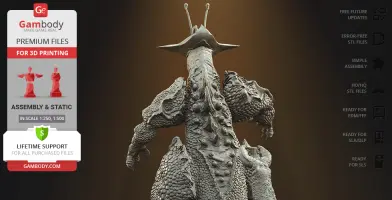

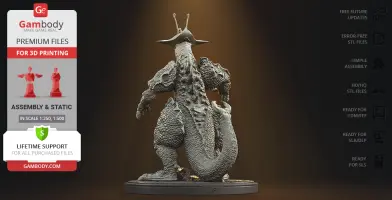

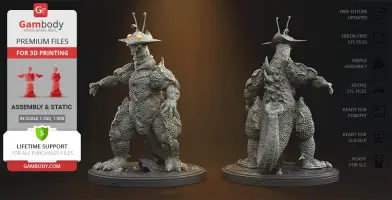

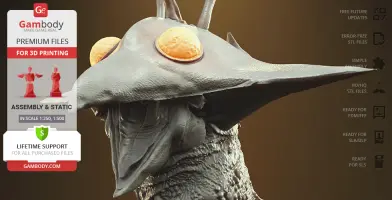

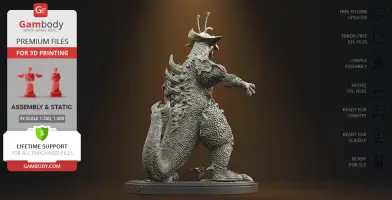

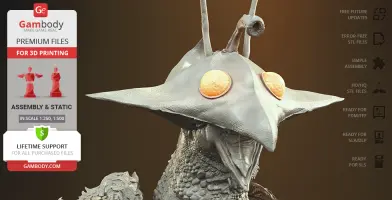

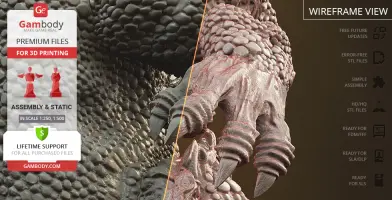

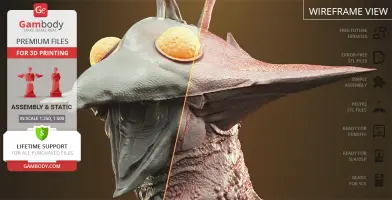

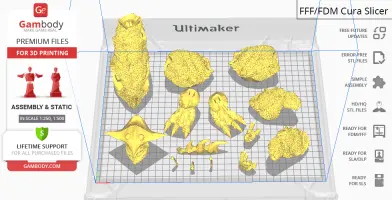

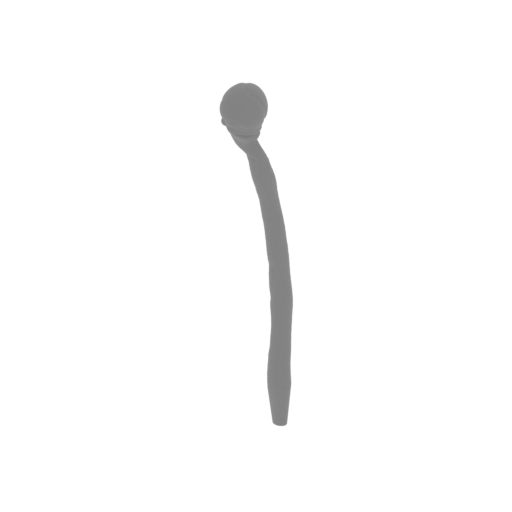

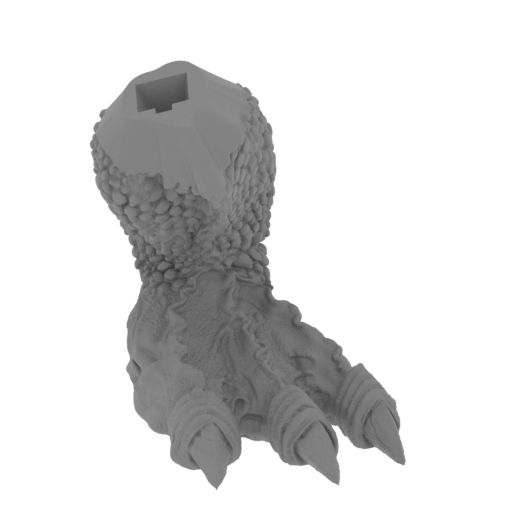

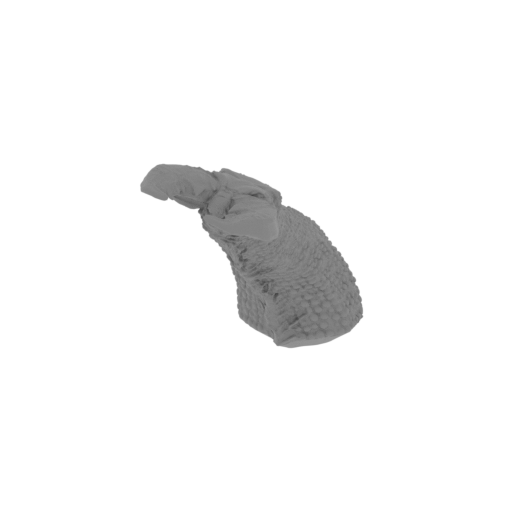

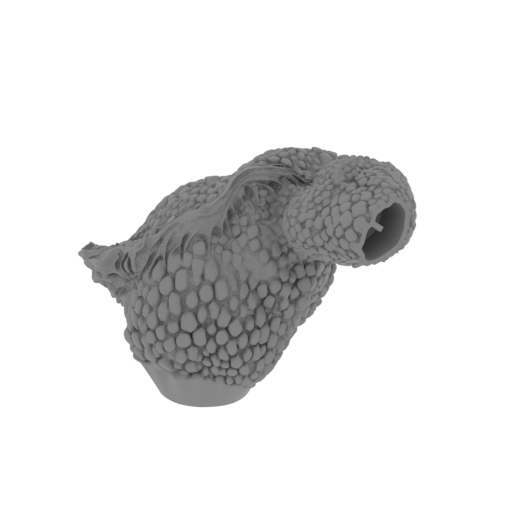

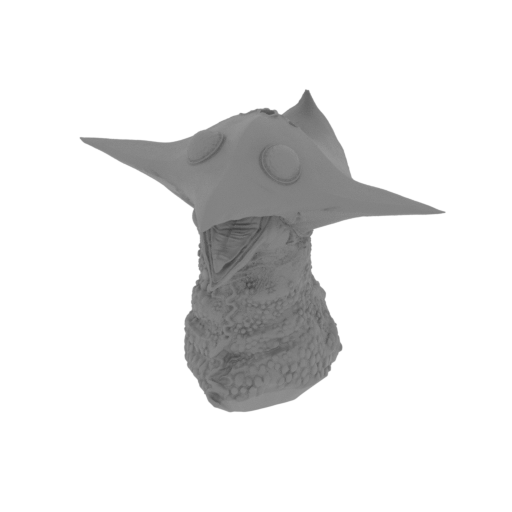

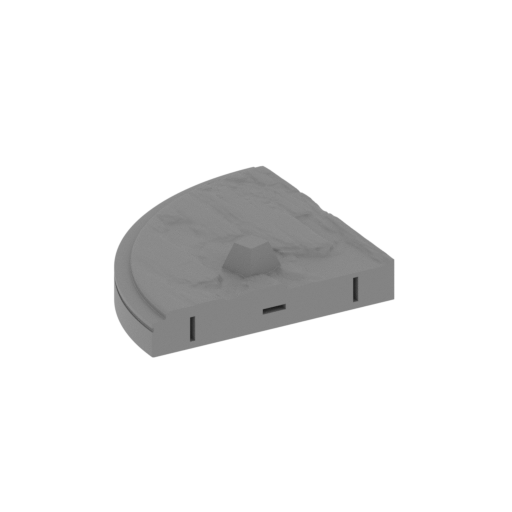

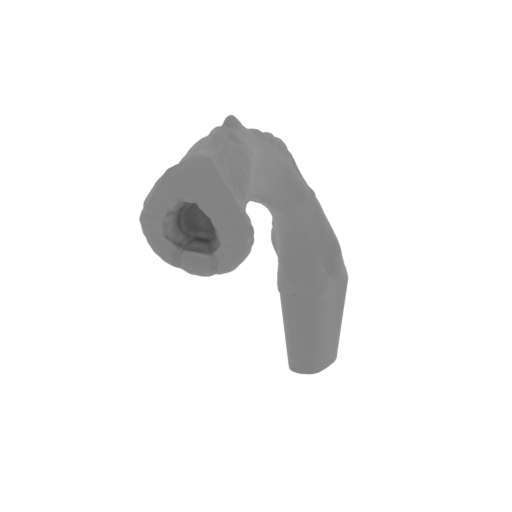

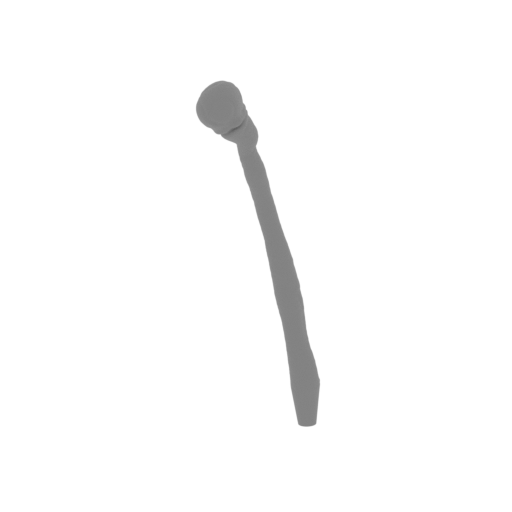

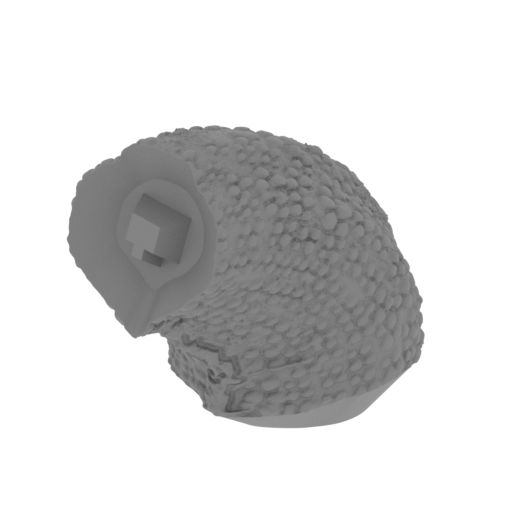

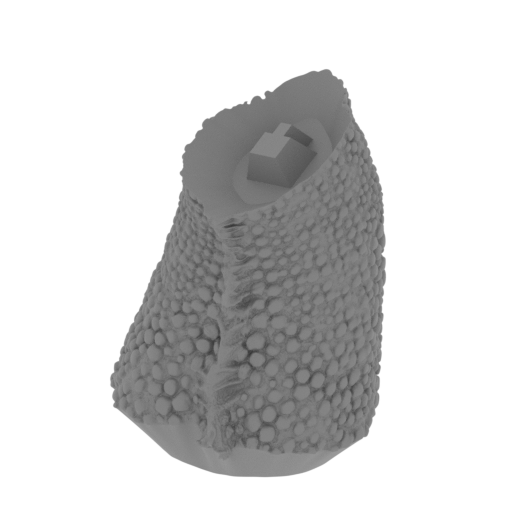

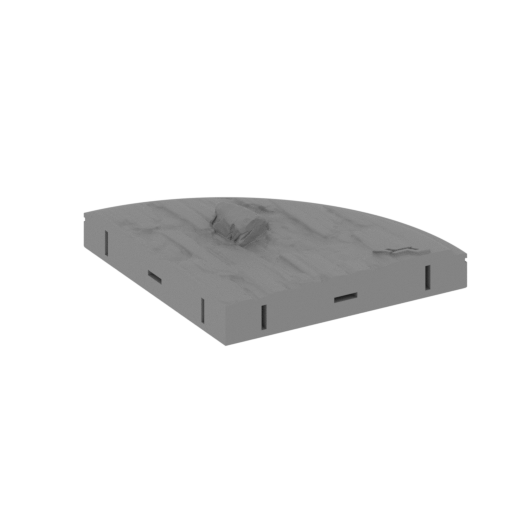

All assembly parts in the FFF/FDM 1.0 version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any model's file you will also receive the "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format. We highly recommend that you get acquainted with the “Assembly video” and "Assembly Manual" before getting down to Guilala.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model’s scale was calculated from the height of Guilala 60 000 mm. The 3D printing model’s chosen scales are 1:250 for the FFF/FDM version and 1:500 for the DLP/SLA version.

VERSIONS’ SPECIFICATIONS

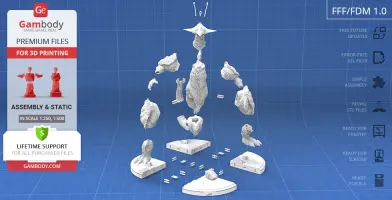

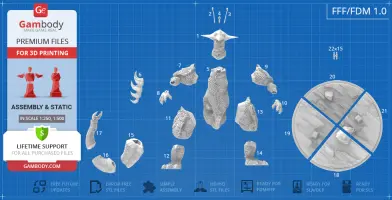

FFF/FDM 1.0 version features:

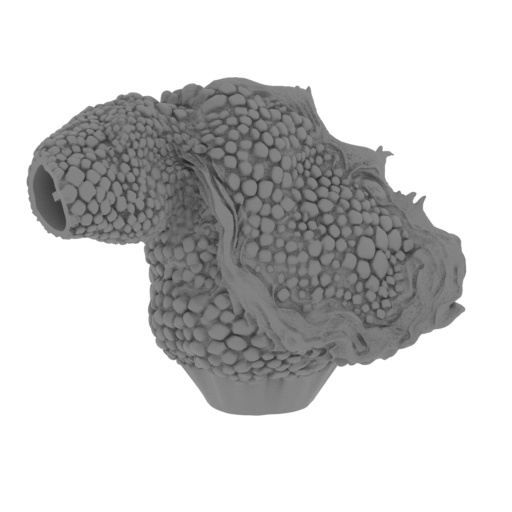

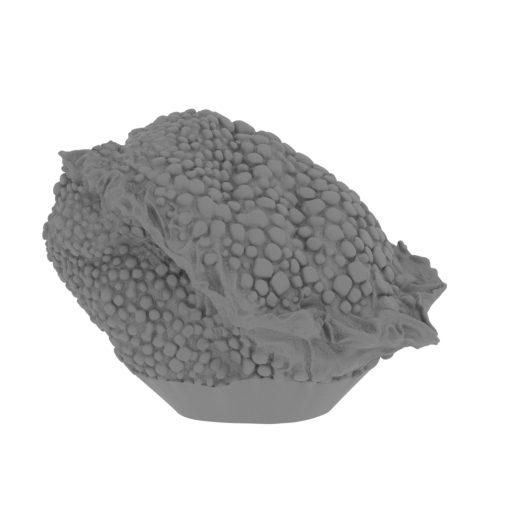

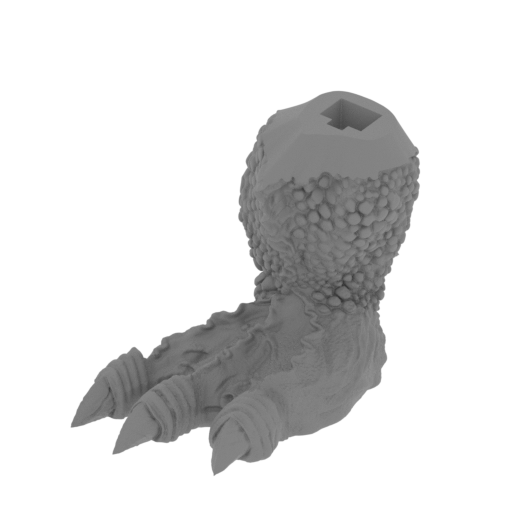

• Contains 22 parts;

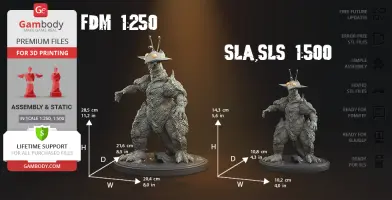

• A printed model is 285 mm tall, 204 mm wide, 285 mm deep;
• All parts are divided in such a way that you will print them with the smallest number of support structures.

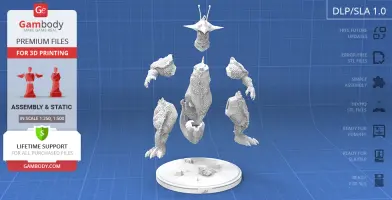

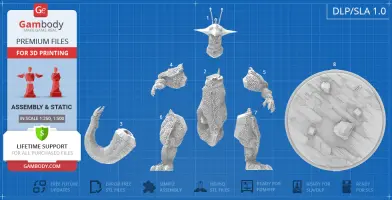

DLP/SLA 1.0 version features:

• Contains 8 parts;
• A printed model is 143 mm tall, 102 wide, 108 mm deep;
• All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

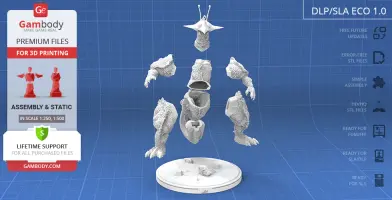

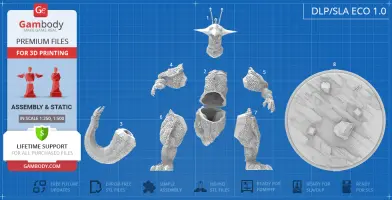

DLP/SLA 1.0 Eco version features:

• Contains 8 parts;
• A printed model is 143 mm tall, 102 wide, 108 mm deep;
• Some parts are manually hollowed out to save resin.

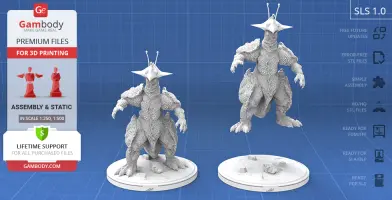

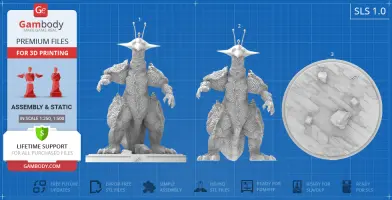

SLS 1.0 version features:

- A printed model is 143 mm tall, 102 wide, 108 mm deep;

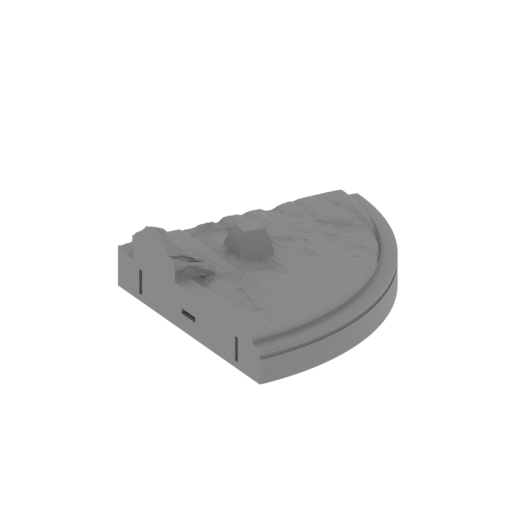

- Contains 2 parts - a solid Guilala figurine and the platform.

You can get the model of Guilala for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Guilala 3D Printing Model on Gambody YouTube channel.

Also, you may like the Godzilla Heisei and Godzilla 2014 3D Printing Models, and other Kaiju models and figurines for 3D Printing.

_______

FAQ:

Where can I print a model if I have no printer?

How to get started with 3D printing?

How to set up my 3D printer?

How to choose right 3D model print bed positioning?

How to paint printed figurine?

Generic

Below you can find printing recommendations for Cura, Simplify3D, Slic3r and PrusaSlicer software.

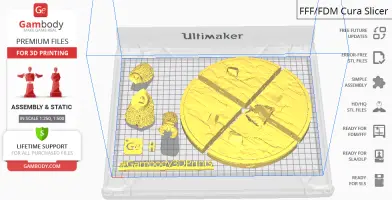

Cura Printing Recommendations

These are basic settings that were tested in Cura 4.8.0 slicer.

The test models were printed on Ultimaker 2, Creality Ender 3, Creality CR-10S Pro V2, Anycubic I3 Mega, Anycubic I3 MegaS 3D printers with PLA and PETG filaments.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use and especially the particular assembly part at hand. Each part that any model comprises often needs preliminary review and you are free to tweak the settings the way you find suitable.

Note:

- You can scale up the model (downscaling is not recommended!);

- All connectors should be printed at 100% Infill;

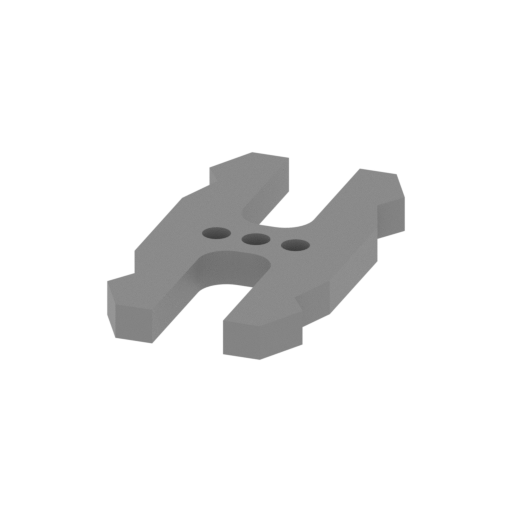

- For all parts of locks (“ge_lock” in “Source files”) you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

Quality

Layer Height: 0.12 mm (you can also set Layer Height at 0.16 or 0.2mm for 0.4mm nozzles)

Initial Layer Height: 0.2 mm (carefully level the print bed and keep your Initial Layer Height the same as the main Layer Height)

Line Width: 0.4 mm

Wall Line Width: 0.4 mm

Outer Wall Line Width: 0.4 mm

Inner Wall(s) Line Width: 0.4 mm

Top/Bottom Line Width: 0.4 mm

Infill Line Width: 0.4 mm

Skirt/Brim Line Width: 0.4 mm

Support Line Width: 0.4 mm

Initial Layer Line Width: 100%

Shell

Wall Thickness: 0.8 mm

Wall Line Count: 2

Outer Wall Wipe Distance: 0.3 mm

Top Surface Skin Layers: 0

Top/Bottom Thickness: 0.6 mm

Top Thickness: 0.6 mm

Top Layers: 5

Bottom Thickness: 0.6 mm

Bottom Layers: 5

Initial Bottom Layers: 5

Top/Bottom Pattern: Lines

Bottom Pattern Initial Layer: Lines

Top/Bottom Line Directions: [ ]

Outer Wall Inset: 0 mm

Optimize Wall Printing Order: Check

Compensate Wall Overlaps: Check

Compensate Inner Wall Overlaps: Check

Minimum Wall Flow: 0%

Fill Gaps Between Walls: Everywhere

Filter Out Tiny Gaps: Check

Horizontal Expansion: 0 mm

Initial Layer Horizontal Expansion: 0 mm

Hole horizontal expansion: 0

Z Seam Alignment: User Specified

Z Seam Position: Back

Z Seam X: Average length of your printer’s plate (e.g.”150” if your plate is 300mm on the X-axis)

Z Seam Y: A value higher than the length of your plate on the Y-axis (e.g. 700)

Seam Corner Preference: Hide Seam

Extra Skin Wall Count: 1

Skin Overlap Percentage: 10%

Skin Overlap 0.04 mm

Infill

Infill Density: 20% (for all smaller parts and for all parts of connectors use 100% Infill)

Infill Pattern: Triangles

Connect Infill Lines: Check

Infill Line Directions: [ ]

Infill X Offset: 0 mm

Infill Y Offset: 0 mm

Infill Line Multiplier: 1

Extra Infill Wall Count: 0

Infill Overlap Percentage: 10-20%

Infill Overlap: 0.04 mm

Skin Overlap Percentage: 5%

Skin Overlap: 0.02 mm

Infill Wipe Distance: 0 mm

Infill Layer Thickness: 0.24 mm

Gradual Infill Steps: 0

Infill Before Walls: Check

Minimum Infill Area: 0 mm2

Skin Removal Width: 0.8 mm

Top Skin Removal Width: 0.8 mm

Bottom Skin Removal Width: 0.8 mm

Skin Expand Distance: 0.8

Top Skin Expand Distance: 0.8

Bottom Skin Expand Distance: 0.8

Maximum Skin Angle for Expansion: 90˚

Minimum Skin Width for Expansion: 0.0

Skin Edge Support Thickness: 0

Skin Edge Support Layers: 0

Material

Initial Layer Flow: 100%

Printing Temperature: See your filament settings

Initial Printing Temperature: Your filament settings

Final Printing Temperature: Your filament settings

Build Plate Temperature: Your filament settings

Build Plate Temperature Initial Layer: Your filament settings + 5°

Flow: 100% (Important! If you face difficulty printing the model, you may need to adjust the Flow parameter. You may research the topic using the Internet or seek assistance at our Customer Support Team at support@gambody.com)

Speed

You can increase the printing Speed by 20% when you print simple objects. For small/thin parts you need to decrease the Speed by 25% - 50%.

Print Speed: 50 mm/s

  Infill Speed: 50 mm/s

  Wall Speed: 25 mm/s

     Outer Wall Speed:25 mm/s

     Inner Wall Speed: 50 mm/s

Top/Bottom Speed: 25mm/s

Support Speed: 25 mm/s

     Support Infill Speed: 45 mm/s

     Support Interface Speed: 25 mm/s

        Support Roof Speed: 25 mm/s

        Support Floor Speed: 25 mm/s

Travel Speed: 80 mm/s

Initial Layer Speed: 80 mm/s

Initial Layer Print Speed: 20 mm/s

Initial Layer Travel Speed: 80 mm/s

Skirt/Brim Speed: 20 mm/s

Z Hop Speed: 5 mm/s

Number of Slower Layers: 2

Enable Acceleration Control: Check

When printing simple objects, you need to set all Acceleration parameters at 500 mm/s. For small/thin parts you need to decrease the Acceleration by 50% - 70%.

Travel

Enable Retraction: Check

Retraction Distance: 4-8 mm, 1-3 mm for Direct Extruder (This is the most important retraction parameter. You can find your optimal value of Retraction Distance by printing any test object, e.g. bridges, towers etc.)

Retraction Speed: 25mm/s

Retraction Retract Speed: 25 mm/s

Retraction Prime Speed: 25 mm/s

Retraction Extra Prime Amount: 0 mm3

Retraction Minimum Travel: 1.5 mm

Maximum Retraction Count: 100

Minimum Extrusion Distance Window: 6,5 - 10 mm

Limit Support Retractions: Check

Combing Mode: All

Max Comb Distance With No Retract: 30 mm

Retract Before Outer Wall: Check

Avoid Printed Parts When Travelling: Check

Avoid Supports When Travelling: Check

Travel Avoid Distance: 1 mm

Layer Start X: 0.0 mm

Layer Start Y: 0.0 mm

Z Hop When Retracted: Check

Z Hop Height: 0,3 mm

Cooling

Enable Print Cooling: Check

Fan Speed: 100%

Regular Fan Speed: 100%

Maximum Fan Speed: 100%

Regular/Maximum Fan Speed Threshold: 10 s

Initial Fan Speed: 0%

Regular Fan Speed at Height: 0.36 mm

Regular Fan Speed at Layer: 3

Minimum Layer Time: 10 s

Minimum Speed: 10 mm/s

Support

Generate Support: Check

Support Structure: Normal (you can try using Tree Support Structure if you have difficulty printing any particular assembly part)

Support Placement: Everywhere

Support Overhang Angle: 60° (this parameter can range from 30° to 70° depending on the part at hand)

Support Pattern: Zig Zag

Support Wall Line Count: 1 (stronger support that might be more difficult to remove) 0 (less strong support but is easier to remove)

Support Density: 15%

Support Line Distance: 2.6667 mm

Initial layer support line distance: 2.667 mm

Support Z Distance: 0.12 mm

Support Top Distance: 0.12 mm

Support Bottom Distance: 0.12 mm

Support X/Y Distance: 0.8-1 mm

Support Distance Priority: Z overrides X/Y

Support Stair Step Height: 0.3 mm

Support Stair Step Maximum Width: 5.0 mm

Support Stair Step Minimum Slope Angle: 10°

Support Join Distance: 2.0 mm

Support Horizontal Expansion: 0.2 mm

Support Infill Layer Thickness: 0.2 mm

Gradual Support Infill Steps: 0

Minimum Support Area: 2 mm

Enable Support Interface: Check (generates additional “pillow” on the support structure that leads to a more even surface, but can be difficult to remove in hard-to-reach areas)

Enable Support Roof: Check

Enable Support Floor: Check

Support Interface Thickness: 0.8 mm

Support Roof Thickness: 0.8 mm

Support Floor Thickness: 0.8 mm

Support Interface Resolution 0.2 mm

Support Interface Density: 50-100%

    Support Roof Density: 50-100%

Support Roof Line Distance: 0.8 mm

    Support Floor Density: 50-100%

Support Floor line Distance: 0.4mm

Support Interface Pattern: Grid

Support Roof Pattern: Grid (this parameter should differ from Bottom Pattern Initial Layer in “Shell” section)

Support Floor Pattern: Grid

Minimum Support Interface Area: 10mm

Minimum Support Roof Area: 10 mm

Minimum Support Floor Area: 10 mm

Support Interface Horizontal Expansion: 0.0 mm

Support Roof Horizontal Expansion: 0.0 mm

Support Floor Horizontal Expansion: 0.0 mm

Fan Speed Override: Check

Supported Skin Fan Speed: 100%

Use Towers: Check

Tower Diameter: 4 mm

Minimum Diameter: 3.0 mm

Tower Roof Angle: 65°

Build Plate Adhesion

Build Plate Adhesion Type: Skirt/Brim (For unsteady parts, and those parts that may come unstuck use “Brim”. For bigger assembly parts that have large adhesion area and for all parts of locks and claws that you want to come out clean use "Skirt")

Skirt/Brim Minimum Length: 250 mm

Brim Width: 8.0 mm

    Brim Line Count: 10

Brim Only on Outside: Check

Mesh Fixes

Union Overlapping Volumes: Check

Merged Meshes Overlap: 0.15 mm

Special Modes

Print Sequence: All at Once

Surface Mode: Normal

Experimental

Slicing Tolerance: Middle

Maximum Resolution: 0.01 mm

Flow rate compensation max extrusion offset: 0 mm

Flow rate compensation factor: 100%

Simplify3D Printing Recommendations

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder

Nozzle Diameter: 0.4 mm

Extrusion Multiplier: 0.97

Extrusion Width: Auto

Retraction Distance: 5.00 mm

Extra Restart Distance: 0.00 mm

Retraction Vertical Lift: 0.08 mm

Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer

Primary Layer Height: 0.2 mm

Top Solid Layers: 8

Bottom Solid Layers: 5

Outline/Perimeter Shells: 2

Outline Direction: Inside-Out

First Layer Height: 90%

First Layer Width: 100%

First Layer Speed: 20%

Additions

Use Skirt/Brim: Check

Skirt Layers: 1

Skirt Offset from Part: 6.00 mm

Skirt Outlines: 5

Infill

Internal Fill Pattern: Fast Honeycomb

External Fill Patern: Rectilinear

Interior Fill Percentage: 10%

Outline Overlap: 22%

Infill Extrusion Width: 100%

Minimum Infill Length: 5.00 mm

Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support

Generate Support Material: Check

Support Infill Percentage: 15%

Extra Inflation Distance: 1.00 mm

Support Base Layers: 0

Combine Support Every: 1 layers

Dense Support Layers: 0

Dense Infill Percentage: 70%

Support Type: Normal

Support Pillar Resolution: 5.00 mm

Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm

Upper Vertical Separation Layers: 1

Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature

Extruder 1 Temperature: 210

Heated Bed: 60

Cooling

Increase fan speed for layers below: 45.0 sec

 Maximum Cooling fan speed: 50%

Bridging fan speed override: 100%

Speeds

Default Printing Speed: 4800.0 mm/min

Outline Underspeed: 50%

Solid Infill Underspeed: 80%

Support Structure Underspeed: 80%

X/Y Axis Movement Speed: 10800.0 mm/min

Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec

 Allow speed reduction down to: 20%

Other

Unsupported area threshold: 20.0 sq m

Slic3r Printing Recommendations

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

Note:

- You can upscale your 3D printing models. Downscaling is not recommended - it can make smaller parts of the model unprintable, distort the model’s level of detail and result in assembly issues.

- All connectors should be printed at 100% Infill.

- When printing Lock connectors, we recommend setting the “Brim width” parameter to 0 in the "Skirt and Brim" print settings. In that way, the Locks will be 3D printed with a Skirt only.

Print Settings Tab

Layers and perimeters

Layer height:

Layer Height: 0.1-0.2

First layer height: 0.2-0.3

Vertical shells:

Perimeters: 2-3

Spiral vase: OFF

Horizontal shells:

Solid layers: 8 (For 0.1 Layer Height) or 4 (For 0.2 Layer Height)

Quality (slow slicing)

Extra perimeters if needed: CHECK

Avoid crossing perimeters: CHECK

Detect thin walls: -//-

Detect bridging perimeters: CHECK

Advanced:

Seam position: Aligned

External perimeters first: -//-

Infill

Fill Density: 10%

Fill Pattern: Rectilinear

Top Fill Pattern: Rectilinear

Bottom fill pattern: Rectilinear

Reducing printing time:

Combine infill every: 1

Only infill where needed: -//-

Advanced:

Fill gaps: CHECK

Solid Infill every: 0

Fill angle: 45

Solid Infill threshold area: 70

Bridging angle: 0

Only retract when crossing perimeters: CHECK

Infill before perimeters: -//-

Skirt and brim

Skirt

Loops (minimum): 3

Distance from Object: 5

Skirt Height: 1 ( for pla and petg)

Minimal Filament extrusion length: 50

Brim

Brim width: (5-8 mm is optional for small prints that have bad adhesion to the build plate)

Support material

Support Material:

Generate Support material: -//- (enable this parameter if your model requires supports)

Overhang threshold: 40-60

Enforce support for the first: 0

Raft:

Raft Layers: 0

Options for Support material and Raft:

Contact Z distance: 0.2

Pattern: Rectilinear

Pattern spacing: 2.5

Pattern angle: 0

Interface Layers: 3

Interface pattern spacing: 0.2

Support on build plate only: -//-

Don’t support bridges: CHECK

Speed

Speed for print movies

(We recommend that you try printing with the parameters listed below and then adjust the print speed until the printing quality is optimal for you)

Perimeters: 20 mm/s

Small perimeters: 20 mm/s

External perimeters: 20 mm/s

Infill: 50 mm/s

Solid: 30 mm/s

Top solid : 20 mm/s

Gaps: 20 mm/s

Bridges: 20 mm/s

Support material: 50 mm/s

Speed for non print movies

Travel: 100 mm/s

Modifiers

First layer speed: 10 mm/s

Acceleration control (Settings for advanced users, change these parameters only if you have sufficient 3D printing expertise)

Perimeters: 400 mm/s2

Infill: 400 mm/s2

Bridge: 400 mm/s2

First layer: 300 mm/s2

Default: 400 mm/s2

Auto speed (advanced)

Max print speed: 100 mm/s

Max volumetric speed: 0 mm3/s

Multiple Extruders

These settings only work for 3D printers with multiple extruders (not recommended for beginners)

Advanced

Extrusion width

You can try setting all parameters in this section, except the First layer, to values between 0.75% of your nozzle diameter and 1.25% of your nozzle diameter. Adjusting them will help you work out the optimal parameters for the best quality for your print. As for the First layer, you can set it to 150% of the diameter of your nozzle for better adhesion to the build plate (for a nozzle with a diameter of 0.4 mm, the First layer extrusion width can be from 0.3 mm to 0.5 mm)

Overlap

Infill/perimeters overlap: 25%

Flow

Bridge flow ratio: 0.7

Other

-//-

Output options

-//-

Notes

-//-

Shortcuts

-//-

Filament Settings Tab

Filament

Filament

Color: -//-

Diameter: 1.75

Extrusion multiplier: 1

Density: -//-

Cost: -//-

(You can set these parameters yourself if you need)

Cooling

Enable

Keep fan always on: CHECK

Enable auto cooling: -//-

Fan settings

Fan speed

Min: 100% (for PLA, PETG) or 30% (for ABS, SBS)

Max: -//-

Bridges fan speed: 100%

Disable fan for the first: 1

Cooling thresholds

Enable fan if layer print time is below: -//-

Slow down if layer print time is below: -//-

Min print Speed: -//-

Custom G-code

-//-

Notes

-//-

Printer Settings Tab

General

Size and coordinates

Bed shape: your 3D printer’s bed size

Z offset: 0

Capabilities

Extruders: 1

Has heated bed: CHECK

Firmware

G-code flavor: RepRap (Marlin/Sprinter)

Advanced

Use relative E distances: CHECK

Custom G-code

Use your 3D printer’s standard G-code. If you don't have it, you may use the example below.

Start G-code

M104 S(First_layer_temperature)

M140 S(First_layer_bed_temperature)

G28 S(Parking)

M109 S(waiting_for_warm-up_nozzle)

M190 S(waiting_for_warm-up_bed)

End G-code

M104 s0 ;turn off nozzle

M140 s0 ;turn off bed

G91

G1 Z1

G28 X0 Y0 ;park

M84 ;disable motors

M107 ;disable cooling

Extruder 1

Size

Nozzle diameter: 0.4 mm

Layer height limits

Min: 0.05

Max: 0.3

Position

Extruder offset: -//-

Retraction

Length: 5.5-6.5 mm (1mm for a direct extruder)

Lift Z: 0-0.3 mm

Speed: 30 - 40 mm/s

Extra length on restart: 0 mm

Minimum travel after retraction: 2 mm

Retract on layer change: -//- (you can try to enable this parameter)

Wipe while retracting: -//- (you can try to enable this parameter)

PrusaSlicer Printing Recommendations

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

Note:

- You can upscale your 3D printing models. Downscaling is not recommended - it can make smaller parts of the model unprintable, distort the model’s level of detail and result in assembly issues.

- All connectors should be printed at 100% Infill.

- When printing Lock connectors, we recommend setting the “Brim width” parameter to 0 in the "Skirt and Brim" print settings. In that way, the Locks will be 3D printed with a Skirt only.

In order to see all the parameters listed below, you need to enable the Expert mode in the PrusaSlicer’s settings.

Print Settings Tab

Layers and perimeters

Layer height:

Layer Height: 0.1-0.2

First layer height: 0.2-0.3

Vertical shells:

Perimeters: 2-3

Spiral vase: OFF

Horizontal shells:

Solid layers: 8 (for 0.1 Layer Height) or 4 (for 0.2 Layer Height)

Minimum shell thickness: 0.8

Quality (slower slicing)

Extra perimeters if needed: CHECK

Ensure vertical shell thickness: -//-

Avoid crossing perimeters: CHECK

Detect thin walls: -//-

Detect bridging perimeters: CHECK

Advanced:

Seam position: Aligned

External perimeters first: -//-

Infill

Infill

Fill Density: 10%

Fill Pattern: Rectilinear

Top Fill Pattern: Monotonic

Bottom fill pattern: Monotonic

Reducing printing time:

Combine infill every: 1

Only infill where needed: -//-

Advanced:

Solid Infill every: 0

Fill angle: 45

Solid Infill threshold area: 70

Bridging angle: 0

Only retract when crossing perimeters: CHECK

Infill before perimeters: -//-

Skirt and brim

Skirt

Loops (minimum): 3

Distance from Object: 5

Skirt Height: 1 (for PLA and PETG)

Draft Shield: -//-

Minimal filament extrusion length: 50

Brim

Brim width: (5-8 mm is optional for small prints that have bad adhesion to the build plate)

Support material

Support Material:

Generate Support material: -//- (enable this parameter if your model requires supports)

Auto generated supports: CHECK

Overhang threshold: 40-60

Enforce support for the first: 0

Raft:

Raft Layers: 0

Options for Support material and Raft:

Contact Z distance: 0.2

Pattern: Rectilinear

With sheath around the support: CHECK

Pattern spacing: 2.5

Pattern angle: 0

Interface Layers: 3

Interface pattern spacing: 0.2

Interface loops: -//-

Support on build plate only: -//-

XY separation between an object and its support: 50%

Don’t support bridges: CHECK

Synchronize with object layers: -//-

Speed

Speed for print moves

(We recommend that you try printing with the parameters listed below and then adjust the print speed until the printing quality is optimal for you)

Perimeters: 20 mm/s

Small perimeters: 20 mm/s

External perimeters: 20 mm/s

Infill: 50 mm/s

Solid infill: 30 mm/s

Top solid infill: 20 mm/s

Support material: 50 mm/s

Support material interface: 20 mm/s

Bridges: 20 mm/s

Gap fill: 20 mm/s

Ironing: 15 mm/s

Speed for non-print moves

Travel: 100 mm/s

Modifiers

First layer speed: 10 mm/s

Acceleration control (Settings for advanced users, change these parameters only if you have sufficient 3D printing expertise)

Perimeters: 400 mm/s2

Infill: 400 mm/s2

Bridge: 400 mm/s2

First layer: 400 mm/s2

Default: 400 mm/s2

Auto speed (advanced)

Max print speed: 100 mm/s

Max volumetric speed: 0 mm3/s

Multiple Extruders

These settings only work for 3D printers with multiple extruders (not recommended for beginners)

Advanced

Extrusion width

You can try setting all parameters in this section, except the First layer, to values between 0.75% of your nozzle diameter and 1.25% of your nozzle diameter. Adjusting them will help you work out the optimal parameters for the best quality for your print. As for the First layer, you can set it to 150% of the diameter of your nozzle for better adhesion to the build plate (for a nozzle with a diameter of 0.4 mm, the First layer extrusion width can be from 0.3 mm to 0.5 mm)

Overlap

Infill/perimeter overlap: 25%

Flow

Bridge flow ratio: 0.7

Slicing

-//-

Other

Clip multi-part objects: CHECK

Output options

-//-

Notes

-//-

Dependencies

-//-

Filament Settings Tab

Filament

Filament

Color: -//-

Diameter: 1.75

Extrusion multiplier: 1

Density: -//-

Cost: -//-

Spool weight: -//-

(You can set these parameters yourself if you need)

Temperature

Сheck your filament manufacturer's temperature recommendations on the spool.

Cooling

Enable

Keep fan always on: CHECK

Enable auto cooling: -//-

Fan settings

Fan speed

Min: 100% (for PLA, PETG) or 30% (for ABS, SBS)

Max: -//-

Bridges fan speed: 100%

Disable fan for the first: 1

Full fan speed at layer: 3-4

Cooling thresholds

Enable fan if layer print time is below: -//-

Slow down if layer print time is below: -//-

Min print speed: -//-

Advanced

Print speed override

Max volumetric speed:

PLA: 14 MM3/S

ABS: 10 MM3/S

PETG: 14 MM3/S

HIPS: 10 MM3/S

(If you use the Volcano extruder for your printer, all parameters need to be increased x2)

Filament Overrides

-//-

Custom G-code

-//-

Notes

-//-

Dependencies

-//-

Printer Settings Tab

General

Size and coordinates

Bed shape: your 3D printer’s bed size

Max print height: your 3D printer’s height

Z offset: 0

Capabilities

Extruders: 1

Single Extruder Multi Material: -//-

Firmware

G-code flavor: RepRap/Sprinter

G-code thumbnails: -//-

Supports stealth mode: -//-

Supports remaining times: -//-

Advanced

Use relative E distances: CHECK

Use firmware retraction: -//- (needs to be enabled in the firmware of your printer)

Use volumetric E: -//-

Enable variable layer height feature: CHECK

Custom G-code

Use your 3D printer’s standard G-code. If you don't have it, you may use the example below.

Start G-code

M104 S(First_layer_temperature)

M140 S(First_layer_bed_temperature)

G28 S(Parking)

M109 S(waiting_for_warm-up_nozzle)

M190 S(waiting_for_warm-up_bed)

End G-code

M104 s0 ;turn off nozzle

M140 s0 ;turn off bed

G91

G1 Z1

G28 X0 Y0 ;park

M84 ;disable motors

M107 ;disable cooling

Extruder 1

Size

Nozzle diameter: 0.4 mm

Layer height limits

Min: 0.05

Max: 0.3

Position

Extruder offset: -//-

Retraction

Length: 5.5-6.5 mm (1 mm for a direct extruder)

Lift Z: 0-0.3 mm

Retraction Speed: 30 - 40 mm/s

Deretraction Speed: 0 mm/s

Extra length on restart: 0 mm

Minimum travel after retraction: 2 mm

Retract on layer change: -//- (you can try to enable this parameter)

Wipe while retracting: -//- (you can try to enable this parameter)

Retract amount before wipe:

Notes

-//-

Dependencies

-//-
