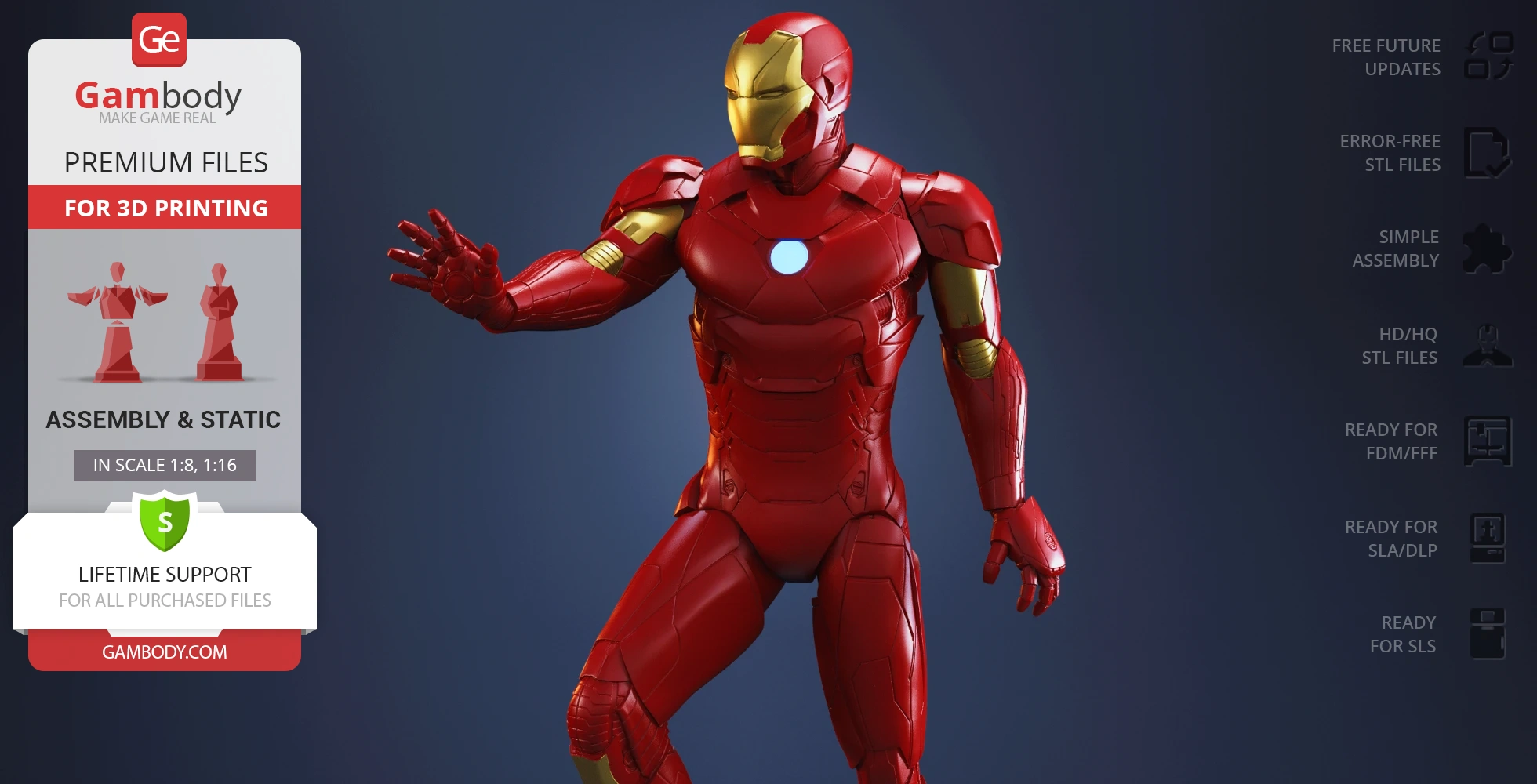

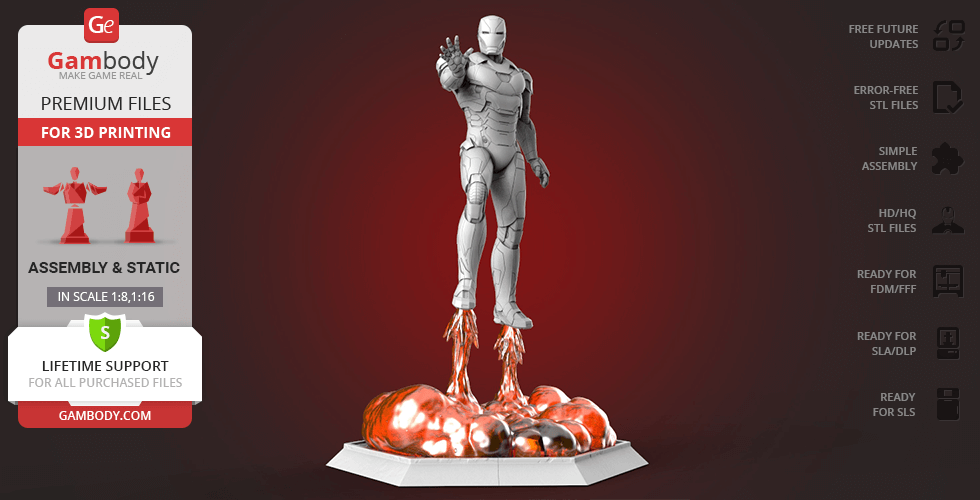

Iron Man Mark 46 3D Printing Figurine | Assembly

ABOUT THIS 3D MODEL

Tony Stark son of a wealthy industrialist, genius, billionaire, playboy, philanthropist. He inherited his father's business at the age of 21, turning the company into one of the leading manufacturers of weapons. Stark was wounded by a splinter in his chest in Asia and captured by the gun baron Wong-Chu, who forced him to create weapons of mass destruction — only then would he receive the operation necessary to save his life. Together with his comrade and former prisoner, Stark began working on a modified exoskeleton equipped with heavy weapons. In a secret, even from Stark Insen designed a protective chest plate to support the life of the wounded inventor. Stark put on a suit to try to escape from captivity, but Professor Insen himself was killed. He gave his life so that Iron Man could live. Later, he uncovered his identity and was one of the few superheroes who was publicly known. He created a team of Avengers and was their main sponsor and leader for a long time. Mark 46 suit is his classic costume in which he will always be accustomed to seeing the viewer. It is made with a special transfer of detail, which you will not find in any other model.

ADAPTATION FOR 3D PRINTING

Iron Man Mark 46 for 3D printing is a static assembly figurine and its moderation and adaptation for different types of 3D printers took the Gambody team 68 hours in total. The figurines' anatomy and proportions were thoroughly reviewed during the moderation process for the superhero to be depicted harmoniously in the intended poses.

The figurine’s cutting was chosen by our team to minimise the amount of generated support and some of the parts were hollowed out for you to save resin in the Eco version. In order to conceal the places where the assembly parts of the figurine are connected, Iron Man was divided into convenient assembly parts.

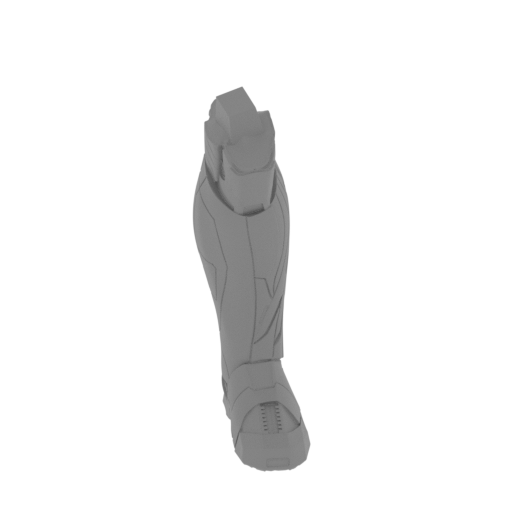

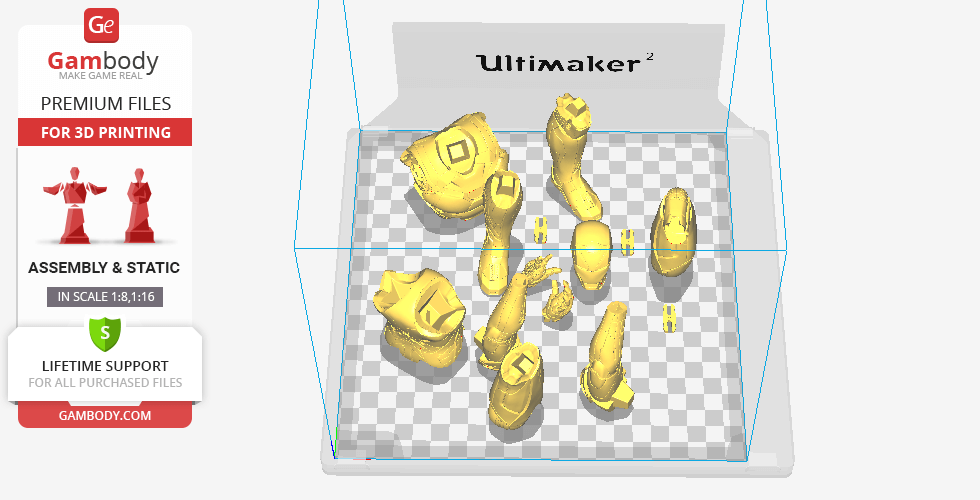

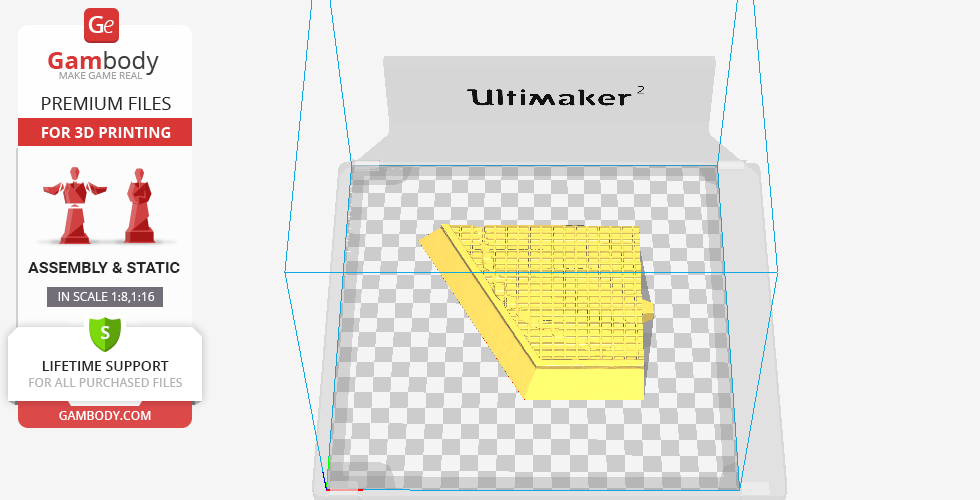

All assembly parts in the FFF/FDM 1.0 versions are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any model's file you will also receive "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format. We highly recommend that you get acquainted with the “Assembly Video” and "Assembly Manual" before getting down to Iron Man Mark 46.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

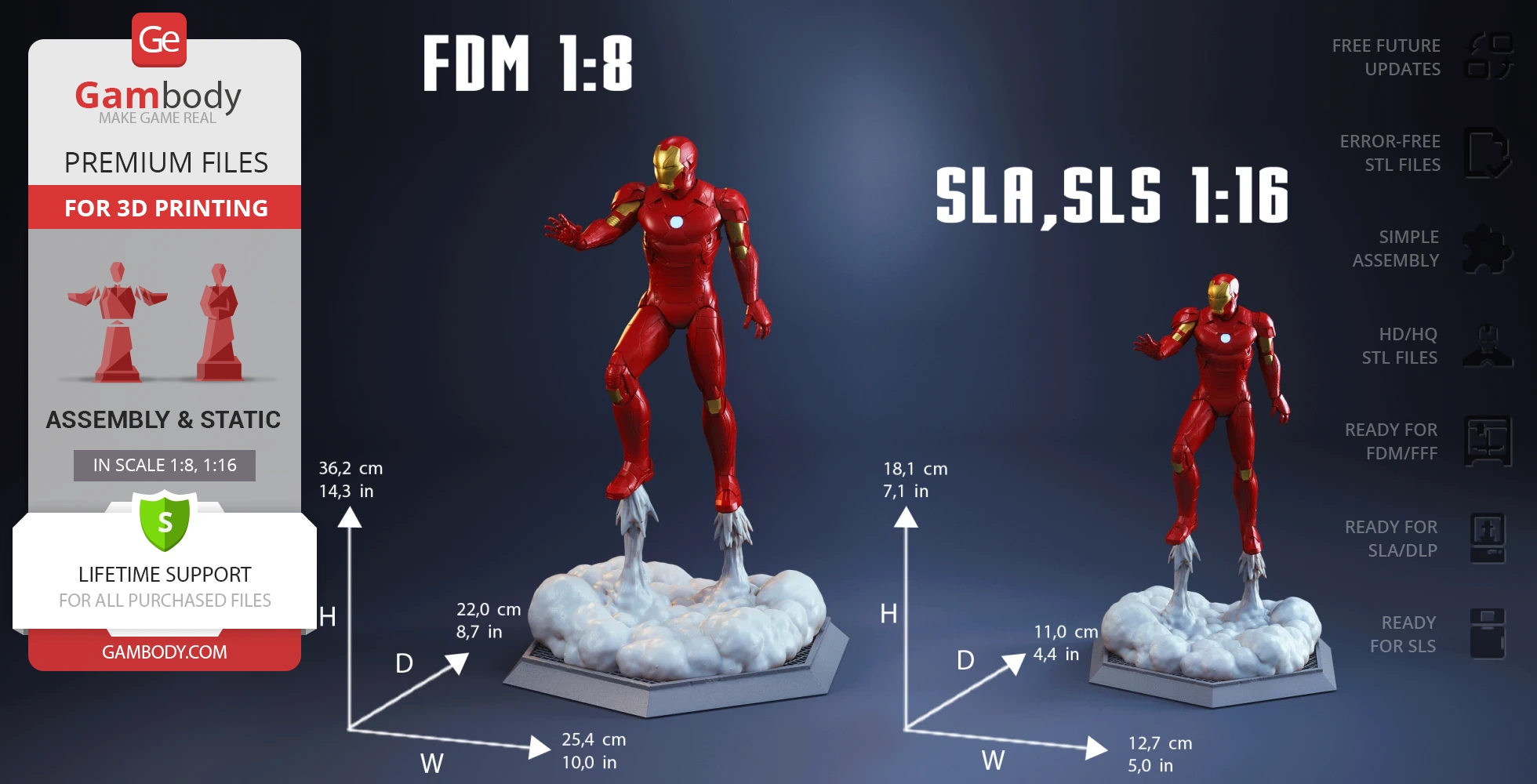

The figurine’s scale was calculated from the height of Iron Man. The 3D printing figurine’s chosen scales are 1:8 for the FFF/FDM version and 1:16 for the DLP/SLA/SLS versions.

VERSIONS’ SPECIFICATIONS

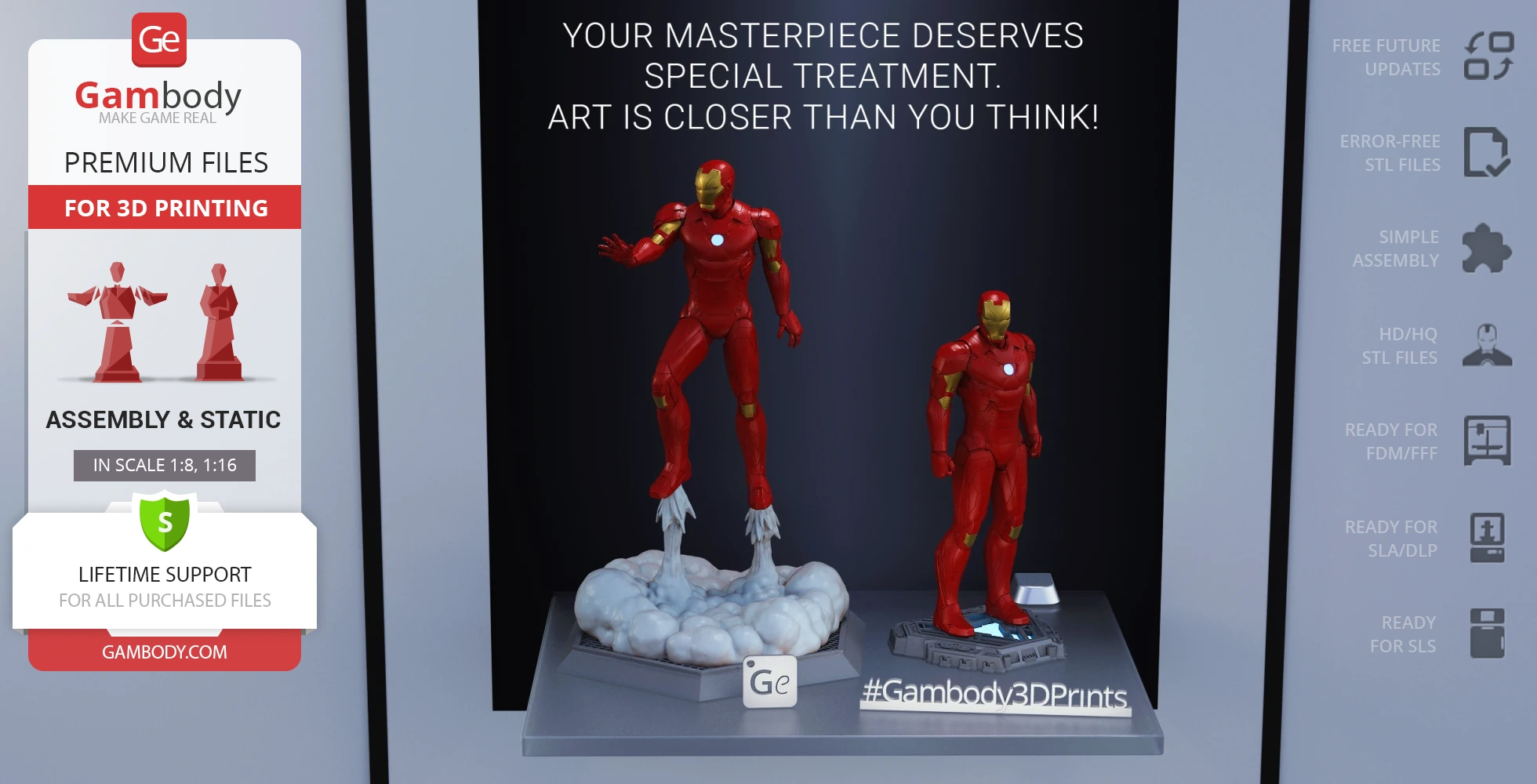

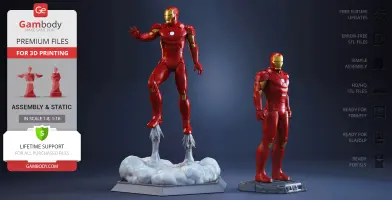

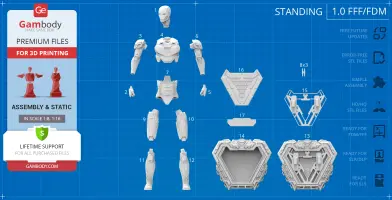

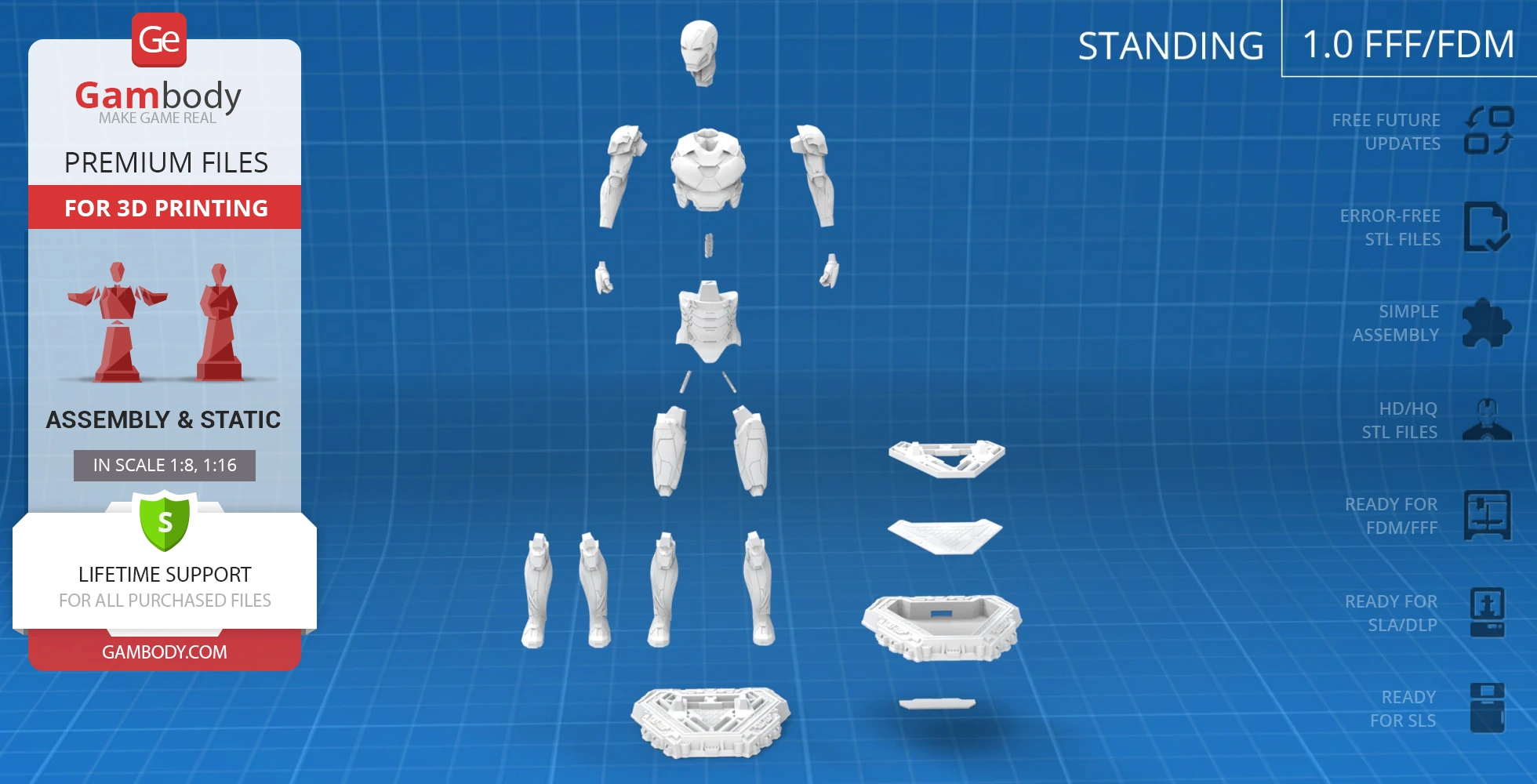

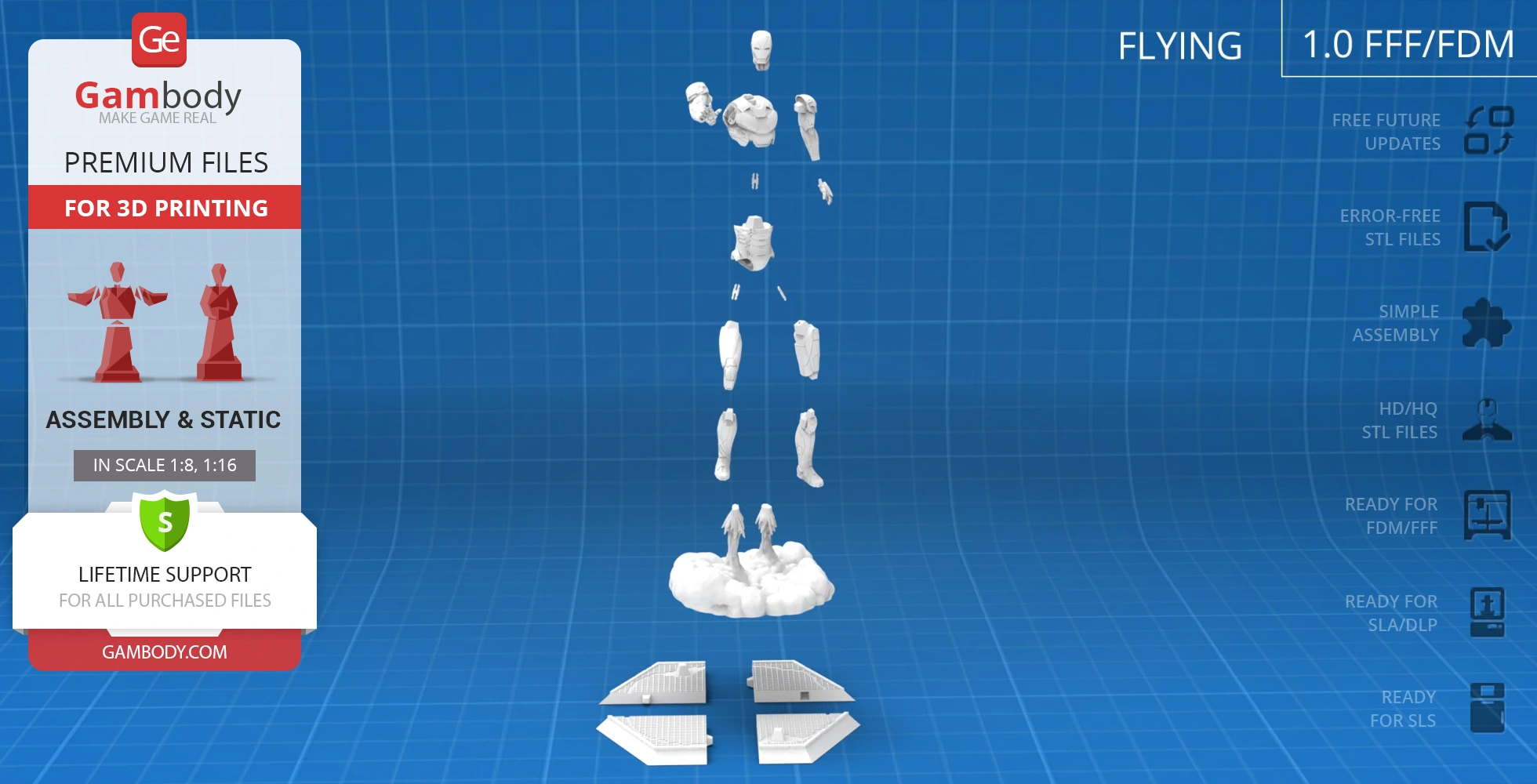

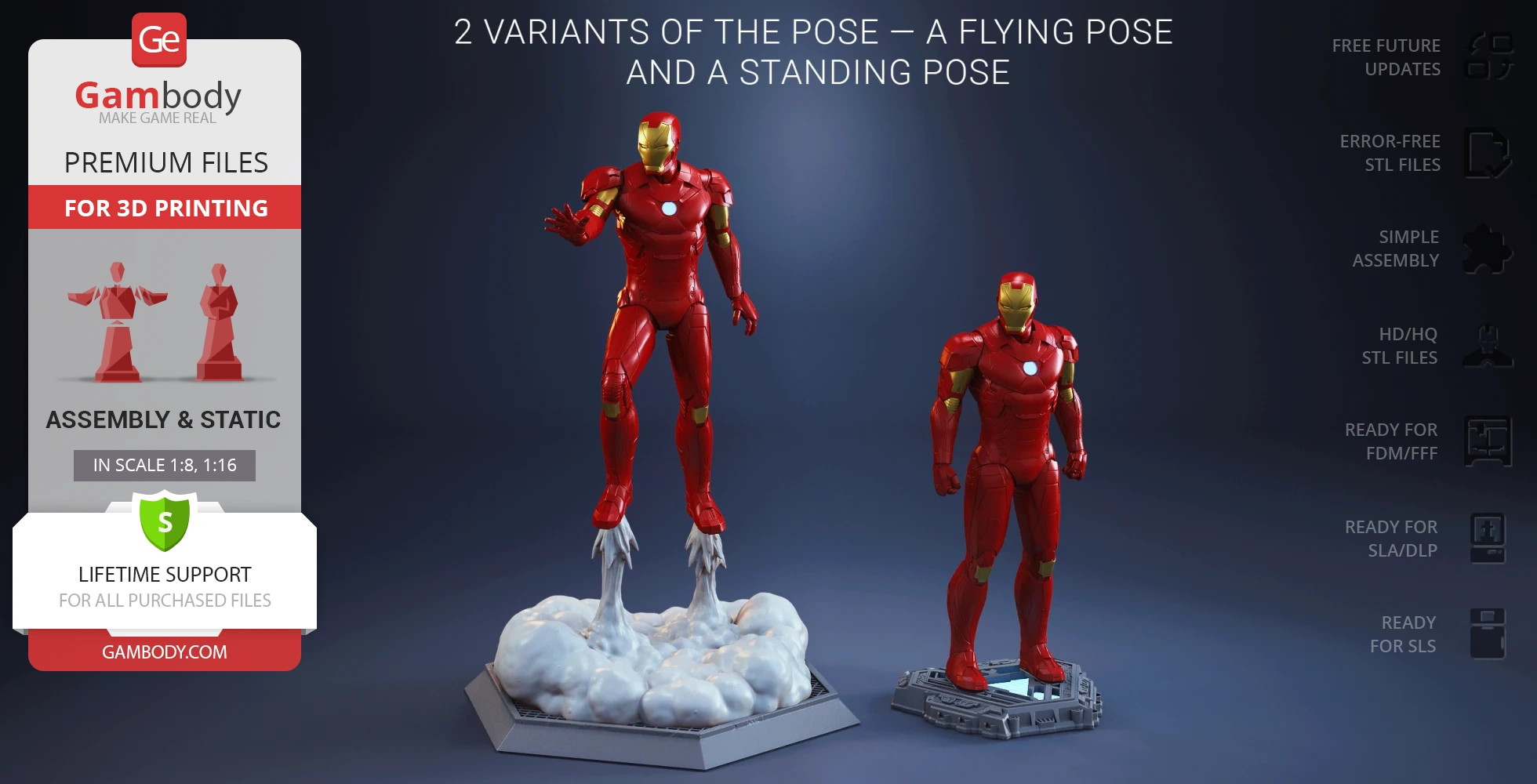

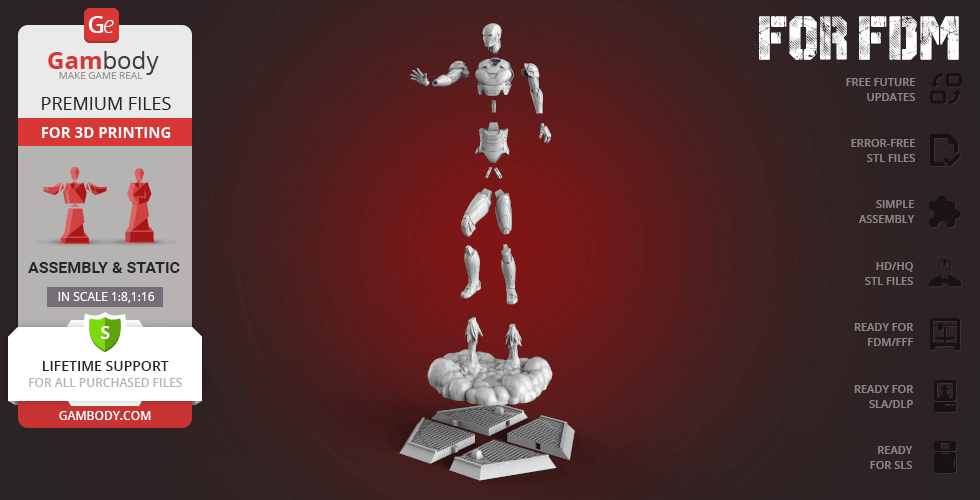

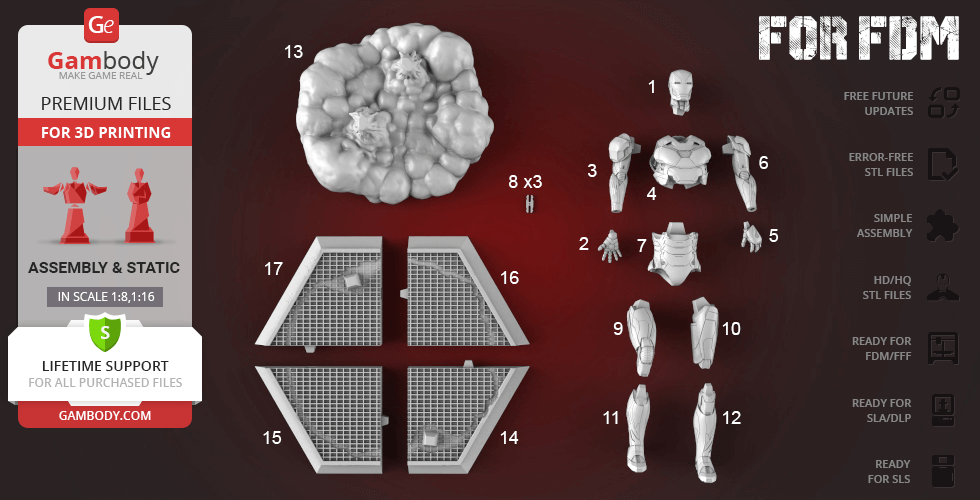

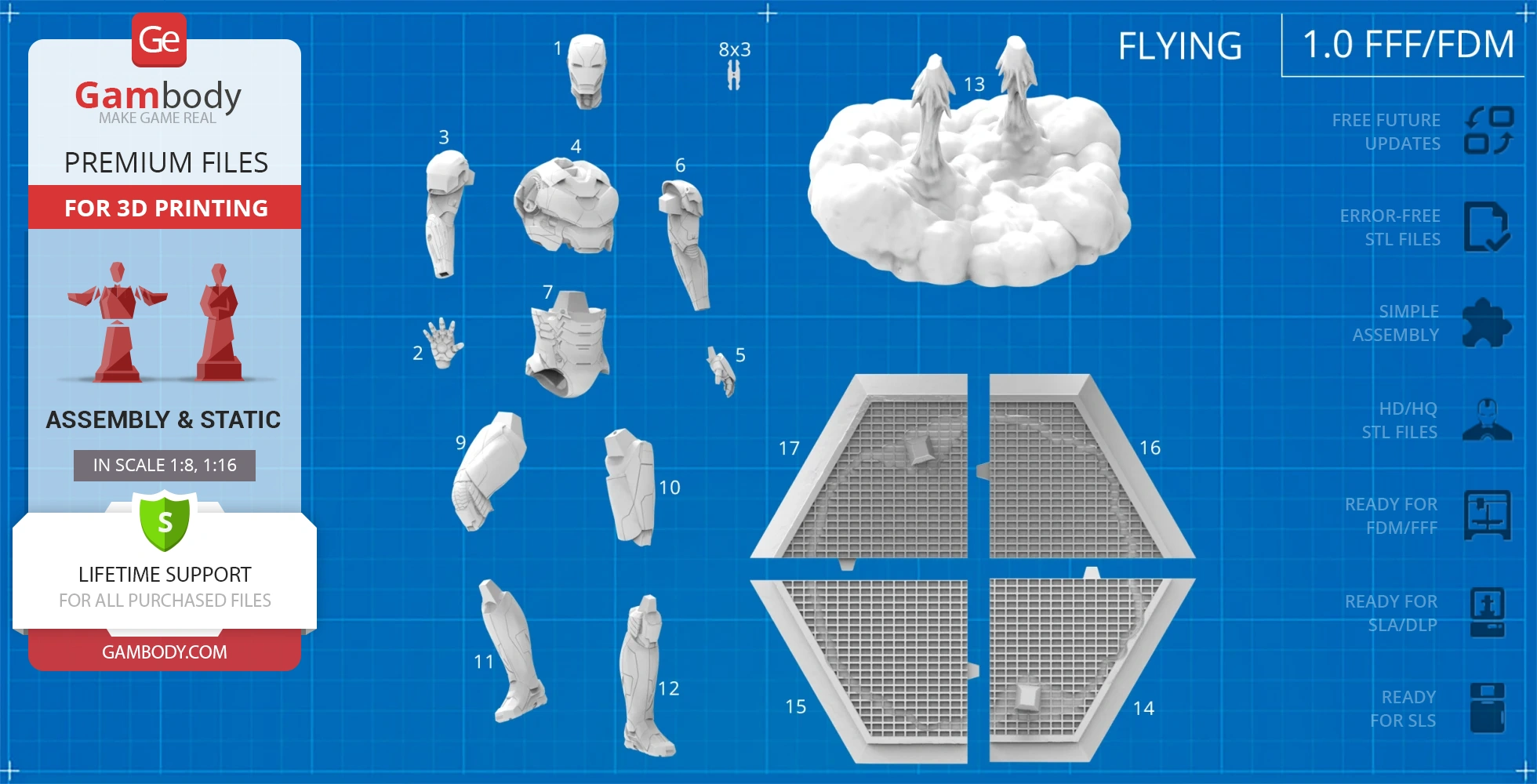

FFF/FDM Flying & Standing Pose 1.0 versions’ features:

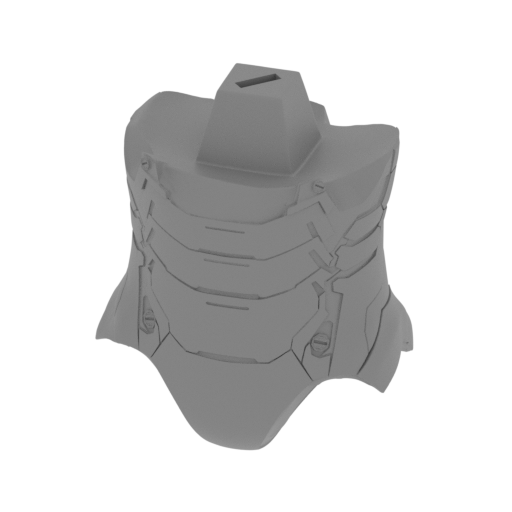

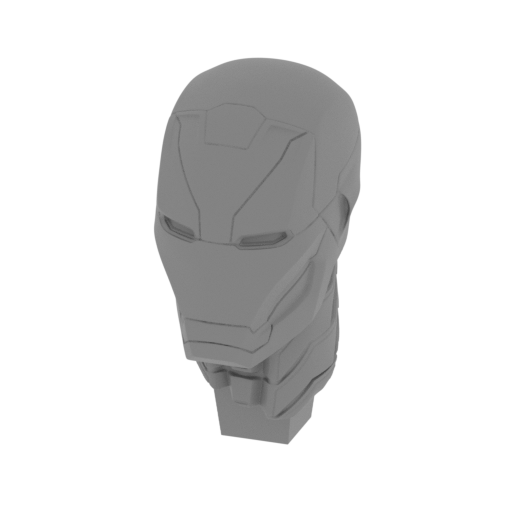

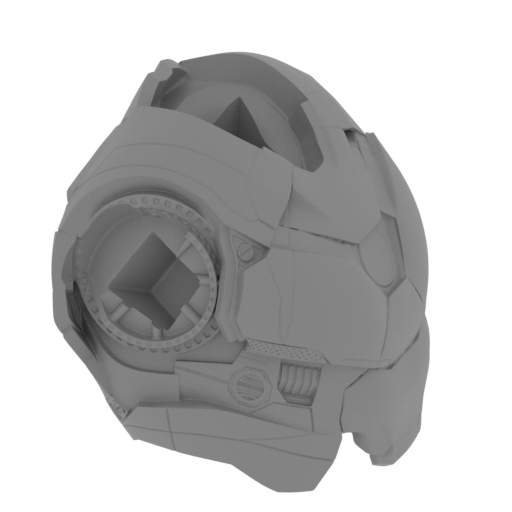

• Each contains 17 parts;

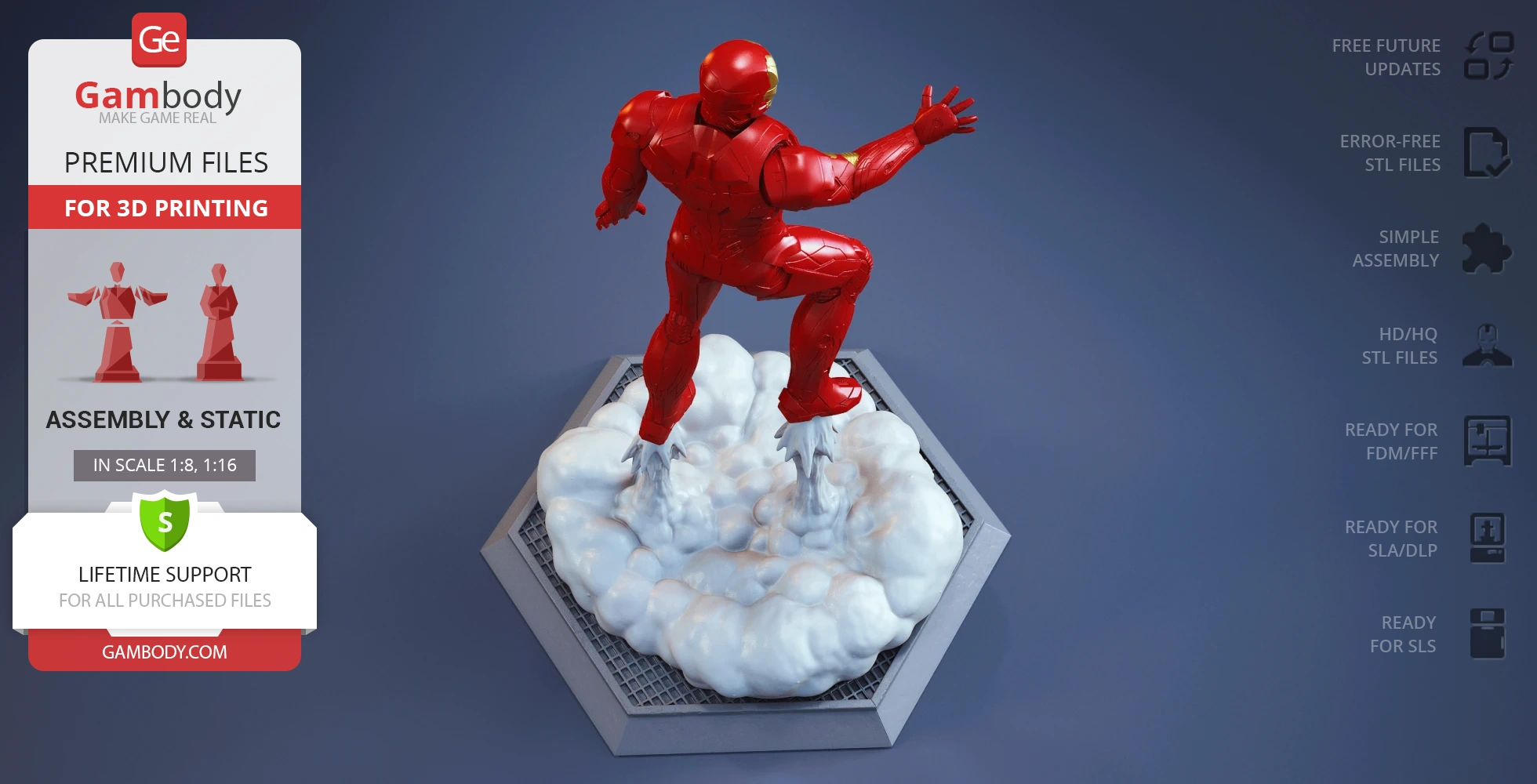

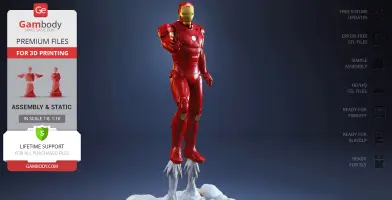

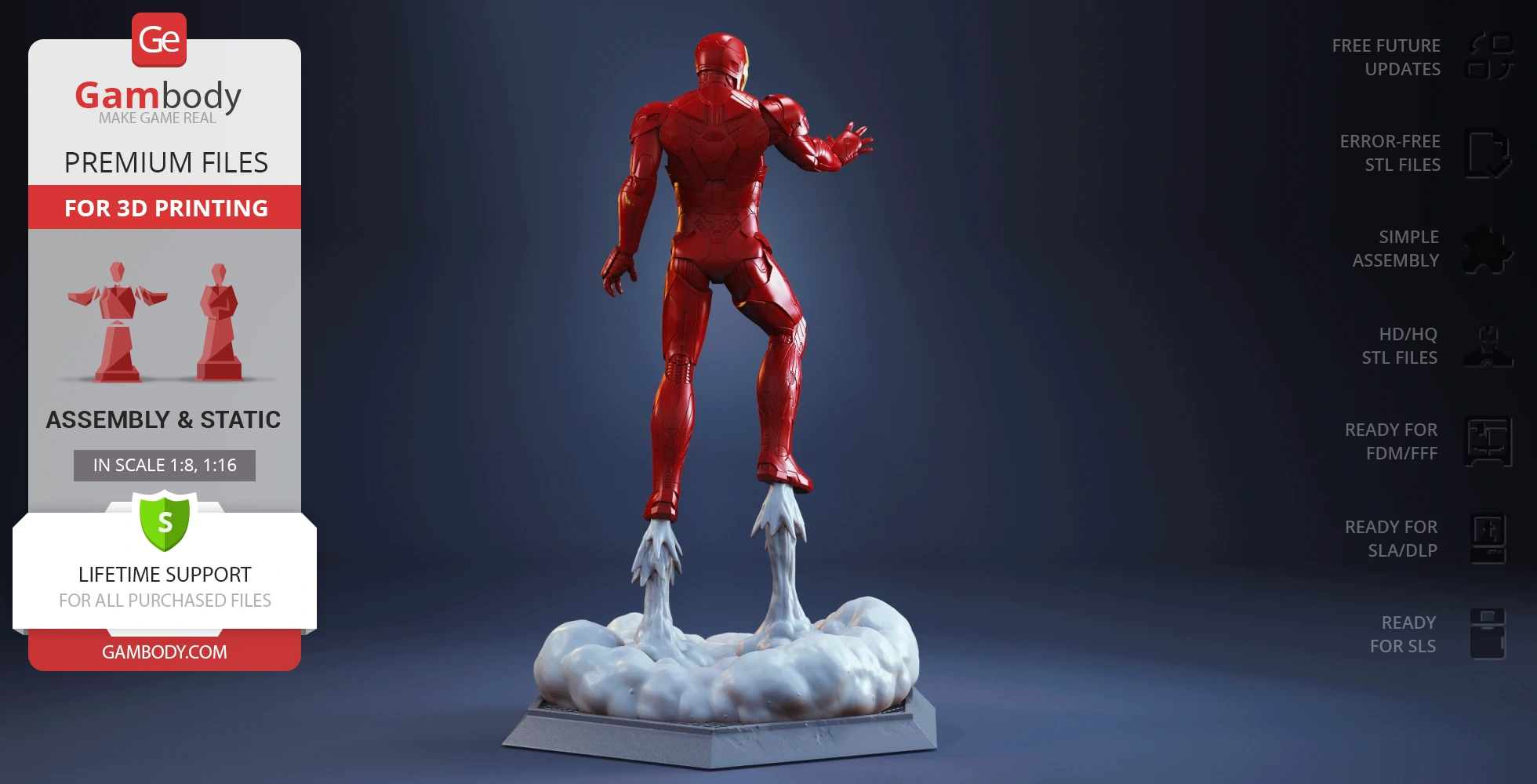

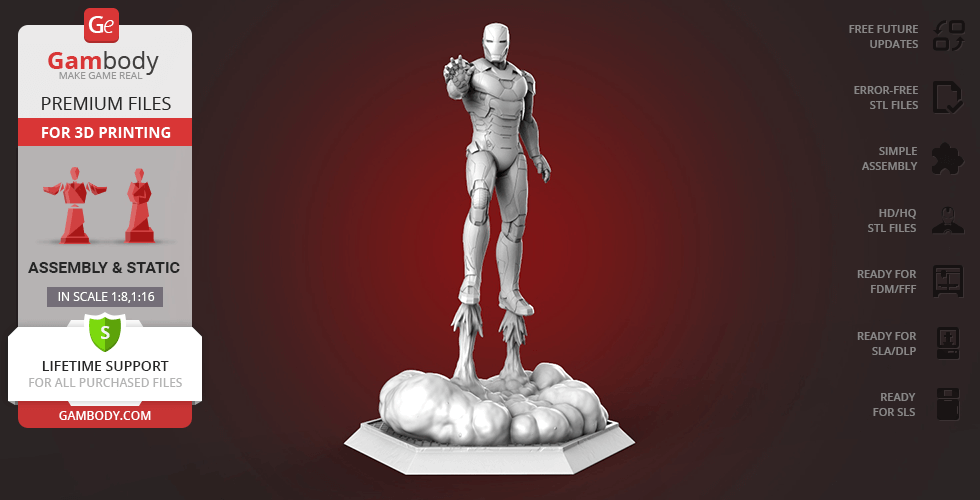

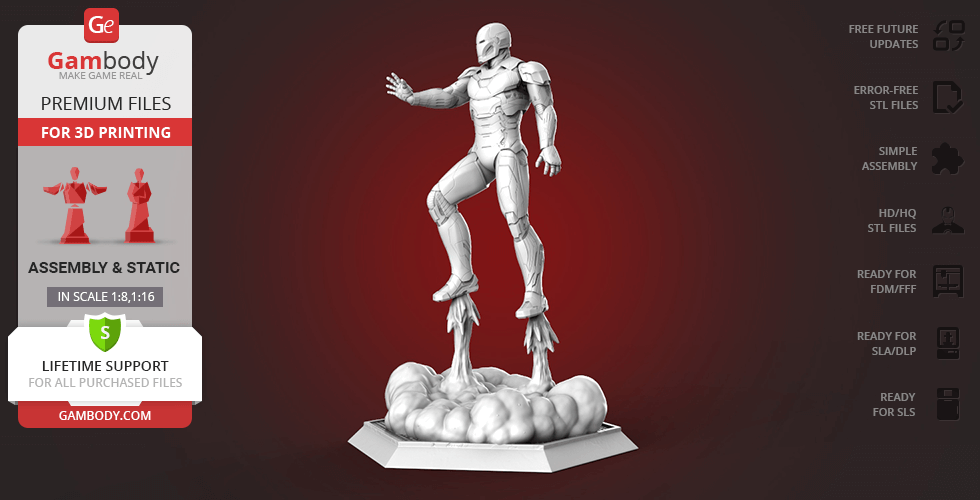

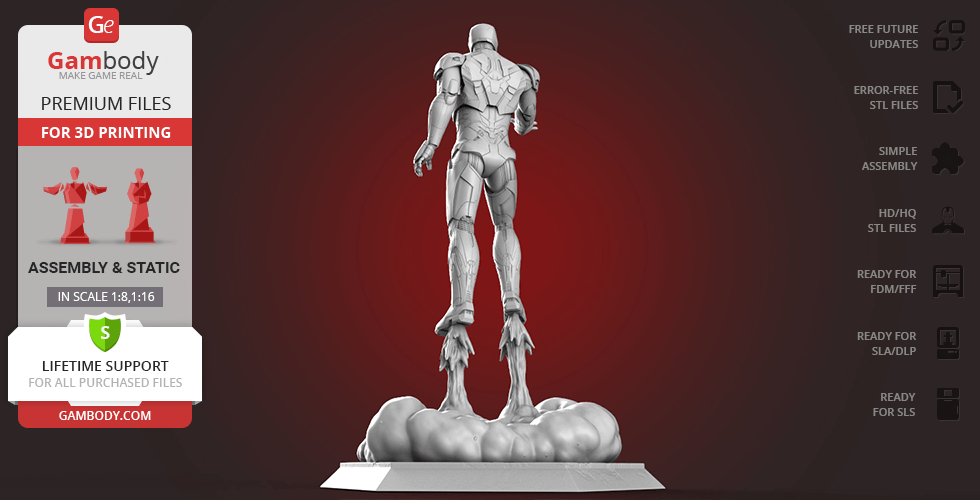

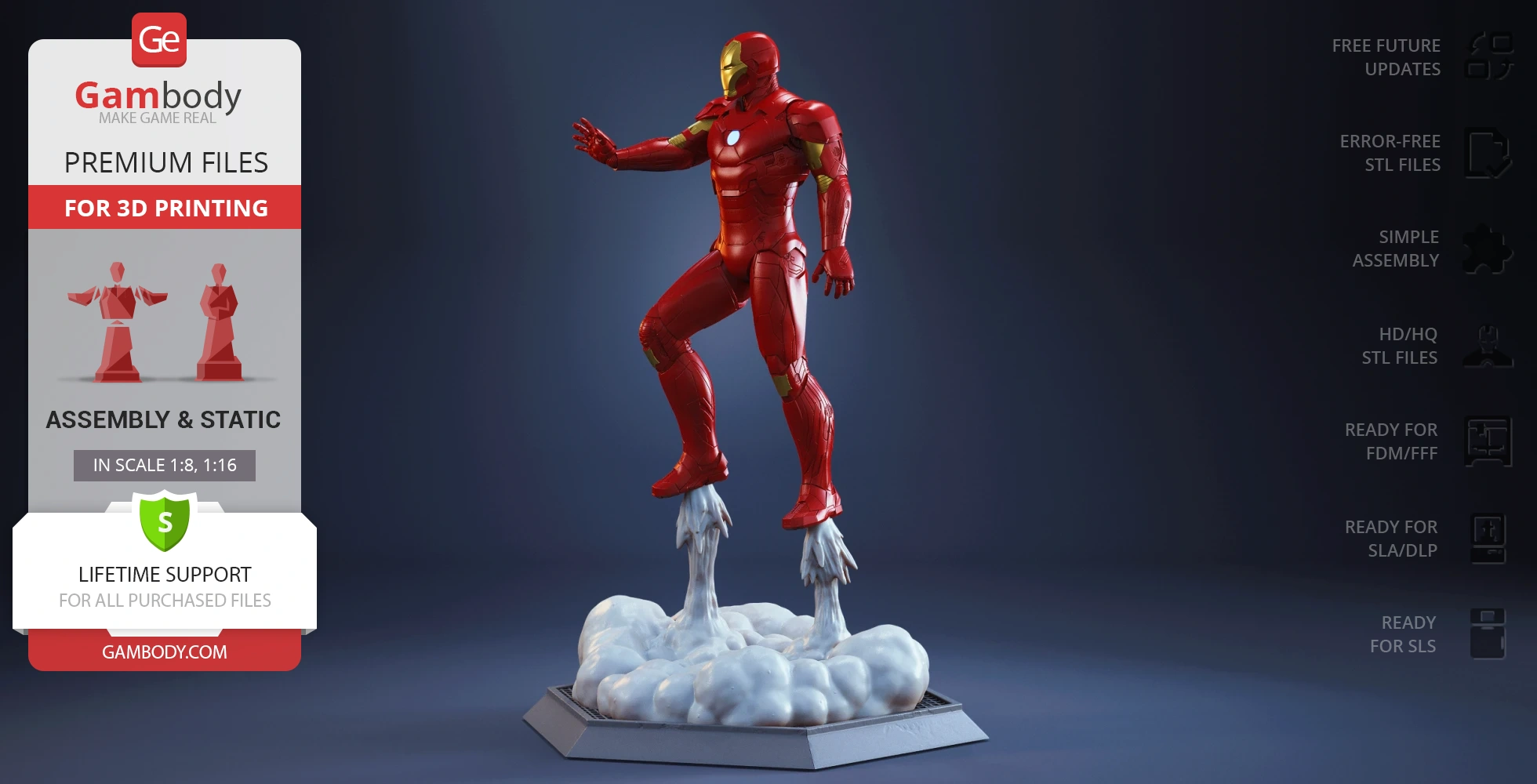

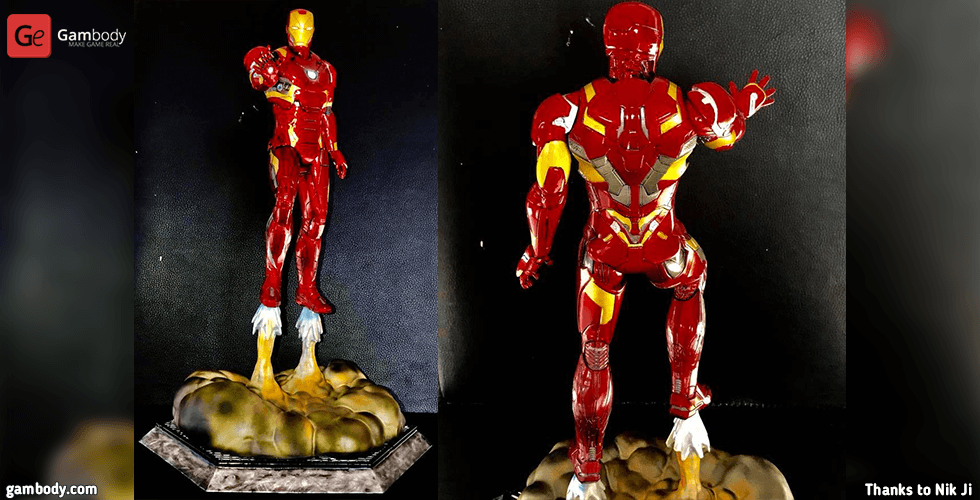

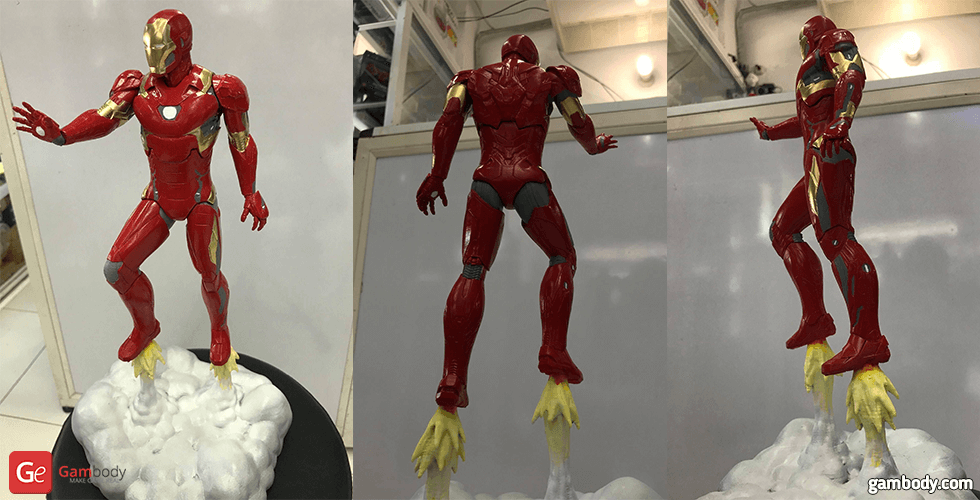

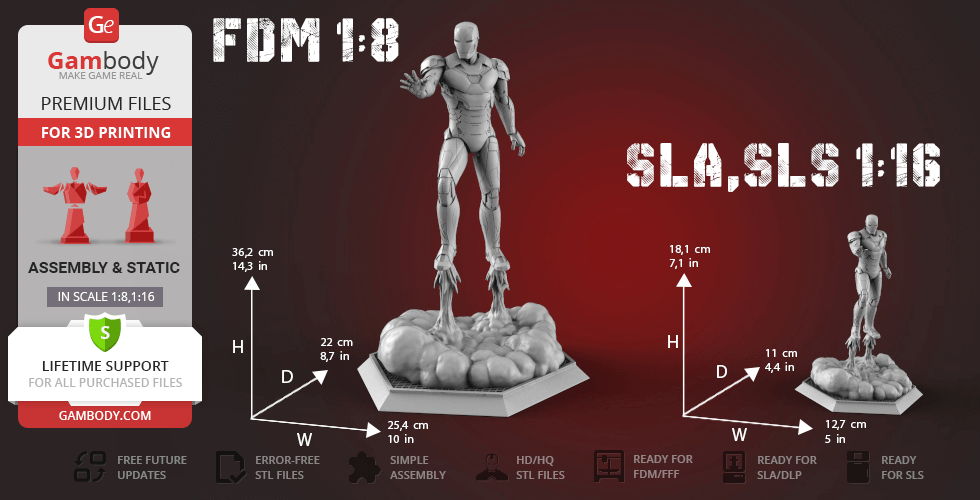

• A printed figurine in the  Flying Pose is 362 mm tall, 254 mm wide, 220 mm deep;

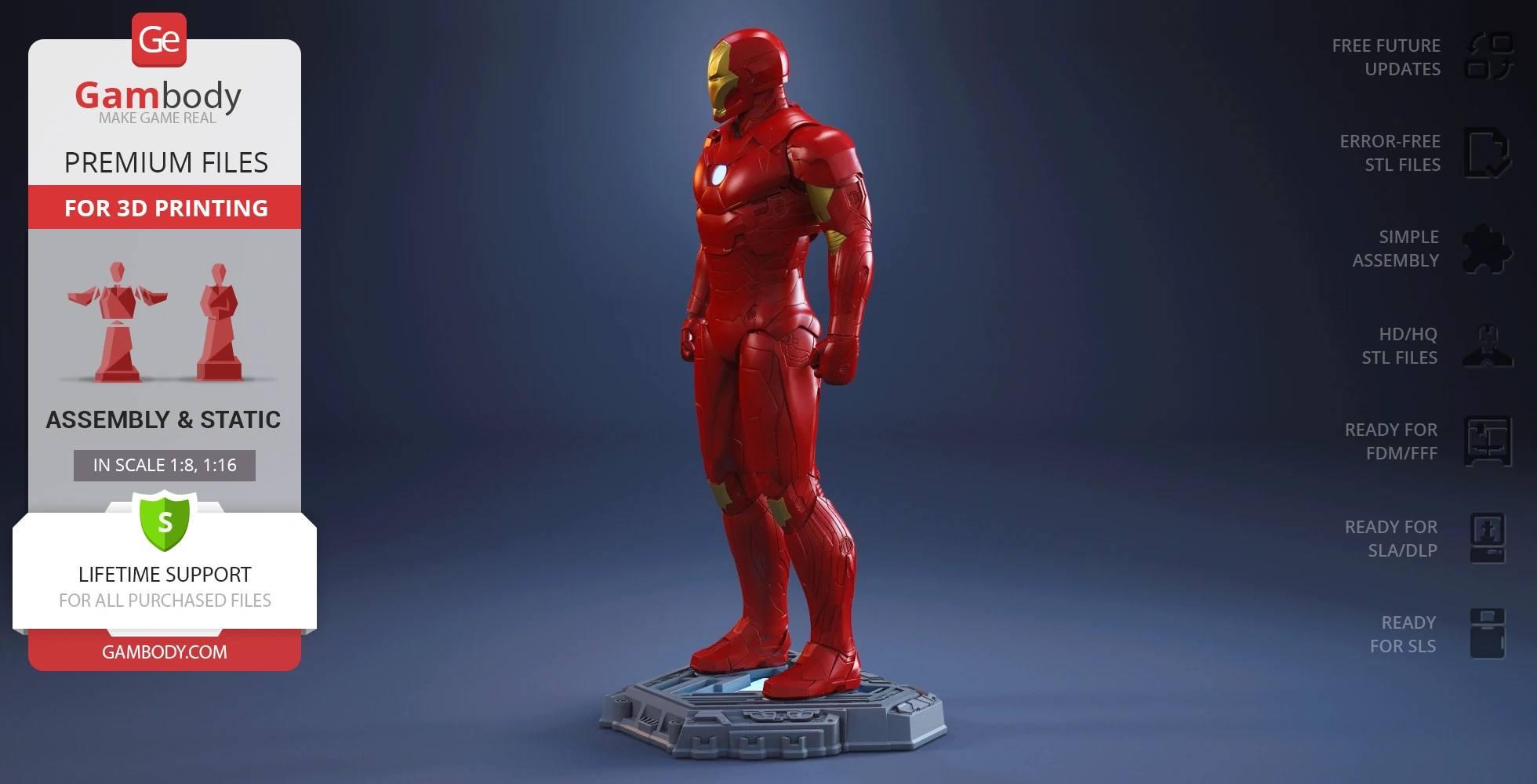

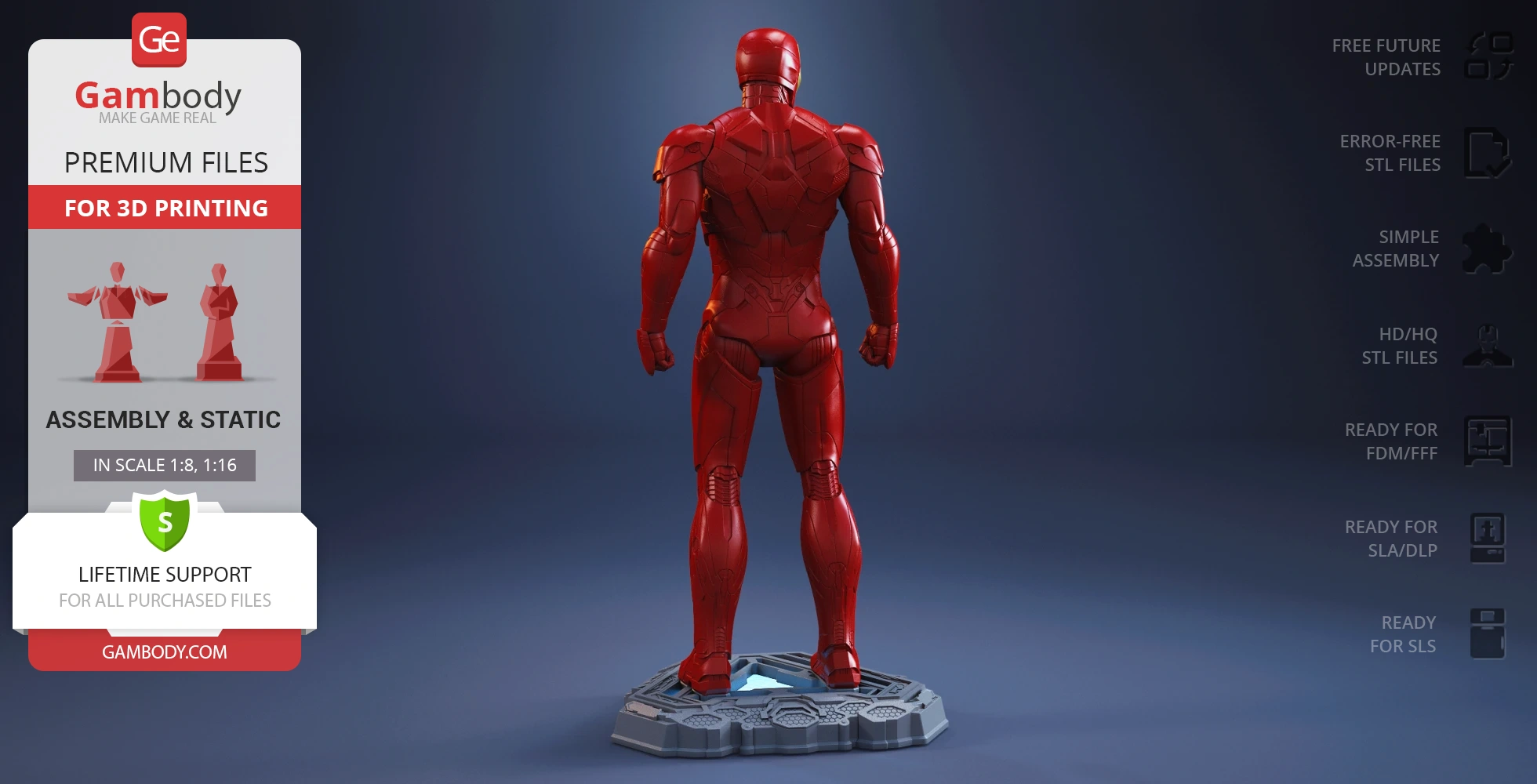

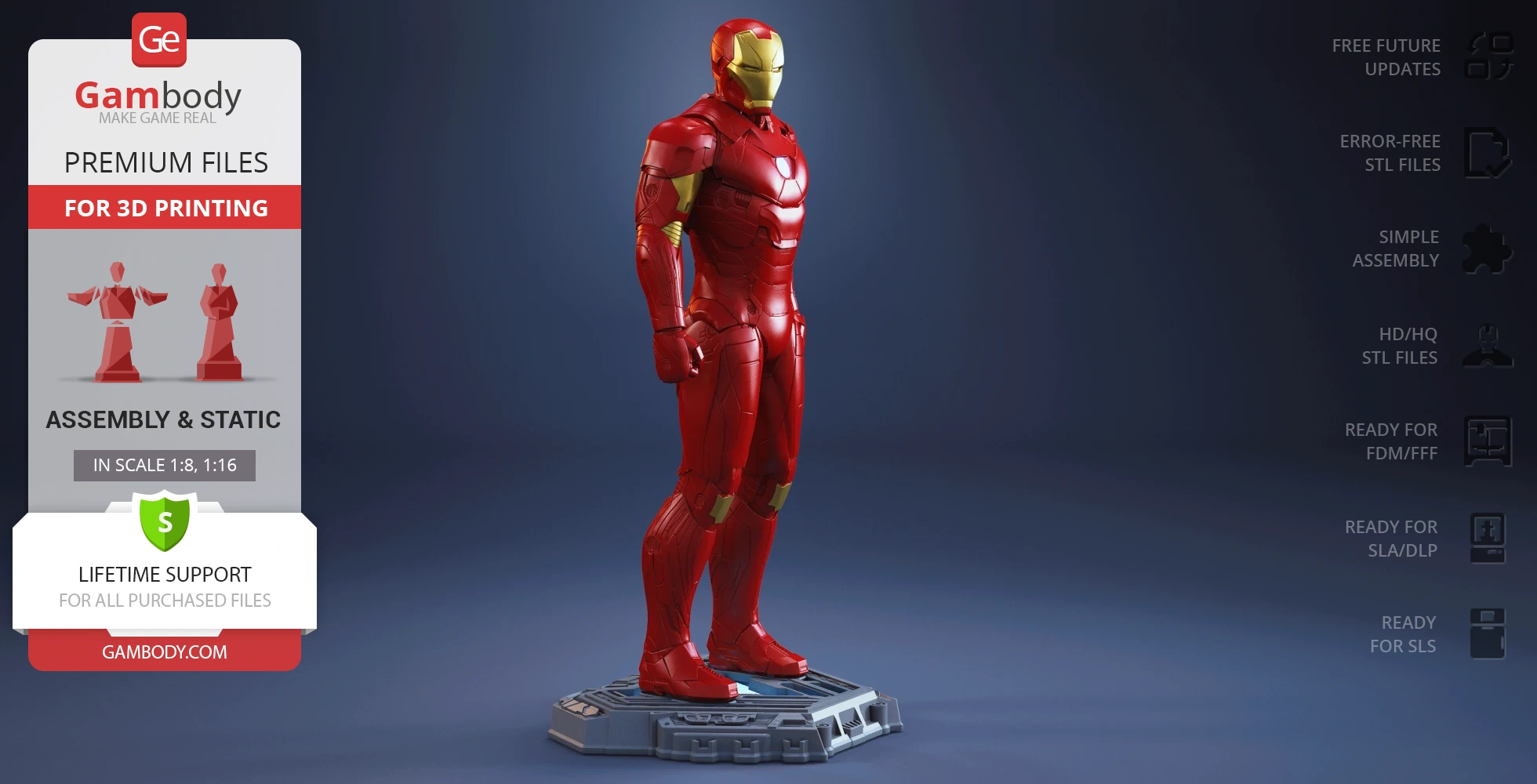

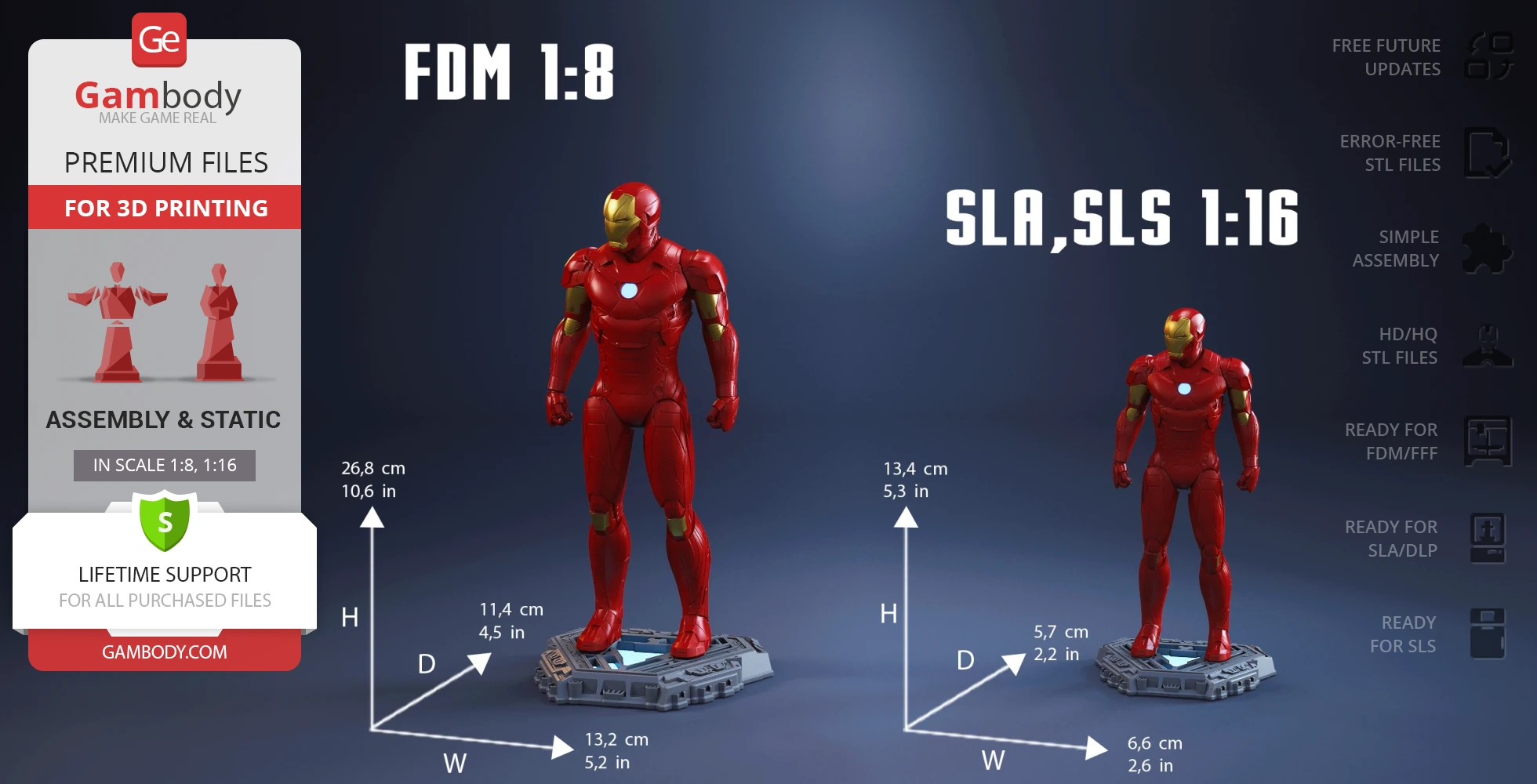

• A printed figurine in the Standing Pose is 268 mm tall, 132 mm wide, 114 mm deep;

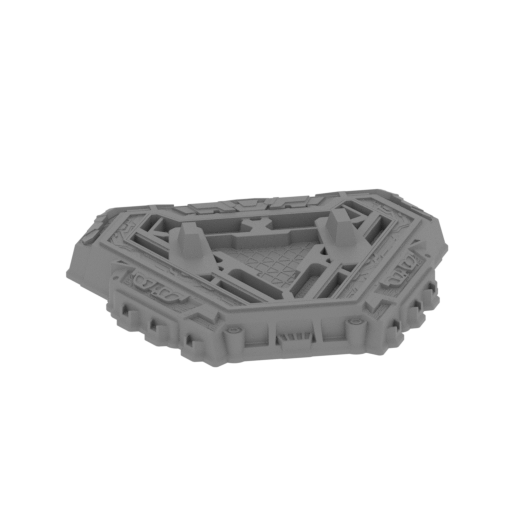

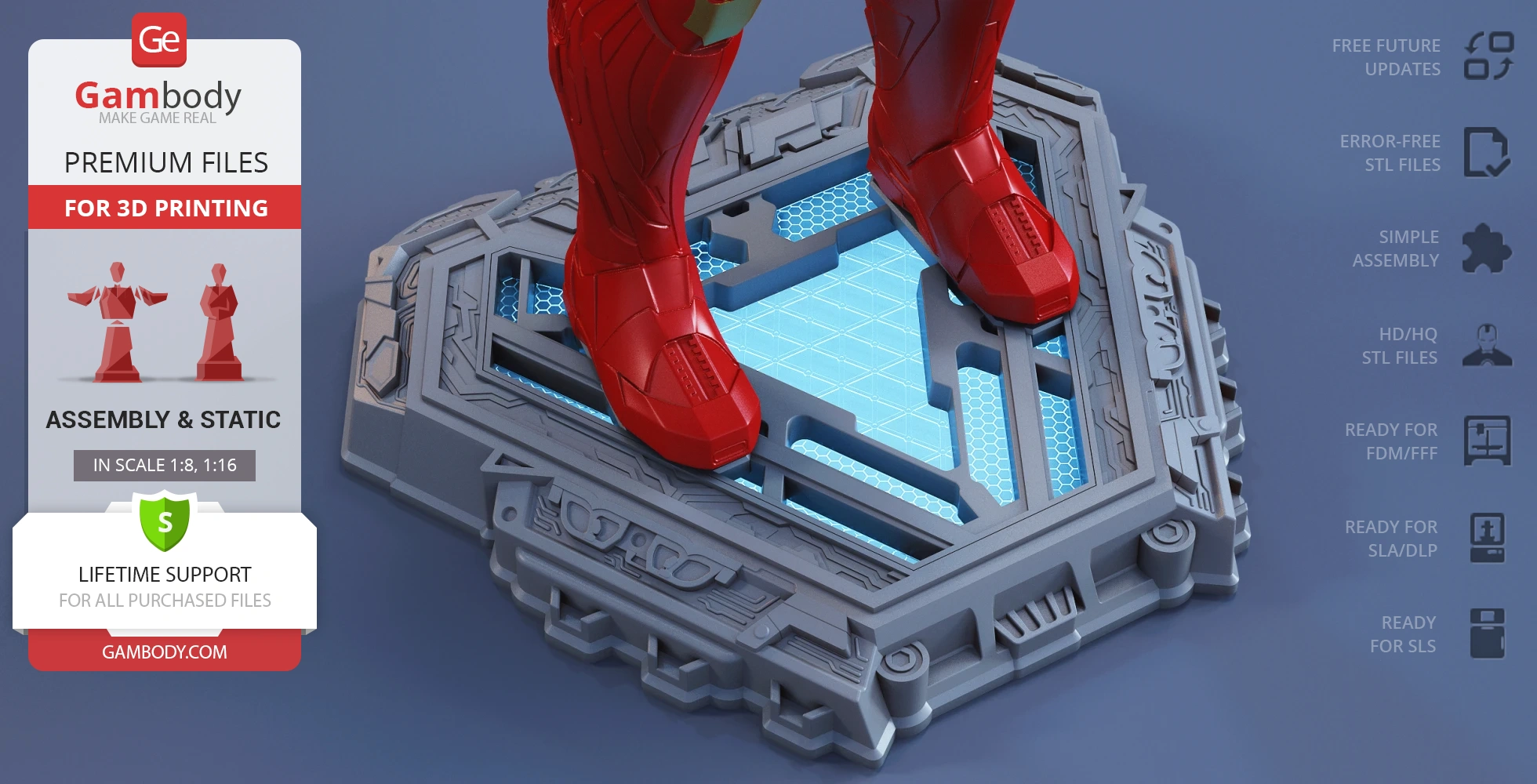

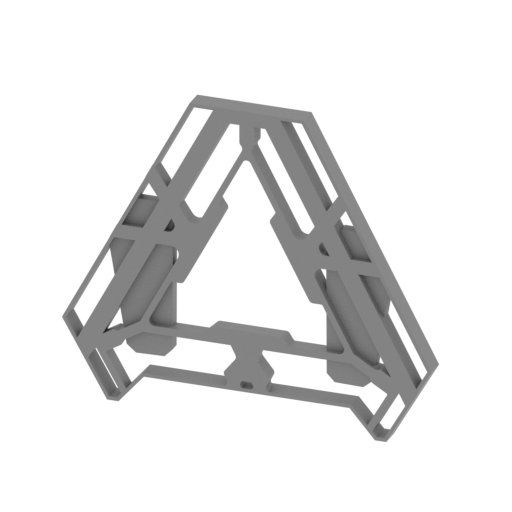

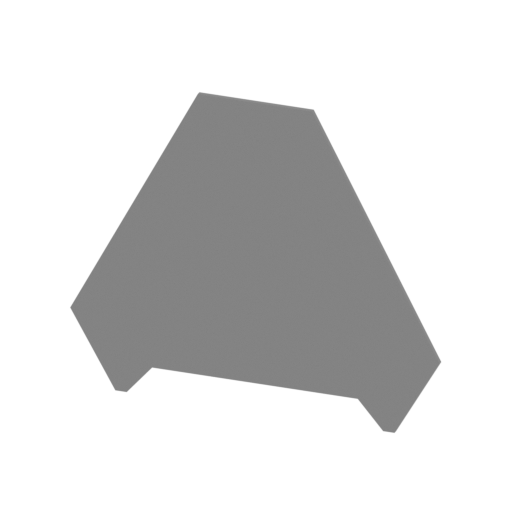

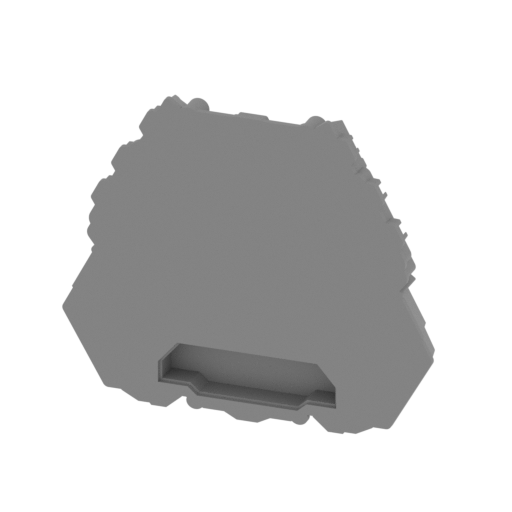

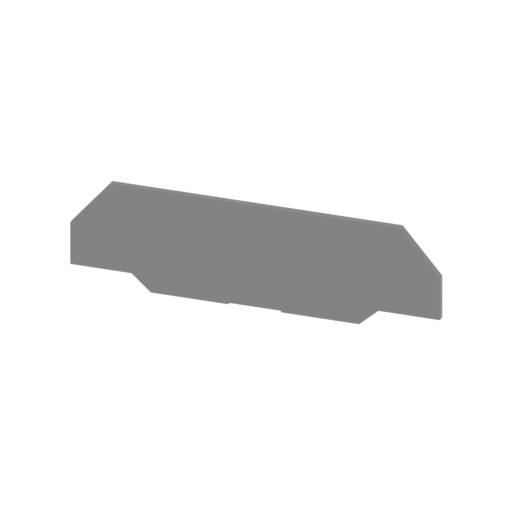

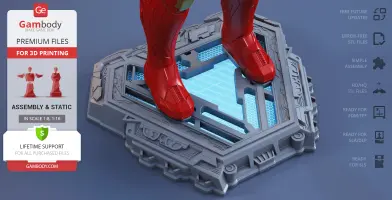

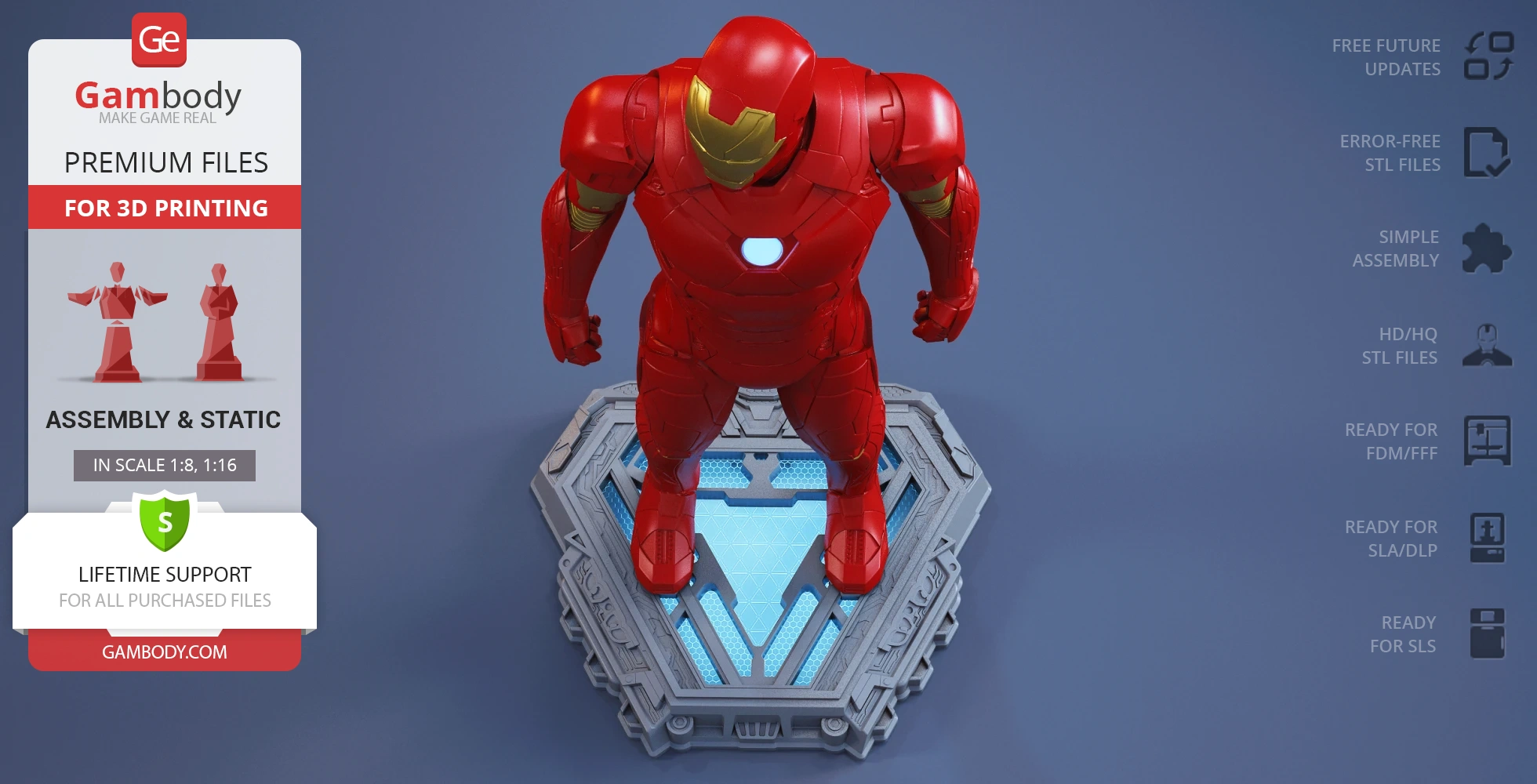

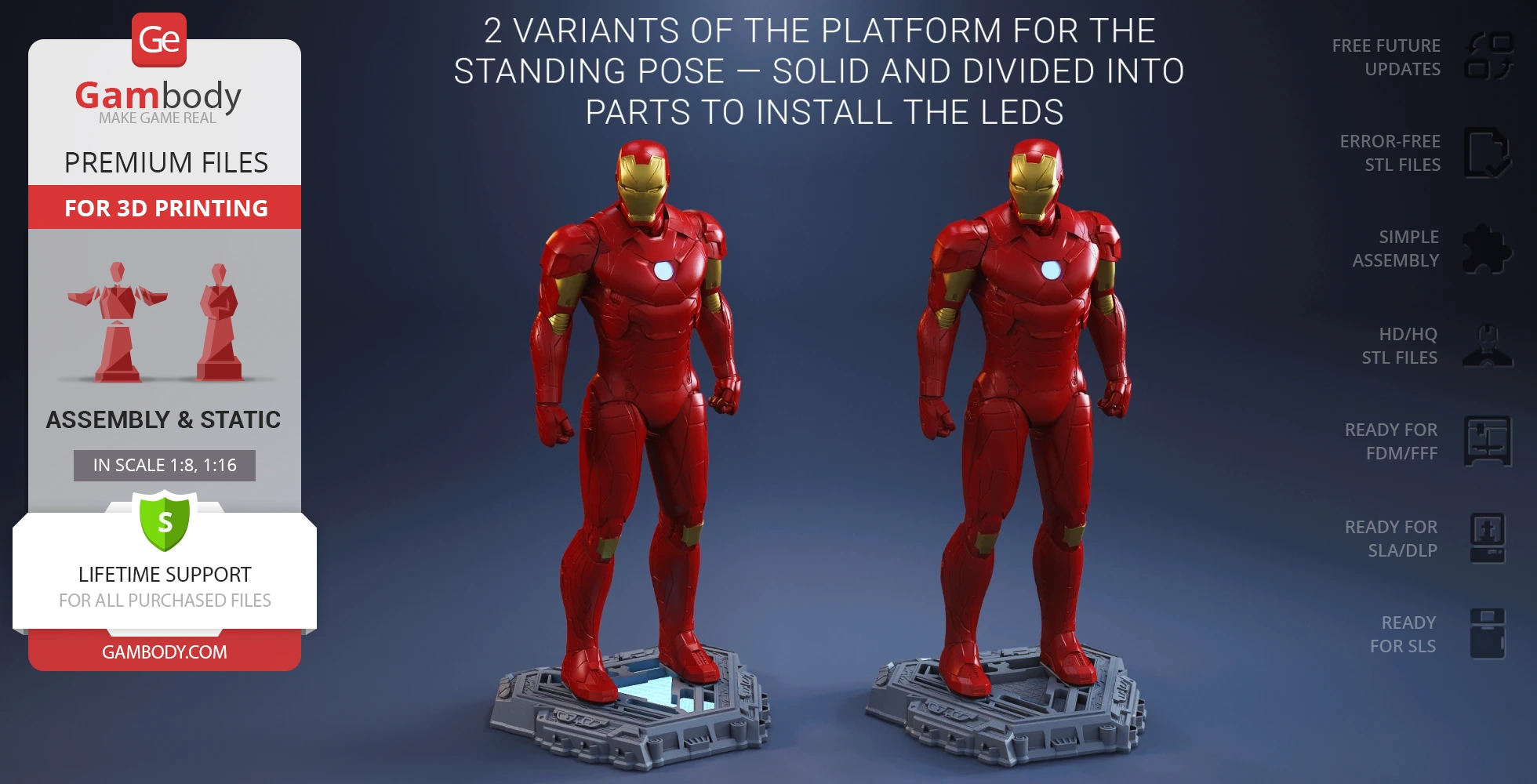

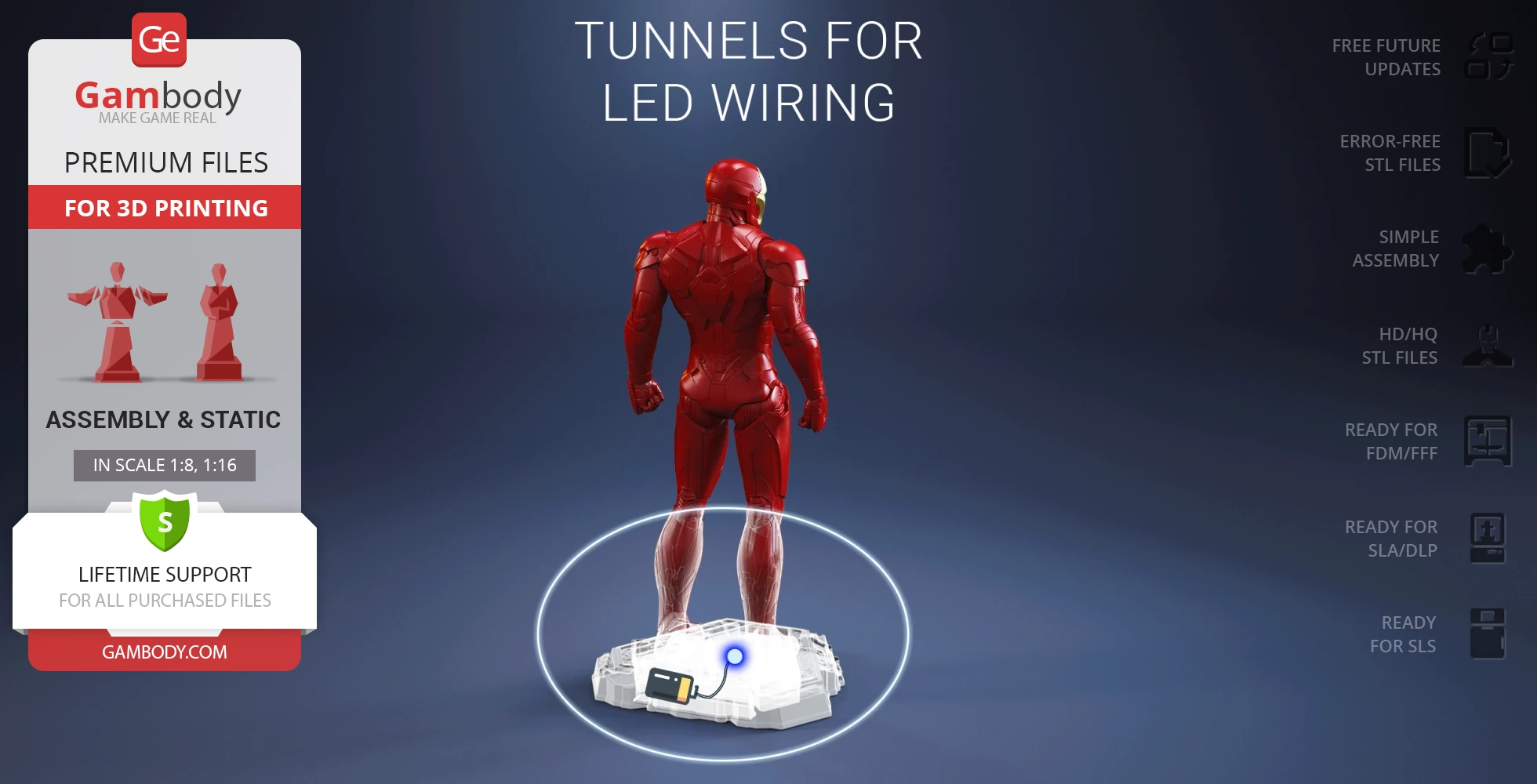

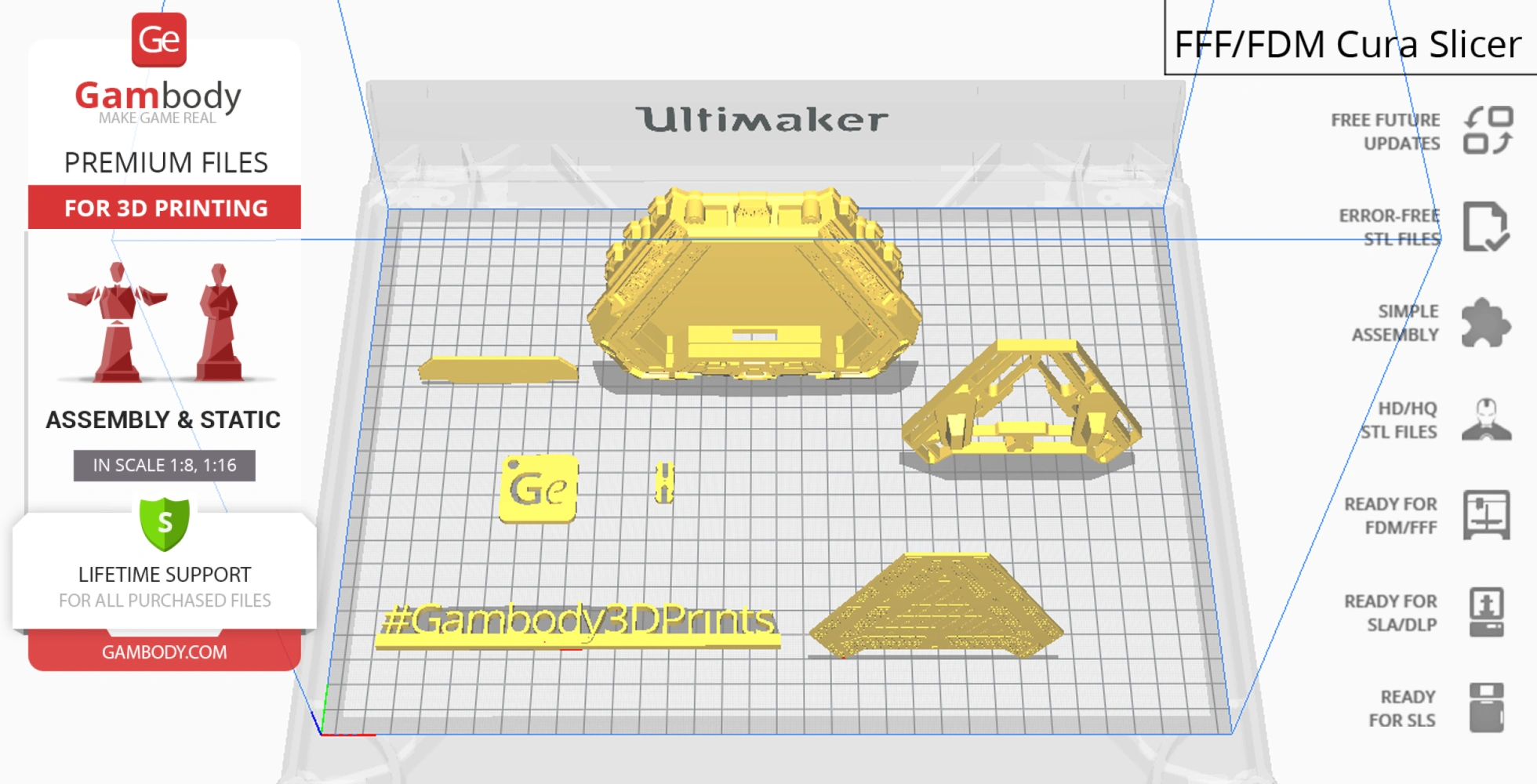

• 2 variants of the platform for the Standing Pose — solid and divided into parts to install the LEDs;

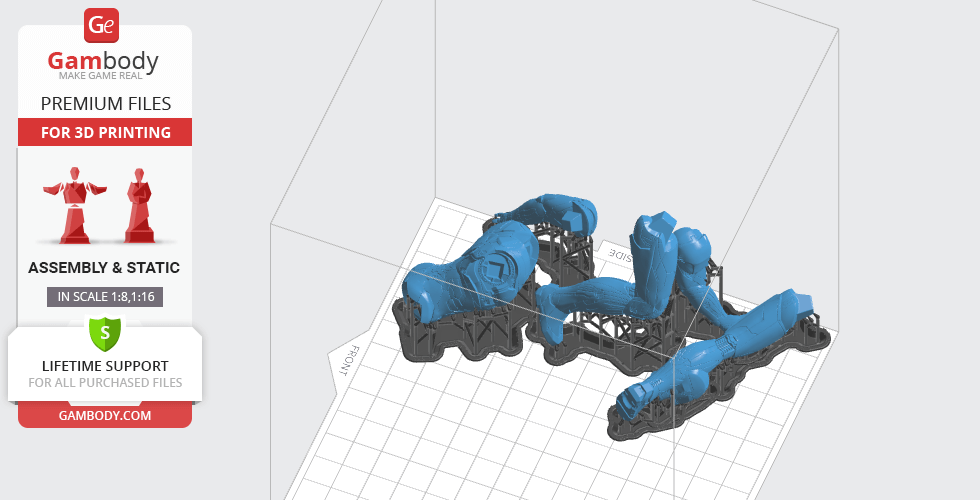

• All parts are divided in such a way that you will print them with the smallest number of support structures.

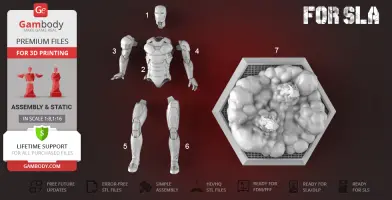

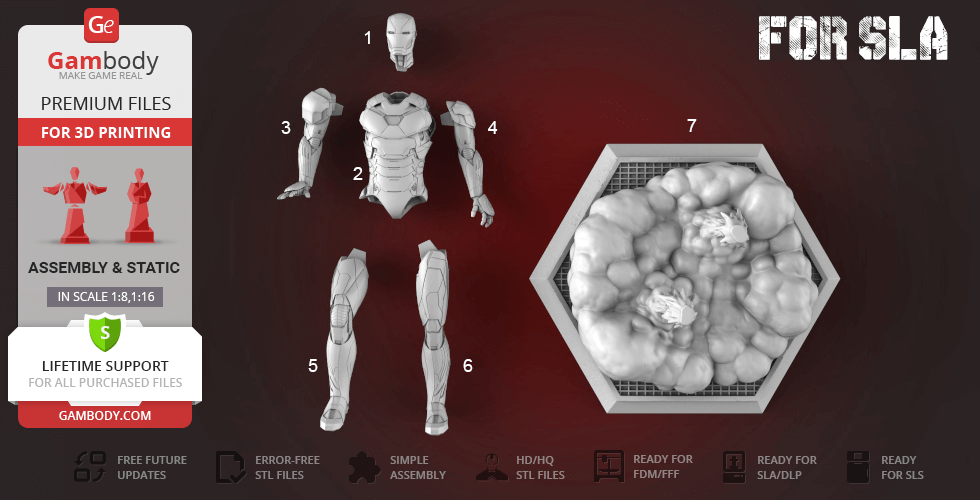

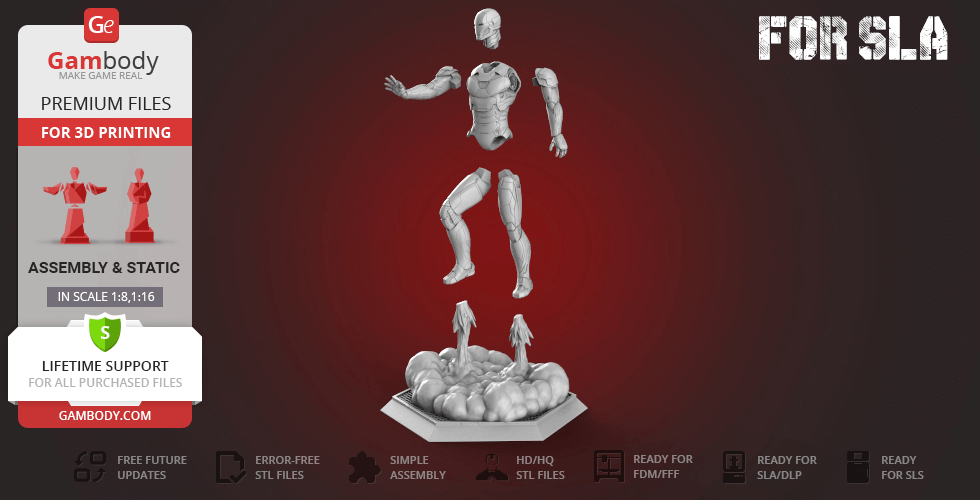

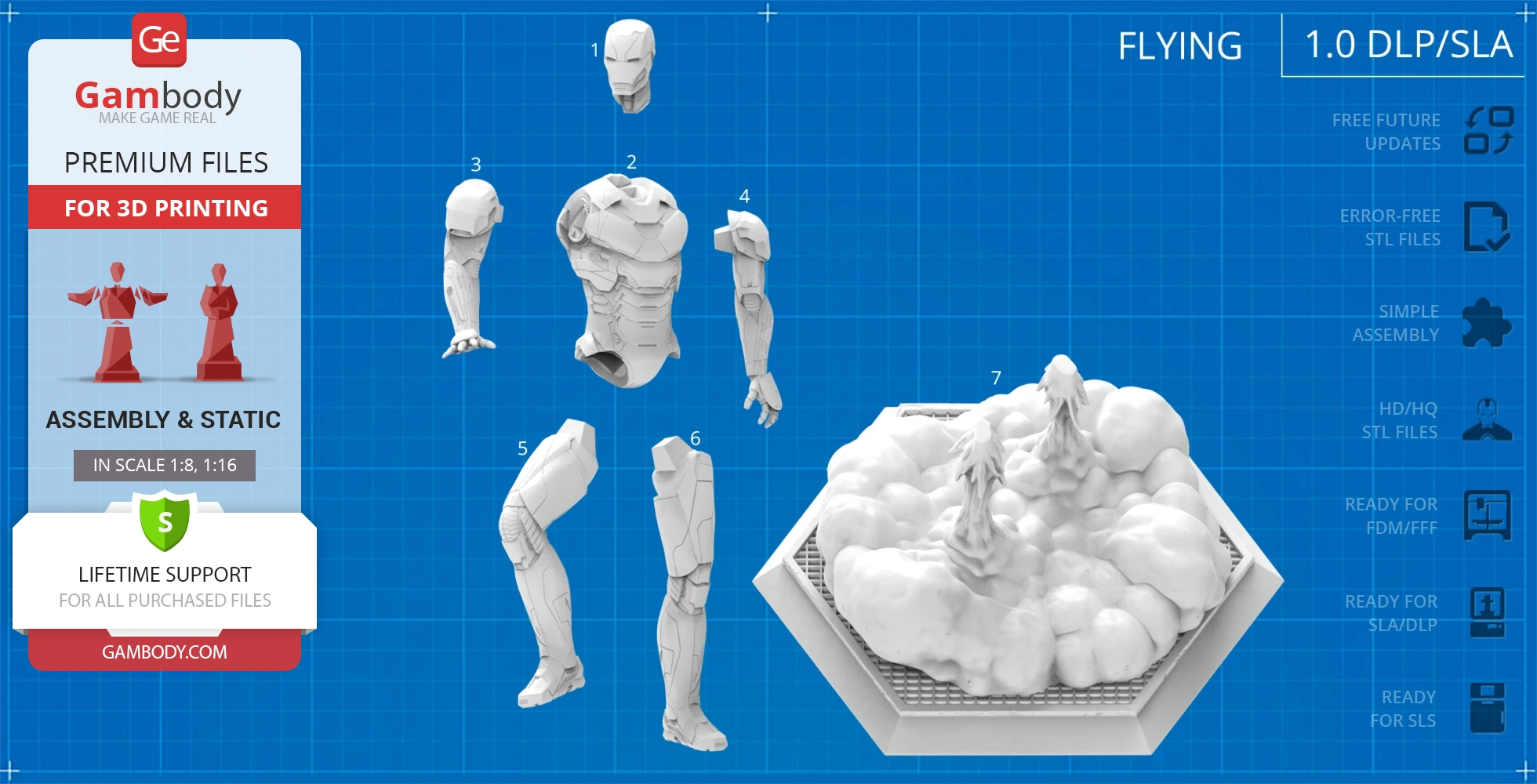

DLP/SLA Flying & Standing Pose 1.0 versions’ features:

• Each contains 11 parts;

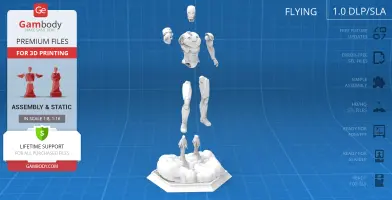

• A printed figurine in the  Flying Pose is 181 mm tall, 127 mm wide, 110 mm deep;

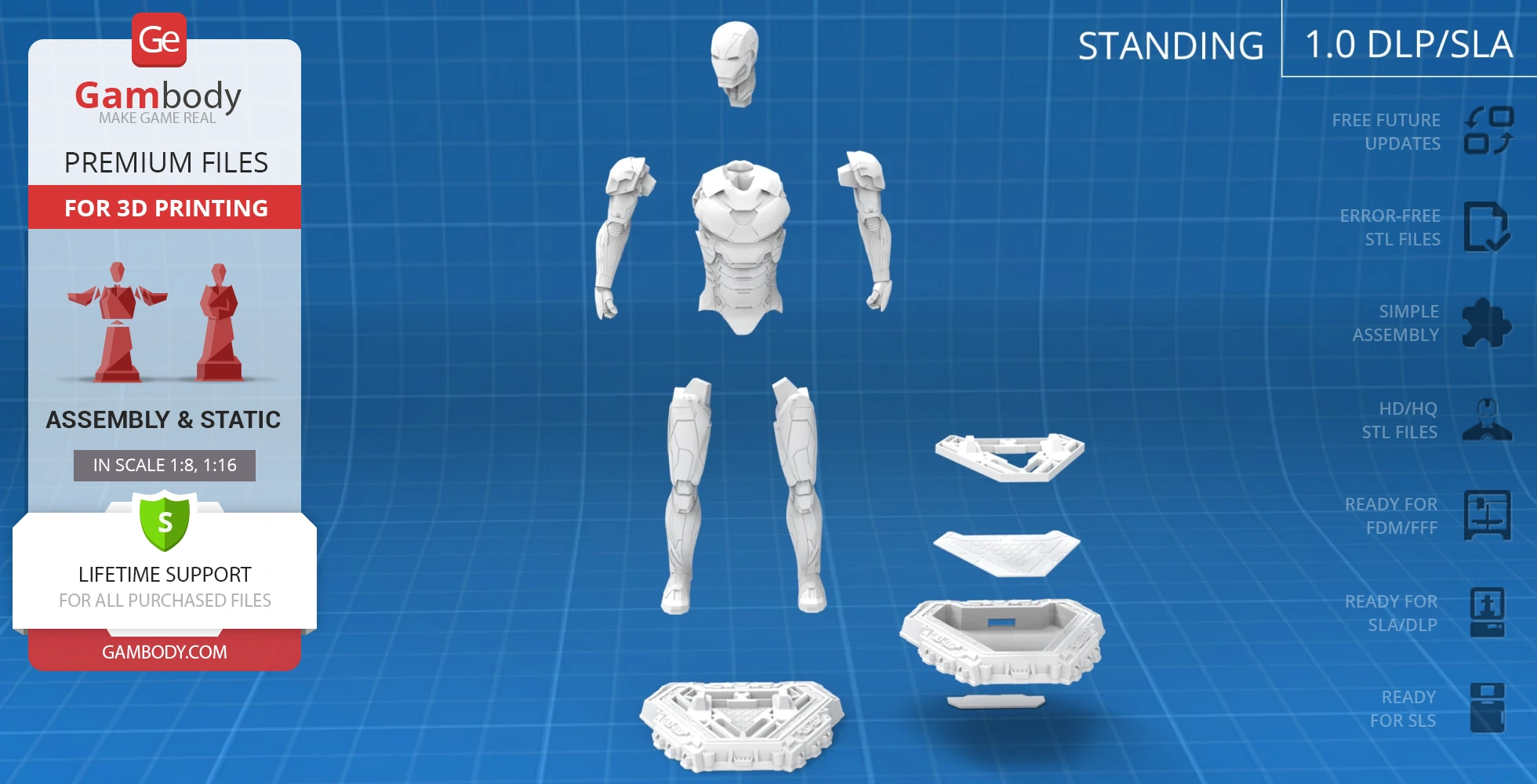

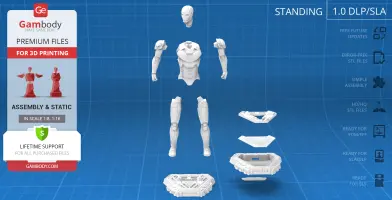

• A printed figurine in the Standing Pose is 134 mm tall, 66 mm wide, 57 mm deep;
• 2 variants of the platform for the Standing Pose — solid and divided into parts to install the LEDs;
• All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

DLP/SLA Flying Pose Pre-Supported 1.0 versions features:

• Contains 11 parts;
• A printed figurine is 181 mm tall, 127 mm wide, 110 mm deep;
• Some parts are manually hollowed out to save resin.

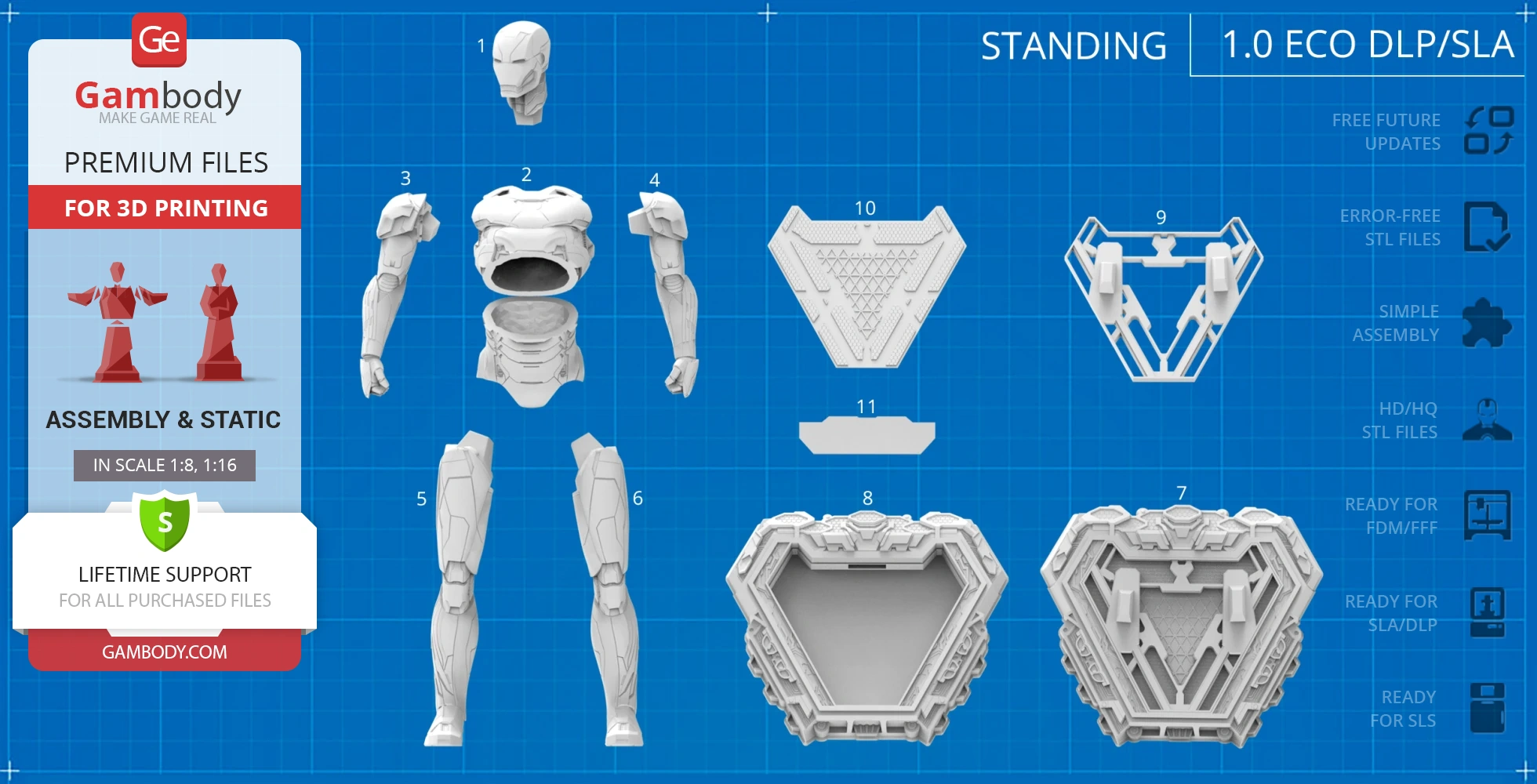

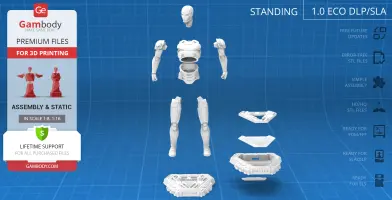

DLP/SLA Standing Pose Eco 1.0 versions features:

• Contains 11 parts;
• A printed figurine is 134 mm tall, 66 mm wide, 57 mm deep;

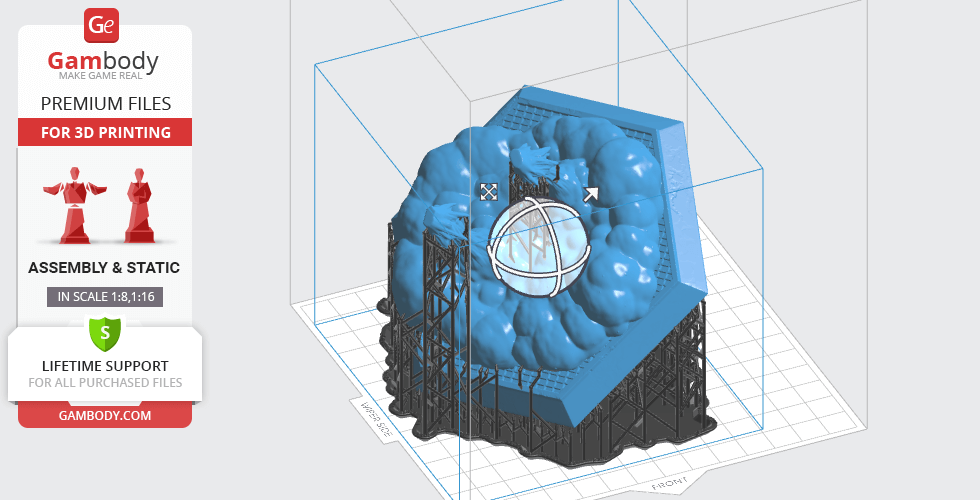

• The STL files that this version comprises are pre-supported, hollowed out, and have drain holes where needed.

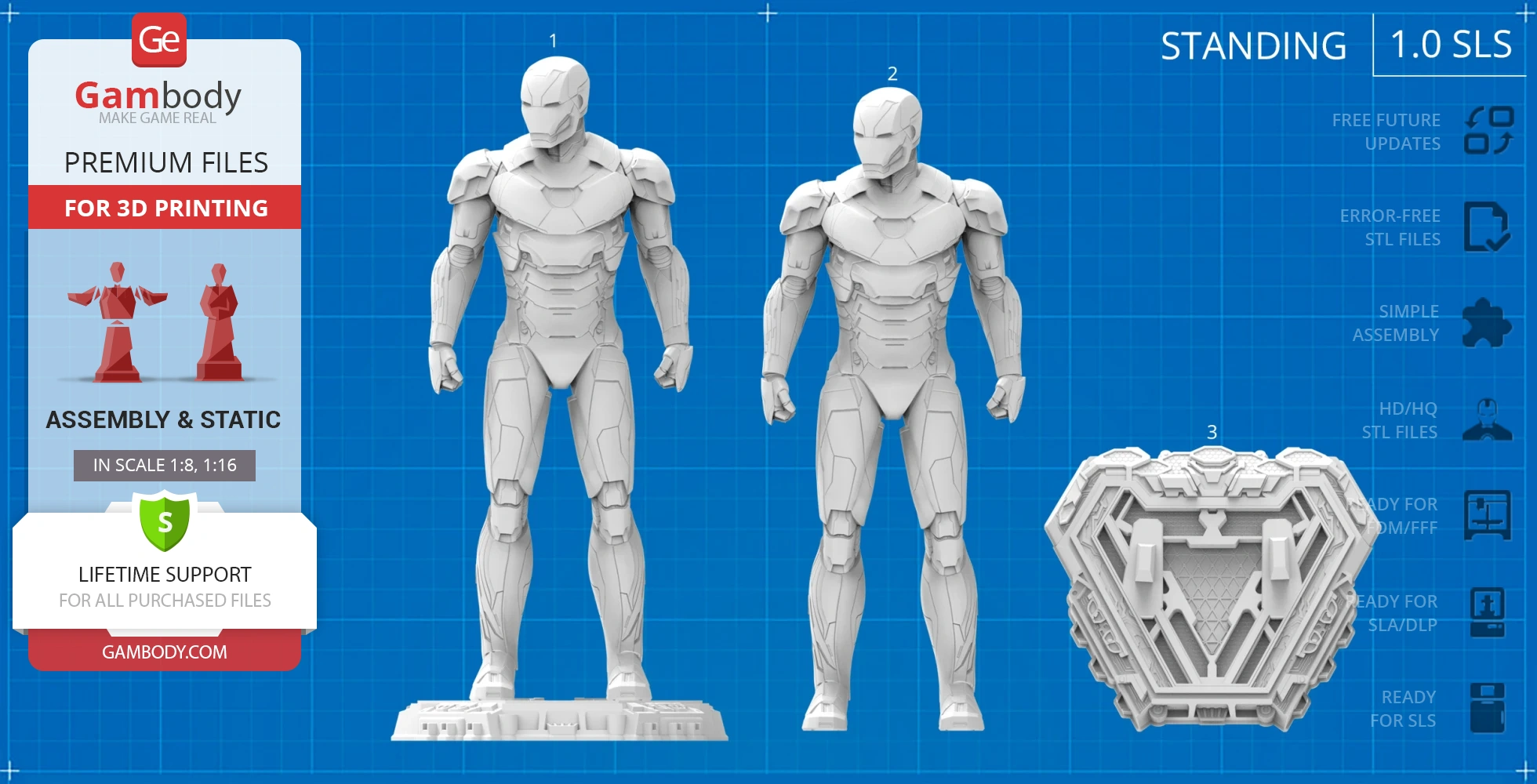

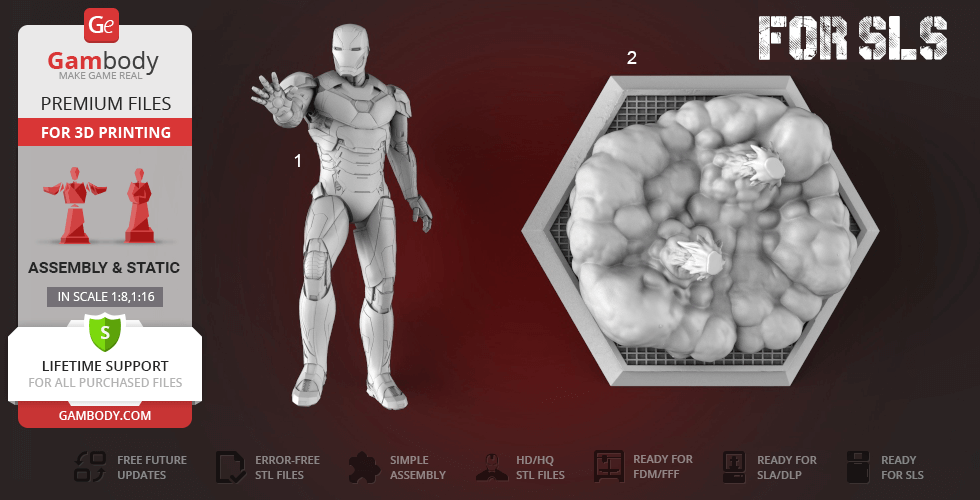

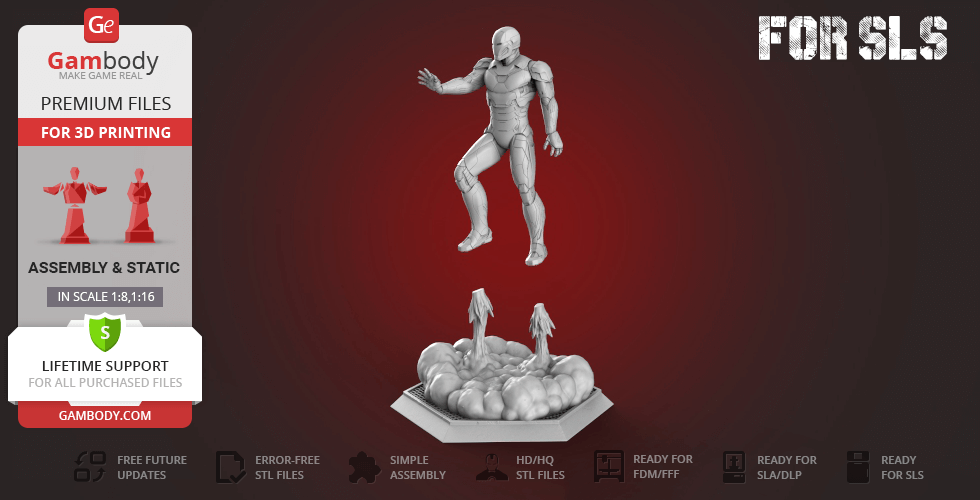

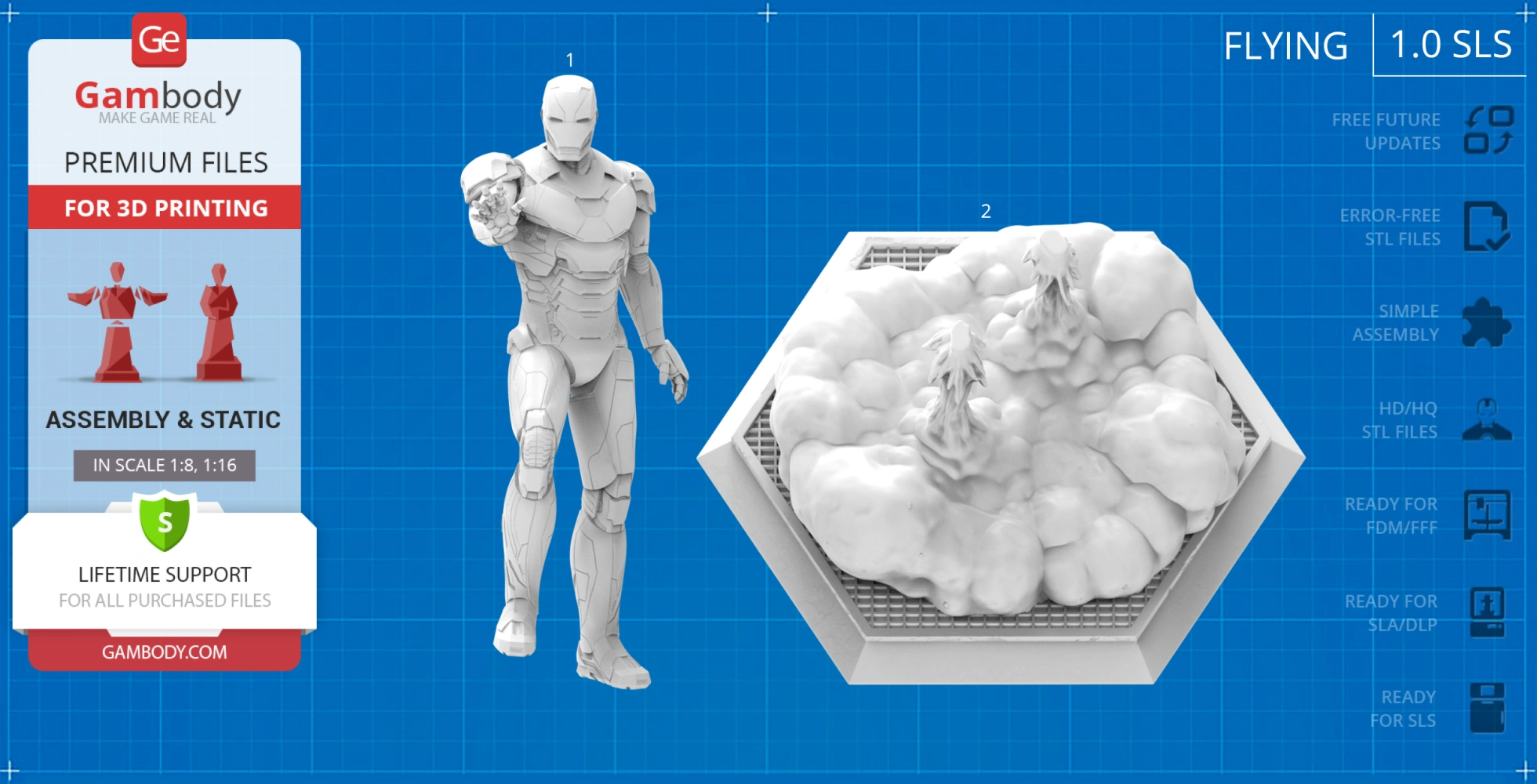

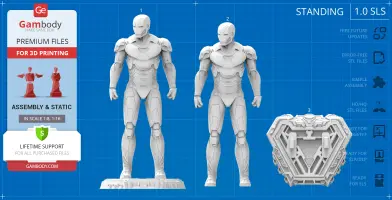

SLS Flying & Standing Pose 1.0  versions’ features:

• Contain 3 and 2 parts respectively.

You can get the figurine of Iron Man Mark 46 for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Iron Man Mark 46 3D Printing Figurine on Gambody YouTube channel.

Also, you may like other Marvel 3D Printing Figurines.

_______

FAQ:

• Where can I print a model if I have no printer?
• How to get started with 3D printing?
• How to set up my 3D printer?

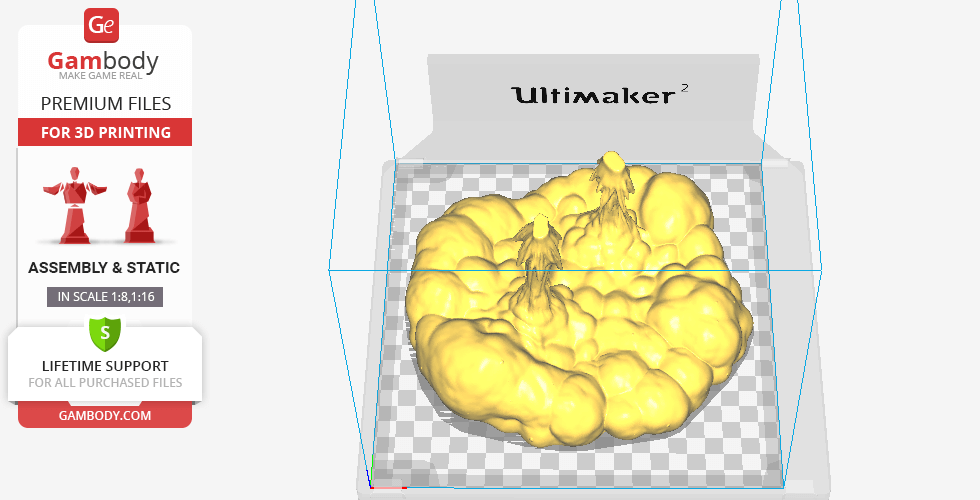

• How to choose right 3D model print bed positioning?
• How to paint printed figurine?

Generic

Below you can find printing recommendations for Cura, Bambu Lab, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

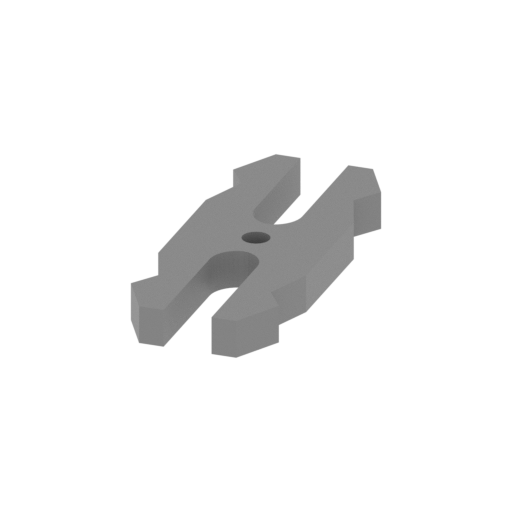

All connectors should be printed at 100% Infill.

Bambu Lab printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Bambu Studio 1.9.5. Test models were printed on the Bambu Lab A1, Bambu Lab A1 Mini, Creality Ender 3 S1, Anycubic Kobra 2, and Anycubic Vyper using PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download

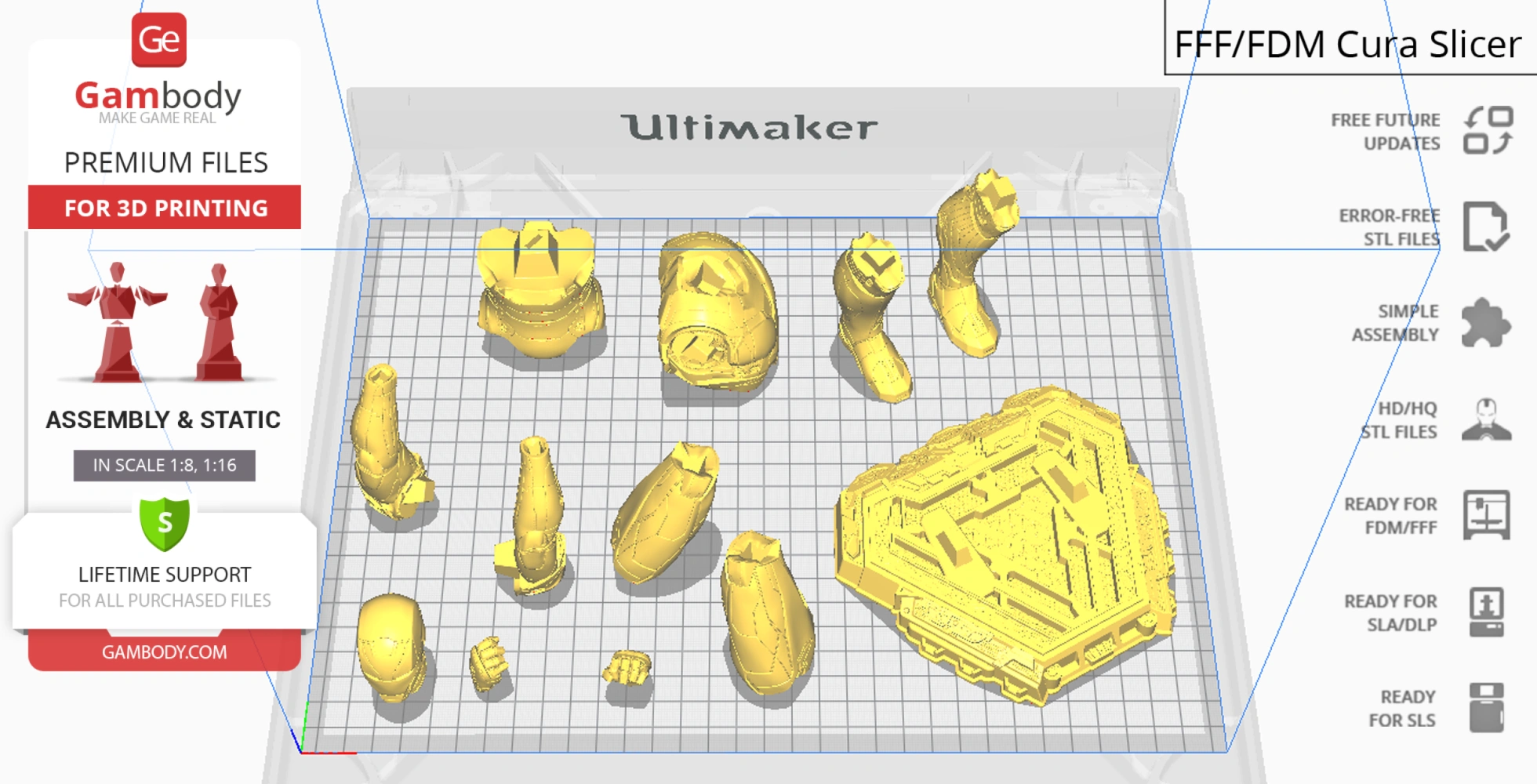

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.8.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
