Khetanna STL files for 3D printing | Assembly Model

ABOUT THIS 3D MODEL

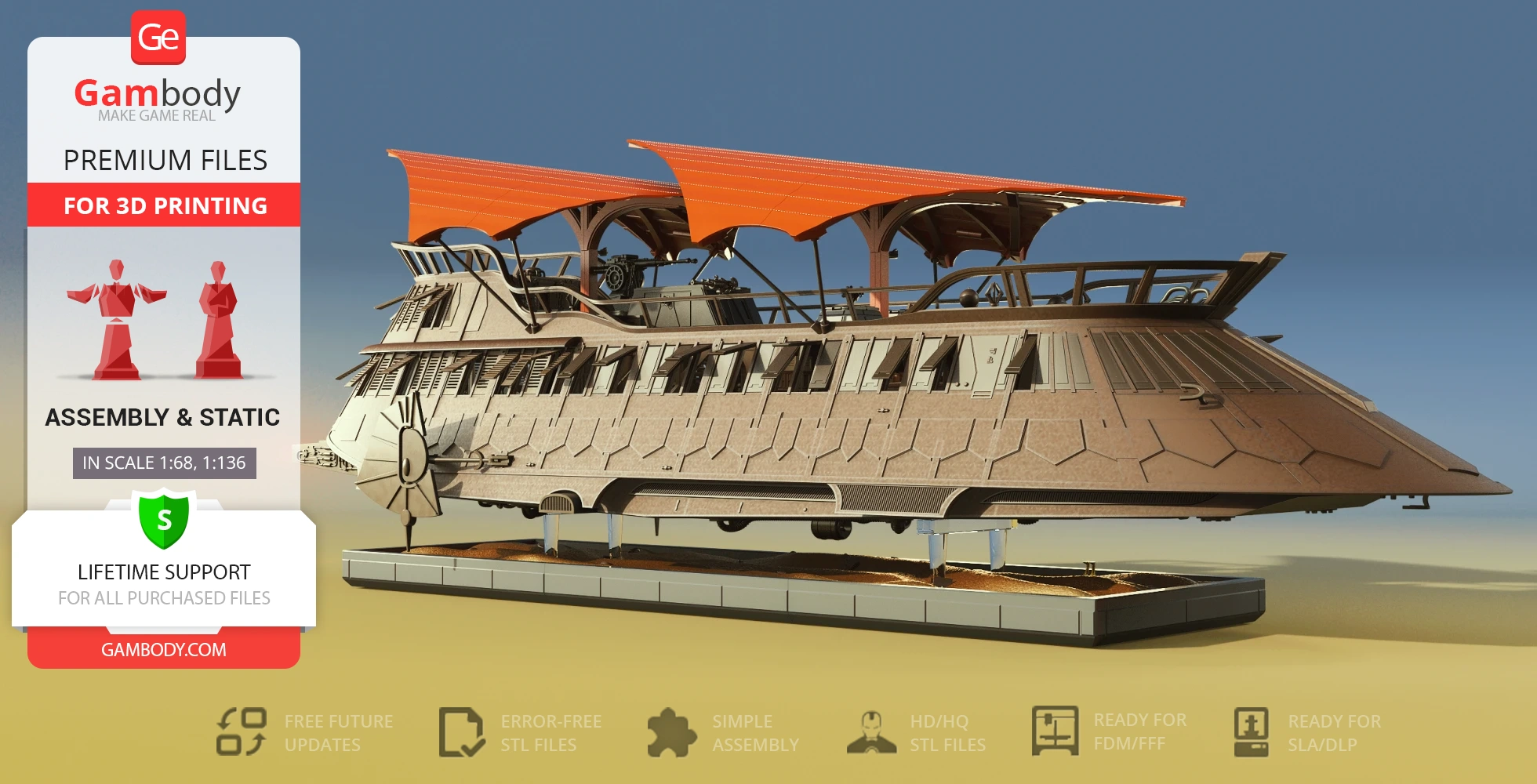

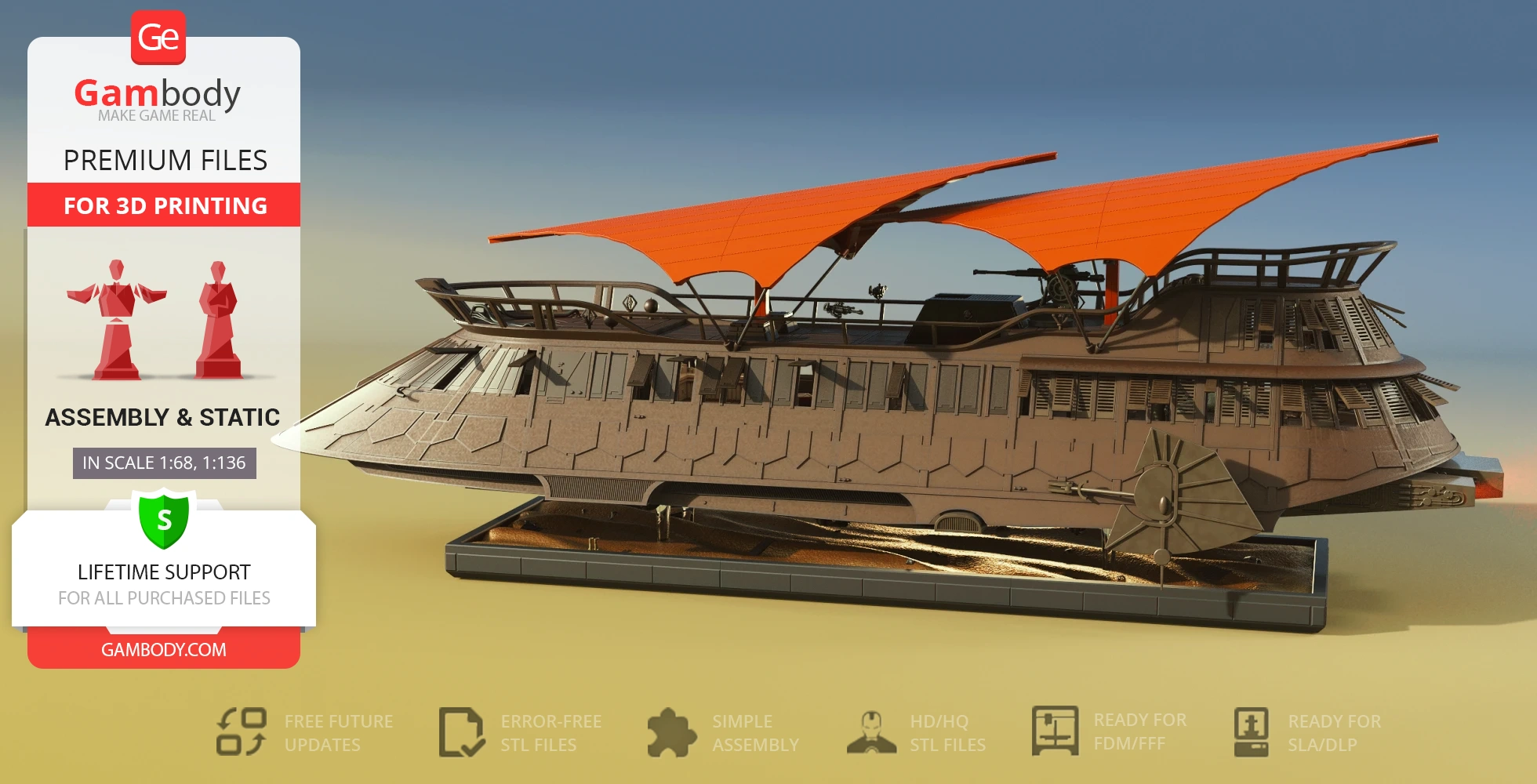

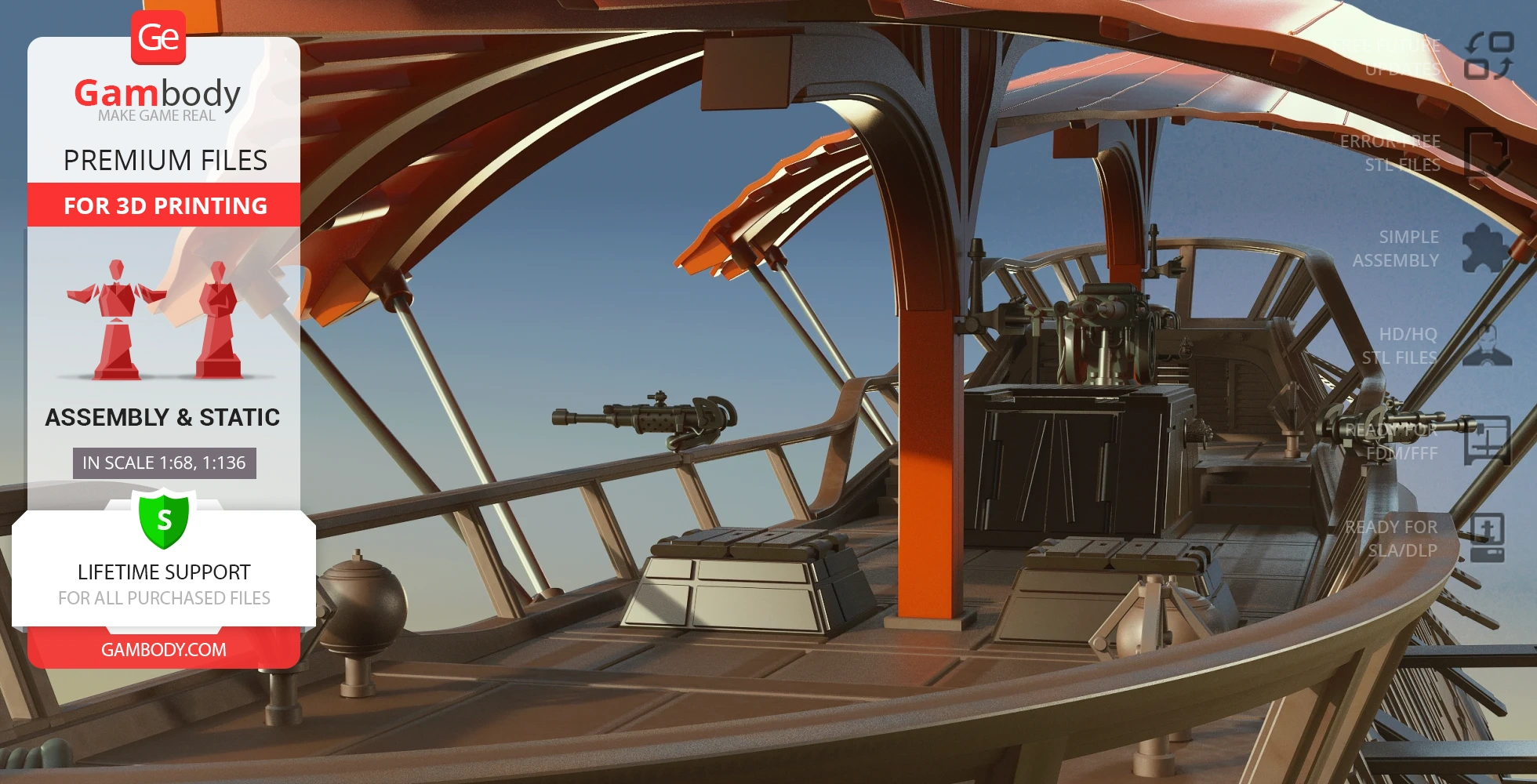

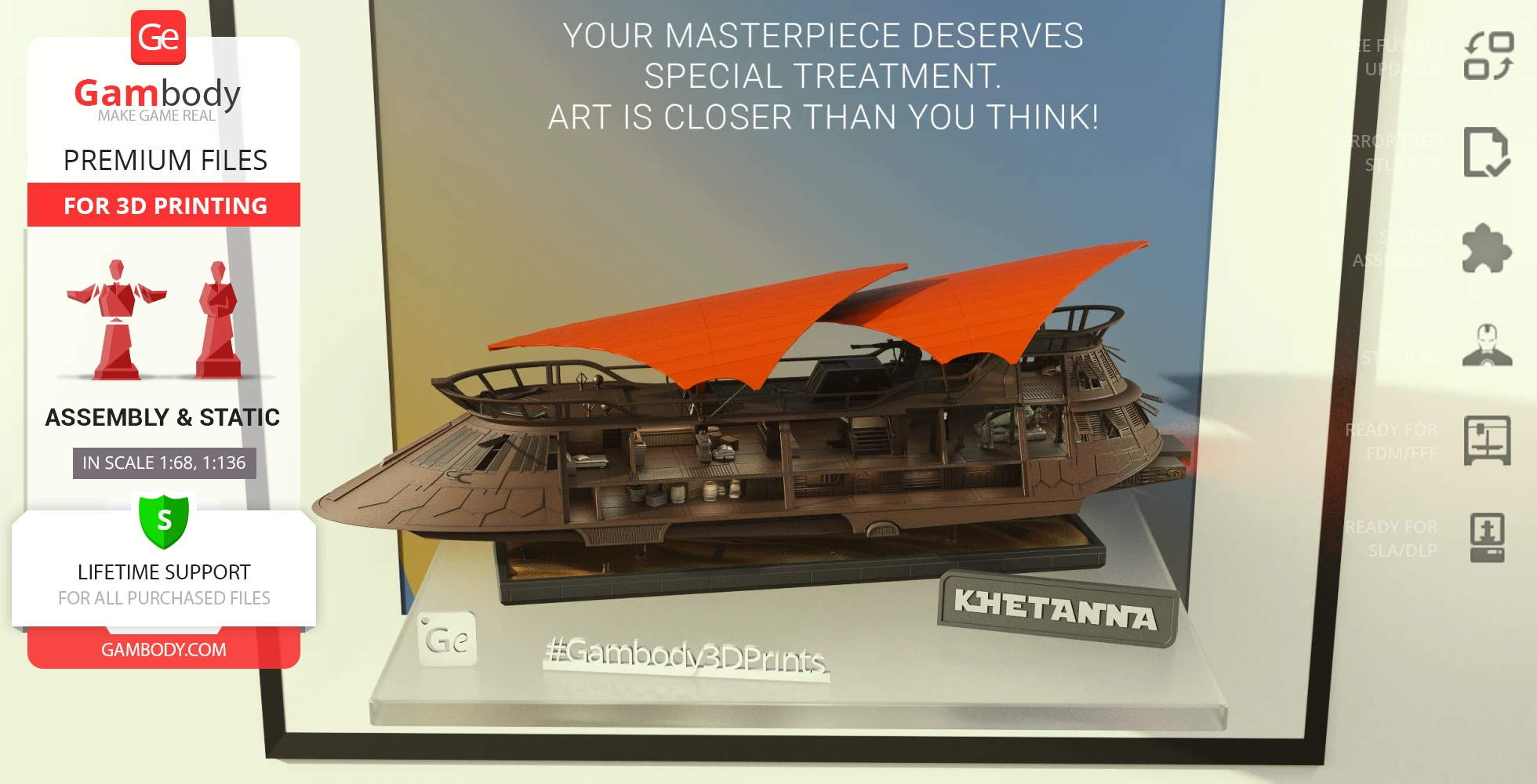

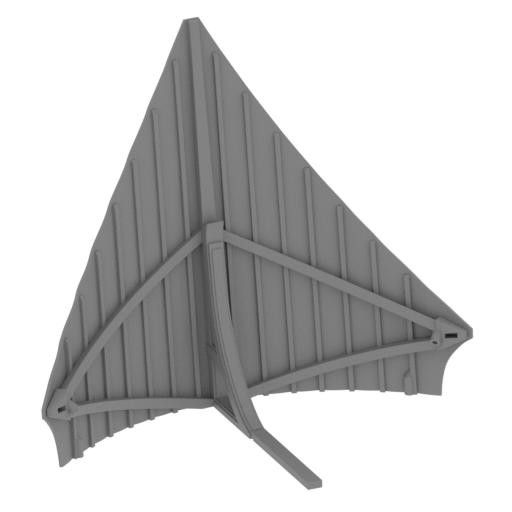

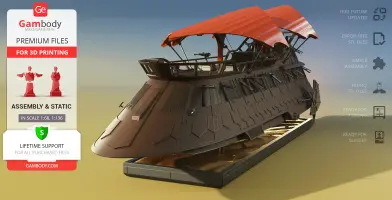

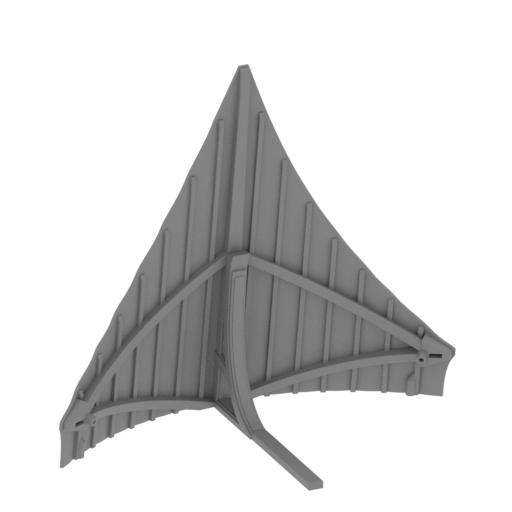

The Khetanna sail barge, used by crime lord Jabba the Hutt, is a planetary vehicle that impresses with its construction and functionality. Jabba's sail barge with its three decks and two orange sails on the upper deck was originally meant for passenger transportation, so its middle and upper deck were expensively furnished and accommodated to impress guests of Jabba. This transport equipped with repulsorfit engines featuring armaments such as heavy laser cannons and heavy blasters was capable of disabling any hostile vehicle.

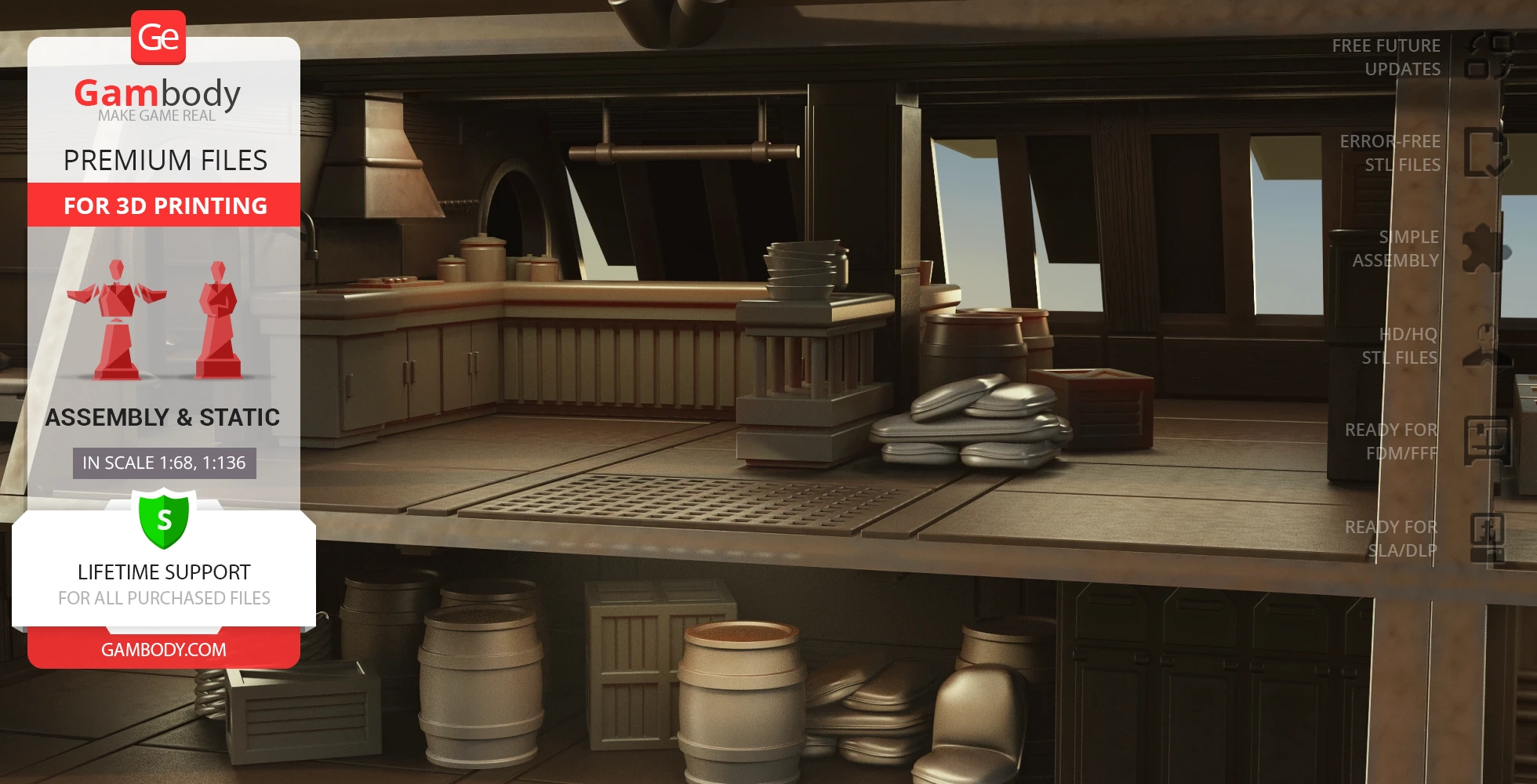

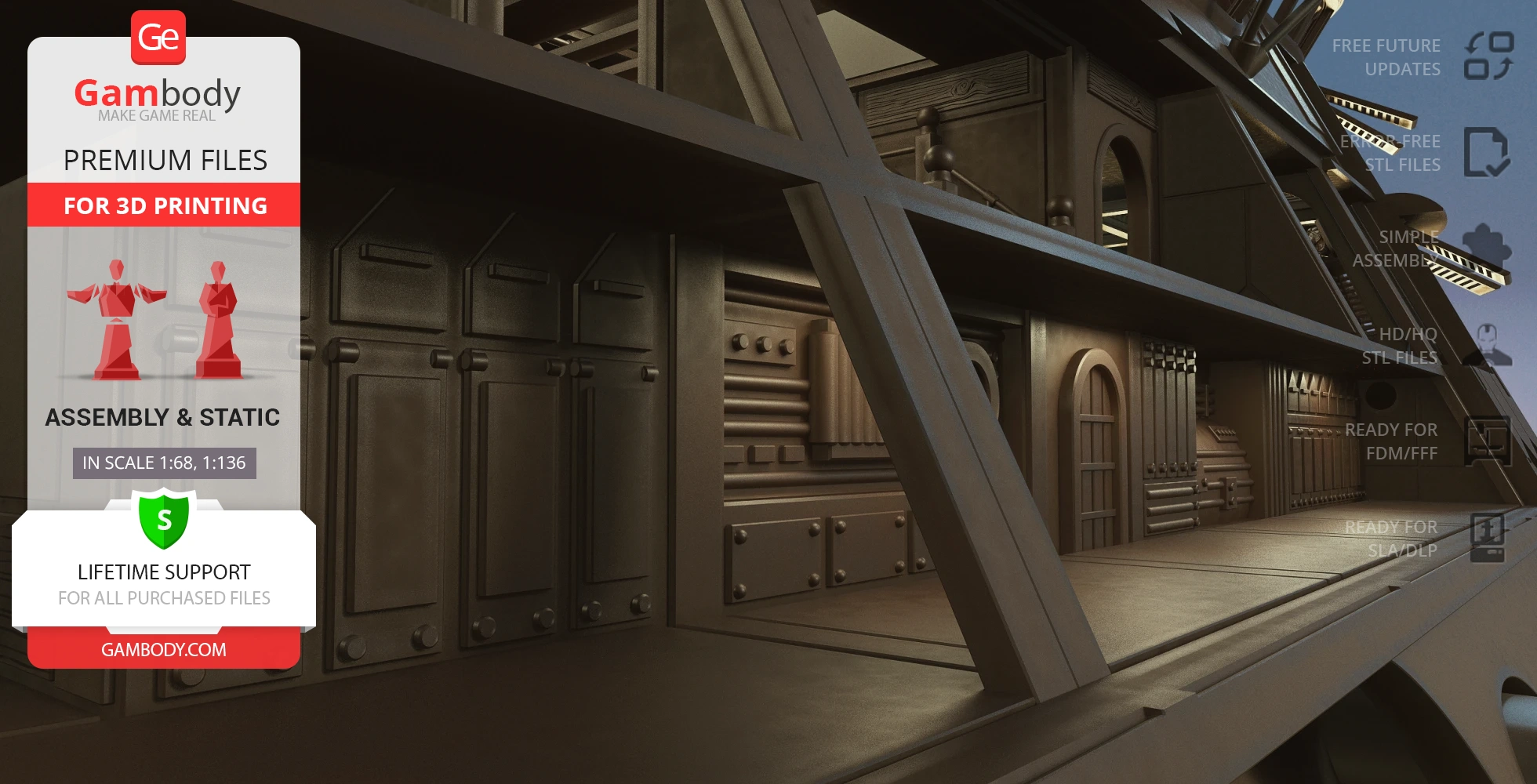

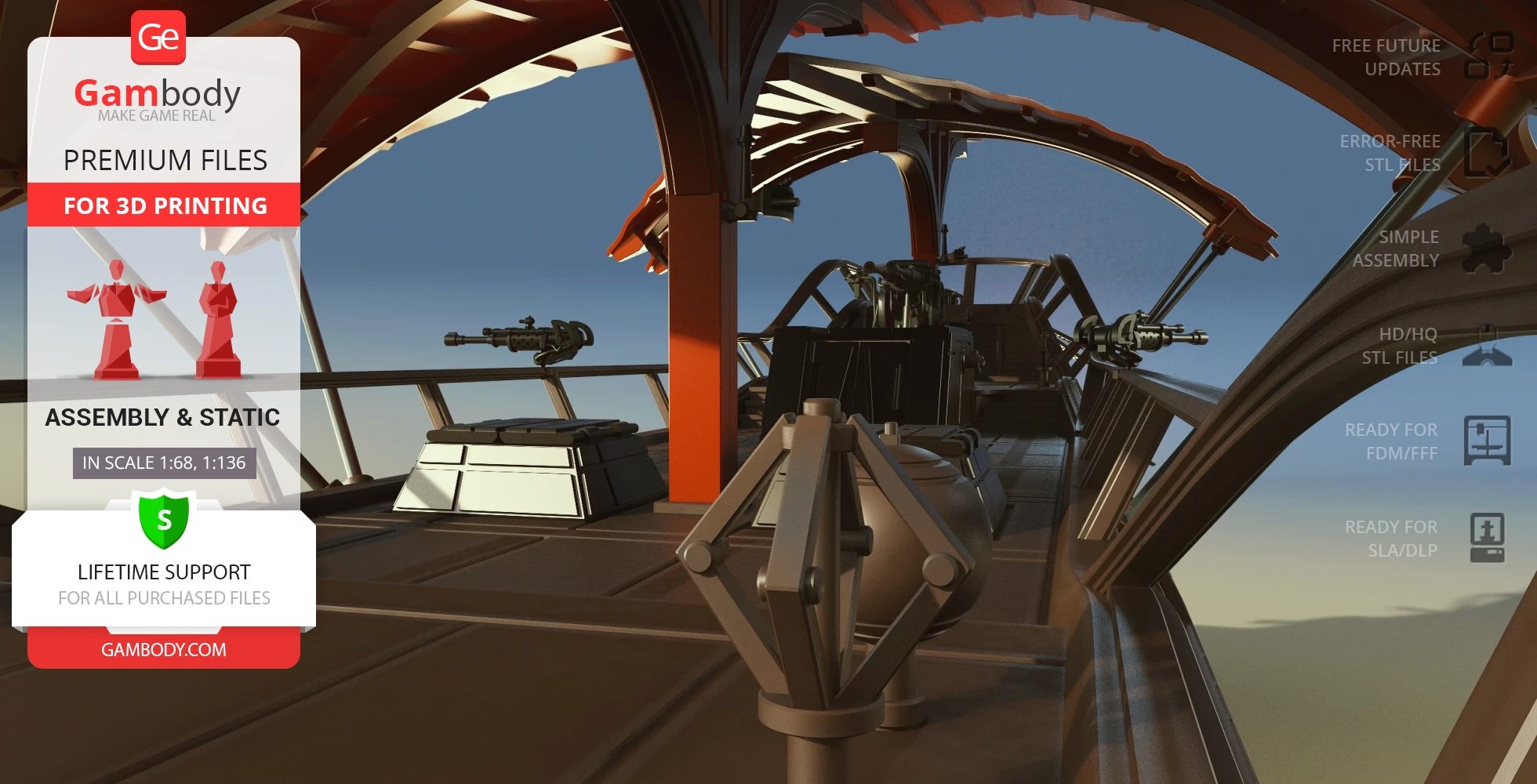

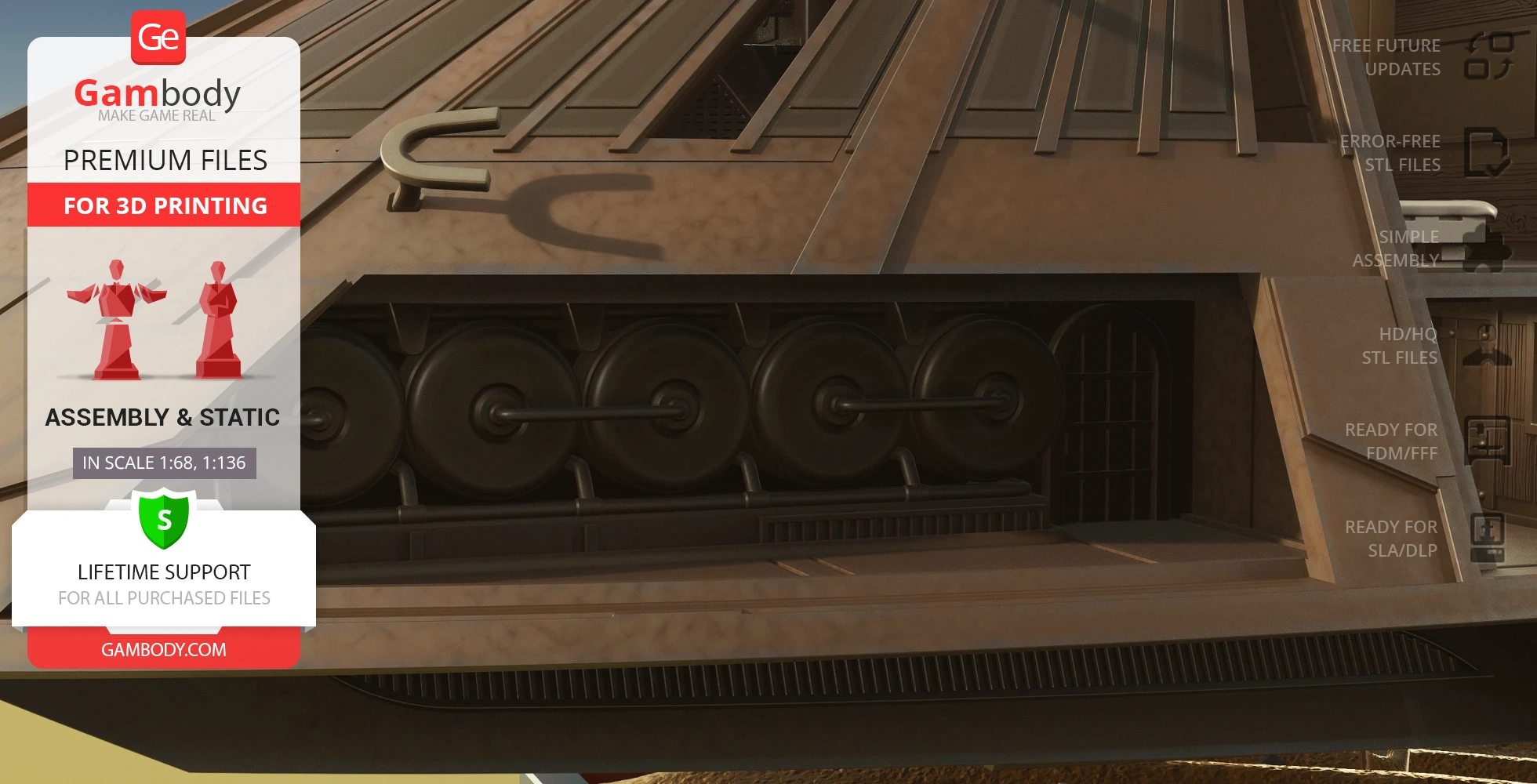

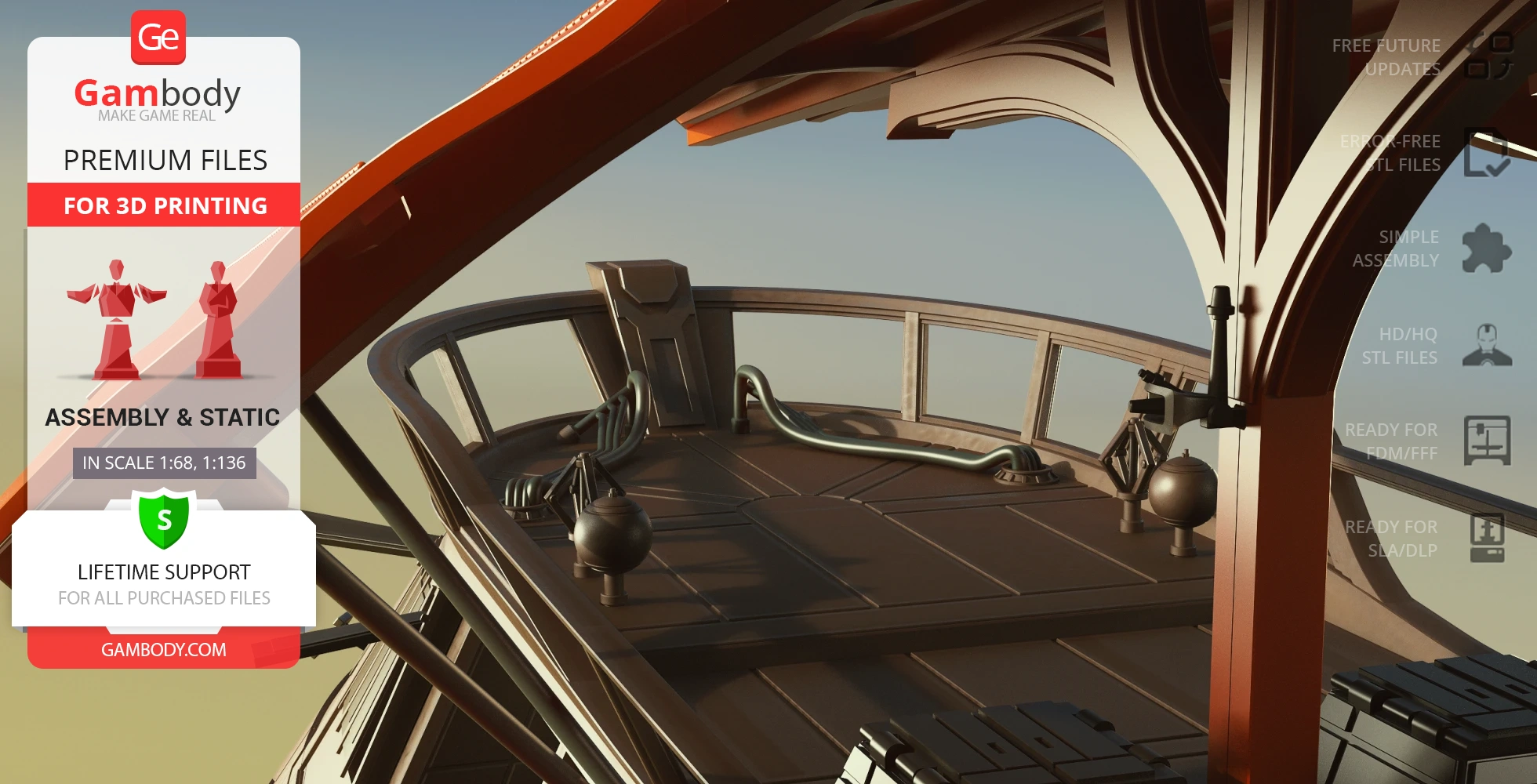

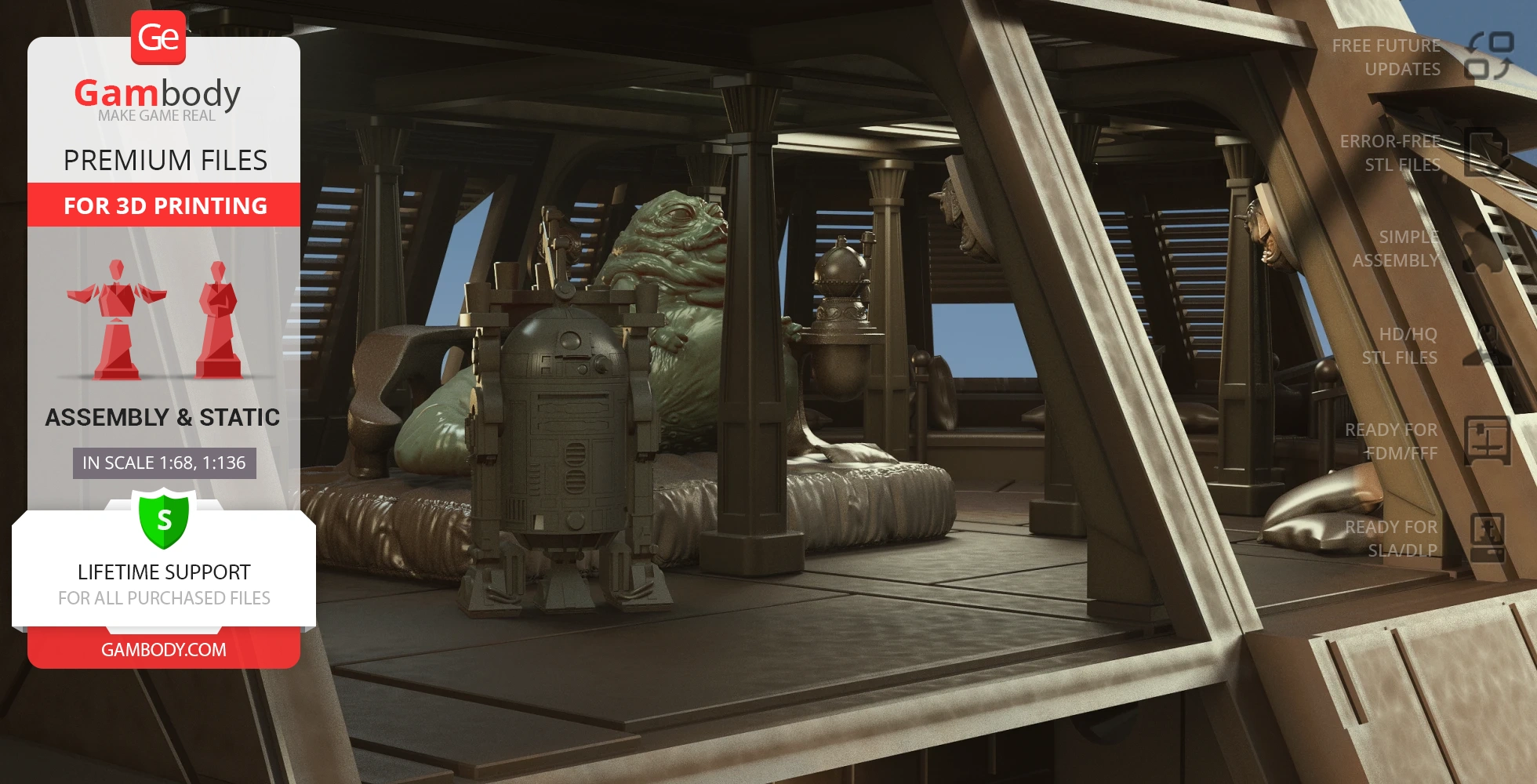

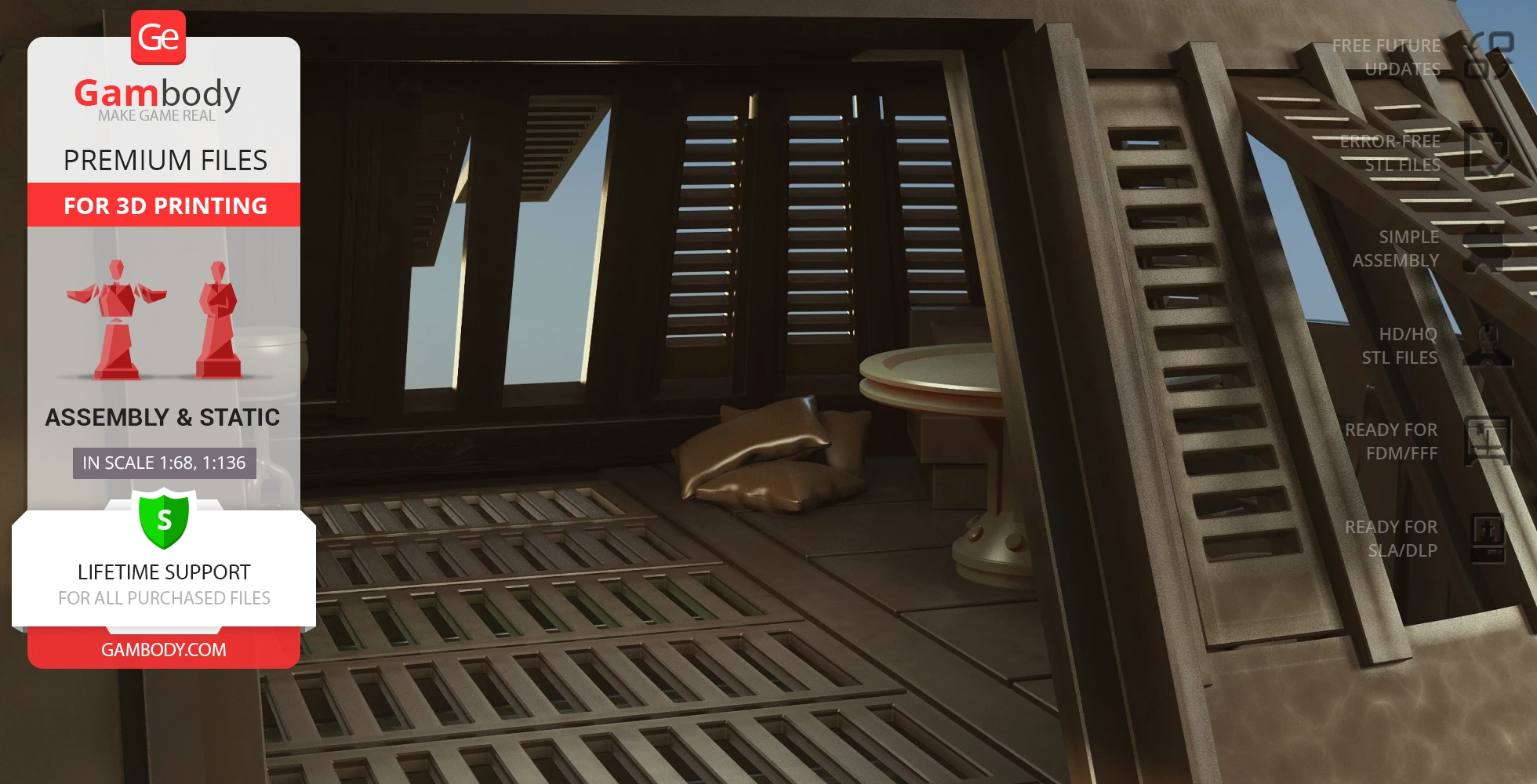

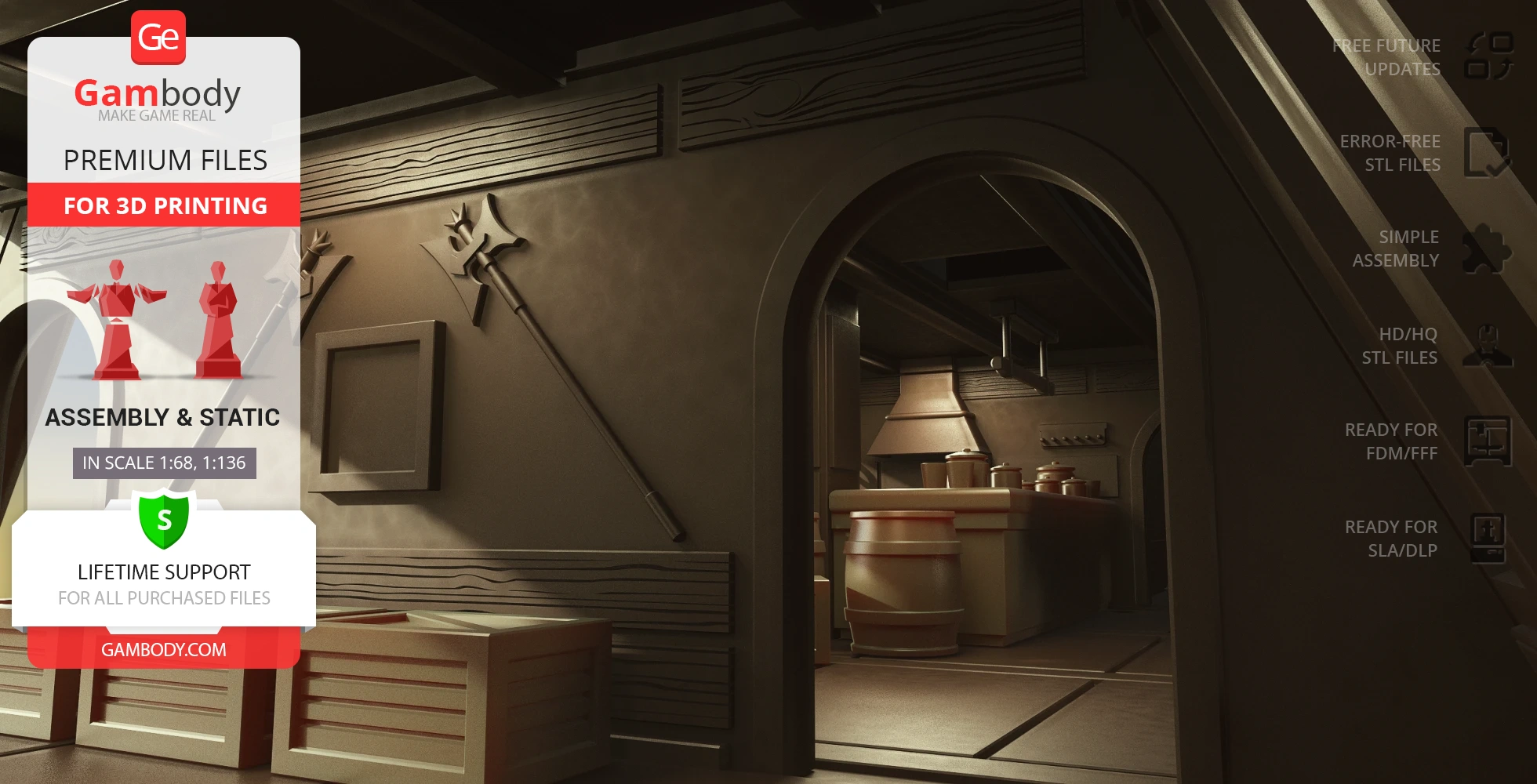

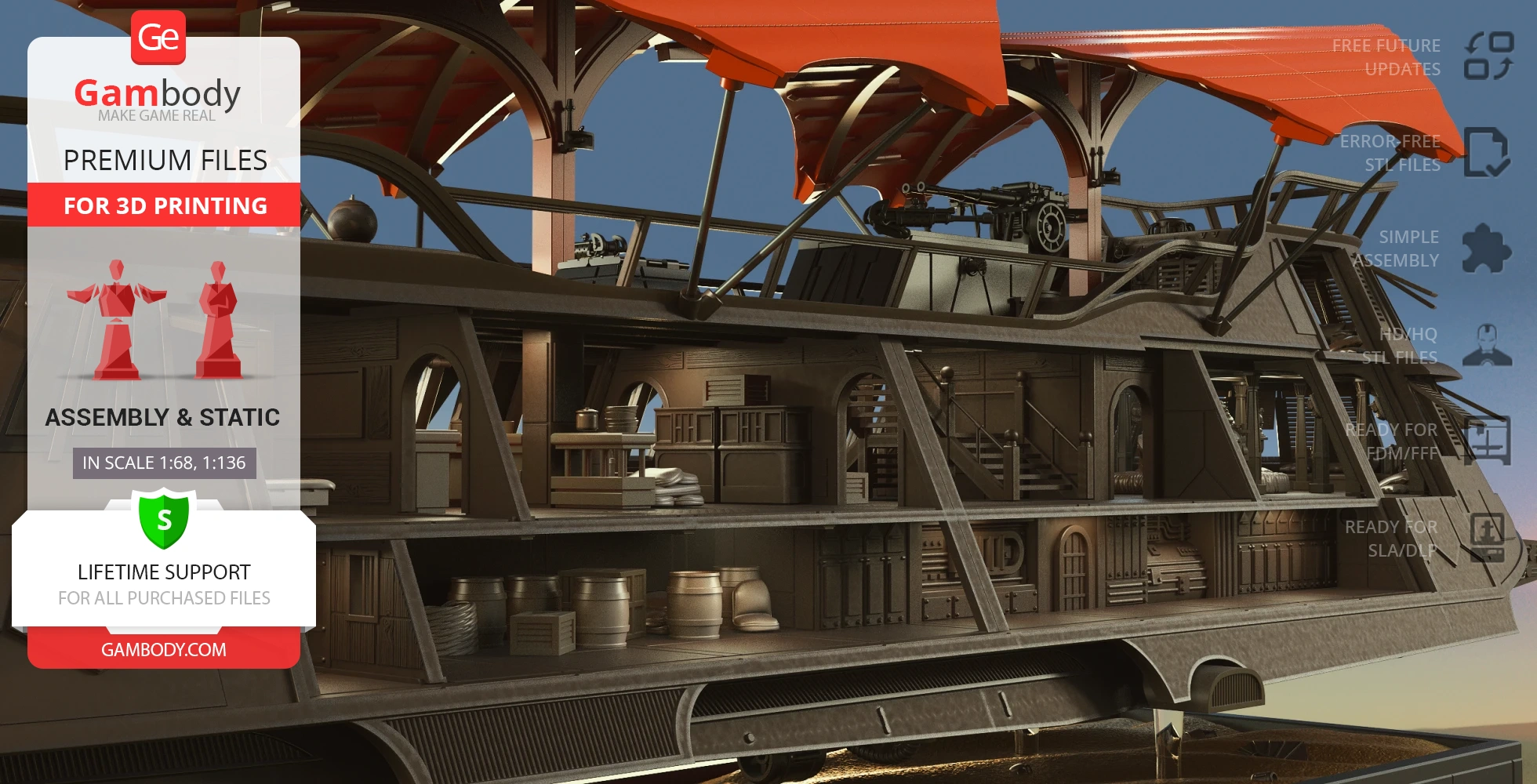

Star Wars Jabba's sail barge for 3D printing is an outstanding design by Gambody contributor with an elaborate build, thought-out interior and exterior, and convenient assembly. The author masterfully recreated the hull and sails shape, introduced numerous decorative elements to the Jabba's sail barge interior, and added the opportunity to light up the 3D model's engines and interior. Don't wait to add the iconic Star Wars transport to your collection of 3D printables!

ADAPTATION FOR 3D PRINTING

Khetanna 3D printing design is a static assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 104 hours in total.

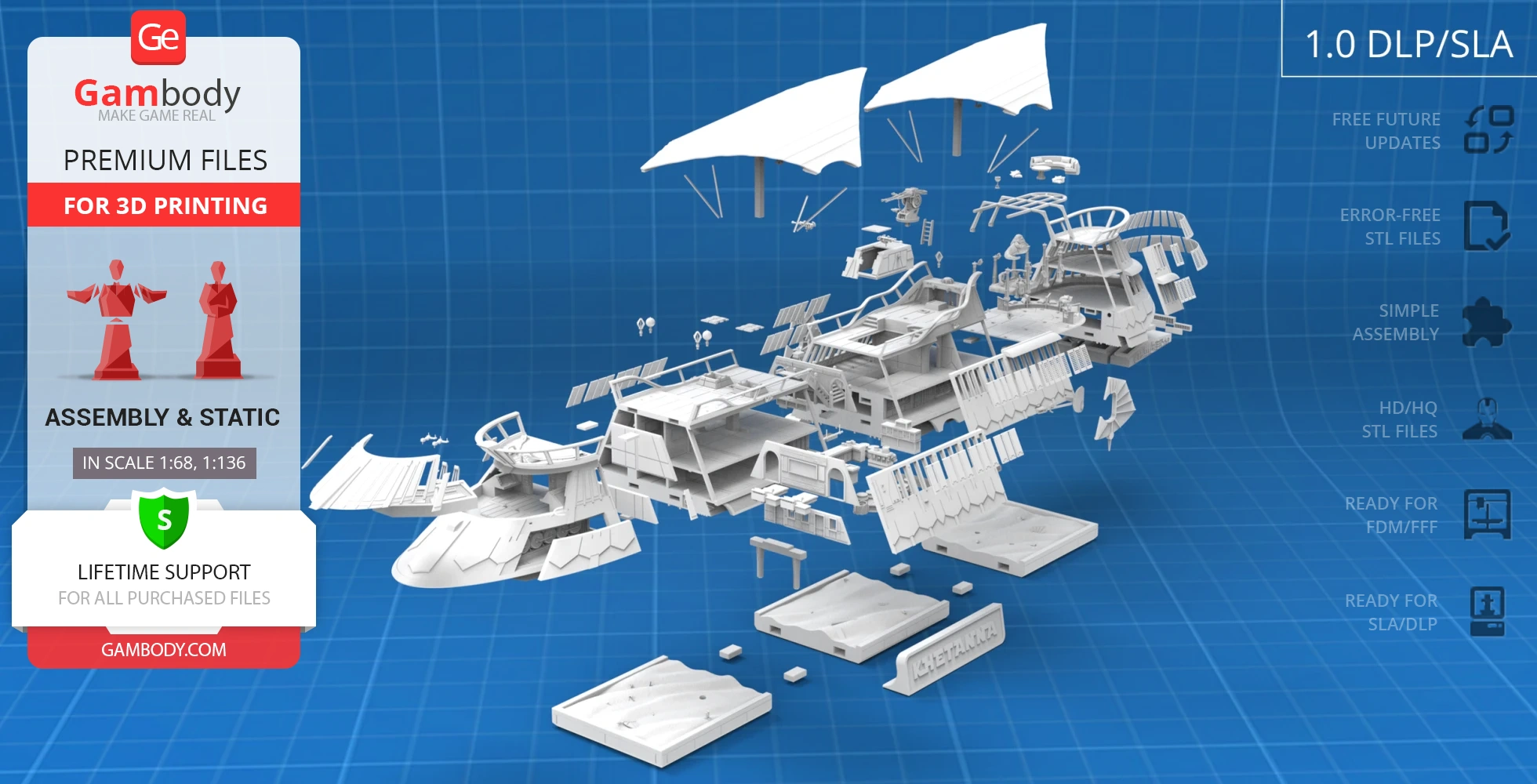

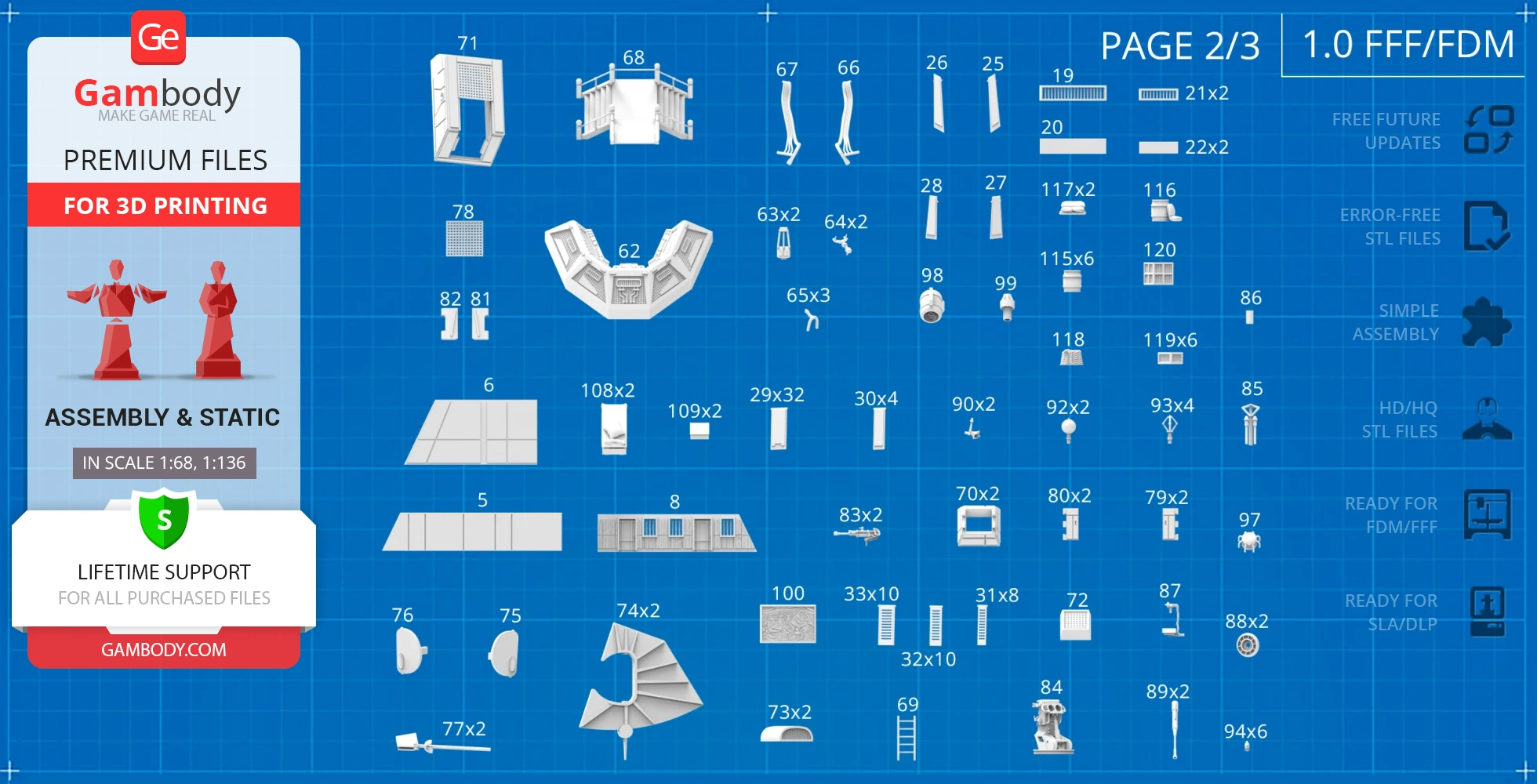

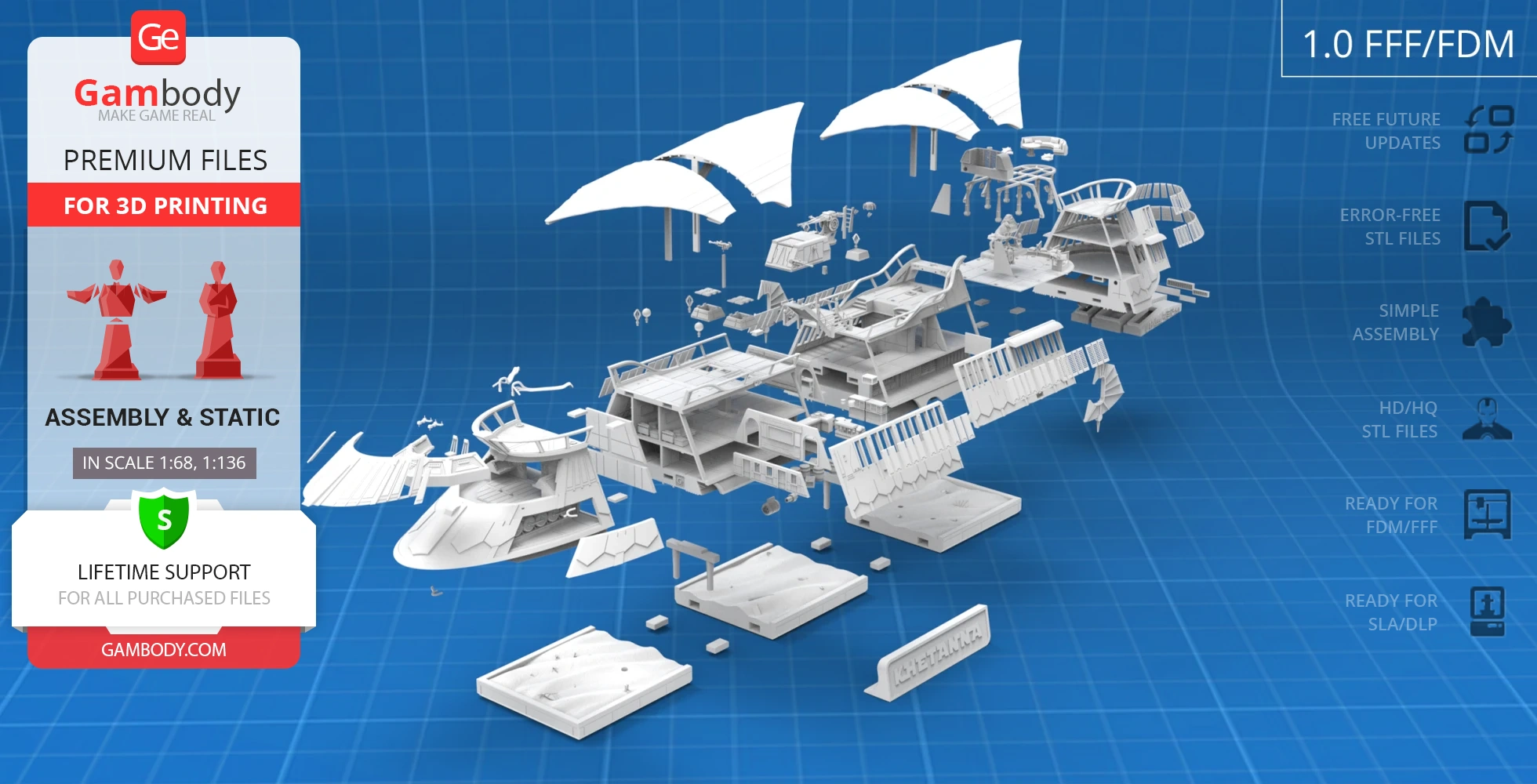

For you to receive the cleanest 3D printing result possible, minimize the amount of filament needed for generated support, and make use of the active elements designed by Gambody Engineers, the Jaba’s sail barge was divided into convenient assembly parts.

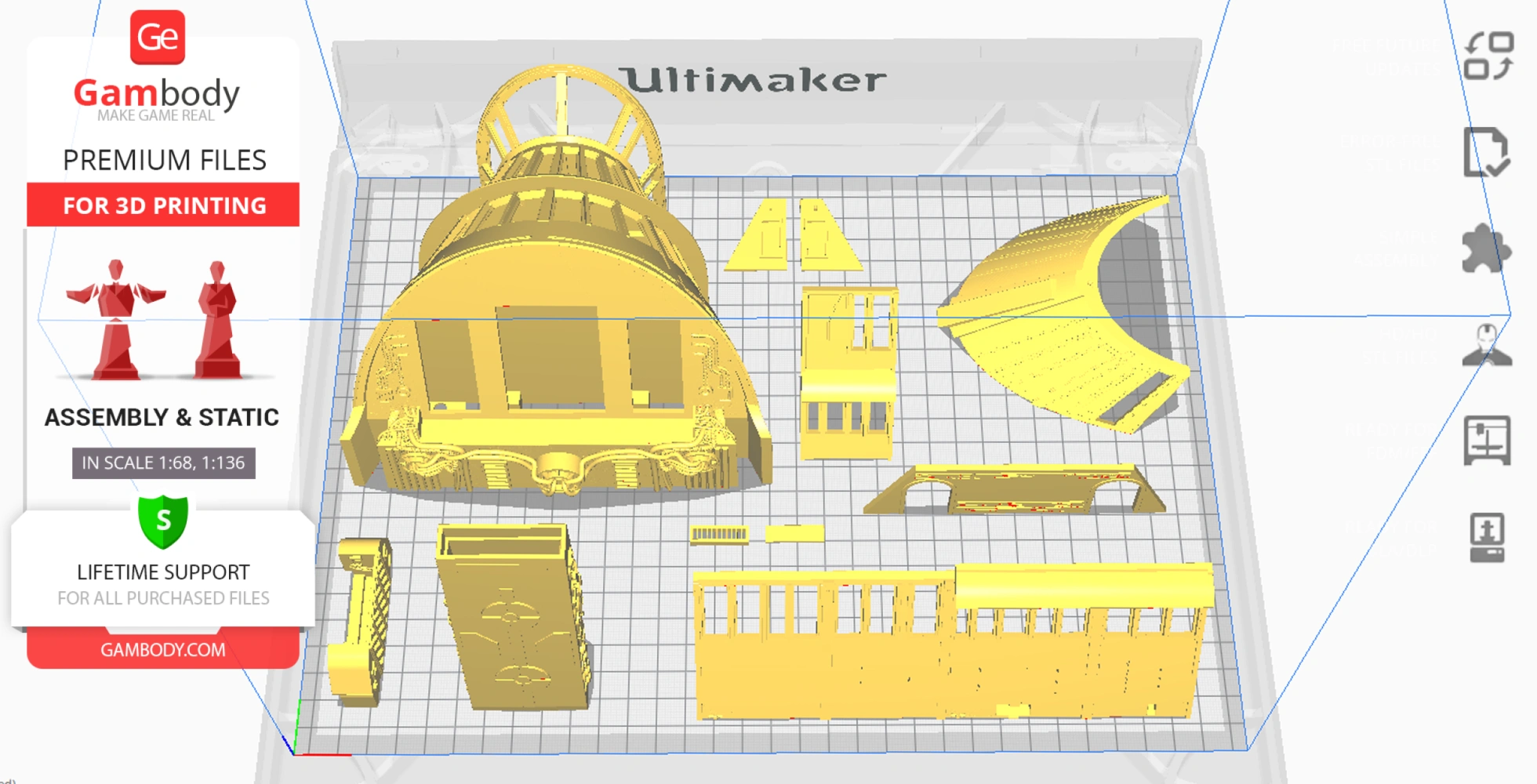

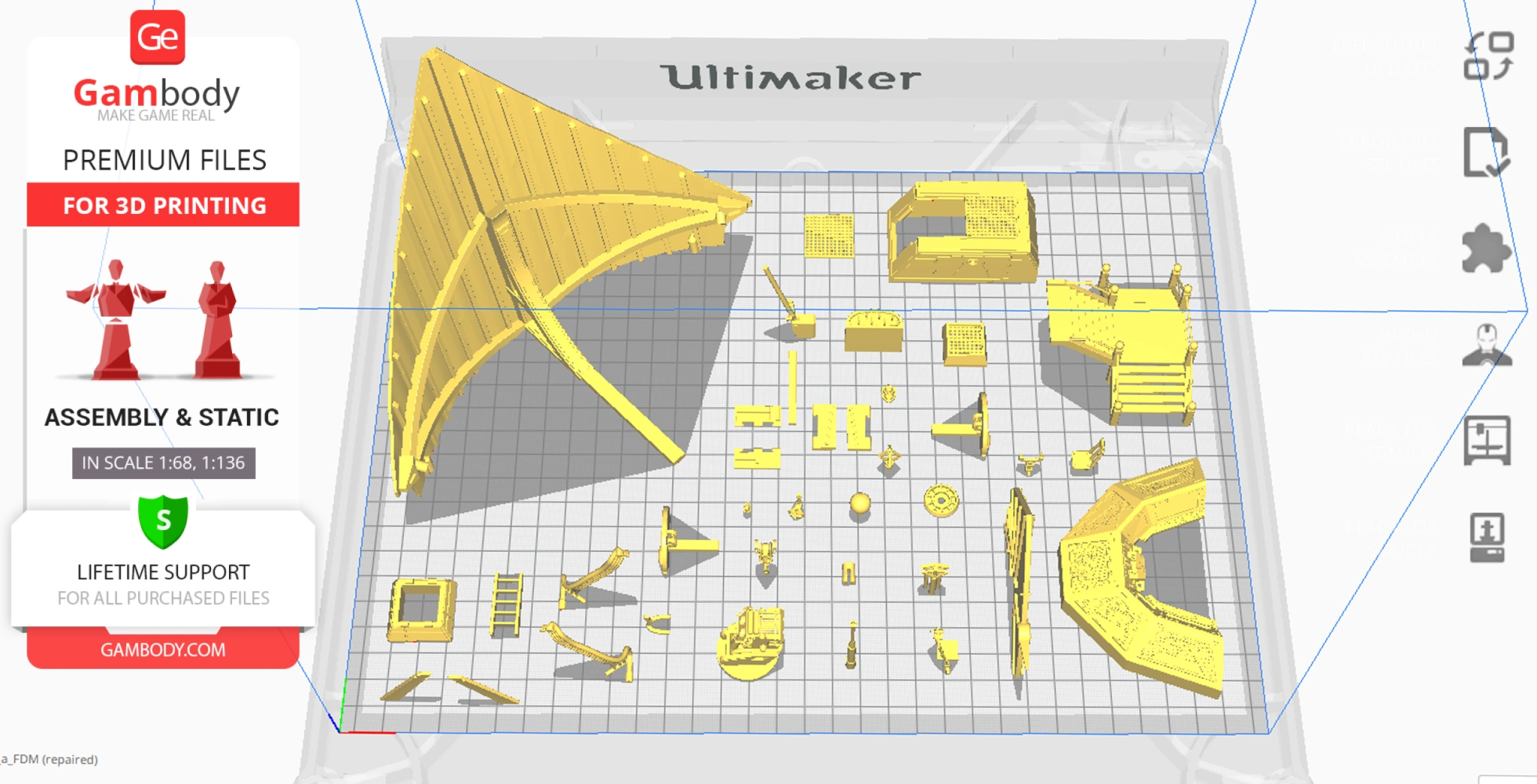

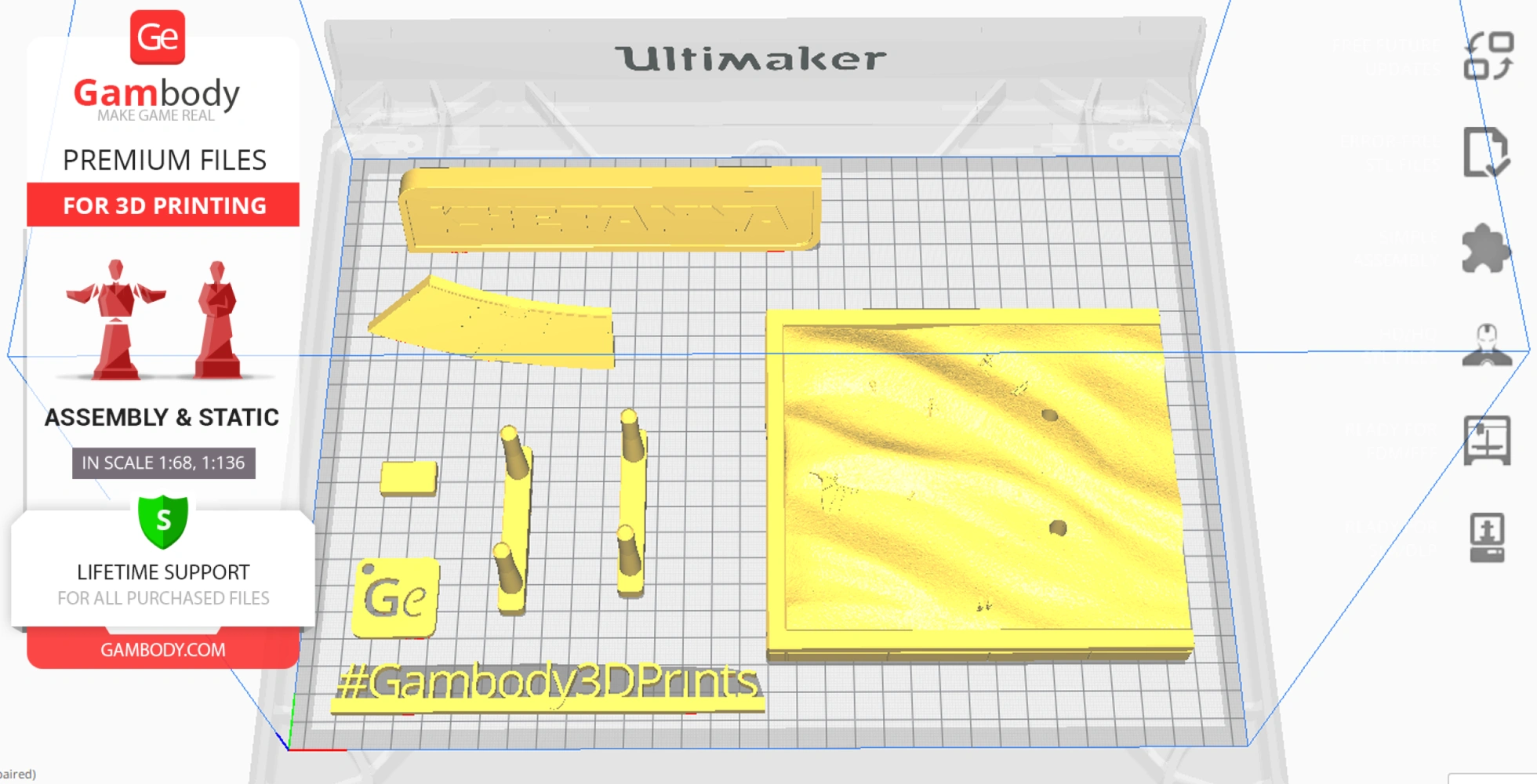

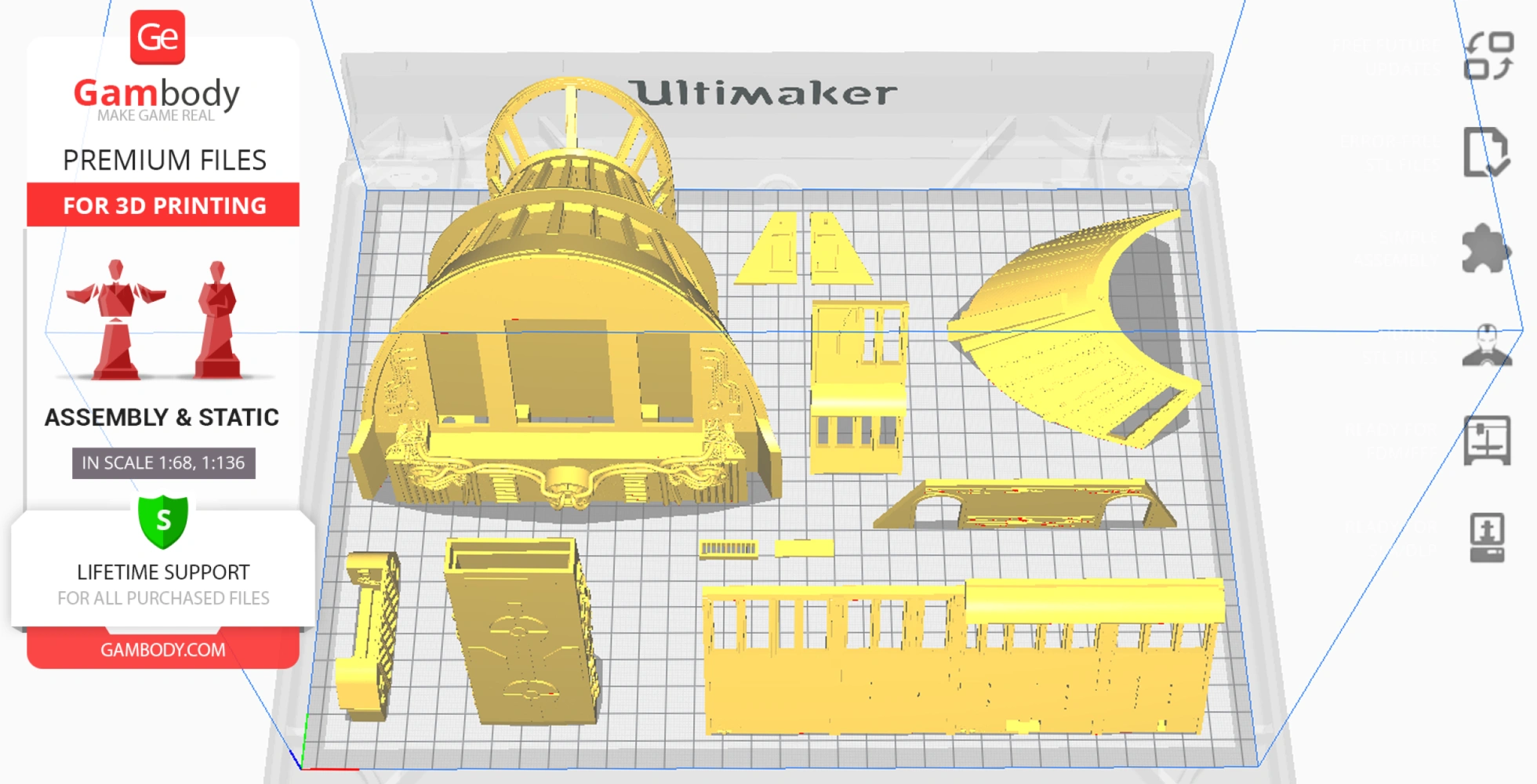

All assembly parts in the 1.0 FFF/FDM version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won’t face difficulties when placing the parts on a build plate. When downloading any model’s file you will also receive “Assembly Manual” for 1.0 FFF/FDM and 1.0 DLP/SLA versions in PDF and video formats. We highly recommend that you get acquainted with the “Assembly Video” and “Assembly Manual” before getting down to the Khetanna sail barge 3D model.

The design is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The 3D model’s scale was calculated from the length of the Star Wars Jabba’s sail barge. The 3D printer design’s chosen scales are 1:68 for the FFF/FDM version and 1:136 for the DLP/SLA version.

VERSIONS’ SPECIFICATIONS

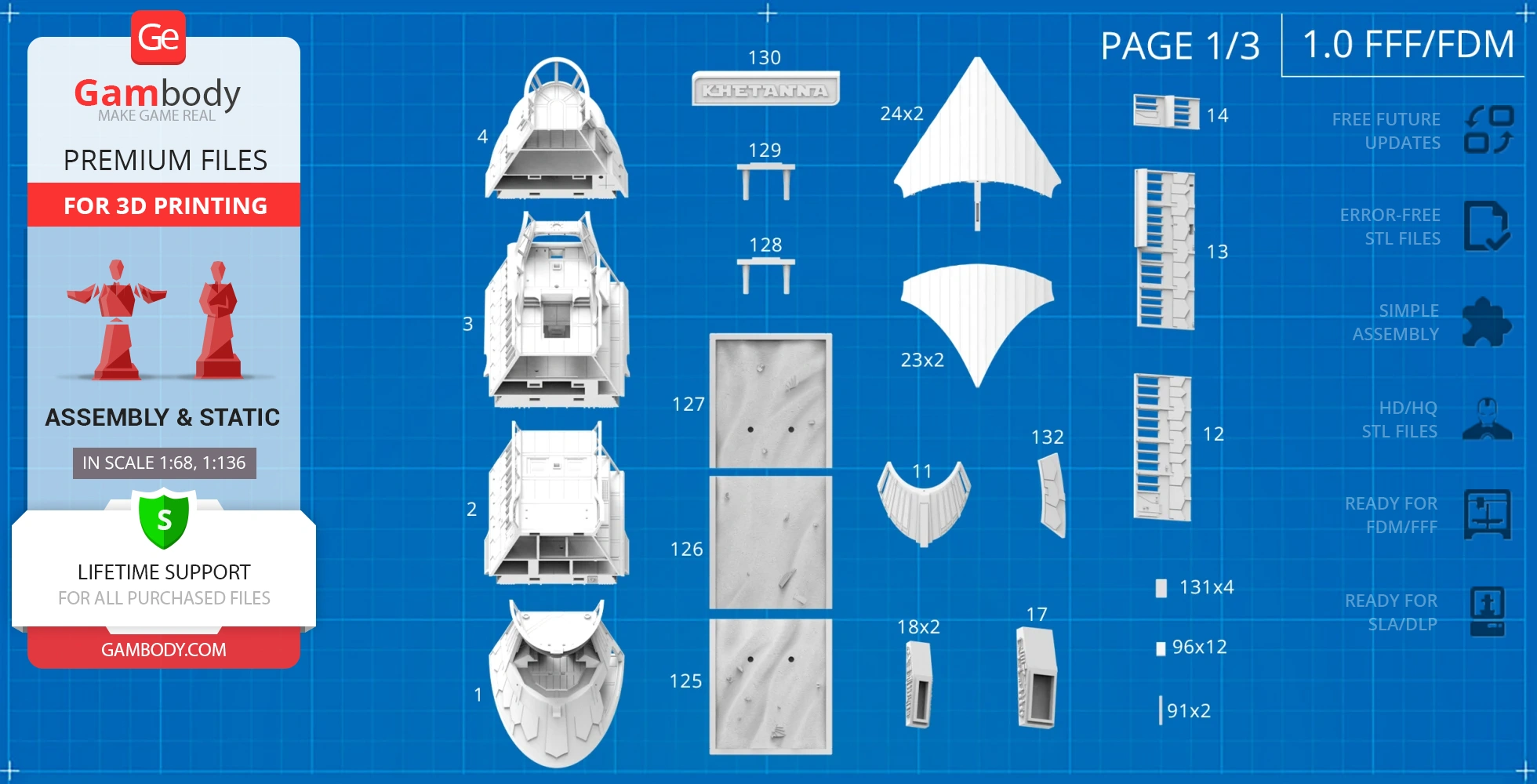

FFF/FDM 1.0 version features:

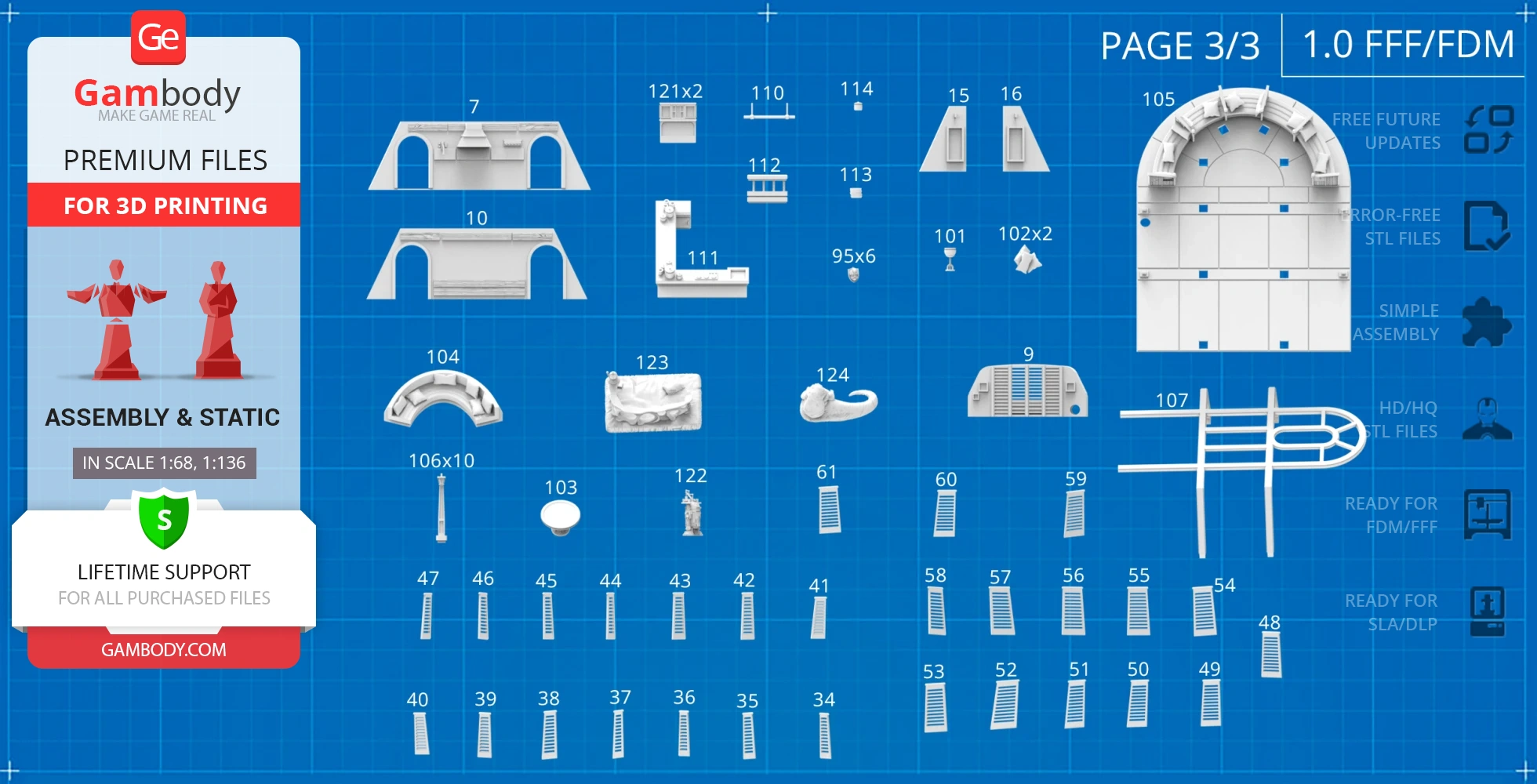

• Contains 132 parts;
• A printed design is 228 mm tall, 181 mm wide, 641 mm deep;

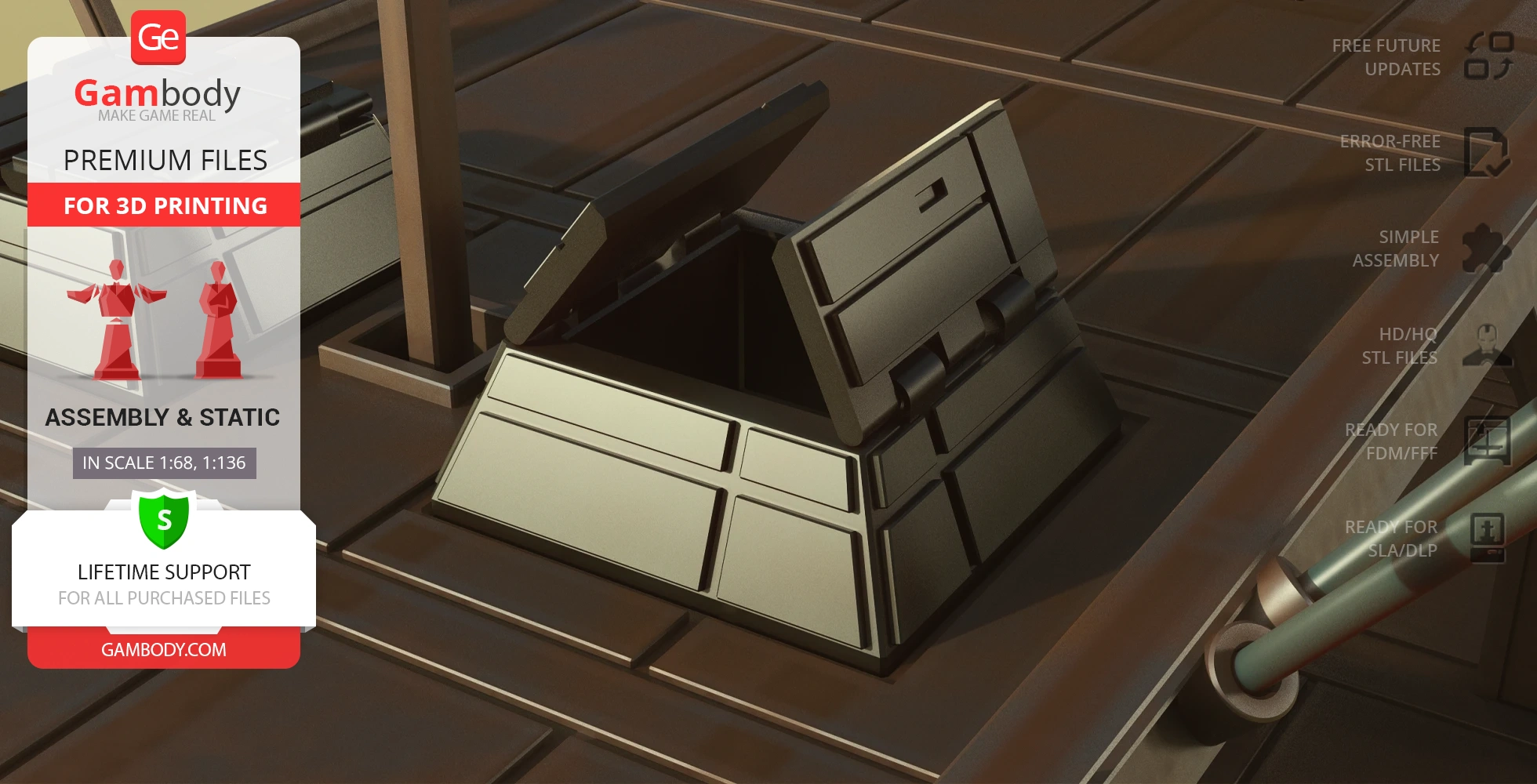

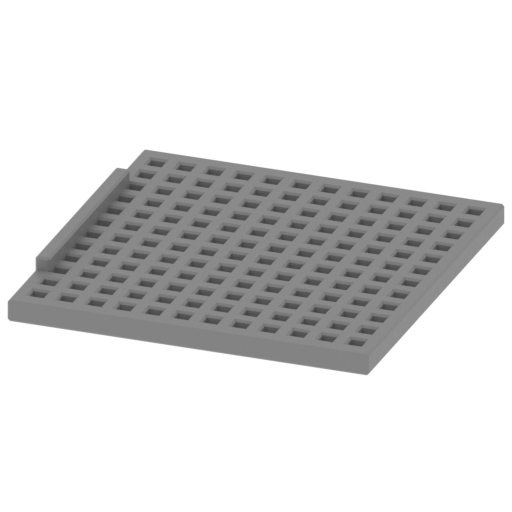

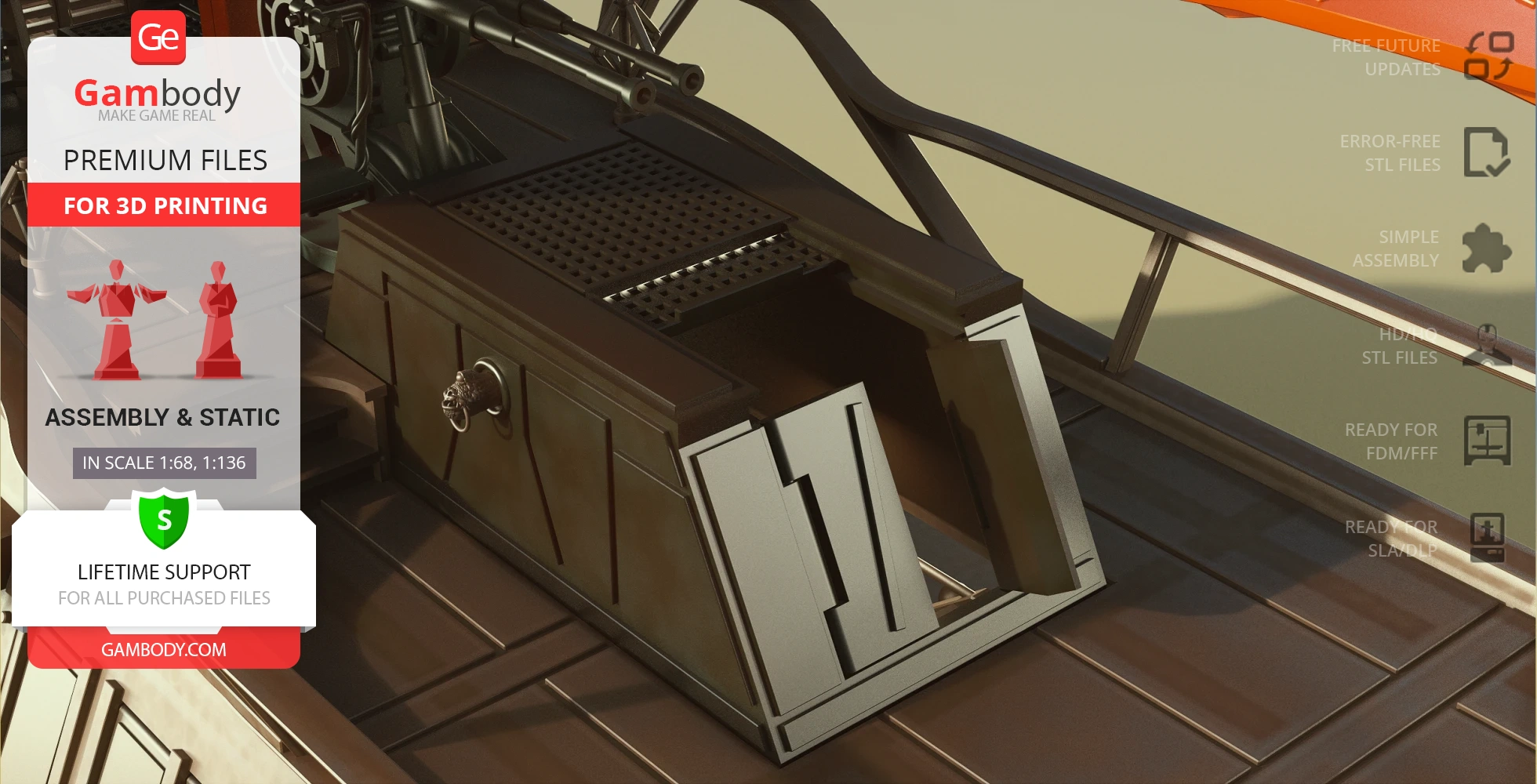

• Movable grating and deck hatch;

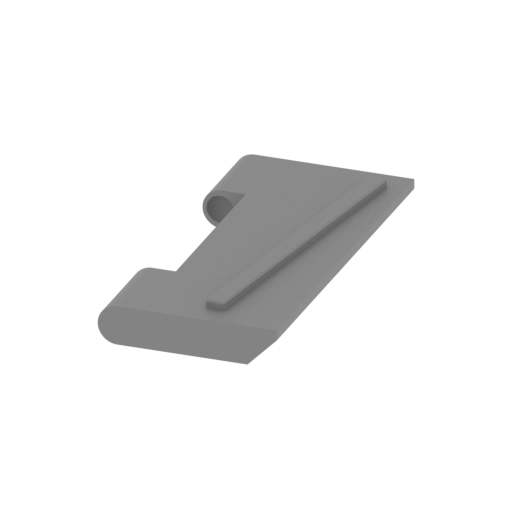

• Opening hatch doors;

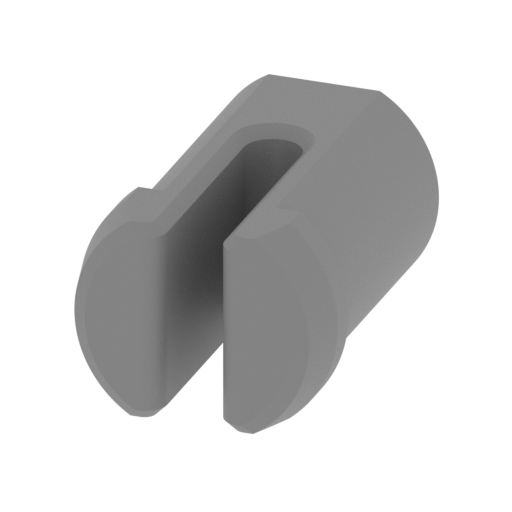

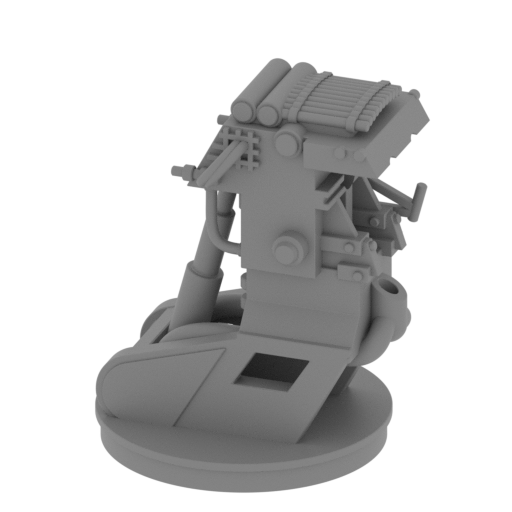

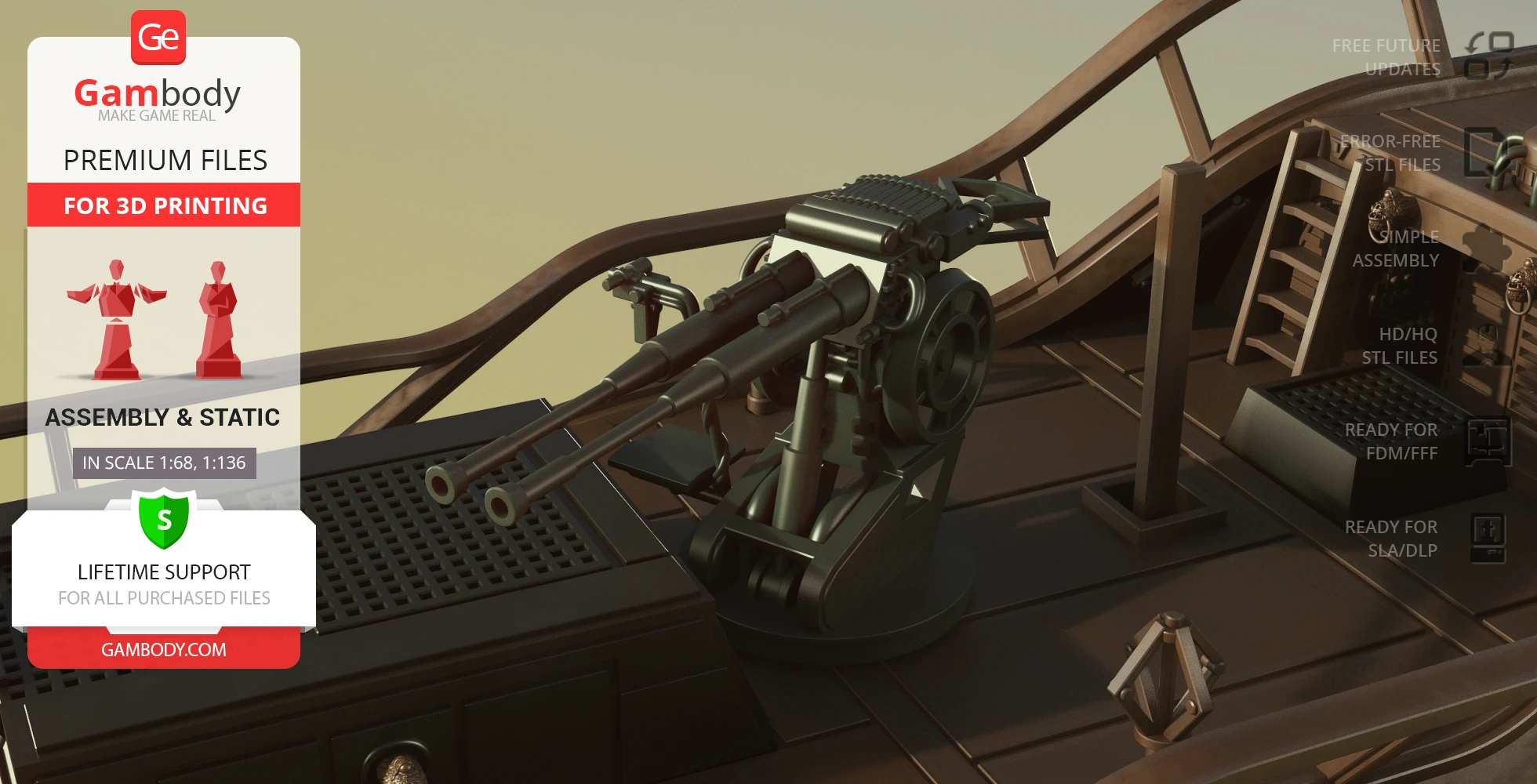

• Movable double laser cannon;

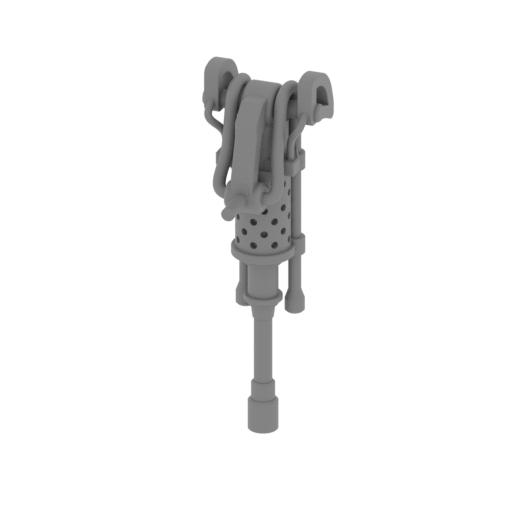

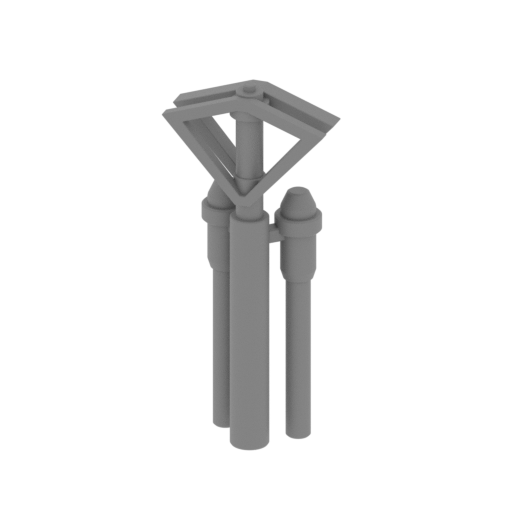

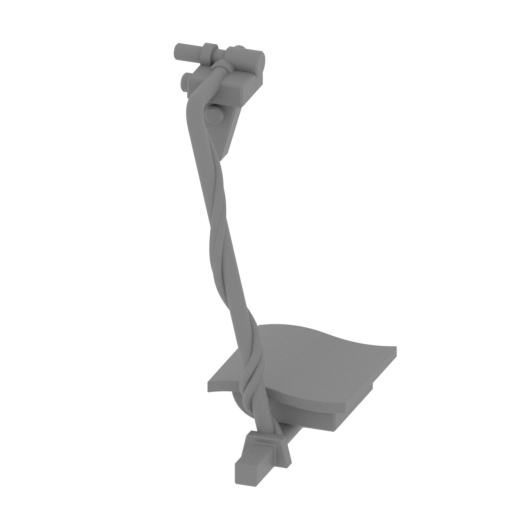

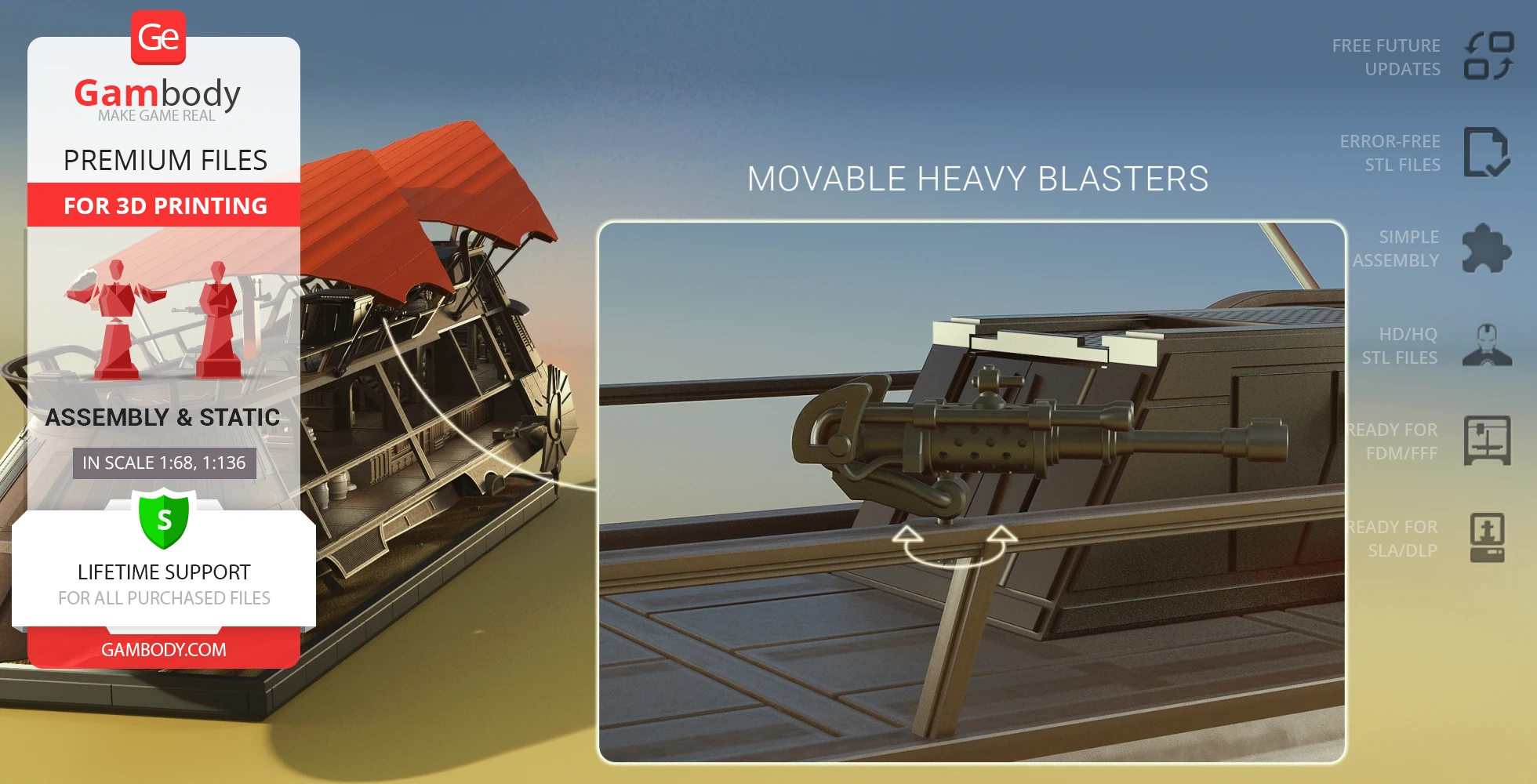

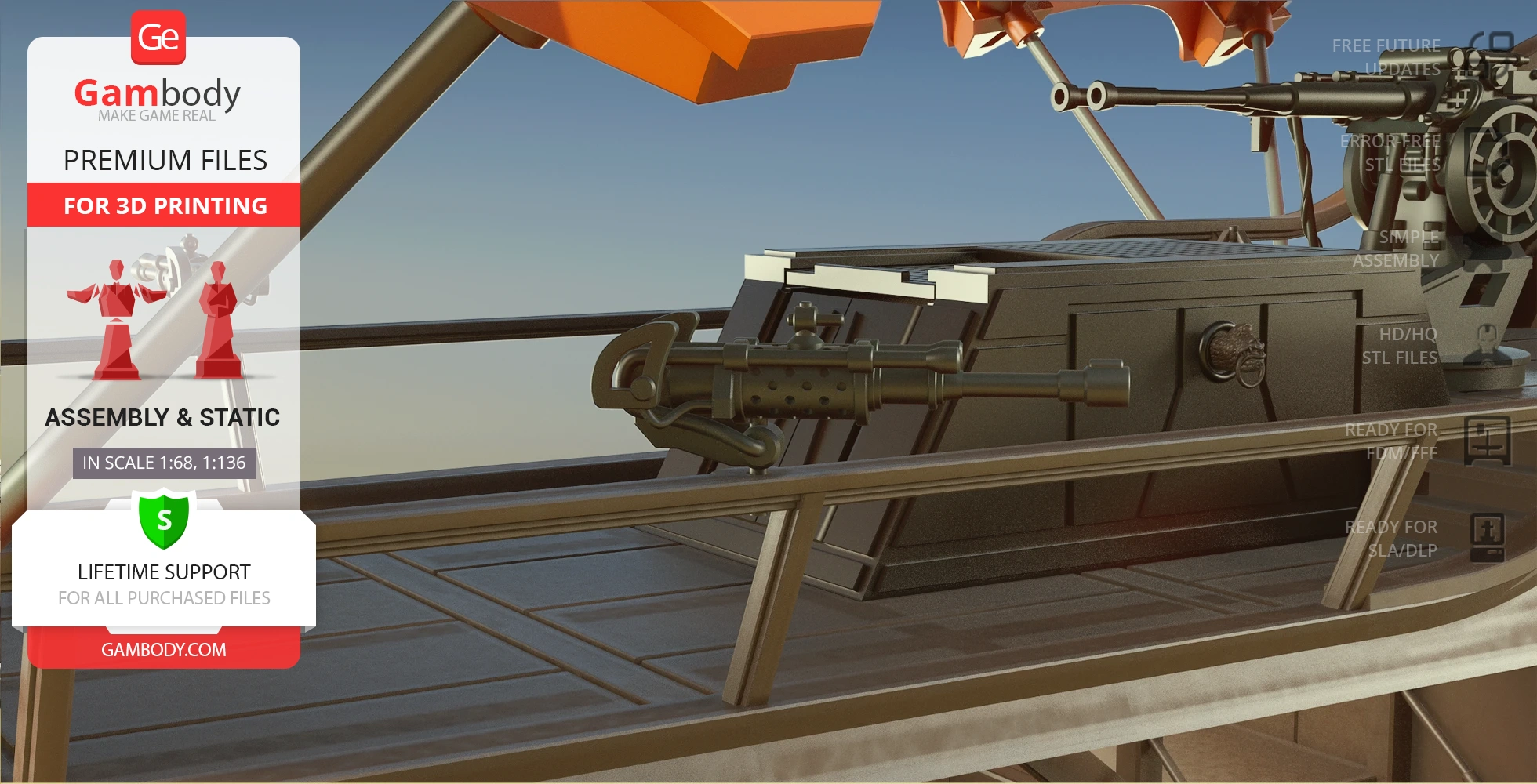

• Movable heavy blasters;

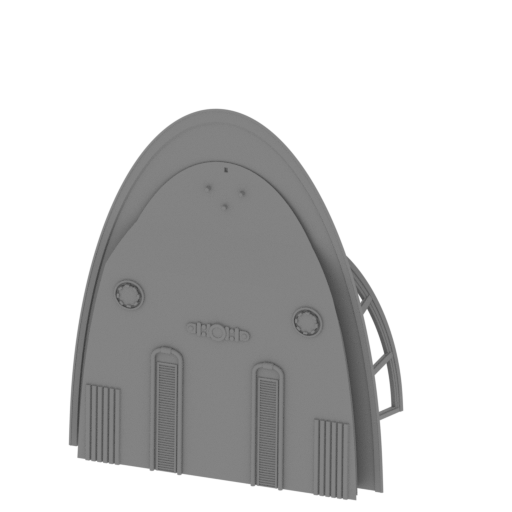

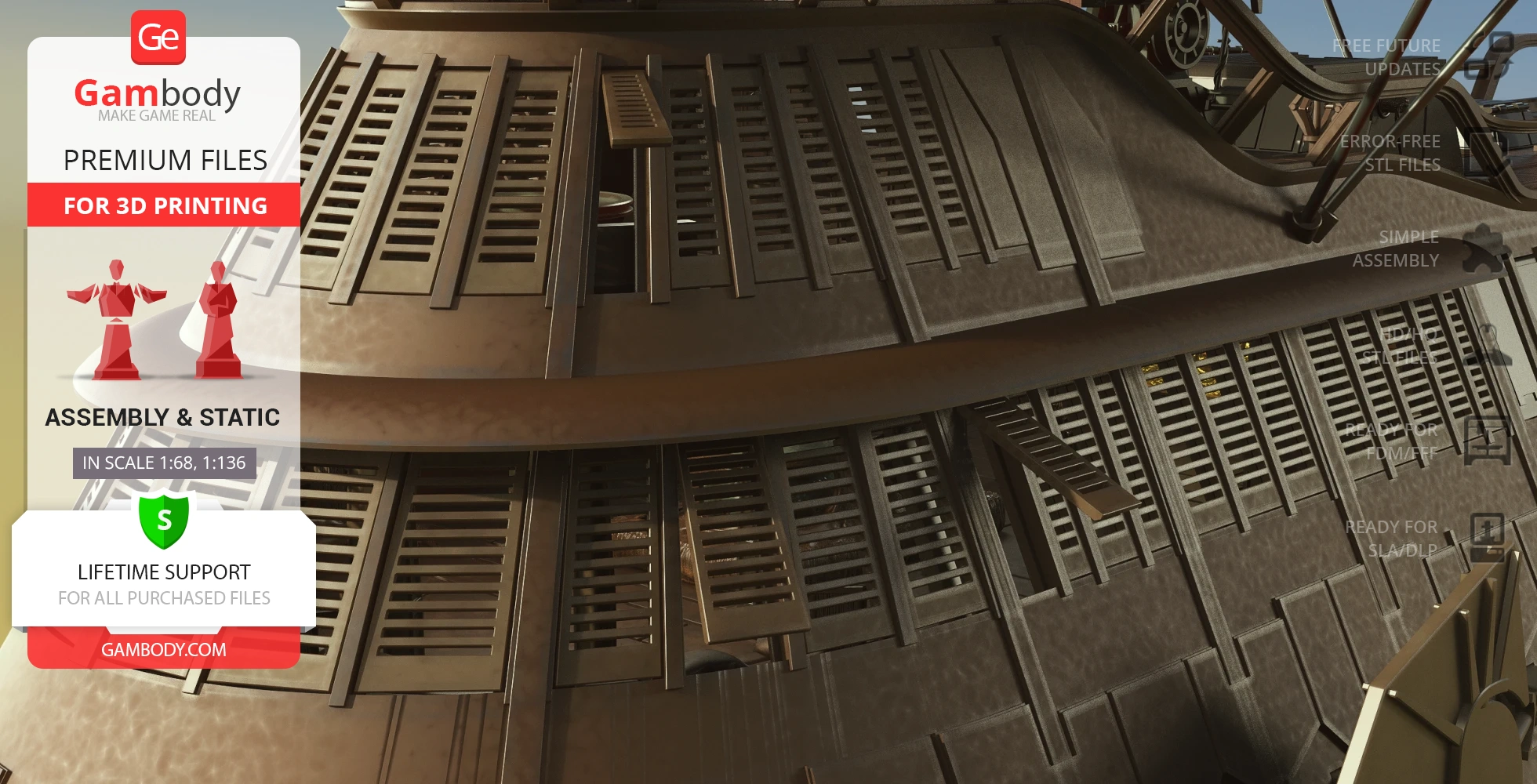

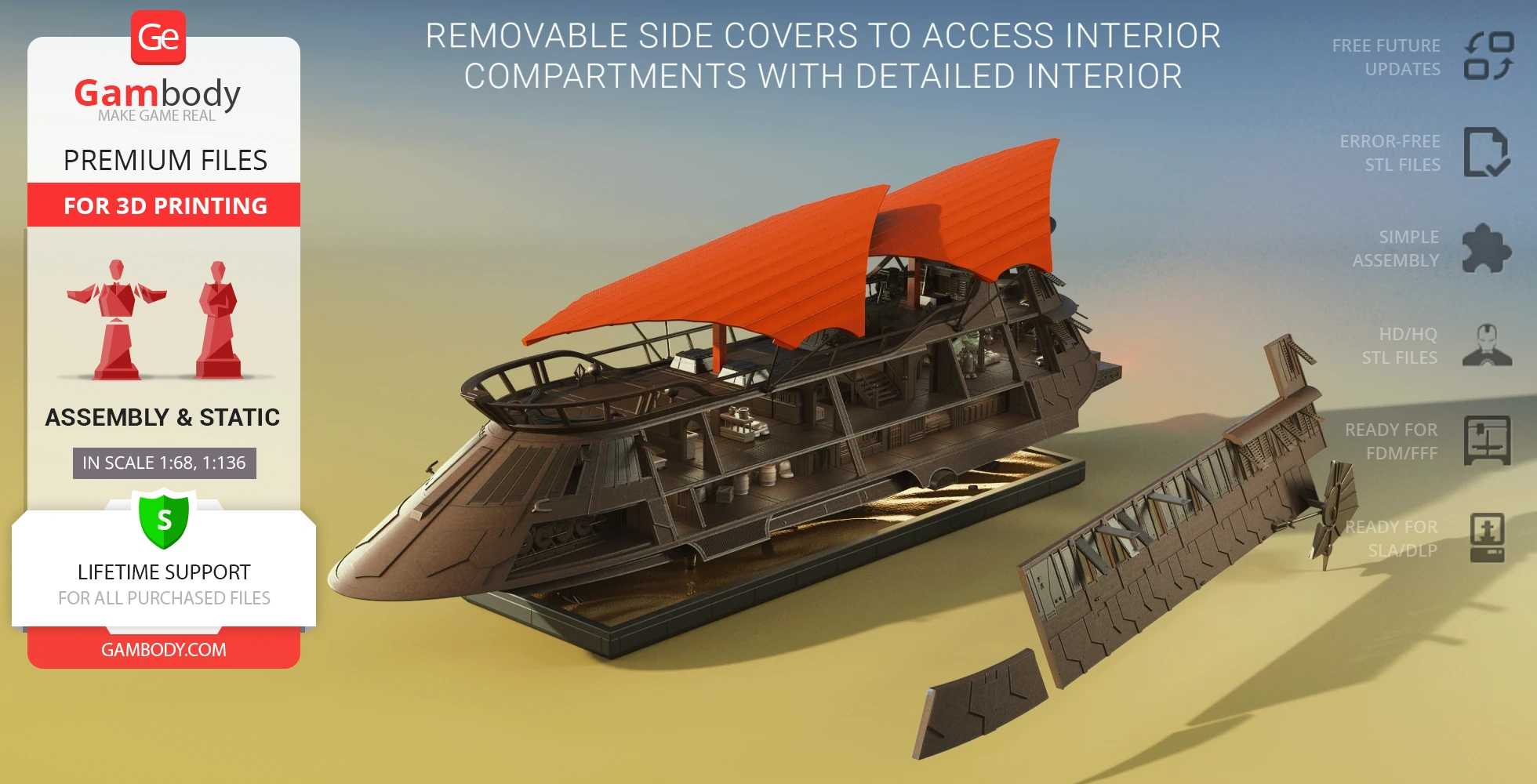

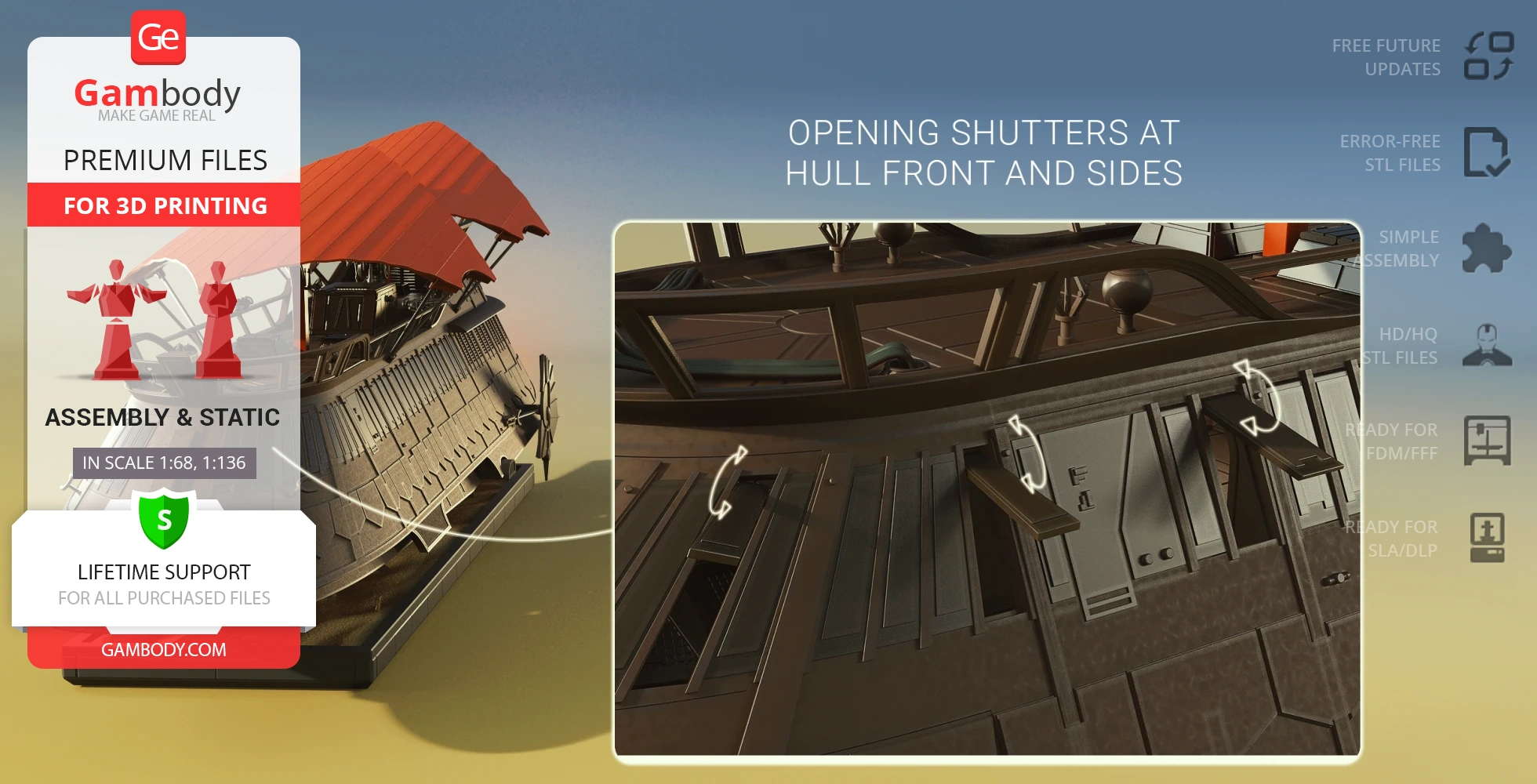

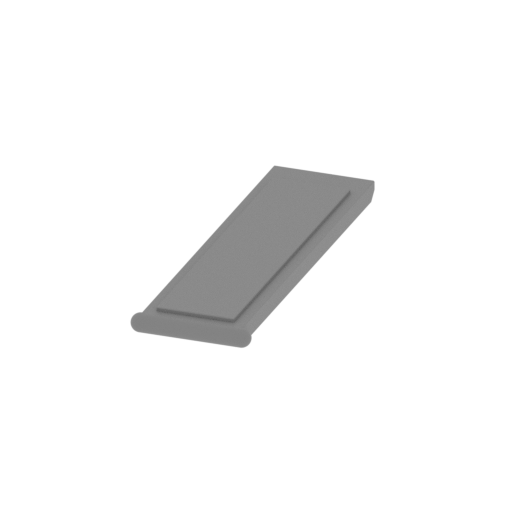

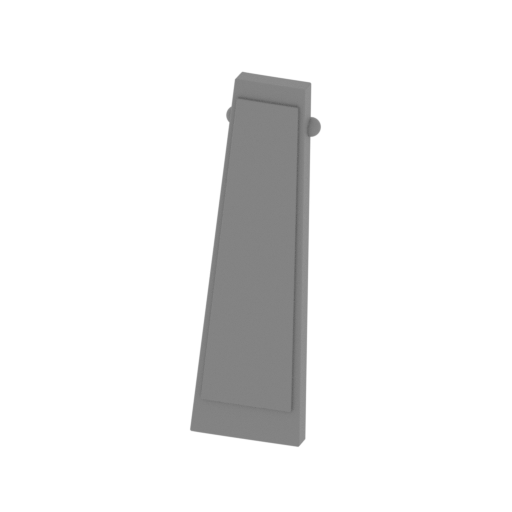

• Opening shutters at hull front and sides;

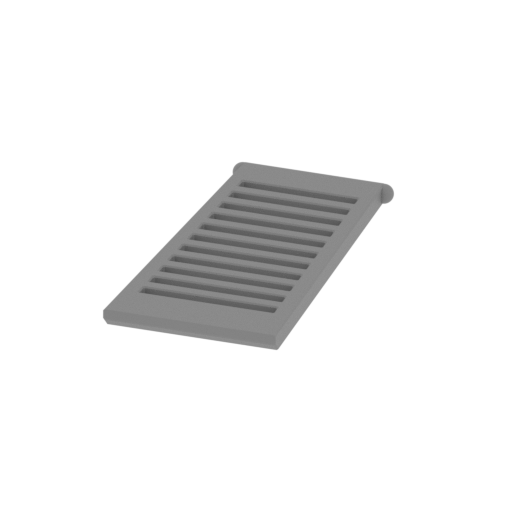

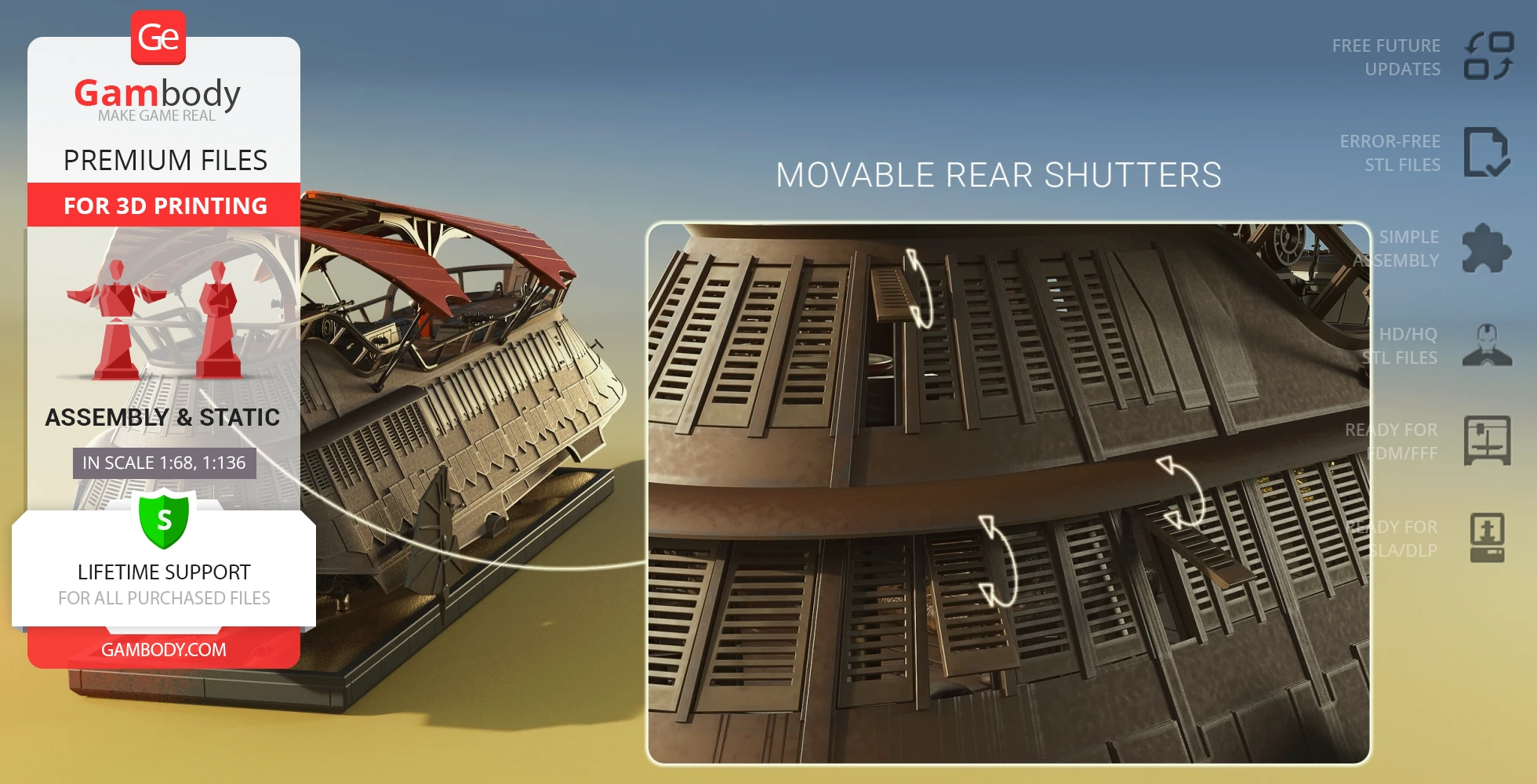

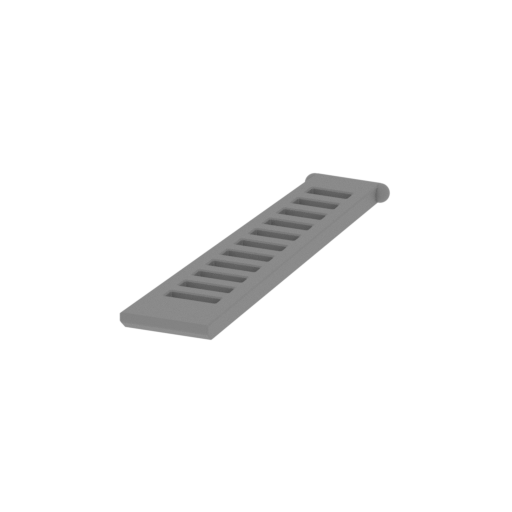

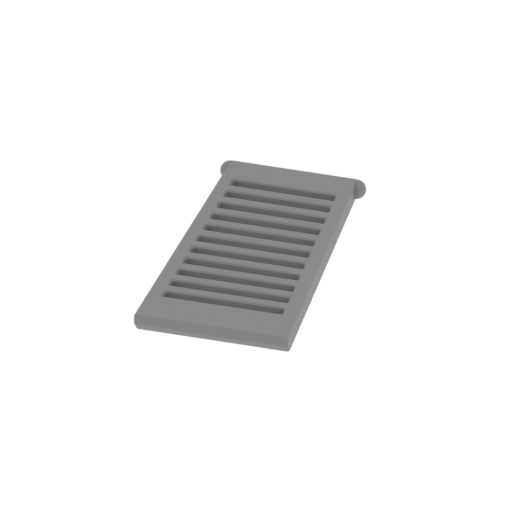

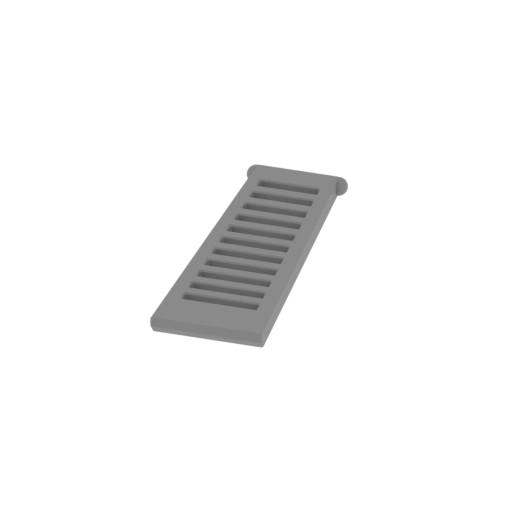

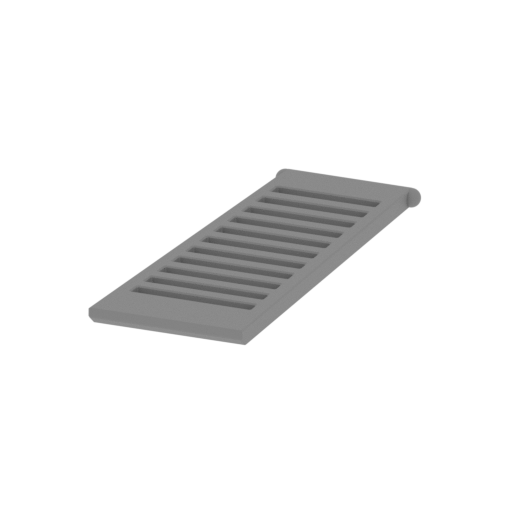

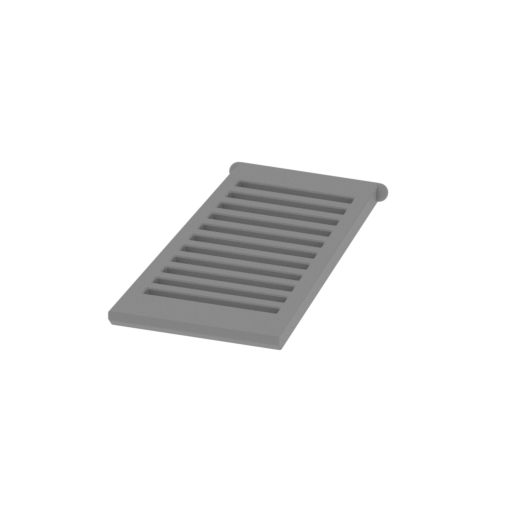

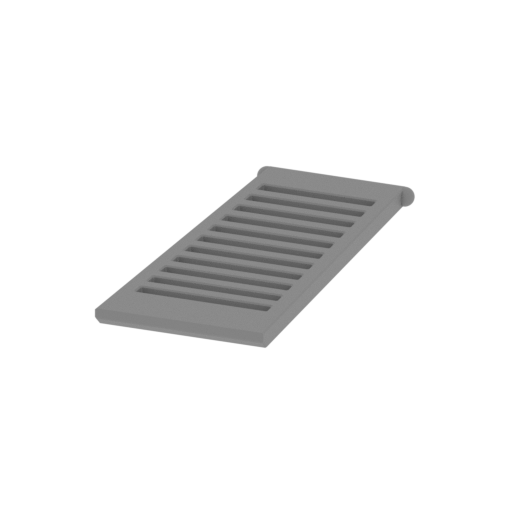

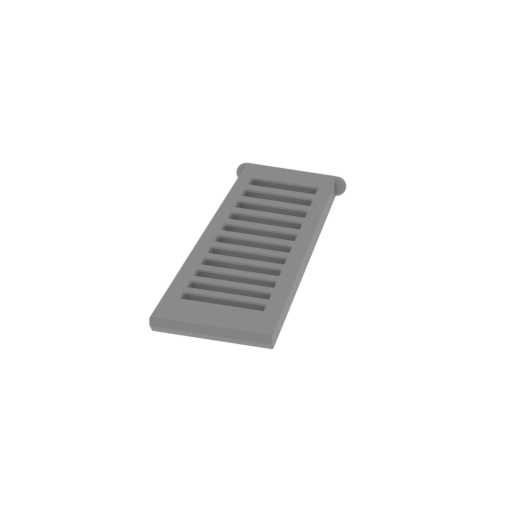

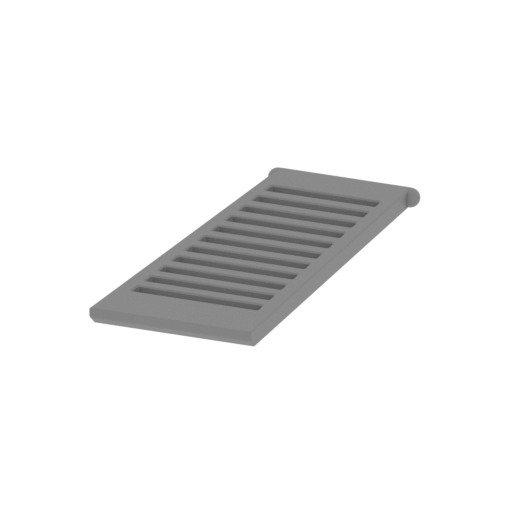

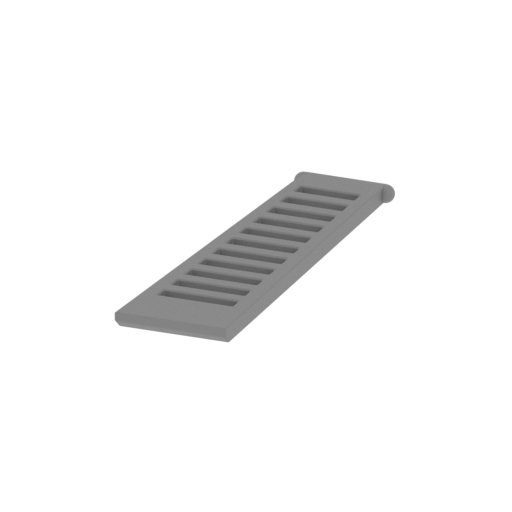

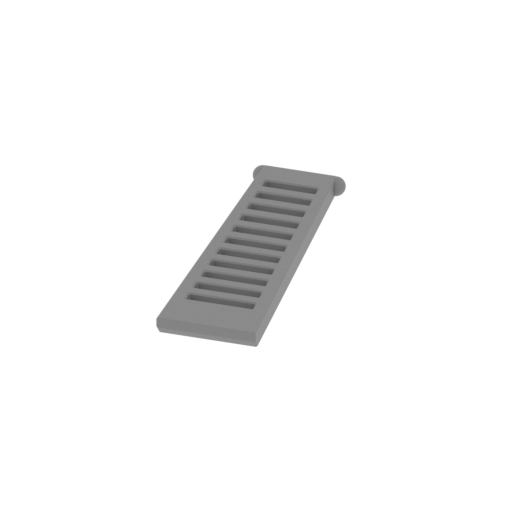

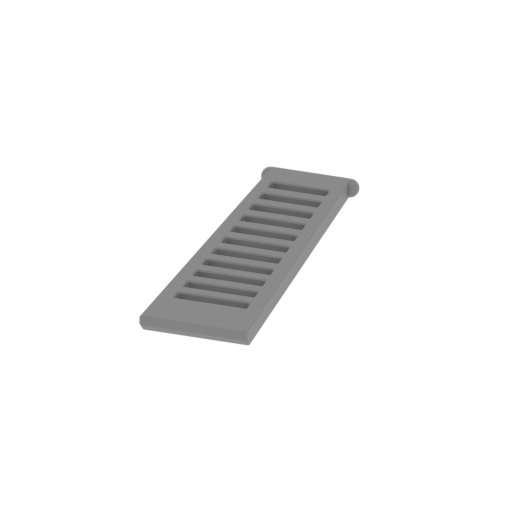

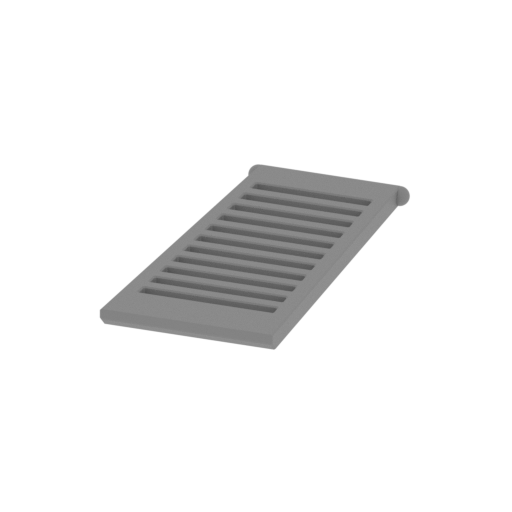

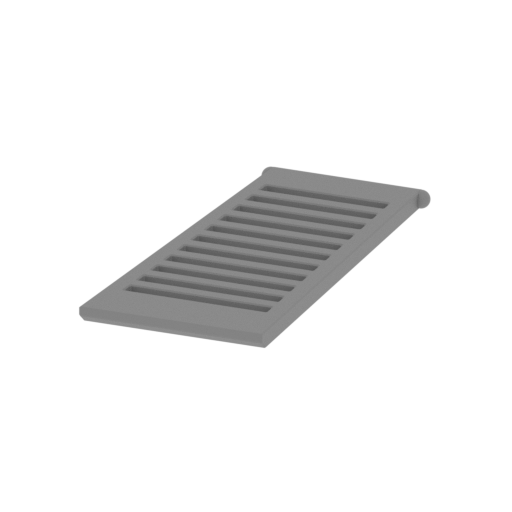

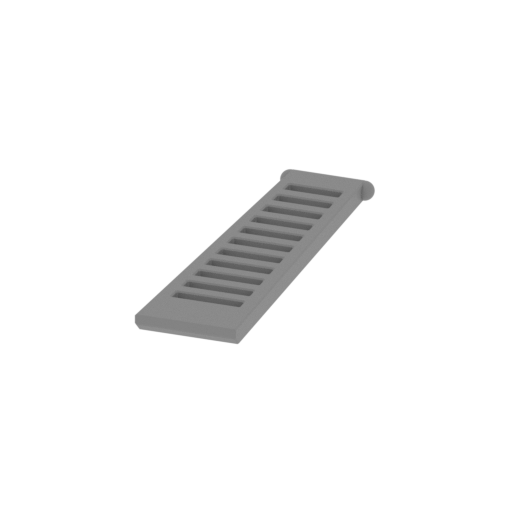

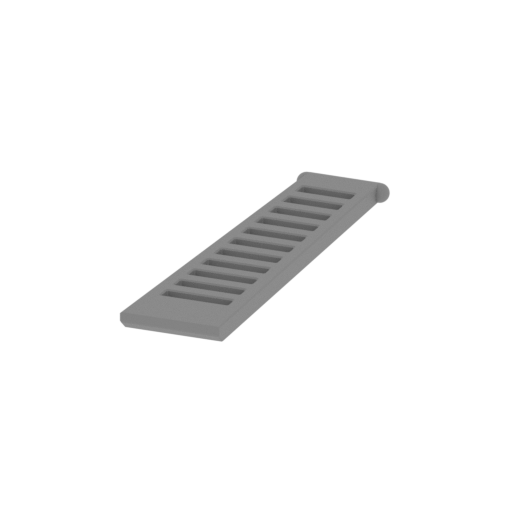

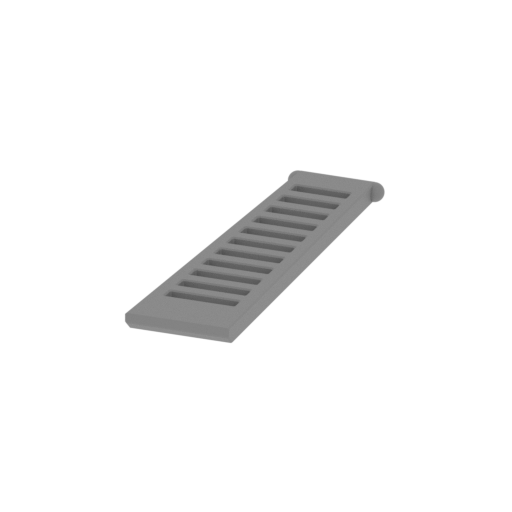

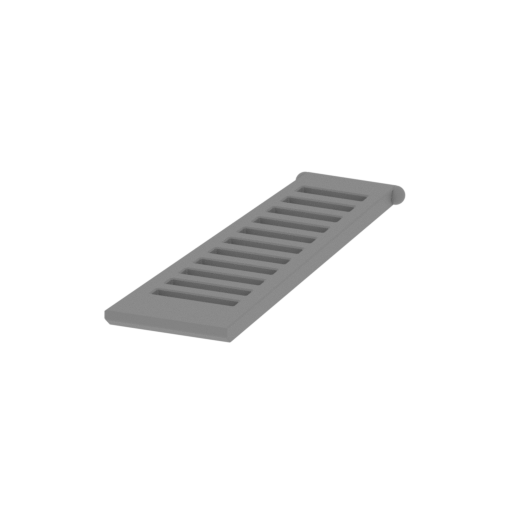

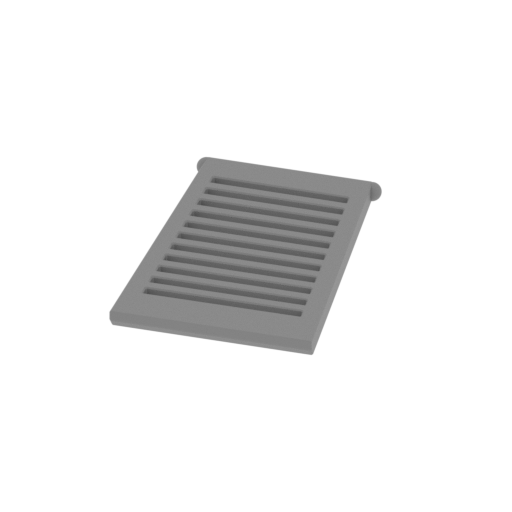

• Movable rear shutters;

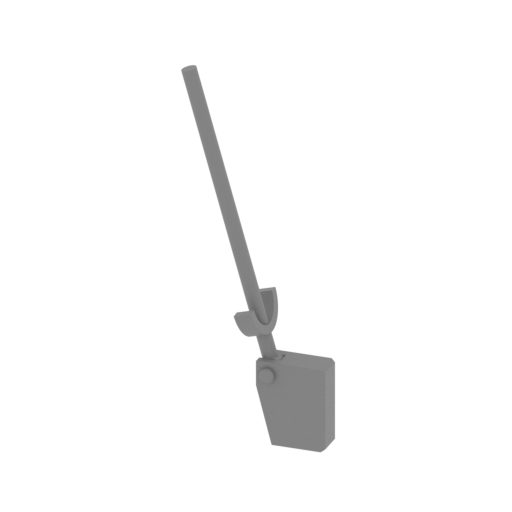

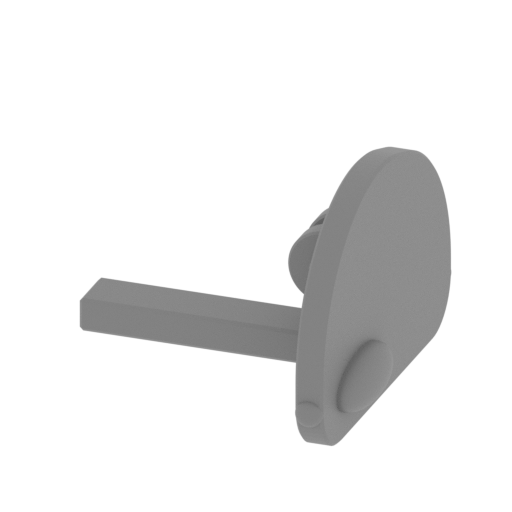

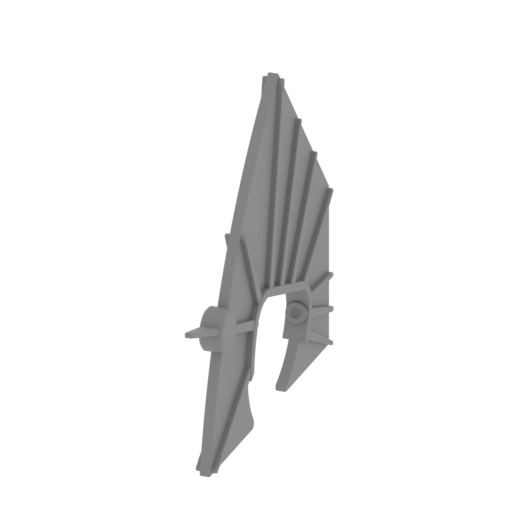

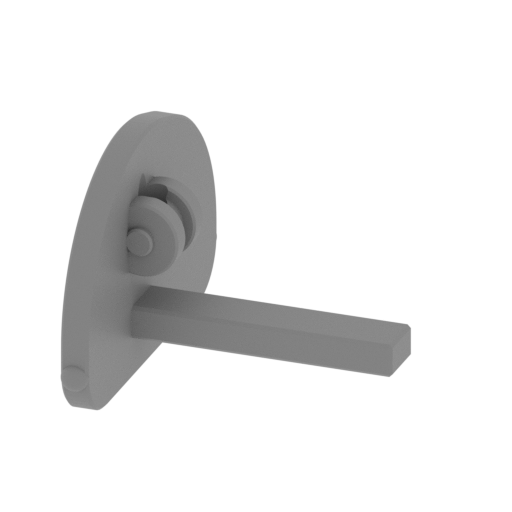

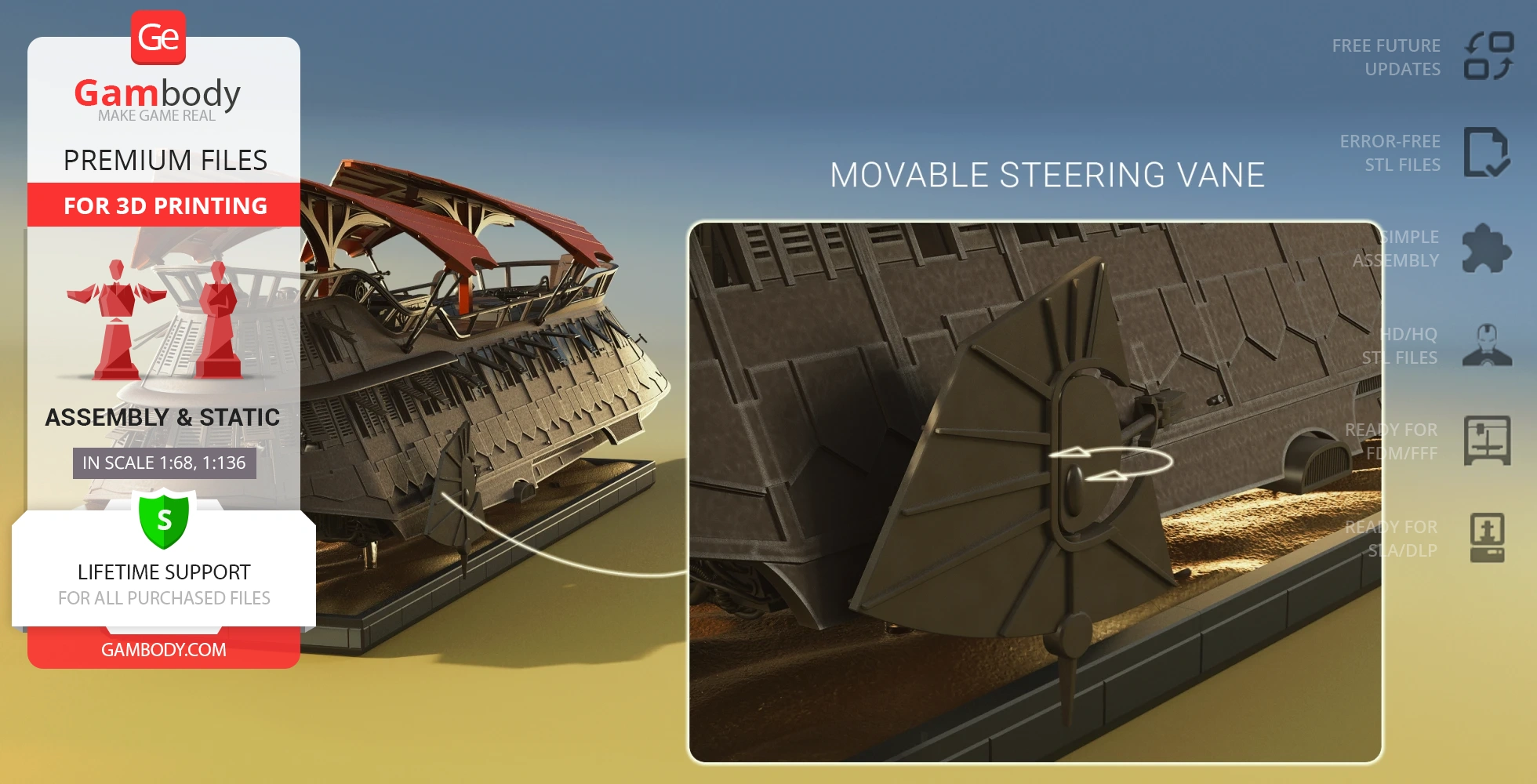

• Movable steering vane;

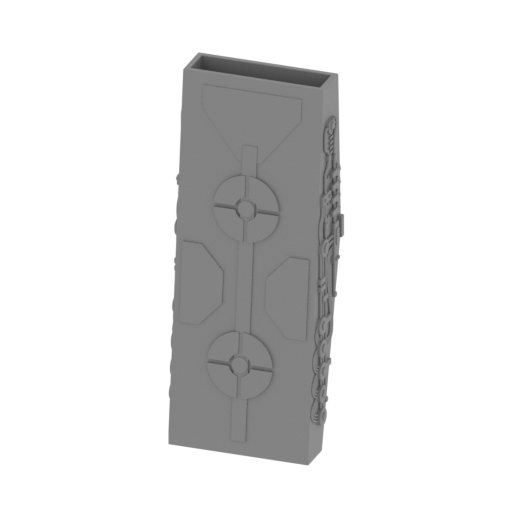

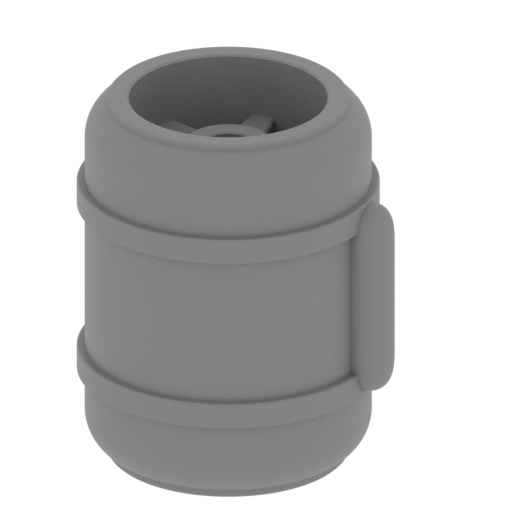

• Tunnels for LED wiring to light up engines and interior of the barge;
• All parts are divided in such a way that you will print them with the smallest number of support structures.

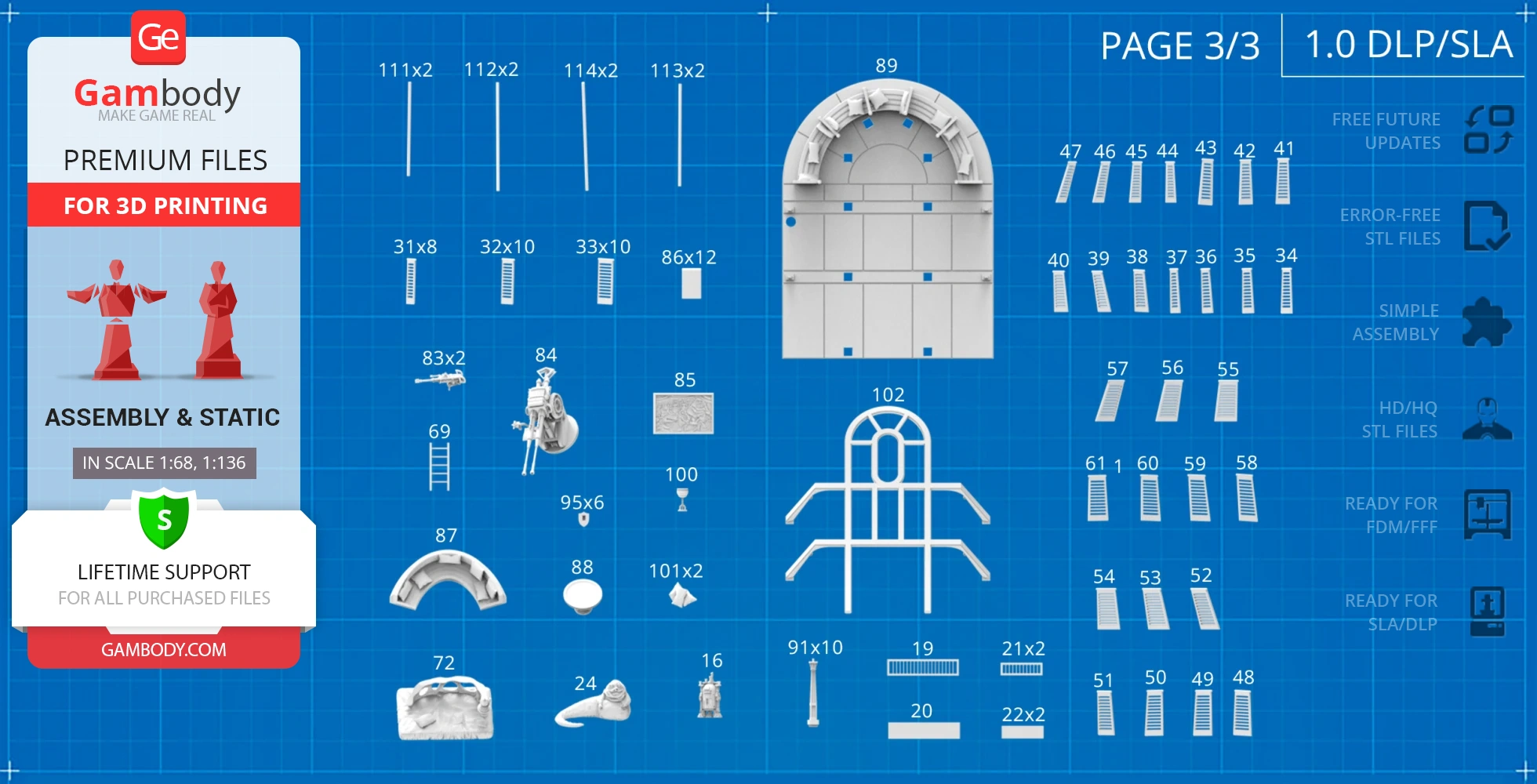

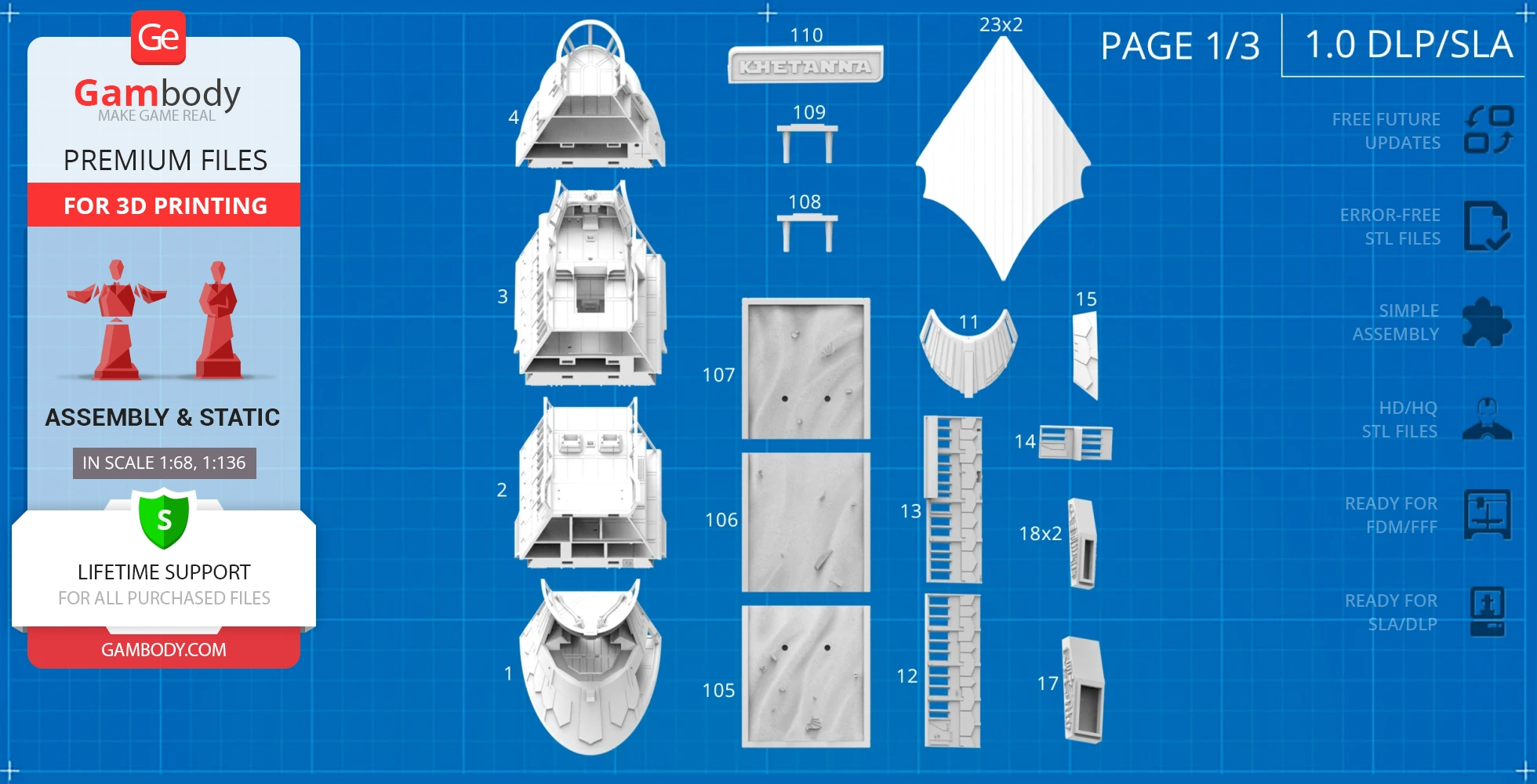

DLP/SLA 1.0 version features:

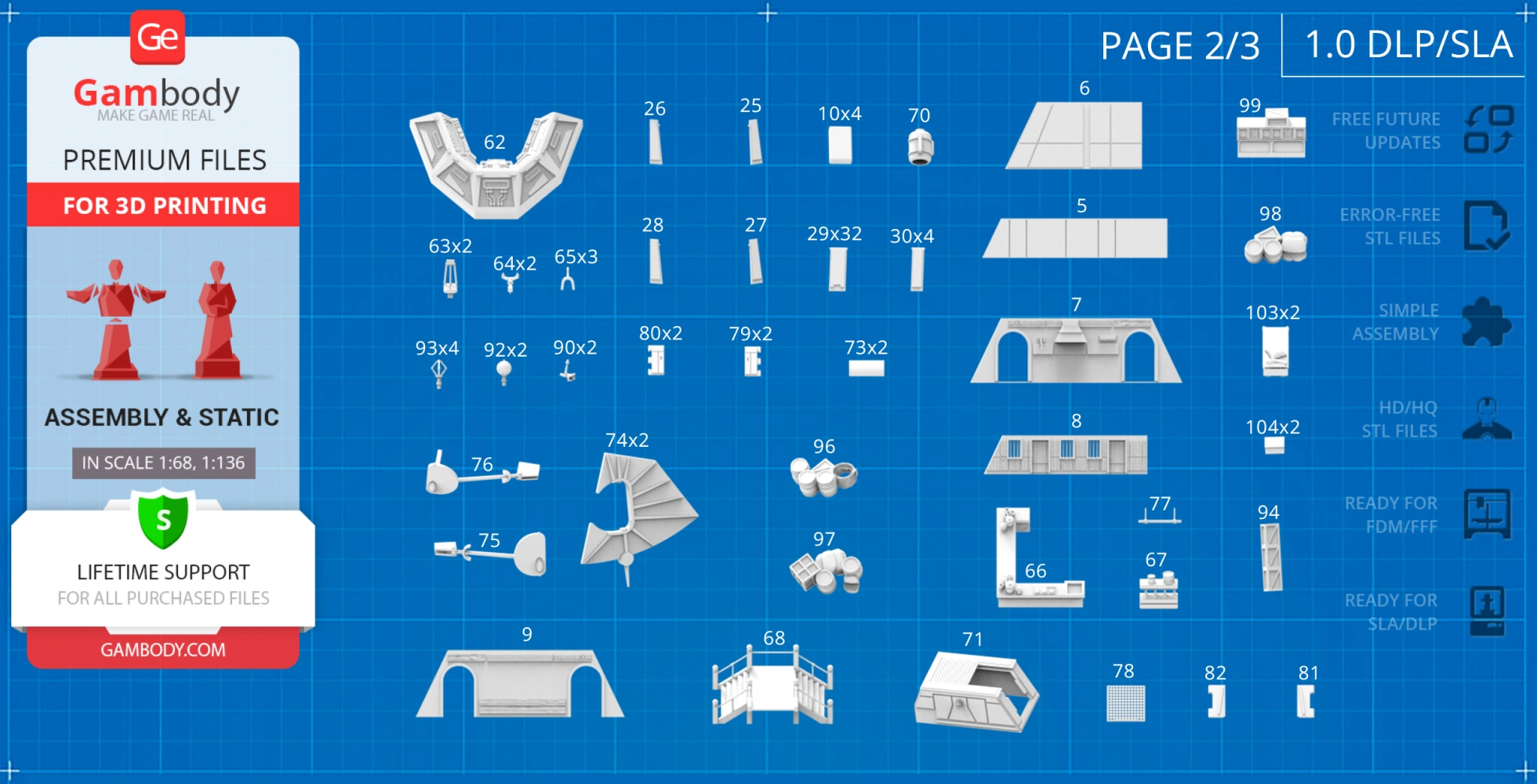

• Contains 114 parts;
• A printed design is 114 mm tall, 91 mm wide, 320 mm deep;
• Movable grating and deck hatch;
• Opening hatch doors;
• Movable double laser cannon;
• Movable heavy blasters;
• Opening shutters at hull front and sides;
• Movable rear shutters;
• Movable steering vane;
• Tunnels for LED wiring to light up engines and interior of the barge;
• All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

You can get the STL files of Khetanna for 3D printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble the 3D printed Khetanna sail barge from the provided 3D print files on Gambody YouTube channel.

Also, you may like other Star Wars 3D printer designs.

________

FAQ:

• Where can I print a model if I have no printer?
• How to get started with 3D printing?
• How to set up my 3D printer?
• How to choose right 3D model print bed positioning?
• How to paint 3D printed objects?

Generic

Below you can find printing recommendations for Cura, Bambu Lab, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

All connectors should be printed at 100% Infill.

Bambu Lab printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Bambu Studio 1.9.5. Test models were printed on the Bambu Lab A1, Bambu Lab A1 Mini, Creality Ender 3 S1, Anycubic Kobra 2, and Anycubic Vyper using PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.8.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
