Katarina 3D Model STL | Static Model

“Never question my loyalty. You will never know what I endure for it.” -- Katarina

LoL Katarina 3D model replicates the video game character, the assassin for the glory of Noxus. Taking her courage and gift for combat from her father, one of the best assassins in Noxus, Katarina benefitted from a training that made her take assignments in a very short time.

The passion with which he throws herself in her missions is to be envied by all those involved in her field of activity. Katarina doesn’t let her passion interfere with her duty.

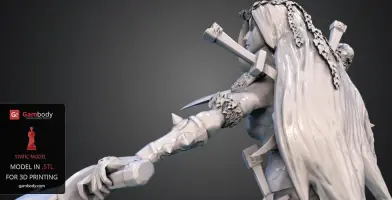

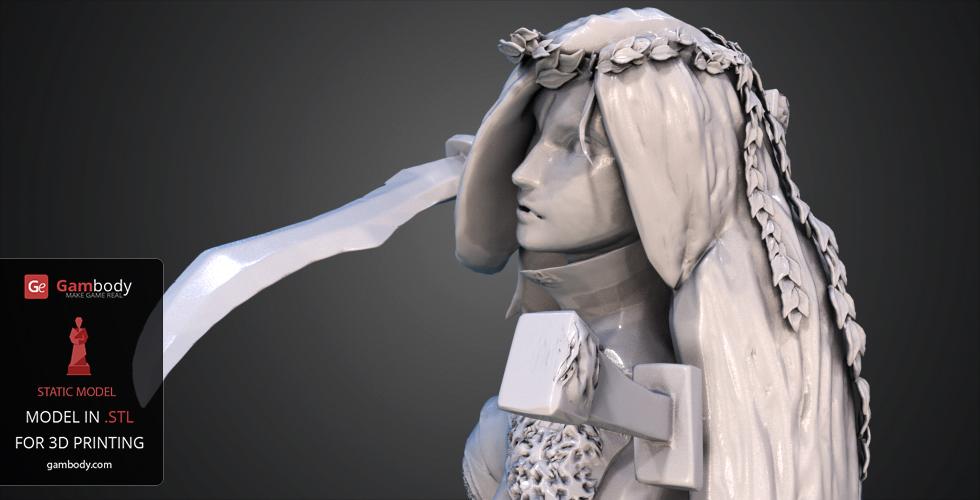

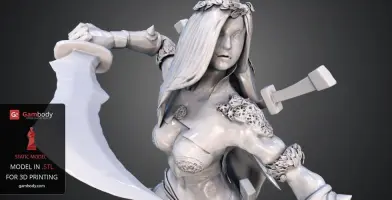

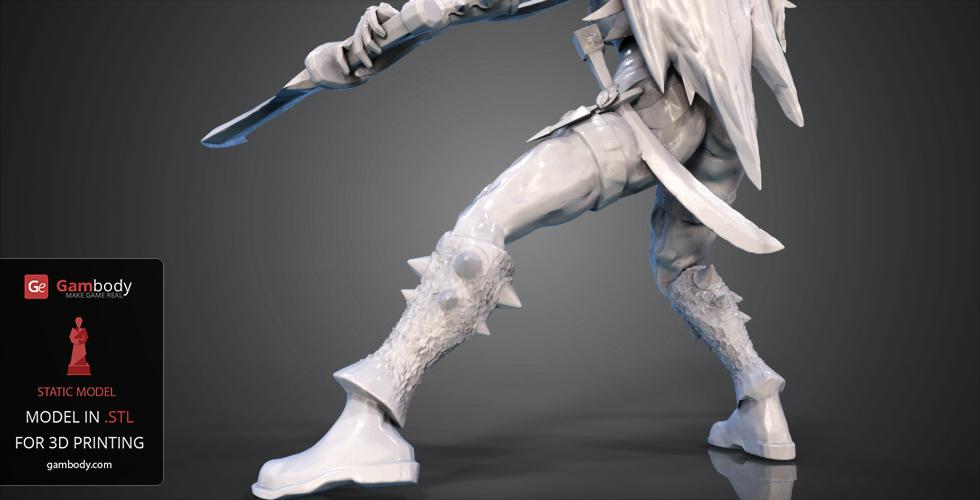

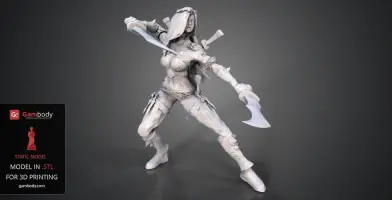

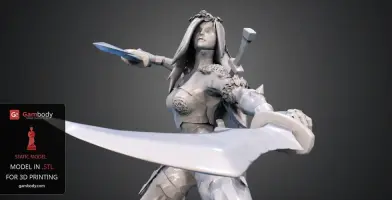

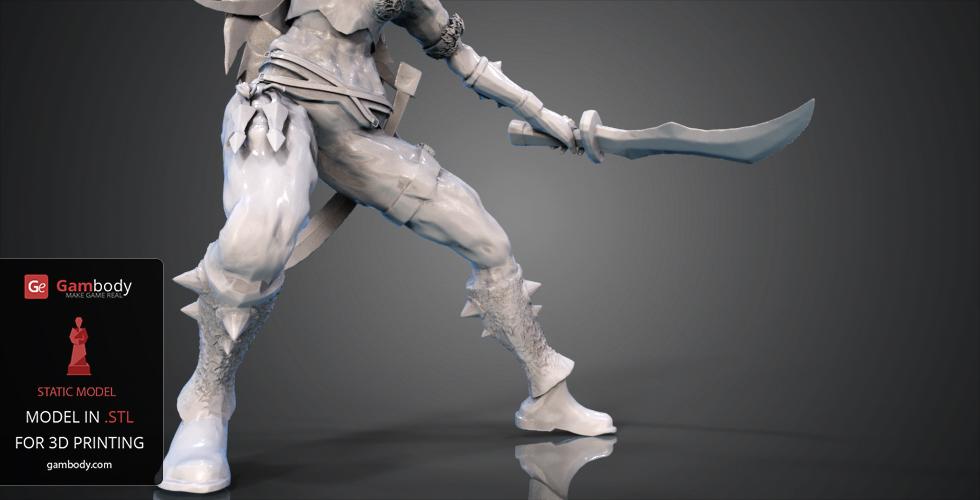

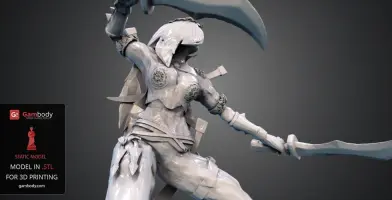

The 3D model design of Katarina showcases accurate and intricate details of the video game prototype.

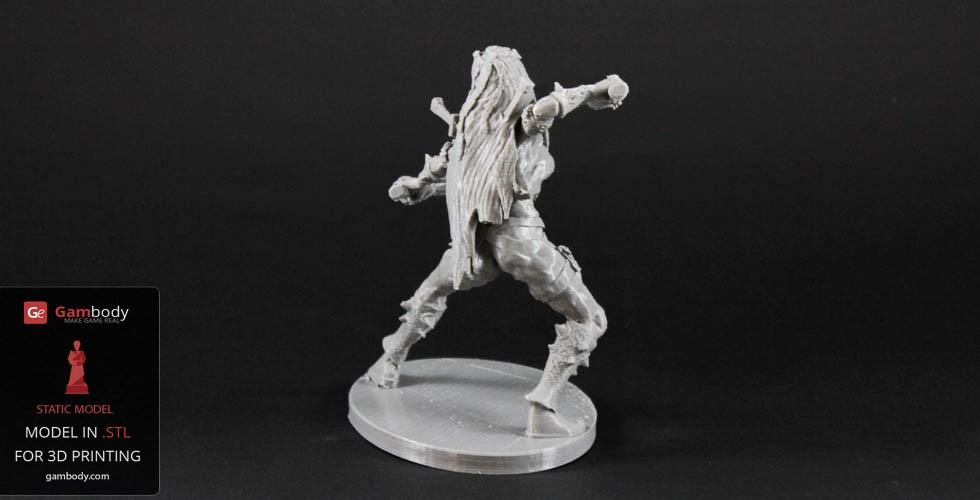

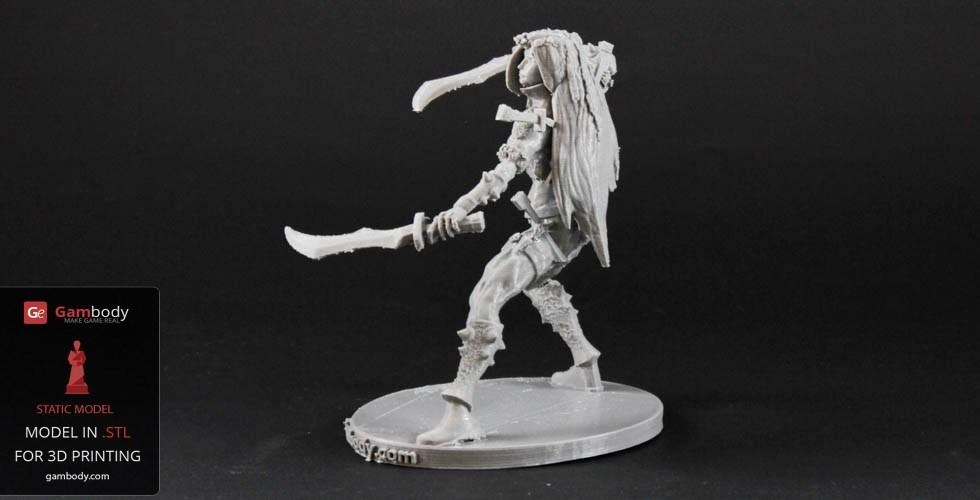

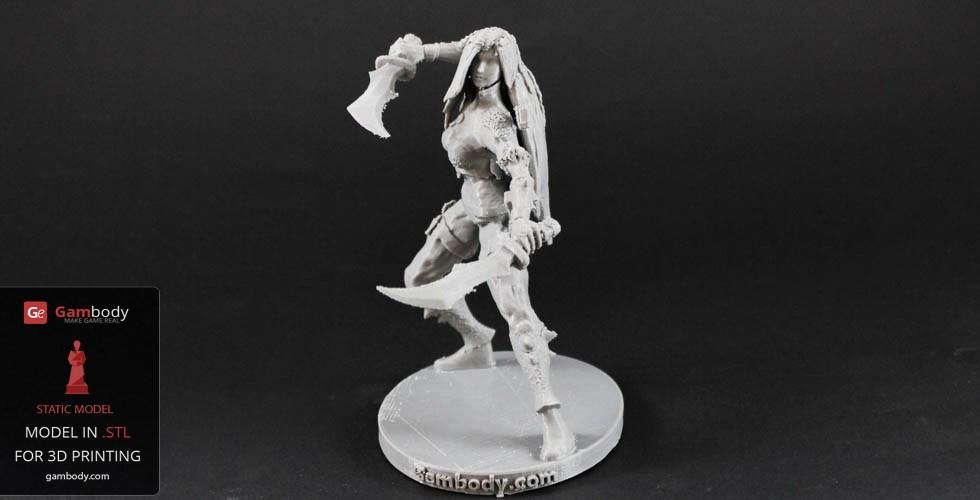

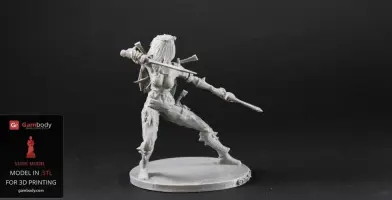

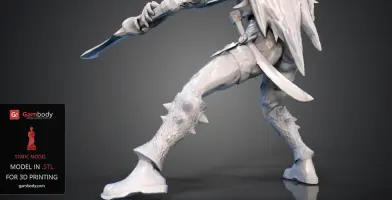

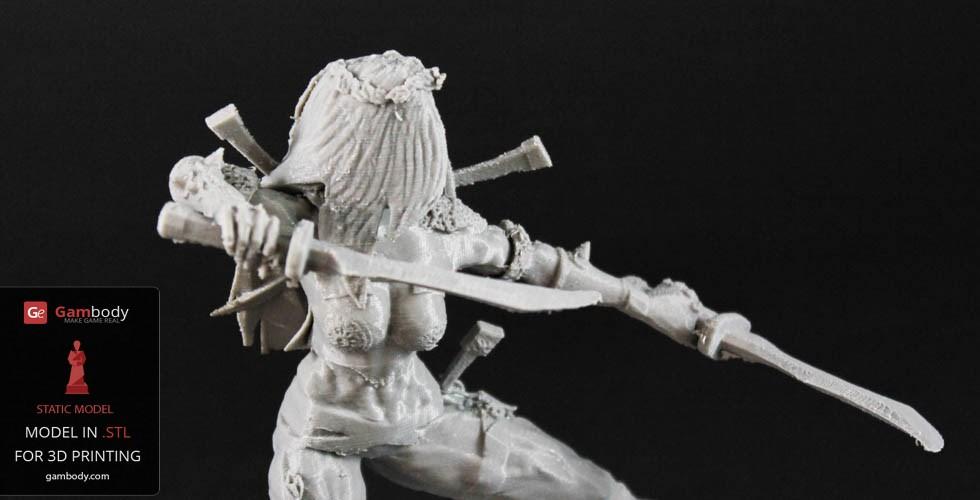

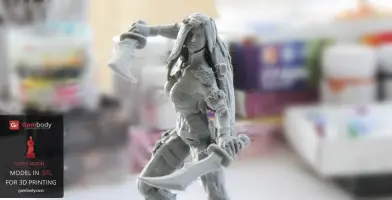

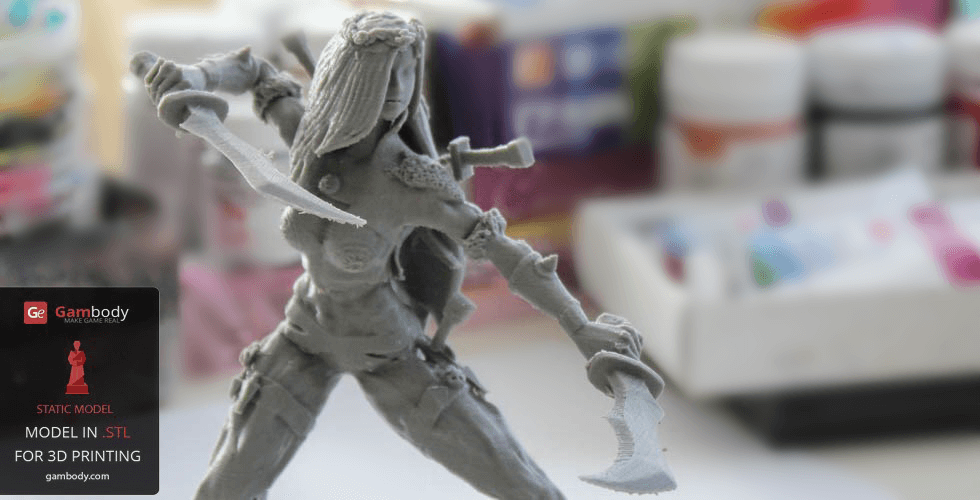

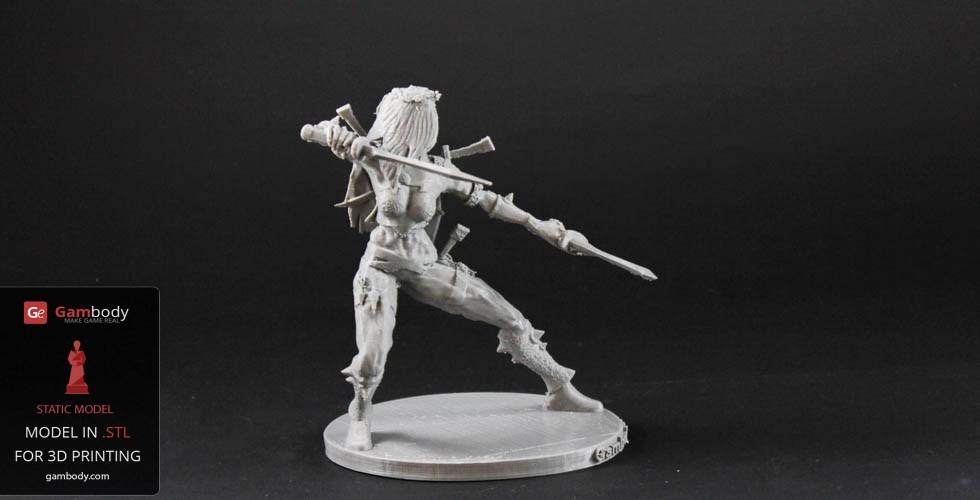

The 3D printing video game model is available for purchase in STL file format. The model is static and represents Katarina in a fighting position, ready to attack anyone who shows a sign of peril.

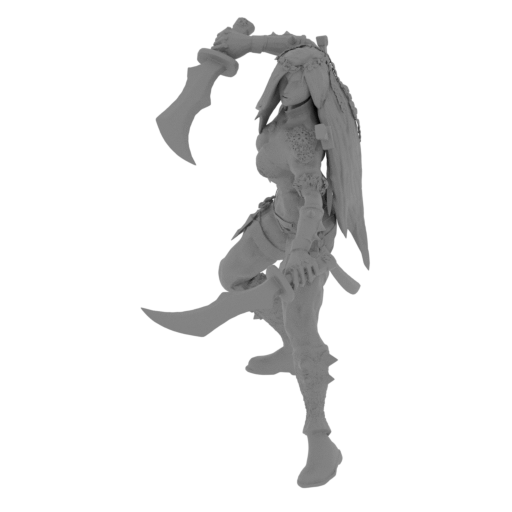

The file has been corrected in Netfabb and is adapted to be 3D printed on any type of 3D printer. You can also easily handle in any slicing program.

Buy LoL Katarina 3D model by clicking the green Buy button. Add the STL file to your shopping cart. Proceed to checkout. Provide your PayPal or credit card details. After the payment is processed, you can download the STL file and start printing right away.

Print the 3D model with our partners directly from our website. Click the Print with 3DHubs or Print with Treastock button. Choose the 3D printing service provider located in your city of residence, the material and agree on any other details and wait for your 3D model to be shipped to your home address.

Generic

This model was tested in Cura 15.06. To avoid printing problems, we recommend the following settings:

Quality

• Layer height: 0.1mm*
• Initial layer thickness: 0.3mm
• Bottom/top pattern: lines
• Skin perimeter line count: 0
• Horizontal expansion: 0.04mm (when entering 0.04mm index, the 3D printer perceives the model as monolith, i.e. as having no hidden layers).

*Layer Height 0.1mm is recommended for a better quality for the printed model. However, the printing time will double.

As a STL file provider, our goal is to ensure that the files are error-free and printable in the most accurate way. This is why we only test print the most difficult segments of the model’s parts.

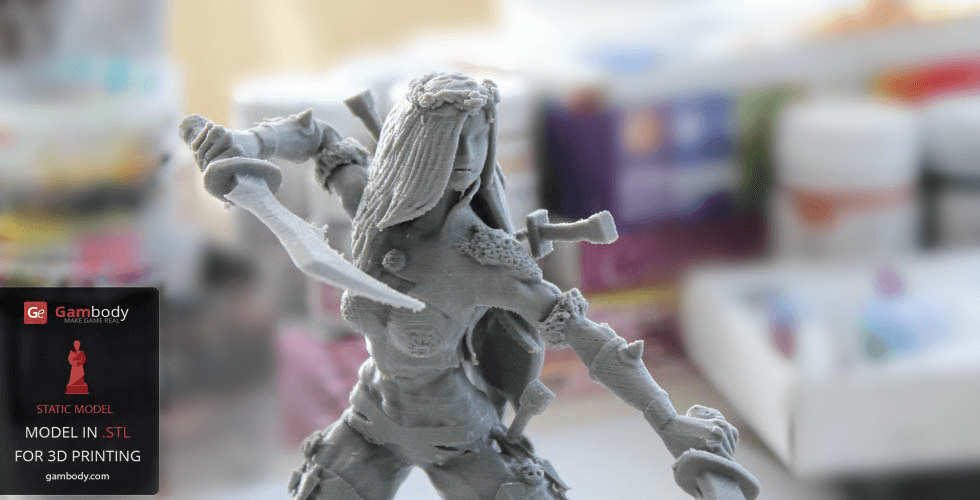

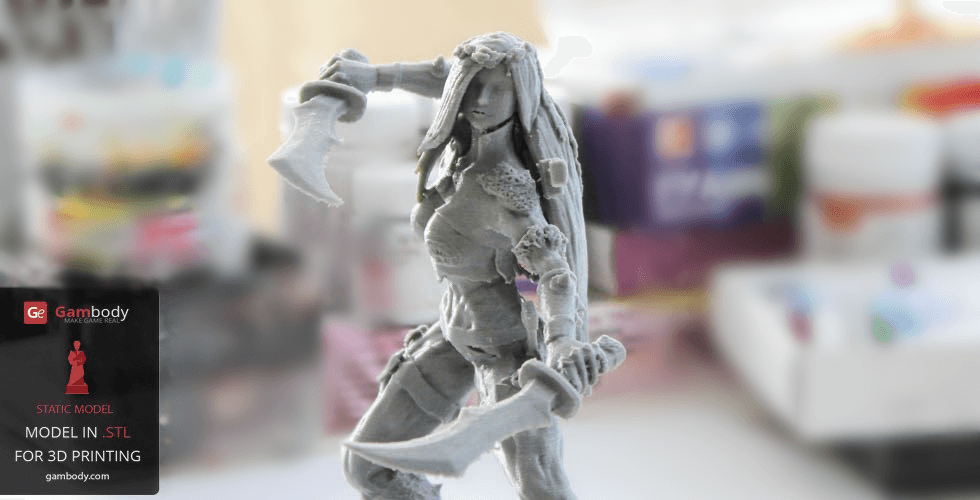

The model's parts have been tested and printed in PLA. In case you need advice where to get your filaments from, check our partner's website.

Speed setups:

• Infill speed: 30mm/s
• Outer shell speed : 30mm/s
• Inner shell speed: 20mm/s
• Top/bottom speed: 20mm/s
• Support speed: 50mm/s
• Travel speed: 150mm/s
• Skirt speed: 30mm/s
• Amount of slower layers: 4

Infill:

• Infill pattern: Grid
• Line distance: 1.5mm
• Infill overlap: 20%
• Infill layers: 0

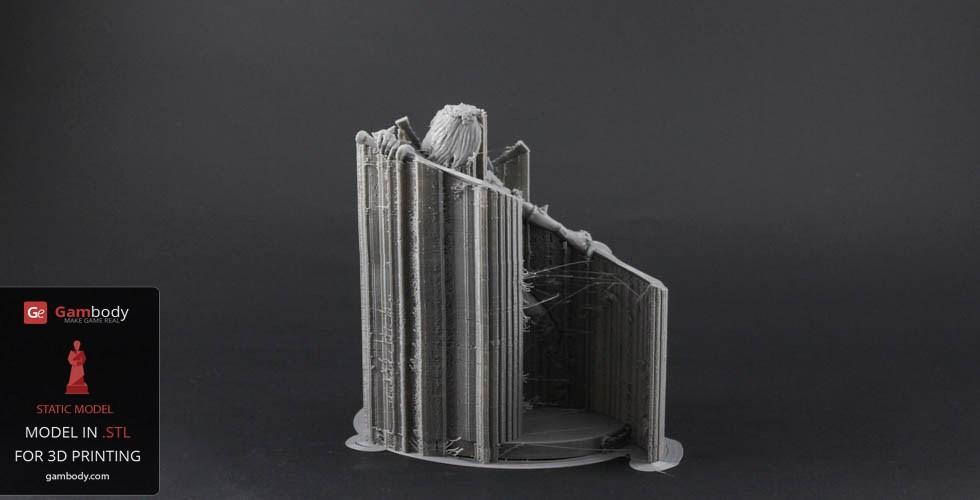

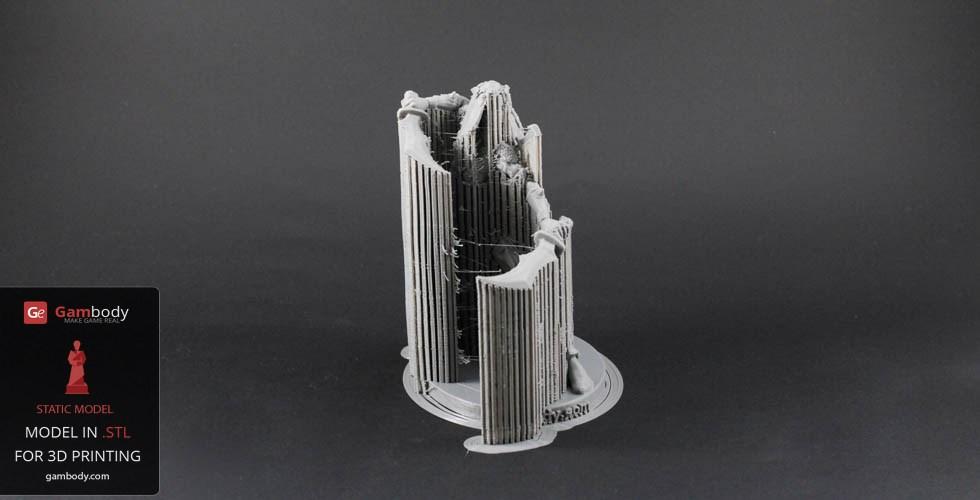

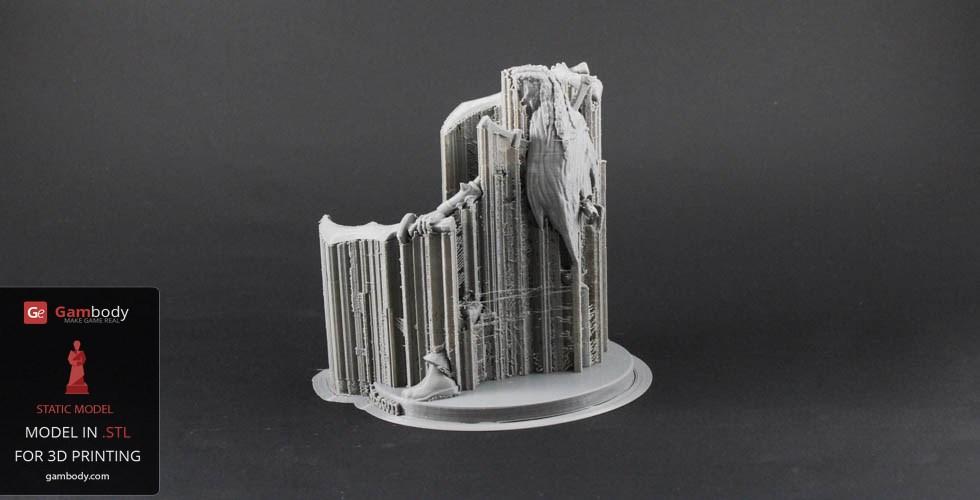

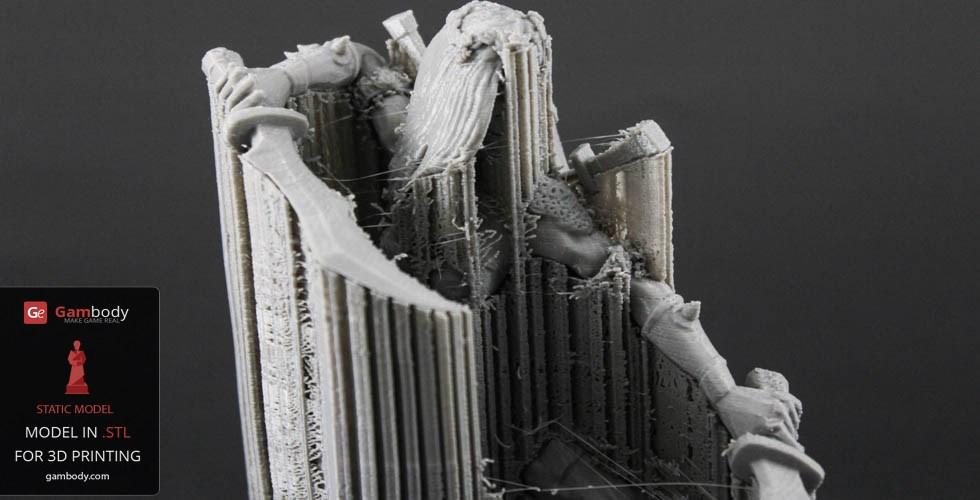

Support:

• Enable support: Check
• Placement: Everywhere
• Overhang angle: 30°
• X/Y distance: 0.7mm
• Top distance: 0.2mm
• Bottom distance: 0.2mm
• Stair step height: 0.5mm
• Join distance: 0.7mm
• Area smoothing: 0.6mm
• Use towers: check
• Pattern: Grid
• Line distance: 1.5mm

Platform adhesion:

• Type: Brim
• Brim line count: 10 (up to 20, depending on the model’s height)

Other 3D printing recommendations:

Outer Shell Speed - 20mm/s and Support Speed - 40mm/s settings apply to avoid model deformation.  Apply other settings by default.

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
