This 3D Figurine of Darth Vader from Star Wars consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

4 versions of Darth Vader STL files for FFF/FDM, DLP/SLA and SLS - files for each version are available for download after the purchase
STL files of high-poly Star Wars Darth Vader 3D Figurine for 3D printing consist of 46 files
Sizes:
FFF/FDM: 280 mm tall, 285 mm wide, 262 mm deep
DLP/SLA/SLS: 140 mm tall, 143 mm wide, 131 mm deep
Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format
Detailed settings that we provide as a recommendation for Cura, Simplify3D, Slic3r and PrusaSlicer for the best print- Full technical support from the Gambody Support Team
Detailed information about this 3D printing figurine is available in the DESCRIPTION section.


	File Name	File Size	Time / Filament	Object Size (x/y/z mm)

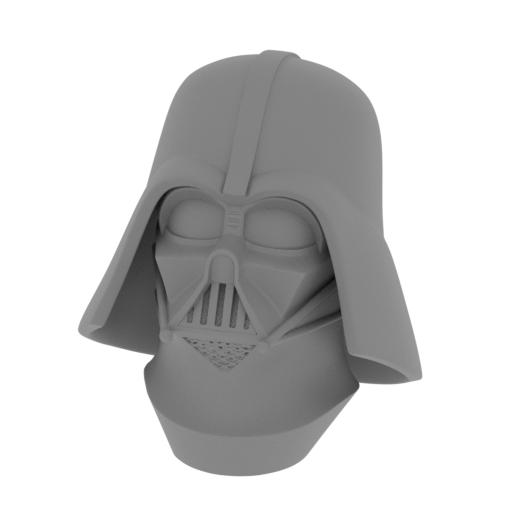

	1_head_FDM(repaired).stl	29.81 MiB	4 h 6 min 2 m	43 x 46 x 49	Download

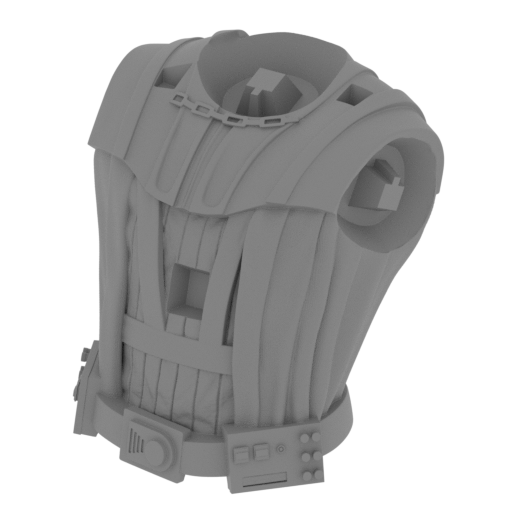

	2_body_FDM(repaired) (Cut 2).stl	53.08 MiB	11 h 3 min 6 m	65 x 61 x 70	Download

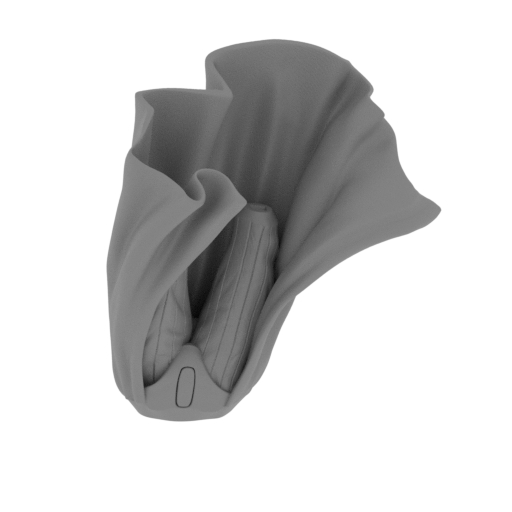

	3_legs_FDM(repaired).stl	53.94 MiB	28 h 39 min 16 m	128 x 97 x 155	Download

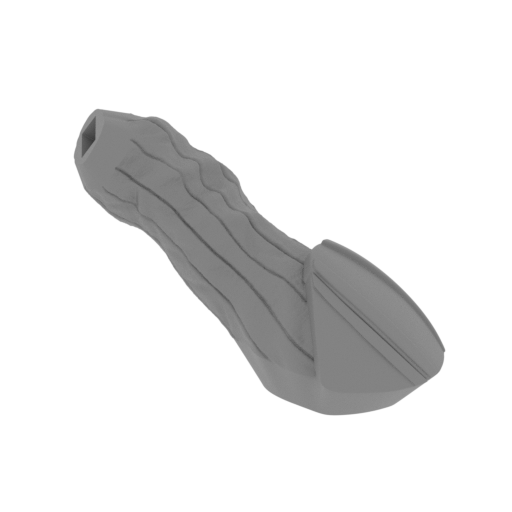

	4_arm_R_FDM(repaired).stl	16.21 MiB	1 h 57 min 1 m	53 x 29 x 35	Download

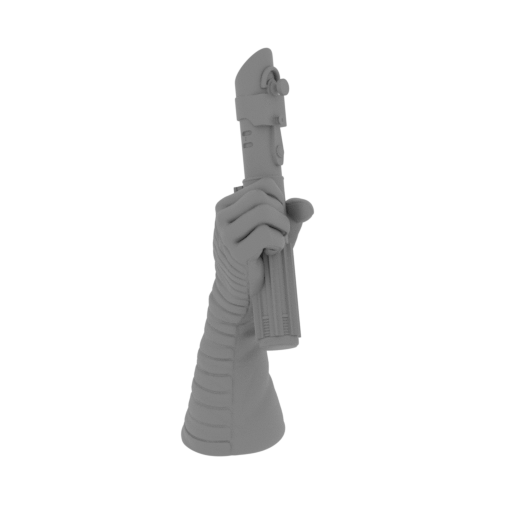

	5_hand_R_FDM(repaired).st l	21.57 MiB	2 h 1 min 1 m	23 x 28 x 66	Download

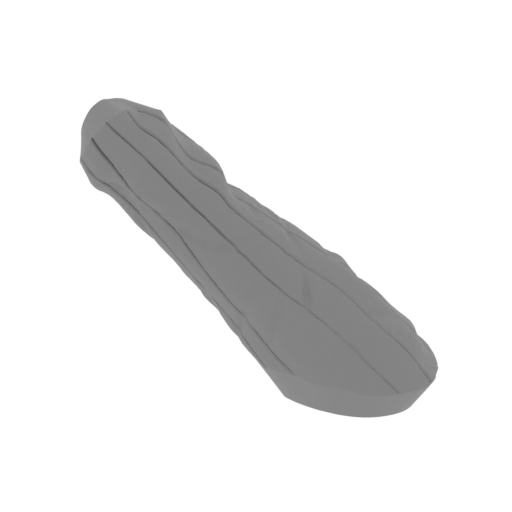

	6_arm_L_FDM(repaired).stl	16.45 MiB	1 h 57 min 1 m	56 x 25 x 37	Download

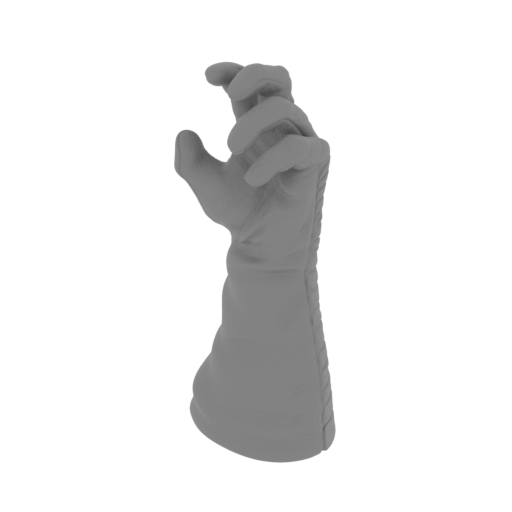

	7_hand_L_FDM(repaired).st l	15.73 MiB	1 h 21 min 1 m	22 x 22 x 49	Download

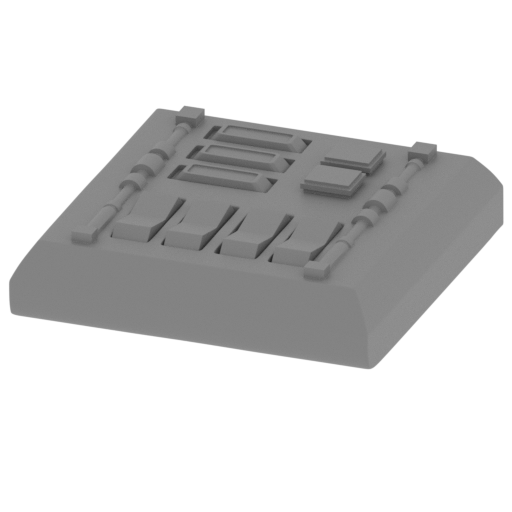

	8_remote_control_on_chest _FDM(repaired).stl	13.90 MiB	46 min <1 m	24 x 25 x 10	Download

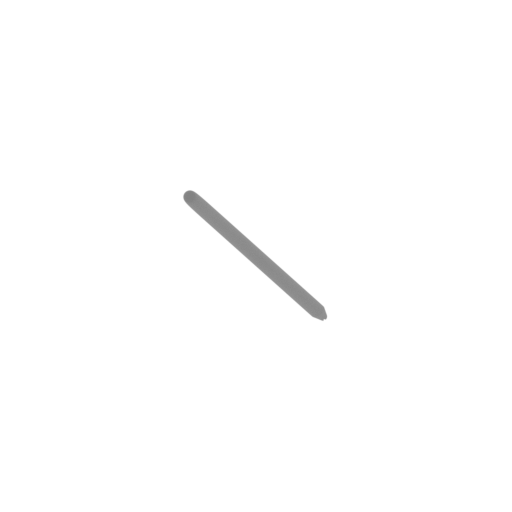

	9_sword_FDM(repaired).stl	5.10 MiB	2 h 36 min 1 m	5 x 126 x 97	Download

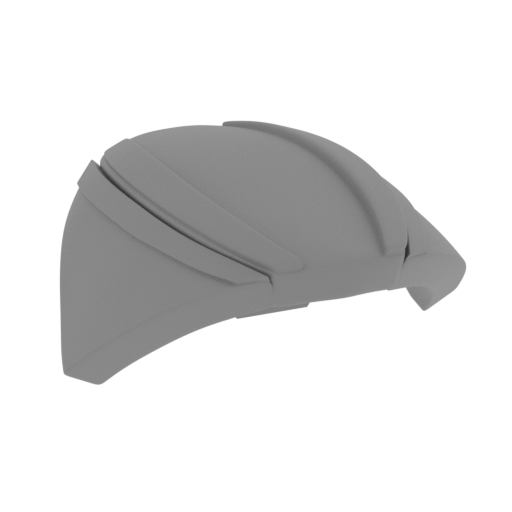

	10_scapular_FDM(repaired) .stl	11.43 MiB	43 min <1 m	25 x 26 x 13	Download

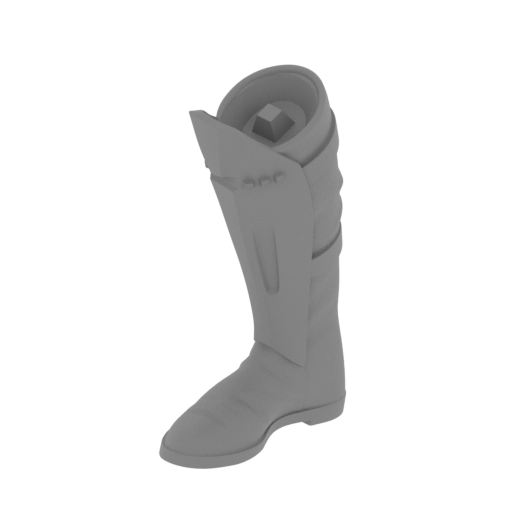

	11_foot_R_FDM(repaired).s tl	25.04 MiB	3 h 54 min 2 m	32 x 42 x 78	Download

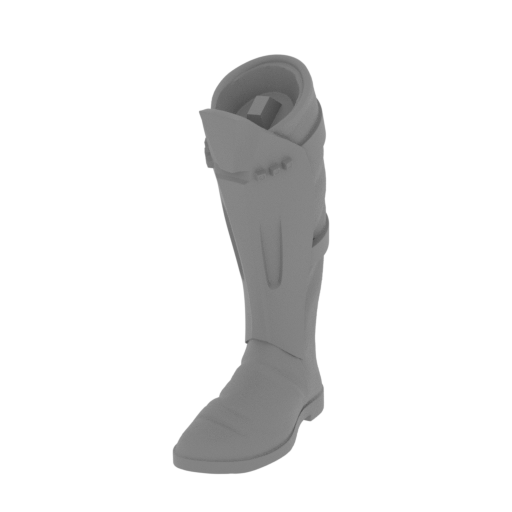

	12_foot_L_FDM(repaired).s tl	26.68 MiB	3 h 57 min 2 m	24 x 45 x 78	Download

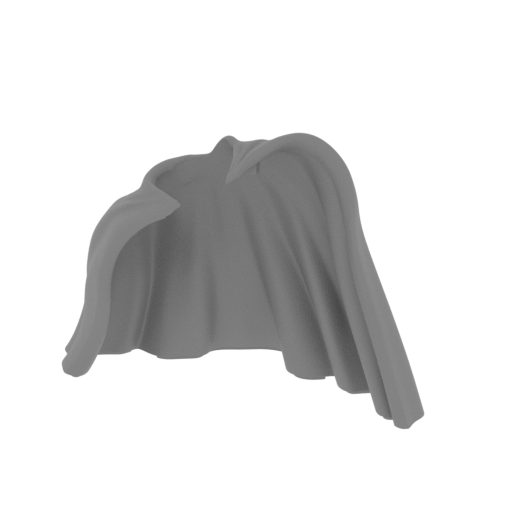

	13_cloak_1_FDM(repaired). stl	28.82 MiB	10 h 12 min 7 m	126 x 57 x 83	Download

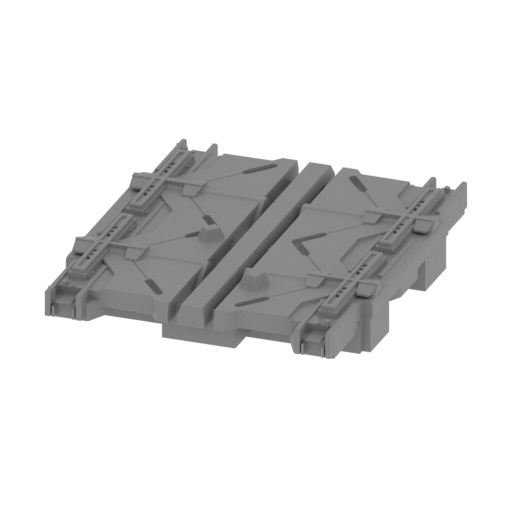

	17_platform_FDM(repaired) .stl	44.07 MiB	37 h 28 min 25 m	134 x 161 x 29	Download
	18_ge_lock_10H(x1)_FDM(re paired).stl	0.03 MiB	4 min <1 m	18 x 10 x 2	Download
	Keychain (repaired).stl	0.35 MiB	23 min <1 m	30 x 30 x 2	Download
	Tag (repaired).stl	1.70 MiB	1 h 18 min 1 m	150 x 18 x 5	Download

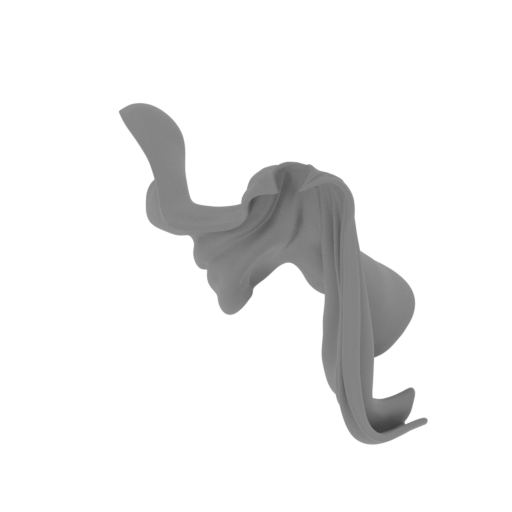

	19_solid_cloak_FDM(repair ed).stl	74.11 MiB	127 h 32 min 101 m	285 x 196 x 223	Download

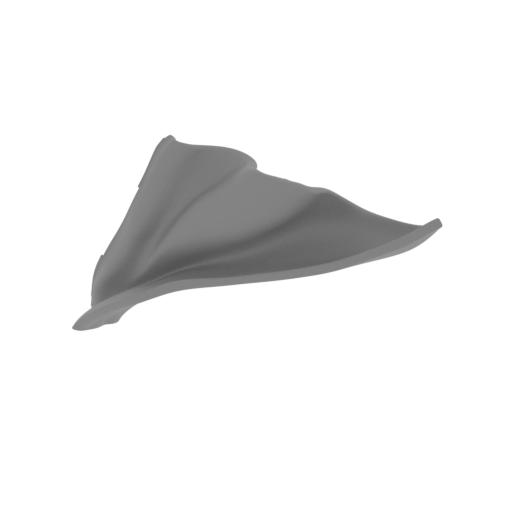

	14_cloak_2_FDM(repaired). stl	30.58 MiB	26 h 7 min 20 m	195 x 62 x 108	Download

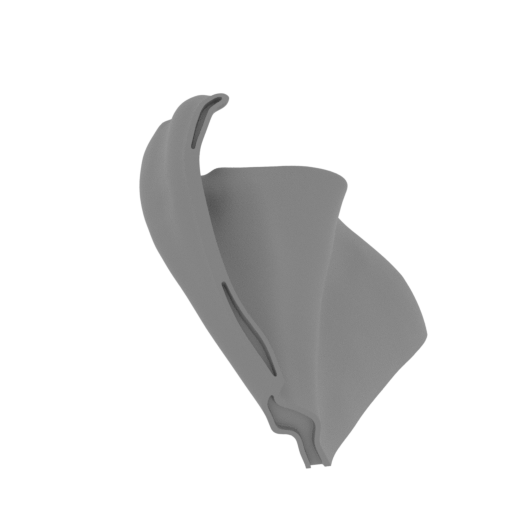

	15_cloak_3_FDM(repaired). stl	30.14 MiB	23 h 11 min 17 m	91 x 135 x 103	Download

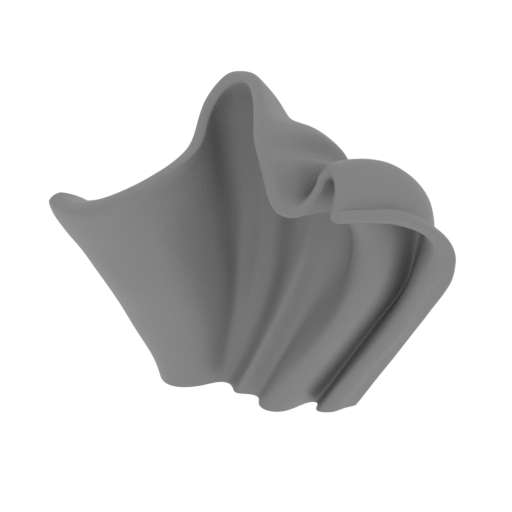

	16_cloak_4_FDM(repaired). stl	32.26 MiB	27 h 29 min 17 m	160 x 78 x 148	Download
...

ABOUT THIS 3D FIGURINE

The legendary Lord Vader is a character that does not need an introduction! Throughout decades, Anakin Skywalker served as one of the biggest mascots of the Galaxy Far, Far Away - his tragic corruption arc inspired countless new stories, his lines turned into quotes most people know by heart, and his looming dark image remains as iconic and celebrated today. Every respectable Star Wars and 3D printing fan cannot go without a 3D printed Lord Darth Vader figurine!

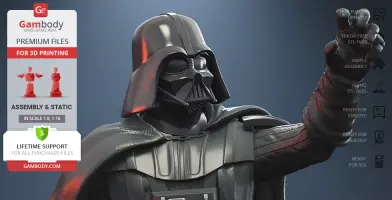

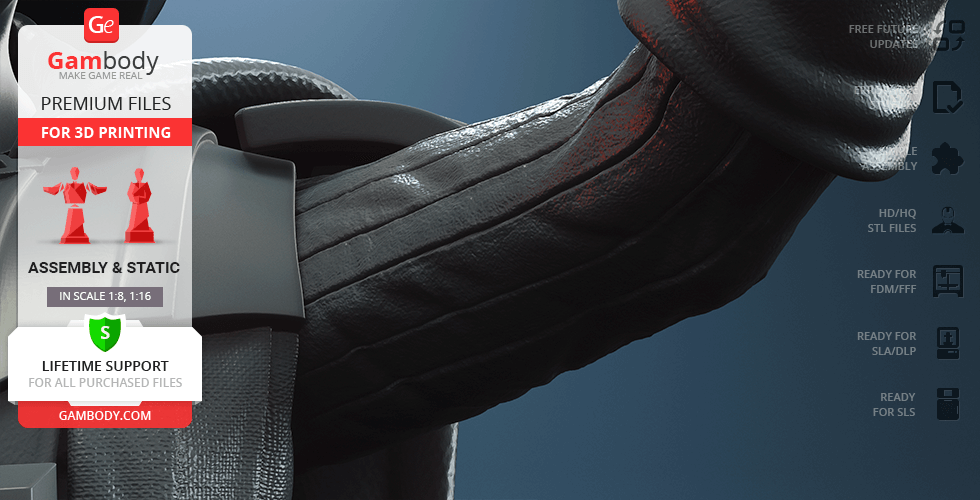

Meet your favourite character in the best 3D printable form that will wrap you in nostalgic feelings. The author of the Lord Darth Vader 3D Printing Figurine drew inspiration from various depictions of Darth Vader across the years, including the fresh appearance in the Obi-Wan Kenobi TV series. The villain is encased in the meticulously detailed suit of life-sustaining armour, and the gorgeous cape is fluttering in a swing of motion. While standing on a decorative platform with his lightsaber at ready, Darth Vader extends his hand toward you. Will you join his side?

ADAPTATION FOR 3D PRINTING

Lord Darth Vader figurine for 3D printing is a static assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 38 hours. The figurine’s anatomy and proportions were thoroughly reviewed during the moderation process for the Sith Lord to be depicted with utmost realism.

The model’s cutting was chosen by our team to ensure the cleanest 3D printed result possible and some of the parts were hollowed out for you to save resin in the Eco version. In order to conceal the places where the assembly parts of the model are connected, the figurine was cut along the contour of Darth Vader's attire. The character’s head, torso, hands, legs, cloak lightsaber, etc. are provided as separate assembly parts.

All assembly parts of the FFF/FDM versions come in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and so that the 3D printing beginners won't face difficulties when placing the parts on a build plate.

The figurine is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

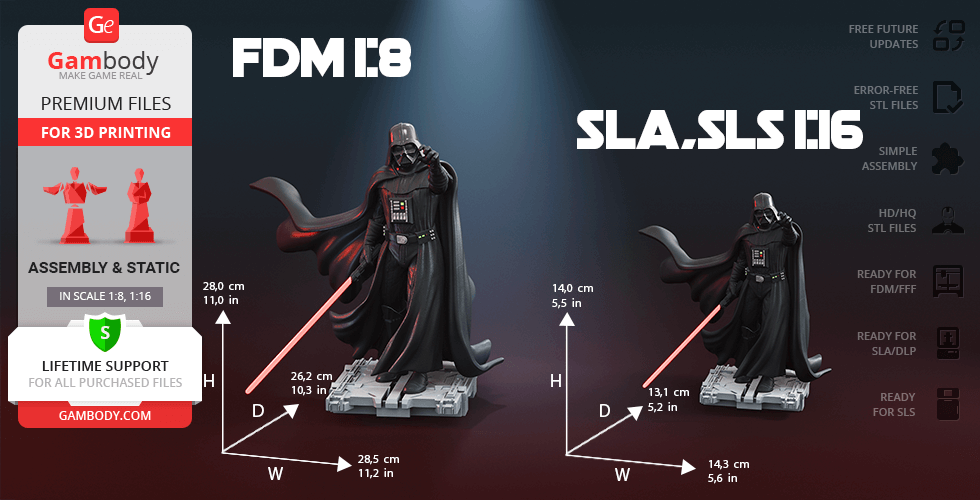

The model's scale was calculated from the approximate height of Darth Vader which is 2030 mm. The 3D printing figurine's chosen scale is 1:8 for the FFF/FDM version and 1:16 for the DLP/SLA/SLS versions.

VERSIONS' SPECIFICATIONS

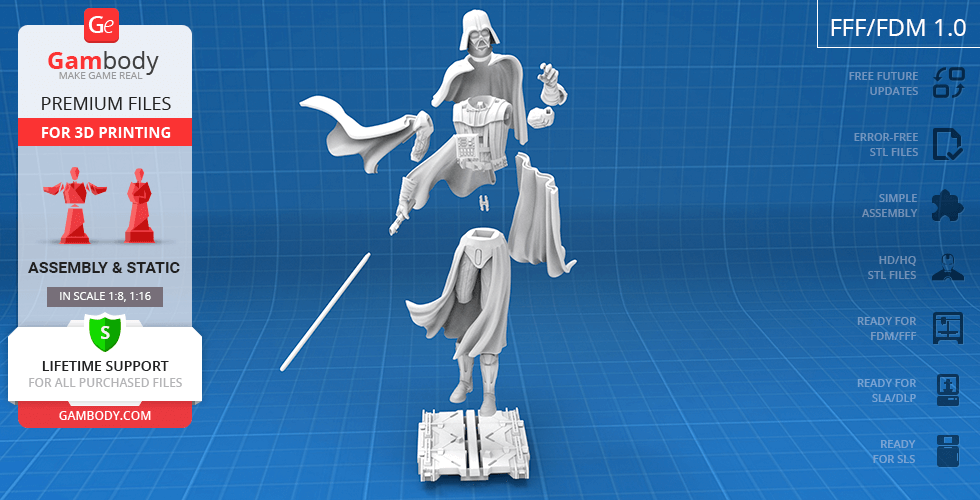

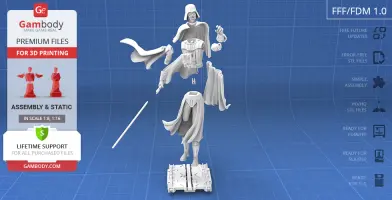

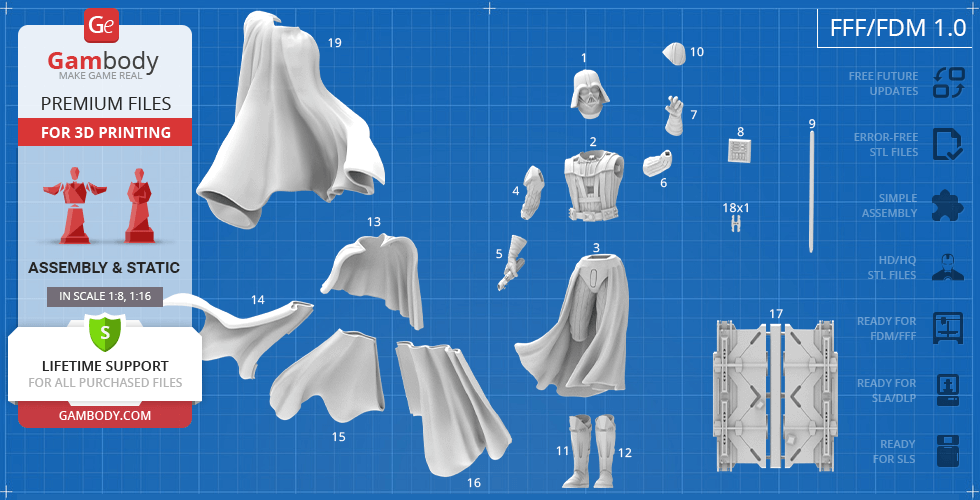

FFF/FDM 1.0 version features:

Contains 19 parts;
A printed model is 280 mm tall, 285 mm wide, 262 mm deep;
The assembly kit includes lock 18_ge_lock_10H(x1) to attach the figurine's body to legs without glue;
All parts are divided in such a way that you will print them with the smallest number of support structures.

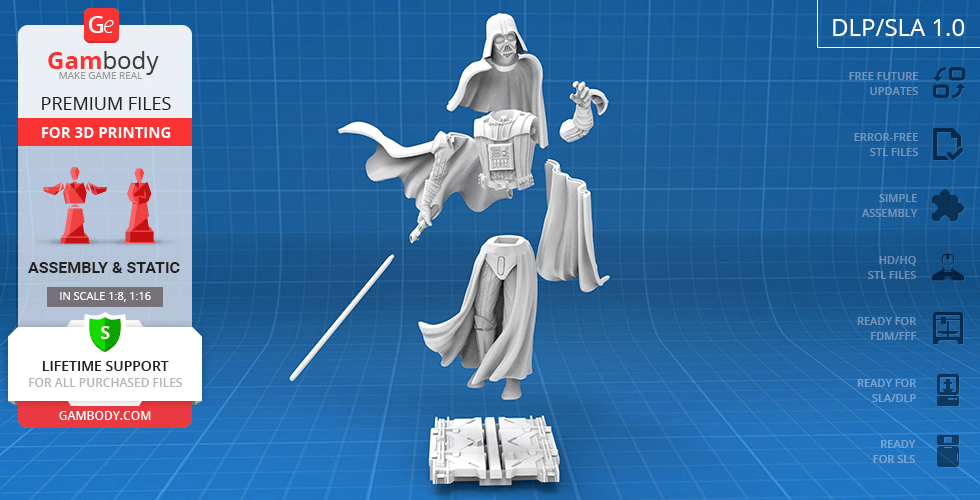

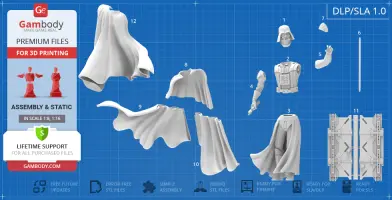

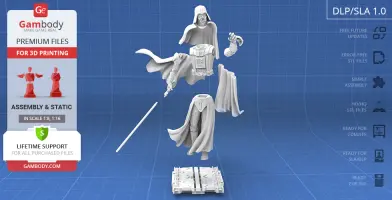

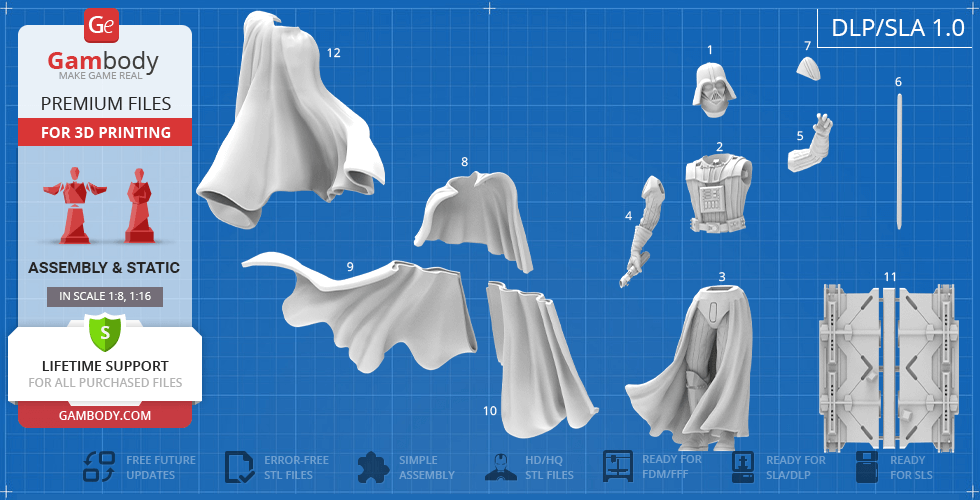

DLP/SLA 1.0 version features:

Contains 12 parts;
A printed model is 140 mm tall, 143 mm wide, 131 mm deep;
All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

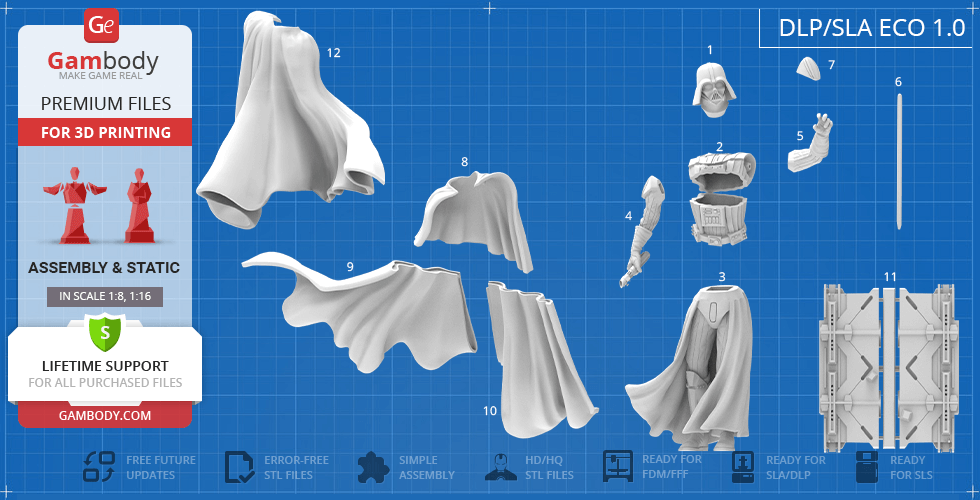

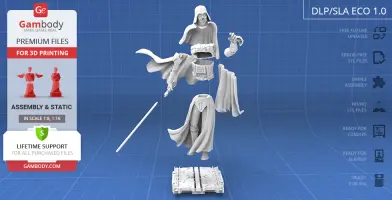

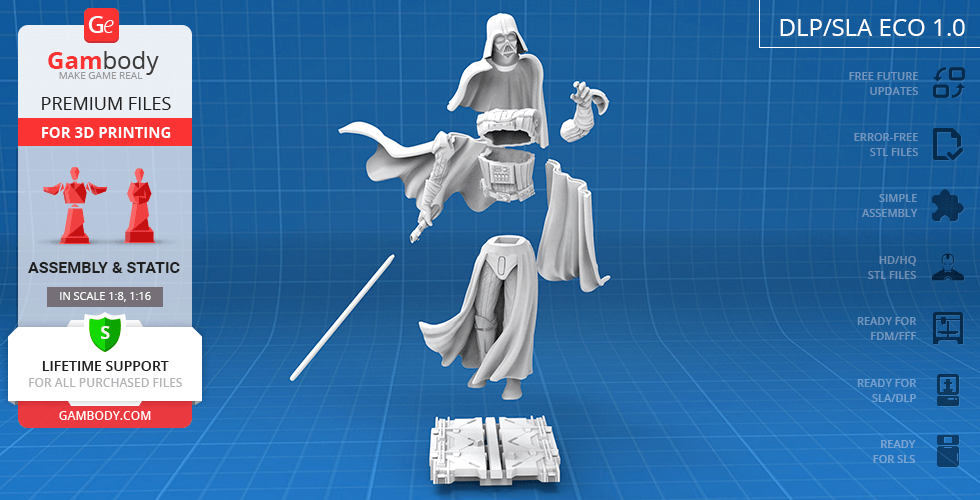

DLP/SLA Eco 1.0 version features:

Contains 12 parts;
A printed model is 140 mm tall, 143 mm wide, 131 mm deep;
Some parts are manually hollowed out to save resin.

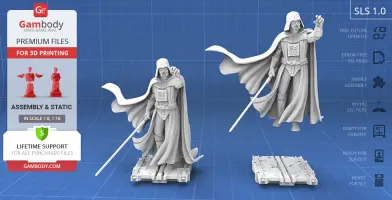

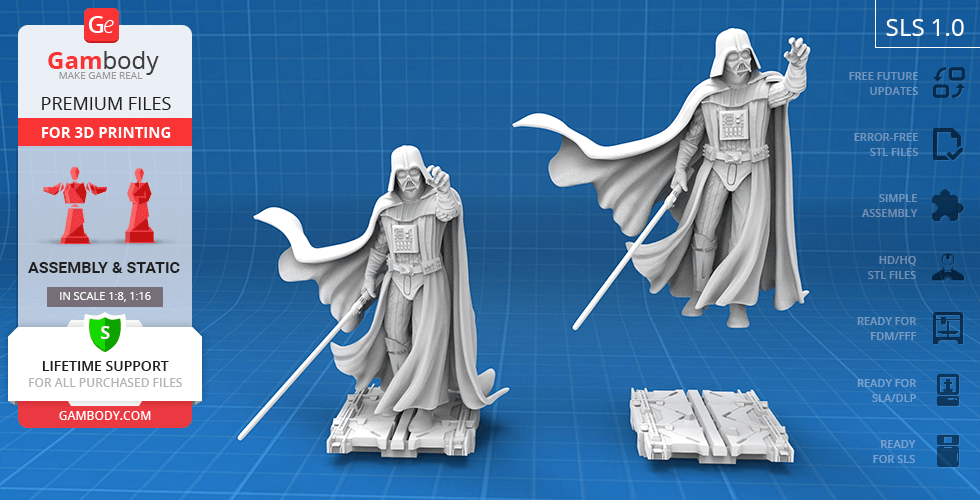

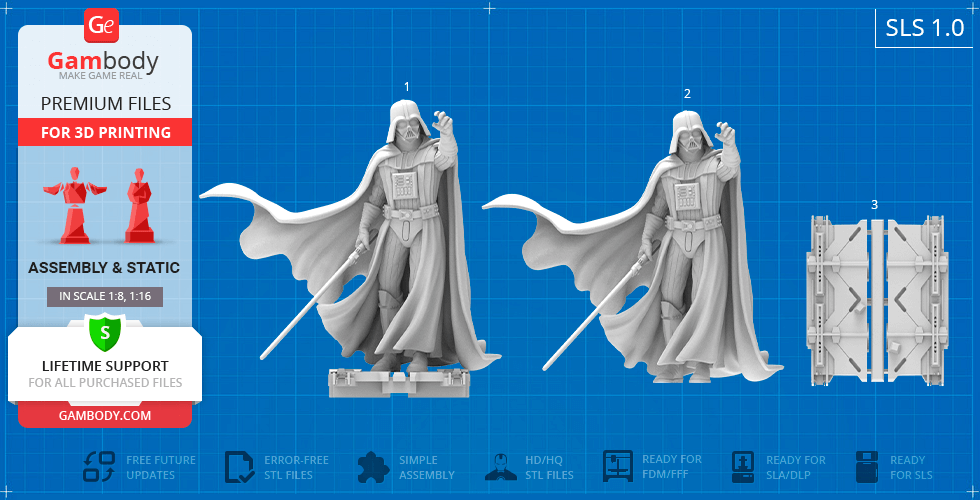

SLS 1.0 version features:

Made as a solid one-piece Lord Darth Vader figurine;
A printed model is 140 mm tall, 143 mm wide, 131 mm deep;
Contains 3 parts - a solid Lord Darth Vader figurine with and without the platform.

You can get the figurine of Lord Darth Vader for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Lord Darth Vader 3D Printing Figurine on Gambody YouTube channel.

Also, you may like other Young Anakin Skywalker 3D Printing Figurine, as well as other Star Wars models for 3D printing.

_______

FAQ:

Generic

Below you can find printing recommendations for Cura, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);
All connectors should be printed at 100% Infill.

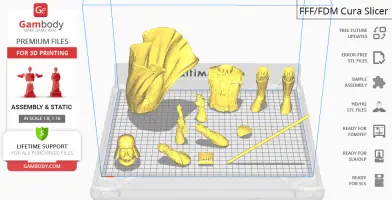

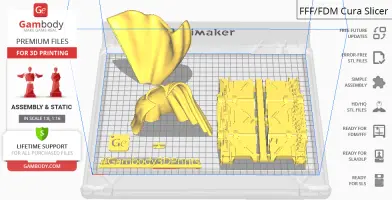

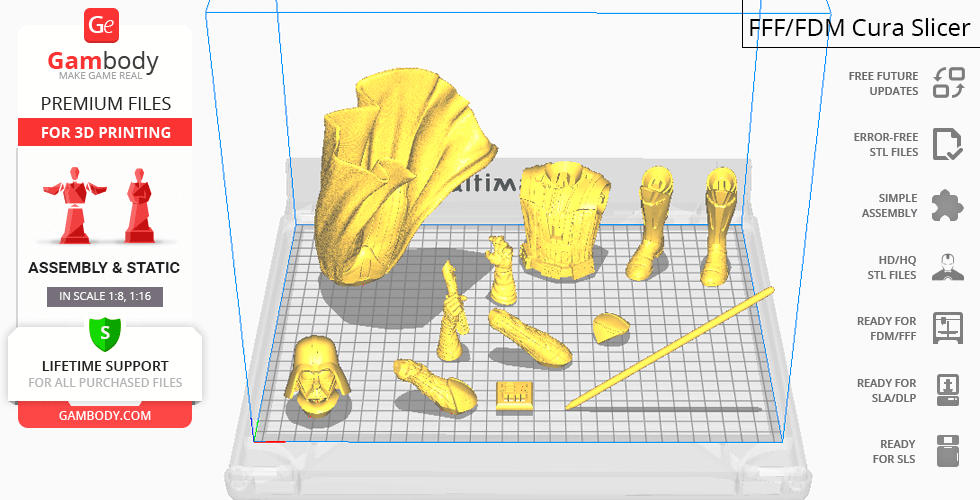

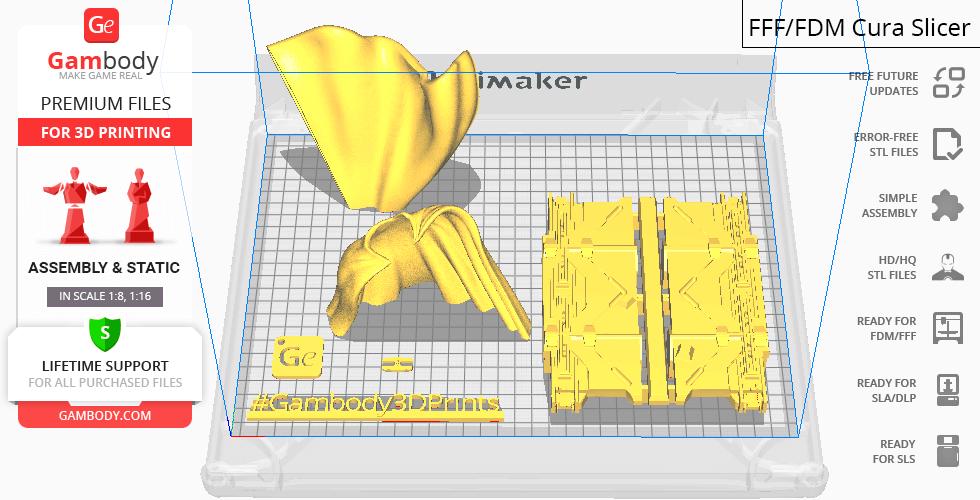

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
