Source Files

Description

Printing Details

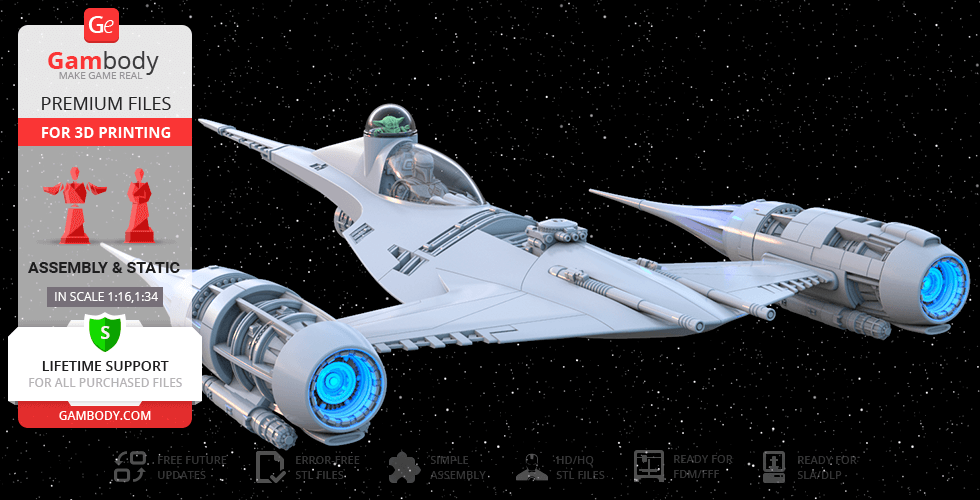

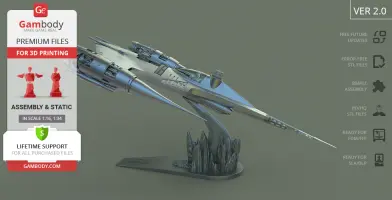

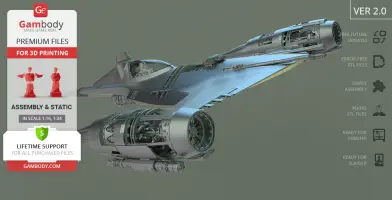

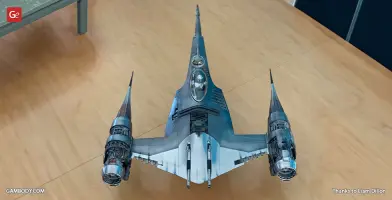

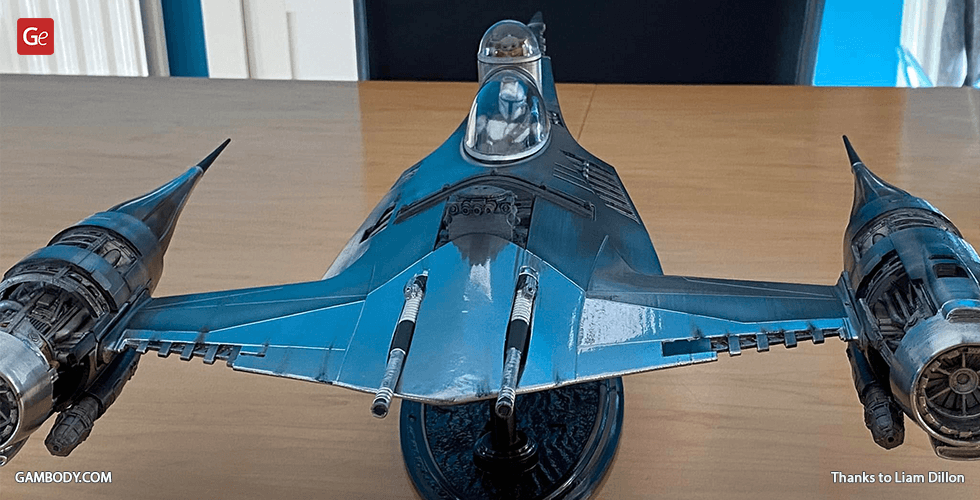

This 3D Model of The Mandalorian's N-1 Starfighter consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

4 versions of The Mandalorian's N-1 Starfighter STL files for FFF/FDM and DLP/SLA - files for all versions are available for download after the purchase

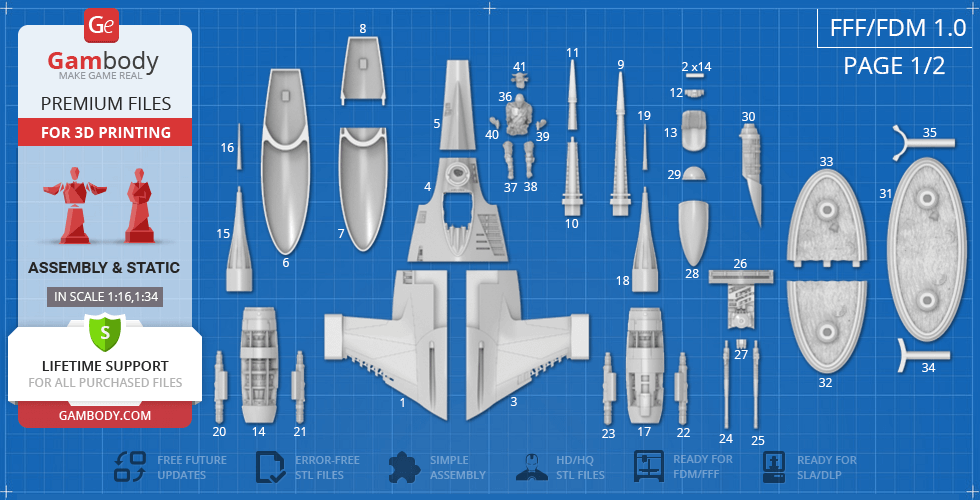

STL files of high-poly The Mandalorian's N-1 Starfighter 3D Model for 3D printing consist of 165 parts

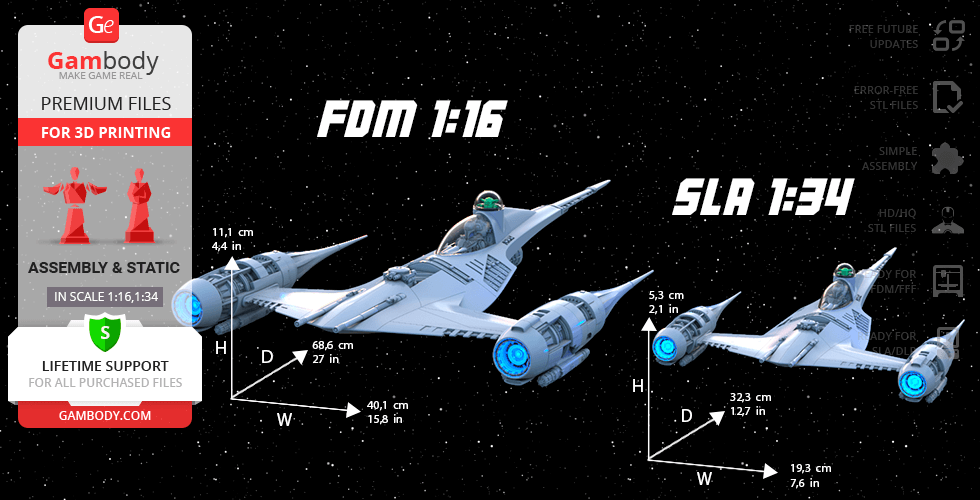

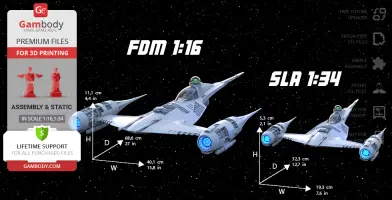

Sizes:
FFF/FDM: 111 mm tall, 686 mm wide, 401 mm deep
DLP/SLA: 53 mm tall, 323 mm wide, 193 mm deep
Assembly Manual for FFF/FDM 1.0, DLP/SLA 1.0, FFF/FDM 2.0, DLP/SLA 2.0 versions in PDF format
Detailed settings that we provide as a recommendation for Cura, Simplify3D, Slic3r and PrusaSlicer for the best print- Full technical support from the Gambody Support Team

Detailed information about this 3D printing model is available in the DESCRIPTION section.


	File Name	File Size	Time / Filament	Object Size (x/y/z mm)

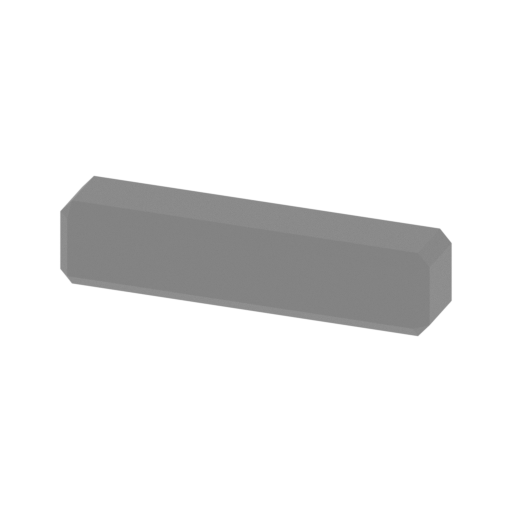

	_2_beams_x14_FDM (repaire d).stl	0.01 MiB	9 min <1 m	26 x 6 x 6	Download

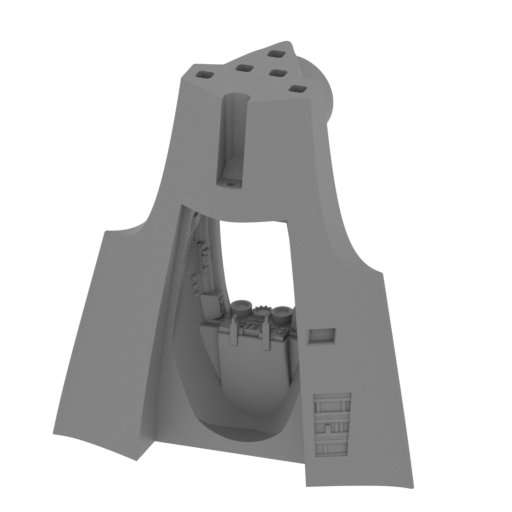

	_4_body_main_a_FDM (repai red).stl	27.85 MiB	37 h 59 min 27 m	144 x 77 x 147	Download

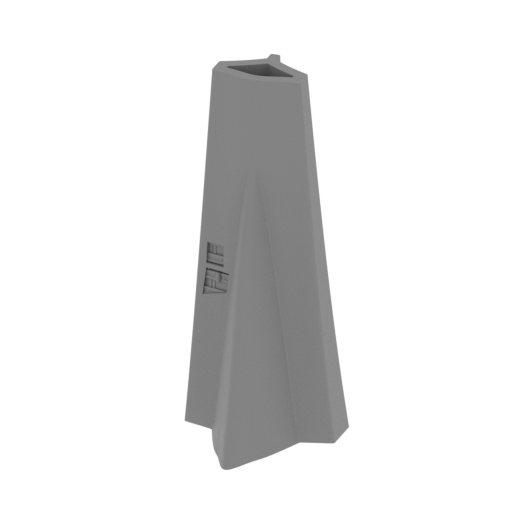

	_5_body_main_b_FDM (repai red).stl	8.90 MiB	8 h 27 min 5 m	52 x 57 x 127	Download

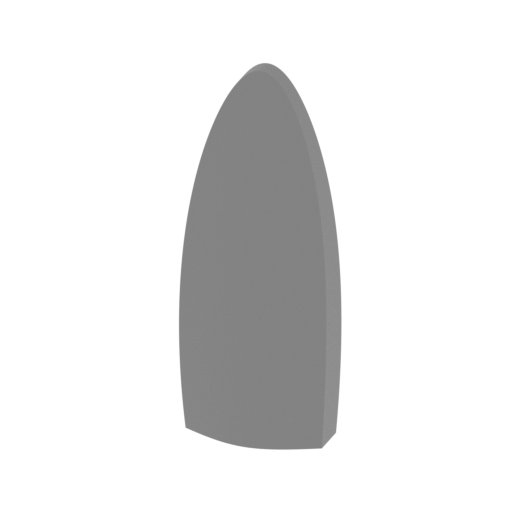

	_7_body_bot_cut_a_FDM (re paired).stl	8.51 MiB	10 h 35 min 7 m	70 x 30 x 176	Download

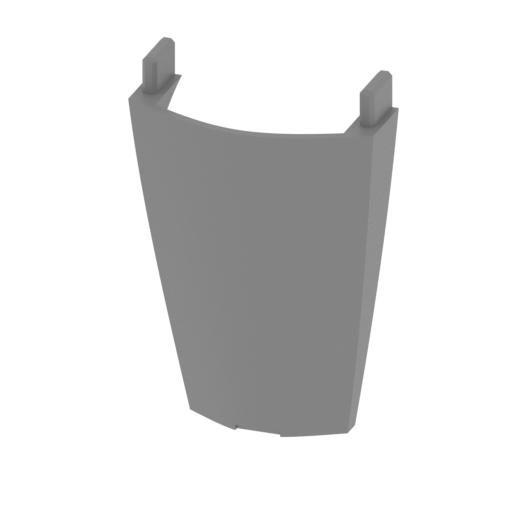

	_8_body_bot_cut_b_FDM (re paired).stl	3.19 MiB	3 h 33 min 2 m	65 x 29 x 98	Download

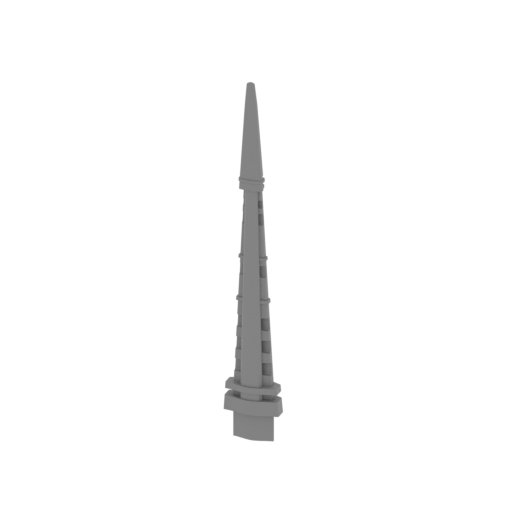

	_9_body_tail_full_FDM (re paired).stl	13.37 MiB	5 h 34 min 3 m	30 x 21 x 204	Download

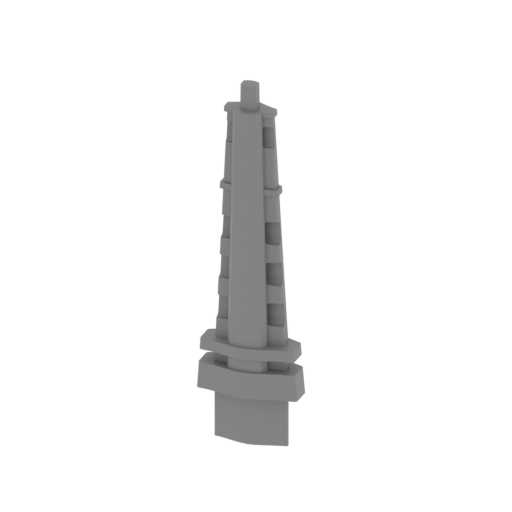

	_10_body_tail_cut_a_FDM ( repaired).stl	8.83 MiB	3 h 54 min 2 m	30 x 21 x 112	Download

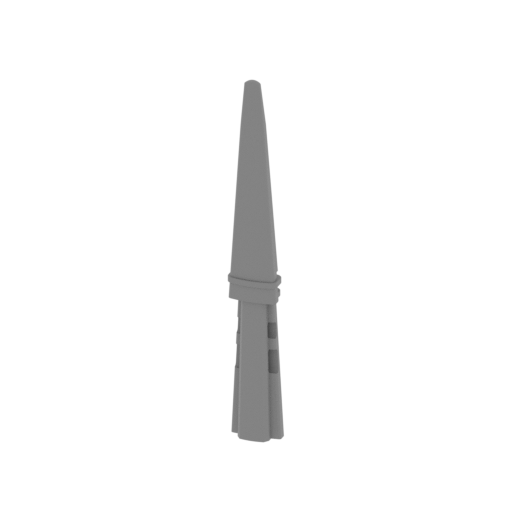

	_11_body_tail_cut_b_FDM ( repaired).stl	5.33 MiB	1 h 41 min 1 m	13 x 9 x 100	Download

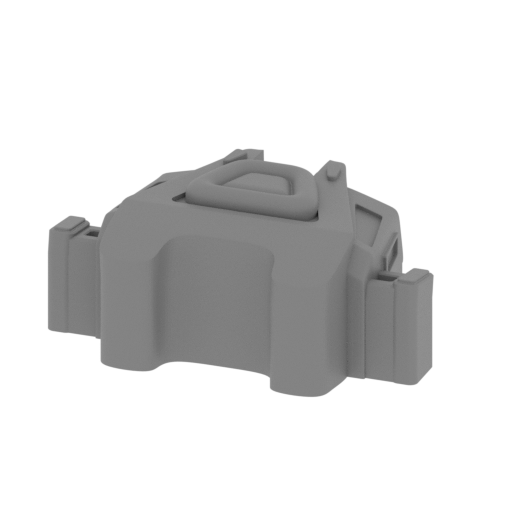

	_12_cockpit_a_FDM (repair ed).stl	2.73 MiB	25 min <1 m	27 x 19 x 11	Download

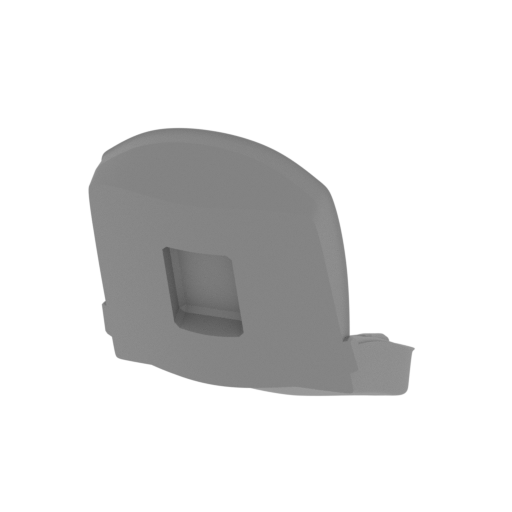

	_13_cockpit_b_FDM (repair ed).stl	5.65 MiB	2 h 46 min 2 m	36 x 53 x 52	Download

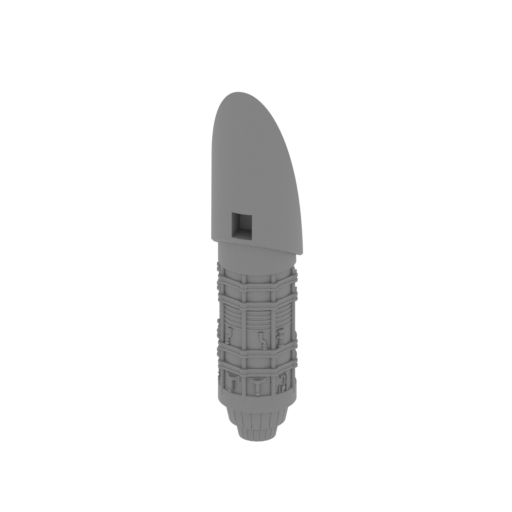

	_14_turbine_a_R_FDM (repa ired).stl	20.65 MiB	28 h 35 min 17 m	54 x 55 x 164	Download
	_15_turbine_b_R_FDM (repa ired).stl	5.30 MiB	5 h 23 min 3 m	37 x 37 x 149	Download
	_16_turbine_c_R_FDM (repa ired).stl	4.41 MiB	31 min <1 m	8 x 8 x 66	Download
	_17_turbine_a_L_FDM (repa ired).stl	18.74 MiB	28 h 27 min 17 m	55 x 56 x 164	Download
	_18_turbine_b_L_FDM (repa ired).stl	5.30 MiB	5 h 22 min 3 m	37 x 37 x 149	Download
	_19_turbine_c_L_FDM (repa ired).stl	4.41 MiB	31 min <1 m	8 x 8 x 66	Download
	_20_turbine_sub_a_R_FDM ( repaired).stl	1.23 MiB	2 h 51 min 1 m	20 x 21 x 103	Download
	_21_turbine_sub_b_R_FDM ( repaired).stl	1.23 MiB	2 h 50 min 1 m	20 x 21 x 103	Download
	_22_turbine_sub_a_L_FDM ( repaired).stl	1.23 MiB	2 h 50 min 2 m	20 x 21 x 103	Download
	_23_turbine_sub_b_L_FDM ( repaired).stl	1.23 MiB	2 h 60 min 1 m	20 x 21 x 103	Download
	_24_kit_gun_R_FDM (repair ed).stl	7.80 MiB	1 h 29 min <1 m	9 x 11 x 124	Download
	_25_kit_gun_L_FDM (repair ed).stl	7.80 MiB	1 h 30 min <1 m	9 x 11 x 124	Download
	_26_kit_engine_a_FDM (rep aired).stl	4.55 MiB	6 h 37 min 3 m	92 x 84 x 27	Download
	_27_kit_engine_b_FDM (rep aired).stl	0.27 MiB	14 min <1 m	14 x 7 x 14	Download
	_29_kit_cap_FDM (repaired ).stl	0.88 MiB	1 h 9 min 1 m	34 x 34 x 19	Download
	_30_kit_turbine_FDM (repa ired).stl	11.60 MiB	7 h 54 min 4 m	35 x 32 x 149	Download

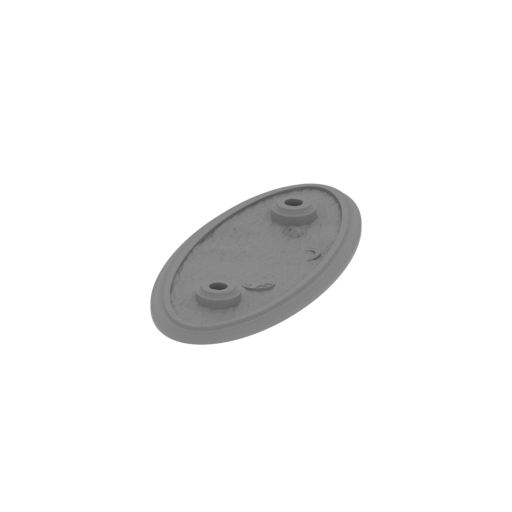

	_31_platform_base_full_FD M (repaired).stl	25.71 MiB	20 h 17 min 11 m	114 x 263 x 17	Download

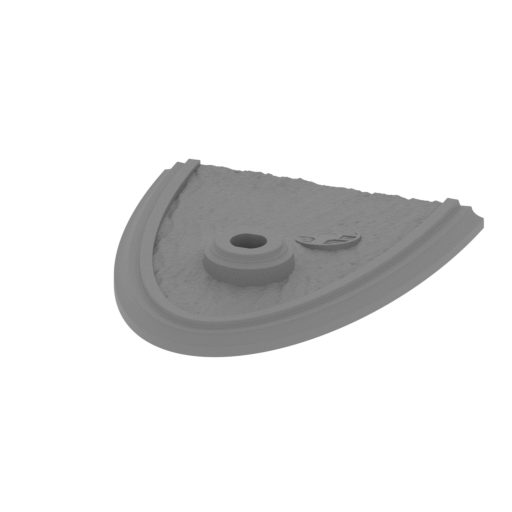

	_32_platform_base_cut_a_F DM (repaired).stl	11.40 MiB	10 h 18 min 5 m	114 x 132 x 17	Download

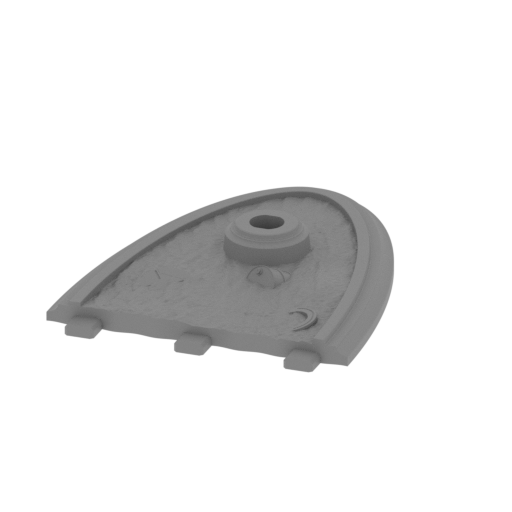

	_33_platform_base_cut_b_F DM (repaired).stl	15.24 MiB	10 h 23 min 5 m	114 x 140 x 17	Download

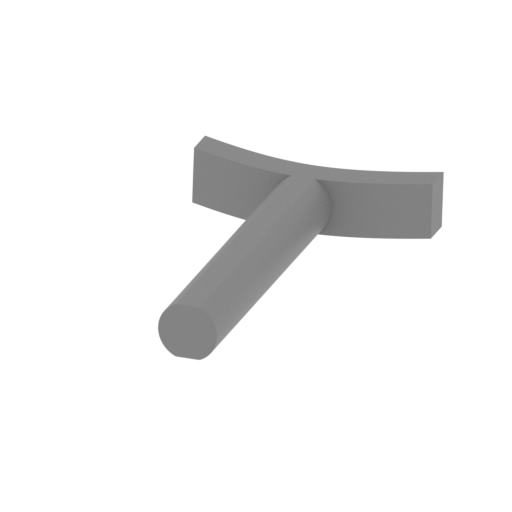

	_34_platform_stand_front_ FDM (repaired).stl	0.19 MiB	1 h 10 min 1 m	48 x 75 x 11	Download

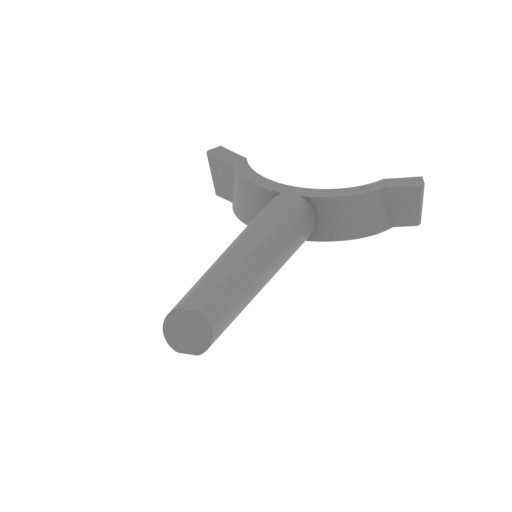

	_35_platform_stand_back_F DM (repaired).stl	0.35 MiB	1 h 16 min 1 m	52 x 89 x 11	Download

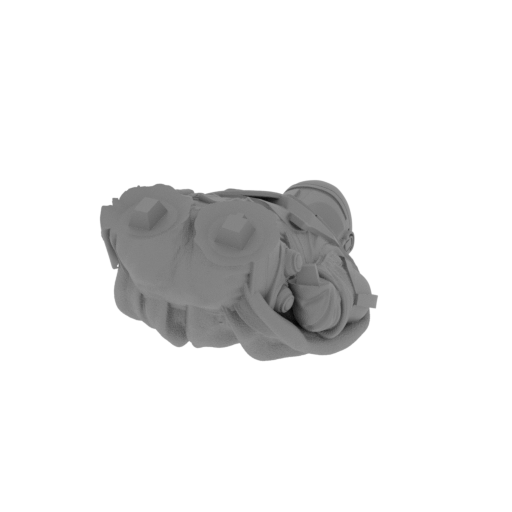

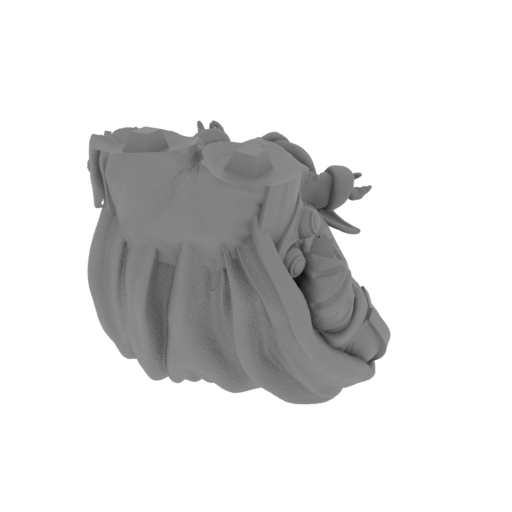

	_36_Mand_body_FDM (repair ed).stl	67.64 MiB	3 h 56 min 2 m	38 x 28 x 62	Download
	_37_Mand_leg_R_FDM (repai red).stl	25.62 MiB	1 h 29 min 1 m	18 x 28 x 58	Download
	_38_Mand_leg_L_FDM (repai red).stl	24.71 MiB	1 h 31 min 1 m	16 x 19 x 56	Download
	_39_Mand_hand_L_FDM (repa ired).stl	17.98 MiB	27 min <1 m	17 x 15 x 23	Download

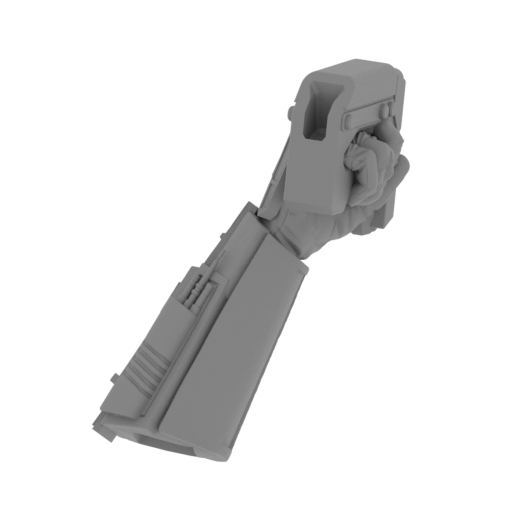

	_40_Mand_hand_R_FDM (repa ired).stl	16.21 MiB	32 min <1 m	9 x 13 x 28	Download
	_41_yoda_FDM (repaired).s tl	44.01 MiB	47 min <1 m	26 x 13 x 23	Download
	Keychain (repaired).stl	0.35 MiB	23 min <1 m	30 x 30 x 2	Download
	Tag (repaired).stl	1.70 MiB	1 h 18 min 1 m	150 x 18 x 5	Download
	_28_kit_cabine_FDM (repai red).stl	2.96 MiB	3 h 1 min 2 m	43 x 40 x 88	Download
	_42_screw_x2_FDM.stl	0.27 MiB	31 min <1 m	27 x 27 x 8	Download

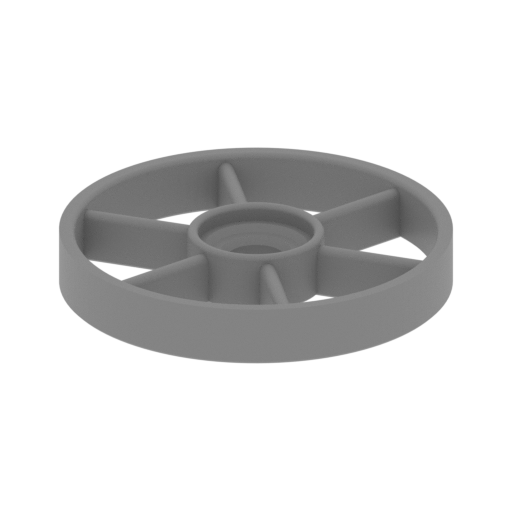

	_43_screw_cover_x2_FDM.st l	0.37 MiB	29 min <1 m	30 x 30 x 5	Download

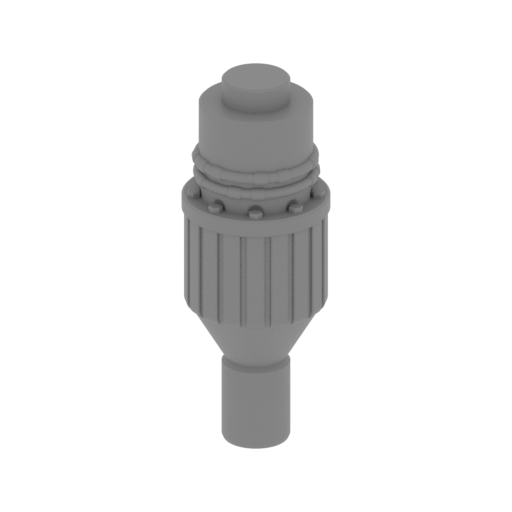

	_44_engine_part1_x2_FDM.s tl	1.18 MiB	42 min <1 m	13 x 13 x 34	Download

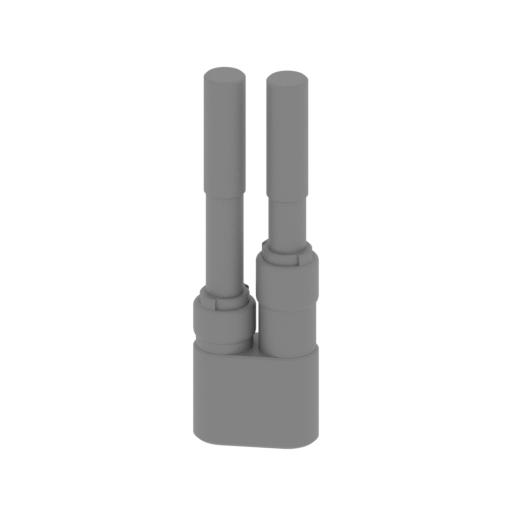

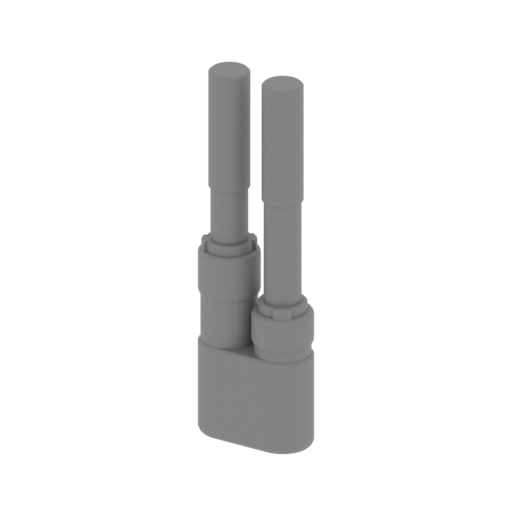

	_45_engine_part2_R_FDM.st l	0.27 MiB	32 min <1 m	12 x 7 x 38	Download
	_46_engine_part2_L_FDM.st l	0.27 MiB	32 min <1 m	12 x 7 x 38	Download

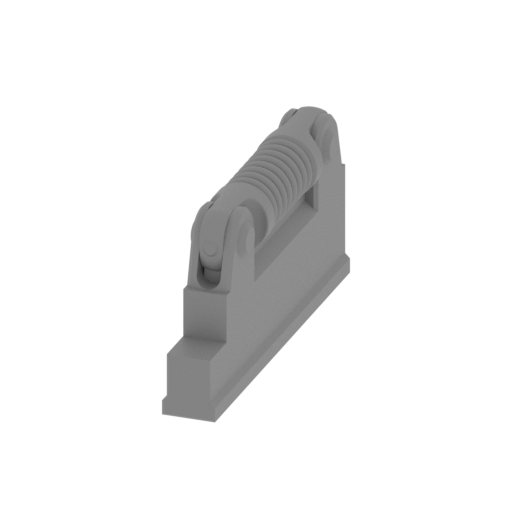

	_47_engine_part3_x2_FDM.s tl	1.16 MiB	20 min <1 m	5 x 31 x 15	Download

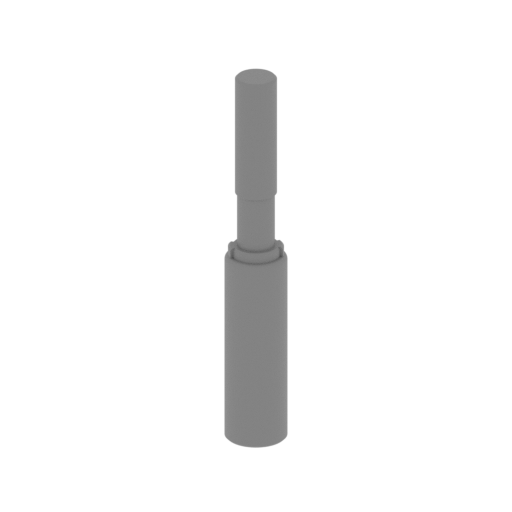

	_48_engine_part4_x2_FDM.s tl	0.11 MiB	19 min <1 m	6 x 6 x 38	Download

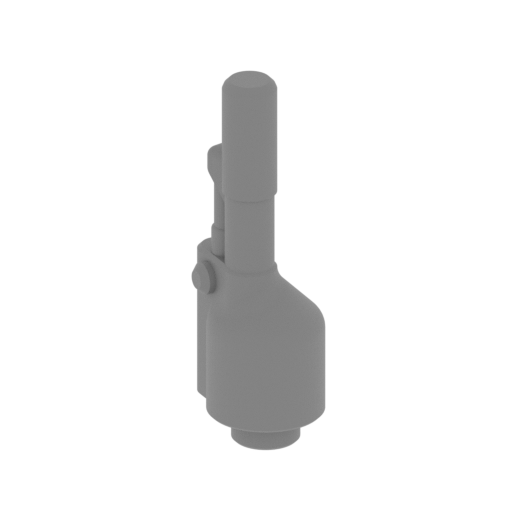

	_49_engine_part5_x2_FDM.s tl	0.25 MiB	19 min <1 m	10 x 9 x 28	Download

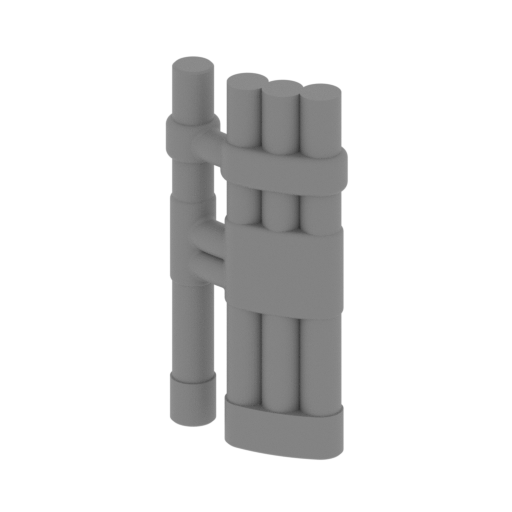

	_50_engine_part6_R_FDM.st l	0.79 MiB	45 min <1 m	19 x 9 x 38	Download

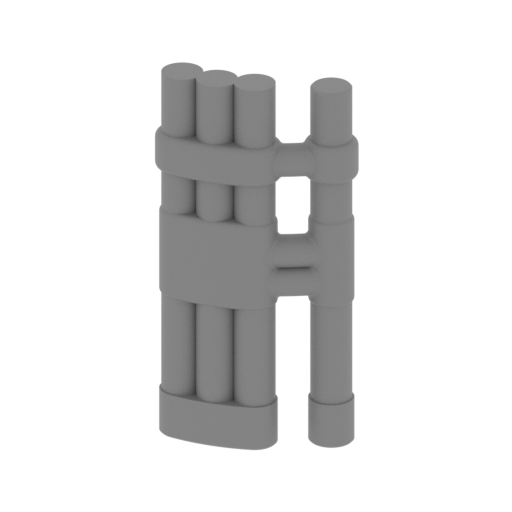

	_51_engine_part6_L_FDM.st l	0.79 MiB	46 min <1 m	19 x 9 x 38	Download
	_52_bodyBack_R_FDM.stl	7.33 MiB	12 h 15 min 7 m	56 x 52 x 72	Download
	_53_bodyBack_L_FDM.stl	7.33 MiB	12 h 19 min 7 m	56 x 52 x 72	Download

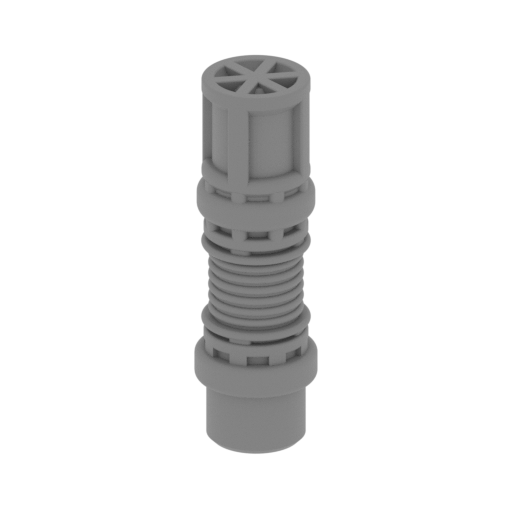

	_54_turbineBack_x4_FDM.st l	3.10 MiB	40 min <1 m	11 x 11 x 36	Download

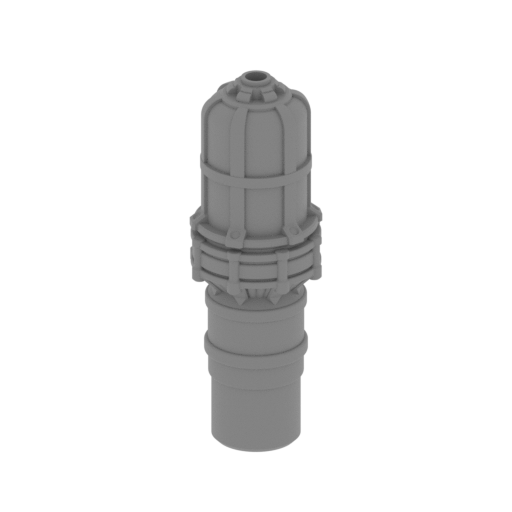

	_55_turbineFront_x4_FDM.s tl	2.34 MiB	56 min <1 m	15 x 15 x 42	Download

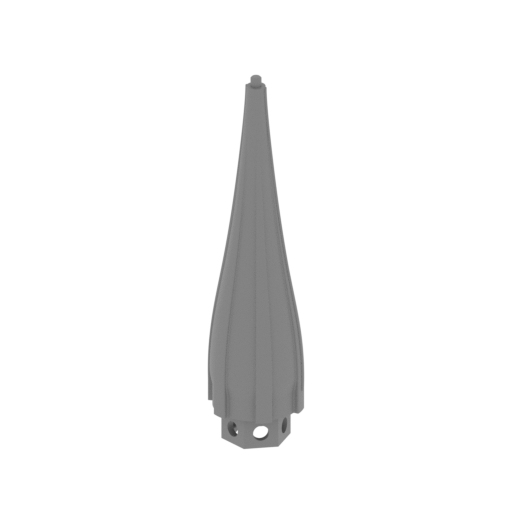

	_56_bodyTail_A_x2_FDM.stl	4.44 MiB	5 h 34 min 3 m	37 x 34 x 145	Download

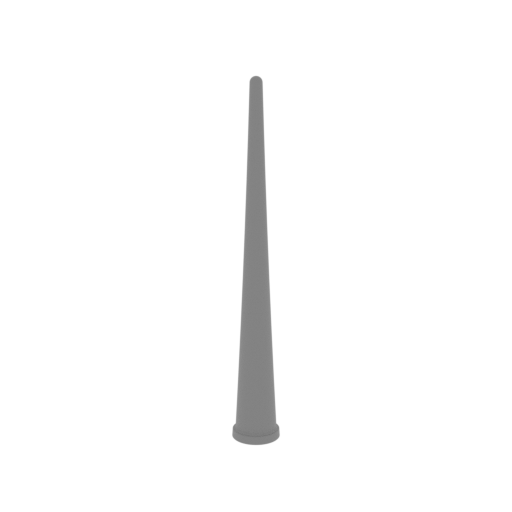

	_57_bodyTail_B_x2_FDM.stl	0.42 MiB	29 min <1 m	8 x 8 x 66	Download

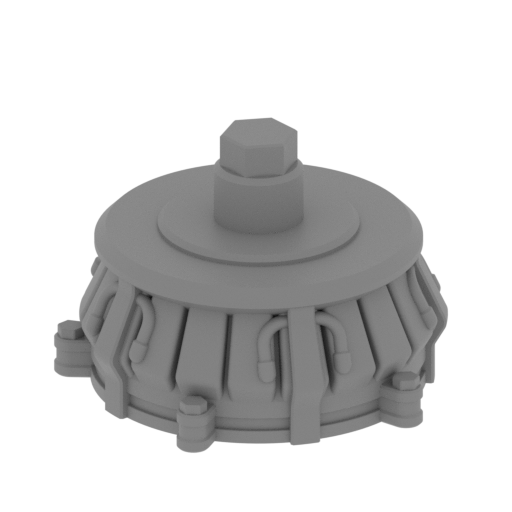

	_58_rotor_x2_FDM.stl	1.81 MiB	2 h 4 min 1 m	35 x 35 x 24	Download
	_59_bodyFront_R_FDM.stl	10.52 MiB	19 h 22 min 13 m	58 x 60 x 102	Download
	_60_bodyFront_L_FDM.stl	11.13 MiB	20 h 33 min 14 m	58 x 61 x 102	Download
	_61_engine_R_FDM.stl	12.91 MiB	8 h 3 min 4 m	46 x 44 x 65	Download
	_62_engine_L_FDM.stl	12.91 MiB	7 h 60 min 4 m	46 x 44 x 65	Download

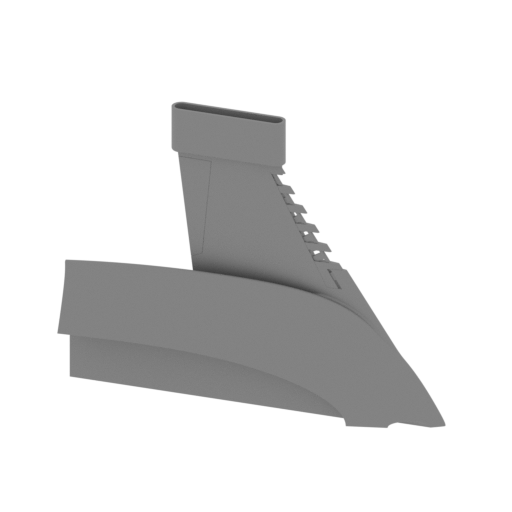

	_1_body_front_R_FDM (repa ired).stl	56.51 MiB	34 h 39 min 22 m	213 x 45 x 174	Download

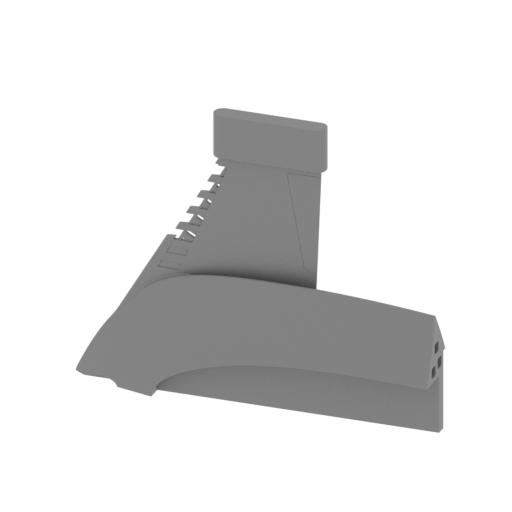

	_3_body_front_L_FDM (repa ired).stl	56.33 MiB	33 h 59 min 21 m	213 x 45 x 174	Download

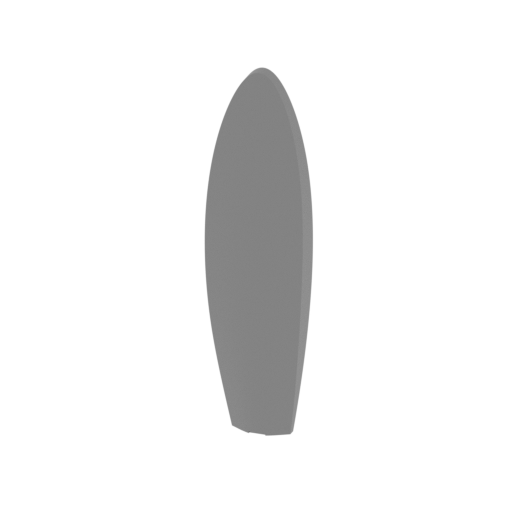

	_6_body_bot_full_FDM (rep aired).stl	11.41 MiB	28 h 2 min 21 m	264 x 70 x 30	Download

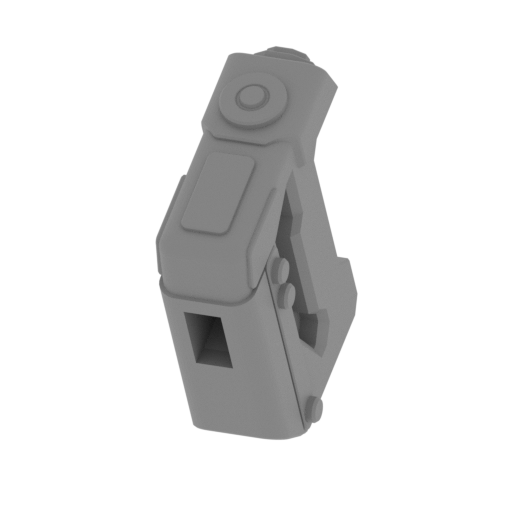

	39_v2_controls (repair ed ).stl	0.61 MiB	13 min <1 m	4 x 11 x 13	Download
	40_v2_controls (repair ed ).stl	0.61 MiB	13 min <1 m	4 x 11 x 13	Download
...

ABOUT THIS 3D MODEL

"Well? How was it?"

"Wizard."

Peli Motto and Din Djarin, on his new ship

A modified N-1 starfighter was owned by Din Djarin following the destruction of the Razor Crest. Djarin and the mechanic Peli Motto worked together to build the N-1 starfighter as a replacement.

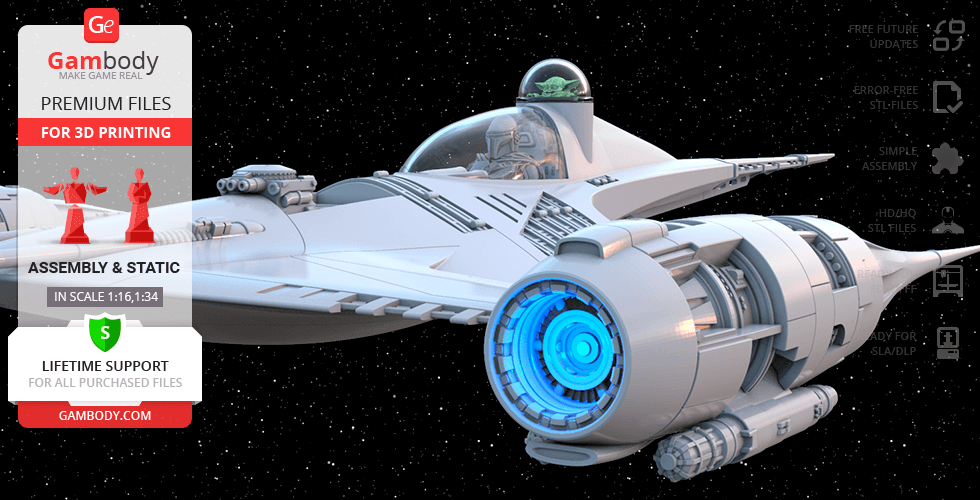

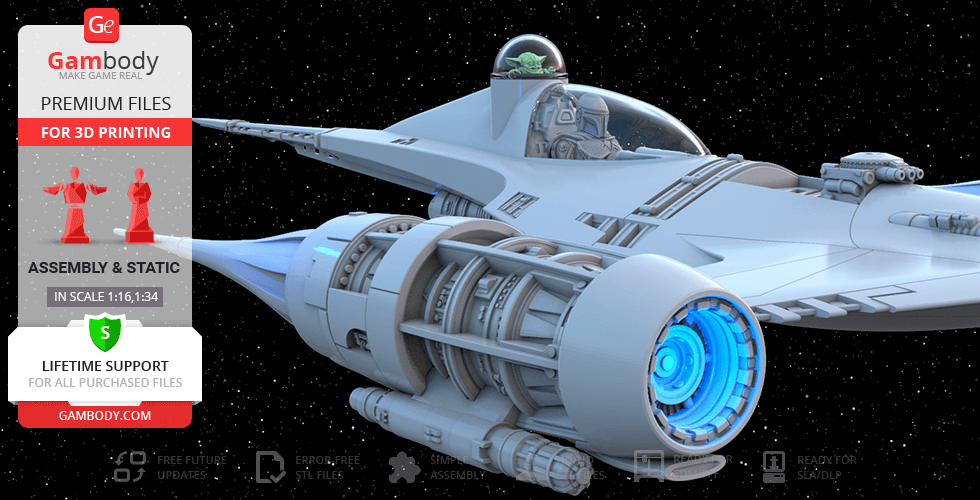

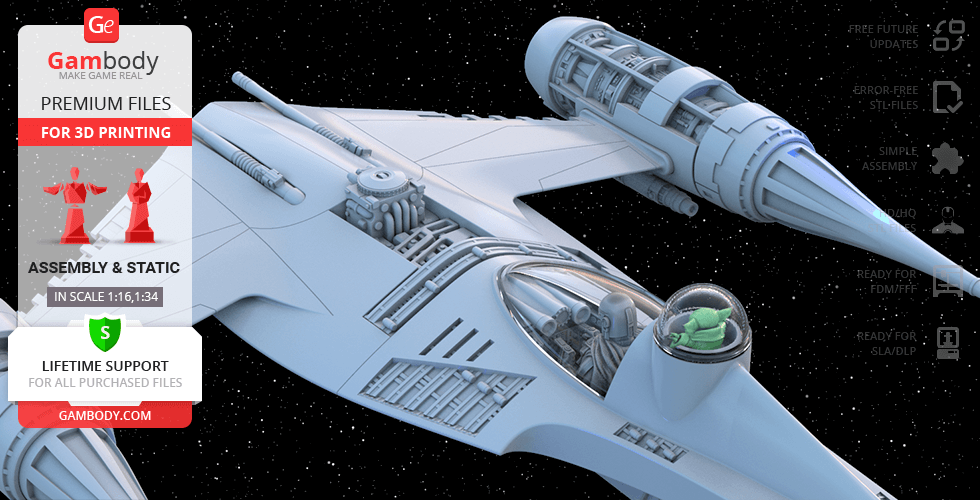

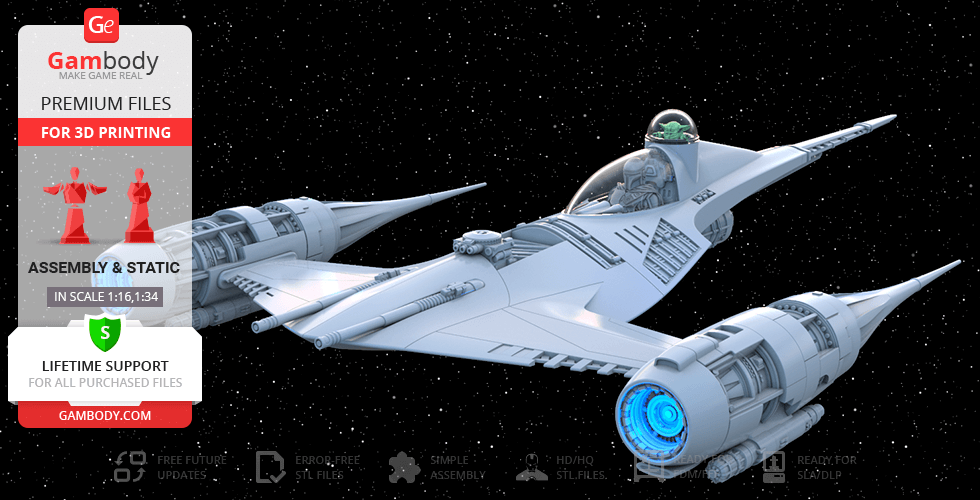

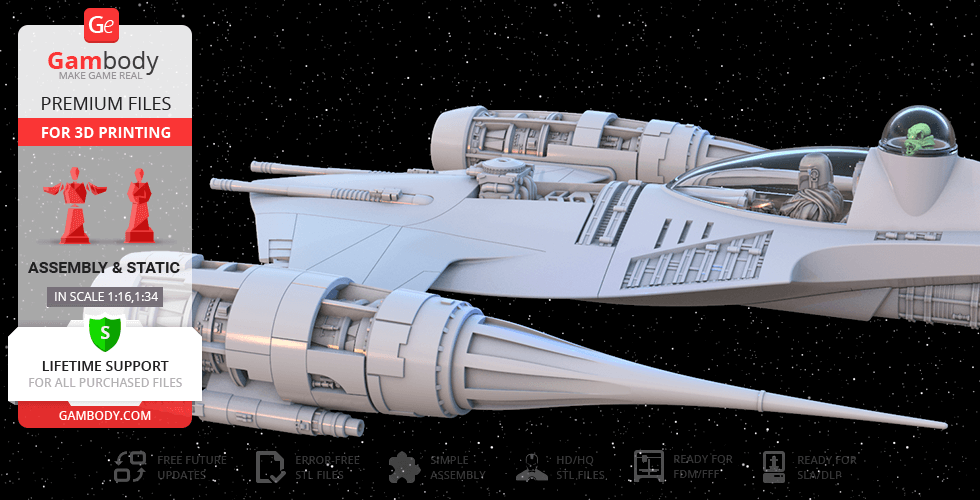

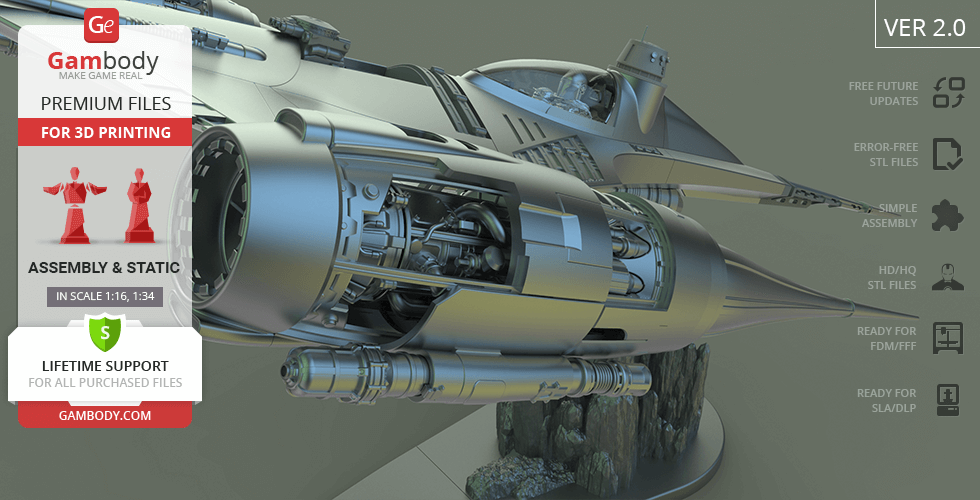

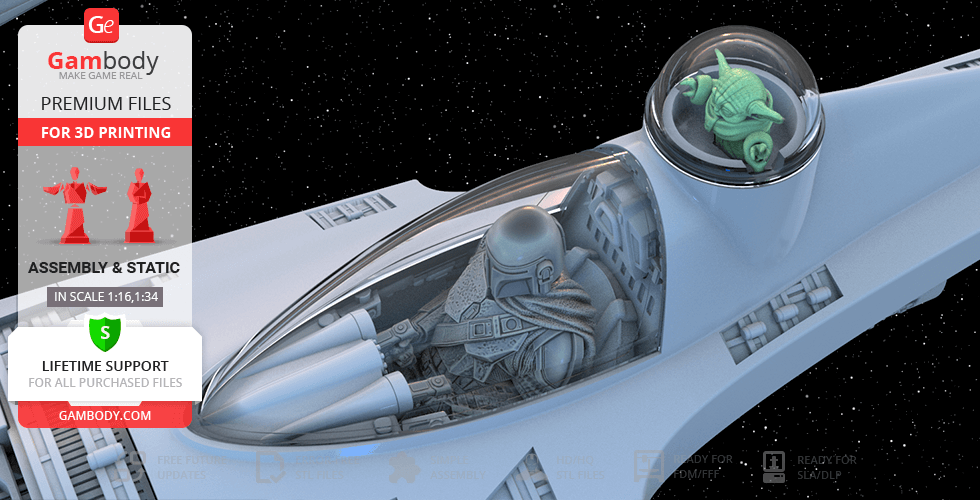

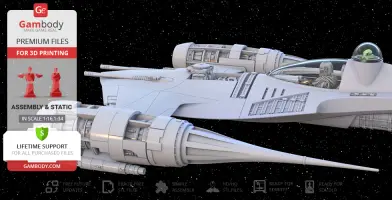

This 3D Model of The Mandalorian's Naboo N-1 Starfighter boasts all features that you dreamt of and even some more!

ADAPTATION FOR 3D PRINTING

The Mandalorian's N-1 Starfighter for 3D printing is an active assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 36 hours in total.

For you to receive the cleanest 3D printing result possible and to minimize the amount of filament needed for generated support the intimidating fighter model was divided into many assembly parts.All assembly parts are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any model's file you will also receive "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format. We highly recommend that you get acquainted with the “Assembly video” and "Assembly Manual" before getting down to the The Mandalorian's N-1 Starfighter model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The 3D printing model’s chosen scale is 1:16 for the FFF/FDM version and 1:34 for the DLP/SLA version.

VERSIONS' SPECIFICATIONS

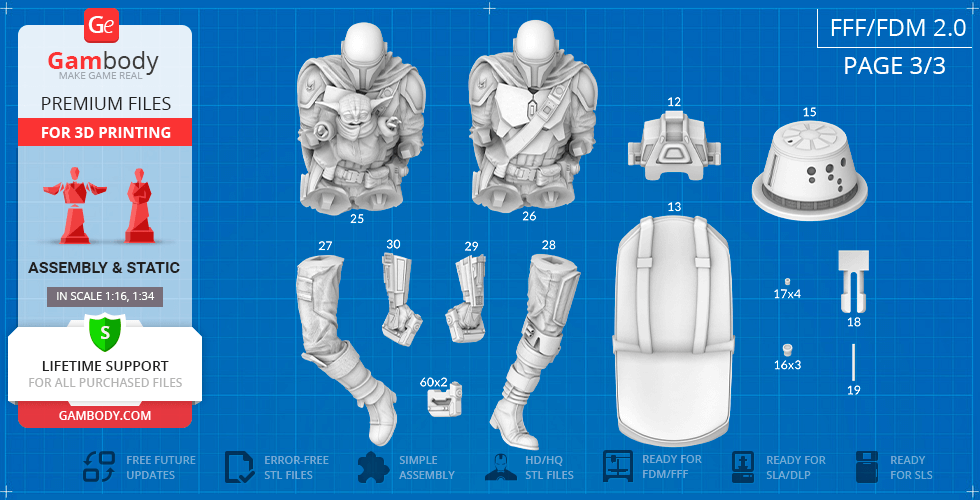

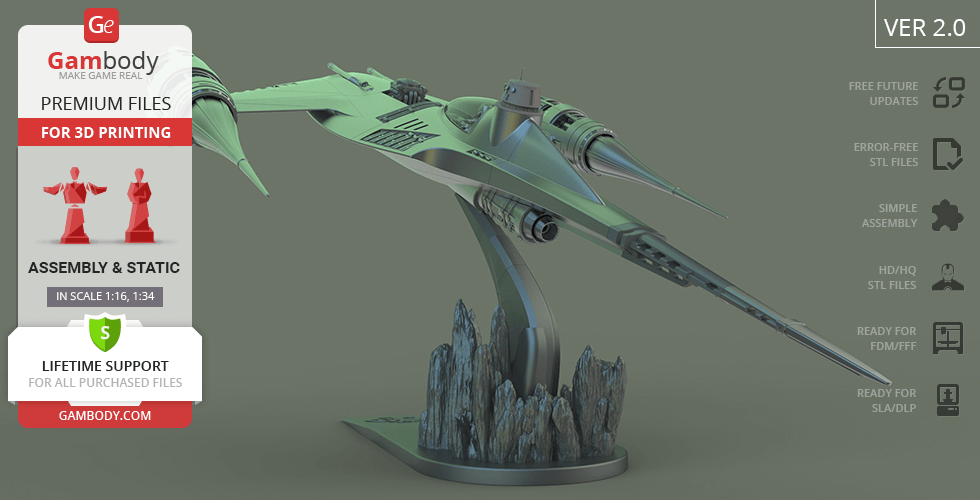

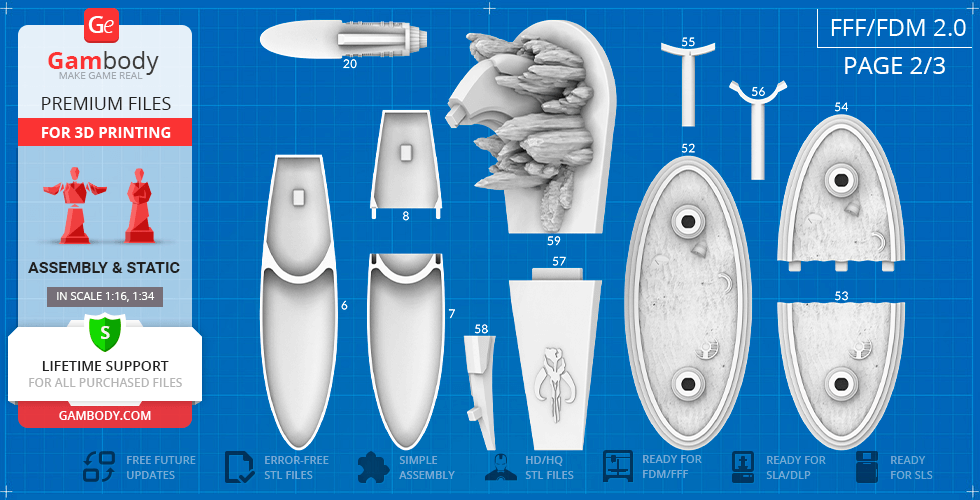

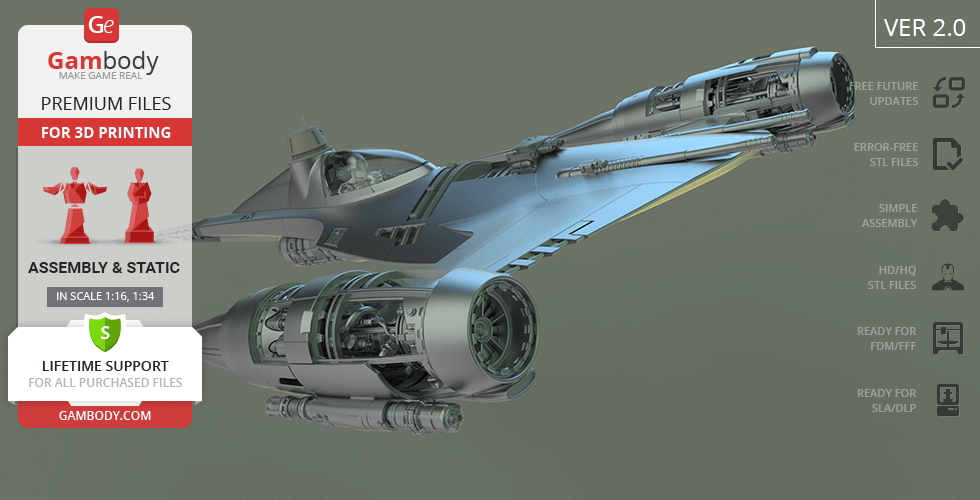

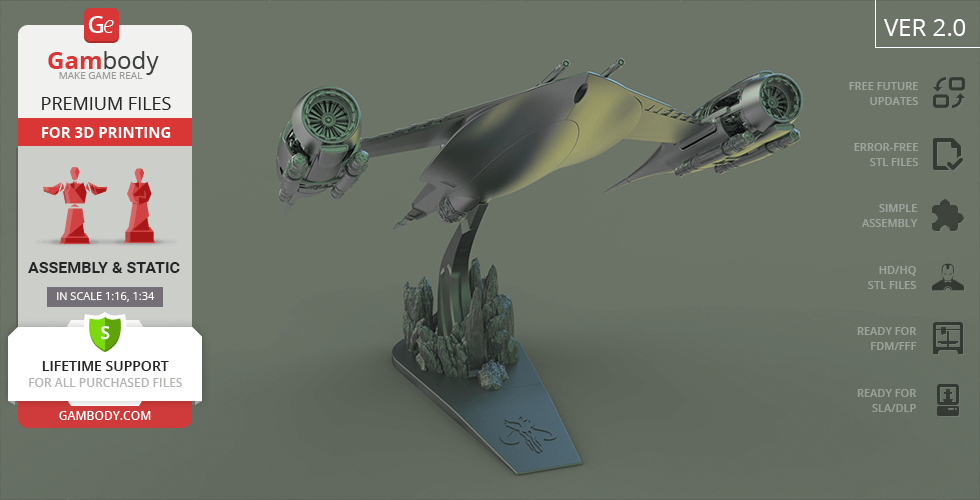

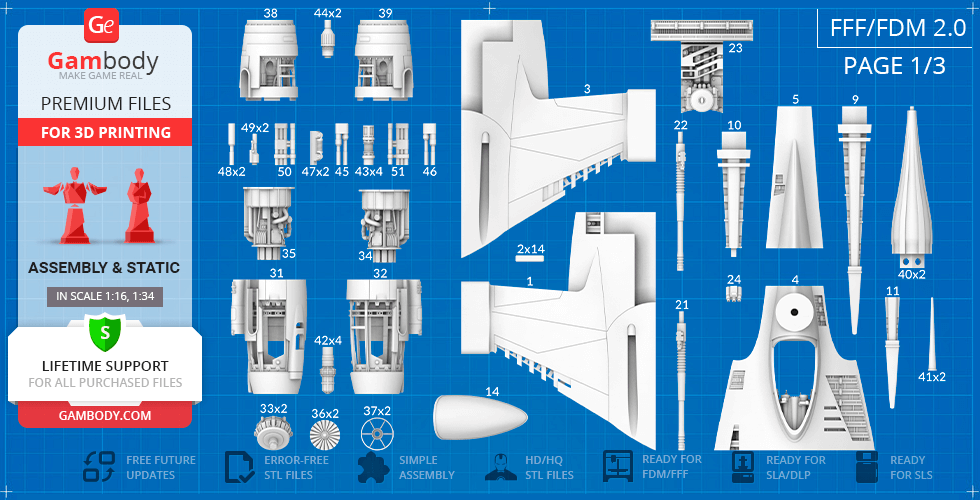

FFF/FDM 2.0 version features:

Contains 60 parts;

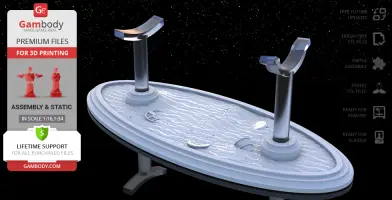

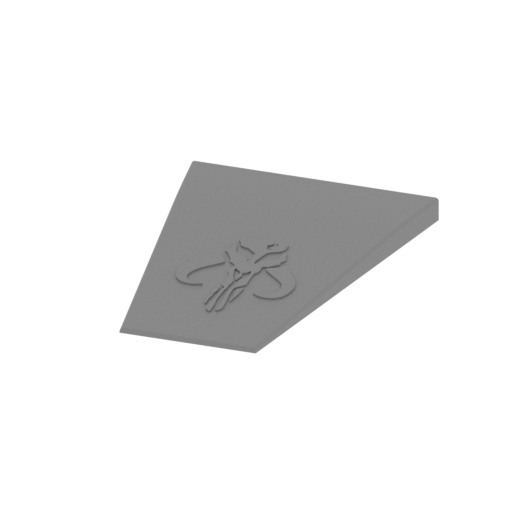

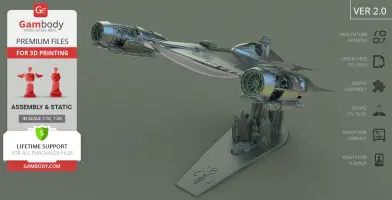

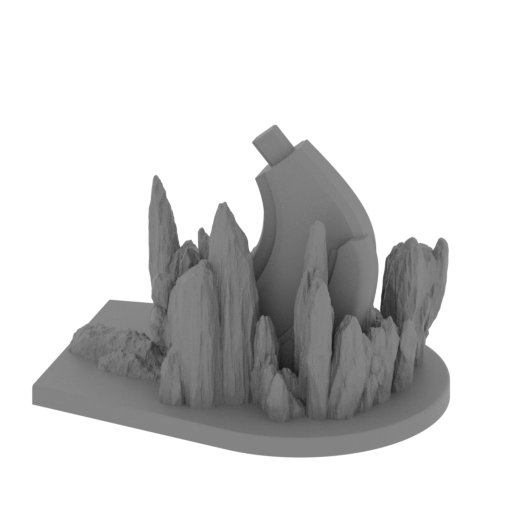

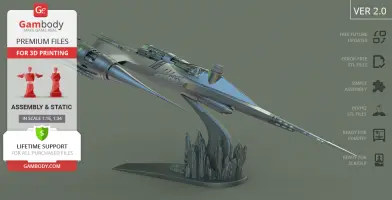

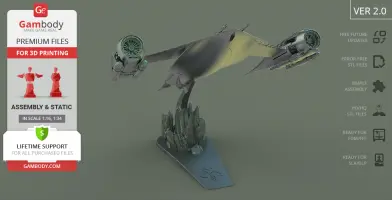

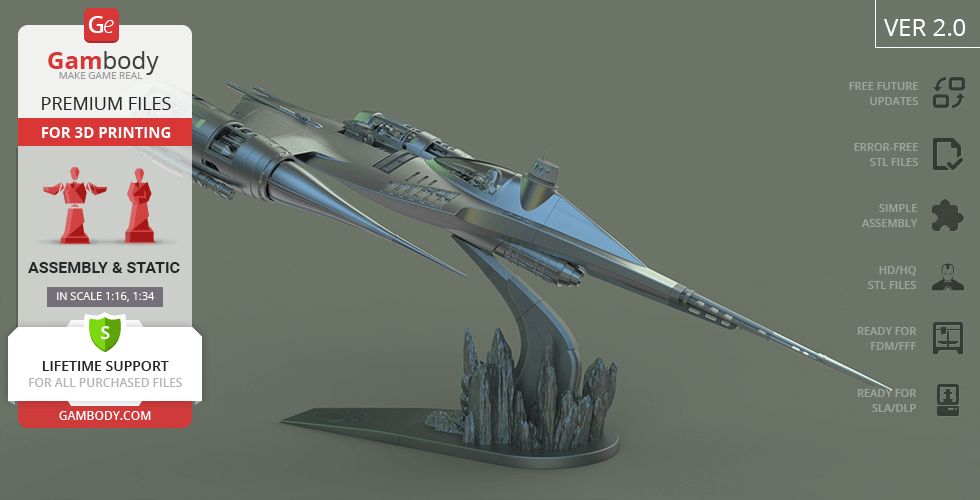

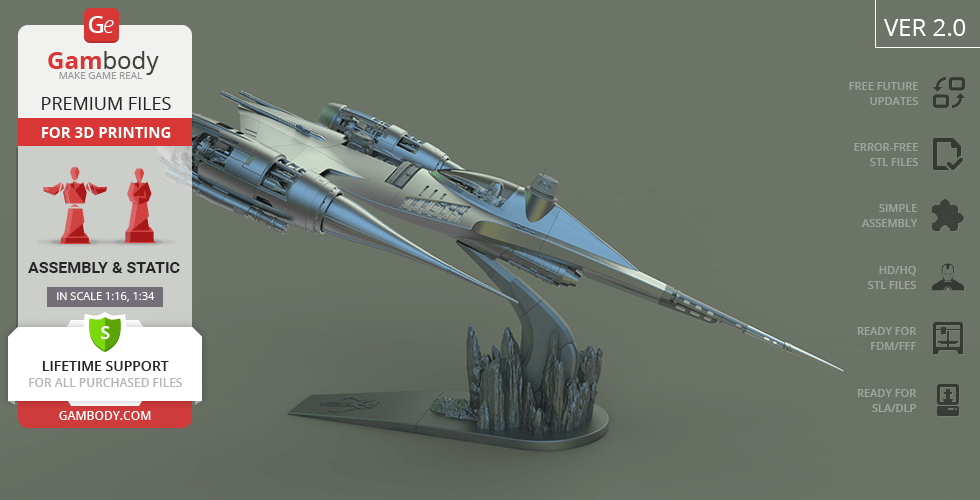

New Mandalore planet stylised stand;

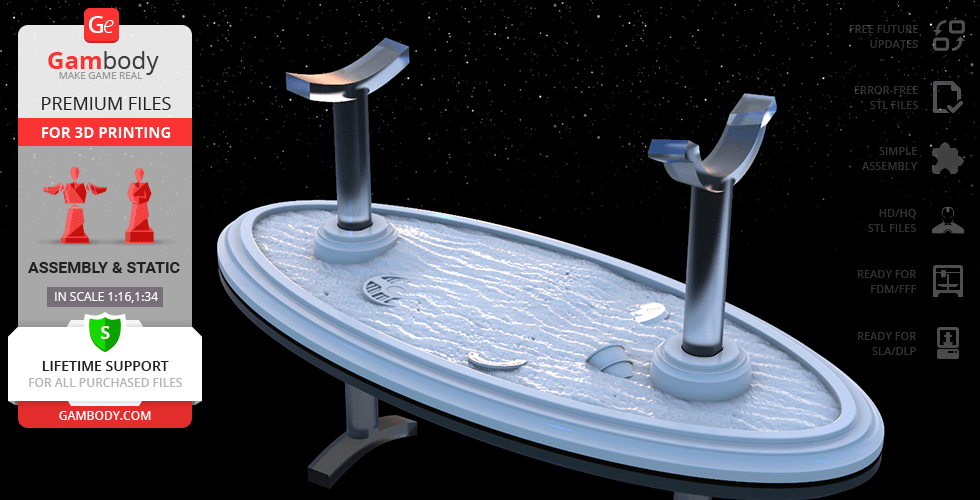

Alternative 2.0 version stand;
R5-D4’s head rotates via a special articulated mechanism;

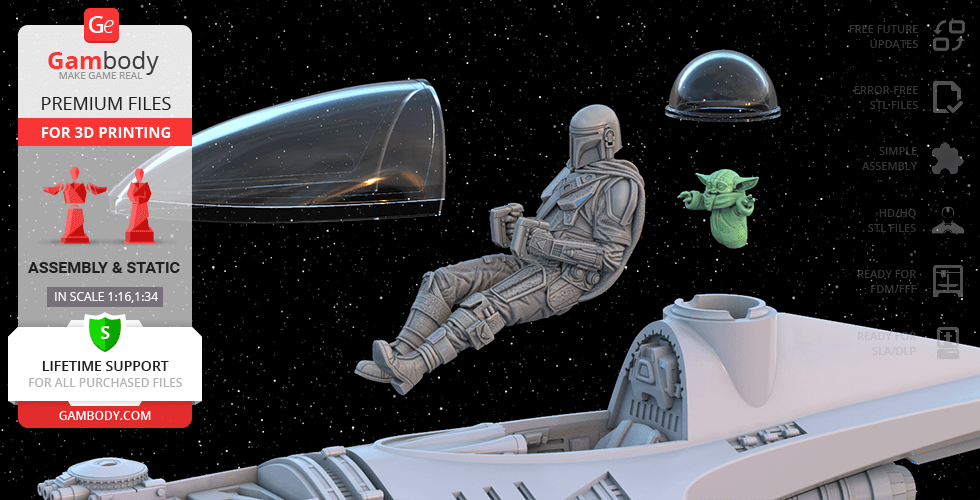

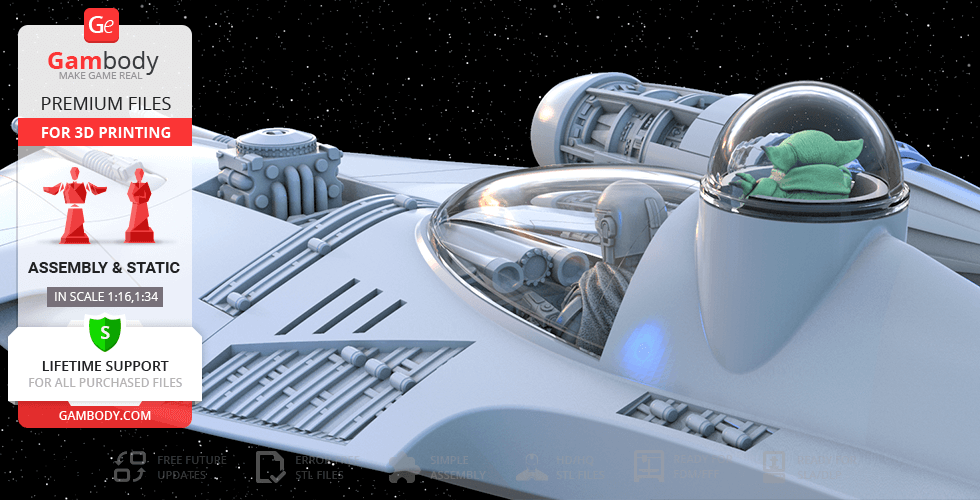

Two pilot’s options - the Mandalorian and the Mandalorian holding the Baby Grogu;

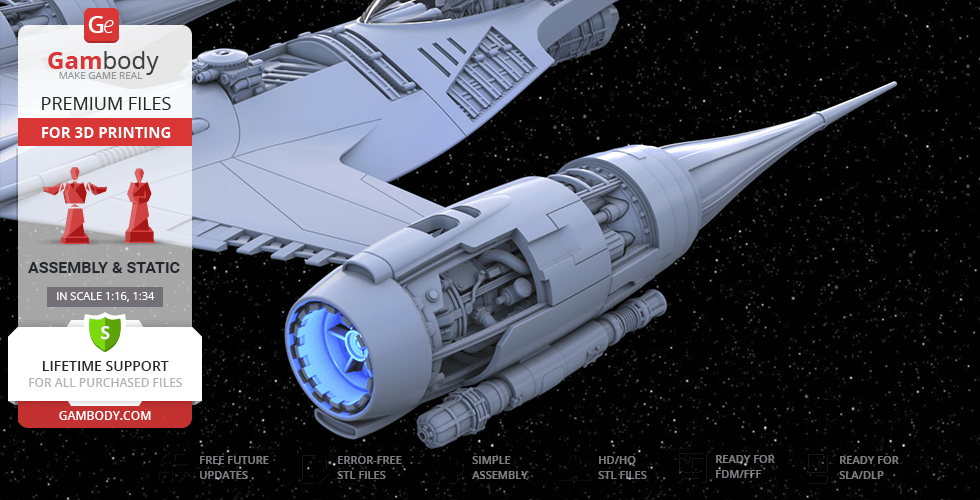

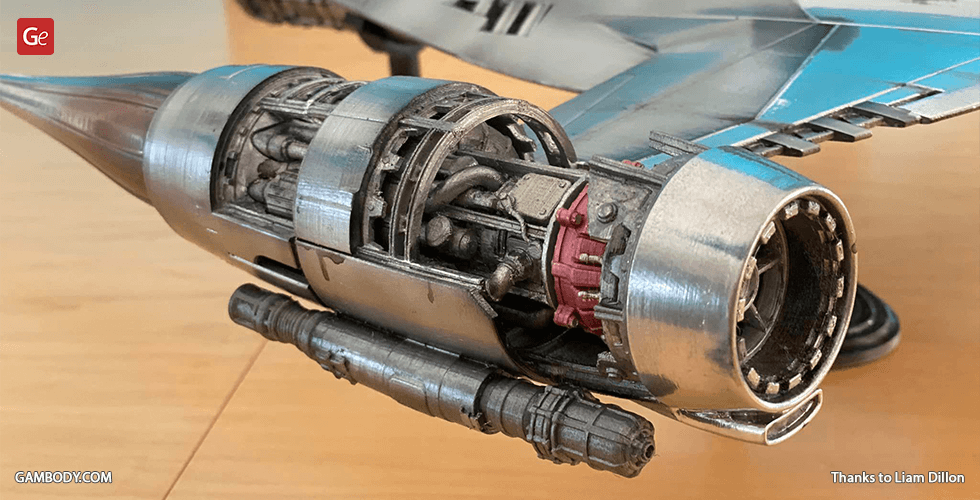

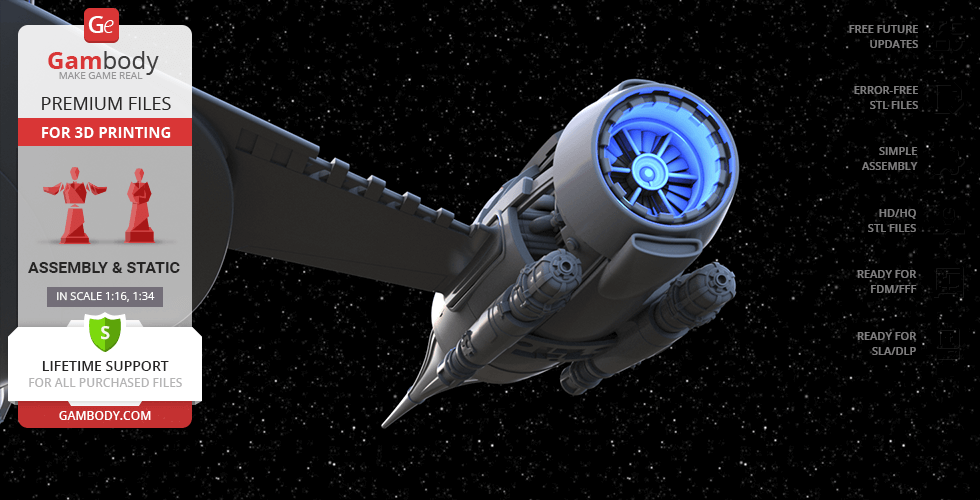

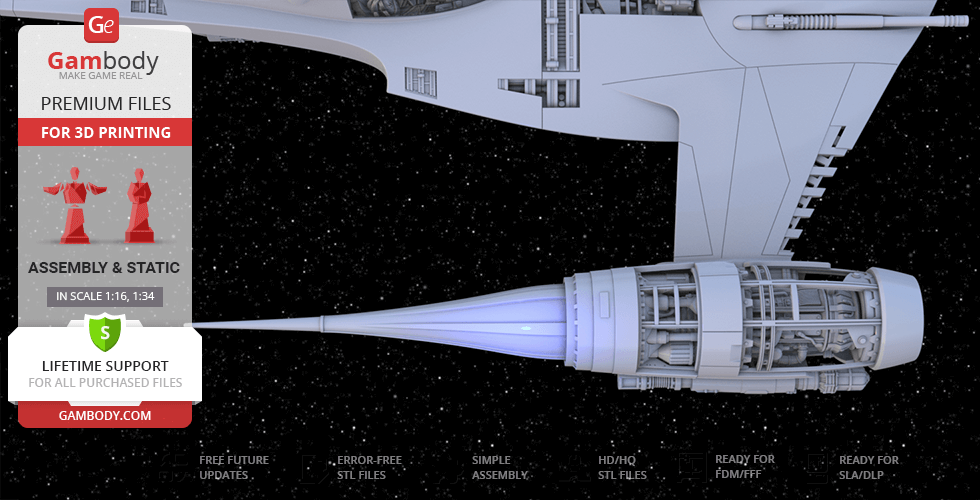

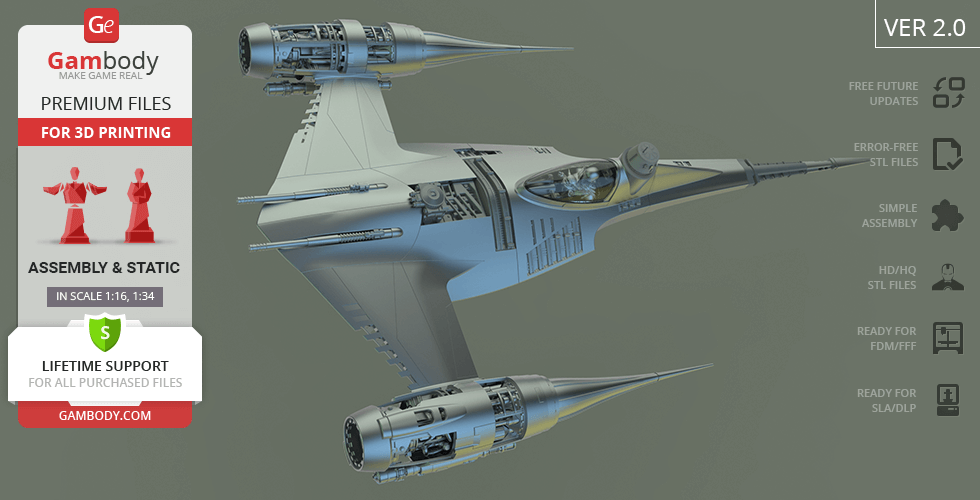

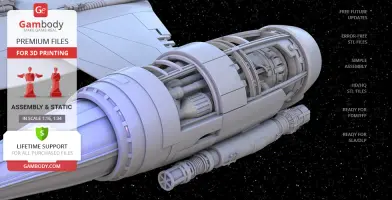

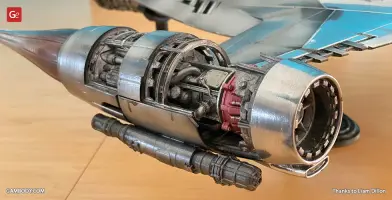

New highly-detailed engines;

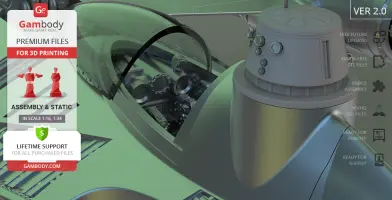

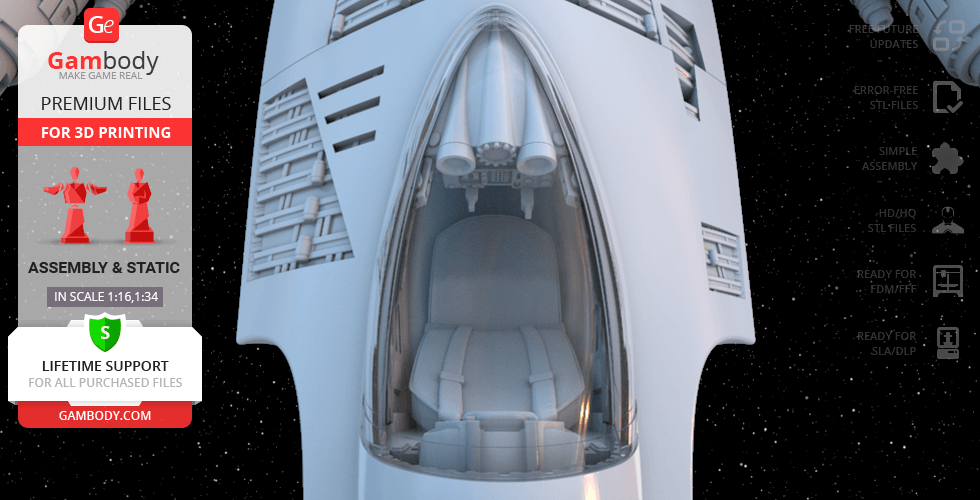

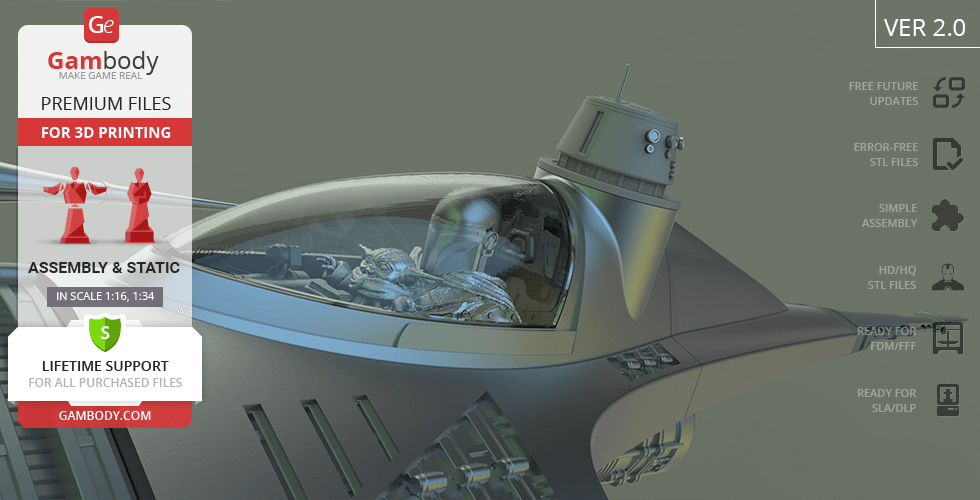

New, more authentic cockpit canopy;

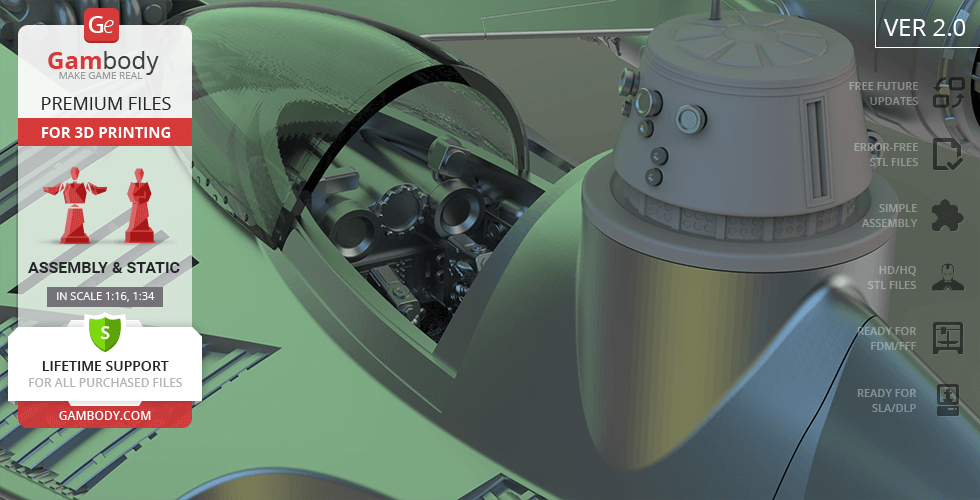

New instruments in the R5-D4 astromech’s cockpit;

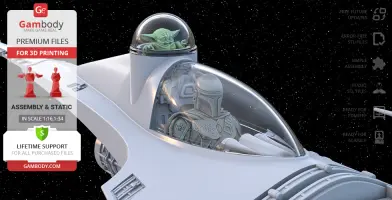

Grogu can be displayed in the cockpit with Mandalorian only;

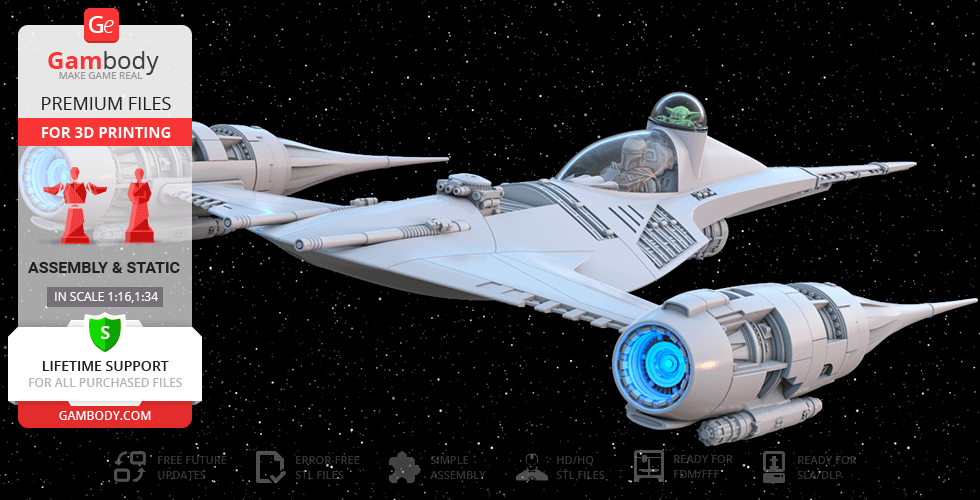

LED wiring to light up the engines;
Optional control levers for the cockpit without the pilot;
Rotor and thrust-vectoring vanes rotate.

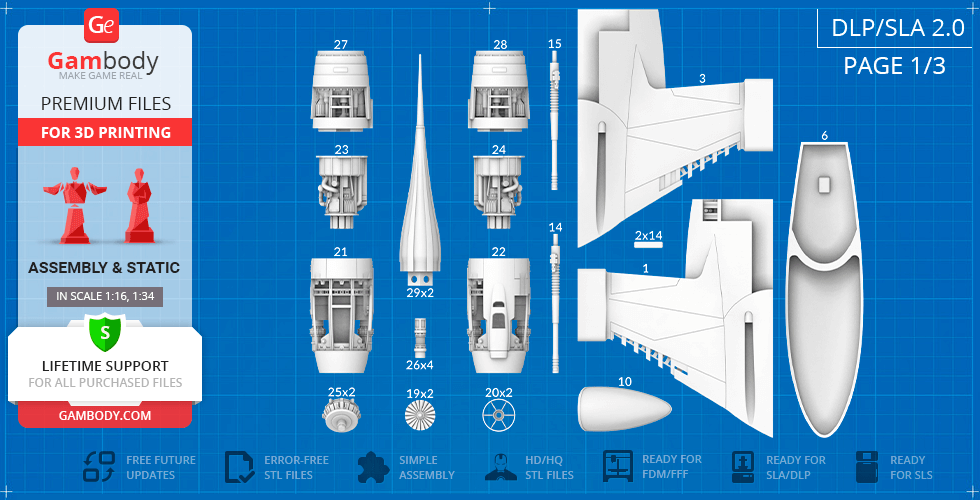

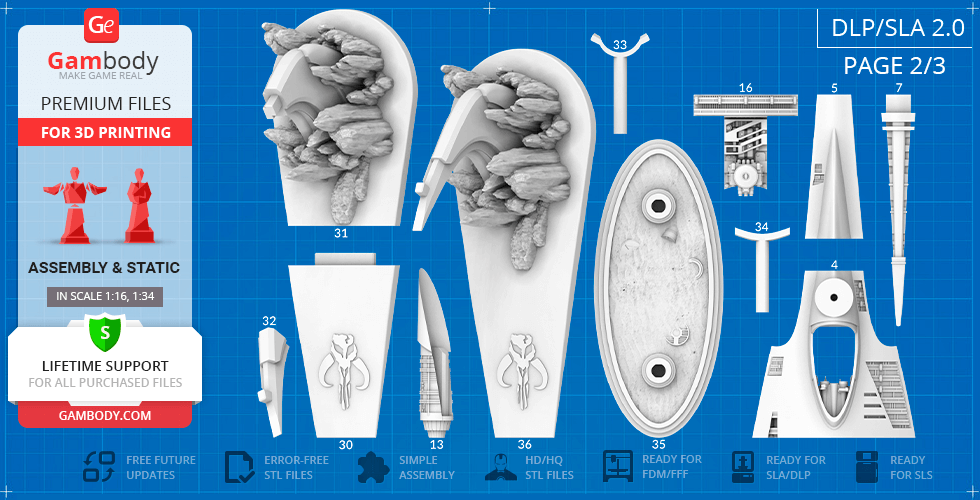

DLP/SLA 2.0 version features:

Contains 37 parts;
New Mandalore planet stylised stand (solid and divided into pieces in the DLP/SLA version);
Alternative 2.0 version stand;
R5-D4’s head rotates via a special articulated mechanism;
Two pilot’s options - the Mandalorian and the Mandalorian holding the Baby Grogu;
New highly-detailed engines;
The new, more authentic cockpit canopy;
New instruments in the R5-D4 astromech’s cockpit;
Grogu can be displayed in the cockpit with Mandalorian only;
LED wiring to light up the engines;
Optional control levers for the cockpit without the pilot;
Rotor and thrust-vectoring vanes rotate.

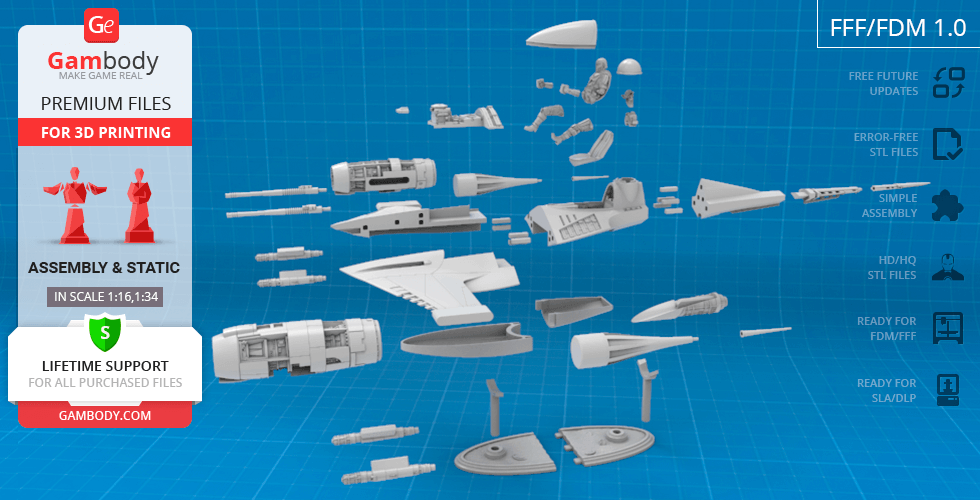

FFF/FDM 1.0 version features:

Contains 41 parts;
A printed model stands 111 mm tall, 686 mm wide, 401 mm deep;

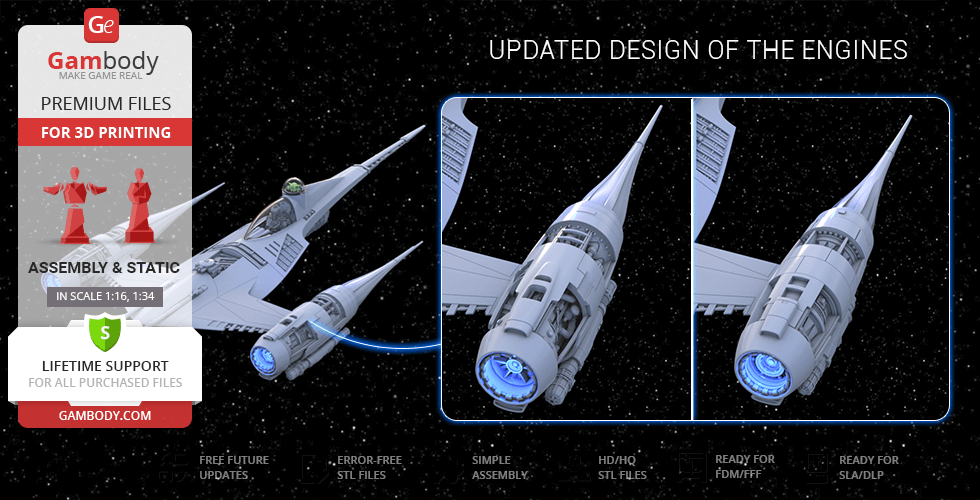

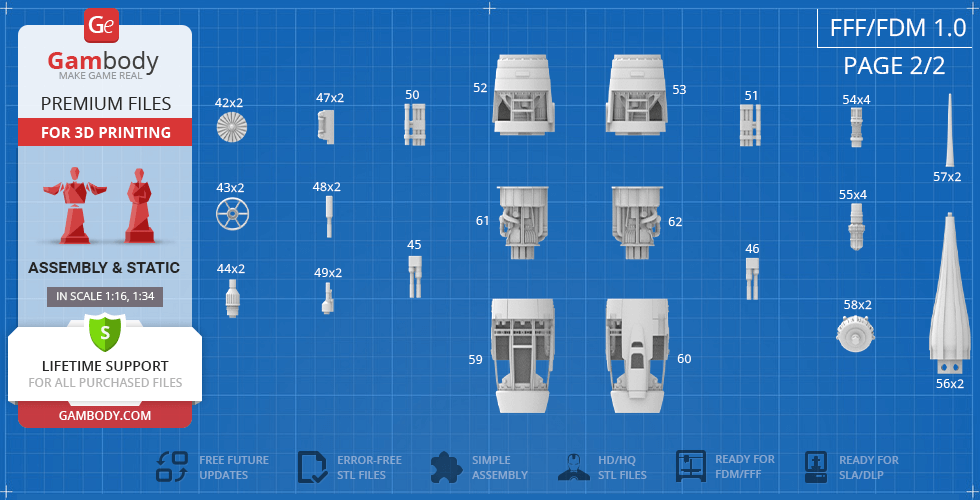

Updated design of the engines - assembly parts #42-62;
The original J-type engines can be replaced by the updated ones without the reprinting of other ship's body parts;

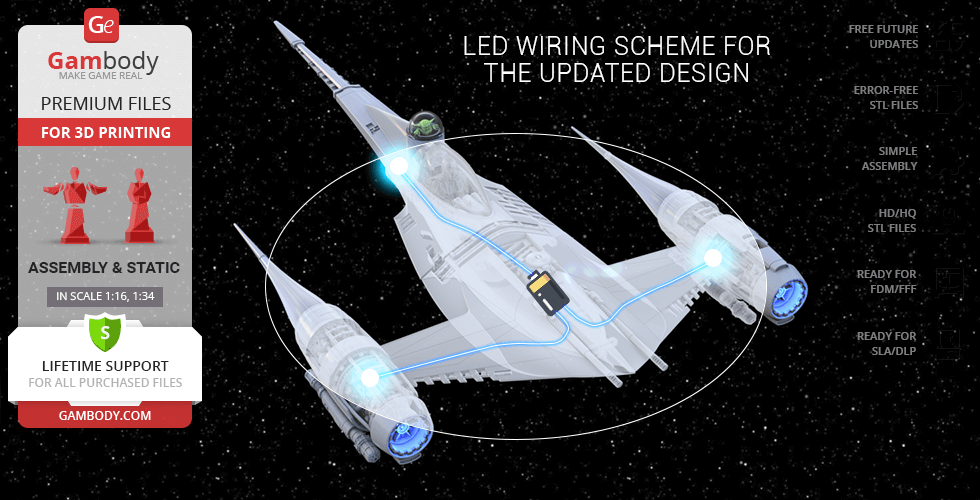

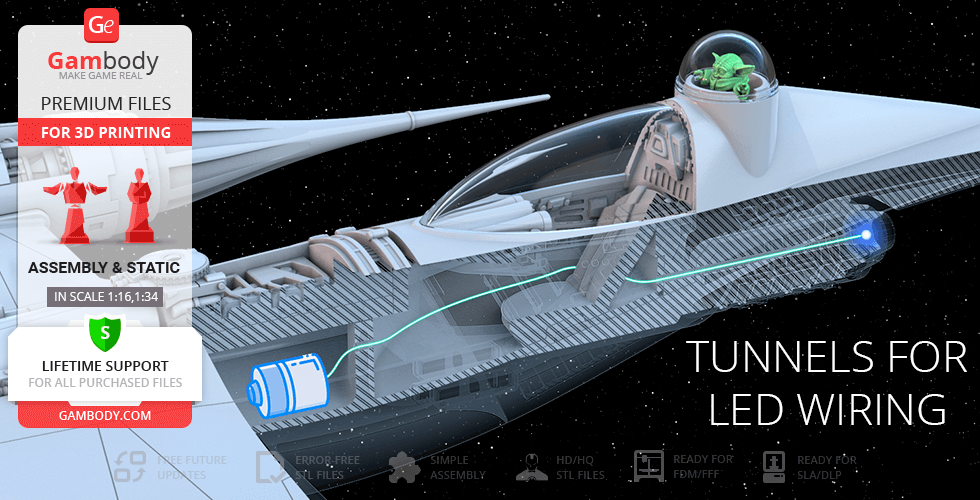

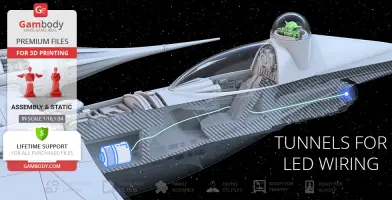

The new design (assembly parts #42-62 and updated parts #1,3,6) is made hollow for you to introduce LED wiring and light up the rear turbine and the J-type engines, a spot to hide the battery is provided inside the ship's body;
The original LED wiring scheme includes the rear turbine only;
The model is completed with two pilots: the Mandalorian and the baby Grogu;
All parts are divided in such a way that you will print them with the smallest number of support structures.

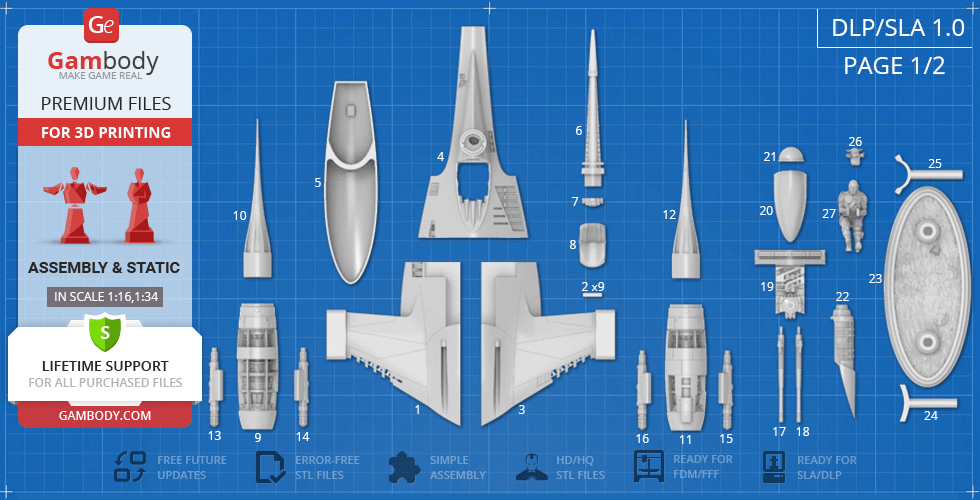

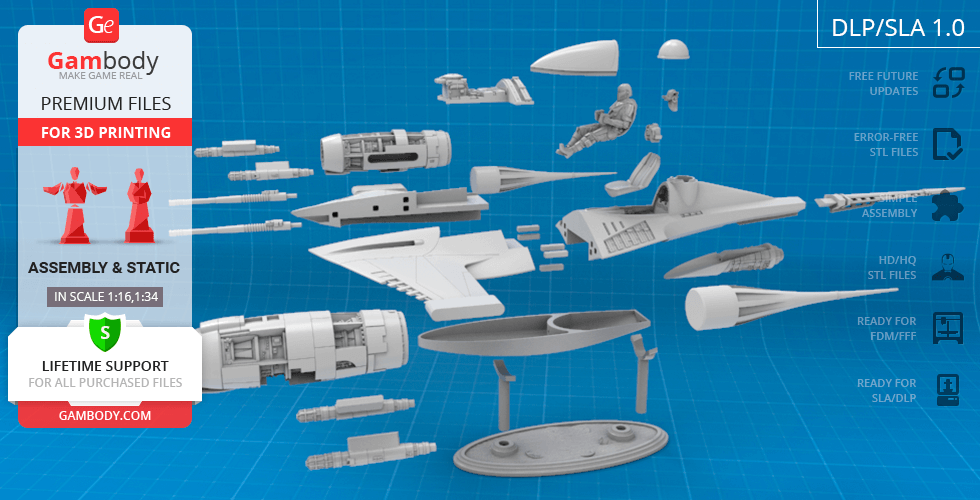

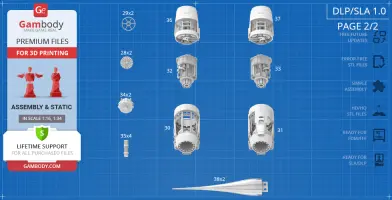

DLP/SLA 1.0 version features:

Contains 27 parts;
A printed model stands 53 mm tall, 323 mm wide, 193 mm deep;

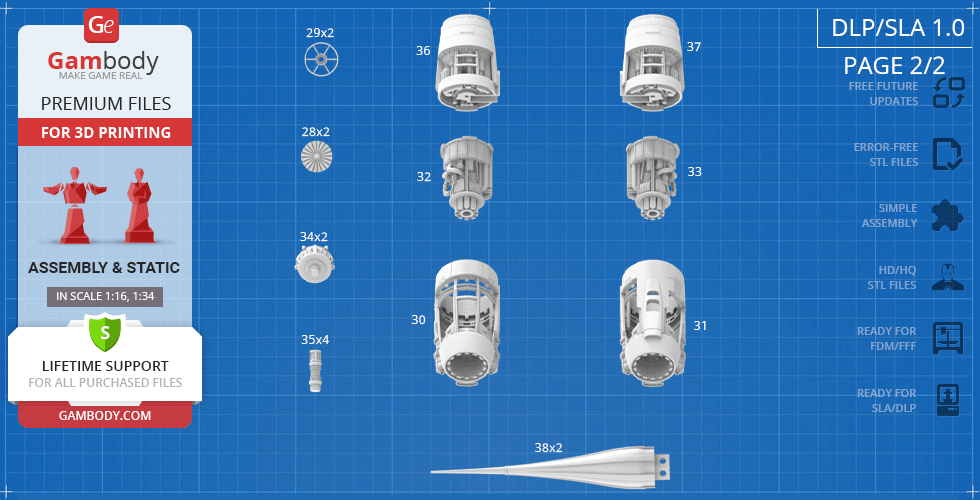

Updated design of the engines - assembly parts #28-38;
The original J-type engines can be replaced by the updated ones without the reprinting of other ship's body parts;
The model is completed with two pilots: the Mandalorian and the baby Grogu;
All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

You can get the model of The Mandalorian's N-1 Starfighter for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble The Mandalorian's N-1 Starfighter at Gambody YouTube channel.

Also, you may like other Star Wars 3D Printing Models and The Mandalorian 3D Printing Figurine, as well as other Space Ships 3D Printing Models.

_______FAQ: Where can I print a model if I have no printer?How to get started with 3D printing?How to set up my 3D printer?How to choose right 3D model print bed positioning? How to paint printed figurine?

Generic

Below you can find printing recommendations for Cura, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);
All connectors should be printed at 100% Infill.

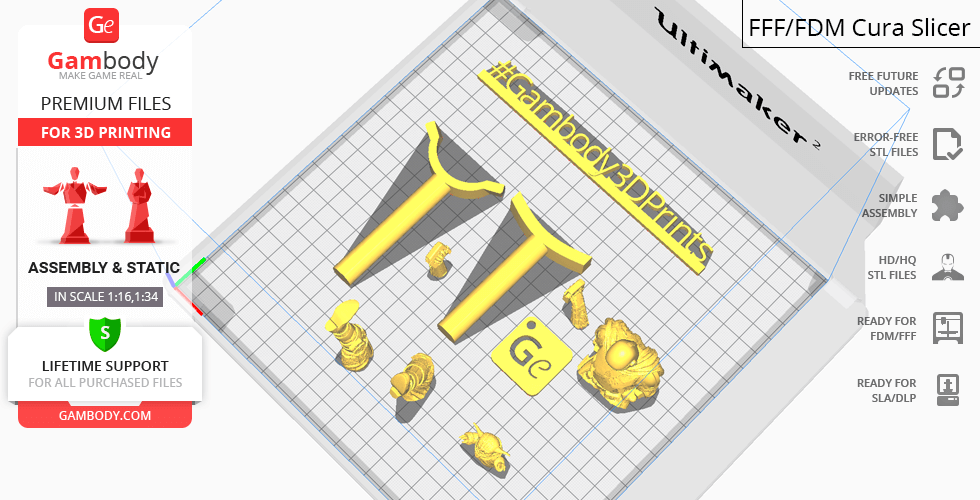

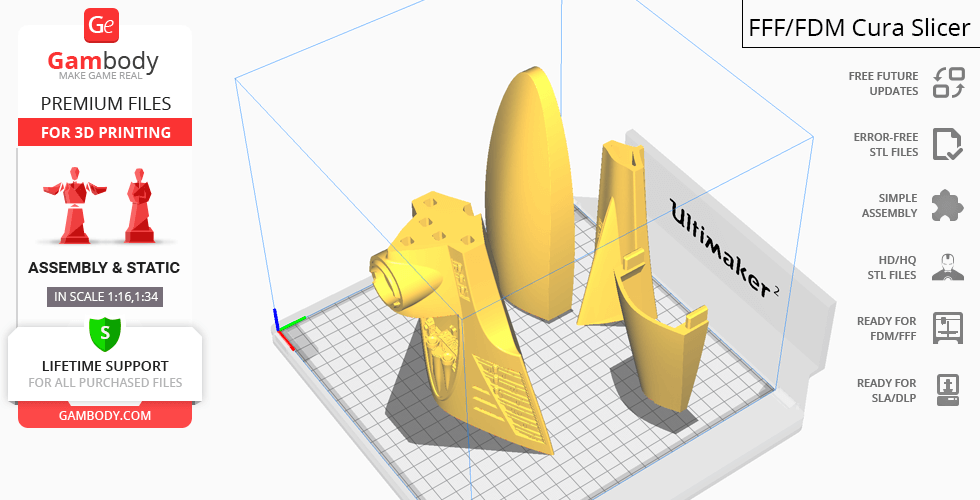

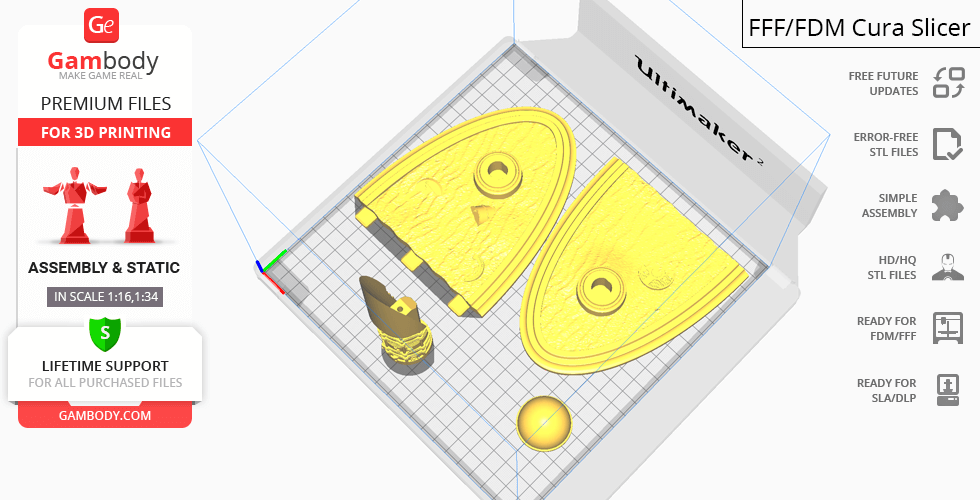

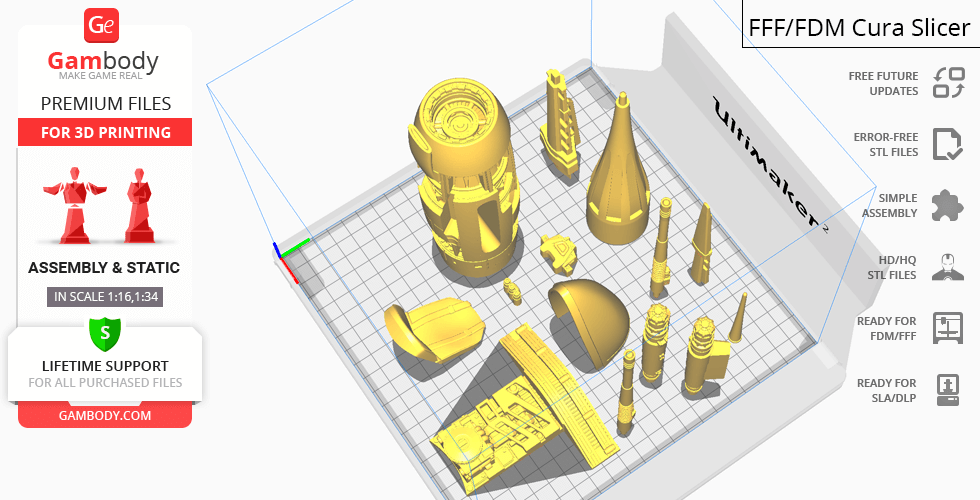

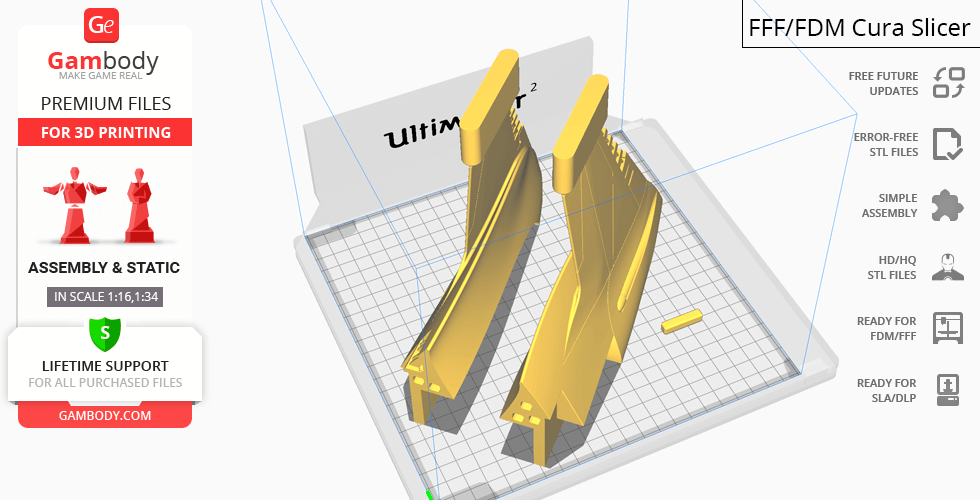

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
