MWO Roughneck 3D Printing Model | Assembly

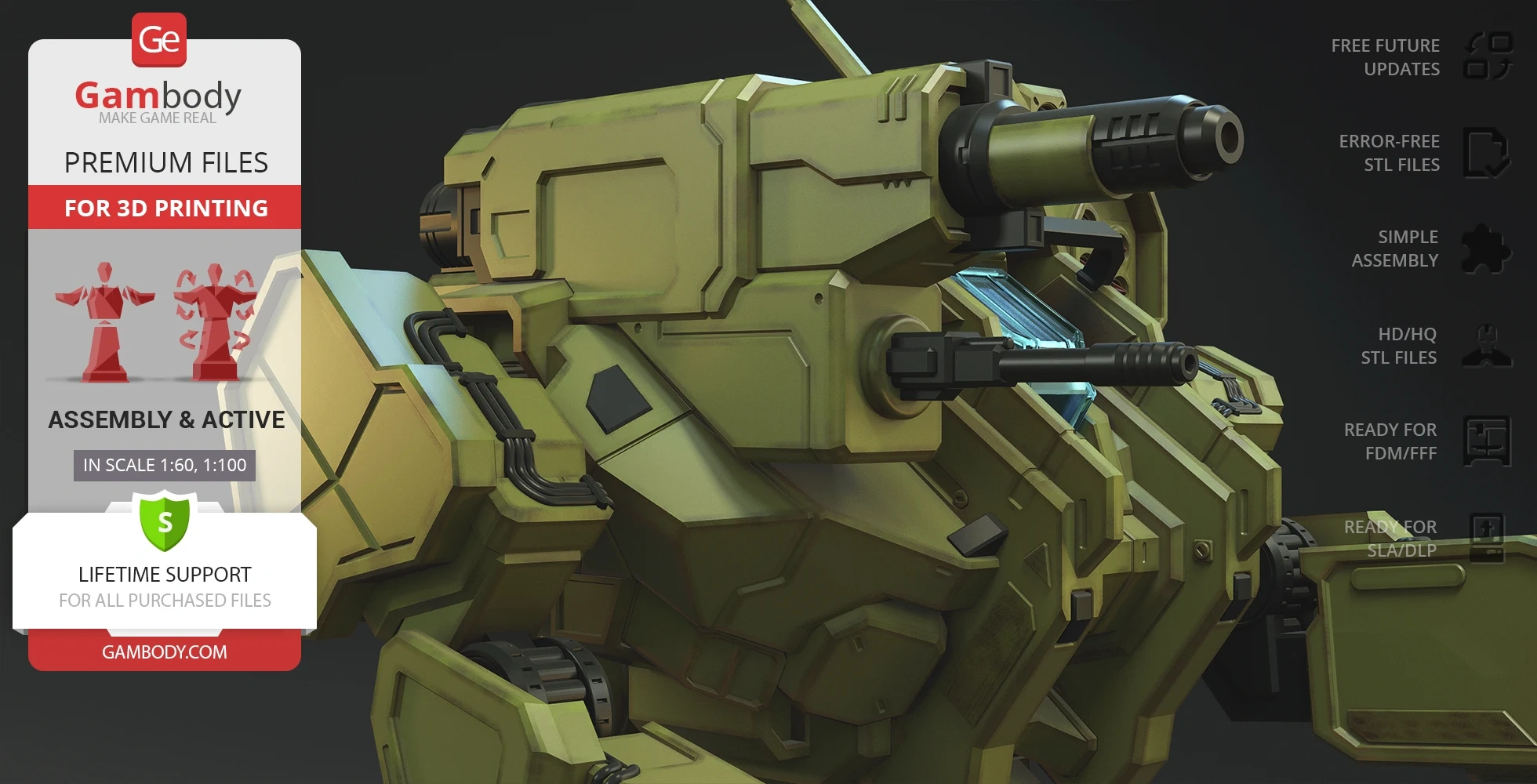

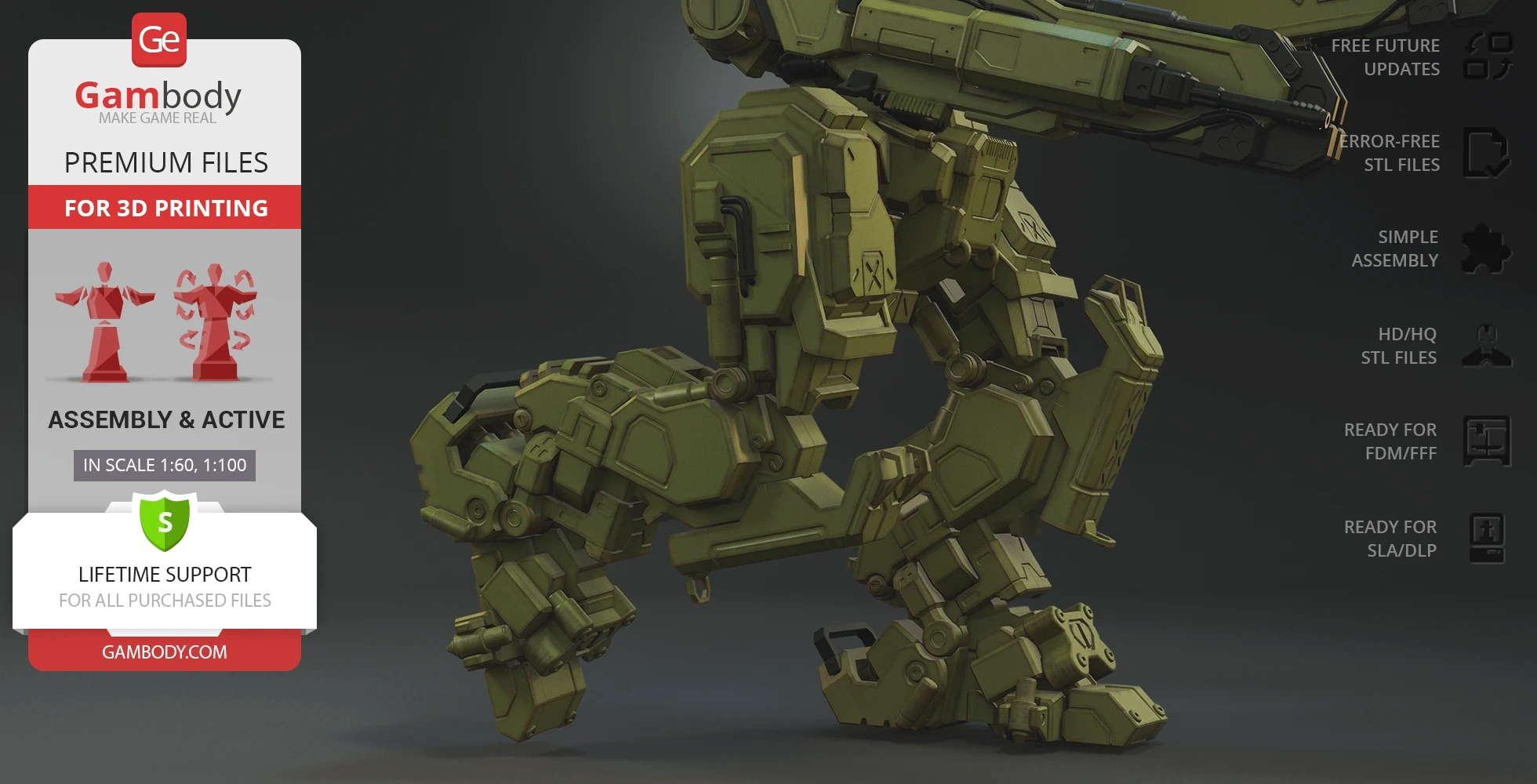

ABOUT THIS 3D MODEL

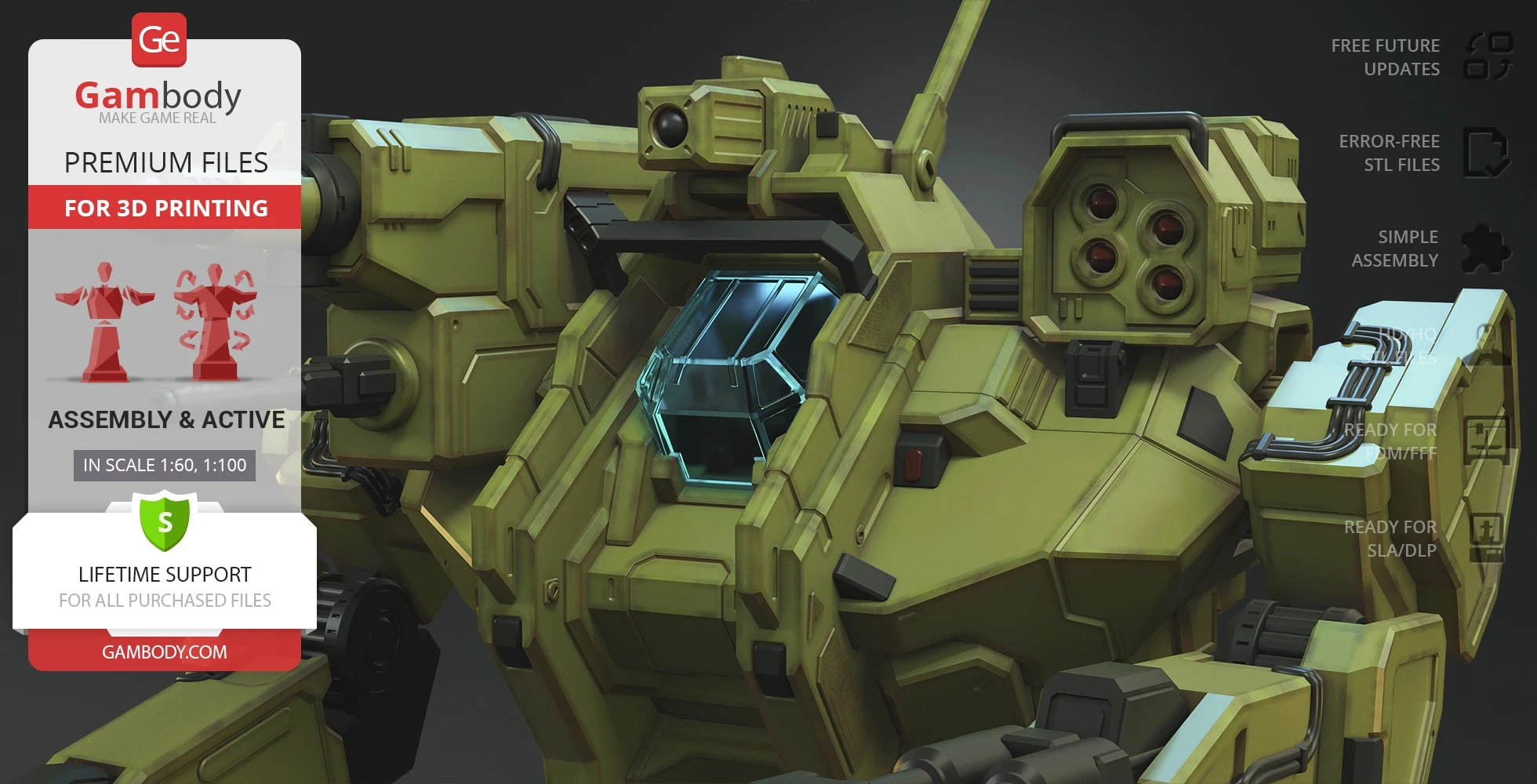

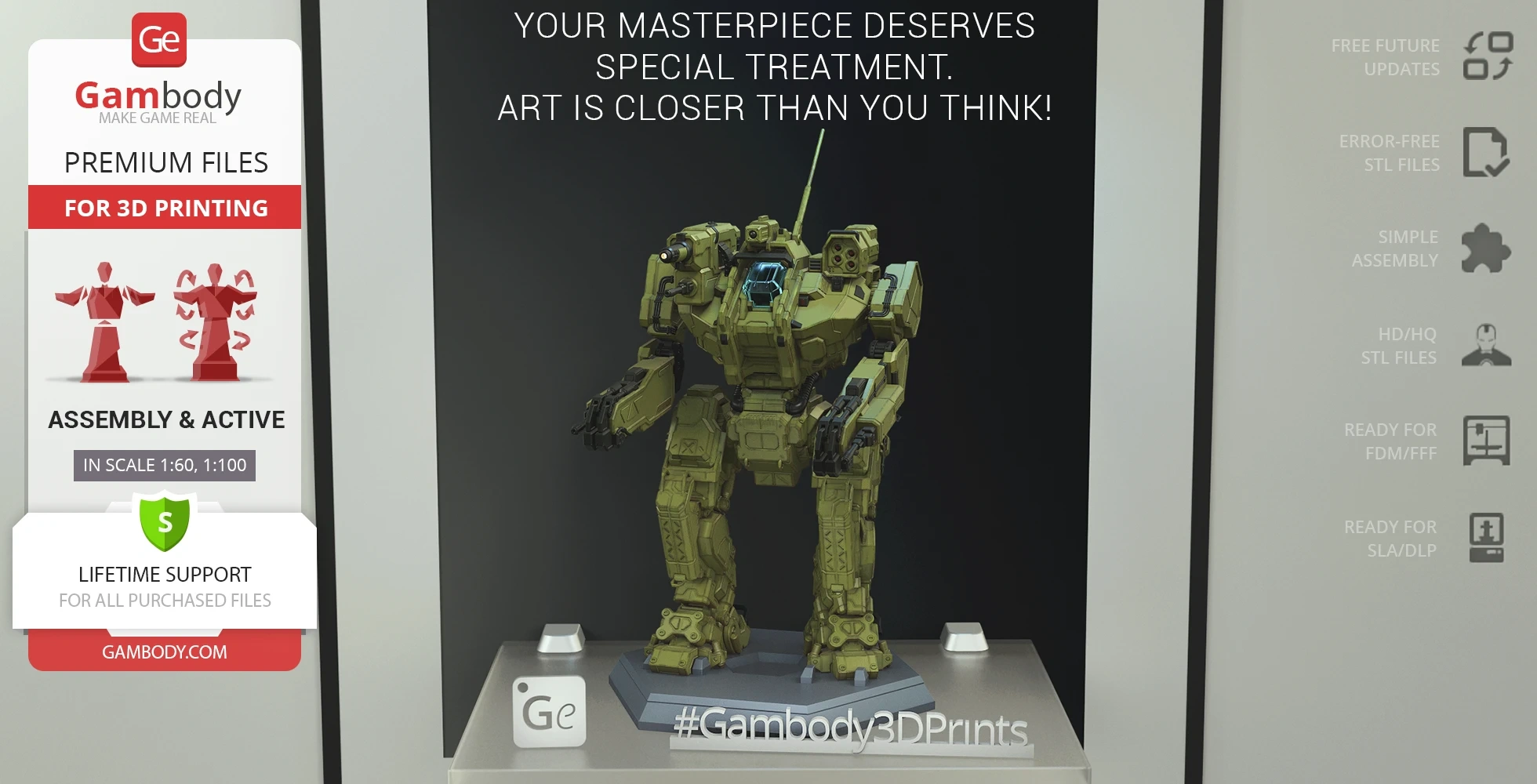

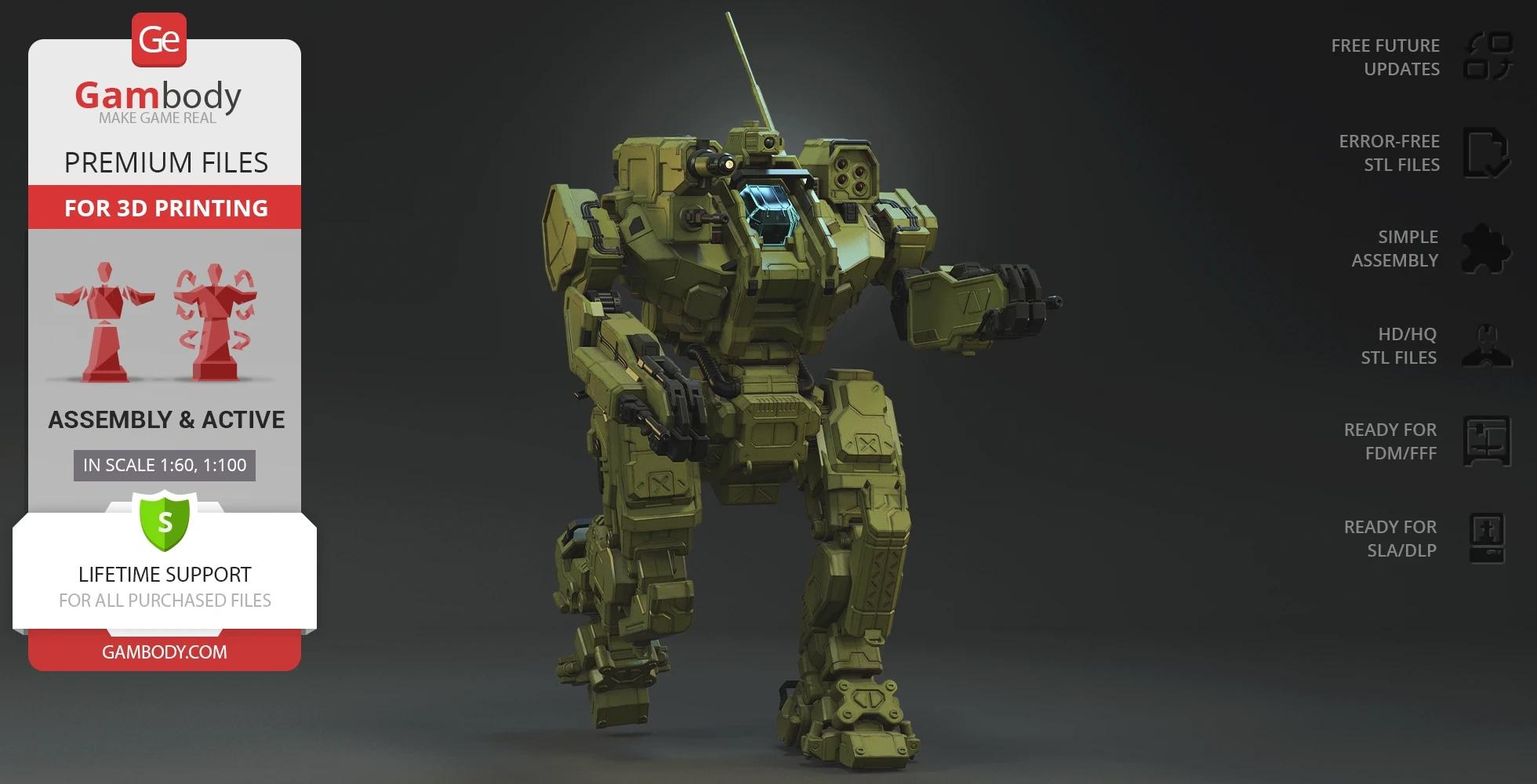

Roughneck is a militarized version of Loader King mech, developed by Achernar BattleMechs. The heavy mech was intended to be used by planetary militias and mercenary units. The equipment of Roughneck provides adequate field endurance and good battle performance.

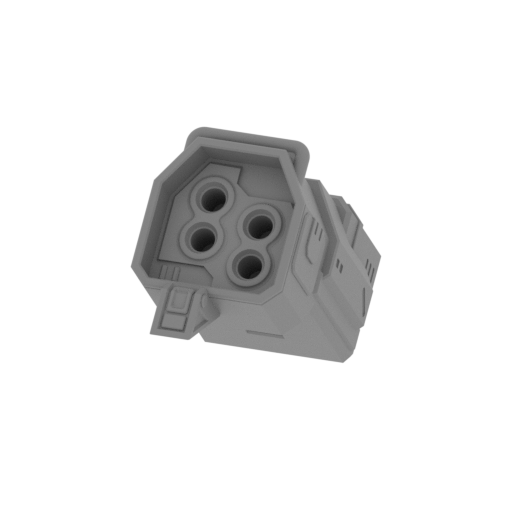

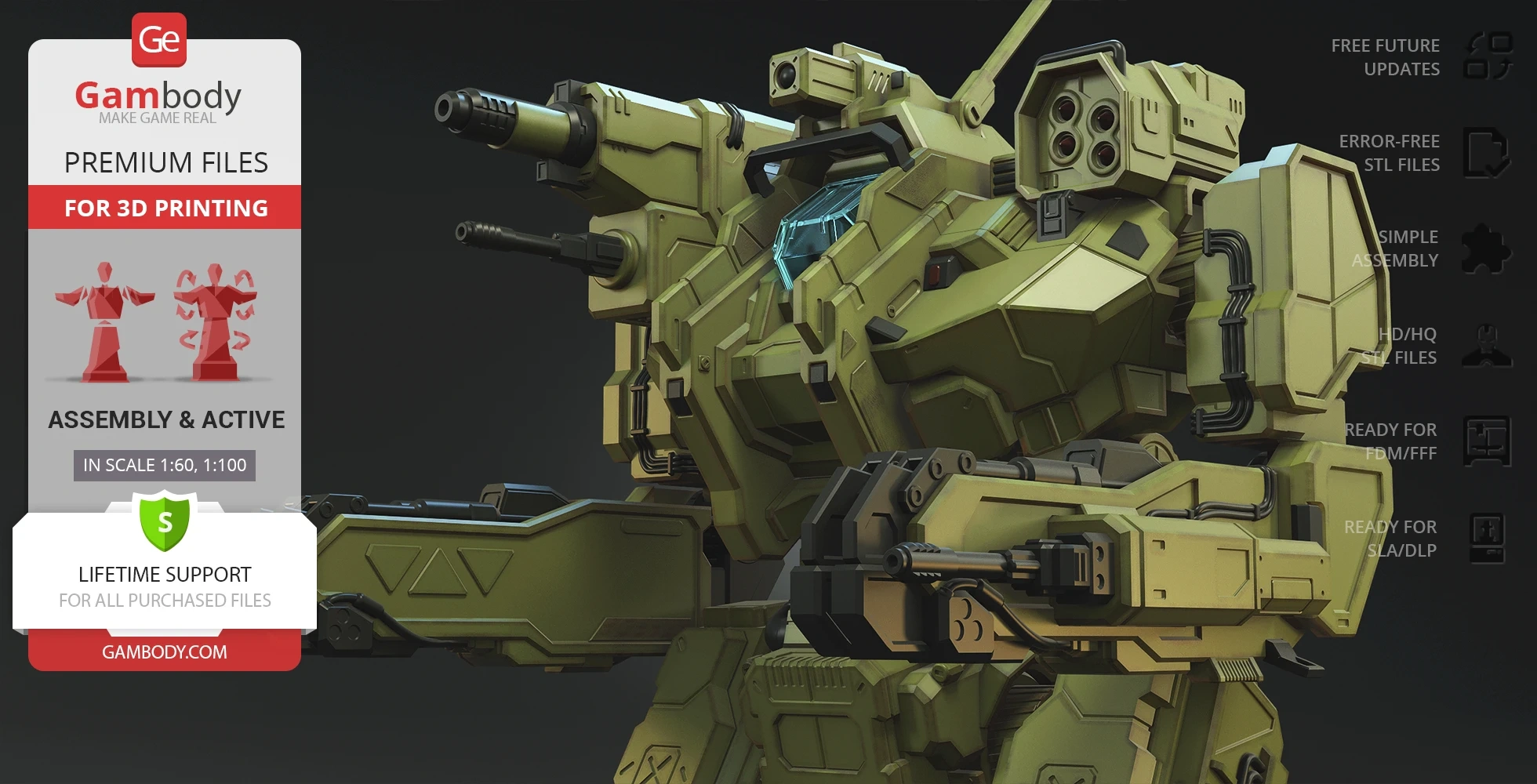

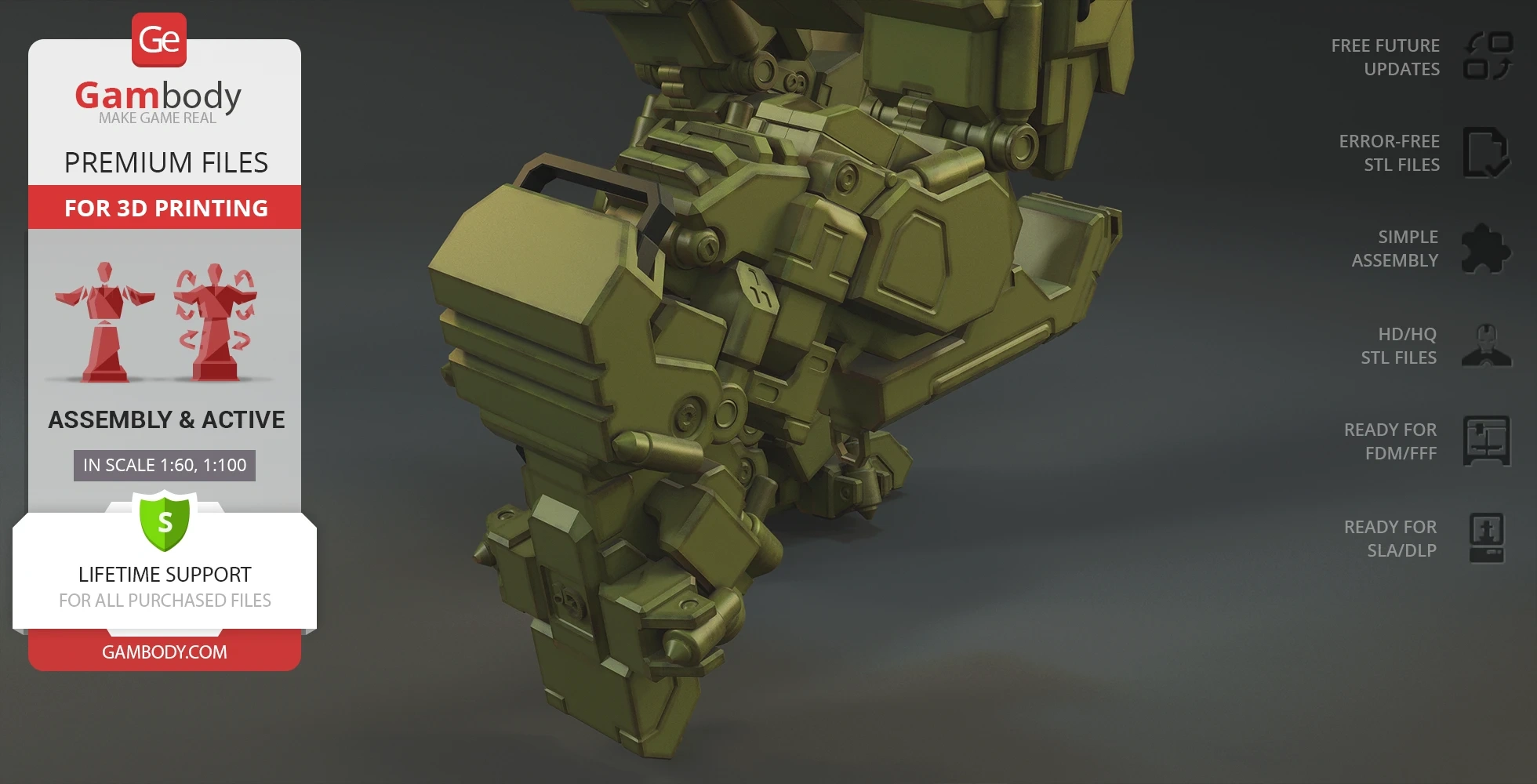

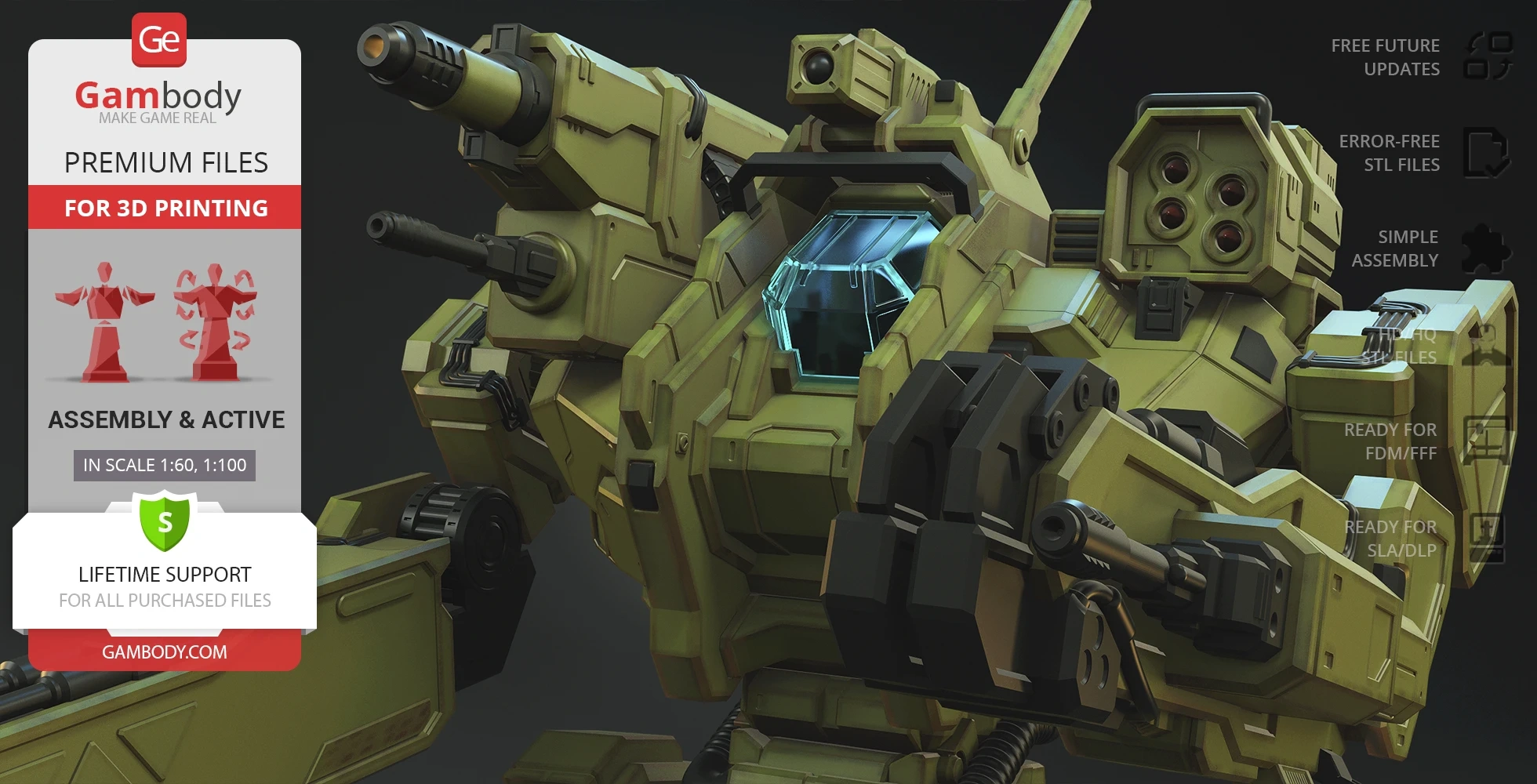

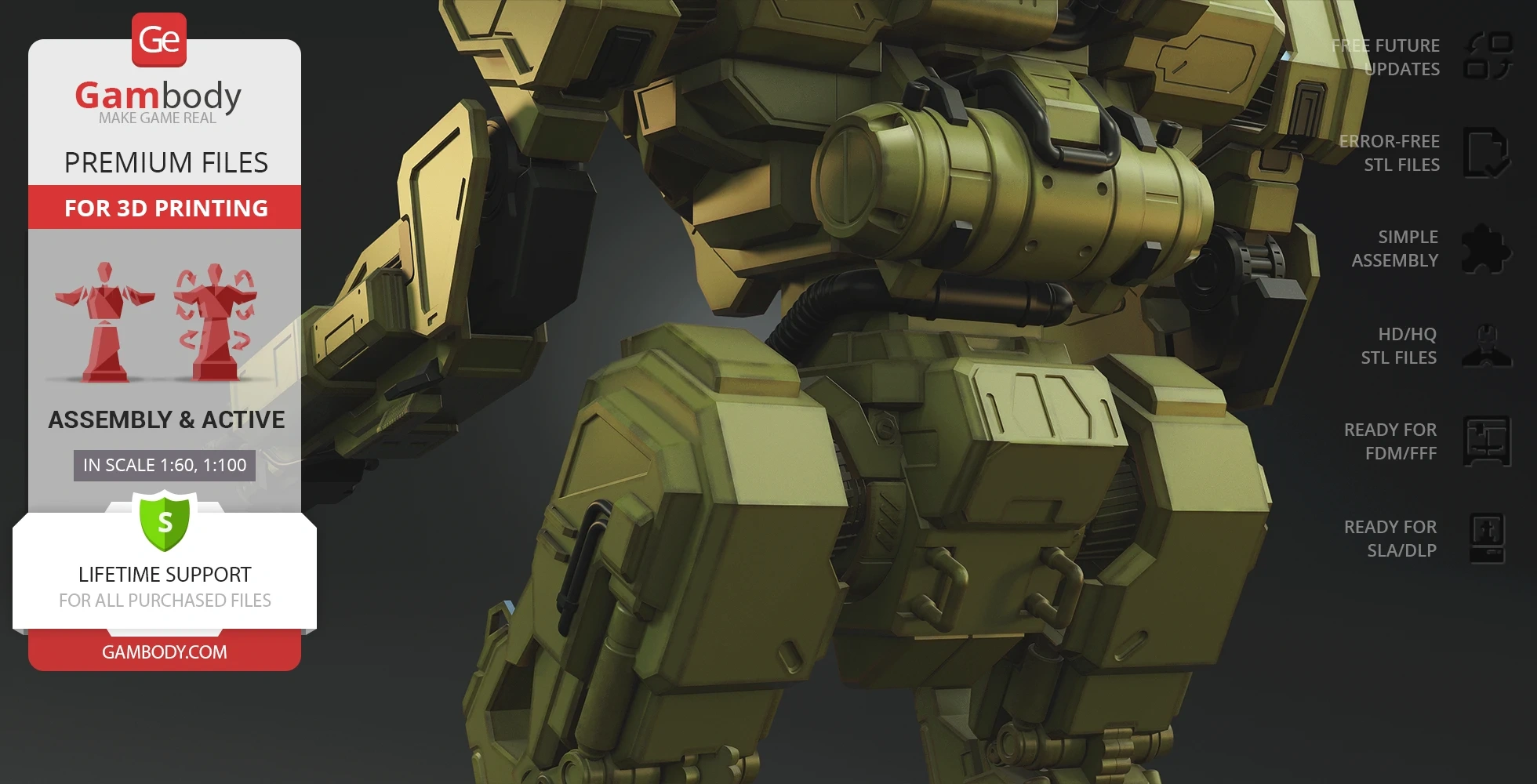

Our dedicated 3D artist spent a lot of time learning the specifications of the mech, intending to recreate the tiniest detail of its design. A distinctive feature of mechs is their curved surface with engravings and atypical forms of parts. Massive legs, torso, and arms impress with their functionality and level of detail and conceal a real power behind them. The model features a mix of short-ranged weapons load-outs such as an AC/10 and SRM-4, Machine Guns, and a Small Laser mounted in the head. With a powerful and unbeatable Roughneck, your collection of mechs will sparkle with new colors!

ADAPTATION FOR 3D PRINTING

The MWO Roughneck model for 3D printing is an active assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 96 hours in total.

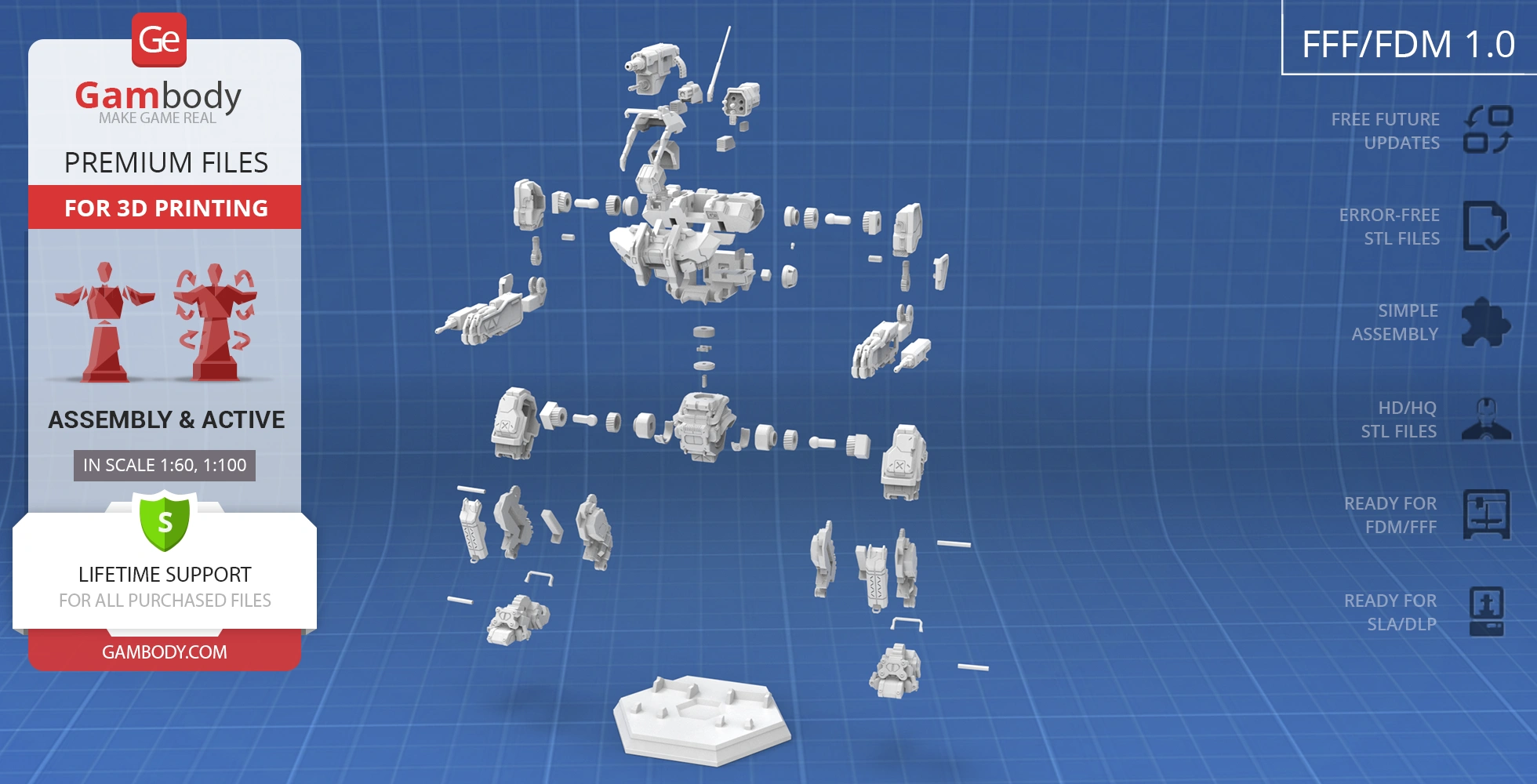

For you to receive the cleanest 3D printing result possible, minimize the amount of filament needed for generated support, and make use of the active elements designed by Gambody Engineers, the mech was divided into convenient assembly parts.

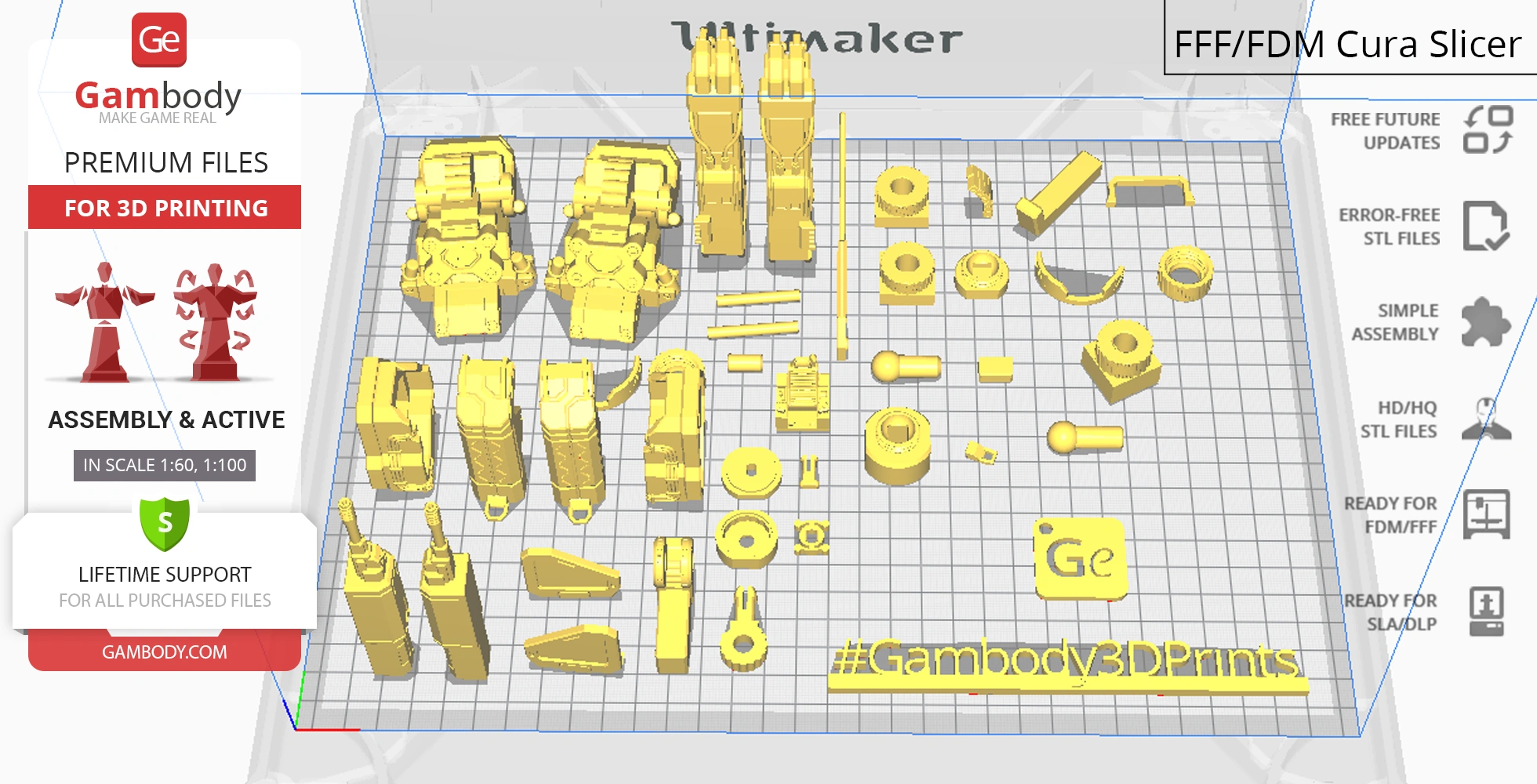

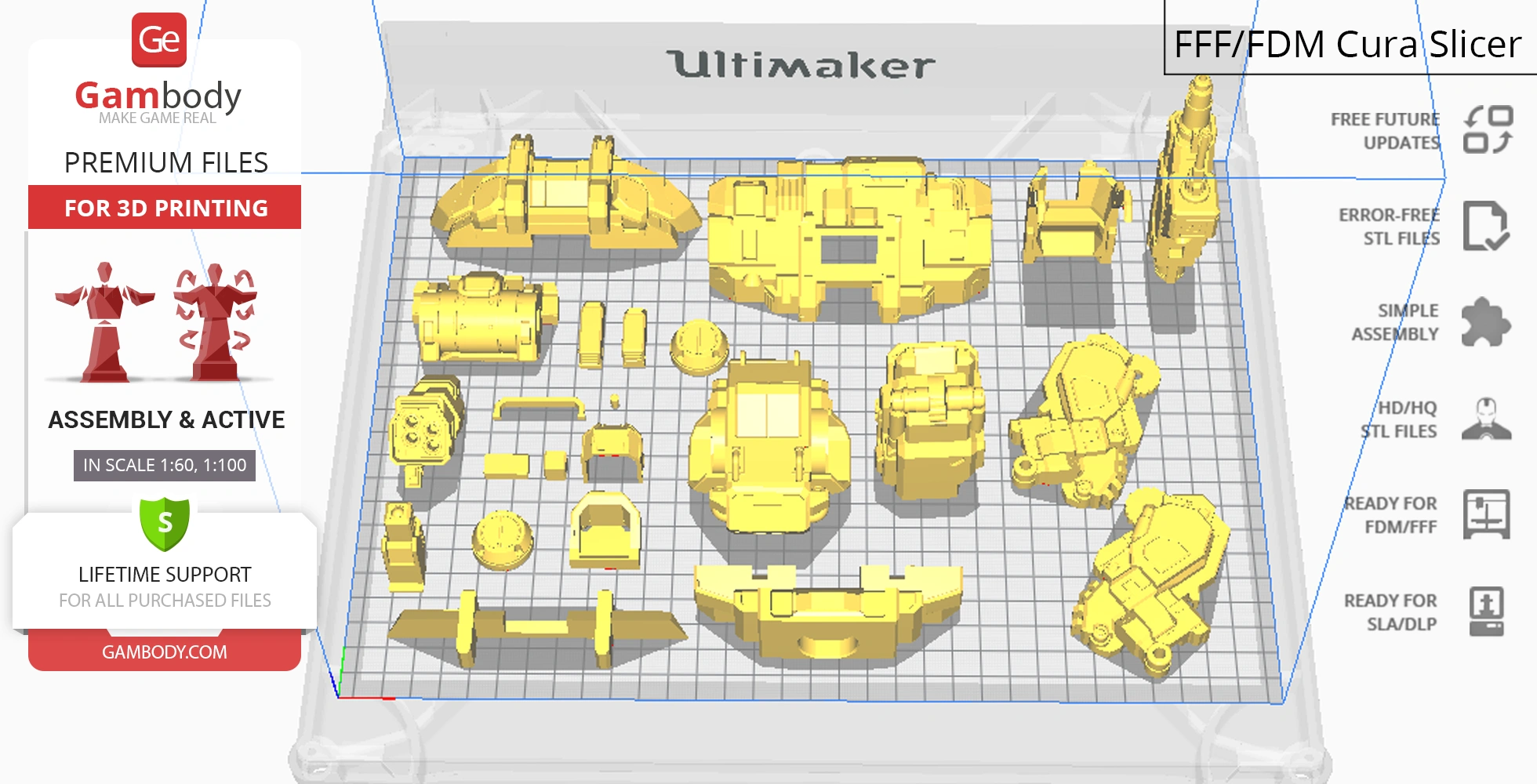

All assembly parts in the FFF/FDM 1.0 version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won’t face difficulties when placing the parts on a build plate. When downloading any model’s file you will also receive “Assembly Manual” for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats. We highly recommend that you get acquainted with the “Assembly Video” and “Assembly Manual” before getting down to the MWO Roughneck 3D printing model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

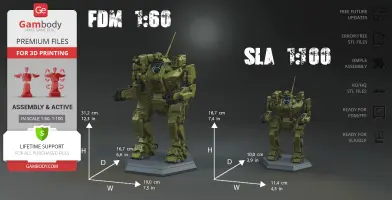

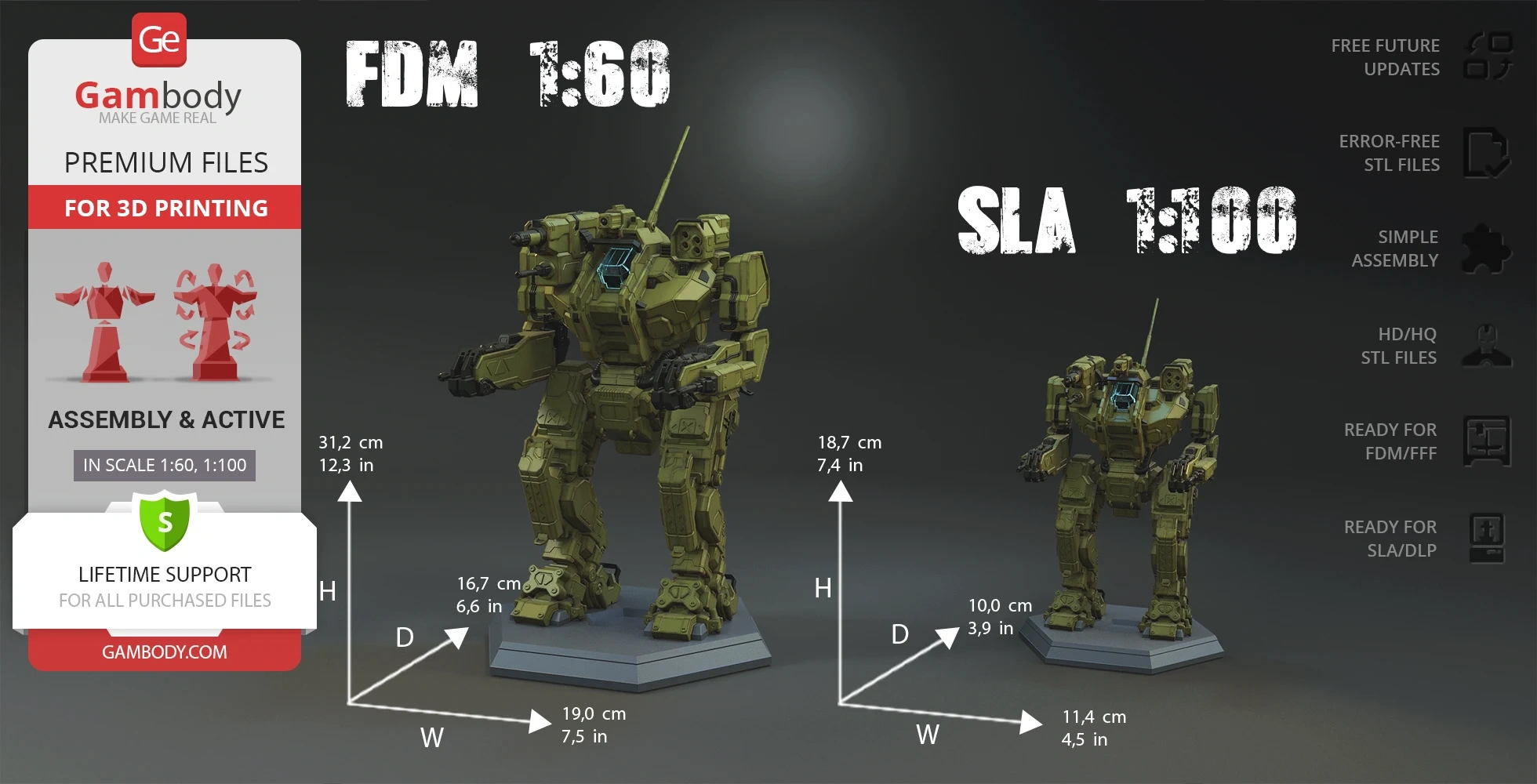

The model’s scale was calculated from the height of the Roughneck which is 17600 mm. The 3D printing model’s chosen scales are 1:60 for the FFF/FDM version and 1:100 for the DLP/SLA version.

VERSIONS’ SPECIFICATIONS

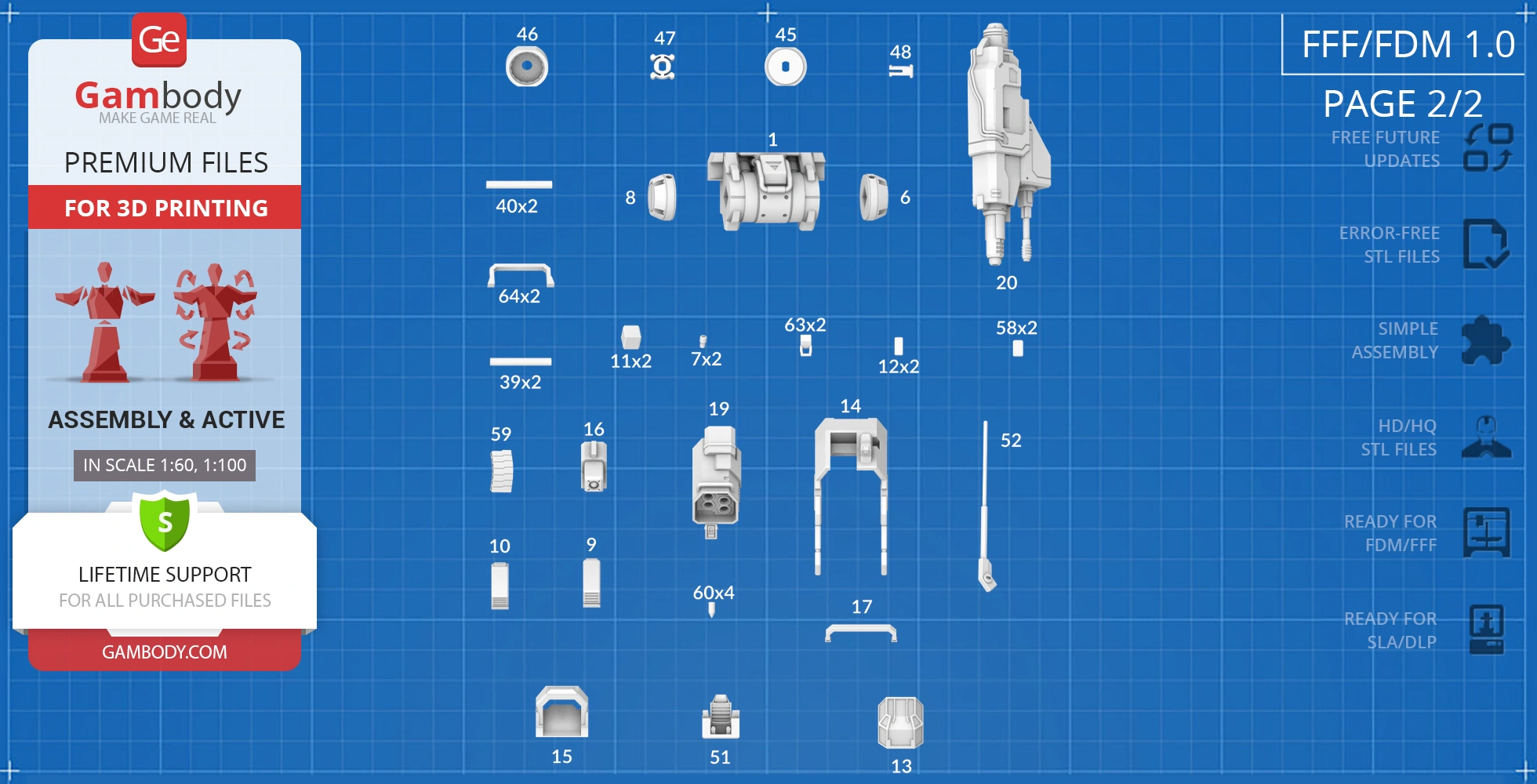

FFF/FDM 1.0 version features:

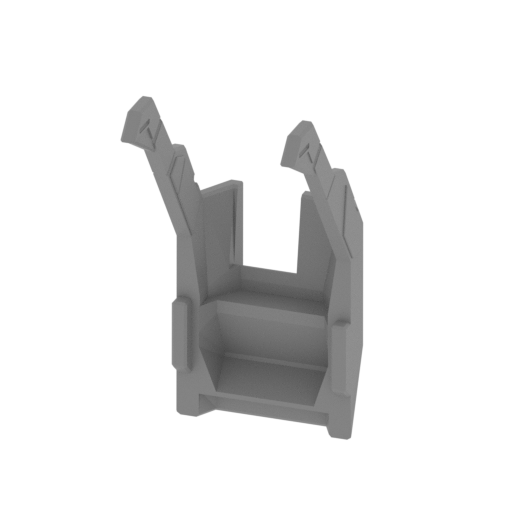

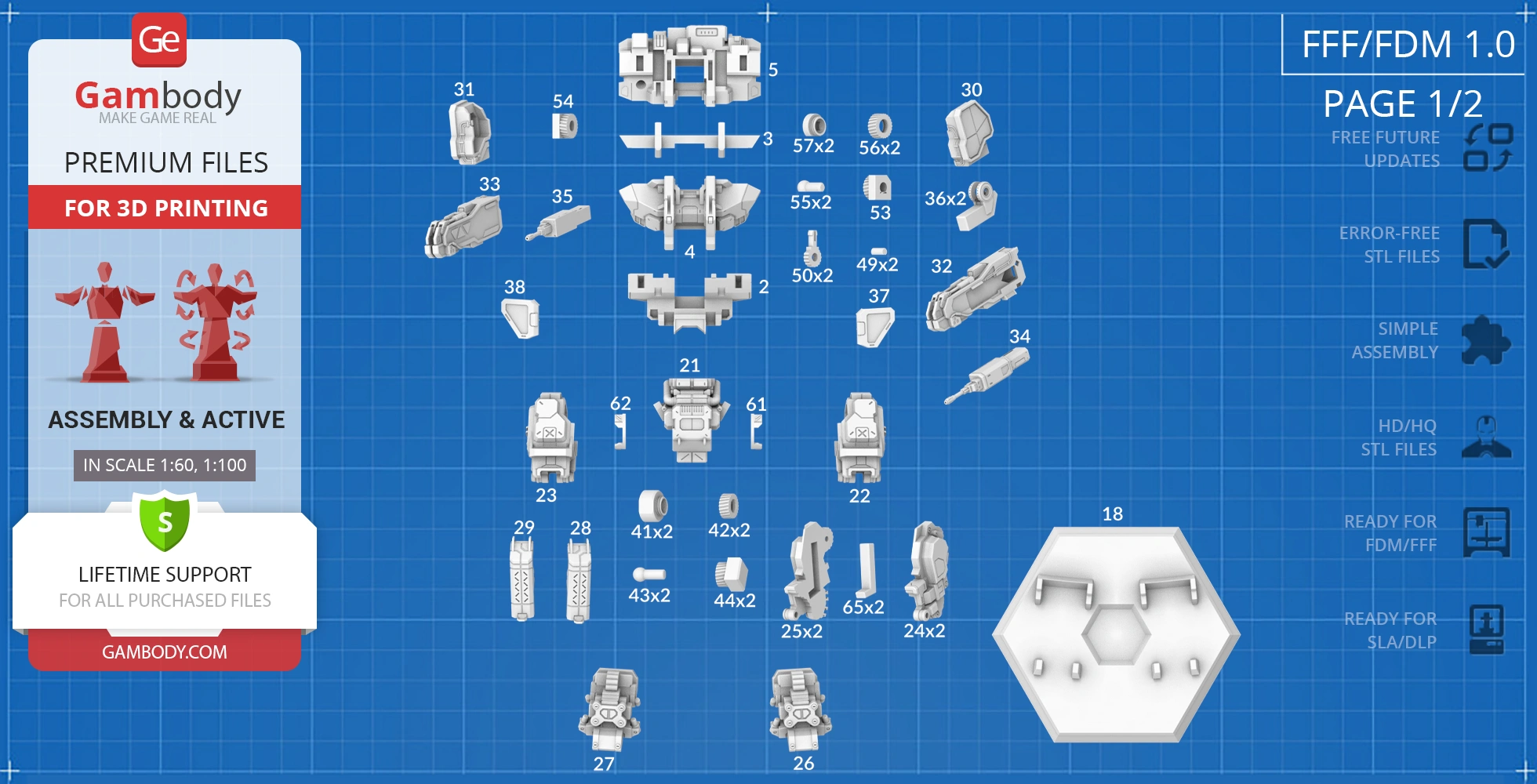

• Contains 71 parts;
• A printed model is 312 mm tall, 190 mm wide, 167 mm deep;

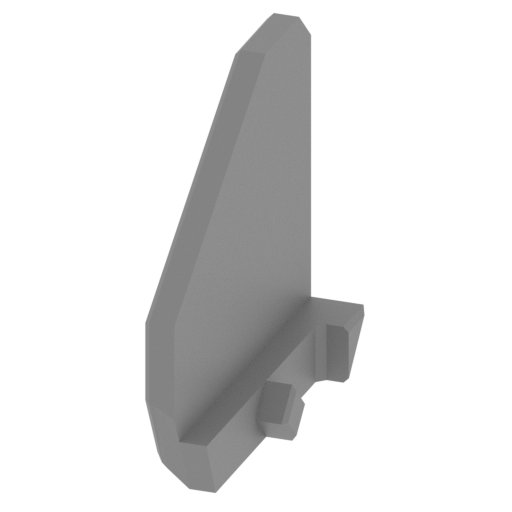

• Movable shoulders and elbows;

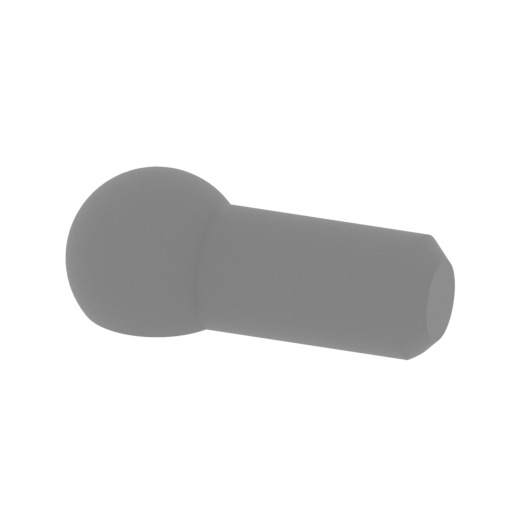

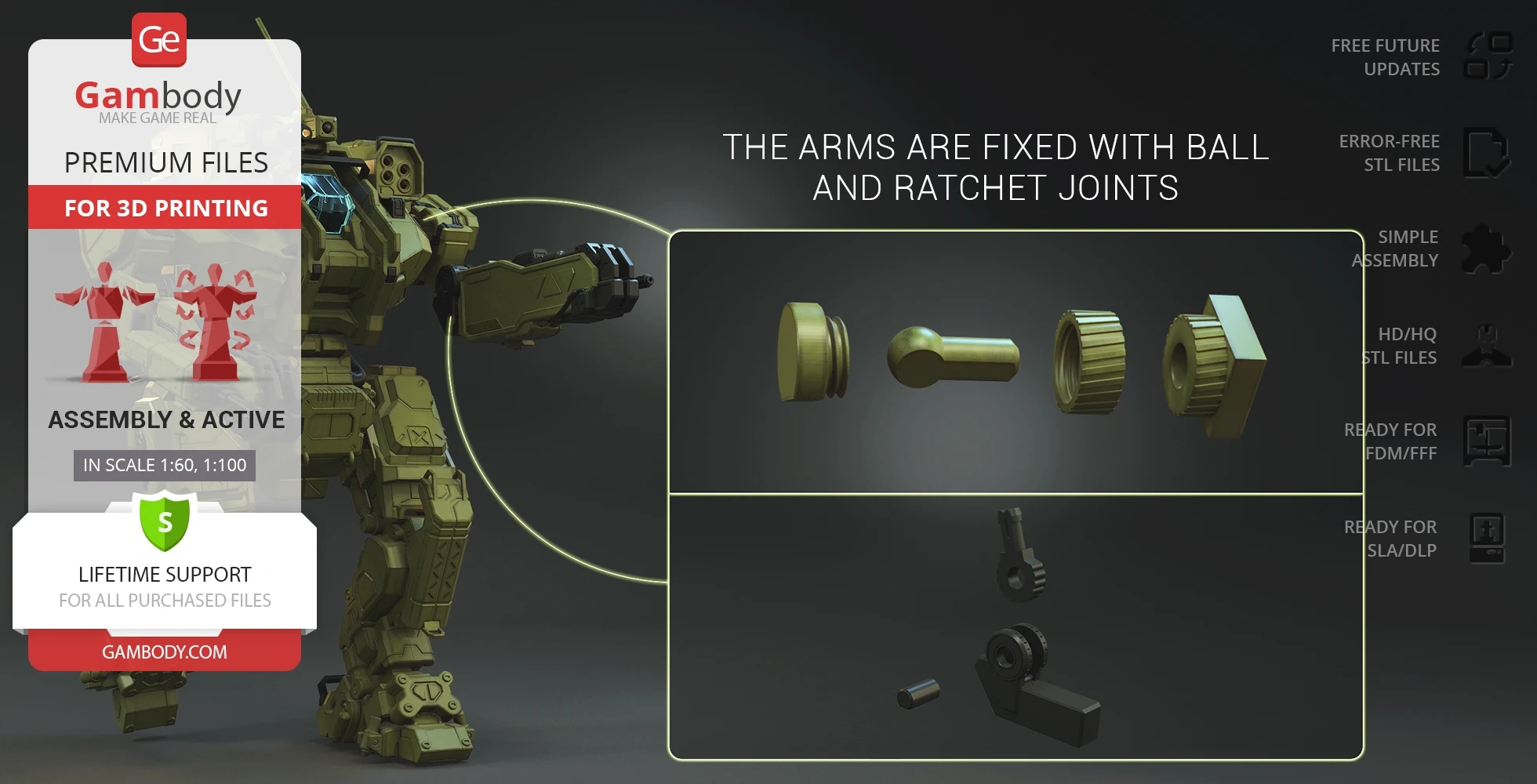

• The arms are fixed with ball and ratchet joints;

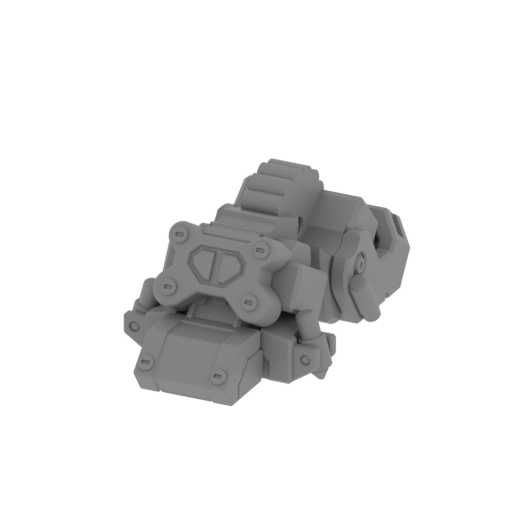

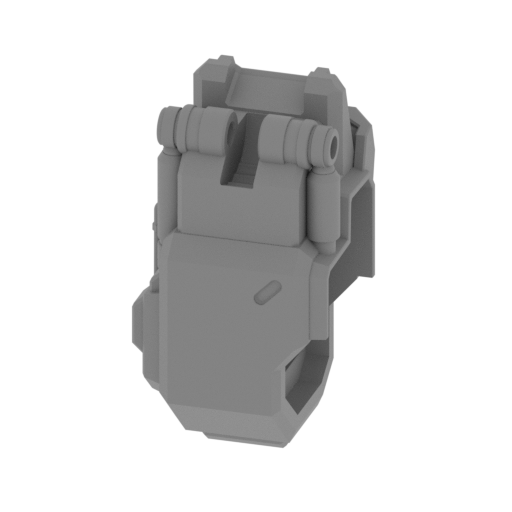

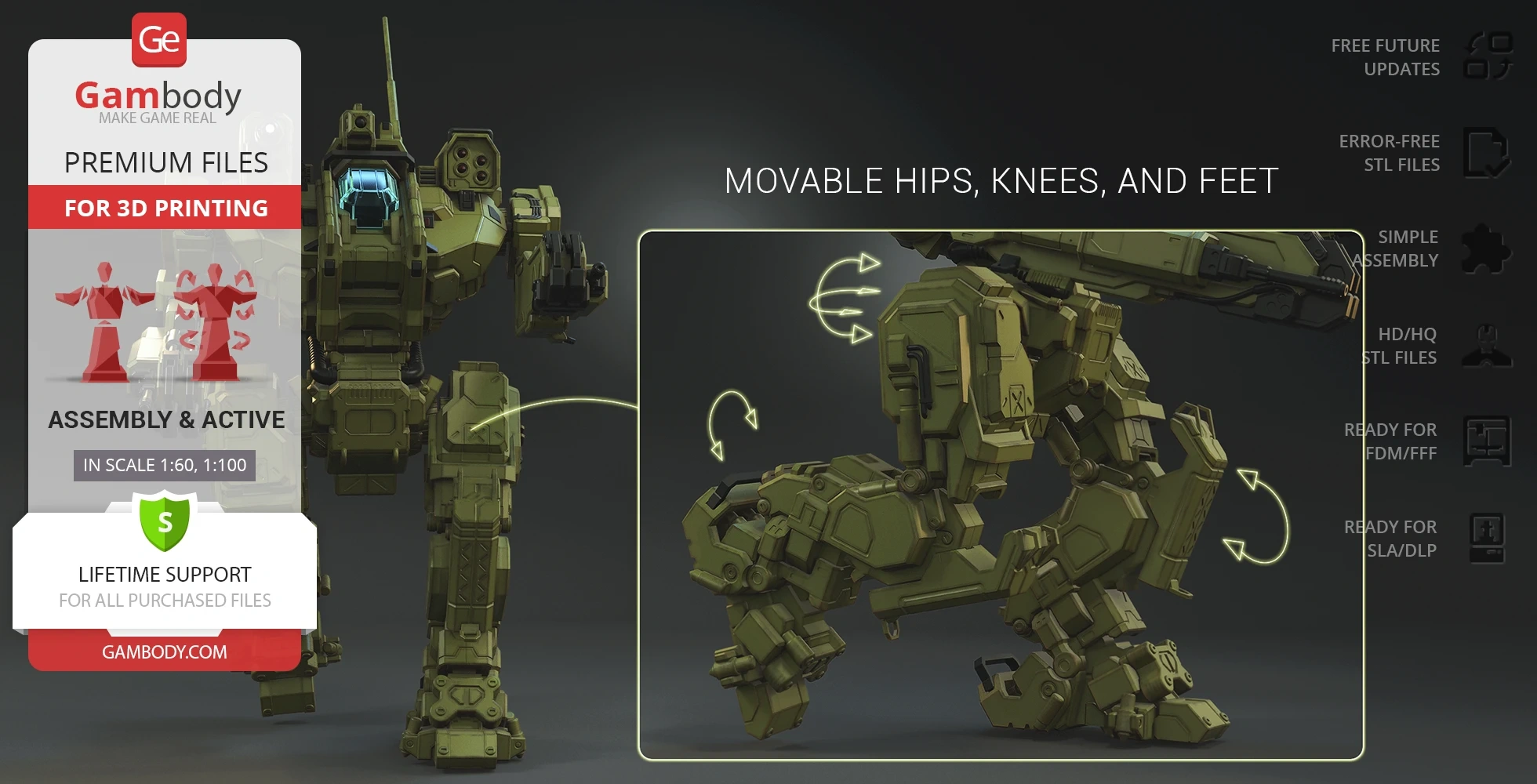

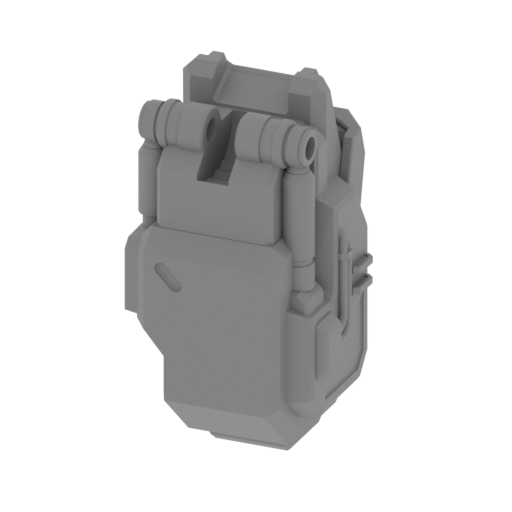

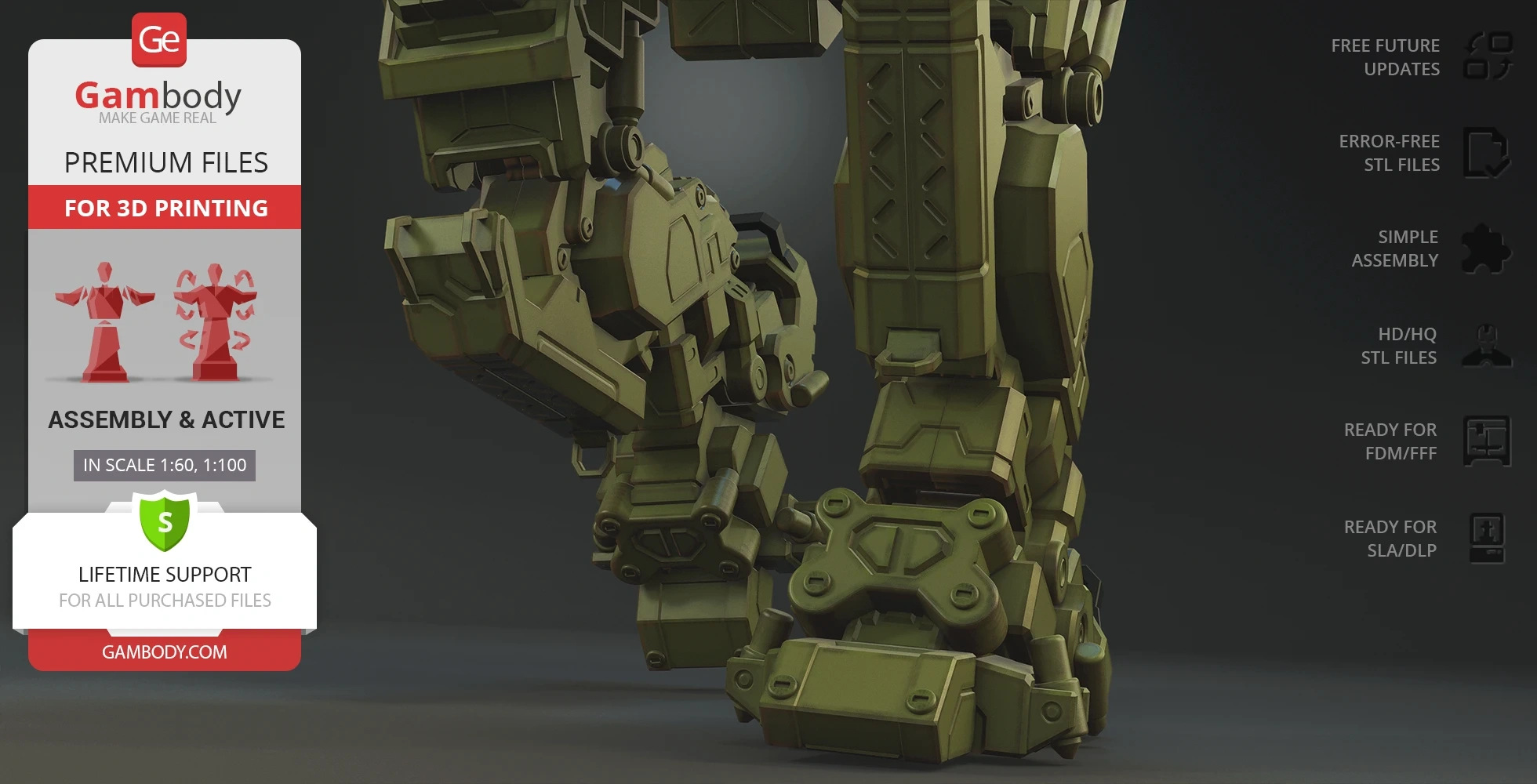

• Movable hips, knees, and feet;

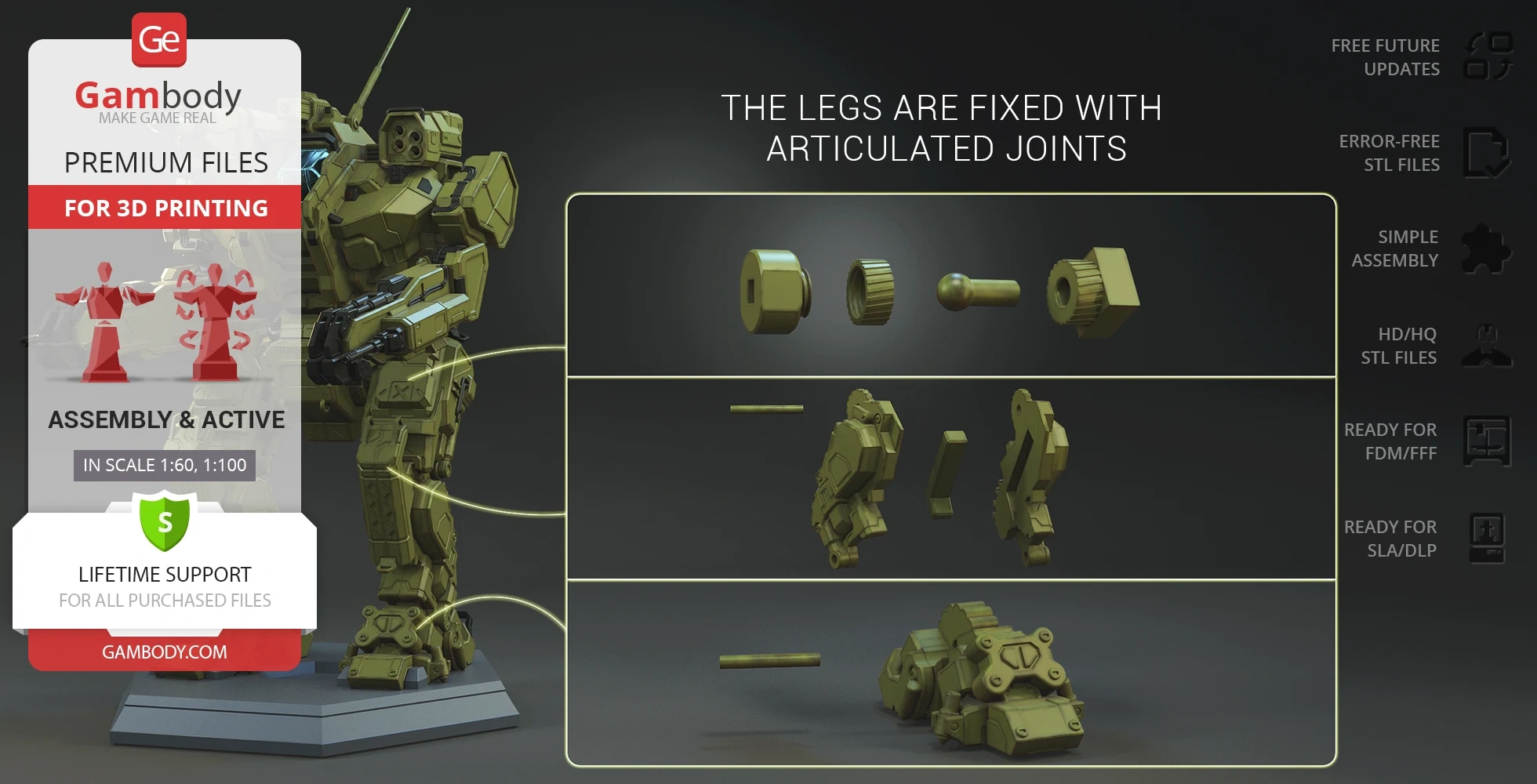

• The legs are fixed with articulated joints;
• Rotating torso;

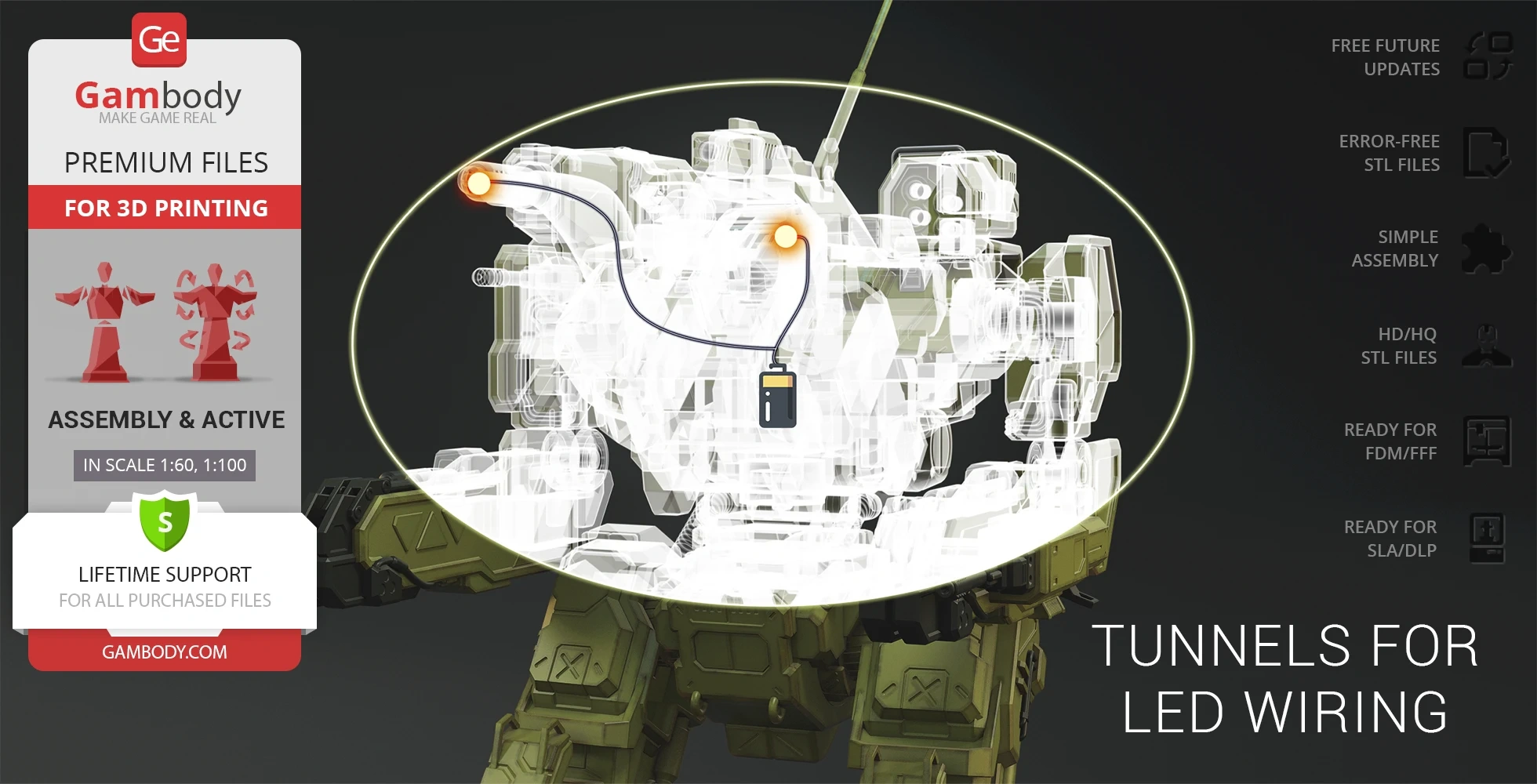

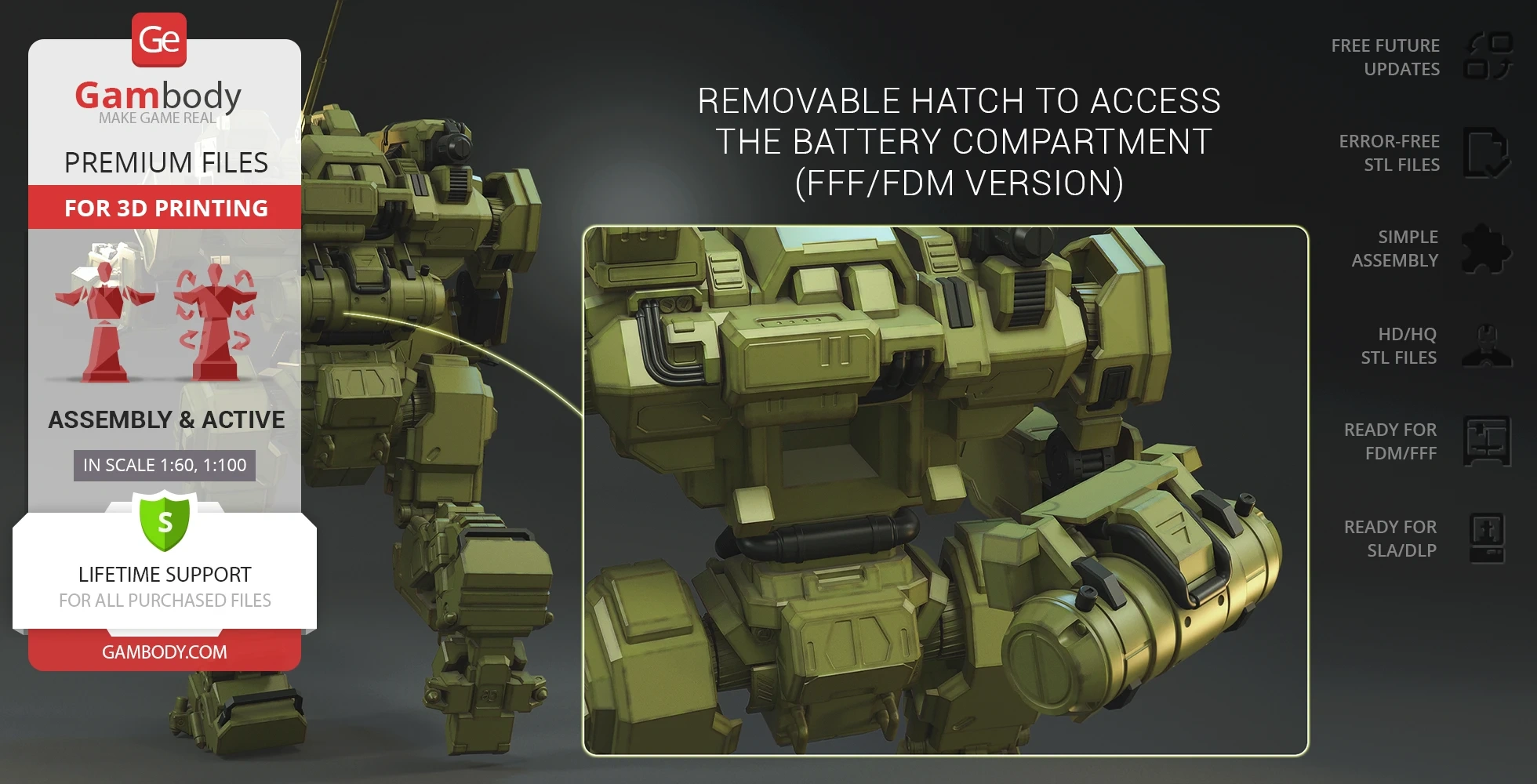

• Removable hatch to access the battery compartment;

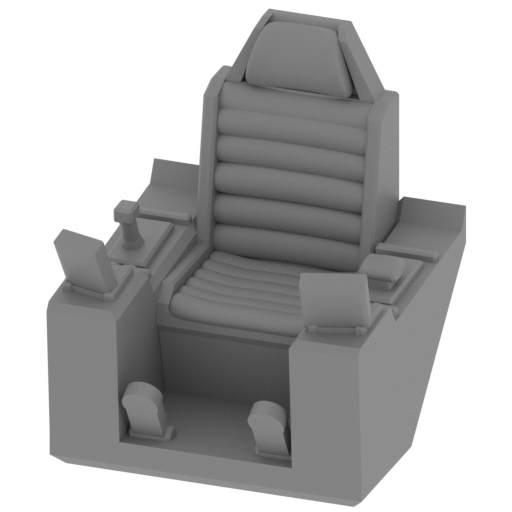

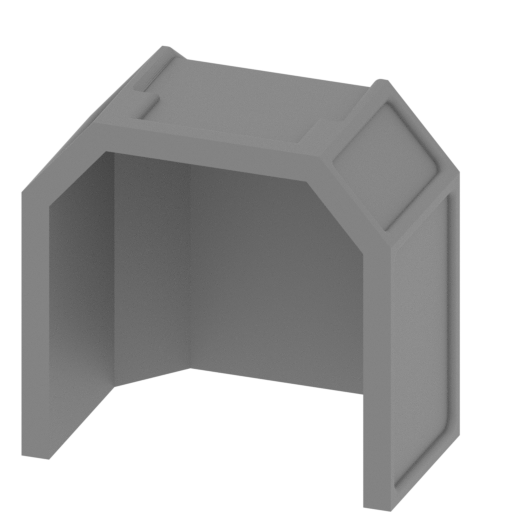

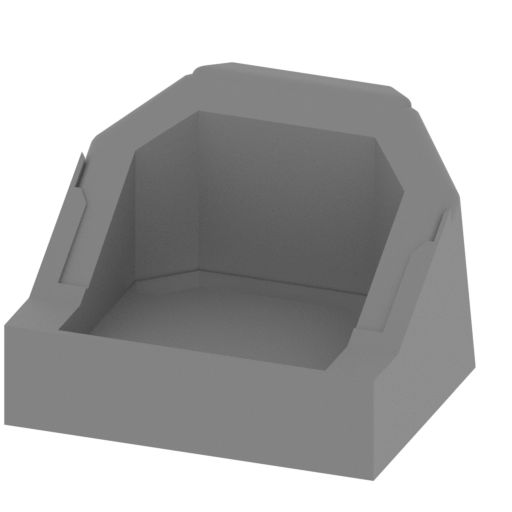

• Highly-detailed cockpit interior;

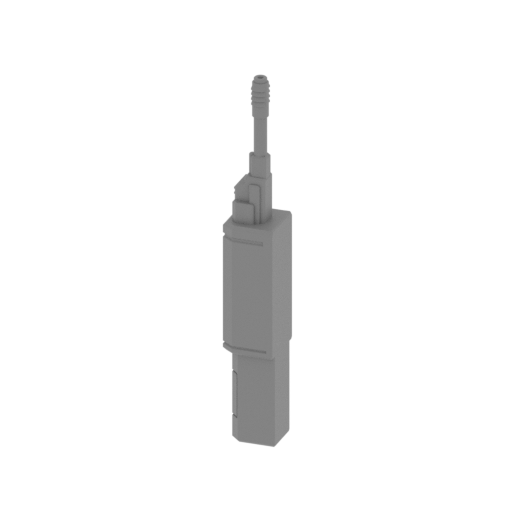

• Removable weapons to combine with guns pack in the future;

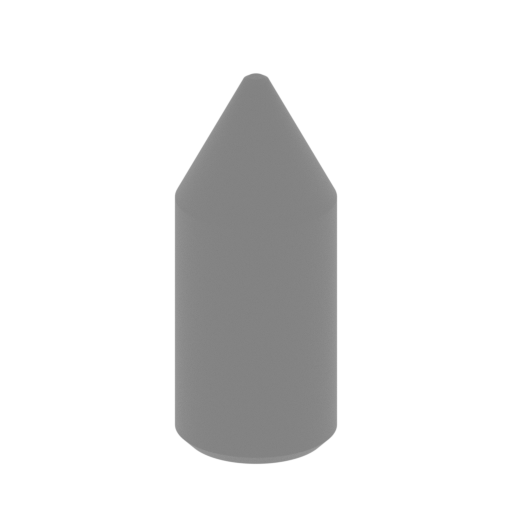

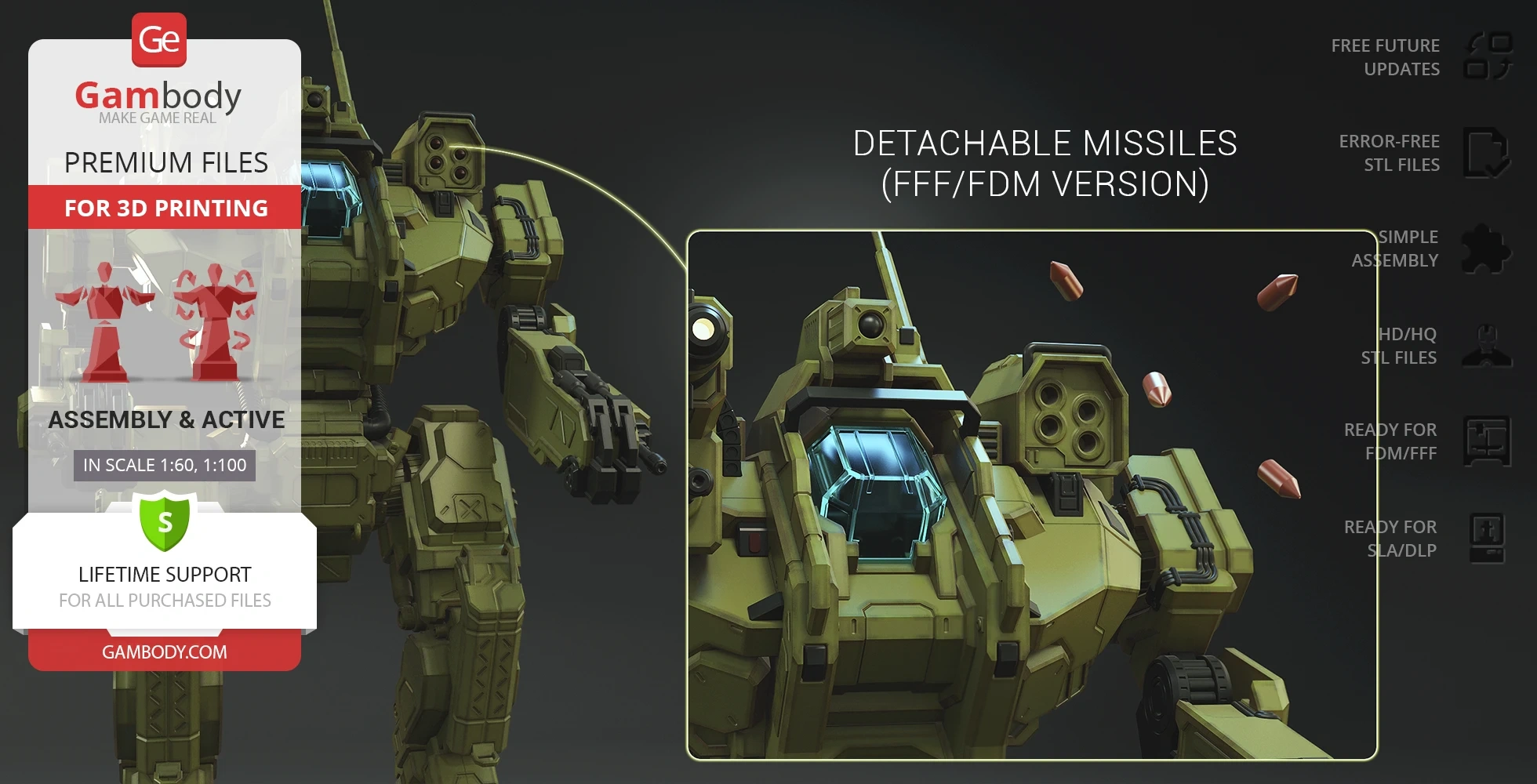

• Detachable missiles;

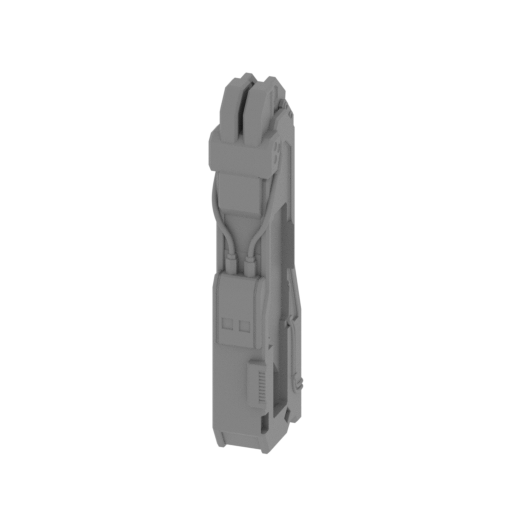

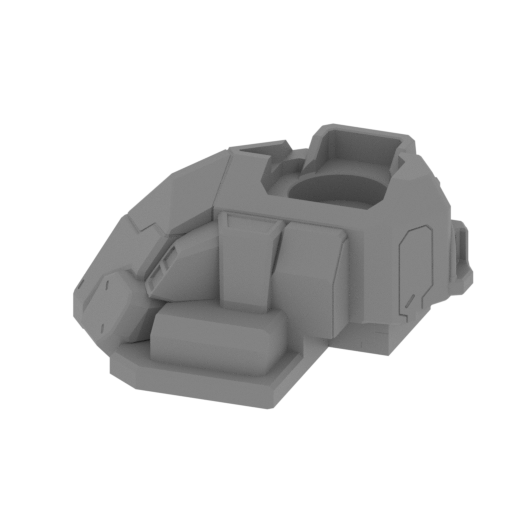

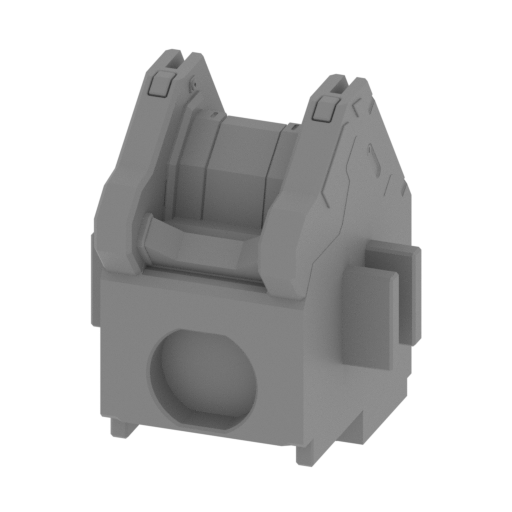

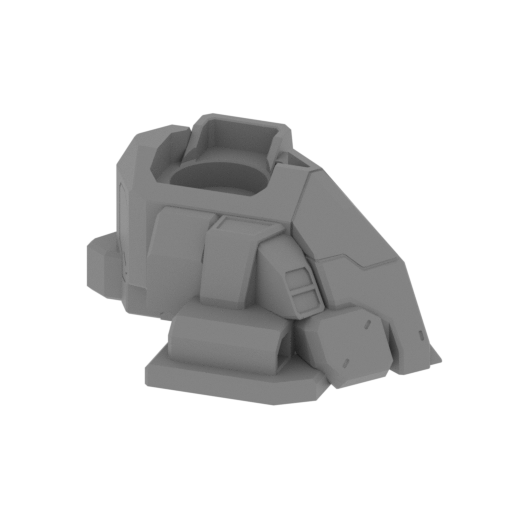

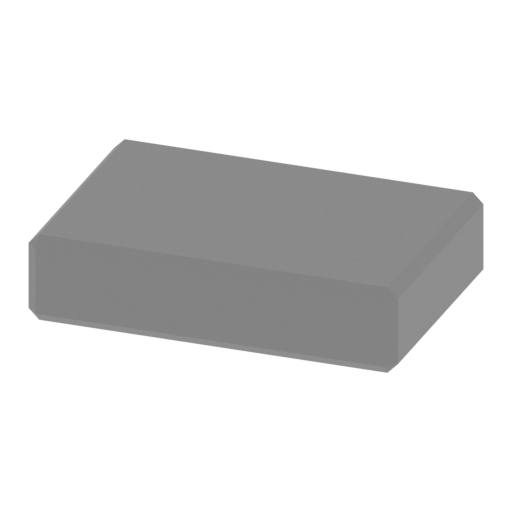

• files 66-71 come with an alternative cutting for more convenient printing on filament 3D printers;
• All parts are divided in such a way that you will print them with the smallest number of support structures.

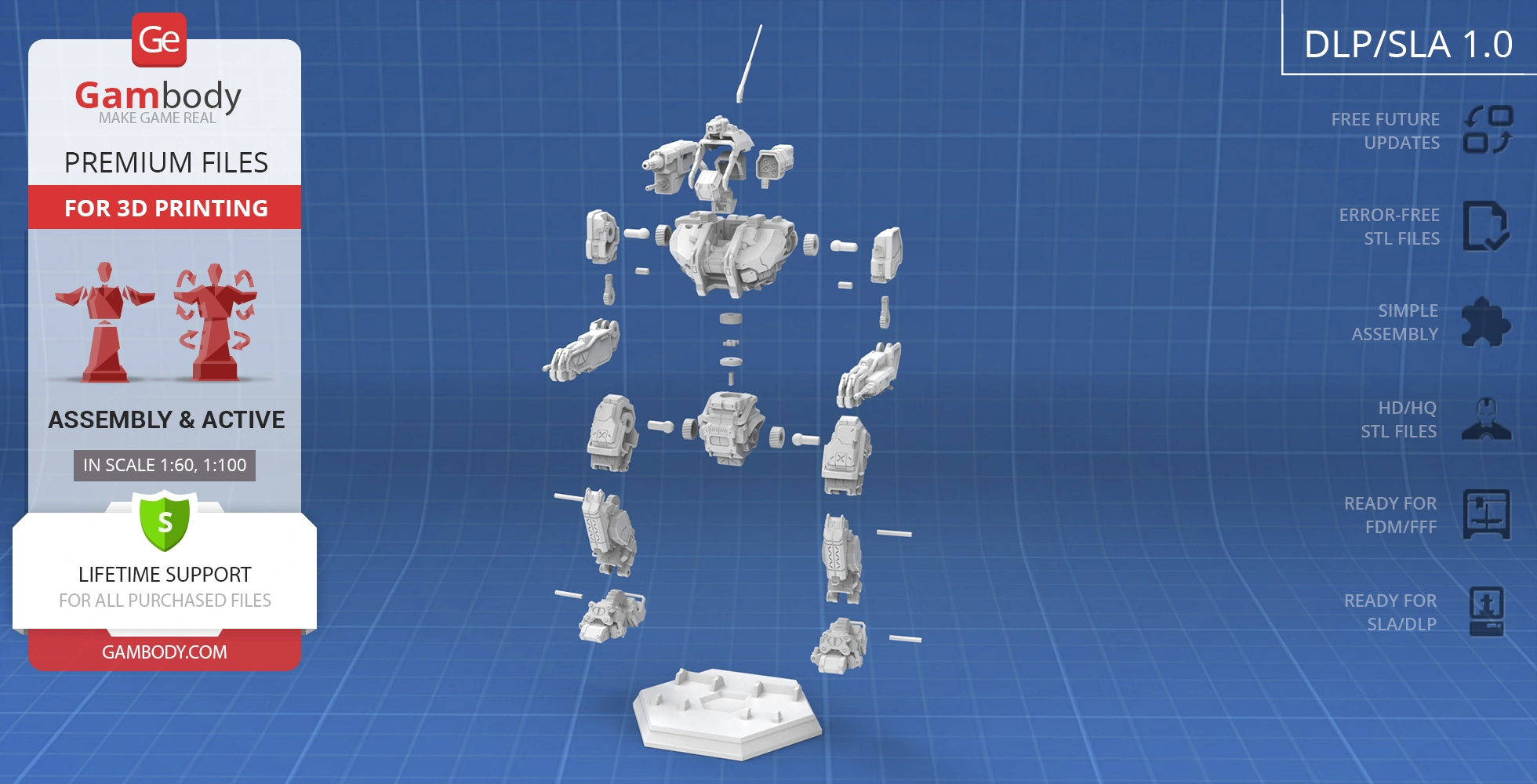

DLP/SLA 1.0 version features:

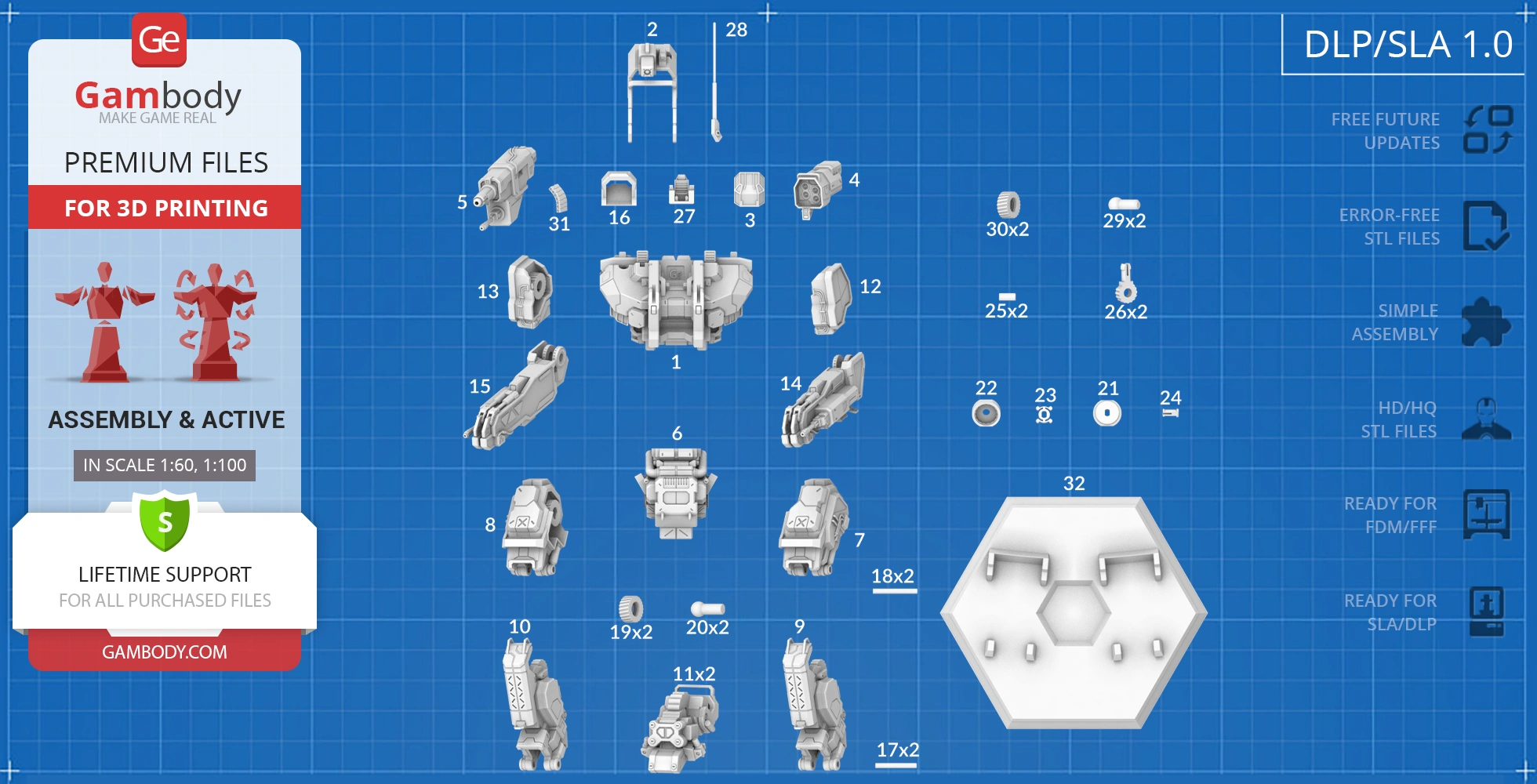

• Contains 32 parts;
• A printed model is 187 mm tall, 114 mm wide, 100 mm deep;
• Movable shoulders and elbows;
• The arms are fixed with ball and ratchet joints;
• Movable hips, knees, and feet;
• The legs are fixed with articulated joints;
• Rotating torso;
• Highly-detailed cockpit interior;
• Removable weapons to combine with guns pack in the future;
• All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

You can get the MWO Roughneck model for 3D printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble a MWO Roughneck 3D Printing Model on Gambody YouTube channel.

Also, you may like Mechs 3D Printing Models.

________

FAQ:

• Where can I print a model if I have no printer?
• How to get started with 3D printing?
• How to set up my 3D printer?
• How to choose right 3D model print bed positioning?
• How to paint printed figurine?

Generic

Below you can find printing recommendations for Cura, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

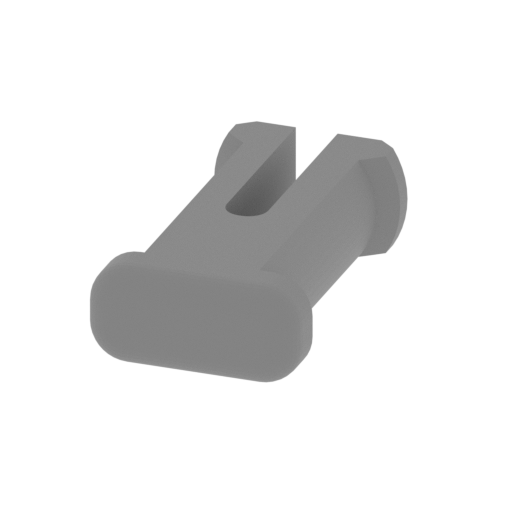

All connectors should be printed at 100% Infill.

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
