This 3D Miniature consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.


	File Name	File Size	Time / Filament	Object Size (x/y/z mm)

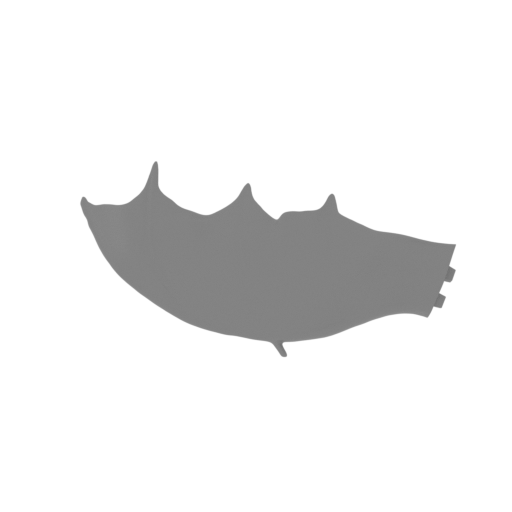

	1_Charizard_wing_R.stl	2.04 MiB	10 h 43 min 6 m	212 x 63 x 86	Download

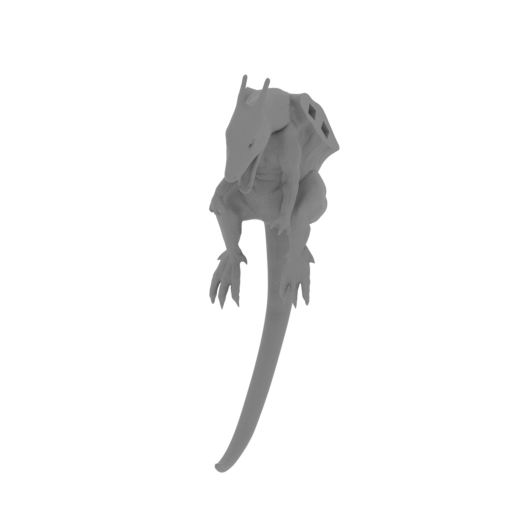

	2_Charizard_body.stl	4.57 MiB	25 h 34 min 19 m	53 x 114 x 187	Download

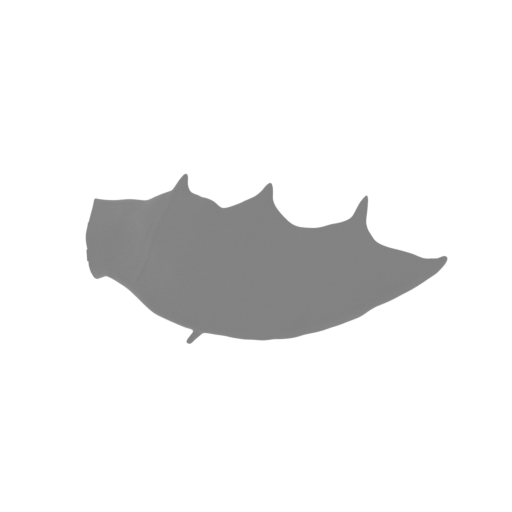

	3_Charizard_wing_L.stl	2.01 MiB	10 h 48 min 6 m	214 x 70 x 86	Download

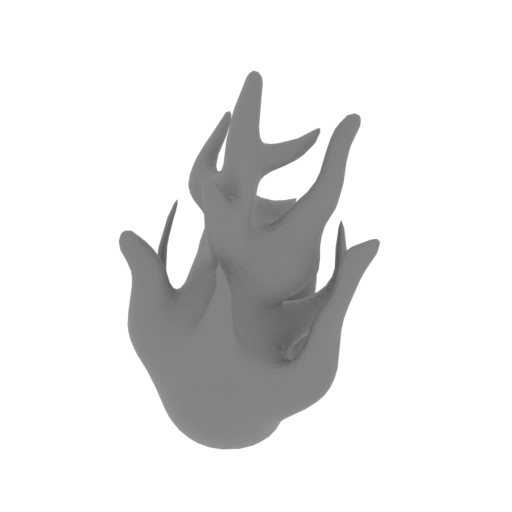

	4_Charizard_tail_fire.stl	0.34 MiB	1 h 28 min 1 m	29 x 28 x 47	Download

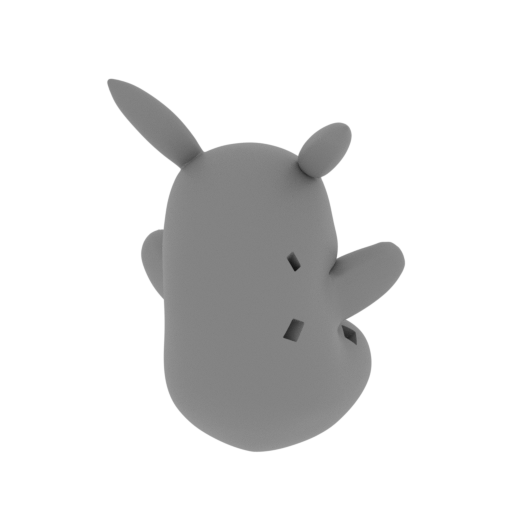

	5_Pikachu_body.stl	2.54 MiB	2 h 20 min 1 m	37 x 35 x 54	Download

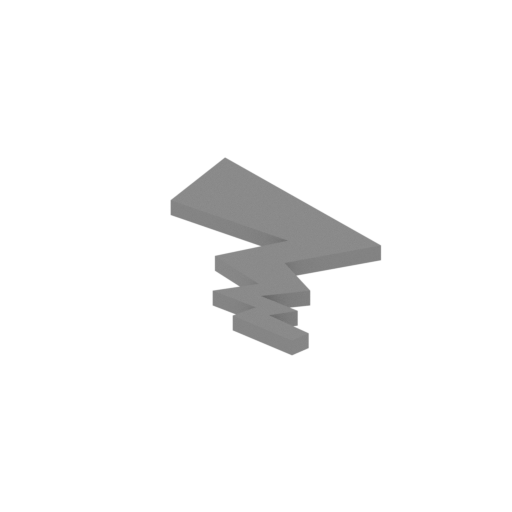

	6_Pikachu_tail.stl	0.00 MiB	12 min <1 m	28 x 45 x 2	Download

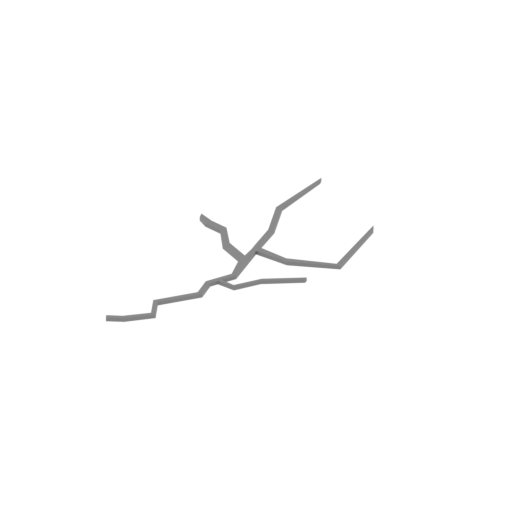

	7_lightning_1.stl	0.01 MiB	42 min 1 m	91 x 201 x 2	Download

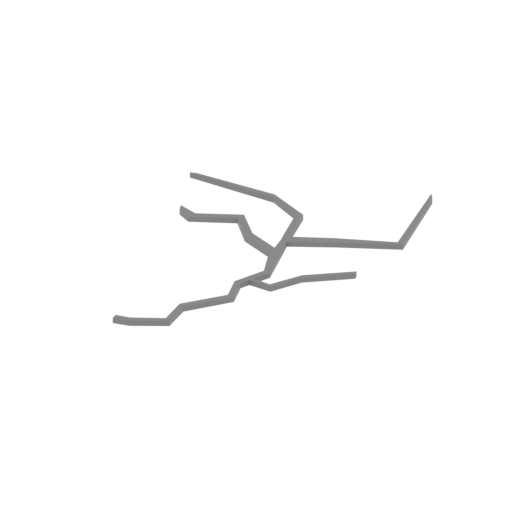

	8_lightning_2.stl	0.01 MiB	36 min 1 m	98 x 147 x 2	Download

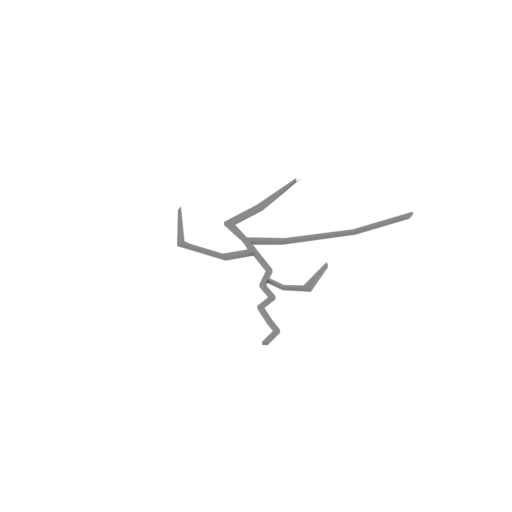

	9_lightning_3.stl	0.01 MiB	33 min 1 m	99 x 176 x 2	Download

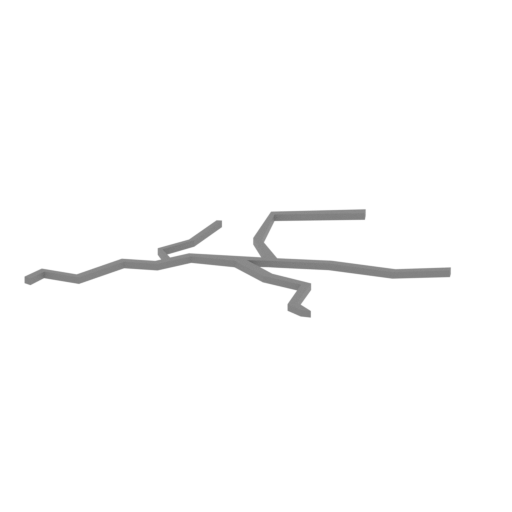

	10_lightning_4.stl	0.01 MiB	25 min <1 m	121 x 84 x 2	Download

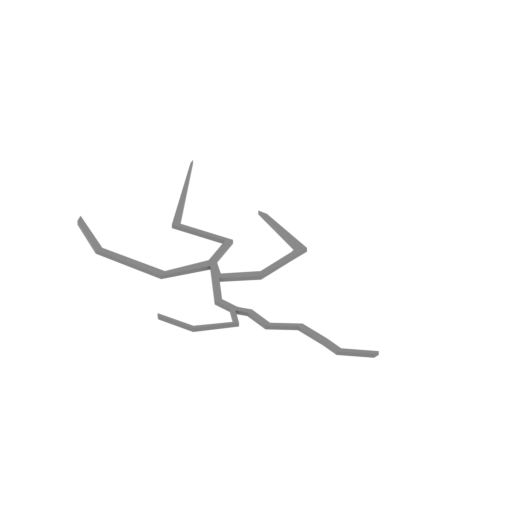

	11_lightning_5.stl	0.01 MiB	23 min <1 m	121 x 119 x 1	Download

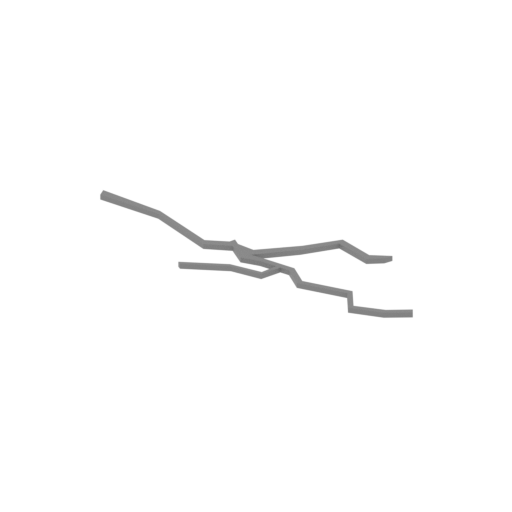

	12_lightning_6.stl	0.01 MiB	19 min <1 m	127 x 59 x 2	Download

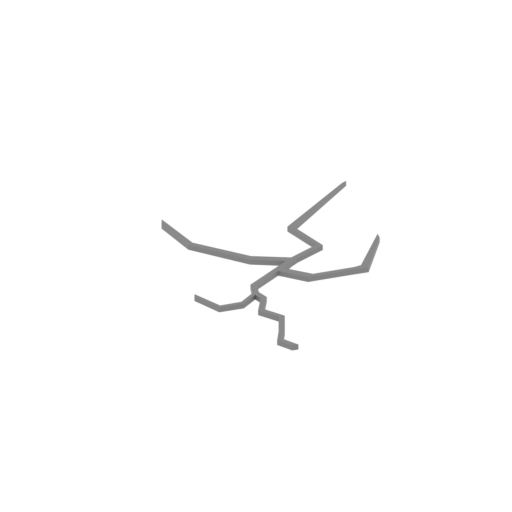

	13_lightning_7.stl	0.01 MiB	12 min <1 m	61 x 103 x 1	Download

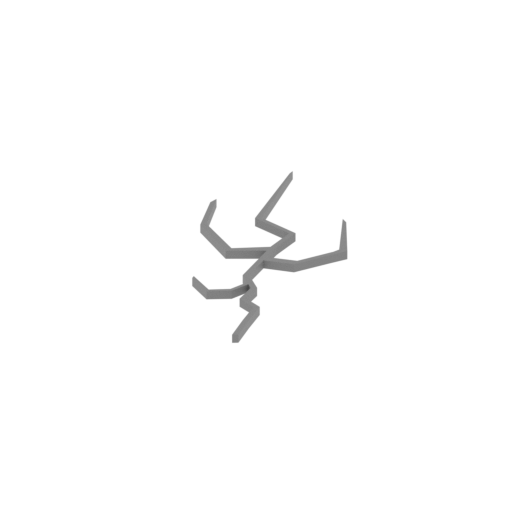

	14_lightning_8.stl	0.01 MiB	11 min <1 m	35 x 81 x 2	Download

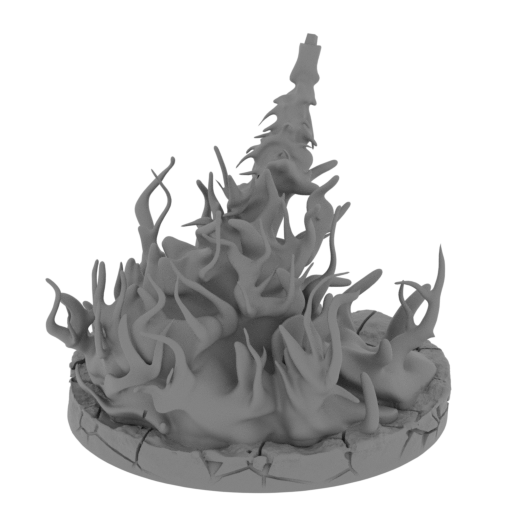

	15_base.stl	9.60 MiB	122 h 55 min 70 m	198 x 201 x 179	Download

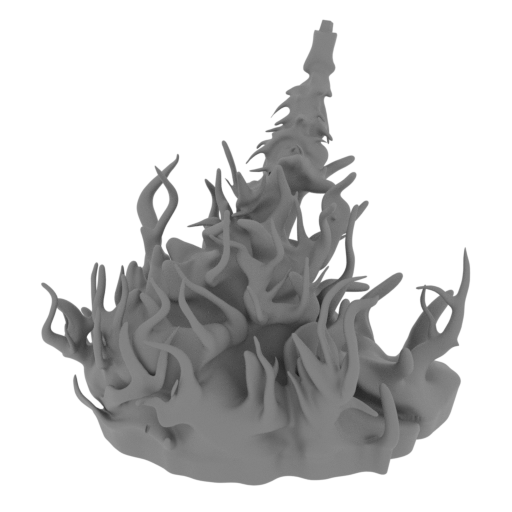

	16_platform_1_FDM(repaire d).stl	30.73 MiB	93 h 6 min 56 m	188 x 187 x 171	Download

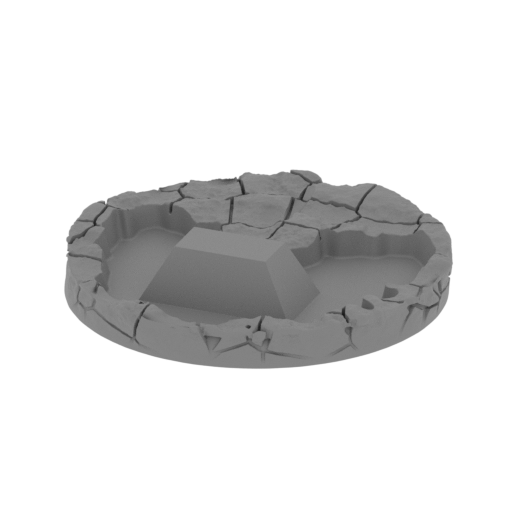

	17_platform_2_FDM(repaire d).stl	33.52 MiB	40 h 44 min 22 m	198 x 199 x 37	Download
...

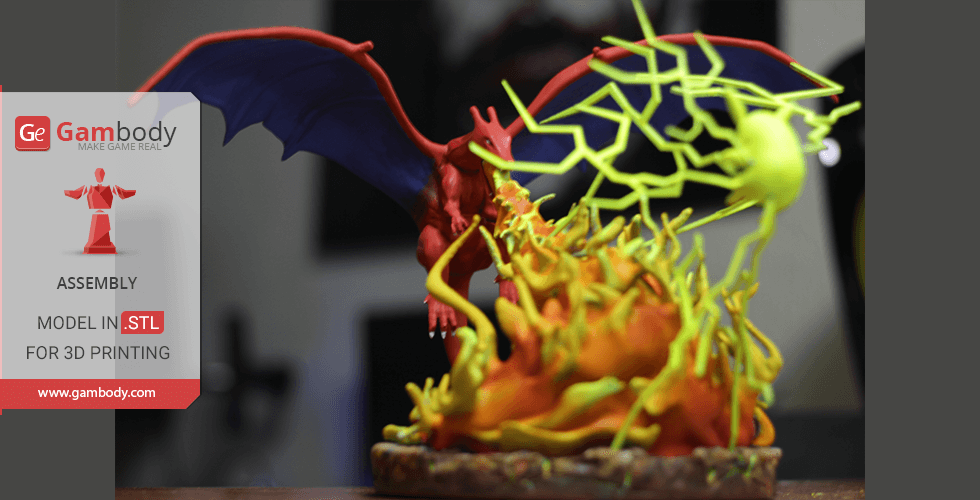

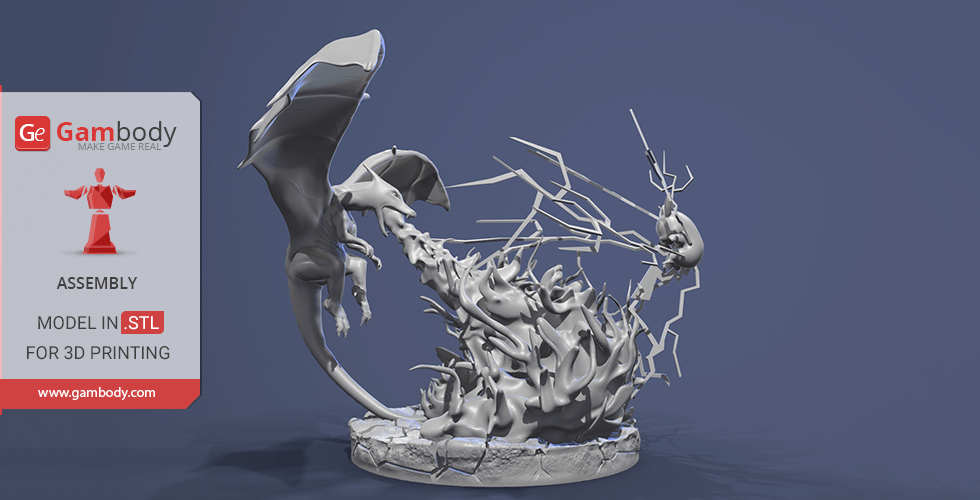

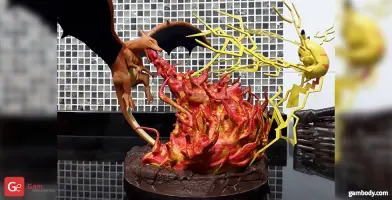

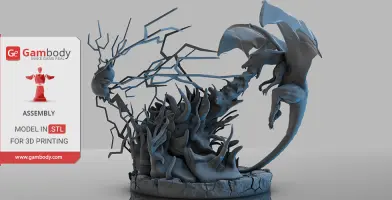

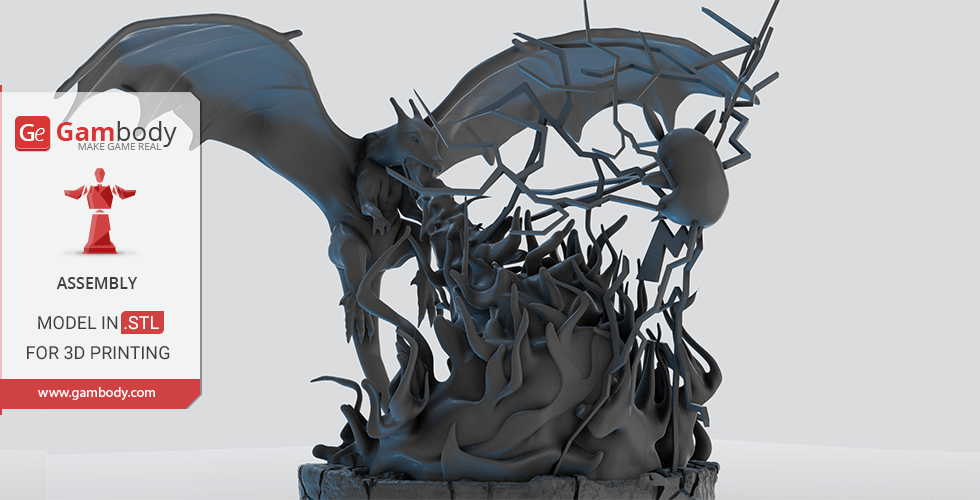

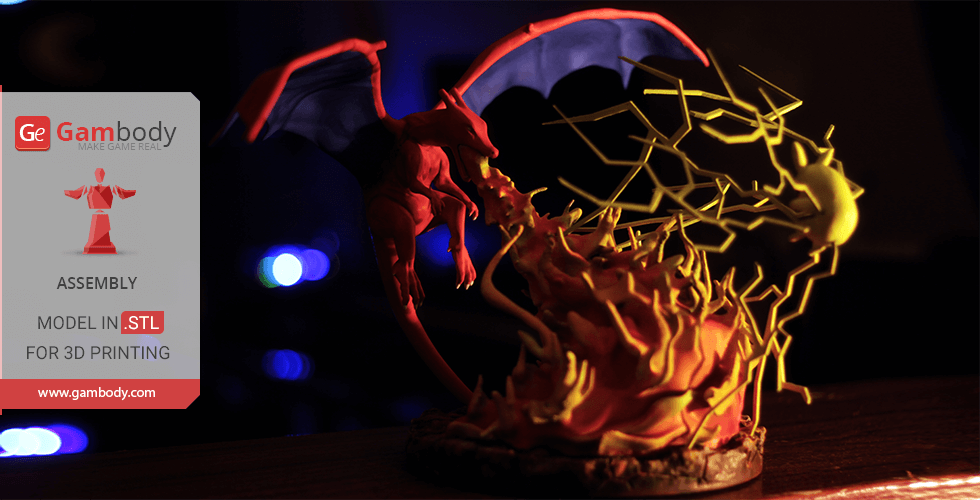

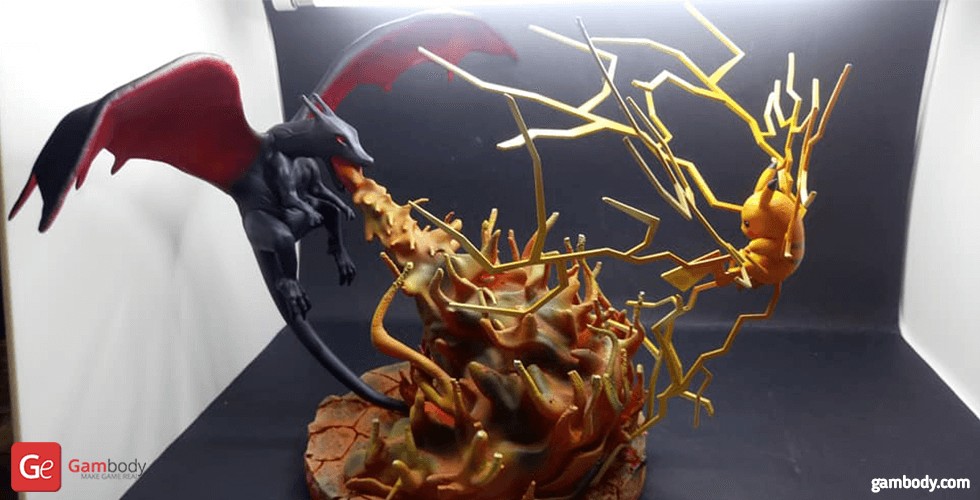

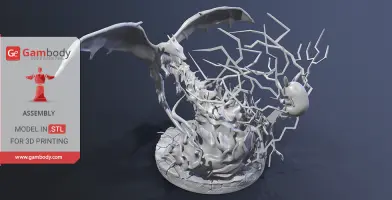

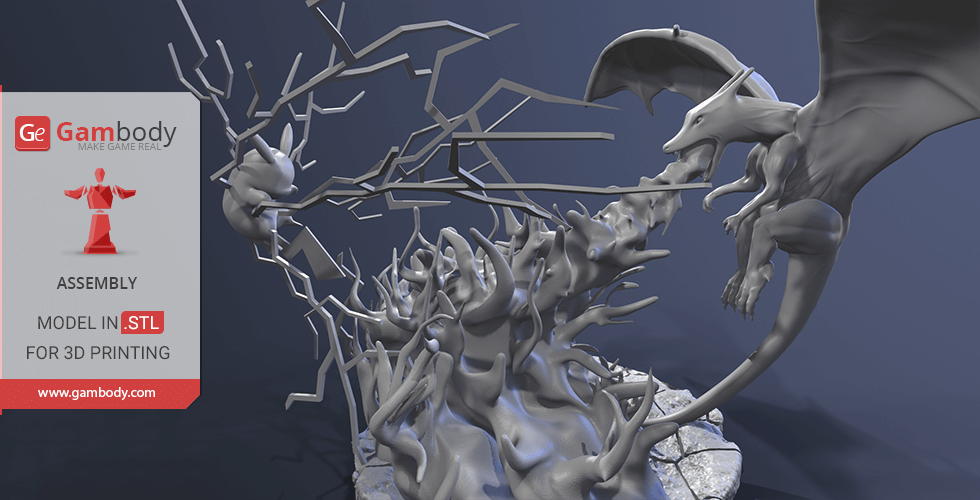

DIORAMA OF CHARIZARD VS. PIKACHU

Pokemon creatures from a fictional universe. They have different supernatural abilities. In their universe, there are people who are called Pokemon trainers. In this diorama, two companions of Ash Ketchum collided in the battle. Pikachu has a huge power of electricity. Despite the fact that this is not the last evolutionary form after many pieces of training, he reached such a power that he can cope with Charizard a huge dragon in the arena for the Battle of Pokemon.

ABOUT THIS DIORAMA

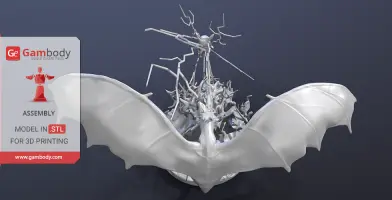

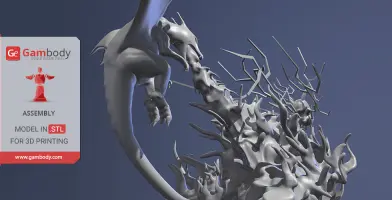

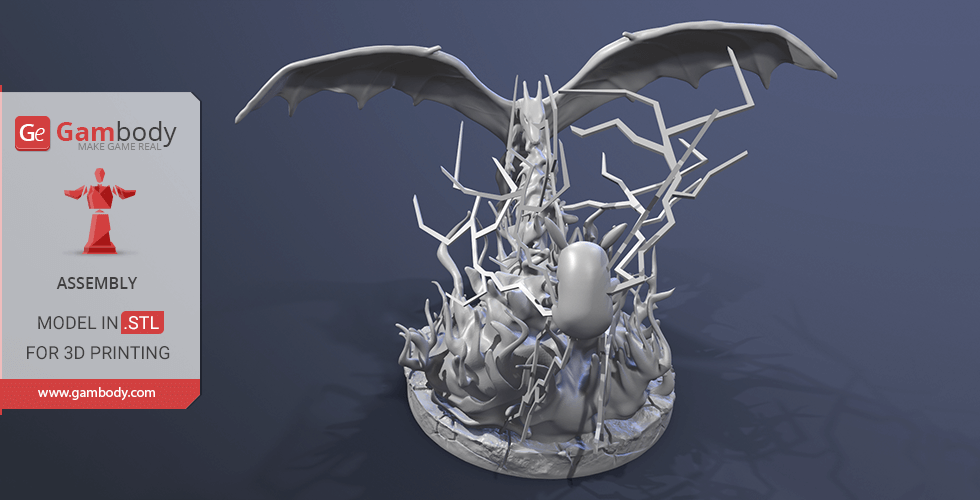

This diorama made in ZBrush and Maya and saved in STL files, a format supported by most 3D printers.

Features:

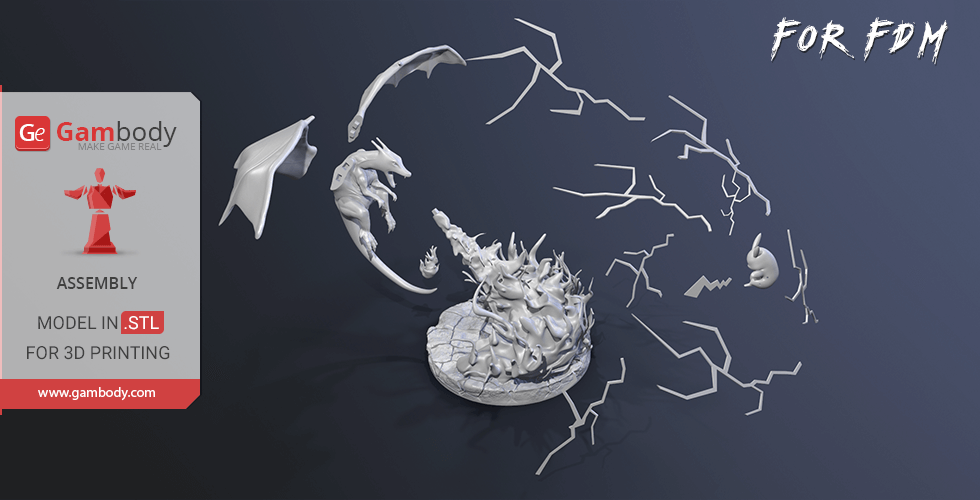

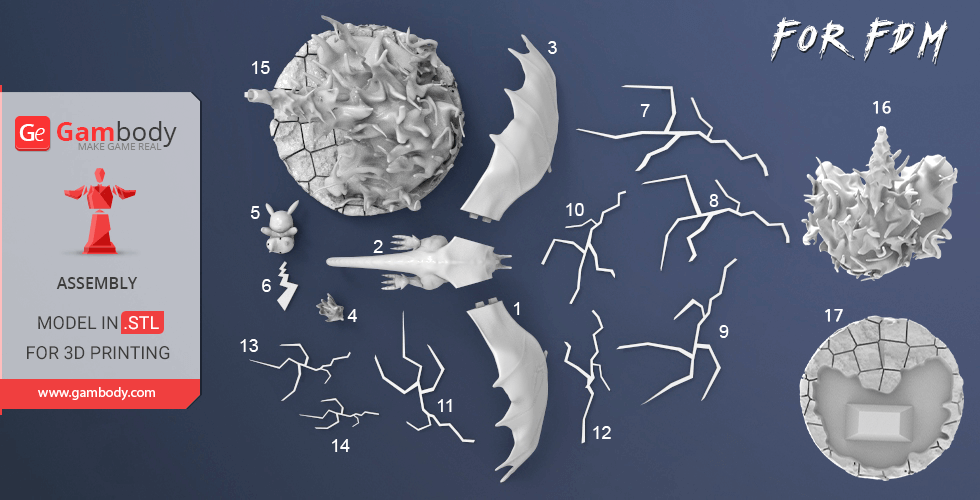

- Contains 15 parts;
- Contains fire and thunder elements;
- Contains Charizard and Pickashu 3D Miniatures in action pose;
- All parts are divided in such way that you will print them with the smallest amount of supports.

All STL files for 3D printing have been checked in Netfabb and no errors were shown.

Note: Before starting 3D printing the model, read the Printing Details for CURA 3.2.1. Software.

Scale: The scale of the model was calculated on the basis of the growth of Pikachu 40 cm. So the size of diorama is 2200 mm. Model made as 1/12 scale.

Dimensions:

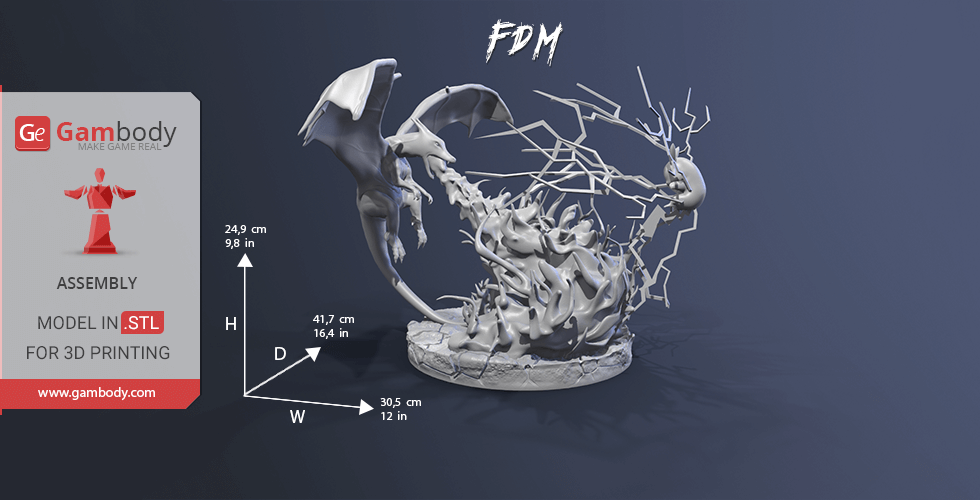

After being printed will stand: 249 mm tall, 305 mm wide, 417 mm deep;

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of Pokemon Charizard vs. Pikachu 3D Miniatures in Battle Diorama for 3D printing which consist of 15 parts;
- Contains elements of fire and thunder;
- High-poly detailed Carizard and Pikachu 3D Miniatures;
- High-poly detailed elements of diorama;
- Detailed settings that we provide for Cura 3.2.1. for the best print;
- Full technical support from the Gambody Support Team.

Watch the tutorial video on how to assemble 3D Printing Miniature of this diorama at Gambody YouTube channel.

You can get Diorama of Charizard vs. Pikachu - Fire And Thunder Battle right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Here you can find other Anime 3D miniatures.

_______
FAQ:
Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

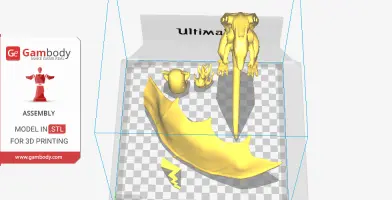

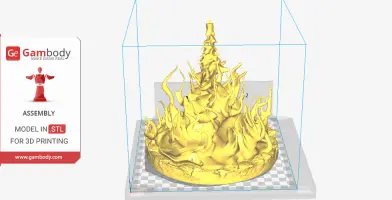

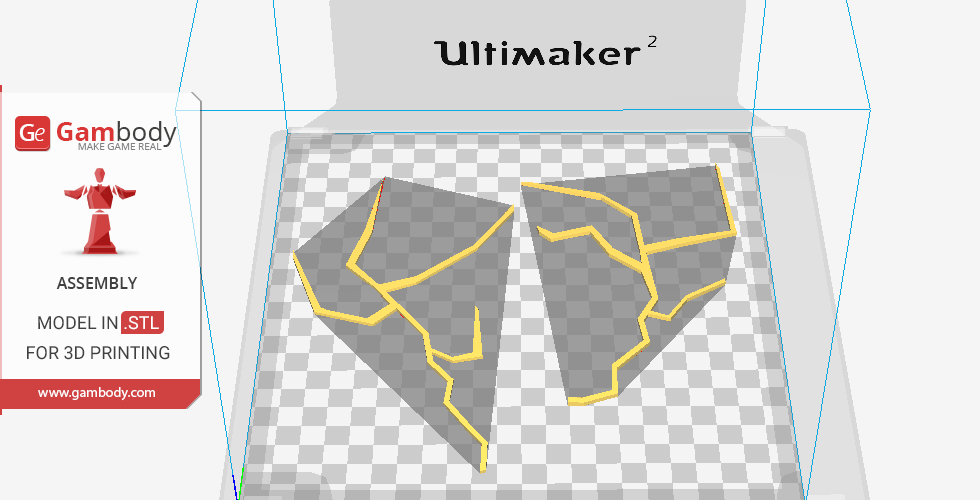

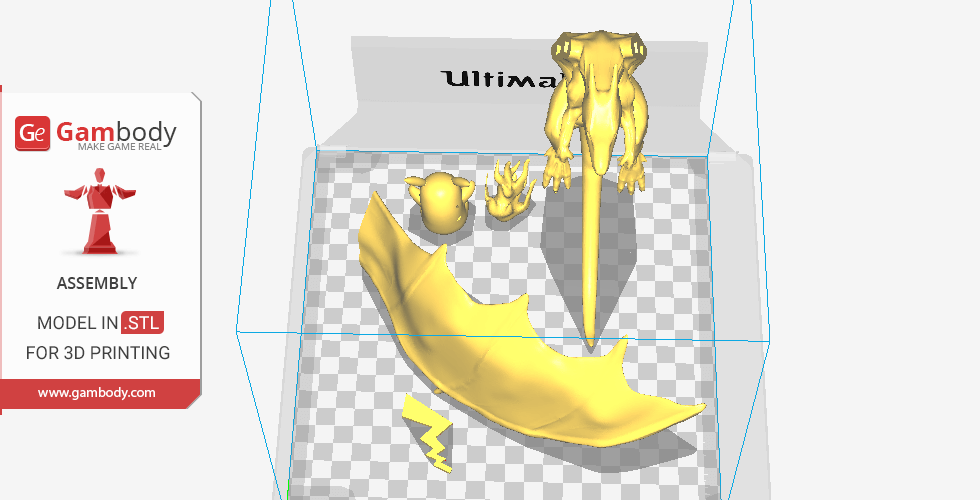

This model was tested in Cura 3.2.1 and printed on an Ultimaker 2 in PLA material.

To avoid printing problems, we recommend the following settings:

Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
Top Thickness: 0.8 mm
Top Layers: 8
Bottom Thickness: 0.8 mm
Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
Compensate Outer Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Sharpest Corner
Seam Corner Preference: Hide Seam
Ignore Small Z Gaps: Check
Extra Skin Wall Count: 1

Infill
Infill Density: 20%
Infill Line Distance: 4.0 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Overlap Percentage: 10%
Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Removal Width: 0.8 mm
Top Skin Removal Width: 0.8 mm
Bottom Skin Removal Width: 0.8 mm
Skin Expand Distance: 0.8
Top Skin Expand Distance: 0.8
Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90˚
Minimum Skin Width for Expansion: 0.0

Material
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
Nozzle Switch Retract Speed: 20 mm/s
Nozzle Switch Prime Speed: 20 mm/s

Speed
Print Speed: 45 mm/s
Infill Speed: 50 mm/s
Wall Speed: 22.5 mm/s
Outer Wall Speed: 22.5 mm/s
Inner Wall Speed: 45 mm/s
Top/Bottom Speed: 15 mm/s
Travel Speed: 120 mm/s
Initial Layer Speed: 30 mm/s
Initial Layer Print Speed: 30 mm/s
Initial Layer Travel Speed: 60 mm/s
Skirt/Brim Speed: 30 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.625 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.3 mm
Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Placement: Everywhere
Support Overhang Angle: 60°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
Support Line Distance: 1.3333 mm
Support Z Distance: 0.3 mm
Support Top Distance: 0.3 mm
Support Bottom Distance: 0.3 mm
Support X/Y Distance: 0.7 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.2 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Brim
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
Brim Line Count: 18
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
