This 3D printing design of Coastal Defender Stormtrooper consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

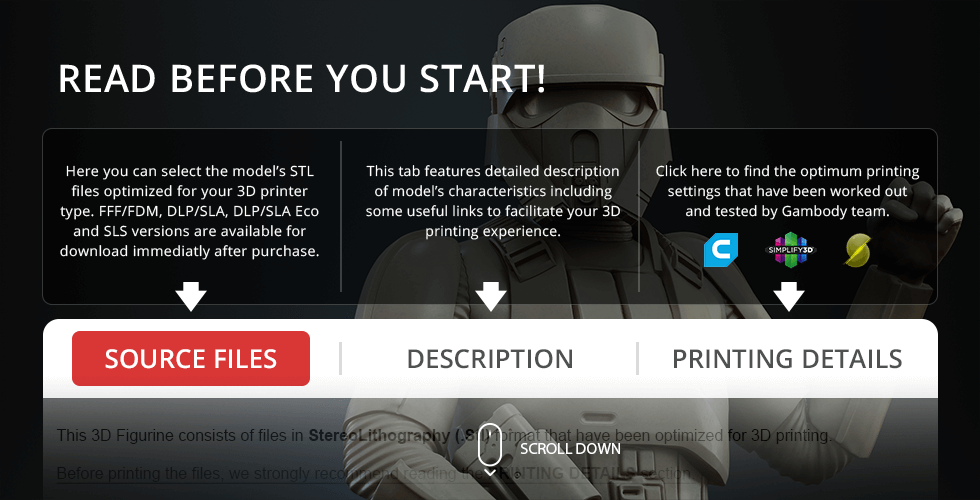

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

4 versions of Shoretrooper STL files for FFF/FDM, DLP/SLA, DLP/SLA Eco, SLS — files for all versions are available for download after the purchase;
STL files of high-poly Shoretrooper model for 3D printing consist of 42 files;

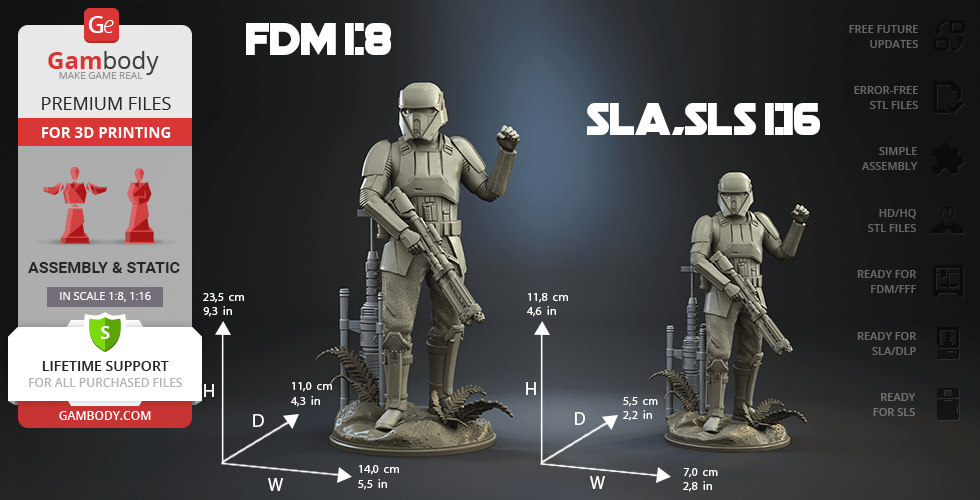

Sizes for:
FFF/FDM: 235 mm tall, 140 mm wide, 110 mm deep;
DLP/SLA/SLS: 118 mm tall, 70 mm wide, 55 mm deep;
Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format;
Detailed settings that we provide as a recommendation for Cura, Bambu Studio, Simplify3D, Slic3r and PrusaSlicer for the best print;
Full technical support from the Gambody Support Team.

Detailed information about these 3D printer STL files is available in the DESCRIPTION section.


	File Name	File Size	Time / Filament	Object Size (x/y/z mm)

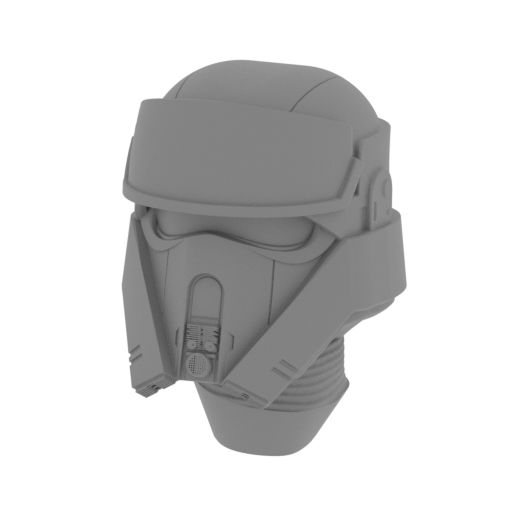

	1_head_FDM(repaired).stl	26.96 MiB	3 h 23 min 2 m	31 x 40 x 45	Download

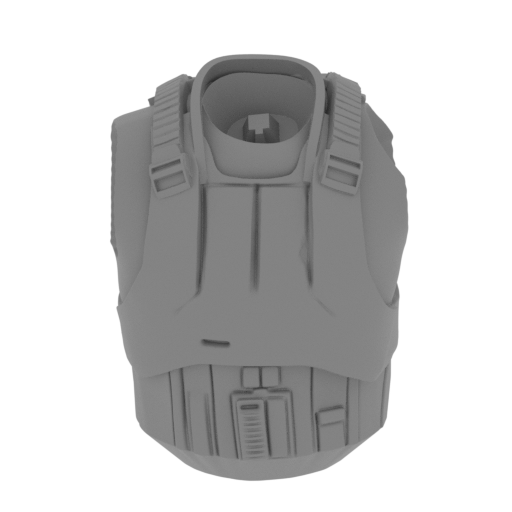

	2_body_FDM(repaired).stl	51.05 MiB	7 h 29 min 4 m	51 x 50 x 64	Download

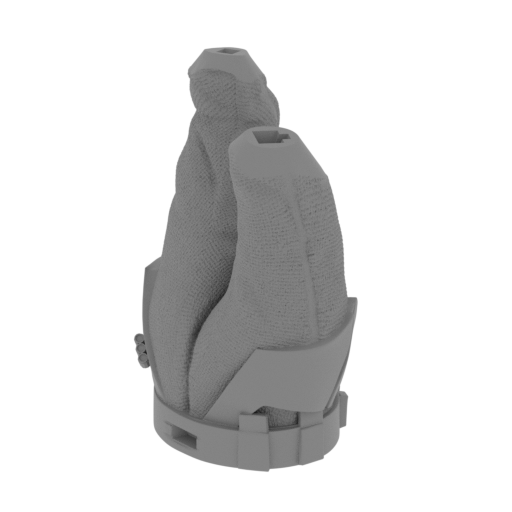

	3_legs_FDM(repaired).stl	48.52 MiB	10 h 33 min 6 m	54 x 60 x 90	Download

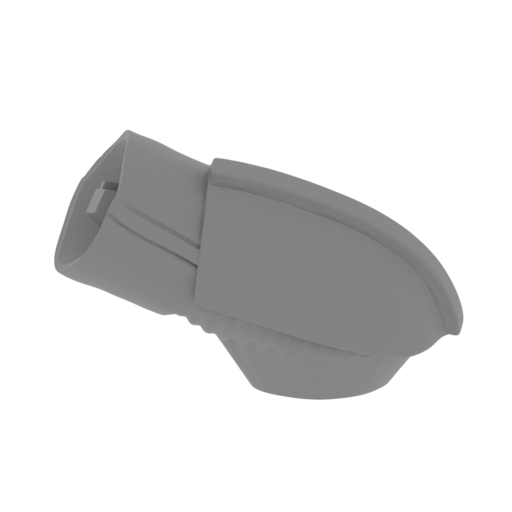

	4_arm_R_1_FDM(repaired).s tl	22.63 MiB	1 h 24 min 1 m	40 x 28 x 27	Download
	5_arm_R_2_FDM(repaired).s tl	23.41 MiB	59 min <1 m	16 x 18 x 45	Download

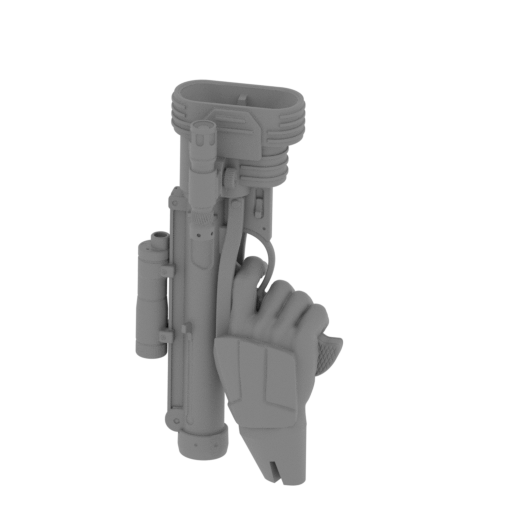

	6_hand_R_with_rifle_FDM(r epaired).stl	16.67 MiB	1 h 50 min 1 m	24 x 29 x 46	Download

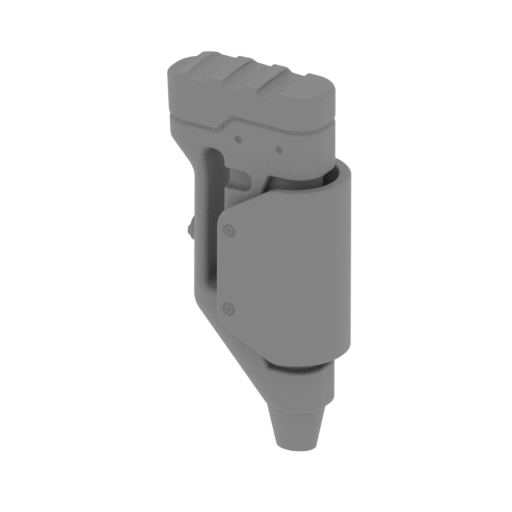

	7_butt_of_the_rifle_FDM(r epaired).stl	16.09 MiB	32 min <1 m	14 x 9 x 28	Download

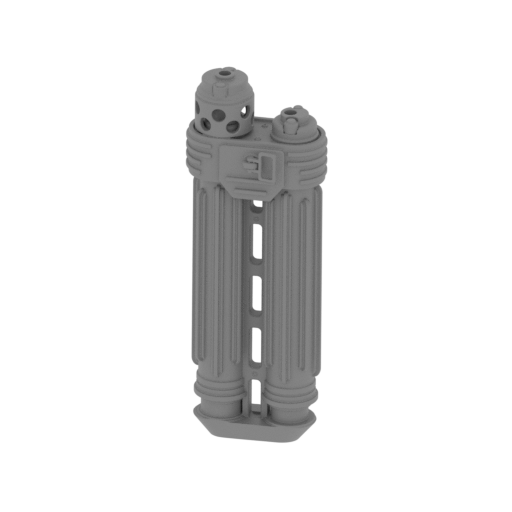

	8_rifle_part_FDM(repaired ).stl	17.76 MiB	1 h 11 min <1 m	16 x 10 x 43	Download

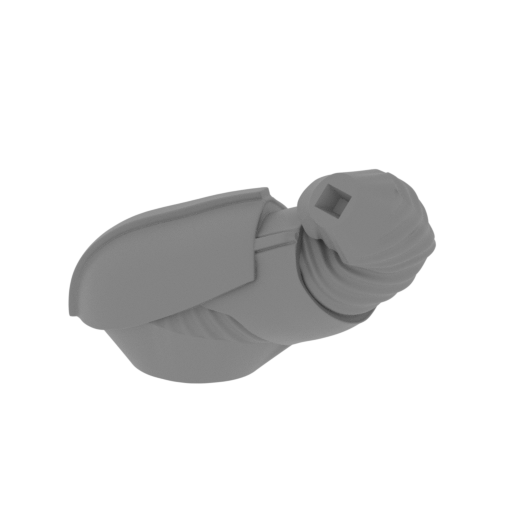

	9_arm_L_1_FDM(repaired).s tl	27.33 MiB	1 h 38 min 1 m	48 x 22 x 31	Download

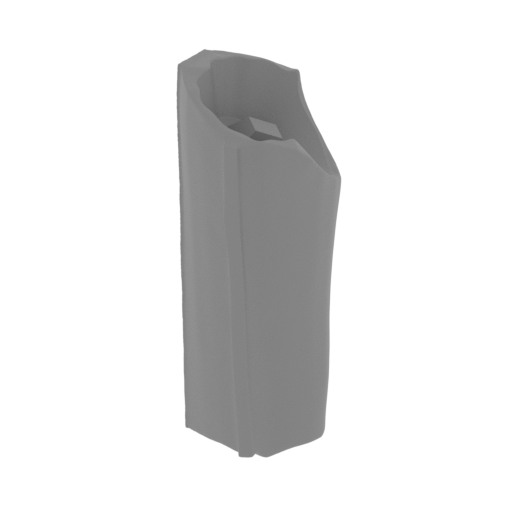

	10_arm_L_2_FDM(repaired). stl	17.15 MiB	33 min <1 m	14 x 17 x 32	Download

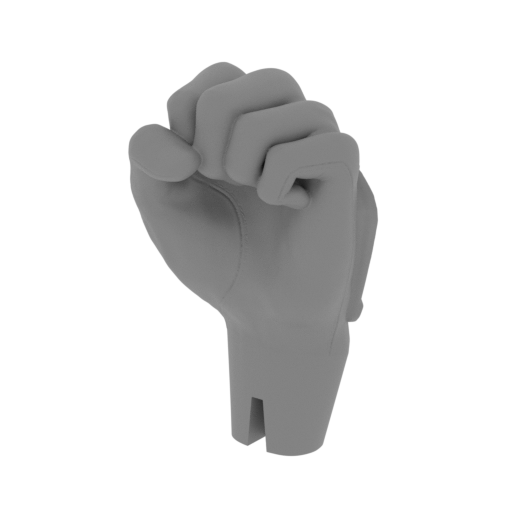

	11_hand_L_FDM(repaired).s tl	15.49 MiB	29 min <1 m	16 x 12 x 24	Download

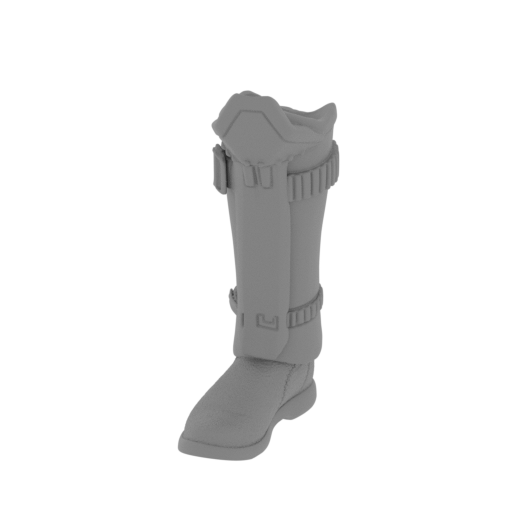

	12_foot_R_FDM(repaired).s tl	24.79 MiB	2 h 52 min 1 m	21 x 39 x 65	Download

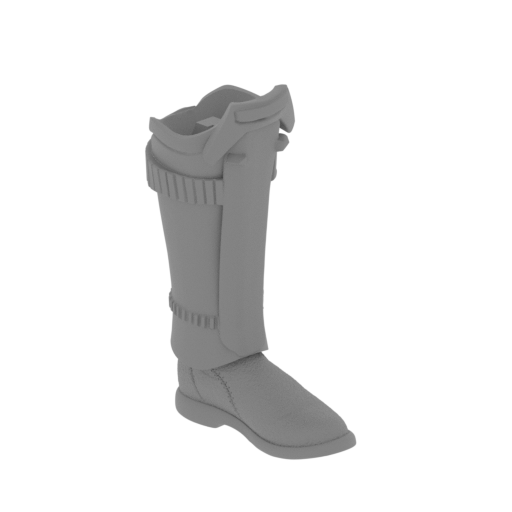

	13_foot_L_FDM(repaired).s tl	24.44 MiB	3 h 18 min 2 m	39 x 25 x 65	Download

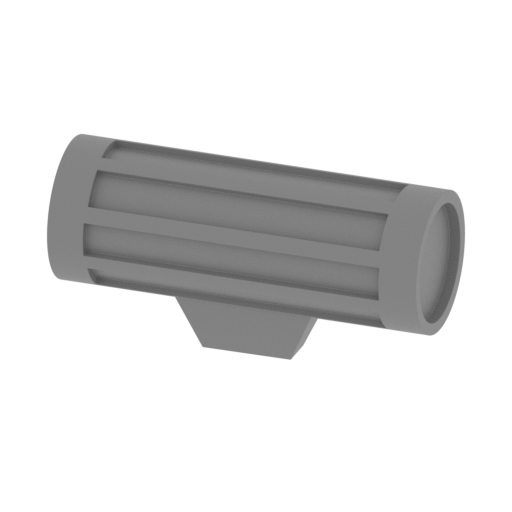

	14_termal_detonator_FDM(r epaired).stl	18.15 MiB	21 min <1 m	23 x 9 x 12	Download

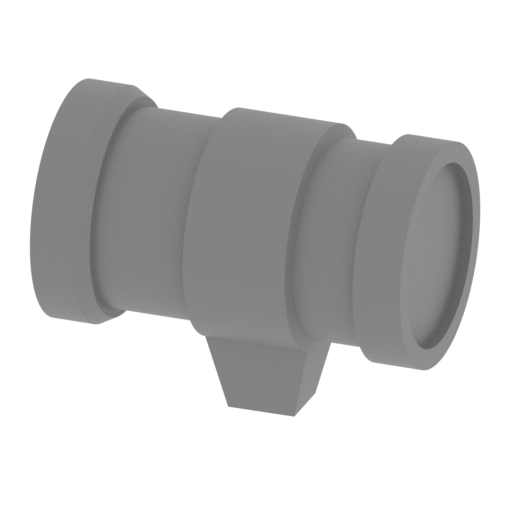

	15_tube_pouch_FDM(repaire d).stl	4.17 MiB	17 min <1 m	16 x 10 x 13	Download

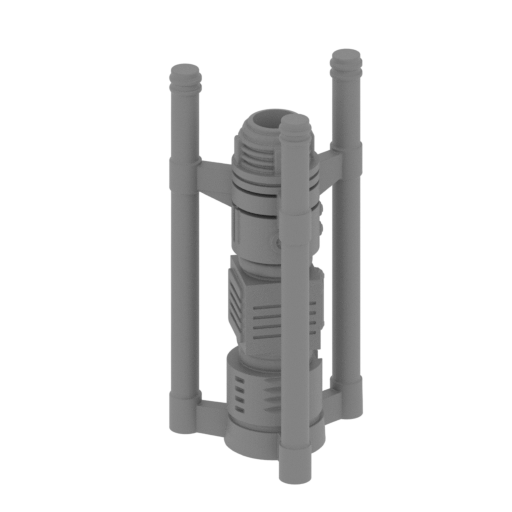

	16_moisture vaporator_1_F DM(repaired).stl	26.69 MiB	4 h 47 min 2 m	37 x 41 x 82	Download

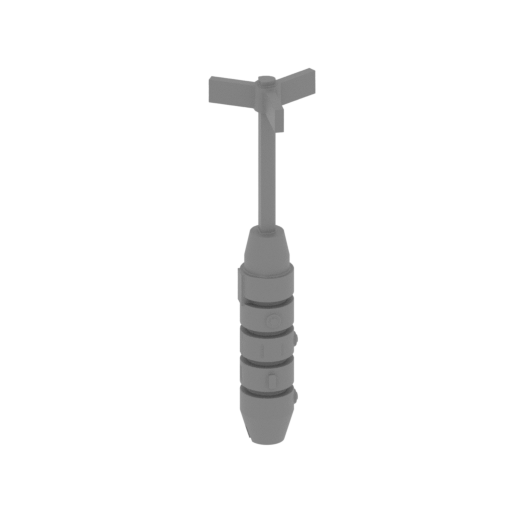

	17_moisture_vaporator_FDM (repaired).stl	18.31 MiB	1 h 18 min 1 m	17 x 19 x 69	Download

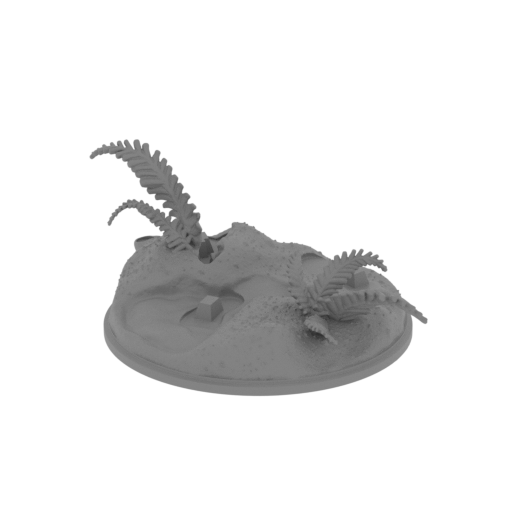

	18_platform_FDM(repaired) .stl	40.45 MiB	15 h 37 min 8 m	140 x 110 x 59	Download
	19_ge_lock_10H(x1)_FDM(re paired).stl	0.03 MiB	4 min <1 m	18 x 10 x 2	Download
	Keychain (repaired).stl	0.35 MiB	23 min <1 m	30 x 30 x 2	Download
	Tag (repaired).stl	1.70 MiB	1 h 18 min 1 m	150 x 18 x 5	Download
...

ABOUT THIS 3D MODEL

On the tropical planet Scarif, the Galactic Empire’s plans were assisted by a special kind of troopers - Coastal Defender Stormtroopers best known as the guards of the top secret Imperial security complex and the partakers in the chilling Battle of Scarif. And although many of them vanished in the merciless blast of the Death Star, this unique trooper survived to become a part of your Rogue One-inspired diorama!

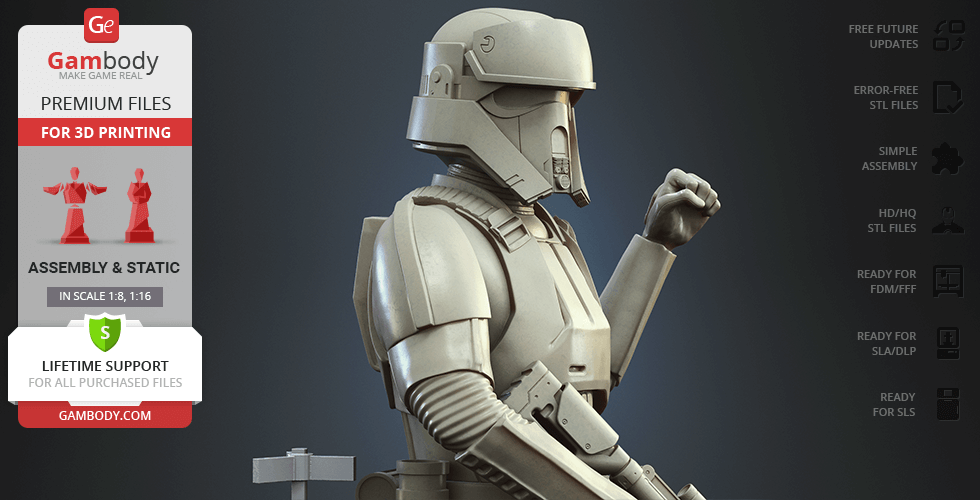

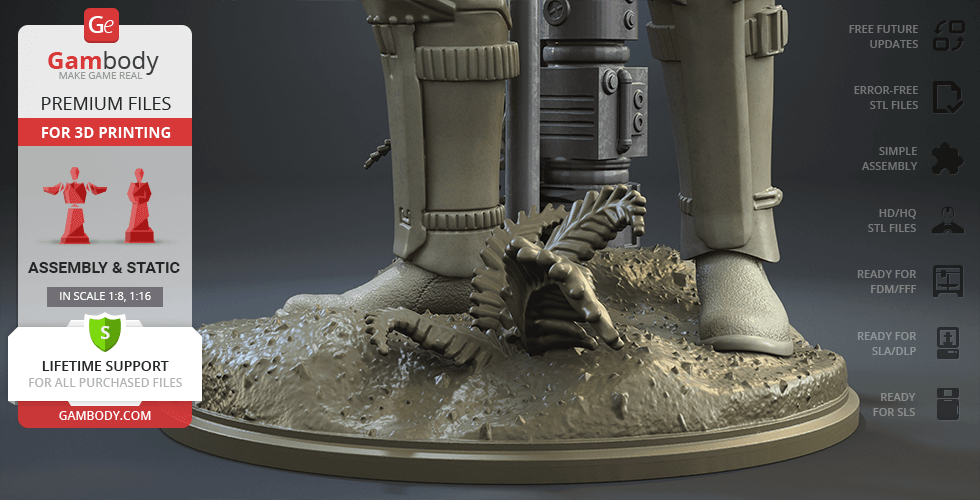

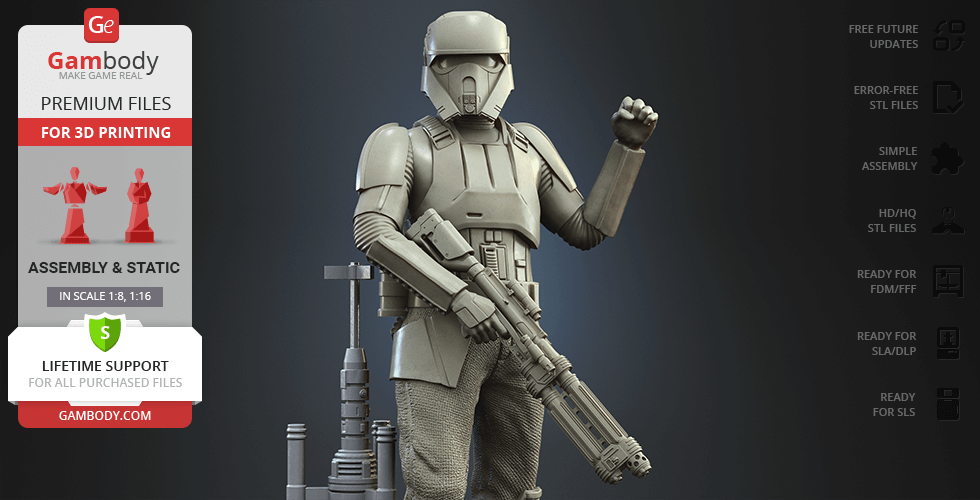

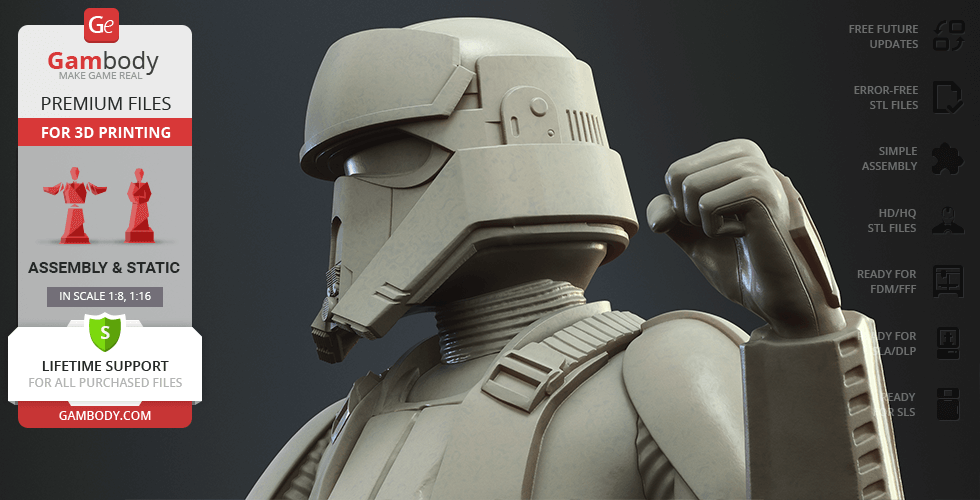

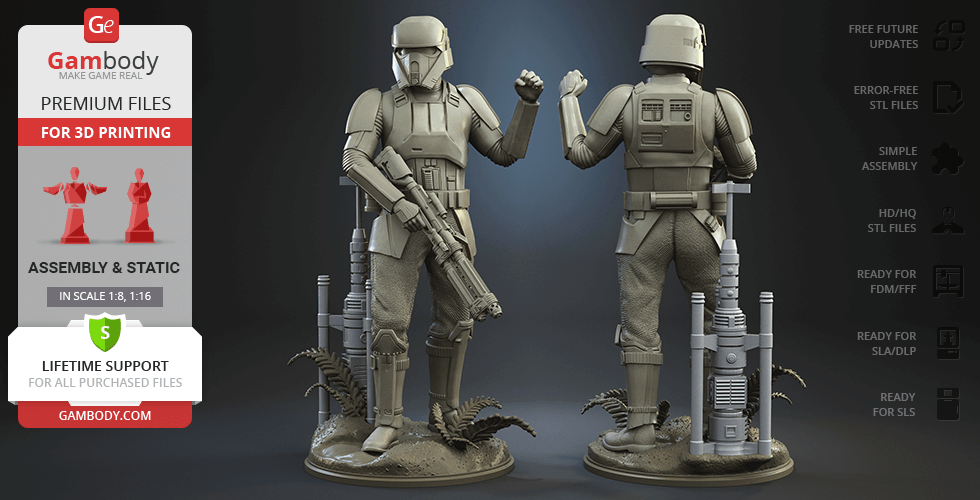

With the Shoretrooper 3D print model, you will feel the humid breeze of the Scarif. The character is surrounded by a familiar terrain - the tropical plants, sand under the boots, and the moisture vaporator nearby. The trooper’s armour is adapted for the climate and freedom of movement, and the textured baggy pants with no thigh armour create a recognisable look. The highly detailed model equipped with the signature blaster rifle is greeting you with a friendly gesture! But are you truly on the Shoretrooper’s side?

ADAPTATION FOR 3D PRINTING

Shoretrooper 3D printing design is a static assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 22 hours. The model's anatomy and proportions were thoroughly reviewed during the moderation process for the character to be depicted harmoniously in the intended pose.

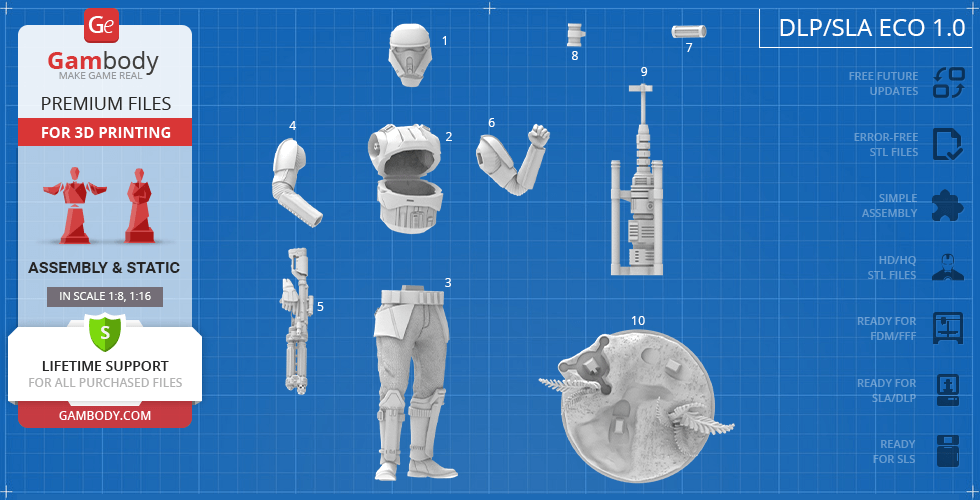

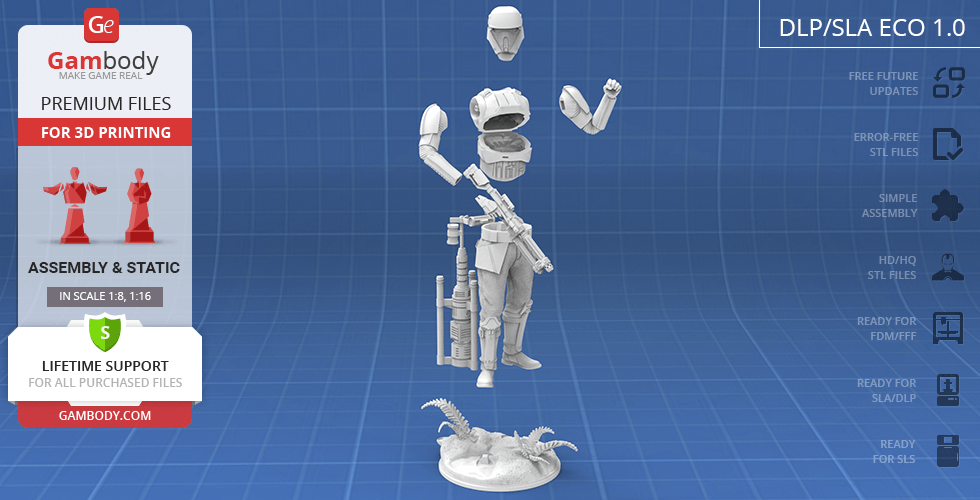

The model's cutting was chosen by our team to minimise the amount of generated support and some of the parts were hollowed out for you to save resin in the Eco version. In order to conceal the places where the assembly parts of the model are connected, the model was cut along the contour of the Shoretrooper’s armour. For you to achieve the cleanest 3D printed result, the character’s head, torso, legs, rifle, moisture vaporator, etc. are provided as separate assembly parts.

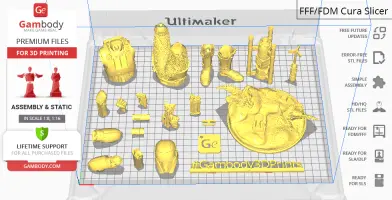

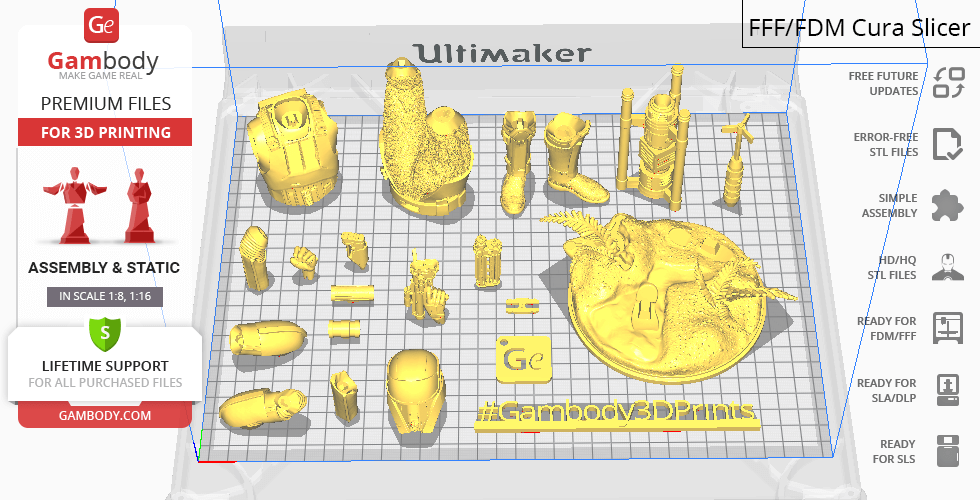

All assembly parts of the FFF/FDM versions come in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and so that the 3D printing beginners won't face difficulties when placing the parts on a build plate.

The design is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model's scale was calculated from the approximate height of the Shoretrooper which is 1830 mm. The 3D printing design's chosen scale is 1:8 for the FFF/FDM version and 1:16 for the DLP/SLA/SLS versions.

VERSIONS' SPECIFICATIONS

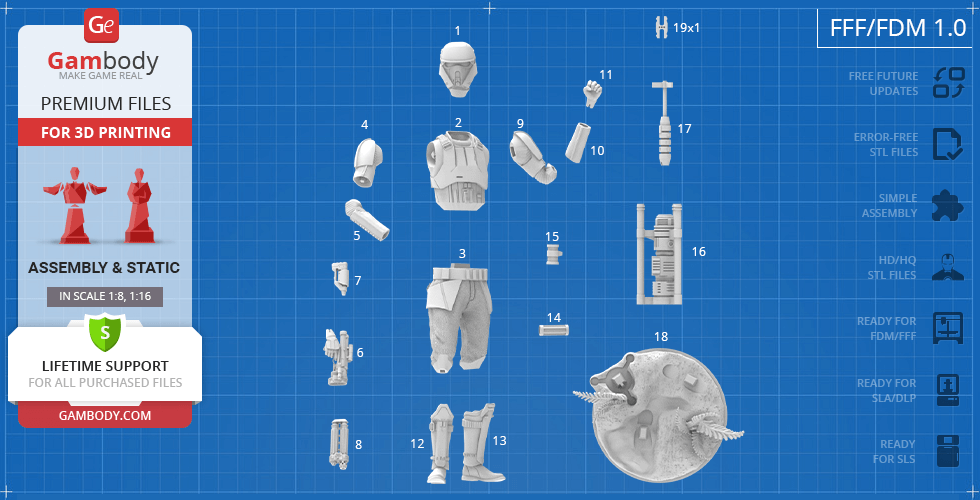

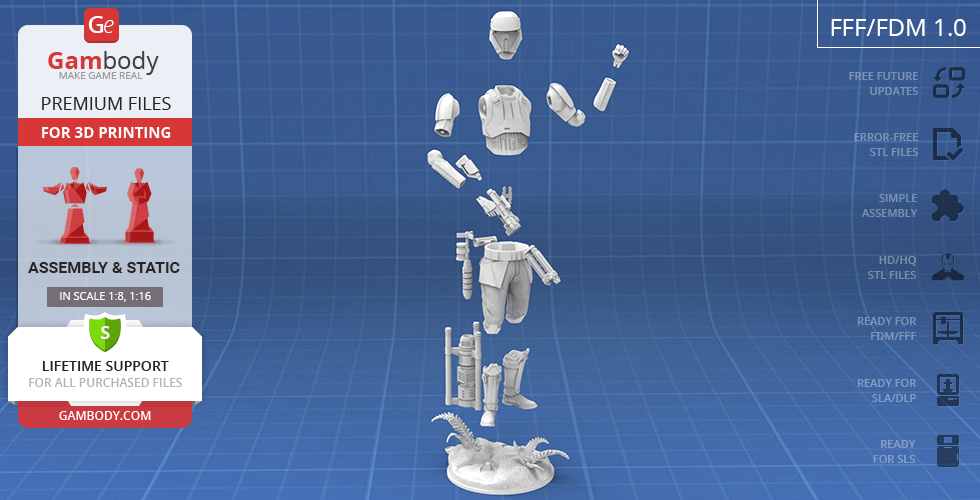

FFF/FDM 1.0 version features:

Contains 19 parts;
A printed model is 235 mm tall, 140 mm wide, 110 mm deep;

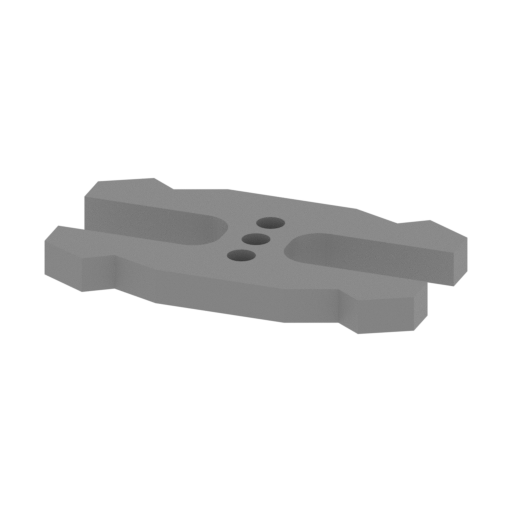

The assembly kit includes lock 19_ge_lock_10H(x1) to attach the model's body to legs securely without glue;
All parts are divided in such a way that you will print them with the smallest number of support structures.

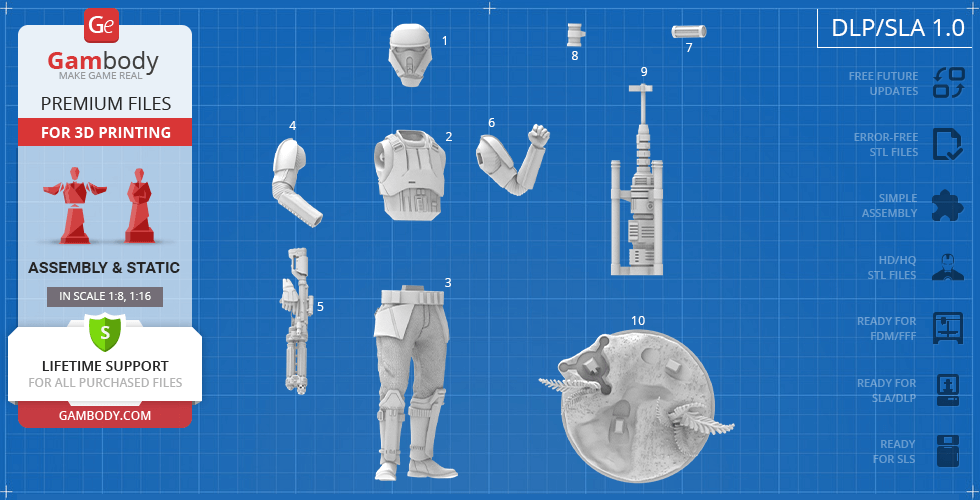

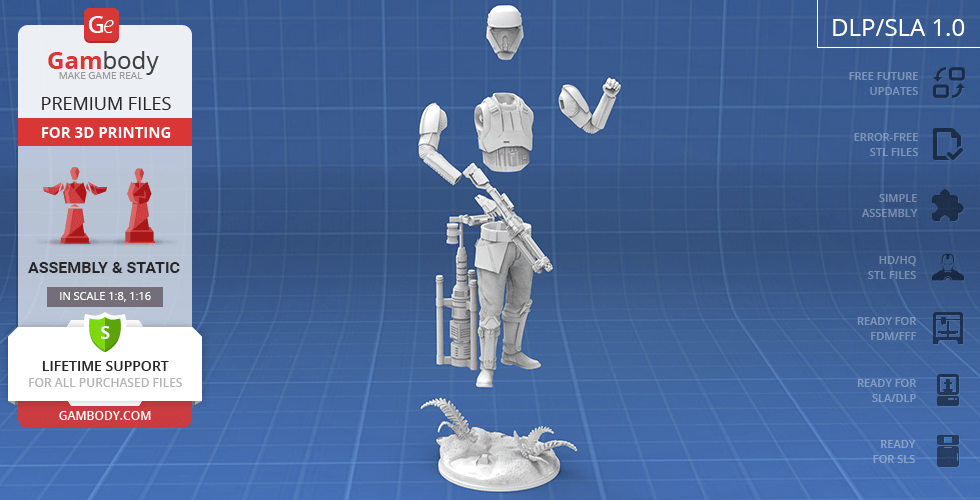

DLP/SLA 1.0 version features:

Contains 10 parts;
A printed model is 118 mm tall, 70 mm wide, 55 mm deep;
All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

DLP/SLA Eco 1.0 version features:

Contains 10 parts;
A printed model is 118 mm tall, 70 mm wide, 55 mm deep;
Some parts are manually hollowed out to save resin.

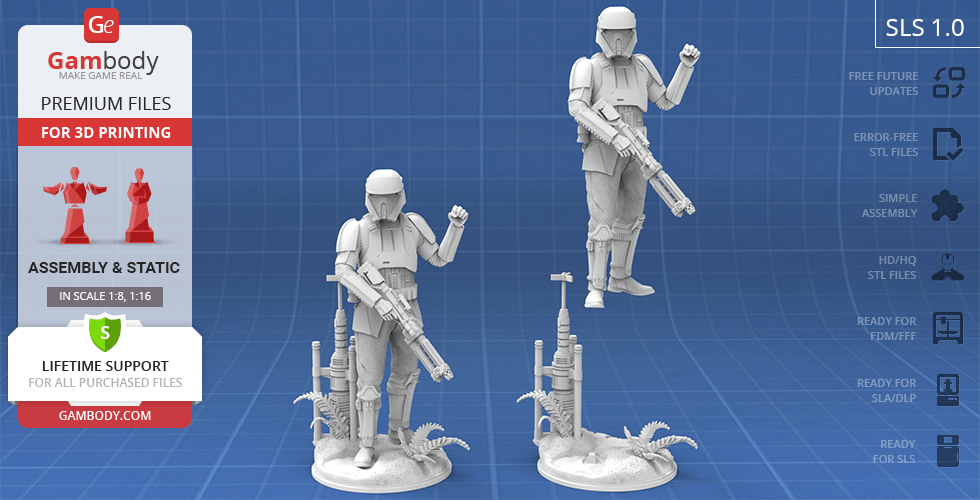

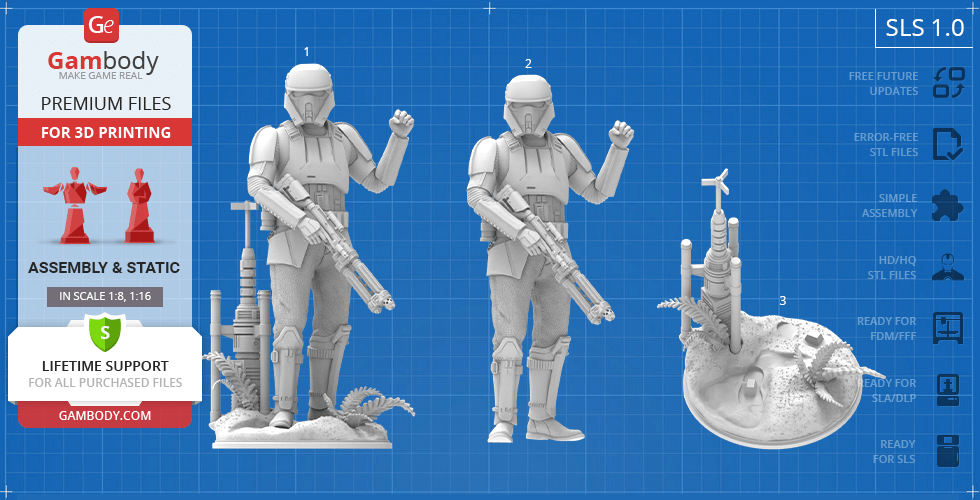

SLS 1.0 version features:

A printed model is 118 mm tall, 70 mm wide, 55 mm deep;
Contains 3 parts - a solid Shoretrooper model standing on the platform and separated from it.

You can get the STL Files of Shoretrooper model immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble the 3D Printed Shoretrooper model from the provided 3D Print Files on Gambody YouTube channel.

Also, you may like other Star Wars 3D Printing Designs.

_______

FAQ:

Generic

Below you can find printing recommendations for Cura, Bambu Studio, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

All connectors should be printed at 100% Infill.

Bambu Lab printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Bambu Studio 1.9.1. Test models were printed on the Bambu Lab A1, Bambu Lab A1 Mini, Creality Ender 3 S1, Anycubic Kobra 2, and Anycubic Vyper using PLA and PETG filaments.
