Siege Tank 3D Printing Model | Assembly + Action

HISTORY OF THE SIEGE TANK

"These new siege tanks work just like the old ones. When you put 'em in siege mode they get increased range and firepower. They can't move in siege mode, so if you need to reposition 'em, just switch 'em back into tank mode."
                                                                                                             - Chief Engineer Rory Swann

Siege tank is a fighting machine that gives to Terrans not only infantry support but also long-range firepower. This is not just a regular Tank to which we are accustomed. Its arsenal contains a huge set of weapons and he does not require support acting as a full-fledged killer on the battlefield. When it is in the "siege mode" the tank can not shoot at point-blank because of this it’s dead zone leaves the tank vulnerable to attacks by melee units. But this doesn’t prevent him from being the strongest ground weapon and, in combination with the MMM, can even overcome “Colossi". Even in the team, Siege Tanks show themselves very well. They do not shoot all together in one target, they kill in turns that do not allow the enemy to catch the tank on a recharge and destroy.

ABOUT THIS 3D MODEL

Siege Tank 3D model for printing was created in Autodesk MAYA. The model is saved in STL files, a format supported by most 3D printers.

All parts in this model are divided in a special way so that they will print with minimal use of support material.
The entire Tank is made with the maximum possible number of moving parts. It accurately repeats the movement of the model from the game on the basis of which author was taking inspiration.

FDM version features:
- Front and back tracks of this Tank can rise and rotate.
- You can print caterpillars with flexible material and they will be able to spin on your tank, thanks to the spinning wheels.
- Middle tracks made with a hidden doors that can be opened.
- Retractable-prefabricated lifters which you can put forward when the tank goes into siege mode.
- The tower turns at 360 degrees and has retractable guns.

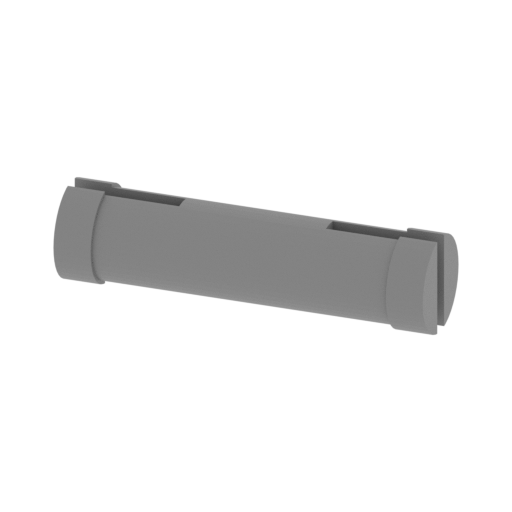

- For this model, you will need 46 connectors. Since that all connectors are the same, you need to print one connector 46 times. You can find this file of connector under the name 83_Ge_connector_x46.stl

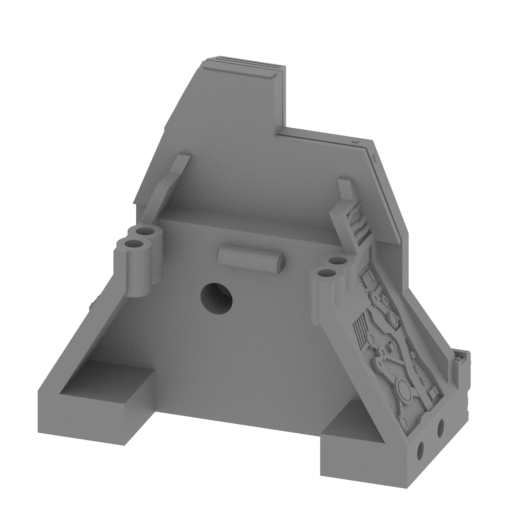

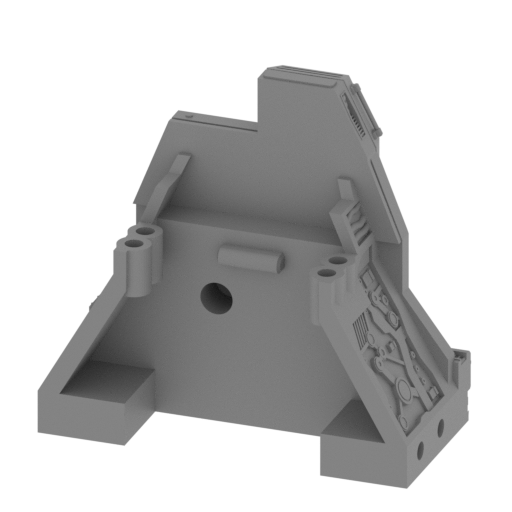

- The hull is available as divided into two pieces. 75 and 76 parts of this model are the same like part number 2. Its made for those who have small buildplate.
- For divided hull, you will need 4 connectors. If you will print solid part of hull than you will spend 42 connectors for this model.

SLS/SLA version features:
- less then FDM and made in two modes:

1. Assault mode;
2. Siege mode.

DLP/SLA/SLS Pre-supported 1.0 version features:
- Contains 1 file - all parts from DLP/SLA/SLS 1.0 are pre-supported, hollowed out, and have drain holes where needed;

All .STL files for 3D printing have been checked in Netfabb and no errors were shown.

Note: This model contains 46 connectors! You can find 1 file of the connector (83_Ge_connector_x46.stl) which you need to print 46 times.
Before starting 3D printing the model, read the Printing Details for CURA 2.7.0. software.

There are 82 + 46(connectors) parts for FDM version and 4 parts for SLS/SLA.

All parts of connectors should be printed at 100% infill.

Scale:
Its length in real life is 19320 mm in siege mode and 18660 in assault mode. Model made as 1/60 scale in FDM version and 1/100 in SLS/SLA version.

FDM version dimensions:

- After being printed will stand 155 mm tall, 281 mm wide, 322 mm deep - In Siege Mode.
95 mm tall, 213 mm wide, 311 mm deep - In Assault Mode.

- Connectors should be printed at 100% infill to make them solid.

SLS/SLA version dimensions:
- After being printed will stand 52 mm tall, 109 mm wide, 112 mm deep - In Siege Mod.
37 mm tall, 83 mm wide, 121 mm deep - In Assault Mod.

- Has few details to keep printing costs down.

WHAT WILL YOU GET AFTER PURCHASE?

- .STL files of Siege Tank for printing which consist of 87 parts.

- Movable tracks, caterpillars, wheels, lifters and tower.

- Siege Tank can be in two poses: Siege and Assault.
- Divided hull in two pieces for small buildplate.

- Made in scale 1/60 for FDM version and 1/100 for SLS/SLA of Its real size.

- Detailed settings that we provide for Cura 2.7.0 for the best print.

- High-poly detailed model of Siege Tank.

- Full technical support from the Gambody Support Team.

Watch the tutorial video on how to assemble Siege Tank 3D Printing Model at Gambody YouTube channel.

Watch the video about Siege Tank 3D Printing Model at Gambody YouTube channel.

You can get StarCraft Siege Tank Model for 3D Printing right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Also, you may like another StarCraft 3D models.

________________________

On 21.12.2017 the model files for Version 1 (FDM/FFF 3D printers) have been optimized.

Here is the list of updated files:

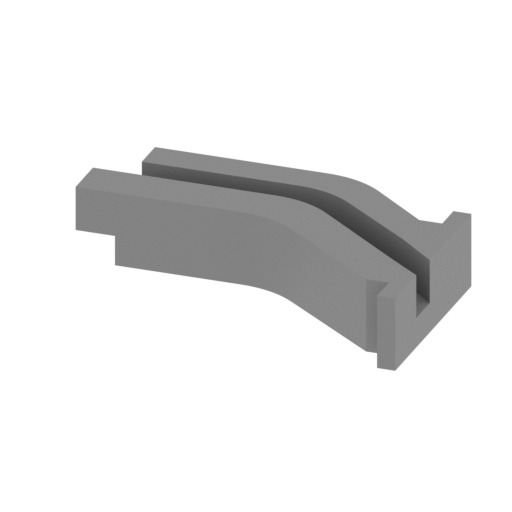

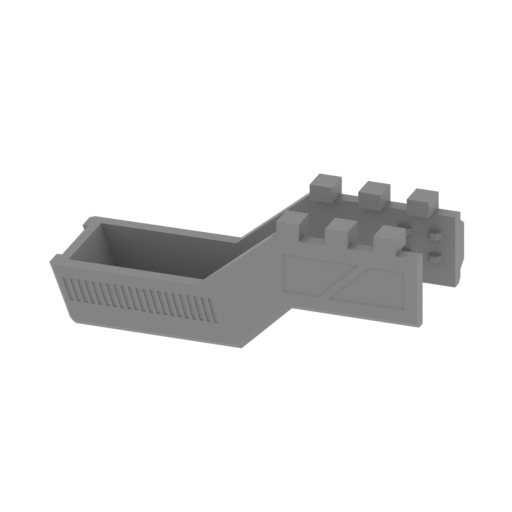

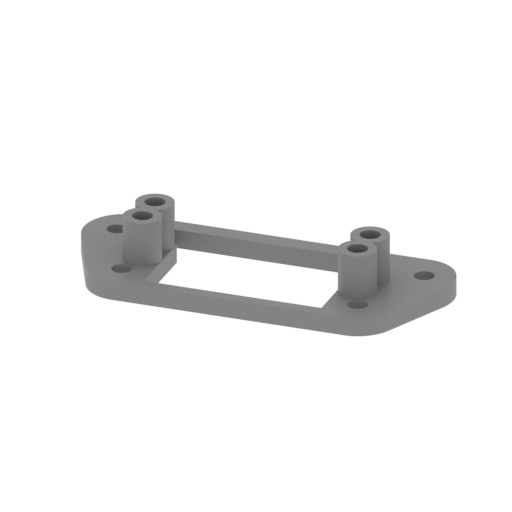

* 53-1_side_center_out_a (repaired)  \
* 53-2_rail_R (repaired);                       | instead (53_side_center_out_a)
* 53-3_rail_L (repaired);                      /

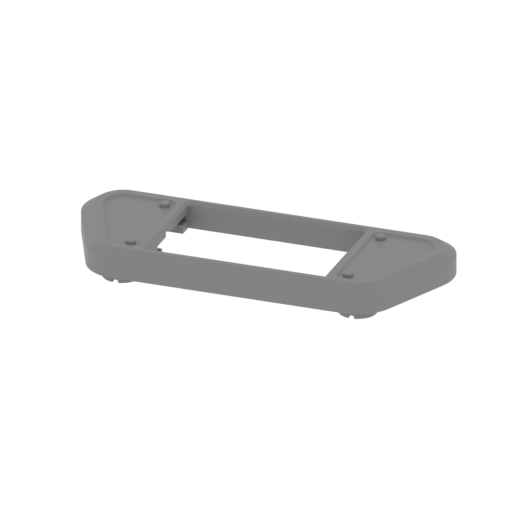

* 61-1_side_center_out_b (repaired); \
* 61-2_rail_R (repaired);                       | instead (61_side_center_out_b)
* 61-3_rail_L (repaired);                      /

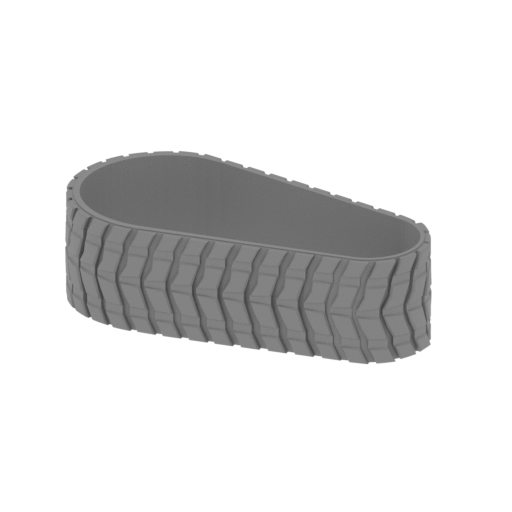

* 77_cat_a_only_for_flexible (repaired)
* 78_cat_b_only_for_flexible (repaired)

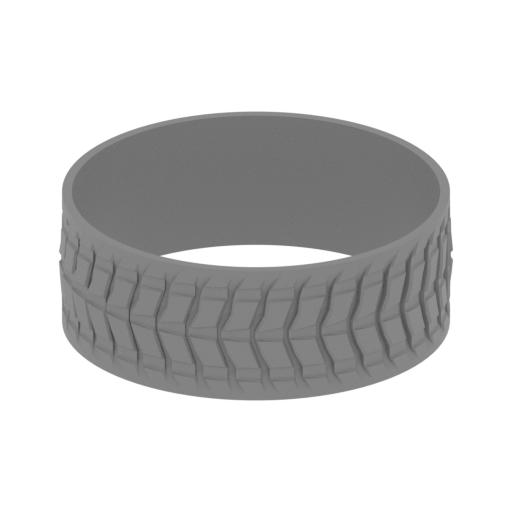

* 79_cat_c_only_for_flexible (repaired)
* 80_cat_d_only_for_flexible (repaired)

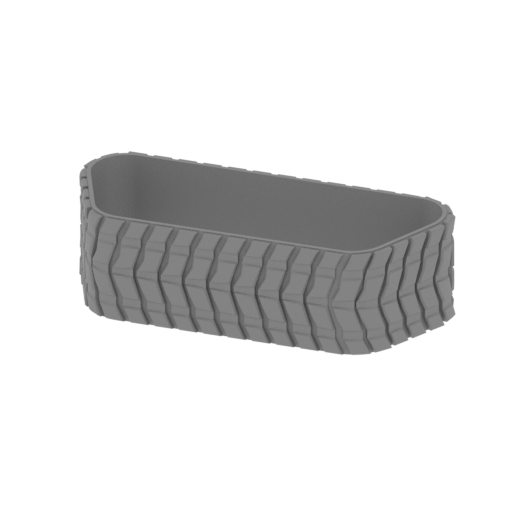

* 81_cat_center_a_(only_for_flexible) (repaired)

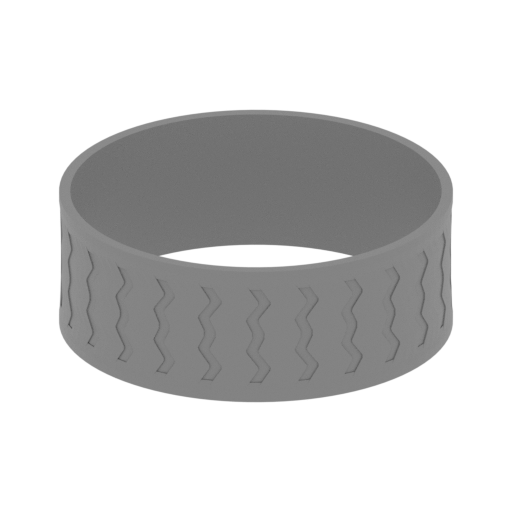

* 82_cat_center_b_(only_for_flexible) (repaired)

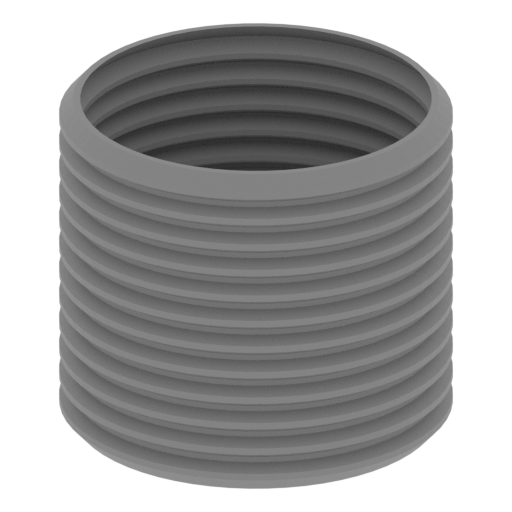

* 84_gofra_4x_only_for_flexible (repaired) - Need to print 4 times.

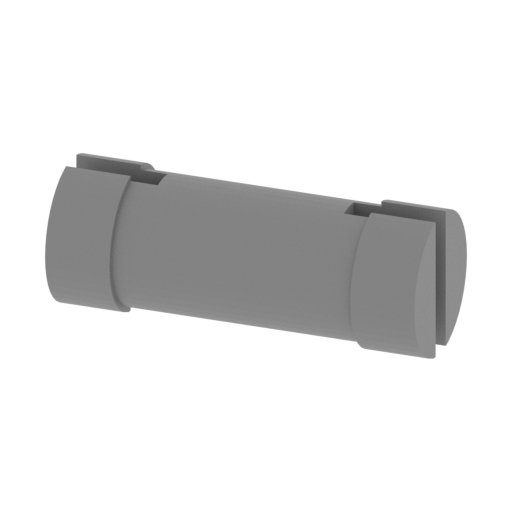

* 85_Ge_connector_mini_8x (repaired) - Need to print 8 times.

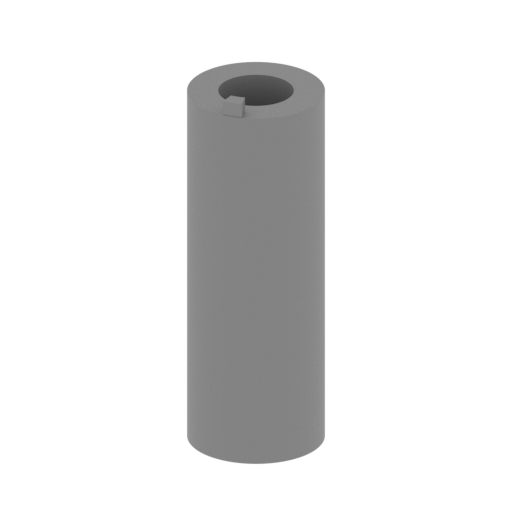

* 86_tube_x8 (repaired) - Need to print 8 times.
