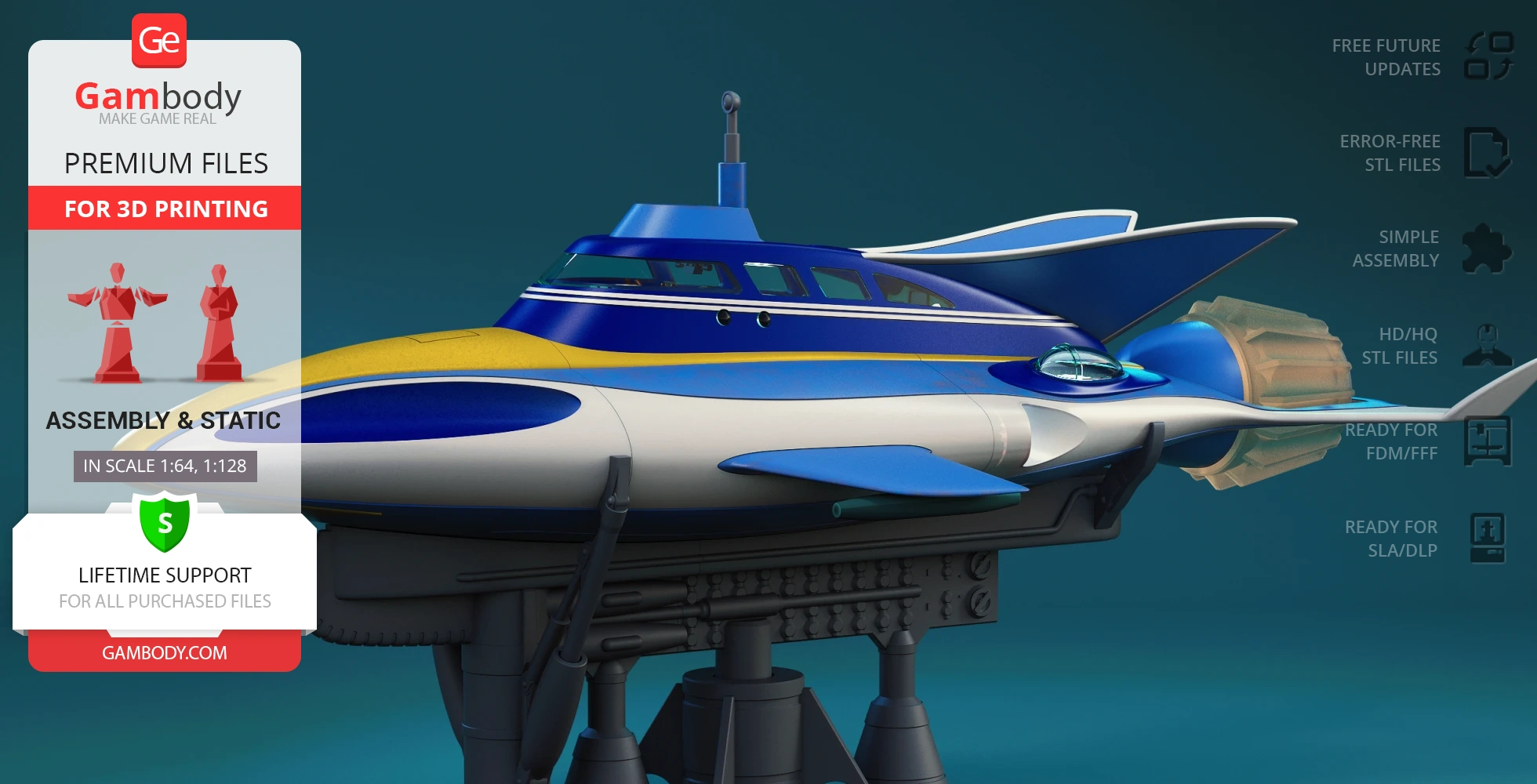

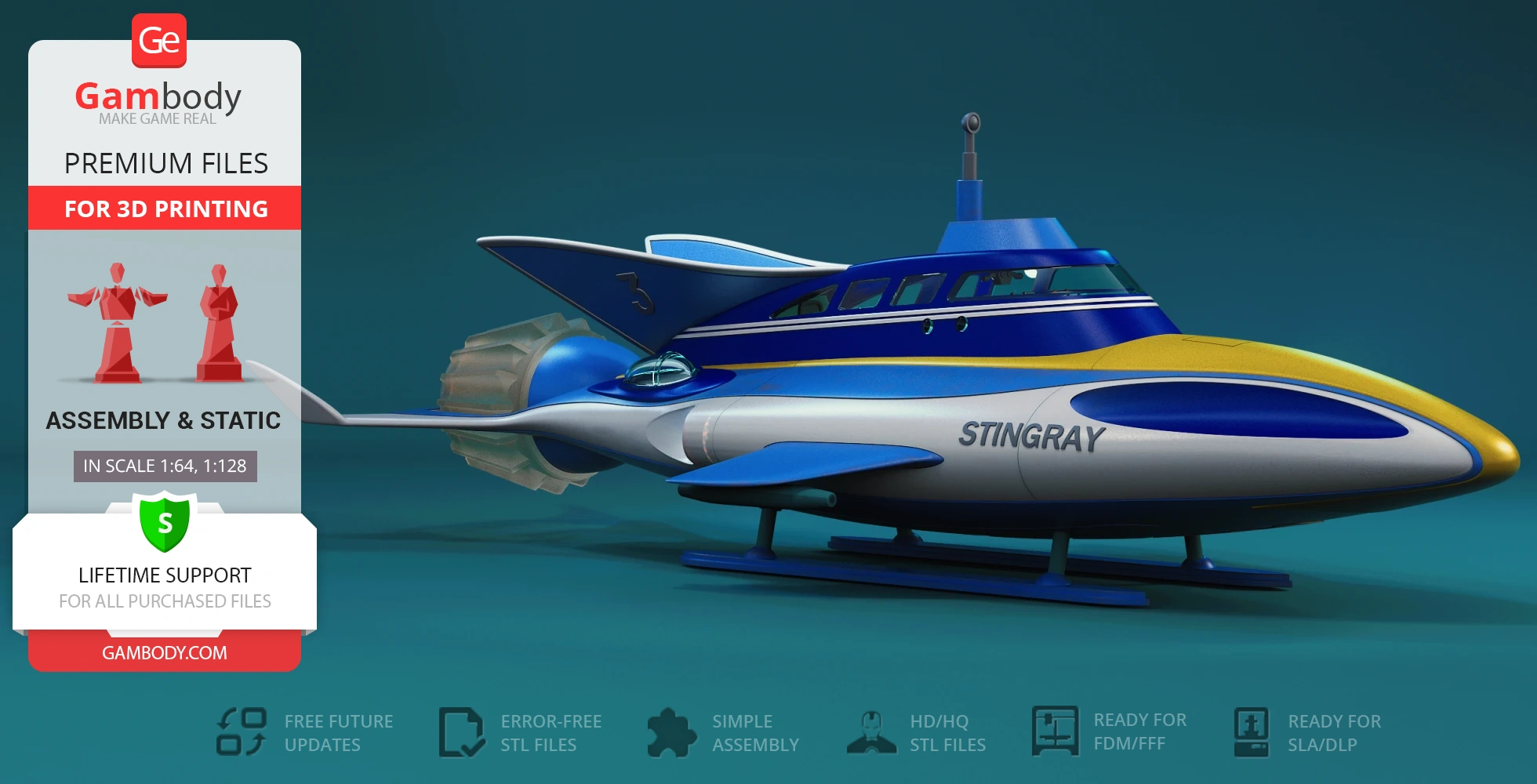

Stingray Submarine STL files for 3D Printing

ABOUT THIS 3D MODEL

The creative work of Gerry Anderson is undoubtedly phenomenal, the English television and film producer directed numerous successful futuristic television programs, such as Stingray, Space:1999, UFO, Joe 90, Fireball XL5, and Thunderbirds, among others, that have thousands of fans around the world and stand out for their great characters, special humor and unique visuals. The story of the Stingray television series revolves around the adventures of the crew of the combat submarine Stingray, when Captain Troy Tempest, Phones and Marina navigate the oceans for the WASP.

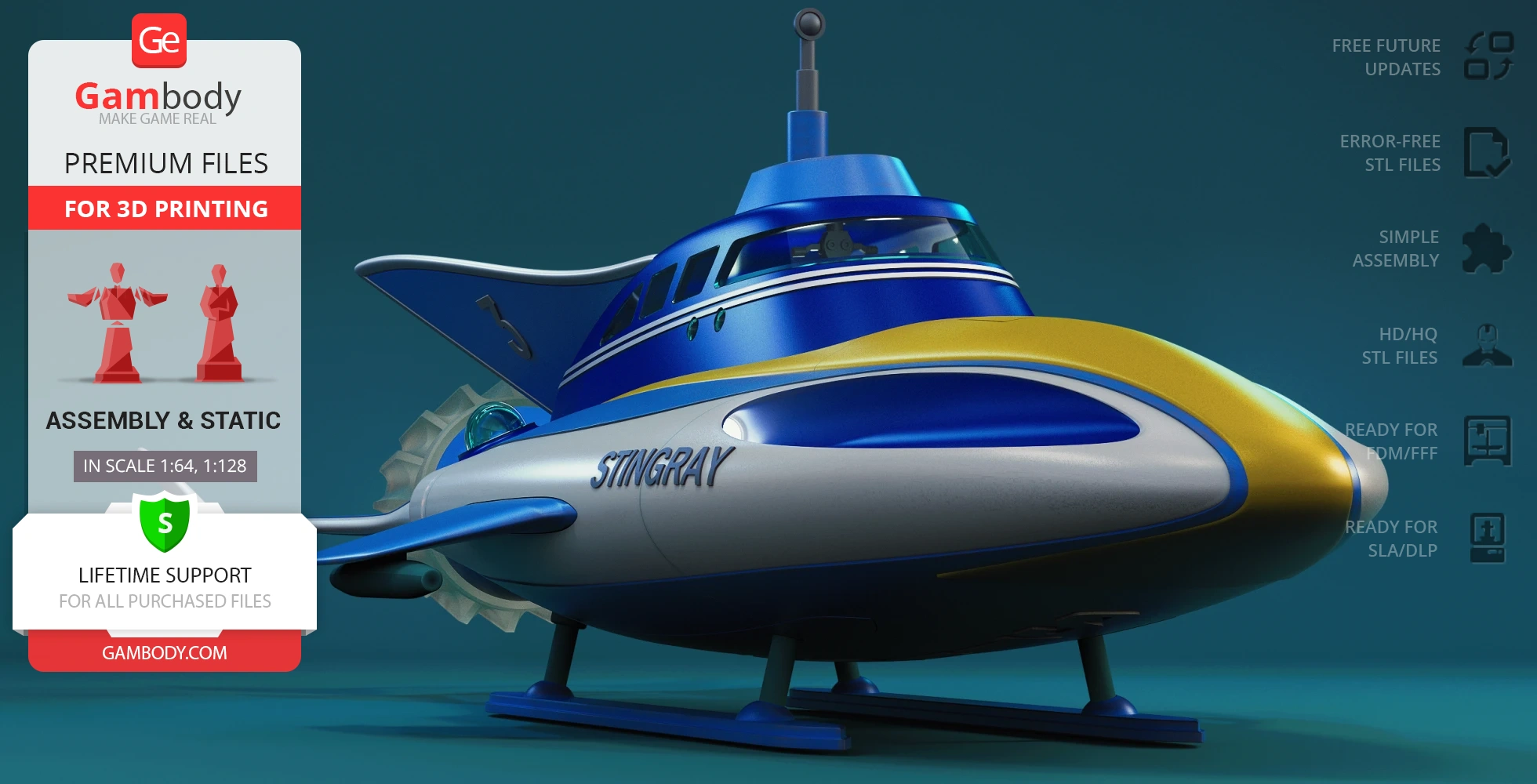

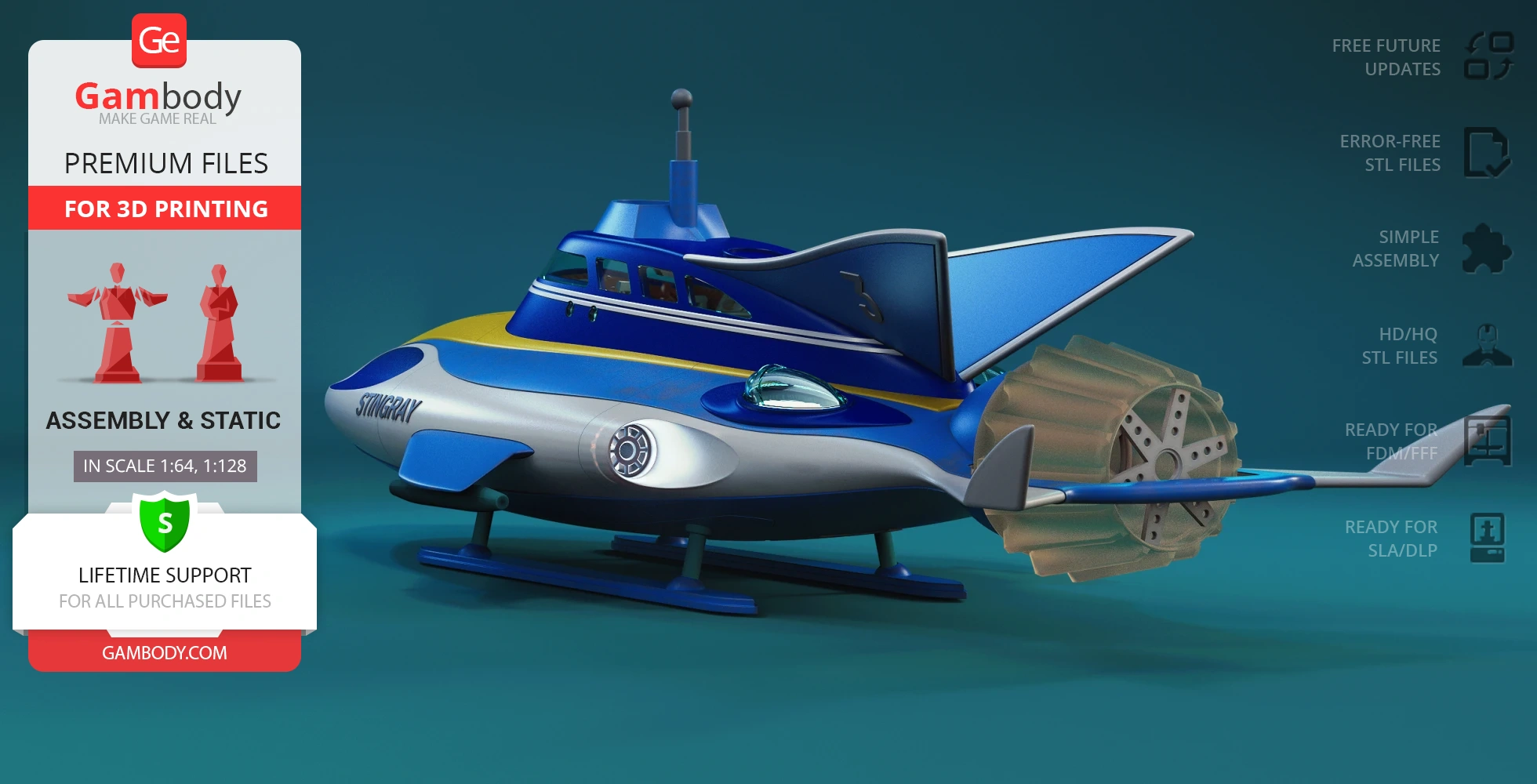

Retro futuristic submarine from the legendary series served as an inspiration for Gambody contributing 3D artist, who created Stingray 3D model according to their vision that we hope will be appreciated by every series fan. The surface of the model for 3D printing is carefully modeled and the parts are divided the way you can print them using printing materials of different colors. The sci-fi submarine features a detailed interior, its illumination possibilities definitely deserve your attention, and additionally, with alternative stands the 3D printed model can look in different ways. These and other Stingray’s features make this 3D printing design an ideal choice to master your hobby skills!

ADAPTATION FOR 3D PRINTING

Stingray Submarine 3D printing design is a static assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 93 hours in total.

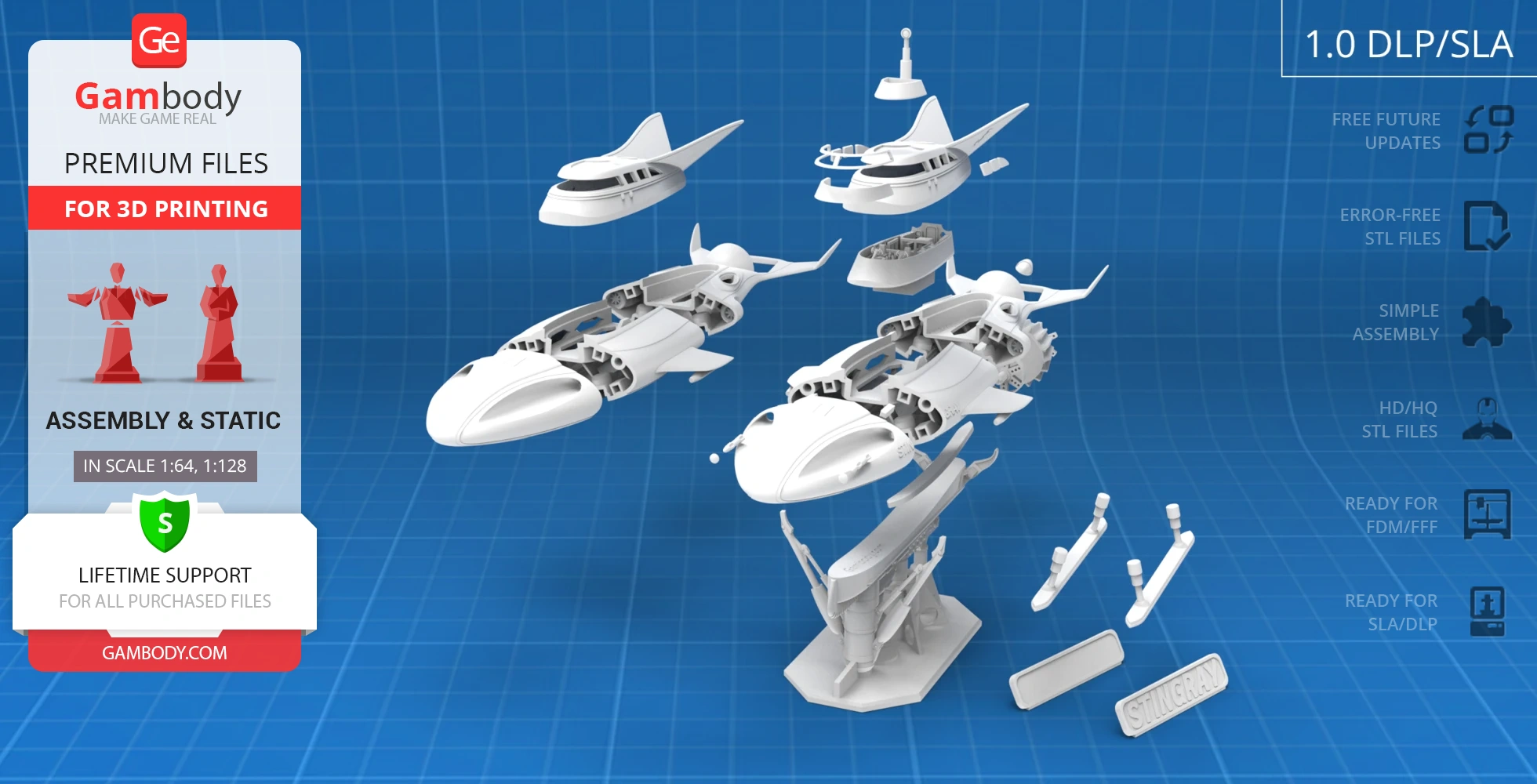

For you to receive the cleanest 3D printing result possible, minimize the amount of filament needed for generated support, and make use of the active elements designed by Gambody Engineers, the submarine was divided into convenient assembly parts.

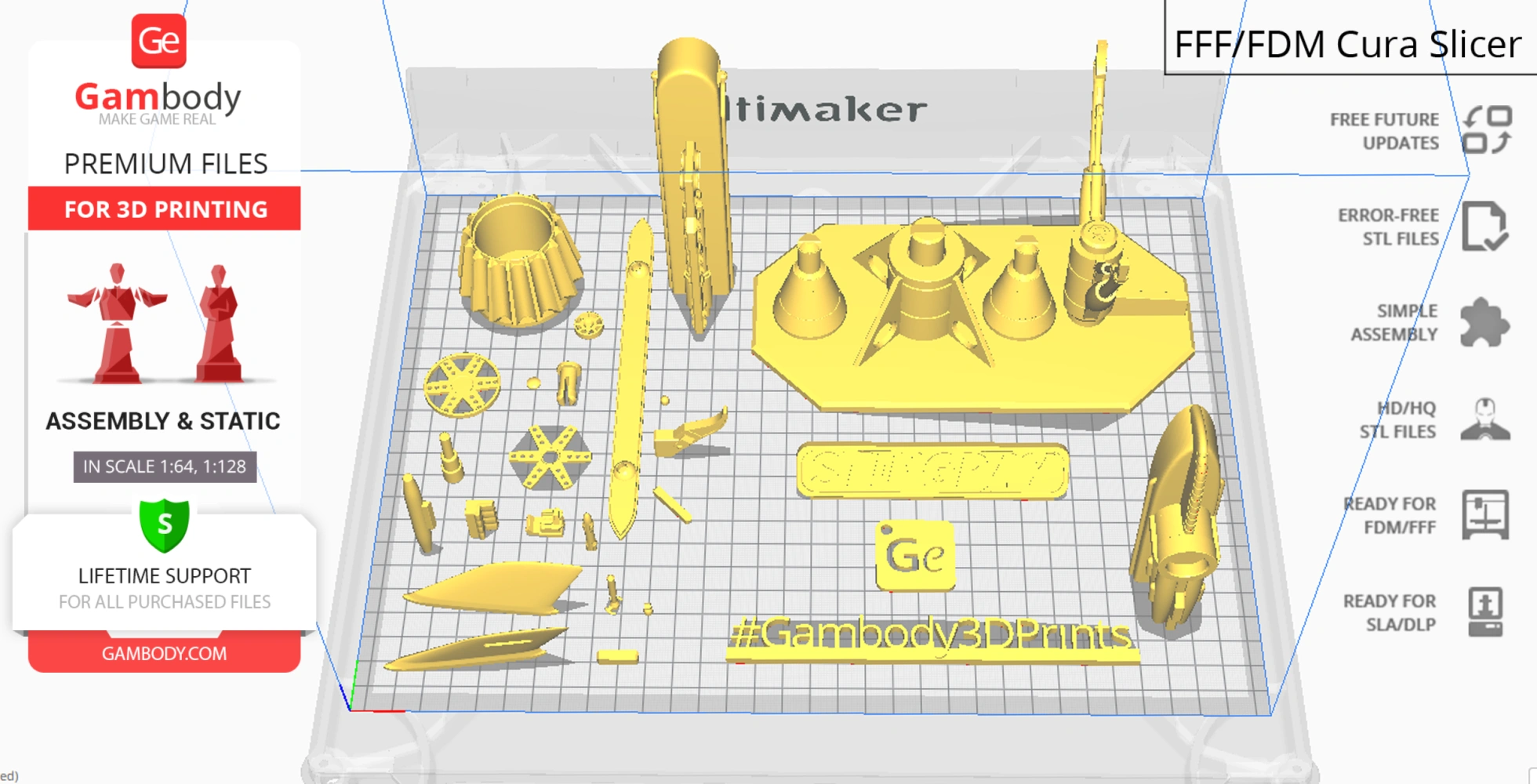

All assembly parts in the FFF/FDM 1.0 version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won’t face difficulties when placing the parts on a build plate. When downloading any model’s file you will also receive “Assembly Manual” for 1.0 FFF/FDM and 1.0 DLP/SLA versions in PDF and video formats. We highly recommend that you get acquainted with the “Assembly Video” and “Assembly Manual” before getting down to the Stingray Submarine 3D model.

The design is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

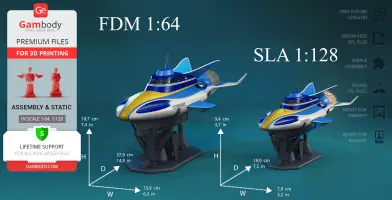

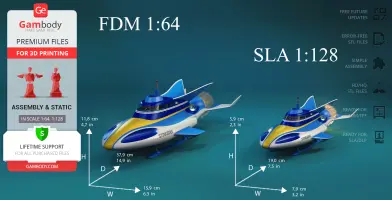

The 3D model’s scale was calculated from the length of the Stingray Submarine. The 3D printer design’s chosen scales are 1:64 for the FFF/FDM version, and 1:128 for the DLP/SLA version.

VERSIONS’ SPECIFICATIONS

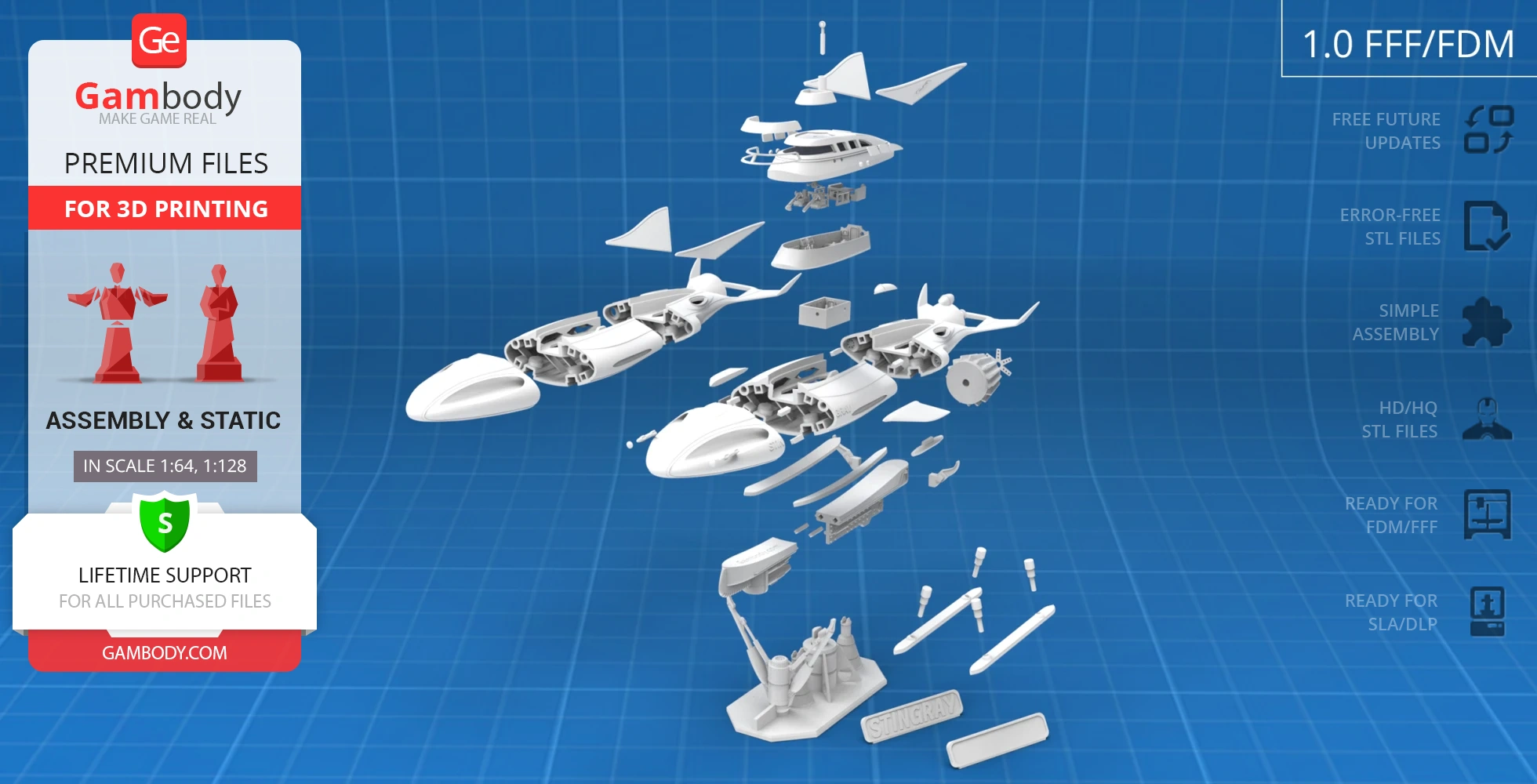

1.0 FFF/FDM version features:

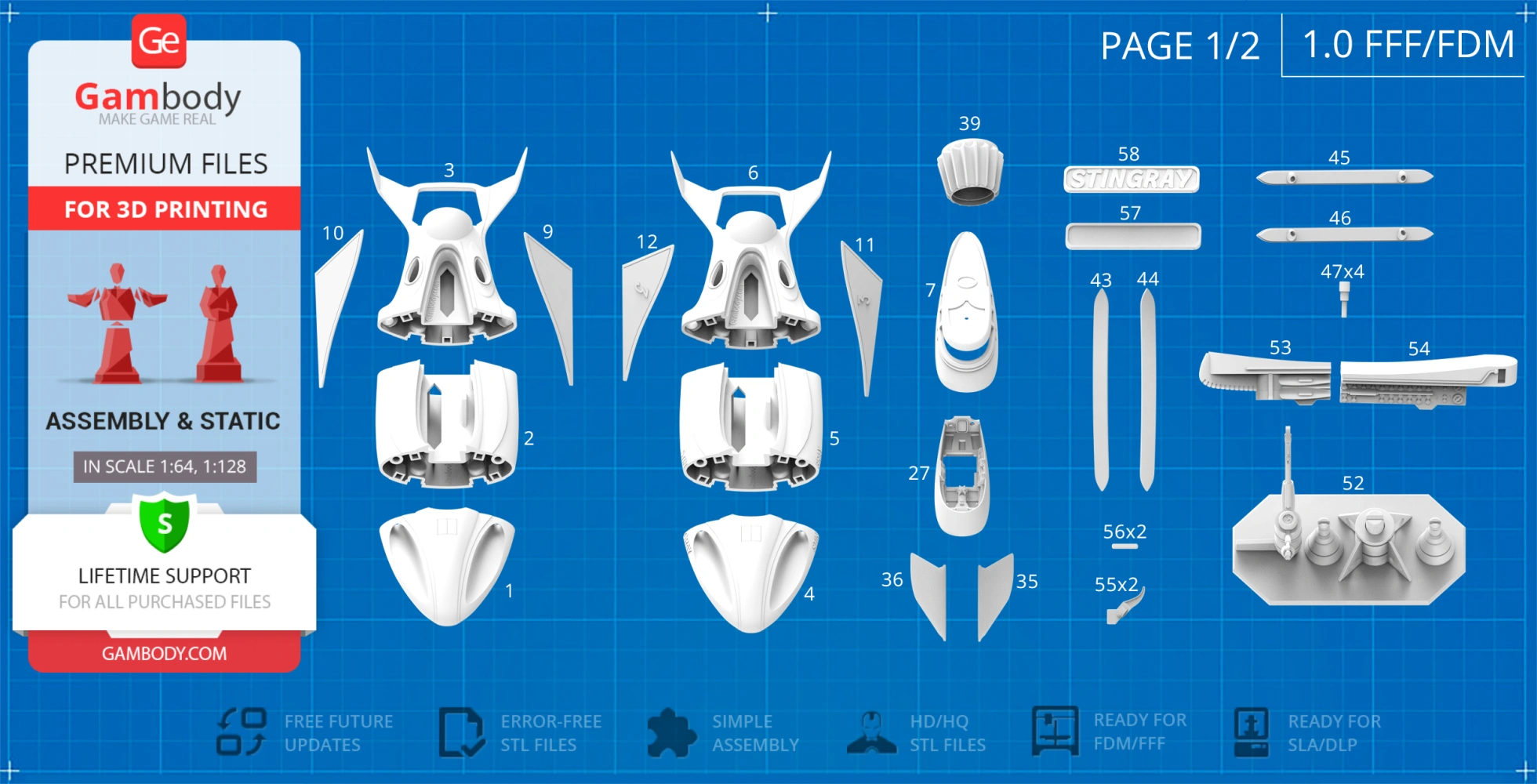

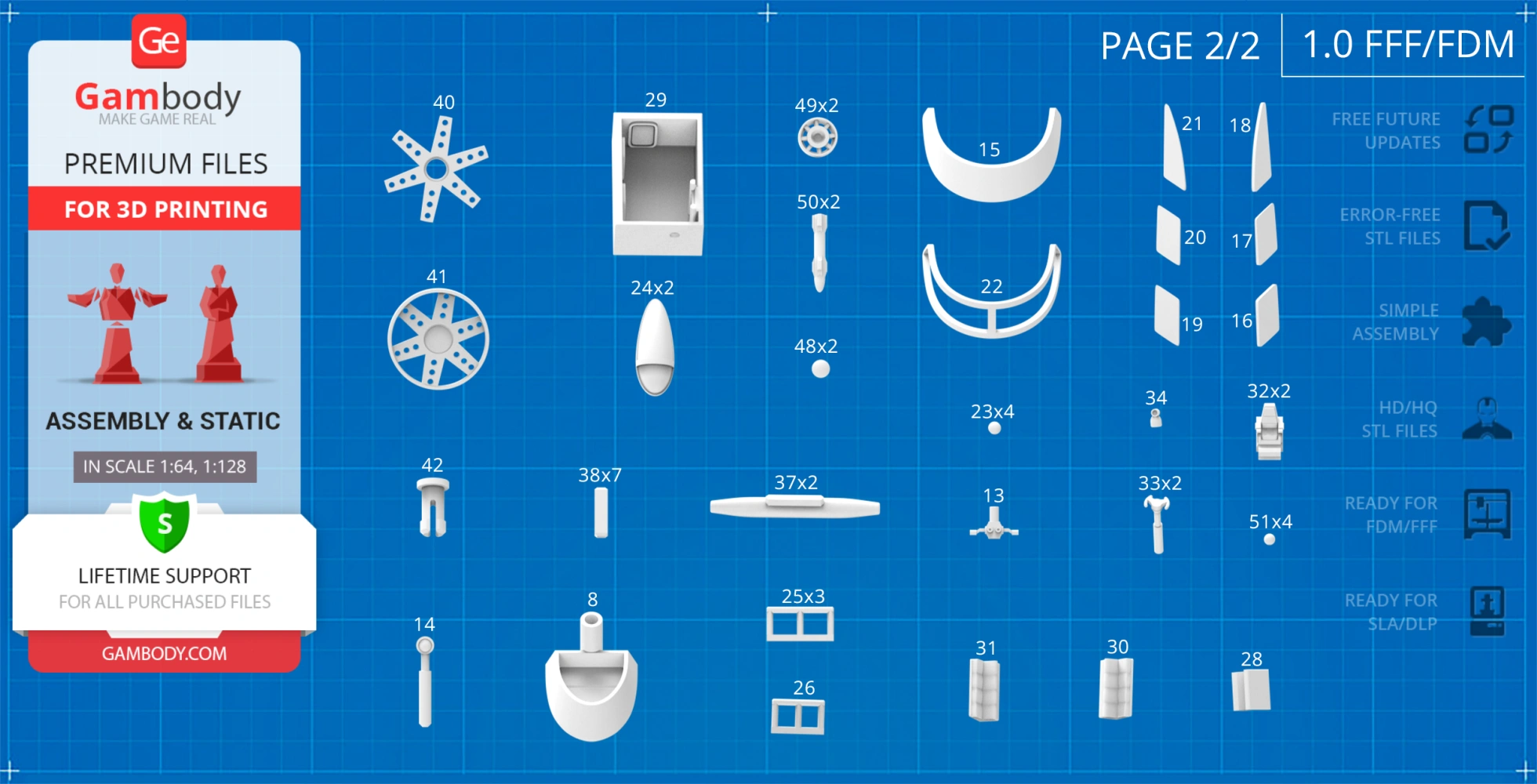

• Contains 58 parts;
• A printed model on a platform is: 187 mm tall, 159 mm wide, 379 mm deep;

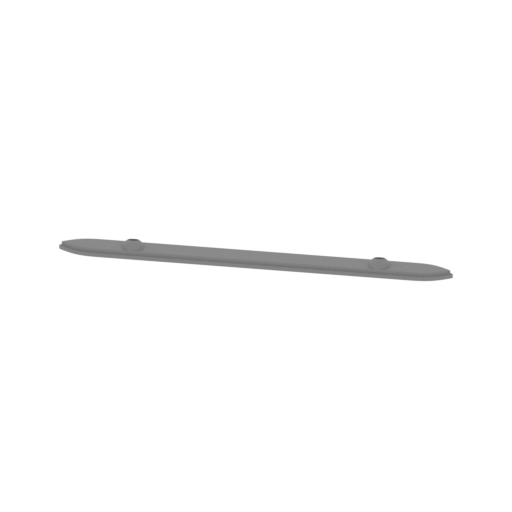

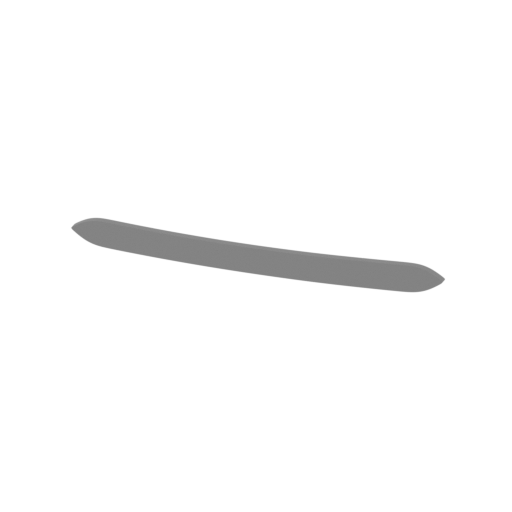

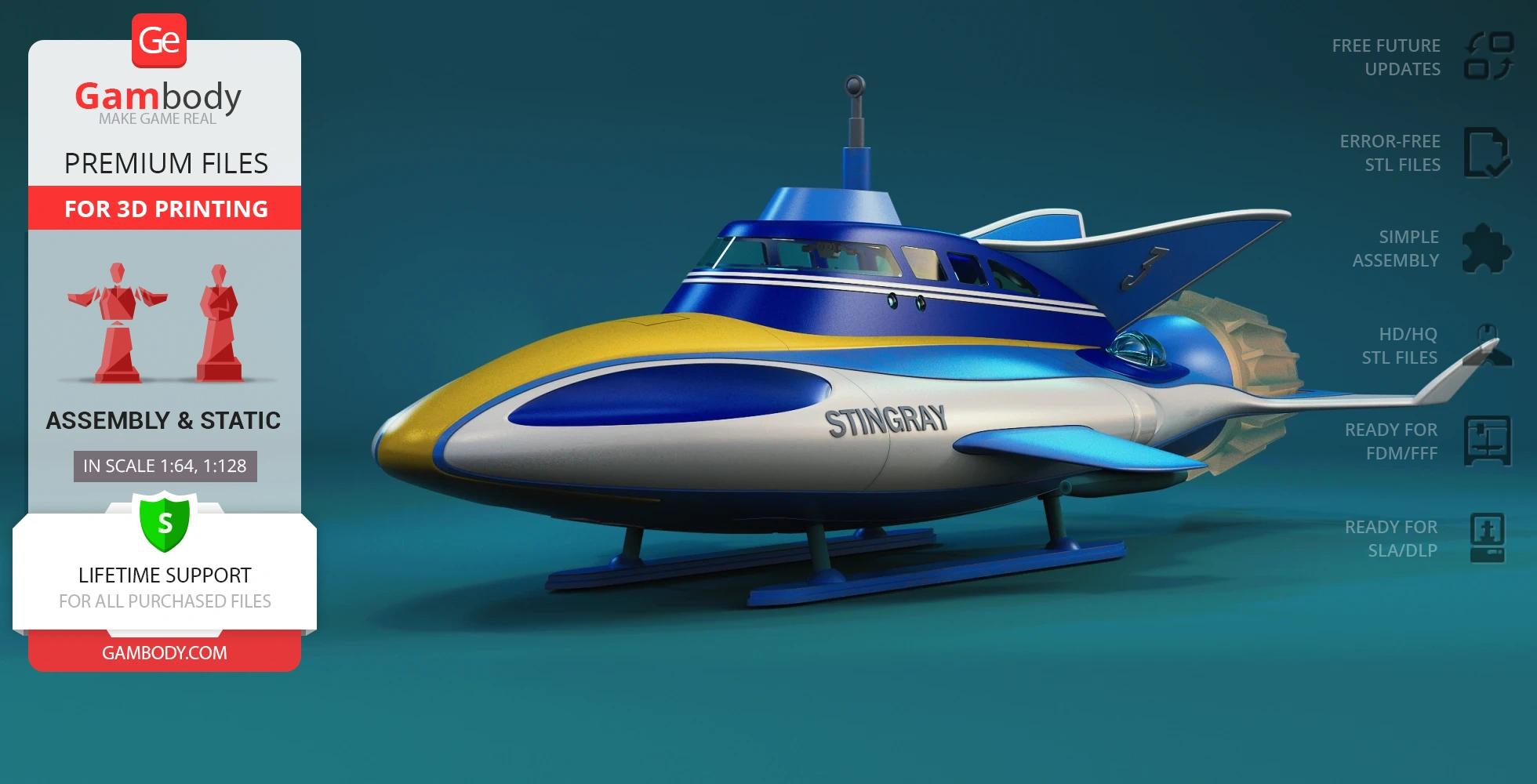

• A printed model on landing skids: 118 mm tall, 159 mm wide, 379 mm deep;

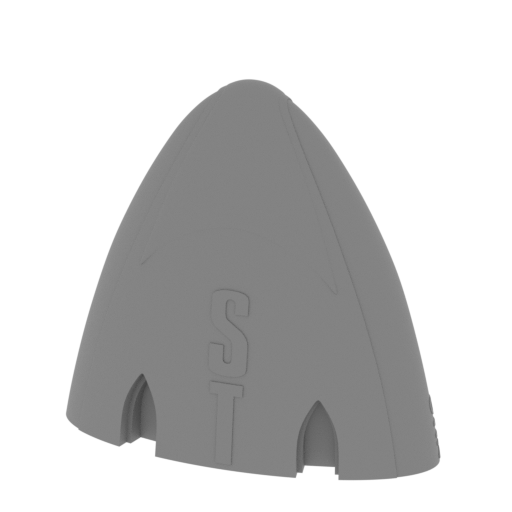

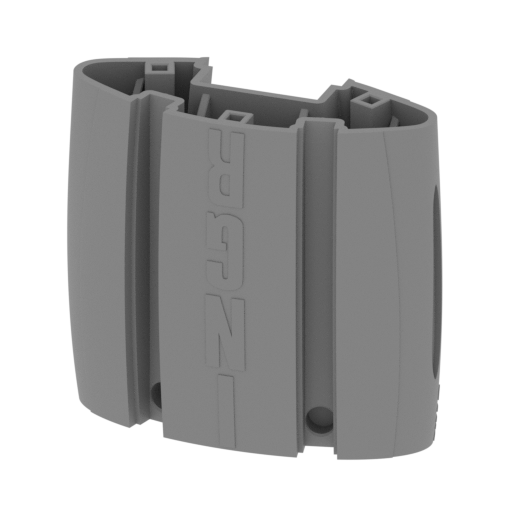

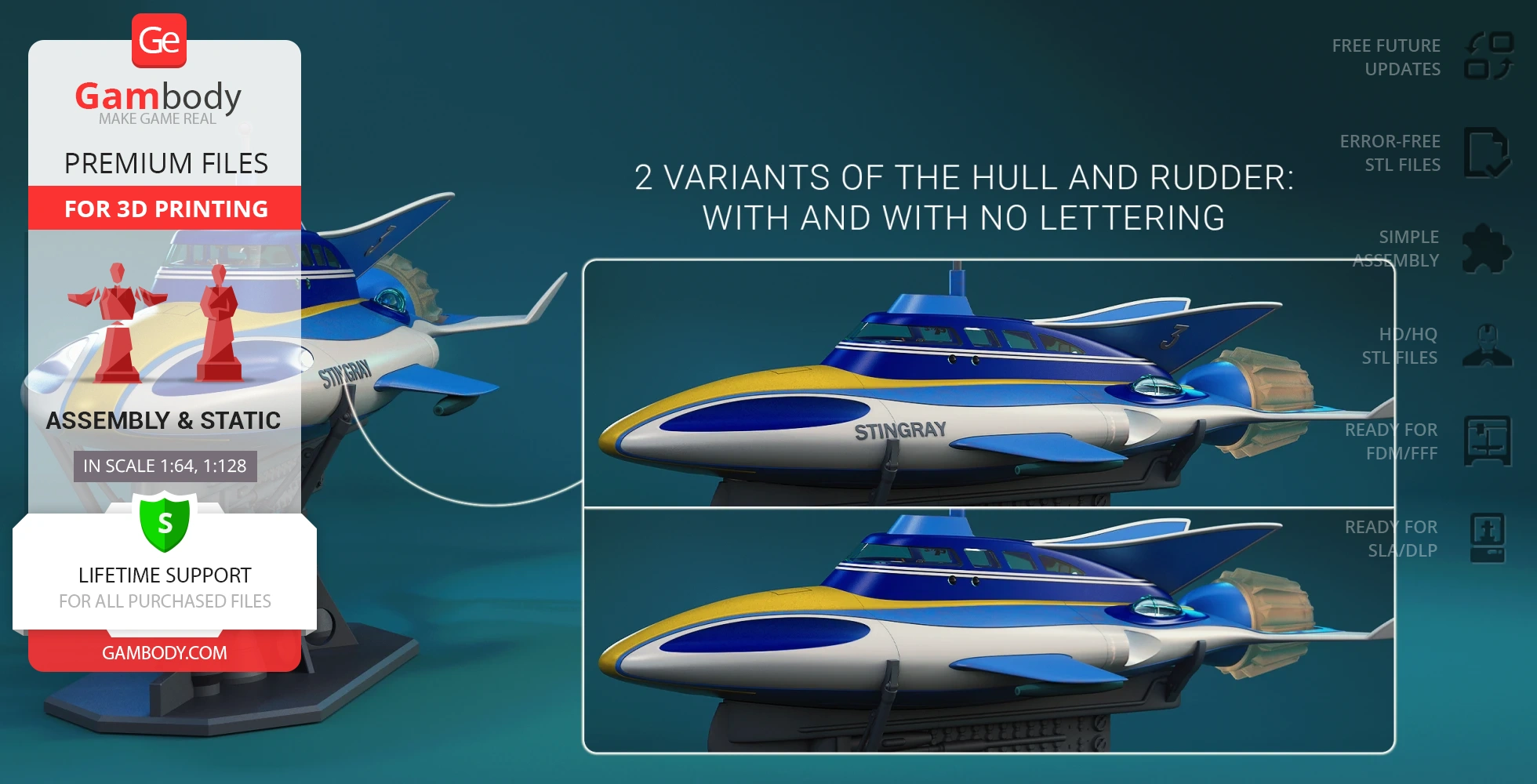

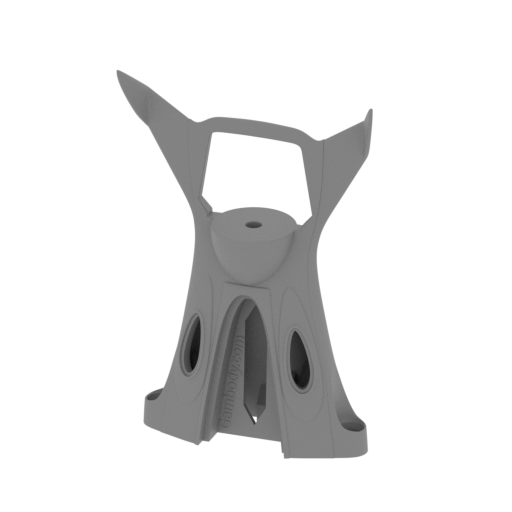

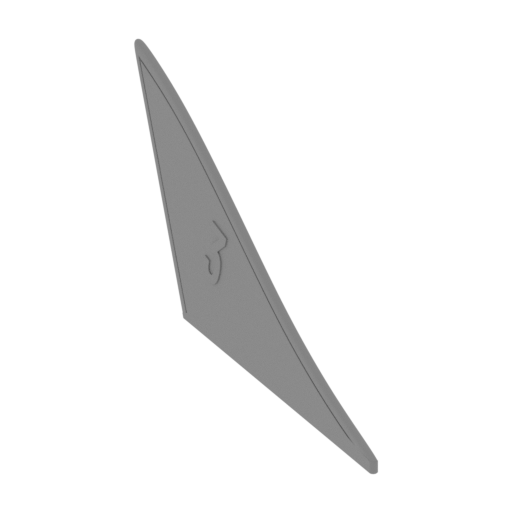

• 2 variants of the hull and rudder: with and with no lettering;

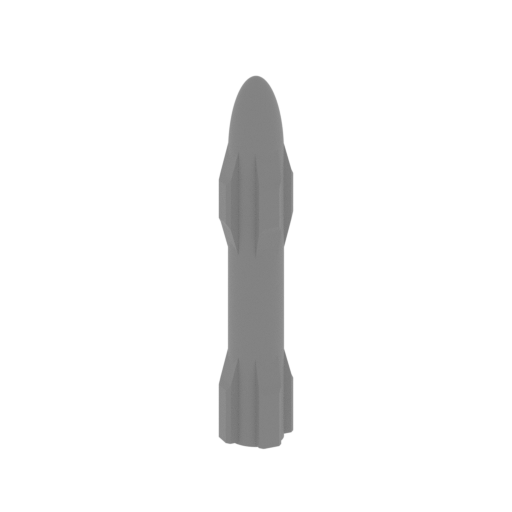

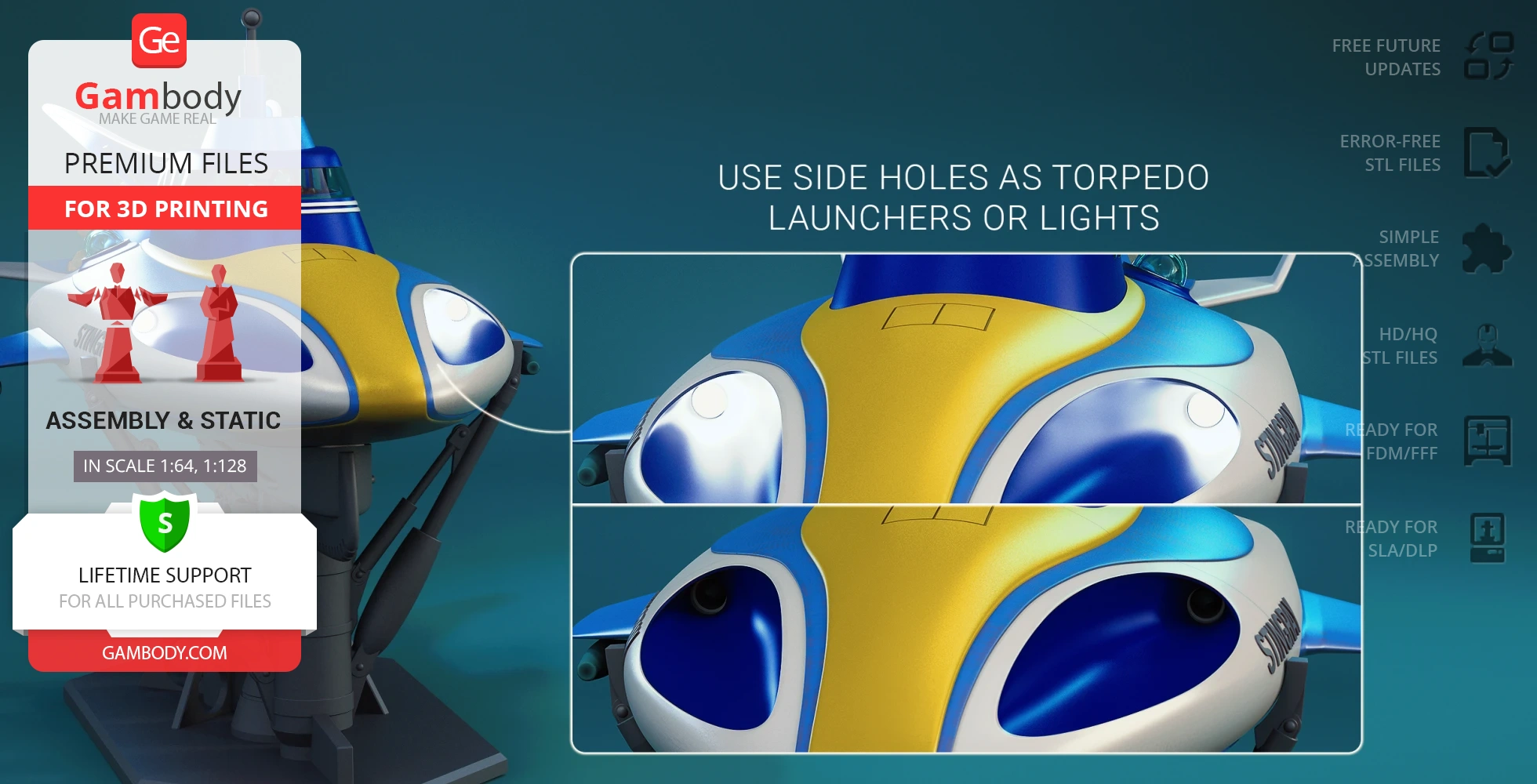

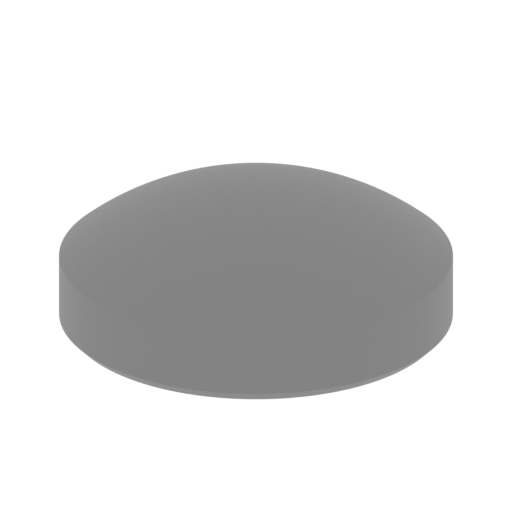

• Use side holes as torpedo launchers or lights;

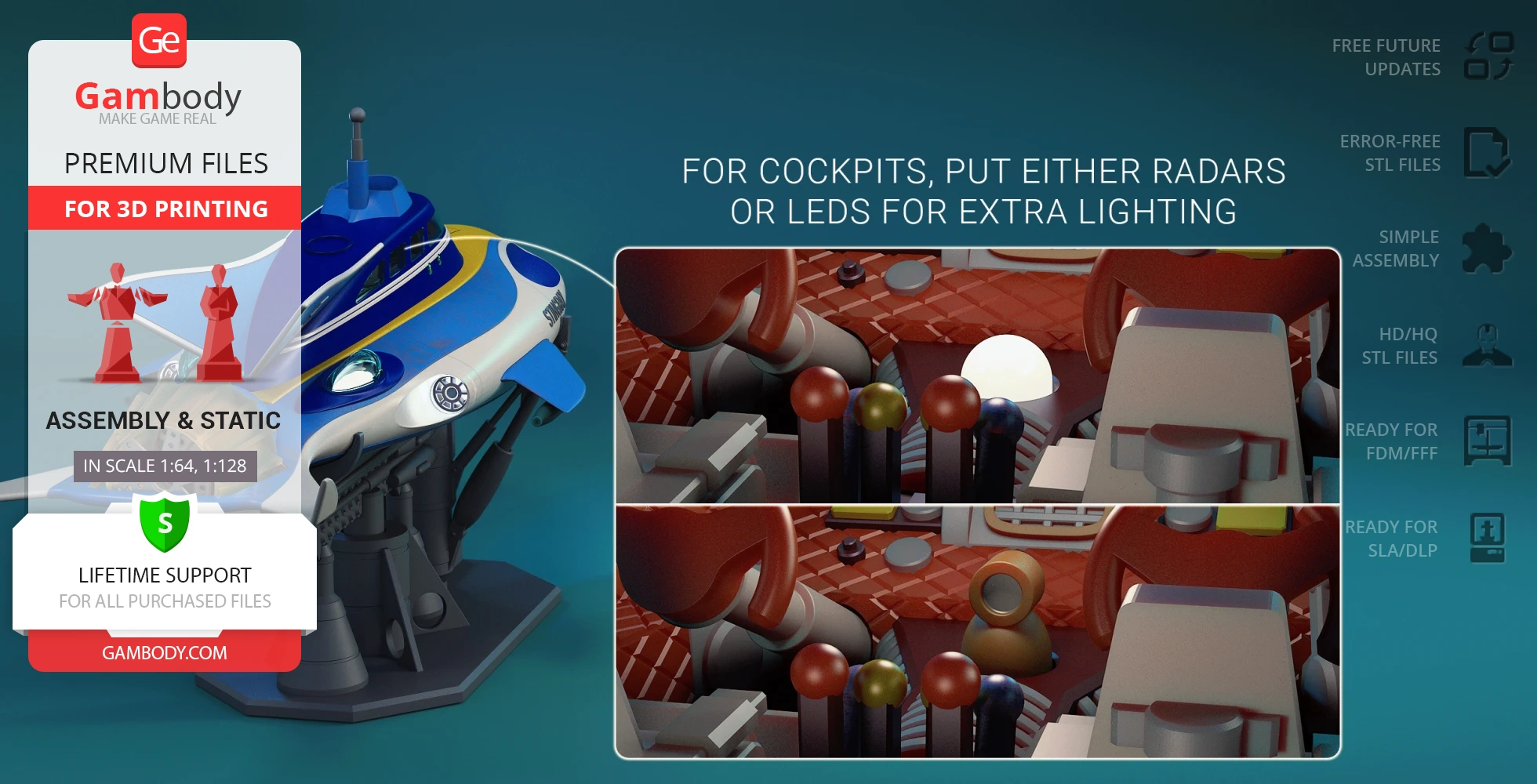

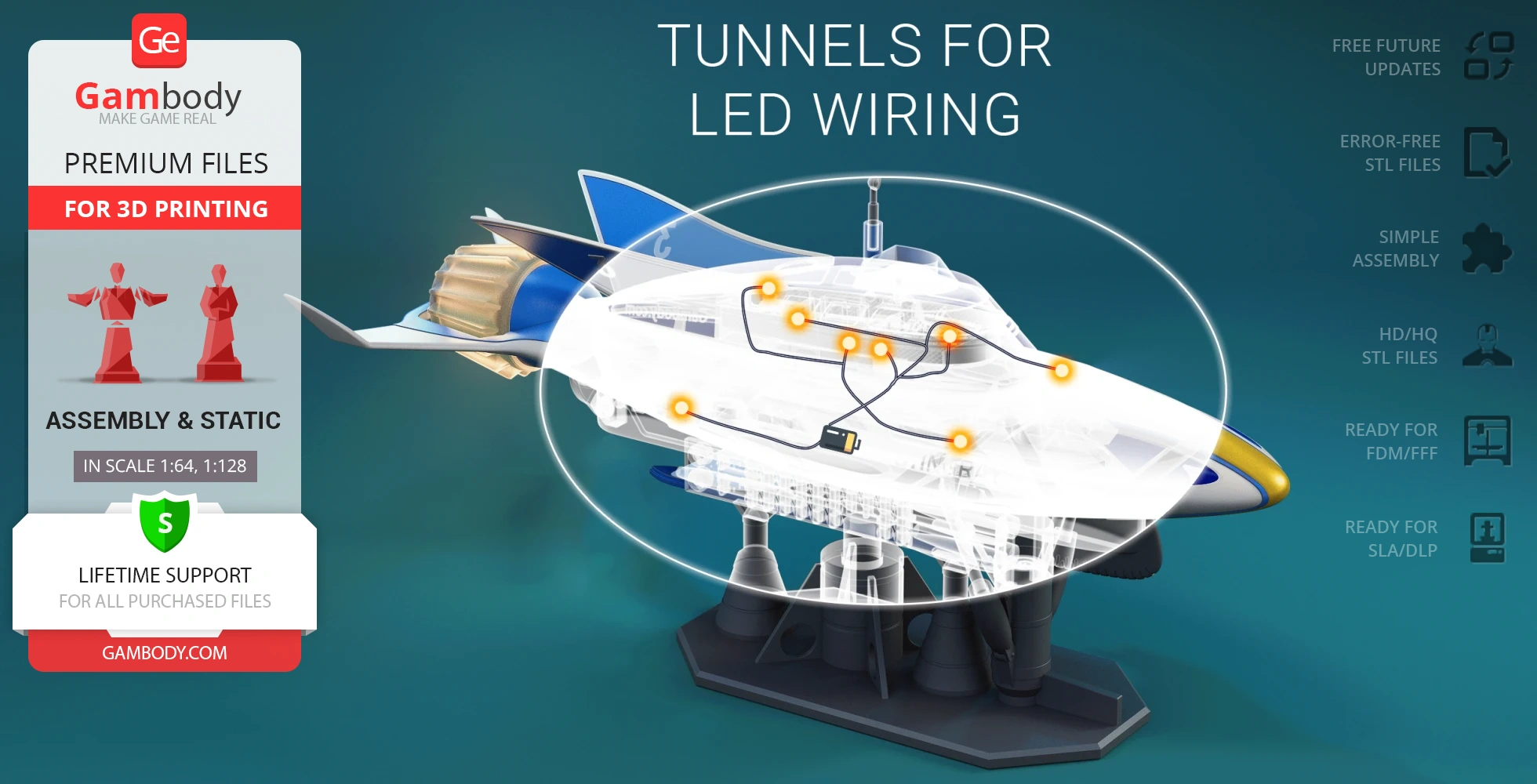

• For cockpits, put either radars or LEDs for extra lighting;

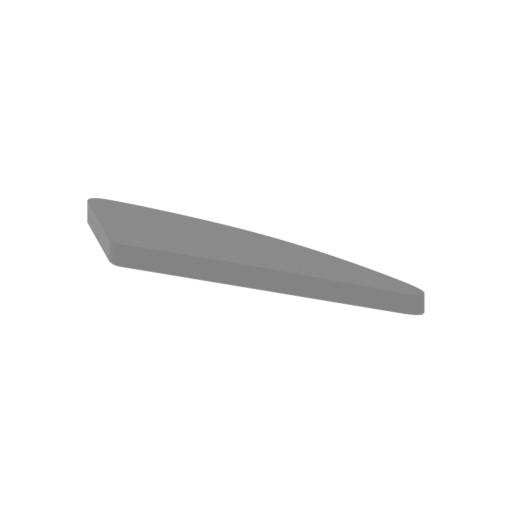

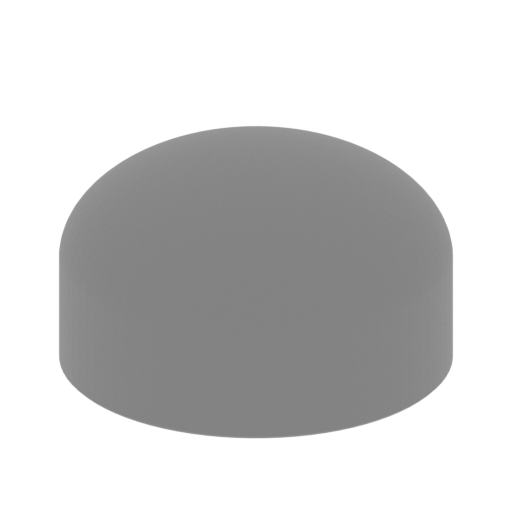

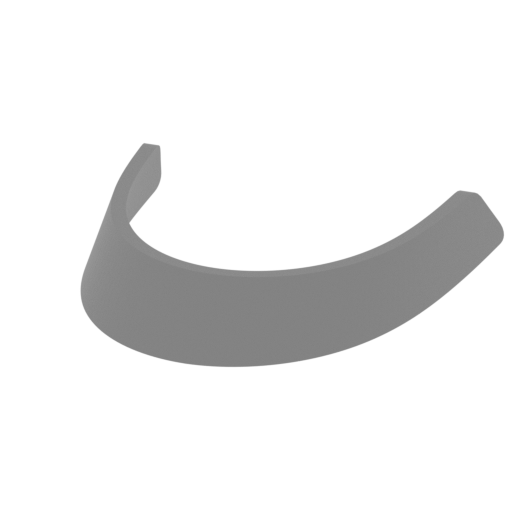

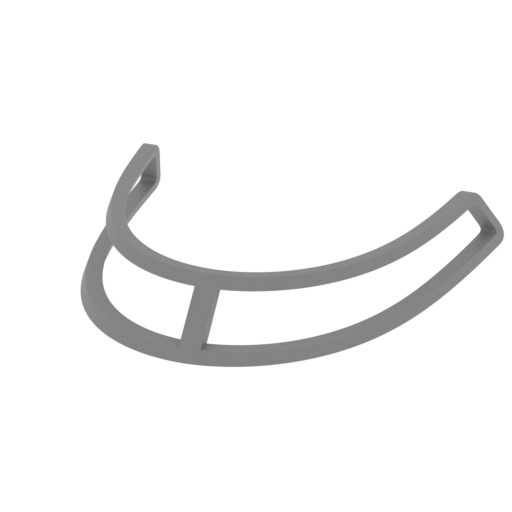

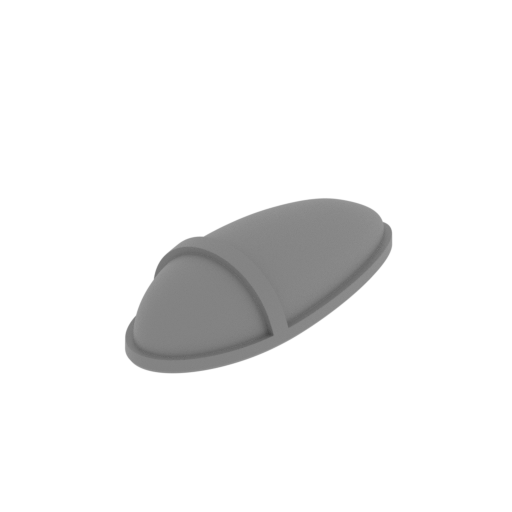

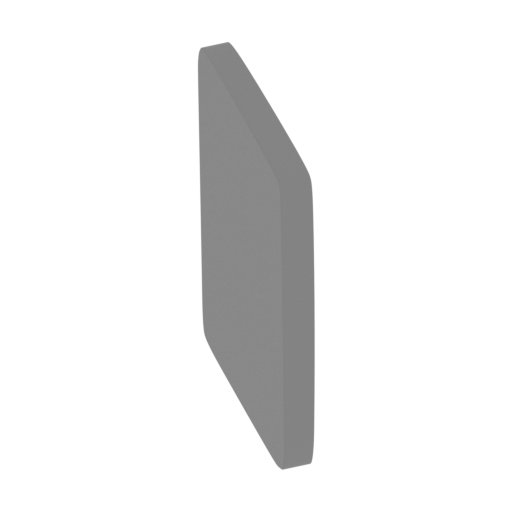

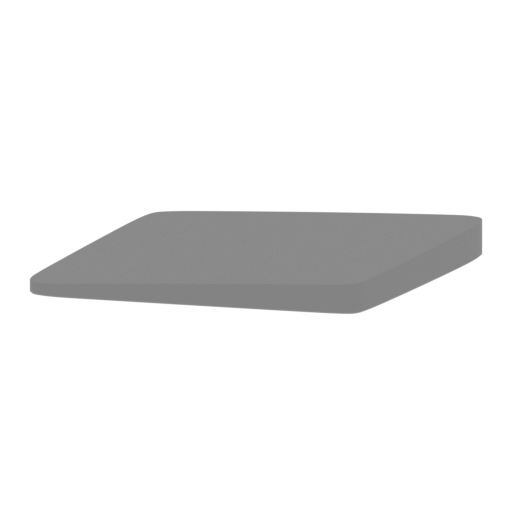

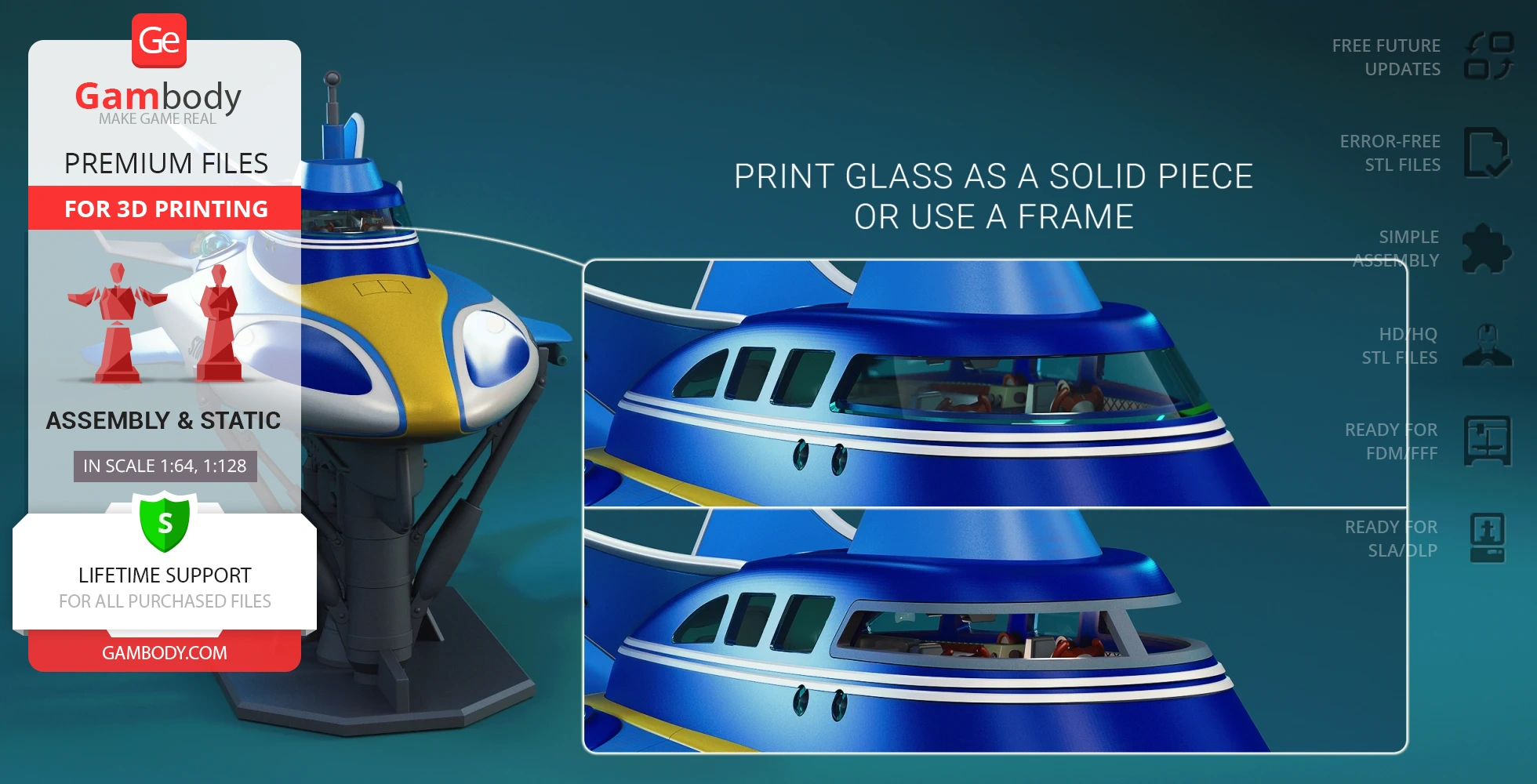

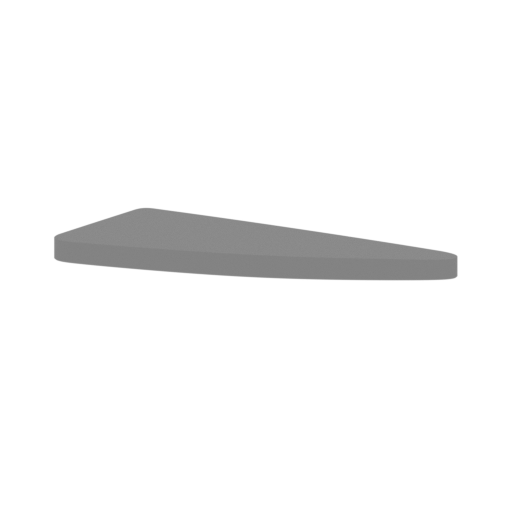

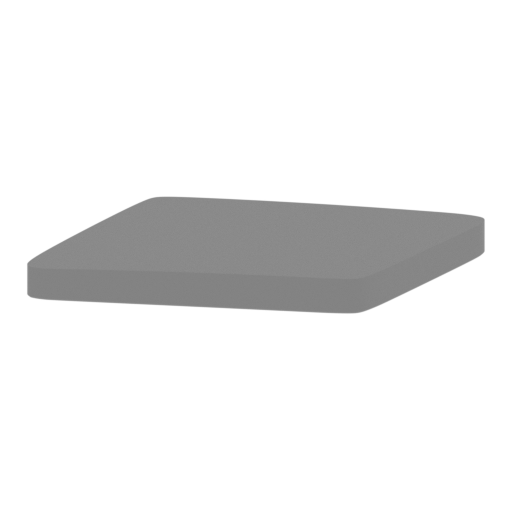

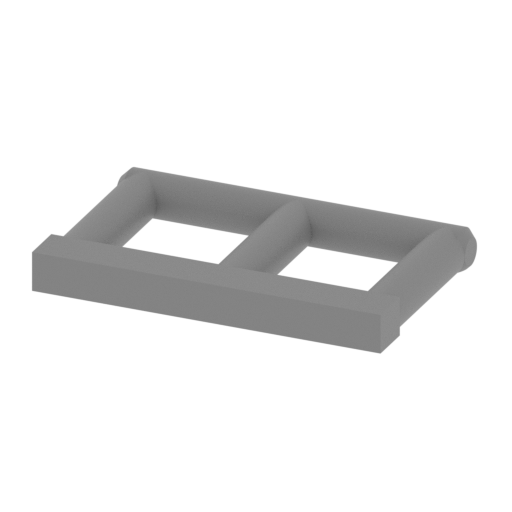

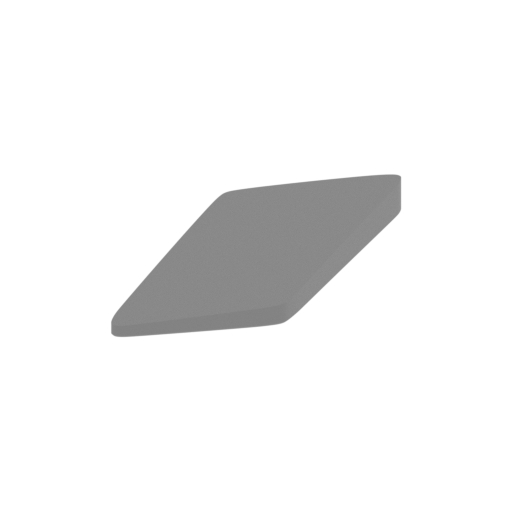

• Print glass as a solid piece or use a frame;

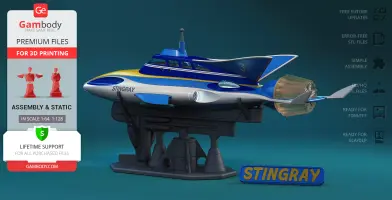

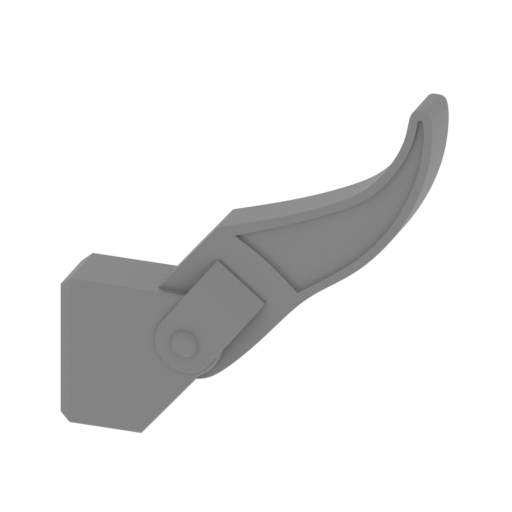

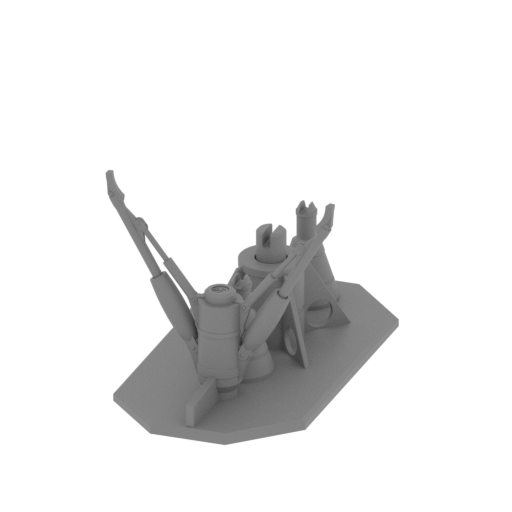

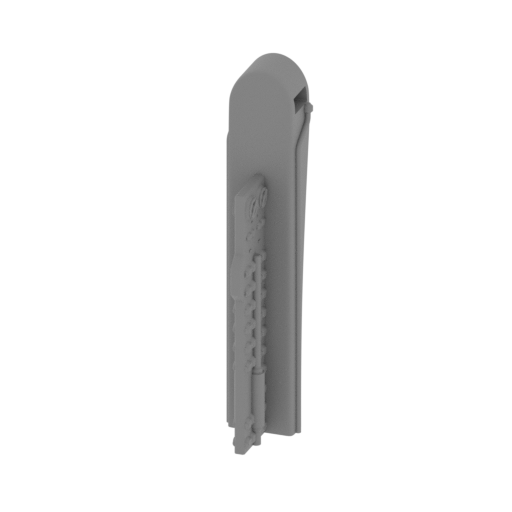

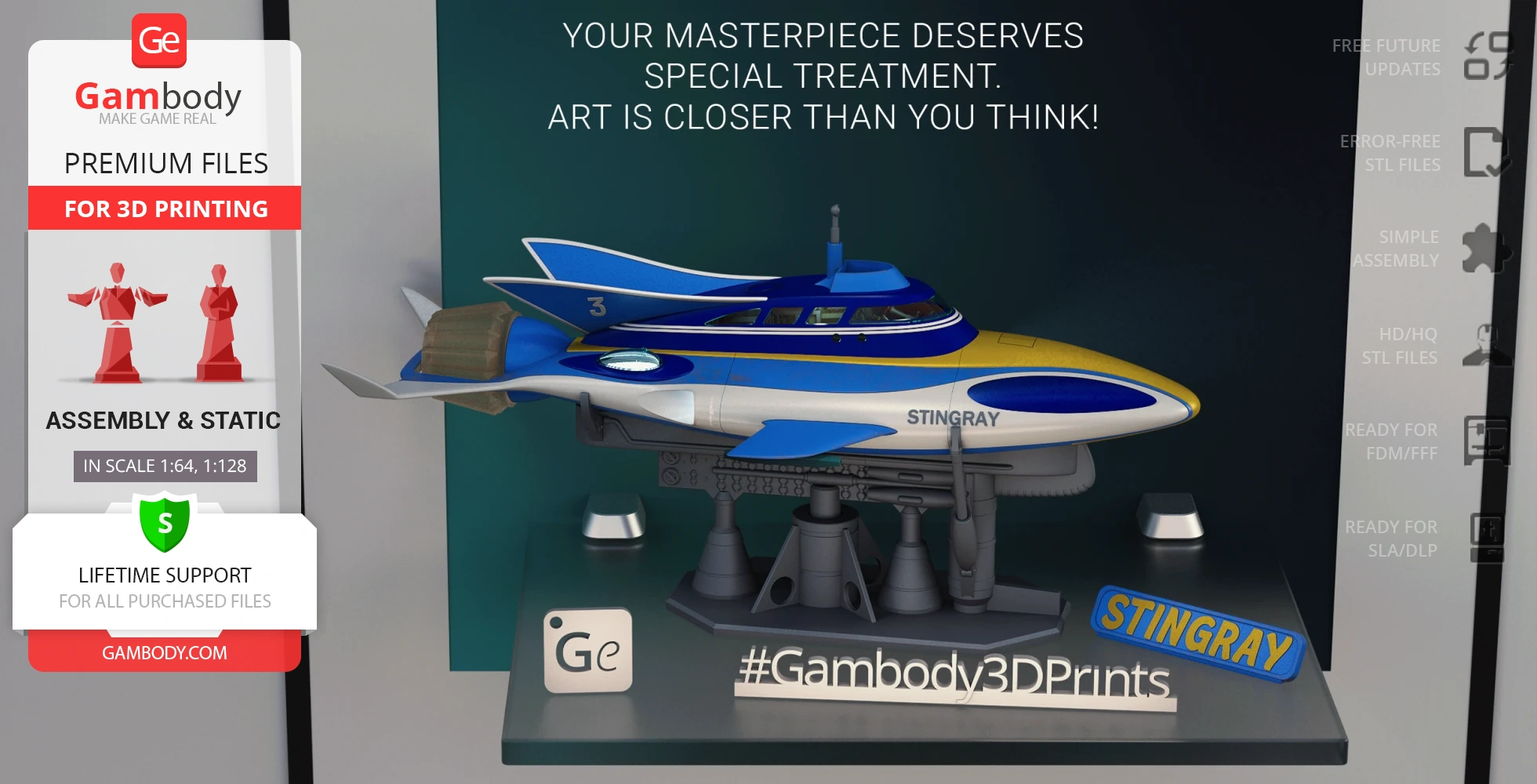

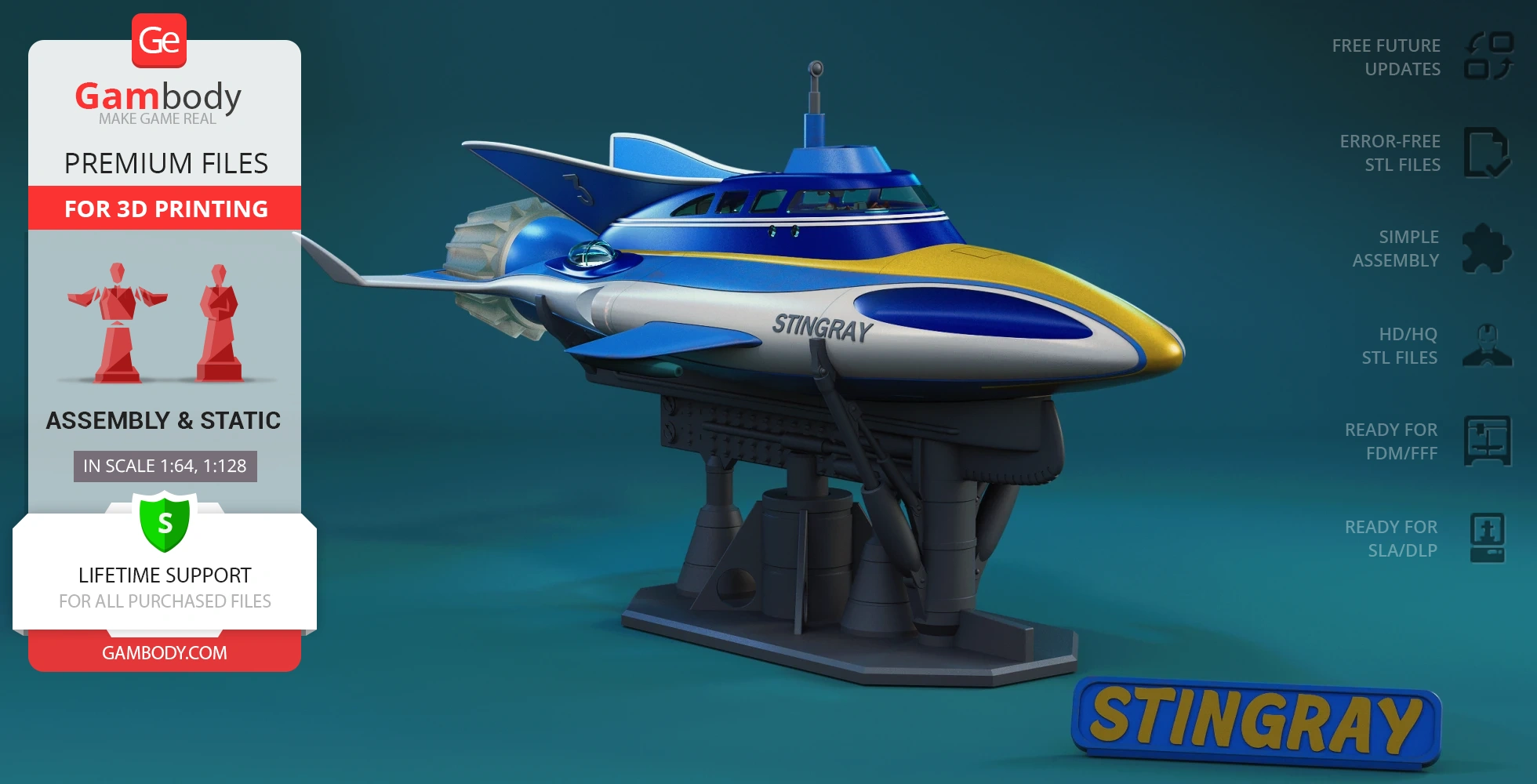

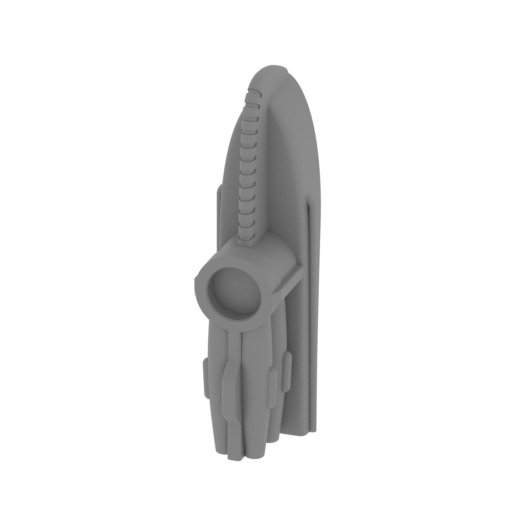

• 2 stand types: a platform and landing skids;

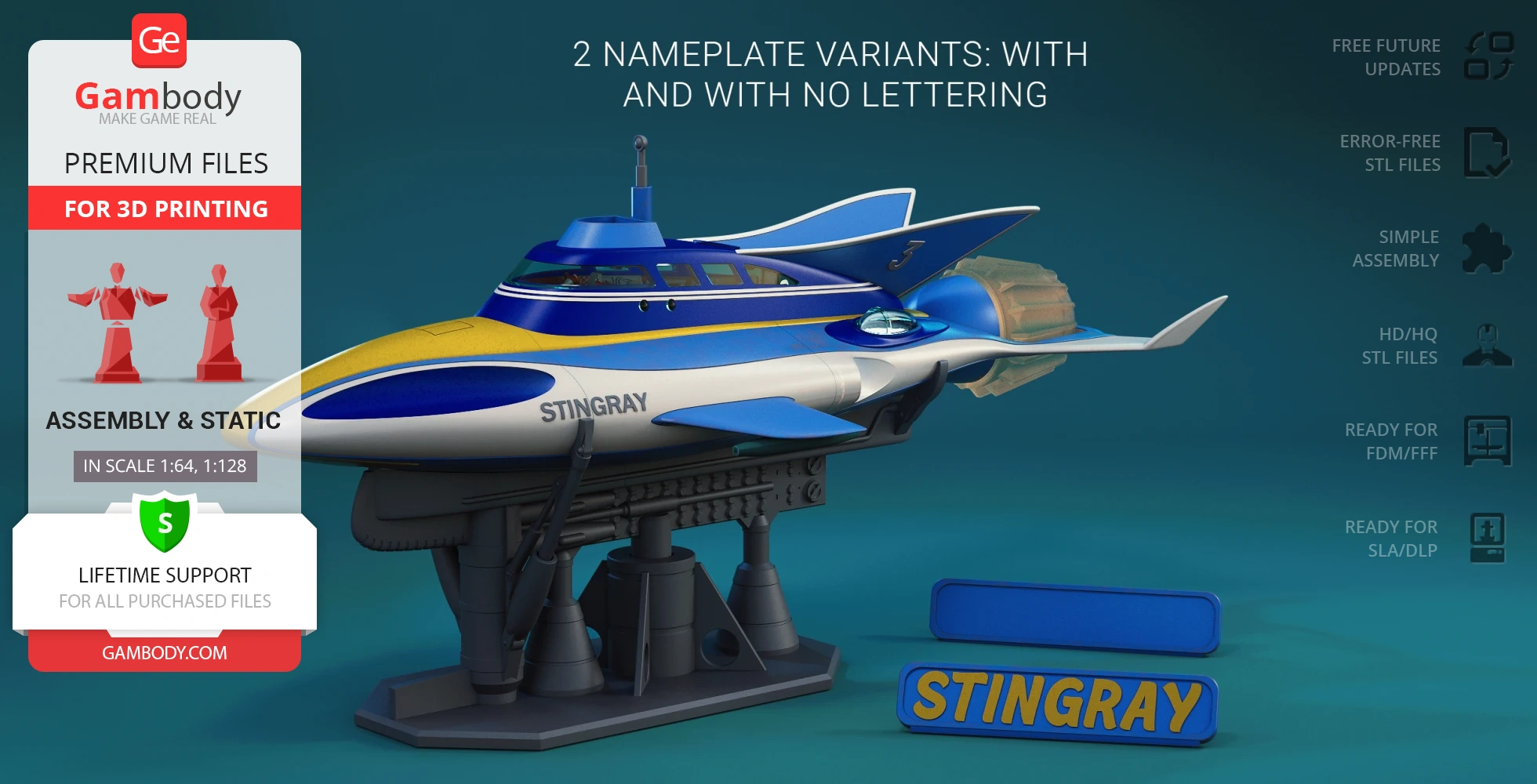

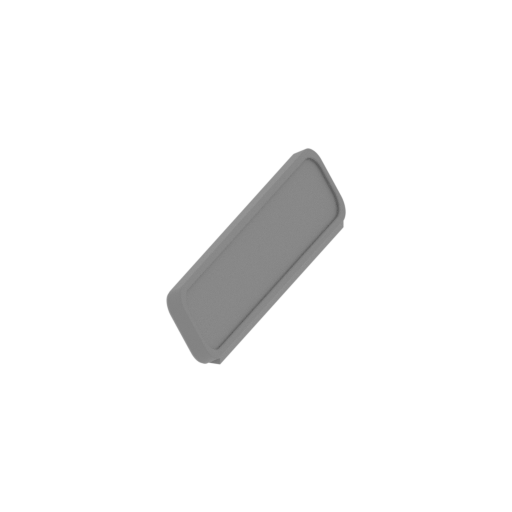

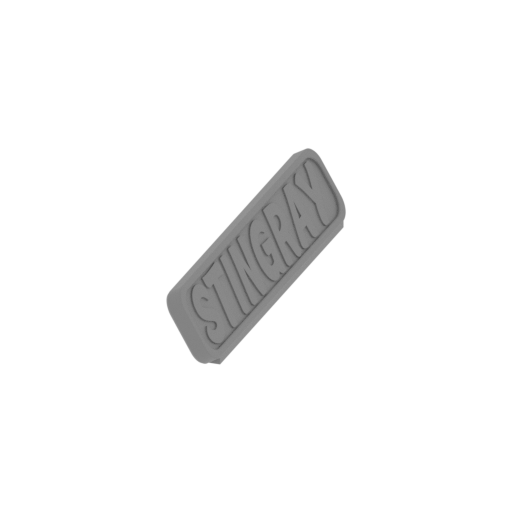

• 2 nameplate variants: with and with no lettering;

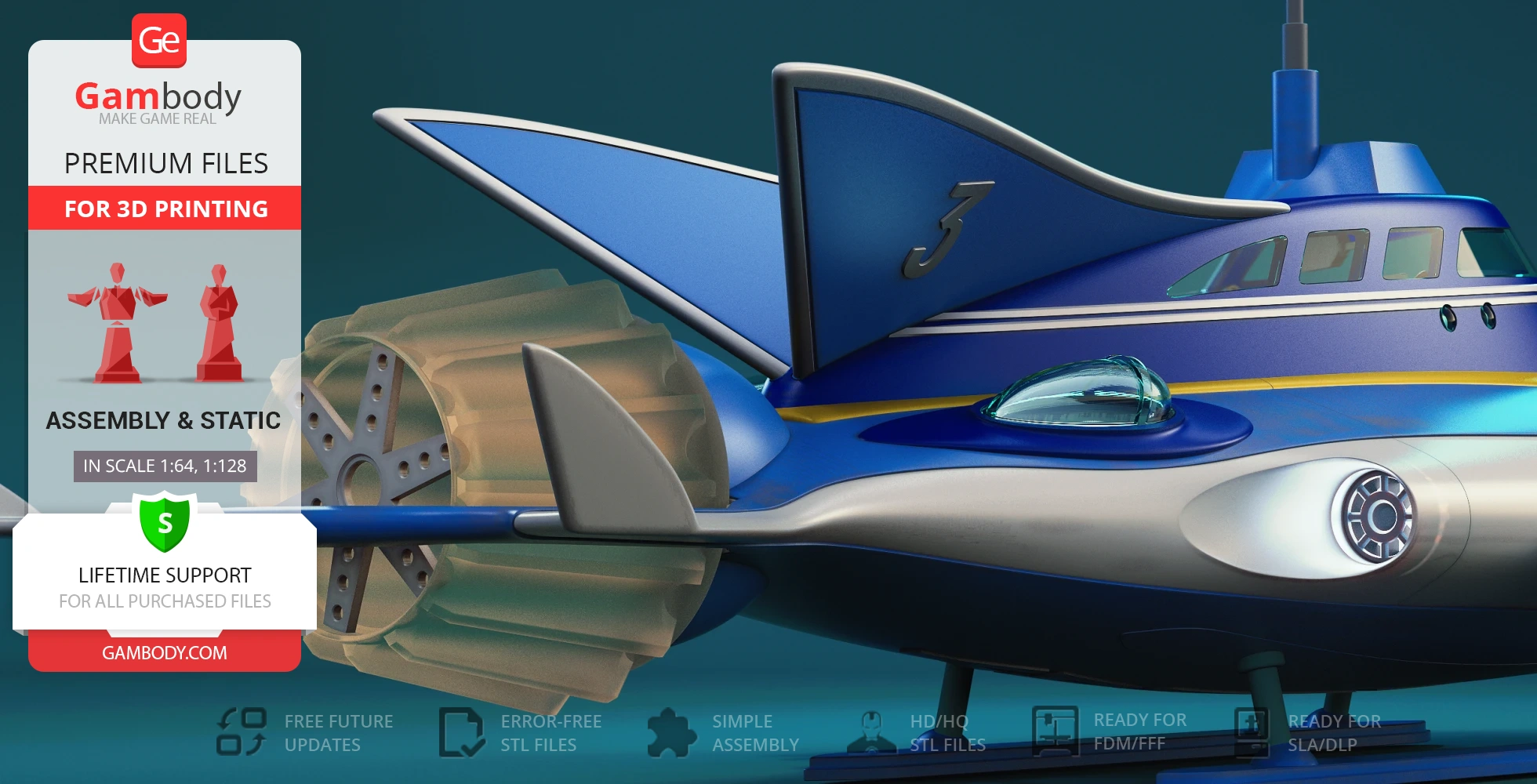

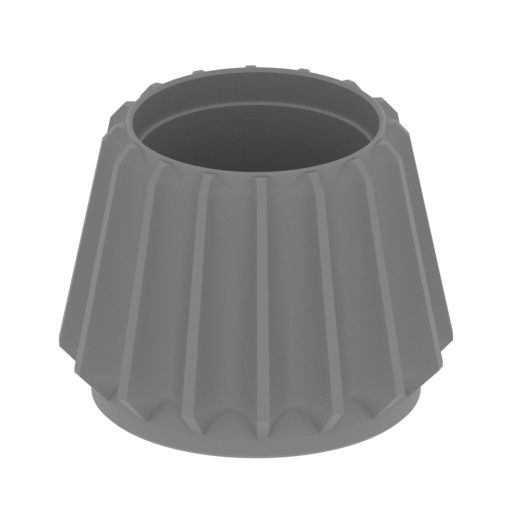

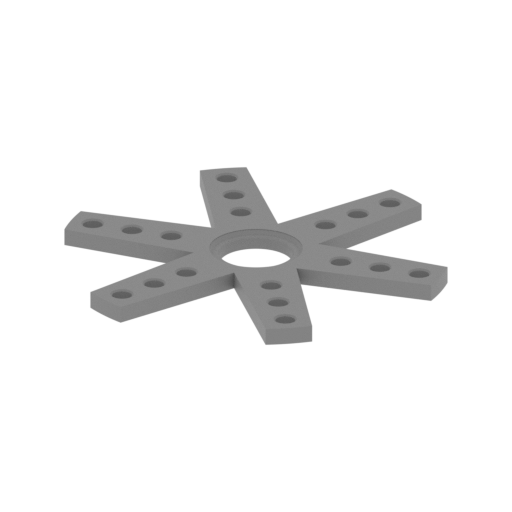

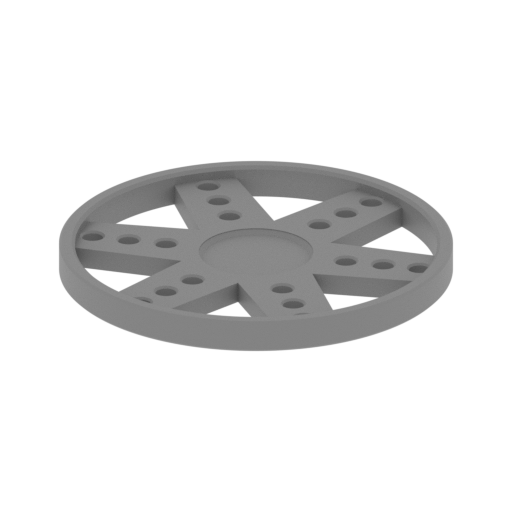

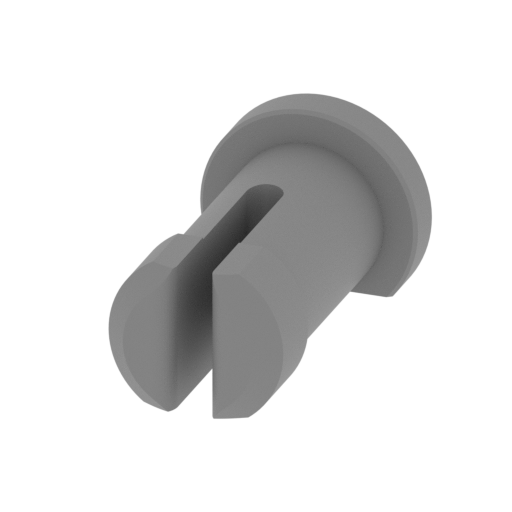

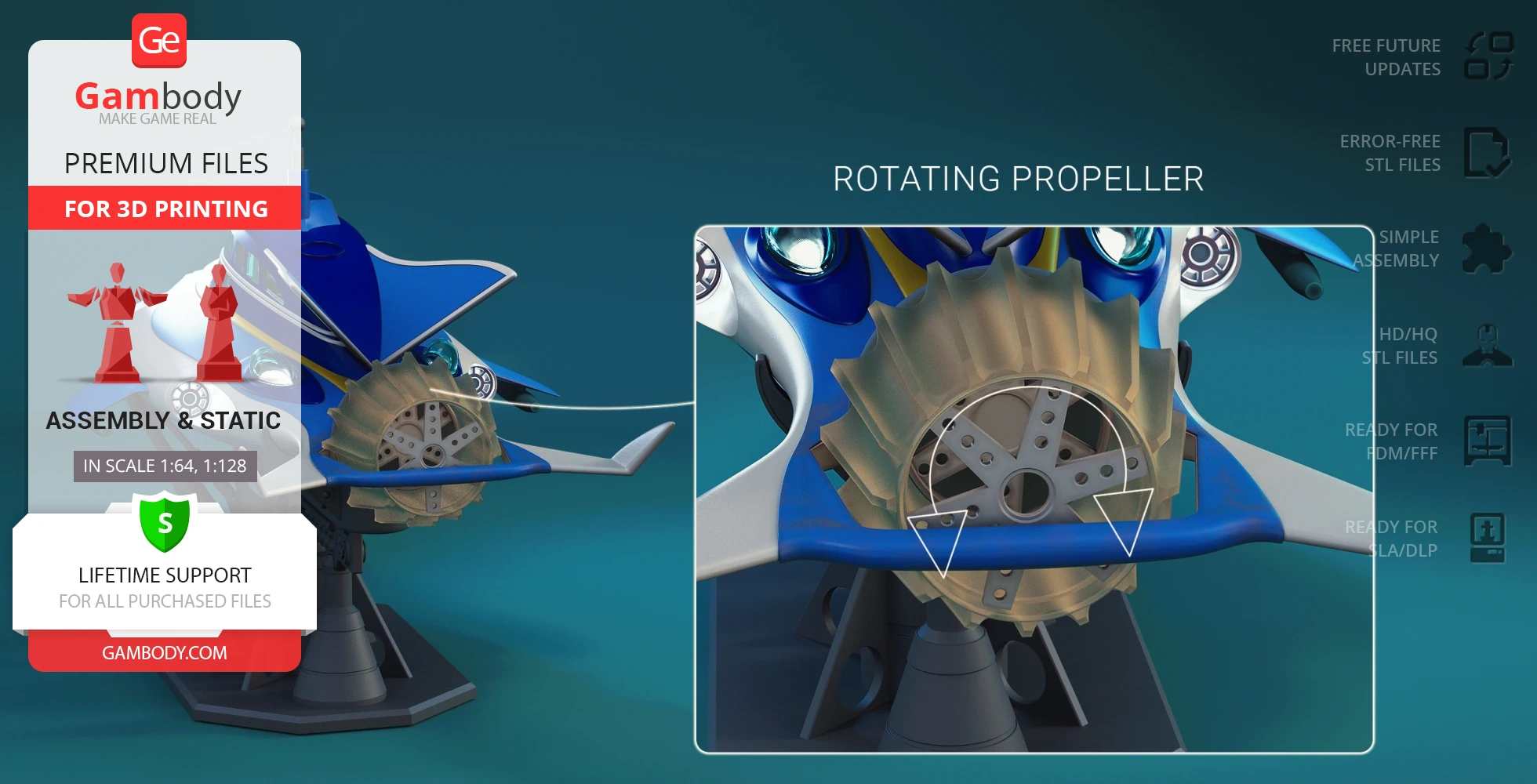

• Rotating propeller;

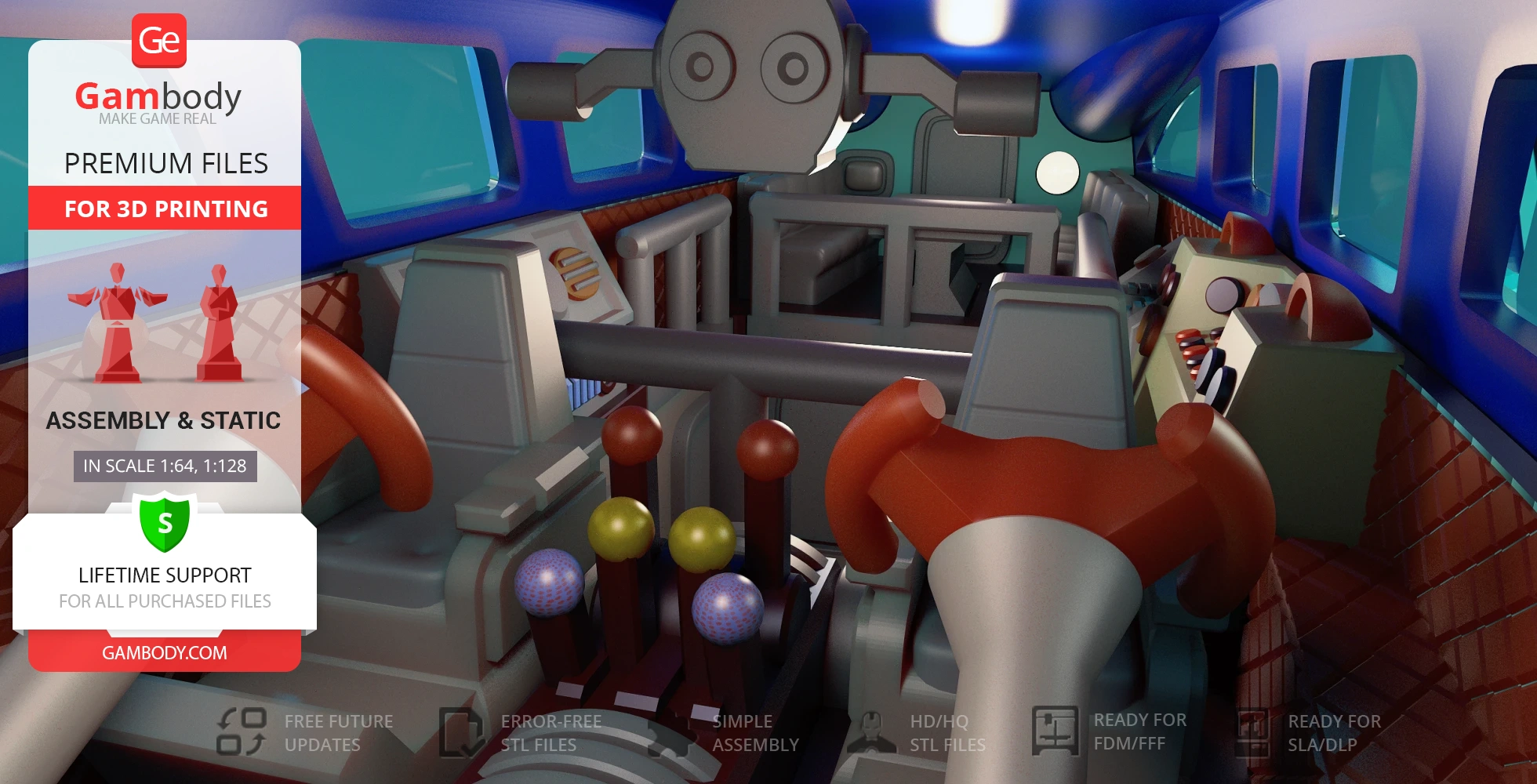

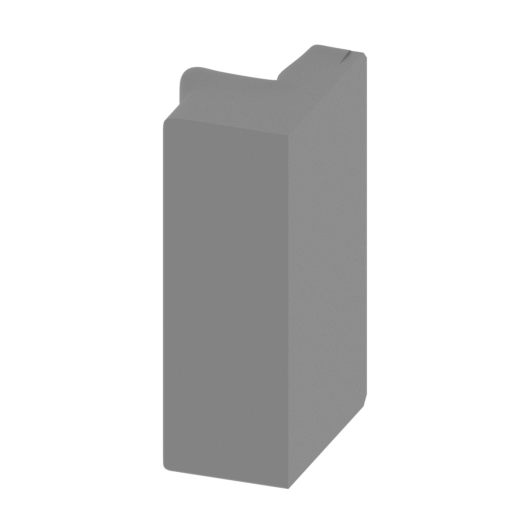

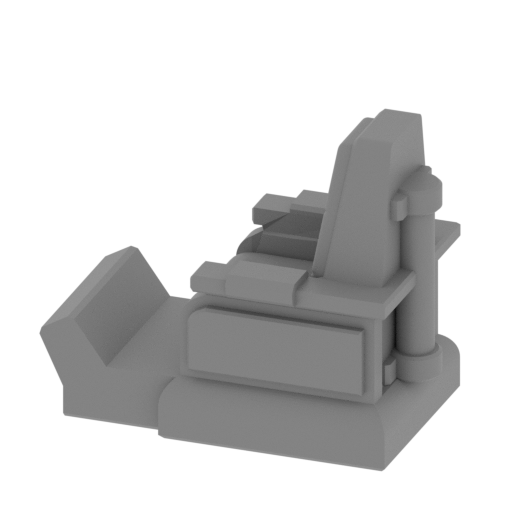

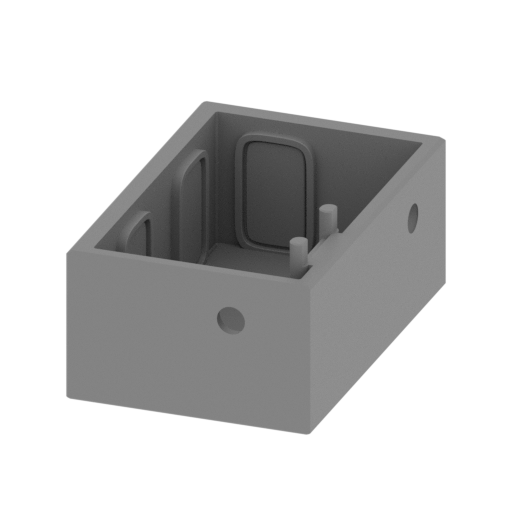

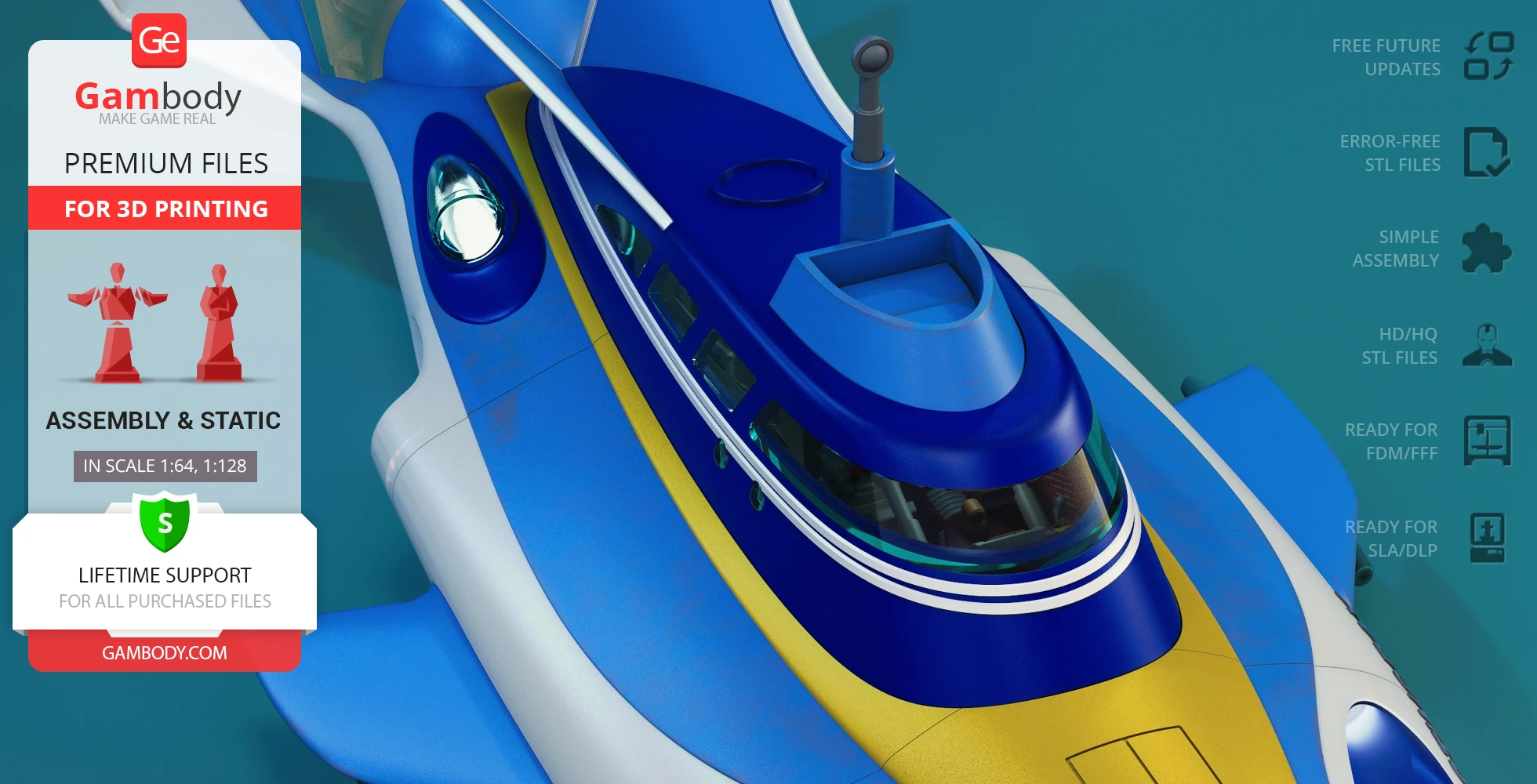

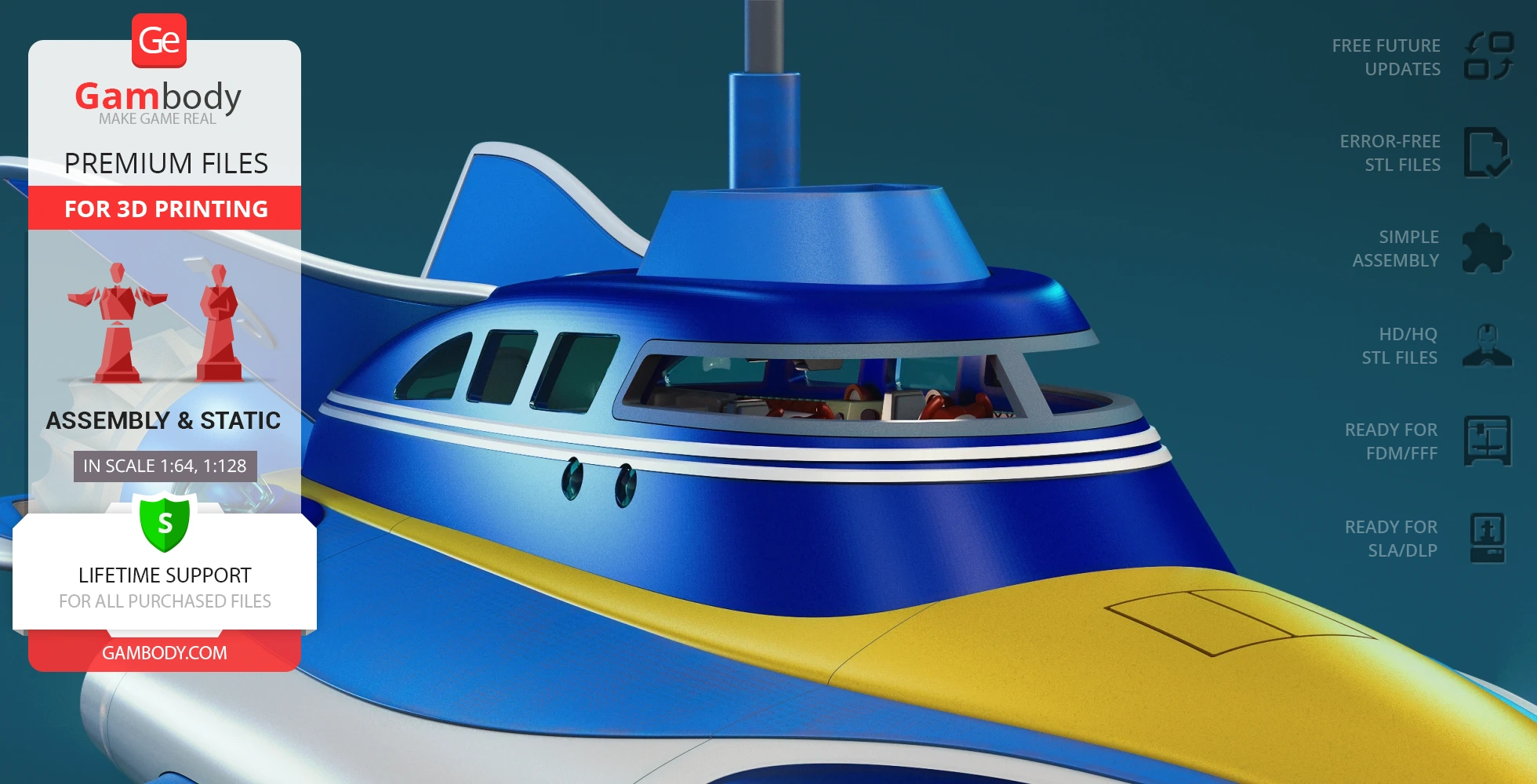

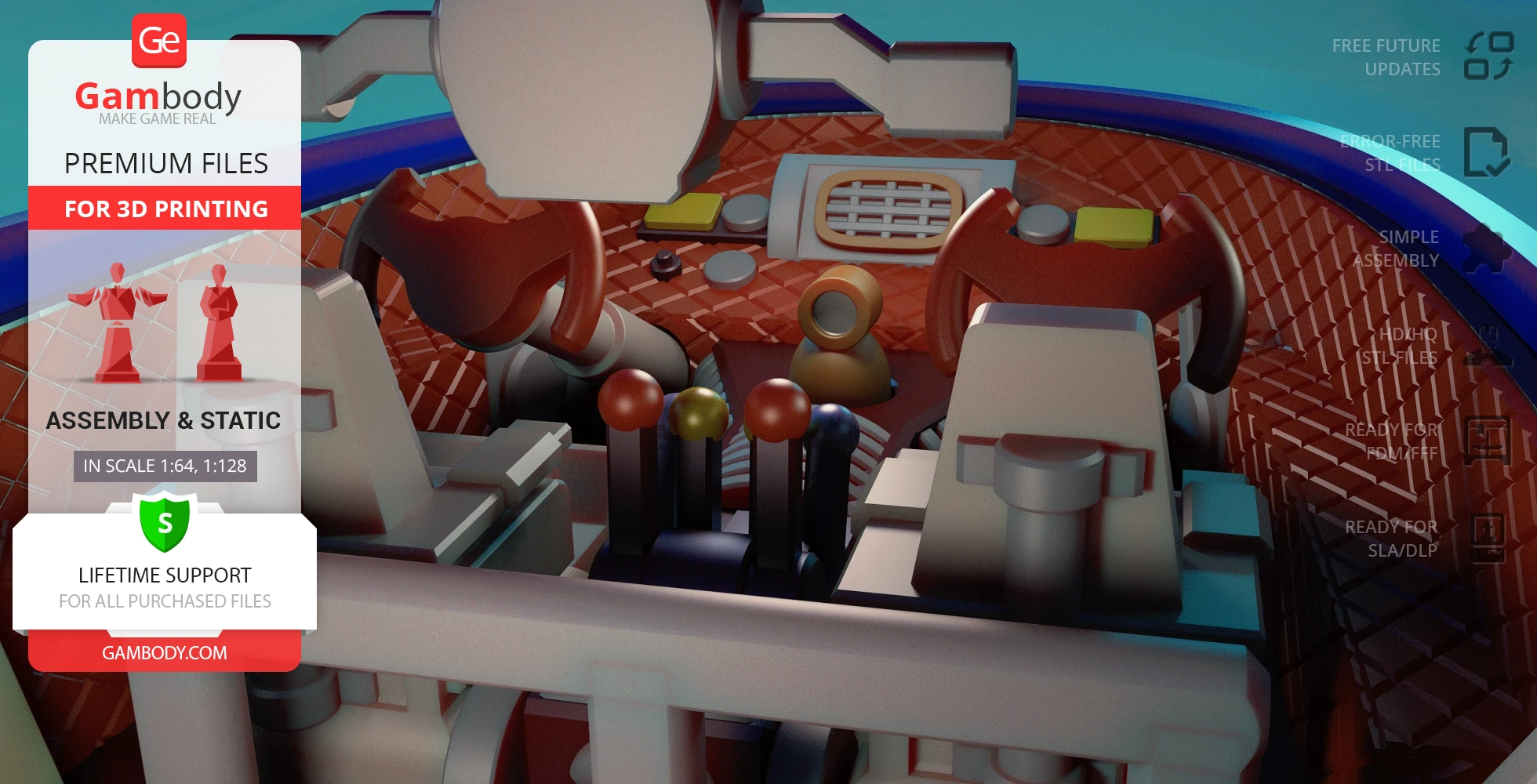

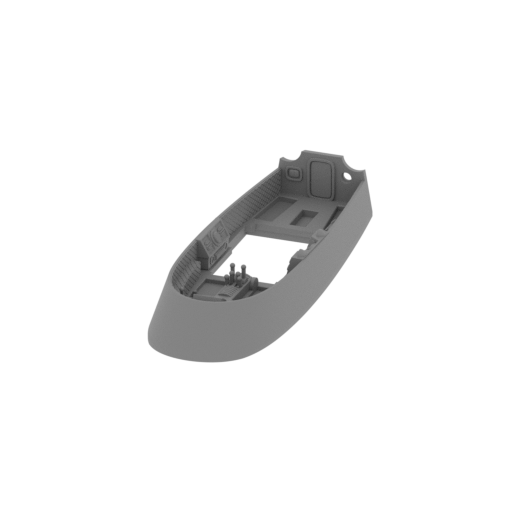

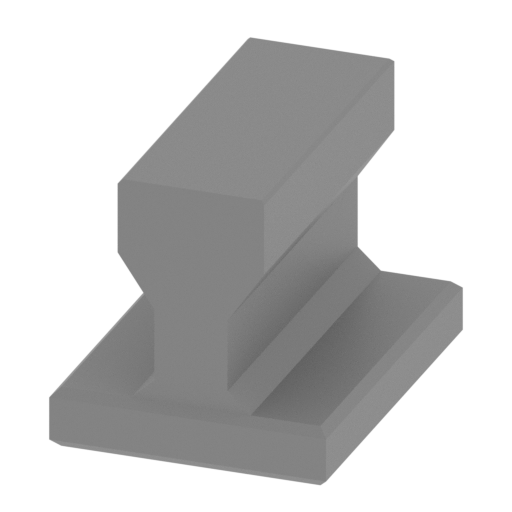

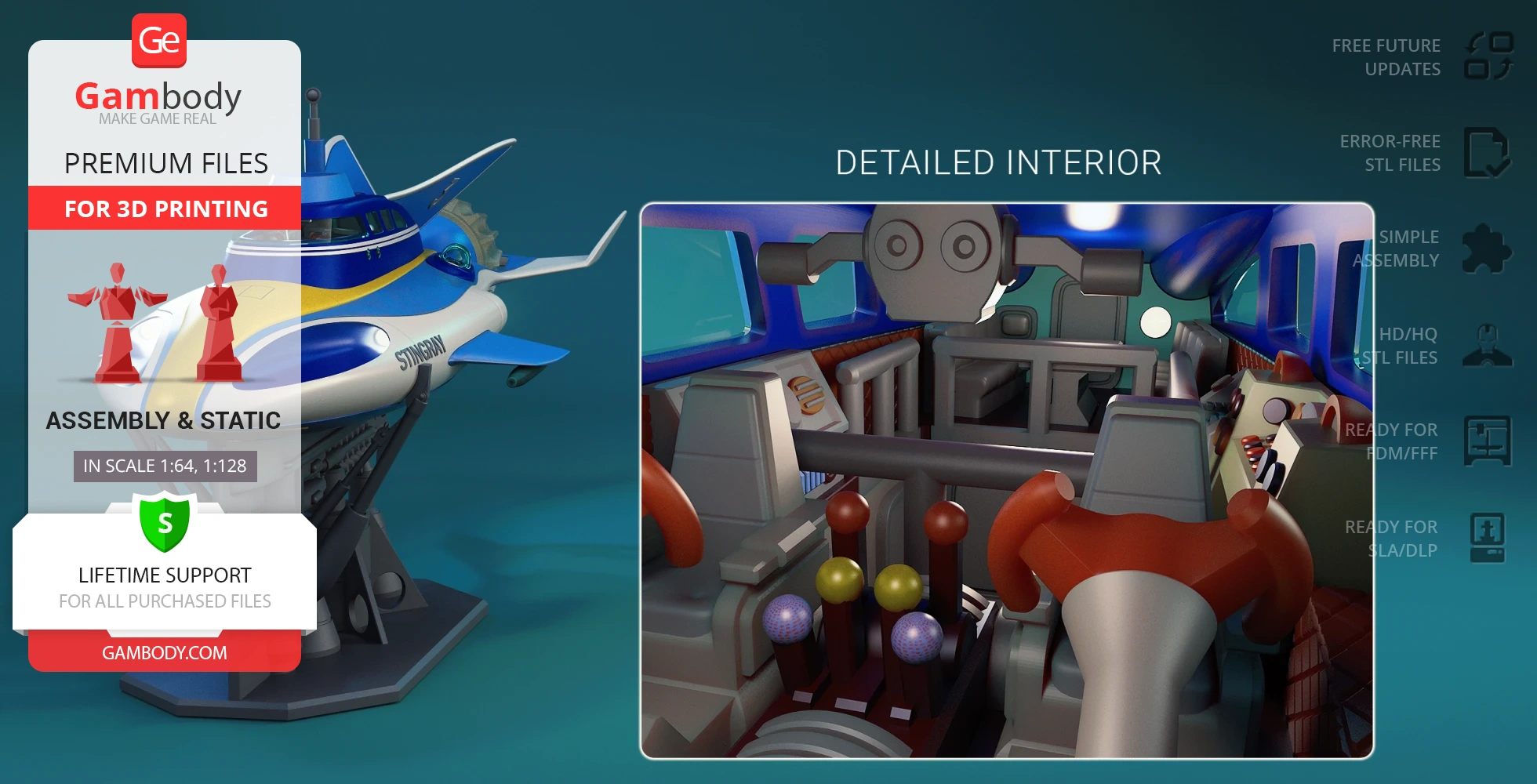

• Detailed interior;
• All parts are divided in such a way that you will print them with the smallest number of support structures.

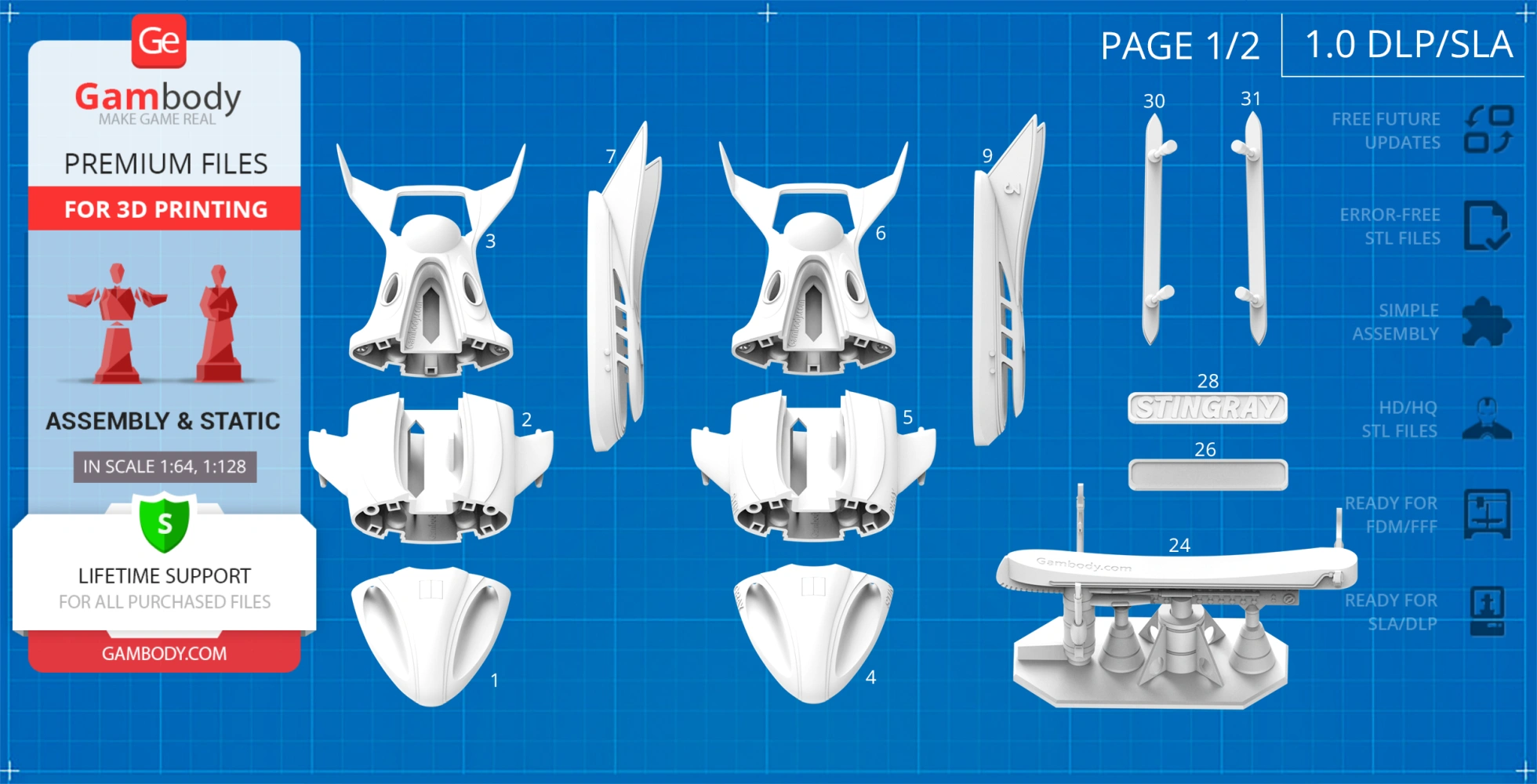

1.0 DLP/SLA version features:

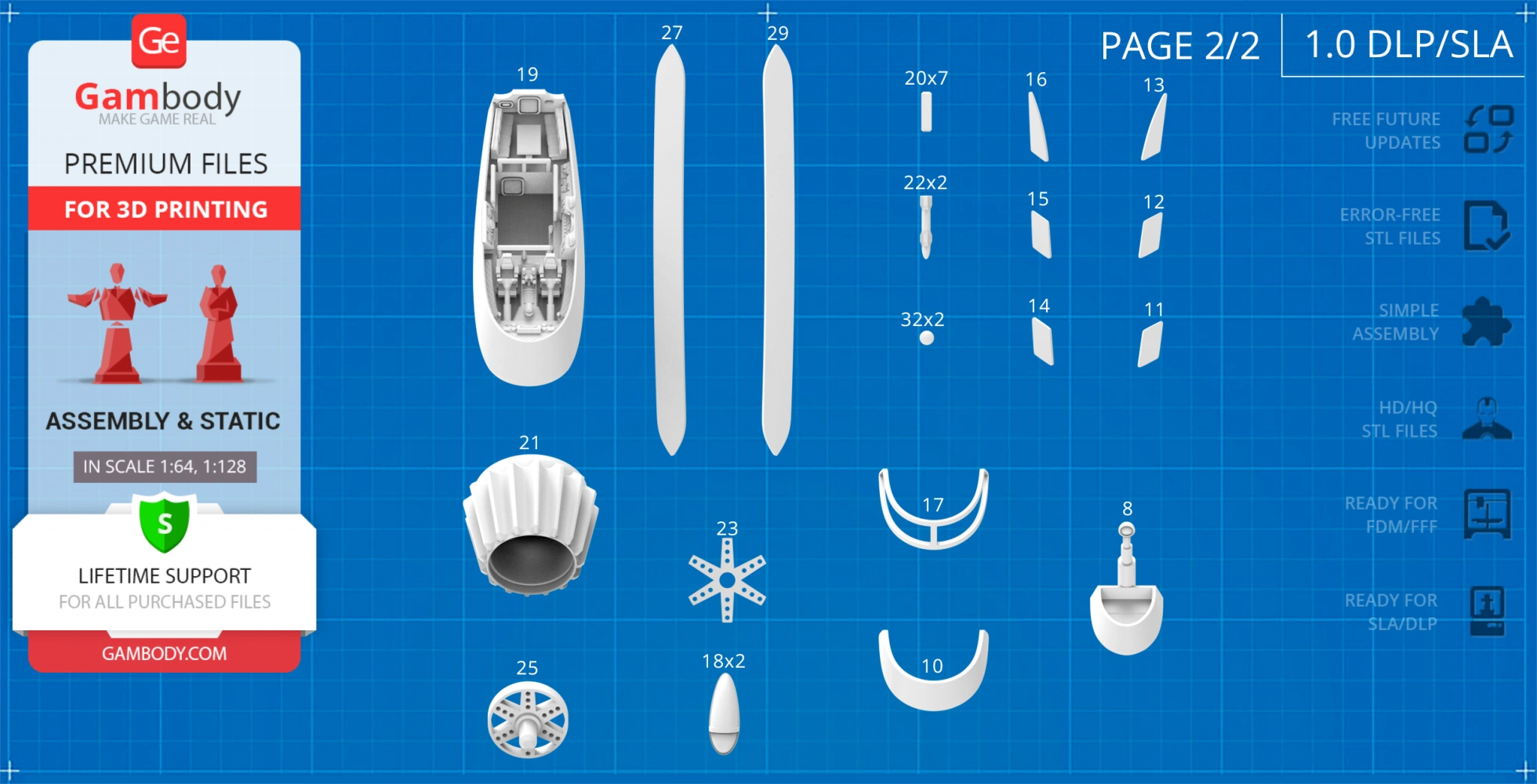

• Contains 32 parts;
• A printed model on a platform is: 94 mm tall, 79 mm wide, 190 mm deep;
• A printed model on landing skids:  118 mm tall, 159 mm wide, 379 mm deep;
• 2 variants of the hull and rudder: with and with no lettering;
• Use side holes as torpedo launchers or lights;
• For cockpits, put either radars or LEDs for extra lighting;
• Print glass as a solid piece or use a frame;
• 2 stand types: a platform and landing skids;
• 2 nameplate variants: with and with no lettering;
• Rotating propeller;
• Detailed interior;
• All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

You can get the STL files of Stingray Submarine for 3D printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble the 3D printed Stingray Submarine from the provided 3D print files on Gambody YouTube channel.

Also, you may like other Watercraft 3D printer designs.

________

FAQ:

• Where can I print a model if I have no printer?
• How to get started with 3D printing?
• How to set up my 3D printer?
• How to choose right 3D model print bed positioning?
• How to paint 3D printed objects?

Generic

Below you can find printing recommendations for Cura, Bambu Lab, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

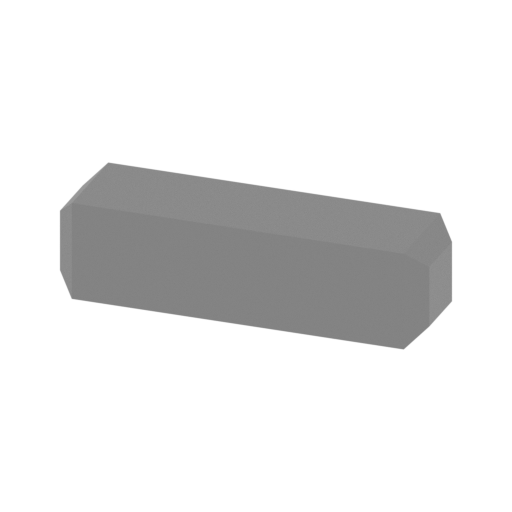

All connectors should be printed at 100% Infill.

Bambu Lab printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Bambu Studio 1.9.5. Test models were printed on the Bambu Lab A1, Bambu Lab A1 Mini, Creality Ender 3 S1, Anycubic Kobra 2, and Anycubic Vyper using PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download

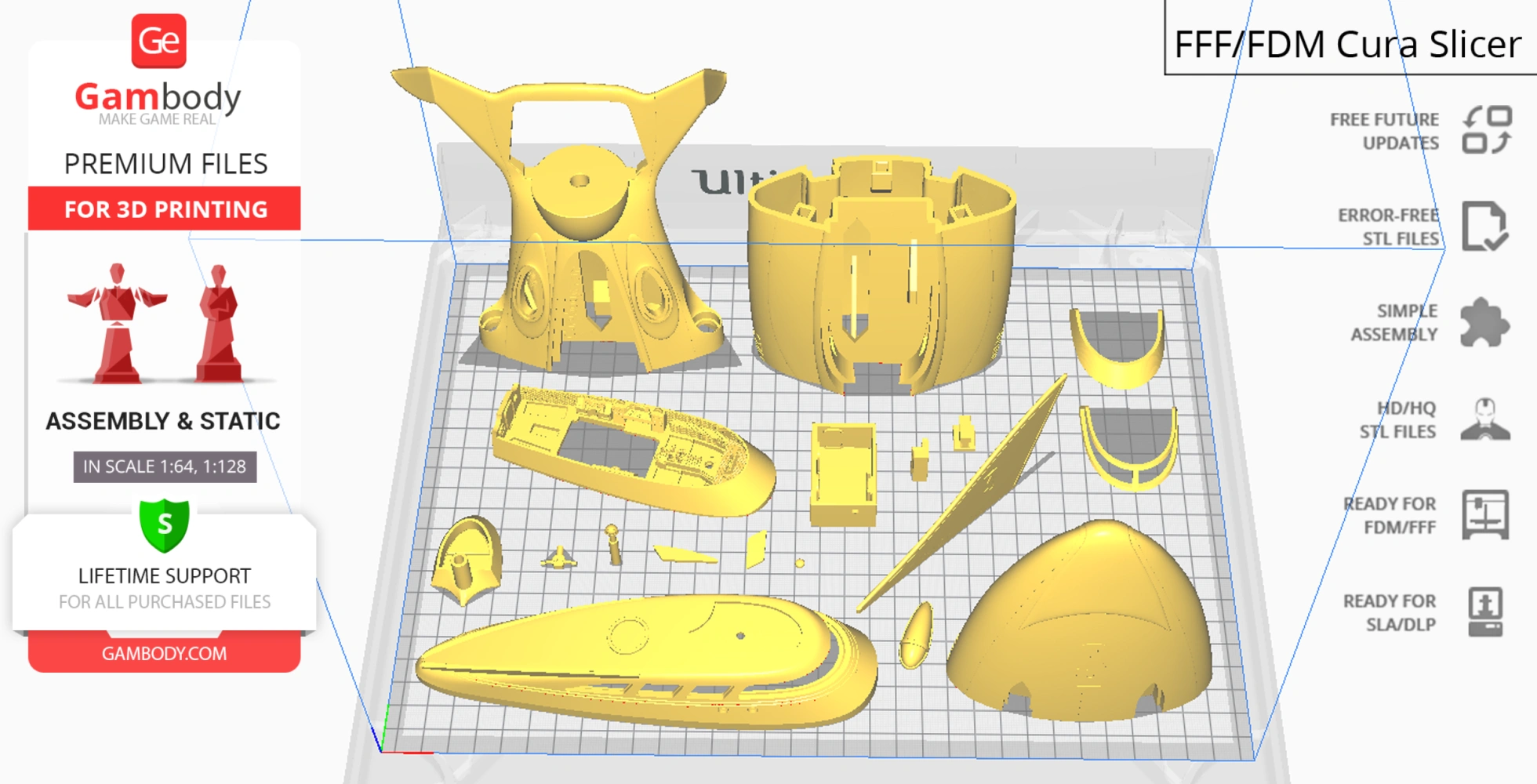

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.8.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
