HISTORY OF STORMTROOPERS

Stormtroopers are elite warriors of the Galactic Empire. They are the embodiment of the absolute authority of Emperor Palpatine. These faceless servants of the New Order by force and cruelty carried the will of the Emperor into thousands of stellar systems throughout the Galaxy. In the heyday of the Empire, stormtroopers became a living embodiment of the power of ruthlessness and fear. All Stormtroopers are dressed in white armor that distinguishes them from other military units of the Empire. Imperial stormtroopers originated from soldiers-clones of the Great Army of the Republic. At the end of the Clone Wars, the Galactic Republic was reorganized into the first Galactic Empire. As a result, the Great Army was transformed into the Assault Corps and the clones were renamed into "stormtroopers". As Imperial soldiers, stormtroopers participate in combat operations together with the forces of the imperial army and navy because all the stormtroopers are unconditionally loyal to the Emperor.

ABOUT THESE 3D MODELS

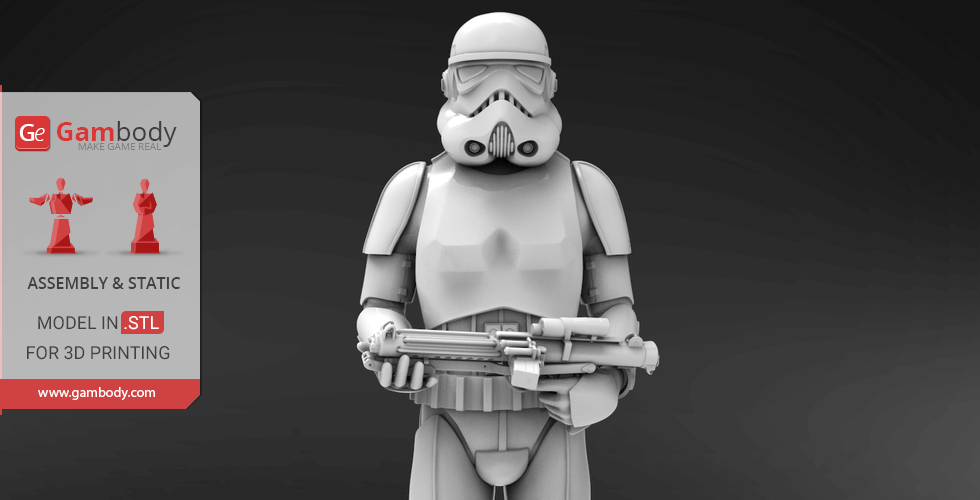

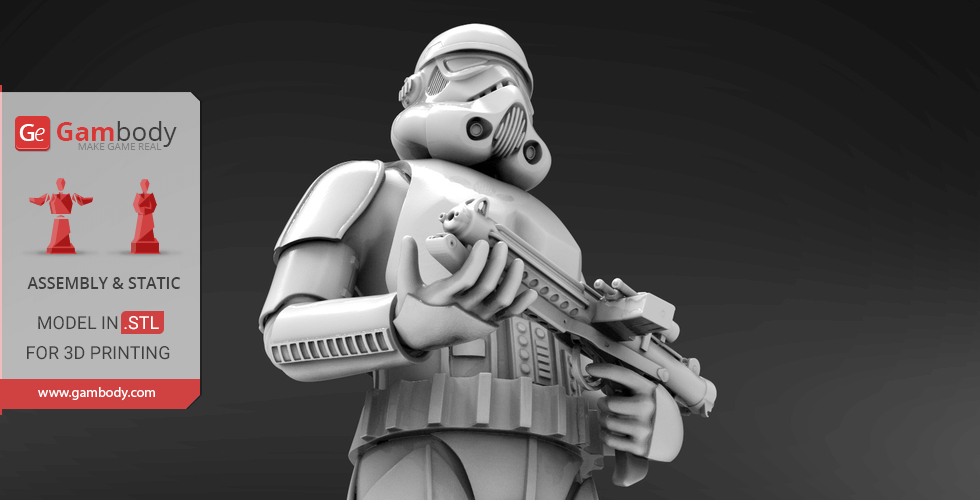

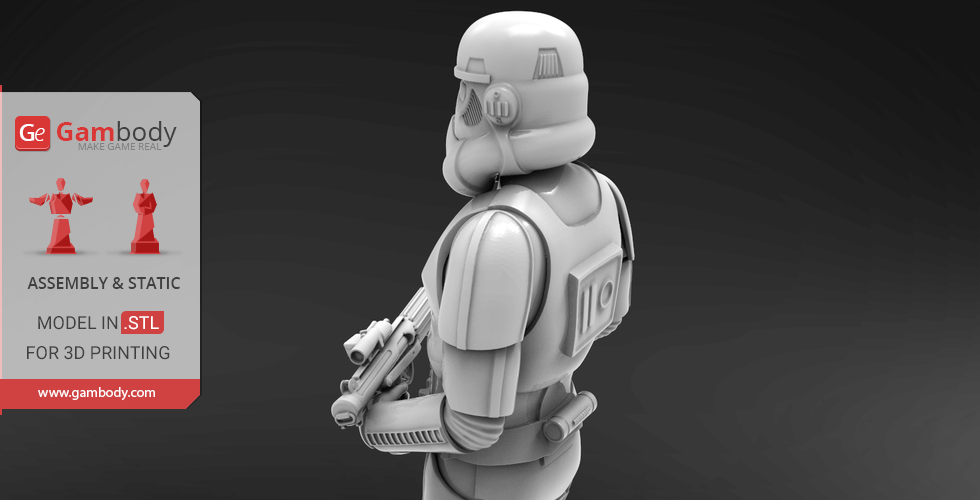

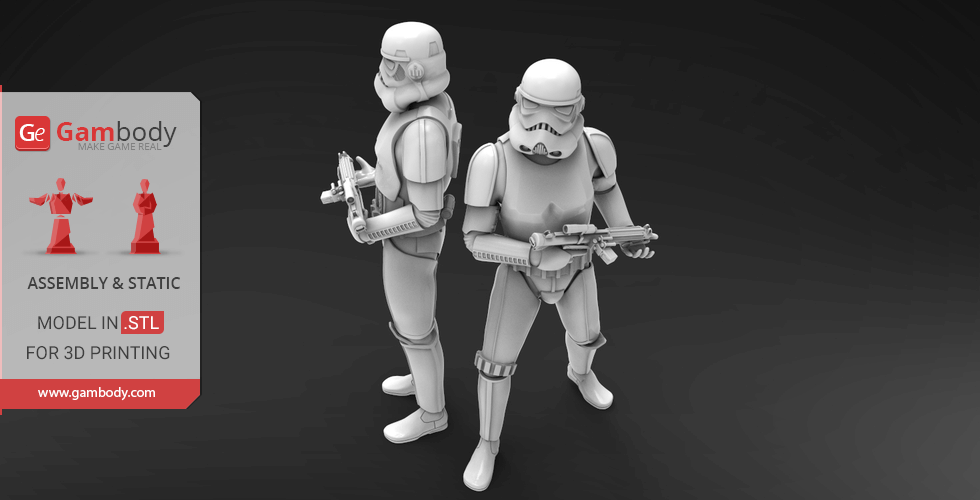

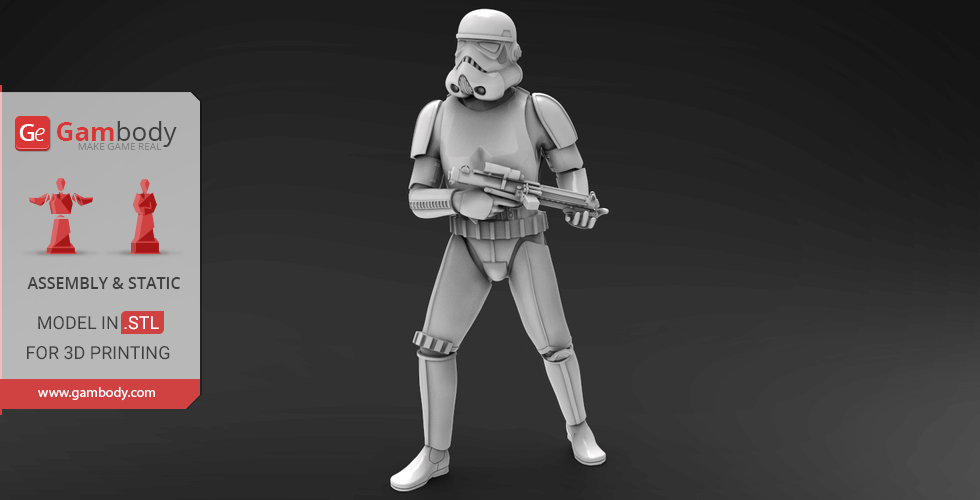

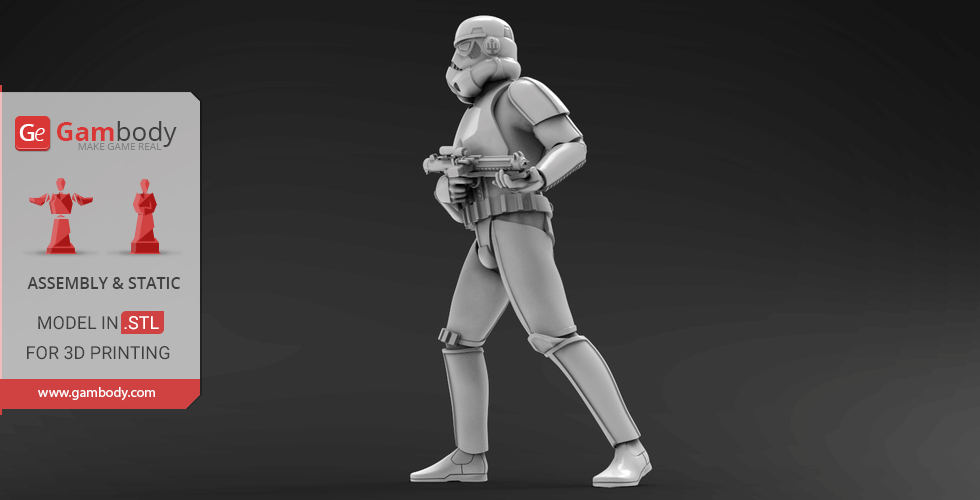

Stormtroopers 3D models for printing were created in ZBrush. These models are saved in STL files, a format supported by most 3D printers.

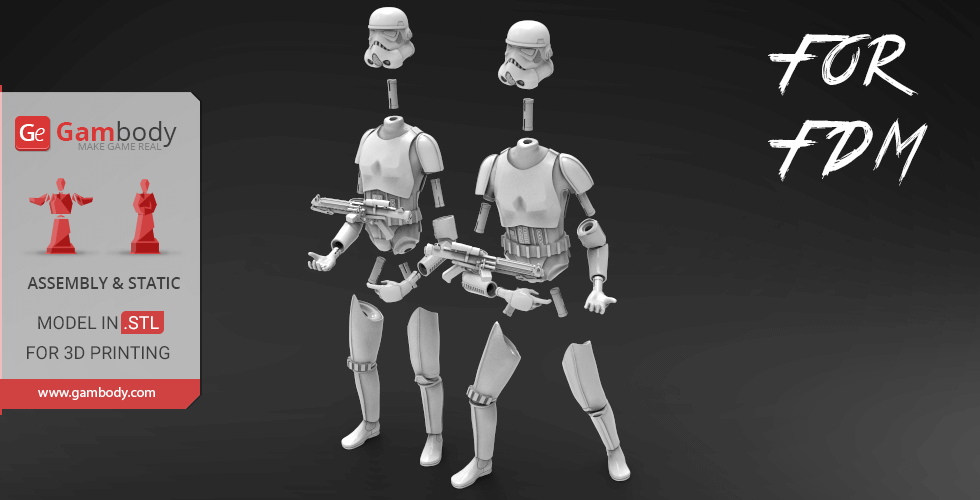

FDM version features:

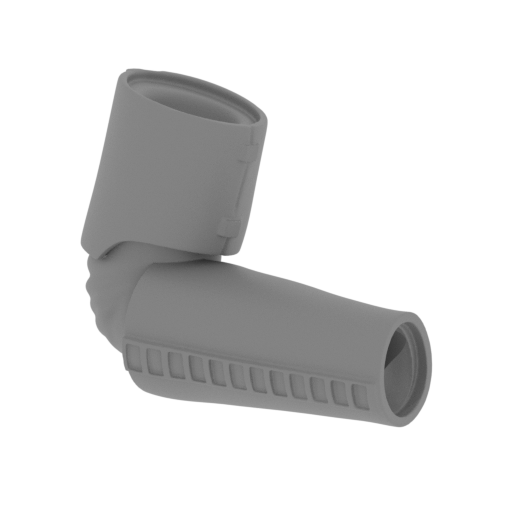

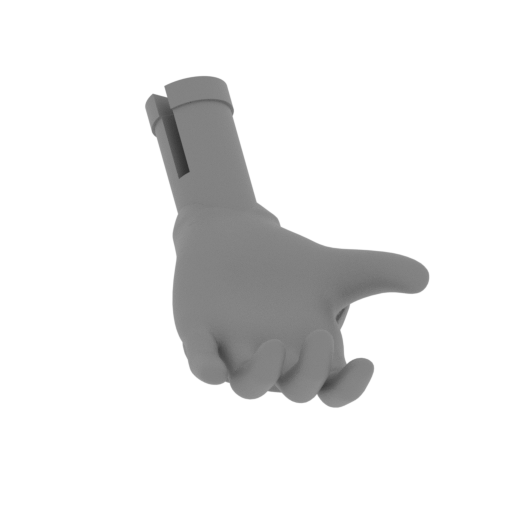

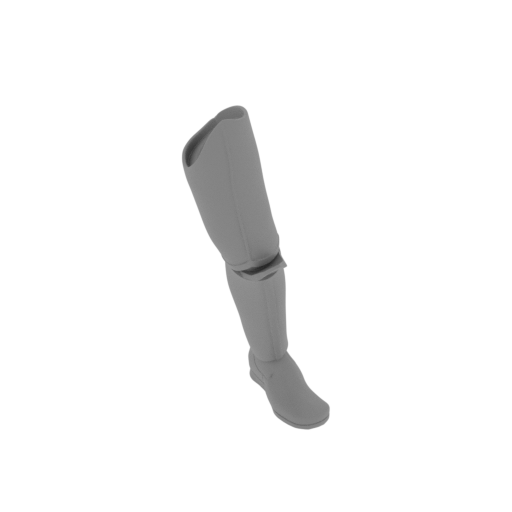

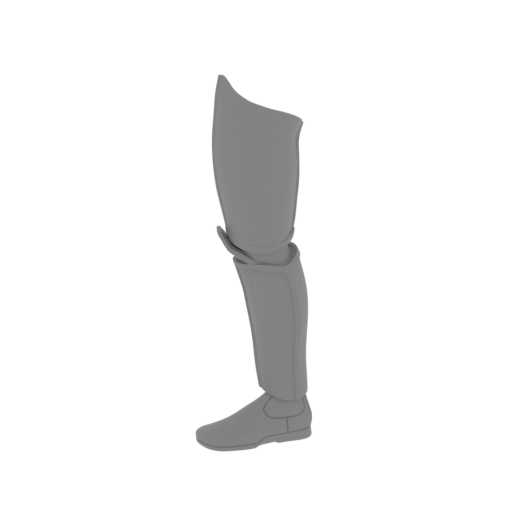

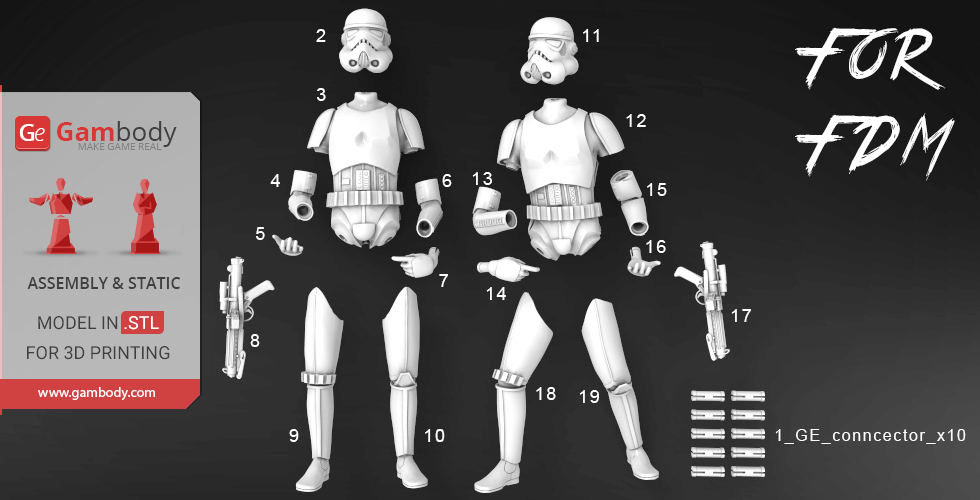

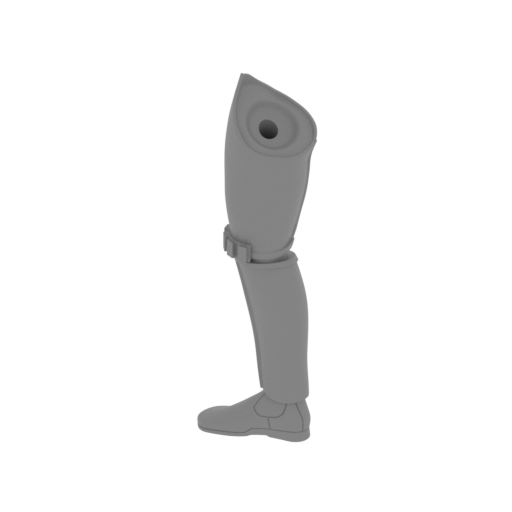

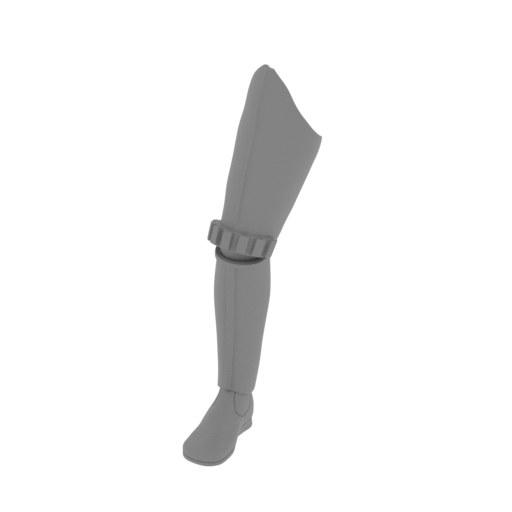

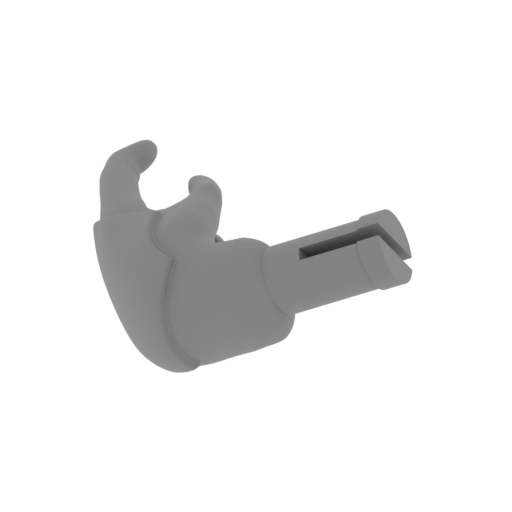

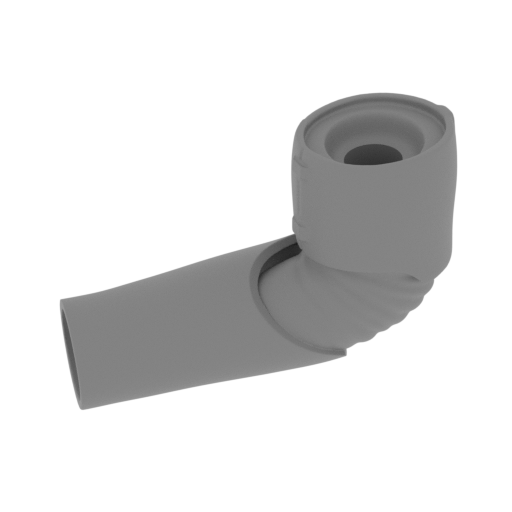

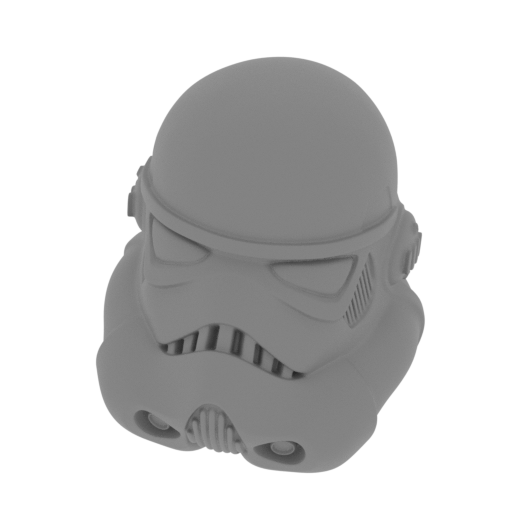

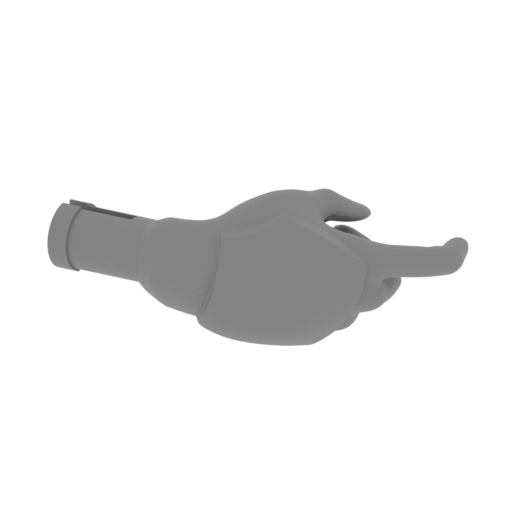

- Contain 19 parts;

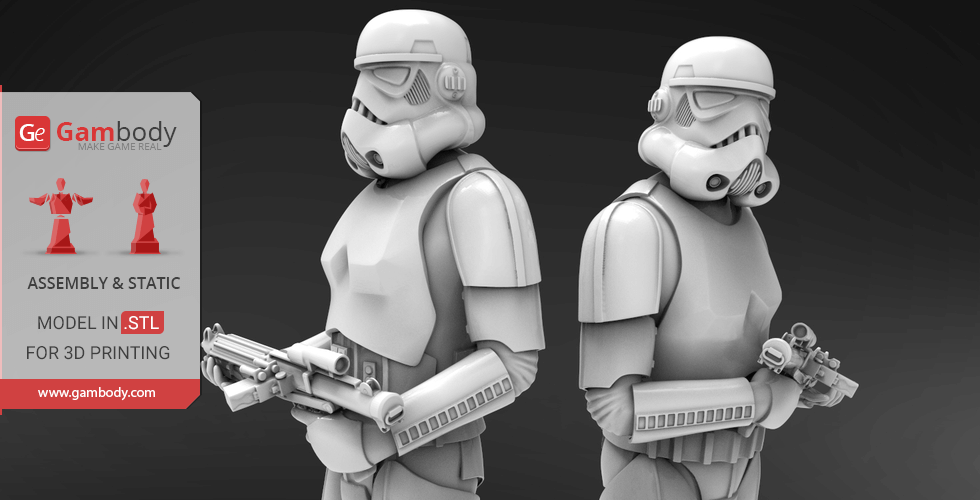

- Made in 2 variants: Stand and Offensive;

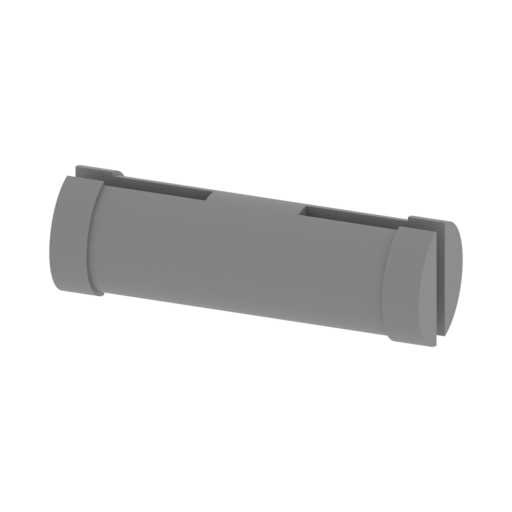

- Made with connectors. One part of connector (1_GE_Connector_B_B (5x2)) you need to print 5 times for each varian of Stormtrooper 3D Model;

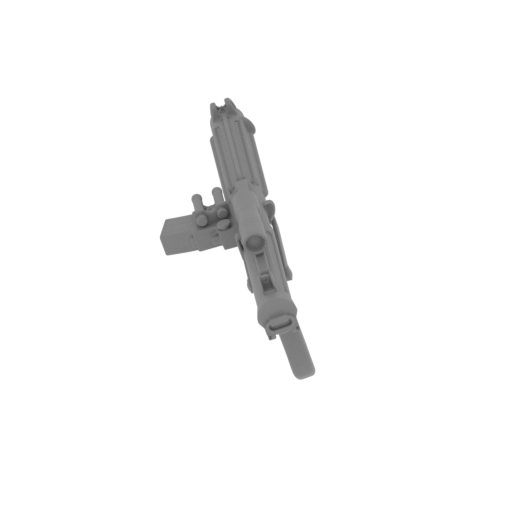

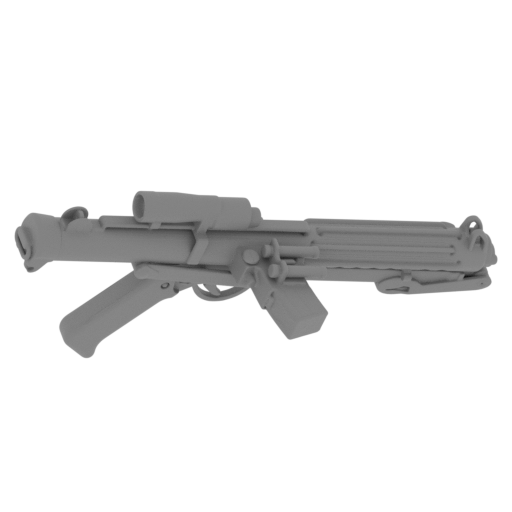

- Removable part of gun in each variant;
- All parts are divided in such way that you will print them with the smallest amount of supports.

SLS/SLA version features:

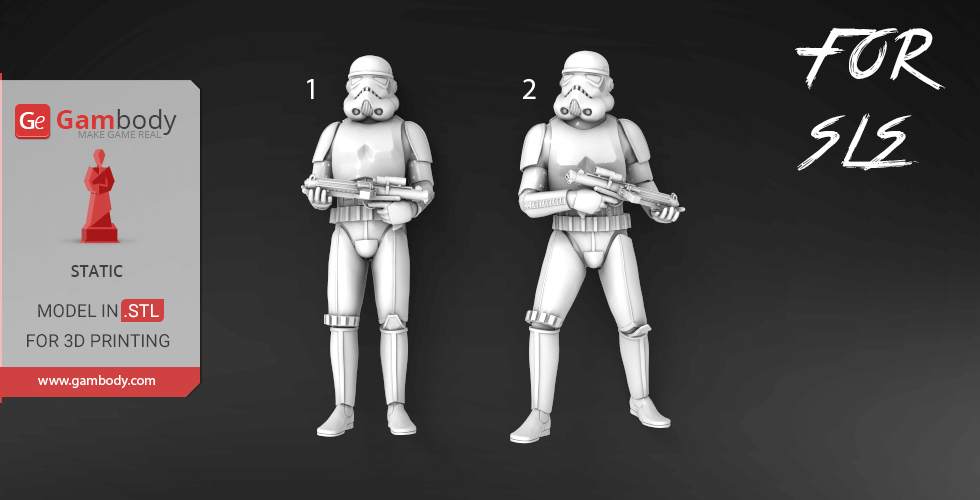

- Same as FDM but smaller and made as 1 part in 2 variants.

All .STL files for 3D printing have been checked in Netfabb and no errors were shown.

Note: Before starting 3D printing the models, read the Printing Details for CURA 3.1.0. Software.

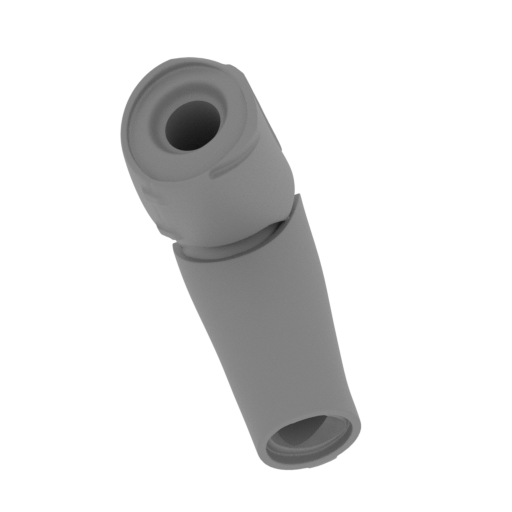

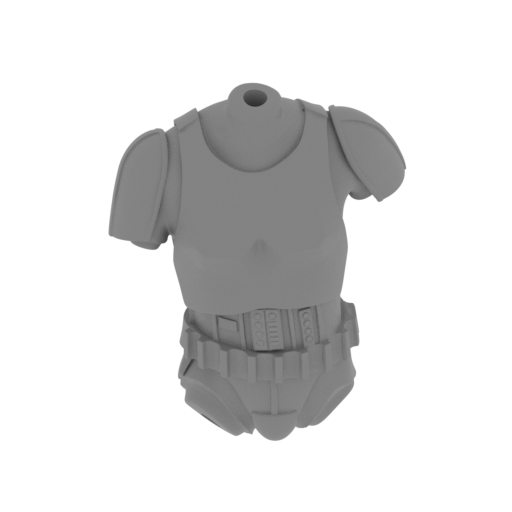

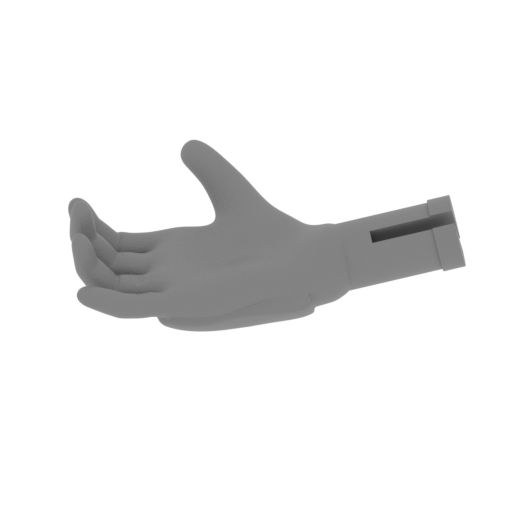

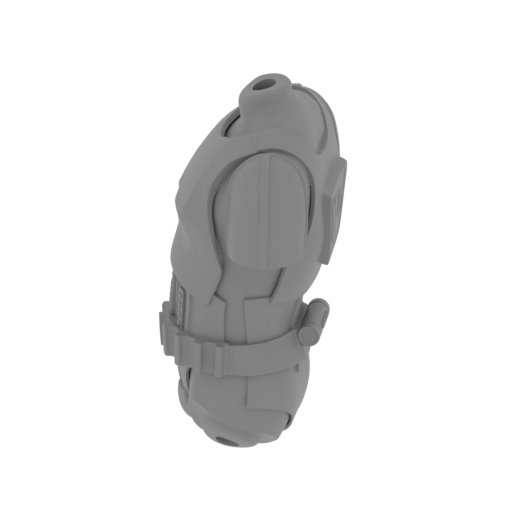

There are 19 parts for FFF/FDM version and 2 parts for SLS/SLA version.

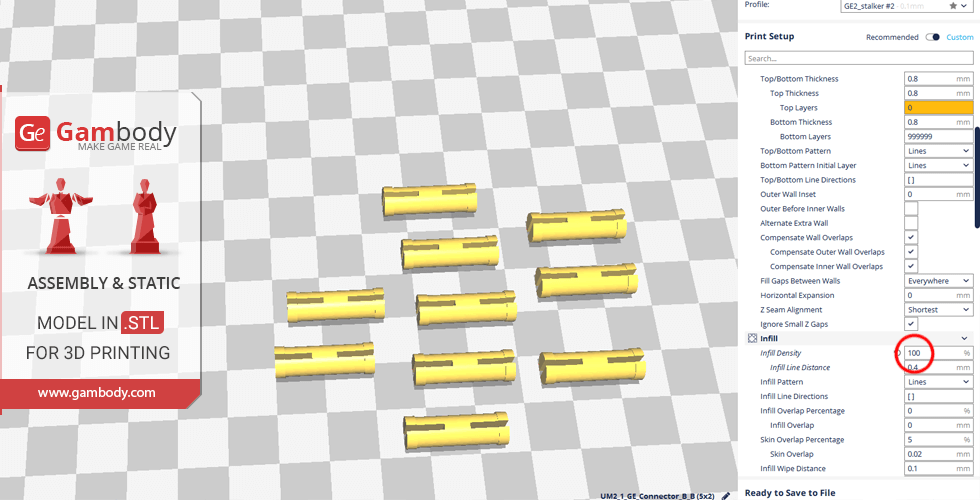

All parts of connectors should be printed at 100% infill.

Scale: His tall in life is 1830 mm. Models made as 1/8 scale in FDM version and 1/16 in SLS/SLA version.

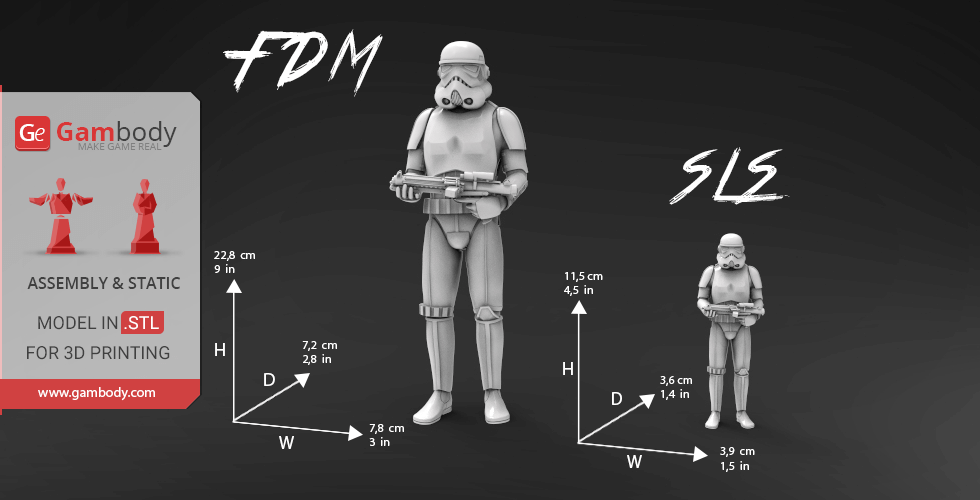

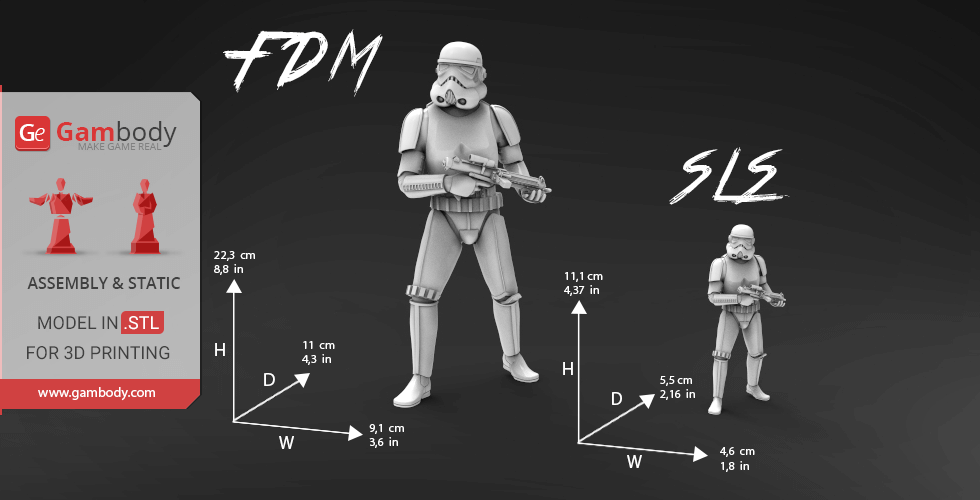

FDM version dimensions:

After being printed will stand:
- 228 mm tall, 78 mm wide, 72 mm deep - Stand;
- 223 mm tall, 91 mm wide, 110 mm deep - Offensive;
- Connectors should be printed at 100% infill to make them solid.

SLS/SLA version dimensions:

After being printed will stand:
- 115 mm tall, 39 mm wide, 36 mm deep - Stand;
- 111 mm tall, 46 mm wide, 55 mm deep - Offensive;
- Has only 1 part in each version, to keep printing costs down.

WHAT WILL YOU GET AFTER PURCHASE?

- .STL files of Stormtroopers for 3D printing which consist of 21 parts;

- 2 versions of files for these models for FFF/FDM and SLS/SLA;

- 2 variants in each version of Stormtroopers: Stand and Offensive;
- Removable part of gun;

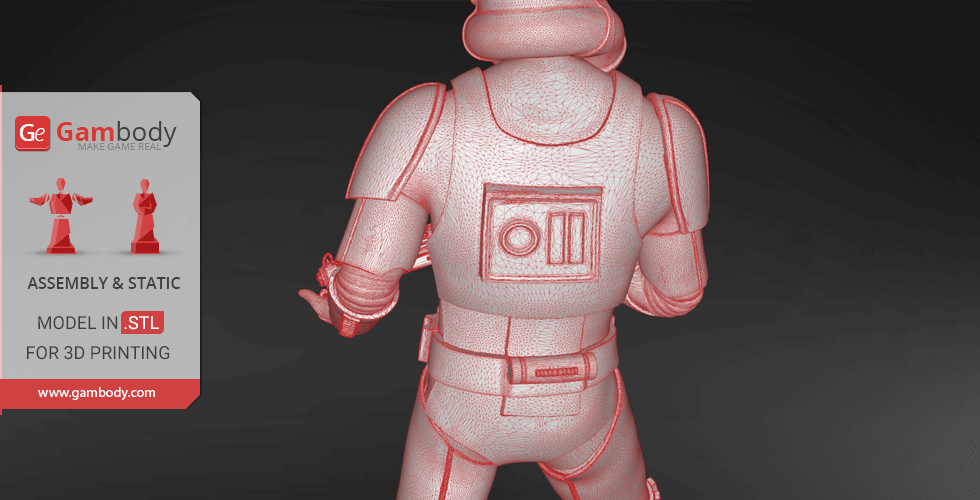

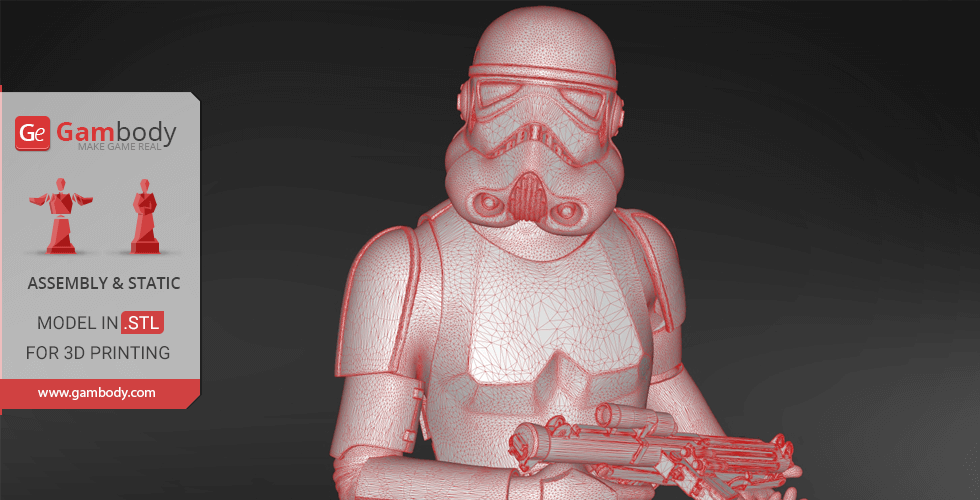

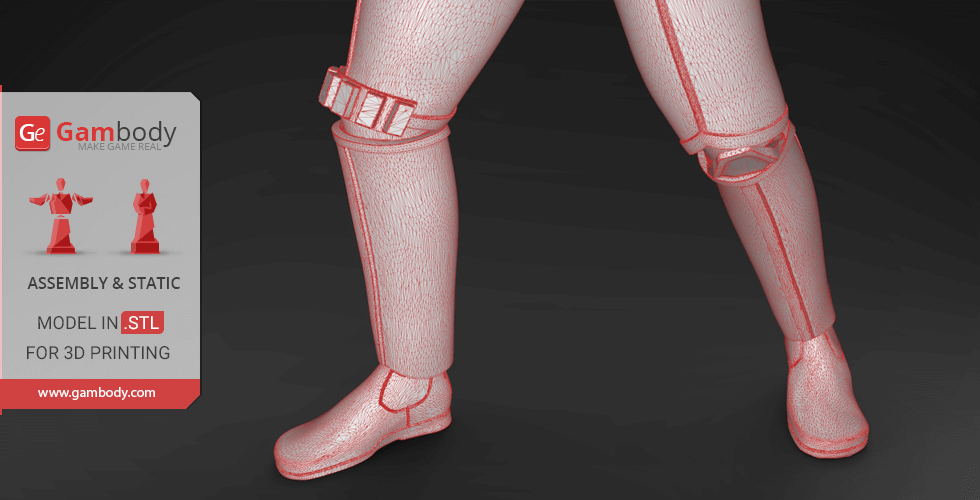

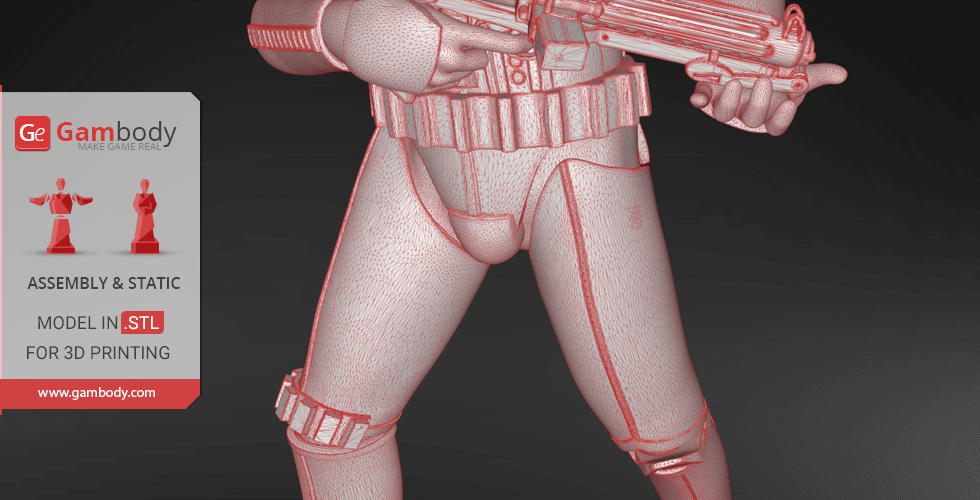

- High-poly detailed models of Stormtroopers;

- Detailed settings that we provide for Cura 3.1.0. for the best print;

- Full technical support from the Gambody Support Team.

Watch the tutorial video on how to assemble Stormtroopers 3D Printing Miniatures at Gambody YouTube channel.

You can get Models of Stormtroopers for 3D Printing right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Also, you may like another Space War 3D models.

_______
FAQ:
Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

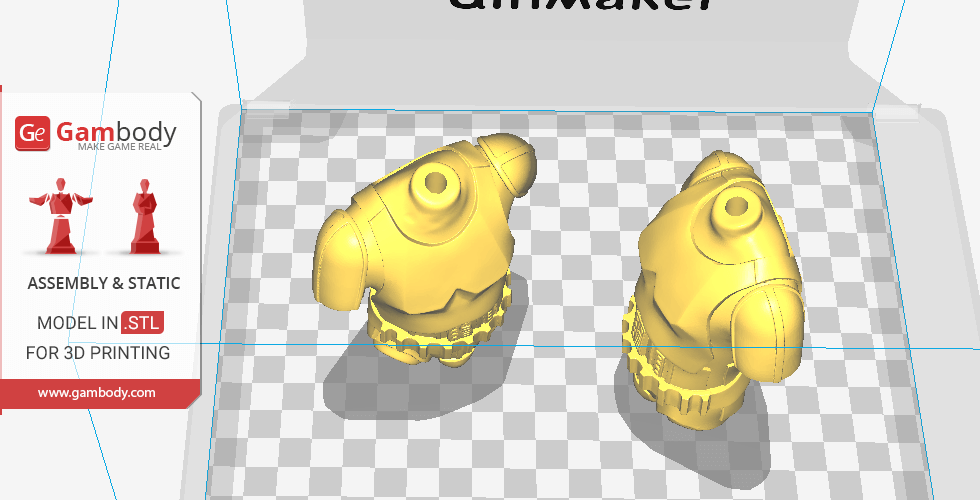

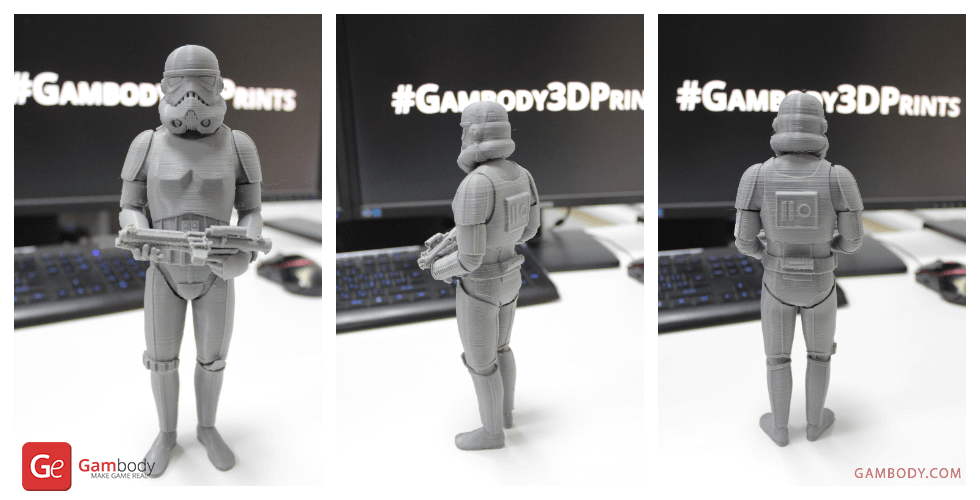

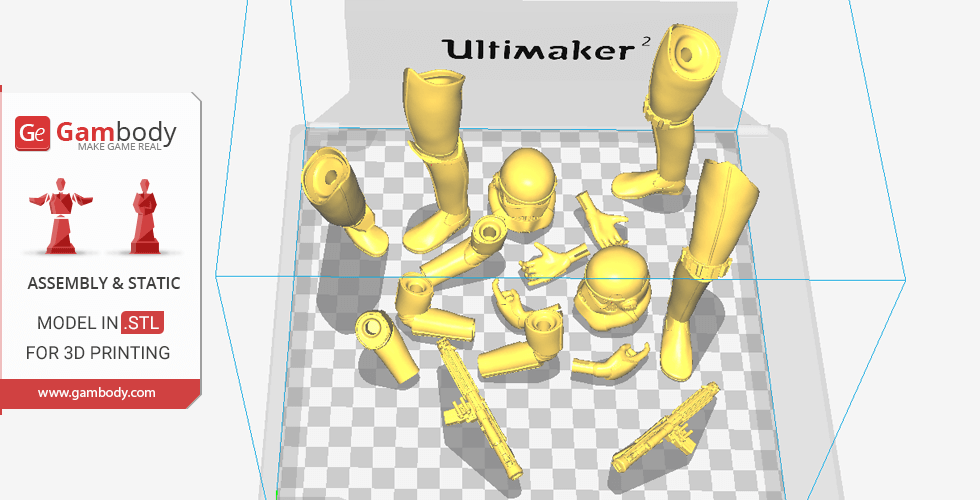

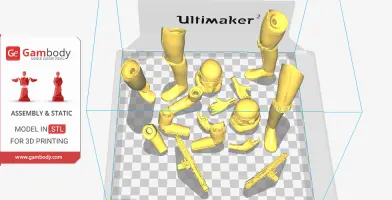

These models were tested in Cura 3.1.0. and printed on an Ultimaker 2 in PLA material.

Note: All parts of connectors should be printed at 100% infill. One part of connector (1_GE_Connector_B_B (5x2)) you need to print 5 times for each variant of Stormtrooper 3D Model;

To avoid printing problems, we recommend the following settings:

Quality

Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Slicing Tolerance: Middle
Line Width: 0.4 mm
Wall Line Width: 0.4 mm
   Outer Wall Line Width: 0.4 mm
   Inner Wall(s) Line Width: 0.4 mm
   Top/Bottom Line Width: 0.4 mm
   Infill Line Width: 0.4 mm
   Skirt/Brim Line Width: 0.4 mm
   Support Line Width: 0.4 mm
 Initial Layer Line Width: 100%

Shell

Wall Thickness: 0.8 mm
Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Sharpest Corner
Seam Corner Preference: Hide Seam
Ignore Small Z Gaps: Check
Extra Skin Wall Count: 1

Infill

Infill Density: 20% (all parts of the connectors should be printed at 100% infill)
Infill Line Distance: 4.0 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Overlap Percentage: 10%
    Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Removal Width: 0.8 mm
    Top Skin Removal Width: 0.8 mm
    Bottom Skin Removal Width: 0.8 mm
Skin Expand Distance: 0.8
    Top Skin Expand Distance: 0.8
    Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90˚
    Minimum Skin Width for Expansion: 0.0

Material

Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed

Print Speed: 45 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 22.5 mm/s
      Outer Wall Speed: 22.5 mm/s
      Inner Wall Speed: 45 mm/s
    Top/Bottom Speed: 15 mm/s
    Support Speed: 45 mm/s
      Support Infill Speed: 45 mm/s
Travel Speed: 80 mm/s
Initial Layer Speed: 15 mm/s

    Initial Layer Print Speed: 15 mm/s
    Initial Layer Travel Speed: 26.6667 mm/s
Skirt/Brim Speed: 15 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel

Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.625 mm
Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.3 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support

Generate Support: Check
Support Placement: Everywhere
Support Overhang Angle: 60°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 1.3333 mm
Support Z Distance: 0.3 mm
    Support Top Distance: 0.3 mm
    Support Bottom Distance: 0.3 mm
Support X/Y Distance: 0.7 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.2 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion

Build Plate Adhesion Type: Brim
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 18
Brim Only on Outside: Check

Mesh Fixes

Union Overlapping Volumes: Check
Maximum Resolution: 0.01 mm
Merged Meshes Overlap: 0.15 mm

Special Modes

Print Sequence: All at Once
Surface Mode: Normal

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
