ABOUT THIS 3D MODEL

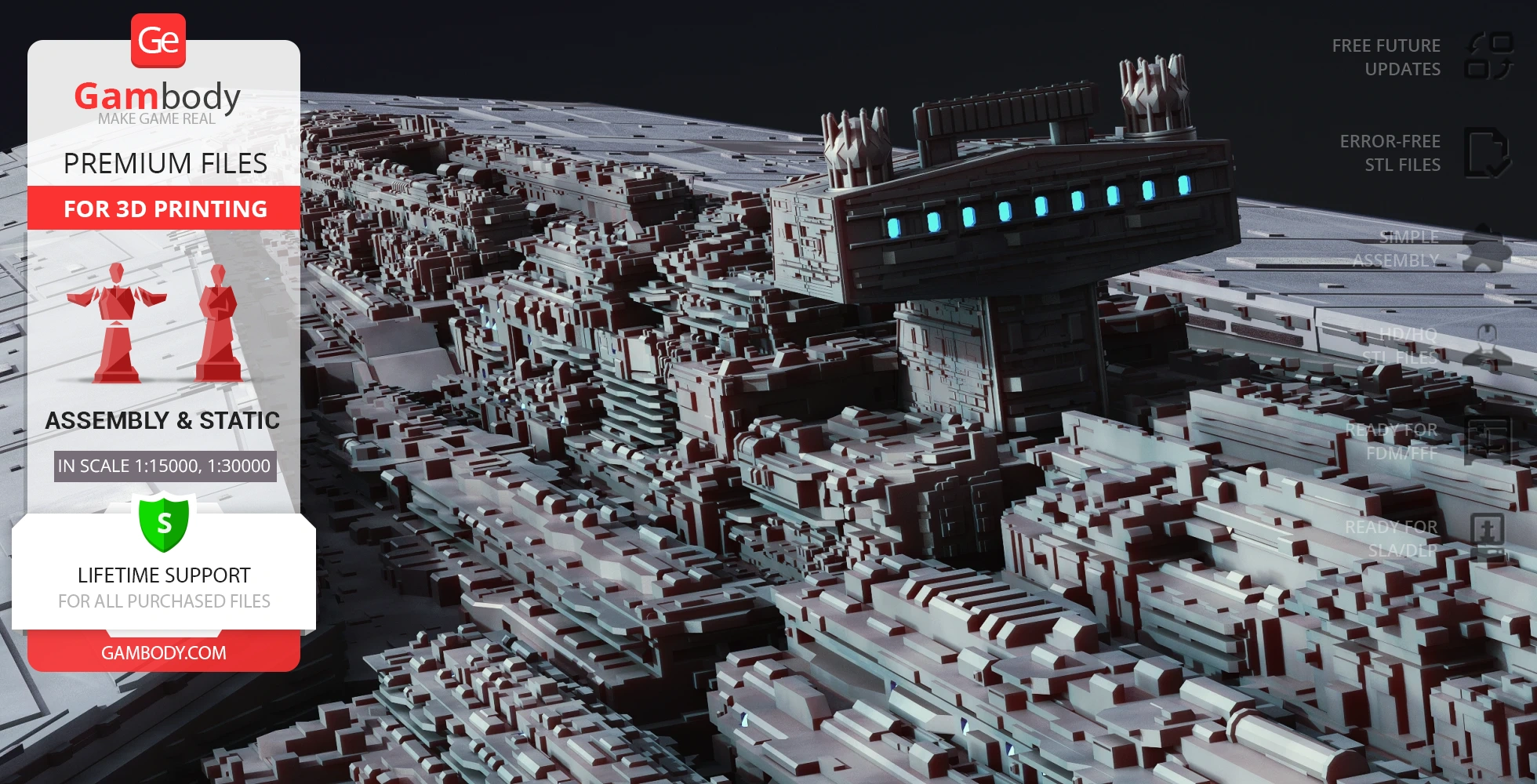

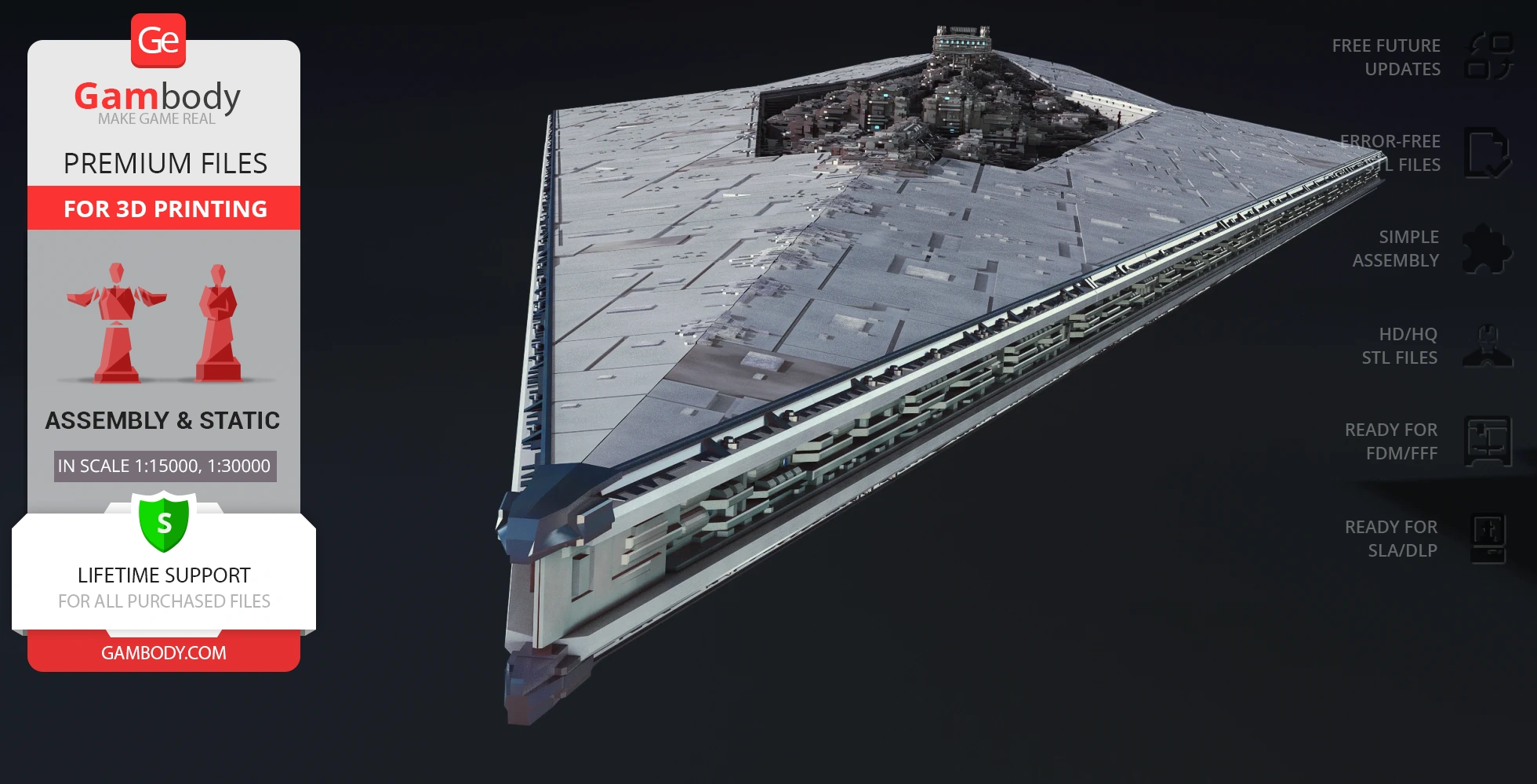

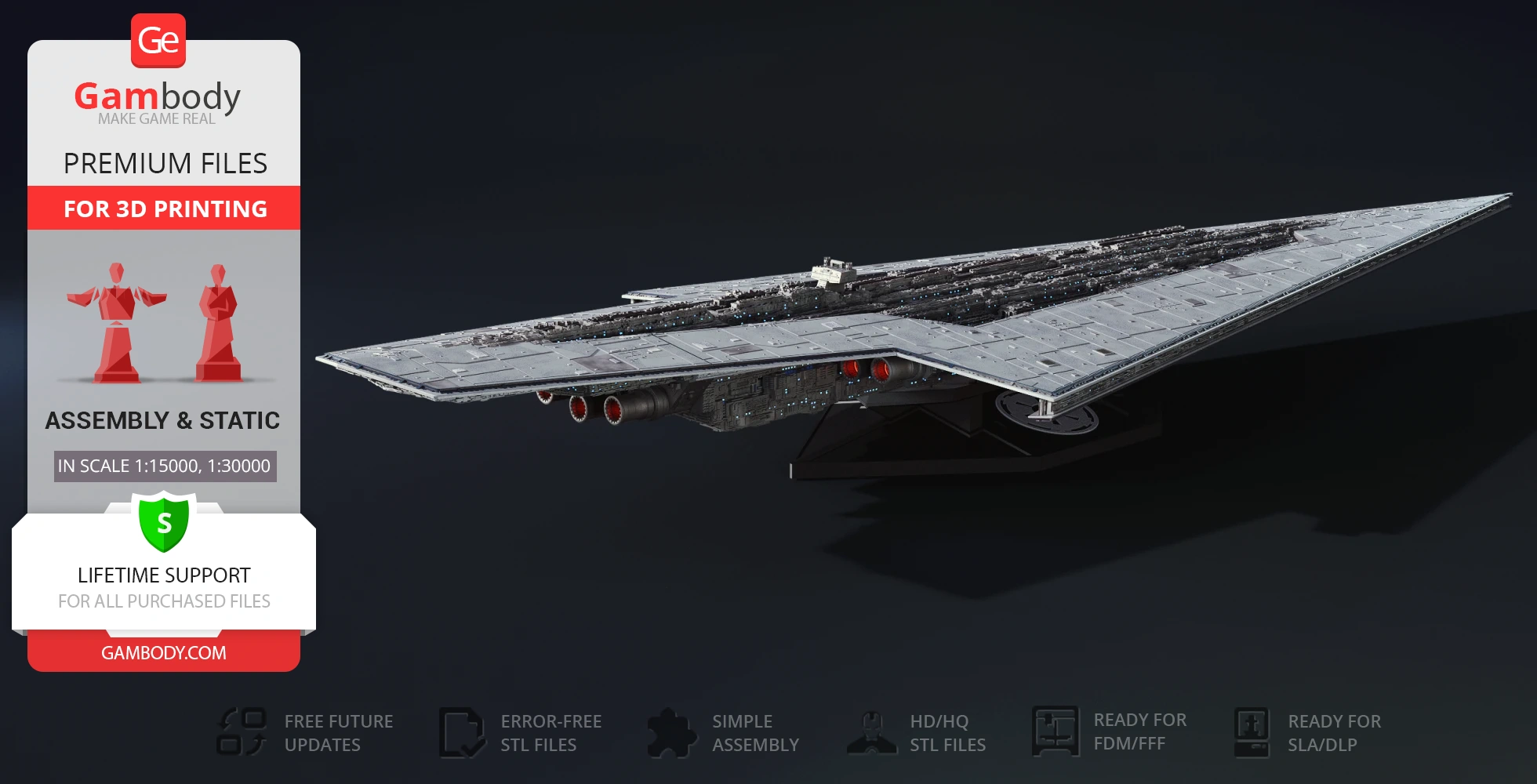

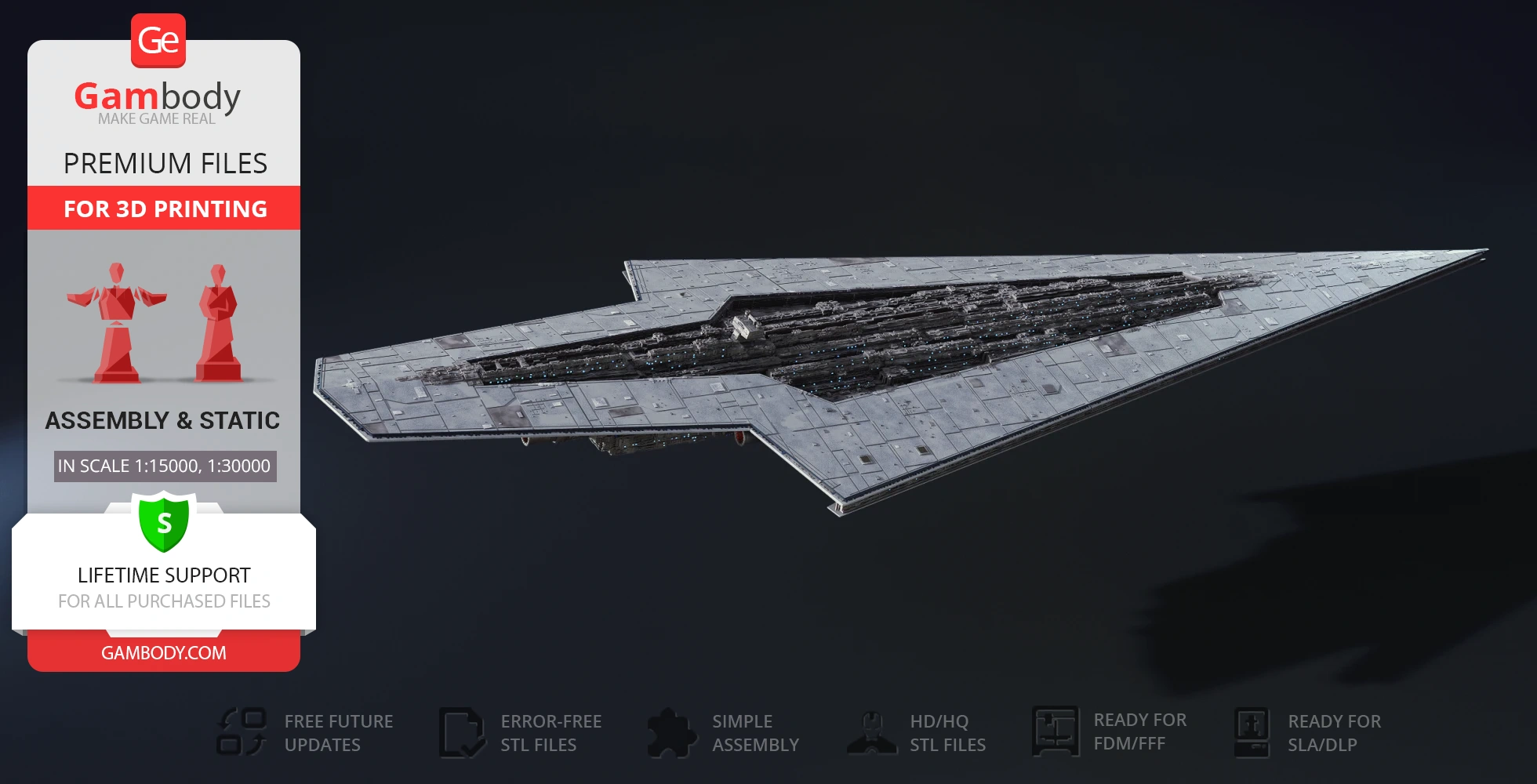

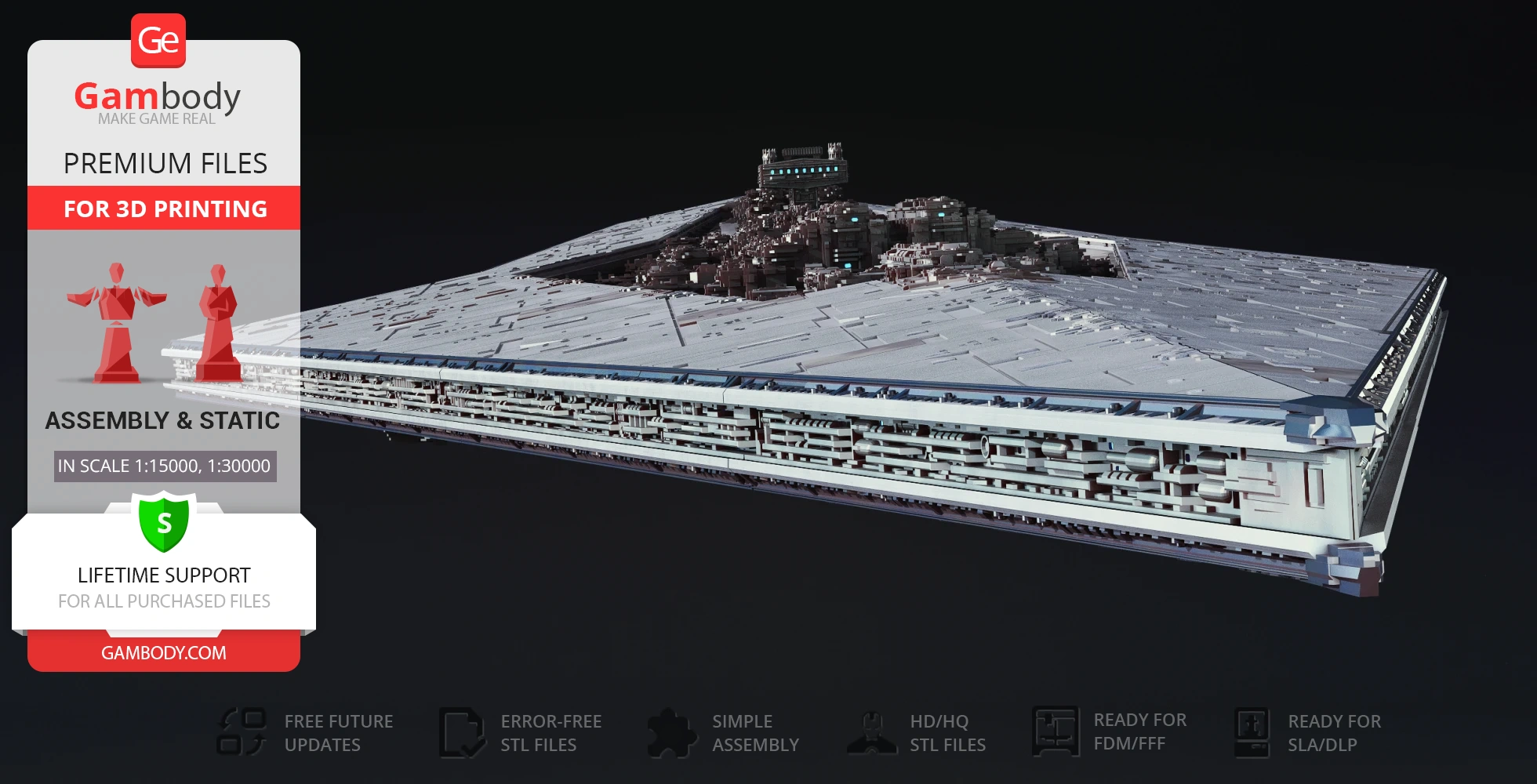

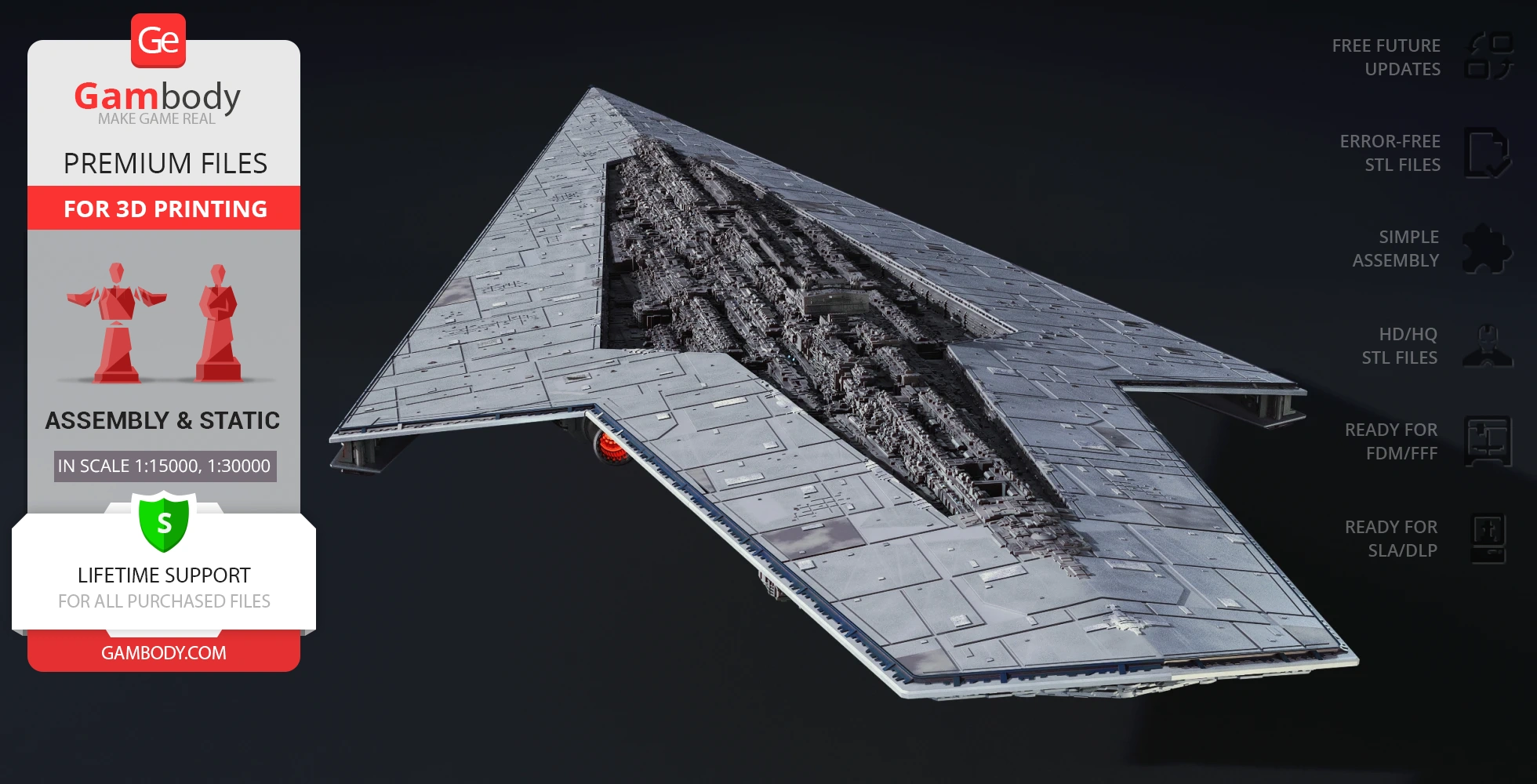

Super Star Destroyers are Imperial vessels the scale of which significantly exceeds the scale of Imperial Star Destroyers. This spacecraft has a smooth arrow-shaped hull with a command bridge raising in the center; it is equipped with numerous weapons, and hangar bays, and powered with thirteen red ion engines. All about this battleship testifies to its absolute power and resources and, for this reason, the SSD is usually assigned to the most important missions.

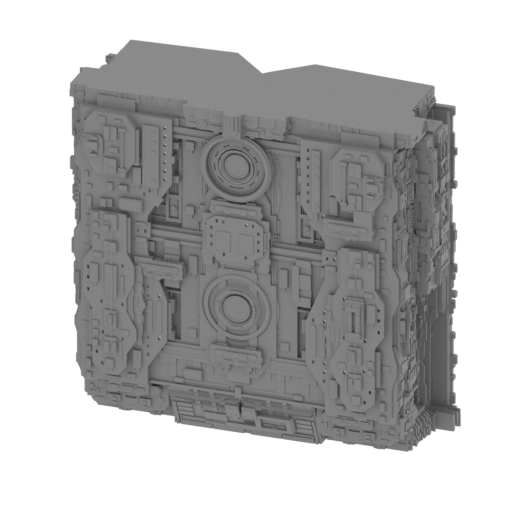

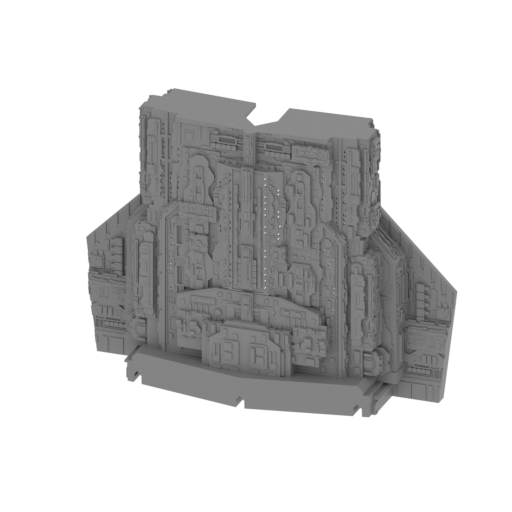

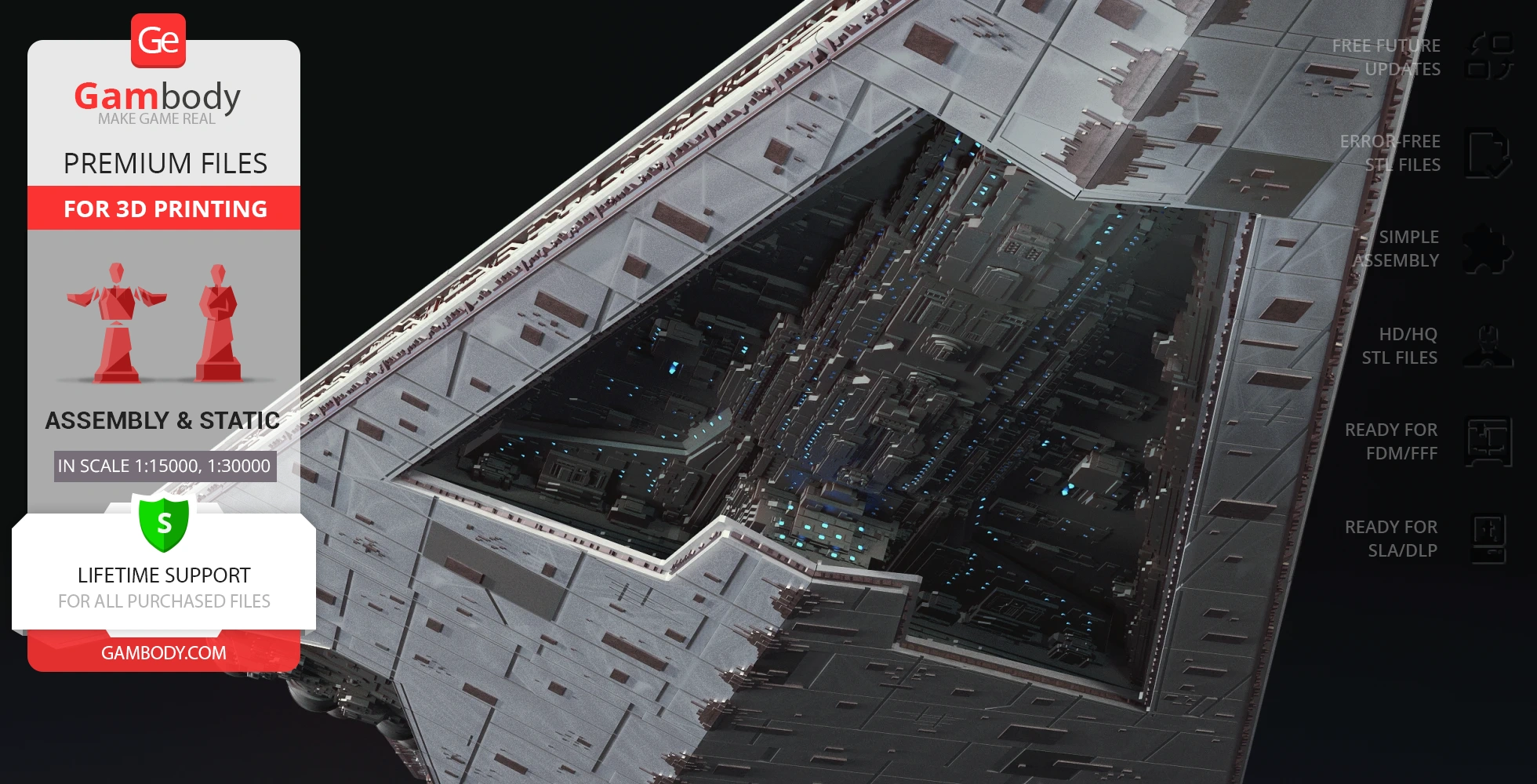

Super Star Destroyer for 3D printing is a project that took much time and effort from our contributing 3D artist as this model is of special significance for him. The ship has perfect symmetry, all surface panels are modeled with considerable accuracy. Such sections as the area of the city, the underside, and the ion engines feature exceptional design with every detail made well-considered. Every spaceship fan should 3D print this iconic vessel for their collection to evaluate its quality and design exclusivity!

ADAPTATION FOR 3D PRINTING

Super Star Destroyer model for 3D printing is a static assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 105 hours in total.

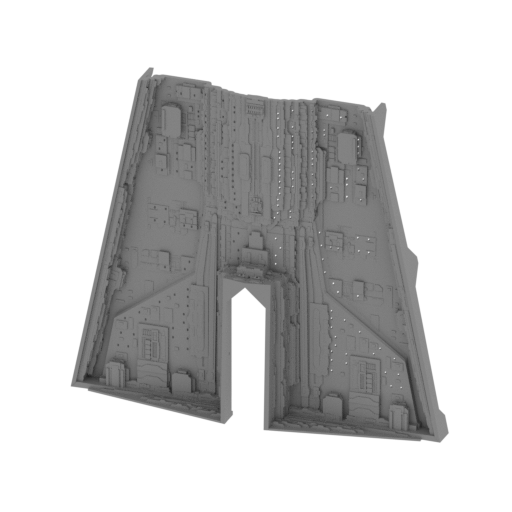

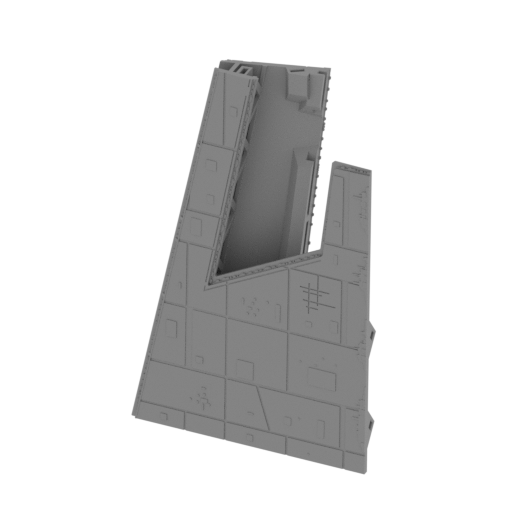

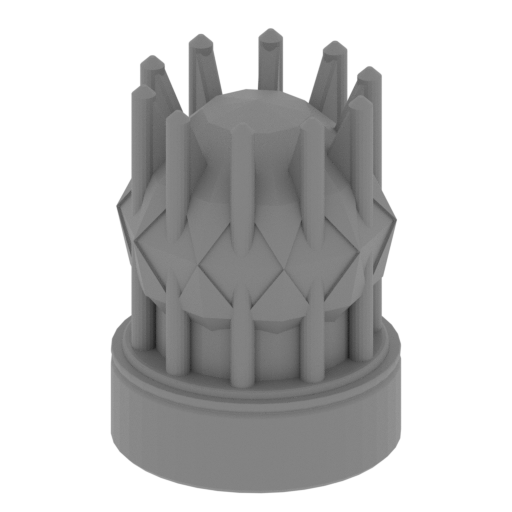

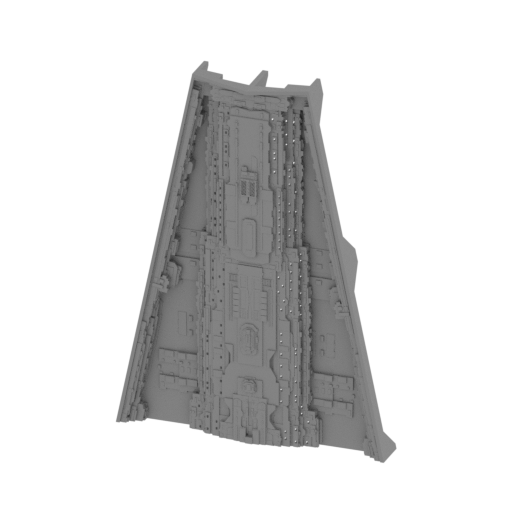

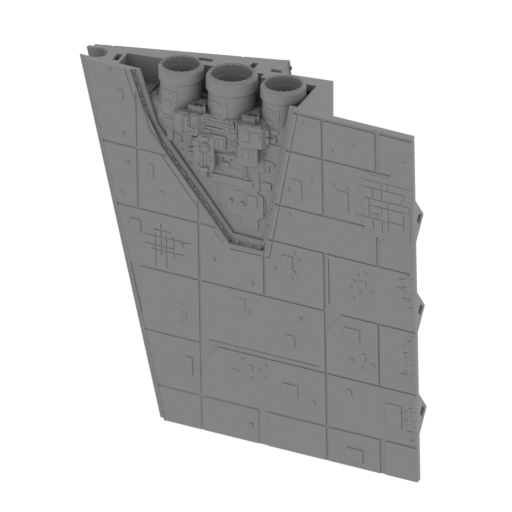

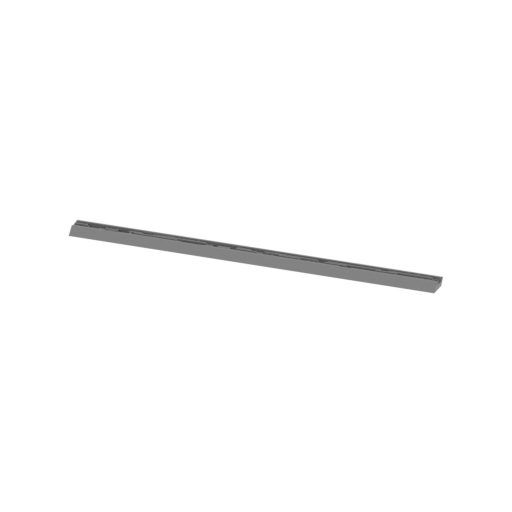

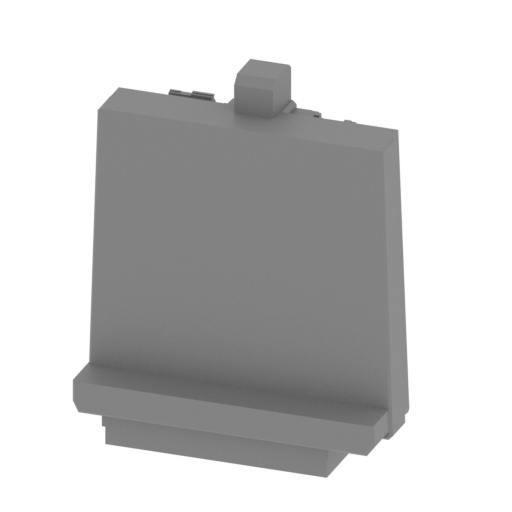

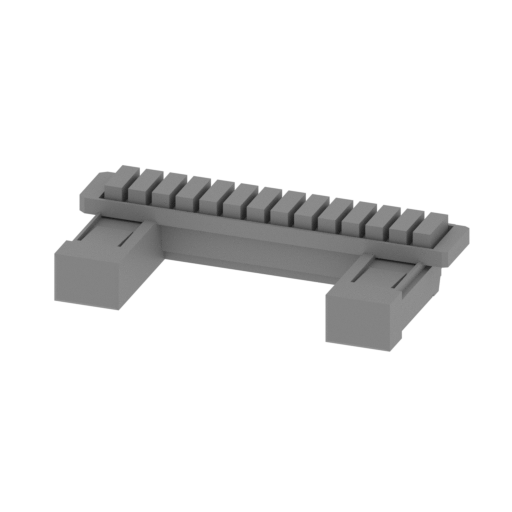

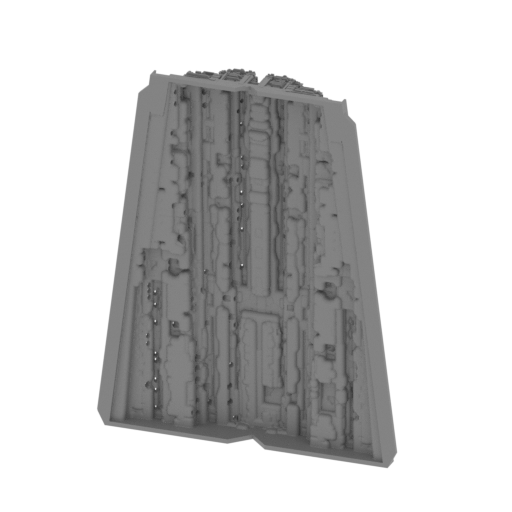

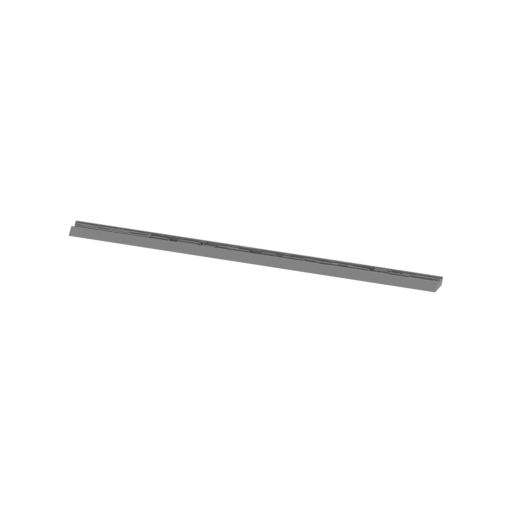

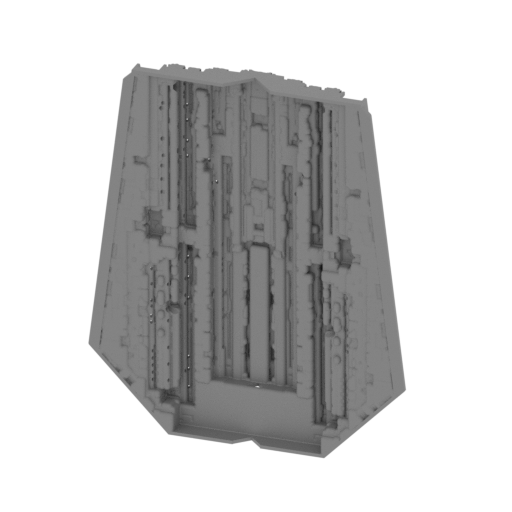

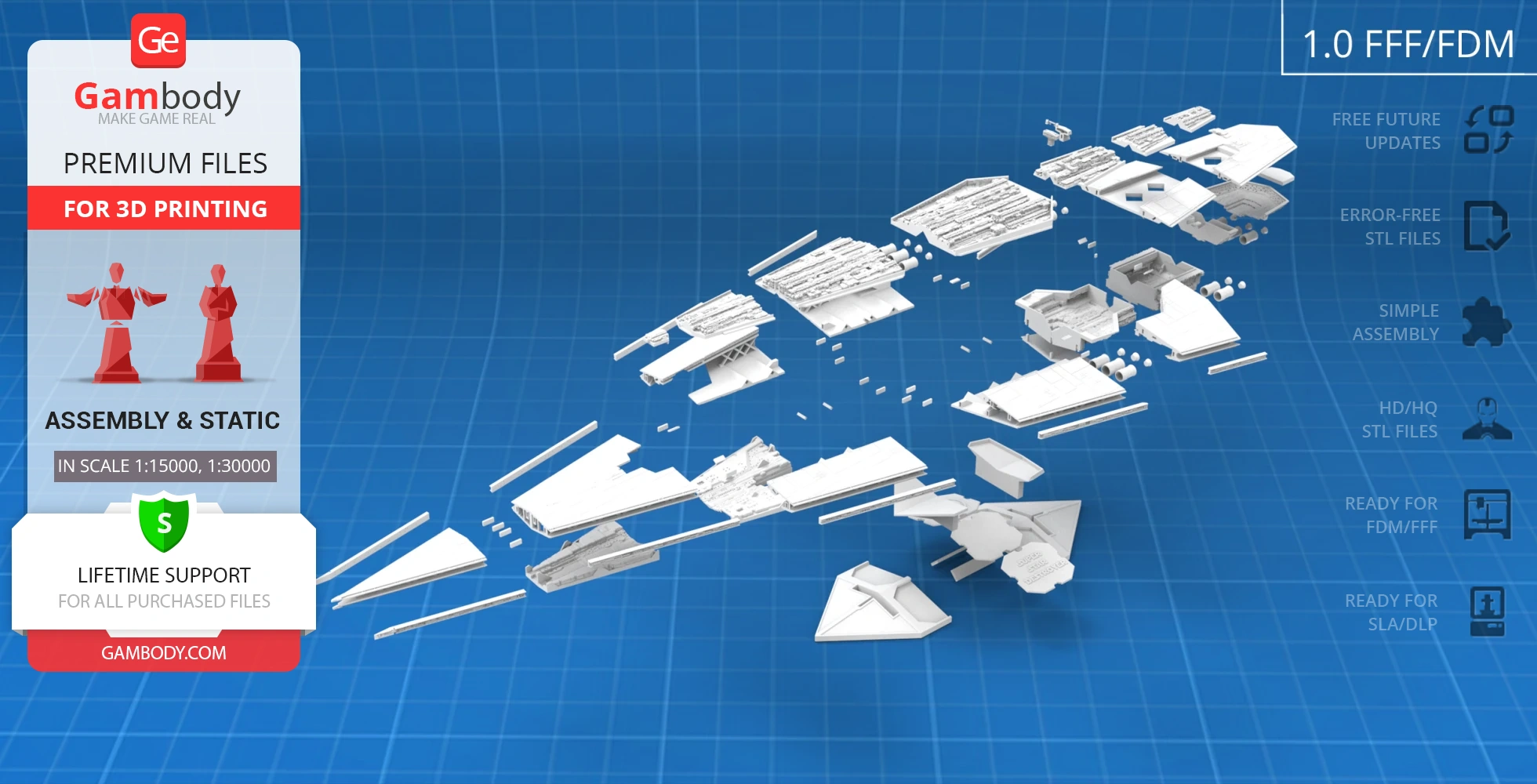

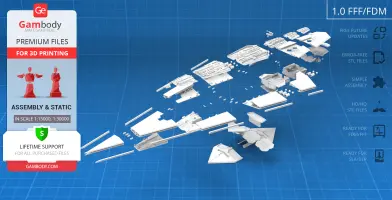

For you to receive the cleanest 3D printing result possible, minimize the amount of filament needed for generated support, and make use of the active elements designed by Gambody Engineers, the spacecraft was divided into convenient assembly parts.

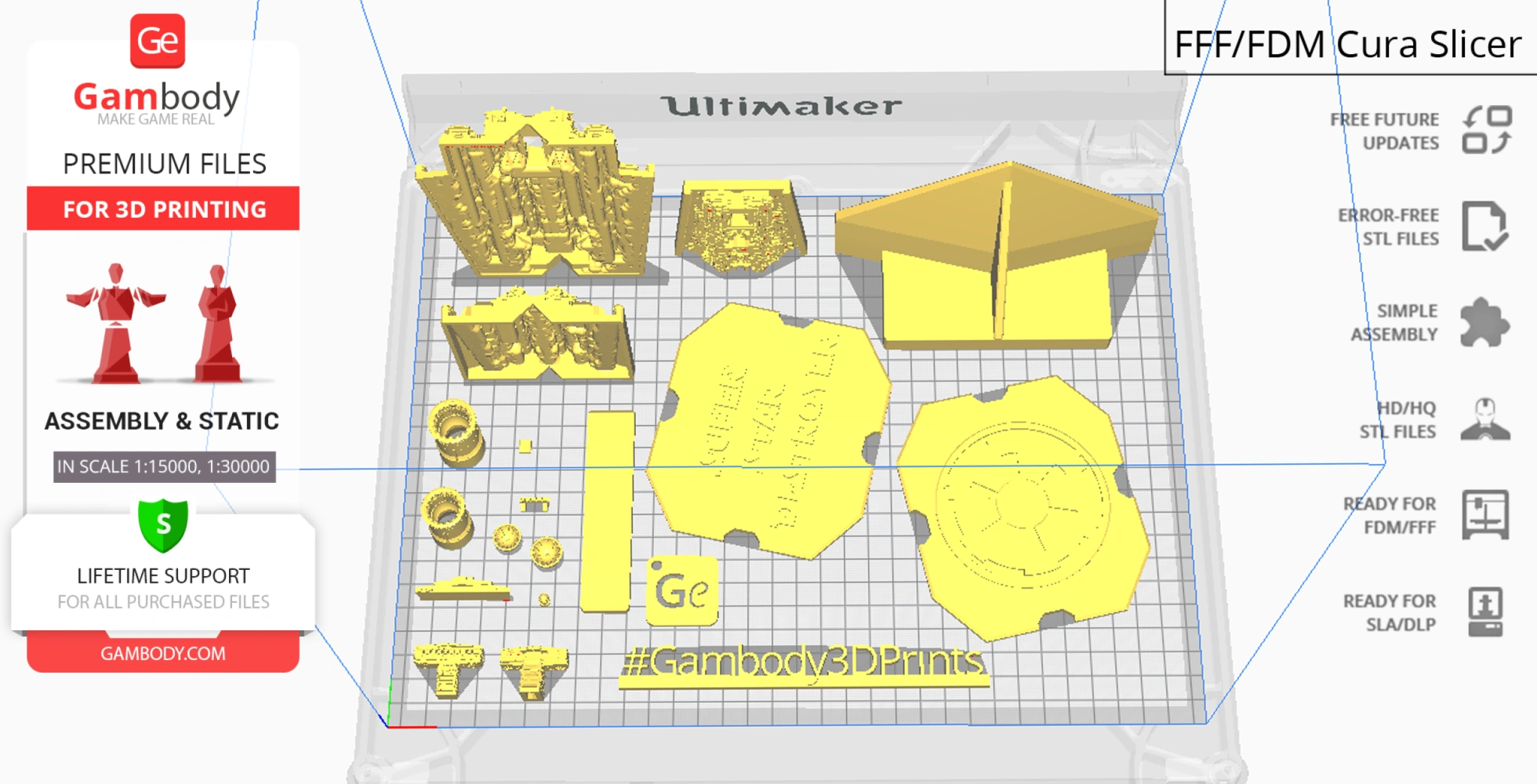

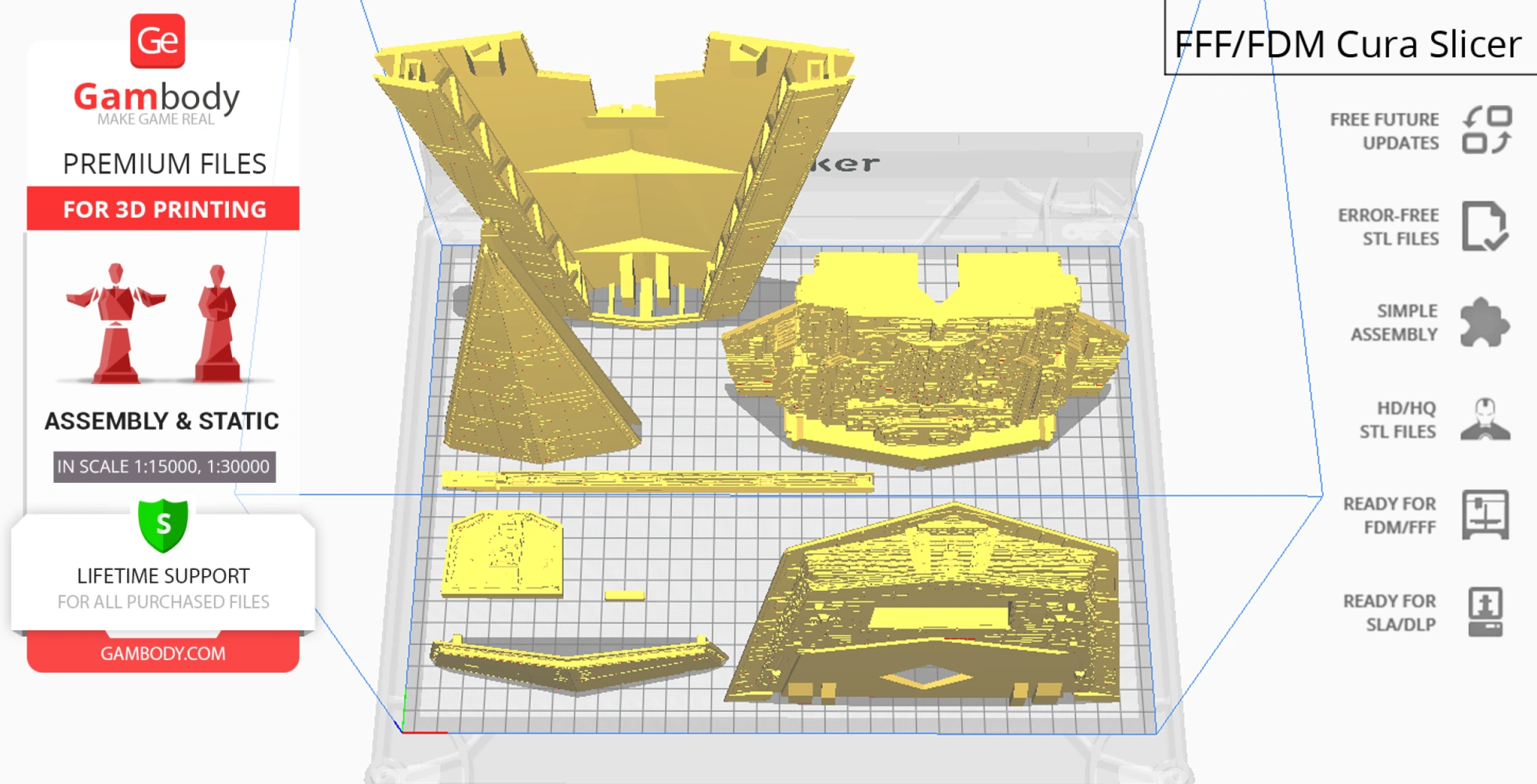

All assembly parts in the FFF/FDM 1.0 version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won’t face difficulties when placing the parts on a build plate. When downloading any model’s file you will also receive “Assembly Manual” for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats. We highly recommend that you get acquainted with the “Assembly Video” and “Assembly Manual” before getting down to the Super Star Destroyer 3D printing model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

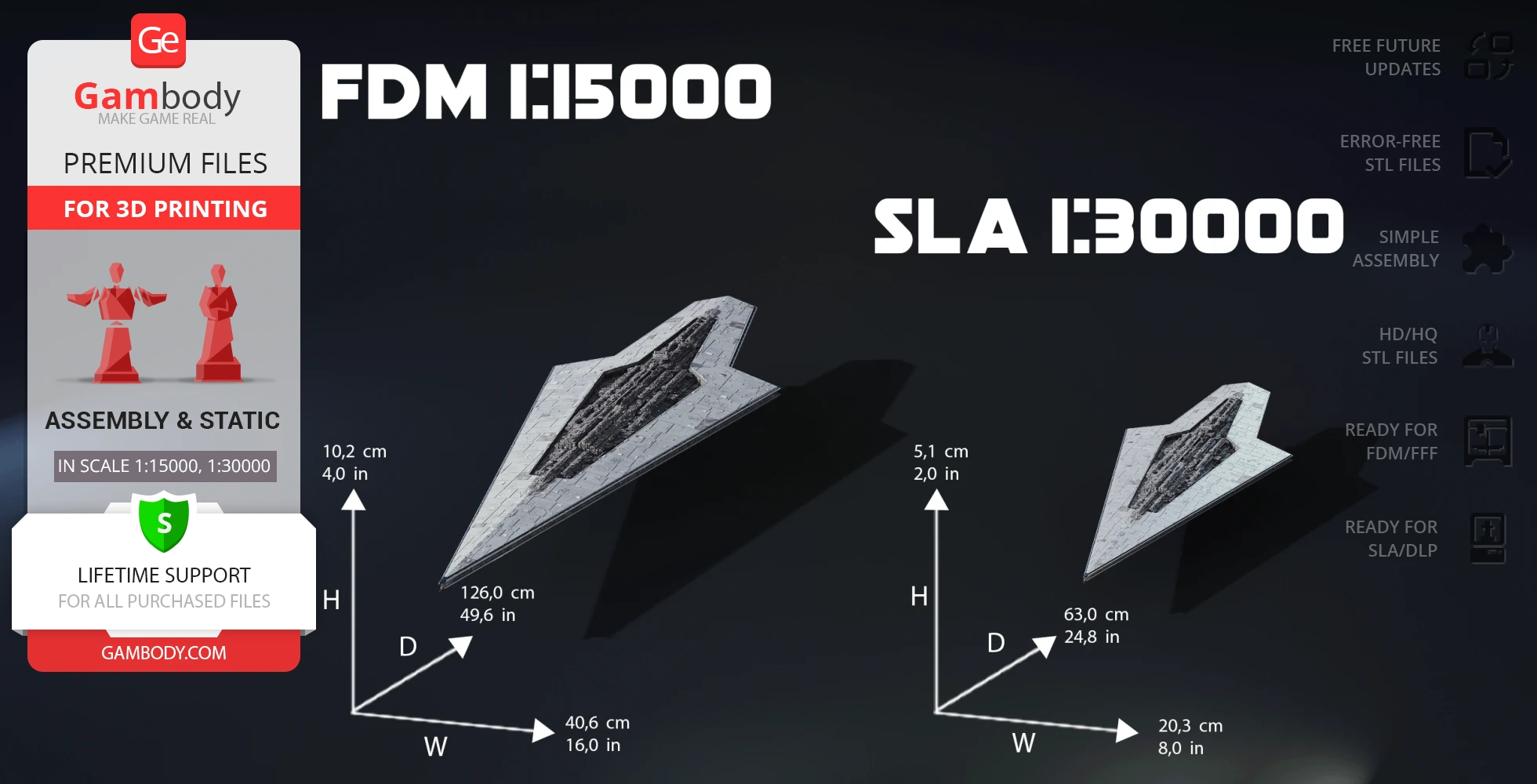

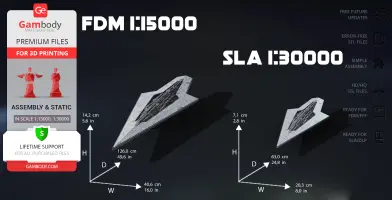

The model’s scale was calculated from the length of the Super Star Destroyer which is 19000000 mm. The 3D printing model’s chosen scales are 1:15000 for the FFF/FDM version and 1:30000 for the DLP/SLA version.

VERSIONS’ SPECIFICATIONS

FFF/FDM 1.0 version features:

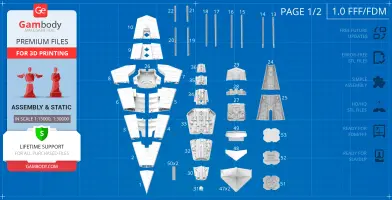

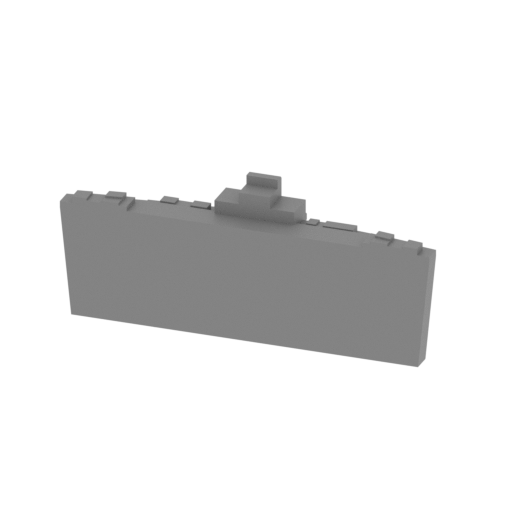

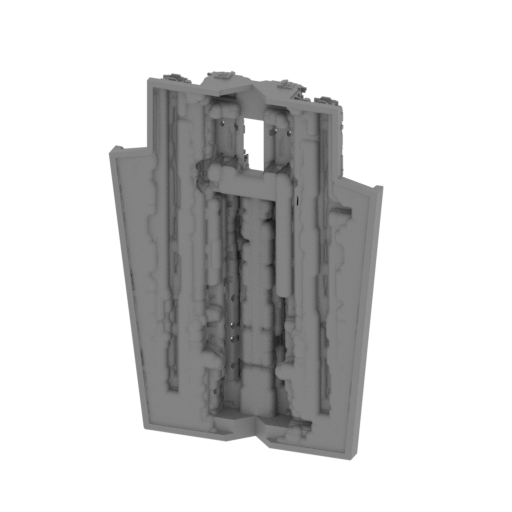

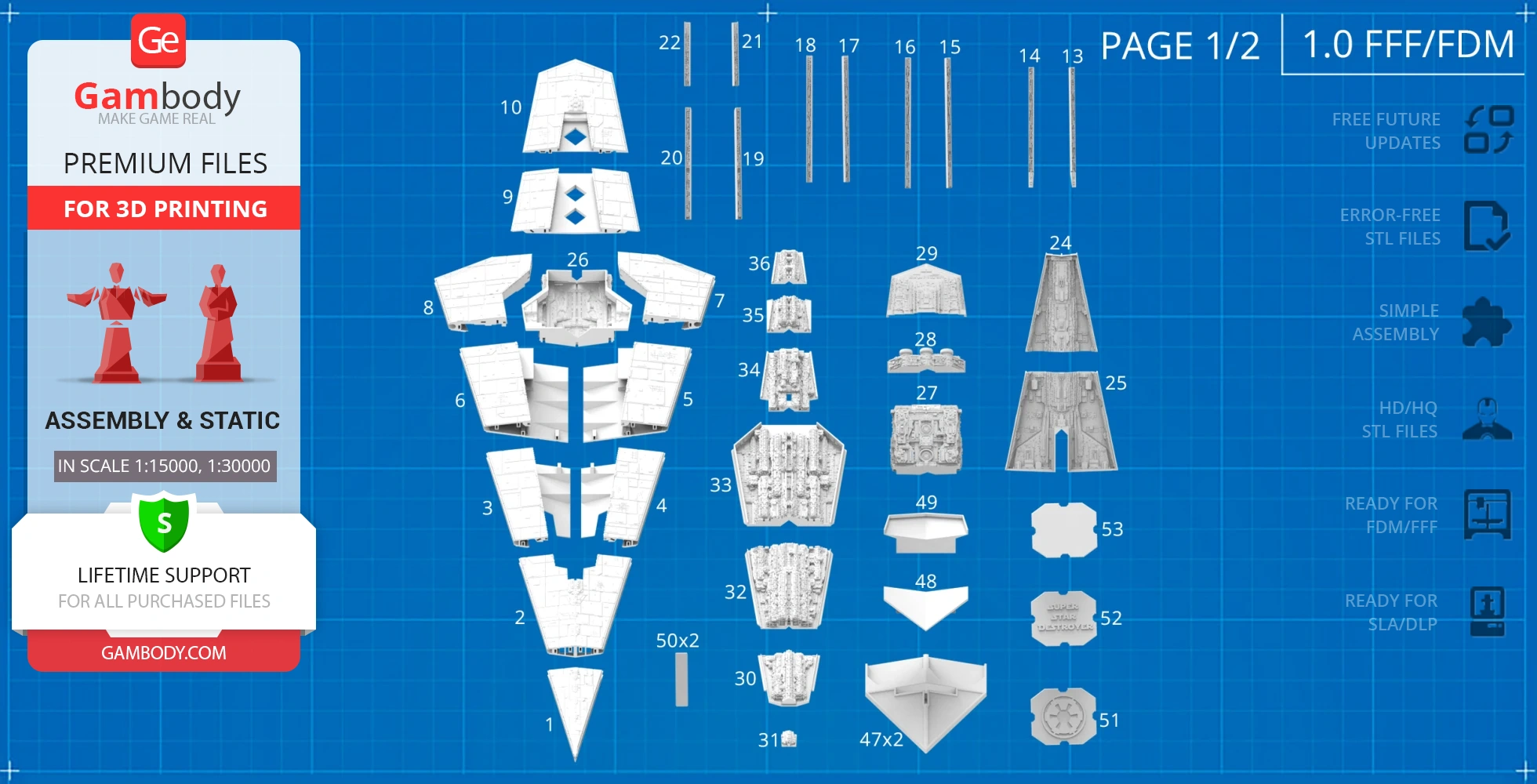

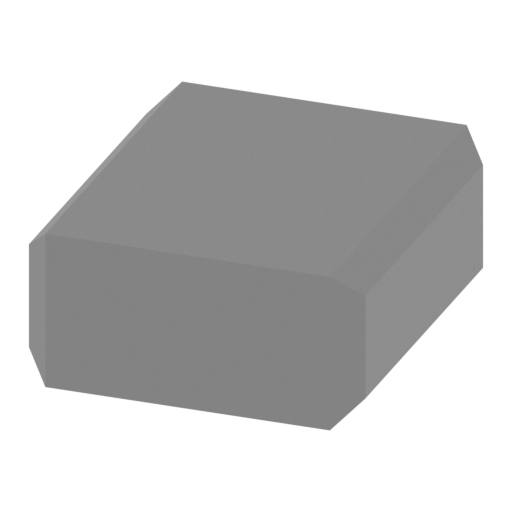

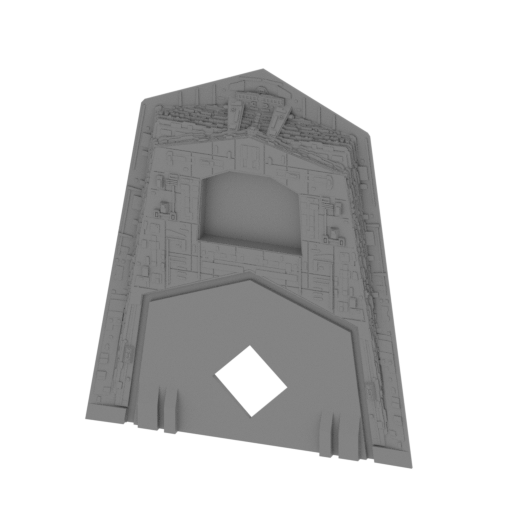

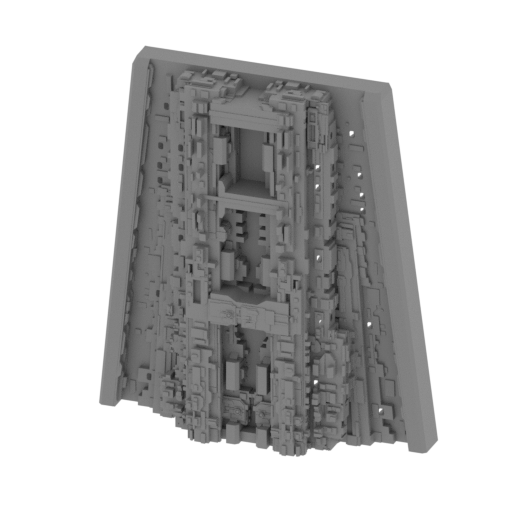

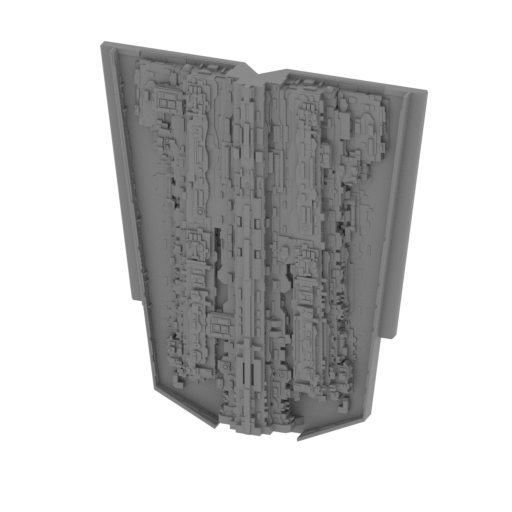

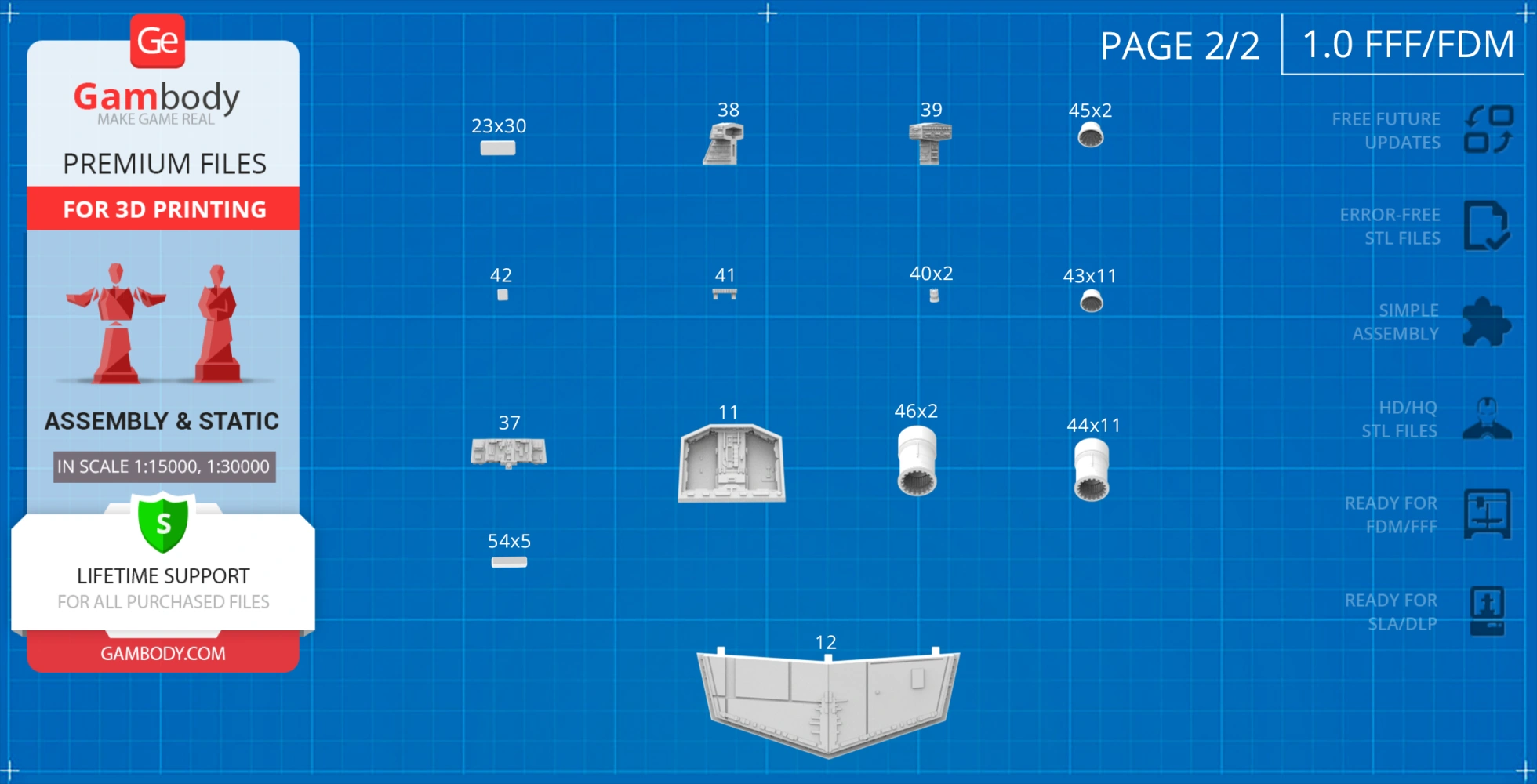

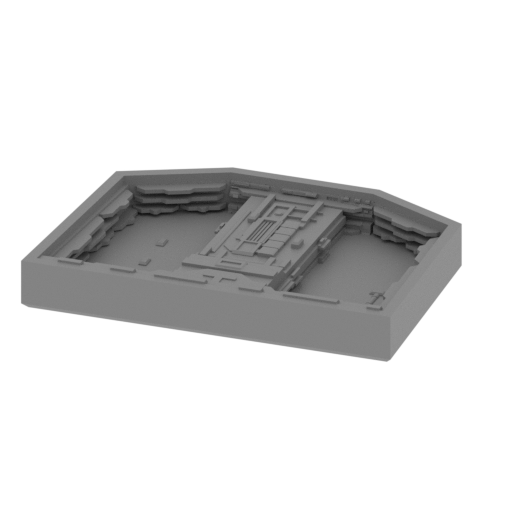

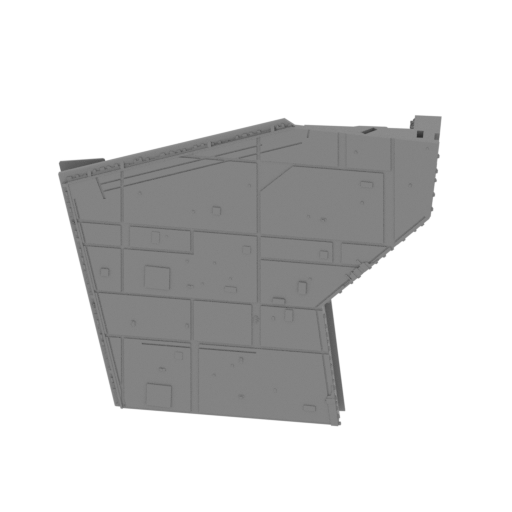

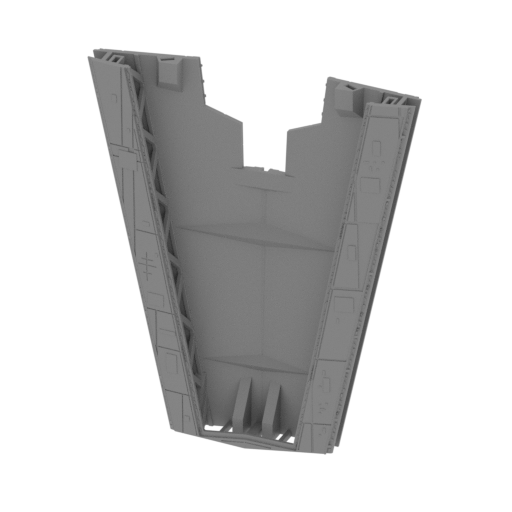

• Contains 54 parts;
• A printed model is 102 mm tall, 406 mm wide, 1260 mm deep;

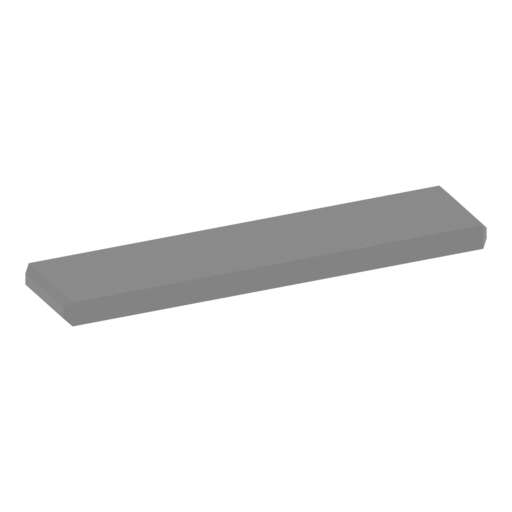

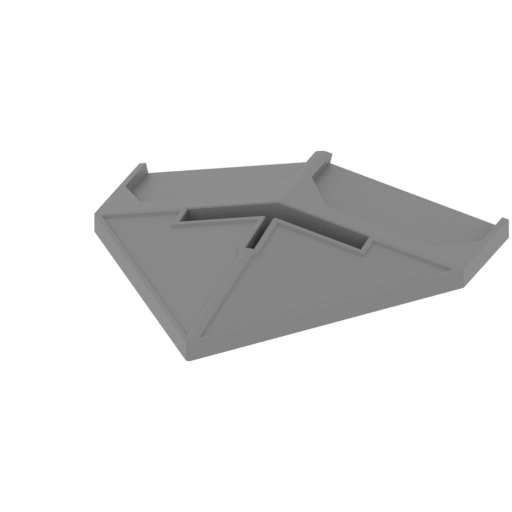

• A printed model on the stand is 142 mm tall, 406 mm wide, 1260 mm deep;

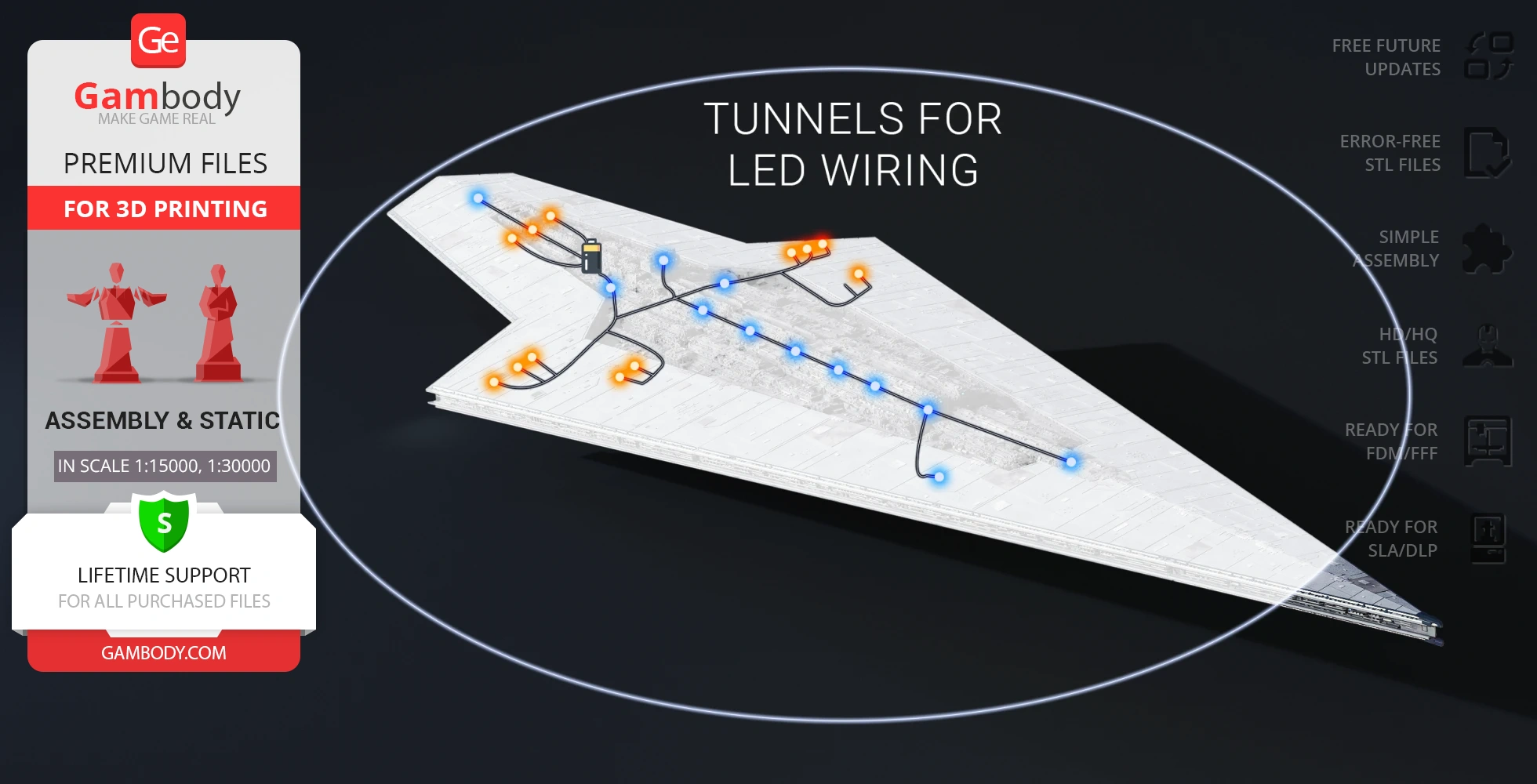

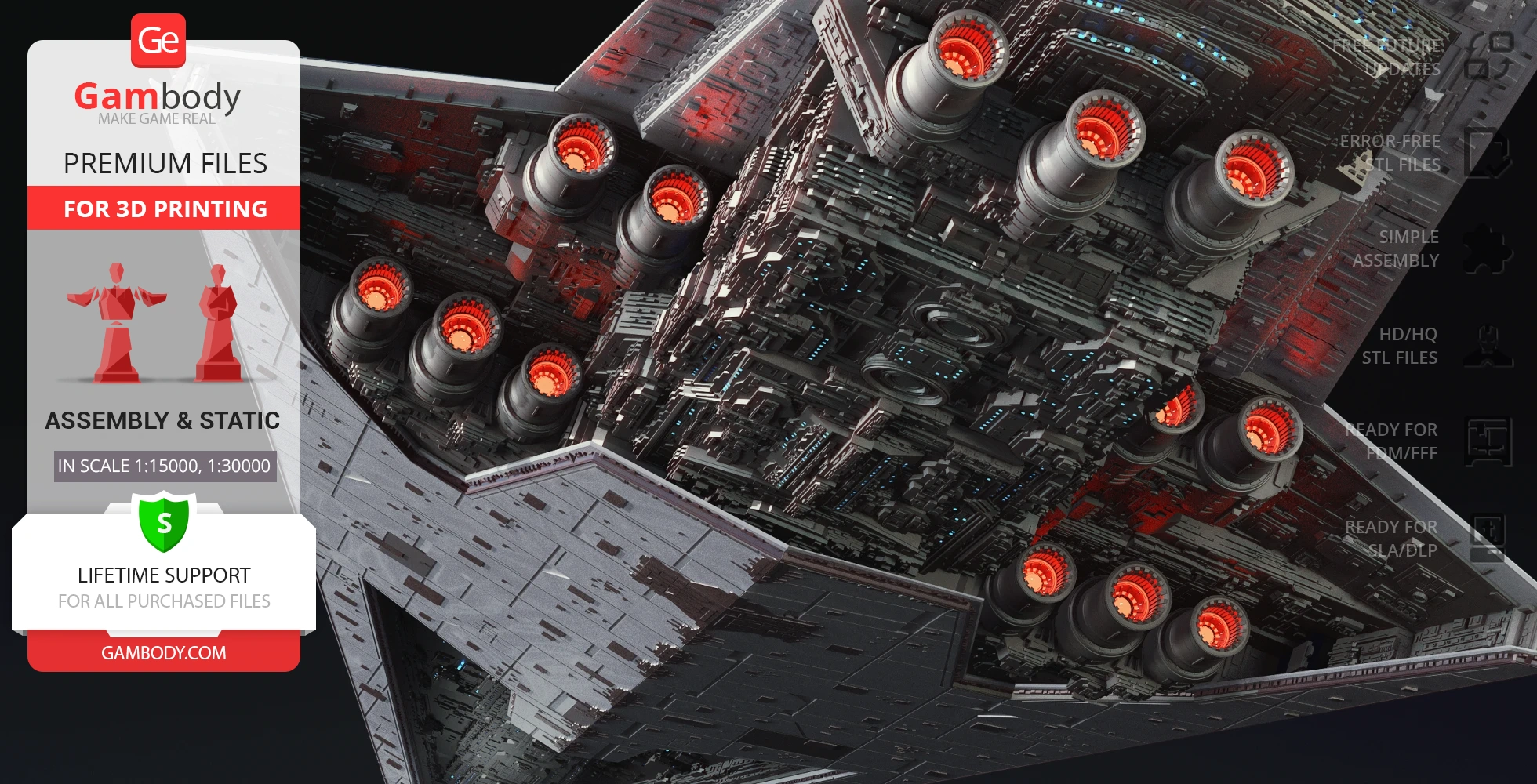

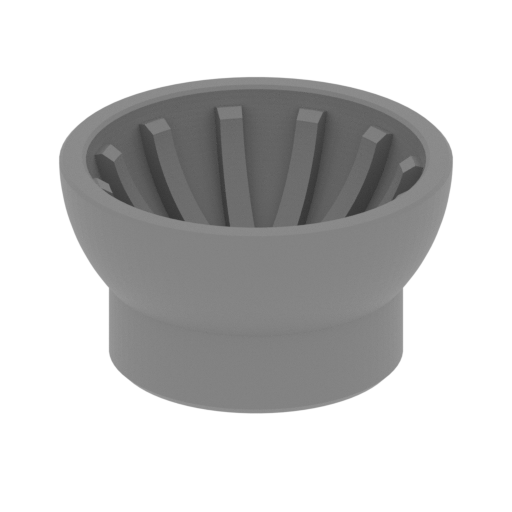

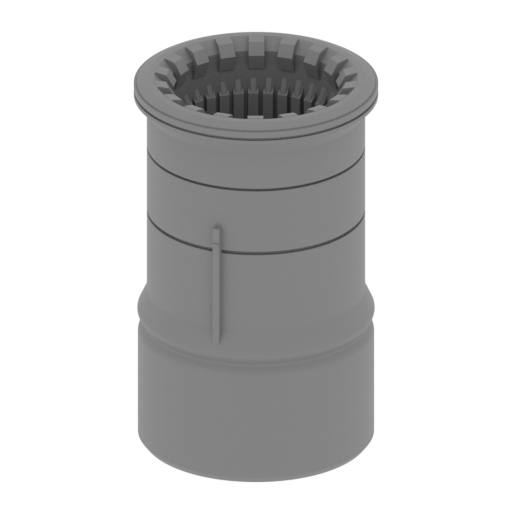

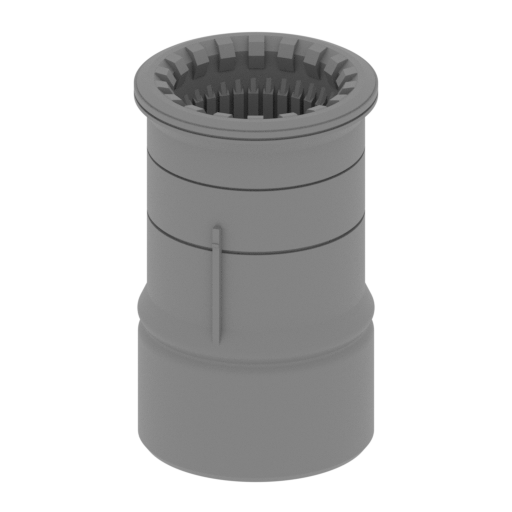

• Tunnels for LED wiring to illuminate engines;
• Tunnels for wiring to illuminate the hull;

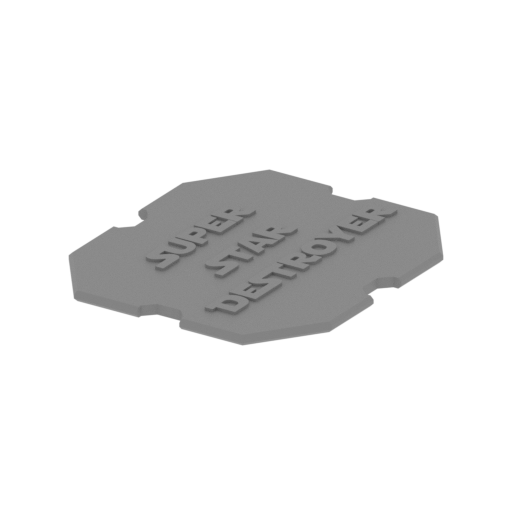

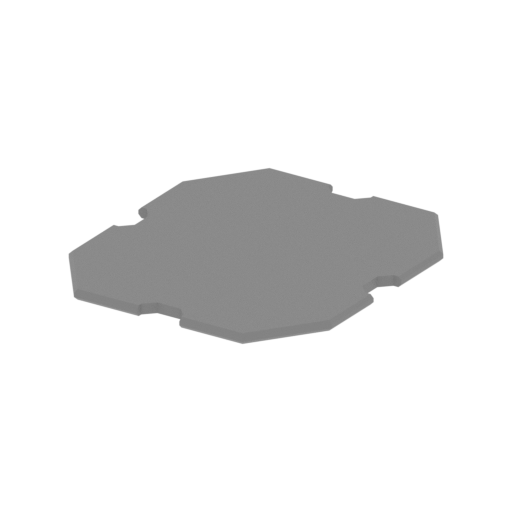

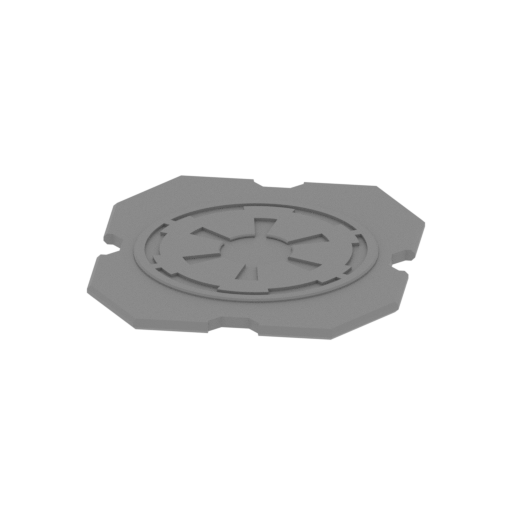

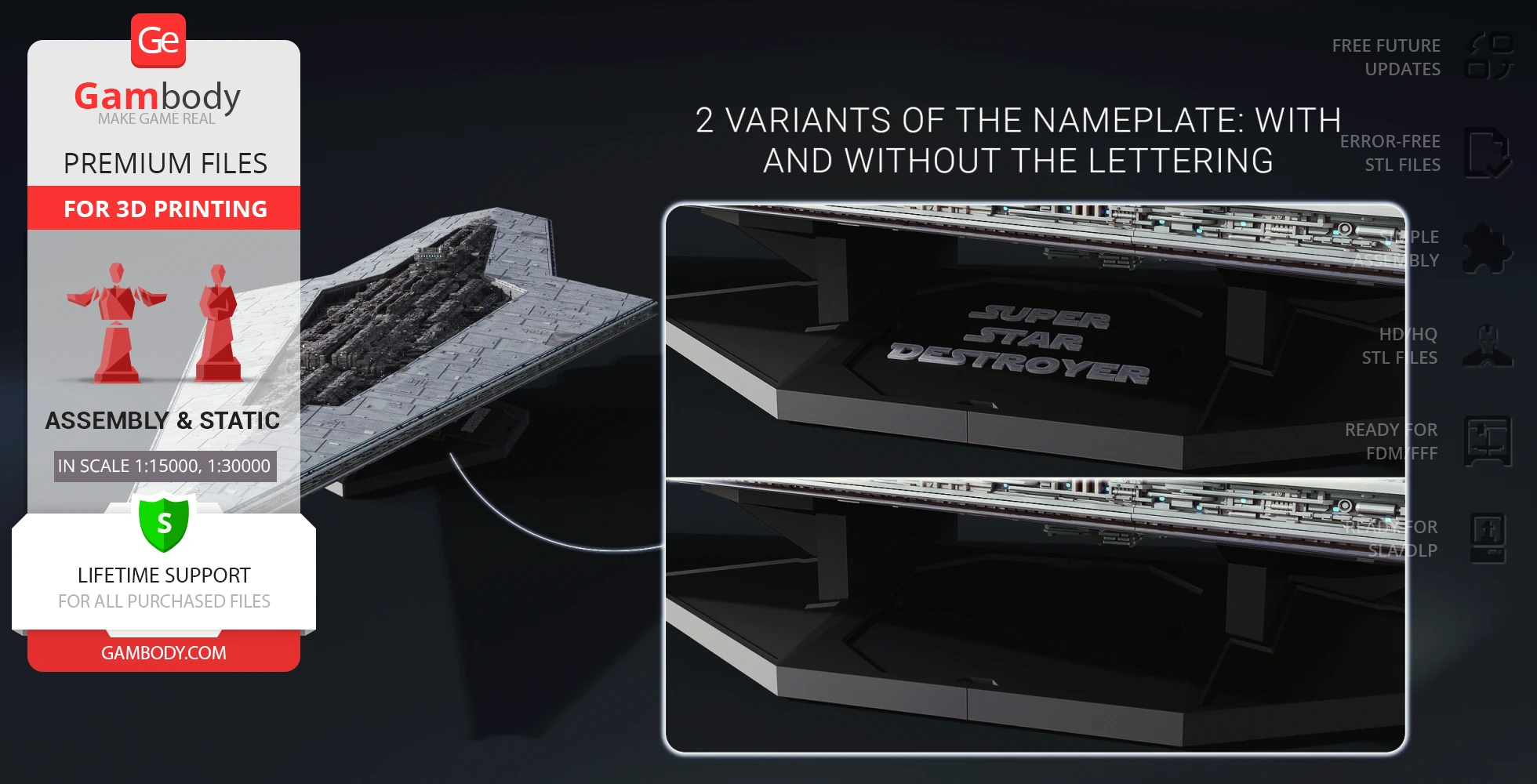

• 2 variants of the platform nameplate: with and without the lettering;
• A significant level of detail is good for printing the files at 150-200% scale;
• All parts are divided in such a way that you will print them with the smallest number of support structures.

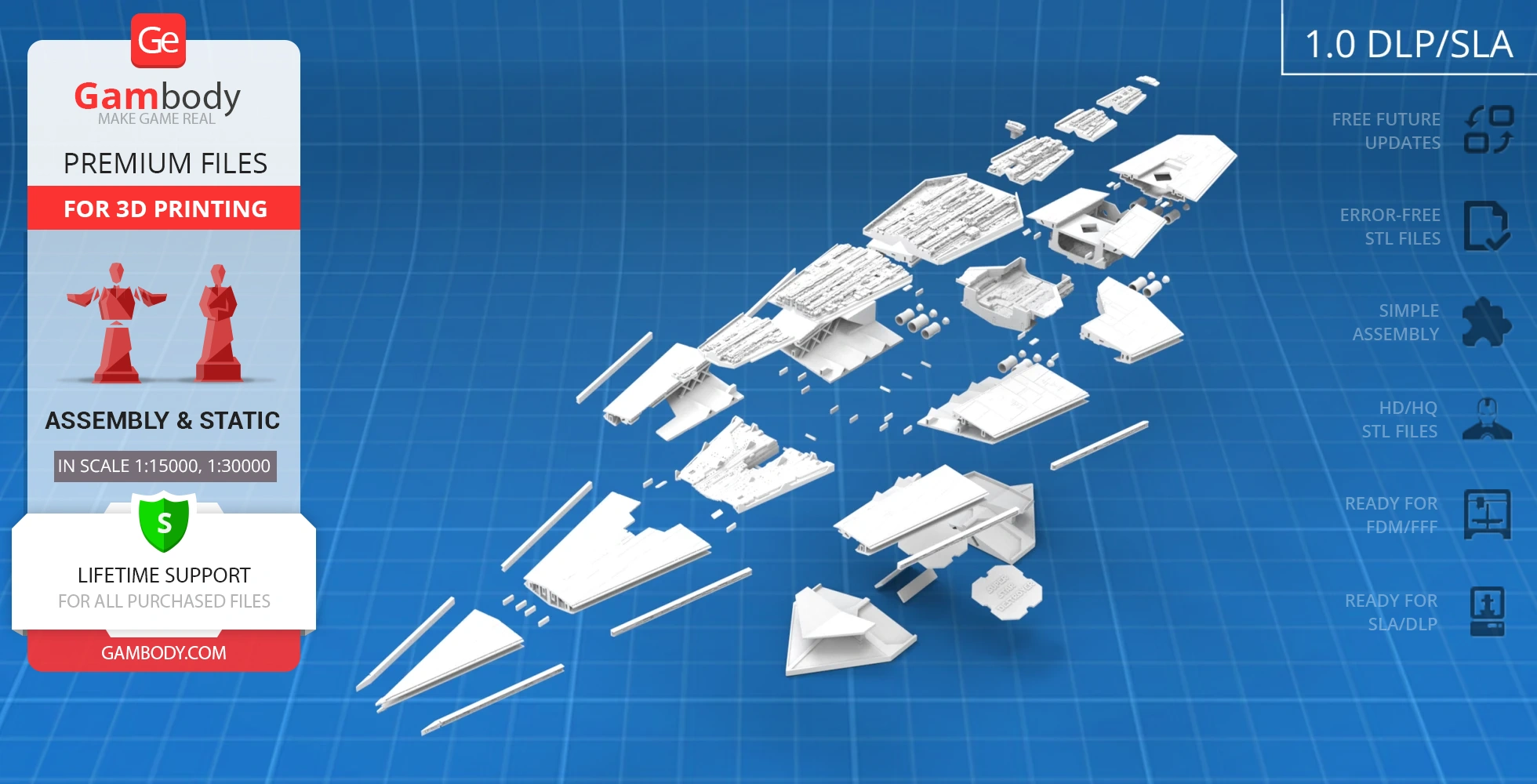

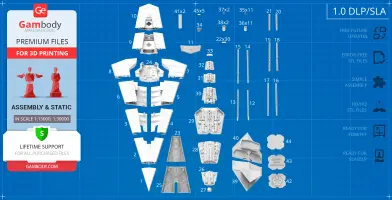

DLP/SLA 1.0 version features:

• Contains 45 parts;
• A printed model is 51 mm tall, 203 mm wide, 630 mm deep;
• A printed model on the stand is 71 mm tall, 203 mm wide, 630 mm deep;
• Tunnels for LED wiring to illuminate engines;
• Tunnels for wiring to illuminate the hull;
• 2 variants of the platform nameplate: with and without the lettering;
• A significant level of detail is good for printing the files at 150-200% scale;
• All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

You can get the Super Star Destroyer model for 3D printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble a Super Star Destroyer 3D Printing Model on Gambody YouTube channel.

Also, you may like other Spacecraft 3D Printing Models.

________

FAQ:

• Where can I print a model if I have no printer?
• How to get started with 3D printing?
• How to set up my 3D printer?
• How to choose right 3D model print bed positioning?
• How to paint printed figurine?

Generic

Below you can find printing recommendations for Cura, Bambu Lab, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

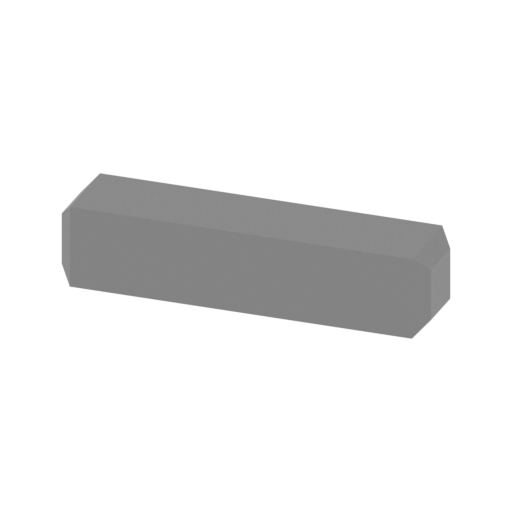

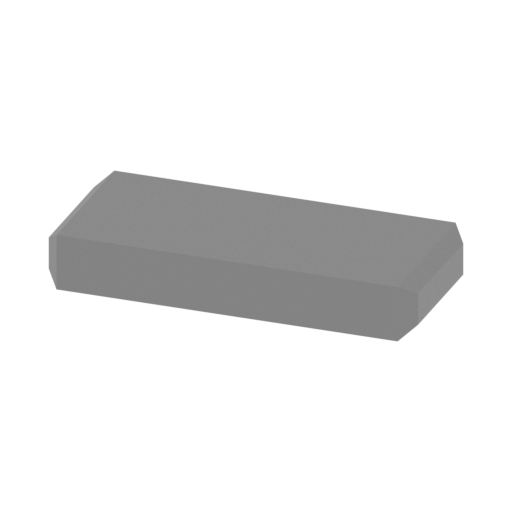

All connectors should be printed at 100% Infill.

Bambu Lab printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Bambu Studio 1.9.1. Test models were printed on the Bambu Lab A1, Bambu Lab A1 Mini, Creality Ender 3 S1, Anycubic Kobra 2, and Anycubic Vyper using PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
