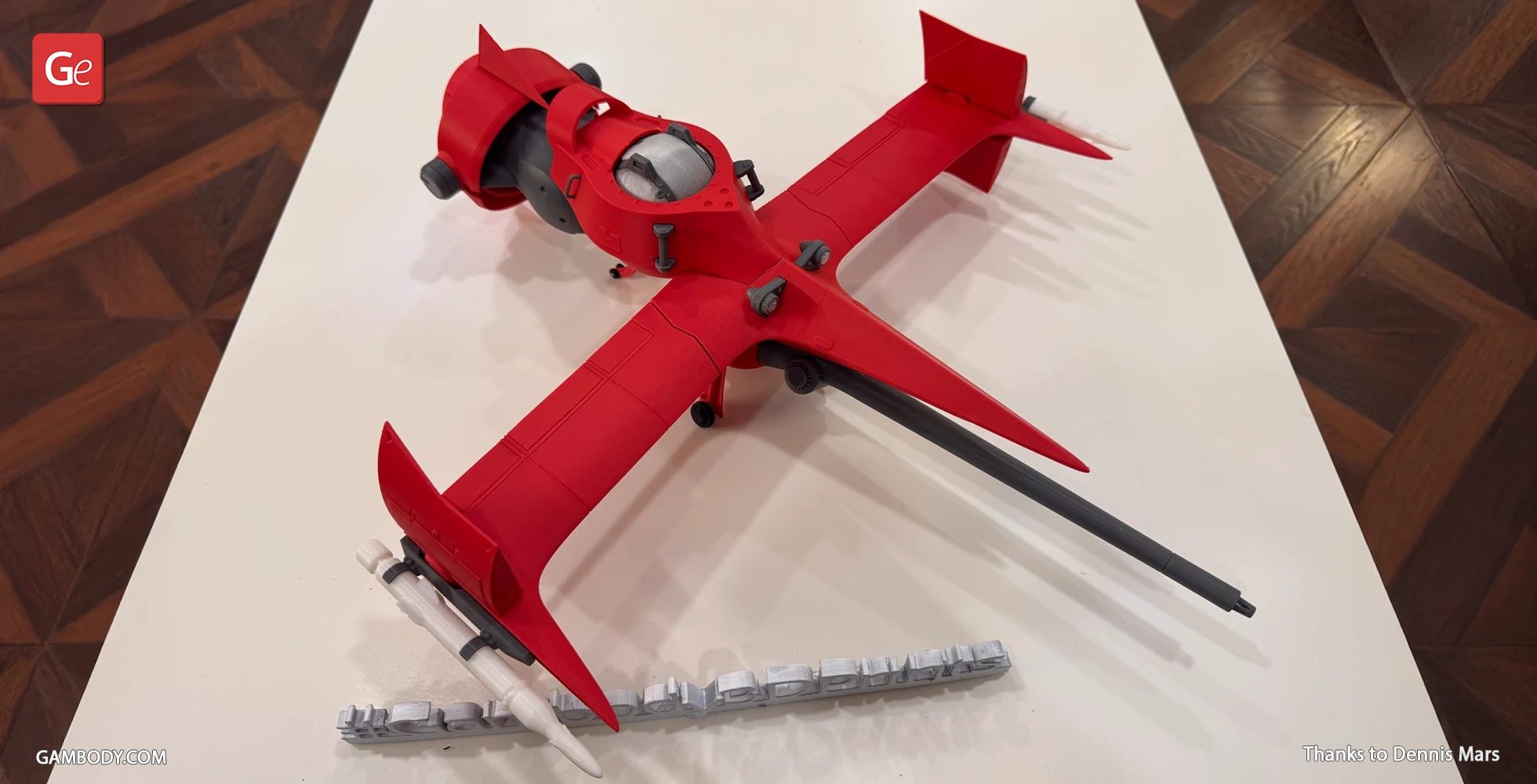

Swordfish II 3D Printing Model | Assembly + Action

(1)
cm: 39.8 w x 43.6 d x 17.7 h
in: 15.669 w x 17.165 d x 6.969 h

Source Files

|

Description

|

Printing Details

This 3D model of Swordfish II consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

  • 2 versions of Swordfish II STL files for FFF/FDM and DLP/SLA files for all versions are available for download after the purchase;
  • STL files of high-poly Swordfish II model for 3D printing consist of 193 files;
  • Sizes for:
  • FFF/FDM: 131 mm tall, 398 mm wide, 436 mm deep;
  • FFF/FDM on the stand: 177 mm tall, 398 mm wide, 436 mm deep;
  • DLP/SLA: 65 mm tall, 199 mm wide, 218 mm deep;
  • DLP/SLA on the stand: 89 mm tall, 199 mm wide, 218 mm deep;
  • Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats;
  • Detailed settings that we provide as a recommendation for Cura, Bambu Studio, Simplify3D, Slic3r and PrusaSlicer for the best print;
  • Full technical support from the Gambody Support Team.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)
_01_swordfishHull_a_V1_FD M (repaired).stl
2.39 MiB 4 h 3 min 2 m 37 x 42 x 125 Download

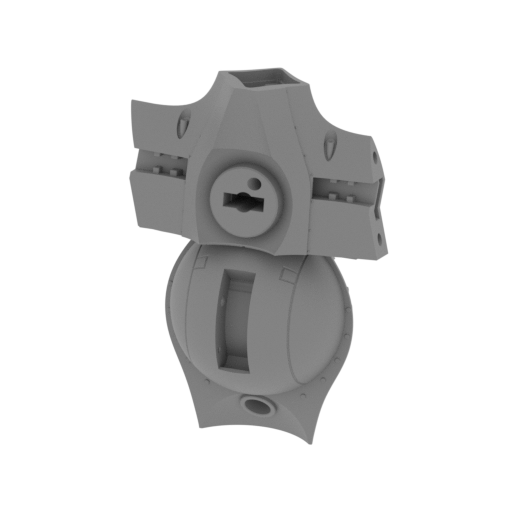

_02_swordfishHull_b_V1_FD M (repaired).stl
17.84 MiB 32 h 8 min 19 m 105 x 56 x 150 Download

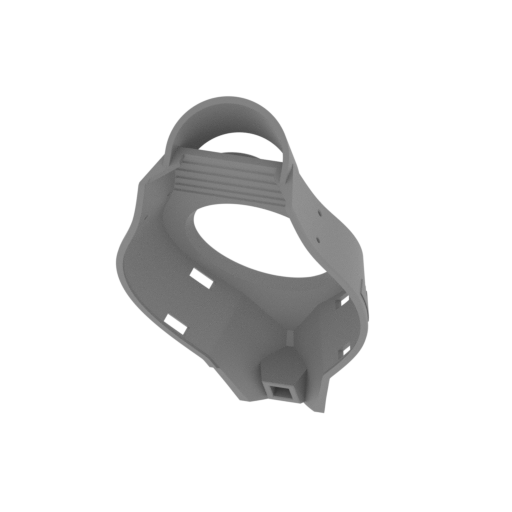

_03_swordfishHull_c_V1_FD M (repaired).stl
2.70 MiB 11 h 44 min 8 m 80 x 73 x 121 Download
_04_hullPart_a_FDM (repai red).stl
0.07 MiB 14 min <1 m 29 x 35 x 7 Download

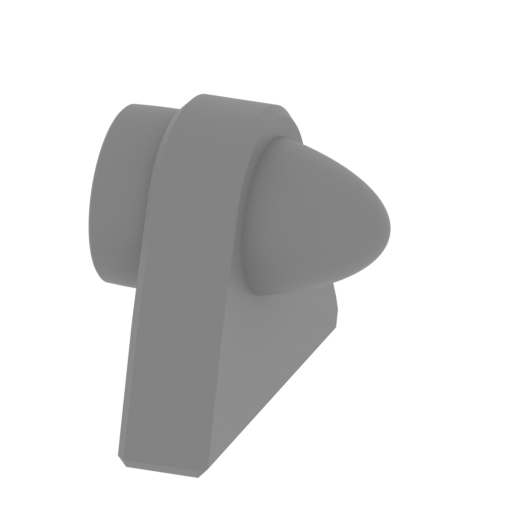

_05_hullPart_b_L_FDM (rep aired).stl
2.19 MiB 27 min <1 m 14 x 20 x 16 Download

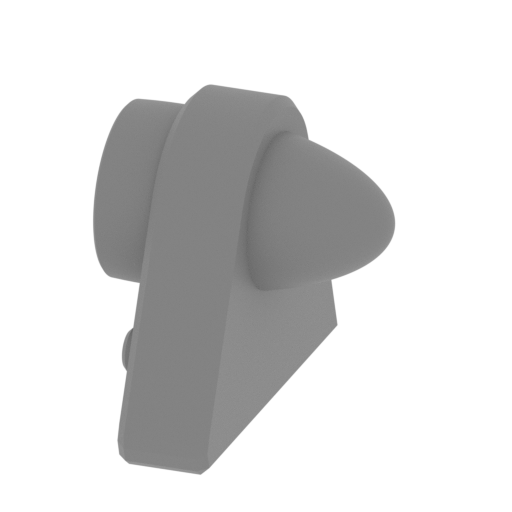

_06_hullPart_c_R_FDM (rep aired).stl
2.19 MiB 27 min <1 m 14 x 20 x 16 Download

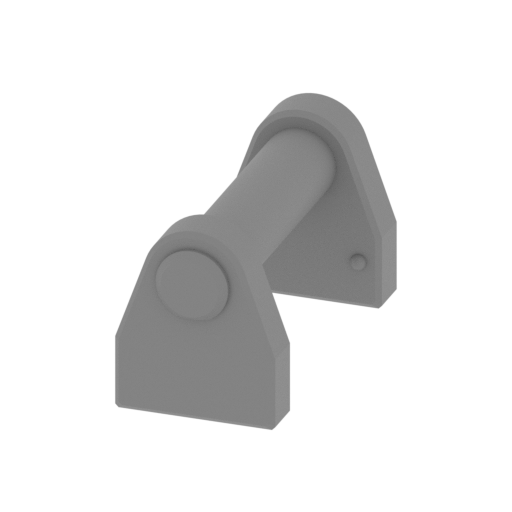

_07_hullPart_d_X2_FDM (re paired).stl
0.54 MiB 13 min <1 m 9 x 21 x 11 Download
_08_hullPart_e_X2_FDM (re paired).stl
0.79 MiB 2 min <1 m 7 x 14 x 2 Download

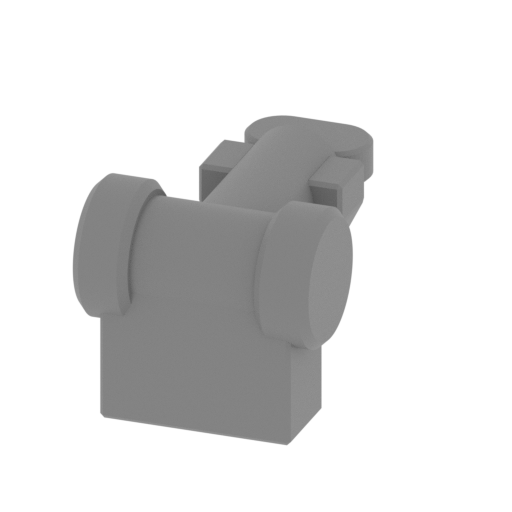

_09_hullPart_f_X2_FDM (re paired).stl
0.43 MiB 4 min <1 m 5 x 8 x 5 Download

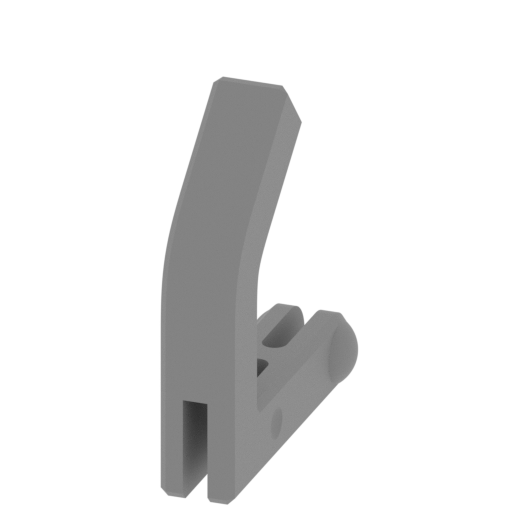

_10_hullPart_g_FDM (repai red).stl
0.33 MiB 35 min <1 m 8 x 27 x 30 Download

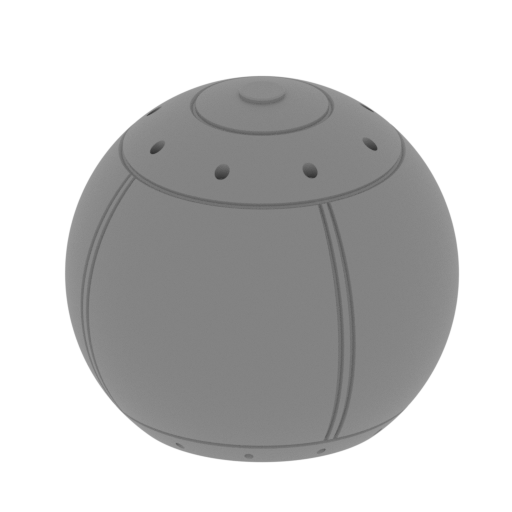

_11_weapon_a_FDM (repaire d).stl
5.72 MiB 5 h 46 min 3 m 52 x 47 x 46 Download
_12_weapon_b_V1_FDM (repa ired).stl
3.73 MiB 2 h 39 min 1 m 34 x 32 x 49 Download

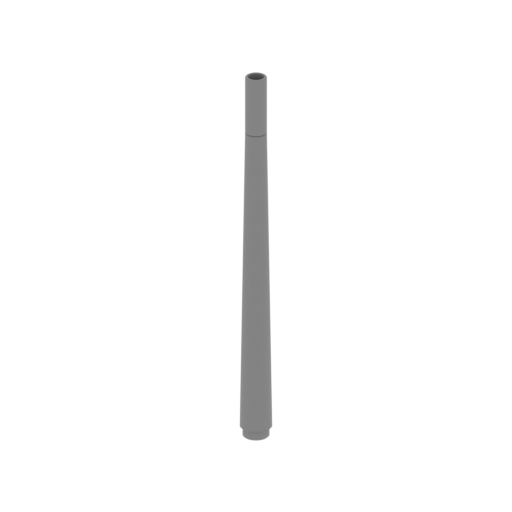

_13_weapon_c_FDM (repaire d).stl
0.70 MiB 2 h 50 min 1 m 14 x 14 x 176 Download

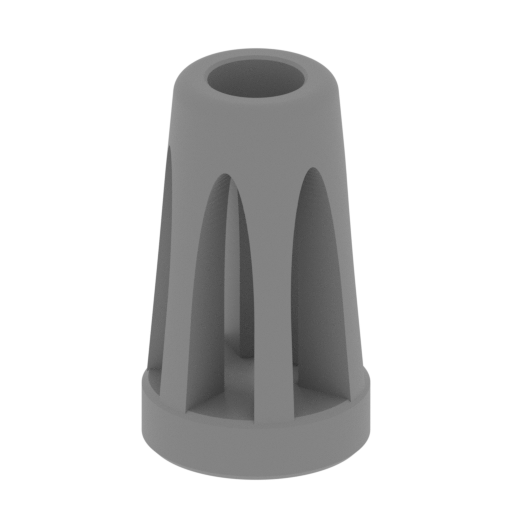

_14_weapon_d_V1_FDM (repa ired).stl
0.53 MiB 9 min <1 m 7 x 7 x 12 Download

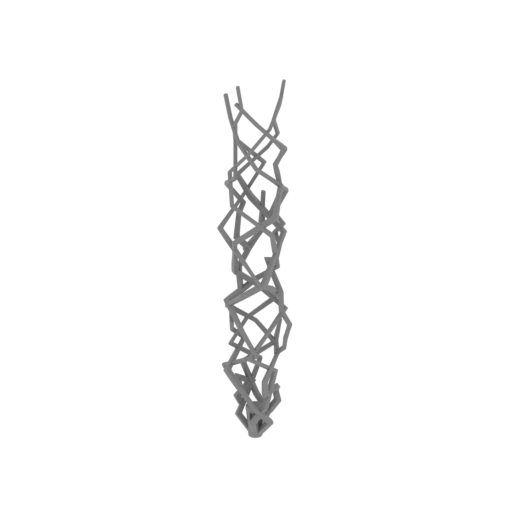

_15_weapon_e_V2_FDM (repa ired).stl
6.98 MiB 4 h 38 min 2 m 25 x 22 x 143 Download

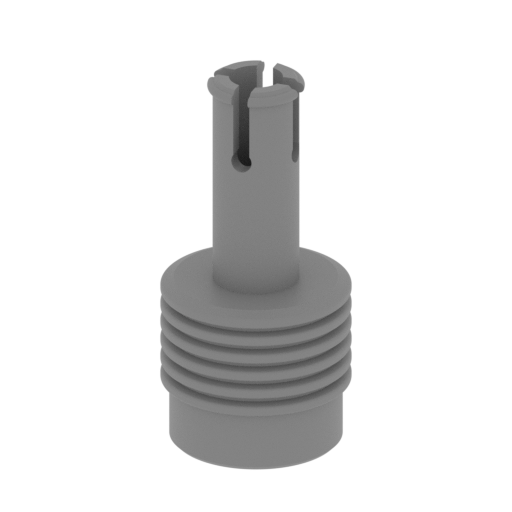

_16_weaponPart_a_FDM (rep aired).stl
6.86 MiB 47 min <1 m 18 x 18 x 36 Download

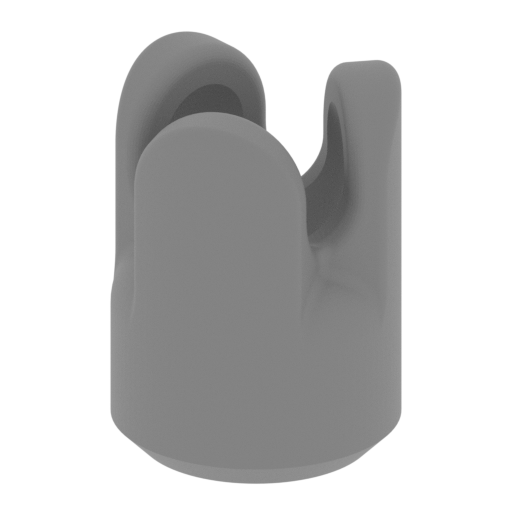

_17_weaponPart_b_FDM (rep aired).stl
0.89 MiB 24 min <1 m 15 x 15 x 20 Download

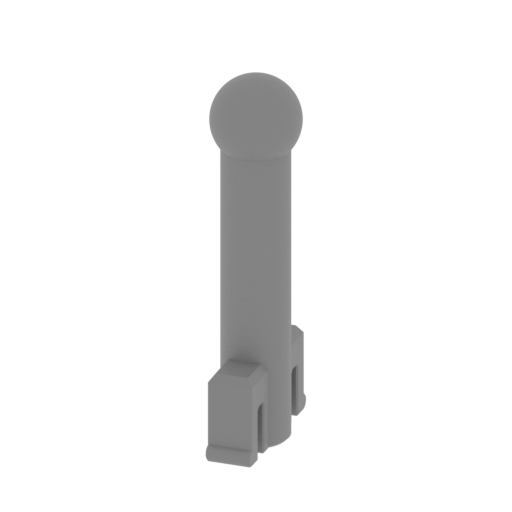

_18_weaponPart_c_FDM (rep aired).stl
0.51 MiB 38 min <1 m 10 x 17 x 42 Download

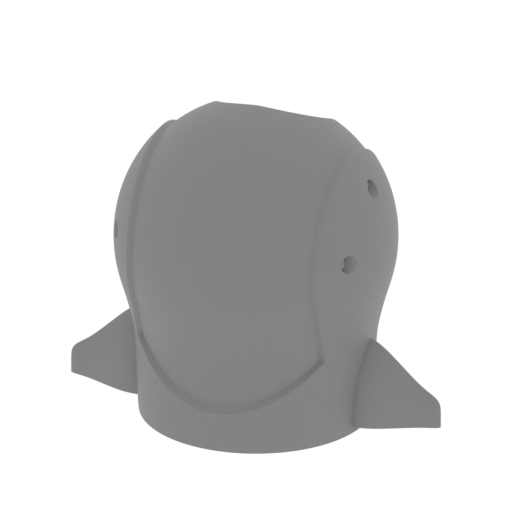

_19_engine_a_V1_FDM (repa ired).stl
4.98 MiB 9 h 8 min 5 m 79 x 55 x 65 Download
_20_engine_b_V1_FDM (repa ired).stl
6.14 MiB 4 h 8 min 2 m 61 x 49 x 34 Download

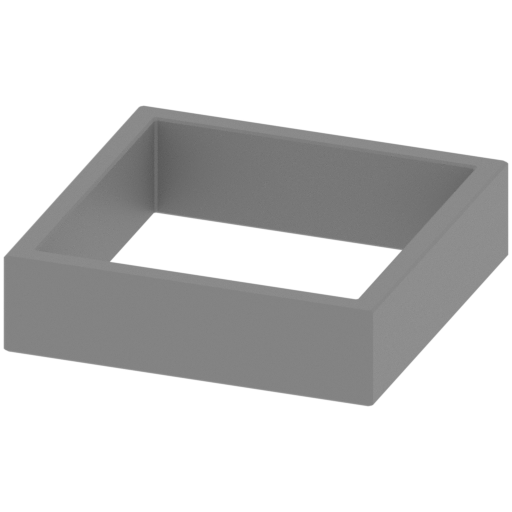

_21_enginePart_a_FDM (rep aired).stl
0.02 MiB 28 min <1 m 30 x 30 x 8 Download

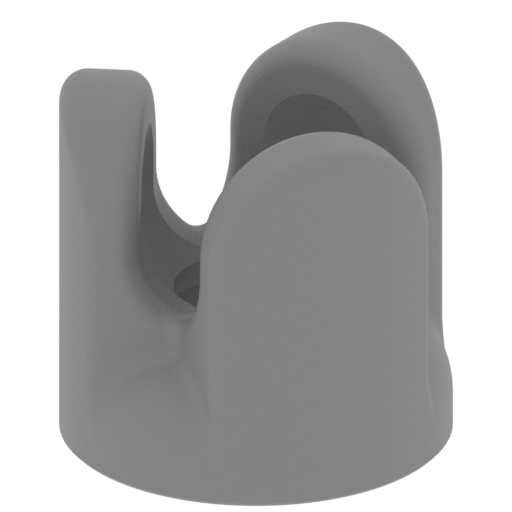

_22_enginePart_b_FDM (rep aired).stl
0.93 MiB 31 min <1 m 20 x 20 x 19 Download

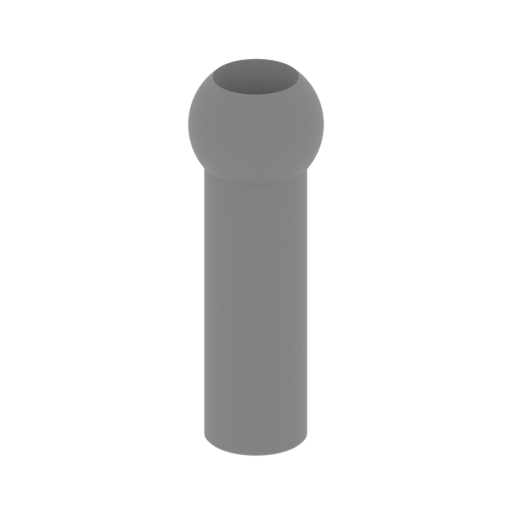

_23_enginePart_c_FDM (rep aired).stl
0.43 MiB 37 min <1 m 13 x 13 x 38 Download

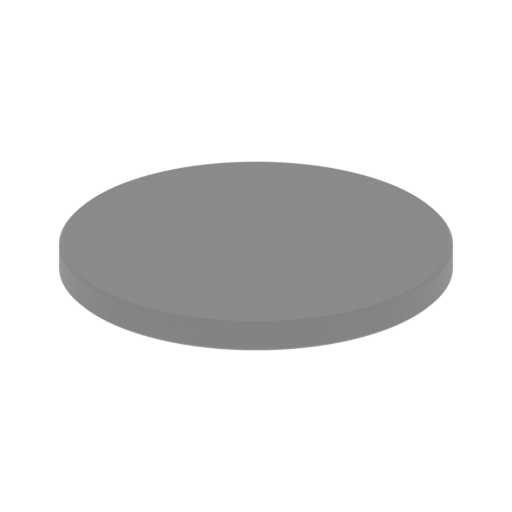

_24_enginePart_d_FDM (rep aired).stl
0.20 MiB 13 min <1 m 25 x 25 x 2 Download

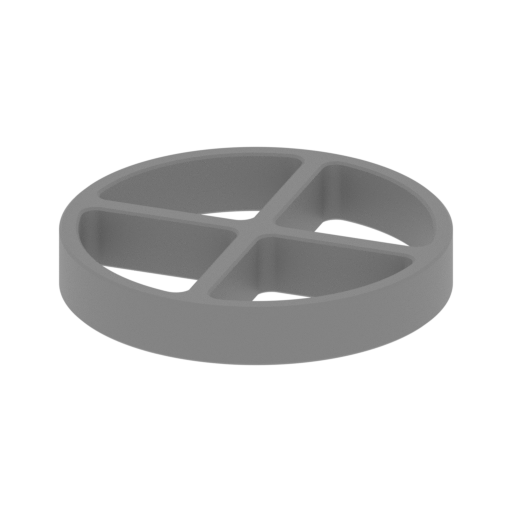

_25_enginePart_e_FDM (rep aired).stl
0.26 MiB 15 min <1 m 25 x 25 x 4 Download

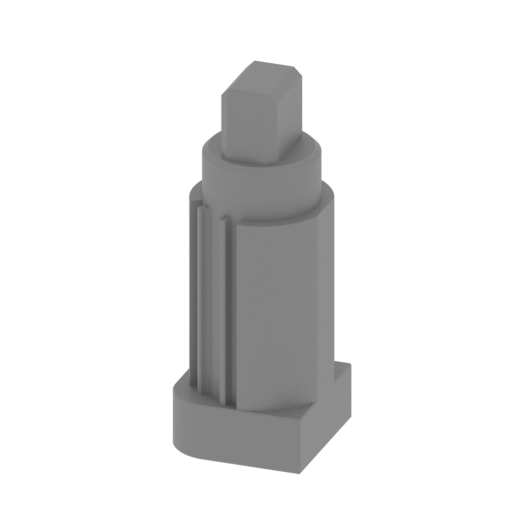

_26_enginePart_f_X2_FDM ( repaired).stl
0.38 MiB 23 min <1 m 10 x 10 x 26 Download

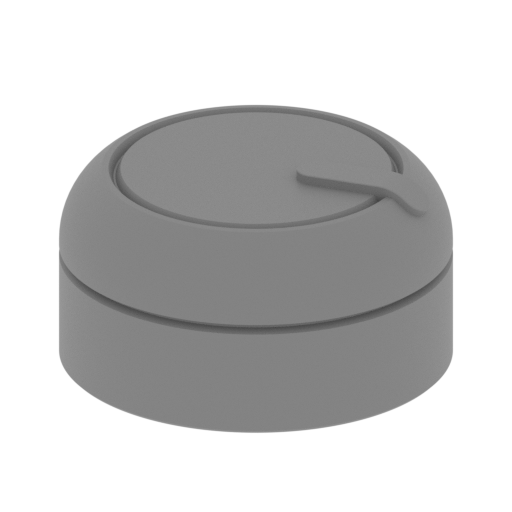

_27_enginePart_g_X2_FDM ( repaired).stl
0.75 MiB 24 min <1 m 20 x 20 x 11 Download

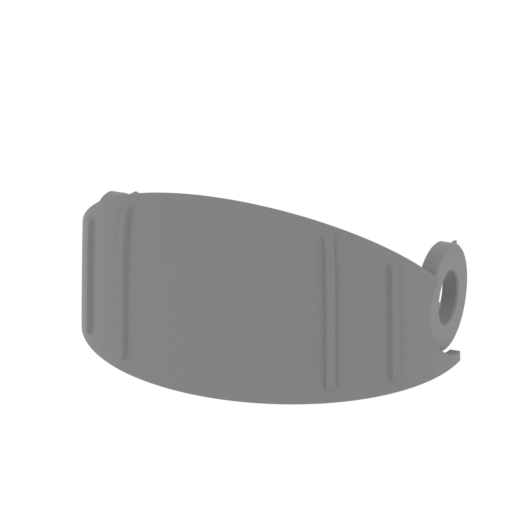

_28_engineWing_a_FDM (rep aired).stl
0.99 MiB 2 h 11 min 1 m 72 x 42 x 39 Download

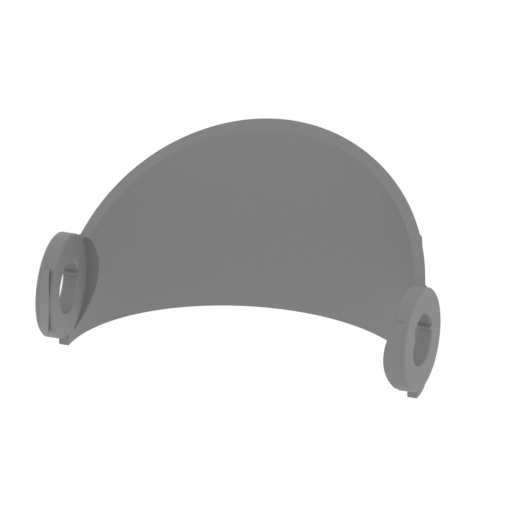

_29_engineWing_b_FDM (rep aired).stl
1.13 MiB 2 h 22 min 1 m 74 x 43 x 39 Download

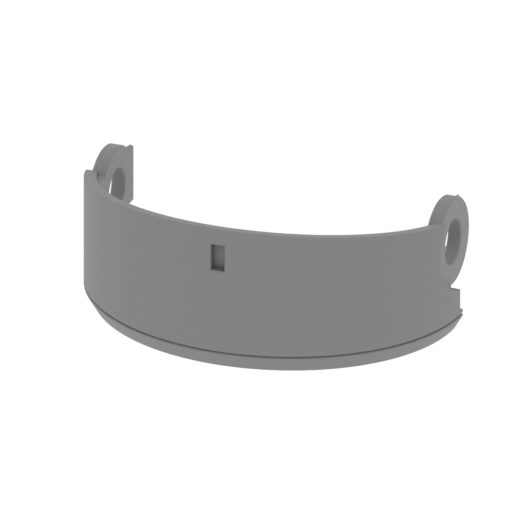

_30_engineWing_c_V1_FDM ( repaired).stl
0.91 MiB 2 h 33 min 1 m 85 x 48 x 33 Download

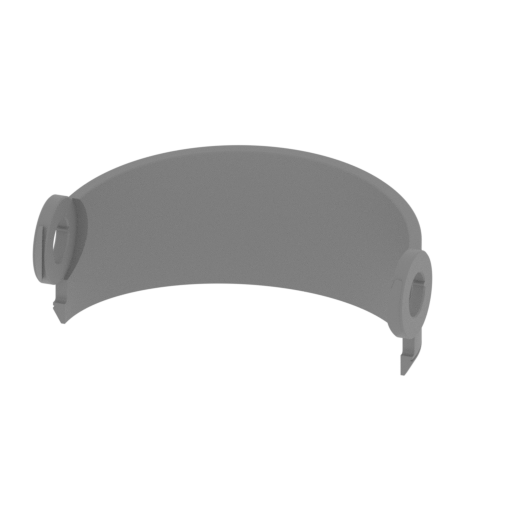

_31_engineWing_d_V1_FDM ( repaired).stl
1.02 MiB 2 h 39 min 1 m 88 x 54 x 33 Download

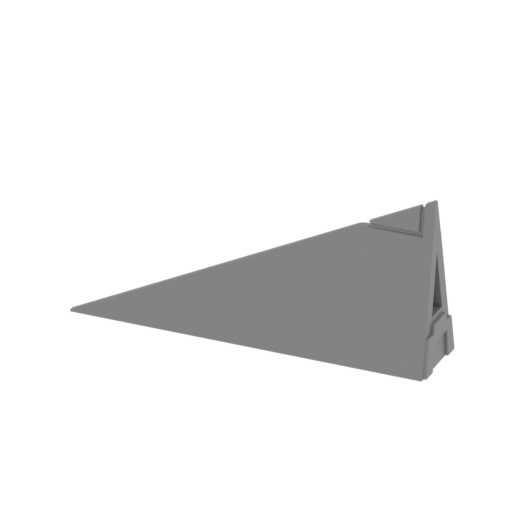

_32_engineWingPart_a_FDM (repaired).stl
0.03 MiB 26 min <1 m 48 x 10 x 22 Download

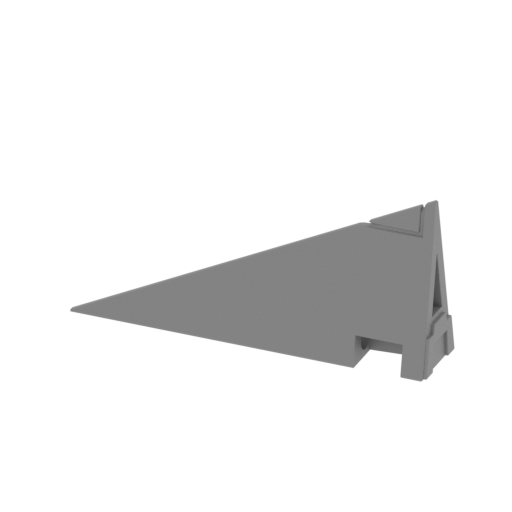

_33_engineWingPart_b_FDM (repaired).stl
0.28 MiB 27 min <1 m 48 x 10 x 22 Download

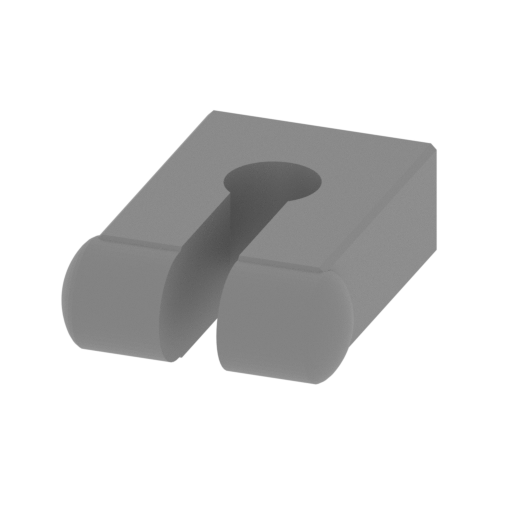

_34_engineWingPart_c_FDM (repaired).stl
0.19 MiB 3 min <1 m 7 x 10 x 3 Download

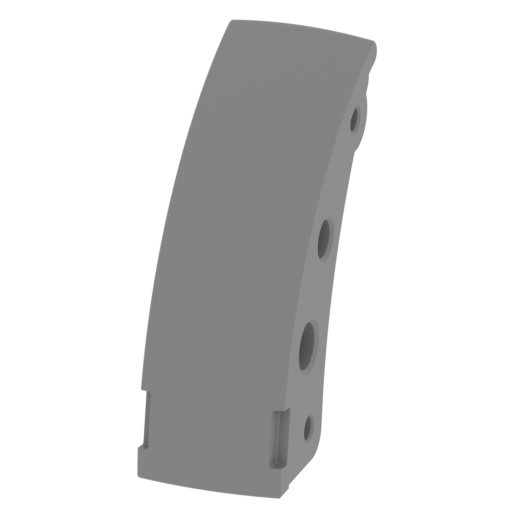

_35_chassis_a_FDM (repair ed).stl
2.37 MiB 58 min 1 m 13 x 24 x 32 Download

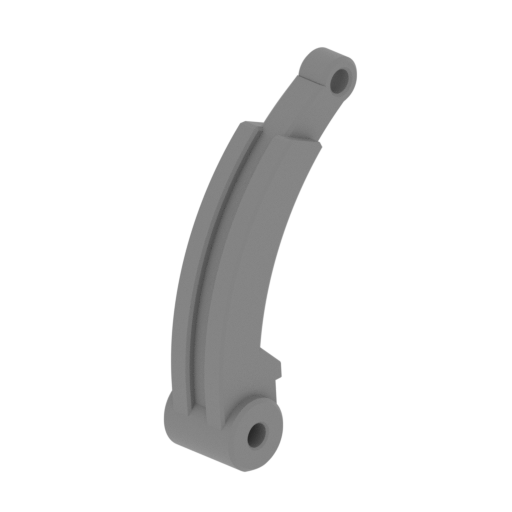

_36_chassis_b_FDM (repair ed).stl
0.64 MiB 27 min <1 m 11 x 17 x 30 Download

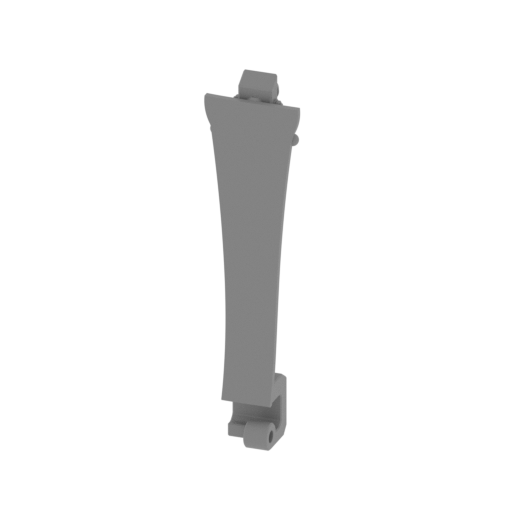

_37_chassis_c_L_FDM (repa ired).stl
1.39 MiB 1 h 7 min <1 m 16 x 13 x 61 Download

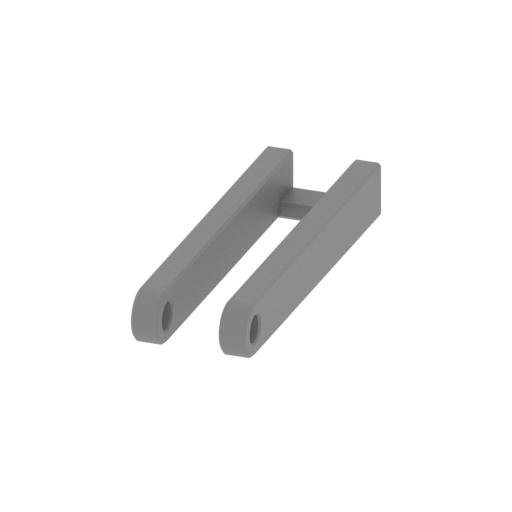

_38_chassis_d_L_FDM (repa ired).stl
0.16 MiB 9 min <1 m 8 x 27 x 4 Download

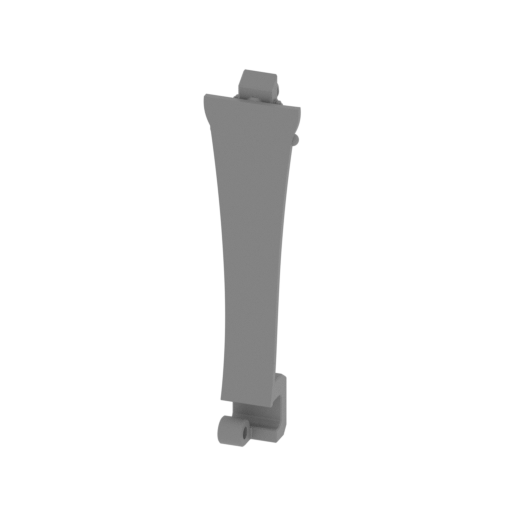

_39_chassis_e_R_FDM (repa ired).stl
1.40 MiB 1 h 8 min <1 m 16 x 13 x 61 Download

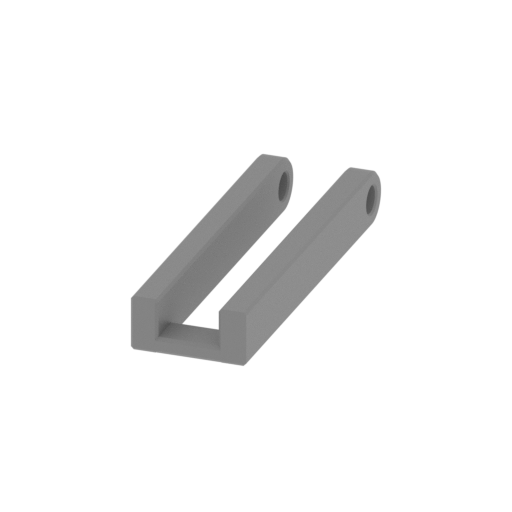

_40_chassis_f_R_FDM (repa ired).stl
0.16 MiB 8 min <1 m 8 x 27 x 4 Download

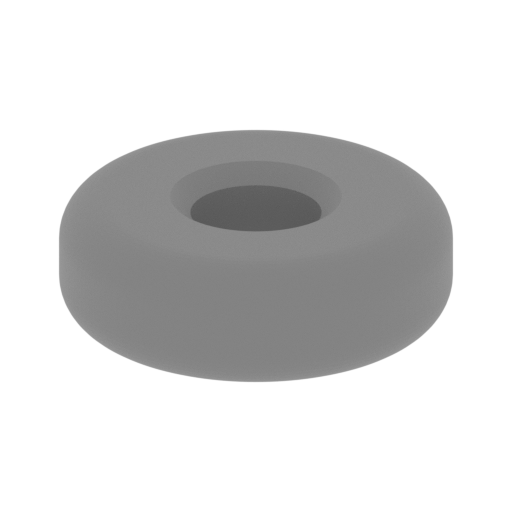

_41_wheels_a_X2_FDM (repa ired).stl
0.41 MiB 2 min <1 m 6 x 6 x 2 Download

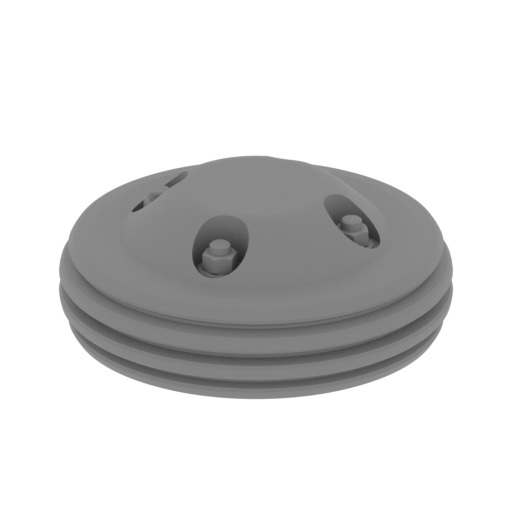

_42_wheels_b_X2_FDM (repa ired).stl
1.62 MiB 9 min <1 m 14 x 14 x 5 Download

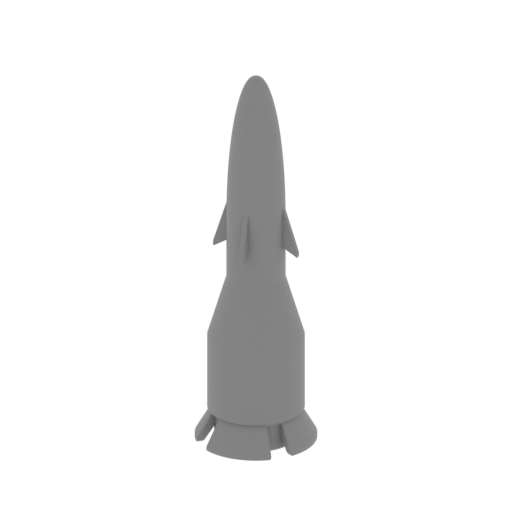

_43_rocket_a_X2_FDM (repa ired).stl
0.94 MiB 41 min <1 m 13 x 13 x 40 Download

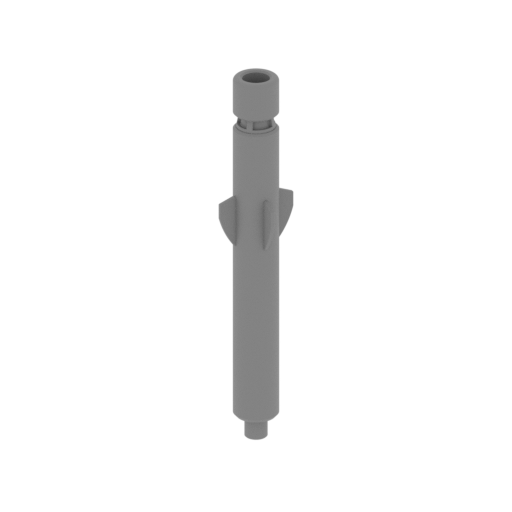

_44_rocket_b_X2_FDM (repa ired).stl
0.71 MiB 1 h 18 min <1 m 13 x 13 x 85 Download

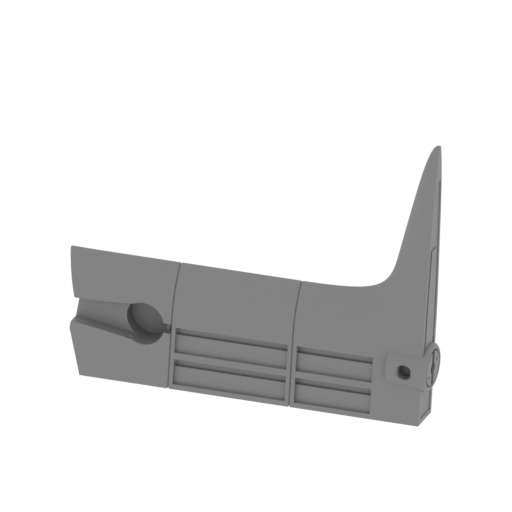

_45_wing_a_L_V1_FDM (repa ired).stl
5.11 MiB 9 h 10 min 5 m 139 x 18 x 107 Download
_46_wing_b_R_V1_FDM (repa ired).stl
5.12 MiB 9 h 12 min 5 m 142 x 18 x 107 Download

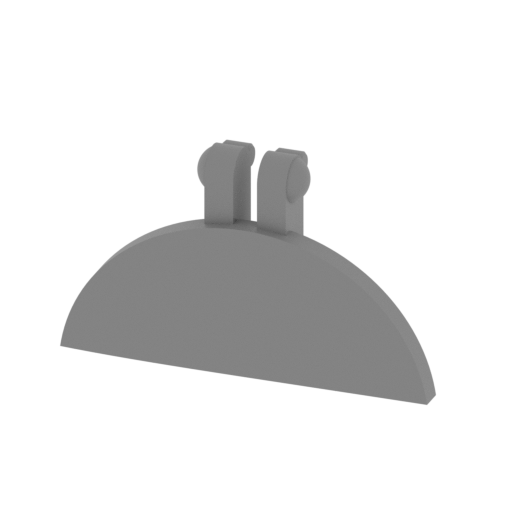

_47_wingPart_a_L_FDM (rep aired).stl
0.39 MiB 7 min <1 m 15 x 3 x 9 Download

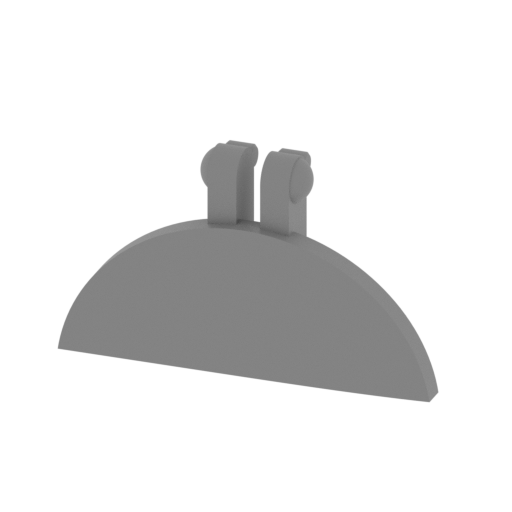

_48_wingPart_b_R_FDM (rep aired).stl
0.39 MiB 7 min <1 m 15 x 3 x 9 Download

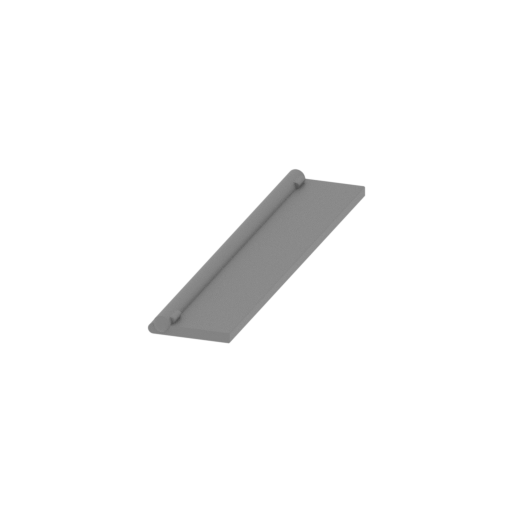

_49_wingFlaps_a_L_X2_FDM (repaired).stl
0.36 MiB 10 min <1 m 10 x 43 x 2 Download

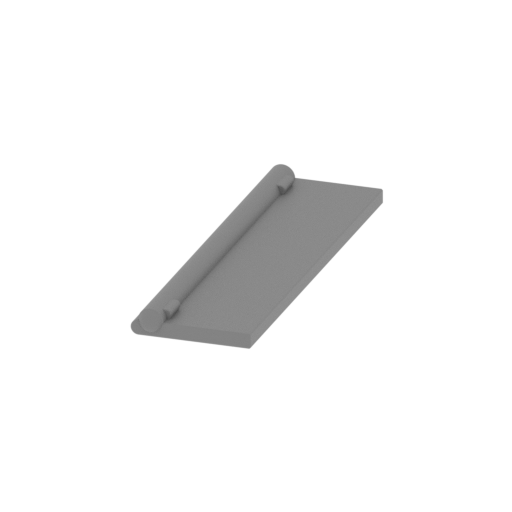

_50_wingFlaps_b_L_X2_FDM (repaired).stl
0.36 MiB 7 min <1 m 10 x 29 x 2 Download

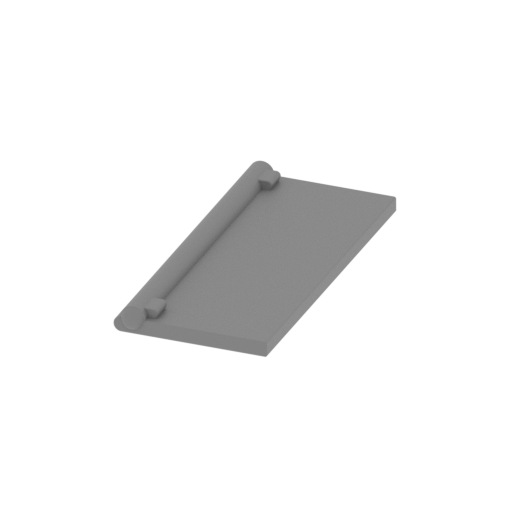

_51_wingFlaps_c_L_FDM (re paired).stl
0.36 MiB 9 min <1 m 13 x 29 x 2 Download

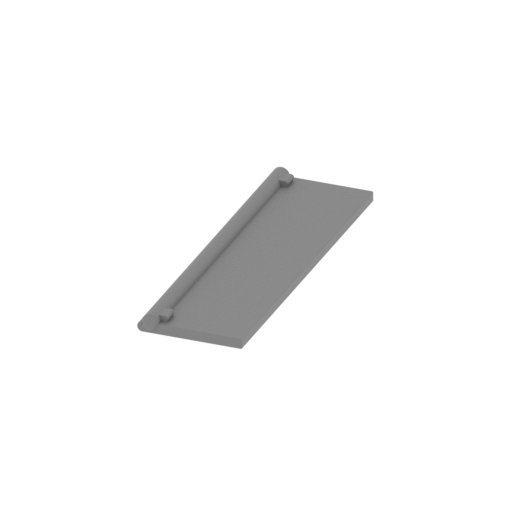

_52_wingFlaps_d_L_FDM (re paired).stl
0.36 MiB 13 min <1 m 13 x 43 x 2 Download

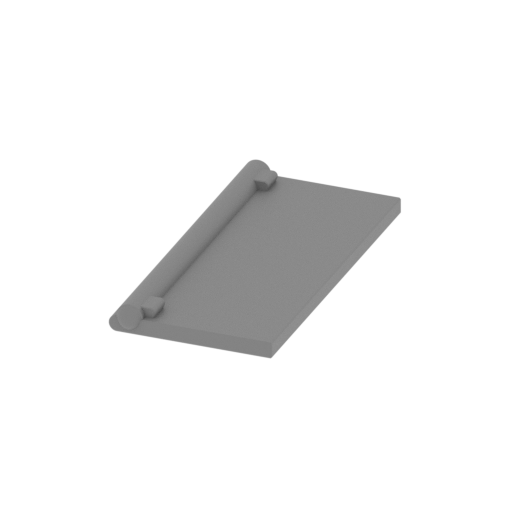

_53_wingFlaps_e_L_FDM (re paired).stl
0.36 MiB 8 min <1 m 13 x 28 x 2 Download

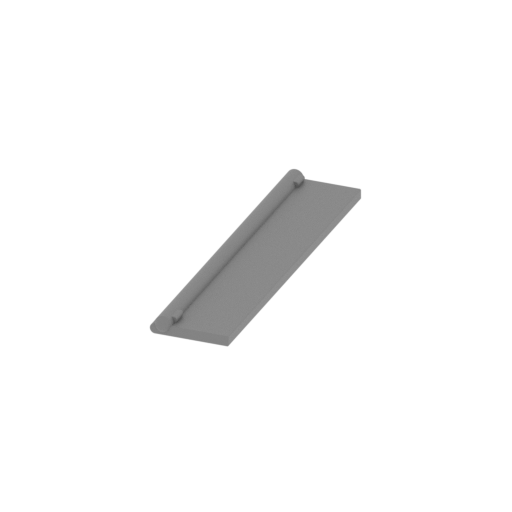

_54_wingFlaps_f_R_X2_FDM (repaired).stl
0.36 MiB 10 min <1 m 9 x 43 x 2 Download

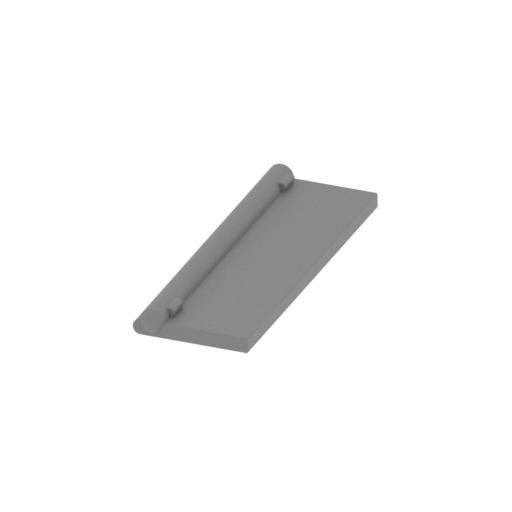

_55_wingFlaps_g_R_X2_FDM (repaired).stl
0.36 MiB 7 min <1 m 9 x 29 x 2 Download

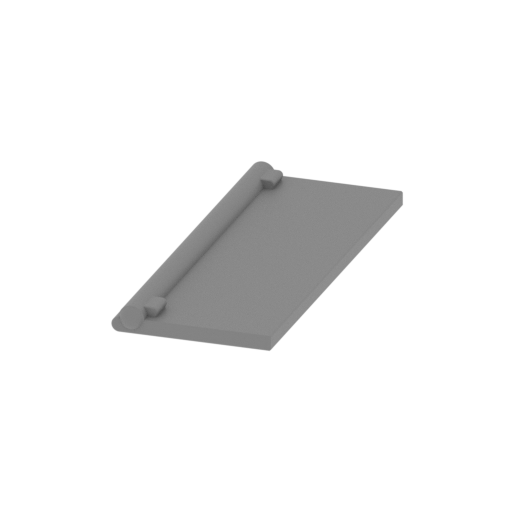

_56_wingFlaps_h_R_FDM (re paired).stl
0.36 MiB 9 min <1 m 13 x 29 x 2 Download

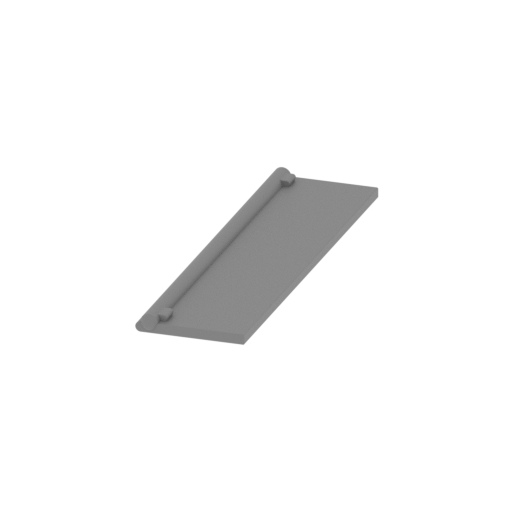

_57_wingFlaps_i_R_FDM (re paired).stl
0.36 MiB 13 min <1 m 13 x 43 x 2 Download

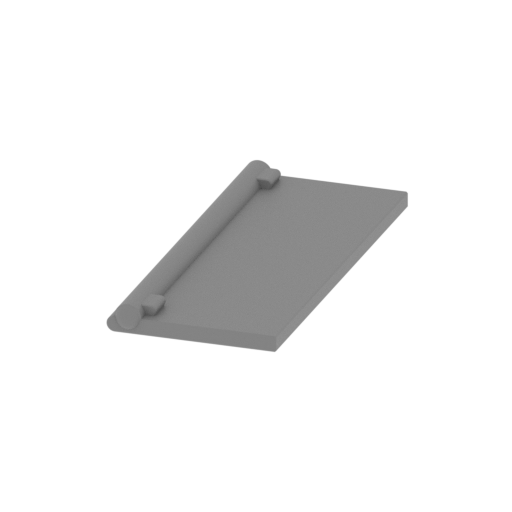

_58_wingFlaps_j_R_FDM (re paired).stl
0.36 MiB 8 min <1 m 13 x 28 x 2 Download

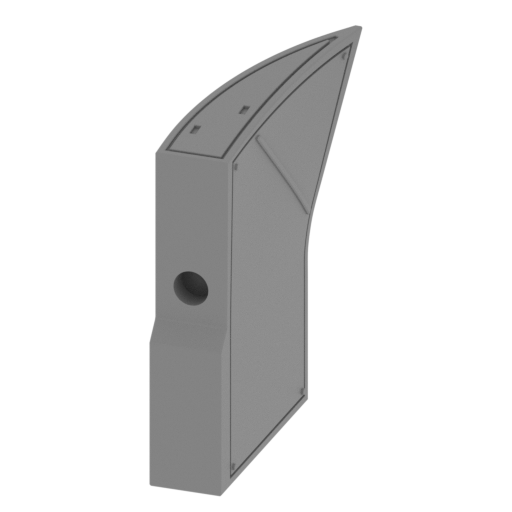

_59_rudderWing_a_X2_FDM ( repaired).stl
1.80 MiB 2 h 36 min 1 m 17 x 45 x 59 Download

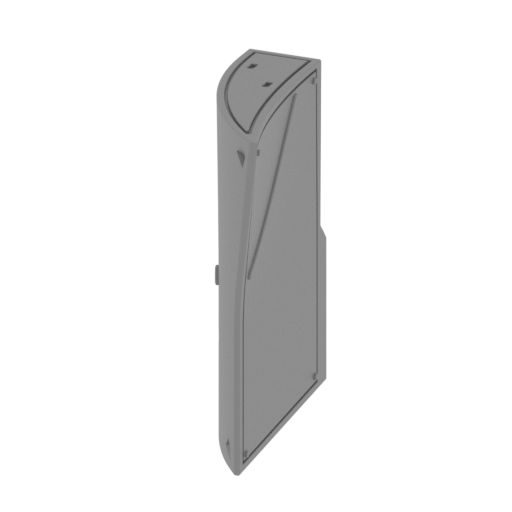

_60_rudderWing_b_X2_FDM ( repaired).stl
1.80 MiB 2 h 37 min 1 m 17 x 45 x 59 Download

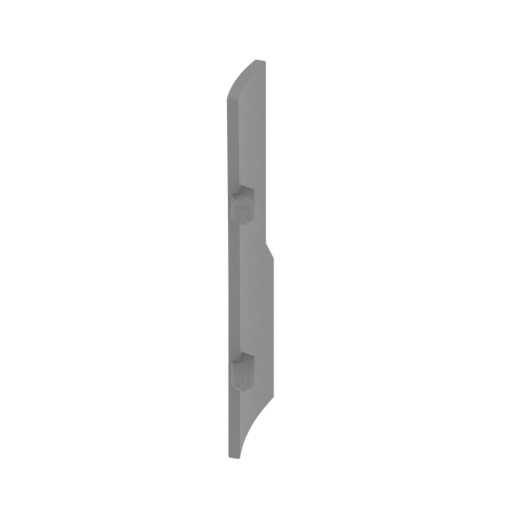

_61_rudderWingPart_a_X2_F DM (repaired).stl
0.62 MiB 46 min <1 m 7 x 22 x 48 Download

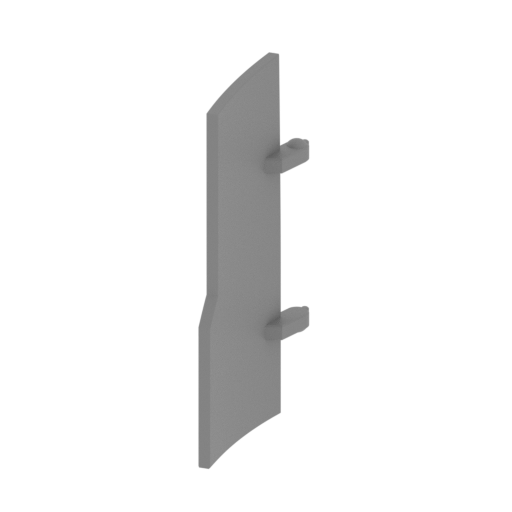

_62_rudderWingPart_b_X2_F DM (repaired).stl
0.61 MiB 45 min <1 m 7 x 22 x 48 Download

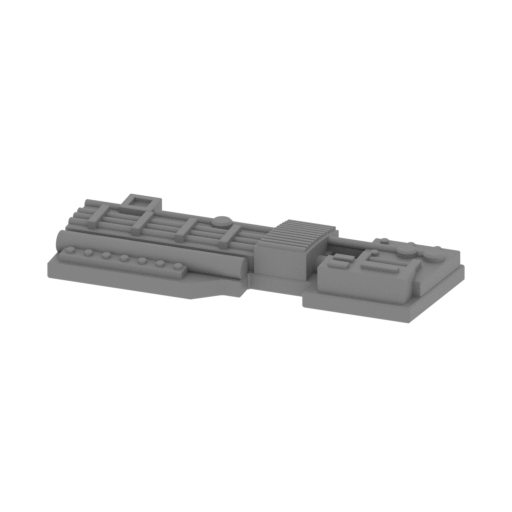

_63_rudderWingPart_c_L_FD M (repaired).stl
1.72 MiB 33 min <1 m 46 x 16 x 6 Download

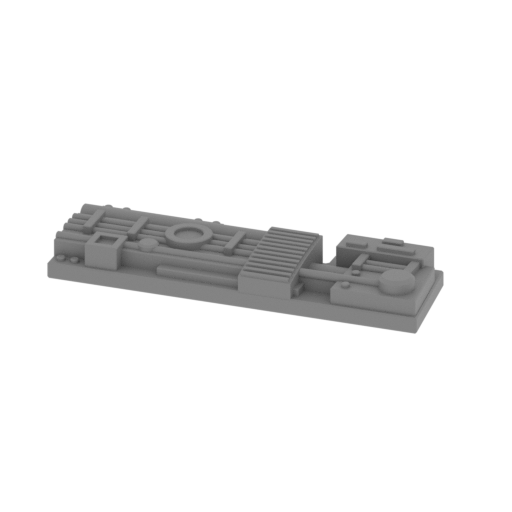

_64_rudderWingPart_d_L_FD M (repaired).stl
1.62 MiB 33 min <1 m 46 x 16 x 6 Download

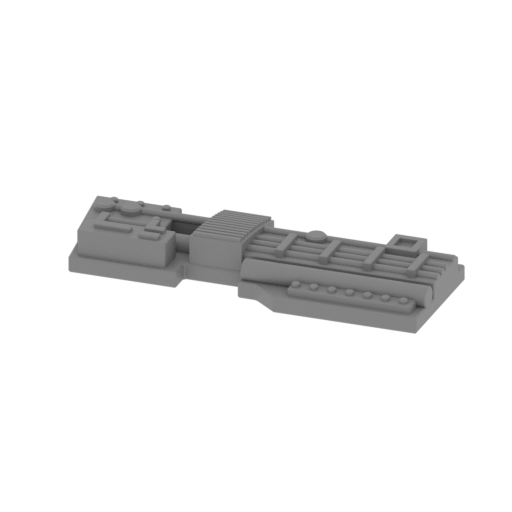

_65_rudderWingPart_e_R_FD M (repaired).stl
1.72 MiB 33 min <1 m 46 x 16 x 6 Download

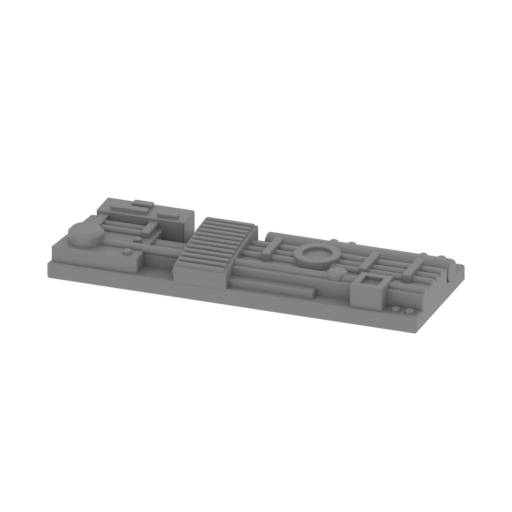

_66_rudderWingPart_f_R_FD M (repaired).stl
1.62 MiB 33 min <1 m 46 x 16 x 6 Download

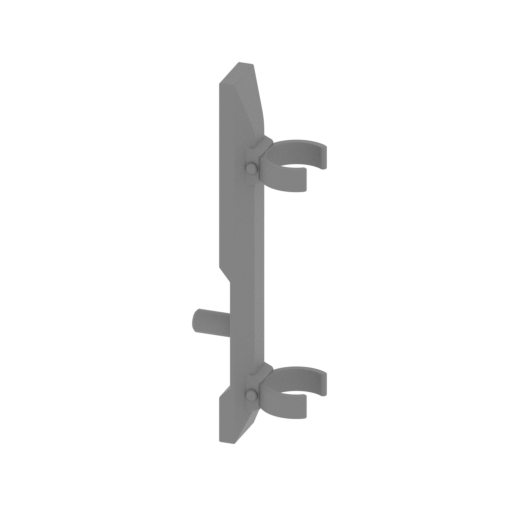

_67_rocketPart_a_X2_FDM ( repaired).stl
0.56 MiB 1 h 19 min 1 m 22 x 13 x 67 Download

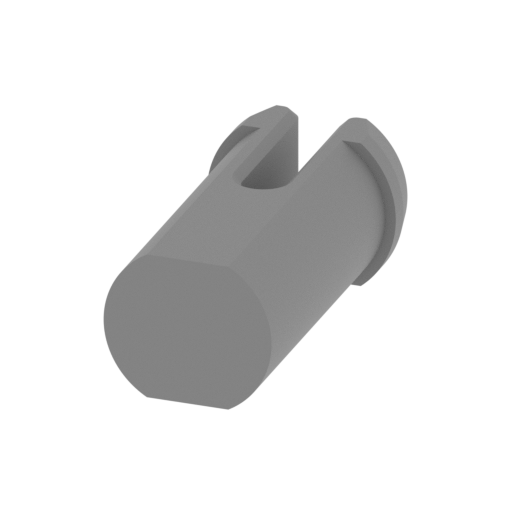

_68_pin_V1_X4_FDM (repair ed).stl
0.18 MiB 5 min <1 m 6 x 11 x 5 Download

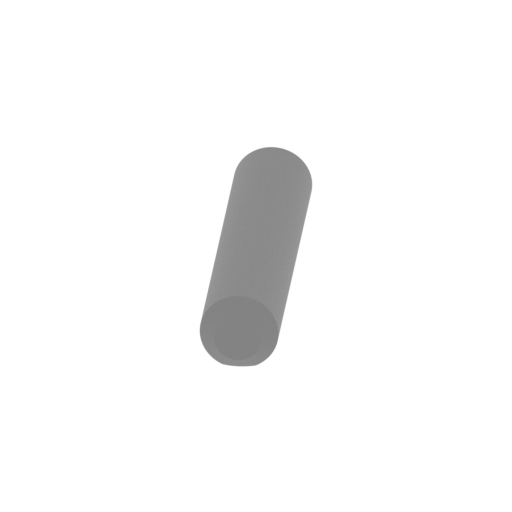

_69_pin_V2_X4_FDM (repair ed).stl
0.17 MiB 4 min <1 m 9 x 20 x 4 Download
_70_pin_V3_X2_FDM (repair ed).stl
0.19 MiB 2 min <1 m 31 x 3 x 2 Download

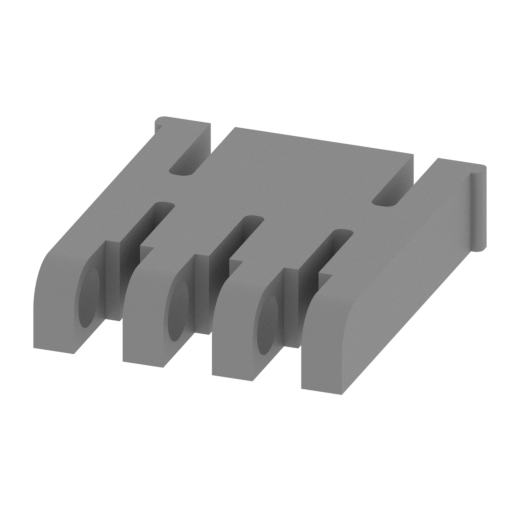

_71_pin_V4_X2_FDM (repair ed).stl
0.42 MiB 12 min <1 m 16 x 18 x 4 Download

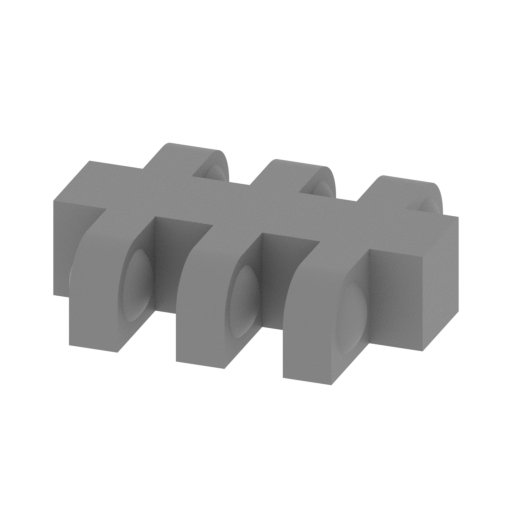

_72_pin_V5_X2_FDM (repair ed).stl
0.89 MiB 7 min <1 m 15 x 12 x 4 Download

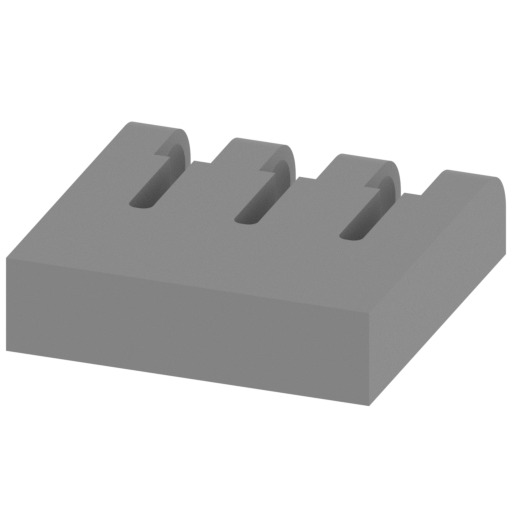

_73_pin_V6_X2_FDM (repair ed).stl
0.39 MiB 10 min <1 m 15 x 15 x 4 Download

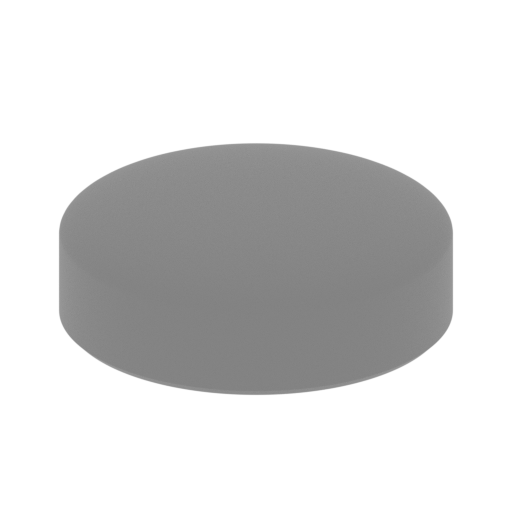

_74_glass_a_X2_FDM (repai red).stl
0.54 MiB 2 min <1 m 6 x 6 x 2 Download

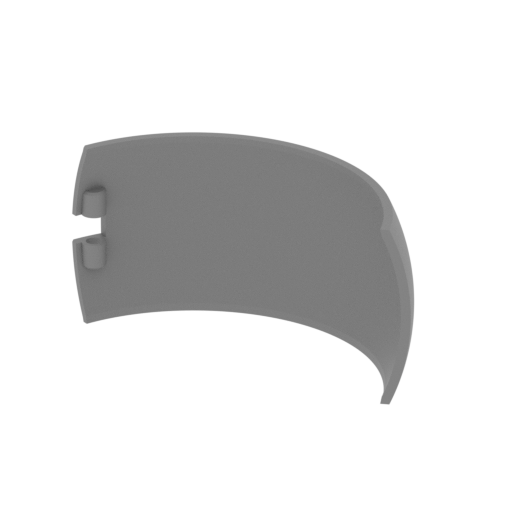

_75_glass_b_FDM (repaired ).stl
1.06 MiB 31 min <1 m 47 x 23 x 23 Download

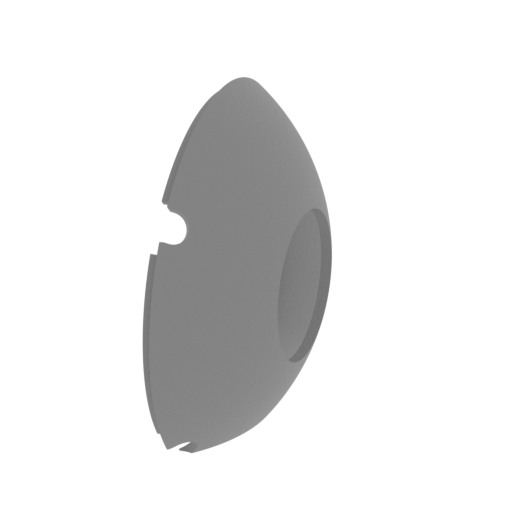

_76_glass_c_L_FDM (repair ed).stl
1.54 MiB 1 h 1 m 11 x 44 x 38 Download

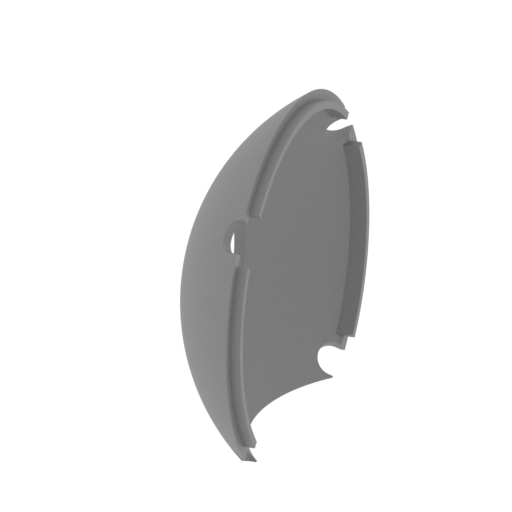

_77_glass_d_R_FDM (repair ed).stl
1.54 MiB 1 h 1 min 1 m 11 x 44 x 38 Download

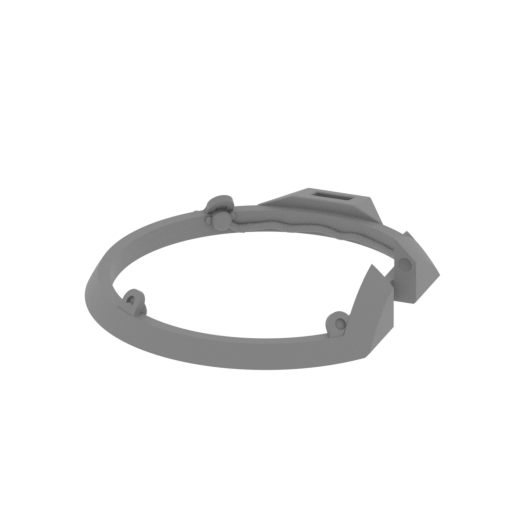

_78_cockpit_a_FDM (repair ed).stl
13.93 MiB 30 min <1 m 44 x 52 x 9 Download

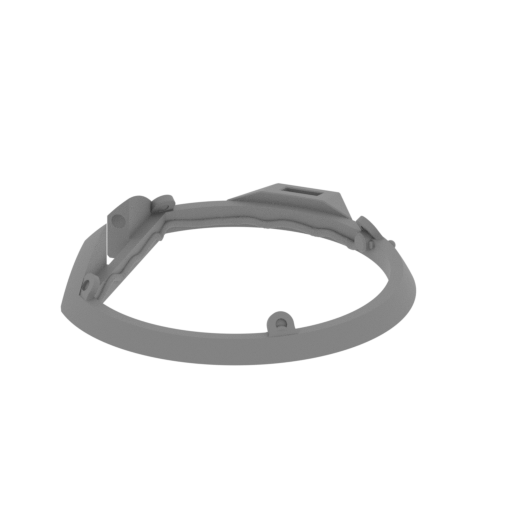

_79_cockpit_b_FDM (repair ed).stl
13.93 MiB 30 min <1 m 44 x 52 x 9 Download

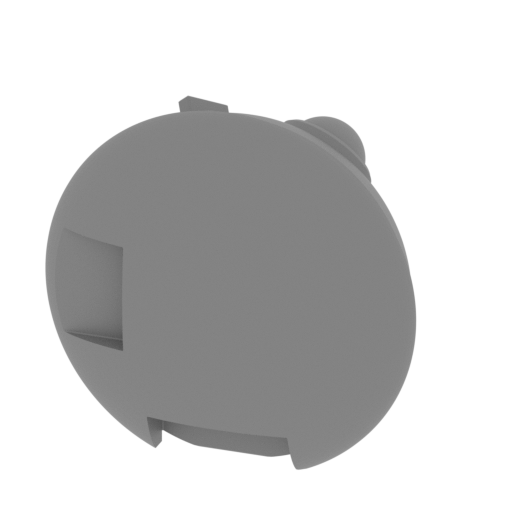

_80_cockpit_c_FDM (repair ed).stl
2.11 MiB 20 min <1 m 19 x 13 x 18 Download

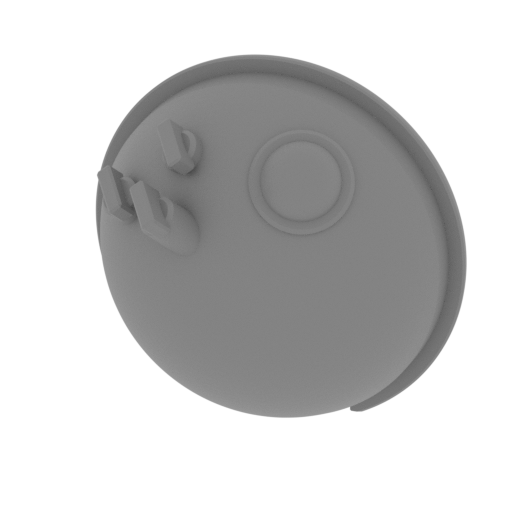

_81_cockpit_d_FDM (repair ed).stl
2.11 MiB 21 min <1 m 19 x 13 x 18 Download

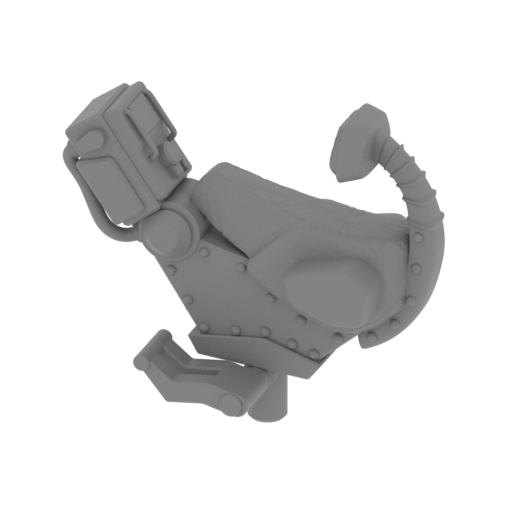

_82_cockpit_e_FDM (repair ed).stl
63.25 MiB 1 h 5 min 1 m 33 x 19 x 29 Download

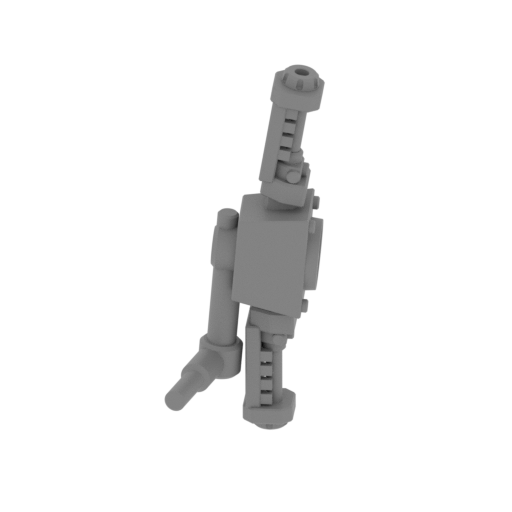

_83_cockpit_f_FDM (repair ed).stl
1.64 MiB 30 min <1 m 10 x 17 x 29 Download

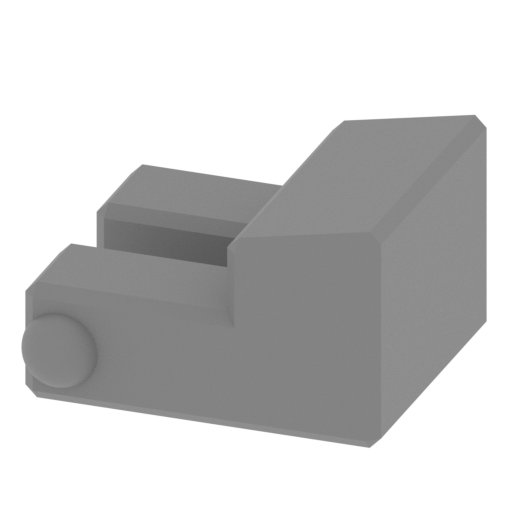

_84_pin_V7_X2_FDM (repair ed).stl
0.24 MiB 5 min <1 m 9 x 10 x 6 Download

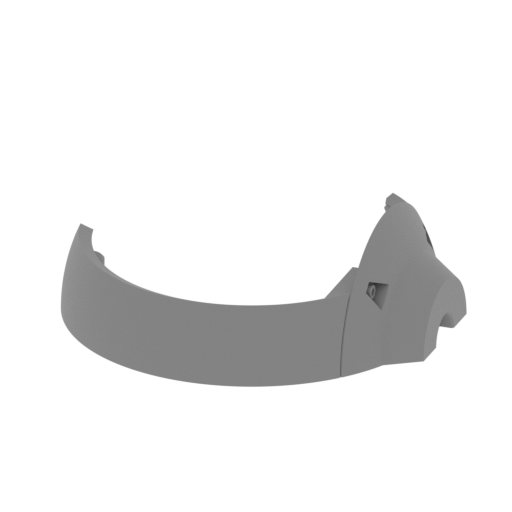

_85_cockpitBody_a_FDM (re paired).stl
11.26 MiB 1 h 6 min 1 m 55 x 50 x 18 Download

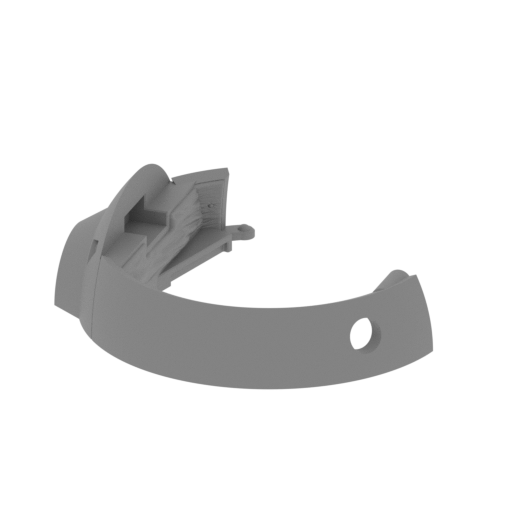

_86_cockpitBody_b_FDM (re paired).stl
12.24 MiB 1 h 9 min 1 m 55 x 50 x 18 Download

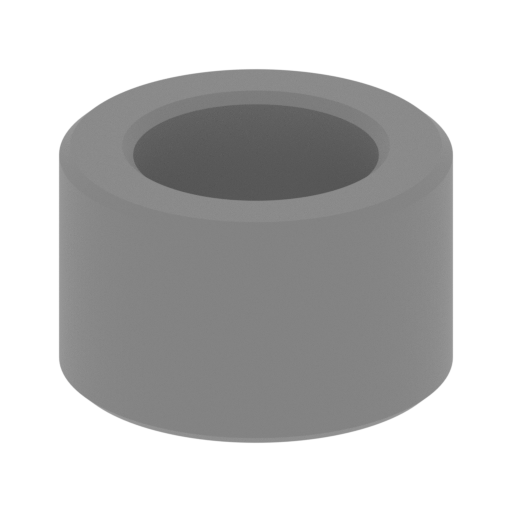

_87_cockpitBody_c_FDM (re paired).stl
0.16 MiB 3 min <1 m 6 x 6 x 4 Download

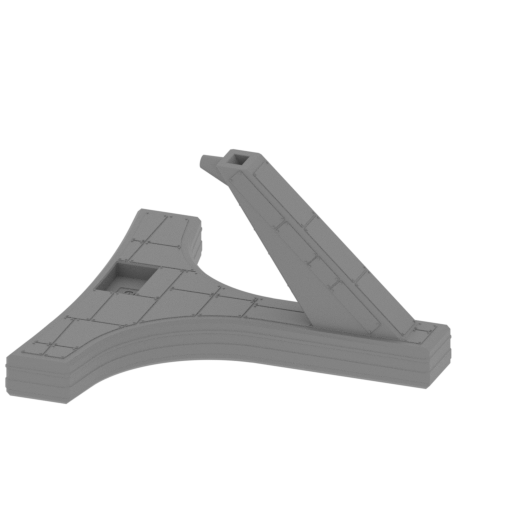

_88_standPart_a_FDM (repa ired).stl
3.74 MiB 20 h 31 min 12 m 175 x 172 x 92 Download

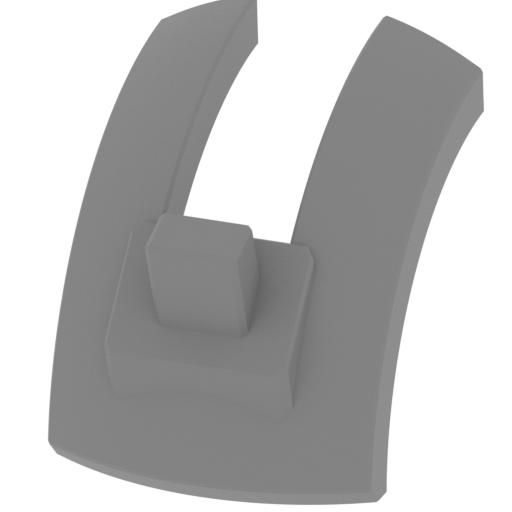

_89_standPart_b_FDM (repa ired).stl
0.27 MiB 2 h 19 min 2 m 35 x 39 x 40 Download

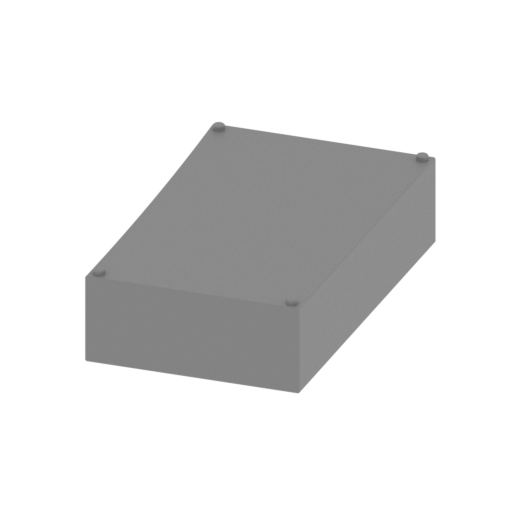

_90_standPart_c_V1_FDM (r epaired).stl
0.10 MiB 30 min <1 m 19 x 32 x 8 Download

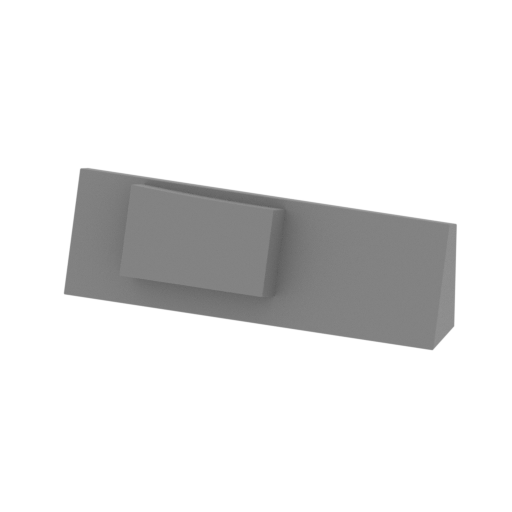

_91_standPart_d_V2_FDM (r epaired).stl
0.41 MiB 2 h 56 min 2 m 83 x 20 x 27 Download
_92_standPart_e_V3_FDM (r epaired).stl
0.37 MiB 2 h 55 min 2 m 83 x 20 x 27 Download

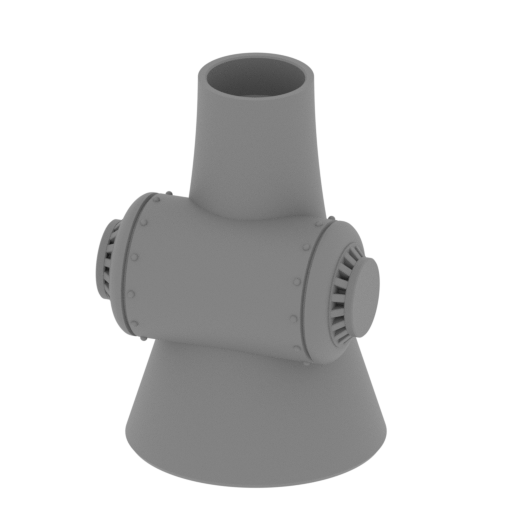

_93_weapon_f_V2_FDM (repa ired).stl
4.48 MiB 2 h 42 min 1 m 34 x 32 x 49 Download

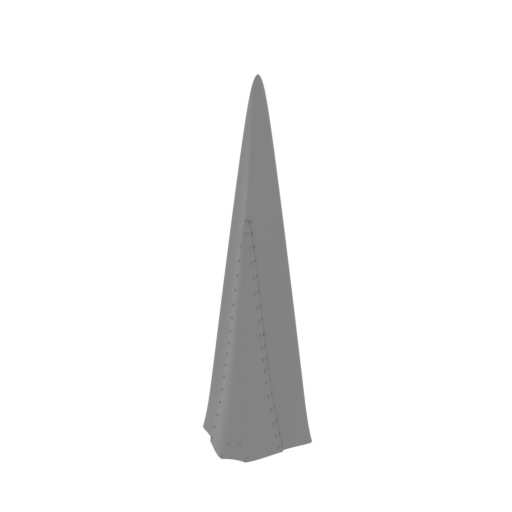

_94_swordfishHull_d_V2_FD M (repaired).stl
4.37 MiB 4 h 19 min 2 m 37 x 42 x 125 Download

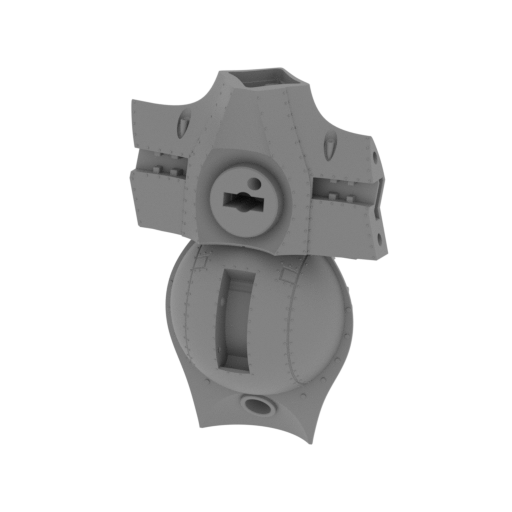

_95_swordfishHull_e_V2_FD M (repaired).stl
26.93 MiB 32 h 33 min 20 m 105 x 56 x 150 Download

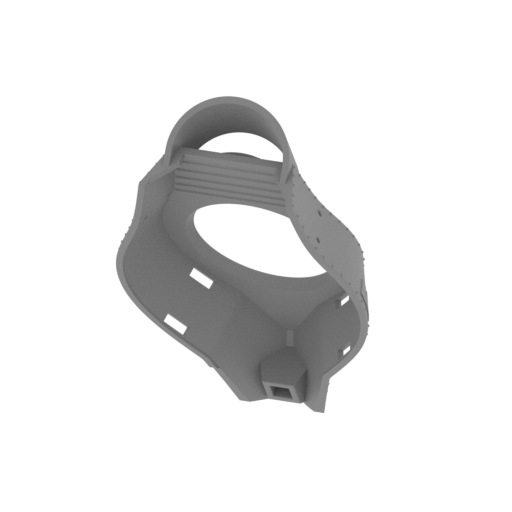

_96_swordfishHull_f_V2_FD M (repaired).stl
7.39 MiB 12 h 1 min 8 m 81 x 73 x 121 Download
_97_engine_c_V2_FDM (repa ired).stl
8.52 MiB 9 h 15 min 5 m 79 x 55 x 65 Download

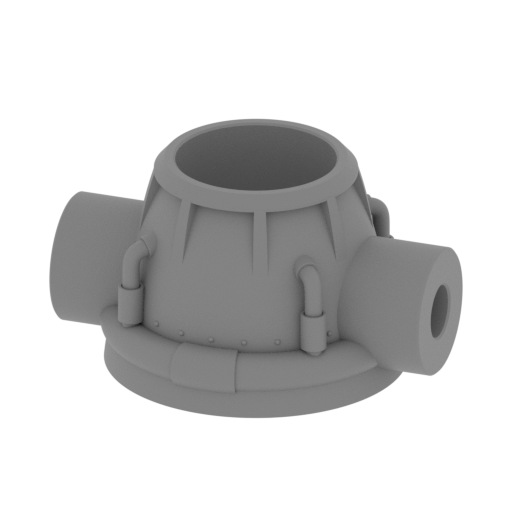

_98_engine_d_V2_FDM (repa ired).stl
6.61 MiB 4 h 7 min 2 m 61 x 49 x 34 Download
_99_engineWing_e_V2_FDM ( repaired).stl
2.32 MiB 2 h 40 min 1 m 88 x 54 x 33 Download

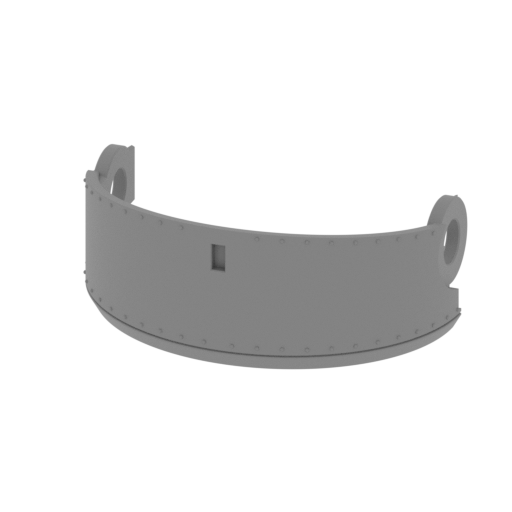

_100_engineWing_f_V2_FDM (repaired).stl
2.20 MiB 2 h 36 min 1 m 86 x 49 x 33 Download

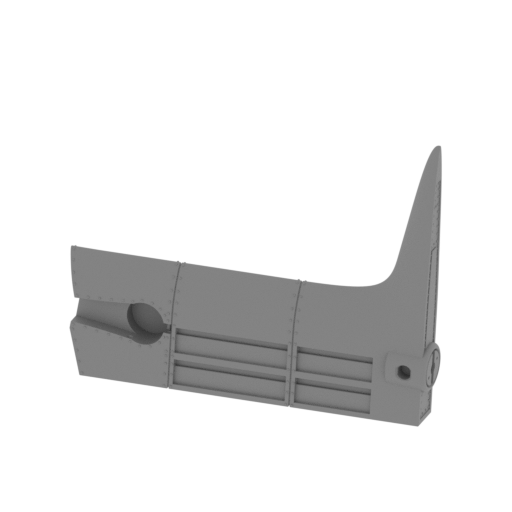

_101_wing_c_L_V2_FDM (rep aired).stl
10.77 MiB 9 h 11 min 5 m 139 x 18 x 107 Download

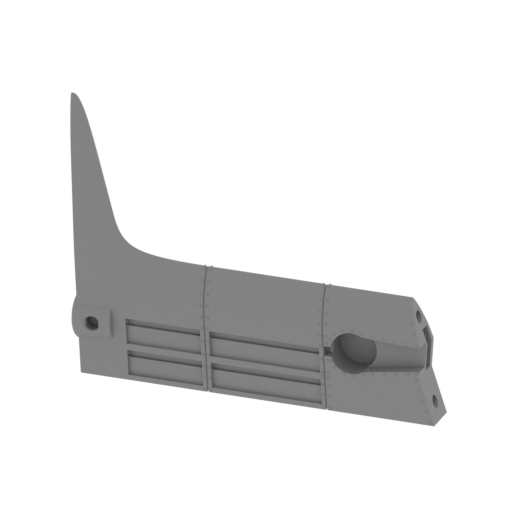

_102_wing_d_R_V2_FDM (rep aired).stl
10.73 MiB 9 h 15 min 5 m 142 x 18 x 107 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download
...

ABOUT THIS 3D MODEL

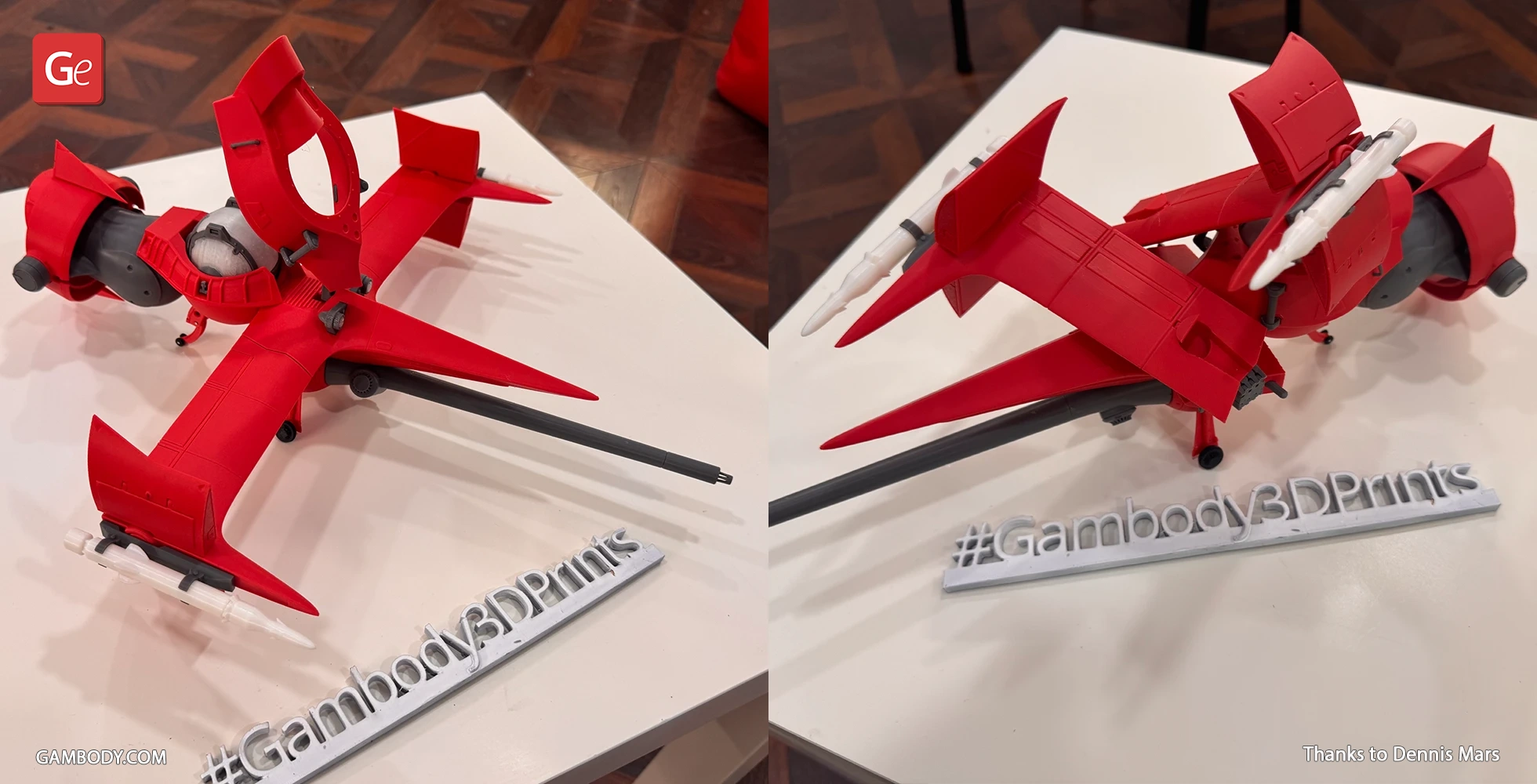

Swordfish II piloted by Spike Spiegel, the former member of Red Dragon Syndicate, now the bounty hunter who together with Jet Black hunts after criminals of the Solar System, is a ship characteristic of which attributes it to the comprehensively armed, high-speed craft. This remodeled MONO racer has a powerful propulsion system and together with armament consisting of missiles, machine guns, and a high-powered plasma cannon, is a key advantage of Spike during aerial battles

Swordfish II made a huge impression on our contributing 3D artists and this fascination led to the creation of a model for 3D printing which every anime series fan will appreciate. Swordfish II has a design and articulation that fully corresponds to the characteristics of the vehicle shown in Cowboy Bebop. The number of movable/detachable elements is a record for Gambody marketplace and, from our point of view, this racer is a marvel of engineering. Getting this model you will get a vivid experience that can’t be compared with anything!

ADAPTATION FOR 3D PRINTING

Swordfish II model for 3D printing is an active assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 119 hours in total.

For you to receive the cleanest 3D printing result possible, minimize the amount of filament needed for generated support, and make use of the active elements designed by Gambody Engineers, the craft was divided into convenient assembly parts.

All assembly parts in the FFF/FDM 1.0 version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won’t face difficulties when placing the parts on a build plate. When downloading any model’s file you will also receive “Assembly Manual” for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats. We highly recommend that you get acquainted with the “Assembly Video” and “Assembly Manual” before getting down to the Swordfish II 3D printing model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model’s scale was calculated from the length of Swordfish II which is 13800 mm. The 3D printing model’s chosen scales are 1:32 for the FFF/FDM version and 1:64 for the DLP/SLA version.

VERSIONS’ SPECIFICATIONS

FFF/FDM 1.0 version features:

  • Contains 102 parts;
  • A printed model is 131 mm tall, 398 mm wide, 436 mm deep;
  • A printed model on the stand is 177 mm tall, 398 mm wide, 436 mm deep;
  • 2 variants of the hull: with rivets and clean;
  • Movable plasma cannon;
  • Detachable cockpit fully unfolds and features a movable control wheel;
  • 2 variants of plasma cannon: with (ready mode) and without plasma;
  • Detachable missiles on wings;
  • 3 variants of the stand plate: a plug and the nameplates;
  • Cockpit cover opens;
  • Movable thrust reverser;
  • Ventral fin turns;
  • Engine vanes fold;
  • Retractable landing gear;
  • Flaps сan open;
  • Rudders rotate. The rudder covers open;
  • The wings can be folded up;
  • Tunnels for LED wiring to illuminate the cockpit, engine, cannon and headlights;
  • All parts are divided in such a way that you will print them with the smallest number of support structures.

DLP/SLA 1.0 version features:

  • Contains 91 parts;
  • A printed model is  65 mm tall, 199 mm wide, 218 mm deep;
  • A printed model on the stand is: 89 mm tall, 199 mm wide, 218 mm deep;
  • 2 variants of the hull: with rivets and clean;
  • Movable plasma cannon;
  • Detachable cockpit fully unfolds and features a movable control wheel;
  • 2 variants of plasma cannon: with (ready mode) and without plasma;
  • Detachable missiles on wings;
  • 3 variants of the stand plate: a plug and the nameplates;
  • Cockpit cover opens;
  • Movable thrust reverser;
  • Ventral fin turns;
  • Engine vanes fold;
  • Retractable landing gear;
  • Flaps сan open;
  • Rudders rotate. The rudder covers open;
  • The wings can be folded up;
  • Tunnels for LED wiring to illuminate the cockpit, engine, cannon and headlights;
  • All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

You can get the Swordfish II model for 3D printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble a Swordfish II 3D Printing Model on Gambody YouTube channel.

Also, you may like other Anime 3D Printing Models.

________

FAQ

Generic

Below you can find printing recommendations for Cura, Bambu Lab, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

All connectors should be printed at 100% Infill.

Bambu Lab printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Bambu Studio 1.9.1. Test models were printed on the Bambu Lab A1, Bambu Lab A1 Mini, Creality Ender 3 S1, Anycubic Kobra 2, and Anycubic Vyper using PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download

Comments

comments powered by Disqus

Similar items

Browse more newly listed 3D printings
