ABOUT THIS 3D MODEL

Identify yourself!

Robot model B9, designed and computerized as a mechanized electronic aid for Earth voyagers engaged in astral expeditions.

The B9 Environmental Control Robot is known and loved by all Lost in Space science fiction series fans. The machine possesses superhuman strength and innovative weaponry, but what makes B-9 so special is his ability to display human characteristics, such as laughter, sadness, and mockery. The Robot assisted the Robinson family in their exploration of the Earth-like planet orbiting the star Alpha Centauri and was in charge of protecting the youngest member of the crew, Will Robinson. Charismatic, witty, and artistic, The Robot is not afraid to show his character or act funny in the company of his friends.

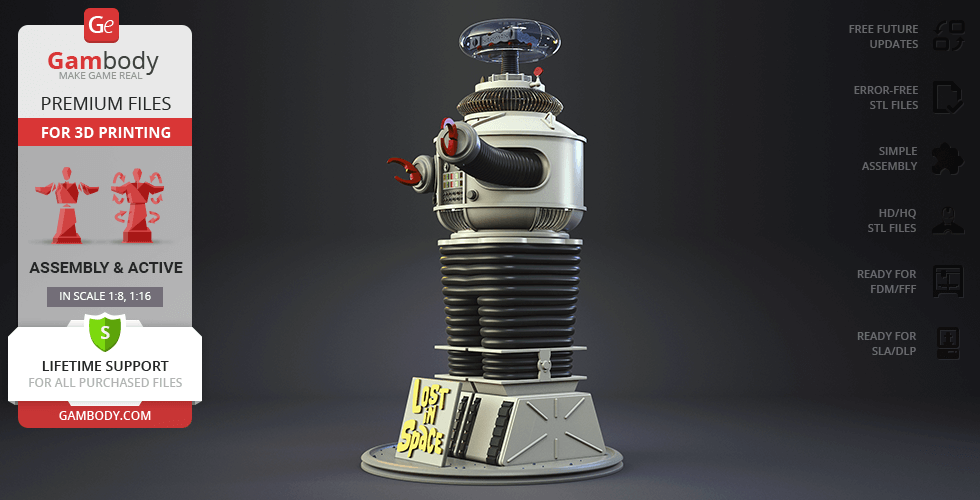

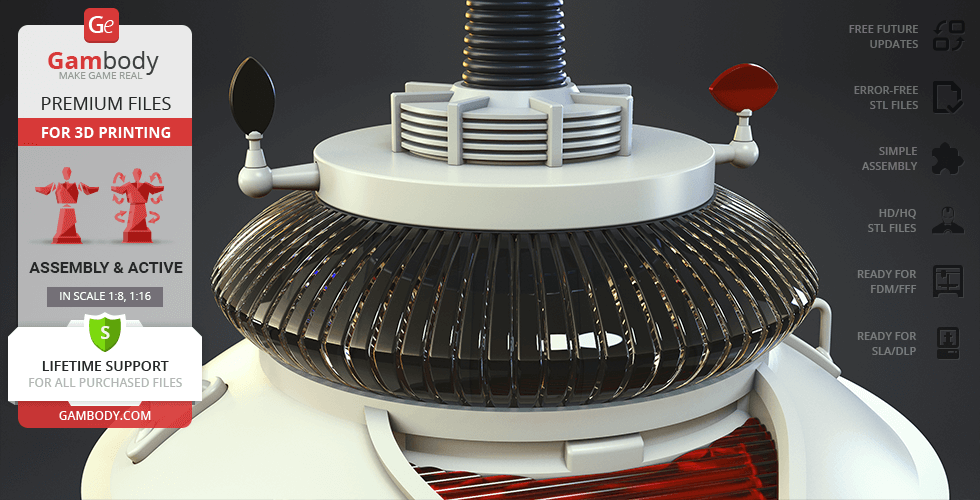

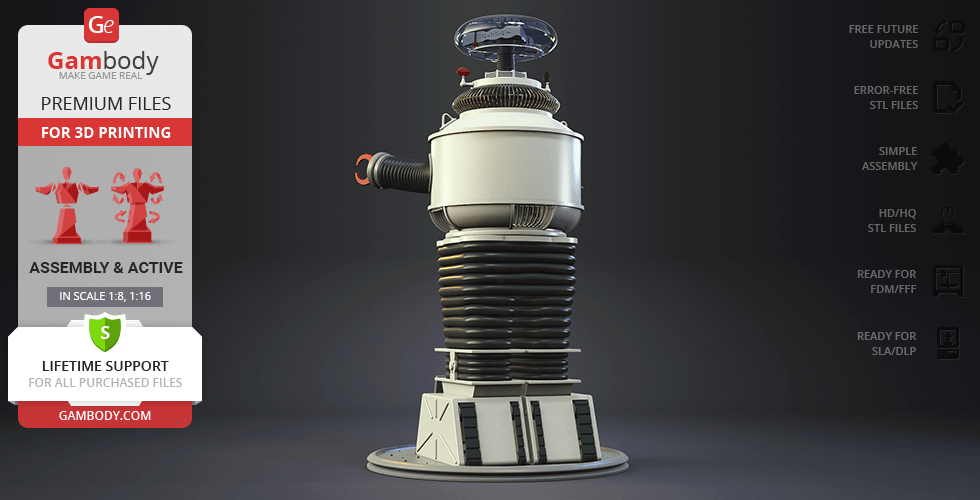

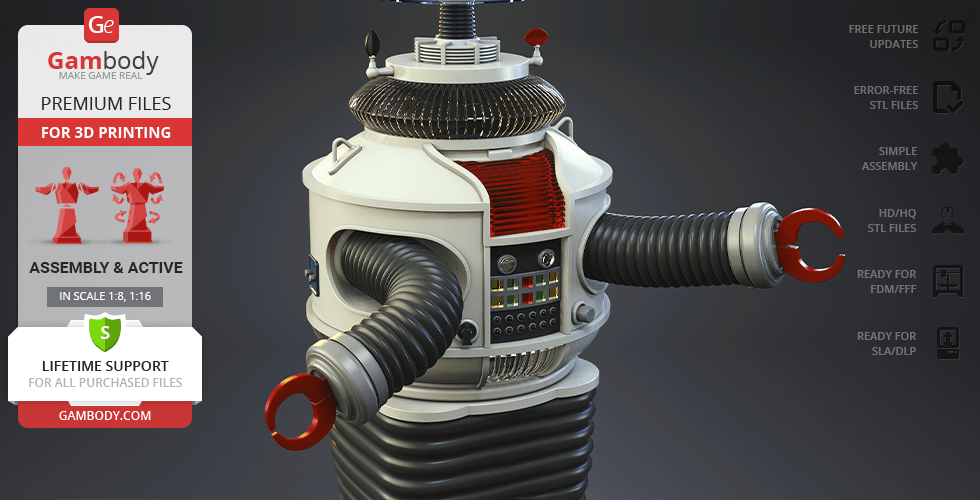

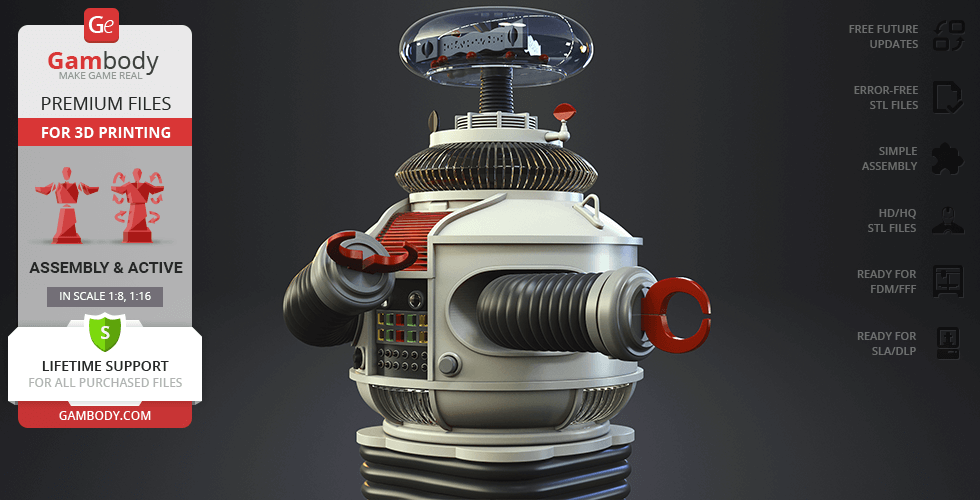

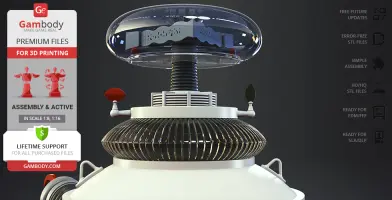

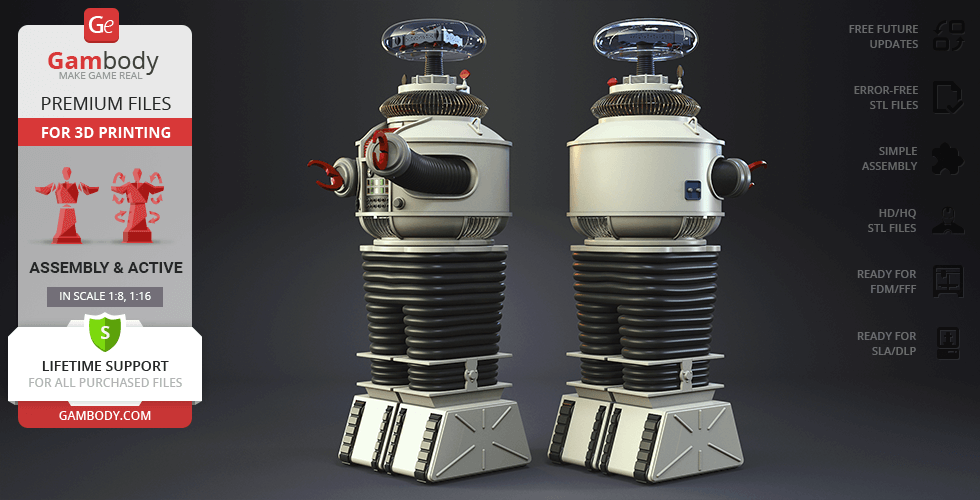

Inspired by one of the most popular characters from the iconic Lost in Space TV series our contributing 3D artist created this outstanding model for 3D printing. The robot has a classical design, it consists of a glass bubble dome, fluted ring collar, cylindrical trunk section with extendable arms, and legs connected to the trapezoidal continuous track units. The model has a range of active elements and alternative parts for you to ease the assembly and provide wide options for exhibiting. Authentic and highly detailed, the Robot Model B-9 for 3D printing is a must for all robot lovers!

ADAPTATION FOR 3D PRINTING

The Robot Model B-9 for 3D printing is an active assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 96 hours in total.

For you to receive the cleanest 3D printing result possible, minimize the amount of filament needed for generated support, and make use of the active elements designed by Gambody Engineers, the robot was divided into convenient assembly parts.

All assembly parts in the FFF/FDM 1.0 version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won’t face difficulties when placing the parts on a build plate. When downloading any model’s file you will also receive “Assembly Manual” for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats. We highly recommend that you get acquainted with the “Assembly Video” and “Assembly Manual” before getting down to the The Robot Model B-9 3D printing model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

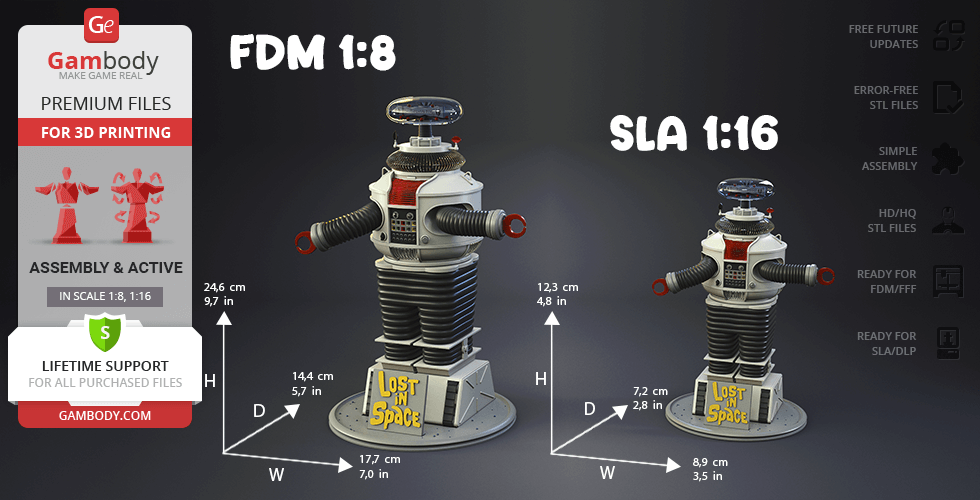

The model’s scale was calculated from the height of The Robot B-9 that is 1950 mm. The 3D printing model’s chosen scales are 1:8 for the FFF/FDM version and 1:16 for the DLP/SLA version.

VERSIONS’ SPECIFICATIONS

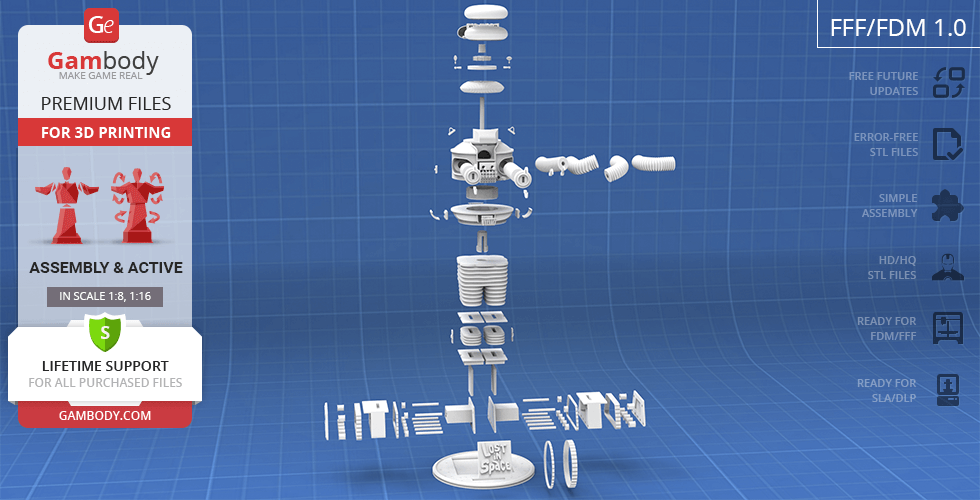

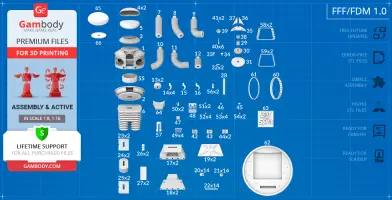

FFF/FDM 1.0 version features:

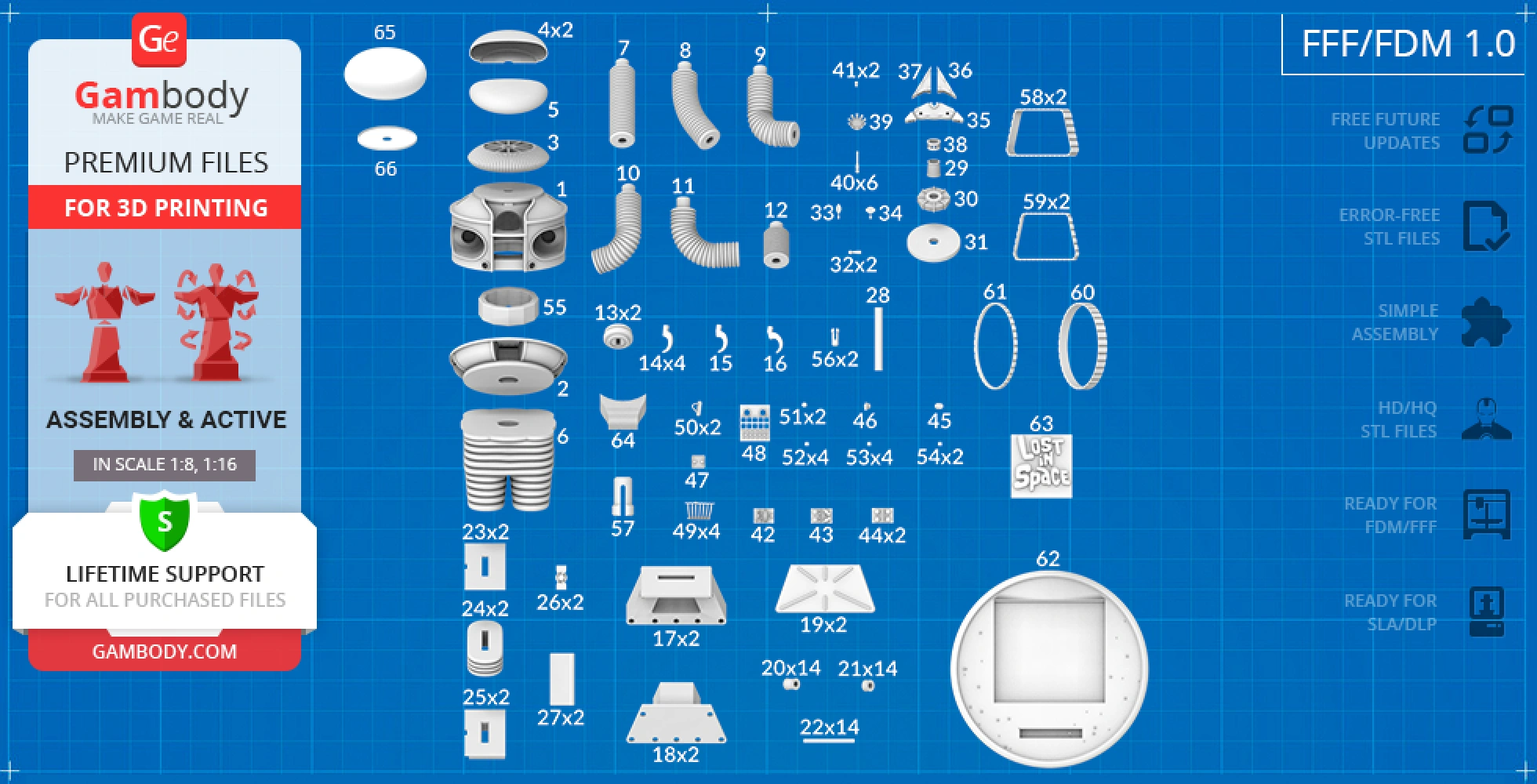

• Contains 66 parts;
• A printed model is 246 mm tall, 177 mm wide, 144 mm deep;

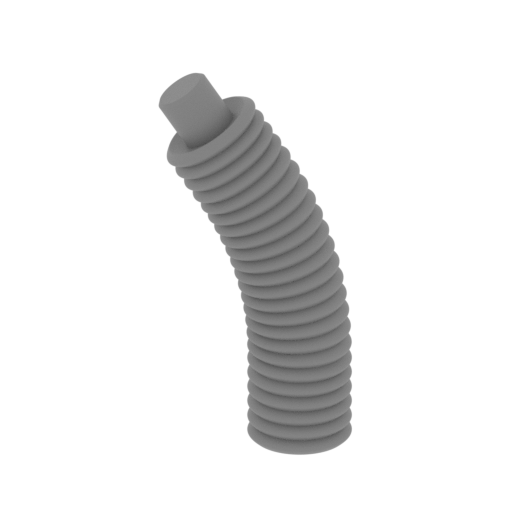

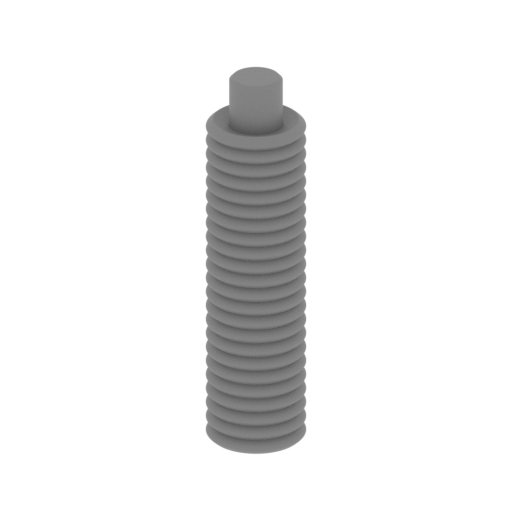

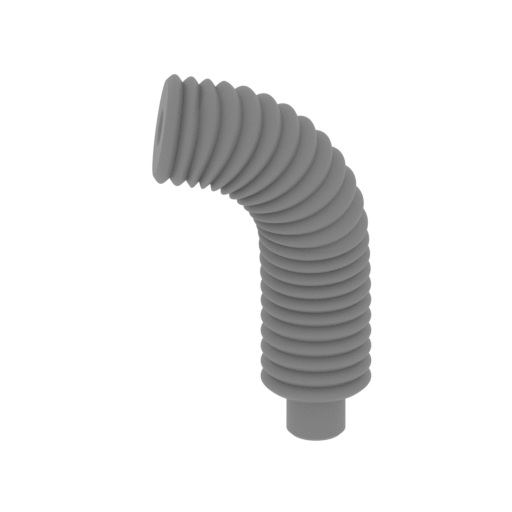

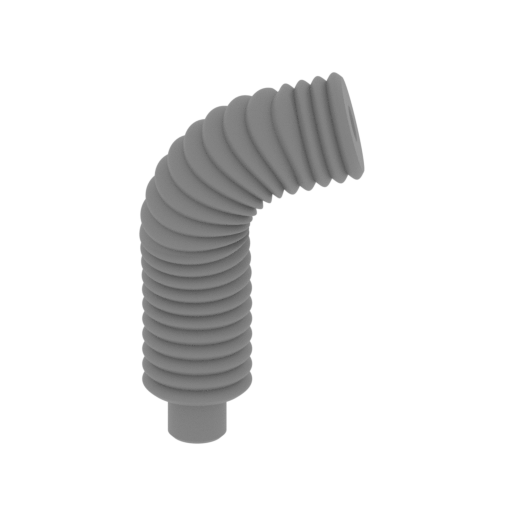

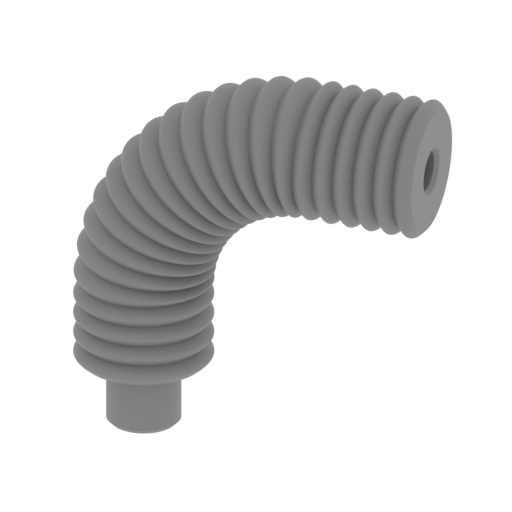

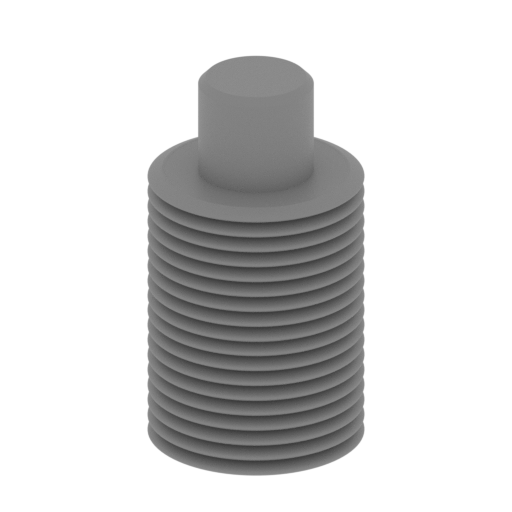

• Alternative extendable arms;

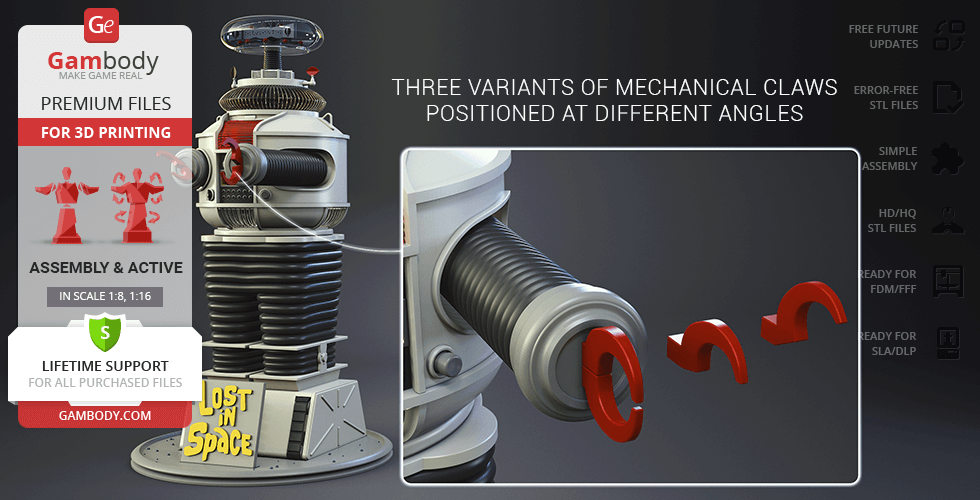

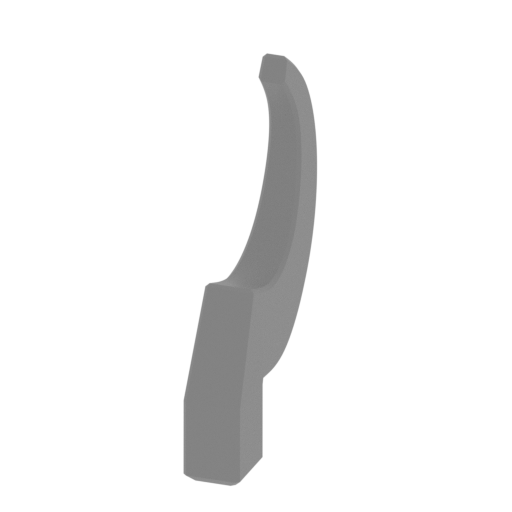

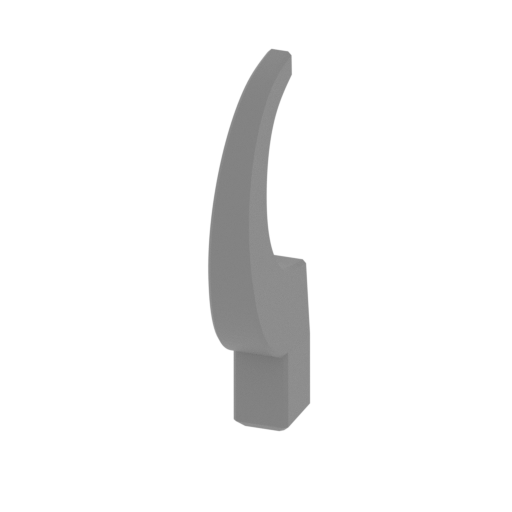

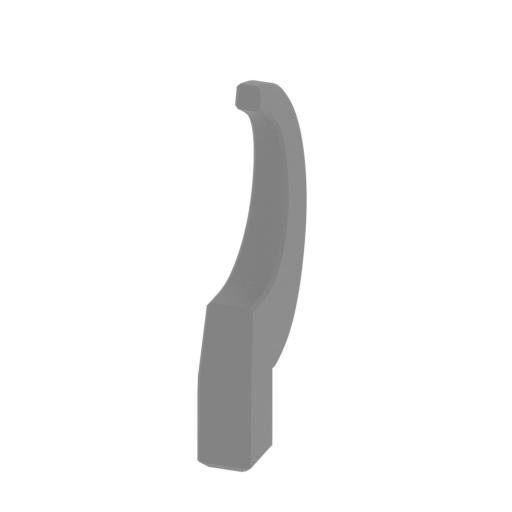

• Three variants of mechanical claws;

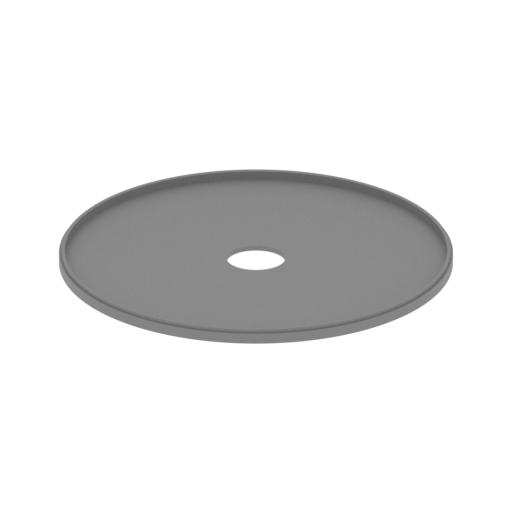

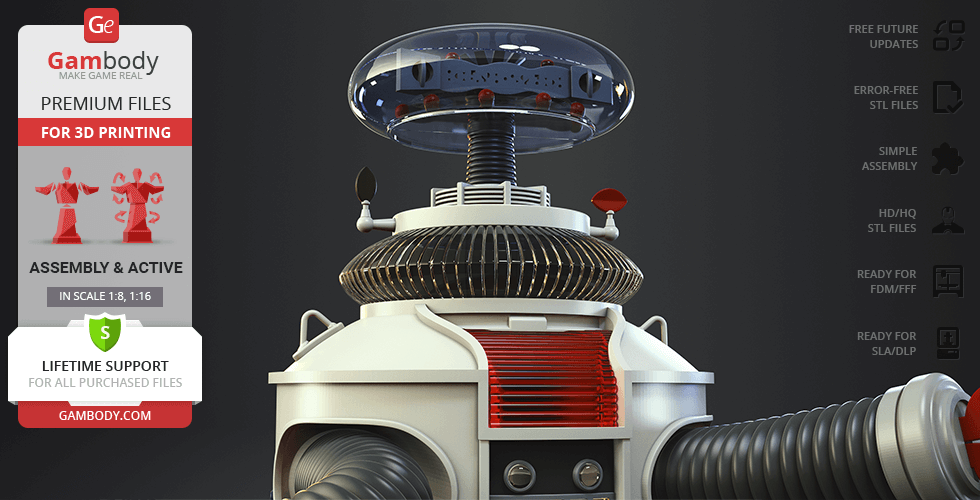

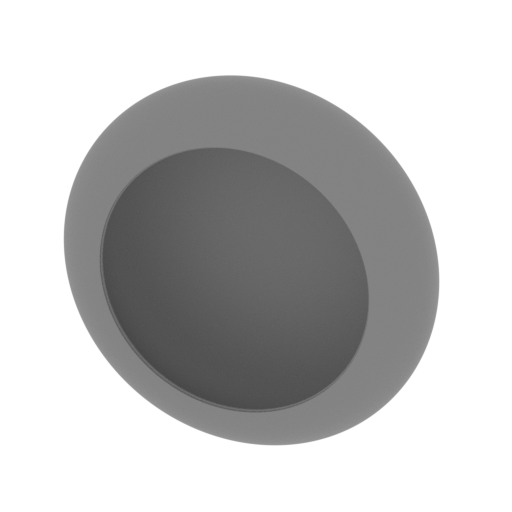

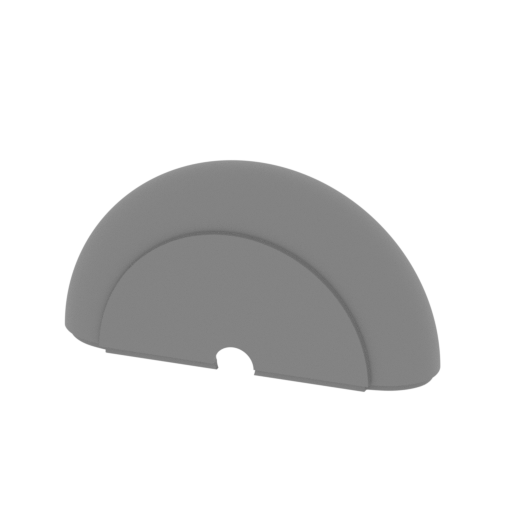

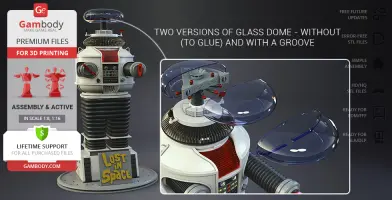

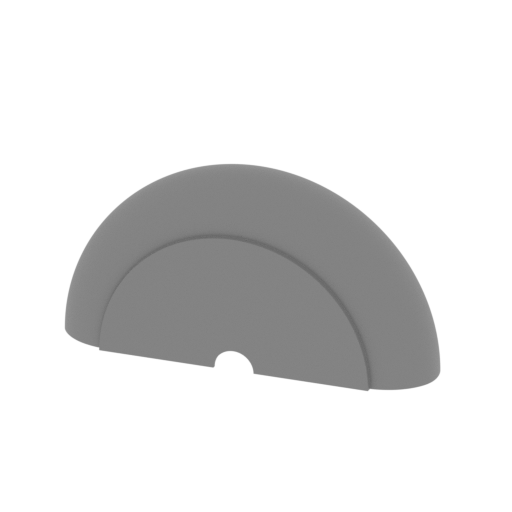

• Two versions of glass dome - with and without (to glue) a groove;

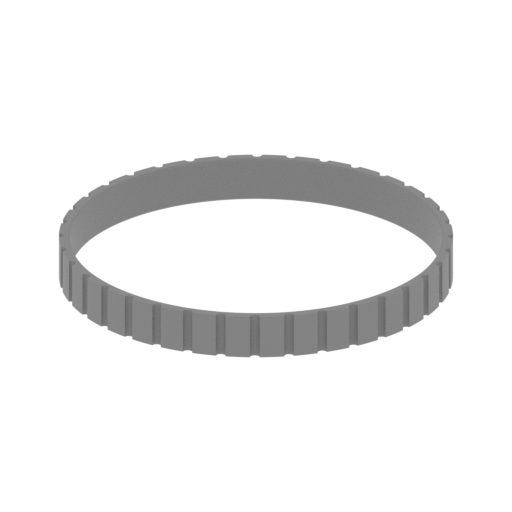

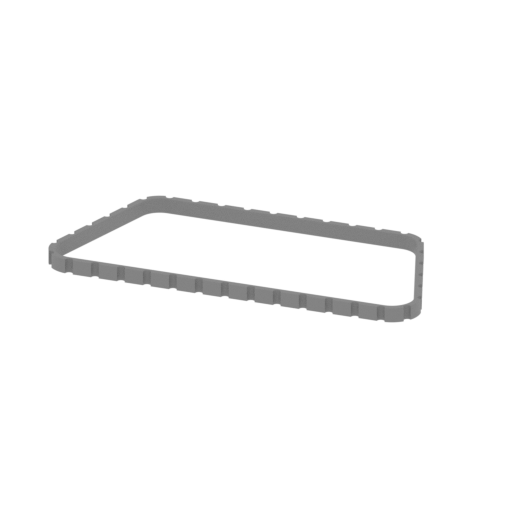

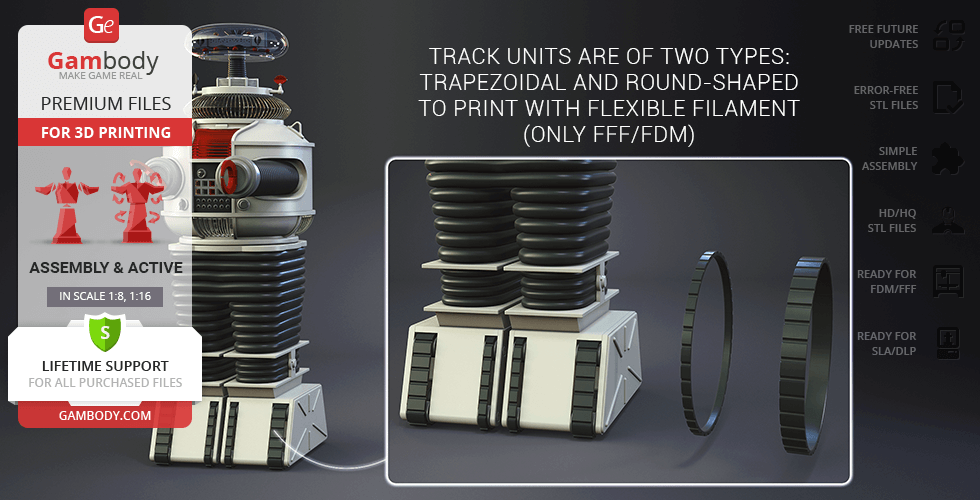

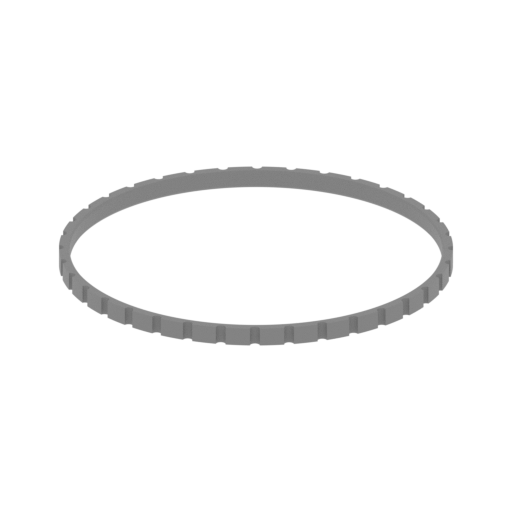

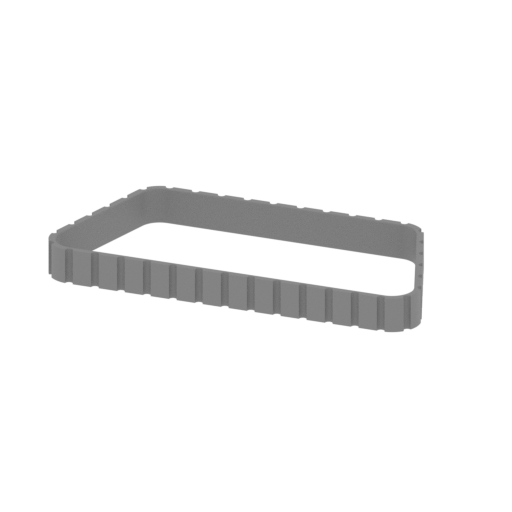

• Track units are of two types: trapezoidal and round-shaped to print with a flexible filament;

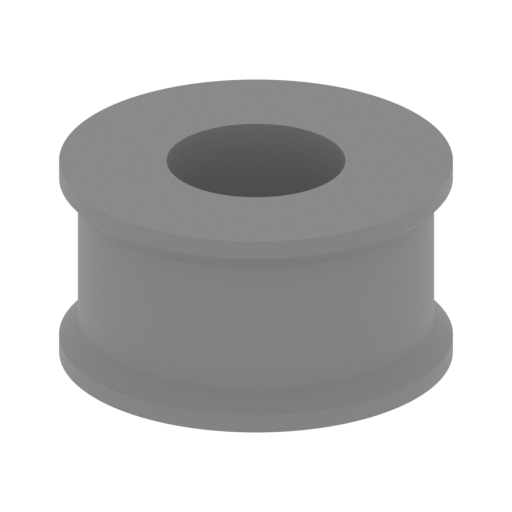

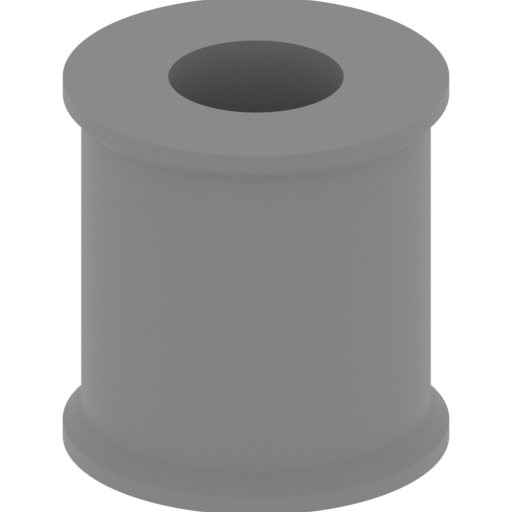

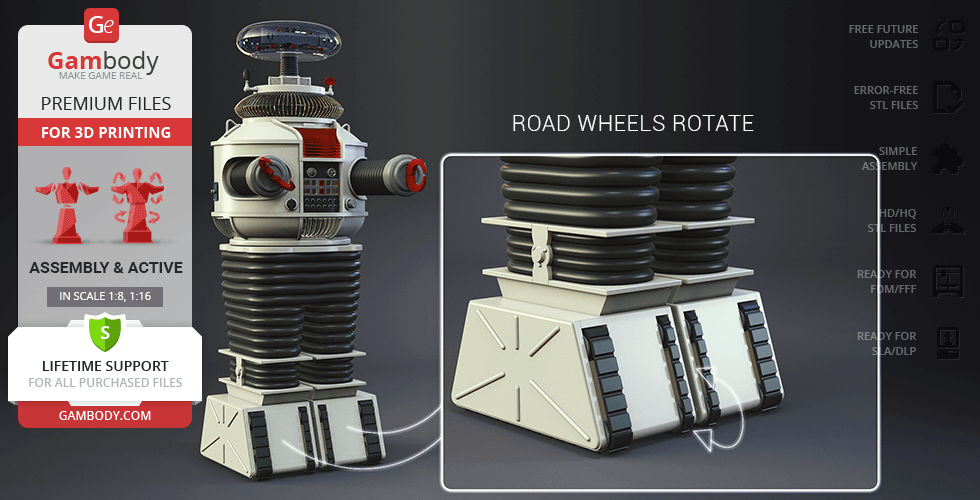

• Road wheels rotate;

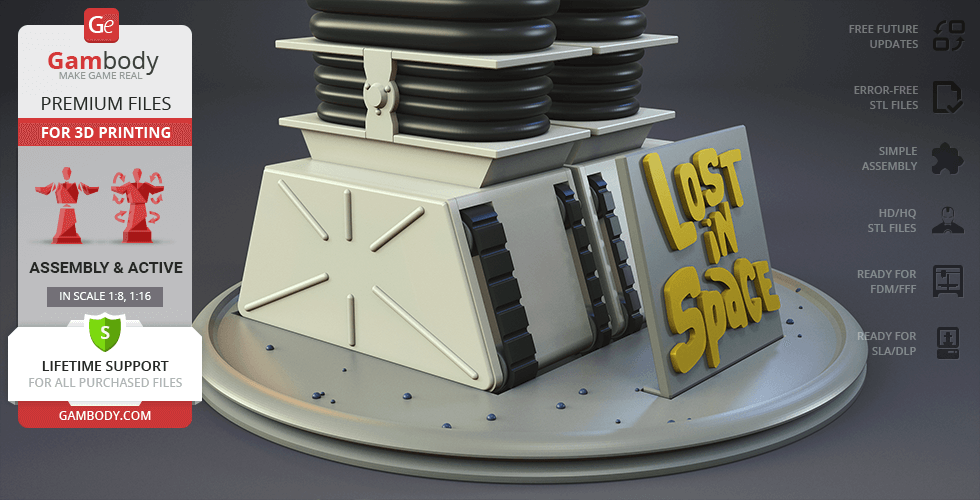

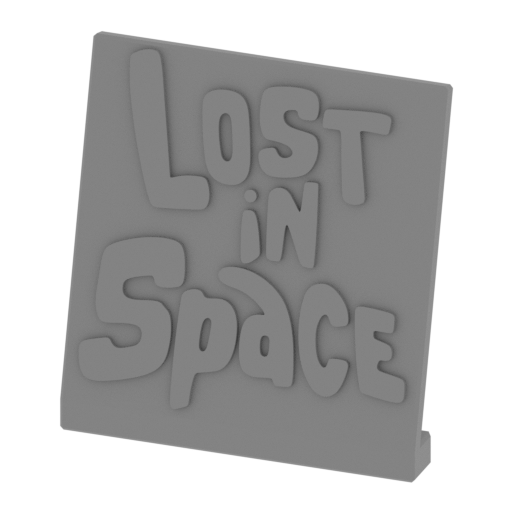

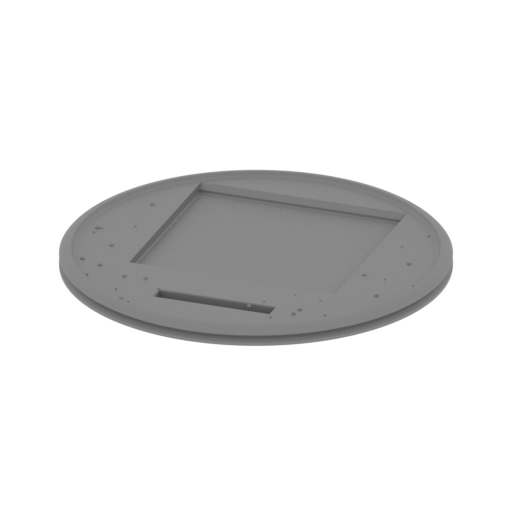

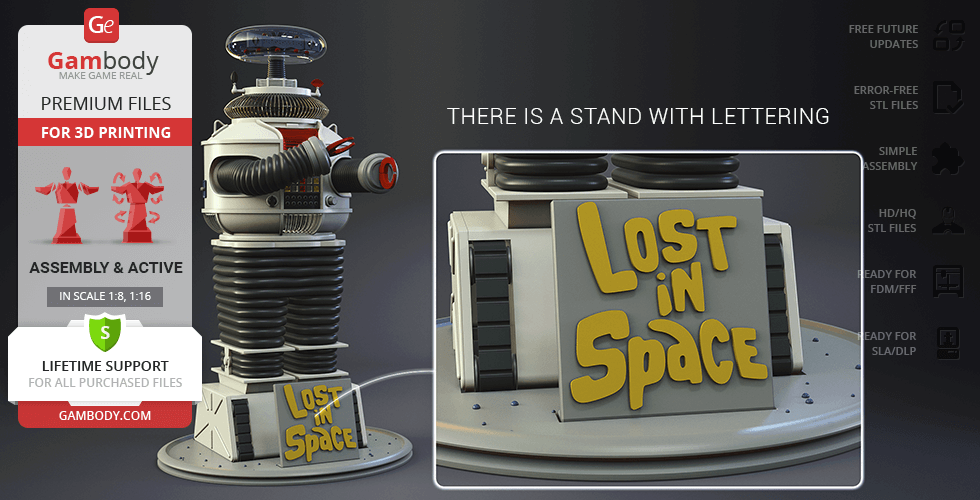

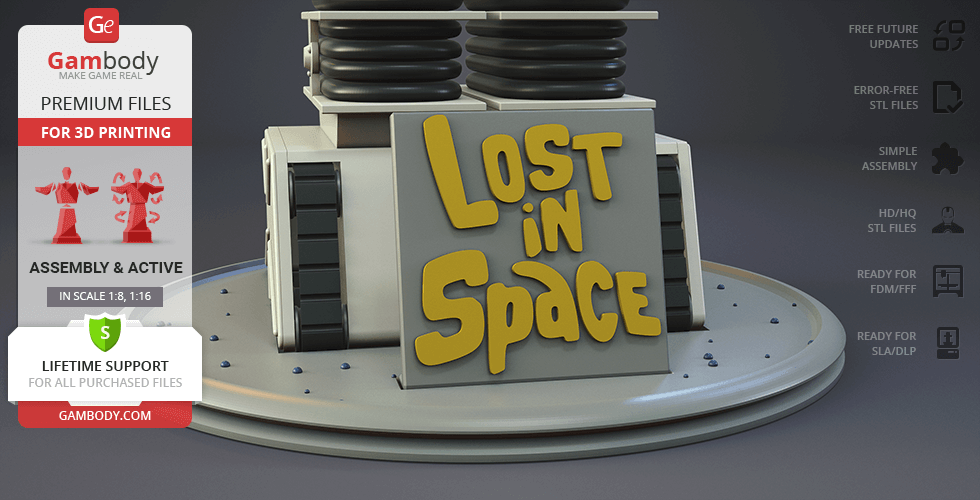

• Stand with lettering;

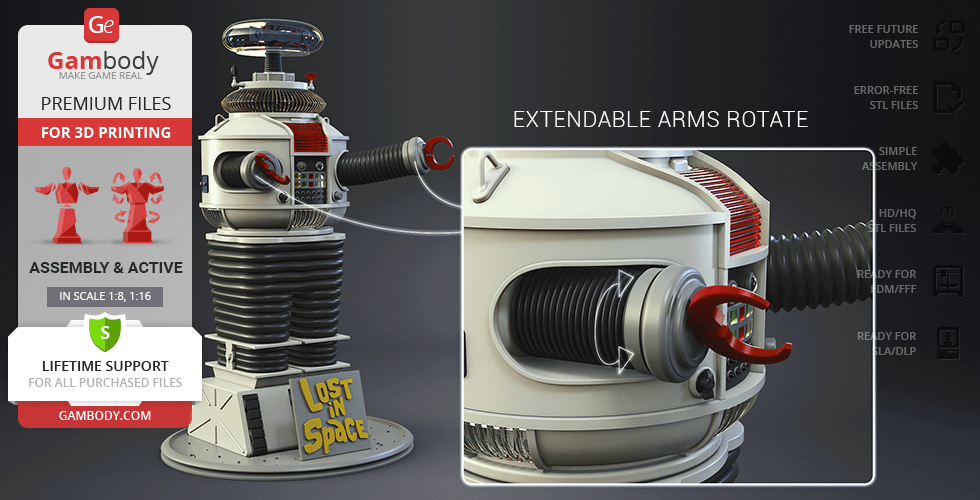

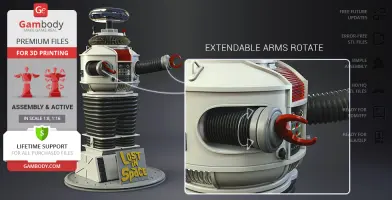

• Extendable arms rotate;

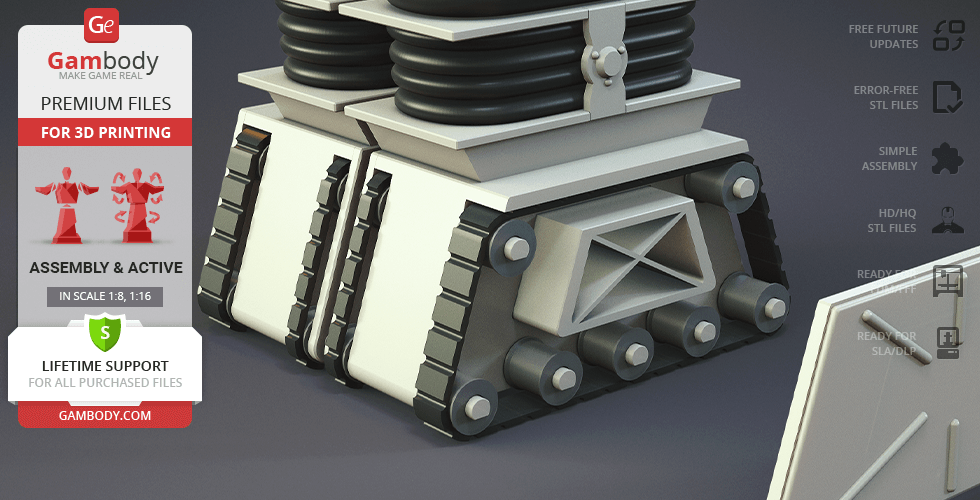

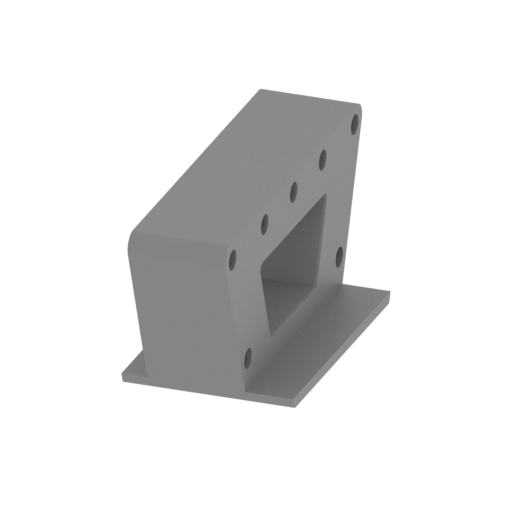

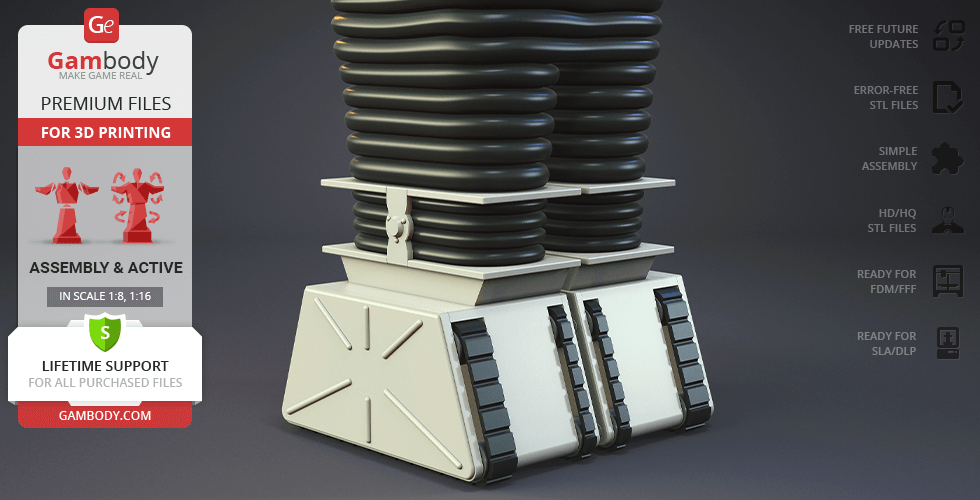

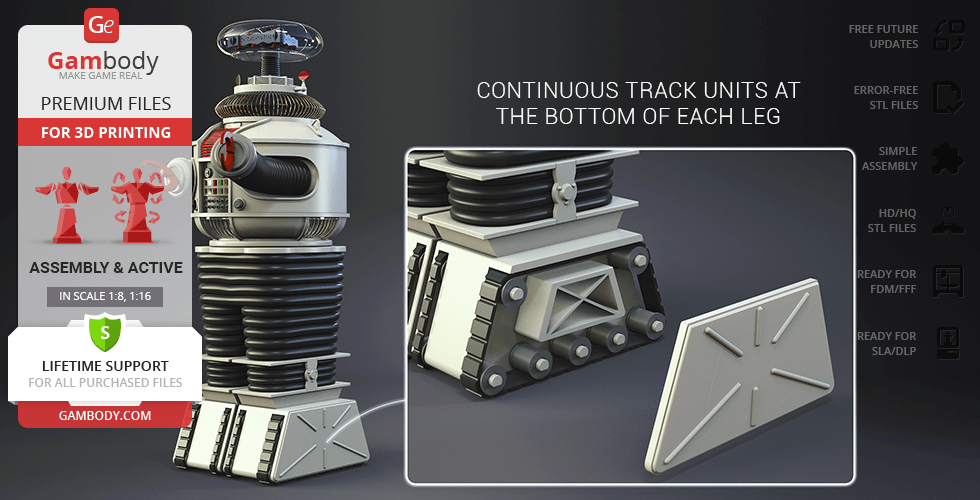

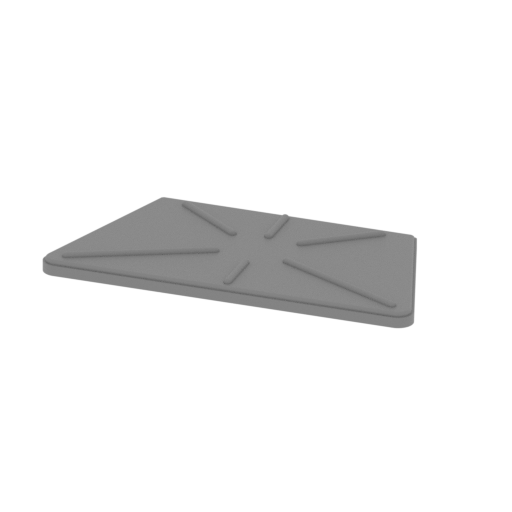

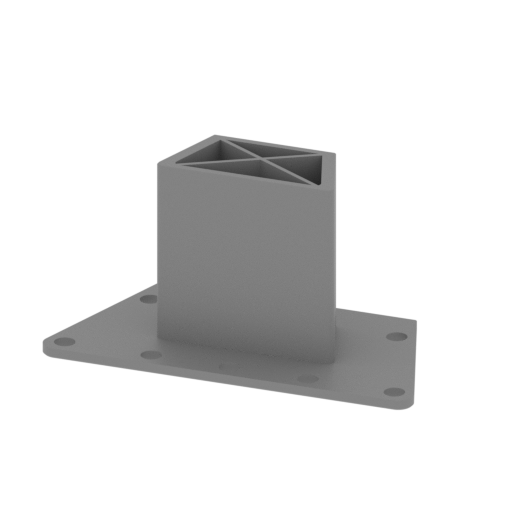

• Continuous track units at the bottom of each leg;
• Tunnels for LED wiring;
• All parts are divided in such a way that you will print them with the smallest number of support structures.

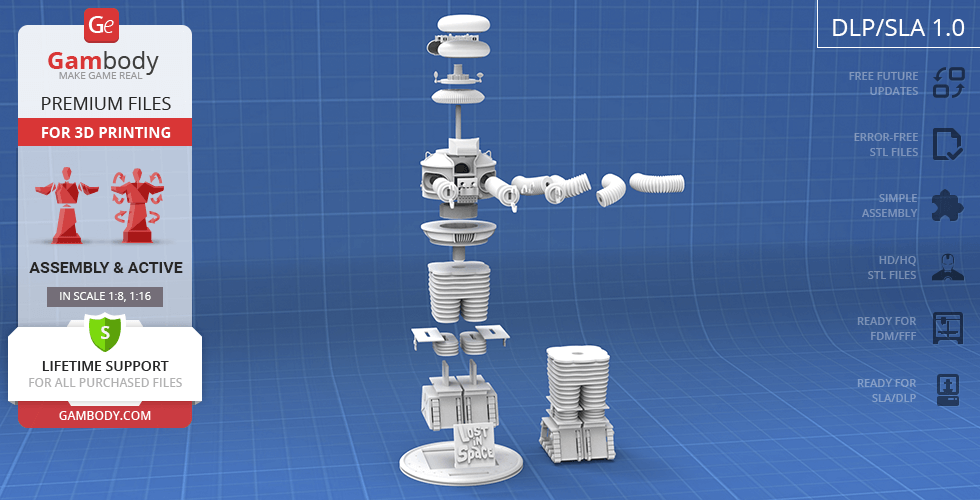

DLP/SLA 1.0 version features:

• Contains 43 parts;
• A printed model is 123 mm tall, 89 mm wide, 72 mm deep;
• Alternative extendable arms;
• Three variants of mechanical claws;
• Two versions of glass dome - with and without (to glue) a groove;
• Road wheels rotate;
• Stand with lettering;
• Extendable arms rotate;
• Continuous track units at the bottom of each leg;
• Tunnels for LED wiring;
• All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

You can get the The Robot Model B-9 for 3D printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble The Robot Model B-9 3D Printing Model on Gambody YouTube channel.

Also, you may like other Robot 3D Printing Models.

________

FAQ:

• Where can I print a model if I have no printer?
• How to get started with 3D printing?
• How to set up my 3D printer?
• How to choose right 3D model print bed positioning?
• How to paint printed figurine?

Generic

Below you can find printing recommendations for Cura, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

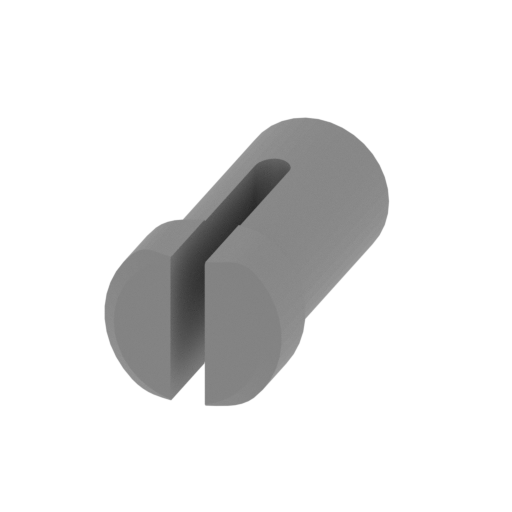

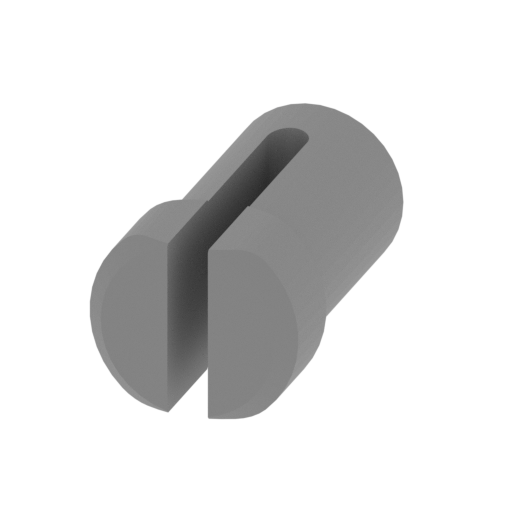

All connectors should be printed at 100% Infill.

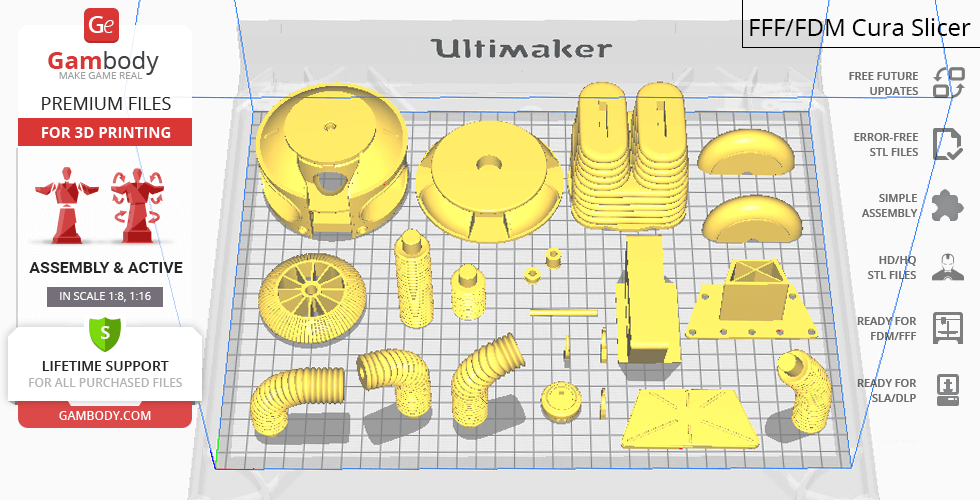

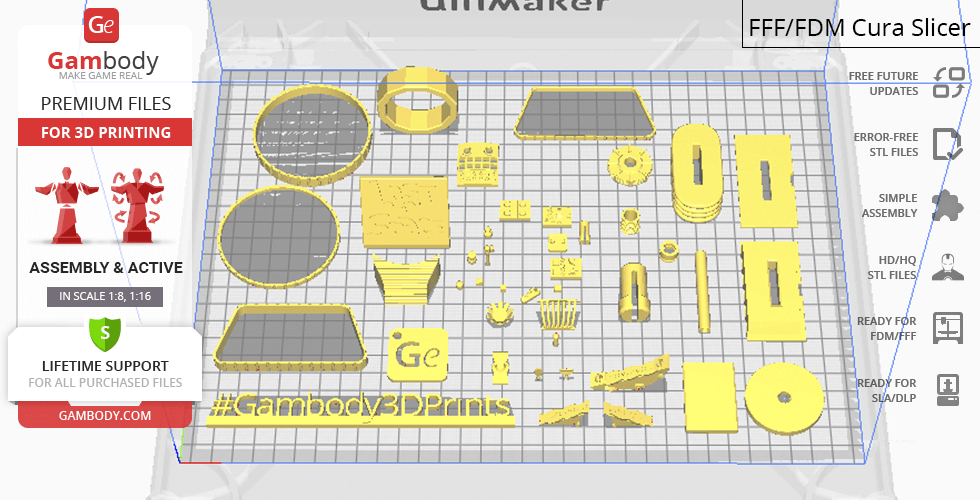

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
