Timber Wolf 3D model fans rejoice!

Incredible gun parts for 3D printing are ready to be printed and mounted on your Timber Wolf 3D model.

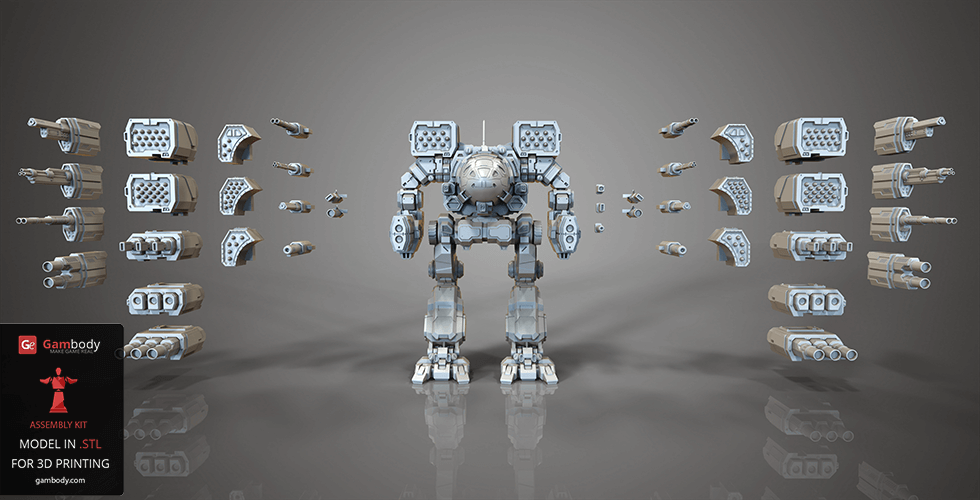

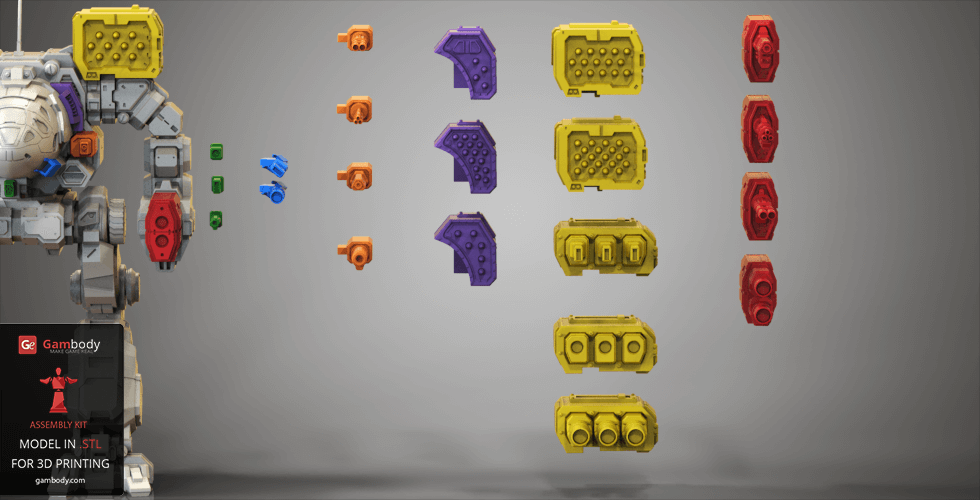

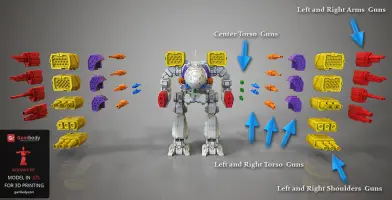

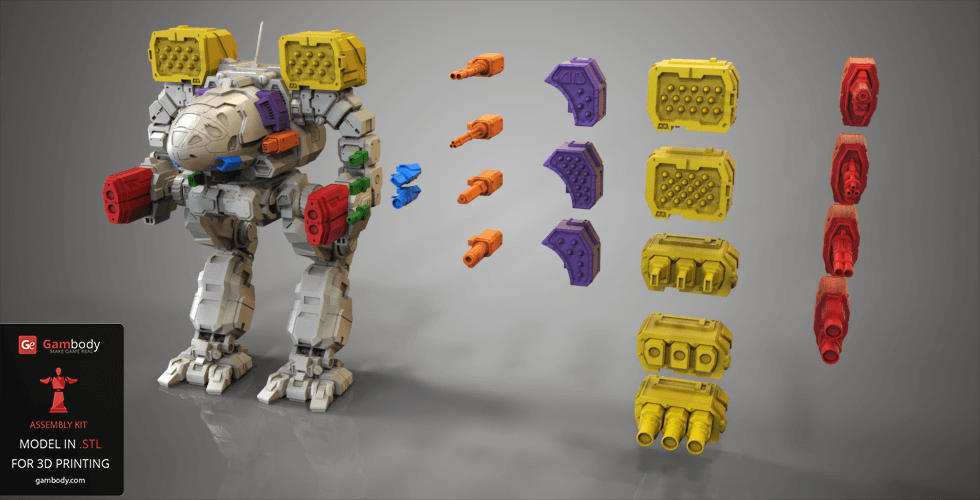

The weapons pack includes guns for the arms, torso, and shoulders of the model. All weapons are created in Autodesk Maya 3D modeling program and are designed to be fitted accurately on the model.

In this pack you will find:

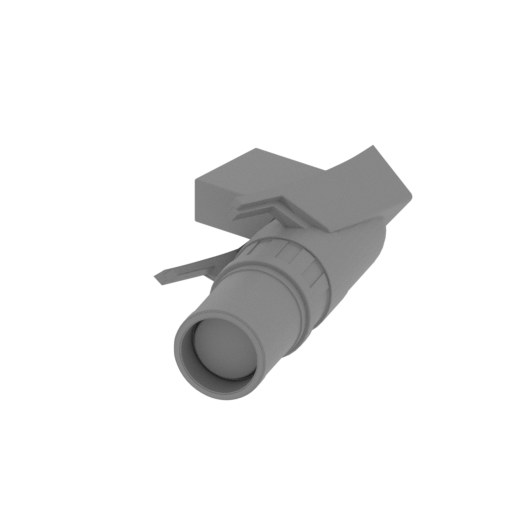

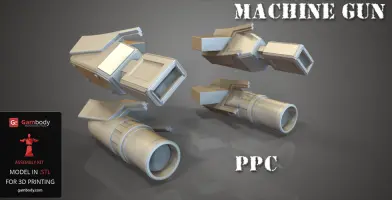

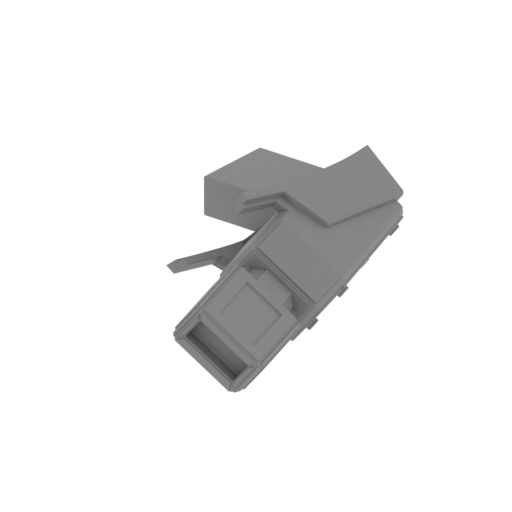

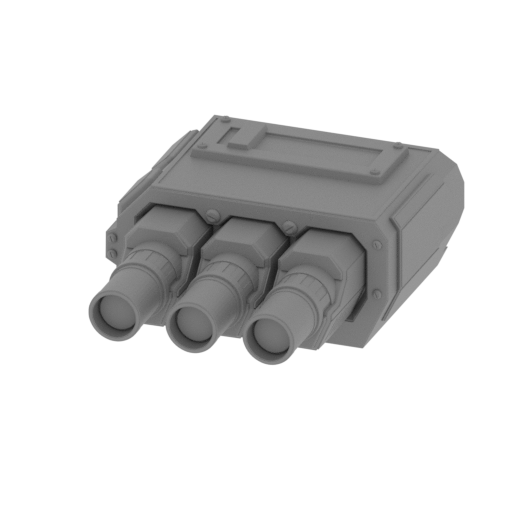

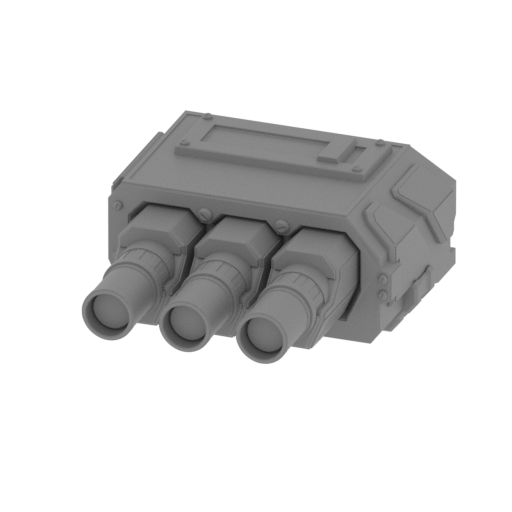

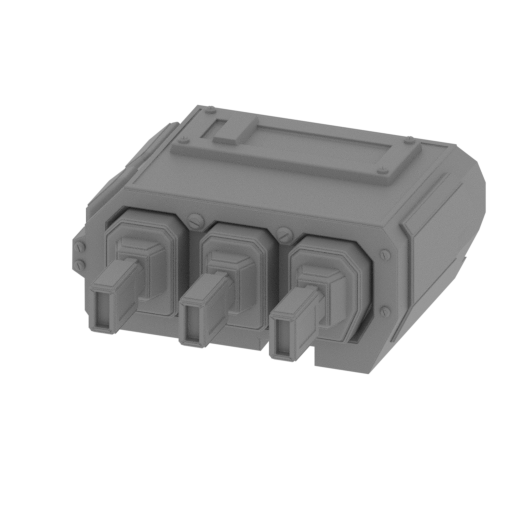

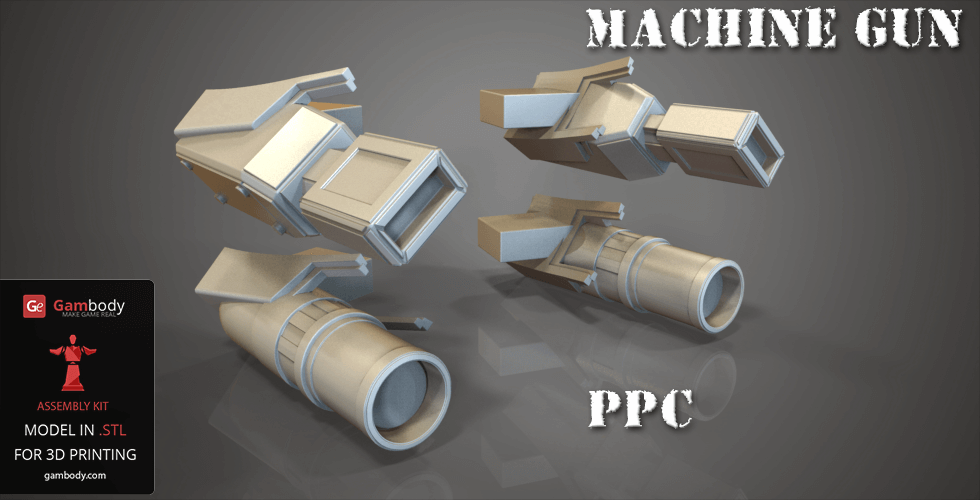

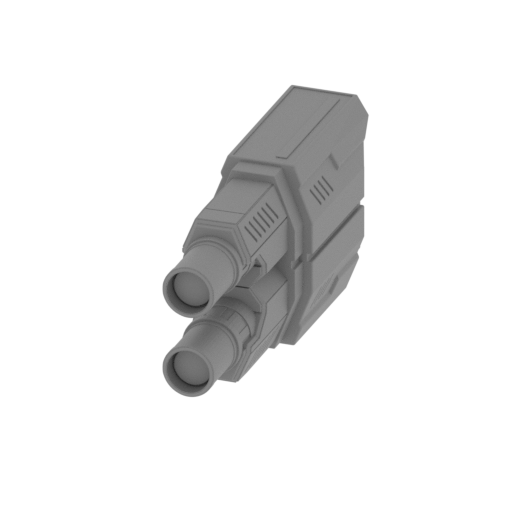

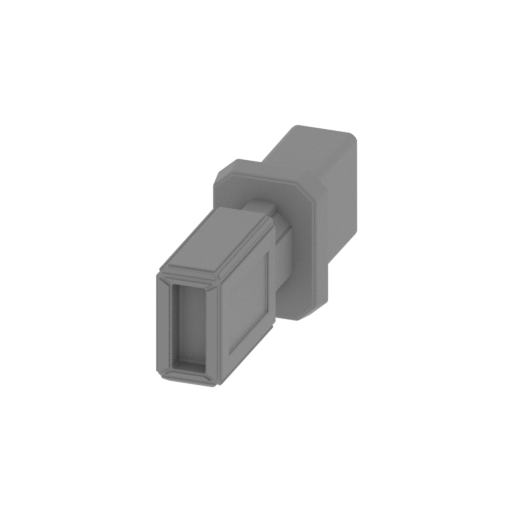

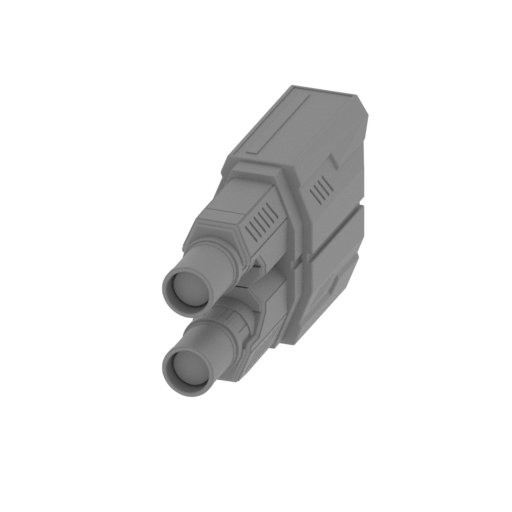

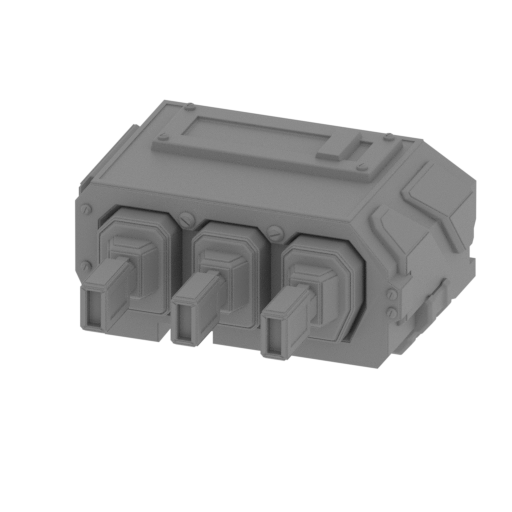

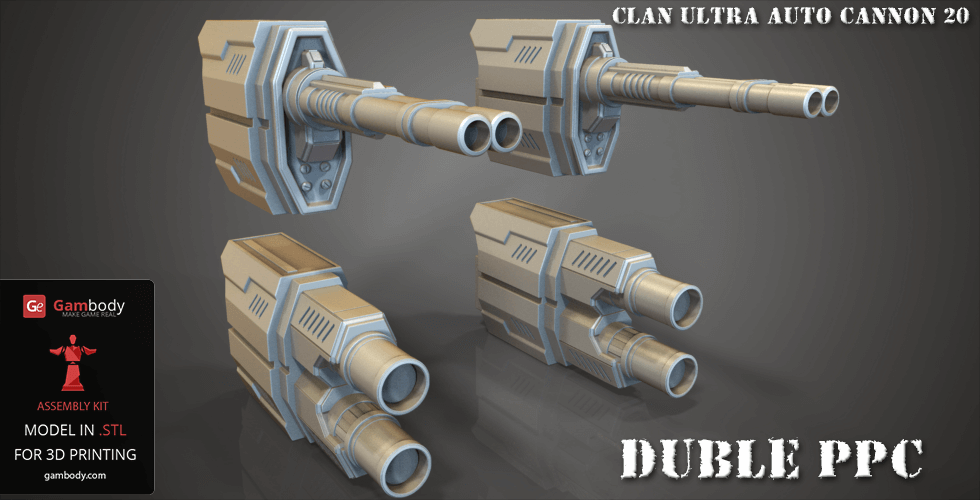

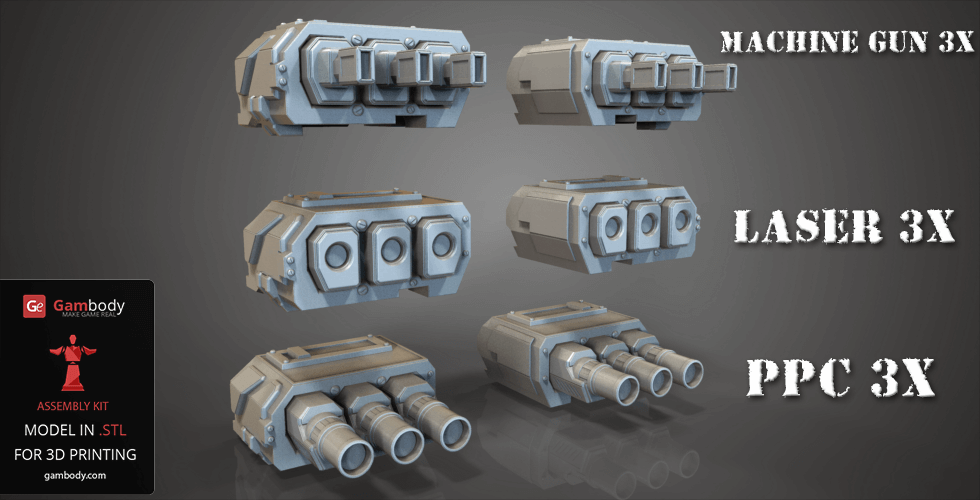

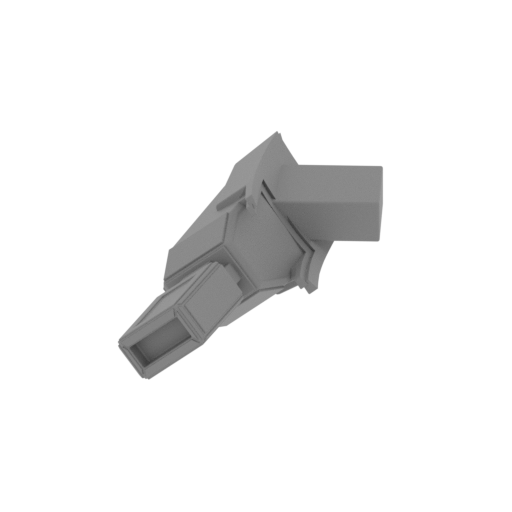

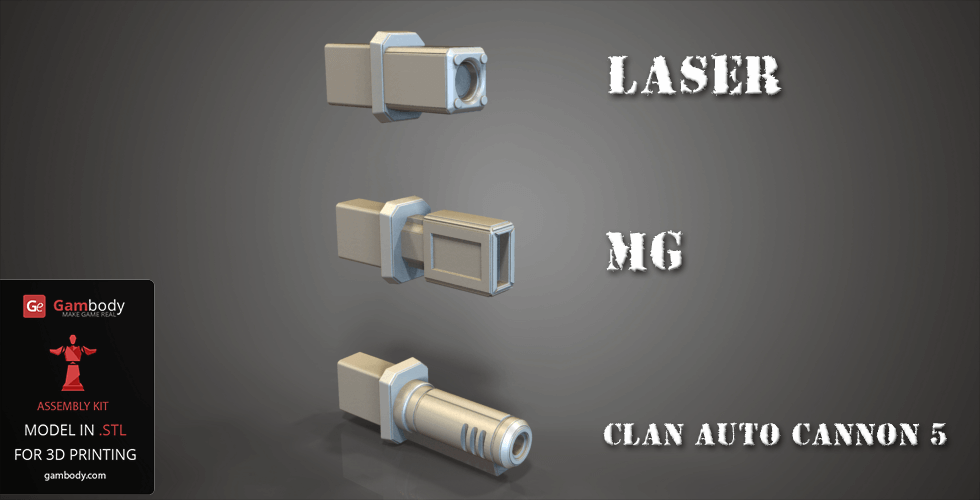

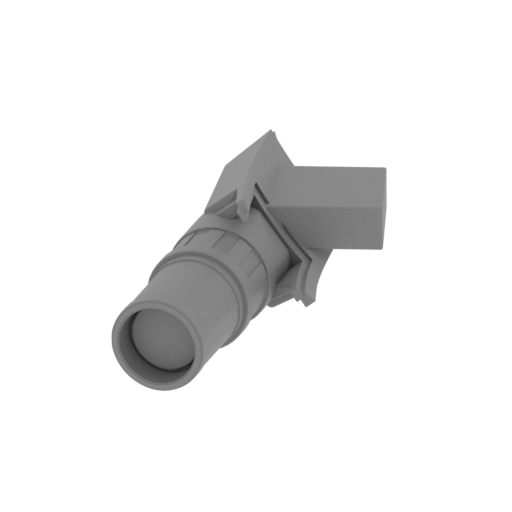

• Machine guns and PPCs;

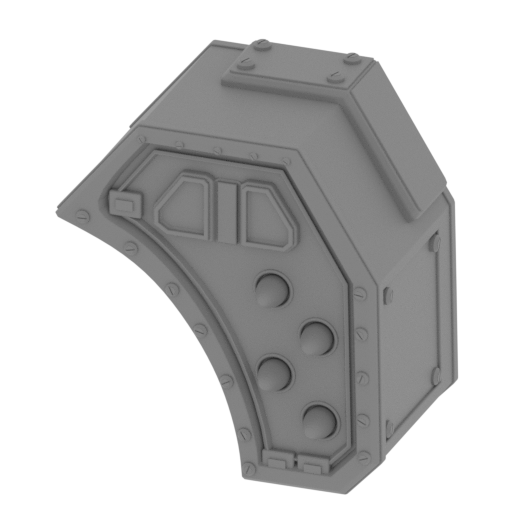

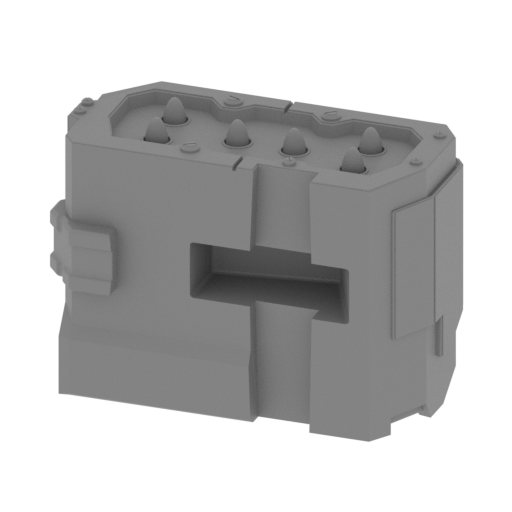

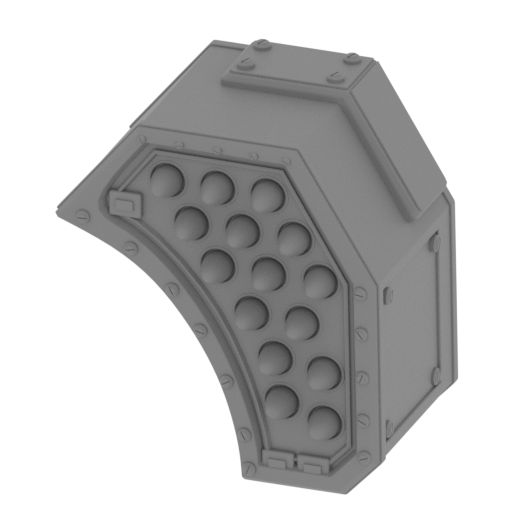

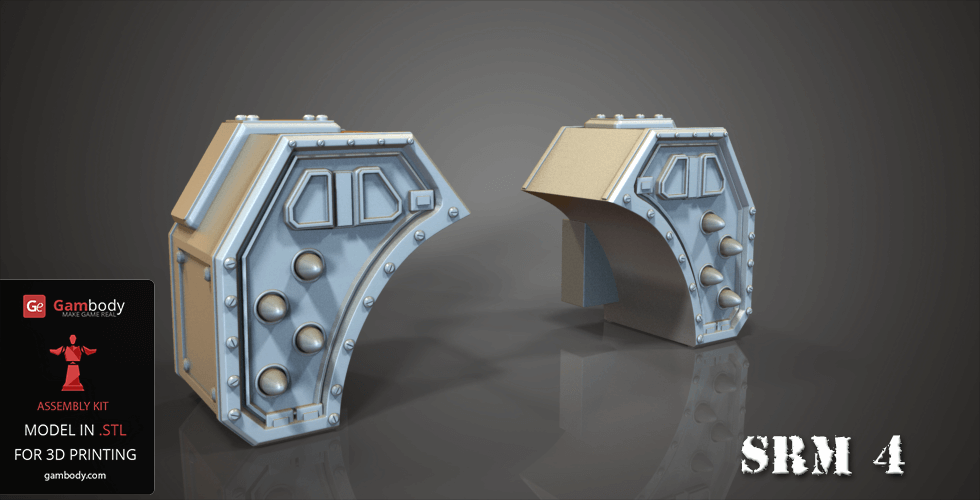

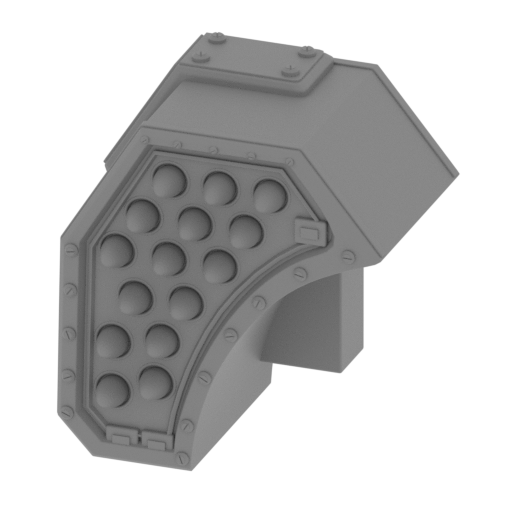

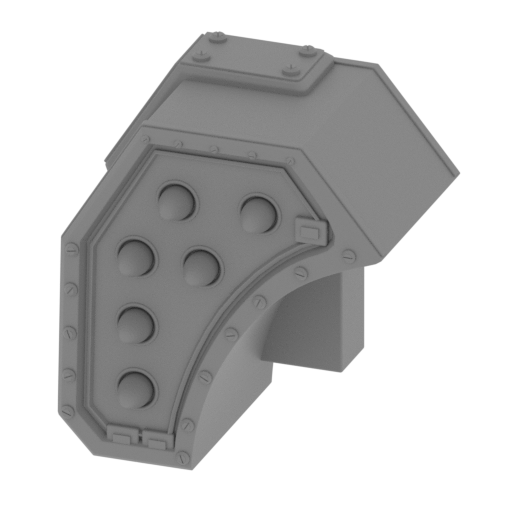

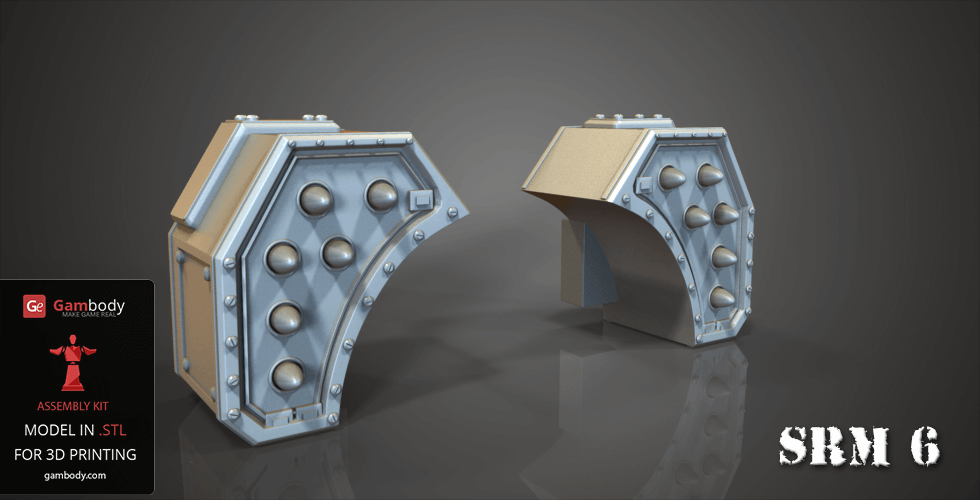

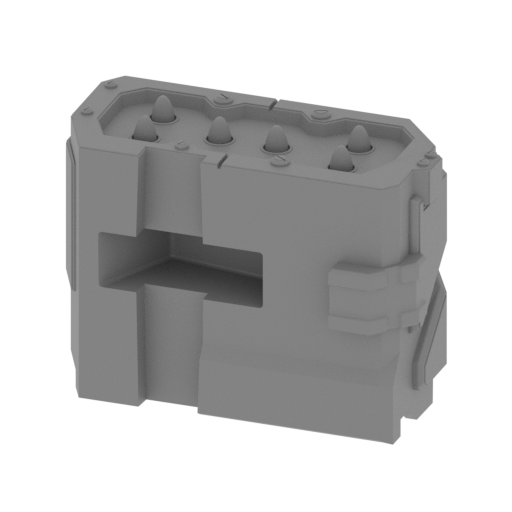

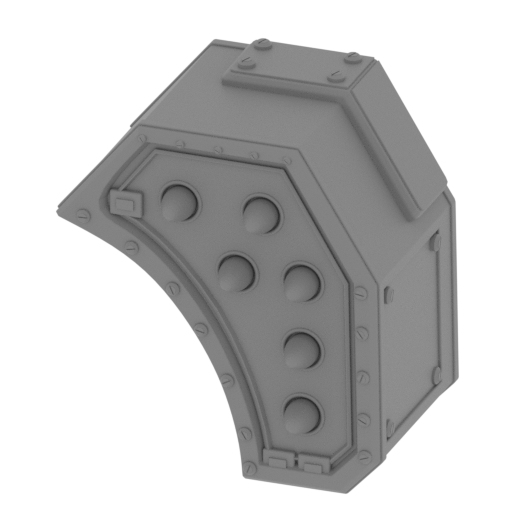

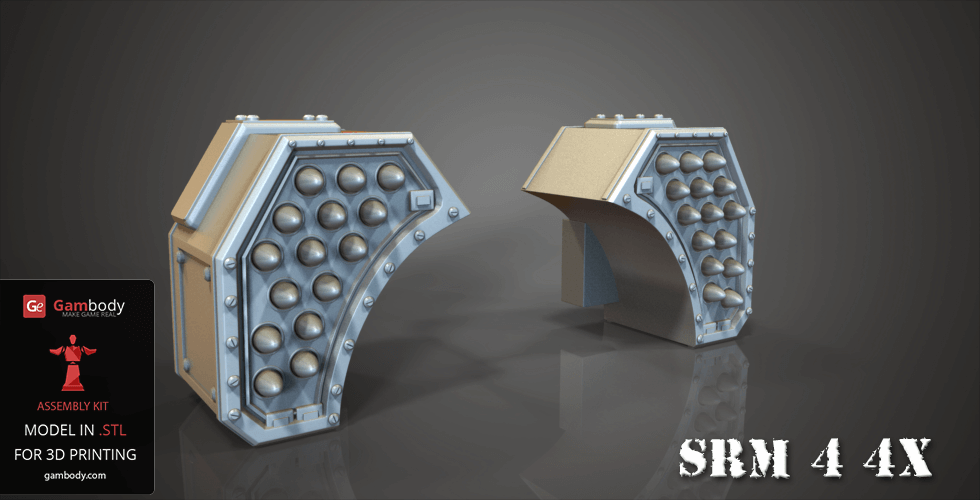

• SRM 4, SRM 4 4X, SRM 6;

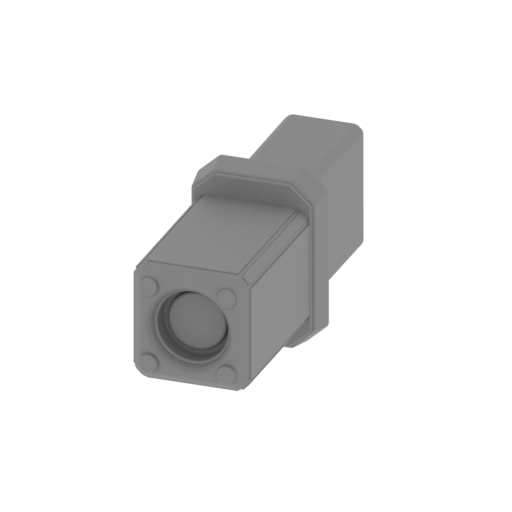

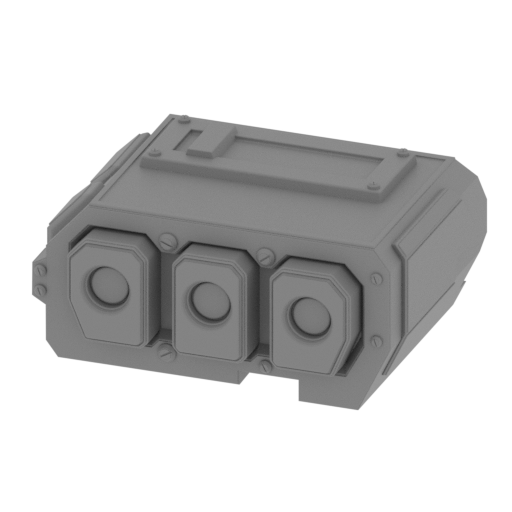

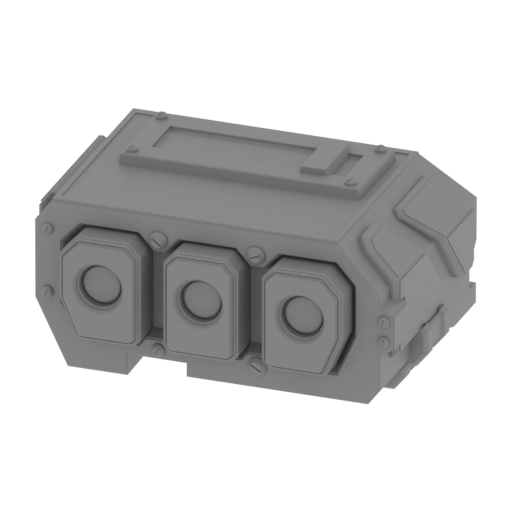

• Lasers;

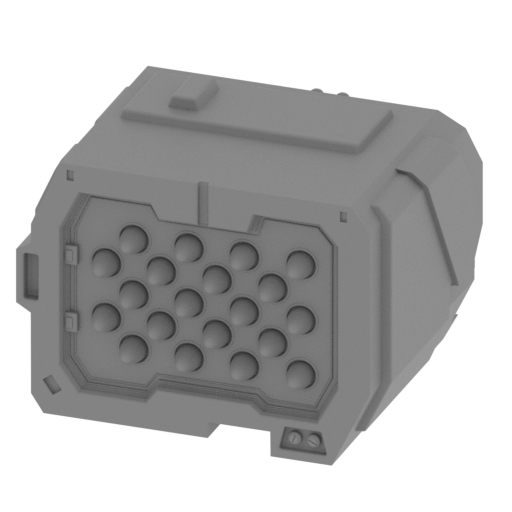

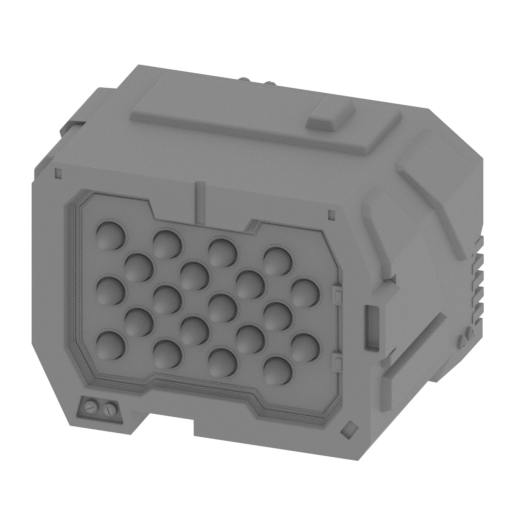

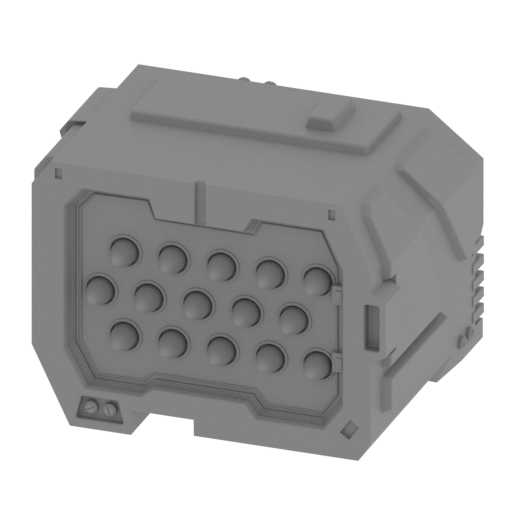

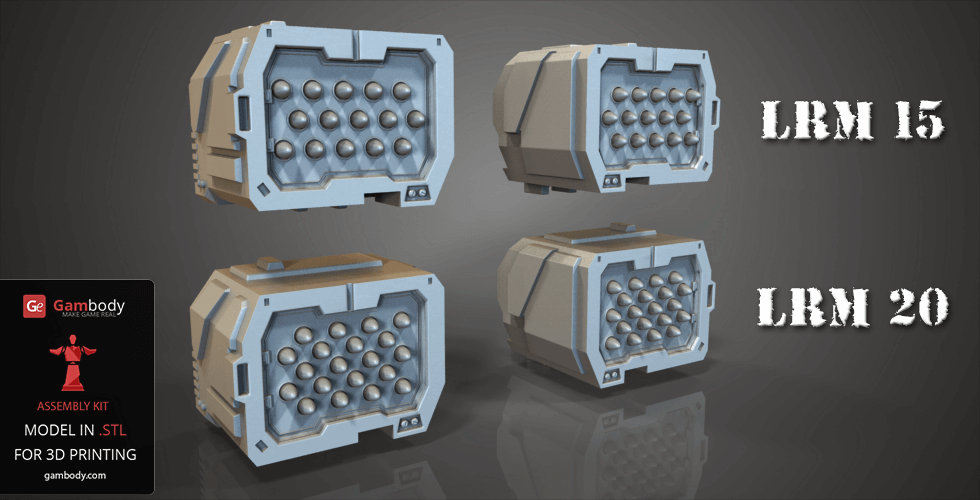

• LRM 15, LRM 20.

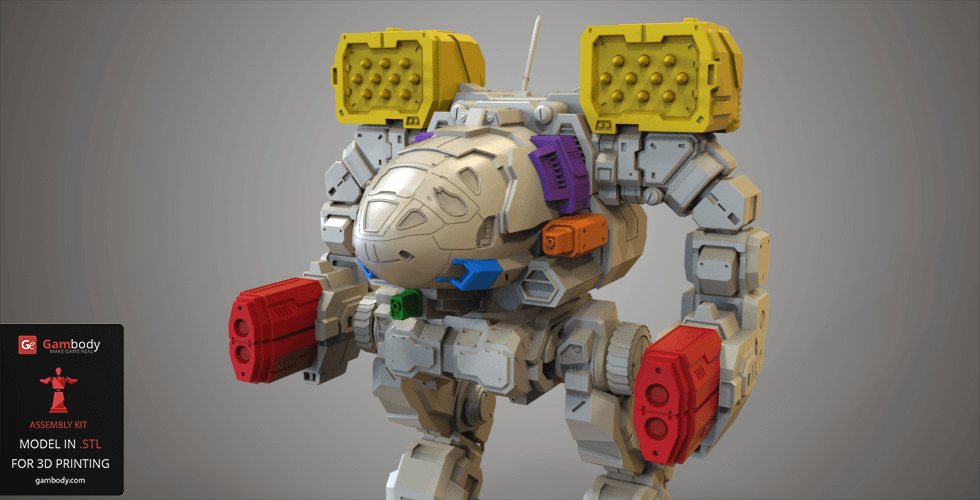

All this beauty will upgrade your MadCat Mech 3D model and prepare for serious battle.

All guns are provided with special fitting slots to facilitate their mounting on the 3D model.

Timber Wolf 3D model gun parts are available for download in STL file format. The files passed thorough checking and correction in Netfabb. They are free of any errors. You can handle the files in any slicing program, such as Cura 15.06 or Simplify3D.

Buy Timber Wolf gun parts for 3D printing by clicking the green Buy button. Insert your PayPal or credit card details and download an awesome weapons pack. Upgrade your Timber Wolf 3D model and get it in the heat of battle.

Note: You can print the gun parts with 3DHubs, directly from our website. Select the files you want to print and click Print with 3DHubs button. You will be redirected to 3DHubs website, where you can choose the material you want to print the parts in and the 3D printing service provider.

On 26.12.2016 the model files have been optimized and made solid. They now are adapted to be 3D printed using any slicing program. 3D model files are already available for purchase and download.

________________________

On 01.11.2017 new version of Gun Parts for Timber Wolf 3D Model have been added.

On 31.10.2017 new scale and new version of joints have been added for Timber Wolf 3D Printing Gaming Miniature. Now, the Timber Wolf 3D Model is available in two scale: 1/60 (FDM/FFF) and 1/100 (DLP/SLA/SLS).
Updated .STL files for Gun Parts that are prepared for a model with a scale of 1/60 are already available for download in “Source files” tab for Version 2 (FDM/FFF 3D printers).

_______
FAQ:
Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

These 3D models of Timber Wolf Gun Parts were tested in Cura 2.7.0. and printed on an Ultimaker 2 in PLA material.

To avoid printing problems, we recommend the following settings:

Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
Wall Line Width: 0.4 mm
   Outer Wall Line Width: 0.4 mm
   Inner Wall(s) Line Width: 0.4 mm
   Top/Bottom Line Width: 0.4 mm
   Infill Line Width: 0.4 mm
   Skirt/Brim Line Width: 0.4 mm
   Support Line Width: 0.4 mm
 Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Shortest
Ignore Small Z Gaps: Check

Infill
Infill Density: 20%

Infill Line Distance: 3.5 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill Overlap Percentage: 10%
    Infill Overlap: 0.4 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2

Material
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 20 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed
Print Speed: 50 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 40 mm/s
      Outer Wall Speed: 30 mm/s
      Inner Wall Speed: 40 mm/s
    Top/Bottom Speed 20 mm/s
    Support Speed: 30 mm/s
      Support Infill Speed: 30 mm/s
Travel Speed: 120 mm/s
Initial Layer Speed: 30 mm/s

    Initial Layer Print Speed: 30 mm/s
    Initial Layer Travel Speed: 72 mm/s
Skirt/Brim Speed: 30 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.6562 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.27 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support
Enable Support: Check
Support Placement: Everywhere
Support Overhang Angle: 50°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 2.3333 mm
Support Z Distance: 0.15 mm
    Support Top Distance: 0.15 mm
    Support Bottom Distance: 0.15 mm
Support X/Y Distance: 0.8 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.2 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Brim
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 15
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Extra Skin Wall Count: 0

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
