Tony Stark Mech Test Diorama STL files for 3D Printing | Assembly Model

ABOUT THIS 3D MODEL

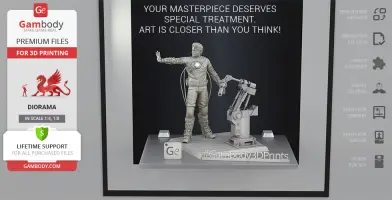

Iron Man is a hero known for saving humanity dozens of times and fighting a variety of intergalactic battles. But even having reached such immense heights, you can never forget where you came from and the hard path you walked! Back in 2008, we were shown the humble beginnings of Iron Man’s infamous powered suit of armour - rocky test runs in Tony Stark’s workshop, bare mechanics without the beautiful plating, and the first successful flight. Follow in Tony’s footsteps to success and 3D print the memorable diorama!

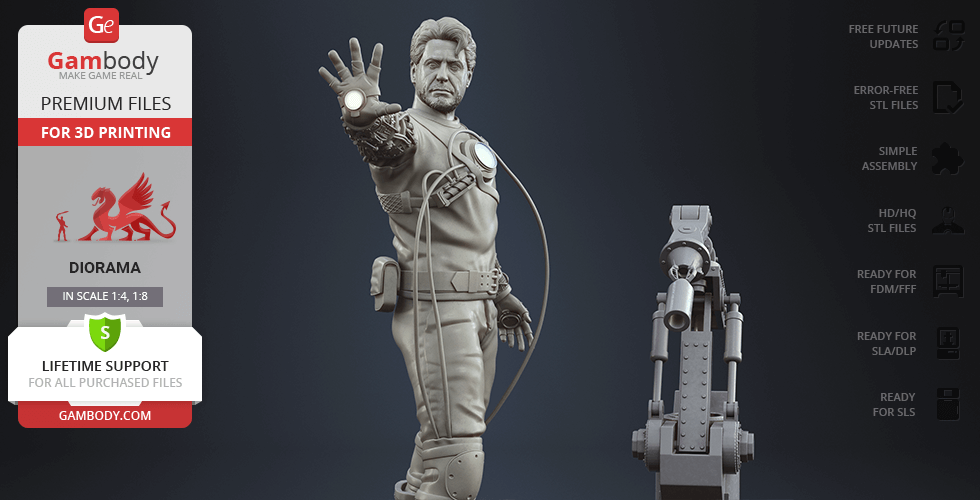

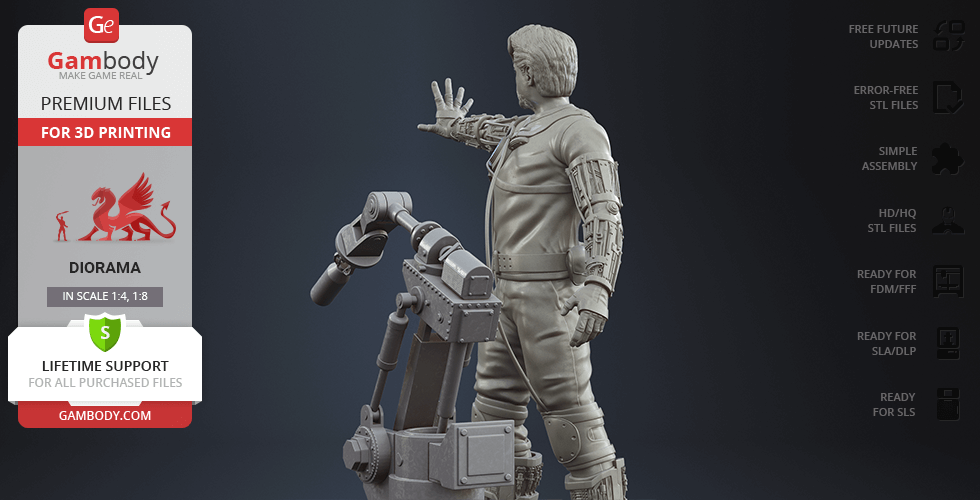

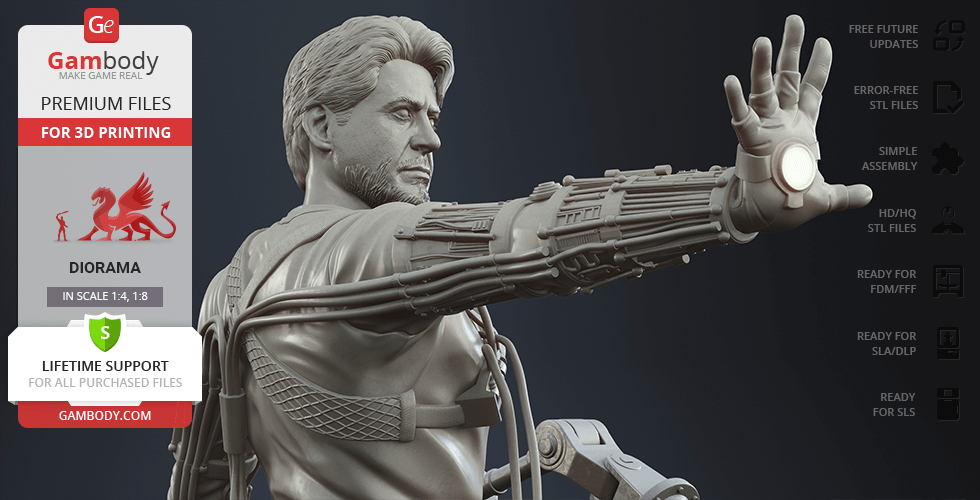

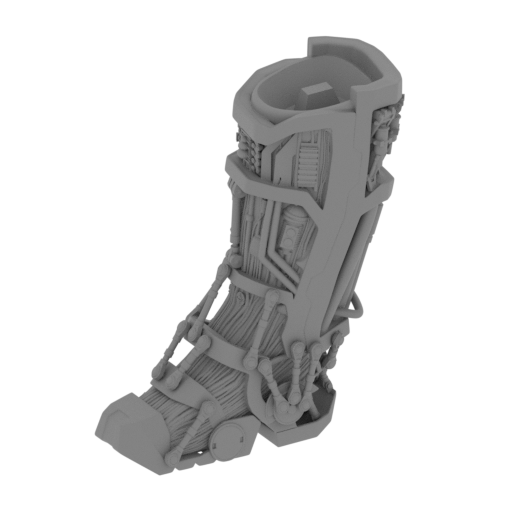

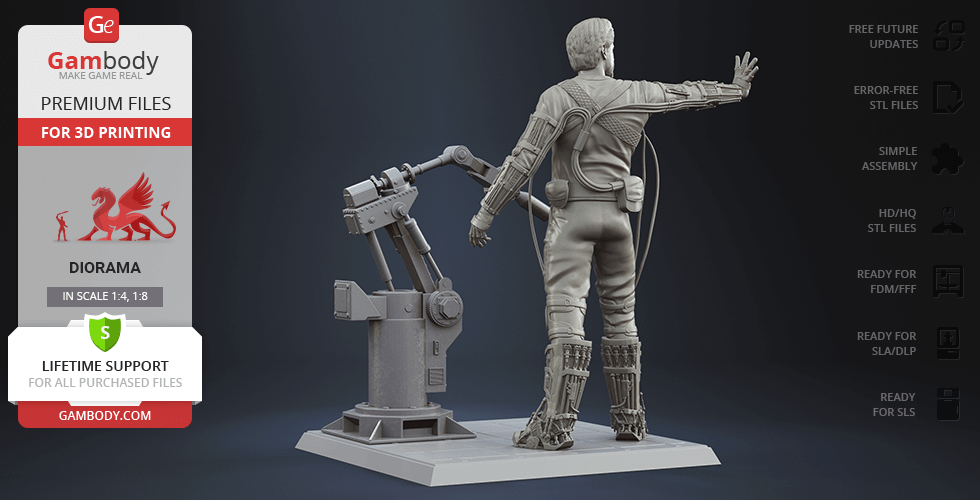

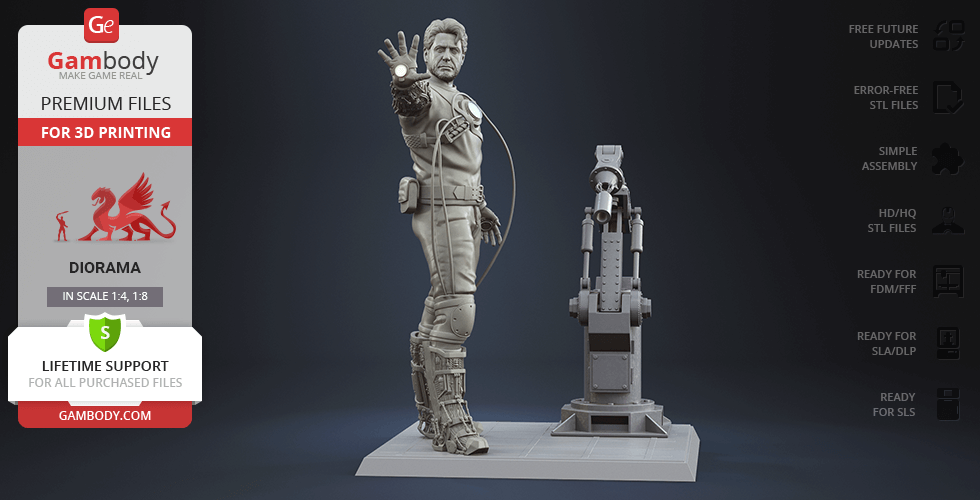

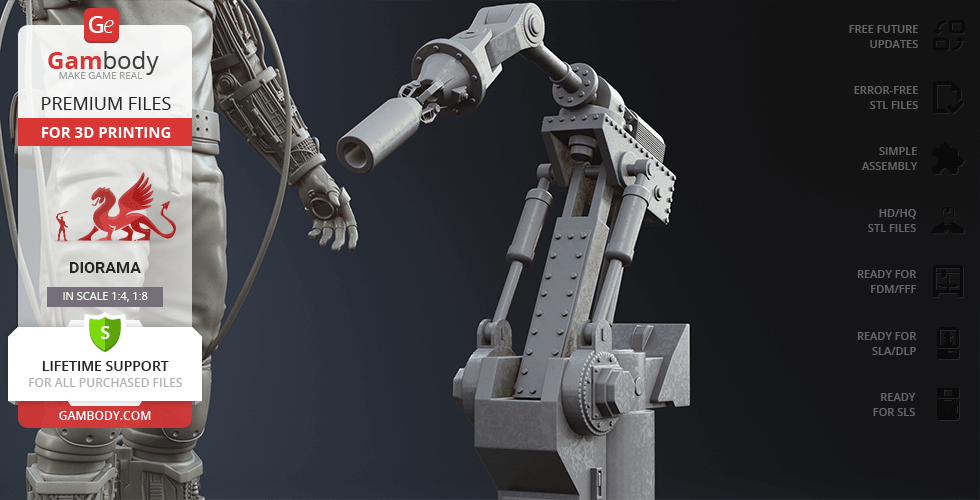

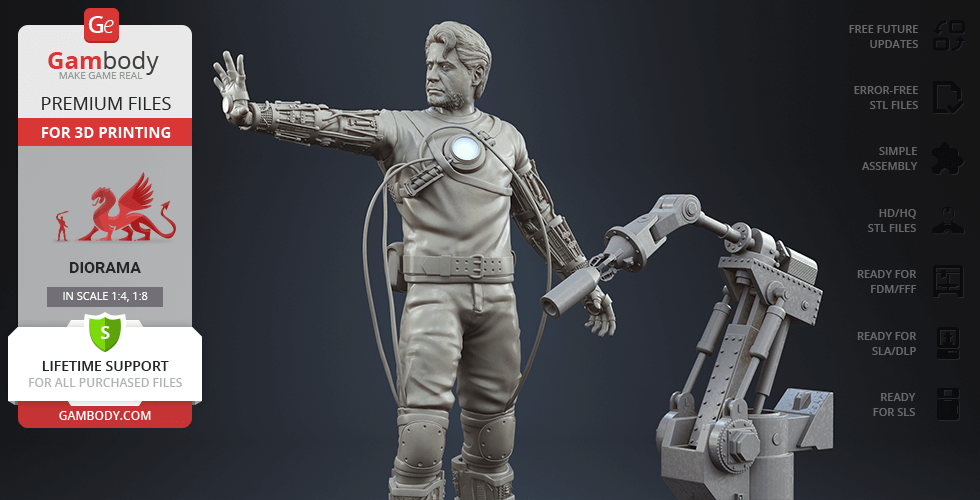

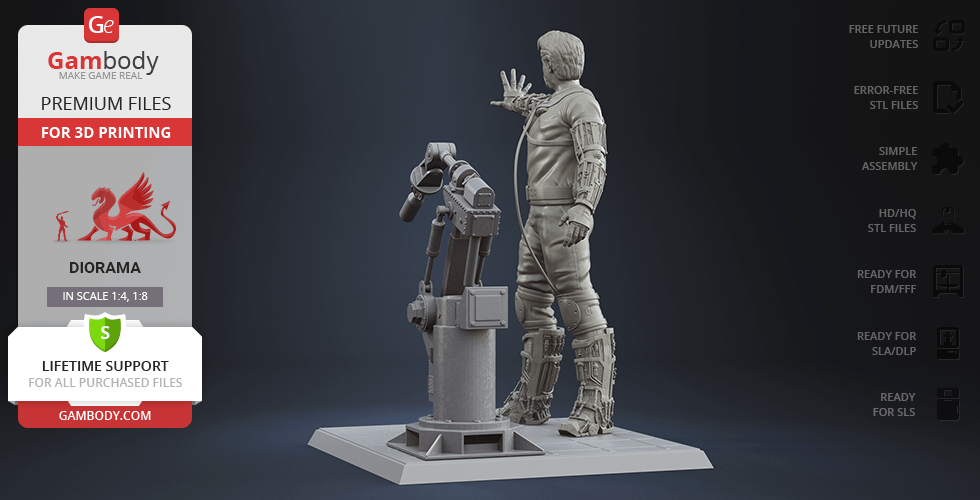

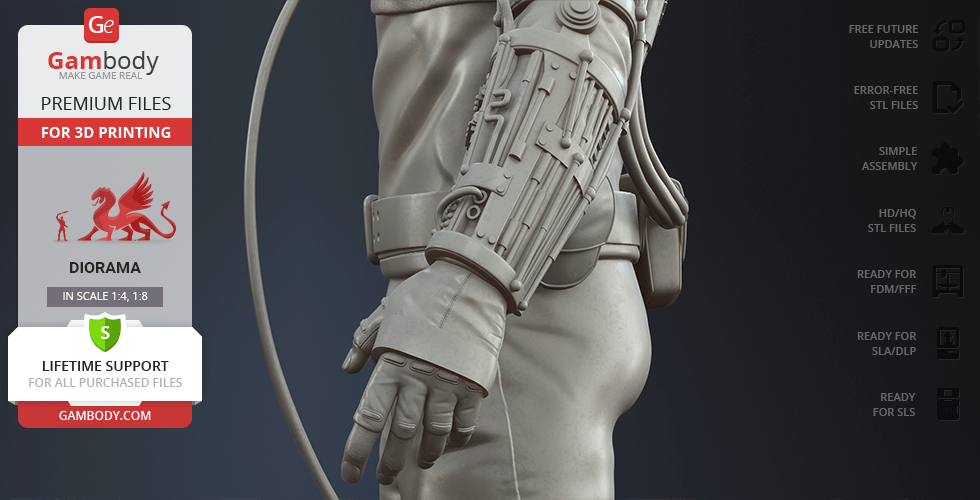

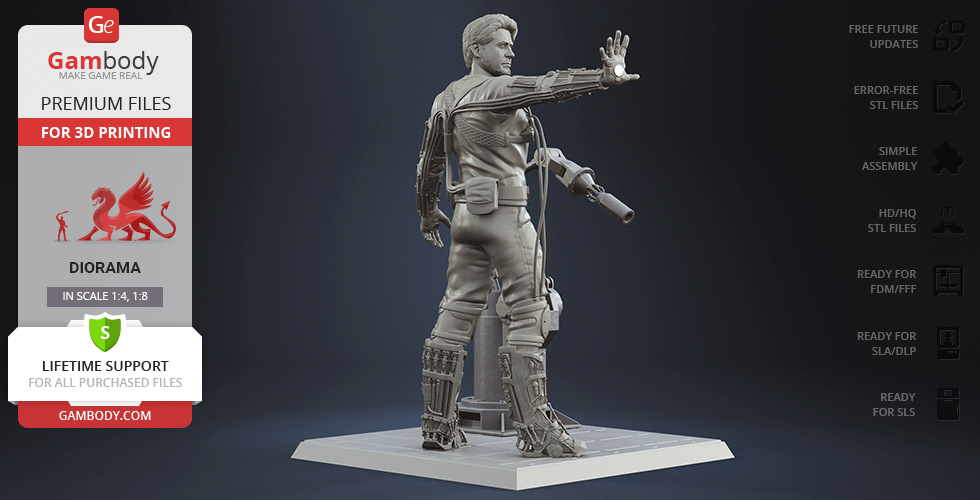

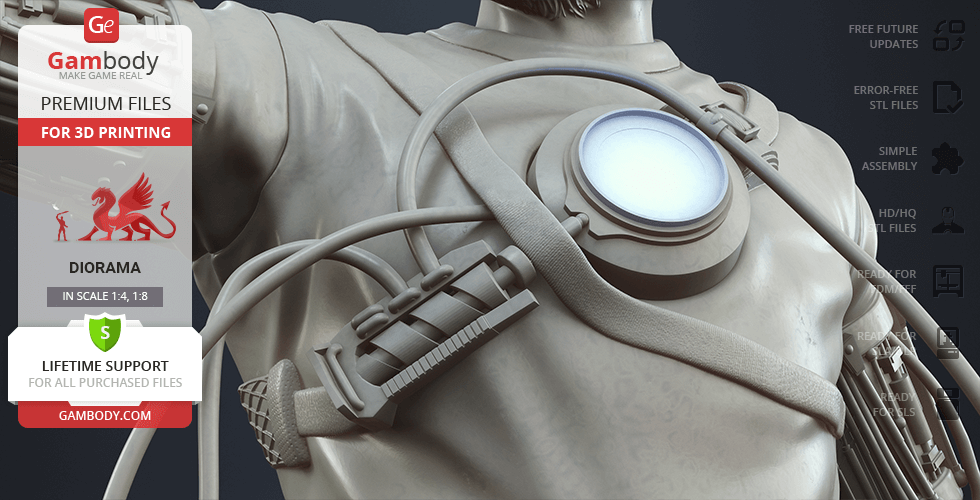

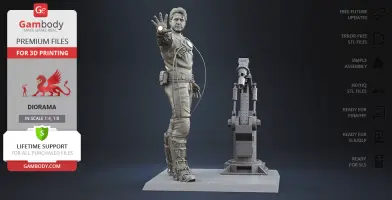

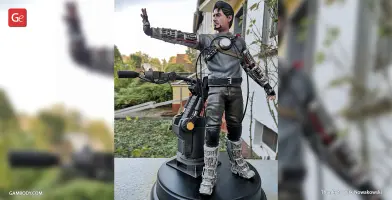

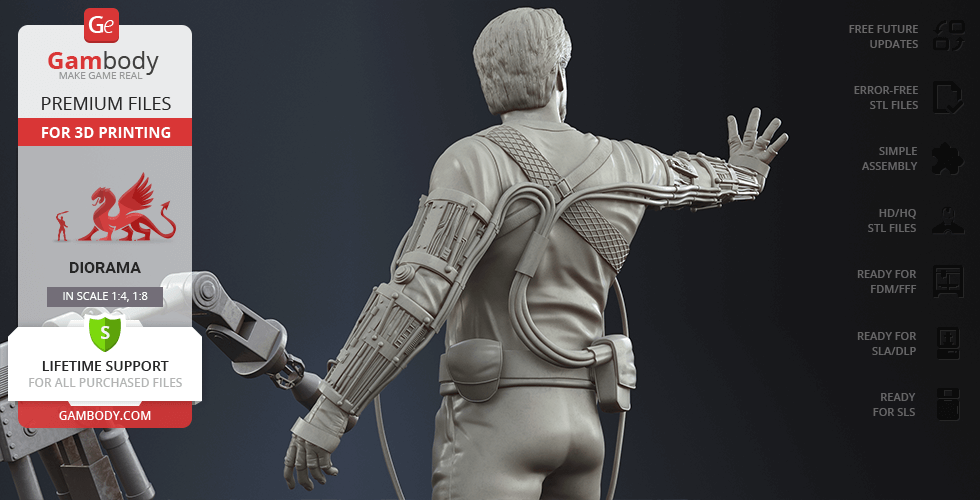

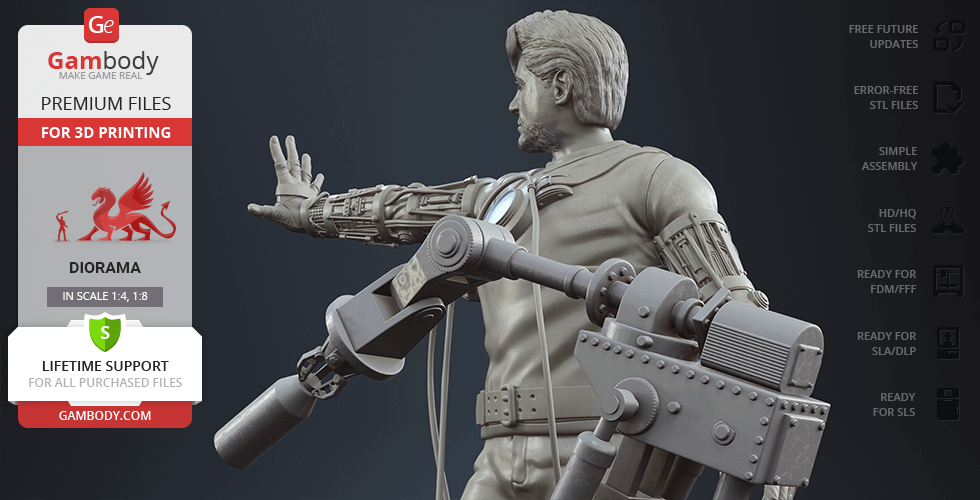

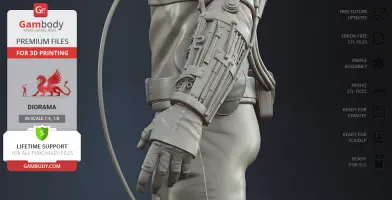

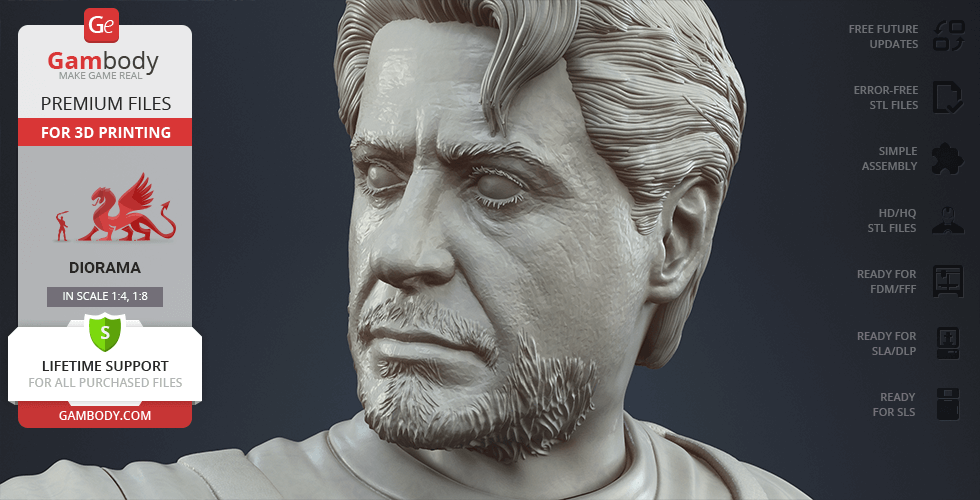

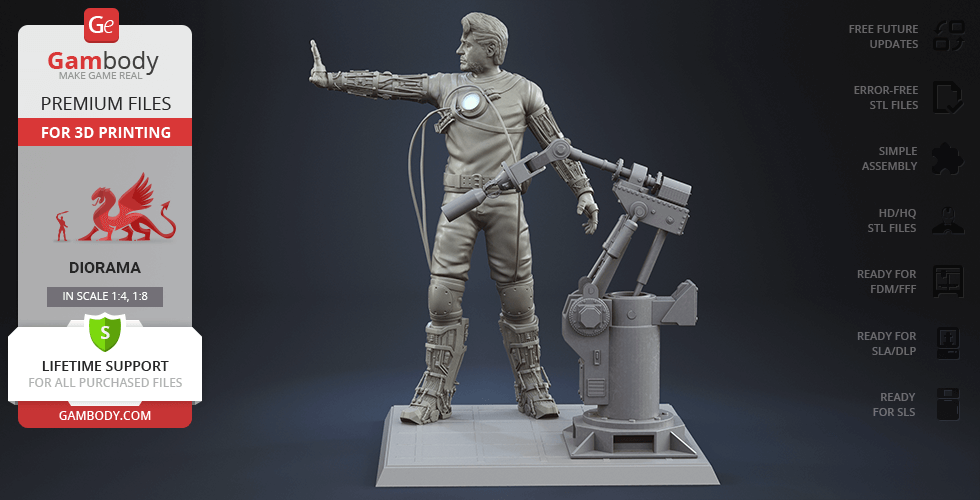

Our contributing 3D artist created a diorama for 3D printing inspired by the scene that you probably have memorised! Tony Stark of stunning likeness is the heart of the composition. He is testing the highly detailed palm-based repulsor gauntlets and thruster boots while tangled in wires all over. Loyal Dum-E robot in its fire safety mode is assisting the test thanks to the active elements implemented in it. This highly detailed and nostalgia-inducing diorama will fit your Marvel collection perfectly!

ADAPTATION FOR 3D PRINTING

Tony Stark Mech Test 3D printing diorama is an assembly model with active elements, its moderation and adaptation for different types of 3D printers took Gambody team 35 hours. The model's anatomy and proportions were thoroughly reviewed during the moderation process for the hero to be depicted harmoniously in the intended pose, and the articulation of the Dum-E robot was reviewed.

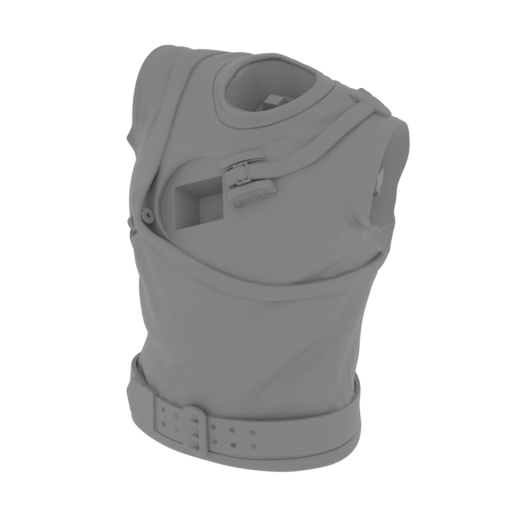

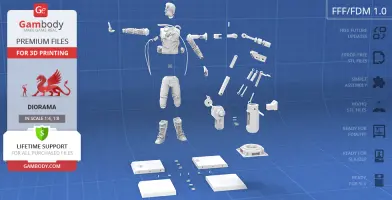

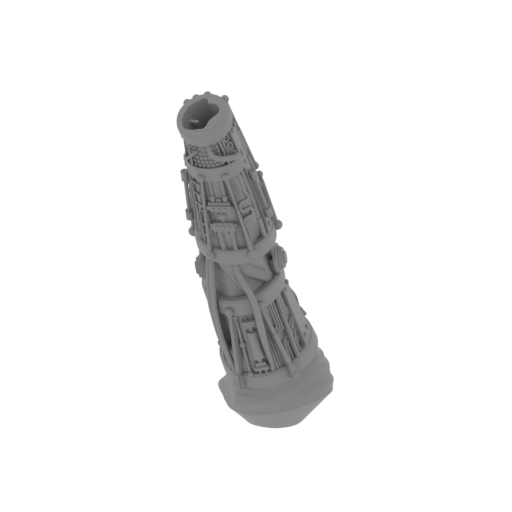

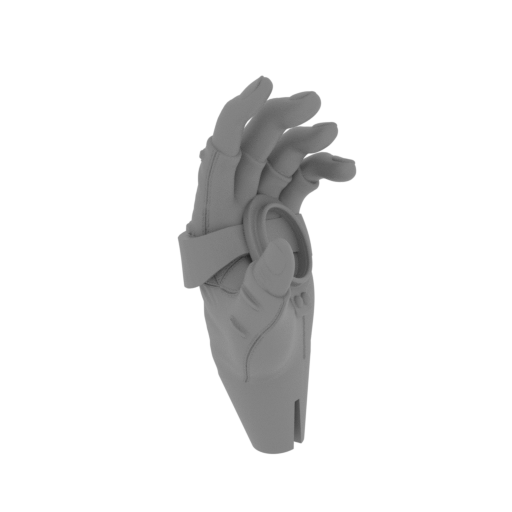

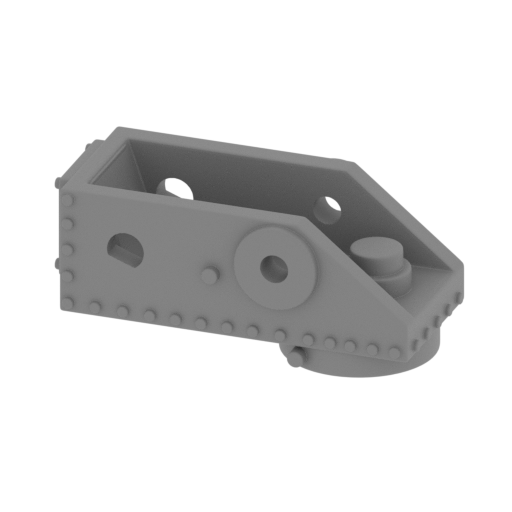

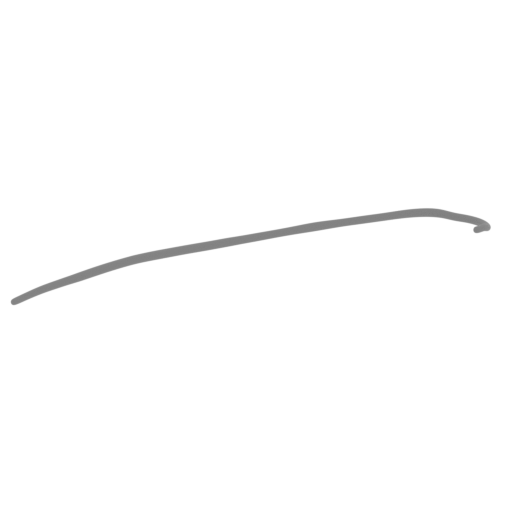

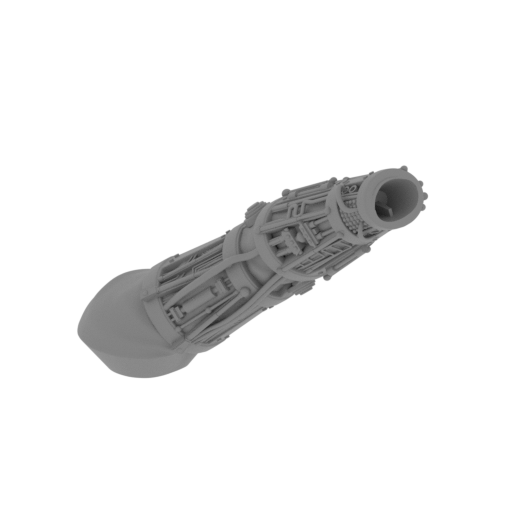

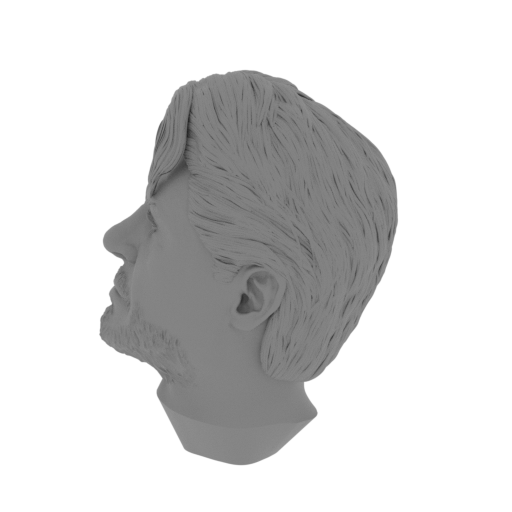

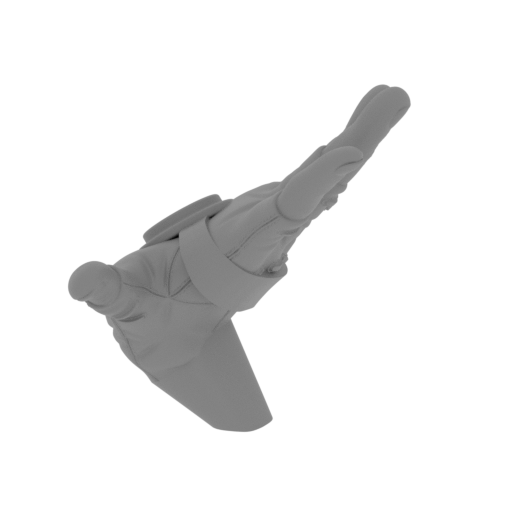

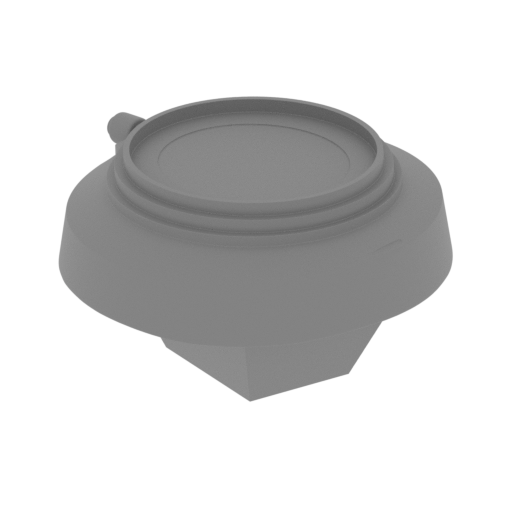

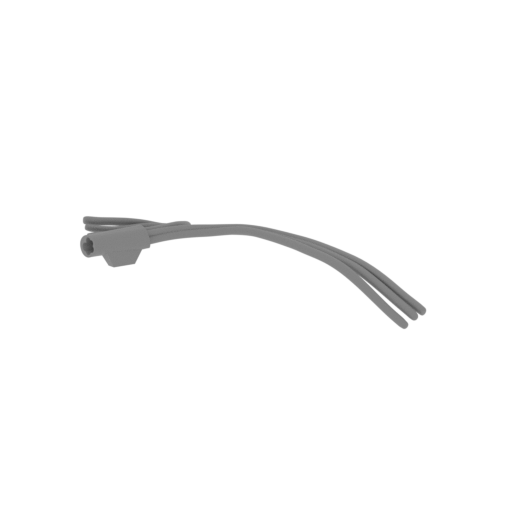

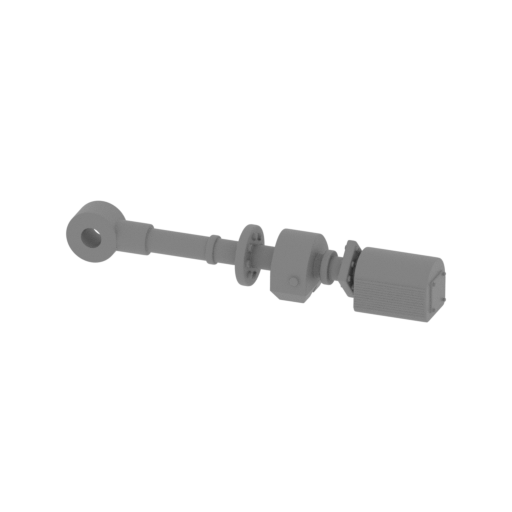

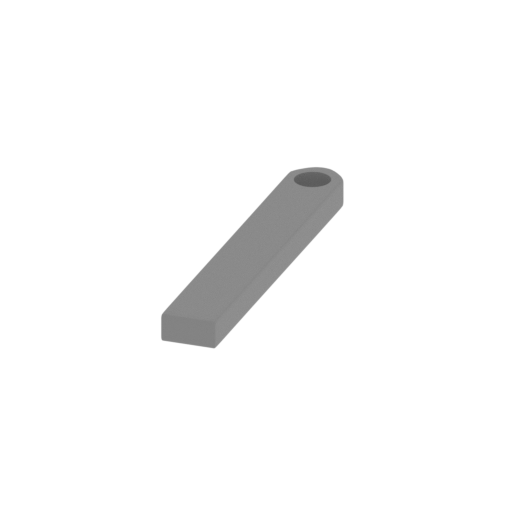

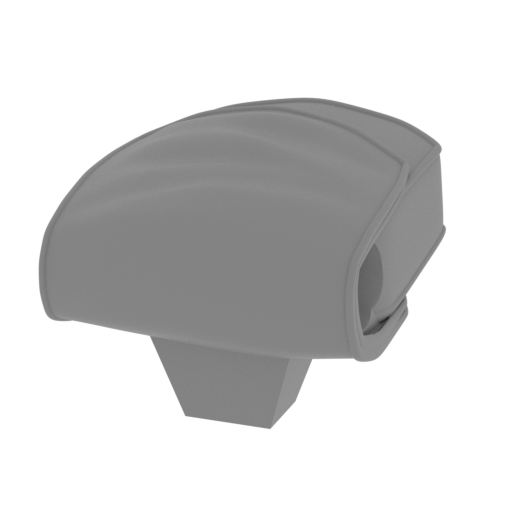

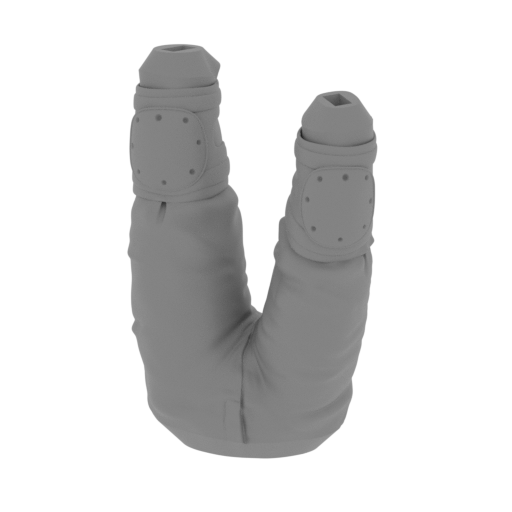

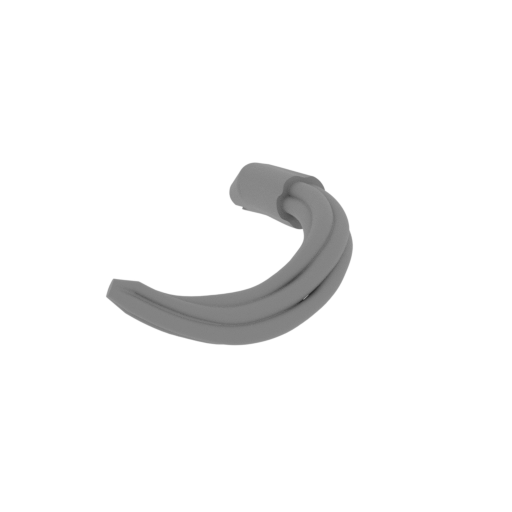

The model’s cutting was chosen by our team to minimise the amount of generated support and some of the parts were hollowed out for you to save resin in the Eco version. In order to conceal the places where the assembly parts of the model are connected, the model was cut along the seams of Tony Stark’s clothes. For you to achieve the cleanest 3D printed result, the character’s head, arms, torso, hands, legs, elements of the Dum-E robot etc. are provided as separate assembly parts.

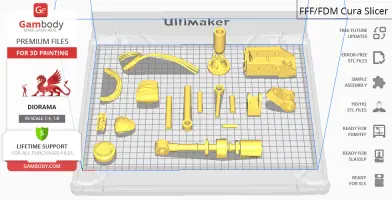

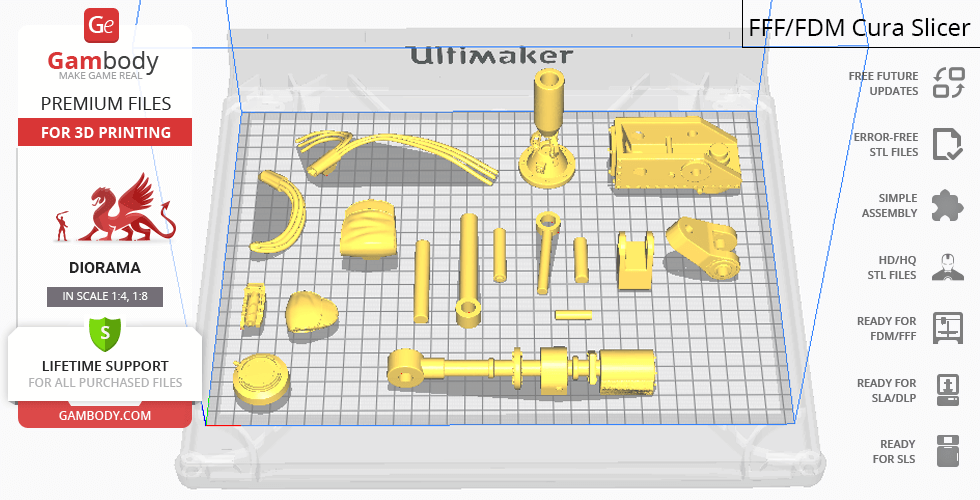

All assembly parts of the 1.0 FFF/FDM version come in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and so that the 3D printing beginners won't face difficulties when placing the parts on a build plate.

The 3D printing design is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

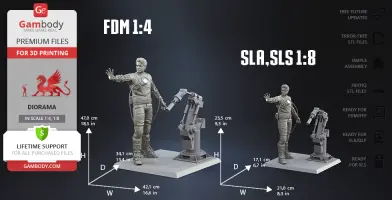

The model's scale was calculated from the height of Tony Stark which is 1740 mm. The 3D printing design's chosen scale is 1:4 for the FFF/FDM version and 1:8 for the DLP/SLA/SLS versions.

VERSIONS' SPECIFICATIONS

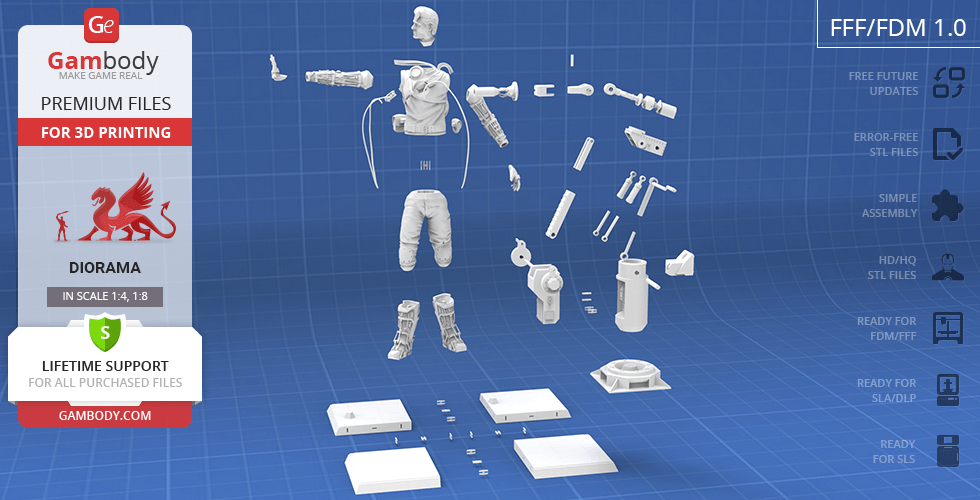

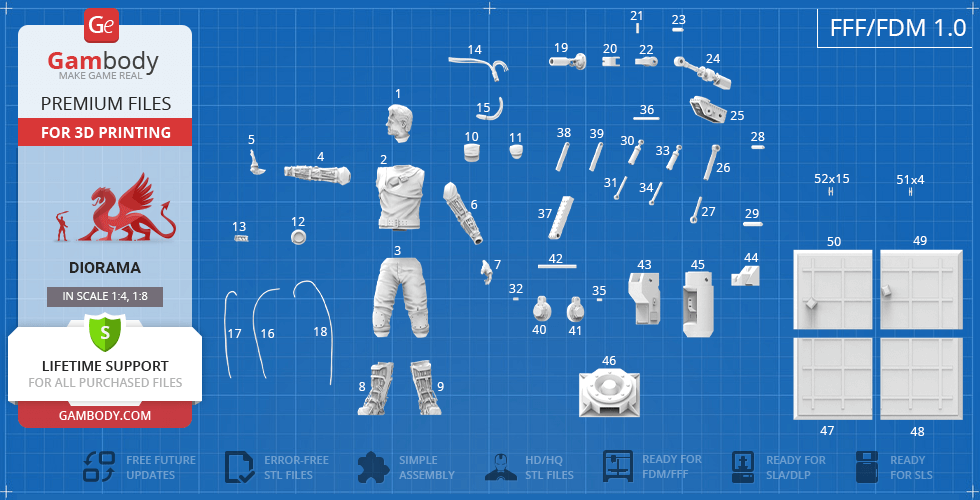

1.0 FFF/FDM version features:

• Contains 52 parts;
• Printed diorama is 470 mm tall, 421 mm wide, 341 mm deep;

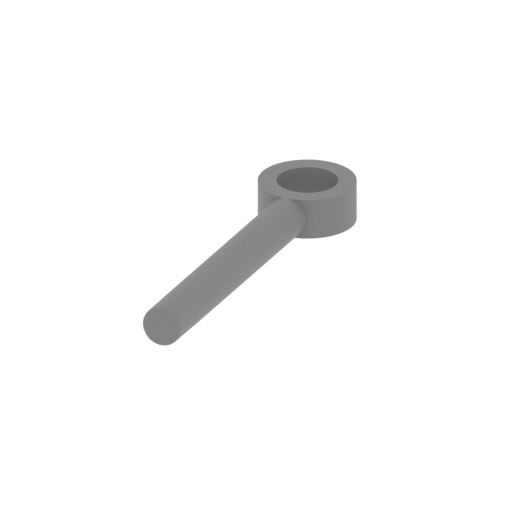

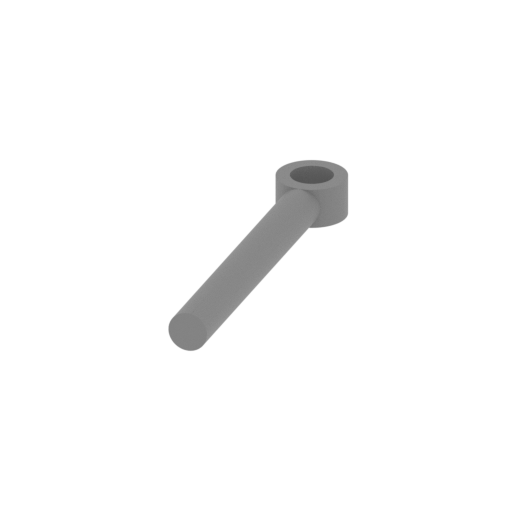

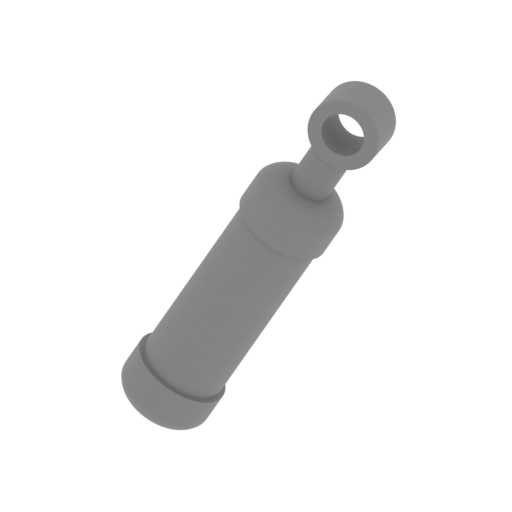

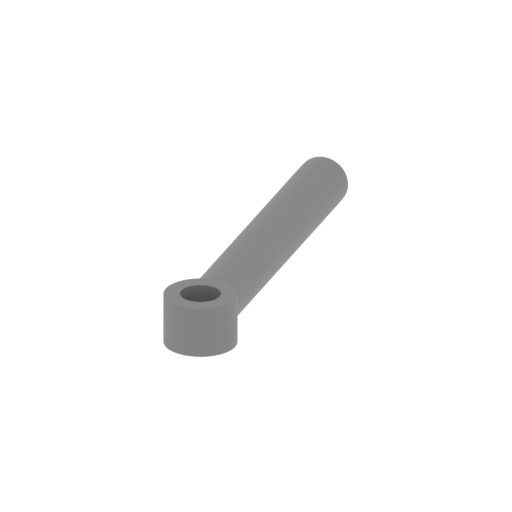

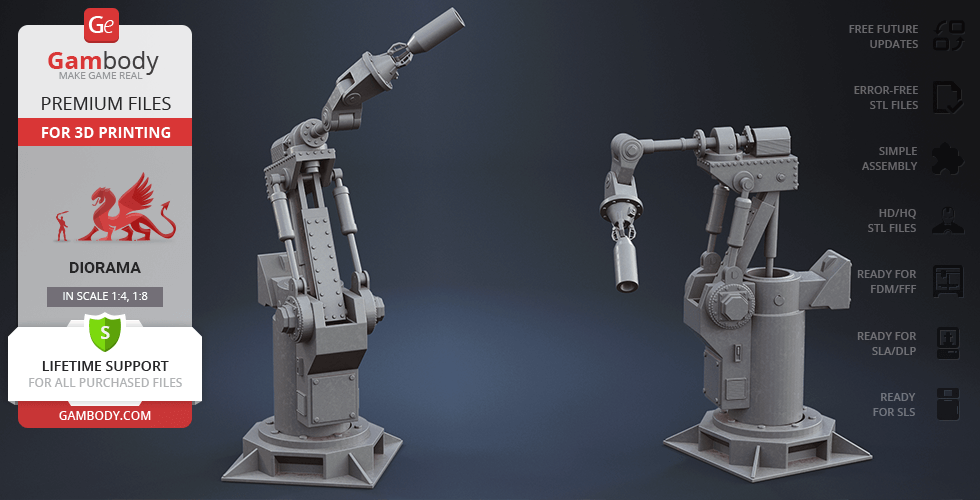

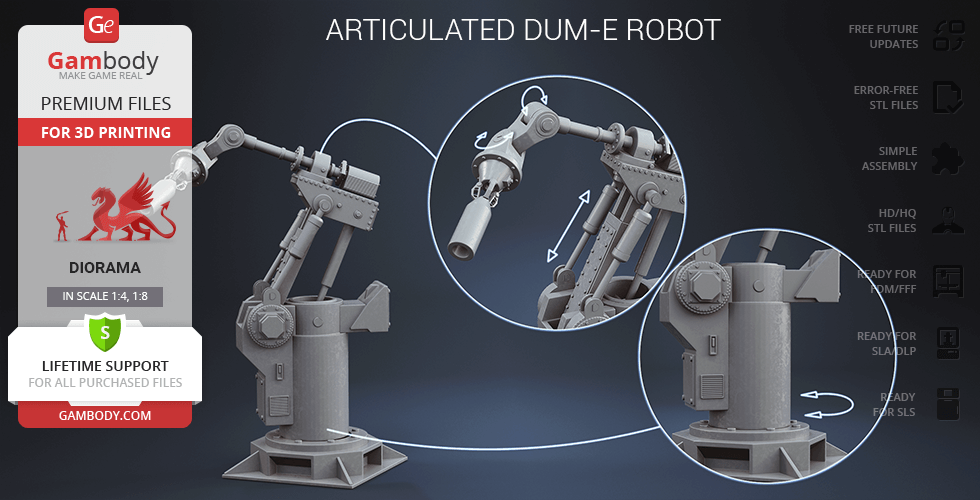

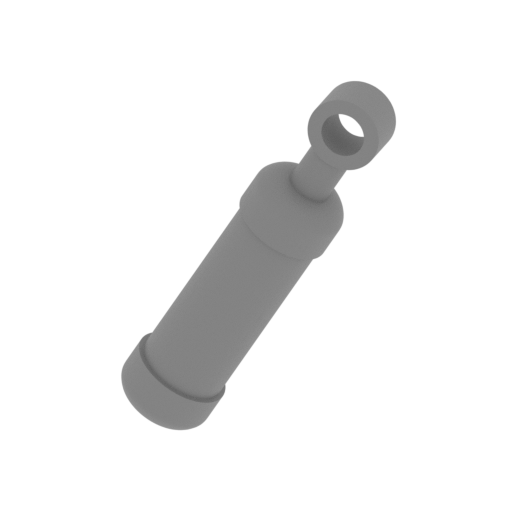

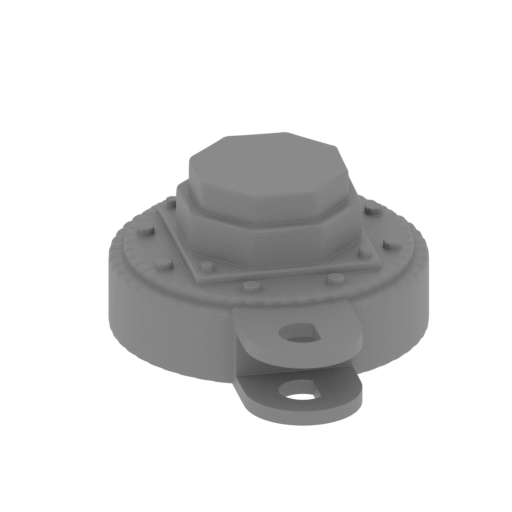

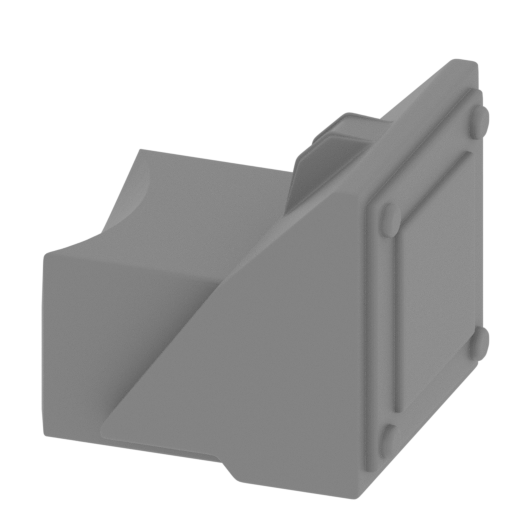

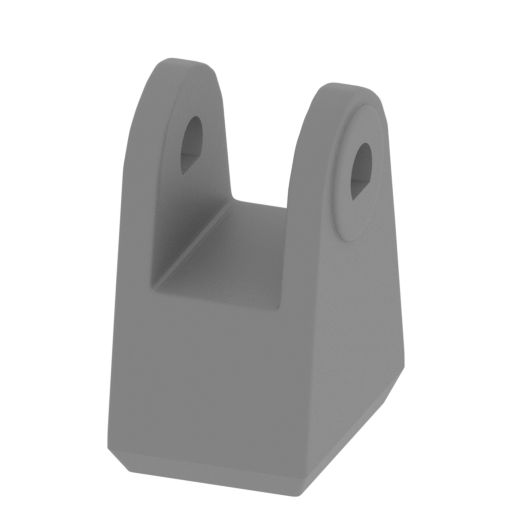

• Articulated Dum-E robot with the 360° rotating base, active pistons, and fire extinguisher;
• All parts are divided in such a way that you will print them with the smallest number of support structures.

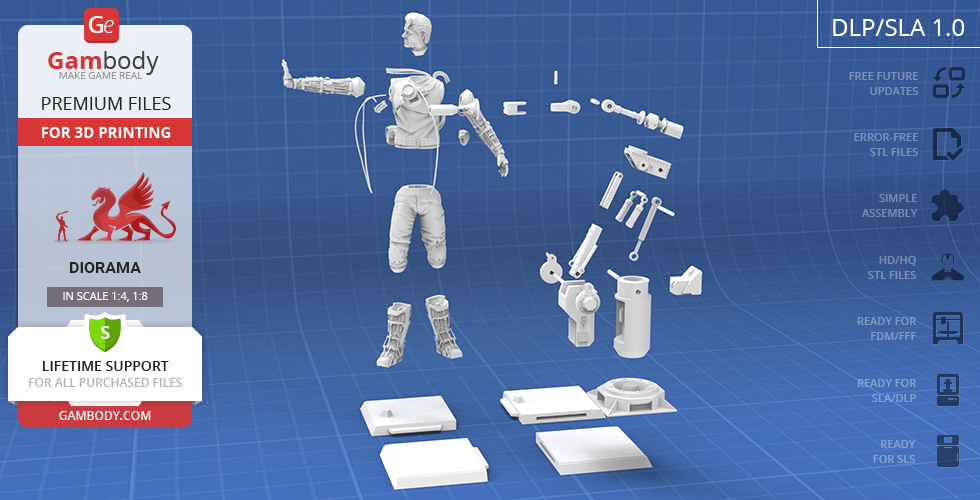

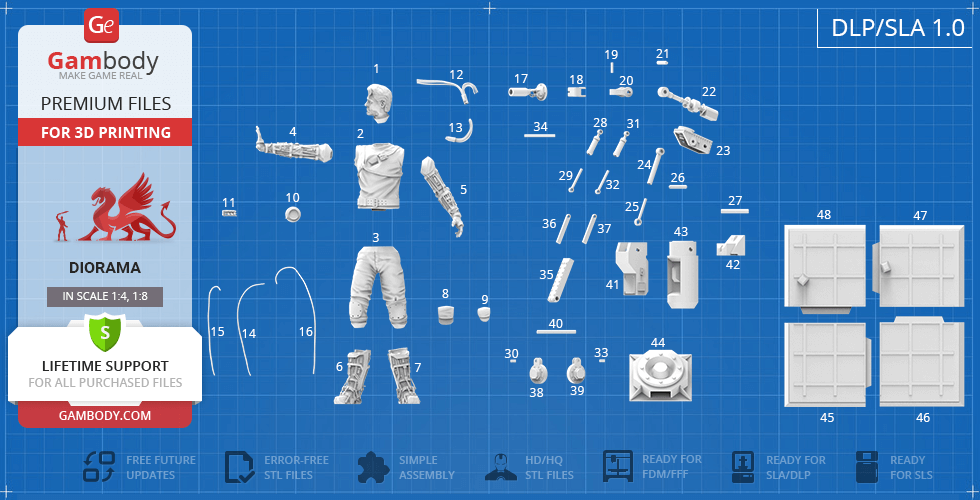

1.0 DLP/SLA version features:

• Contains 48 parts;
• Printed diorama is 235 mm tall, 210 mm wide, 171 mm deep;
• Articulated Dum-E robot with the 360° rotating base, active pistons, and fire extinguisher;
• All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

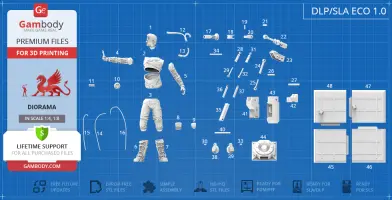

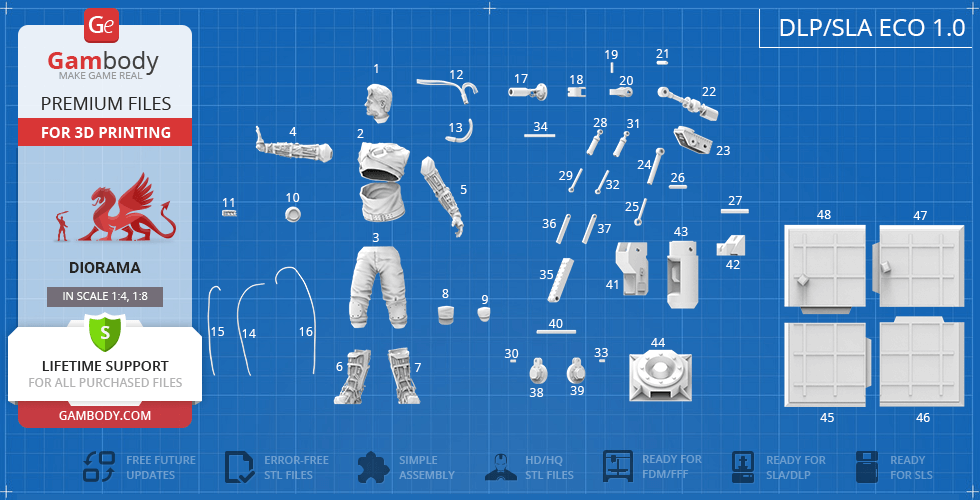

1.0 DLP/SLA Eco version features:

• Contains 48 parts;
• Printed diorama with the wing is 235 mm tall, 210 mm wide, 171 mm deep;
• Articulated Dum-E robot with the 360° rotating base, active pistons, and fire extinguisher;
• Some parts are manually hollowed out to save resin.

1.0 SLS version features:

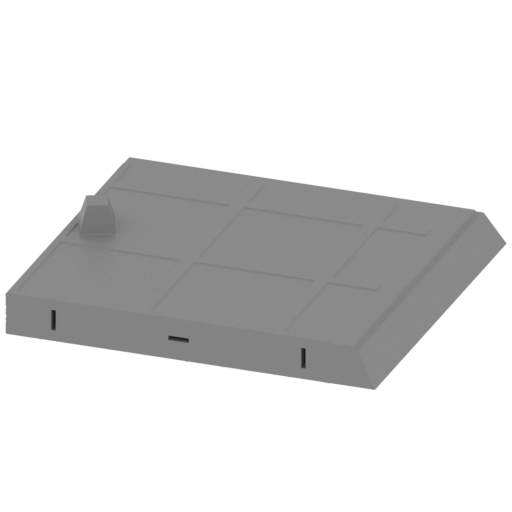

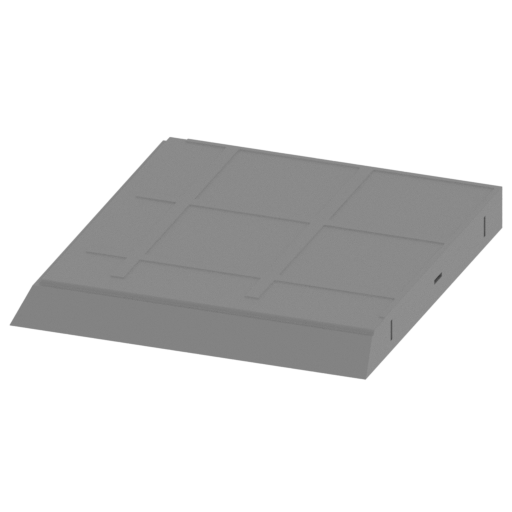

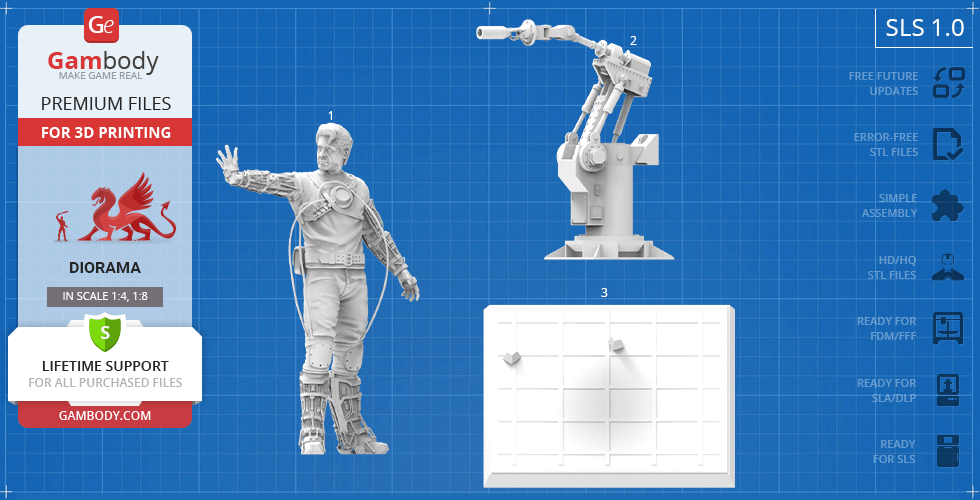

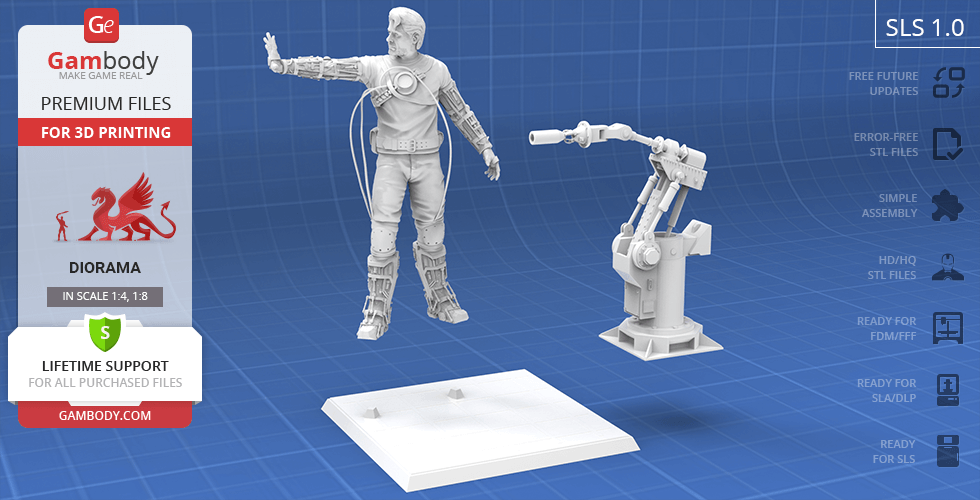

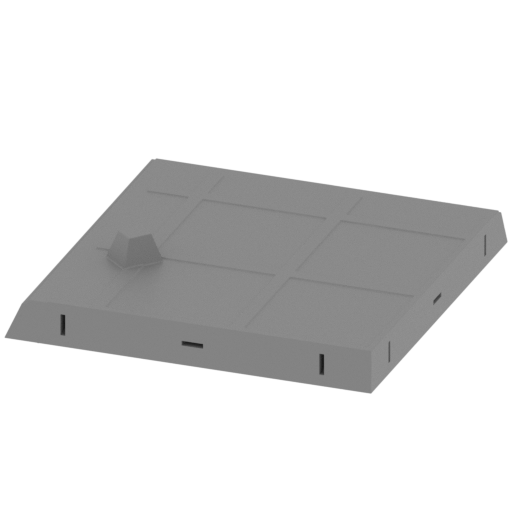

• Contains 3 parts - solid Tony Stark model, Dum-E robot, and the platform;
• Printed diorama is 235 mm tall, 210 mm wide, 171 mm deep.

You can get the STL Files of Tony Stark Mech Test Diorama immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble the 3D Printed Tony Stark Mech Test Diorama from the provided 3D Print Files on Gambody YouTube channel.

Also, you may like Iron Man Mark 46 3D Printing Design, we well as other Marvel 3D Print Models.

_______

FAQ:

• Where can I print a model if I have no printer?
• How to get started with 3D printing?
• How to set up my 3D printer?
• How to choose right 3D model print bed positioning?
• How to paint printed model?

Generic

Below you can find printing recommendations for Cura, Bambu Studio, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

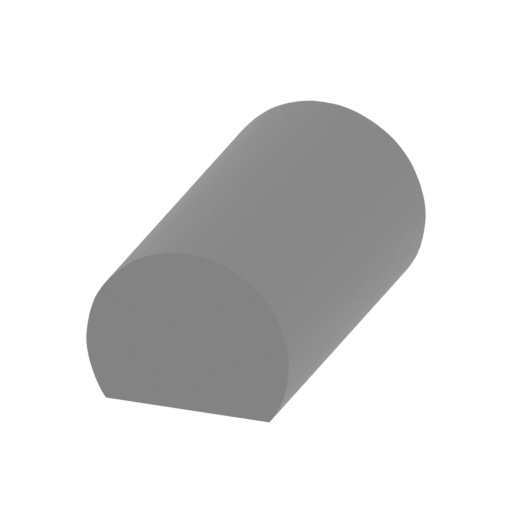

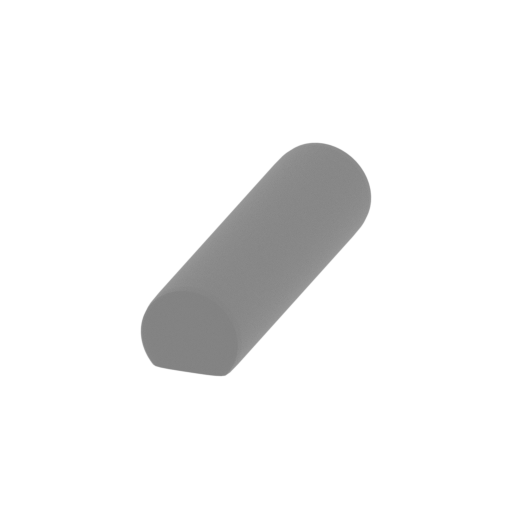

All connectors should be printed at 100% Infill.

Bambu Lab printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Bambu Studio 1.9.1. Test models were printed on the Bambu Lab A1, Bambu Lab A1 Mini, Creality Ender 3 S1, Anycubic Kobra 2, and Anycubic Vyper using PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download

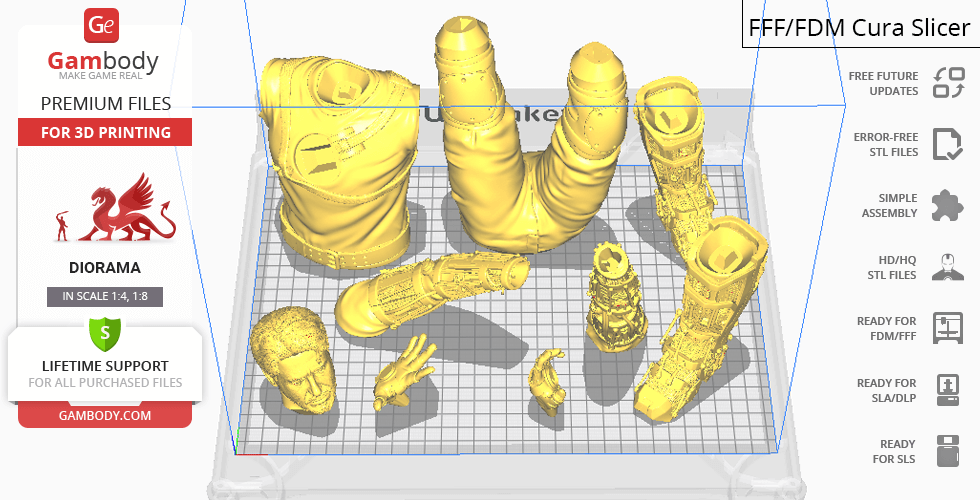

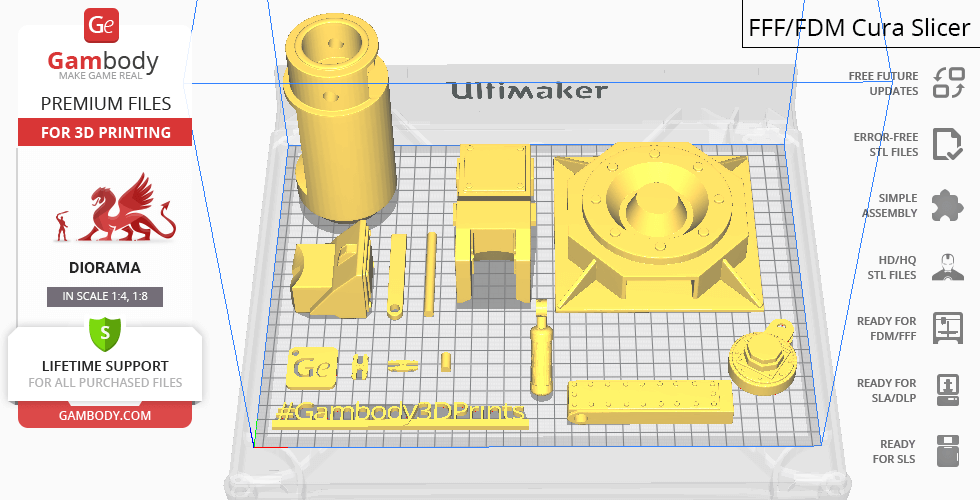

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
