Vault Boy: Animal Friend & Lifegiver | Static Figures

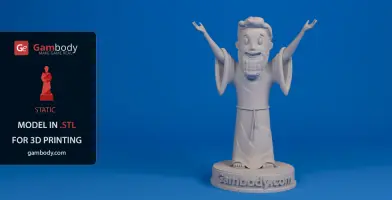

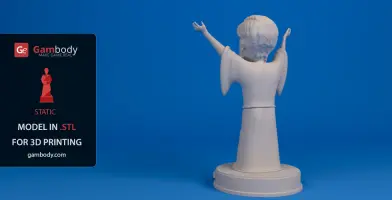

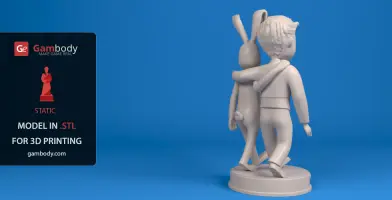

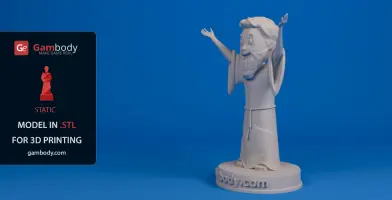

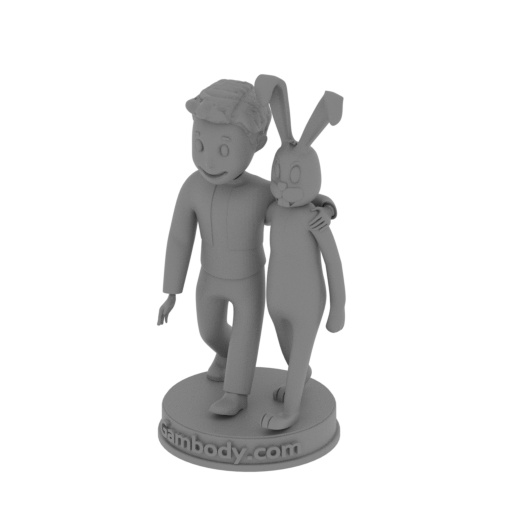

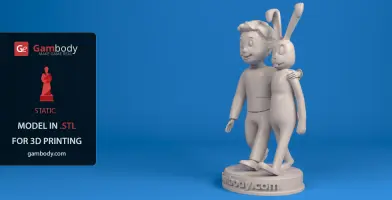

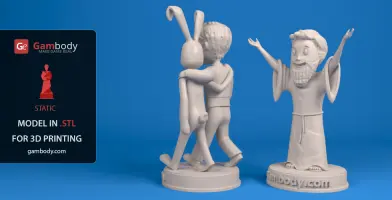

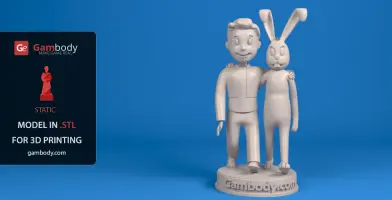

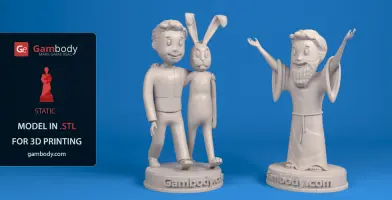

Fallout video game’s most popular character, the Vault Boy, can now be recreated with the help of 3D printing. This set captured the video game character in the Animal Friend & Lifegiver perks. The models are available in static form, coming on a support base to facilitate their display on the desk or shelf.

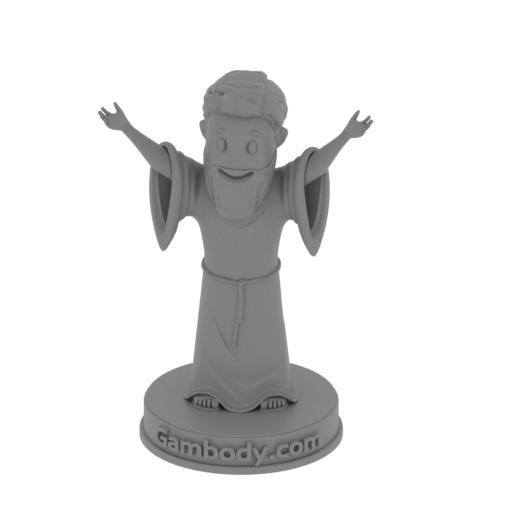

Animal Friend & Lifegiver Vault Boy Perks for 3D printing are created in Autodesk Maya 3D modeling program. The models are saved in STL file format. The files have undergone thorough checking in Netfabb and are error-free.

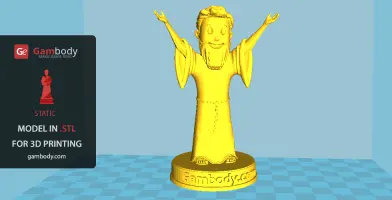

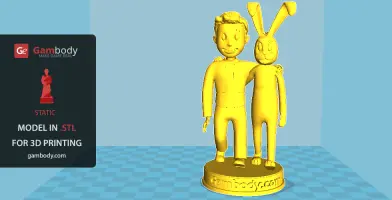

Vault Boy STL files are adapted to be printed on any type of 3D printers: SLS/SLA and FFF. They can easily be handled in any slicing program, such as CURA 15.06 and Simplify3D.

After 3D printing, the models will stand 66mm wide, 99mm tall, and 51mm deep.

Buy Vault Boy: Animal Friend & Lifegiver 3D Print Files by clicking the green Buy button in the top-right corner of the page. Proceed to checkout. Insert your PayPal or credit card details and download the STL files for 2 incredible Vault Boy perks.

Note: You can print the files with 3DHubs directly from our website. Put the checkmark sign in the box next to the file you want to print and click Print with 3DHubs button.

Generic

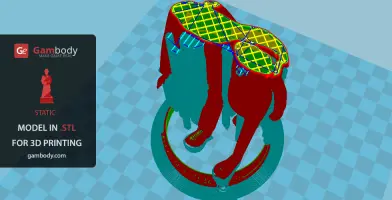

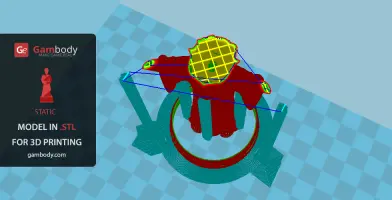

These models were tested in Cura 15.06. To avoid printing problems, we recommend the following settings:

Quality:

• Layer height: 0.1mm*
• Initial layer thickness: 0.3mm
• Bottom/top pattern: lines
• Horizontal expansion: 0.04mm (when entering 0.04mm index, the 3D printer
• *Layer Height 0.1mm is recommended for a better quality for the printed model. However, the printing time will double.

Check this Simplify3D User Guidelines to avoid any 3D printing problems with this software.

The models have been tested and printed out in PLA.

Speed setups:

• Infill speed: 50mm/s
• Outer shell speed: 30mm/s
• Inner shell speed: 20mm/s
• Top/Bottom Speed: 20mm/s
• Support speed: 50mm/s
• Travel speed: 150mm/s
• Skirt speed: 30mm/s
• Amount of slower layers: 4

Infill:

• Infill pattern: Grid
• Line distance: 3mm
• Infill overlap: 20%
• Infill layers: 0

Support:

• Enable support: check
• Placement: Everywhere
• Overhang angle: 30°
• X/Y distance: 0.7mm
• Top distance: 0.2mm
• Bottom distance: 0.2mm
• Stair step height: 0.5mm
• Join distance: 0.7mm
• Area smoothing: 0.6mm
• Use towers: check
• Pattern: Grid
• Line distance: 1.5mm

Platform Adhesion:

• Type: Brim
• Brim line count: 10 (up to 20, depending on the model’s height)

Other 3D printing recommendations

Outer Shell Speed - 20mm/s and Support Speed - 40mm/s settings apply to avoid model deformation. Use other settings by default.

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
