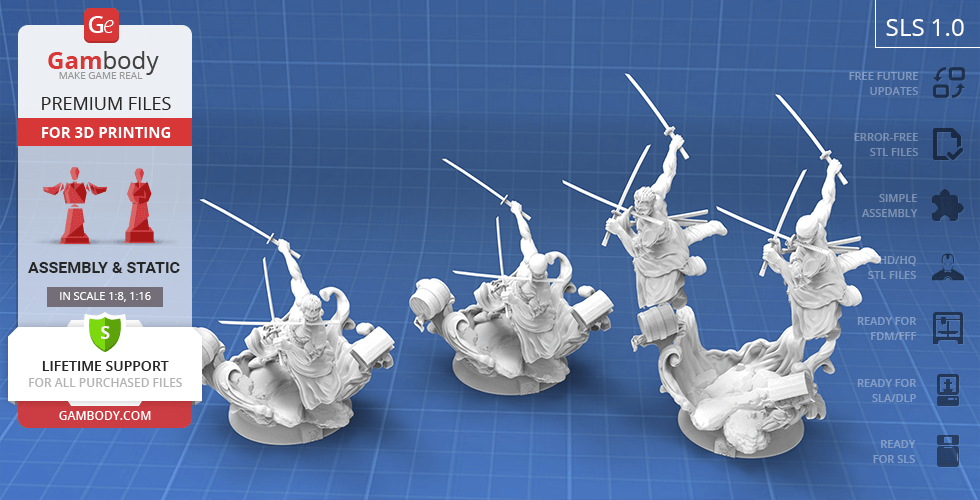

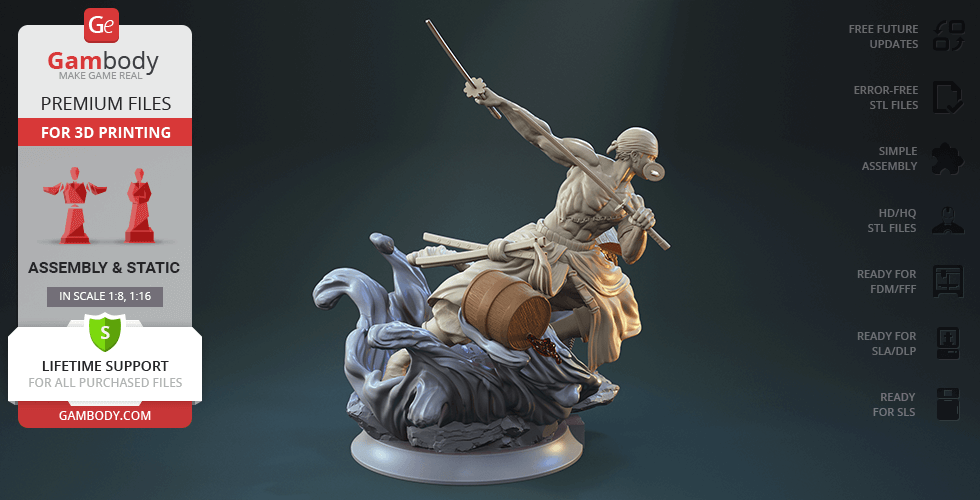

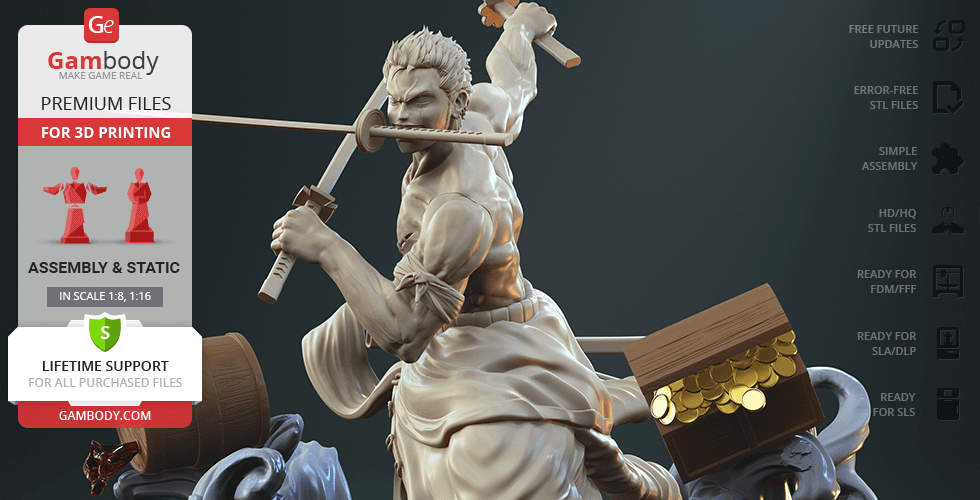

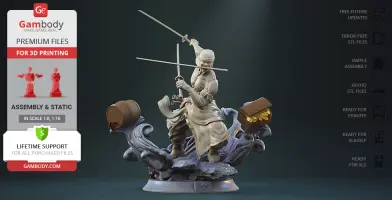

This 3D model of Roronoa Zoro consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

4 versions of Roronoa Zoro STL files for FFF/FDM and DLP/SLA - files for all versions are available for download after the purchase;
STL files of high-poly Roronoa Zoro figurine for 3D printing consist of 73 files;

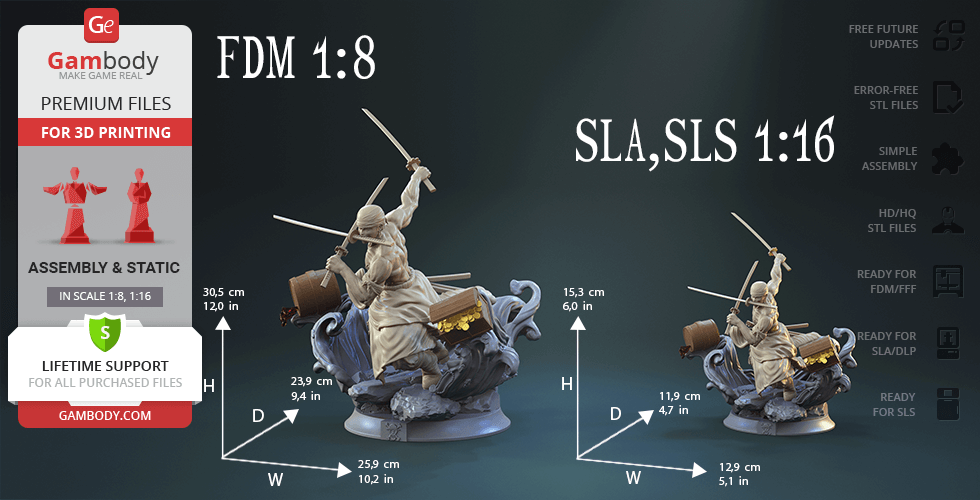

Sizes for:
FFF/FDM: 305 mm tall, 259 mm wide, 239 mm deep;
DLP/SLA: 153 mm tall, 129 mm wide, 119 mm deep;
Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats;
Detailed settings that we provide as a recommendation for Cura, Simplify3D, Slic3r and PrusaSlicer for the best print;
Full technical support from the Gambody Support Team.

Detailed information about this 3D printing model is available in the DESCRIPTION section.


	File Name	File Size	Time / Filament	Object Size (x/y/z mm)

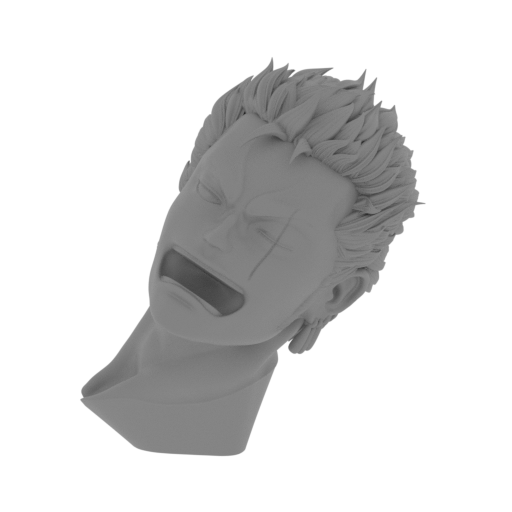

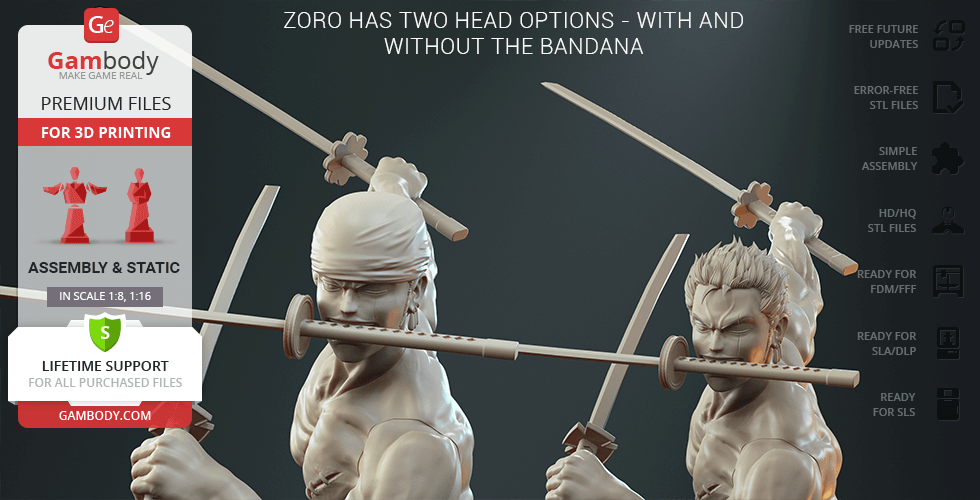

	1_head_V_1_FDM(repaired). stl	24.71 MiB	2 h 54 min 2 m	34 x 38 x 42	Download

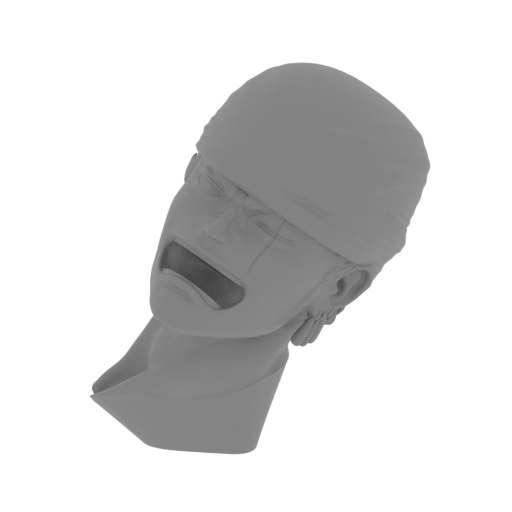

	2_head_V_2_FDM(repaired). stl	24.69 MiB	2 h 13 min 1 m	33 x 35 x 41	Download

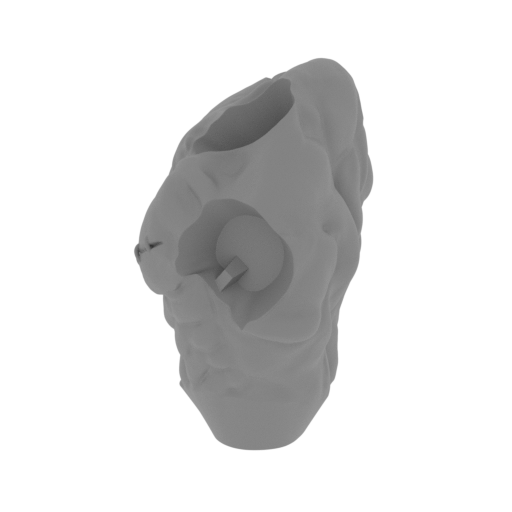

	3_body_FDM(repaired).stl	34.98 MiB	5 h 58 min 3 m	39 x 53 x 66	Download

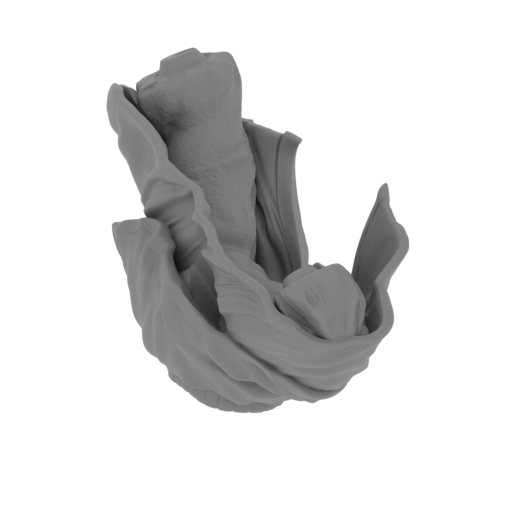

	4_legs_FDM(repaired).stl	37.84 MiB	33 h 56 min 19 m	128 x 124 x 97	Download

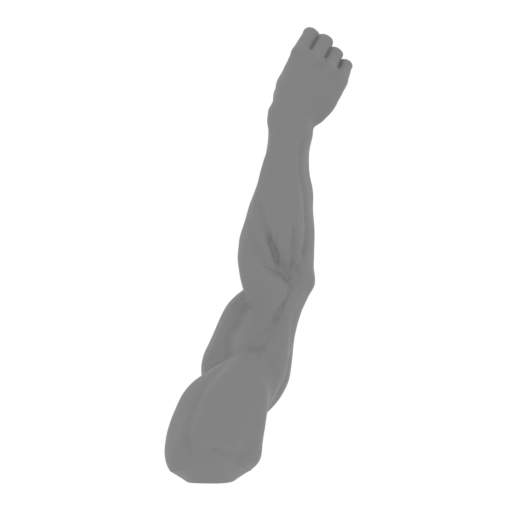

	5_arm_R_FDM(repaired).stl	25.04 MiB	2 h 44 min 2 m	24 x 62 x 83	Download

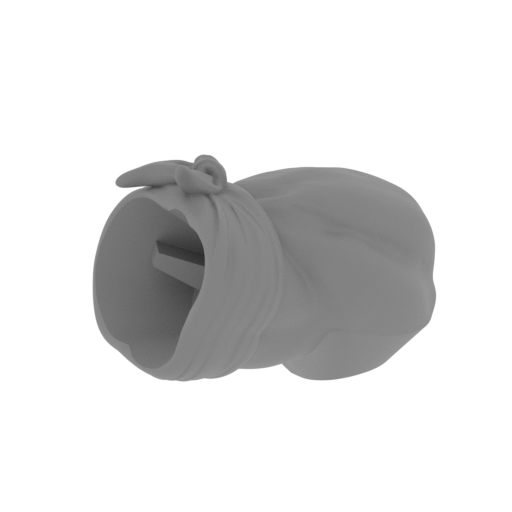

	6_arm_L_1_FDM(repaired).s tl	13.39 MiB	1 h 9 min 1 m	29 x 36 x 25	Download

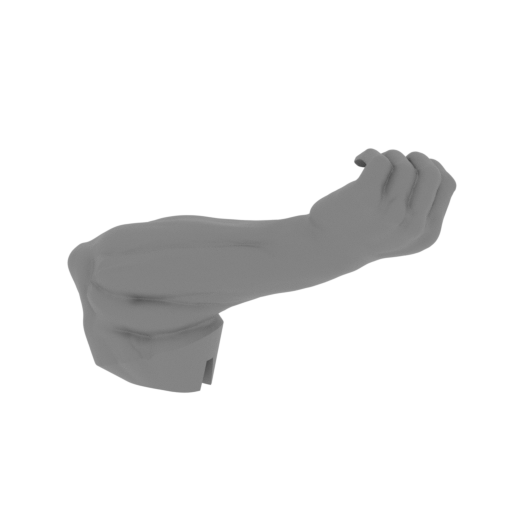

	7_arm_L_2_FDM(repaired).s tl	13.72 MiB	1 h 37 min 1 m	56 x 20 x 39	Download

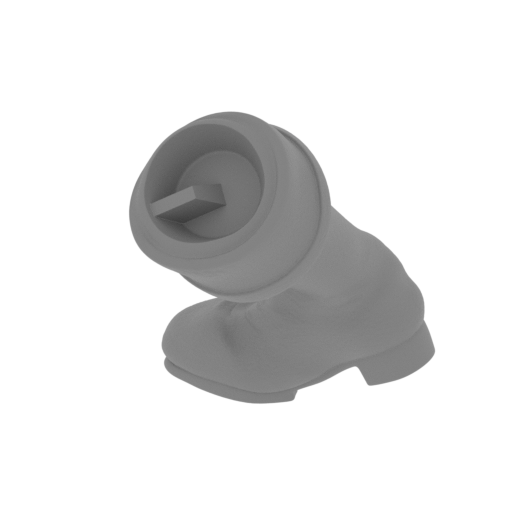

	8_boot_R_FDM(repaired).st l	12.82 MiB	3 h 21 min 2 m	39 x 53 x 53	Download

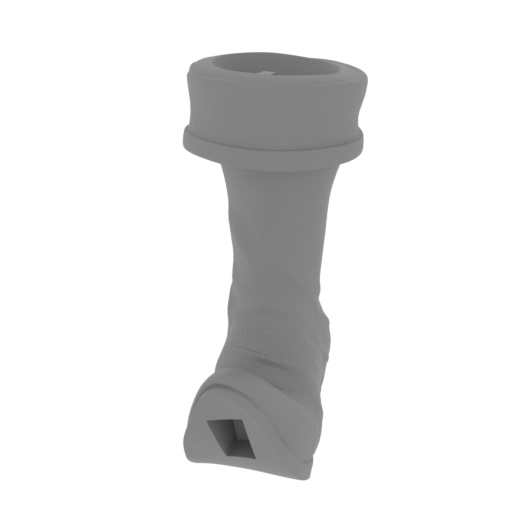

	9_boot_L_FDM(repaired).st l	12.32 MiB	2 h 45 min 2 m	26 x 45 x 57	Download

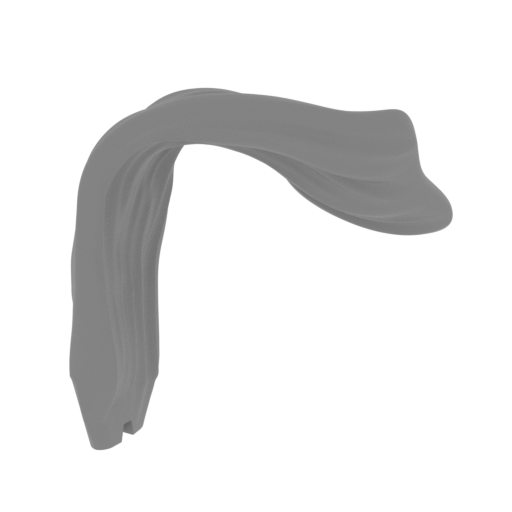

	10_belt_FDM(repaired).stl	15.52 MiB	1 h 45 min 1 m	38 x 23 x 43	Download

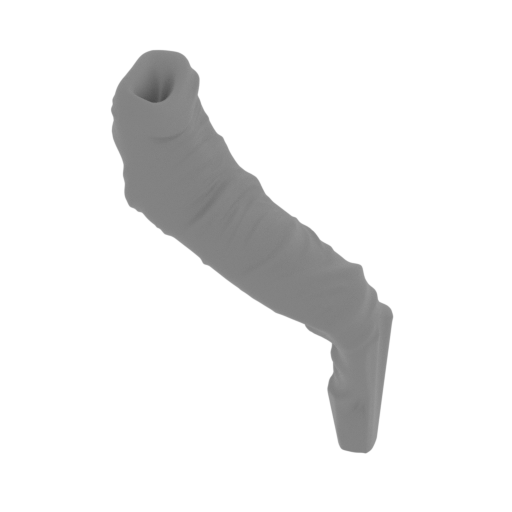

	11_sleeve_1_FDM(repaired) .stl	13.18 MiB	3 h 42 min 3 m	49 x 31 x 71	Download

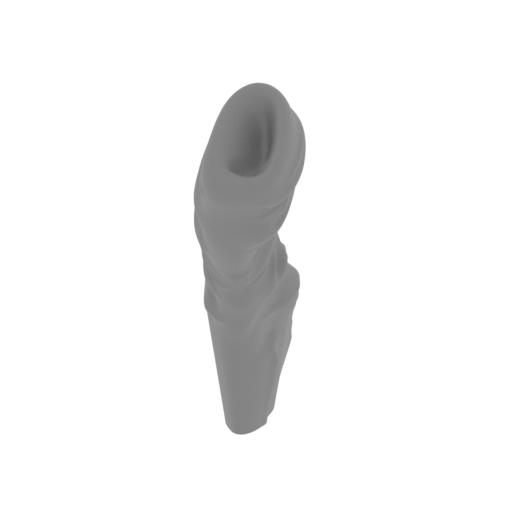

	12_sleeve_2_FDM(repaired) .stl	10.75 MiB	1 h 56 min 1 m	22 x 44 x 60	Download

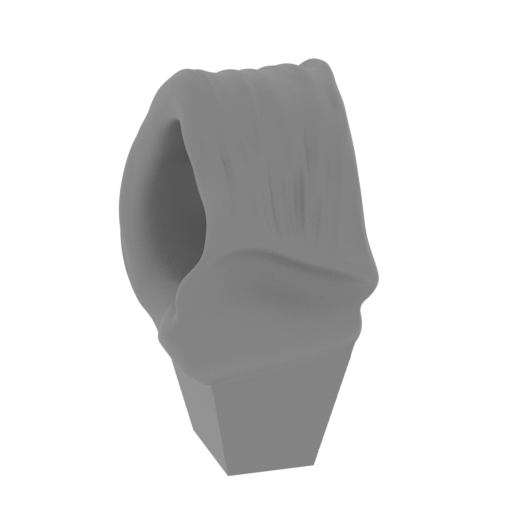

	13_support_scabbard_FDM(r epaired).stl	5.92 MiB	37 min <1 m	18 x 22 x 24	Download

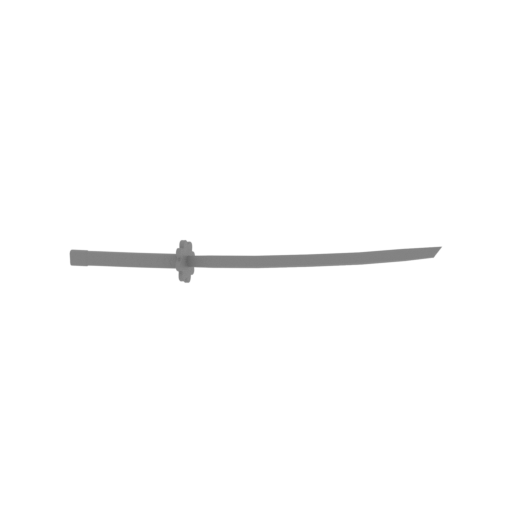

	14_katana_1_FDM(repaired) .stl	13.18 MiB	55 min 1 m	138 x 15 x 28	Download

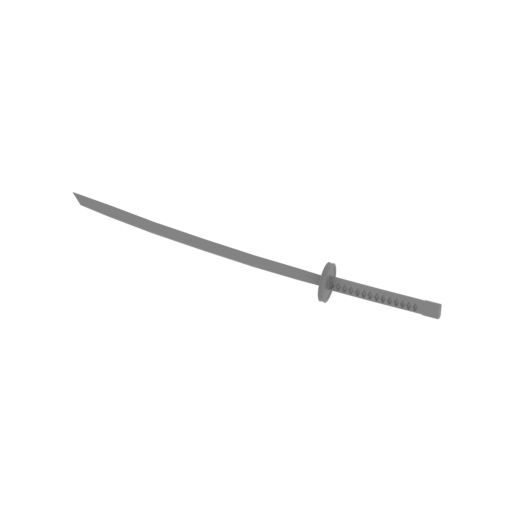

	15_katana_2_FDM(repaired) .stl	12.99 MiB	52 min <1 m	139 x 13 x 27	Download

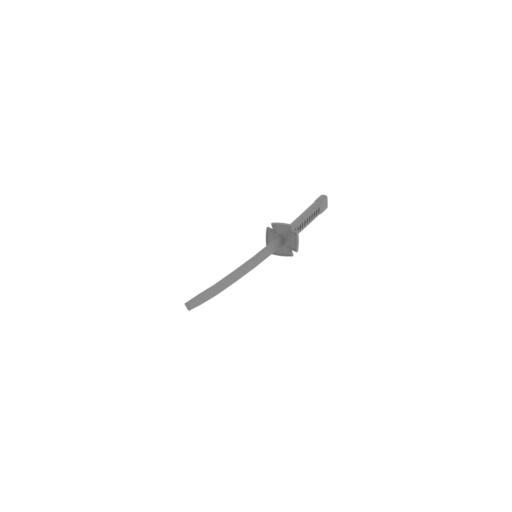

	16_katana_3_FDM(repaired) .stl	13.04 MiB	44 min <1 m	12 x 139 x 22	Download

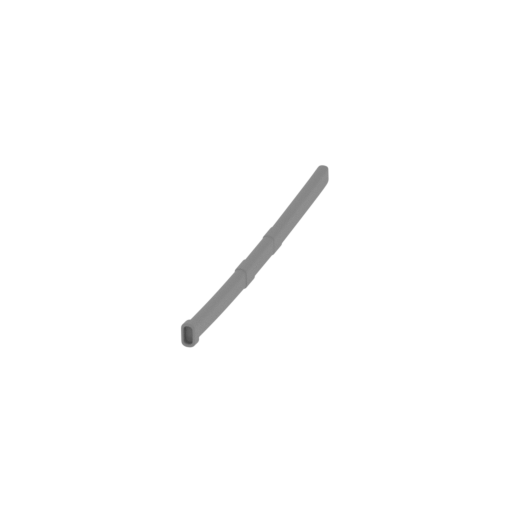

	17_scabbard_1_FDM(repaire d).stl	9.59 MiB	28 min <1 m	4 x 105 x 9	Download
	18_scabbard_2_FDM(repaire d).stl	9.71 MiB	27 min <1 m	106 x 4 x 7	Download

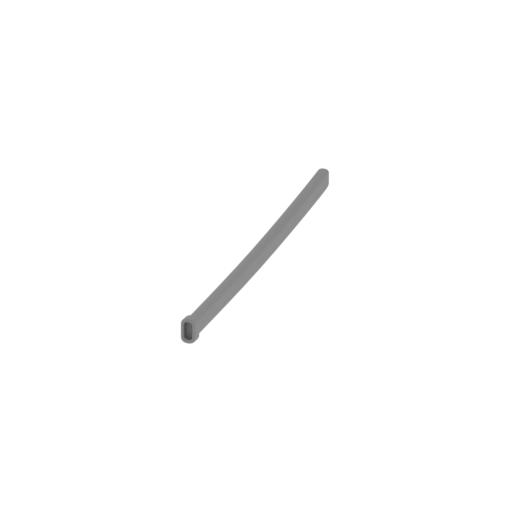

	19_scabbard_3_FDM(repaire d).stl	9.97 MiB	27 min <1 m	4 x 106 x 7	Download

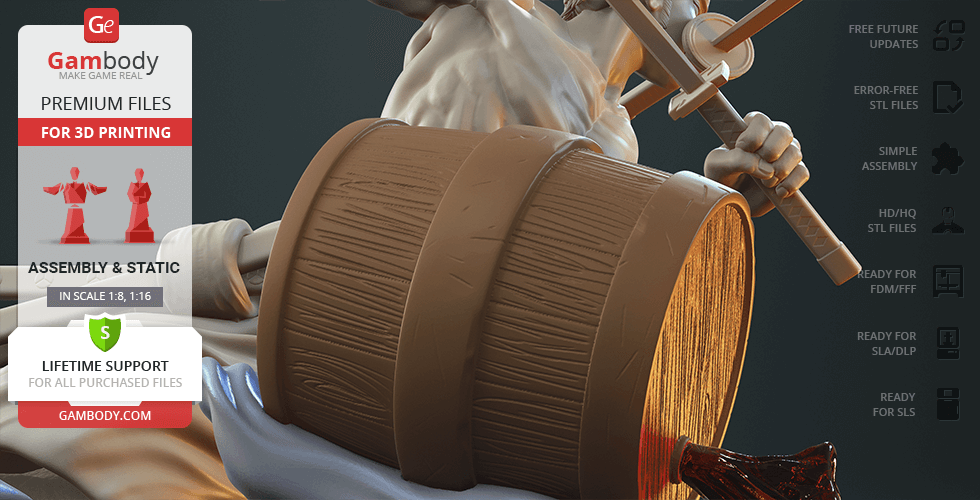

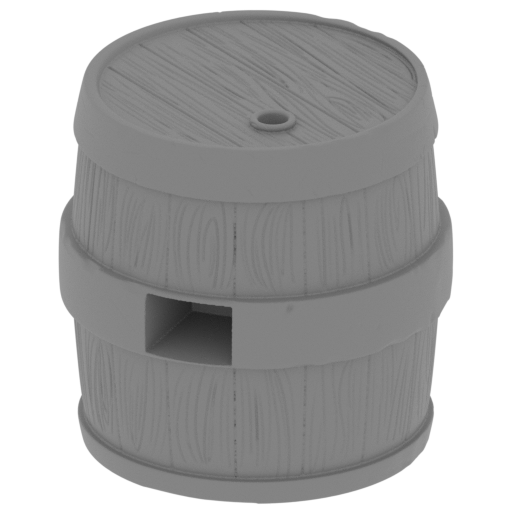

	20_barrel_FDM(repaired).s tl	10.29 MiB	4 h 54 min 3 m	43 x 43 x 42	Download
	21_barrel_plug_FDM(repair ed).stl	7.01 MiB	30 min <1 m	19 x 12 x 23	Download

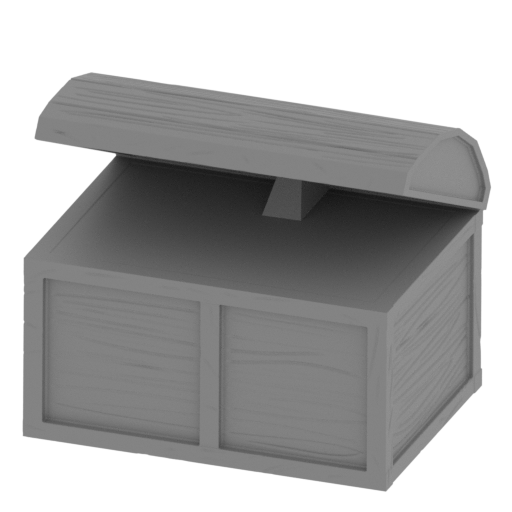

	22_dower_chest_FDM(repair ed).stl	22.02 MiB	4 h 44 min 3 m	44 x 33 x 38	Download

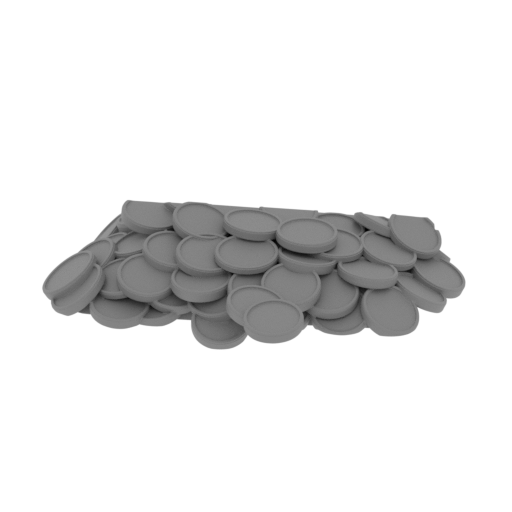

	23_coins_FDM(repaired).st l	10.51 MiB	1 h 18 min 1 m	43 x 38 x 10	Download

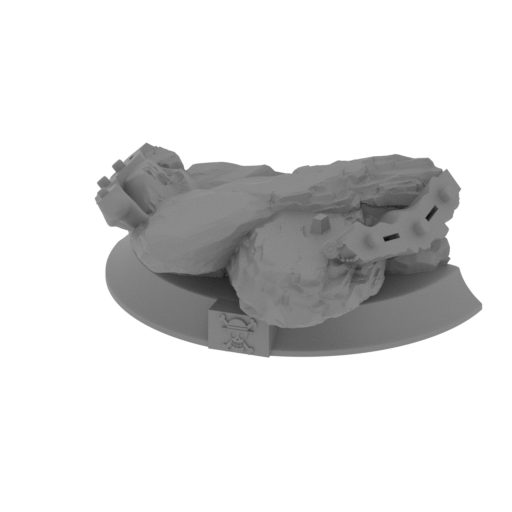

	24_platform_1_FDM(repaire d).stl	35.60 MiB	45 h 38 min 28 m	161 x 110 x 64	Download

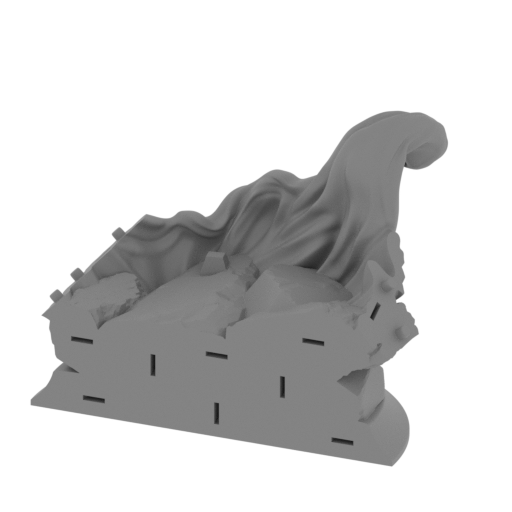

	25_platform_2_FDM(repaire d).stl	37.36 MiB	47 h 40 min 28 m	163 x 109 x 120	Download

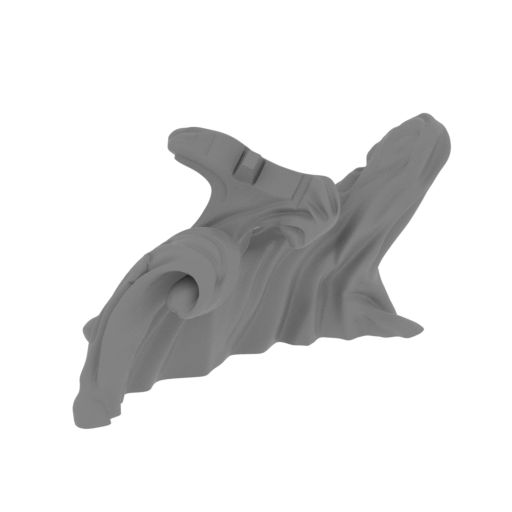

	26_platform_3_FDM(repaire d).stl	22.31 MiB	19 h 23 min 12 m	102 x 137 x 86	Download

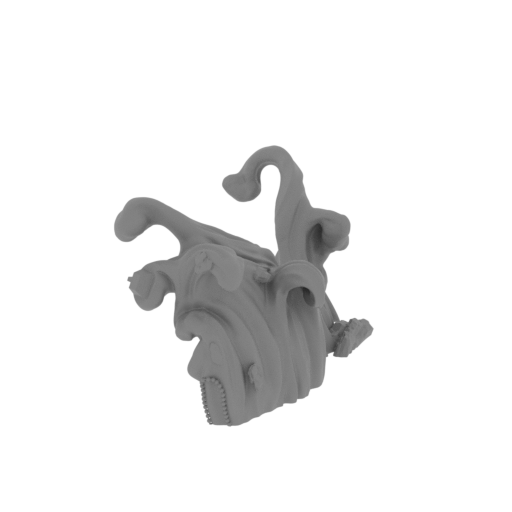

	27_platform_4_FDM(repaire d).stl	23.21 MiB	19 h 9 min 11 m	85 x 159 x 84	Download

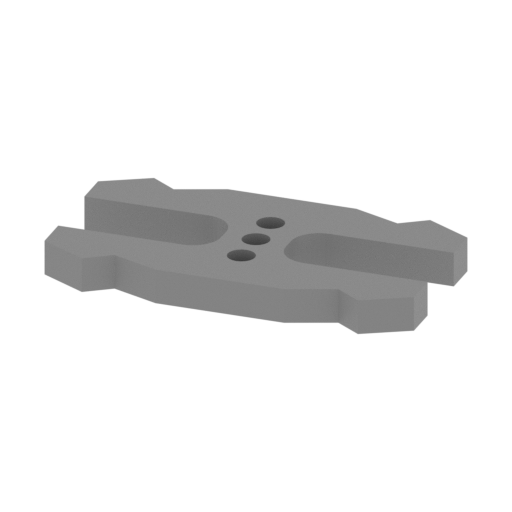

	28_Ge_lock_10H(x13)_FDM(r epaired).stl	0.03 MiB	4 min <1 m	18 x 10 x 2	Download

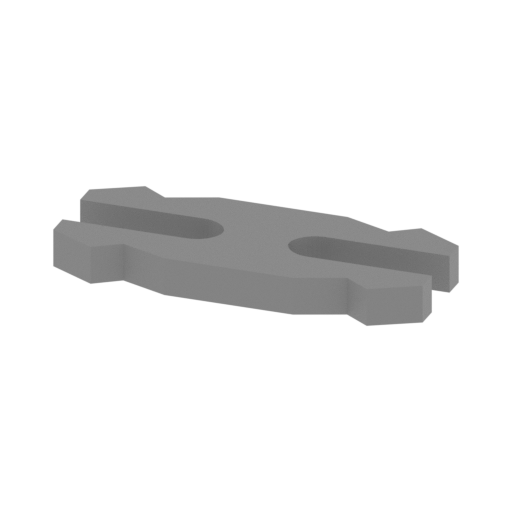

	29_Ge_lock_7S(x1)_FDM(rep aired).stl	0.02 MiB	3 min <1 m	18 x 7 x 2	Download
	Keychain (repaired).stl	0.35 MiB	23 min <1 m	30 x 30 x 2	Download
	Tag (repaired).stl	1.70 MiB	1 h 18 min 1 m	150 x 18 x 5	Download
...

ABOUT THIS 3D MODEL

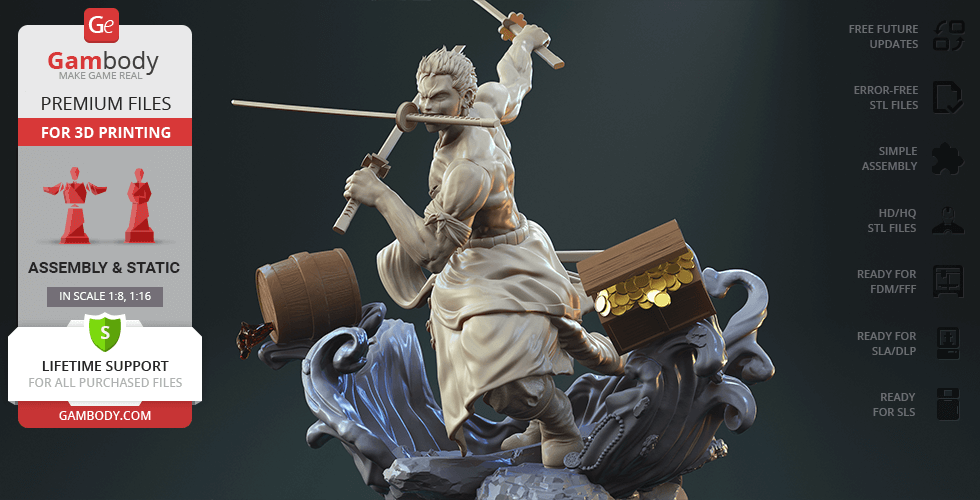

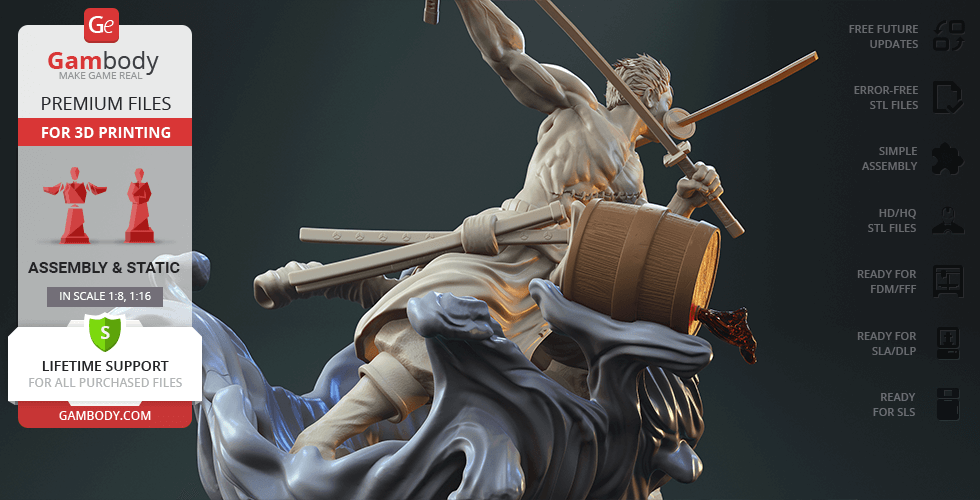

Prepare for a 3D printing adventure with Roronoa Zoro, the legendary Pirate Hunter and a core member of the formidable Straw Hat Pirates crew. This figurine captures the essence of a character whose journey from a humble East Blue upbringing to becoming a renowned swordsman is nothing short of epic.

More than just a swordsman, Zoro is a key combatant, the right-hand man of his captain, Monkey D. Luffy, and one of the Senior Officers of the Straw Hat Grand Fleet. He traces his roots back to the Shimotsuki family of Wano Land and the legendary samurai, Shimotsuki Ryuma. A master of the Three Sword Style, a unique swordsmanship style of his own creation, Zoro stands as one of the three most powerful combatants in the Straw Hat crew alongside Luffy and Sanji. His relentless pursuit of becoming the world's greatest swordsman is a promise he made to his late childhood friend, Kuina.

The Roronoa Zoro 3D Printing Figurine is a tribute to Zoro's unwavering dedication. 3D artist ensured that the figurine features meticulous details, effectively bringing his iconic hairstyle, three-sword stance, and fearless character. Get ready to immerse yourself in the world of One Piece and print this extraordinary piece of art that reminds us all that dreams are worth chasing!

ADAPTATION FOR 3D PRINTING

Roronoa Zoro for 3D printing is a static assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 78 hours in total. The figurines' anatomy and proportions were thoroughly reviewed during the moderation process for the creature to be depicted harmoniously in the intended pose.

The figurine’s cutting was chosen by our team to minimise the amount of generated support and some of the parts were hollowed out for you to save resin in the Eco version. In order to conceal the places where the assembly parts of the figurine are connected, Roronoa Zoro was divided into convenient assembly parts.

All assembly parts in the FFF/FDM 1.0 version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any model's file you will also receive "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format. We highly recommend that you get acquainted with the “Assembly Video” and "Assembly Manual" before getting down to Roronoa Zoro.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The figurine’s scale was calculated from the height of Roronoa Zoro The 3D printing figurine’s chosen scales are 1:8 for the FFF/FDM version and 1:16 for the DLP/SLA/SLS versions.

VERSIONS’ SPECIFICATIONS

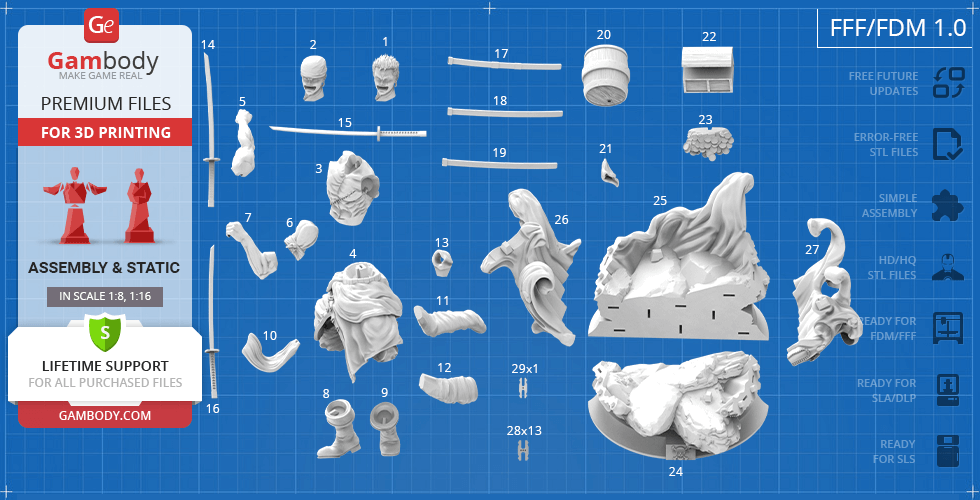

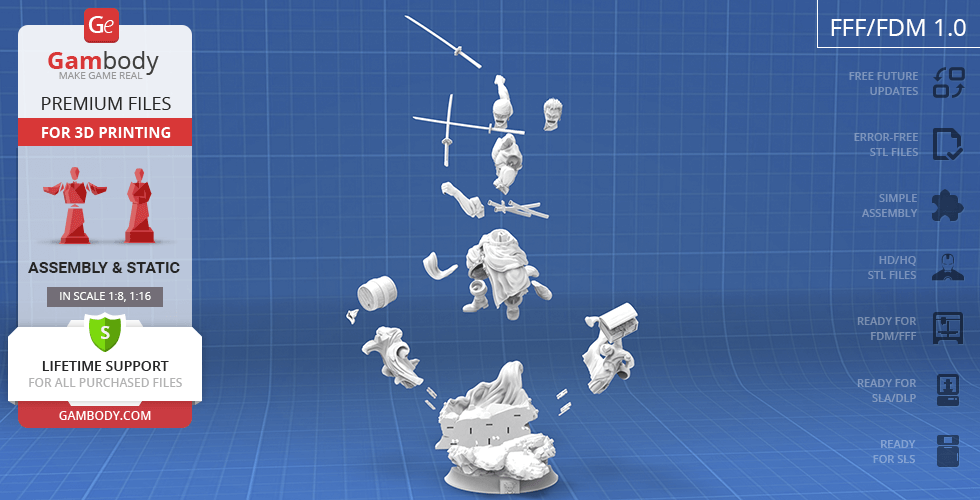

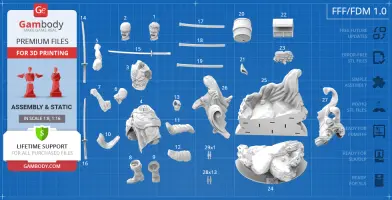

FFF/FDM 1.0 versions features:

Contains 28 parts;
A printed figurine is 305 mm tall, 259 mm wide, 239 mm deep;
All parts are divided in such a way that you will print them with the smallest number of support structures.

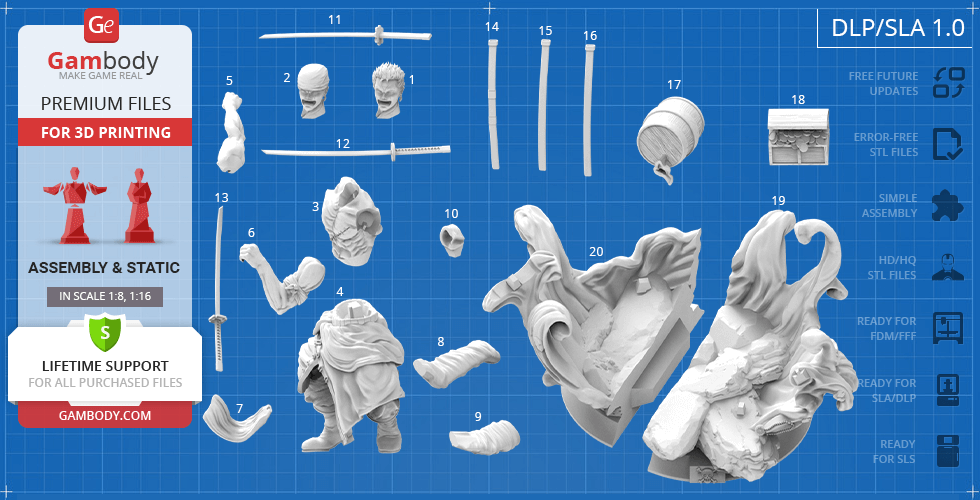

DLP/SLA 1.0 versions features:

Contains 20 parts;
A printed figurine is 153 mm tall, 129 mm wide, 119 mm deep;
All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

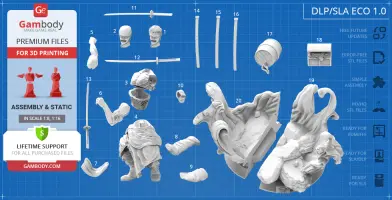

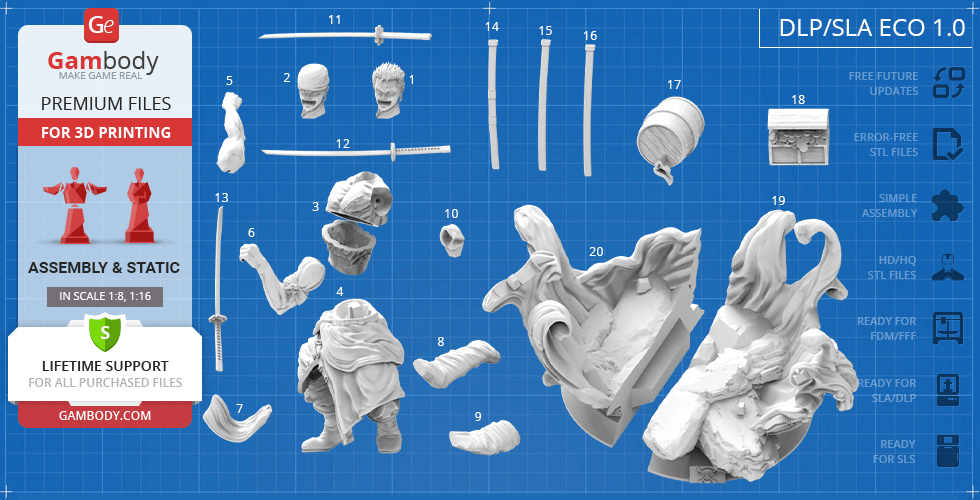

DLP/SLA Eco 1.0 versions features:

Contains 20 parts;
A printed figurine is 153 mm tall, 129 mm wide, 119 mm deep;
Some parts are manually hollowed out to save resin.

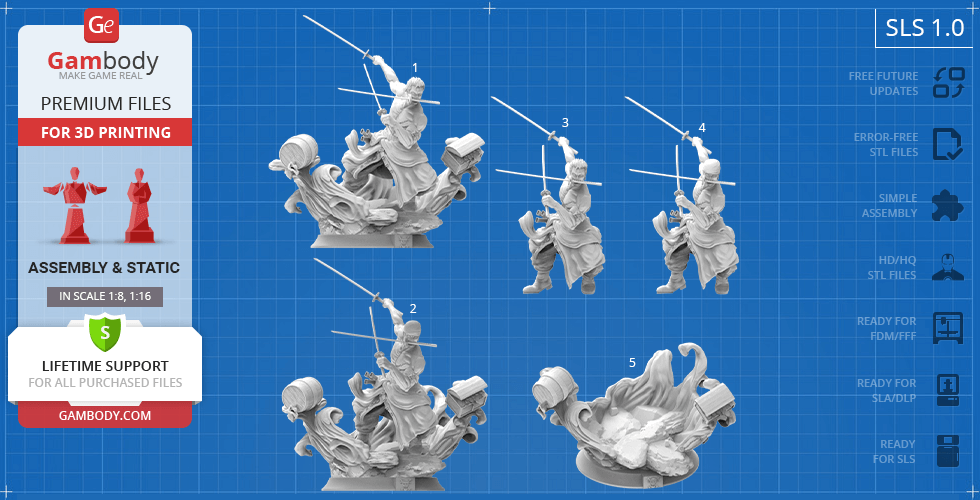

SLS 1.0 versions features:

Contains 5 parts.

You can get the figurine of Roronoa Zoro for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Roronoa Zoro 3D Printing Figurine on Gambody YouTube channel.

Also, you may like Chibi Monkey D. Luffy and Anime 3D Printing Figurines.

_______

FAQ:

Generic

Below you can find printing recommendations for Cura, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

All connectors should be printed at 100% Infill.

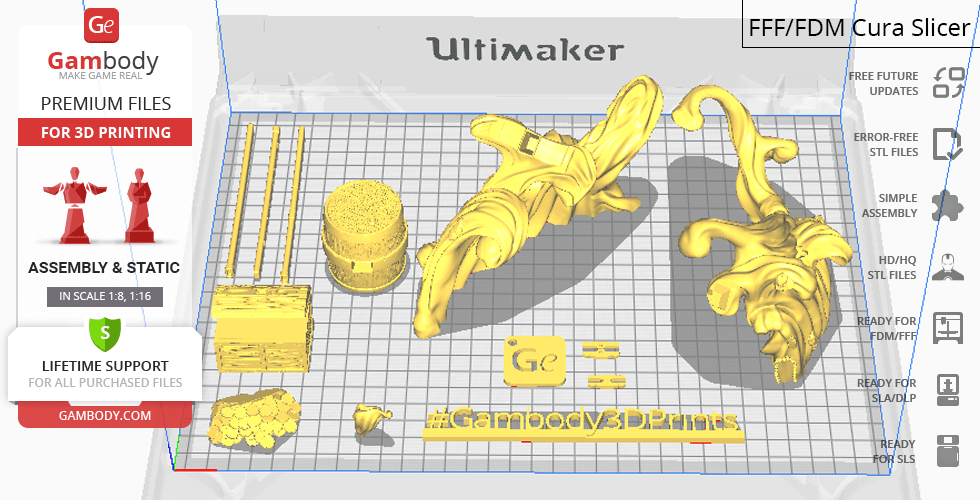

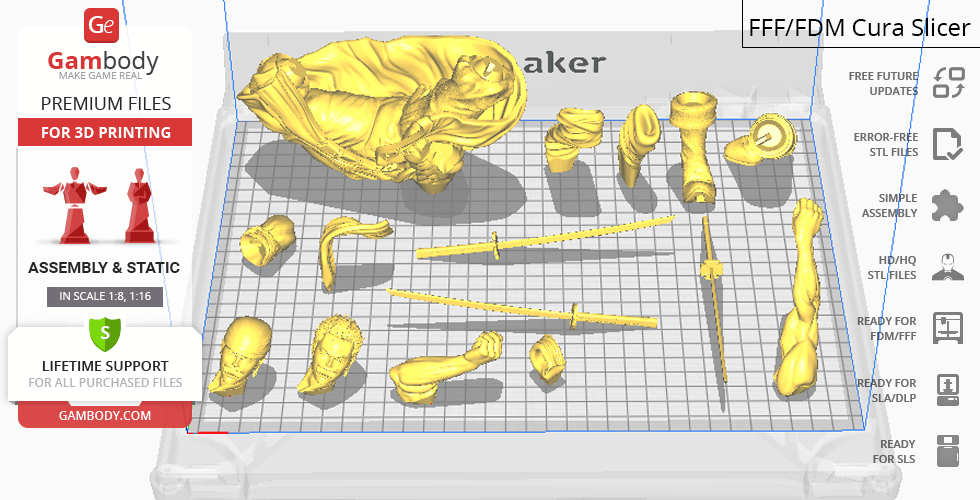

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
