STL files and the cutting of this model are preserved as created by the Author. This model was not moderated by Gambody, it is not subject to technical support by Gambody, and we do not offer any guarantees on the 3D printing results.

Stock models can only be purchased in an order separate from the Premium STL files by Gambody. If a Premium model is added to the Cart, the Stock models are deleted automatically, and vice versa.

You can read more about Stock models on Gambody's Blog.

The Author of the Stock model can provide technical support if they wish. All your questions, requests, wishes and remarks can be left in the comment section below.

Gambody Team can consider providing a Premium version of the model if highly requested.


	File Name	File Size	Time / Filament	Object Size (x/y/z mm)
	9.stl	0.08 MiB	1 min <1 m	13 x 8 x 1	Download
	Body Whole.stl	0.50 MiB	28 h 27 min 18 m	126 x 76 x 81	Download
	Control Panel Button Surr ounds.stl	0.19 MiB	11 min <1 m	21 x 14 x 7	Download
	Control Panel Buttons.stl	0.23 MiB	18 min <1 m	19 x 13 x 8	Download
	Control Panel.stl	0.47 MiB	49 min <1 m	34 x 26 x 10	Download
	Dog Tag.stl	0.02 MiB	1 min <1 m	6 x 6 x 1	Download
	Eye Visor.stl	0.04 MiB	6 min <1 m	23 x 12 x 1	Download
	Front_Back Bumper.stl	0.03 MiB	23 min <1 m	57 x 6 x 6	Download
	Handle.stl	0.07 MiB	2 min <1 m	17 x 5 x 2	Download
	Head.stl	1.07 MiB	3 h 35 min 2 m	70 x 25 x 39	Download
	Internal Panel.stl	26.23 MiB	3 h 38 min 2 m	50 x 89 x 9	Download
	K.stl	0.08 MiB	1 min <1 m	13 x 11 x 1	Download
	Left Body.stl	0.17 MiB	16 h 30 min 11 m	126 x 81 x 38	Download
	Left Ear.stl	2.03 MiB	4 min <1 m	11 x 11 x 7	Download
	Left_Right Bumper.stl	0.03 MiB	40 min <1 m	104 x 6 x 6	Download
	Long Gun.stl	0.02 MiB	5 min <1 m	4 x 19 x 4	Download
	Long Probe.stl	0.23 MiB	7 min <1 m	79 x 5 x 5	Download
	Neck.stl	2.65 MiB	1 h 18 min 1 m	24 x 26 x 26	Download
	Period.stl	0.04 MiB	1 min <1 m	3 x 3 x 1	Download
	Rear Panel.stl	0.16 MiB	11 min <1 m	41 x 22 x 1	Download
	Right Body.stl	0.33 MiB	18 h 20 min 14 m	126 x 81 x 38	Download
	Right Ear.stl	2.05 MiB	4 min <1 m	11 x 11 x 7	Download
	Short Gun.stl	0.02 MiB	3 min <1 m	4 x 7 x 4	Download
	Short Probe.stl	0.48 MiB	3 min <1 m	5 x 11 x 5	Download
	Side Panel.stl	0.11 MiB	2 h 34 min 2 m	92 x 52 x 13	Download
	Tail.stl	0.26 MiB	13 min <1 m	51 x 9 x 9	Download
...

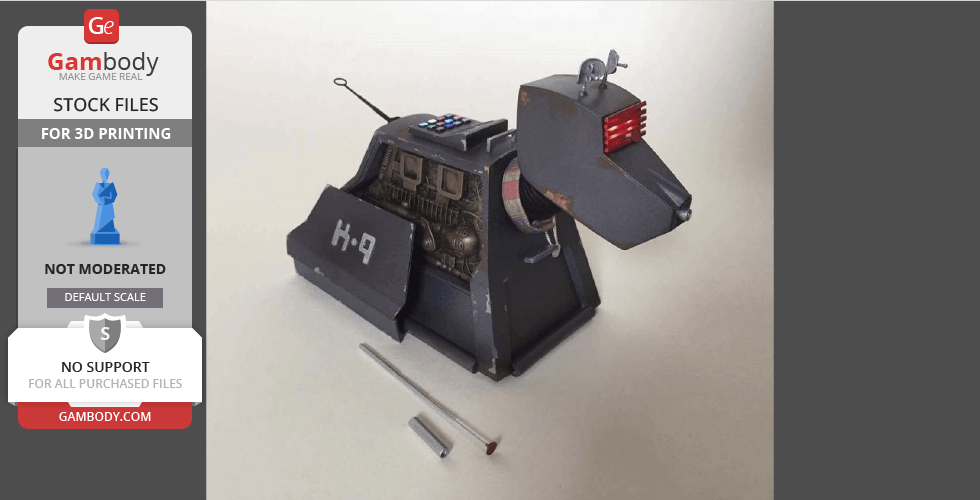

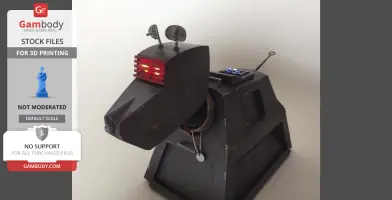

Recreate K9 Mk III who featured in the Doctor Who episode 'School Reunion'.

I was able to take measurements from the actual prop in order to make this as accurate as the real thing!

The model itself is 180mm from nose to tail at preciesly 1:6 scale.

The files even include interchangable 'nose laser' for an extended or retracted look.

Interchangable 'eye probe' which again can be posed in the extended or retracted position.

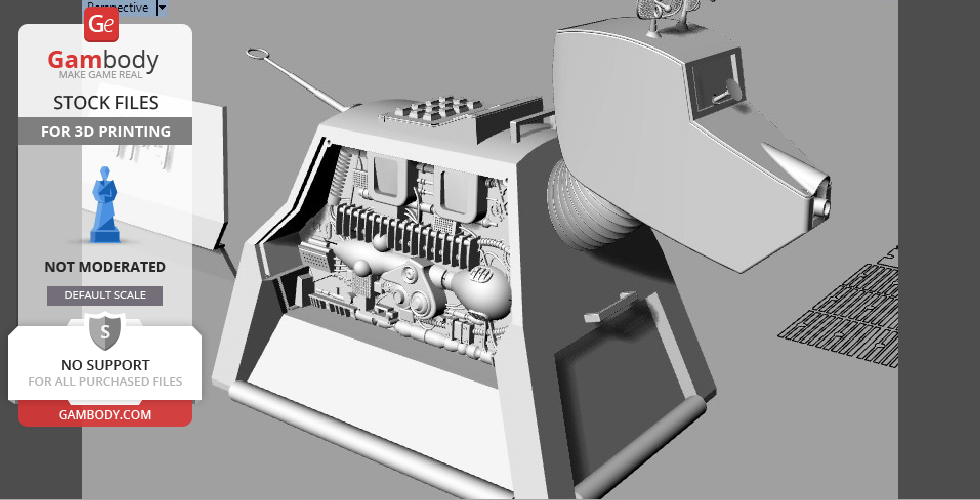

I was even able to talk with the prop master for the show in 2006 who shared with me detailed pictures of the inner workings of K9. As such, also included is a very detailed and accurate insert of the inside of K9 which can be seen after removing the side panel.

The removable side panel intself is designed to house 1x2mm magnets on the four corners which will hold it in place. However, these are not essential as the panel is a snug fit.

Generic

As for printing the model, I would reccoment that the ears, tail, probes and back control panel are Polyjet or SLA printed due to the incredibly fine detail.

A well tuned FDM printer should have no trouble with everything else (unless you scale down).

When I assembled my own, the entire thing was polyjet printed which allowed me to capture all the miniscule details like screw heads and seamlines that a filiment printer would otherwise miss.

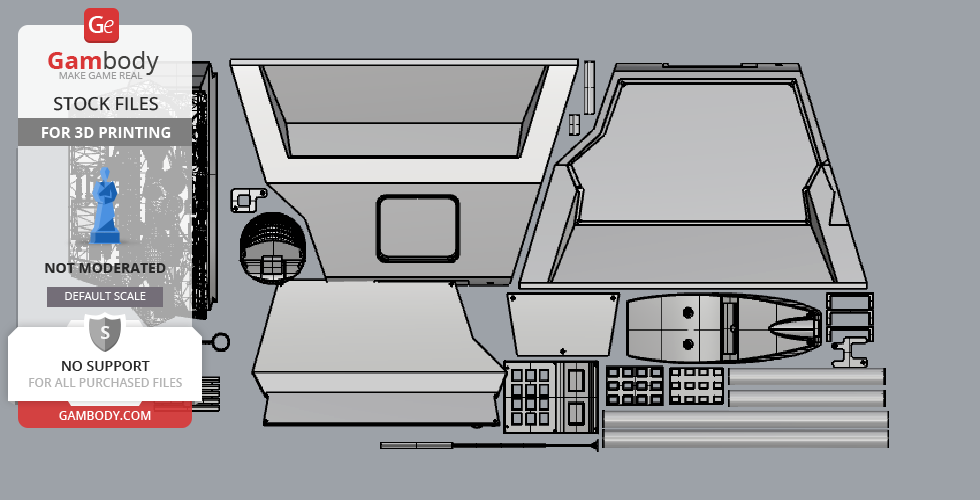

Every part is supplied as a seperate file, included 2 files for the body, one whole and one split.
